DRG/DRGL Series

Digital Video Recorder

User Manual

DRG1600 / DRG800

DRGL1600 / DRGL800 / DRGL400

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence

of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of

electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and Maintenance (servicing) instructions in the literature accompanying the product.

COMPLIANCE NOTICE OF FCC:

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGEY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE

FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCECAUSING EQUIPMENT REGULATIONS.

The information in this manual is believed to be accurate as of the date of publication. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.

IMPORTANT SAFEY INFORMATION

1. Read Instructions

All the safety and operating instructions should be read before the device is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Cleaning

Unplug this equipment from the wall outlet before cleaning it. Do not Use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

4. Attachments

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

5. Water and/or Moisture

Do not use this equipment near water or in contact with water.

6. Accessories

Do not place this equipment on an unstable cart, stand or table. The equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer.

7. Power Sources

This equipment should be operated only from the type of power source Indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer or local power company.

8. Power Cords

Operator or installer must remove power and TNT connections before handling the equipment.

9. Lightning

For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due to lightning and power-line surges.

10. Overloading

Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

11. Objects and Liquids

Never push objects of any kind through openings of this equipment as They may touch dangerous voltage points or short out parts that could Result in a fire or electric shock. Never spill liquid of any kind on the Equipment.

12. Servicing

Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.

13. Damage requiring Service

Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or the plug has been damaged. B. If liquid is spilled, or objects have fallen into the equipment. C. If the equipment has been exposed to rain or water. D. If the equipment does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation. E. If the equipment has been dropped, or the cabinet damaged. F. When the equipment exhibits a distinct change in performance — this indicates a need for service.

14. Replacement Parts

When replacement parts are required, be sure the service technician

has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

15. Safety Check

Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition.

16. Field Installation

This installation should be made by a qualified service person and should conform to all local codes.

17. Correct Batteries

Warning: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

18. Tmra

A manufacturer’s maximum recommended ambient temperature (Tmra) for the equipment must be specified so that the customer and installer may determine a suitable maximum operating environment for the equipment.

19. Elevated Operating Ambient Temperature

If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than

room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

20. Reduced Air Flow

Installation of the equipment in the rack should be such that the

amount of airflow required for safe operation of the equipment is not compromised.

21. Mechanical Loading

Mounting of the equipment in the rack should be such that a

hazardous condition is not caused by uneven mechanical loading.

22. Circuit Overloading

Consideration should be given to connection of the equipment to supply circuit and the effect that overloading of circuits might have on over current protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

23. Reliable Earthling (Grounding)

Reliable grounding of rack mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips).

1. SAFETY

----------------------------------------------

1.1 Power Source

-------------------------------------------------

1.2 Installation

---------------------------------------------------------

1.3 Cleaning and Usage

----------- - - - - ---------------- - - - - - - ---------

2. DVR

-----------------------------------------------------------

2.1 Functions

---------------------------------------------------------

2.2 System Connections

--------------- ------ ------------- ------ -------

3. DVR CONTROLS

----------------------------------------------

3.1 Front Panel

---------------------------------------------------------

3.2 Rear Panel

---------------------------------------------------------

3.2.1 DRD Series

------------------------------------------------------

3.2.2 DRM Series

------------------------------------------------------

3.3 Remote Controller

----------------------------------------------------

4. LIVE

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

4.1 Live Screen

--------------------------------------------------------

4.1.1 Top Menu

----------------------------------------------------

4.1.2 Bottom Menu

-------------------------------------------------

4.1.3 CAMEO Menu

-------------------------------------------------

5. SETUP

--------------------------------------------------------------

5.1 GENERAL SETUP

----------------------------------------------------

5.1.1 GENERAL

------------------------------------------------------

5.1.2 ALARM OUT

----------------------------------------------------

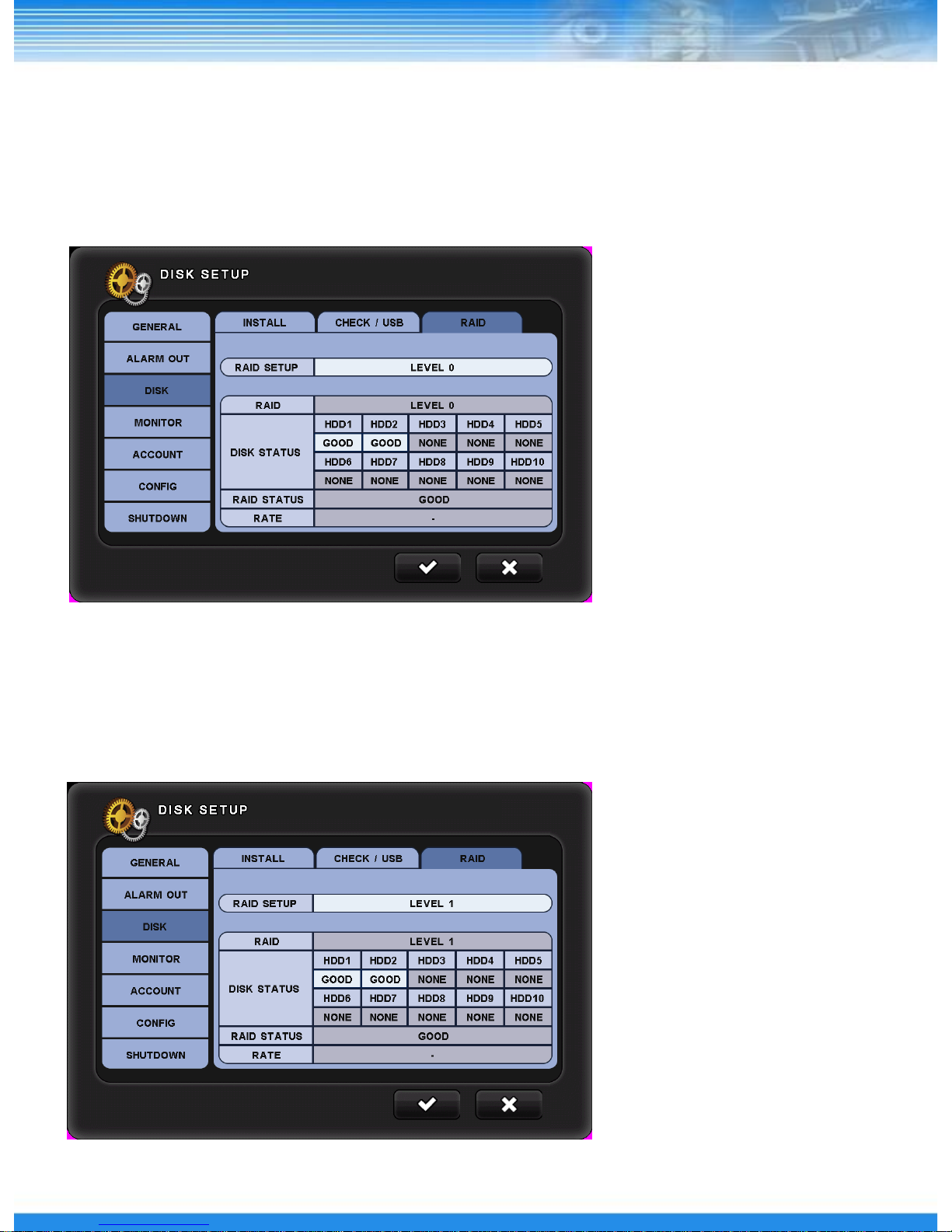

5.1.3 DISK

---------------------------------------------------------

5.1.4 MONITOR

------------------------------------------------------

5.1.5 ACCOUNT

------------------------------------------------------

5.1.6 CONFIG

------------------------------------------------------

5.1.7 SHUTDOWN

----------------------------------------------------

INDEX

5.2 CAMERA SETUP

-----------------------------------------------------

5.2.1 CAMERA

-------------------------------------------------------

3.2.2 PTZ

-----------------------------------------------------------

5.2.3 SPOT

----------------------------------------------------------

5.2.4 SEQUENCE

-----------------------------------------------------

5.2.5 PRIVATE ZONE

--------------------------------------------------

5.3 EVENT SETUP

-------------------------------------------------------

5.3.1 MOTION

-------------------------------------------------------

5.3.2 ALARM IN

-------------------------------------------------------

5.3.3 VIDEO LOSS

----------------------------------------------------

5.3.4 SYSTEM

-------------------------------------------------------

5.3.5 DISPLAY

-------------------------------------------------------

5.4 RECORD SETUP

----------------------------------------------------

5.4.1 RESOLUTION

----------------------------------------------------

5.4.2 SCHEDULE

-----------------------------------------------------

5.4.3 RECORD

-------------------------------------------------------

5.4.4 EVENT

--------------------------------------------------------

5.4.5 AUDIO

--------------------------------------------------------

5.4.6 MANUAL

-------------------------------------------------------

5.5 ETHERNET SETUP

----------------------------------------------------

5.5.1 NETWORK

-----------------------------------------------------

5.5.2 SERIAL

--------------------------------------------------------

5.5.3 DDNS

----------------------------------------------------------

5.5.4 E-MAIL

--------------------------------------------------------

5.5.5 NET FRAME

-----------------------------------------------------

5.6 SYSTEM SETUP

-----------------------------------------------------

5.6.1 SYSTEM LOG

----------------------------------------------------

5.6.2 STATUS

-------------------------------------------------------

5.6.3 VERSION

-------------------------------------------------------

5.6.4 UPGRADE

-------------------------------------------------------

INDEX

6. SEARCH

-------------------------------------------------------------

6.1 Search Screen

-------------------------------------------------------

6.1.1 Search Menu

----------------------------------------------------

6.1.2 Calendar Search

--------------------------------------------------

6.1.3 Event Search

----------------------------------------------------

6.1.4 Overlapped List

--------------------------------------------------

6.1.5 Panorama Search

------------------------------------------------

6.1.6 Section Repeat Search

---------------------------------------------

6.1.7 Museum Search

----------------------------- -- -- - - - - - - - - - - --

7. BACKUP

-------------------------------------------------------------

7.1 Play with backup data

------------------------------------------------

8. APPENDIX

-----------------------------------------------------------

8.1 Firmware Upgrade

-----------------------------------------------------

8.2 Web Client

----------------------------------------------------------

8.2.1 Web Viewer Functions

---------------------------------------------

8.3 Specification – DRD Series

-----------------------------------------------

8.4 Specification – DRM Series

-----------------------------------------------

8.5 Trouble Shooting

-----------------------------------------------------

8.6 Mobile Viewer

-----------------------------------------------------

INDEX

6 6

1.1 Power Source-related

① Insert the power plug fully and firmly into the power source.

- Unstable connection may cause fire.

② Do not use a damaged power cord, plug or loose

outlet.

- It may cause electric shock or fire.

③ Do not plug several devices exceeding the rated capacity into a single outlet.

- Abnormal heat generation at the outlet may cause fire.

④ Do not bend nor pull the power cord. Do not place a heavy object on top of it.

- It may cause electric shock or fire.

⑤ When unplugging the power cord, do not pull it

out by touching the cord area or do not touch it

with a wet hand.

- It may cause electric shock or fire.

1. SAFETY CAUTIONS

1.2 Installation-related

① Do not place candlelight or cigarette light on top of the product or do not install the product near heating devices.

- It may cause fire.

② Do not place the power cord near heating devices.

- The exterior of the cord may peeled off, causing electric shock or fire.

③ Do not install the product in a place where a large amount of oil, smoke or moisture exists. Do not install the product in a vehicle or a place where water is present.

- It may cause electric shock or fire.

④ Do not place the product on top of an unstable cart,

stand or table. Do not block the air ventilation with

table cloth or curtain.

- Internal temperature rise may cause fire.

⑤ Do not install the product in a confined area. Keep the product in area with plenty of air flow.

- Internal temperature rise may cause fire.

※ Follow these instructions to keep the user safe and prevent property damage. Read them carefully before the use of the product. The responsibility falls on the user to install and use the product properly.

7 7

⑥ When cleaning the product, unplug the power

cord and gently wipe using a soft cloth. Do not directly spray water on the product or do not use benzene, thinner or alcohol when cleaning.

- It may cause electric shock or fire.

⑦ When replacing the battery, be sure to check the correctness of the polarity (+,-).

- If the battery polarity is wrong, generation of abnormal

heat or leakage of internal liquid may cause fire, injury or contamination in the surrounding area.

⑧ In case the product was dropped or the case was damaged, switch off the product and unplug the power cord. Have a technician repair the product.

- If the damaged product is used without repair, it may

cause electric shock.

⑨ Do not repair or disassemble the product by yourself or do not connect other connection devices without the manufacturer’s approval.

- If repair is required, contact the reseller. Failure to follow this instruction may cause electric shock or fire.

1.3 Cleaning and Usage-related

① Un p lug the po wer plug du rin g ligh t n i ng , thunderstorm or when not in use for long periods of time.

- It may cause electric shock or fire.

② When taking the battery out from the remote control, keep them away from children to prevent from swallowing incidents. Keep the battery away from babies.

– If a child swallowed the battery, immediately

consult a doctor.

③ Do not place the container or base filled with water, liquids, chemicals, small piece of metal and heavy object on the product.

- If liquid flows into the product, it may cause electric shock or fire. A heavy object may drop from the top of the product, causing injury.

④ Do not use or store the product near combustible sprays and other flammable substances.

- It may cause explosion or fire.

⑤ If dust or water is present at the power plug’s pin

and contact area, wipe out the area.

- may cause electric shock or fire.

*Some Functions May Not Be Supported By All Models

This DVR provides superior video image quality, reliability, and performance.

• Pentaplex Operation Performance (Live / Recording / Playback / Backup / Network)

• Up to maximum 16 channel composite inputs depending on model (4 / 8 / 16)

• Various Recording modes (Manual / Schedule / Event)

• Various Search functions (Date Hour search / Calendar search / Event Search / Museum Search)

• Various Playback functions (Normal / Fast / Slow / Step / Reverse / Panorama / Repeat)

• Overwrite Recording function (FIFO)

• The DVR menu uses a simple and easy to understand graphical user interface (GUI).

• Supports up to 4 channel Audio

• Supports USB Mouse control

• E-mail function (Alarm / Motion detection / Video loss / HDD failure / etc.)

2. OUTLINE

2.1 Functions

2.2 System Connections

SMS CAMERA

PTZ KEYBOARD

MAIN/SPOT

MONITOR

MIC

SIREN

SENSOR

SPEAKER

PTZ

LCD/VGA MONITOR

Video out

Network

Video input

Audio Input

Audio Output

Sensors Input

Alarm

Out

3. DVR CONTROLS

3.1 Front Panel Description

NOTE: Turn on the DVR after connecting the power cord, camera input and monitor completely

▪ DRG- Series Front panel

▪ Front LED

Recording LED

Recording LED is on when DVR is recording.

Network LED

Network LED is on when DVR is connected to a network.

Display/Recording Menu/ESC

Rotate/Backup Search/Pause PRESET/ZOOM FOCUS/IRIS

Enter button

Direction Key ▲ / Panorama playback

Direction Key ▼ / Smart playback

Remote

controller IR

Number button

Fast reverse play / PTZ

Status window Buzzer

Lock / Repeat

USB PORT

Fast play /

REPLAY

The front panel of the DVR is similar to a normal VCR or Multiplexer and the functions are also similar. Front panel controls can be used for all of the DVR functions. Please refer to the following controls, functions and descriptions:

NUMBER buttons (0 ~ 9)

Displays selected camera number to full screen. Number buttons are also used to enter passwords.

NOTE: To select number 11 and up use the +10 button. Ex) 10 + 1 = 11, 10 + 6 = 16

DISPLAY button

Displays split screen 1, 4, 7, 9, 10, 13, 16.

REC button

Starts recording when this button is pressed in live mode.

MENU button

Enters Setup menu user will need Admin access permission. Return to previous screen if this button is pressed again.

ESC button

Exits current screen or return to previous screen.

ROTATE button (Preset)

Displays next channel when this button is pressed. In PTZ mode It is used as a preset function button.

BACKUP button (Zoom)

Enters Backup menu or return to previous screen if this button is pressed again.

In PTZ mode it is used as Zoom function button.

SEARCH button (Focus)

Enter Search menu, password is required for search function. Returns to previous screen if this button is pressed again. In PTZ menu it is used as Focus function button.

PAUSE button (IRIS)

In Search mode button is used to pause playback.

In PTZ mode it is used for IRIS function adjustment.

- Front Button

Direction buttons (▲, ▼, ◀, ▶ )

These buttons are used to move to another menu or change the position of the screen. In PTZ mode, buttons are used for PAN/TILT function.

▲ : In Playback mode Panorama search function button. In PTZ mode used to move the camera up. ▼ : In Playback mode Smart search function button. In PTZ mode to move the camera to down. ◀ : In Playback mode reverses playback and when playback is paused

the control is now a manual frame advance.

In PTZ mode to move the camera to left. ▶ : In Playback mode forward playback and when playback is paused the control is now a manual frame advance. In PTZ mode to move camera to right.

NOTE: For the Smart search function, recording data should be Event type recording. Otherwise playback with Smart search returns to live mode.

ENTER button

Executes the selected button or saves the setup value.

FAST REVERSE PLAY button (PTZ)

Playback with fast reverse. Playback speed is changed if this button is pressed repeatedly. (◀, ◀◀, ◀◀◀, ◀◀◀◀, ◀◀◀◀◀). In PTZ mode used as Zoom out function.

In live mode button turns on PTZ function.

FAST FORWARD PLAY button (PLAY)

Playback with fast forward. Playback speed is changed if this button is pressed repeatedly. (▶, ▶▶, ▶▶▶, ▶▶▶▶, ▶▶▶▶▶). In PTZ mode used as Zoom in function.

In live mode button plays back the previous 30 seconds of recorded video.

3.2 Real Panel

3.2.1 DRG Series

Camera Input

16ch Loop Out

16ch Audio In

1ch Audio Out

RS-232

12ch Sensor Input

3ch Alarm Out

Spot Out

Main Out

HDMI Main Out

VGA Main Out

Network

RS-485

4ch Sensor Input

1ch Alarm Out

Display Resolution

Switch

Power

1 2 3

4 5

7 8 9 10

11 12 13 14

2 4 1 3

6 7 8 9 10 11 12 13 14

3.2.2 DRGL Series

9 10

1 2 4

Camera Input

Spot Out

Audio Out

16ch Audio In

BNC Main Out

HDMI Main Out

VGA Main Out

Network

RS-485

4 Alarm In

1 Alarm Out

Display Resolution

Switch

Power

1 2 3

4 5

7 8 9 10

11 12

8 7

11 12

※ How to set ID

① Before setting up IR remote ID, Enter the GENERAL SETUP and select the unit ID. (Default is 0) ② While pressing and holding the ID button, enter the unit address of the DVR. ③ If the unit address is a single digit, enter two digit number by adding the number 0 as the first digit.

( Example – If the unit address is 1, the input value is 01.)

※ A single remote controller can change ID from 0 to 19 and independently control up to 20 DVRs.

RECORD

ROTATE

DISPLAY

ESC

LOCK(LOG-OUT)/ REPEAT

NUMBER

PTZ PRESET

PTZ IRIS

▲ Direction Key /Panorama Play

ENTER

▼ Direction Key /Smart Play

▶ Direction Key / Play

Fast Reverse Play/

PTZ

Fast Forward Play / PLAY

◀ Direction Key /

Reverse Play

3.3 Remote Controller

PAUSE

BACKUP

PTZ ZOOM

PTZ FOCUS

4. LIVE

- Record Icon (Red) When record in live screen.

- Time Icon When record by designated time.

- Motion Icon When motion is occurred.

- Sensor Icon When sensor is occurred.

- Video-loss Icon When there is no video input.

- Audio Icon When sound is generated in live mode.

- Freeze Icon When live is paused.

- Sequence Icon When screen is rotated continuously.

Record Status

Icon

Camera Name

Screen

Expand/Reduction

Window

Current Event Information

Icon

Backup Progress

Status(%)

Live Screen

Sequence Icon

PTZ Control

Information

Current Channel

Information Icon

Current Date and

Time

Execution Information Message

4.1 Live Screen

In live screen, if ▲ button of the remote controller or front panel is pressed, or if the mouse cursor is placed over the top area of the screen this menu will appear.

1 4 7 9 10 13 16

4.1.1 Top Menu

Backup Status Setup Log-out

In Live screen, if ▼ button of the remote controller or front panel is pressed, or if the mouse cursor is placed

over the bottom area of the screen this menu will appear.

4.1.2 Bottom Menu

In live screen, if the ENTER button of the remote control or front panel is pressed, a blue square cursor will appear. If the ENTER button is pressed again, the CAMERA menu will appear.

4.1.3 CAMEO Menu

▪ CAMEO CHANGE: The live camera view can be moved to a different camera channel.

Select the cameo change option to move the camera view to the new channel

▪ PLAYBACK : Playback on selected channel. (replays last15~20 seconds) ▪ FREEZE: Live screen of the selected channel can be paused. ▪ FREEZE ALL: Live screen of the all channels can be paused. ▪ SEQUENCE: Live view will rotate between cameras.

▪ Using Mouse: For the above menu click the right mouse button to control functions Zoom, Focus and Iris functions.

▪ PTZ: PTZ Camera should be installed otherwise the PTZ menu can not be activated. The following GUI will appear when the PTZ menu is selected [MENU] button.

▪ Using Remote Controller or Front Key: The below PTZ Hot Key menu is available.

- Press the ENTER button on PTZ Camera channel.

- Press the ENTER button again then the CAMEO menu will be displayed.

- Select PTZ menu on the Live CAMEO menu.

- Press the ENTER button again, the above PTZ menu screen will be displayed.

- Zoom Control: In PTZ mode, press the Zoom (Back) button.

Zoom in - Fast reverse play button / Zoom out - The fast forward play button.

- Focus Control: In PTZ mode, press the Focus (Search) button. (+) - Fast reverse play button / (-) – Fast forward play button.

- Iris Control: In PTZ mode, press the Iris (Pause) button. (+) – Fast reverse play button / (-) – Fast forward play button.

Menu Z+ / Z- : Zoom In / Zoom Out F+ / F- : Focus In / Focus Out I+ / I- : Iris In / Iris Out

▪ SPEED SETUP: Set the PTZ camera speed (1 to 8)

NOTE: If the mouse is used to move the PTZ camera, the movement speed depends on the position

of the mouse. As the mouse pointer moves away from the center the speed becomes faster.

▪ PRESET SETUP: Set the preset position. If the position setup is saved, PTZ camera can be directed to the preset position. ▪ PRESET TOUR: 6 different preset list can be created. If the created preset lists are set to “ON”, movement is made with preset tour.

▪ PATTERN SETUP:

Pattern can be created by movement, zoom, focus and iris. After pressing the BEGIN button, adjust the

PTZ camera position or zoom and then press the END button. All directions (up, down, left and right), zoom and iris settings are recorded.

▪ PATTERN TOUR: PTZ camera moves according to the saved pattern. ▪ AUTO FOCUS / POWER / LIGHT:

Auto focus, power and light functions can be turned on/off.

▪ OSD MENU: Turn on/off the OSD menu.

▪ ZOOM X2: Digital Zoom in x2.

▪ ZOOM X4: Digital Zoom in x4.

▪ ADUIO ON: Turn on/off Audio.

5. SETUP

General, Camera, Event, Schedule, Ethernet and System Information.

On the Top menu, select the [SETUP] menu.

After menu is selected the following Log-in window will appear.

Enter the password by the key buttons and press the ENTER button.

(The default password : 1111)

5.1 GENERAL SETUP

Select the [GENERAL] menu.

General, Alarm, Disk, Monitor, Account, Configuration setup and Shutdown.

[SYSTEM]

▪ VIDEO FORMAT: Set the Camera Type (NTSC / PAL) If menu is set to AUTO the DVR will recognize the camera type automatically.

NOTE: If NTSC and PAL cameras are connected simultaneously error may occur. ▪ LANGUAGE: Select the language.

(English, German, French, Spanish, Japanese, Chinese, Italian, Russian, Dutch and Korean)

▪ KEY TONE: Turn on/off the buzzer sound of key. ▪ UNIT ADDRESS: Sets the DVR ID.

This ID can be used to control multiple DVR’s with one IR remote control. ▪ BASE CAMERA NO: Sets the beginning number of camera.

Used when multiple DVR’s are in use for one installation

▪ MENU TIMEOUT: Sets the auto logout timer of the system. ▪ PLAYBACK PROTECT: Prohibits the recording of more than the selected number of days.

(Select 0 to 99 days. If set 3 days, can not playback the data older than 3 days.

▪ BACKUP CONFIRM: Confirms the backup process. ▪ HDD OVERWRITE: Select on/off to overwrite data on Hard disk.

NOTE: If set to [OFF], recording will be stopped automatically when disk is full.

▪ PLAYBACK MODE: This is playback quality option if the resolution is set D1.

[FRAME] : Played with original video. [FIELD] : Played with de-interlace feature.

5.1.1 GENERAL

[DATE / TIME]

▪ DATE FORMAT: Select the data format. (YY/MM/DD) / (MM/DD/YY) / (DD/MM/YY)

▪ TIMEZONE: Select the time zone and DST. The city which don’t use DST is set to [OFF] automatically.

▪ DATE DISPLAY: Display date on live screen or not. ▪ DATE / TIME: Change date and time. ▪ NTP: Select the usage of NTP setting.

DVR time is synchronized with NTP server for date and time. The default server is [pool.ntp.org] and user can input other server.

[Sync now] : Synchronize immediately. [Auto Sync] : Synchronize every day automatically.

▪ HOLIDAY: Add or delete holiday schedule.

5.1.1 GENERAL

▪ SIGNAL: Select on/off to use alarm by channel. ▪ ALARM SET: Check the alarm connection to ensure it is working properly.

Press the [SET] button then alarm device will be activated.

▪ ALARM CLEAR: Press the [CLEAR] button then alarm will be cleared.

[HDD] - When HDD is selected under [TYPE], HDD information will be displayed. [INSTALL] - Formats HDD.

5.1.2 ALARM OUT

5.1.3 DISK

WARNING!

※ By the RAID LEVEL, minimum 2 or 3 hard disk should be installed.

※ Hard disk should be all the same model for RAID.

※ If hard disk brand or models are different errors can occur.

[RAID] ※ This function available in DRD series only.

▪ RAID SETUP : Select the RAID level (RAID0, RAID1 and RAID5). ▪ RAID : Display RAID on/off status. ▪ DISK STATUS : Display disk status. ▪ RAID STATUS : Display RAID status. ▪ RATE : Display process rate.

When setting up RAID the above message will appear,

select the check mark and the DVR will reboot.

※ Rebooting with RAID settings will be longer than normal. (About 5 minutes)

WARNING!

※ When RAID is built, all HDD data will be deleted.

※ If data is on HDD, backup the data prior to building RAID.

After build RAID, the type will be changed to [RAID] and recognized as 1 HDD. Supported RAID level is 0, 1, 5.

※ RAID 0

▪ For RAID Level 0 build the process will take about 5 minutes. ▪ Display will read [GOOD], if the building process has been completed properly.

※ RAID 1

▪ For building RAID Level 1, build time depends on the total HDD capacity. (1TB or more will take 24~48 hours) ▪ Check the status on [RAID STATUS] and [RATE].

※ RAID 5

▪ For building RAID Level 1, build time depends on the HDD capacity. (1TB HDD or more will take 24~48 hours) ▪ Check the status on [RAID STATUS] and [RATE].

▪ RESOLUTION: Select the optimal resolution for the connected monitor. If you select the [AUTO] option, HDMI monitors will auto recognize the output resolution.

▪ VIDEO OUT: Select main monitor. (MAIN–VGA / AUX-BNC Monitor) (Fix the screen by connected monitor)

▪ OSG OUT: Select the monitor for menu screen to display. ▪ BORDER COLOR: Change the border color. ▪ ALPHA BLENDING: Set the transparency of menu.

[RESOLUTION selected screen] [ALPHA BLENDING selected screen]

5.1.4 MONITOR

▪ Add / delete any user and select permissions. ▪ When adding users new passwords are required. ▪ When deleting users you will need to confirm selection.

NOTE: (Default ADMIN password is 1111) Initial user name can be modified not deleted.

CAUTION: Default Admin account must not be deleted before adding new users. If default admin user is deleted before adding new users you can not access [SETUP] menu. ▪ By the [PERM] menu permissions can be assigned to each ID.

5.1.5 ACCOUNT

▪ SLOT: Select the slot/name to load or save DVR configurations. ▪ DEFAULT: Reset to factory default settings. ▪ DATE: Displays the configuration save date. ▪ LOAD: Loads the saved configuration data. ▪ SAVE: Saves the configuration data. ▪ DEL: Deletes the saved configuration data. ▪ EXPORT: Exports the configuration settings to USB or DVD. ▪ IMPORT: Imports configuration settings from USB or DVD.

[DEFAULT selected screen] [EXPORT selected screen]

5.1.6 CONFIGURATION

▪ RESTART: Restarts the DVR. ▪ SHUTDOWN: Shuts down the DVR.

5.1.7 SHUTDOWN

▪ CAMERA LABEL: Select the camera channel label for live viewing. (ALL / NUMBER / NAME / OFF)

▪ NAME: Change the camera name. ( If select the camera name, the virtual keyboard will be displayed). ▪ INSTALL: Select On/Off button to use camera channel. ▪ HIDDEN: Select On/Off button to hide camera on live view. (Recording is not affected)

NOTE: If select [INSTALL] – [OFF], Camera name and number are not displayed.

In this menu is the Camera, PTZ, Spot, Sequence and Privacy Zone settings.

5.2.1 CAMERA

5.2 CAMERA SETUP

Select the [CAMERA] Menu.

When selecting the camera, the virtual keyboard will appear. Maximum 10 characters.

[Virtual Keyboard]

[PTZ]

▪ PORT: Select the Baud Rate for the PTZ camera. ▪ ID: Select the ID for the PTZ camera. ▪ TYPE: Displays the PTZ protocol list.

NOTE : baud rate, data bit, parity, stop bit, ID and protocol depend on PTZ camera you are using.

CAUTION : When connecting the camera to the RS-485 port, refer to the manufacture’s manual.

5.2.1 CAMERA

5.2.2 PTZ

CAMERA: Select the camera for display on spot monitor. DEFAULT: Select the camera for display on spot monitor when sequence is off. SEQUENCE: Select On/Off for sequence screen. INTERVAL: Select the sequence dwell time. Maximum 256 sec. POPUP: Select On/Off for pop-up alert when event occurs.

[CAMERA selection screen] [INTERVAL selection screen]

5.2.3 SPOT

PAGE DWELL TIME: Select the page dwell time. CAMEO DWELL TIME: Select the dwell time for CAMEO sequence.

[DWELL-TIME selected screen]

[CAMERA SELECT screen]

5.2.4 SEQUENCE

▪ ZONE ENABLE: Select On/Off to use. (LIVE mode/ SEARCH mode) ▪ ZONE COLOR: Select the color of privacy zone area. ▪ ZONE: Select the zone.

NOTE: Move the blue selection area to the desired location and press enter.

Drag and move it to include the desired area and press enter.

As a result the area is covered and hidden with the selected privacy zone color.

TIP: On the screen click the right button of the mouse and the menu will appear. Using this menu the area can be deleted or saved.

[ZONE selection screen] [Mouse right click menu screen]

5.2.5 PRIVACY ZONE

[INPUT]

▪ ACTIVE: Select On/Off to activate motion detection. ▪ LEVEL: Select the sensitivity level for motion detection. (Select 1 to 5 level)

▪ AREA: Select the motion detection area.

TIP: If you select the ACTIVE+ / LEVEL+ / AREA+ menus you can change all camera settings.

In this menu is Motion, Alarm input, Video Loss, System and Display setup.

5.3 EVENT SETUP

Select the [EVENT] menu.

5.3.1 MOTION

▪ AREA SETUP

In the Area setup, the highlighted square is shown at the left top side of the screen. Press enter and the active area will be change to Green. Cover desired areas with active green color for motion detection.

NOTE : When the highlighted square is red you can freely move the selector to the desired area. When the status active green color you can add or delete motion detection areas.

After setting the motion area select the MENU button to save your selection.

▪ SELECT ALL: Select all motion area. ▪ CLEAR ALL: Clear all motion area. ▪ SAVE: Save the changed setting. ▪ CLOSE: Close the pop-up screen. ▪ EXIT: Exit the motion area setup.

[ACTION]

▪ RECORD: Select the channel for record. ▪ ALARM: Select On/Off for alarm. ▪ BUZZER: Select On/Off for buzzer.

▪ PRESET: Set the preset number.

(When motion is triggered, the PTZ camera can move to a preset position) ▪ E-MAIL: Select On/Off for e-mail notification.

TIP: If you select [DEFAULT] the event will trigger recording of individual channels

[INPUT]

▪ ACTIVE: Select On/Off to activate alarm.

▪ NAME: Name alarm input.

▪ TYPE: Select the alarm type. (NO : Normal Open / NC : Normal Close)

5.3.2 ALARM IN

TIP: If you select the ACTIVE+ or TYPE+ menu you can change all settings at one time.

[ACTION]

▪ RECORD: Select the channel for record. ▪ ALARM: Select On/Off for alarm. ▪ BUZZER: Select On/Off for buzzer. ▪ PRESET: Set the preset number.

(When motion is triggered, the PTZ camera will move to the preset position) ▪ E-MAIL : Select On/Off for e-mail notification.

[INPUT]

▪ ACTIVE: Select On/Off to activate.

5.3.3 VIDEO LOSS

TIP: If you select the ACTIVE+ menu, you can change all

setting at once.

[ACTION]

▪ RECORD: Select On/Off for record. ▪ ALARM: Select On/Off for alarm. ▪ BUZZER: Select On/Off for buzzer. ▪ PRESET: Set the preset number.

(When motion is triggered the PTZ camera can move to a preset position) ▪ E-MAIL: Select On/Off for e-mail notification.

[WARNING]

▪ CHECK INTERVAL: Select the check interval time. (Select 1 hour to 24 hour) ▪ DISK WARNING: Select the option for smart warning. (POPUP + BUZZER / POPUP / OFF) ▪ ALARM WARNING: Select the alarm out channel for Alarm warning. ▪ THRESHOLD: Select the warning temperature. (C: 0 to 100 / F : 32 to 212) ▪ CURRENT TEMP: Display current temperature.

5.3.4 SYSTEM

[DISK]

▪ DISK FULL WARNING: Select On/Off to disk full warning. ▪ USED SPACE: Display the used space. ▪ ALARM: Select the channel for alarm out. ▪ BUZZER: Select On/Off for buzzer. ▪ MESSAGE: Select On/Off for message.

▪ DISPLAY: Select display time by second. (Select 0 to 100) ▪ EVENT ICON: Select On/Off to display event icon. ▪ EVENT POPUP: Select On/Off to pop-up.

[MAIL] – Select option On/Off for e-mail notification.

▪ POWER / MENU / LOGIN FAIL / DISK FULL / LOG IN / SMART

[E-MAIL]

▪ Select On/Off to send e-mail notification with each item. (Power On & Off, Menu Change, Login Fail, Disk Full, Log in and SMART information.

5.3.5 DISPLAY

5.4 RECORD SETUP

In this menu is the Resolution, Schedule, Record, Audio, Manual, Filter setup.

Select the [RECORD] menu.

5.4.1 RESOLUTION

▪ RESOLUTION: Select the resolution per channel. (STD=CIF / HIGH=Half D1 / HIGHEST=D1)

▪ SETUP MODE: Select the recording schedule. (TYPICAL / CUSTOM) ▪ DAY TIME: Select the day time schedule time. (Night time is automatically set according to day schedule) ▪ WEEKEND: Set the weekend days.

[CUSTOM selected screen]

[CUSTOM]

▪ 3 different recording schedules can be setup. (REC1, REC2, REC3) This is related with the [RECORD] menu so [CUSTOM] mode should match the [RECORD] menu.

5.4.2 SCHEDULE

[DAY] / [NIGHT] / [WEEKEND]

▪ TIME: Set the frame rate and resolution per channel for time based recording. ▪ EVENT: Set the frame rate and resolution per channel for event based recording.

TIP : The frame rate can be set by the directional button in the setup menu.

If set to [Typical] in [SCHEDULE] menu, the DAY / NIGHT / WEEKEND schedules and settings will be changed to REC1/ REC2 / REC3.

5.4.3 RECORD

▪ DISPLAY: Select display time by second. (Select 0 to 100) ▪ EVENT ICON: Select On/Off to display event icon. ▪ EVENT POPUP: Select On/Off to pop-up.

[MAIL] – Select option On/Off for e-mail notification.

▪ POWER / MENU / LOGIN FAIL / DISK FULL / LOG IN / SMART

[E-MAIL]

▪ Select On/Off to send e-mail notification with each item. (Power On & Off, Menu Change, Login Fail, Disk Full, Log in and SMART information.

5.3.5 DISPLAY

5.4.6 MANUAL

▪ SPEED: Select the recording frame rate per channel. ▪ Quality: Selects the compression quality per channel. ▪ AUDIO: Select On/Off for audio recording per channel.

*Please Note: When selecting live audio option in the Cameo menu select “AUDIO ON” to turn on live audio function, select “AUDIO OFF” to turn off the live audio function.

5.5 ETHERNET SETUP

Network, Serial, DDNS, E-mail setup.

Select the [ETHERNET] menu.

5.5.1 NETWORK

[ETHERNET]

▪ DYNAMIC IP: Select On/Off for dynamic IP. If Dynamic IP is ON, DVR IP address is assigned automatically from your router.

▪ HOST NAME: Type any Host name. ▪ IP ADDRESS: Type IP address. (Available when DYNAMIC IP is OFF) ▪ SUBNET MASK: Type Subnet mask. (Available when DYNAMIC IP is OFF)

▪ GATEWAY: Type Gateway. (Available when DYNAMIC IP is OFF)

▪ DNS SERVER: Type DNS server. (Available when DYNAMIC IP is OFF) ▪ CHECK INTERNET: Check internet connection status.

5.5.1 NETWORK

[CLIENT]

▪ CLIENT ACCESS: Select client access options. ( ALL / RANGE ) ▪ BEGIN ADDRESS / END ADDRESS: Enter range of IP addresses with remote access.

(If you select range you must Input the acceptable IP address range for remote access).

▪ SMS PORT (TCP): Select SMS port. ▪ WEB PORT (TCP): Select Web port. ▪ REMOTE RESTART: Select On/Off to restart DVR remotely.

▪ REMOTE CONFIG: Select On/Off to remotely change configuration.

5.5.2 SERIAL

[RS-232 INPUT SETUP]

▪ SERIAL TYPE: Select external device.

▪ MODEL: Select the protocol to use. ▪ PORT: Select the Baud Rate / Data bit / Parity / Stop bit.

[RS-485 INPUT SETUP]

▪ SERIAL TYPE: Select external device. ▪ MODEL: Select the protocol. ▪ PORT: Select the Baud Rate / Data bit / Parity / Stop bit.

5.5.3 DDNS

▪ DDNS SERVER: Select the DDNS server. (Ddnsdvr.com / Dyndns.com / ChangeIP.com) ▪ HOST NAME: Input the host name from the registered DDNS server.

▪ USER NAME: Input the user name from the registered DDNS server.

▪ PASSWORD: Input the password from the registered DDNS server. ▪ ROUTER IP : Select On/Off for sending IP information to the DDNS server.

If using a router this setting should be [ON]. ▪ STATUS: Check the connection status.

NOTE : For using DDNS server, first you must connect the DDNS server through a registered Host name, User name password by entering the information in the setup menu.

Example for DDNSDVR:

a. In web browser, visit www.ddnsdvr.com

b. Click the [New Account] menu on the left menu.

c. Input the User / Email / Password that the user wants. d. Click the [Log In] menu on the left menu and log in by the newly created account. e. Click the [New Hostnames] and create a new host name.  In DVR menu input the full host name such as [Talos-SecurityDVR.ddnsdvr.com] f. Click the [hostnames] and select the created hostname.

5.5.4 E-MAIL

[ADDRESS]

▪ SEND E-MAIL: Select On/Off for email notifications. ▪ SCHEDULE: Set the notification schedule. (From : Start time / To : End time) ▪ E-MAIL ADDRESS: Input the E-mail address to receive notifications.

[SERVER]

▪ MAIL SERVER: Select the mail server. (SMTP server / DVR System) ▪ E-MAIL: Input the user e-mail address. ▪ PASSWORD: Input the Login password. ▪ SMTP SERVER: Input the server address. ▪ SMTP PORT: Input the server port.

▪ MAIL TEST: Send test mail.

5.5.5 NET FRAME

▪ FPS: Select the frame rate per channel for network transmission. ▪ QUALITY: Select the image quality per channel for network transmission.

5.6 SYSTEM SETUP

System Log, Status, Version.

Select the [SYSTEM] menu.

5.6.1 SYSTEM LOG

▪ Check the system log with the left and right directional buttons.

5.6.2 STATUS

[DISK]

▪ HDD INFORMATION: Displays the HDD status. Note: DVR will check the HDD for bad sectors automatically and skip these sectors for reliable recording.

5.6.2 STATUS

[RECORD]

▪ Display RECORD Status.

[AUDIO]

▪ Display AUDIO Status.

5.6.3 VERSION

▪ Display DVR version and information.

5.6.4 UPGRADE

▪ TYPE: Select the upgrade type. (FTP or Media) ▪ DEVICE: Select the device which contains the upgrade firmware file. (DVD / USB) ▪ CONFIRM: Select On/Off for upgrade confirm message. ▪ UPGRADE: Start upgrade.

6. SEARCH

On the Top menu, select the [SEARCH] menu.

After selecting this menu the following Log-in window will appear.

Enter the password and press the ENTER button.

(The default password : 1111)

▪ QUICK SEARCH: Search by date, hour and minute details.

▪ CALENDAR: Search by date and time. ▪ EVENT SERARCH: Search by event type. ▪ OVERLAPPED LIST: Search data effected by time and date changes. ▪ MUSEUM SEARCH: Search by the selected area activity. ▪ GO TO FIRST: Search the oldest saved data. ▪ GO TO LAST: Search the latest saved data.

* As in the live view the top menu can be used in the search screen.

6.1 Search Screen Configuration

Search Icon

Camera Name

Search Information

Icon

Screen

Expand/Reduction

Window

Search Date/Time

Backup Progress (%)

Repeat Time

Information

Fast reverse play

Reverse play

Pause

Play Rotate screen

Repeat

Exit Search mode

Execution Information Message

Search Screen

Recorded Audio

Information Icon

Fast forward play

Division Screen

Preview mode

When mouse cursor is placed over on the bottom side, the Search menu is appeared.

6.1.1 Search Menu

Setup menu

Select motion area

a. Select the date and time data.

- Recorded data is then displayed in the timeline.

6.1.2 CALENDAR SEARCH

b. Select the start hour and minutes

- After hour selection is made the minute timeline will appear.

NOTE: The time graph color is different by the recording type. Continuous Recording = Blue, Audio Recording = Light Blue, Event Recording = Red.

▪ HOUR: Select time period to view. ▪ PREV: Display previous page.

▪ NEXT: Display next page.

▪ GOTO: Display the video data per event.

6.1.3 EVENT SEARCH

▪ DATA: Select date to search. ▪ MOTION: Select On/Off event for search. ▪ ALARM IN: Select On/Off event for search. ▪ VIDEO LOSS: Select On/Off event for search. ▪ SELECT CAMERA: Select the camera for search. ▪ VIEW SEARCH LOG: Display selected event log.

6.1.4 OVERLAPPED LIST

▪ If a user changes the time or applies DST (Daylight Saving Time) there will be an overlap in data.

▪ Search options are [QUICK SEARCH] or [EVENT SEARCH].

6.1.5 PANORAMA SEARCH

▪ During normal search press the [PANORAMA] button. ▪ By clicking the right mouse button and select [PANORAMA] Search. ▪ Playback frame by frame.

6.1.6 SECTION REPLAY LOOP

▪ During normal search, press the pause button or click the repeat loop button. ▪ When loop icon is selected the starting point is set, select the loop icon again to set the end point for loop.

▪ In playback you will see the replay icon and time signature.

6.1.7 MUSEUM SEARCH

▪ Select [MUSEUM SEARCH] function menu.

▪ Select the Museum search area.

6.1.7 MUSEUM SEARCH

▪ Select the start and end time then select SEARCH.

- Preview event list will appear.

- Select the event for playback.

Button Explanation

SEARCH Display the [SEARCH] menu

ESC Cancel the Search mode or return to the live screen

ENTER Select the CAMEO menu

FAST REVERSE Reverse playback speed

FAST FORWARD Forward playback speed

PAUSE Pause playback

FORWARD PLAY Playback

REVEERSE PLAY Reverse playback

DISPLAY Display screen split options (1,4,9,16)

▪ Remote Controller or Front button

▪ Button Functions Search mode

7. BACKUP

▪ TARGET: Select the device to backup. (USB / DVD) ▪ FROM: Select the start date and time. ▪ TO: Select the end date and time. ▪ BACKUP TITLE: Type title. ▪ SELECT CAMERA: Select the camera for backup. ▪ EARLIEST RECORD: Displays the oldest recording data. ▪ LATEST RECORD: Displays the most recent recording data. ▪ REQUIRE SPACE: Displays the amount of data requested and available media space for backup. ▪ WRITE: Starts the backup.

From the menu select the [BACKUP] icon.

After selecting the menu you will need to login.

Enter the password and press the ENTER button.

(The default password : 1111)

▪ During backup the DVR Player is copied to the media with the data. ▪ Backup data can only be played using DVR Player, SMS or the DVR. ▪ Export to JPEG still shot or AVI file from backup DVR Player.

7.1 DVR Player

1. Copy the firmware on USB and connect to the USB port.

2. For upgrades restart the DVR.

3. After restart the upgrade window will appear, select the START button.

4. After upgrade remove the USB and select ok. Then the DVR will restart.

▪ NOTE: If you select OK without removing the USB

device the DVR upgrade process will start again.

5. After restart you can verify the upgrade process.

Memory Stick

8. APPENDIX

8.1 Firmware Upgrade

※How to connect

8. APPENDIX

For using web connection through internet, ports 7000 and 80 should be forwarded in the router to the DVR IP address..

1. To connect Web viewer, the [Ethernet] setup on DVR is required.

2. Input the IP address or Domain name of DVR

• http://210.58.xx.xx.

• http://test.ddnsdvr.com

• In case of other Web port, input the address as

http://test.ddnsdvr.com:XXXX

( ‘XXXX’ is assigned web port number)

3. User must allow download of ActiveX

* In case Windows will not allow the download of

ActiveX, Go to the Security Tab in IE and change all ActiveX to Prompt.

4. Install the ActiveX

5. Input ID & Password then click the Connect button.

8.2 Web Client

Screen split

options

① ② ③ ④

① ②

③ ④

Control

Brightness control Contrast control

PTZ

Zoom In

Zoom Out

Alarm

Open data

Exit search

Connect

Disconnect

8.2.1 Web Viewer Functions

Model DRD1600 DRD800

Performance PENTAPLEX Display Speed (NTSC / PAL) 480 / 400 fps 240 / 200 fps

Recording Speed (NTSC / PAL)

CIF (352* 240)/(352*288) 480 / 400 fps 240 / 200 fps 2CIF (704*2 40)/(704*288) 480 / 400 fps 240 / 200 fps D1 (704*480)/(704*576) 480 / 400 fps 240 / 200 fps

Video In

Analog Camera

16 Ch (BNC), 1.0 Vpp Composite (±10%) 8 Ch (BNC), 1.0 Vpp Composite (±10%)

IP Camera (Option) 4Ch (Ethernet), Supported SD/HD Class

Video Out

Main Display 1 HDMI, 1 Composite(CVBS), 1 VGA(Option) Main Display Resolution 1024x768 ~ 1920x1080 selectable

Loop-Out / Spot 16 Loop Out / 3 Spot 8 Loop Out / 1 Spot Audio Input / output 16 Line in / 1 Line out 8 Line in / 1 Line out Alarm Input / output 16 In / 4 Out 8 In / 1 Out

Details

Screen

Display Split 1, 4, 7, 9, 10, 13, 16 1, 4, 7, 9

Interface Graphic User Interface

Video

Format NTSC / PAL Auto detection

Codec H.264 Advanced

Recording type Schedule / Continuous / Event / Motion / Alarm / Video loss

Storage

Interface type SATA II

HDD / Capacity

Internal up to 4 HDD”s(Option) / 12TB External up to 4 HDD”s(E-SATA II), Supported External Bay(Option)

Connectors USB port USB port * 2

Function

Live Display

OSD On / Off

Border Color/ Digital Zoom Selectable / Up to 4X

CAMEO Camera Adjustment / Camera position change / Freeze / Audio on Motion Area / Sensitivity Adjustable GRID (22 X 15) / 5 Level motion detection

System

Hidden Video Video is hidden in Live view but it is recorded

Private Zone Block the private zone in live camera view

Auto Time Synch By NTP (Network Time Protocol)

SMART Alarm Auto Detect & Monitoring HDD’s problem

Event

Source Motion / Alarm In / Video loss

Action E-Mail notify, Log, Send message to Remote, Buzzer, Pop Up, Alarm, PTZ preset

Pre/Post Alarm Yes (Up to 60 sec / Up to 100 sec)

Record

Resolution By each camera for different resolution setting (CIF/2CIF/D1)

Quality 4 Levels ( Low / Normal / High / Highest )

Quick / Event search Search by time with calendar / Search by event

Repeat search Select specific time period and playback repeatedly

Panorama search Frame by frame

Smart search Search only event and playback without interval

CAMEO Live monitoring during playback, Playback camera change, Freeze and Digital zoom Back Up file format / Media DVR Format / DVD or USB device

Network

Protocol Static IP, DHCP, DDNS

Physical / Mac Layer RJ45 (10/100/1000 Mbps), Ethernet

Browser SMS, Web Viewer, Smart Phone Viewer (Android, I-phone)

Environment

Operating Temperature / Humidity 0~40℃ / 20~80% RH Dimension / Weight 350(W) X 400(D) X 88(H) / 6Kg (without HDD) Power Requirement / Consumption AC 100V – 220V (50Hz-60Hz) / 60W

8. APPENDIX

8.3 Specification – DRD Series

Model DRM1600 DRM800 DRM400

Performance PENTAPLEX Display Speed (NTSC / PAL) 480 / 400 fps 240 / 200 fps 120 / 100 fps

Recording Speed

(NTSC / PAL)

CIF (352*240)/(352*288) 480 / 400 fps 240 / 200 fps 120 / 100 fps 2CIF(704*240)/(704*288) 240 / 200 fps 240 / 200 fps 120 / 100 fps

D1(704*480)/(704*576) 120 / 100 fps 120 / 100 fps 120 / 100 fps

Video In

Signal Level

1.0 Vpp Composite (±10%)

Channel 16 Ch (BNC) 8 Ch (BNC) 4 Ch (BNC)

Video Out

Main Display 1 HDMI, 1 VGA, 1 Composite(CVBS) Main Display Resolution

1024x768 ~ 1920x1080 selectable

Loop-Out / Spot 16 Loop Out / 2 Spot 8 Loop Out / 1 Spot 4 Loop Out / 1 Spot Audio Input / output 16 Line in / 1 Line out (RCA) 8 Line in / 1 Line out (RCA) 4 Line in / 1 Line out (RCA) Alarm Input / output 16 In / 2 Out 8 In / 1 Out 4 In / 1 Out

Details

Screen

Display Split 1, 4, 7, 9, 10, 13, 16 1, 4, 7, 9 1, 4

Interface Graphic User Interface

Video

Format NTSC / PAL Auto detection

Codec H.264 Advanced

Recording type Schedule / Continuous / Event / Motion / Alarm / Video loss

Storage

Interface type SATA II

HDD / Capacity

Internal up to 4 HDD”s(Option) / 12TB

Connectors USB port USB port * 2

Function

Live Display

OSD On / Off

Border Color/ Digital Zoom Selectable / Up to 4X

Cameo Camera Adjustment / Camera position change / Freeze / Audio on

Motion

Area Adjustable GRID (22 X 15)

Sensitivity 5 Level motion detection

System

Hidden Video Video is hidden in Live view but it is recorded

Private Zone Block the private zone in live camera view

Auto Time Synch By NTP (Network Time Protocol)

Firmware Update Via USB & Auto firmware upgrade via Network

SMART Alarm Auto Detect & Monitoring HDD’s problem

Event

Source Motion / Alarm In / Video loss

Action E-Mail notify, Log Send message to Remote, Buzzer, Pop Up, Alarm out, PTZ preset

Pre/Post Alarm Yes (Up to 60 sec / Up to 100 sec)

Record

Resolution By each camera for different resolution setting (CIF/2CIF/D1)

Quality 4 Levels ( Low / Normal / High / Highest )

Quick / Event search Search by time with calendar / Search by event

Repeat search Select specific time period and playback repeatedly

Panorama search Frame by frame

Smart search Search only event and playback without interval

CAMEO Live monitoring during playback, Playback camera change, Freeze and Digital zoom Backup file format / Media DVR Format / DVD or USB device

Network

Protocol Static IP, DHCP, DDNS

Physical / Mac Layer RJ45 (10/100/1000 Mbps), Ethernet

Browser SMS, Web Viewer, Smart Phone Viewer (Android, I-phone)

Environment

Operating Temperature / Humidity 0~40℃ / 20~80% RH Dimension / Weight 350(W) X 400(D) X 88(H) / 6Kg (without HDD) Power Requirement / Consumption AC 100V – 220V (50Hz-60Hz) / 60W

8.4 Specification – DRM Series

8. APPENDIX

Symptoms Action

No Power

If the power LED is not illuminated, check the items below.

- Check the power cord connection to the wall outlet.

- Check to power cord connection to the DVR.

No Camera Images

- Check video cable connection to the DVR.

- Check the monitor connection to the DVR.

- Check the camera power connection.

- Restart the DVR in case of possible boot error .

- Restore default configuration settings. ※ How to restore default configuration settings.

1. Main Menu > Configuration > Load default > O.K > O.K

!! Caution: DVR will be set to factory default, back up any important

configuration settings before restoring default settings.

No mouse control

- USB mouse (USB 2.0 Supported)

- Mouse should be connected to mouse USB port.

- Reset USB device in settings menu.

No recording

If the recording LED does not flicker, check the items below.

- HDD could be full.

- Reformat HDD or change the HDD OVERWRITE setting to ON.

- Check the recording setup.

- Replace the HDD due to failure.

No network connection

If the network LED does not flicker, check the items below.

- Check the connected hub or router.

- Check the network cable and connection.

- Check the network setup.

8. APPENDIX

8.5 Trouble Shooting

No IR remote control

- Check the battery installation.

- Check the ID of the IR remote control.

- Point the IR remote control at the DVR system.

- Use the remote controller within 15 feet of DVR.

- Install new batteries.

No live audio

- Check the microphone and audio cable connections.

- Check the audio output connections.

- Turn on the Live Audio for the individual camera channel.

* Individual camera menu will be appear with right click of mouse.

No audio playback

- Set audio to ON Although the record icon appears if there is no audio input

no audio source will be recorded or played back.

* Check all audio source connections

No smart search

- For smart search, event record should be set.

- If event record is not setup when using smart search function the system will return to the live screen from search mode.

8. APPENDIX

8.6 Mobile Viewer (Apple & Android)

- Download the Talos Connect App for iPhone or iPad (Free software)

- Download the Talos Connect App on Google Play. (Free software)

- Open the Talos Connect App and the connection list will appear.

- Press the [+] button to setup a new DVR connection.

-. Enter the DVR remote connection information.

- press the button after all fields have been completed.

- From the DVR site list menu select DVR for connection.

- ADD : Press the button for additional DVR registration. Enter all DVR information then press the button.

- EDIT : Press the button to delete or modify information.

8.6 Mobile Viewer (Apple & Android)

- Support 1,2,8,16 split screen.

- By the screen touch, change 1 screen or multi screen.

- Horizontal view, Vertical view are supported.

- : Exit application.

- : Playback by date / time. After selecting date and time press the button to start playback.

- : Returns to live mode.

8.6 Mobile Viewer (Apple & Android)

- App functions:

8.6 Mobile Viewer (Apple & Android)

Image capture:

Saves JPEG image of single camera view

Pause:

Pause (freeze) live view

Paused Icon:

Press this button to enable or disable pause function

Screen Split:

Select single channel, 2, 4, 8, or 16 Screen splits.

PTZ:

Enables PTZ camera control

Camera moves with directional arrow indicator.

TALOS DRG1600, DRGL1600, DRG800, DRGL800, DRGL400 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
