Talon Tools TLG1000 Parts list

Est. 1979

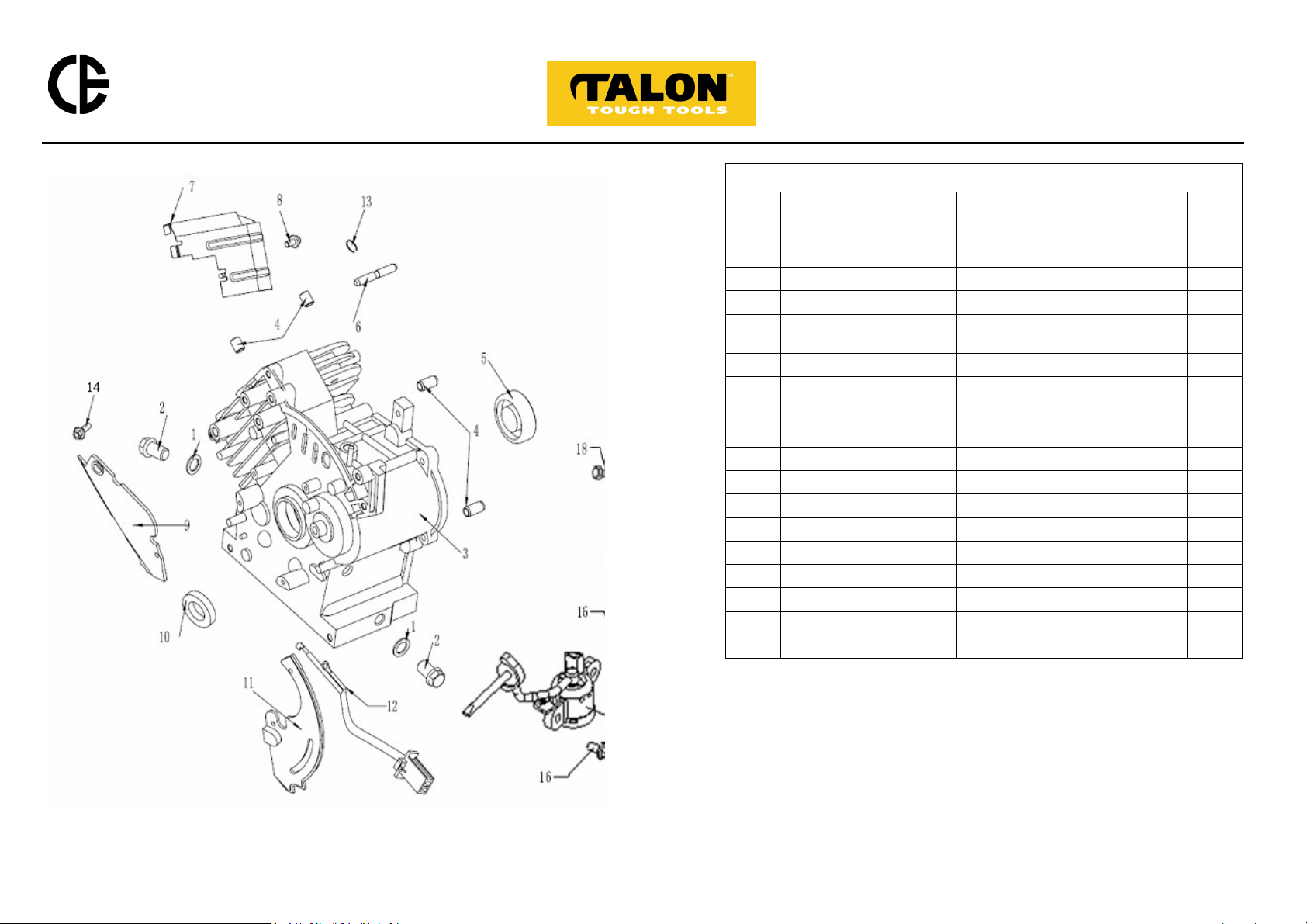

CRANKCASE ASSY

TLGB16674

-

M6X12

TLGB16674

-

M6X12

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401
Tel: [phone] Fax: [phone]
[e-mail] www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TLG1000 OUTPUT 1kVA

PRODUCT Talon Petrol Generator

# PART # DESCRIPTION QTY

1 TL166QDK.01-07 Spacer, Drain plug 2
2 TL152FFH.01-06 Drain plug (JF) 2
3 TL154FFH.01.02 Crankcase assy (JF) 1
4 TL152FFH.01-08 Guide dowel Φ8 x 16

5

TLGB/T276-6203 Bearing 6203/P53

(GB/T276-1994)

(JF)

4

1

6 TL168QDJ.05-04 Pin 1
7 TL152FFH.01-09 Clipboard (JF) 1
8

Bolt, M6 x12

(GB/T16674.1-2004)

1
9 TL151FEH.01-01 Plate 1 driversion (ZJ) 1
10 TL152FFH.01.01 Washer, seal

17 x 30 x 6 (JF)

1
11 TL151FEH.01-02 Plate 2 driversion (ZJ) 1
12 TL152FFH.070201 Grounded fire assy

(JF.07.02-01)

1
13 TL166QDK.01-02 Snap spring 1
14

TLGB16674-M6X10

Bolt, M6 x 10

(GB/T16674.1-2004)

1
15 TL152FFH.01.03 Oil level sensor (JF) 1
16

TLGB16674-M6X12

Bolt, M6 x 12

(GB/T16674.1-2004)

2
17 TL182QDP.01.05 Electrical switch 1
18

Bolt, M6 x 12 1

Page 1 of 12

Est. 1979

CRANKCASE COVER ASSY

CRANKSHAFT ASSY

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401
Tel: [phone] Fax: [phone]
[e-mail] www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TLG1000 OUTPUT 1kVA

PRODUCT Talon Petrol Generator

# PART # DESCRIPTION QTY

1 TLGB5789-M6x25 Bolt M6 x 25
2 TL152FFH.01.01 Washer, Seal

(GB/T5789-86)

17x30x6

(JF) 1

6

3 TL152FFH.01-03 Dipstick (JF) 1
4 TL152FFH.01-12 Seal Spacer (JF) 1
5 TL151FEH.01-03 Cover, Crankcase (ZJ) 1
6 TLGB/T276-6303 Bearing 6303/P53 1
7 TL152FFH.01-02B Gasket, Crankcase (JF) 1

# PART # DESCRIPTION QTY

1 TL152FFH.04-01 Key (JF) 1
2 TL152FFH.04B-02 Small gear, Crankshaft (JF) 1
3 TL152FFH-201011 Crankshaft (JF-2.01.01-01) 1
4 TL152FFH.040102 Big gear, Crankshaft

(JF.04.01-02)

1

5 TL152FFH-20101B Crankshaft (JF-2.01.01B) 1

Page 2 of 12

Est. 1979

PISTON & CONNECTING ROD ASSY

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401
Tel: [phone] Fax: [phone]
[e-mail] www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TLG1000 OUTPUT 1kVA

# PART # DESCRIPTION QTY

PRODUCT Talon Petrol Generator

1 TL154FFH.03.01A Piston ring assy (JF) 1

1.1 TL154FFH.03-02 Ring, First (JF) 1

1.2 TL154FFH.03-03 Ring, Second (JF) 1

1.3 TL154FFH.03.01 Oil ring (JF) 1
2 TL152FFH.05-05 Circlip, Piston pin (JF) 2
3 TL154FFH.05-04 Pin, Piston (JF) 1
4 TL154FFH.03-01 Piston (JF) 1
5 TL152FFH.05.02 Connecting rod assy

(JF)

1

5.1 TL152FFH.050201 Connecting rod body (JF.05.02-01) 1

5.2 TL152FFH.050202 Connecting rod cover (JF.05.02-02) 1

5.3 TL152FFH.050203 Connecting rod bolt (JF.05.02-03) 1

Page 3 of 12

Est. 1979

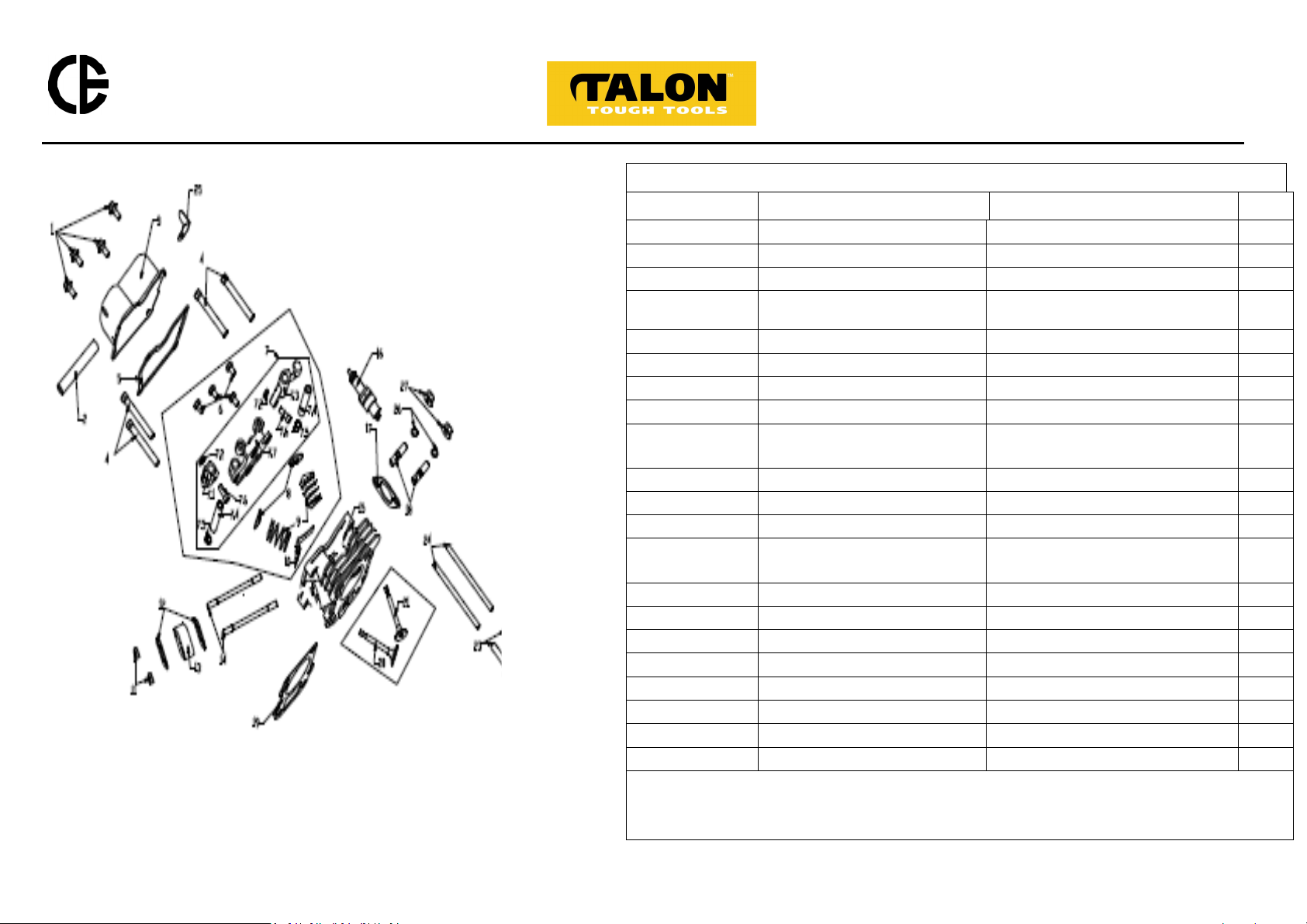

CYLINDER HEAD ASSY

Adjusting nut, Valve clearance

Adjusted stud, Valve clearance

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401
Tel: [phone] Fax: [phone]
[e-mail] www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TLG1000 OUTPUT 1kVA

PRODUCT Talon Petrol Generator

1 TLGB16674-M6X12 Bolt, M6 x 12

# PART # DESCRIPTION QTY

(GB/T16674.1-2004)

4
2 TL168QDJ.07-01 Colloid pipe 1
3 TL152FFH.02.02 Cylinder head cover (JF) 1

4

5 TL152FFH.02-03 Gasket, Cylinder head cover
6 TLGB16674-M6X16 Bolt, M6 x 16

TLGB16674-M8X55 Bolt, Cylinder head, M8 x 55

(GB/T16674.1-2004)

(GB/T16674.1-2004)

4

(JF)

1

4
7 TL152FFH.03.01 Rocker bracket assy (JF) 1

7.1 TL152FFH.030101 Left arm (JF.03.01.01) 1

7.2

TL152FFH.03013

(JF.03.01-03)

2

7.3 TL152FFH.030102 Right arm (JF.03.01.02) 1

7.4 TL152FFH.03012 Rocker shaft (JF.03.01-02) 2

7.5 TLGB893.1-86 Block circle 2

7.6

TL152FFH.030103

(JF.03.01.03)

2

7.7 TL152FFH.03011 Rocker bracket (JF.03.01-01) 1
8 TL152FFH.03-05 Upper retainer, Door spring

(JF)

2
9 TL152FFH.03-04 Spring, valve (JF) 2
10 TL152FFH.03-06 Retainer intake door spring

(JF)

1
11 TLGB/T6177-M6 Nut M6 2
12 TL152FFH.02-04B Gasket, inlet pipe (JF) 2
13 TL152FFH.02-05 Spacer, Heat insulating (JF) 1
14 TL152FFH.02-06 Bolt, Intake pipe (JF) 2

Page 4 of 12
