ILLUSTRATED PARTS LIST

MODEL B150

PRODUCT DIRECT FIRED HEATER

Page 1 of 4

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401
Tel: [phone] Fax: [phone]
[e-mail] www.creavelp.co.za

ILLUSTRATED PARTS LIST

MODEL B150

PRODUCT DIRECT FIRED HEATER

Page 2 of 4

Est. 1979

14

4110.451

POWER CORD

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401
Tel: [phone] Fax: [phone]
[e-mail] www.creavelp.co.za

ILLUSTRATED PARTS LIST

MODEL B150

PRODUCT DIRECT FIRED HEATER

#

PART #

DESCRIPTION

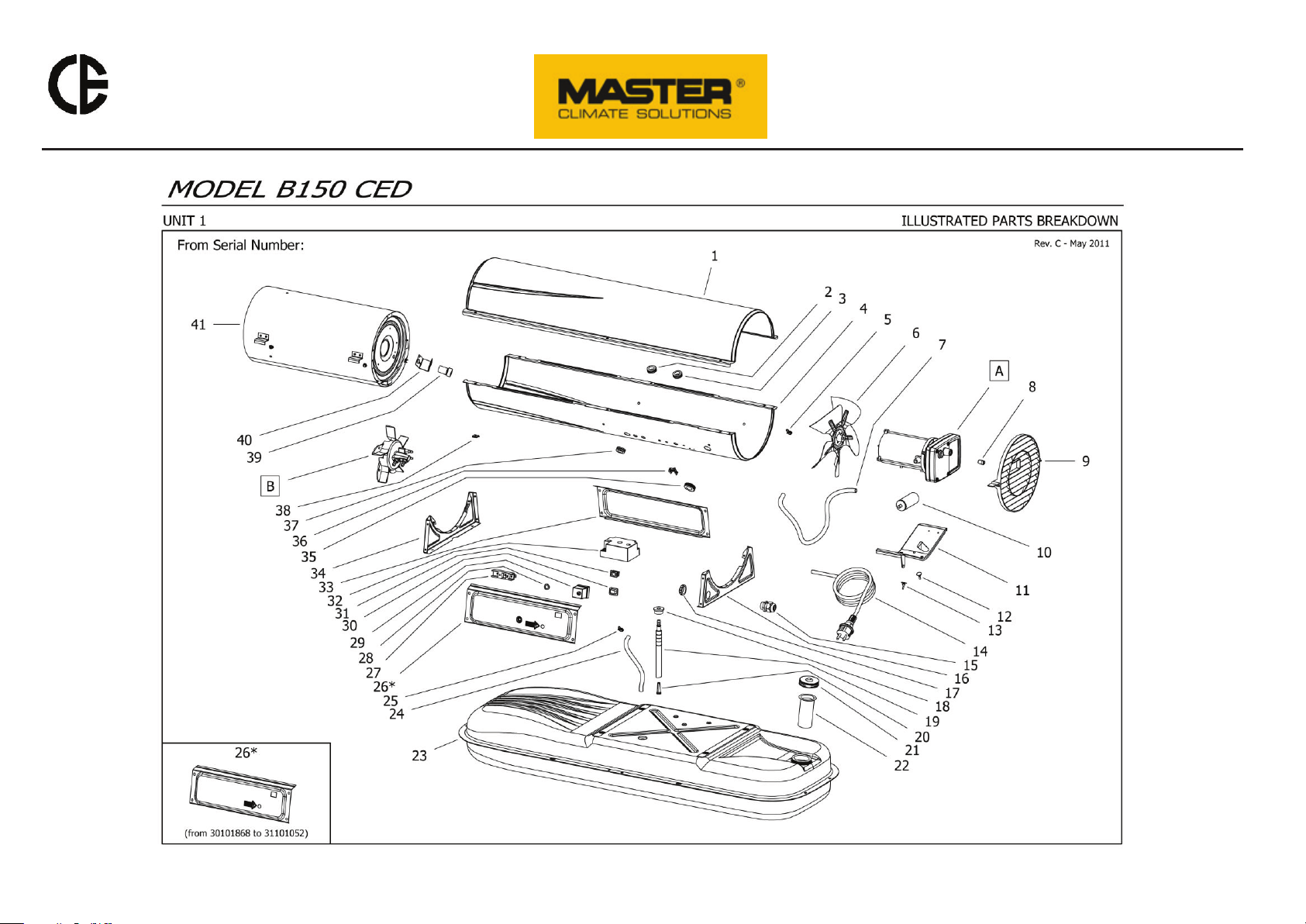

1 S/R UPPER SHELL SPECIAL REQUEST

2 4104.151 GROMMET

3 4101.151 GROMMET

4 S/R LOWER SHELL SPECIAL REQUEST

5 4110.159 CLAMP

6 4110.415 FAN

7 4104.147 AIR LINE

8 4102.125 PRESSURE GAUGE CAP

9 4103.695 FAN GUARD

10 4110.294 CAPACITOR

11 4110.186 MOTOR BRACKET

12 4150.553 BUMPER

13 4150.553 BUMPER

15 4150.528 STRAIN RELIEF

16 4110.353 REAR FRAME BRACKET

17 4110.656 LOCKNUT

18 4100.541 RUBBER BUSHING

19 4110.355 FUEL LINE

20 4110.356 FUEL FILTER

#

PART #

DESCRIPTION

21 4103.891 FUEL TANK CAP

22 4105.292 FUEL TANK FILTER

23 4110.345 FUEL TANK

24 4110.032 FUEL LINE

25 4110.159 CLAMP

26 4111.819 LEFT PANEL

26* 4110.417 LEFT PANEL

27 4106.110 TERMINAL BOARD

28 4109.592 NUT

29 4104.196 FLAME-OUT CONTROL

30 4104.336 COVER SWITCH

31 4106.179 ON/OFF SWITCH

32 4111.833 ELECTRONIC IGNITOR

33 4110.379 RIGHT PANEL

34 4110.354 FORE FRAME BRACKET

35 4160.646 GROMMET

36 4160.639 RIVET POP

37 4101.151 GROMMET

38 4104.170 CLIP NUT

39 4110.364 PHOTOCELL ASSEMBLY

Page 3 of 4

Est. 1979

50

4101.341

OUTPUT FILTER

71

4104.118

BARB FITTING

56

4102.133

ADJUSTING SCREW

77

4110.369

WHEEL SUPPORT FRAME

#

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401
Tel: [phone] Fax: [phone]
[e-mail] www.creavelp.co.za

PART #

DESCRIPTION

#

ILLUSTRATED PARTS LIST

MODEL B150

PRODUCT DIRECT FIRED HEATER

PART #

DESCRIPTION

40 4100.658 PHOTOCELL BRACKET

41 4110.095 COMBUSTION CHAMBER

42 4110.452 MOTOR ¼ HP

43 4108.635 INSERT

44 4110.069 PUMP BODY

45 4110.301 PUMP BODY SCREW

46 4103.441 ROTOR

47 4101.666 BLADE

48 4110.407 PUMP END COVER

49 4108.536 SCREW/LOCKWASHER

51 4101.358 INTAKE FILTER

52 4108.643 END COVER

53 4108.528 SCREW/LOCKWASHER

54 4108.379 STEEL BALL

55 4102.141 PRESSURE RELIEF SPRING

61 4100.533 NOZZLE SEAL SPRING

62 4100.525 WASHER

63 4101.622 NOZZLE SEAL SLEEVE

64 4110.377 BURNER HEAD BODY

65 4110.394 FIBER WASHER

66 4110.337 ELECTRODE

67 4110.393 WASHER

68 4110.363 SCREW

69 4111.831 ELECTRODE CABLE

70 4111.831 ELECTRODE CABLE

72 4104.118 BARB FITTING

73 4110.368 HANDLE

74 4110.518 SCREW

75 4110.368 HANDLE

76 4110.143 LOCK NUT

57 4101.333 LINT FILTER

58 4104.118 BARB FITTING

59 4103.898 NOZZLE

60 4100.525 WASHER

78 4110.129 CAP NUT

79 4110.162 WASHER

80 4110.084 WHEEL

81 4110.370 AXLE

Page 4 of 4
