Petrol Line Trimmer

USER MANUAL

SAFETY

OPERATION

MAINTENANCE

WARNING • PLEASE READ

For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your trimmer before each use.

MODEL NO. AT3351A

9096-335143

WARRANTY INFORMATION

Worn Bump Head

Trimming line.

Spark Plugs.

Carburetor Tune-ups.

Lubricants.

Engine Tune-ups.

Filters.

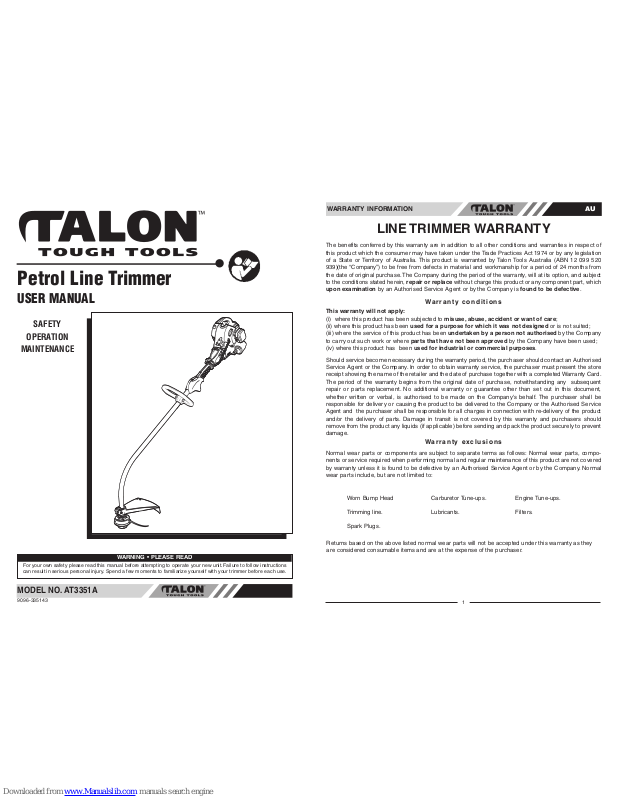

LINE TRIMMER WARRANTY

The benefits conferred by this warranty are in addition to all other conditions and warranties in respect of this product which the consumer may have taken under the Trade Practices Act 1974 or by any legislation of a State or Territory of Australia. This product is warranted by Talon Tools Australia (ABN 12 099 520

939)(the “Company”) to be free from defects in material and workmanship for a period of 24 months from the date of original purchase. The Company during the period of the warranty, will at its option, and subject to the conditions stated herein, repair or replace without charge this product or any component part, which

upon examination by an Authorised Service Agent or by the Company is found to be defective.

Warranty conditions

This warranty will not apply:

(i) where this product has been subjected to misuse, abuse, accident or want of care; (ii) where this product has been used for a purpose for which it was not designed or is not suited; (iii) where the service of this product has been undertaken by a person not authorised by the Company to carry out such work or where parts that have not been approved by the Company have been used; (iv) where this product has been used for industrial or commercial purposes.

Should service become necessary during the warranty period, the purchaser should contact an Authorised Service Agent or the Company. In order to obtain warranty service, the purchaser must present the store receipt showing the name of the retailer and the date of purchase together with a completed Warranty Card. The period of the warranty begins from the original date of purchase, notwithstanding any subsequent repair or parts replacement. No additional warranty or guarantee other than set out in this document, whether written or verbal, is authorised to be made on the Company's behalf. The purchaser shall be responsible for delivery or causing the product to be delivered to the Company or the Authorised Service Agent and the purchaser shall be responsible for all charges in connection with re-delivery of the product and/or the delivery of parts. Damage in transit is not covered by this warranty and purchasers should remove from the product any liquids (if applicable) before sending and pack the product securely to prevent damage.

Warranty exclusions

Normal wear parts or components are subject to separate terms as follows: Normal wear parts, components or service required when performing normal and regular maintenance of this product are not covered by warranty unless it is found to be defective by an Authorised Service Agent or by the Company. Normal wear parts include, but are not limited to:

Returns based on the above listed normal wear parts will not be accepted under this warranty as they are considered consumab

le items and are at the e

xpense of the purchaser

Page 2

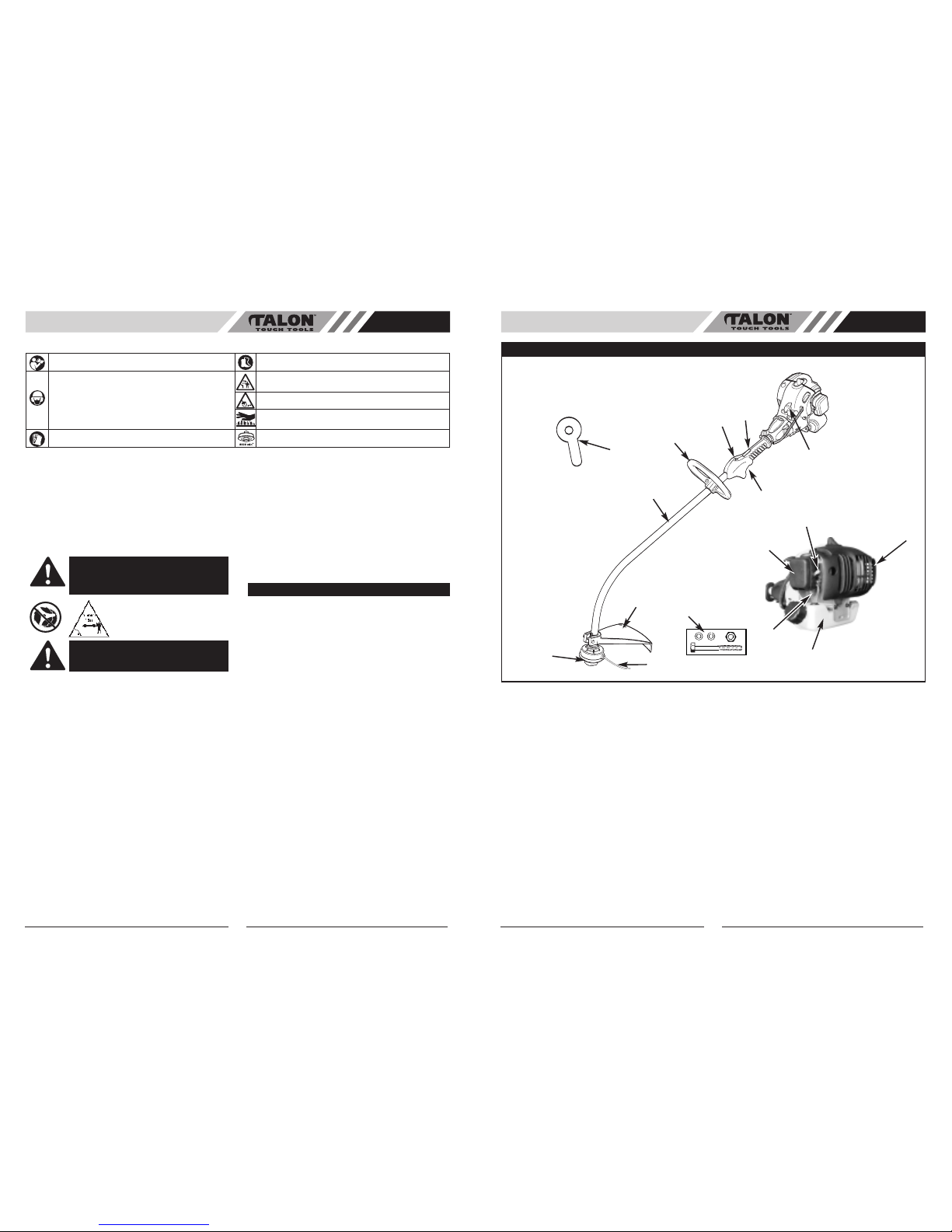

SAFETY FEATURES

3 DEBRIS SHIELD must be installed to prevent debris from being thrown at the operator and prevent the line from

extending longer than necessary.

14 MUFFLER SHIELD helps prevent hands, body and/or combustible materials from making contact with a hot muffler.

1. LINEHEAD

2. TRIMMING LINE

3. DEBRIS SHIELD*

4. DRIVE SHAFT ASSEMBLY

5. AUXILIARY HANDLE

6. THROTTLE TRIGGER

7. IGNITION SWITCH

8. SAFETY TRIGGER LOCK

9. CHOKE LEVER KNOB

10. FUEL TANK

11. AIR FILTER COVER

12. STARTER HANDLE

13. MUFFLER SHIELD

15. PRIMER BULB

15. DEBRIS SHIELD NUT & BOLT & WASHER*

16. BUMP KNOB SPANNER*

*Supplied in User Kit

NOTE: DO NOT use blades on these models.

GENERAL IDENTIFICATION

GENERAL SAFETY RULES

WARNING! When using petrol tools, basic safety precautions, including the following, should always be followed to

reduce the risk of serious personal injury and/or damage to the unit.

Read all these instructions before operating this product and save these instructions.

This power unit can be dangerous! Operator is responsible for following unit manual instructions and warnings. Read entire operator’s manual before using unit! Be thoroughly familiar with the controls and the proper use of the unit. Restrict the use of this unit to persons who read, understand, and follow unit, manual instructions and warnings. Never allow children to operate this unit.

Wear close fitting, tough work clothing that will provide protection, such as long slacks or trousers, safety work shoes, heavy duty work gloves, hard hat, a safety face shield, or safety glasses for eye protection and a good grade of ear plugs or other sound barriers for hearing protection.

Store in a safe place. Open fuel cap slowly to release any pressure which may have formed in fuel tank. To prevent a fire hazard, move at least 10 feet (3 meters) from fueling area before starting.

Turn unit off before setting it down.

Always hold unit firmly with both hands, the thumb and fingers encircling the handles.

Keep all screws and fasteners tight. Never operate your equipment when it is improperly adjusted or not completely and securely assembled.

Keep handles dry, clean and free of fuel mixture.

Keep linehead as close to ground as practical. Avoid hitting small objects with linehead. When cutting on a slope

, stand belo

w linehead.

NEVER cut or tr

im on a hill

or slope

, etc.

if there is the slightest chance of slipping,

sliding or losing firm footing.

Chec

k area y

ou will be trimming for debris

that ma

be struck or thrown during operation.

Keep all parts of your body and clothing away from linehead

when starting or running engine. Before start-

ing engine, make sure linehead will not come in contact

with any obstacle.

10.

Stop engine before examining trimming line.

11.

Store equipment away from possible flammable materials,

such as gas-powered water heaters, clothes

dryers, or oil-fired furnaces, portable heaters, etc.

12.

Always keep the debris shield, linehead, and engine free of debris build-up.

13. Operation of equipment should always be restricted to mature and properly instructed individuals.

1. DO NOT USE ANY OTHER FUEL than that recommended in your manual. Always follow instructions in the Fuel and Lubrication section of this manual. Never use gasoline unless it is properly mixed with 2-cycle engine lubricant. Permanent damage to engine will result, voiding manufacturer’s warranty.

2. DO NOT SMOKE while refueling or operating equipment.

3. DO NOT OPERATE UNIT WITHOUT A MUFFLER and properly installed muffler shield.

4. DO NOT TOUCH or let your hands or body come in contact with the muffler. Hold unit with thumbs and fingers encircling the handles.

5. DO NOT OPERATE UNIT IN AWKWARD POSITIONS, off balance, outstretched arms, or one-handed. Always use two hands when operating unit with thumbs and fingers encircling the handles.

6. DO NOT RAISE LINEHEAD above ground level while unit is operating. Injury to operator could result.

7. DO NOT USE UNIT FOR ANY PURPOSES OTHER than trimming lawn or garden areas.

8. DO NOT OPERATE UNIT FOR PROLONGED PERIODS. Rest periodically.

9. DO NOT OPERATE UNIT WHILE UNDER THE INFLUENCE OF ALCOHOL OR DRUGS.

10. DO NOT OPERATE UNIT UNLESS DEBRIS SHIELD AND/OR GUARD IS INSTALLED AND IN GOOD CONDITION.

11. DO NOT ADD, REMOVE OR ALTER ANY COMPONENTS OF

THIS PR

ODUCT

Doing so could cause per

sonal injur

y and/or damage the unit voiding the manu-

acturer’

s w

arr

anty

12.

T oper

ate y

our unit near or around flammab

le liq

uids or gases whether in or out of doors. An explosion and/or fire may result.

DANGER: Never use blades, wire or flailing devices. Unit is designed for line trimmer use only. Use of any other accessories or attachments will increase the risk of injury.

WARNING: Keep children, bystanders, and animals 50 feet (15 meters) away.If approached stop unit immediately.

WHAT NOT TO DO

Meaning of symbols marked on the pr

oduct

Read the user man

ual before using the machine

Whenever the machine is in use, safety goggles must be worn to safeguard against flying object, as must ear protectors, such as a soundproof helmet, in order to protect the oper

ator’s hearing. If the operator is working in an area where there is a risk of f

alling objects, a safety helmet must also be

worn.

Wear safety boots to protect against electric shock

Danger :

Objects thrown up by machine

eep people or animals at least 15m away from the

machine dur

ing operation

ear gloves to protect your hands

Warning! Hot surface

Maximum revolution frequency of the drive shaft

Page 3

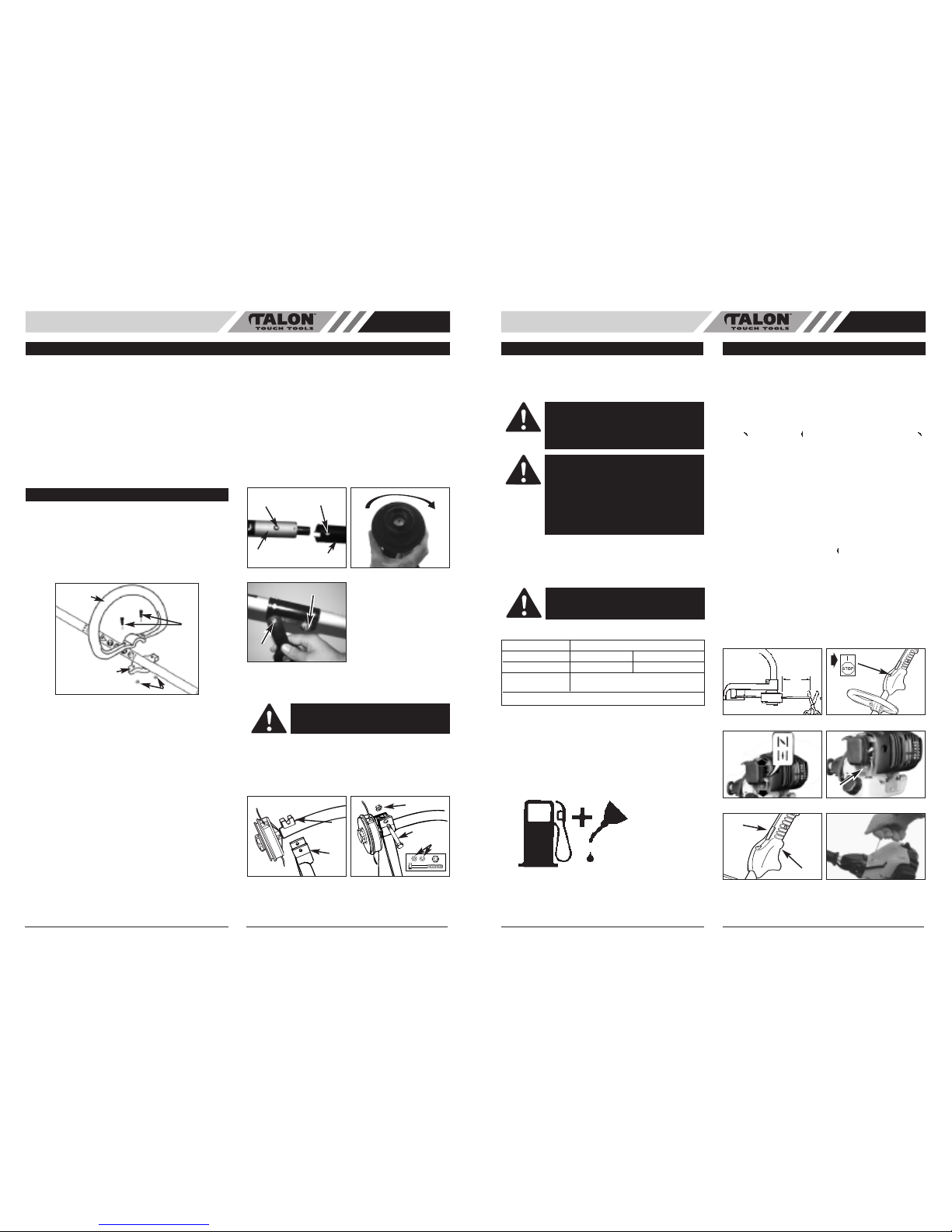

• FUEL

Use regular g

rade unleaded gasoline mixed with 2-cycle

engine oil in 25:1 r

atio for best results. Use mixing ratios

in Section

FUEL MIXING TABLE.

• MIXING FUEL

Mix fuel with Talon brand 2 cycle oil in an approved container. Use mixing table for correct ratio of fuel to oil. Shake container to ensure thorough mix.

• FUEL MIXING TABLE

• RECOMMENDED FUELS

Some conventional gasolines are being blended with oxygenates such as alcohol or an ether compound to meet clean air standards.Your Talon engine is designed to operate satisfactorily on any gasoline intended for automotive use including oxygenated gasolines.

• FUEL AND LUBRICATION

• STARTING A COLD ENGINE

NOTE: To minimize load on engine during starting and

arm-up, trim excess trimming line to 13cm (Fig. 4A).

1. Place trimmer on firm flat surface.

Move ignition switch to the “RUN (I)” position (Fig. 4B).

Your unit is designed with a 2 position choke: CLOSE “ ” and OPEN “ ”. Move choke lever to CLOSE “ ” position(Fig. 4C).

4. Pr ime the carburetor. Pump the primer bulb (A) 10 times (Fig. 4D).

5. Gr ip handle firmly – depress safety trigger (B) & throttle trigger (C) to the FULL THROTTLE position (Fig. 4E).

6. Pull star ter rope out a short way until resistance is felt (approximately 100mm) (Fig. 4F).A smooth rapid pull is required for a strong spark. Pull starter rope briskly 4 times.

7. Once engine star ts allow to run for 10 seconds.

8. Move the choke to OPEN “ ” position (Fig. 4G).

NOTE: If engine fails to start after repeated attempts, refer to Troubleshooting section.

NOTE: Always pull starter rope straight out. Pulling starter at an angle will cause rope to rub against the eyelet. This friction will cause the rope to fray and wear more quickly. Always hold starter handle when rope retracts. Never allow rope to snap back from extended position. This could cause rope to snag or fray and also damage the starter assembly.

FUEL AND LUBRICATION

ARNING:Never use straight gasoline in

your unit. This will cause permanent engine damage and void the manufacturer’s warranty f

or that product. Never use a fuel mixture

that has been stored for over 90 days.

WARNING: If 2-cycle lubricant other than Talon Custom Lubricant is to be used, it must be a premium grade oil for 2-cycle air cooled engines mixed at a 25:1 ratio.Do not use any 2-cycle oil product with a recommended mixing ratio of 100:1. If insufficient lubrication is the cause of engine damage, it voids the manufacturer’s engine warranty for that occurrence.

WARNING:

Lack of lubrication voids engine warranty. Gasoline and oil must be mixed at 25:1.

GASOLINE 25:1 Ratio Lubricant

5 Liters 6.7 oz. 200ml (cc) 1 lmp. Gal. 6.1 oz. 180ml (cc)

Mixing 25 Parts Gasoline

Procedure to 1 par t Lubricant

1ml = 1cc

Gasoline and Oil Mix 25:1

OPERATING INSTRUCTIONS

Fig. 4A Fig. 4B

5” (13cm)

Fig. 4C Fig. 4D

Fig.

Fig. 4F

SPECIFICATIONS

Engine

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Air-cooled, 2-Cycle, Chrome Cylinder

Displacement

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 cc

y Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.1 Kg

Fuel Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .550 ml

Bump Head

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Twin Line Bump Feed

ive Shaft Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112 cm

Cutting Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38cm

Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Universal Handle

Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Electronic

• “UNIVERSAL¨ HANDLE INSTALLATION

1. To install handle onto unit, you will need the following components from your user kit: handle (A & B), screws (C) and nuts (D). (Fig. 1)

2. Install the handle (A & B) on the shaft 160-200mm from throttle and tighten the 2 screws (C) and nuts (D).

• INSTALLATION OF SHAFT TO COUPLING

NOTE: To make installing the shaft easier, place the unit

on the ground or on a work bench.

1. While fir mly holding the bottom shaft (A), push it straight into coupling (B) until the locking pin (C) appears in the primary hole (D) (Fig 2A). If you experience any difficulty getting the bottom shaft into the coupling, rotate the linehead clockwise (Fig 2B) at the same time as you push the shaft into the coupling.

2. Once locking pin is in the primar y hole rotate locking bolt (E) clockwise with locking spanner or 10mm Ring Spanner until tight (Fig 2C).

3. Ensure upper locking bolt (F) is also tight (Fig 2C).

NOTE:This is a one time assembly for this product.

• DEBRIS SHIELD

Shield fits snug on shaft. Some effort may be required.

1. Seat shield (B) onto shaft bracket (C).

2. Inser t bolt (E) through hole. Bolt head should fit into hex shape in shield.

3. Inser t washer (D) and nut, tighten securely.

ASSEMBLY INSTRUCTIONS

Fig. 1

Fig. 2A

Fig. 2B

Fig. 2C

WARNING:

The debris shield must be installed (Fig. 3A & 3B) to properly dispense trimming line and protect operator.

Fig. 3A

Fig. 3B

Page 4

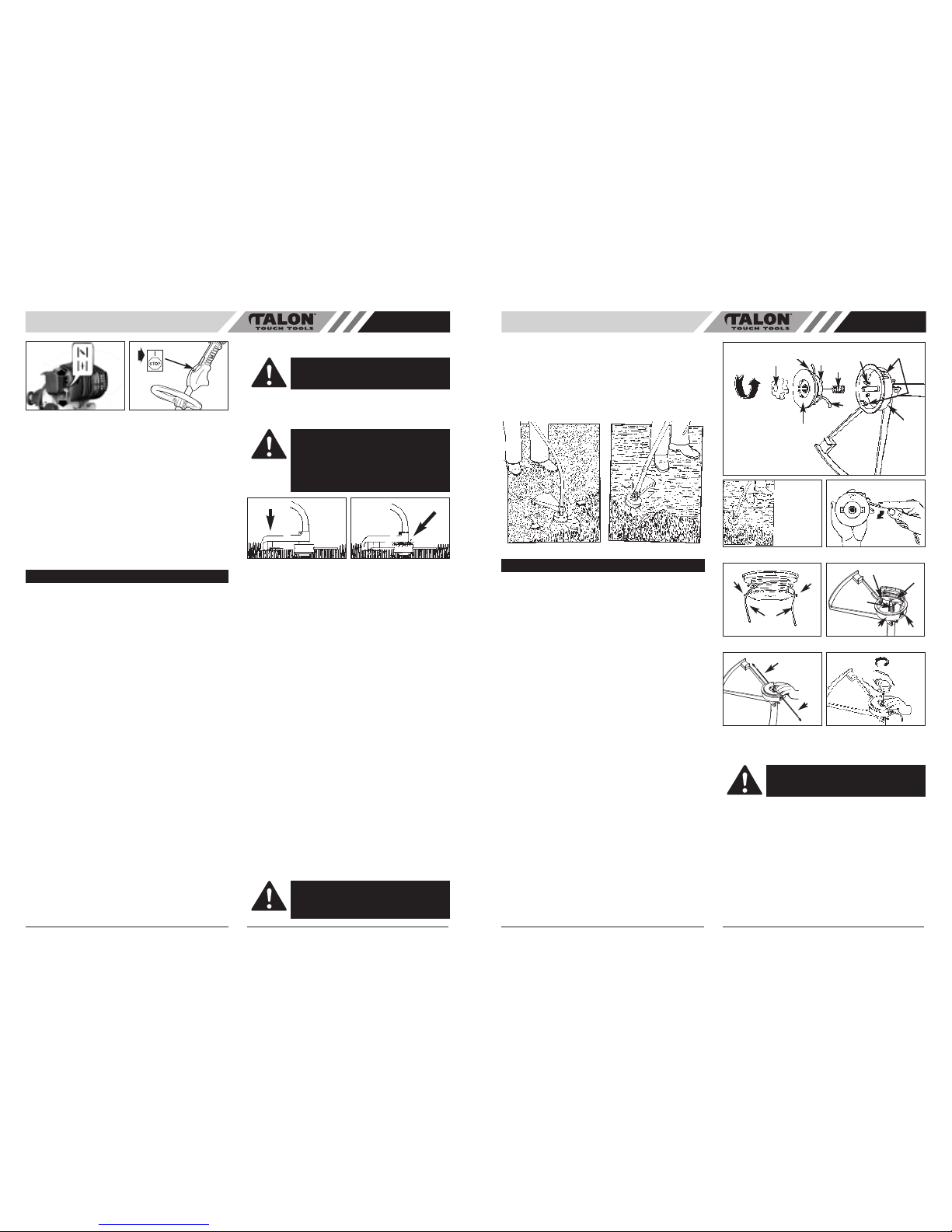

SCALPING

Scalping ref

ers to removal of all vegetation down to the

round. To do this, tilt the linehead to about a 30 degree angle to the left. By adjusting the handle you will have better control during this operation. Do not attempt this procedure if there is any chance flying debris could injure operator, other people or cause damage to property.(Fig. 7B)

• REPLACING TRIMMING LINE - STANDARD

HEAD

1. Turn knob (A) COUNTERCLOCKWISE and remove

(Fig. 8A). User knob spanner supplied.

2. Remove spool (B) and spring (C) from spindle (D).

3. Remove any remaining trimming line (H).

4. Double a 14' (4.3m) length of .080" (2mm) trimming

line. Place the looped center in one of the slots of the spool divider (Fig. 8B).

5. Wind tr imming line clockwise as shown in illustration

(Fig. 8C), keeping tension, with each half separated by the spool divider. Wind to within 6" (15cm) of the ends.

6. Lock each end of line (H) into a slot (F) on opposite

sides of the spool (Fig. 8D).

7. Install the spr ing (C) over the spindle (D). Insert each

end of the line through an eyelet (G) in the housing (E) (Fig. 8E).

8. Lower the spool into the housing (E) while feeding the

line through the eyelets (G). Ensure the spring seats itself into the spool (Fig. 8E).

9. Once the spool is in place, apply pressure on the

spool compressing the spring. Pull each end of the line (H) sharply to unlock the line from the slots (Fig. 8F).

10. Continue to apply pressure to the spool until the knob

can be threaded CLOCKWISE onto the spindle. Tighten the knob securely b

y hand only (Fig. 8G).

11. Trim the excess line to approximately 5" (13cm). This

will minimize load on engine during starting and warm-up (Fig. 4A).

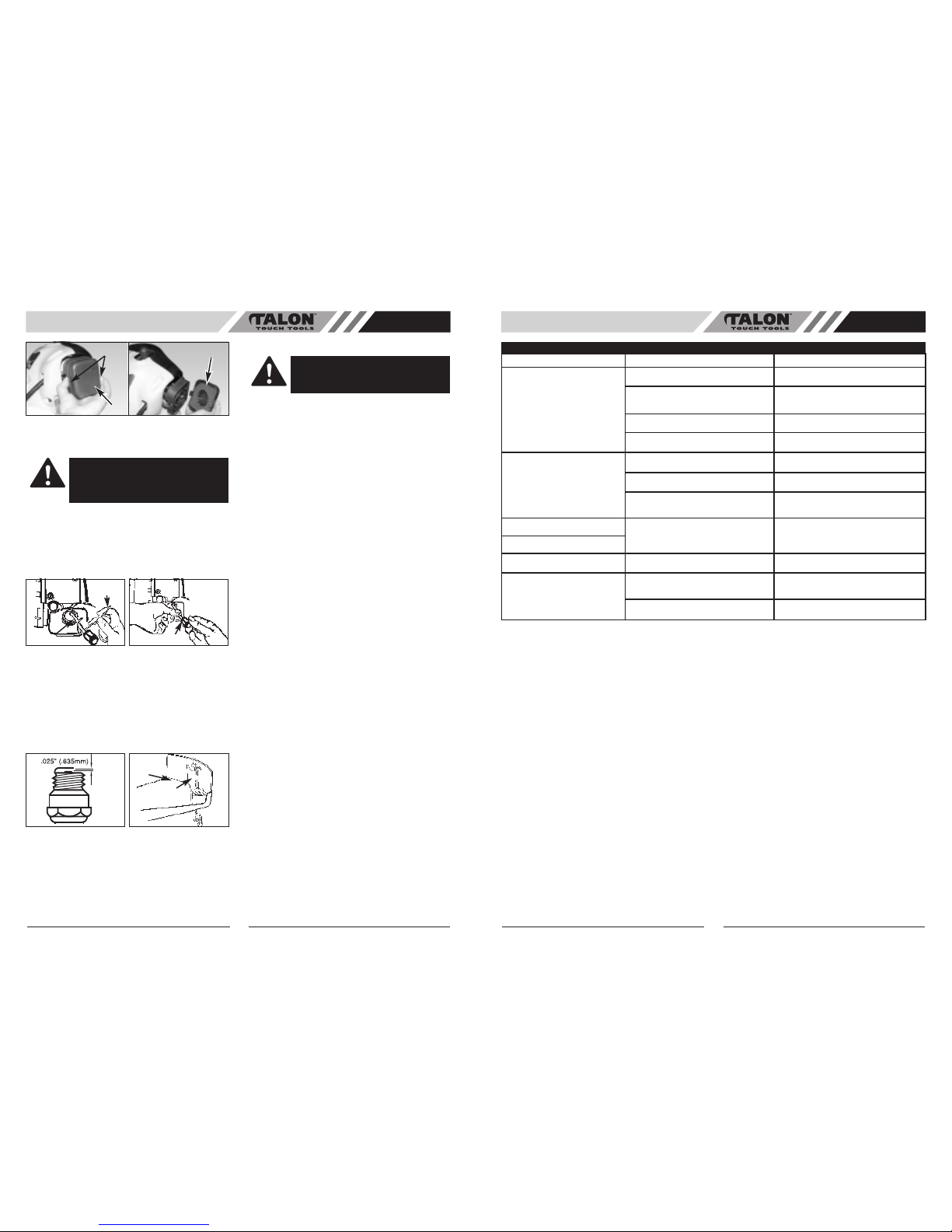

• AIR FILTER

To Clean Air Filter:

1. Press down on tab (A) holding air filter cover in place, remove cover (B) and lift filter (C) from air box . (Fig.

2. Wash filter in soap and water.

DO NOT USE GASO-

LINE!

Air dr

y filter

Reinstall filter

NOTE: Replace filter if frayed, torn, damaged or unable to be cleaned.

Fig. 7A

Fig. 7B

MAINTENANCE INSTRUCTIONS

Fig. 8A

A. KNOB B. SPOOL C. SPRING D. SPINDLE E. HOUSING F. SLOTS G. EYELETS H. TRIMMING LINE

Fig. 8B Fig. 8C

Fig. 8D Fig. 8E

Fig. 8F Fig. 8G

CAUTION:

NEVER operate trimmer without the air filter. The air filter must be kept clean. If it becomes damaged, install a new filter.

• WARM ENGINE START

1. Place tr immer on firm flat surface.

2. Move ignition switch to the “RUN (I)” position (Fig. 5).

3. Gr ip handle firmly, squeeze throttle trigger to FULL THROTTLE position.

4. Pull star ter rope briskly until engine starts, but no more than 6 times.

5. If engine does not star t, please operate “STARTING A COLD ENGINE” again.

• TO STOP ENGINE

Release throttle trigger. Let engine return to idle.Push and hold ignition stop switch until engine stops.

• ADDITIONAL SAFETY PRECAUTIONS

Before operating your unit, review ALL SAFETY PRECAUTIONS in this manual.

WARNING / CAUTION

• IF UNFAMILIAR WITH TRIMMING techniques, practice the procedures with ENGINE in “OFF” position.

• ALWAYS CLEAR WORK area of debris such as cans, bottles, rocks, etc. Striking objects can cause serious injury to operator or bystanders and also damage equipment. If an object is accidentally hit, immediately TURN ENGINE OFF and examine equipment. Never operate unit with damaged or defective equipment.

• ALWAYS TRIM OR CUT AT HIGH ENGINE SPEEDS. Do not run engine slowly at start or during trimming operations.

• DO NOT use equipment for purposes other than trimming or mowing weeds.

• NEVER raise linehead above knee height during operation.

• DO NOT operate unit with other people or animals in the immediate vicinity.Allow a minimum of 50 feet (15 meters) between operator and other people and animals when trimming or mowing. Allow a distance of 100 feet (30 meters) between operator and other people and animals when SCALPING with linehead trimmer.

• IF OPERATING UNIT ON A SLOPE, stand below the cutting attachment. DO NOT OPERATE on a slope or hilly incline if there is the slightest chance of slipping or losing your footing.

• LINEHEAD LINE RELEASE

o release fresh line, run engine at full throttle and “bump” linehead against lawn. Line will automatically release.The knife in debris shield will trim excess line (Fig. 6A).

• TRIMMING PROCEDURES

When properly equipped with a debris shield and linehead, your unit will trim unsightly weeds and tall grass in those hard-to-reach areas - along fences, walls, foundations and around trees. It can also be used for scalping to remove vegetation down to the ground for easier preparation of a garden or to clean out a particular area.

NOTE: Even with care, trimming around foundations, brick or stone walls, curves, etc., will result in above normal line wear.

TRIMMING / MOWING

Swing trimmer with a sickle-like motion from side to side. Do not tilt the linehead during the procedure. Test area to be trimmed for proper cutting height. Keep linehead at same level for even depth of cut (Fig. 7A).

CLOSER TRIMMING

Position trimmer straight ahead with a slight tilt so bottom of linehead is above ground level and line contact occurs at proper cutting point. Always cut away from operator.Do not pull trimmer in toward operator.

FENCE / FOUNDATION TRIMMING

Approach trimming around chain link fences, picket fences, rock walls and foundations slowly to cut close without whipping line against the barrier. If the line comes in contact with rock, brick walls, or foundations, it will break or fray. If line snags fencing, it will snap off.

TRIMMING AR

OUND

TREES

rim around tree trunks with a slow approach so line does not contact bark. Walk around the tree trimming from left to right. Approach grass or weeds with the tip of the line and tilt linehead slightly forward.

Fig.

Fig. 5

TRIMMING INSTRUCTIONS

ARNING:

DO NO

T use steel wire or plasticcoated steel wire of any kind with your linehead. Serious operator injury can result.

CAUTION: P

eriodically remove weed wrap to prevent overheating the drive shaft.Weed wrap occurs when strands of weed become entangled around the shaft beneath the debris shield (Fig. 6B).This condition prevents the shaft from being properly cooled. Remove weed wrap with screwdriver or similar device.

Fig. 6A

Fig. 6B

BUMP

WARNING: Use extreme caution when SCALPING.

eep a distance of 100 f

eet (30 meters) between operator, other people and animals during these operations.

Page 5

OBLEM

OBABLE CAUSE

CORRECTIVE A

CTION

Unit w

on’t start or starts but will

not run.

Incorrect starting procedures. Follow instructions in the User Manual.

Incorrect carb

uretor mixture adjustment

setting.

ve carburetor adjusted by an

uthorized Service Center.

ouled spark plug

Clean / gap or replace plug.

Fuel filter plugged. Replace fuel filter.

Unit starts, but engine has low

power.

Incorrect lever position on choke. Move to RUN position.

Dirty air filter. Remove, clean and reinstall filter.

Incorrect carburetor mixture adjustment setting.

Have carburetor adjusted by an Authorized Service Center.

Engine hesitates.

Incorrect carburetor mixture adjustment setting.

Have carburetor adjusted by an Authorized Service Center.

No power under load.

Runs erratically. Incorrectly gapped spark plug. Clean / gap or replace plug.

Smokes excessively.

Incorrect carburetor mixture adjustment setting.

Have carburetor adjusted by an Authorized Service Center.

Incorrect fuel mixture. Use properly mixed fuel (25:1 mixture).

TROUBLE SHOOTING THE ENGINE

• FUEL CAP / FUEL FILTER

1. Lift fuel line and filter (A) out of tank. A steel wire (B) with a hook or a paper clip works well (Fig. 10A).

2. Pull off with a twisting motion (Fig. 10B).

3. Replace fuel filter (C).

NOTE: Never operate the trimmer without the fuel filter. Internal engine damage could result!

• CARBURETOR ADJUSTMENT

The carburetor was pre-set at the factory for optimum performance. If further adjustments are necessary, please take your unit to the nearest Authorized Service Center.

• SPARK PLUG

1. Spark plug gap = .025" (.635mm) (Fig. 11).

2. Torque to 105 to 130 inch pounds (12 to 15 N•m).

Connect spark plug boot.

•

DEBRIS SHIELD KNIFE SHARPENING

Remo

ve cutter knife (E) from debris shield (F) (Fig.

12).

2. Place knife in a bench vise. Sharpen knife using a flat

file, being careful to maintain the angle of cutting edge. File in one direction only.

• STORING A UNIT

1. Perform all the general maintenance recommended in the Maintenance Section of y

our User Manual.

Clean exterior of engine, drive shaft assembly, debris shield and linehead.

3. Drain fuel from the fuel tank.

4. After fuel is drained, star t engine.

5. Run engine at idle until unit stops. This will purge the carburetor of fuel.

6. Allow engine to cool (approx. 5 minutes).

7. Using a spar k plug wrench, remove the spark plug.

8. Pour 1 teaspoon of clean 2-cycle oil into the combustion chamber. Pull starter rope slowly several times to coat internal components. Replace spark plug.

9. Store unit in a cool, dr y place away from any source of ignition such as an oil burner, water heater, etc.

• REMOVING A UNIT FROM STORAGE

1. Remove spark plug.

2. Pull star ter rope briskly to clear excess oil from combustion chamber.

3. Clean and gap spar k plug or install a new spark plug with proper gap.

4. Prepare unit for operation.

5. Fill fuel tank with proper fuel / oil mixture. See Fuel and Lubrication Section.

Fig.

CAUTION: Remove fuel from unit and store in approved container before starting this procedure. Open fuel cap slowly to release any pressure which may have formed in fuel tank.

Fig.

Fig. 10A Fig. 10B

WARNING: Failure to follow these steps may cause v

arnish to form in the carburetor and

difficult star

ting or permanent damage follow-

ing storage.
