GENERAL SAFETY RULES
GB
When using an electrical appliance, basic precautions should always be followed to ensure maximum safety and optimum
performance, Read the User manual before assembling and operating this appliance. Failure to comply with instructions
may result in fire, electrical shock or personal injury.

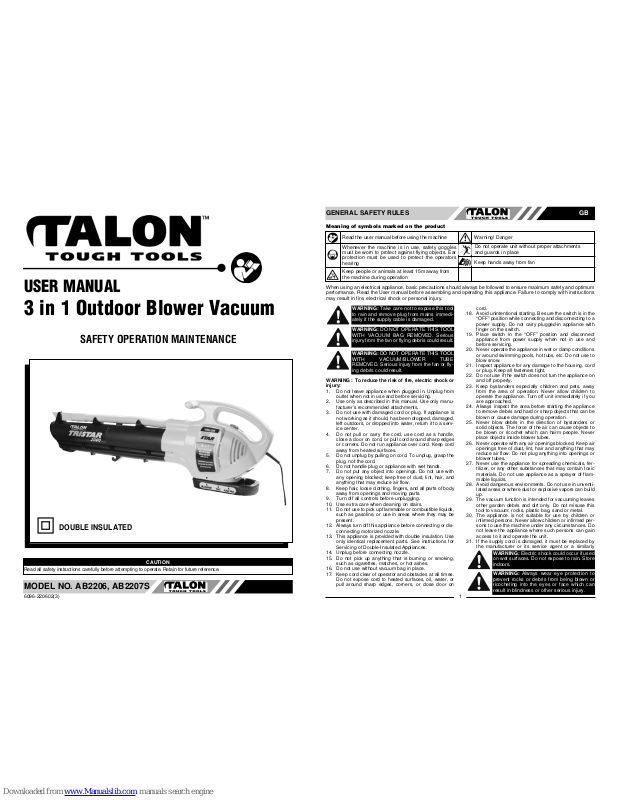

MODEL NO. AB2206, AB2207S
USER MANUAL
3 in 1 Outdoor Blower Vacuum
SAFETY OPERATION MAINTENANCE
DOUBLE INSULATED
CAUTION
Read all safety instructions carefully before attempting to operate. Retain for future reference.
6096-220602(3)
Meaning of symbols marked on the product
Read the user manual before using the machine
Whenever the machine is in use, safety goggles
must be worn to protect against flying objects. Ear
protection must be used to protect the operators
hearing
Warning! Danger
Keep people or animals at least 15m away from
the machine during operation
Do not operate unit without proper attachments
and guards in place
Keep hands away from fan
WARNING : To reduce the risk of fire, electric shock or
injury:
1. Do not leave appliance when plugged in. Unplug from
outlet when not in use and before servicing.
2. Use only as described in this manual. Use only manufacturer’s recommended attachments.
3. Do not use with damaged cord or plug. If appliance is
not working as it should, has been dropped, damaged,
left outdoors, or dropped into water, return it to a service center.
4. Do not pull or carry the cord, use cord as a handle,
close a door on cord, or pull cord around sharp edges
or corners. Do not run appliance over cord. Keep cord
away from heated surfaces.
5. Do not unplug by pulling on cord. To unplug, grasp the
plug, not the cord.
6. Do not handle plug or appliance with wet hands.
7. Do not put any object into openings. Do not use with
any opening blocked; keep free of dust, lint, hair, and
anything that may reduce air flow.
8. Keep hair, loose clothing, fingers, and all parts of body
away from openings and moving parts.
9. Turn off all controls before unplugging.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids,
such as gasoline, or use in areas where they may be
present.
12. Always turn off this appliance before connecting or disconnecting motorized nozzle.
13. This appliance is provided with double insulation. Use
only identical replacement parts. See instructions for
Servicing of Double-Insulated Appliances.
14. Unplug before connecting nozzle.
15. Do not pick up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes.
16. Do not use without vacuum bag in place.
17. Keep cord clear of operator and obstacles at all times.
Do not expose cord to heated surfaces, oil, water, or
pull around sharp edges, corners, or close door on
cord.
18. Avoid unintentional starting. Be sure the switch is in the
“OFF” position while connecting and disconnecting to a
power supply. Do not carry plugged-in appliance with
finger on the switch.
19. Place switch in the “OFF” position and disconnect
appliance from power supply when not in use and
before servicing.
20. Never operate the appliance in wet or damp conditions
or around swimming pools, hot tubs, etc. Do not use to
blow snow.
21. Inspect appliance for any damage to the housing, cord
or plug. Keep all fasteners tight.
22. Do not use if the switch does not turn the appliance on
and off properly.
23. Keep bystanders especially children and pets, away
from the area of operation. Never allow children to
operate the appliance. Turn off unit immediately if you
are approached.
24. Always inspect the area before starting the appliance
to remove debris and hard or sharp objects that can be
blown or cause damage during operation.
25. Never blow debris in the direction of bystanders or
solid objects. The force of the air can cause objects to
be blown or ricochet which can harm people. Never
place objects inside blower tubes.
26. Never operate with any air openings blocked. Keep air
openings free of dust, lint, hair and anything that may
reduce air flow. Do not plug anything into openings or
blower tubes.
27. Never use the appliance for spreading chemicals, fertilizer, or any other substances that may contain toxic
materials. Do not use appliance as a sprayer of flammable liquids.
28. Avoid dangerous environments. Do not use in unventilated areas or where dust or explosive vapors can build
up.
29. The vacuum function is intended for vacuuming leaves
other garden debris and dirt only. Do not misuse this
tool to vacuum: rocks, plastic bag, sand or metal.
30. The appliance is not suitable for use by children or
infirmed persons. Never allow children or infirmed persons to use the machine under any circumstances. Do
not leave the appliance where such persons can gain
access to it and operate the unit.
31. If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
WARNING: DO NOT OPERATE THIS TOOL
WITH VACUUM/BLOWER TUBE
REMOVED. Serious injury from the fan or flying debris could result.
WARNING: Take care not to expose this tool
to rain and remove plug from mains immediately if the supply cable is damaged.
WARNING: DO NOT OPERATE THIS TOOL
WITH VACUUM BAG REMOVED. Serious
injury from the fan or flying debris could result.
WARNING: Electric shock could occur if used
on wet surfaces. Do not expose to rain. Store
indoors.
WARNING: Always wear eye protection to
prevent rocks or debris from being blown or
ricocheting into the eyes or face which can
result in blindness or other serious injury.
2
GB
EXTENSION CORDS
Make sure your extension cord set is in good condition.
When using an extension cord, be sure to use one heavy
enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage resulting
in loss of power and overheating. To reduce the likelihood
of disconnection of appliance cord from the extension
cord during operation, loop the extension cord through the
cord holder and secure on cord clip as shown in Figure A.
1. Always wear safety goggles or other suitable eye protection.
2. Always wear long pants, shoes and gloves. Do not
wear loose clothing, jewelry, short pants, sandals, or
go barefoot.
3. Always wear a respirator or face mask when working
with the blower in a dusty environment.
4. Always inspect the area before starting the appliance
to remove debris and hard or sharp objects that can
be blown or cause damage during operation.
5. Never operate this appliance when you are tired, ill or
under the influence of alcohol, drugs or medication.
6. Use only 240 A.C. voltage supply as shown on the
nameplate of the appliance.
7. Always run the appliance with the tubes attached to
the unit.
8. This appliance is intended for household use.
FIG. A

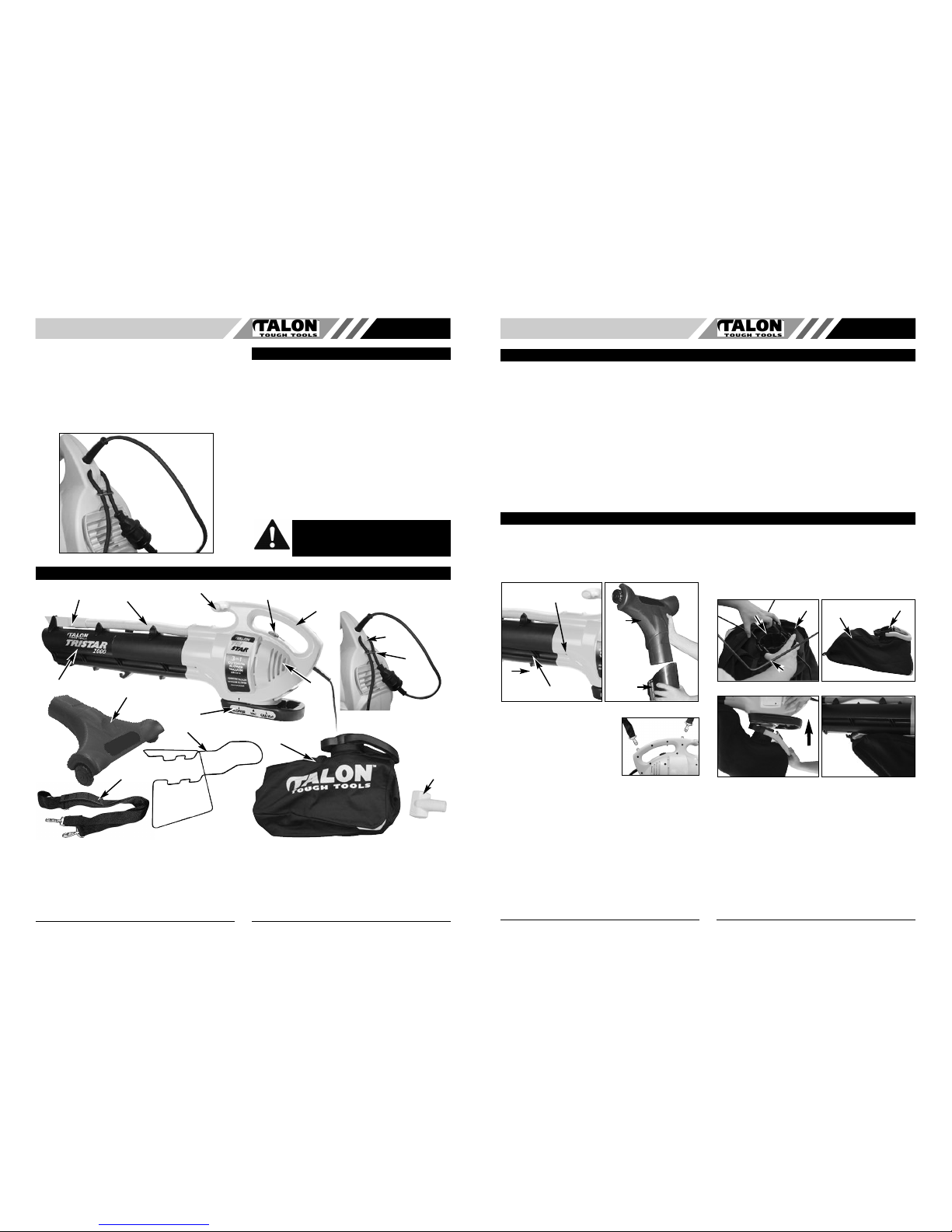

OPERATING INSTRUCTIONS
GB
BLOWER/VACUUM DESCRIPTION
1. Rear Handle
2. Two Speed on/off Switch
3. Front Handle
4. Car Vacuum Flexible Tube
5. Crevice Tool
6. GardenVacuum/Blower Tube
7. Mode Control Slide
8. Motor Housing
9. Speed Cleaner Head (AB2207S
Supplied) (AB2206 Optional)
10. Vacuum Bag Frame
11. Vacuum Bag Assembly
12. T-nozzle
13. Shoulder Strap
14. Cord Clip
15. Cord Holder
1
2
3
4
7
8
11
13
10
12
5
6
9
• VACUUM/BLOWER TUBE ASSEMBLY
1. Remove the screw (A). Insert tube (B) into the blower
housing and replace screw (A). (Fig. 1A)
2. Insert speed cleaner head (C) to the tube (B). (Fig. 1B)
(AB2207S Supplied) (AB2206 Optional)
• SHOULDER STRAP
INSTALLATION
1. Attach the 2 strap clips to the 2
links in the rear handle. (Fig. 2)
2. With machine on operator’s
right hand side place shoulder
strap across chest and over
left shoulder.
3. Adjust strap length to position the end of the vacuum/blower tube 50-100mm above the ground.
• VACUUM BAG ASSEMBLY
To install vacuum bag:
1. Reverse the vacuum bag (B) and insert flat bend of
vacuum bag frame (C) into the slots on side of the vacuum bag connector (A). Frame will click into position
when properly fitted. (Fig. 3A)
2. Fold vacuum bag over frame, inserting front portion
over curved section of frame last. Close zip at base of
bag. (Fig. 3B)
3. Position front hook of vacuum bag connector in line
with groove in housing. Tilt bag connector up so that
the tube engages with outlet of main body. Push up so
that the release tab clicks over lug at rear of housing.
(Fig. 3C)
4. Fit loop at front of bag over hook on vacuum/blower
tube. (Fig. 3D)
3
ASSEMBLY INSTRUCTIONS
Fig. 1A Fig. 1B
A
B
C
B
Fig. 2
SPECIFICATIONS
Model No. . . . . . . . . . . . . . . . . . . . . . . . . . . .AB2206 . . . . . . . . . . . . . . . . . . . . . . . .AB2207S
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .240V~,50-60Hz,2000Watt . . . . . . . . .240V~,50-60Hz,2200Watt
Air Volume High . . . . . . . . . . . . . . . . . . . . .7.5 c.m/m . . . . . . . . . . . . . . . . . . . . . .7.5 c.m/m
Low . . . . . . . . . . . . . . . . . . . . . .5.4 c.m/m . . . . . . . . . . . . . . . . . . . . . .5.4 c.m/m
Air Velocity High . . . . . . . . . . . . . . . . . . . . .240 km/h . . . . . . . . . . . . . . . . . . . . . . .240 km/h
Low . . . . . . . . . . . . . . . . . . . . . .175 km/h . . . . . . . . . . . . . . . . . . . . . . .175 km/h
No Load Speed High . . . . . . . . . . . . . . . . . . .16,000/rpm . . . . . . . . . . . . . . . . . . . . .16,000/rpm
Low . . . . . . . . . . . . . . . . . . .12,500/rpm . . . . . . . . . . . . . . . . . . . . .12,500/rpm
Bag Capacity . . . . . . . . . . . . . . . . . . . . . . . . . .35 Litre . . . . . . . . . . . . . . . . . . . . . . . .35 Litre
Mulch Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . .10:1 . . . . . . . . . . . . . . . . . . . . . . . . . . .10:1
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.0 kg . . . . . . . . . . . . . . . . . . . . . . . . .7.5 kg
Fig. 3A Fig. 3B
C
B
A
A
B
Fig. 3C Fig. 3D
WARNING: ALWAYS SWITCH OFF TOOL
AND UNPLUG CORD FROM OUTLET
BEFORE REMOVING VACUUM BAG FOR
EMPTYING.
14
15
4
GB GB
5

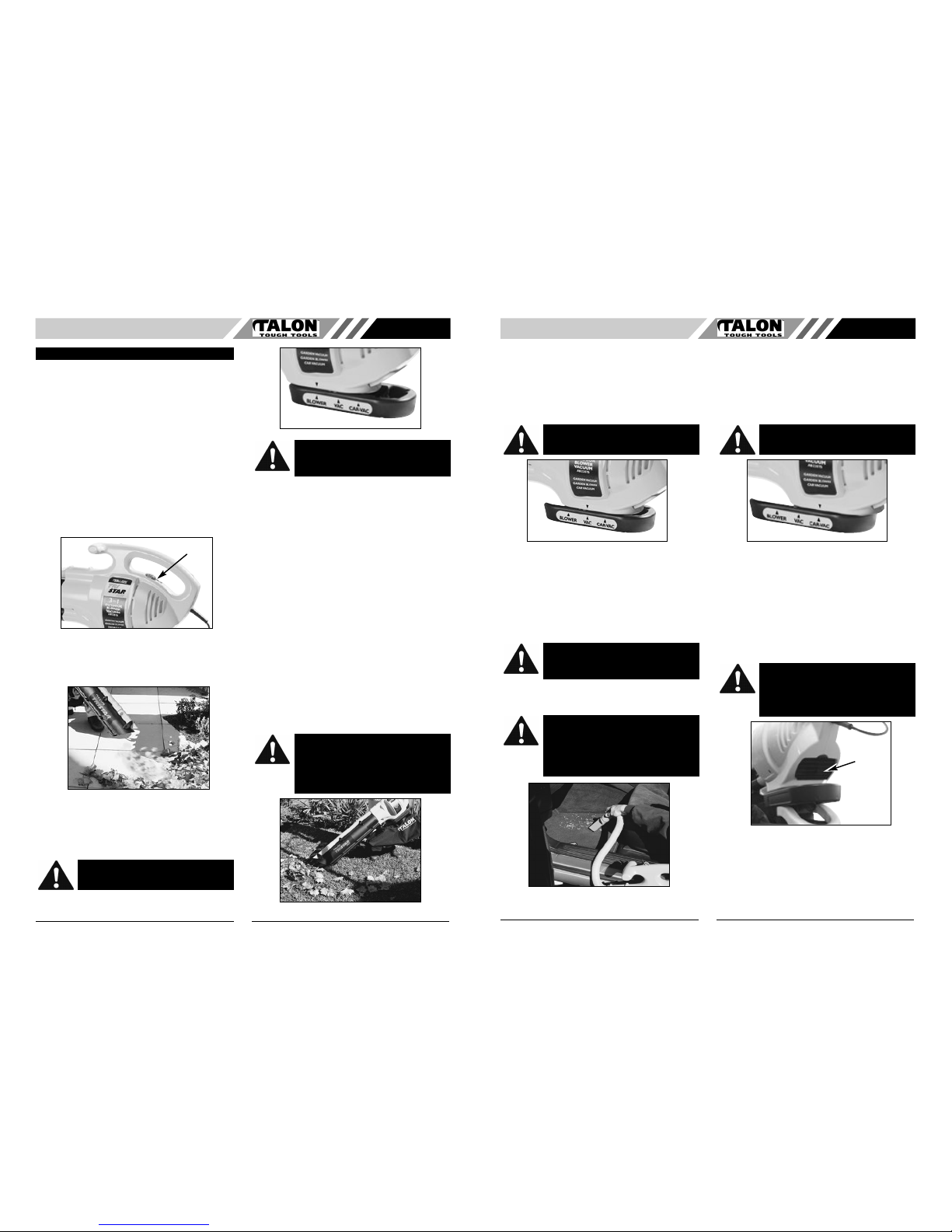

1. Always work moving away from solid objects such as
walls, large stones, automobiles and fences.
2. Clean spaces with corners by starting in corners and
moving outward to straight areas to prevent an
accumulation of debris which could fly into face.
3. Be careful when working near plants. The force of air
could damage young plants.
4. Uses for your blower:
• Sweeping debris or grass clippings from
driveways, sidewalks, patios, parking lots.
• Gathering grass clippings, straw or leaves into
piles.
• Removing debris from corners, around joints and
between bricks.
• SWITCH
To operate machine slide the two speed on/off switch forwards. Position “1” is low speed. Position “2” is high
speed. To stop, return switch to “OFF” position. (Fig. 4)
GARDEN BLOWER OPERATION
Your machine is designed to easily blow leaves and garden debris from patios, driveways, paths, lawns and from
under hard to reach places where debris may accumulate.
1. Before using your tool review all safety instructions on
page 1 and 2 of this user manual.
2. To set your unit in garden blower mode, first switch
machine off, then move the mode control slide to
“BLOWER”. (Fig. 5A)
DO NOT operate the blower with other people or animals
in the immediate vicinity. Allow a minimum of 30 feet (9
meters) between operator and other people or animals.
3. Place left hand on front handle and right hand on rear
handle. Operate switch using fingers of right hand.
Switch unit on to begin blowing.
4. Wear a dust mask when operating in dry or dusty
areas.
5. Always work by moving away from solid objects such
as wails, large stones and fences. Never blow debris in
the direction of bystanders, plants, glass etc.
6. Avoid working into confined corners or spaces as the
force of air could cause debris to fly upwards into face.
7. Stand at a distance that will allow you to control the
direction of blown debris.
8. Your machine is fitted with a two speed switch to help
control air speed under different use situations. Low
speed can be used when blowing material off smooth
surfaces or in an enclosed area where more control is
required. High speed should be used when blowing
debris off grass or other rough surfaces.
GARDEN VACUUM OPERATION
Your machine will collect a wide variety of garden debris
including leaves, grass clippings and small twigs. Larger
material will be broken down to reduce its volume and
minimise bag emptying.
OPERATION
Fig. 4
Switch
Fig. 5
WARNING: Machine must be switched off
before mode change slide is adjusted.
Fig. 5A
WARNING: DO NOT OPERATE HIS TOOL
WITH VACUUM BAG REMOVED. Serious
injury from the fan or flying debris could
result.
WARNING: NEVER OPERATE IN VACUUM
FUNCTION WITHOUT VACUUM BAG
PROPERLY ATTACHED. FLYING DEBRIS
COULD CAUSE SERIOUS INJURY TO
OPERATOR OR BYSTANDERS. ALWAYS
ENSURE VACUUM BAG ZIPPER IS
CLOSED BEFORE OPERATING UNIT.
Fig. 6
DO NOT vacuum hot ash, cigarettes or cigars, rocks,
glass, tin cans or other hard or sharp objects. Damage to
your machine or personal injury may result.
1. Before using your tool review all safety instructions on
page 1 and 2 of this user manual.
2. To set your unit in garden vacuum mode, first switch
machine off, then move the mode control slide to
“VAC”. (Fig. 6A)
3. Wear a dust mask when collecting dry or dusty material.
4. Place your left hand on the front handle and your right
hand on the rear handle. Operate switch using fingers
of right hand. Switch unit on to begin vacuuming.
5. Always work by moving in from the edge of a pile of
debris. Keep the vacuum nozzle 50-100mm above the
material being collected to allow proper air flow. (Fig. 6)
6. Swing unit from side to side to vacuum debris.
CAR VACUUM OPERATION
The unique car vacuum function and nozzles will clean
inside cars and other vehicles quickly and easily.
DO NOT vacuum hot ash, cigarettes or cigars, rocks,
glass, tin cans or other hard or sharp objects. Damage to
your machine or personal injury may result.
1. Before using your tool review all safety instructions on
page 1 and 2 of this user manual.
2. To set your unit in car vacuum mode, first switch
machine off, then move the mode control slide to “CARVAC”. (Fig. 7A)
3. Place machine on flat surface adjacent to car. (Fig. 7)
4. For best performance it is recommended that the car
vacuum function should only be used on high speed
(switch position 2).
5. Un-clip crevice tool and flexible hose from
vacuum/blower tube.
6. Flexible tube will stretch to 2 times its stored length to
reach inside vehicles.
7. Use the T-nozzle (A) accessory (supplied) to clean
large flat surfaces such as floors or luggage areas.
(Fig. 7B)
• SPEED-CLEANER (Model AB2207S
Supplied) (Model AB2206 Optional)
Place Speed Cleaner Head into Vacuum/Blower tube as
outlined on page 3 (Fig. 1B).
The speed cleaner is designed to collect small pieces of
debris, such as grass clippings and small leaves, from flat
surfaces such as patios, decks and pathways.
Fig. 6A
CAUTION: To avoid clogging vacuum tube
DO NOT place end of tube into a pile of
debris. To clear blockage switch off machine,
unplug cord and clear blockage.
WARNING: NEVER OPERATE IN CAR
VACUUM MODE WITHOUT VACUUM BAG
PROPERLY ATTACHED. FLYING DEBRIS
COULD CAUSE SERIOUS INJURY TO
OPERATOR OR BYSTANDERS. ALWAYS
ENSURE VACUUM BAG ZIPPER IS
CLOSED BEFORE OPERATING UNIT.
Fig. 7
WARNING: Machine must be switched off
before mode change slide is adjusted.
Fig. 7A
Fig. 7B
WARNING: When the machine is operating
in the car vacuum function the mode change
slide cannot be moved with the switch on.
Attempting to move the mode change slide
with machine switched on will permanently
damage slide mechanism.
A
WARNING: Machine must be switched off
before mode change slide is adjusted.
6
Rest wheels on surface to be cleaned and move head in
a forward and backward motion over material to be collected.

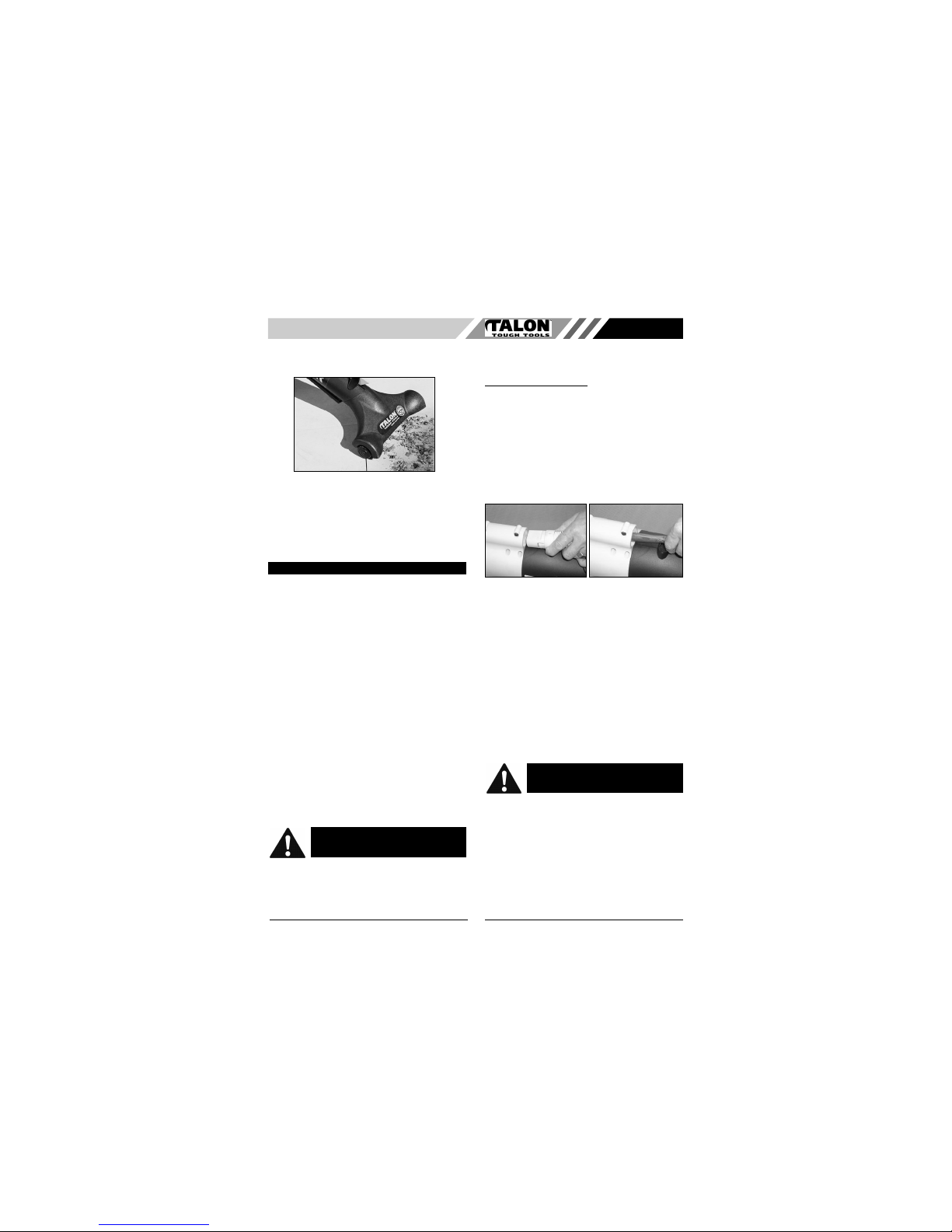

VACUUM BAG EMPTYING
To empty vacuum bag, undo zipper and shake.
For a more thorough clean removed bag from wire frame
and vacuum bag connector. Turn bag inside out and
shake. Re-install bag as outlined on page 3 Figure 3A to F.
If bag becomes wet immediately remove from frame and
connector, dry thoroughly before re-installing.
SERVICING DOUBLE-INSULATED APPLIANCE
In this double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding
means is provided on a double-insulated appliance, nor
should a means for grounding be added to the appliance.
There are no owner serviceable parts inside a doubleinsulated appliance marked with the words, “DOUBLE
INSULATION” or “DOUBLE INSULATED”. The symbol
(square within a square) may also be marked on the appliance.
Any service must only be carried out by a qualified technician at an authorized service centre.
1. Place switch in “OFF” position and unplug the power
supply before the appliance is serviced, cleaned or
maintenance is performed.
2. Keep air intake clean and air vents free of debris to
avoid overheating the motor.
3. Clean with a damp sponge and mild soap. Do not
squirt with water, hose with water or other liquids.
4. No lubrication is necessary as the motor is equipped
with lifetime lubricated bearings.
5. If the tool does not operate, turn switch to “OFF” position and disconnect from power supply first, then from
tool. Check power supply for blown fuses or tripped
circuit breakers. Do not attempt to repair it yourself.
There are no owner serviceable parts inside.
• WET OR MOIST MATERIAL
Moist or freshly cut (green) material may collect in the
vacuum/blower inlets of your machine.
Avoid picking up this type of material or material which
has moist soil mixed with it. Soil can compact within the
inlets and fan housing causing a reduction in perform-
ance.
To avoid the possibility of clogging alternate between dry
and moist material to keep inlets and tubes clear.
Unclogging Car
Vacuum Inlet:
In some circumstances the internal tube of the car vacuum hose may become blocked by a build up of moist
material adhering to the inner housing. To clear this area,
follow the instructions below.
1. Switch off and disconnect machine from power
supply.
2. Remove the car vacuum hose from its tube clips and
pull the adaptor out of the main housing. Fig. 9A.
3. Using a stick or small piece of timber, approximately
200mm long, clear the blocked area by pushing and
scraping the material. This is best done when the
material has dried and will flake more easily. Fig 9B.
4. Re-install the flexible hose and adaptor into the main
housing.
• Bark, Wood Chips, Seeds, Nuts,
AVOID COLLECTING SMALL HARD OBJECTS AS
THESE CAN DAMAGE THE FAN.
Under some operating conditions small, hard, objects
such as pieces of bark, wood chip, tree nuts, seeds or
twigs may be thrown by the fan into the car vacuum tube.
In most cases this material will be sucked through the fan
when the Car Vacuum function is engaged. However,
some items may become lodged in the hose or in the narrow section of the crevice tool. Before operating the unit in
car vacuum mode, check the tube and nozzle for material.
To clear the tube, remove the crevice tool and shake or
squeeze the hose.
To clear the crevice tool tip the nozzle upside down. A
light tap on the ground may be necessary.
Reinstall crevice tool to vacuum hose.
• STORAGE
1. Clean unit before storing.
• Free debris from air intake.
• Clean plastic parts with a mild soap and sponge
dampened with warm water.
• Do not spray blower with water.
2. Store indoors in a dry area out of reach of children.
3. Do not leave extension cord lying on the ground once
you have finished using the appliance. It can become
a tripping hazard.
GB
MAINTENANCE
Fig. 8
WARNING: WET MATERIAL SHOULD NOT
BE COLLECTED AT ANY TIME AS IT CAN
CAUSE AN ELECTRICAL HAZARD.
WARNING: Do not expose to rain. Avoid all
types of detergents, cleaners or solvents.
Never submerge in water or other liquids.
Fig. 9A Fig. 9B
Loading...
