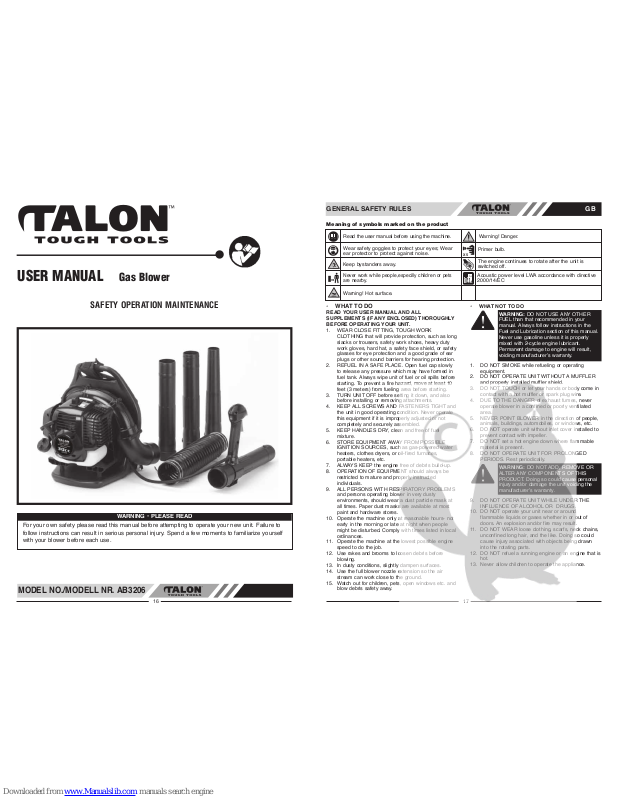

USER MANUAL Gas Blower
SAFETY OPERATION MAINTENANCE
WARNING • PLEASE READ
For your own safety please read this manual before attempting to operate your new unit. Failure to
follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself
with your blower before each use.
MODEL NO./MODELL NR. AB3206
GENERAL SAFETY RULES
GB
Meaning of symbols marked on the product
Read the user manual before using the machine.
Wear safety goggles to protect your eyes; Wear
ear protector to protect against noise.
Keep bystanders away.
Primer bulb.
The engine continues to rotate after the unit is
switched off.
Acoustic power level LWA accordance with directive
2000/14/EC
Never work while people,especilly children or pets
are nearby.
Warning! Danger.
• WHAT TO DO
READ YOUR USER MANUAL AND ALL
SUPPLEMENTS (IF ANY ENCLOSED) THOROUGHLY
BEFORE OPERATING YOUR UNIT.
1. WEAR CLOSE FITTING, TOUGH WORK
CLOTHING that will provide protection, such as long
slacks or trousers, safety work shoes, heavy duty
work gloves, hard hat, a safety face shield, or safety
glasses for eye protection and a good grade of ear
plugs or other sound barriers for hearing protection.
2. REFUEL IN A SAFE PLACE. Open fuel cap slowly
to release any pressure which may have formed in
fuel tank. Always wipe unit of fuel or oil spills before
starting. To prevent a fire hazard, move at least 10
feet (3 meters) from fueling area before starting.
3. TURN UNIT OFF before setting it down, and also
before installing or removing attachments.
4. KEEP ALL SCREWS AND FASTENERS TIGHT and
the unit in good operating condition. Never operate
this equipment if it is improperly adjusted or not
completely and securely assembled.
5. KEEP HANDLES DRY, clean and free of fuel
mixture.
6. STORE EQUIPMENT AWAY FROM POSSIBLE
IGNITION SOURCES, such as gas-powered water
heaters, clothes dryers, or oil-fired furnaces,
portable heaters, etc.
7. ALWAYS KEEP the engine free of debris build-up.
8. OPERATION OF EQUIPMENT should
always be
restricted to mature
and properly instructed
individuals.
9. ALL PERSONS WITH RESPIRATORY PROBLEMS
and persons operating blower in very dusty
environments, should wear a dust particle mask at
all times. Paper dust masks are available at most
paint and hardware stores.
10. Operate the machine only at reasonable hours- not
early in the morning or late at night when people
might be disturbed. Comply with times listed in local
ordinances.
11. Operate the machine at the lowest possible engine
speed to do the job.
12. Use rakes and brooms to loosen debris before
blowing.
13. In dusty conditions, slightly dampen surfaces.
14. Use the full blower nozzle extension so the air
stream can work close to the ground.
15. Watch out for children, pets, open windows etc. and
blow debris safety away.
• WHAT NOT TO DO
1. DO NOT SMOKE while refueling or operating
equipment.
2. DO NOT OPERATE UNIT WITHOUT A MUFFLER
and properly installed muffler shield.
3. DO NOT TOUCH or let your hands or body come in
contact with a hot muffler or spark plug wire.
4. DUE TO THE DANGER of exhaust fumes, never
operate blower in a confined or poorly ventilated
area.
5. NEVER POINT BLOWER in the direction of people,
animals, buildings,
automobiles, or windows, etc.
6.
DO NOT operate unit without inlet cover installed to
prevent contact with impeller.
7. DO NOT set a hot engine down where flammable
material is present.
8. DO NOT OPERATE UNIT FOR PROLONGED
PERIODS. Rest periodically.
9. DO NOT OPERATE UNIT WHILE UNDER THE
INFLUENCE OF ALCOHOL OR DRUGS.
10. DO NOT operate your unit near or around
flammable liquids or gases whether in or out of
doors. An explosion and/or fire may result.
11. DO NOT WEAR loose clothing, scarfs, neck chains,
unconfined long hair, and the like. Doing so could
cause injury associated with objects being drawn
into the rotating parts.
12. DO NOT refuel a running engine or an engine that is
hot.
13. Never allow children to operate the appliance.
Warning! Hot surface.
WARNING: DO NOT USE ANY OTHER
FUEL than that recommended in your
manual. Always follow instructions in the
Fuel and Lubrication section of this manual.
Never use gasoline unless it is properly
mixed with 2-cycle engine lubricant.
Permanent damage to engine will result,
voiding manufacturer’s warranty.
WARNING: DO NOT ADD, REMOVE OR
ALTER ANY COMPONENTS OF THIS
PRODUCT. Doing so could cause personal
injury and/or damage the unit voiding the
manufacturer’s warranty.
X 5
19
18
GB
1. THROTTLE TRIGGER
2. THROTTLE LOCK
3. ON/OFF IGNITION SWITCH
4. TOP ASSIST HANDLE
5. SPARK PLUG WIRE / SPARK
PLUG
6. CHOKE LEVER
7. STARTER HANDLE
8. AIR CLEANER COVER
9. FUEL CAP
10. FUEL TANK
11. PRIMER BULB
12. HARNESS
13. CONTROL HANDLE
14. OPERATING TUBE
15. HOSE CLAMP
16. FLEX TUBE
17. THROTTLE LINKAGE
18. MUFFLER COVER
19. SPARK ARRESTER SCREEN
20. VENTED BACK PAD
21. INTERMEDIATE TUBE
22. 56mm NOZZLE
23. 45mm CONCENTRATOR
NOZZLE
24. THROTTLE LINKAGE CLIPS
GENERAL IDENTIFICATION
SPECIFICATIONS
21
22
23
1
2
3
4
5
6
7
8
9
10
11
12
18
17
16
15
14
13
24
19
20
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-cooled, 2 Cycle
Engine displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 cm
3
(1.83 ci)
Engine Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,200 min
-1
Idle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,400-4,400 min
-1
Air Velocity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 467 km/h
Air Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.11 m
3
/min
Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.025 in (0.635 mm)
Fuel Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18.5 oz (550 ml)
Dry Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4 kg
Sound power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 dB(A)
Sound pressure level at ear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 dB(A)
Guarantee sound power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 dB(A)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17m/s
2
EN ISO 22868 : 2005.
GB
• ATTACH FLEX TUBE
Put the hose clamp(C) on the flex tube before connecting
the flex tube and the fan’s outlet tube together.
Connect the flex tube (B) to the fan’s outlet tube (A) (Fig.
1) with a hose clamp (C) (Fig. 2) and tighten securely (Fig.
2).
• ATTACH OPERATING TUBE
NOTE: keep the throttle cable as straight as possible
when connecting the blower tubes.
1. Place the unit on flat surface during assembly.
Insure screw mechanism of clamp is positioned
away from operator.
2. Put the hose clamp (C) on the flex tube and the
operating tube together.
3. Turn the rotary ring mark (D) so it aligns with the
throttle handle (F). Insert the operating tube (E) into
the flex tube (B) (Fig. 3) and then tighten securely
with a hose clamp (G) (Fig. 4).
4. Attached throttle linkage clips (# 24-know your
blower) - to both ends of the flex tube to secure the
throttle cable. ( See Fig. 5 and Fig. 6)
• ATTACH INTERMEDIATE TUBE AND
CONCENRATOR NOZZLE
Connect the intermediate tube (H) and air nozzle (I).
Push the tubes together and turn them clockwise so that
they lock together. (Fig. 7)
• ADJUST BACK PACK AND HARNESS AND
CONTROL HANDLE
1. Place blower on your
back by slipping arms
through the shoulder
straps as if you were
putting on a jacket (Fig.
8).
2. Once adjustments
have been made, to
the straps for user
comfort, remove the
blower from your back and place on level ground in
an upright position.
3. Adjust backpack harness and control handle.
• FUEL
Use regular grade unleaded gasoline mixed with Talon
40:1 custom 2-cycle engine oil for best results. Use mixing
ratios in Section FUEL MIXING TABLE.
• MIXING FUEL
Add oil to an approved fuel container followed by the
gasoline to allow incoming gasoline to mix with oil. Shake
container to ensure thorough mix.
• FUEL AND LUBRICATION SYMBOLS
ASSEMBLY INSTRUCTIONS
Fig. 1
A
Fig. 2
Fig. 3
B
Fig. 4
Fig. 8
WARNING: Never use straight gasoline in your
unit. This will cause permanent engine damage and
void the manufacturer’s warranty for that product.
Never use a fuel mixture that has been stored for over
90 days.
WARNING: If 2-cycle lubricant other than Talon
Custom Lubricant is to be used, it must be a premium grade oil for 2-cycle air cooled engines mixed at
a 40:1 ratio. Do not use any 2-cycle oil product with
a recommended mixing ratio of 100:1. If insufficient
lubrication is the cause of engine damage, it voids
the manufacturer’s engine warranty.
WARNING: Lack of lubrication voids engine
warranty. Gasoline and oil must be mixed at 40:1.
Gasoline and oil
mix 40:1
B
C
180˚
D
F
E
G
Fig. 5
Fig. 6
THROTTLE LINKAGE CLIPS
THROTTLE LINKAGE
CLIPS
Fig. 7
B
D
H
I
45mm
56mm
FUEL AND LUBRICATION
20
21
GB
• FUEL MIXING TABLE
• RECOMMENDED FUELS
Some conventional gasolines are being blended with oxygenates such as alcohol or an ether compound to meet
clean air standards. Your Talon engine is designed to
operate satisfactorily on any gasoline intended for automotive use including oxygenated gasolines.
• STARTING A COLD ENGINE
Fill fuel tank with proper gas and oil mixture. See FUEL
AND LUBRICATION. Set unit on ground so that it rests
on the back pack frame.
1. Pump primer bulb 10X by pressing up on the
bulb(D). (Fig. 10)
2. Your unit is designed with a 3 position choke: FULL
CHOKE “ ”, PARTIAL CHOKE “ ”, and RUN “ ”.
Move choke lever to FULL CHOKE “ ” position.
(Fig. 9)
3. Set throttle lock (C): While holding trigger (B) at
wide open position, press down and hold throttle
lock (C). Release throttle trigger (B), then release
throttle lock (C). Throttle trigger (B) will now remain
in the wide open position. Make sure ignition switch
is in the ON (I) position. (Fig. 11)
NOTE: The unit uses the advance starting system with
MAX FIRE IGNITION™, which significantly reduces the
effort required to start the engine. You must pull the starter
rope out far enough to hear
the engine attempt to start.
There
is no need to pull the rope briskly--there is no harsh
resistance when pulling. Be aware that this starting
method is vastly different from (and much easier than)
what you may be used to.
4. With the unit on the ground, hold the top assist
handle and step on the bottom of the frame with foot.
(Fig. 12)
5. Pull starter rope 4-6 times-if unit does not start
move choke lever to position 2 and pull 4-6 more
times (Fig. 13). Wait 10 sec. after unit starts then
move choke lever to position 3. (Fig.14)
6. Press trigger to run.
NOTE: If engine fails to start after repeated attempts,
refer to Troubleshooting section.
NOTE: Always pull starter rope straight out. Pulling
starter at an angle will cause rope to rub against the
eyelet. This friction will cause the rope to fray and wear
more quickly. Always hold starter handle when rope
retracts. Never let a rope snap back from extended
position. This could cause rope to snag or fray and also
damage the starter assembly.
• IMPORTANT IDLING INFORMATION
In some cases due to operating conditions (altitude,
temperature etc.) your blower may need a slight
adjustment to the idle
speed.
After warm up, If unit does not Idle after restarting 2
times, follow these steps to adjust idle.
1. Locate the idle adjustment screw (G) on the
carburetor (Fig. 15).
2. Using a Phillips or slotted screwdriver - turn screw
1/4 to 1/2 turn clockwise (to the right). Unit should
then idle properly.
• STOPPING THE ENGINE
Emergency Stopping Procedure. When it is necessary
to stop blower engine immediately, PRESS the OFF
“STOP ” switch (A) until the engine stops completely
(Fig.16).
Normal Stopping Method. For normal stopping,
release trigger and allow engine to return to idle speed.
Then PRESS the OFF “STOP ” switch (A) until the
engine stops completely. (Fig. 16)
GASOLINE TALON 40:1 PRESERVE
1 U.S. Gal. 3.2 oz. 95ml (cm
3
) .25 oz.
5 Liters 4.3 oz. 125ml (cm
3
) .30 oz.
1 lmp. Gal. 4.3 oz. 125ml (cm
3
) .30 oz.
Mixing Ratio 40 Parts Gasoline to 1 Part Lubricant
OPERATING INSTRUCTIONS
Fig. 9 Fig. 10
Fig. 11
D
A
C
B
Fig. 12
Fig. 13 Fig. 14
• STARTING A WARM ENGINE (Engine has
been stopped for no more than 15-20 minutes)
1. Set throttle latch (see step 2 for starting a cold
engine), pull starter rope briskly.
2. If engine does not start, or starts and then stops
after 5 rope pulls, follow procedure “STARTING A
COLD ENGINE”.
• BLOWER OPERATIONS
1. Use the blower for trees, shrubs, flower beds, and
hard-to-clean areas.
2. Use the unit around buildings and for other normal
cleaning procedures.
3. Use the blower around walls, overhangs, fences,
and screens.
4. We recommend that a face mask be worn when
operating blower in dusty areas.
5. Stand away from the debris, at a distance that will
easily allow you to control the direction of blown
debris. Never blow debris in direction of bystanders.
6. To control velocity of air stream, blower can be
operated at any speed between idle and full throttle.
Experience with the unit will help you determine the
amount of airflow necessary for each application.
7. To reduce sound levels, limit the number of pieces of
equipment used at any one time.
8. Check your equipment before operation, especially
the muffler, air intakes and air filters.
9. Use rakes and brooms to loosen
debris before
blowing.In dusty conditions,
slightly dampen
surfaces when water is available.
10. Conserve water by using power blowers instead of
hoses for many lawn and garden applications,
including areas such as gutters, screens, patios,
grills, porches and gardens.
11. Use intermediate tube plus nozzle of your choice so
the air stream can work close to the ground.
12. After using blowers and other equipment, CLEAN
UP! Dispose of debris in trash receptacles.
• OPERATION INSTRUCTIONS
1. Follow the instructions “STARTING A COLD
ENGINE”.
2. Once unit is running, place unit on your back by
slipping arms through the shoulder straps as if your
were putting on a jacket (Fig. 17).
3. When preparing to clear an area of debris, always
position yourself so that you can control the
direction debris will be blown .
4. The control handle (A)(Fig. 16) and the flexibility of
the blower tube assembly will allow you to clear the
most hard-to-reach areas .
5. The hand grip, throttle trigger, throttle lock and
ignition on/off switch (B) are all mounted on a swivel
handle that offers a wide range of operating
positions and comfort (Fig. 19).
• AIR FILTER
To Clean Air Filter:
1. Loosen knob (A)
holding air filter cover
in place, remove
cover (B) and
lift filter
(C) from air box (Fig.
20 & Fig. 21).
2. Wash filter in soap and
water. DO NOT USE
GASOLINE!
3. Air dry filter.
4. Reinstall air filter and air filter cover.
NOTE: Replace filter if frayed, torn, damaged or unable to
be cleaned.
GB
WARNING: Because of flying debris, always,
approved shielded safety glasses or face
shield when operating blower.
Fig. 16
A
Fig. 15
G
WARNING: Before using your blower, review
Safety Precautions in your User Manual, and
all regulations for operation of the unit. These
precautions and regulations are for your protection.
WARNING: DO NOT operate the blower with
other people or animals in the immediate
vicinity. Allow a minimum of 50 feet (15
meters) between operator and other people
or animals.
Fig. 17
Fig. 18
Fig. 19
MAINTENANCE INSTRUCTIONS
CAUTION: NEVER operate blower without
the air filter or dust and dirt will be sucked into
the engine and damage it. The air filter must
be kept clean. If it becomes damaged, install
a new filter.
Fig. 20
B
A
Fig. 21
C
GB
23
22
• FUEL CAP / FUEL FILTER
NOTE: Keep vent (A) on fuel cap clean of debris (Fig. 22).
Fuel Filter:
1. Completely remove fuel cap from fuel tank (B) to be
able to remove fuel filter (C) from tank. Use a piece of
wire (C) with a hook formed at the end to pull filter out
of tank. (Fig. 23)
2. Pull off fuel filter (D) with a twisting motion.(Fig. 24).
3. Replace fuel filter.(Fig. 24).
NOTE: Never operate the blower without the fuel filter.
Internal engine damage could result!
• CARBURETOR
ADJUSTMENT
The carburetor was pre-set
at the factory for optimum
performance. If further
adjustments are necessary
take your blower to a
Sears or other qualified
service dealer.
• SPARK PLUG
1. To remove spark plug (B) (Fig. 26) for cleaning or
replacement: make sure engine is off, spark plug is
cool, then grasp spark plug boot firmly and remove
from spark plug. Remove spark plug with correct
spark plug tool. Inspect, clean or replace as needed.
2. Spark plug gap = .025 in. (.635mm) (Fig. 25).
3. Torque to 105 to 130 inch pounds (12 to 15 N•m).
Connect spark plug boot.
4. If need replace spark plug with Champion RZ7C or
equivalent.
• SPARK ARRESTOR SCREEN / COLLAR
ASSEMBLY
1. To replace spark arrestor screen/collar assembly (A)
(Fig. 26), use a needle nose pliers and pinch an
edge of the collar. Pull out the whole spark arrestor
screen assembly.
2. Use the needle nose pliers to push in a new spark
arrestor screen assembly by opening the pliers
slightly to press the inner surface of the assembly
securely into place
• STORAGE
1. Perform all the general maintenance recommended
in the Maintenance Section of your User Manual.
2. Clean outside surface of unit.
3. Drain fuel from the fuel tank.
4. After fuel is drained, start engine.
5. Run engine at idle until unit stops. This will purge
the carburetor of fuel.
6. Allow engine to cool (approx. 5 minutes).
7. Using a spark plug wrench, remove the spark plug.
8. Pour 1 teaspoon of clean 2-cycle oil into the
combustion chamber. Pull starter rope slowly
several times to coat internal components. Replace
spark plug.
9. Store unit in a cool, dry place away from any source
of ignition such as an oil burner, water heater, etc.
• REMOVING A UNIT FROM STORAGE
1. Remove spark plug.
2. Pull starter rope briskly to clear excess oil from
combustion chamber.
3. Clean and gap spark plug or install a new spark
plug with
proper gap.(Fig. 24)
4. Prepare unit for operation.
5. Fill fuel tank with proper fuel / oil mixture. See Fuel
and Lubrication Section.
GB
CAUTION: Remove fuel from unit and store
in approved container before starting this
procedure. Open fuel cap slowly to release
any pressure which may have formed in fuel
tank.
Fig. 22
Fig. 23
Fig. 24
Fig. 25
A
Fig. 26
B
B
C
C
.025” (.635mm)
Spark
Plug
A
WARNING: Failure to follow these steps may
cause varnish to form in the carburetor and
difficult starting or permanent damage following storage.
TROUBLE SHOOTING THE ENGINE
PROBLEM
Unit won’t start or starts but will not run.
Unit starts, but engine has low power.
Engine hesitates.
No power under load.
Runs erratically.
Smokes excessively.
PROBABLE CAUSE
Incorrect starting procedures.
Incorrect carburetor mixture adjustment
setting.
Fouled spark plug.
Empty fuel tank.
Primer bulb was not pressed enough.
Fuel filter is plugged.
Incorrect lever position.
Dirty spark arrestor screen.
Dirty air filter.
Incorrect carburetor mixture adjustment
setting service dealer.
Incorrect carburetor mixture adjustment
setting.
Air filter is plugged.
Old or improperly mixed fuel.
Incorrect carburetor mixture adjustment
setting.
Old or improperly mixed fuel.
Air filter is plugged.
Fouled spark plug.
Incorrectly gapped spark plug.
Plugged spark arrestor.
Dirty air filter.
Incorrect carburetor mixture adjustment
setting.
Incorrect fuel mixture.
CORRECTIVE ACTION
Follow instructions in the User Manual.
Have carburetor adjusted by an Authorized
Service Center.
Clean/gap or replace plug.
Fill fuel tank with properly mixed fuel.
Press primer bulb fully and slowly 10 times.
Replace the fuel filter.
Move to RUN position.
Replace spark arrestor screen.
Remove, clean and reinstall filter.
Have carburetor adjusted by an Authorized
Service Center.
Have carburetor adjusted by an Authorized
Service Center.
Replace or clean the air filter.
Drain gas tank/add fresh fuel mixture.
Have carburetor adjusted by an Authorized
Service Center.
Drain gas tank (see storage)/add fresh fuel
mixture.
Replace
or clean the air filter.
Replace or
clean the spark plug.
Clean/gap or replace plug.
Clean or replace spark arrestor.
Clean or replace air filter.
Have carburetor adjusted by an Authorized
Service Center.
Use properly mixed fuel(40:1 mixture).
Loading...
