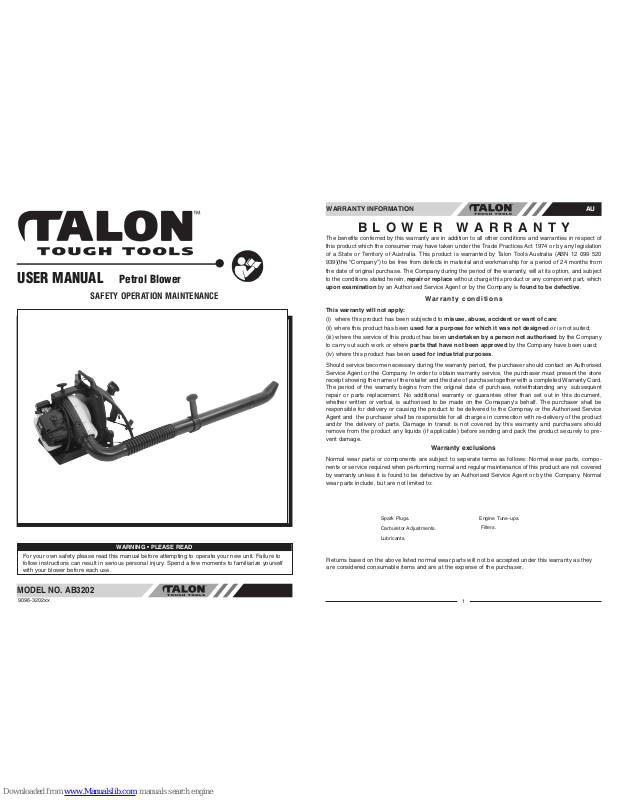

MODEL NO. AB3202

9096-3202xx

USER MANUAL Petrol Blower

SAFETY OPERATION MAINTENANCE

WARNING • PLEASE READ

For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your blower before each use.

WARRANTY INFORMATION

BLOWER WARRANTY

The benefits conferred by this warranty are in addition to all other conditions and warranties in respect of this product which the consumer may have taken under the Trade Practices Act 1974 or by any legislation of a State or Territory of Australia. This product is warranted by Talon Tools Australia (ABN 12 099 520

939)(the “Company”) to be free from defects in material and workmanship for a period of 24 months from the date of original purchase. The Company during the period of the warranty, will at its option, and subject to the conditions stated herein,

repair or replace

without charge this product or any component part, which

upon examination

by an Authorised Service Agent or by the Company is found to be defective

Warranty conditions

This warranty will not apply:

(i) where this product has been subjected to misuse, abuse, accident or want of care

;

(ii) where this product has been used for a purpose for which it was not designed

or is not suited;

(iii) where the service of this product has been undertaken by a person not authorised

by the Company

to carry out such work or where parts that have not been approved

by the Company have been used;

(iv) where this product has been used for industrial purposes

Should service become necessary during the warranty period, the purchaser should contact an Authorised Service Agent or the Company. In order to obtain warranty service, the purchaser must present the store receipt showing the name of the retailer and the date of purchase together with a completed Warranty Card. The period of the warranty begins from the original date of purchase, notwithstanding any subsequent repair or parts replacement. No additional warranty or guarantee other than set out in this document, whether written or verbal, is authorised to be made on the Comapany's behalf. The purchaser shall be responsible for delivery or causing the product to be delivered to the Compnay or the Authorised Service Agent and the purchaser shall be responsible for all charges in connection with re-delivery of the product and/or the delivery of parts. Damage in transit is not covered by this warranty and purchasers should remove from the product any liquids (if applicable) before sending and pack the product securely to prevent damage.

Warranty exclusions

Normal wear parts or components are subject to seperate terms as follows: Normal wear parts, components or service required when performing normal and regular maintenance of this product are not covered by warranty unless it is found to be defective by an Authorised Service Agent or by the Company. Normal wear parts include, but are not limited to:

Spark Plugs.

Carburetor Adjustments.

Lubricants.

Engine Tune-ups.

Filters.

Returns based on the above listed normal wear parts will not be accepted under this warranty as they are considered consumable items and are at the expense of the purchaser.

Page 2

GENERAL SAFETY RULES

Meaning of symbols marked on the product

Read the user manual before using the machine.

Wear safety goggles to protect your eyes; Wear ear protector to protect against noise.

Keep bystanders away.

The engine continues to rotate after the unit is switched off.

Acoustic power level LWA accordance with directive 2000/14/EC

Never work while people,especilly children or pets are nearby.

Warning! Danger.

• WHAT TO DO

READ YOUR USER MANUAL AND ALL SUPPLEMENTS (IF ANY ENCLOSED) THOROUGHLY BEFORE OPERATING YOUR UNIT.

1. WEAR CLOSE FITTING, TOUGH WORK CLOTHING that will provide protection, such as long

slacks or trousers, safety work shoes, heavy duty work gloves, hard hat, a safety face shield, or safety glasses for eye protection and a good grade of ear plugs or other sound barriers for hearing protection.

2. REFUEL IN A SAFE PLACE. Open fuel cap slowly to release any pressure which may have formed in fuel tank. Always wipe unit of fuel or oil spills before starting. To prevent a fire hazard, move at least 10 feet (3 meters) from fueling area before starting.

3. TURN UNIT OFF before setting it down, and also before installing or removing attachments.

4. KEEPALL SCREWS AND FASTENERS TIGHT and the unit in good operating condition. Never operate this equipment if it is improperly adjusted or not completely and securely assembled.

5. KEEP HANDLES DRY, clean and free of fuel mixture.

6. STORE EQUIPMENT AWAY FROM POSSIBLE IGNITION SOURCES, such as gas-powered water heaters, clothes dryers, or oil-fired furnaces, portable heaters, etc.

7. ALWAYS KEEP the engine free of debris build-up.

8. OPERATION OF EQUIPMENT should always be restricted to mature and properly instructed individuals.

9. ALL PERSONS WITH RESPIRATORY PROBLEMS and persons operating blower in very dusty

environments, should wear a dust particle mask at all times. Paper dust masks are available at most paint and hardware stores.

10. Operate the machine only at reasonable hours- not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances.

1. Operate the machine at the lowest possible engine speed to do the job.

12. Use rakes and brooms to loosen debris before blowing.

13. In dusty conditions, slightly dampen surfaces.

14. Use the full blower nozzle extension so the air stream can work close to the ground.

15. Watch out for children, pets, open windows etc. and blow debris safely away.

• WHAT NOT TO DO

1. DO NOT SMOKE while refueling or operating equipment.

2. DO NOT OPERATE UNIT WITHOUT A MUFFLER and properly installed muffler shield.

3. DO NOT TOUCH or let your hands or body come in contact with a hot muffler or spark plug wire.

4. DUE TO THE DANGER of exhaust fumes, never operate blower in a confined or poorly ventilated area.

5. NEVER POINT BLOWER in the direction of people, animals, buildings, automobiles, or windows, etc.

6. DO NOT operate unit without inlet cover installed to prevent contact with impeller.

7. DO NOT set a hot engine down where flammable material is present.

8. DO NOT OPERATE UNIT FOR PROLONGED PERIODS. Rest periodically.

9. DO NOT OPERATE UNIT WHILE UNDER THE INFLUENCE OF ALCOHOL OR DRUGS.

10. DO NOT operate your unit near or around flammable liquids or gases whether in or out of

doors. An explosion and/or fire may result.

11. DO NOT WEAR loose clothing, scarfs, neck chains, unconfined long hair, and the like. Doing so could cause injury associated with objects being drawn into the rotating parts.

12. DO NOT refuel a running engine or an engine that is hot.

13.

Never allow children to operate the appliance

WARNING:

DO NOT USE ANY OTHER FUEL than that recommended in your manual. Always follow instructions in the Fuel and Lubrication section of this manual. Never use gasoline unless it is properly mixed with 2-cycle engine lubricant. Permanent damage to engine will result, voiding manufacturer’s warranty.

WARNING:

DO NOT ADD, REMOVE OR ALTER ANY COMPONENTS OF THIS PRODUCT. Doing so could cause personal injury and/or damage the unit voiding the manufacturer’s warranty.

The following basic troubleshooting checks can be easily carried out to determine whether or not the unit is running correctly. If the unit will not operate after these checks then the product should be taken to an Authorised Service Agent for further inspection.

Ensure a small amount of fresh 2 stroke fuel (25:1 fuel:oil) is either in the tank or available for use during troubleshooting.

TROUBLE SHOOTING THE ENGINE

PROBLEM

Unit won’t start or starts but will not run.

Unit starts, but engine has low power.

Engine hesitates. No power under load.

Runs erratically.

Smokes excessively.

PROBABLE CAUSE

Incorrect starting procedures.

Incorrect carburettor mixture adjustment

setting.

Fouled spark plug

Fuel filter plugged.

Incorrect lever position on choke.

Dirty air filter.

Incorrect carburettor mixture adjustment

setting.

Incorrect carburettor mixture adjustment

setting.

Incorrectly gapped spark plug.

Incorrect carburettor mixture adjustment

setting.

Incorrect fuel mixture.

CORRECTIVE ACTION

Follow instructions in the User Manual.

Have carburettor adjusted by an Authorized

Service Center

Clean / gap or replace plug.

Replace fuel filter.

Move to RUN position.

Remove, clean and reinstall filter.

Have carburettor adjusted by an Authorized

Service Center.

Have carburettor adjusted by an Authorized

Service Center.

Clean / gap or replace plug.

Have carburettor adjusted by an Authorized

Service Center.

Use properly mixed fuel (25:1 mixture).

Page 3

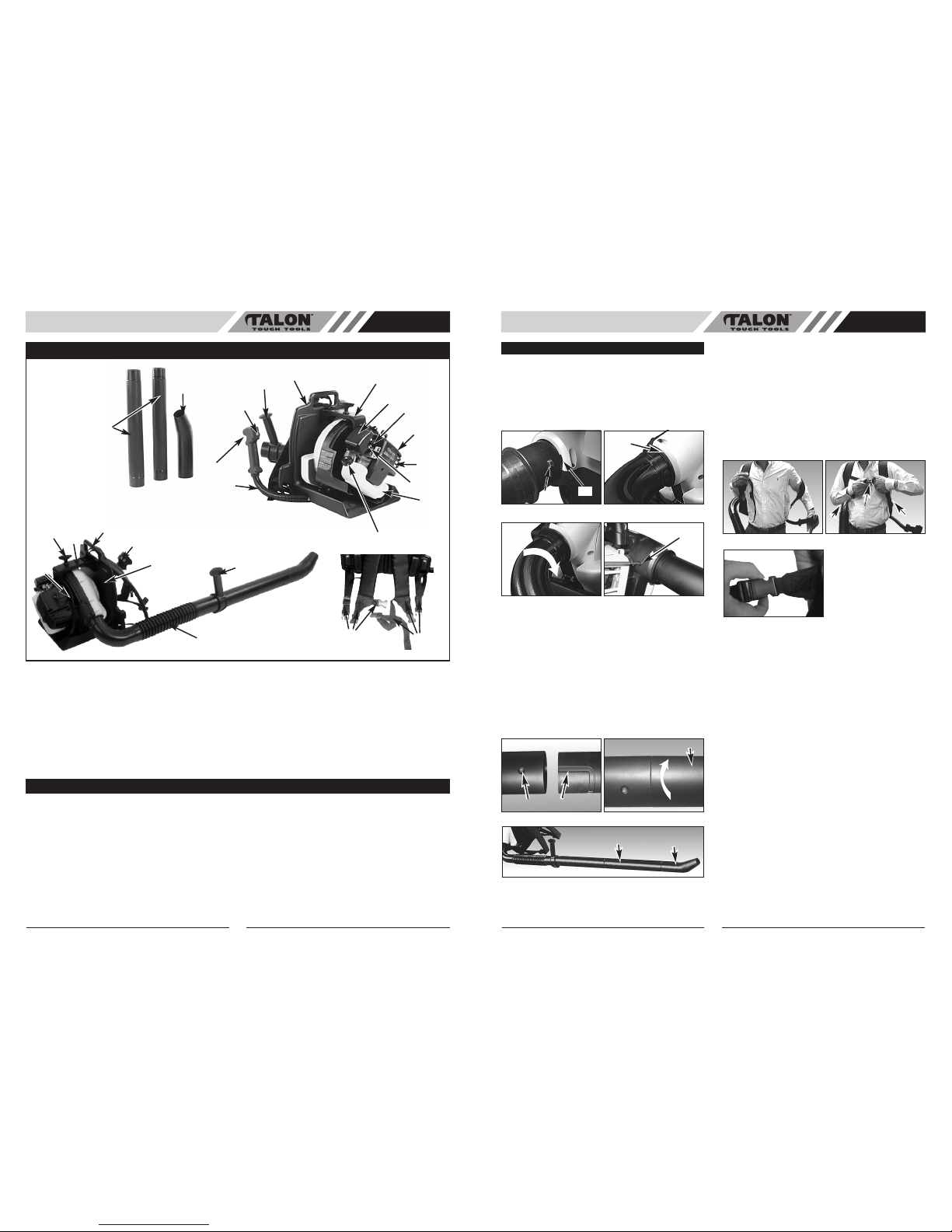

• ATTACH FLEX TUBE

1. Align the flex tube tab (A) with notch (B) in the housing (Fig. 1A).

2. Push tube into housing up to ridge (C) (Fig. 1B).

3. Twist tube counterclockwise to lock into place (Fig. 1C). And tighten the screw D. (Fig. 1D).

• ATTACH EXTENSION TUBES (2) AND CONCENTRATOR NOZZLE

1. Align grooves (A) on extension tube with notches (B) in flex tube (Fig. 2A).

2. Push in up to ridge on extension tube (C) (Fig. 2B).

3. Twist tube clockwise until it clicks into position and locks (Fig. 2B)

4. 2nd extension tube (D): repeat steps 1 through 3 above (Fig. 2C).

5. Concentrator nozzle (E): repeat steps 1 through 3 above (Fig. 2C).

• ADJUST BACK PACK AND HARNESS

1. Place blower on your back by slipping arms through the shoulder straps as if you were putting on a jacket (Fig. 3A).

2. Adjust shoulder and chest straps so that the back pack feels comfortable on your back (Fig. 3B).

3. Once adjustments have been made, remove the blower from your back and place on level ground.

NOTE:

There are three buckles for this harness. ( Fig. 3B) (A.B.C.).Buckle C is the main buckle for securing the harness.

ASSEMBLY INSTRUCTIONS

Fig. 1A Fig. 1B

Fig. 1C Fig. 1D

Fig. 2A

Fig. 2B

Fig. 2C

Fig. 3A Fig. 3B

Fig. 3C

GENERAL IDENTIFICATION

1. THROTTLE TRIGGER

2. THROTTLE LOCK

3. IGNITION SWITCH

4. THROTTLE CONTROL ARM

5. STARTER HANDLE

6. MUFFLER COVER

7. SPARK ARRESTER SCREEN

8. CARBURETOR / PRIMER BULB

9. AIR CLEANER COVER

10. 3-POSITION CHOKE LEVER

11. FUEL TANK

12. FUEL CAP

13. SPARK PLUG LEAD / SPARK PLUG

14. TOP ASSIST HANDLE

15. BRIDGE

16. VENTED BACK PAD

17. PISTOL GRIP ASSIST HANDLE

18. FLEX TUBE

19. EXTENSION TUBES (2)

20. CONCENTRATOR NOZZLE

21. HARNESS

22. STARTING INSTRUCTIONS

SPECIFICATIONS

Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-cooled, 2 Cycle

Engine displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 cc

Engine Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,000

± 500 rpm

Idle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,000-3,500 rpm

Air Velocity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288 km/h

Air Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 cu.m/min.

Fuel Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 710 ml

Dry Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.9 kg

Sound Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 dB(A)

Sound Pressure Level at ear . . . . . . . . . . . . . . . . . . . . . . . 91 dB(A)

Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.2 m/s

Page 4

• STOPPING THE ENGINE

Emergency Stopping Procedure

. When it is necessary to stop blower engine immediately, DEPRESS the switch to STOP the engine.

Normal Stopping Method.

For normal stopping, release trigger and allow engine to return to idle speed. Then DEPRESS the switch to STOP the engine.

• STARTING A WARM ENGINE (Engine has

been stopped for no more than 15-20 minutes)

1. With throttle at IDLE (not depressed), pull starter rope

briskly.

2. If engine does not start, or starts and then stops after

5 rope pulls, follow procedure “6-1. STARTING A COLD ENGINE”.

• BLOWER OPERATIONS

Your Talon blower is designed to easily remove debris from patios, walkways, lawns, bushes, etc., and many hard to reach areas where debris may accumulate.

DO NOT

operate the blower with other people or animals in the immediate vicinity. Allow a minimum of 30 feet (9 meters) between operator and other people or animals.

We recommend that a face mask be worn when operating blower in dusty areas.

Stand away from the debris, at a distance that will easily allow you to control the direction of blown debris. Never blow debris in direction of bystanders.

To control velocity of airstream, blower can be operated at any speed between idle and full throttle. Experience with the unit will help you determine the amount of airflow necessary for each application.

• OPERATION INSTRUCTIONS

1. Follow the instructions “STARTING A COLD

ENGINE”.

Once unit is running, place unit on your back by slip

ping arms through the shoulder straps as if you were putting on a jacket. Secure chest strap (Fig. 5A).

When preparing to clear an area of debris, always position yourself so that you can control the direction debris will be blown (Fig. 5B).

4. The pistol grip handle (A) and the flexibility of the

blower tube assembly will allow you to clear the most hard-to-reach areas (Fig. 5B).

5. The hand grip, throttle trigger and stop switch (B) are all mounted on a swivel handle that offers a wide range of operating positions and comfort (Fig. 5C).

• AIR FILTER

To Clean Air Filter:

1. Remove 2 screws (A) holding air filter cover in place, remove cover (B) and lift filter (C) from air box (Fig. 6A and B).

2. Wash filter in soap and water.

DO NOT USE GASO-

LINE!

3. Air dry filter.

4. Reinstall air filter and air filter cover.

NOTE:

Replace filter if frayed, torn, damaged or unable to

be cleaned.

Fig. 4E Fig. 4F

Fig. 5A

Fig. 5B Fig. 5C

MAINTENANCE INSTRUCTIONS

CAUTION

: NEVER operate trimmer without the air filter. The air filter must be kept clean. If it becomes damaged, install a new filter.

WARNING:

Before using your blower, review Safety Precautions in your User Manual, and all regulations for operation of the unit. These precautions and regulations are for your protection.

CAUTION:

Hold the blower so that hot exhaust does not damage clothing and is not inhaled by operator.

Fig. 6A Fig. 6B

• FUEL

Use regular grade unleaded gasoline mixed with 2-cycle engine oil. Use mixing ratios in FUEL MIXING TABLE.

• MIXING FUEL

Add the oil to an approved fuel container followed by the gasoline to allow incoming gasoline to mix with oil. Shake the container to ensure thorough mix.

• FUEL MIXING TABLE

• RECOMMENDED FUELS

Some conventional gasolines are being blended with oxygenates such as alcohol or an ether compound to meet clean air standards. Your Talon engine is designed to operate satisfactorily on any gasoline intended for automotive use including oxygenated gasolines.

• FUEL AND LUBRICATION

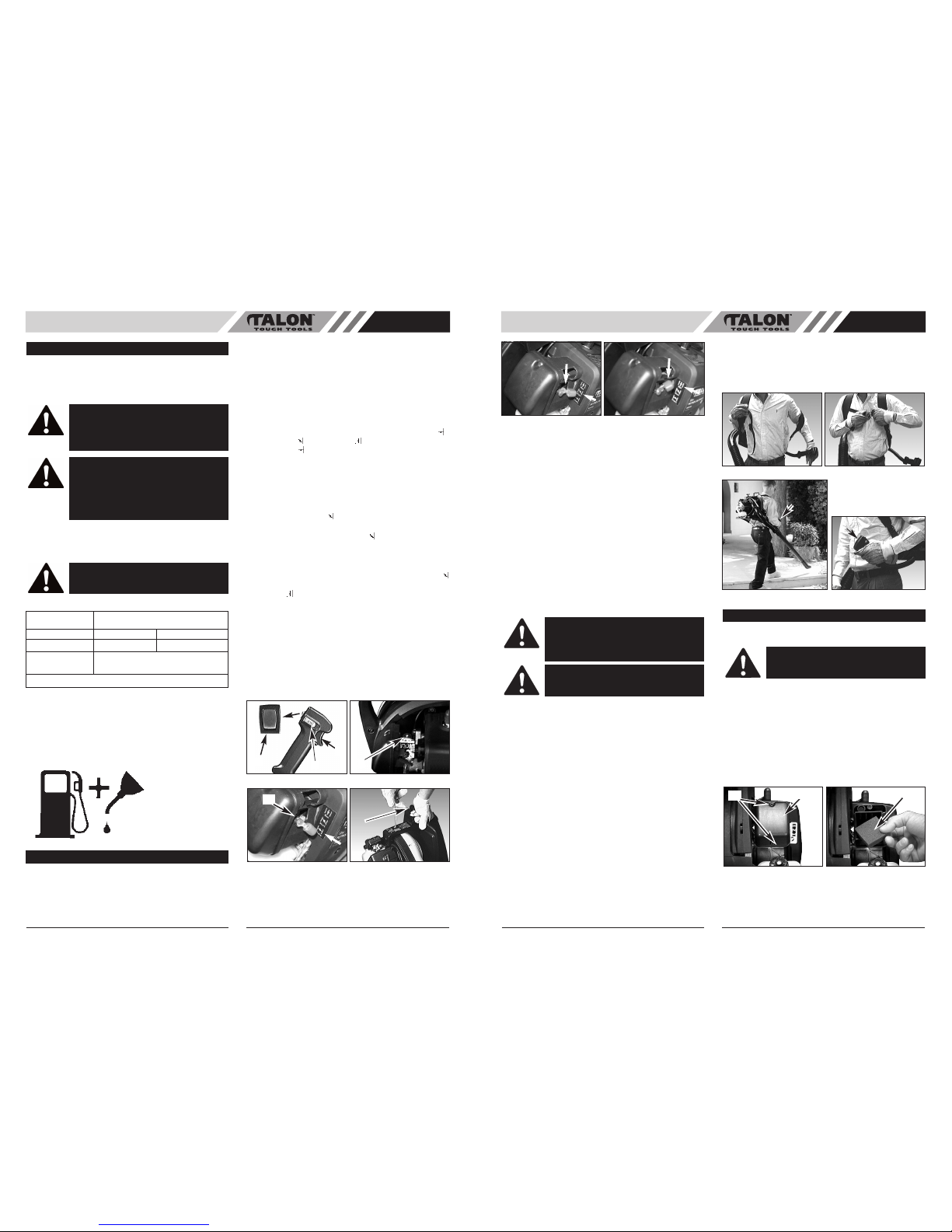

• STARTING A COLD ENGINE

Fill fuel tank with proper fuel and oil mixture. See FUEL AND LUBRICATION. Set unit on ground so that it rests on the back pack frame.

1. Move ignition switch to the RUN “ I ” position (A). (Fig. 4A).

2. Set throttle lock (C): While holding trigger (B) at wide open position, press down and hold throttle lock (C). Release throttle trigger (B), then release throttle lock (C). Throttle trigger (B) will now remain in the fully depressed position (Fig. 4A).

Prime the carburetor. Pump the primer bulb (D) 10 times (Fig. 4B).

4. Your unit has a 3 position choke (E), CHOKE “ ”, START “ ”, and RUN “ ”. Move choke lever to CHOKE “ ” position (Fig. 4C).

5. Grip top assist handle (F) firmly (Fig. 4D).

6. Pull starter rope out a short way until resistance is felt (approx. 100mm). A smooth rapid pull is required for a strong spark. Pull starter rope until engine tries to run but NO MORE THAN 4 TIMES. (Fig. 4D). If engine starts and runs move choke lever immediately to the START “ ” position and follow instructions on point 9. (Fig 4E)

7. Move choke lever to START “ ” position (Fig. 4E).

8. While trigger is still in the locked position pull starter rope until engine starts and runs but NO MORE THAN 4 TIMES. (Fig 4D)

9. Once engine starts leave the choke in the START “ ” position for 10 seconds, then move the choke to RUN “ ” position (Fig. 4F).

10. Squeeze trigger (B) to release throttle lock (Fig. 4A).

NOTE:

If engine fails to start after repeated attempts, refer

to Troubleshooting section.

NOTE:

Always pull starter rope straight out. Pulling starter at an angle will cause rope to rub against the eyelet. This friction will cause the rope to fray and wear more quickly. Always hold starter handle when rope retracts. Never let a rope snap back from extended position. This could cause rope to snag or fray and also damage the starter assembly.

FUEL AND LUBRICATION

WARNING: Never use straight gasoline in

your unit. This will cause permanent engine damage and void the manufacturer’s warranty for that product. Never use a fuel mixture that has been stored for over 90 days.

WARNING: Use a premium grade oil for 2-

cycle air cooled engines mixed at a 25:1 ratio. Do not use any 2-cycle oil product with a recommended mixing ratio of 100:1. If insufficient lubrication is the cause of engine damage, it voids the manufacturer’s engine warranty.

WARNING

: Lack of lubrication voids engine warranty. Gasolilne and oil must be mixed at 25:1.

GASOLINE

5 Liters 6.7 oz. 200ml (cc)

1 lmp. Gal. 6.1 oz. 180ml (cc)

Mixing 25 Parts Gasoline

Procedure to 1 part Lubricant

1ml = 1cc

Gasoline and Oil Mix 25:1

Fig. 4C Fig. 4D

Fig. 4A Fig. 4B

Talon 25:1 Ratio Custom Lubricant

OPERATING INSTRUCTIONS

Page 5

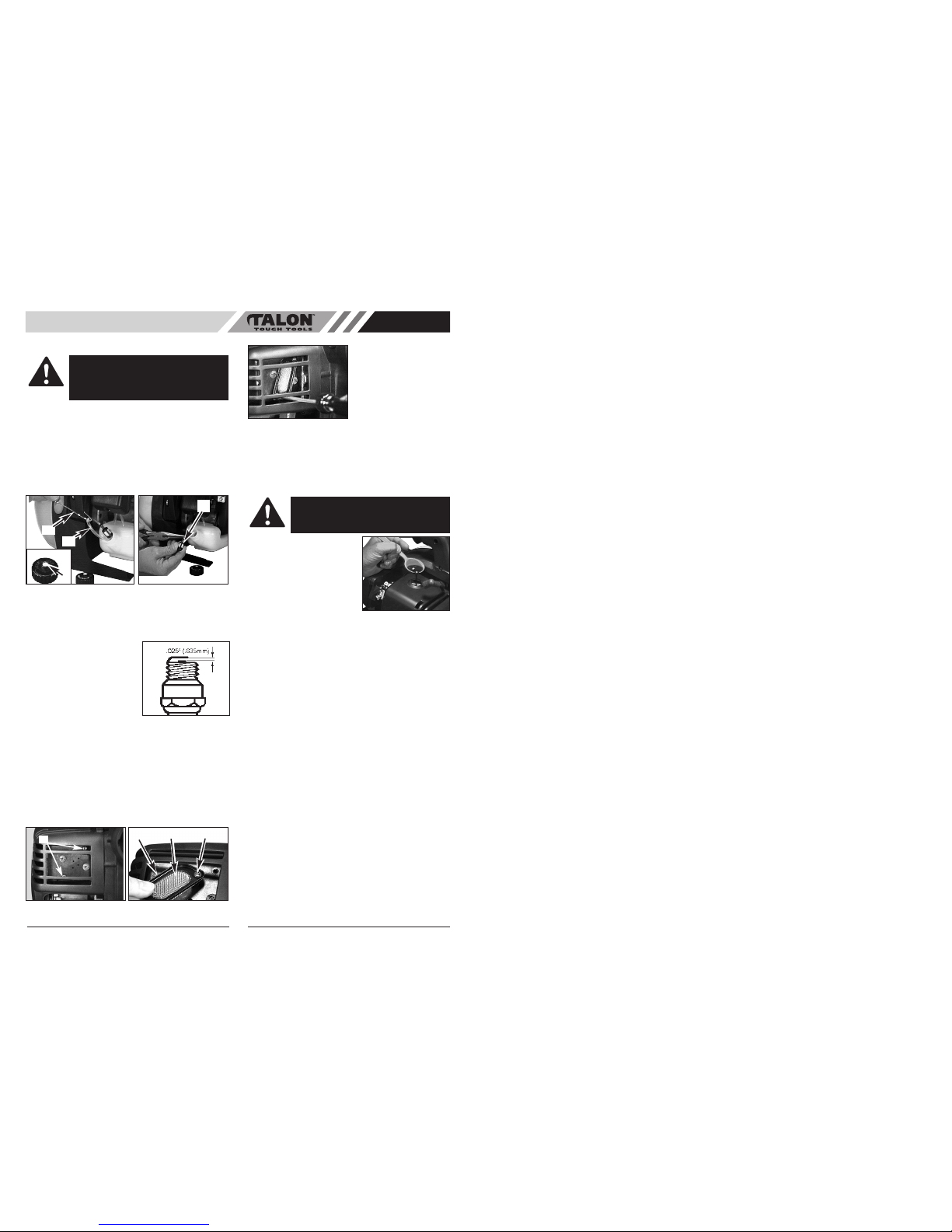

• FUEL CAP / FUEL FILTER

NOTE:

Keep vent (A) on fuel cap clean of debris (Fig. 7A).

Fuel Filter:

1. Lift fuel line (B) out of tank. A steel wire (C) with a hook or a paper clip works well (Fig. 7B).

2. Pull off fuel filter (D) with a twisting motion (Fig. 7C).

3. Replace fuel filter.

NOTE:

Never operate the blower without the fuel filter.

Internal engine damage could result!

• CARBURETOR ADJUSTMENT

The carburetor was pre-set at the factory for optimum performance. If further adjustments are necessary, please take your unit to the nearest Authorized Service Center.

• SPARK PLUG

1. Spark plug gap = .025 in. (.635mm) (Fig. 8).

2. Torque to 105 to 130 inch pounds (12 to 15 N•m). Connect spark plug boot.

• SPARK ARRESTER

A spark arrester screen is fitted to the unit from the factory. A spare screen is included in your accessory pack.

1. Inspect screen from time to time and clean or replace as required.

2. To remove spark arrester screen remove the two small screws in the muffler body and slide screen out from the muffler shield. (Fig. 9A)

3. To re-install grasp the cover (B) and screen (C), slide under muffler shield and insert screw (D). (Fig. 9B).

4. Insert other screw as shown. (Fig. 9C)

NOTE: Do not over tighten screws.

• STORING A UNIT

1. Perform all the general maintenance recommended in the Maintenance Section of your User Manual.

2. Clean outside surface of unit.

3. Drain fuel from the fuel tank.

4. After fuel is drained, start engine.

5. Run engine at idle until unit stops. This will purge the carburetor of fuel.

6. Allow engine to cool (approx. 5 minutes).

7. Using a spark plug wrench, remove the spark plug.

8. Pour 1 teaspoon of clean 2-cycle oil into the combustion chamber (Fig. 10). Pull starter rope slowly several times to coat internal components. Replace spark plug.

9. Store unit in a cool, dry place away from any source of ignition such as an oil burner, water heater, etc.

• REMOVING A UNIT FROM STORAGE

1. Remove spark plug.

2. Pull starter rope briskly to clear excess oil from combustion chamber.

3. Clean and gap spark plug or install a new spark plug with proper gap.

4. Prepare unit for operation.

5. Fill fuel tank with proper fuel / oil mixture. See Fuel and Lubrication Section.

Fig. 10

CAUTION:

Open fuel cap slowly to release any pressure which may have formed in the tank. Remove fuel from unit. Store fuel in approved container before performing this procedure.

Fig. 8A

Fig. 7B Fig. 7C

Fig. 8

WARNING:

Failure to follow these steps may cause varnish to form in the carburetor and difficult starting or permanent damage following storage.

Fig. 9A Fig. 9B

Fig. 9C
