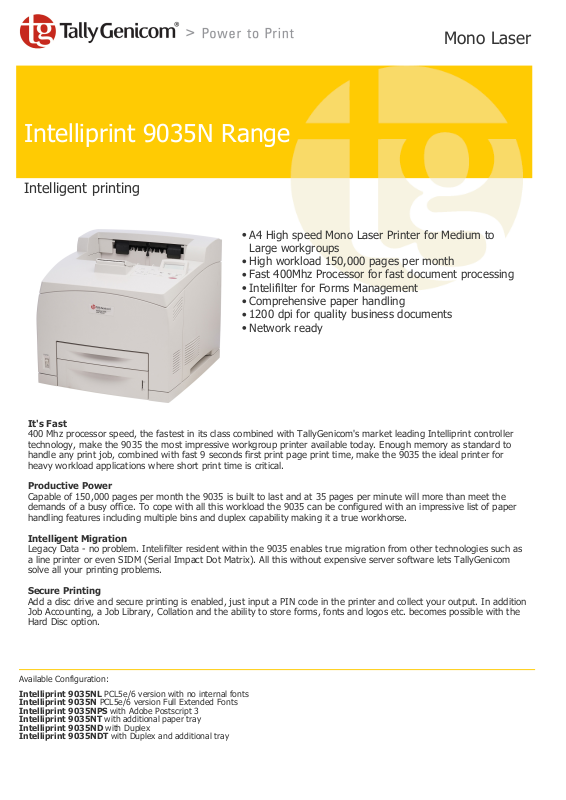

Tallygenicom 9035N Features & Specifications

Mono Laser

Intelliprint 9035N Range

It's Fast

400 Mhz processor speed, the fastest in its class combined with TallyGenicom's market leading Intelliprint controller
technology, make the 9035 the most impressive workgroup printer available today. Enough memory as standard to
handle any print job, combined with fast 9 seconds first print page print time, make the 9035 the ideal printer for
heavy workload applications where short print time is critical.

Productive Power

Capable of 150,000 pages per month the 9035 is built to last and at 35 pages per minute will more than meet the
demands of a busy office. To cope with all this workload the 9035 can be configured with an impressive list of paper
handling features including multiple bins and duplex capability making it a true workhorse.

Intelligent Migration

Legacy Data - no problem. Intelifilter resident within the 9035 enables true migration from other technologies such as
a line printer or even SIDM (Serial Impact Dot Matrix). All this without expensive server software lets TallyGenicom
solve all your printing problems.

Secure Printing

Add a disc drive and secure printing is enabled, just input a PIN code in the printer and collect your output. In addition
Job Accounting, a Job Library, Collation and the ability to store forms, fonts and logos etc. becomes possible with the
Hard Disc option.

Intelligent printing

Available Configuration:

Intelliprint 9035NL PCL5e/6 version with no internal fonts
Intelliprint 9035N PCL5e/6 version Full Extended Fonts
Intelliprint 9035NPS with Adobe Postscript 3
Intelliprint 9035NT with additional paper tray
Intelliprint 9035ND with Duplex
Intelliprint 9035NDT with Duplex and additional tray

A4 High speed Mono Laser Printer for Medium to
Large workgroups
High workload 150,000 pages per month
Fast 400Mhz Processor for fast document processing
Intelifilter for Forms Management
Comprehensive paper handling
1200 dpi for quality business documents
Network ready

Features & Specifications

Print Speed Up to 35 pages per minute letter; 34 pages per minute A4

Print Method Intelliprint Controller

Processor R5000 400Mhz

Resolution 1200 x 1200 dpi

Time To 1st Page Less than 9 Seconds

Memory 64MB expandable to 256MB (2 slots); Optional 20GB (or higher) hard disk

Standard Connectivity Parallel (Bi directional IEEE 1284), USB (v2.0), Ethernet 10/100baseT (on all models)

Optional Connectivity 1 option slot available; Auto interface switching

Standard Emulation PCL5e/PCL6

Optional Emulation Adobe PostScript level 3

Print Monitor TCP/IP, EtherTalk, Rendevous, SNMP, Printer MIB, e-mail status, printer monitoring and administration via

integrated web browser and TGNetAdmin.

Fonts 9035NL uses Windows fonts. Other models have resident fonts

Consumables Repacement process/toner unit < 17,000 pages*, Fuser < 200,000 pages**, Feed Roller < 200,000 pages** Initial

processor/toner unit supplied with printer < 10,000 pages* *Based on 5% coverage of A4 page, **Contained within
Maintenance kit

STD Paper Handling 150 sheet Universal Cassette plus 550 sheet universal cassette

Opt'l Paper Handling 3rd universal cassette accepts 550 sheets; 4th universal cassette accepts 550 sheets

Duplexing Optional

Paper Type Standard paper, transparencies, labels, heavy paper stock, envelopes, bond, thick media

Paper Weight Cassettes: 60-216gsm; MPF: 60-216 gsm; Duplex: 60-216 gsm

Paper Size Cassettes 1 and 2 - Width 98.4 - 215.9mm, Length 148mm - 355.6mm. Legal, Letter, Executive, Statement, A4, B5,

1/3 A4, Postcard, Index card, Officio. Envelopes COM 10, Monarch, C5, DL

Paper Output 500-sheet face-down top output; Optional Cassette: 500-sheet offset catch tray

Physical Weight 20.6 Kg unpacked, 26.8 Kg packed

PhysicalSize 421.8(w) x 465.4(d) x 404.3(h) mm

Power Voltage EMEA 200-264V, USA 98-132v

Power Frequency 50/60 Hz

Compliance Energy Star Compliant, Less than 14 Watts in sleep mode, Standby 83 Watts. Less than 350 Watts printing (average)

Workload Up to 150,000 pages per month. 16,000 - 28,000 pages per month typical use

Reliability MTBF 300,000 pages (Power on 8hr/day in typical duty cycle)

Reliability MTTR 30 minutes

Drivers Windows 9.x/NT 4.0/2000/XP/ME, MAC PostScript OSX, Linux via PPD

Temperature Operating: 10° to 32° C)

Humidity 20%-80% Non-Condensing, relative humidity

Acoustic Printing - 53.6dBA, Stand by - 27dBA, Sleep mode - Background level

Warranty 2 years on site next business day. Installation free of charge, mainland UK & Eire

Note Exceeding the monthly duty cycle will not void the warranty if TallyGenicom consumables and maintenance kits are

used. Toner saver mode providing up to 40% savings. Drum and Fuser Yields will vary based on job run length,
media type, size, weight, orientation, and usage patterns.

Intelliprint 9035N Range
