TallyGenicom 6306LJ, 6306SRT Specifications

Line

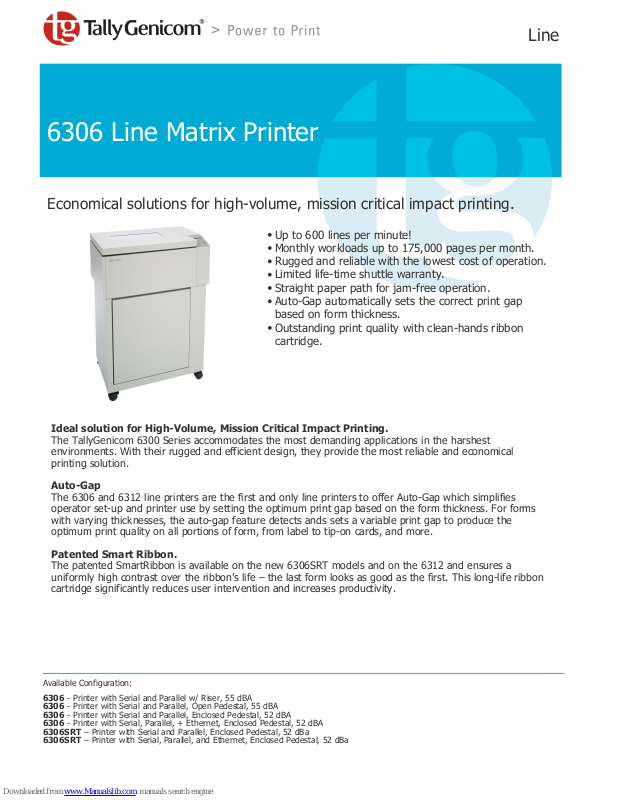

6306 Line Matrix Printer

Ideal solution for High-Volume, Mission Critical Impact Printing.

The TallyGenicom 6300 Series accommodates the most demanding applications in the harshest
environments. With their rugged and efficient design, they provide the most reliable and economical
printing solution.

Auto-Gap

The 6306 and 6312 line printers are the first and only line printers to offer Auto-Gap which simplifies
operator set-up and printer use by setting the optimum print gap based on the form thickness. For forms
with varying thicknesses, the auto-gap feature detects ands sets a variable print gap to produce the
optimum print quality on all portions of form, from label to tip-on cards, and more.

Patented Smart Ribbon.

The patented SmartRibbon is available on the new 6306SRT models and on the 6312 and ensures a
uniformly high contrast over the ribbon’s life – the last form looks as good as the first. This long-life ribbon
cartridge significantly reduces user intervention and increases productivity.

Economical solutions for high-volume, mission critical impact printing.

Available Configuration:

6306 - Printer with Serial and Parallel w/ Riser, 55 dBA
6306 - Printer with Serial and Parallel, Open Pedestal, 55 dBA
6306 - Printer with Serial and Parallel, Enclosed Pedestal, 52 dBA
6306 - Printer with Serial, Parallel, + Ethernet, Enclosed Pedestal, 52 dBA
6306SRT – Printer with Serial and Parallel, Enclosed Pedestal, 52 dBa
6306SRT – Printer with Serial, Parallel, and Ethernet, Enclosed Pedestal, 52 dBa

Up to 600 lines per minute!
Monthly workloads up to 175,000 pages per month.
Rugged and reliable with the lowest cost of operation.
Limited life-time shuttle warranty.
Straight paper path for jam-free operation.
Auto-Gap automatically sets the correct print gap
based on form thickness.
Outstanding print quality with clean-hands ribbon
cartridge.

Features & Specifications

6306 Line Matrix Printer

Print Speed 600 LPM

Graphic Speed 75 IPM

Print Method Line impact dot matrix; save up to 10 unique configurations

Resolution 240 x 288 (H x V)

Character Density 5, 6, 6.7, 7.5, 8.3, 8.6, 10, 12, 13.3, 15, 16.7, 17.1, 20

Line Density 1.5, 2, 3, 4, 5, 6, 8, 9, 10, 12 (plus variable line spacing)

Character Modes Constant density fonts; enhanced fonts

Character Sets Over 1000 Character Sets

Character Styles Bold, italic, superscript, subscript, underline, overline, strike through

Printhead Type shuttle

Memory 32MB

Standard Connectivity Serial RS232 (up to 38.4K Baud) and IEEE 1284 Compliant Parallel (both ports hot, active port selected

automatically)

Optional Connectivity Coax, Twinax, Ethernet 10BASE-T / 100BASE-T

Standard Emulation Tally® ANSI, GENICOM® ANSI, Printronix® P600 / P5000/ P6000, DEC® LG01, HP2564C, IBM® Proprinter,

Epson® FX1180; Graphics: Tally® Industrial Graphics; QMS® CODE V™ Version 2; Printronix® PGL

Optional Emulation Coax SCS, Coax IPDS, Twinax SCS, Twinax IPDS, LAN IPDS

Fonts Draft, Data Processing, Courier, Gothic, OCR A & B; Barcodes: Code 39, Code 128, Interleaved 2 of 5, UPC-A,

UPC-E, EAN 8, EAN 13, EAN 128, Codabar, MSI, PDF-417, POSTNET

Consumables Easy-load, clean-hands cartridges at 40 million chars; ribbon fault detection

STD Paper Handling Auto-Gap, paper out and paper motion detection

Number of Copies Up to 6-part forms

Form Thickness .025" maximum forms thickness

Paper Drive Straight paper path, one set of tractors, forms position retained in non-volatile memory

Paper Type Continuous

Paper Weight 15-100 lb. weight

Paper Size Width 3" - 18.7", 1 - 255 lines

Printable Area Intelligent Mail Bar Code compatibility available upon request on new printer shipments

Physical Weight Table Top: 125 lbs.; Open Pedestal: 170 lbs.; Enclosed Pedestal: 170 lbs.

PhysicalSize Table Top (WxDxH): 29"x24"x13"; Open Pedestal: 29"x30"x40"; Enclosed Pedestal: 29"x30"x40"

Power Voltage 90-130V / 180-264V

Power Frequency 50/60 Hz (auto-ranging)

Compliance Energy Star compliant, Ozone-free, RoHS, Microsoft, ISO-compliant, Meditech Approved

Workload 175,000 pages per month

Reliability MTBF 16,000 hours @ 25% duty cycle, 25% page density

Drivers Windows 2003, XP, 2000, NT 4.0, 95/98; OS2; Linux; Unix; AIX; SAP; AS/400

Temperature 10ºC to 40ºC (operating); -40ºC to 66ºC (non-operating)

Humidity 10% to 90% non-condensing (operating); 5% to 95% non-condensing (non-operating)

Acoustic Table Top: 55 dB(A); Open Pedestal: 55 dB(A); Enclosed Pedestal: 52 dB(A);

Warranty 1-year Limited On-Site (First 90 days parts, labor, travel; Remainder of year: Parts only); Limited Lifetime

Shuttle Warranty

Option 1 Twinax/Coax Interface Kit

Option 2 Ethernet Interface Kit

Option 3 IPDS for Twinax/Coax or Ethernet equipped printer

Tally and TallyGenicom are registered trademarks of TallyGenicom, L.P. All other company and product
names are trademarks or registered trademarks of their respective owner. Specifications are subject to
change without notice. Copyright © 2009 TallyGenicom, L.P.

Printed Date: 07/16/2009
