Page 1

User Guide 1225 Matrix Printer

Page 2

Page 3

Tally Dascom 1225

Important Safety Instructions (English)

Read the following instructions thoroughly before starting up your printer.

• Never carry out maintenance or repair work yourself. Always contact a qualified service technician.

• Keep this Operator’s Manual in a place which is easily accessible at all times.

• Place the printer on a solid and even base so that it cannot fall.

• Never place the printer in the vicinity of inflammable gas or explosive substances.

• Ensure the printer is connected to a socket with the correct mains voltage.

• Always disconnect the printer from the mains before opening the device to perform maintenance work or remedy errors.

• Do not expose the printer to high temperatures, direct sunlight or dust.

• Keep all liquids away from the printer.

• Protect the printer from shock, impact and vibration.

• Make sure that the printer and computer are switched off before connecting the data cable.

• The print head will become very hot during printing; avoid contact with the print head after printing has finished.

• Do not perform any operation or action in any way other than those provided in this manual. When in doubt, contact your dealer or your customer support.

Page 4

Tally Dascom 1225

Wichtige Sicherheitshinweise (German)

Lesen Sie bitte diese Sicherheitshinweise durch, bevor sie den Drucker in Betrieb nehmen.

 Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie

immer einen qualifizierten Servicetechniker.

 Bewahren Sie diese Dokumentation an einem jederzeit zugänglichen Ort auf.

 Den Drucker auf stabilem und ebenem Untergrund so aufstellen, dass er nicht zu Boden fallen kann.

 Stellen Sie den Drucker keinesfalls in der Nähe von leicht entzündlichen Gasen oder explosiven

Stoffen auf.

 Den Drucker nur an eine Steckdose mit der richtigen Spannung anschließen.

 Wenn Sie den Drucker vom Netz trennen wollen, den Drucker ausschalten und immer den Netzstecker

an der Steckdose ziehen.

 Den Drucker weder hohen Temperaturen noch direktem Sonnenlicht und Staub aussetzen.

 Keine Flüssigkeiten mit dem Drucker in Berührung bringen.

 Den Drucker keinen Erschütterungen, Stößen oder Vibrationen aussetzen.

 Sicherstellen, dass der Drucker und der Computer ausgeschaltet sind, bevor das Datenkabel

angeschlossen wird.

 Der Druckkopf wird während des Druckens heiß. Vor dem Berühren deshalb einige Zeit abkühlen

lassen.

 Weichen Sie bei der Bedienung des Druckers nicht von den Anweisungen in der Dokumentation ab.

Bei Unklarheiten wenden Sie sich bitte an Ihren Händler oder Ihren Kundendienst.

Page 5

Tally Dascom 1225

III

Consignes importantes de sécurité (French)

Lire attentivement les instructions suivantes avant de mettre l’imprimante en service.

 Ne jamais effectuer soi-même les travaux d’entretien et de réparations. Contacter toujours un

dépanneur qualifié.

 Placer l’imprimante sur un support stable de façon à ce qu’elle ne puisse pas tomber.

 Ne jamais placer l’imprimante à proximité de sources de gaz aisément inflammables ou de substances

explosives.

 Ne connecter l’imprimante à une prise que lorsque la tension est correcte.

 Pour déconnecter l’imprimante de l’alimentation principale, mettre l’imprimante hors tension et toujours

débrancher le connecteur secteur de la prise murale.

 Ne pas exposer l’imprimante à des températures élevées, à la lumière directe du soleil ou à la

poussière.

 Ne pas mettre l’imprimante en contact avec des liquides.

 Ne pas exposer l’imprimante à des chocs, impacts ou vibrations.

 S’assurer que l’imprimante et l’ordinateur sont hors tension avant de connecter le câble de données.

 La tête d’impression est brûlante pendant l’impression. C’est pourquoi laissez-la refroidir quelques

instants avant d’y toucher.

 N'exécutez aucune opération ni action d'une autre manière que celle indiquée dans ce manuel. En cas

de doute, veuillez contacter votre distributeur ou service après-vente.

Page 6

Tally Dascom 1225

Indicazioni di sicurezza importanti (Italian)

Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni.

Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un tecnico di assistenza qualificato.

 Conservare le presenti istruzioni per l’uso in un luogo sempre accessibile.

 Collocare la stampante su una superficie stabile, per evitare che cada a terra.

 Non collocare la stampante in prossimità di gas facilmente infiammabili o di sostanze esplosive.

 Collegare la stampante a una presa di corrente con tensione adeguata.

 Per scollegare la stampante dalla rete di alimentazione, spegnere la stampante e disinserire sempre il

connettore di rete dalla presa.

 Non esporre la stampante ad elevate temperature né alla luce solare diretta e alla polvere.

 Evitare il contatto della stampante con liquidi.

 Non esporre la stampante a colpi, scosse o vibrazioni.

 Verificare che la stampante e il computer siano spenti prima di collegare il cavo di trasmissione dati.

 Durante la stampa, la testina si surriscal-da notevolmente. Prima di toccarla, se necessario opportuno

quindi lasciarla raffreddare qualche istante.

 Non eseguire alcuna operazione o azione se non nella maniera descritta nel presente manuale. In

caso di dubbio, contattare il rivenditore o dalla società incaricata dell’assistenza.

Page 7

Tally Dascom 1225

Instrucciones de seguridad importantes (Spanish)

Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio.

Nunca lleve a cabo trabajos de mantenimiento o reparación Ud. mismo, sino consulte a un técnico de servicio calificado.

 Guarde las presentes instrucciones de servicio en un lugar de fácil acceso en cualquier momento.

 Ponga la impresora sobre un base estable de manera que no pueda caer al suelo.

 Nunca coloque la impresora en la vecindad de gases de fácil inflamabilidad o sunstancias explosivas.

 Asegure conectar la impresora sólo a un enchufe con un voltaje correcto.

 Cuando quiera desconectar la impresora de la red, apague la impresora y siempre tire la clavija de

alimentación del enchufe.

 No exponga la impresora a temperaturas altas, a la luz solar directa y al polvo.

 No ponga la impresora en contacto con fluidos.

 Nunca exponga la impresora a sacudidas, choques o vibraciones.

 Asegúrese de que la impresora y el ordenador estén apagdos antes de conectar el cable de datos.

 La cabeza de impresión se pone muy caliente durante la impresión. Por lo tanto, deje enfriarlo algún

tiempo antes de tocarla.

 No permita que se realice cualquier operación o acción de una forma diferente a lo que se señala en el

manual. En caso de duda, póngase en contacto con su comerciante o con su servicio post-venta.

Page 8

Tally Dascom 1225

Правила по технике безопасности. (Russian)

Прочитайте, пожалуйста, инструкцию по технике безопасности перед включением в работу принтера.

 Не выполняйте технические работы и ремонт техники самостоятельно, но сообщайте о

неисправностях квалифицированным сервисным техникам.

 Данная инструкция должна быть всегда доступна каждому пользователю.

 Установите принтер на ровном и стабильном месте так, чтобы он не смог упасть

на пол.

 Ни в коем случае не ставьте принтер вблизи легко воспламеняющихся газов и взрывчатых

веществ.

 Включайте принтер в розетку только с соответствующим напряжением.

 Если Вы хотите отключить принтер от напряжения, сначала выключите принтер сам и затем

выньте штекер из розетки.

 Берегите принтер от нагревания, от попадания

на него прямых солнечных лучей и пыли.

 Не допускайте попадания жидкости на принтер.

 Нельзя подвергать принтер тряске, ударам и вибрации.

 Убедитесь, что принтер и компьютер выключены, только после этого соедините принтер с

компьютером.

 Печатающая головка нагревается во время работы принтера. Поэтому подождите какое-то

время, прежде

чем дотронуться до нее.

 Пользуйтесь принтером так, как это написано в документации. Если у Вас возникают неясности,

обращайтесь с вопросами к Вашим продавцам или в сервисный центр.

Page 9

Tally Dascom 1225

VII

Instruções Importantes sobre Segurança (Portuguese)

Leia as instruções de segurança antes de usar a impressora.

 Consulte sempre um técnico qualificado para executar uma reparação .

 Coloque a impressora sobre uma base sólida e nivelada, para que ela não sofra quedas.

 Jamais instale a impressora nas proximidades de lugares onde haja gás inflamável ou substâncias

explosivas.

 Assegure-se de conectar a impressora à tomada elétrica com a voltagem apro-priada.

 Quando desligar a impressora da rede, desligue sempre a impressora e retire o cabo da tomada.

 Não exponha a impressora a temperaturas altas ou luz solar direta.

 Não aproxime substâncias líquidas da impressora.

 Proteja a impressora de choques, impactos e vibrações.

 Desligue a impressora e o computador antes de conectar o cabo da rede.

 A cabeça da impressora pode ficar muito quente . Portanto, espere algum tempo antes de tocá-la.

 Não faça nenhuma operação ou ação além das recomendadas neste manual. Em caso de dúvida,

contate seu revendedor ou companhia de serviço.

Page 10

Tally Dascom 1225

VIII

Önemli Güvenlik Talimatları (Turkish)

Lütfen, yazıcıyı işletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun.

 Bakım ve tamir çalışmalarını kesinlikle ve hiçbir surette kendi başınıza yapmayın; her zaman kalifiye bir

uzman servis-teknisyenine haber verin.

 Yazıcıyı, üzerinden yere düşmesi mümkün olmayacak sabit ve düz bir zemine yerleştirin.

 Yazıcıyı kesinlikle ve hiçbir surette kolayca yanabilecek gaz veya patlayıcı maddeler içeren nesnelerin

yakınına koymayın.

 Yazıcı akım kablosunu sadece doğru gerilime sahip bir prize takın.

 Yazıcıyı şebeke ağından ayırmak istediğinizde, yazıcıyı kapatın ve ağ

-fişini her zaman prizden çıkartın.

 Yazıcıyı ne yüksek ısılı ne de doğrudan güneş ışığına ve toza mâruz kalan mekânlarda bulundurun.

 Yazıcı hiçbir sıvı maddeyle temasta olmamalıdır.

 Yazıcı hiçbir sarsıntıya, darbeye veya titreşime mâruz kalmamalıdır.

 Veri kablosu bağlanmadan önce hem yazıcının hem de bilgisayarın kapalı olduklarından emin

olmalısınız.

 Yazıcının başı basma esnasında yüksek ısıya ula

şıyor. Bu yüzden lütfen dokunmadan önce kısa süre

soğumasını bekleyin.

 Yazıcının işletimi ve kullanımında bu dokümantasyondaki talimatların hiç dışına çıkmayın. Sorunlu

görünen hususlarda lütfen imâlatçınıza veya müşteri hizmetleri servisinize başvurun.

Page 11

Tally Dascom 1225

TRADEMARK ACKNOWLEDGEMENTS

“IBM” is a trademark of International Business Machines Corporation. “EPSON” is a trademark of Epson America Incorporated. “DEC” is a trademark of Digital Equipment Corporation. “Centronics” is a trademark of Centronics Data Computer Corporation. “DOS” is a trademark of Microsoft Corporation. “SAP” is a trademark of SAP AG. “Windows”, “Windows 7”, “Windows 95”, “Windows 98“, “Windows NT”, “Windows 2000”, “Windows 2003/2008 Server”, “Windows XP” and “Windows Vista” are trademarks of Microsoft Corporation. All other product names and company names appearing in this manual are the registered trademarks or trademarks of the individual companies.

Page 12

Tally Dascom 1225

Page 13

Tally Dascom 1225

TABLE OF CONTENTS

1 UNPACKING GUIDE ........................................................................................................................................ 1

PLACING THE PRINTER ........................................................................................................................................ 2

PRINTER COMPONENTS ...................................................................................................................................... 2

2 SETTING UP PRINTER .................................................................................................................................... 4

INSTALL RIBBON .................................................................................................................................................. 4

INSTALL THE SINGLE SHEET FEEDER .................................................................................................................... 5

CONNECTING THE INTERFACE CABLE ................................................................................................................... 5

CONNECTING THE MAINS POWER ........................................................................................................................ 6

INSTALLING THE WINDOWS DRIVER ...................................................................................................................... 7

3 PAPER INSTALLATION GUIDE .................................................................................................................... 10

ADJUSTING THE PRINT GAP LEVER .................................................................................................................... 10

FRICTION FEED HANDLING ................................................................................................................................ 10

TRACTOR FEED HANDLING ................................................................................................................................ 11

CONTINUOUS PAPER PLACEMENT ...................................................................................................................... 12

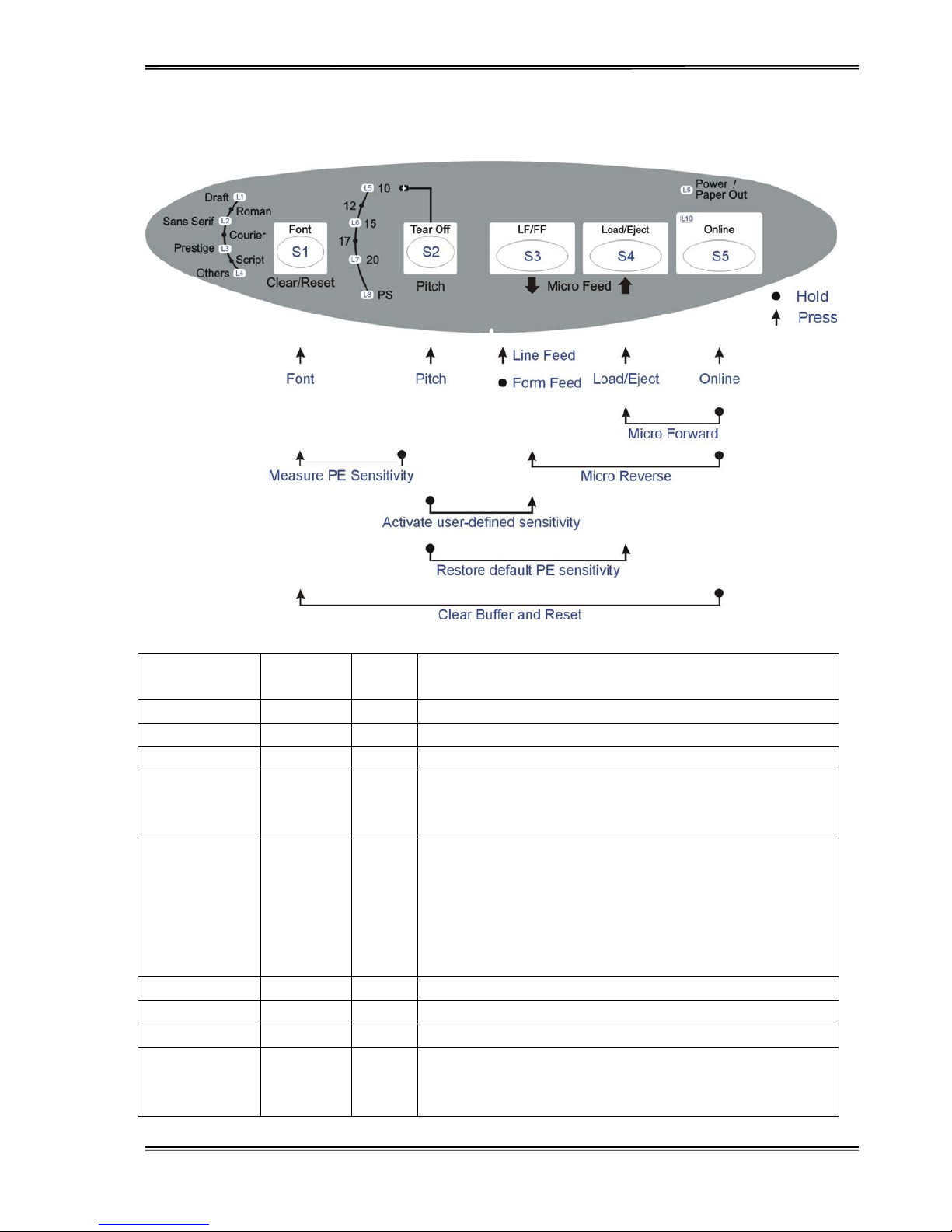

4 CONTROL PANEL OPERATION ................................................................................................................... 13

PANEL OPERATION ............................................................................................................................................ 15

Online State ................................................................................................................................................ 16

Offline State ................................................................................................................................................ 17

Power-On State .......................................................................................................................................... 19

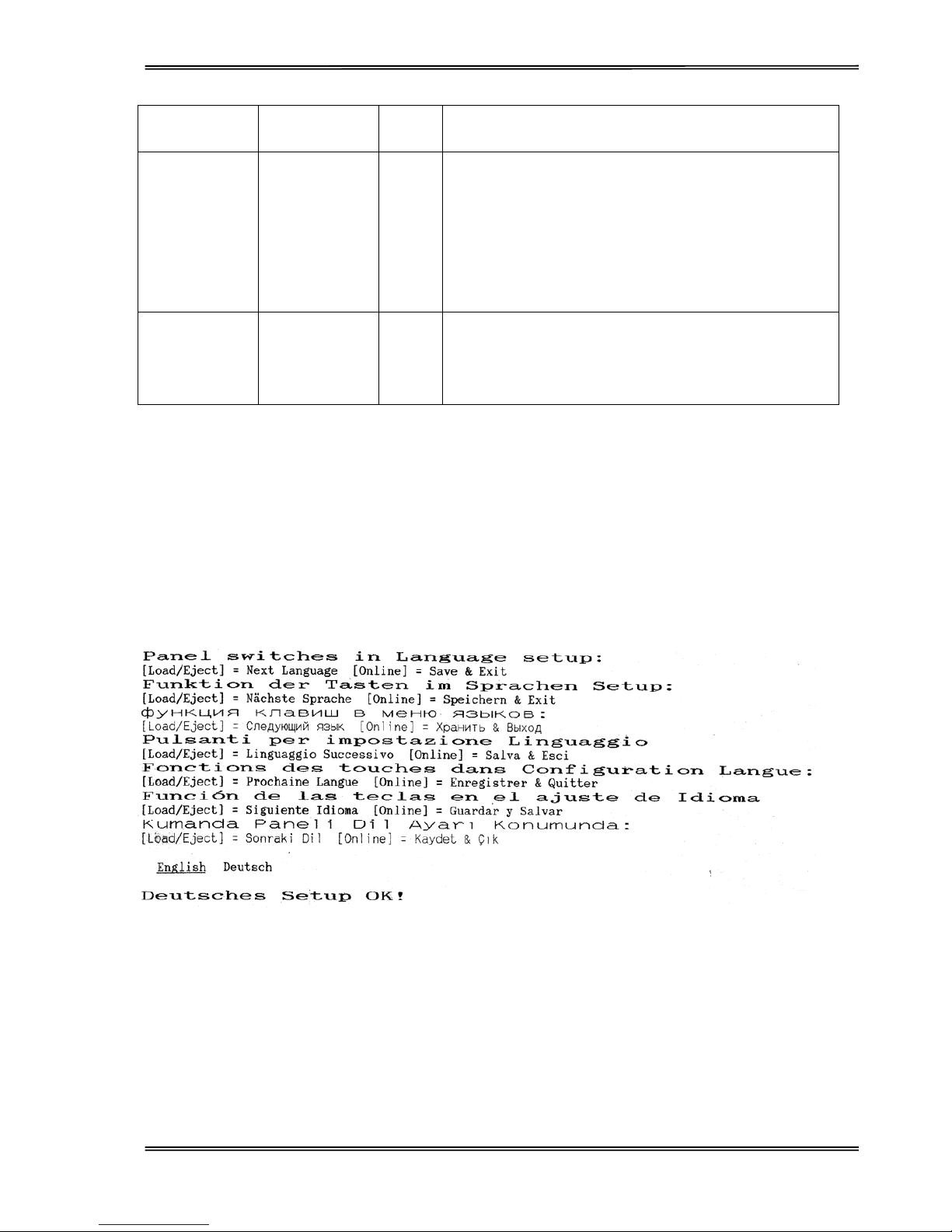

LANGUAGE SETUP ............................................................................................................................................ 20

5. PRINTER SETTING CHANGES .................................................................................................................... 21

SYSTEM SETUP ................................................................................................................................................ 21

PRINT SETUP .................................................................................................................................................... 21

PAGE SETUP .................................................................................................................................................... 23

INTERFACE SETUP ............................................................................................................................................ 24

ADVANCED SETUP ............................................................................................................................................ 24

VERTICAL ALIGNMENT ....................................................................................................................................... 33

CHANGE PIN FUNCTION .................................................................................................................................... 34

ADJUST PHYSICAL MARGINS ............................................................................................................................. 35

6 MAINTENANCE .............................................................................................................................................. 37

CLEANING AND VACUUMING THE PRINTER .......................................................................................................... 37

CLEANING THE PAPER ROLLERS ........................................................................................................................ 37

7 TROUBLESHOOTING .................................................................................................................................... 39

PRINT QUALITY PROBLEMS AND SOLUTIONS ....................................................................................................... 39

PAPER HANDLING PROBLEMS AND SOLUTIONS ................................................................................................... 40

OPERATING PROBLEMS AND SOLUTIONS ............................................................................................................ 40

ERROR INDICATIONS ON LEDS .......................................................................................................................... 41

Page 14

Tally Dascom 1225

XII

DIAGNOSTIC FUNCTIONS ................................................................................................................................... 42

FIRMWARE UPDATE ........................................................................................................................................... 43

8 GENERAL SPECIFICATIONS ....................................................................................................................... 44

9 INTERFACES ................................................................................................................................................. 49

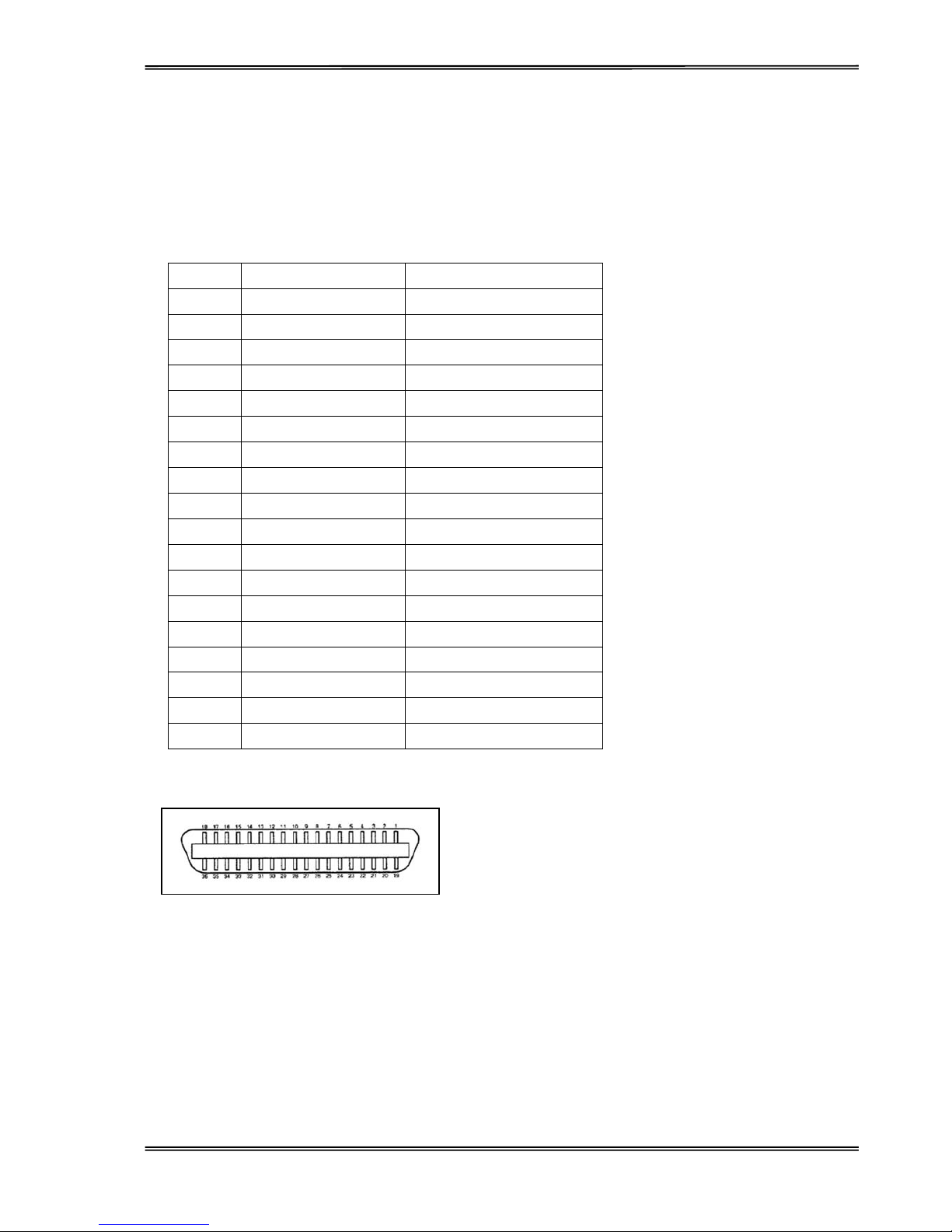

PARALLEL INTERFACE ........................................................................................................................................ 49

USB INTERFACE ............................................................................................................................................... 49

10 CHARACTER SETS & CODE PAGES ........................................................................................................ 50

CHARACTER SETS ............................................................................................................................................ 50

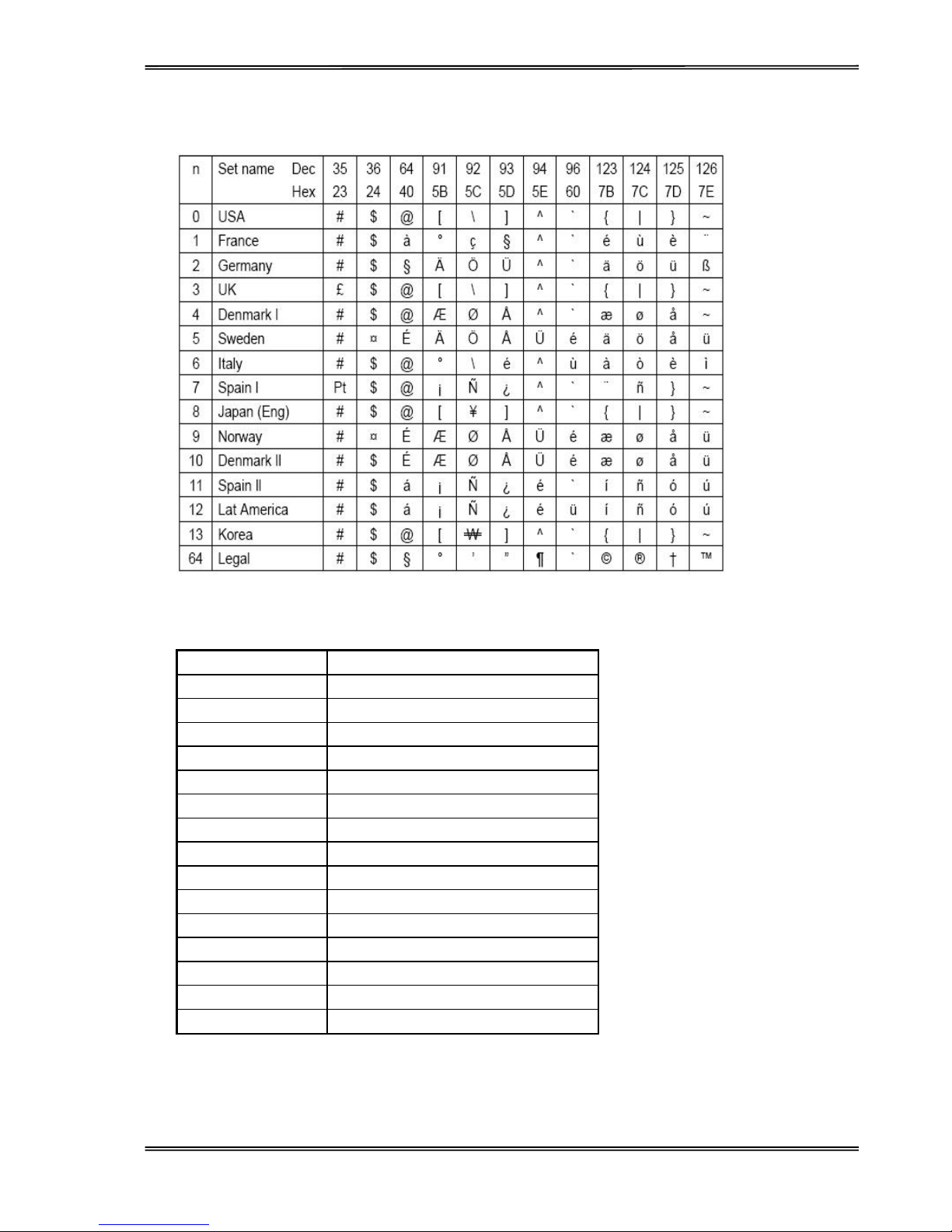

INTERNATIONAL CHARACTER SETS ..................................................................................................................... 52

INTERNATIONAL CHARACTER SET COMMANDS .................................................................................................... 52

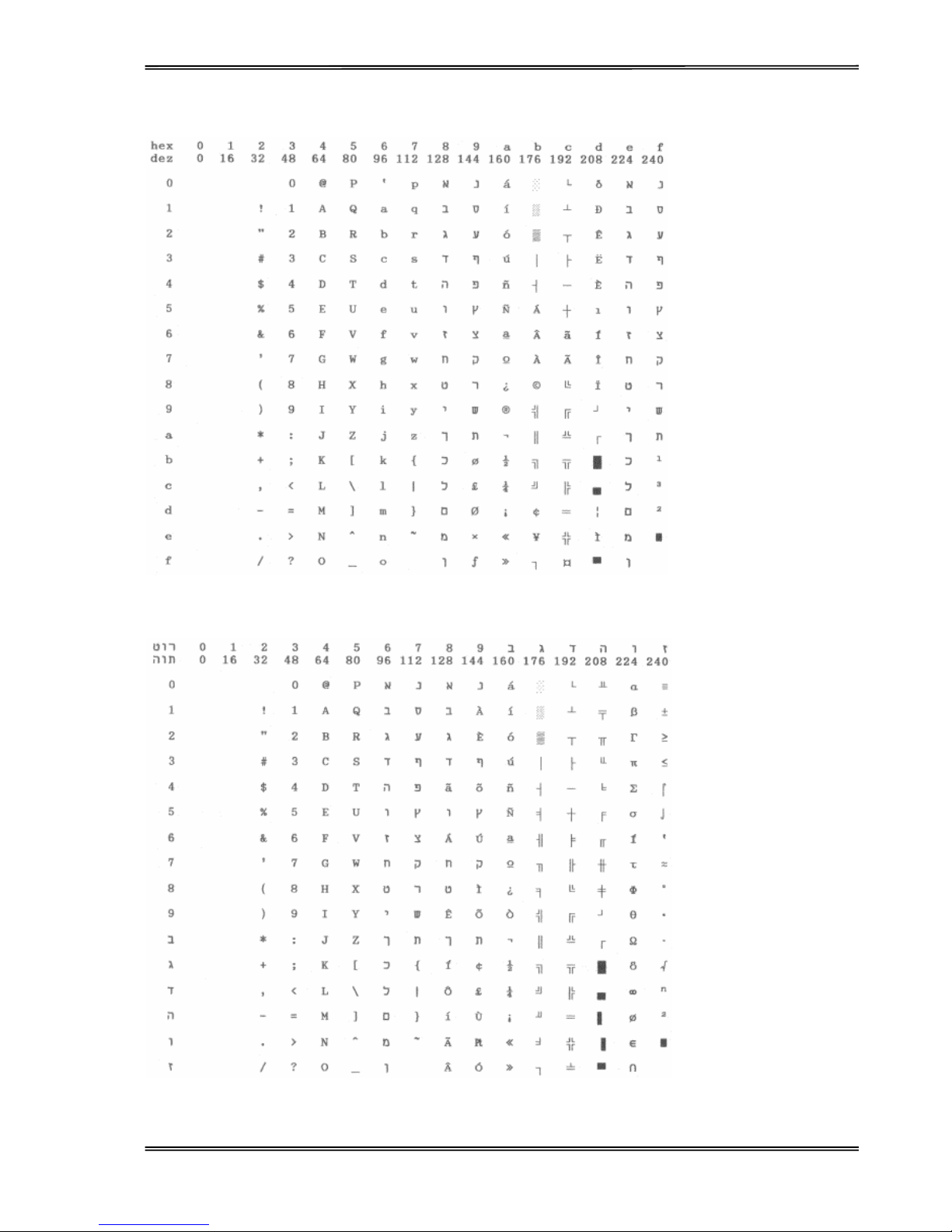

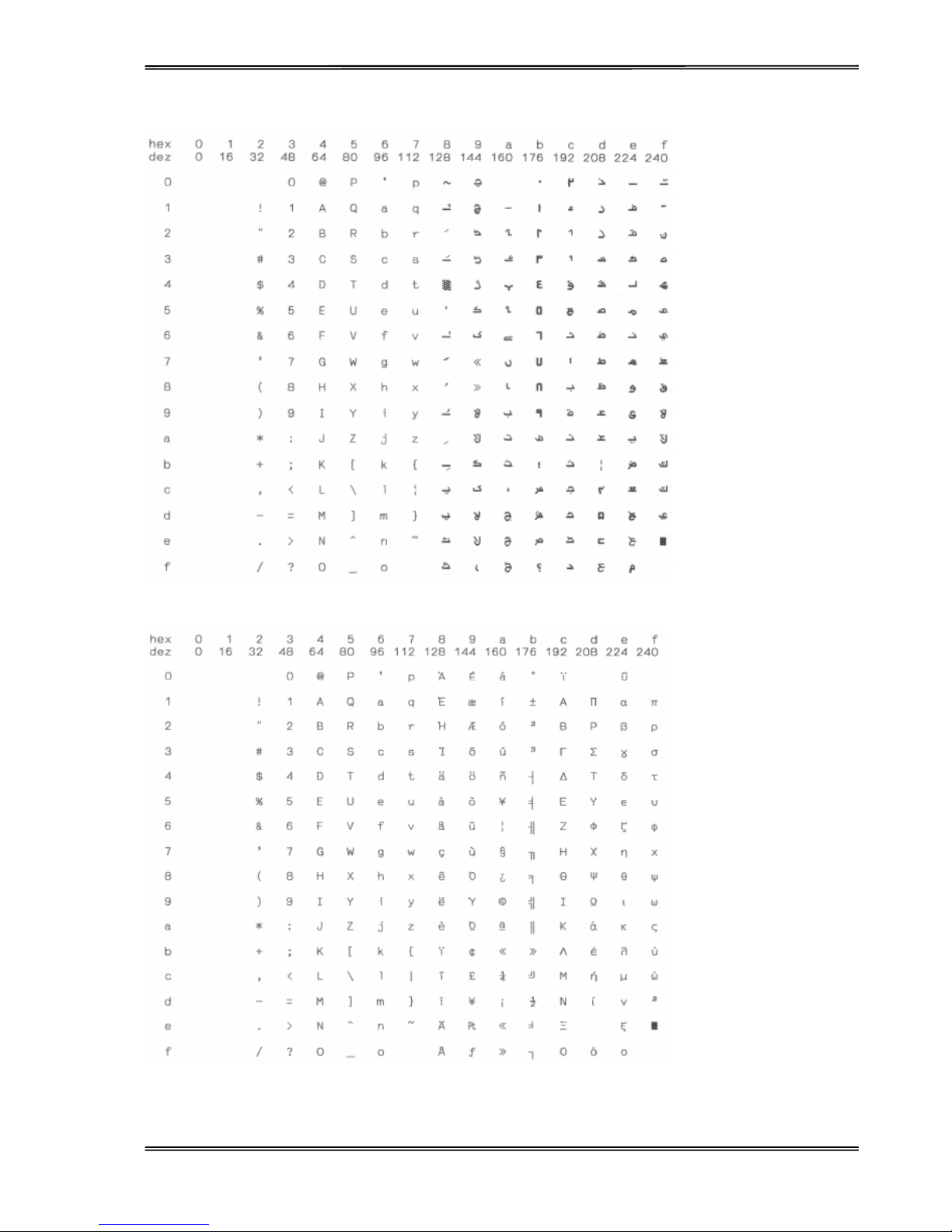

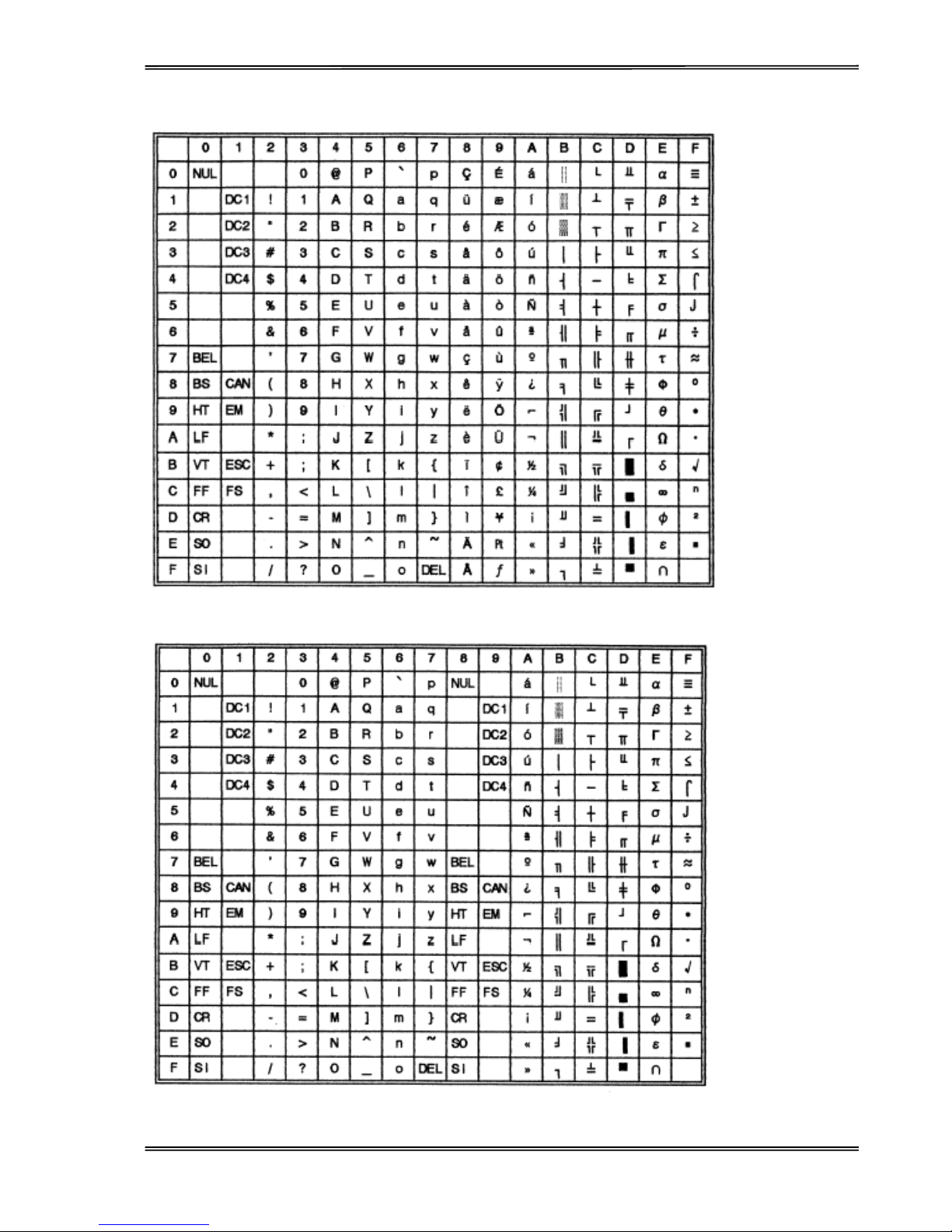

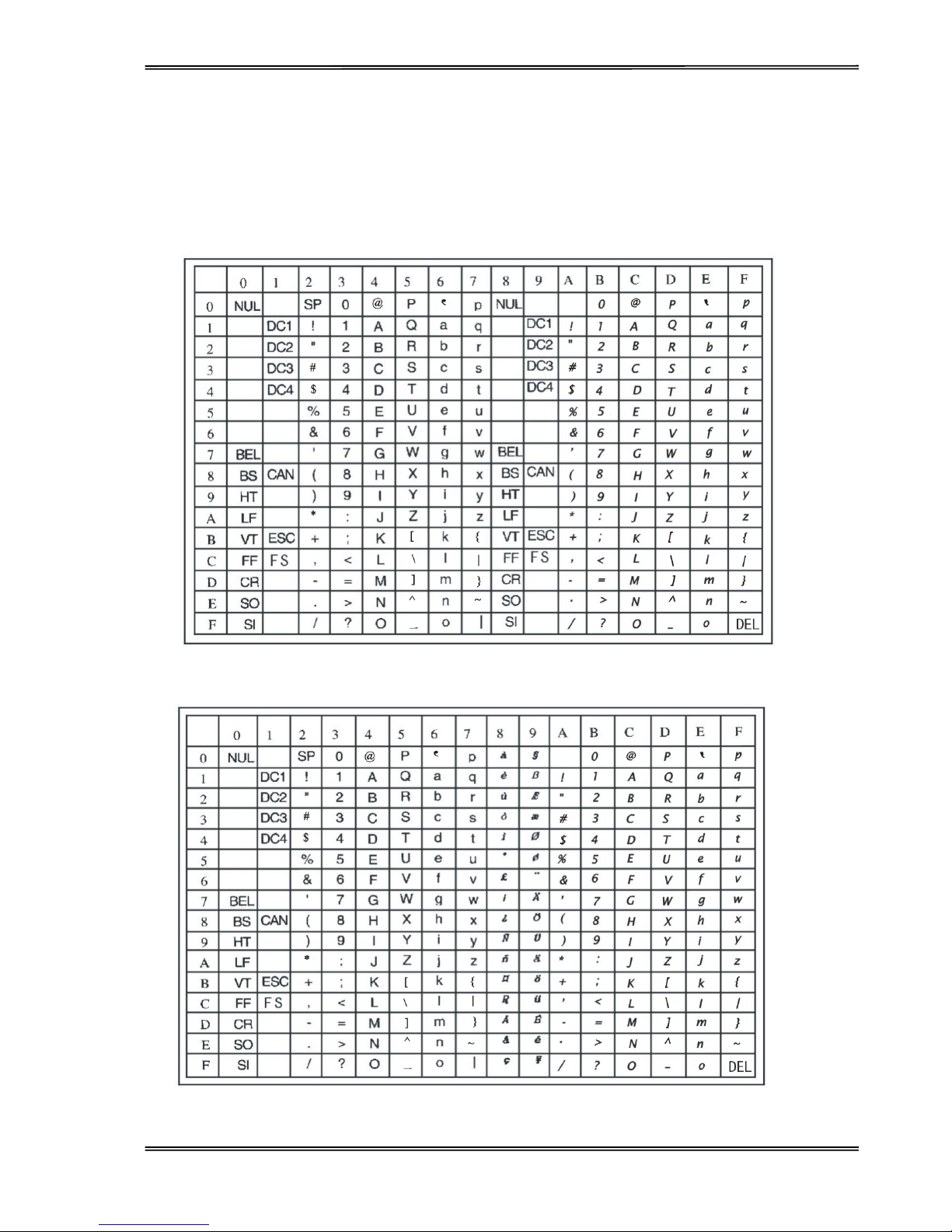

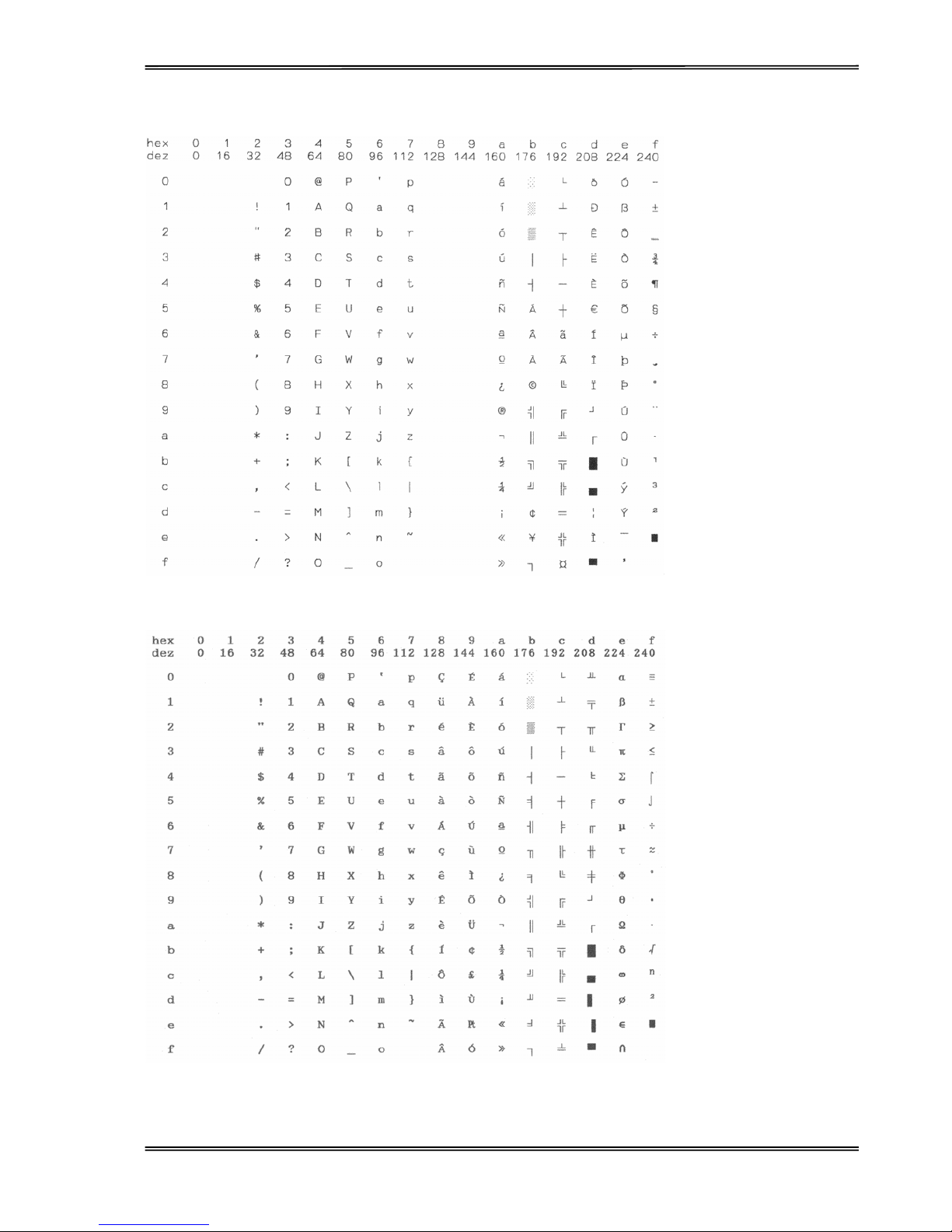

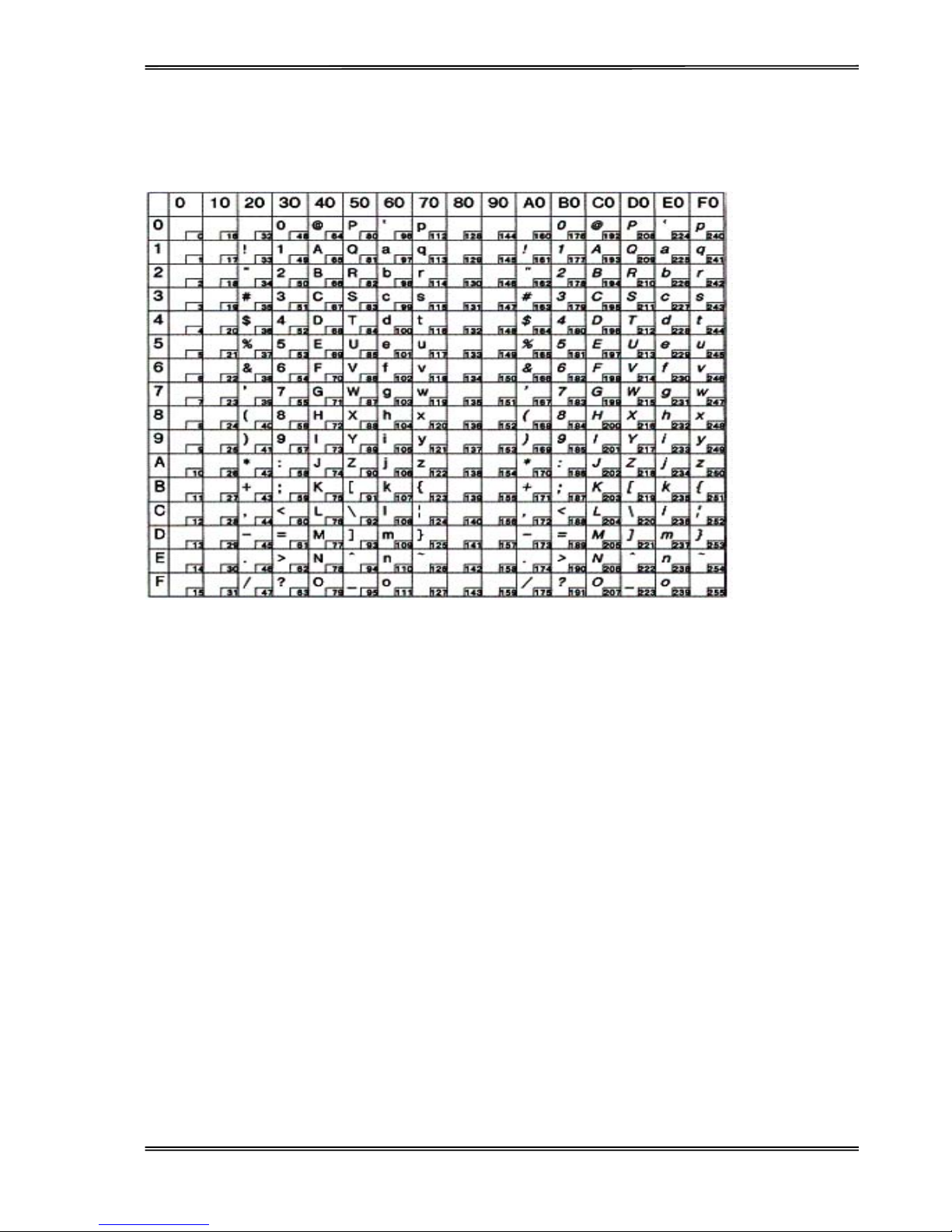

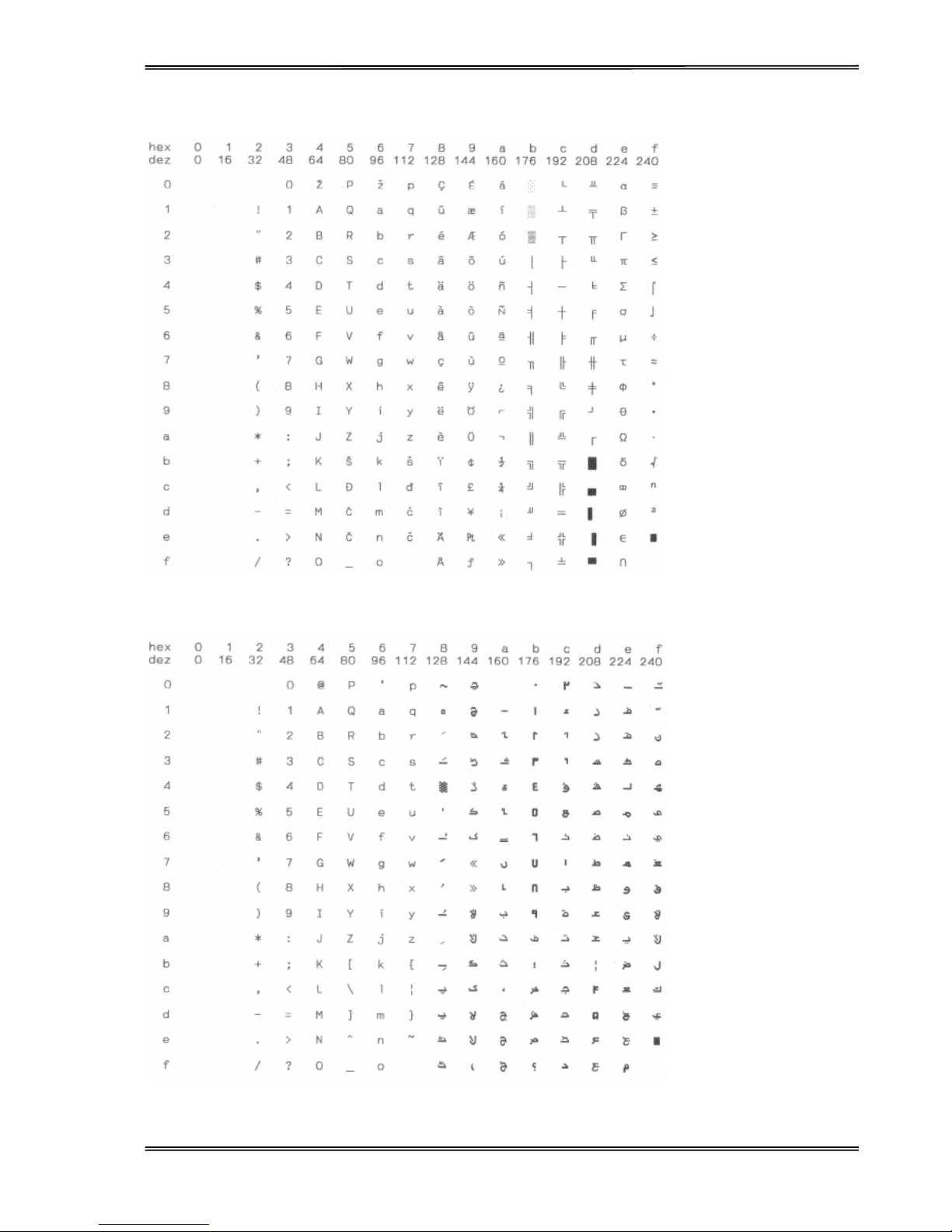

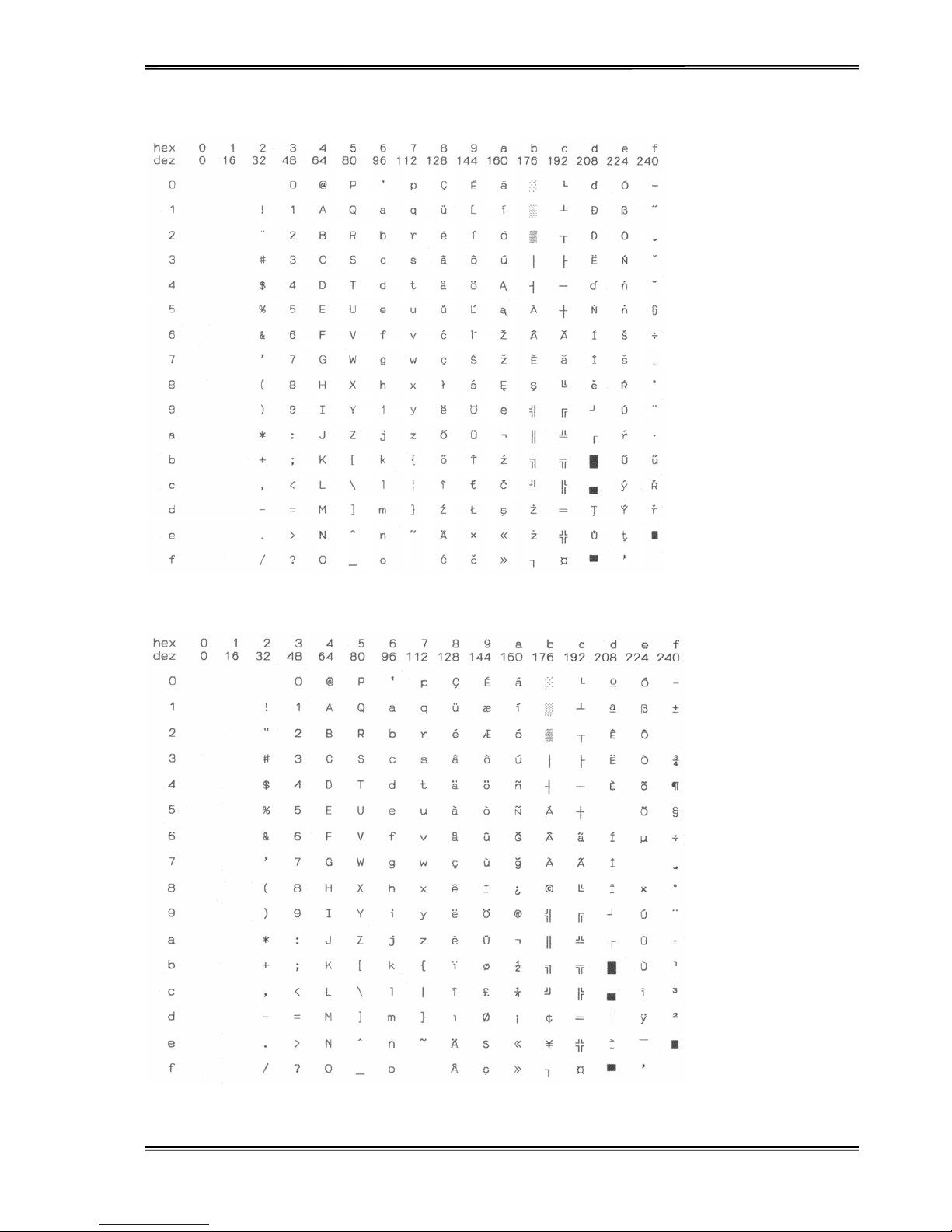

CHARACTER TABLES ......................................................................................................................................... 53

CODE PAGE COMMANDS ................................................................................................................................... 55

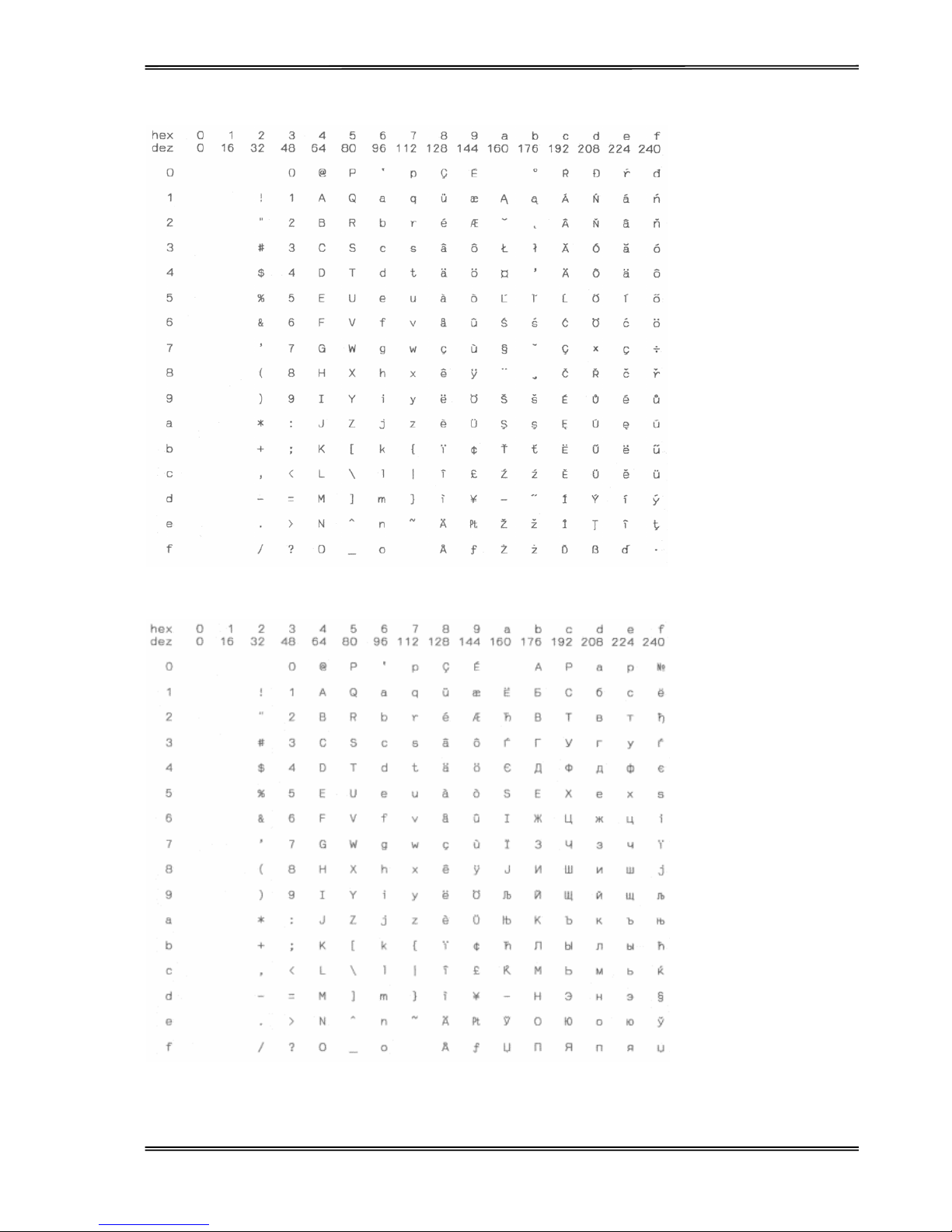

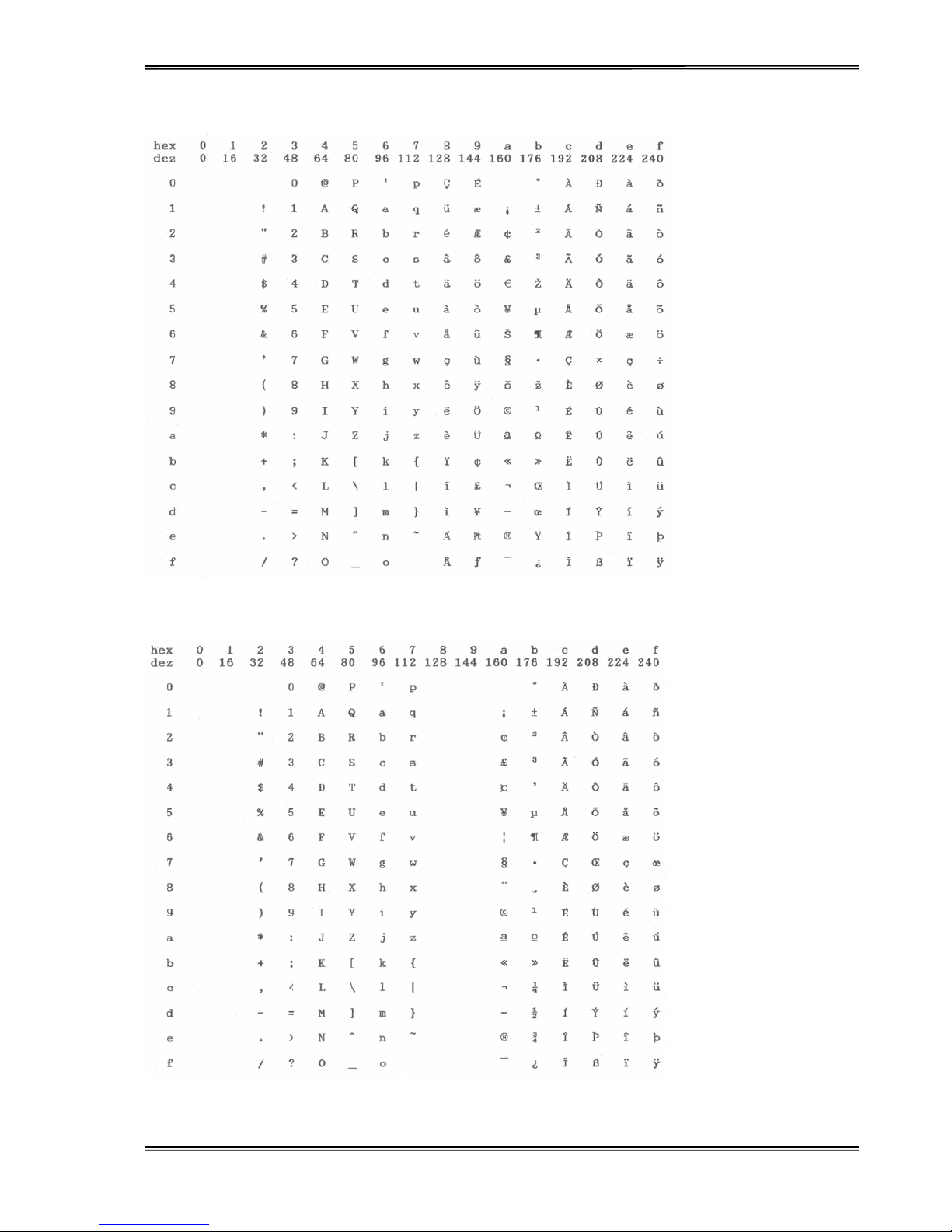

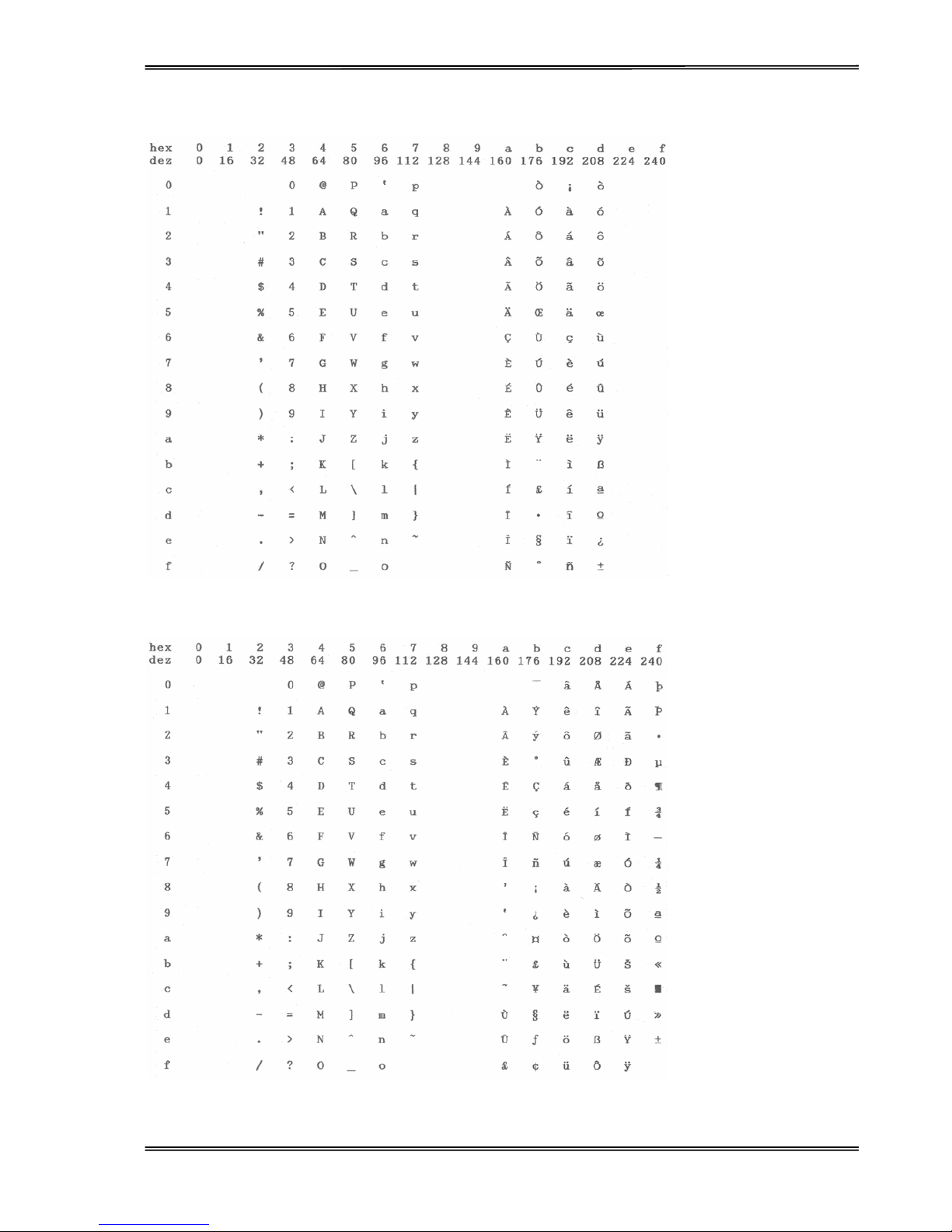

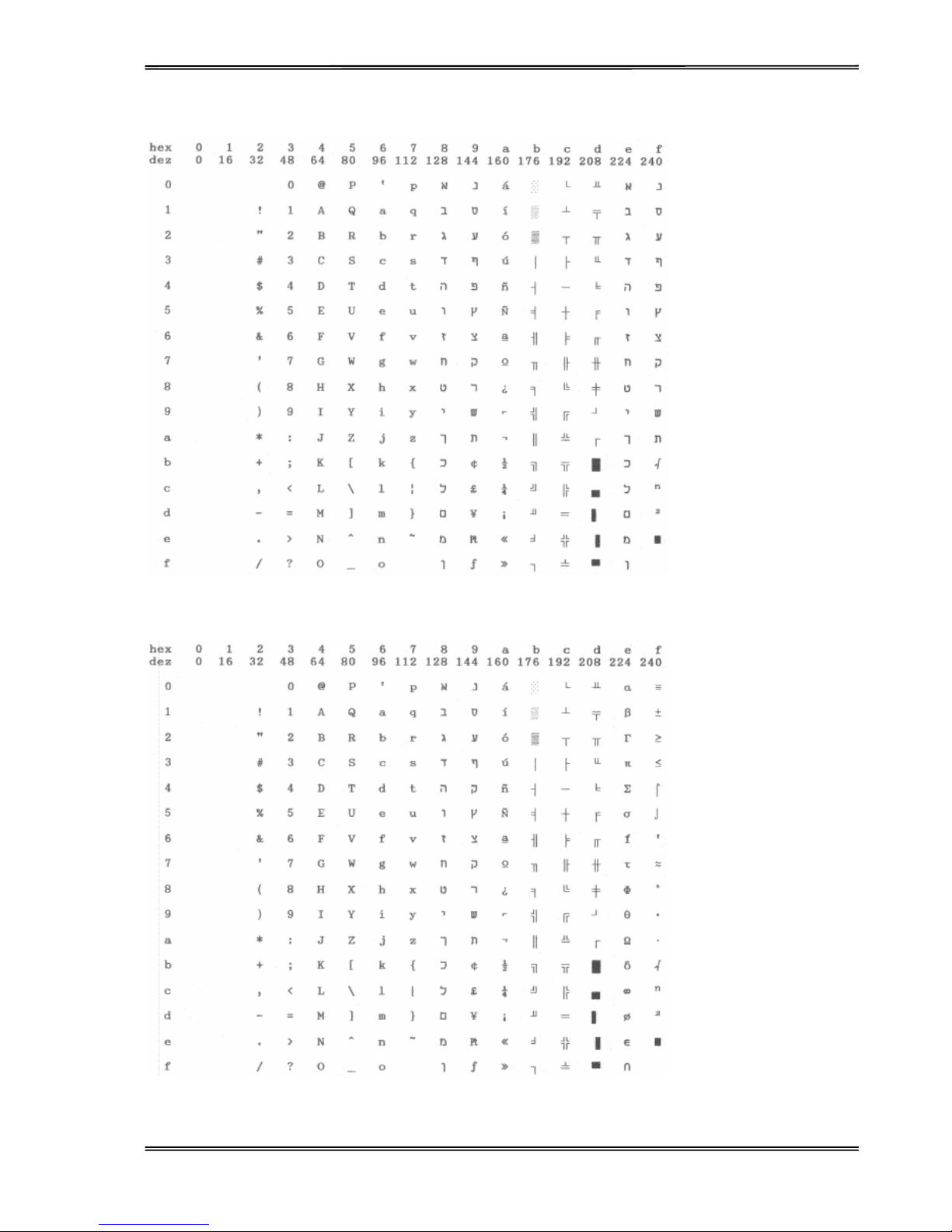

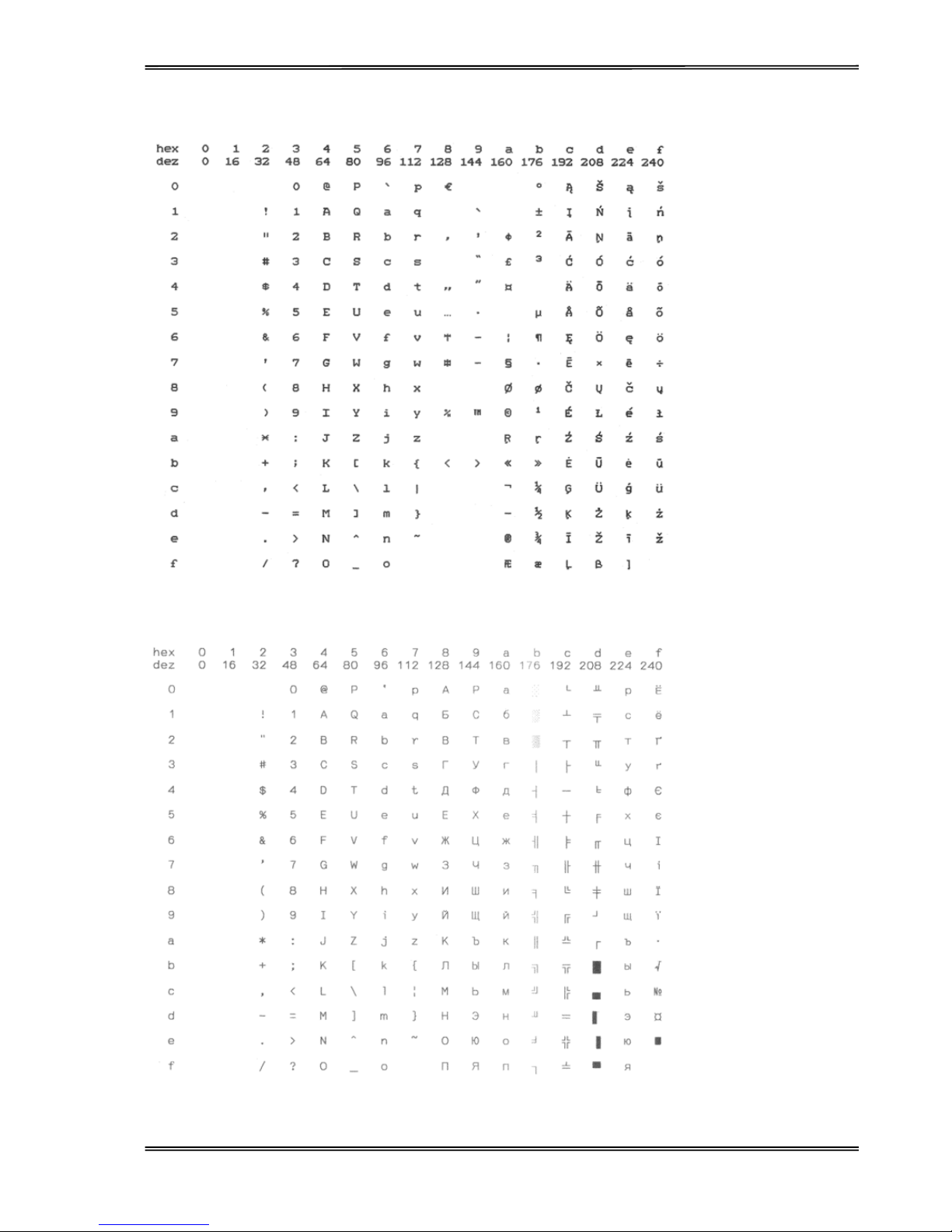

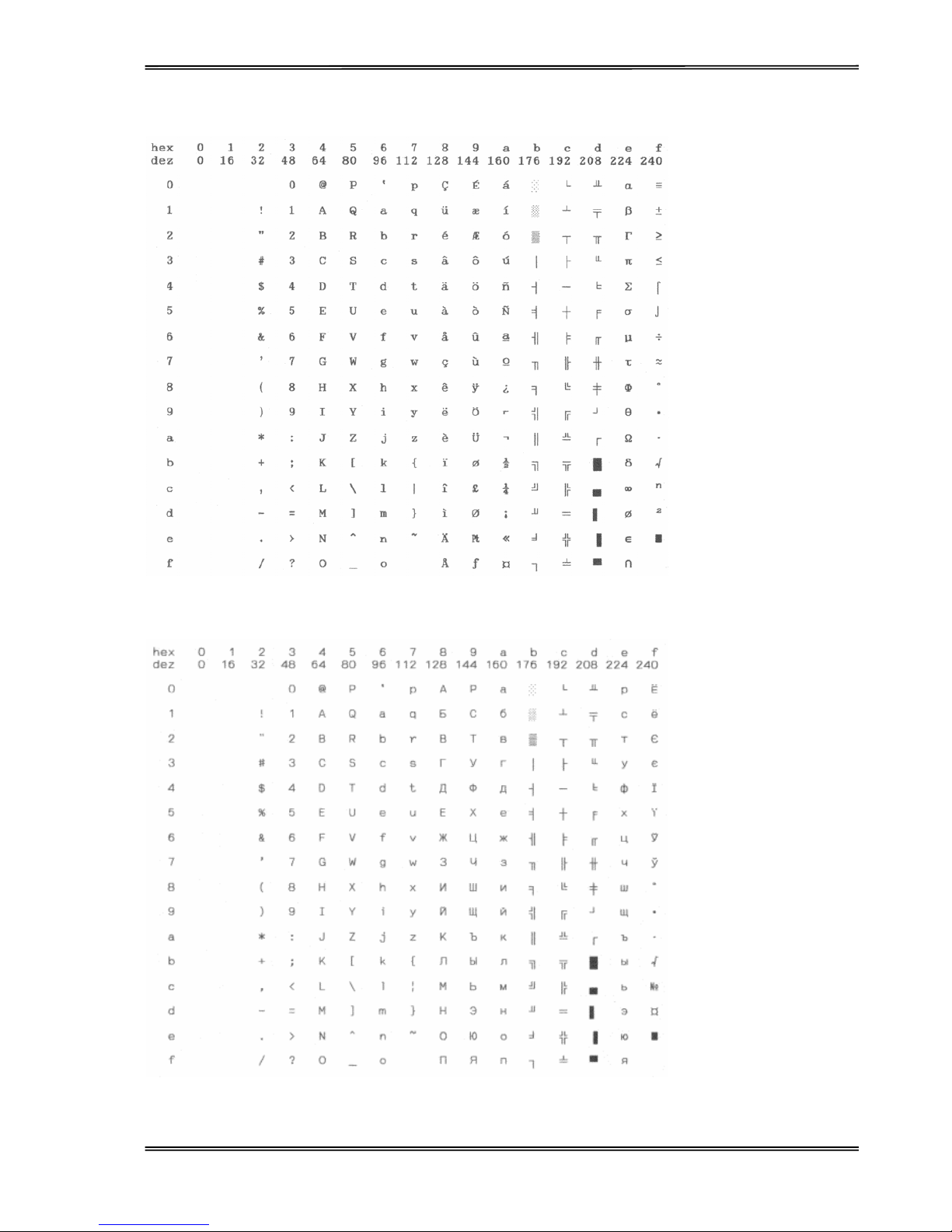

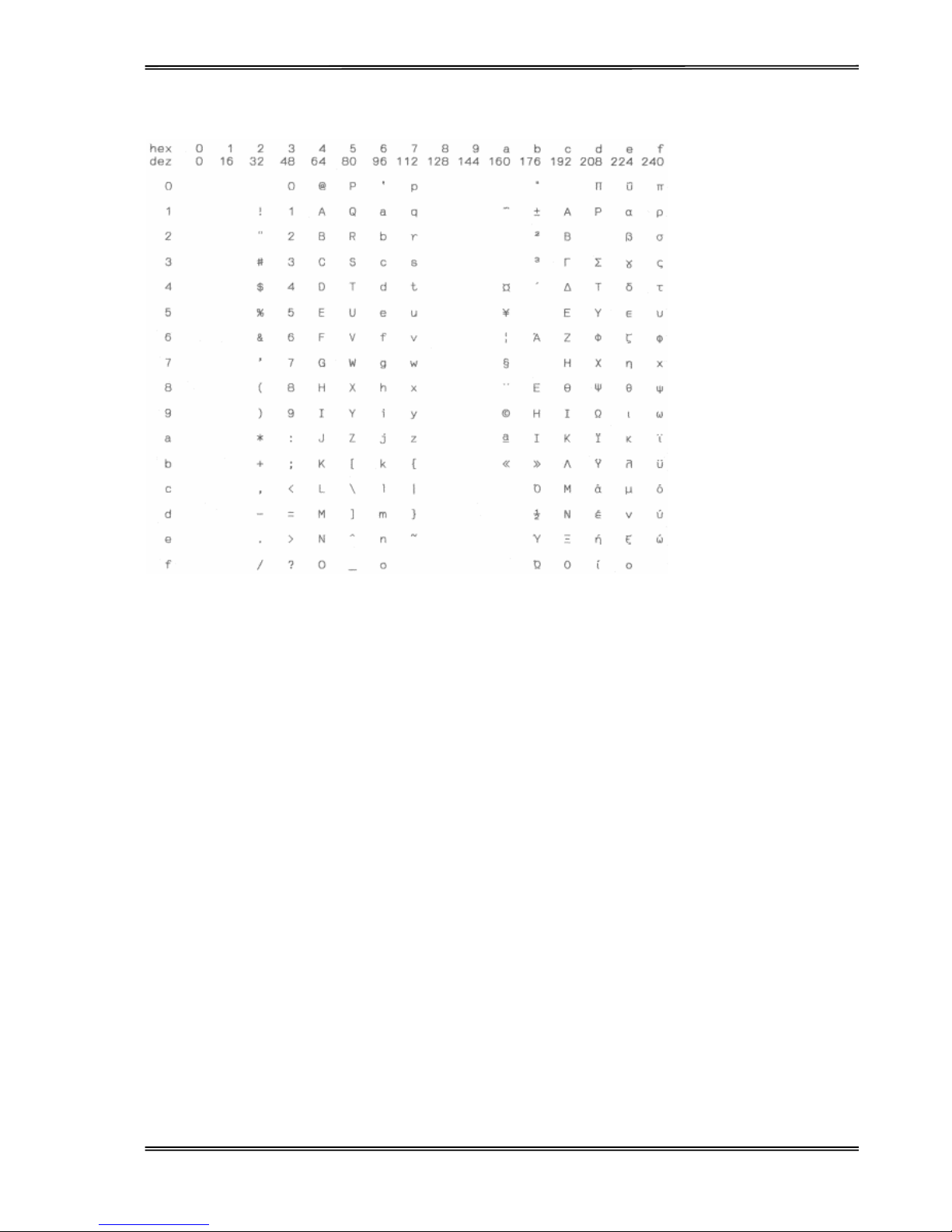

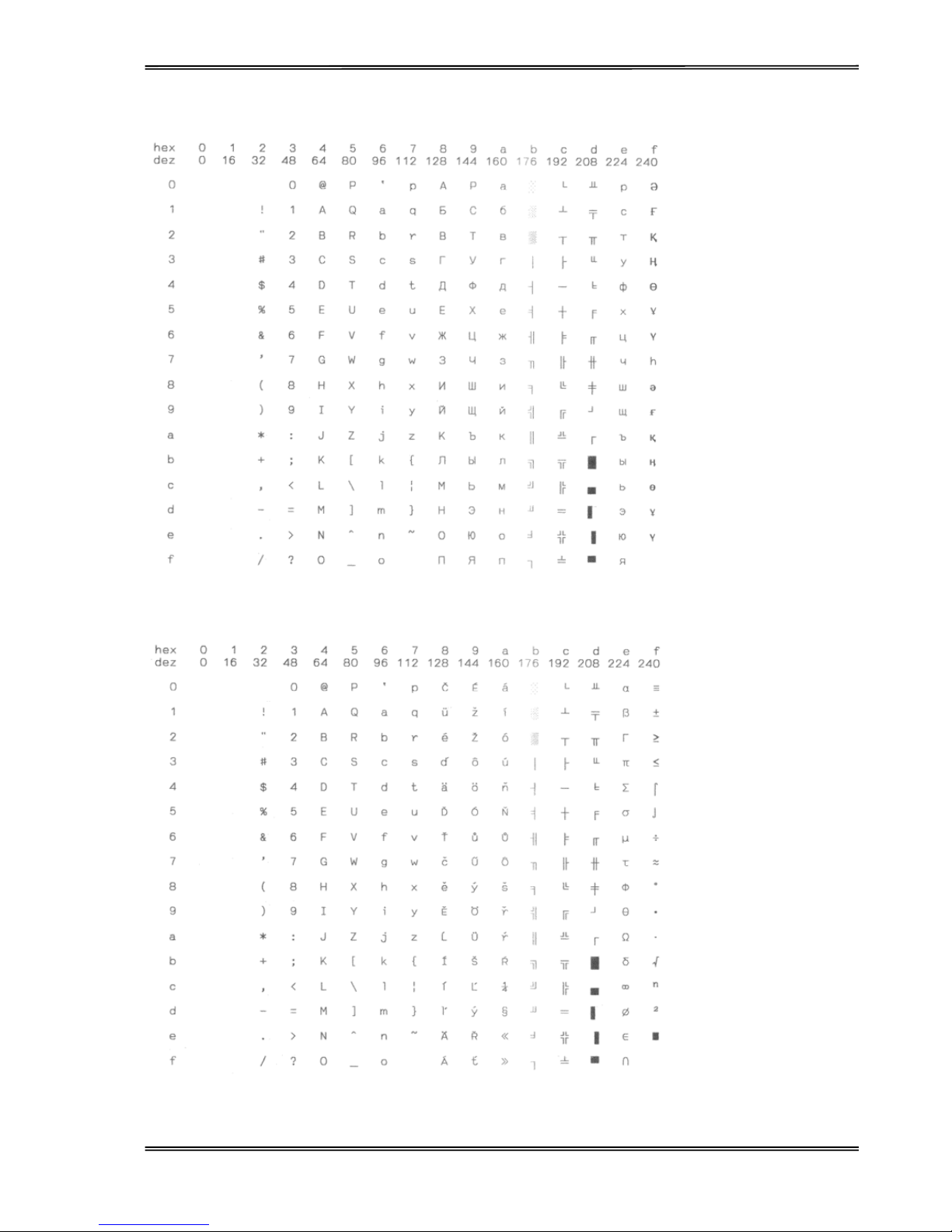

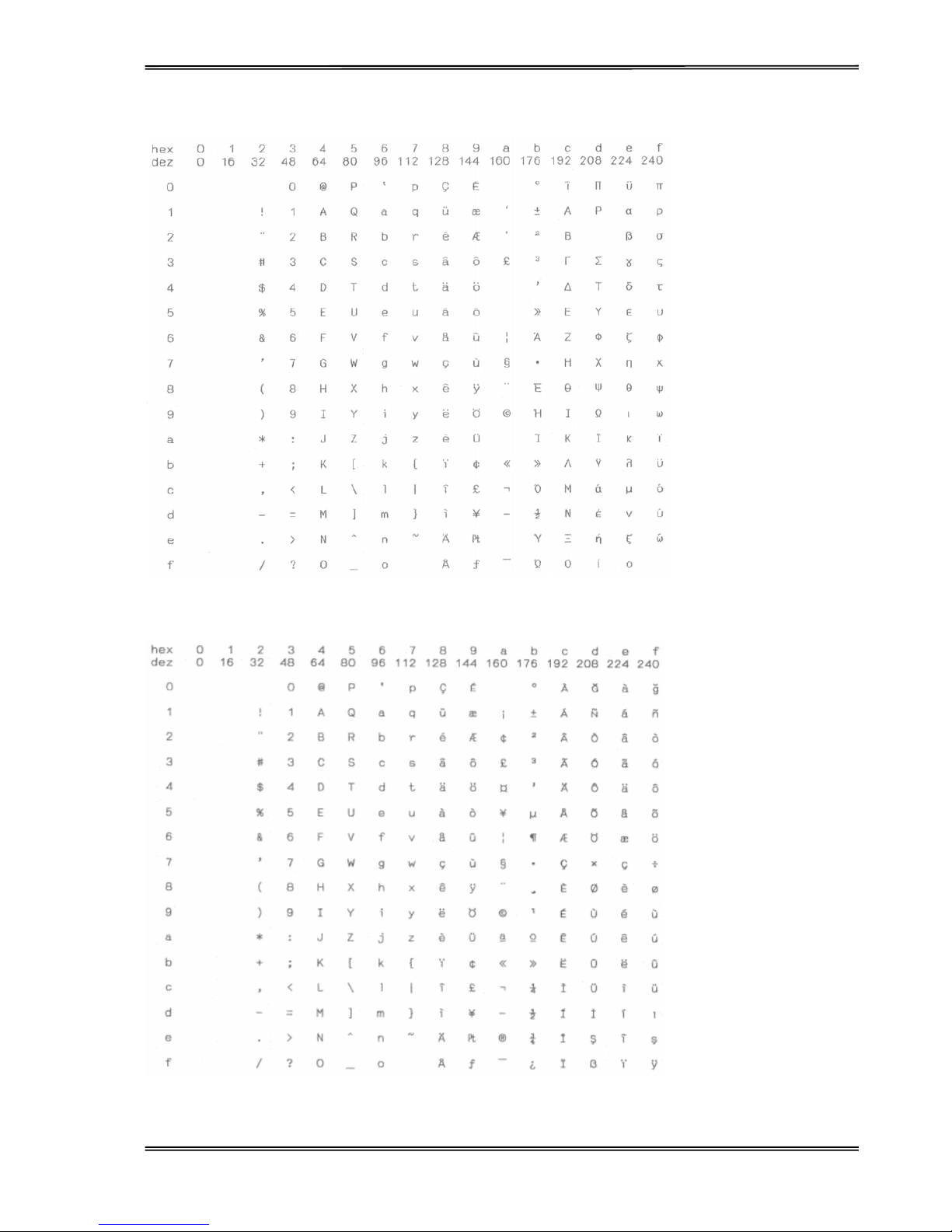

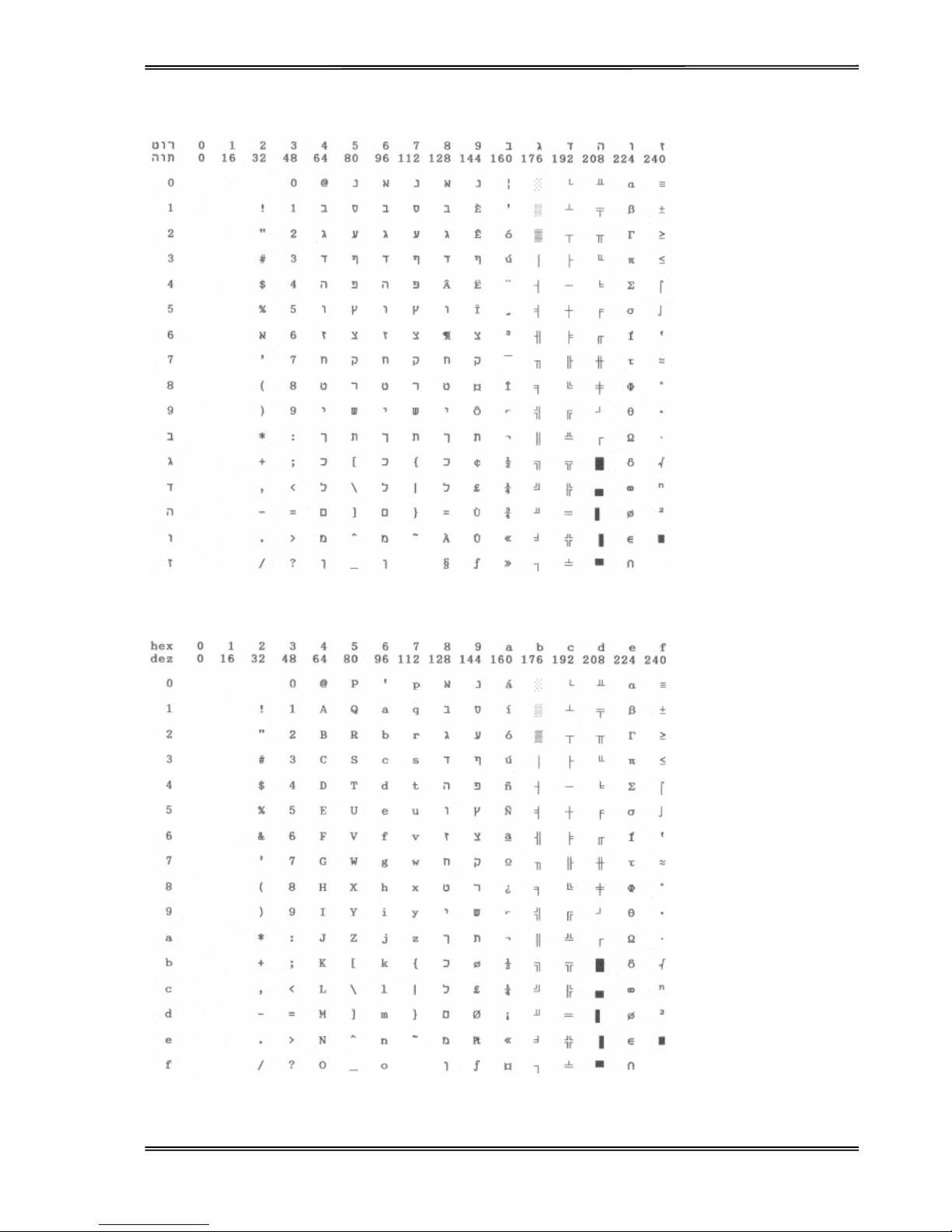

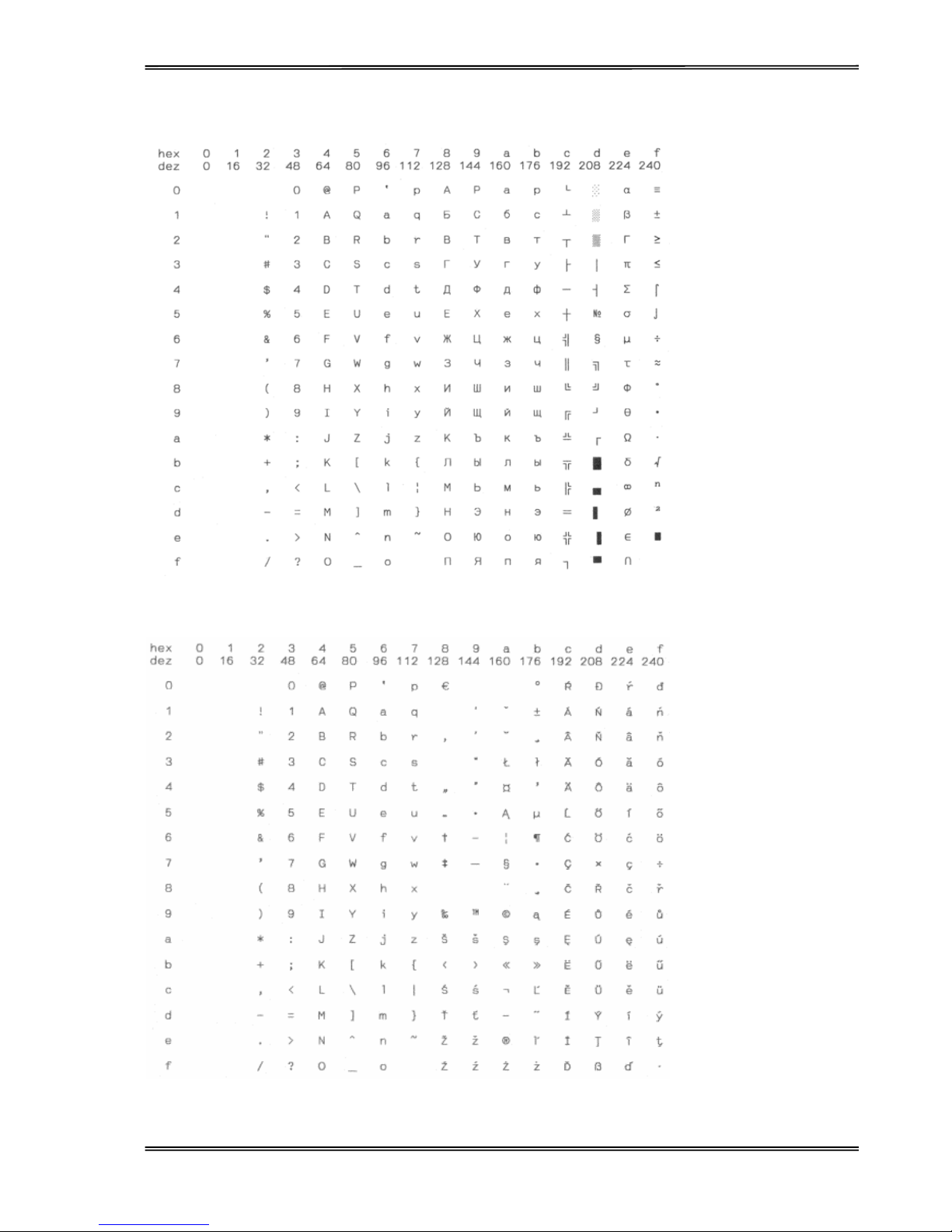

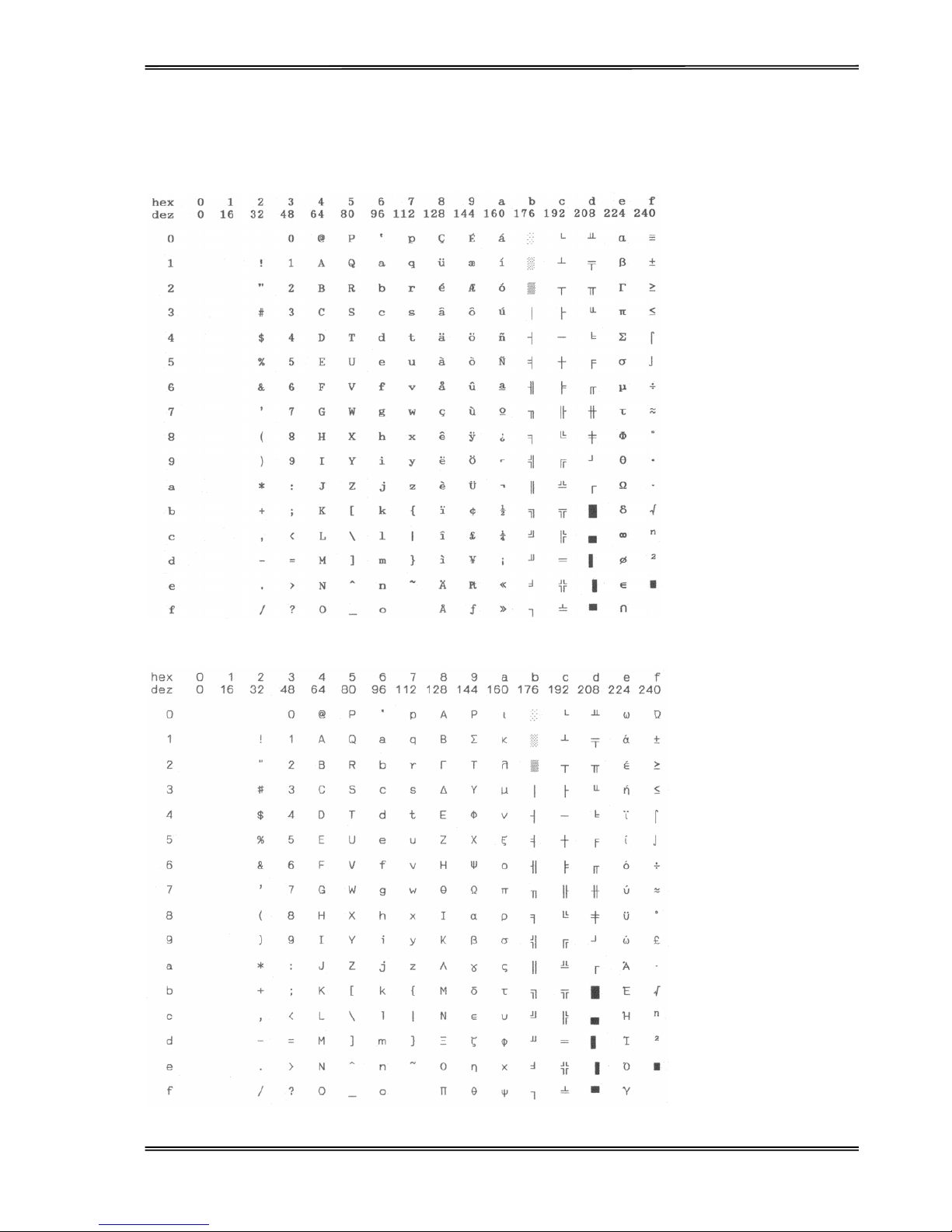

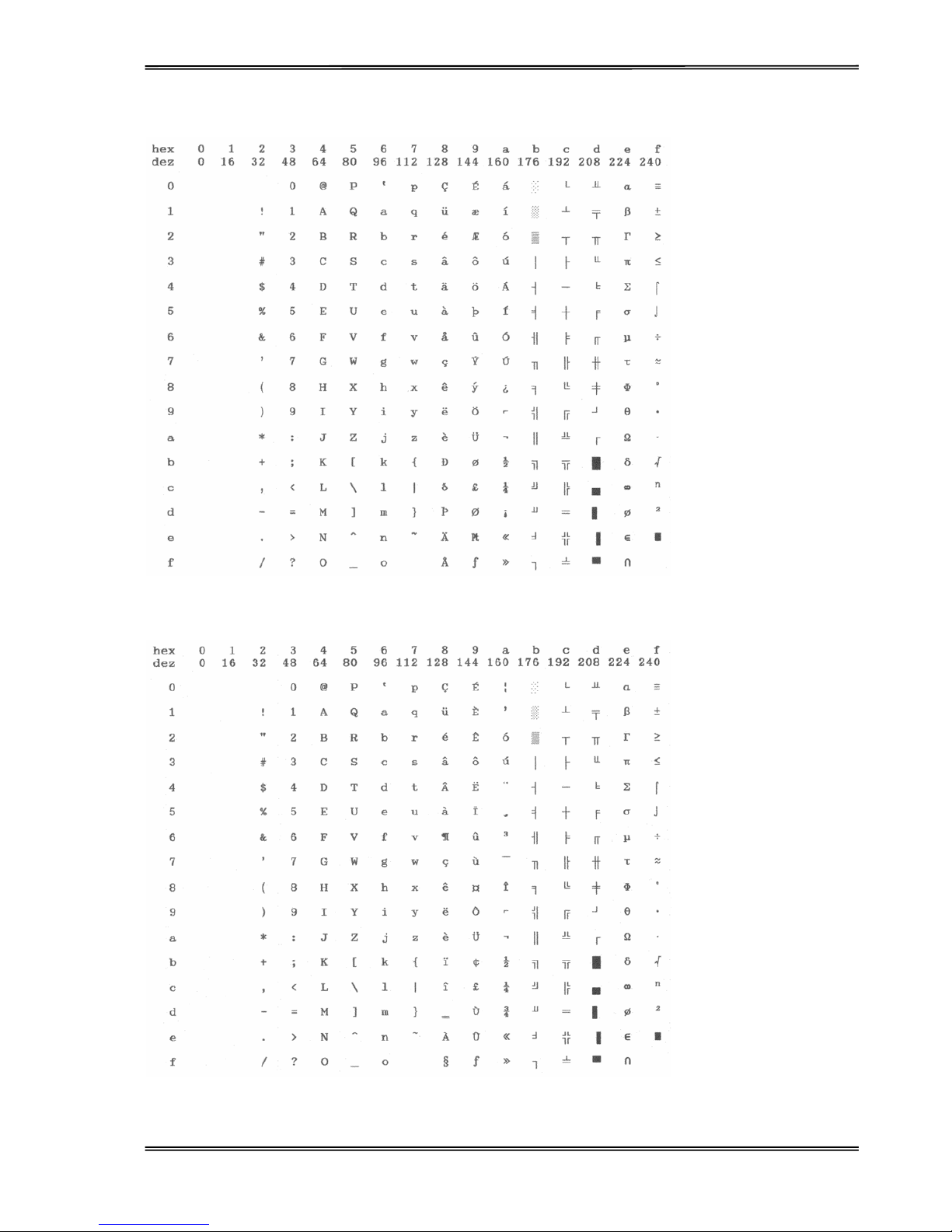

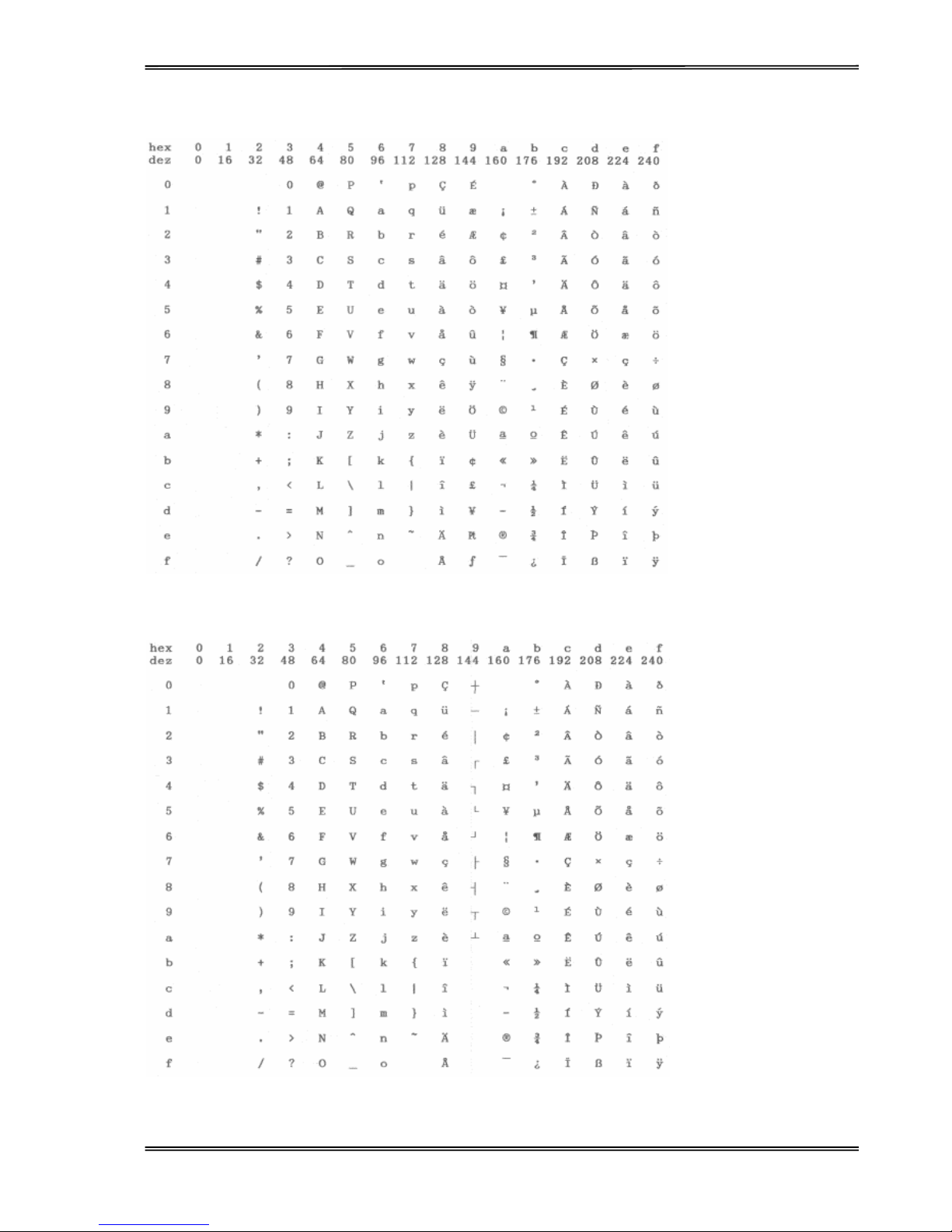

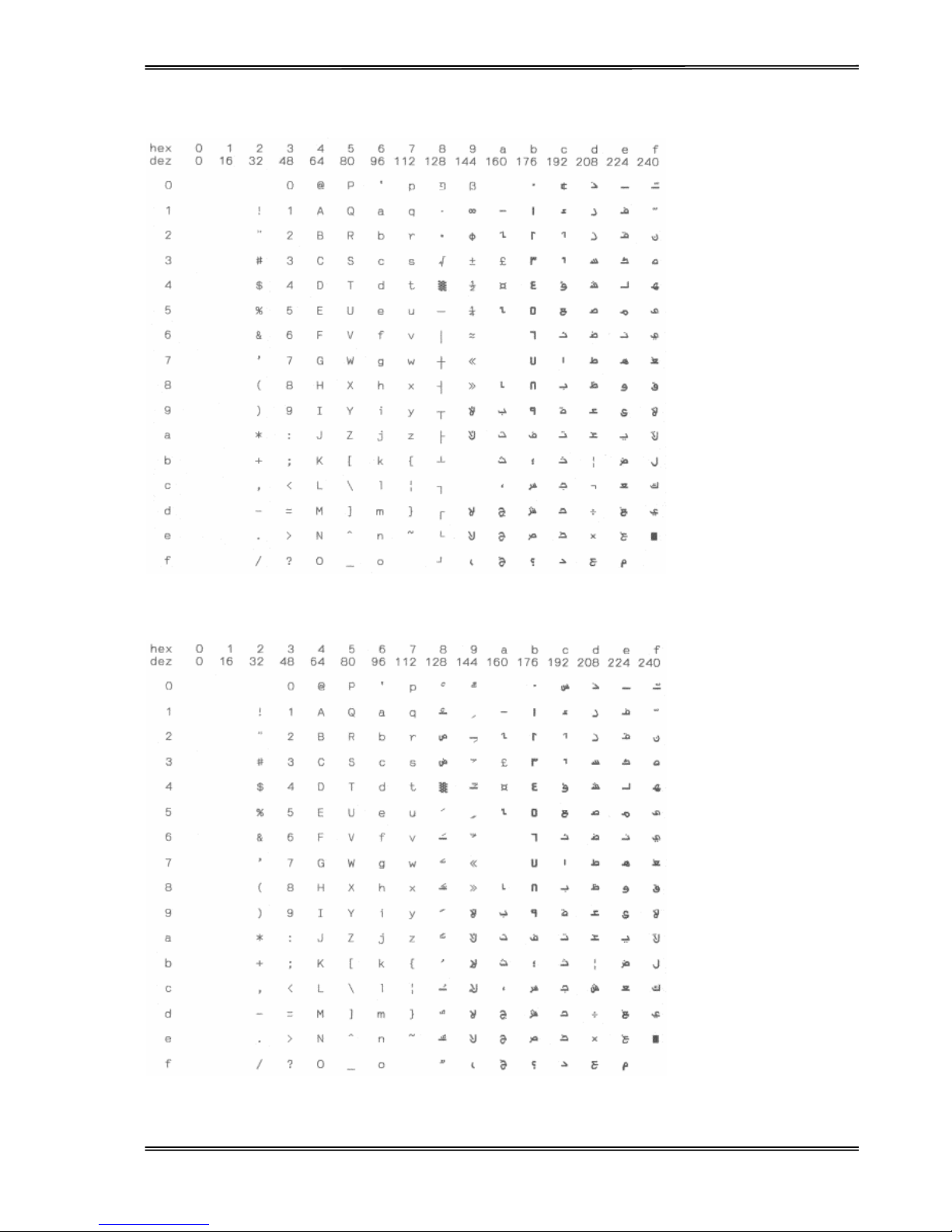

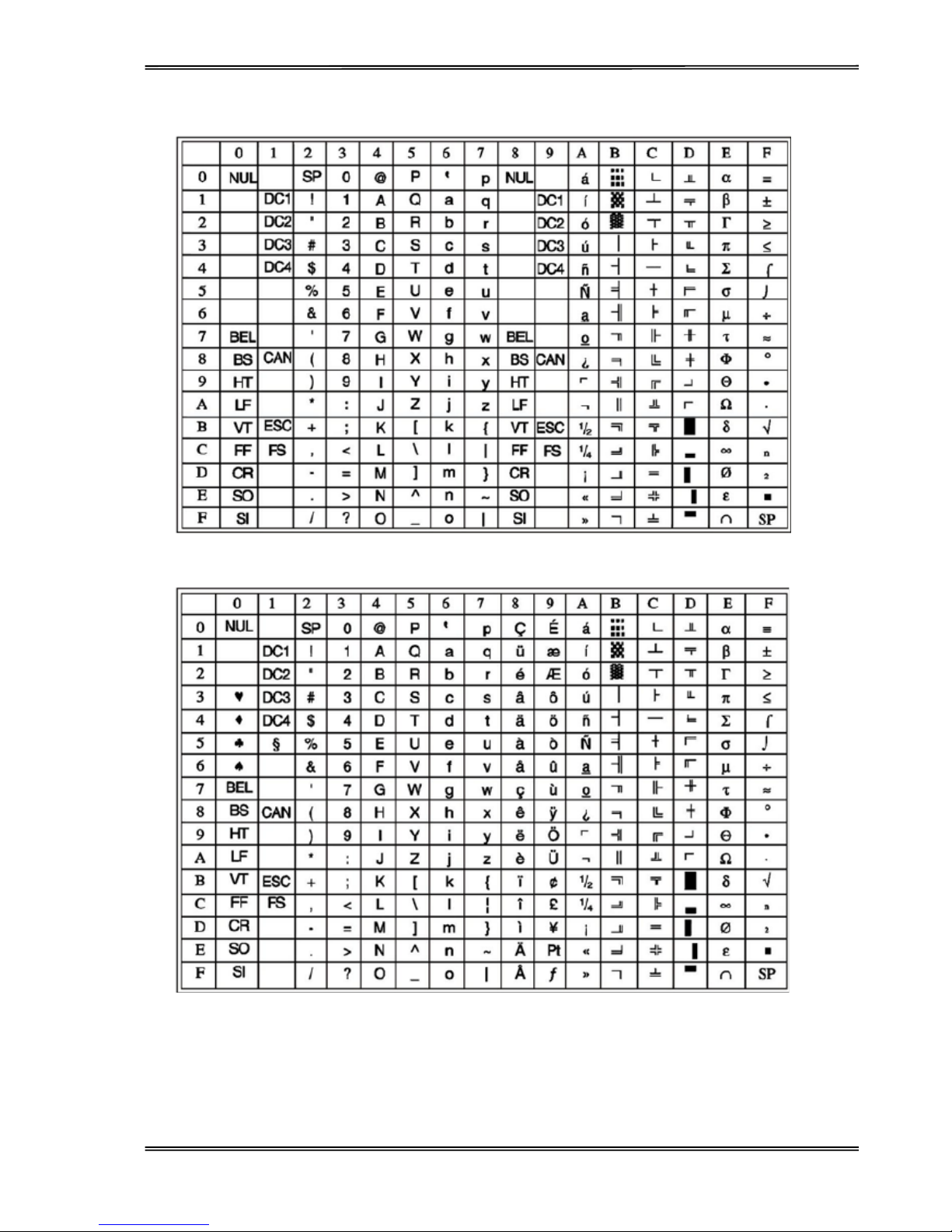

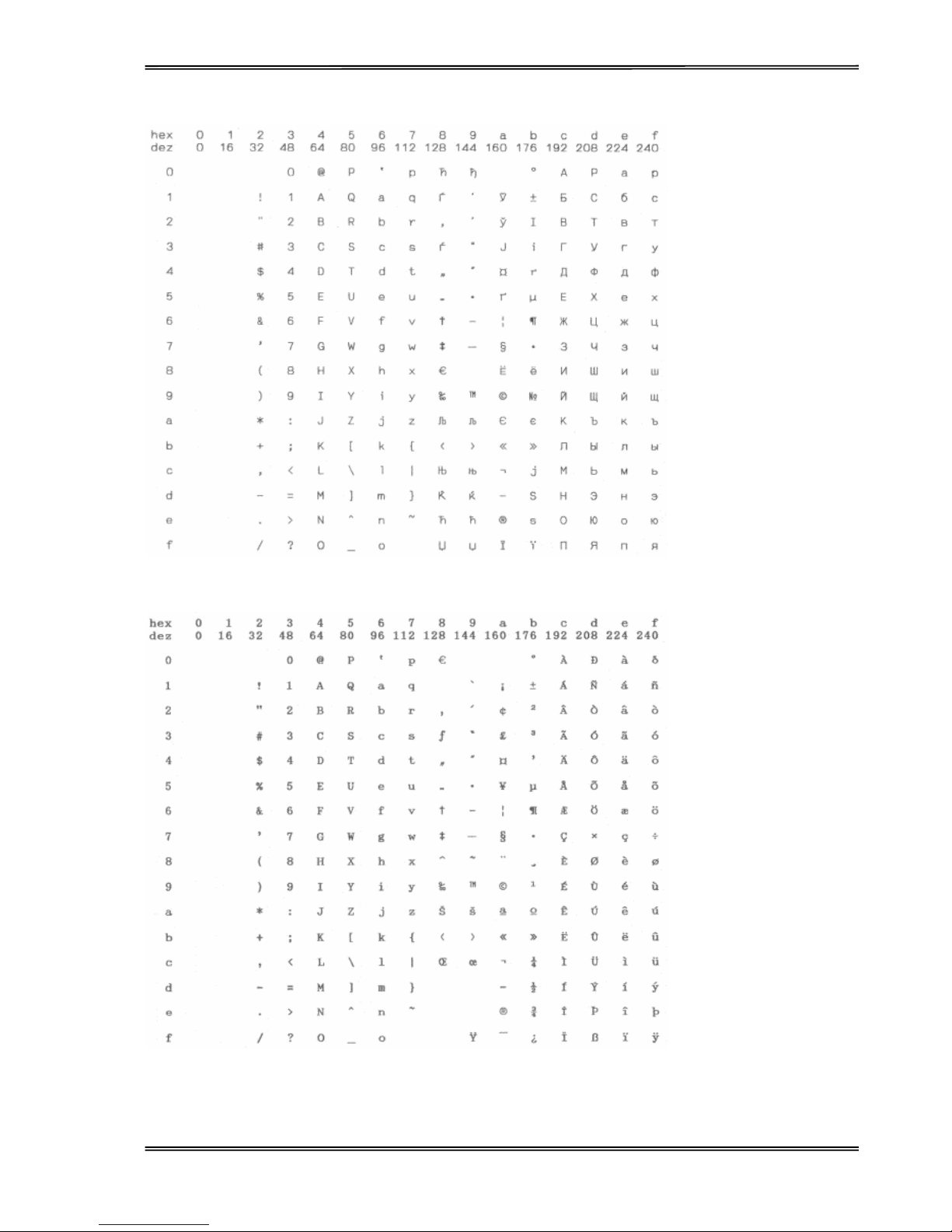

CODE PAGE TABLES .......................................................................................................................................... 57

EPSON EMULATION COMMAND LIST ................................................................................................................... 81

IBM EMULATION COMMAND LIST ....................................................................................................................... 83

Page 15

Tally Dascom 1225

1 Unpacking Guide

 Place your packaged printer on a solid base.  Make sure that the “Up” symbols point in the correct direction.  Open the packaging, lift the printer out of the cardboard box and remove the remaining packaging

material.

 Check the printer for any visible transport damage and missing items. If you find any transport damage

or if any accessories are missing, please contact your dealer. The following items should be included:

o Printer o Paper feed knob o Paper feed tray o Power cord o Ribbon cartridge o CD-ROM o Installation Guide

Remove the packaging materials from the printer as follows:

1. Remove the tape on the paper feed lever.

2. Remove other visible tape on the printer.

3. Open and remove the top cover of the printer.

4. Remove the shipping cardboard from around the print head.

5. On the left and right sides, remove the protective foam inserts.

6. Install the paper feed knob.

Page 16

Tally Dascom 1225

Placing the Printer

Place the printer on a solid, flat, stable surface; ensuring that the printer is positioned in such a way that it cannot move, and that there is easy access to the control panel and paper input devices. Also ensure that there is enough space for sufficient ventilation and for the printed output.

When selecting the printer location, observe the following additional instructions:

 Never place the printer near to any flammable gas or explosive substances.  Do not expose the printer to direct sunlight. If you cannot avoid placing the printer near a window, protect it

from the sunlight with a curtain.

 When connecting a computer to the printer, make sure the maximum recommended cable length is not

exceeded.

 Ensure sufficient distance between the printer and any heating devices/radiators.  Avoid exposing the printer to extreme temperature or air humidity fluctuations. Avoid exposure to dusty

environments.

 It is recommended the printer is installed in a position which reduces noise exposure to the work place

during printing.

Printer Components

Page 17

Tally Dascom 1225

Component Function

Gap Lever

Controls printing impact or density. Adjusts the print gap lever according to the thickness of paper.

Paper Guides

Adjusts positioning of single sheet paper.

Print Head

24-pin printing mechanism

Cover Protects print head and other components inside, and reduce noise.

Control Panel

Shows printer status, for printer setup.

Paper Feed Lever

Two positions: = continuous forms; = single sheet paper

Paper Feed Knob

Manual feed or vertical positioning of paper

Power Switch

Power printer ON or OFF

Ribbon Cartridge

Install ribbon in the printer.

Ribbon Frame

For guiding ribbon installation on print head.

Tractors

For feeding and adjustment of continuous forms.

Power Receptacle

Connects power cord to the printer.

Interface

Connects interface cables from the host.

Page 18

Tally Dascom 1225

2 Setting Up Printer

Install Ribbon

1. Ensure the power to the printer is off and the print gap lever “A” is set to the furthest open position. Move

the carriage to the centre of the print platen.

2. Install the recess positions

 on the ribbon cassette into the printer mounting.

3. Press the ribbon frame

 onto the print head.

4. Turn the ribbon knob

 in clockwise direction until the ribbon fabric is taut. Move the carriage left and right

to ensure the carriage and ribbon fabric can move smoothly.

5. Ensure the print gap lever “A” is set to the original position.

6. Close the printer’s top cover. When printer is in operation, ensure the printer’s top cover is closed to keep

the noise level to a minimum.

Notes on Ribbon Cartridge Removal:

1. Eject any paper loaded in the printer.

Turn off the printer power.

Open and remove the top cover.

Lift up the tear bar.

5. Set the gap lever to the most open position labeled “RIBBON”.

6. Move the carriage to the middle. Be careful not to touch the print head if printing had just been performed,

as the print head may be hot.

7. Remove the blue ribbon frame from the print head.

8. Use fingers to take hold of the handle on the ribbon cartridge firmly, and lift the cartridge upwards to unlatch

it. Some force may be needed to unlatch the cartridge.

Page 19

Tally Dascom 1225

Install the Single Sheet Feeder

Install the single sheet feeder into the rear of the printer.

Connecting the Interface Cable

The 36-pin Centronics parallel and USB ports are located at the rear of the printer. IMPORTANT: Make sure the printer and the computer are switched off before connecting or disconnecting the interface cable to prevent electrical damage to the interface ports.

Page 20

Tally Dascom 1225

Connecting the Mains Power

Checking the printer voltage

Make sure that the device has been set according to your country’s power supply voltage. To do this, check the rating plate at the back of the printer. Contact your dealer if the setting is incorrect.

Never switch on the printer if the voltage setting is incorrect; this may result in electrical

damage to the printer.

Make sure that the power switch “A”, located to the right side of the printer, is in the “O” (off) position.

Connect the power cord to the power inlet of the printer. Connect the power cord plug to a mains socket. Switch on the printer.

Page 21

Tally Dascom 1225

Installing the Windows Driver

(Windows 2000/2003/2008 Server/XP/Vista/7)

1. Your printer CDROM comes with Windows drivers. Go to the Drivers folder and run the Installer “DriverSetup.exe”. You will see the screen on the right. Click “Next” to continue.

2. A list of ports available on your system will be displayed as shown on the right. Choose the desired port to use. Click “Next” to continue.

3. Select the desired printer model as shown on the right. Click “Next” to continue.

Page 22

Tally Dascom 1225

4. Here you can choose whether to set the driver as the system default driver, and whether you want to print the Test Page after installation is completed. If the driver had been installed before, it would be listed in the white box on the right. Select the listed driver (if any) if you want to replace it; otherwise a copy of the driver will be installed. Click “Next” to continue.

5. Click “Finish” to start the installation process.

6. If the driver is not yet Microsoft Certified, the message on the right would appear. Click “Continue Anyway”. (As we continue to expand our product portfolio, not all of our drivers may be certified yet. Please check our website

www.dascom.com

for the latest

certified drivers.)

Page 23

Tally Dascom 1225

7. Installation in progress.

8. After installation is completed successfully, you will see the message on the right.

Page 24

Tally Dascom 1225

3 Paper Installation Guide

The printer can handle either single sheets or continuous forms. Single sheets, also called cut sheets, include envelopes and non-continuous, multipart forms. Continuous forms include labels and multipart forms fed into the printer using the forms tractors. The printer is able to print 1~5 plies multipart paper.

Do not load paper that has been folded or is damaged, wrinkled, or curled.

Adjusting the Print Gap Lever

The print gap lever is on the left side of the printer. Take care to adjust the print gap lever to a suitable position whenever you change the number of copies being printed. Using the wrong print gap may cause print head damage or paper jams.

Paper type Weight (g/m

) / ply Thickness (mm) Gap lever position

Single sheet

52～100 0.06～0.12

1P～2P

2-ply

40～52 0.12～0.14

3-ply

40～52 0.17～0.22

3P～4P

4-ply

40～52 0.23～0.27

5-ply

40～52 0.28～0.33

Change ribbon --- Above 0.45

There are 2 paper feed modes: friction feed and tractor feed.

Friction Feed Handling

1. Move the paper-feed lever forward to “ ” for friction feed mode.

2. Adjust the print gap lever if necessary.

Page 25

Tally Dascom 1225

3. Raise the single sheet feeder until it locks into its mounting. Align the left paper guide with the mark on the left of the single sheet feeder. Adjust the right paper guide to the width of the paper used.

4. Insert a sheet of paper. Make sure that the bottom edge of the paper engages snugly with the platen.

5. The paper should advance automatically to the print position. The printer is now ready to print in the online state.

Tractor Feed Handling

1. Move the paper-feed lever backward to “ ” for continuous paper position.

2. Adjust the print gap lever if necessary.

3. Raise the tractor doors and fit the first 3 paper holes onto the left tractor pins. Close the left tractor door. In the same way, install the paper on the right tractor.

4. Adjust the right tractor to the width of the paper until the paper is flat. Do not stretch the paper too taut. Push the right lock lever down to secure the right tractor in place.

5. Press the【Load/Eject】key to load the paper to the starting print position. The printer is now ready to print in the online state.

Paper Guides

Page 26

Tally Dascom 1225

Continuous Paper Placement

1. Place the printer on a solid base. The minimum suitable height of the solid base is 75 cm.

2. Left and right positioning: The direction of continuous paper should be parallel with the paper guide. The tolerance should be less than 3 cm

3. Front and back positioning: The distance between the rear of printer and the wall should be more than 60 cm. To avoid paper jam, the distance between the continuous paper and the edge of desk should be 10~15 cm.

Page 27

Tally Dascom 1225

4 Control Panel Operation

There are 5 switches S1~S5 and 10 LEDs L1~L10. The meaning and application of each switch and LED are described below.

LED Indicators

“Power/Paper Out” LED: On: Power on Flashing: Paper out Flashing + buzzer: Paper jam

“Online” LED: On: The printer is in online state and ready to receive data from the computer. Off: The printer is in offline state and cannot receive data.

“Pitch” LEDs: On: Indicates the selected pitch.

“Font” LEDs: On: Indicates the selected font.

Control Panel Keys

“Online” Key: This key switches the printer between online and offline states. Printing is stopped when the printer is switched to offline state. When printer is switched to online state again, printing will resume.

“Load/Eject” Key: When paper is loaded, pressing this key will eject the paper (single sheet mode) or park the paper (continuous paper mode). When paper is not loaded, pressing this key will load the paper to the starting print position.

Page 28

Tally Dascom 1225

“LF/FF” Key: Pressing this key will feed paper one line forward. By holding down this key, the printer will initially feed a few lines, then perform a form feed (continuous paper mode) or eject the form (single sheet mode).

“Tear Off” Key: When online, this key will move any loaded continuous paper to the tear-off position. When offline, this key is used to select the desired pitch.

“Font” Key: When offline, this key is used to select the desired font.

Table 4.1

Switch Top Label Bottom Label

S1 Font Clear/Reset S2 Tear Off Pitch

S3 LF/FF Micro Feed Down S4 Load/Eject Micro Feed Up S5 Online -

Table 4.2

LED Function

L1 Draft L2 Sans Serif L3 Prestige L4 Others

L1, L2 Roman L2, L3 Courier L3, L4 Script L5 10CPI / Tear Off L6 15CPI L7 20CPI L8 PS

L5, L6 12CPI L6, L7 17CPI L9 Power/Paper Out L10 Online

Page 29

Tally Dascom 1225

Panel Operation

There are 3 states of operation: Online, Offline and Power On.

In the Online state, the keys provide the following functions: Go to Tear Off position, Line Feed/Form feed, Load/Eject, and switch to Offline state.

In the Offine state, the keys provide the following functions: Font select, Pitch select, Line Feed/Form feed, Load/Eject, and switch to Online state, micro feed, control PE (paper error) sensitivity, clear buffer and restore factory defaults.

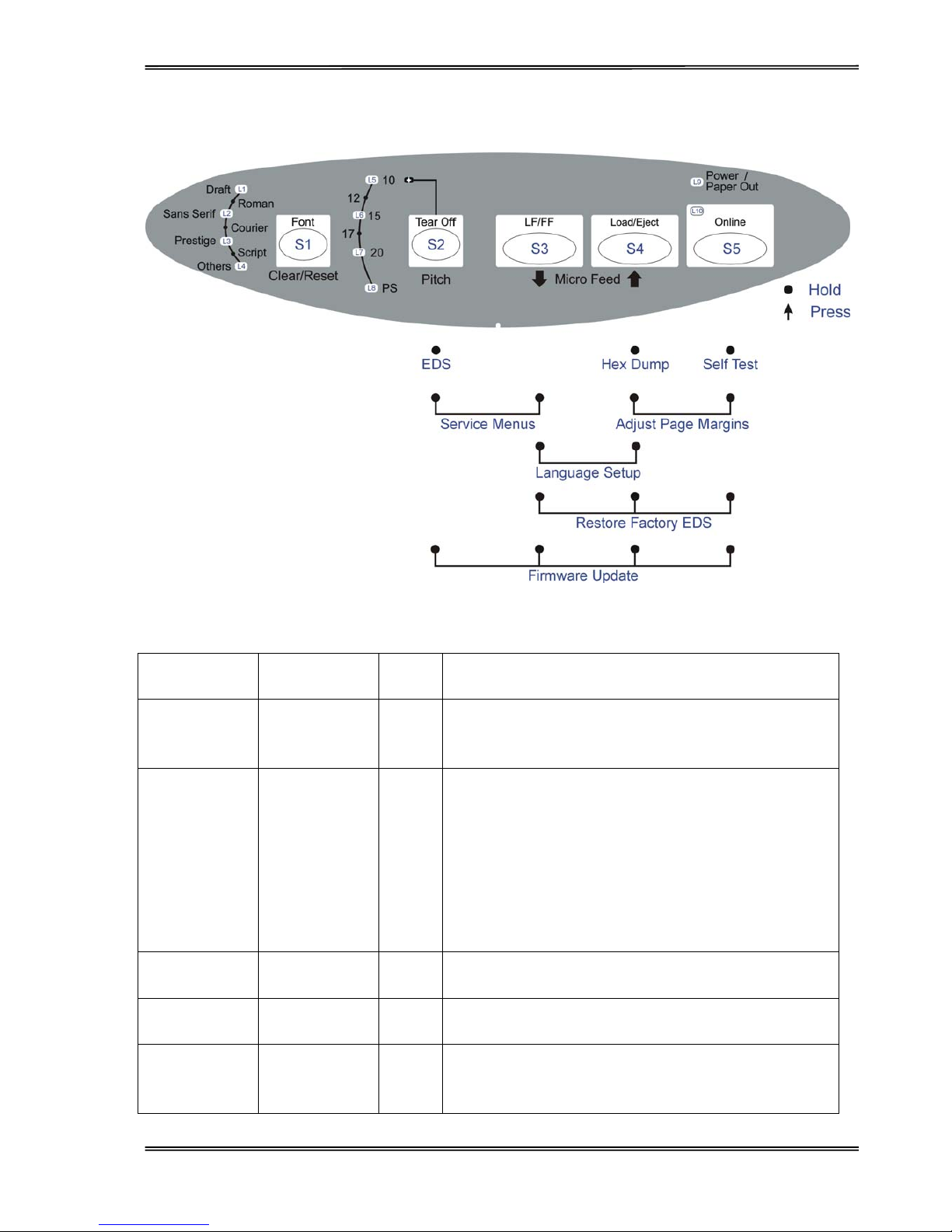

To enter the Power On state, the user holds down a key or a combination of keys while powering up the printer. This state provides the following functions: Main Menu setup, Hex-dump, print Main Menu, access Service Menu, adjust page margins, restore factory defaults, and firmware update.

The followings describe the 3 states in details.

Legend: [A] = press and hold switch A {B} = press and then release switch B [A]+ {B} = press switch B while holding A

Page 30

Tally Dascom 1225

Online State

Function Name

Switch

Operation

LED Function Description

Online {S5} L10 Toggles between Online and Offline states

Load/Eject {S4} -

 Load: Automatically loads the paper (according to path

selection) when no paper is on the platen.

 Eject: For rear tractor, it retracts the form from the

platen to allow users to install cut sheets. (NOTE: Users have to toggle the path selection lever.) For cut sheets, it ejects the form on the platen.

LF {S3} - Feeds a line with every press of S3.

FF [S3] -

By holding S3, the printer initially feeds a few lines; then feeds the form to the next TOF for rear tractor or ejects the form for cut sheets.

Tear Off {S2} L5 flashing

This is valid for tractor mode only. It feeds the form to the tear-off position. After tearing off the form, printing starts on the next TOF by:

 pressing S2 once, or  receiving print data from the host.

Page 31

Tally Dascom 1225

Offline State

Function Name

Switch

Operation

LED Function Description

Font {S1} L1~L4 Selects the font. Pitch {S2} L5~L8 Selects the pitch. LF {S3} - Feeds a line with every press of S3.

FF [S3] -

By holding S3, the printer initially feeds a few lines; then feeds the form to the next TOF for rear tractor or ejects the form for cut sheets.

Load/Eject {S4} -

 Load: Automatically loads the paper (according to path

selection) when no paper is on the platen.

 Eject: For rear tractor, it retracts the form from the platen to

allow users to install cut sheets. (NOTE: Users have to toggle the path selection lever.)

For cut sheets, it ejects the form on the platen. Online {S5} L10 Toggles between Online and Offline states Micro Forward {S4}+[S5] - While holding down S5, press S4 to micro feed paper up. Micro Reverse {S3}+[S5] - While holding down S5, press S3 to micro feed paper down. Activate user-defined sensitivity

[S2]+{S3} Activates the calibrated PE sensor sensitivity value according

to the currently selected paper path. Beeps once when completed.

Page 32

Tally Dascom 1225

Calibrate PE sensor sensitivity

{S1}+[S2] -

 Out-of-paper: Beeps once. Automatically loads a form in 10

seconds.

 Paper loaded: Calibrates PE sensor with paper loaded and

save the sensitivity value. Beeps 5 times when completed.

 [NOTE: There are 2 independent sensors for rear tractor and

front friction. Restore default PE sensor sensitivity

[S2]+{S4} Resets PE sensor sensitivity to factory defaults. Beeps twice

when completed.

Clear Buffer and Reset

{S1}+[S5] -

 Clears the print buffer. Beeps once upon completion.  Pressing S1 longer initializes the printer to default settings.

Beeps 3 times upon completion.

Page 33

Tally Dascom 1225

Power-On State

Function

Name

Switch

Operation

LED Function Description

Menu Setup / EDS

[S2] - Allows for Main Menu setting changes. Please read the

instructions printed on how to change settings when this mode is activated. (EDS: Electronic DIP Switch)

Hex Dump [S4]

- Beeps once to indicate going into hex dump mode:

 Prints data from host in hexadecimal representation.  Pressing S4 suspends the printing.  When the hex dump has finished, pressing S4 forces the

printing of the last line of data, as any line termination control code from host has no function.

 Pressing S1 can change the font.  Switch off the power to terminate the hex dump.

Self Test / Status Page

[S5] - Prints the printer settings and self-test pattern.

Pressing S1 can change the font.

Service Menu [S2]+[S3] - Vertical Alignment, Change Pin Function and Endless Self

Test Adjust Page Margins

[S4]+[S5] - Includes Adjust Fanfold Top Margin, Adjust Single Top

Margin, Adjust Fanfold Left Margin, Adjust Single Left

Margin and Adjust Tear-Off position.

Page 34

Tally Dascom 1225

Restore Factory Defaults

[S1]+[S2]+[S4] - Restore settings to factory defaults except for Change Pin,

Vertical Alignment and Adjust Page Margin Parameters. Firmware Update

[S2]+[S3]+[S4]+ [S5]

 Alternate flashing of L9 and L10 indicates ready for

firmware update from host.

 When new firmware is being received: L1 and L2 will

flash, followed by L1 and L3 flashing, then followed by L1 and L4 flashing.

 When downloading is completed, the carriage returns to

home position. Printer initializes normally.

Language Setup

[S3]+[S4]

 Allows user to select one of the following languages:

English, German, Russian, Italian, French, Spanish and Turkish. Factory default is English. Refer to Language Setup section below for details.

Language Setup

The panel menu can display the following languages: English, German, Russian, Italian, French, Spanish and Turkish. Factory default setting is English. To change it to another language, hold down the [LF/FF] and [Load/Eject] keys on the panel and power-on. Upon exiting the Language Setup Menu, a listing of the current configuration is printed, and this is followed by Main Menu Setup.

Below is an example of changing from English to German language:

Page 35

Tally Dascom 1225

5. Printer Setting Changes

In order to meet individual print requirements, the printer configurations may be changed as follows: Hold down the Tear Off key while powering on the printer, release the Tear Off key when the print head starts to move. The printer will enter Main Menu setup state. Follow the instructions printed on how to make setting changes. When a new setting is saved, it is retained after the printer has been powered off.

The Main Menu is grouped into 5 sub-menus: System Setup, Page Setup, Print Setup, Interface Setup and Advanced Setup. A detailed description of the sub-menus is given below. The settings in bold and italic refer to the default settings.

System Setup

System

Setup

Valid Settings Function

Emulation

ESC/P2, IBM 2390 Plus

Selects the printer emulation. This should be the same as the host

printer driver. Auto CR (IBM)

Yes, No

Yes: LF = LF+CR; No: LF = LF

(Applies to IBM emulation only) Auto LF

Yes, No

Yes: CR = CR+LF; No: CR = CR

Print Dir

Bi-Dir, Uni-Dir, Auto

Auto: Text & graphics in bi-direction; double height in uni-direction.

Uni-Dir: Prints everything in uni-direction. Bi-dir: Prints everything in

bi-direction. Note: Top position print direction may be affected by Top

Print Dir setting. Top Print Dir

Bi-Dir, Uni-Dir

Bi-dir: Prints top position according to Print Dir setting. Uni-dir: Prints

top position in uni-direction regardless of Print Dir setting. Impact

Normal, Heavy

Heavy: Higher impact force for multipart printing IBM AGM

Yes, No

Selects the IBM graphic mode. Applies to IBM emulation only

Print Setup

Print Setup Valid Settings Function

Font (Others)

OCR-B, OCR-A, ORATOR, GOTHIC, SOUVENIR

When Font is set to “Others” on control panel, OCR-B, OCR-A, ORATOR, GOTHIC fonts are selectable.

Pitch

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

Controls the characters per inch setting.

Zero

0,Ø

Selects slashed or no-slash zero.

Page 36

Tally Dascom 1225

HS-Draft

On, Off

On: Prints High Speed Draft when Draft font is selected.

Graphic Speed

Normal, Fast, Ultra

When printing 180x180 DPI graphics: Normal – prints in 180x180 DPI, Fast – prints in 90x180 DPI, Ultra – prints in 60x180 DPI.

IBM Set 1/2

Set 1, Set 2

Selects the IBM character set. 1: Normal; 2: Extended

Int'l Char Set

USA, France, Germany, UK, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

14+1 international character set selections

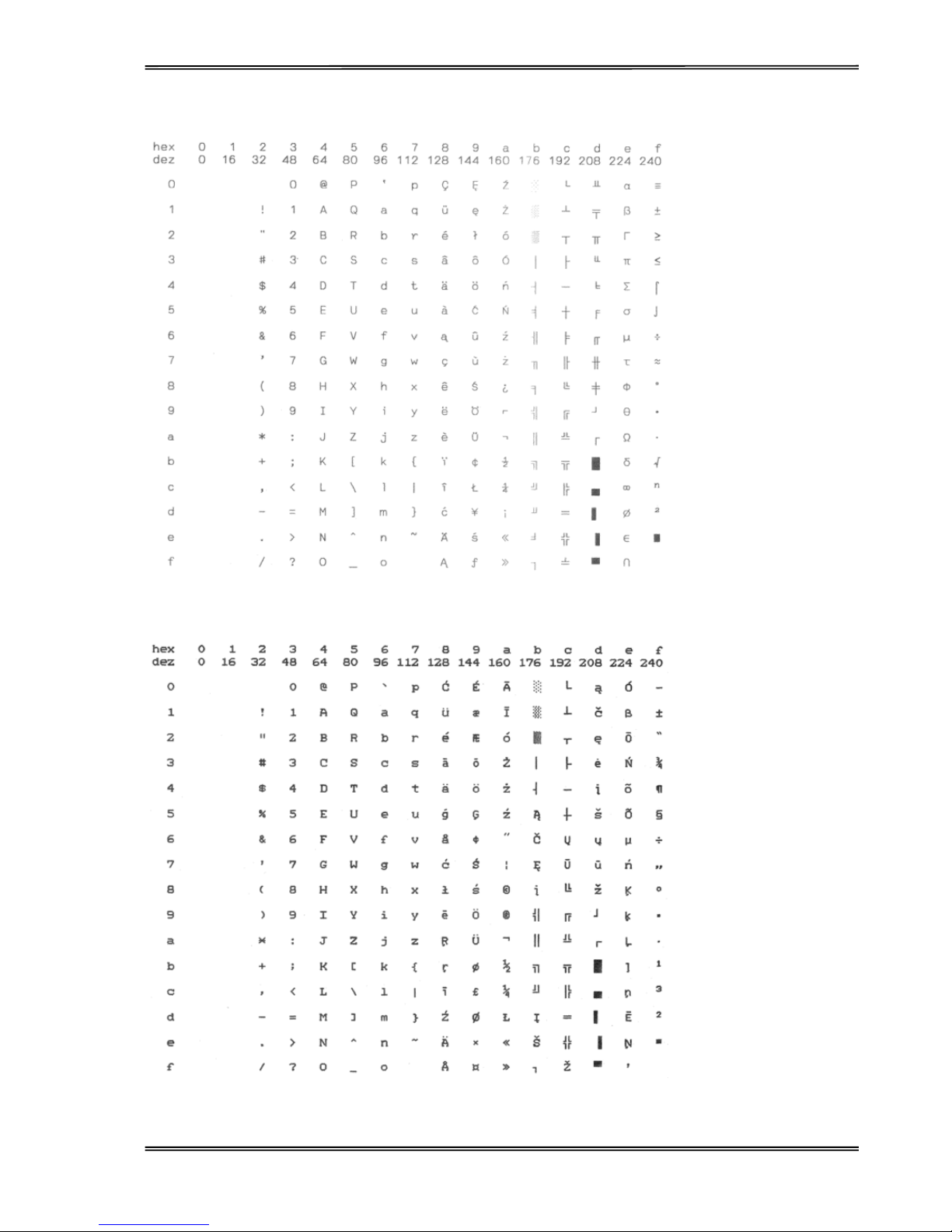

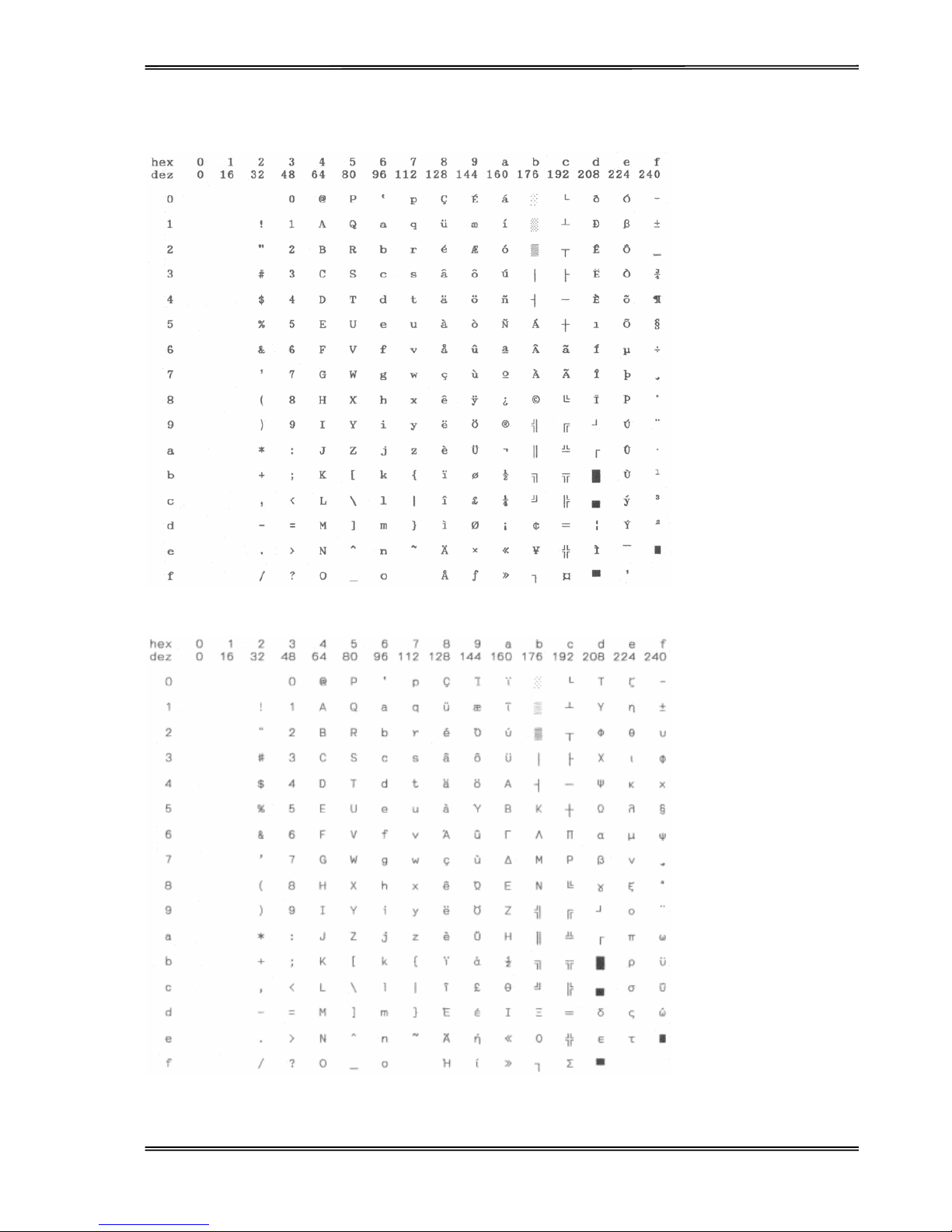

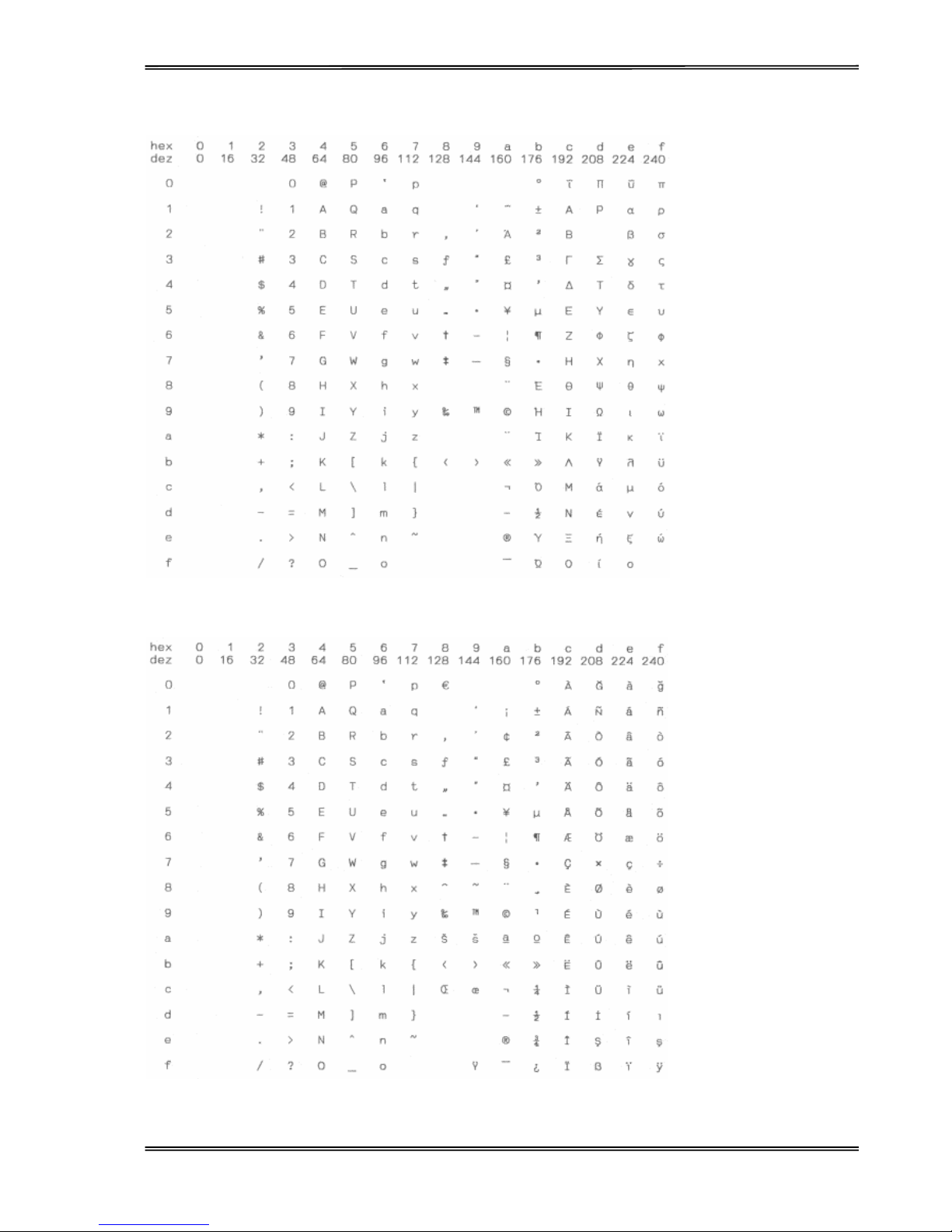

Code Page

1. CP 437

2. CP 737

3. CP 850

4. CP 851

5. CP 852

6. CP 857

7. CP 858

8. CP 860

9. CP 861

10. CP 863

11. CP 864

12. CP 864 Extended

13. CP 865

14. CP 866 Cyrillic

15. CP 866 Bulgaria

16. CP 1250

17. CP 1251

18. CP 1252

19. CP 1253

20. CP 1254

21. 8859-1

22. 8859-1 (SAP)

23. 8859-2

24. 8859-5

25. 8859-7

26. 8859-9

27. 8859-15

28. BRASCII

29. Abicomp

National code page selections

Page 37

Tally Dascom 1225

30. Roman8

31. Coax/Twinax

32. New-437

33. New-Dig 850

34. Old-Code 860

35. Flarro 863

36. 865 Hebrew

37. CP 1257

38. 866 Ukraine

39. 866 Kazakhstan

40. Kamenicky

41. Mazovia

42. CP 775

43. CRO-ASCII

44. Arabic Farsi

45. Arabic Urdo

46. Greek DEC

47. Greek ELOT 928

Character Table

Graphic Table, Italic Table

Character table type selection

Page Setup

Page Setup Valid Settings Function

Print Width

13.6", 8"

Printable width options

Line Per Inch

1, 2, 3, 4, 5, 6, 7, 8

Sets the line spacing

Fanfold Form Length

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

Sets the page length for tractor mode

Fanfold Top Margin

0/60" … 10/60"…99/60"

Sets the top margin for tractor mode. Due to

mechanical tolerance, 0/60” is not guaranteed. Fanfold Bottom Margin

0/60"…10/60"...30/60"

Sets the bottom margin for tractor mode. Due to

mechanical tolerance, 0/60” is not guaranteed.

Single Form Length

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

Sets the page length for friction mode

Single Top Margin

0/60" … 10/60"…99/60"

Sets the top margin for friction mode. Due to

mechanical tolerance, 0/60” is not guaranteed.

Single Bottom Margin

0/60"…10/60"...30/60"

Sets the bottom margin for friction mode. Due to

mechanical tolerance, 0/60” is not guaranteed.

Roll Paper

Yes, No

In friction mode, [LF/FF] will not eject the paper

and feed to next page. (Assume roll paper) Perforation Skip

Yes, No

Skips printing on perforation area

Page 38

Tally Dascom 1225

Auto Tear

Manual, 0.5s, 1s, 2s, 3s, 4s, 5s

Specifies the waiting time before feeding the

page to tear-off position automatically. Manual:

Auto tear mode is off. (Applies to tractor mode

only)

Interface Setup

Interface

Setup

Valid Settings Function

Interface

Auto, Parallel, USB

For multi-host connection. Auto: First come first served; Parallel/USB: Serves the designated host only.

RAM Usage

User Font, Buffer

User Font: Part of RAM is used for user download characters; Buffer: Disables user character download function; uses RAM for expanded buffer size up to 48KB.

I-PRIME

Yes, No

Yes: Host I-Prime signal resets the printer. Auto IF Delay

10s, 30s

Determines the waiting time before receiving data from another

interface.

Advanced Setup

Advanced Setup Valid Settings Function

Auto Load

Manual, 0.5s, 1s, 1.5s, 2s

Specifies the waiting time before loading a cut sheet automatically. Manual: Auto load mode is

off. (Applies to friction mode only) Paper Jam Prevention

Yes, No

Flattens paper edges by carriage movement

before printing starts.

Paper End Detect

Yes, No

Yes: Detects paper out and halts printing;

otherwise, ignores paper out and continues

printing. Form Length Ctrl

Software, Ignore

Ignore: Ignores form length commands Pitch Ctrl

Software, Ignore

Ignore: Ignores CPI commands Font Ctrl

Software, Ignore

Ignore: Ignores font select commands Quality Ctrl

Software, Ignore

Ignore: Ignores print quality commands Buzzer

Yes, No

Yes: Sounds buzzer on all hardware errors

Page 39

Tally Dascom 1225

German (Deutsch)

System Setup Valid Settings

Emulation

ESC/P2, IBM 2390 Plus

Auto CR (IBM)

Ja, Nein

Auto LF

Ja, Nein

Druck Dir

Bi-Dir, Uni-Dir, Auto

Top Druck Dir

Bi-Dir, Uni-Dir

Anschlag

Normal, Stark

IBM AGM

Ja, Nein

Druck Setup Valid Settings

Font (Andere)

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

Zeichenteilung

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

Null

0,Ø

HS-Draft

An, Aus

Graphikgeschw.

Normal, Schnell, Ultra

IBM Set ½

Set 1, Set 2

Land

USA, France, Germany, UK, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

Zeichensatz

CP 437, CP 857…

Zeichentabelle

Graphik, Italic

Seiten Setup

Valid Settings

Druckbreite

13.6", 8"

Zeilen Pro Zoll

1, 2, 3, 4, 5, 6, 7, 8

Endlos Formularlänge

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

Endlos Oberer Rand

0/60" … 10/60"…99/60"

Endlos Unterer Rand

0/60"…10/60"...30/60"

Einzel Formularlänge

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

Einzel Oberer Rand

0/60" … 10/60"…99/60"

Einzel Unterer Rand

0/60"…10/60"...30/60"

Rollenpapier

Ja, Nein

Perforationssprung

Ja, Nein

Abreissen

Manuell, 0.5s, 1s, 2s, 3s, 4s, 5s

Schnittstellen Setup

Valid Settings

Schnittstelle

Auto, Parallel, USB

I-PRIME

Ja, Nein

Auto IF Delay

10s, 30s

Page 40

Tally Dascom 1225

RAM Nutzung

Ladbarer Font, Puffer

Erweitertes Setup

Valid Settings

Auto Laden

Manuell, 0.5s, 1s, 1.5s, 2s

Papierstau Vorbeugung

Ja, Nein

Papierende Detekt

Ja, Nein

Formularlänge Strg

Software, Ignoriere

Zeichenteilung Strg

Software, Ignoriere

Font Strg

Software, Ignoriere

Qualität Strg

Software, Ignoriere

Summer

Ja, Nein

Russian (Россия)

Системные установки Valid Settings

Эмуляция

ESC/P2, IBM 2390 Plus

Авто CR (IBM)

Да, Нет

Авто LF

Да, Нет

Направление печати

Двунаправленная, Однонаправленная, Авто

Направление печати загл. букв

Двунаправленная, Однонаправленная

Удар

Нормальный, Сильный

IBM AGM

Да, Нет

Настройка печати

Valid Settings

Дополнительный шрифт

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

знаков/дюйм

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

Перечеркнутый ноль

0,Ø

Высокая скорость

Вкл, Выкл

Скорость графики

Нормальная, Быстрая, Очень быстрая

Символы IBM 1/2

Уст. 1, Уст. 2

Набор знаков

USA, France, Germany, UK, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

Кодовая таблица

CP 437, CP 857…

Таблица знаков

Графика, Курсив

Параметры страницы

Valid Settings

Ширина печати

13.6", 8"

Строк на дюйм

1, 2, 3, 4, 5, 6, 7, 8

Длина формы для непрерывной бумаги

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

Отступ сверху для непрерывной

0/60" … 10/60"…99/60"

Page 41

Tally Dascom 1225

бумаги Отступ снизу для непрерывной бумаги

0/60"…10/60"...30/60"

Длина формы для отдельных листов

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

Отступ сверху для отдельных листов

0/60" … 10/60"…99/60"

Отступ снизу для отдельных листов

0/60"…10/60"...30/60"

Рулонная бумага

Да, Нет

Пропуск перфорации

Да, Нет

Авто прогон

Ручной, 0.5s, 1s, 2s, 3s, 4s, 5s

Установки интерфейса

Valid Settings

Интерфейс

Авто, Паралел, USB

Паралел. порт

Да, Нет

Время ожидания

10s, 30s

Назначение RAM

Пользов. шрифт, Буфер

Дополнительные установки

Valid Settings

Автозагрузка

Ручная, 0.5s, 1s, 1.5s, 2s

Датчик движ. бумаги

Да, Нет

Датчик конца бумаги

Да, Нет

Контоль длины формы

Програмный, Игнор.

Контроль знаков/дюйм

Програмный, Игнор.

Контроль шрифта

Програмный, Игнор.

Контроль качества

Програмный, Игнор.

Звук

Да, Нет

Italian (Italiano)

Menu Sistema Valid Settings

Emulazione

ESC/P2, IBM 2390 Plus

Auto CR (IBM)

Si, No

Auto LF

Si, No

Direz. Stampa

Bi-Dir, Uni-Dir, Auto

Top Print Dir

Bi-Dir, Uni-Dir

Impatto

Normale, Pesante

IBM AGM

Si, No

Menù Stampa Valid Settings

Fonte (Altre)

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

Spaziatura

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

Page 42

Tally Dascom 1225

Zero

0,Ø

HS-Bozza

Si, No

Veloc. Grafica

Normale, Veloce, Ultra

IBM Set 1/2

Set 1, Set 2

Set Carat. Int.

USA, France, Germany, UK, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

Code Page

CP 437, CP 857…

Tab.Carattere

Tab. Grafica, Italico

Menù Pagina Valid Settings

Larghezza di stampa

13.6", 8"

Interlinea

1, 2, 3, 4, 5, 6, 7, 8

Lungh. Mod. Continuo

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

Margine Sup. Continuo

0/60" … 10/60"…99/60"

Margine Inf. Continuo

0/60"…10/60"...30/60"

Lunghezza Foglio

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

Margine Sup. Foglio

0/60" … 10/60"…99/60"

Margine Infer. Foglio

0/60"…10/60"...30/60"

Rullo Carta

Si, No

Salto Perforazione

Si, No

Autostrappo

Manuale, 0.5s, 1s, 2s, 3s, 4s, 5s

Menù Interfacc. Valid Settings

Interfaccia

Auto, Parallela, USB

I-PRIME

Si, No

Ritardo Auto IF

10s, 30s

Uso RAM

Fonti utente, Memoria

Menù Avanzato Valid Settings

Autocaricamento

Manuale, 0.5s, 1s, 1.5s, 2s

Previene Inceppamento

Si, No

Rileva Fine Carta

Si, No

Control. Lungh. Carta

Software, Ignora

Control. Spaziatura

Software, Ignora

Controllo Fonti

Software, Ignora

Controllo Qualità

Software, Ignora

Cicalino

Si, No

French (Français)

Setup système Valid Settings

Page 43

Tally Dascom 1225

Emulation

ESC/P2, IBM 2390 Plus

RC-Auto (IBM)

Oui, Non

SL-Auto

Oui, Non

Dir Impr.

Bidir, Unidir, Auto

Sup. Dir Impr.

Bidir, Unidir

Frappe

Normal, Forte

IBM AGM

Oui, Non

Setup impression

Valid Settings

Polices (Autres)

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

Densités caract.

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

Zéro

0,Ø

HS-Draft

Oui, Non

Vitesse graphiq.

Normal, Rapide, Ultra

IBM Set 1/2

Set 1, Set 2

Pays

USA, France, Germany, UK, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

Jeu de caractèr.

CP 437, CP 857…

Tabl.de caract.

Graphque, Italique

Setup page

Valid Settings

Largeur d'impression

13.6", 8"

Lignes par pouce

1, 2, 3, 4, 5, 6, 7, 8

Papier continu Longueur formulaire

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

Papier continu Bord supérieure

0/60" … 10/60"…99/60"

Papier continu Bord inférieure

0/60"…10/60"...30/60"

Feuille à feuille Longueur formulaire

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

Feuille à feuille Bord supérieur

0/60" … 10/60"…99/60"

Feuille à feuille Bord inférieur

0/60"…10/60"...30/60"

Papier du rouleau

Oui, Non

Sauter la perforation

Oui, Non

Coupe Auto

Manuel, 0.5s, 1s, 2s, 3s, 4s, 5s

Setup interface Valid Settings

Interface

Auto, Parallel, USB

I-PRIME

Oui, Non

Auto IF Delay

10s, 30s

Utilisation RAM

User Font, Buffer

Setup élargi Valid Settings

Chargem. Autom.

Manuel, 0.5s, 1s, 1.5s, 2s

Page 44

Tally Dascom 1225

Prévention bourrage

Qui, Non

Détec.fin de pap

Qui, Non

Long.formul.Strg

Software, Ignorer

Densi.caract.Strg

Software, Ignorer

Police Strg

Software, Ignorer

Qualité Strg

Software, Ignorer

Vibrateur

Qui, Non

Spanish (Español)

System Setup Valid Settings

Emulación

ESC/P2, IBM 2390 Plus

Auto CR(IBM)

Si, No

Auto LF

Si, No

ModoImpresión

Bi-Dir, Uni-Dir, Auto

ModoImp.Borde

Bi-Dir, Uni-Dir

Impacto

Normal, Fuerte

IBM AGM

Si, No

Print Setup Valid Settings

Fuente (Otros)

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

Tamaño Letra

10cpp, 12cpp, 15cpp, 17cpp, 20cpp, PS

Cero

0,Ø

Alta Velocidad

Activado, Desactivado

Imp. Grafica

Normal, Rápido, Ultra

IBM Juego 1/2

Juego 1, Juego 2

Carácter Local

USA, Francia, Alemania, UK, Dinamarca, Suecia, Italia, España, Japón, Noruega, Dinamarca II, España II, AmericaLatina, Corea, Legal

Tabla Carácter

CP 437, CP 857…

Tipo Tabla

Tabla Gráfica, Italica

Page Setup Valid Settings

Ancho de Impresión

13.6", 8"

Lineas Por Pulgada

1, 2, 3, 4, 5, 6, 7, 8

Tamaño Papel Continuo

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

Margen Sup. Pap Cont.

0/60" … 10/60"…99/60"

Margen Inf. Pap.Cont.

0/60"…10/60"...30/60"

Tamaño Hojas Sueltas

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

Margen Sup. Folios

0/60" … 10/60"…99/60"

Page 45

Tally Dascom 1225

Margen Inf. Folios

0/60"…10/60"...30/60"

Rollo de Papel

Si, No

Salto perforación

Si, No

Mover a PosiciónCorte

Manual, 0.5s, 1s, 2s, 3s, 4s, 5s

Interface Setup Valid Settings

Interface

Auto, Paralelo, USB

I-Prime

Si, No

Auto retraso

10s, 30s

Uso de RAM

Font Usuario, Buffer

Advanced Setup Valid Settings

Auto Carga

Manual, 0.5s, 1s, 1.5s, 2s

Prevención Atascos

Si, No

Detección Fin Papel

Si, No

Control Tamaño Papel

Software, Ignorar

Control Tamaño Letra

Software, Ignorar

Control Fuente

Software, Ignorar

Control Calidad

Software, Ignorar

Alarma

Si, No

Turkish (Türkce)

Sistem Ayarı Valid Settings

Benzetim/Emulation

ESC/P2, IBM 2390 Plus

Otom. Satırbaşı (IBM)

Evet, Hayır

Otom. Satır besleme

Evet, Hayır

Yazd ırma yönü

ki-Yöne, Tek-Yöne, Otom.

Üstte yazdırma yönü

ki-Yöne, Tek-Yöne

Vuruş

Normal, Güçlü

IBM AGM

Evet, Hayır

Yazdırma Ayarları Valid Settings

Yazı Tipi (Diğer)

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

Karakter Sıklığı

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

Sıfır

0,Ø

Yük.Hız-Taslak

On, Off

Grafik Hızı

Normal, Hızlı, Ultra

IBM Karakter Seti 1/2

Set 1, Set 2

Uluslararası Kar. Seti

USA, France, Germany, UK, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

Page 46

Tally Dascom 1225

Kod Sayfası

CP 437, CP 857…

Karakter Tablosu

Grafik Tablosu, İtalik

Sayfa Düzeni Ayarı Valid Settings

Baskı Genişliği

13.6", 8"

İnç başına satır

1, 2, 3, 4, 5, 6, 7, 8

Sürekli-kağıt Form Uzunluğu

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

Sürekli-kağıt Üst kenar boşluğu

0/60" … 10/60"…99/60"

Sürekli-kağıt Alt kenar boşluğu

0/60"…10/60"...30/60"

Tek-kağıt Form uzunluğu

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

Tek-kağıt Üst kenar boşluğu

0/60" … 10/60"…99/60"

Tek-kağıt Alt kenar boşluğu

0/60"…10/60"...30/60"

Rulo kağıt

Evet, Hayır

Delik atlama

Evet, Hayır

Otom. Koparma

Elle/Manuel, 0.5s, 1s, 2s, 3s, 4s, 5s

Arabirim Ayarları Valid Settings

Arabirim

Otom., Paralel, USB

I-Prime

Evet, Hayır

Otom. Arabirim gecikmesi

10s, 30s

RAM Kullanımı

Kullanıcı Yazı Tipi, Arabellek

Geliştirilmiş Ayarlar

Valid Settings

Otom. Yükleme

Elle/Manuel, 0.5s, 1s, 1.5s, 2s

Kağıt Sıkışmasını Önleme

Evet, Hayır

Kağıt Sonunu Algılama

Evet, Hayır

Form Uzunl. Kont.

Yazılım, Yoksay

Karak.Sıkl. Kont.

Yazılım, Yoksay

Yazı Tipi Kont.

Yazılım, Yoksay

Kalite Kont.

Yazılım, Yoksay

Alarm Zili

Evet, Hayır

Page 47

Tally Dascom 1225

Vertical Alignment

The vertical alignment function is used to resolve any vertical line misalignments in bi-directional printing.

Adjust Vertical Alignment Procedure:

1. Enter the Service Menu by holding down the【Tear/Off】and【LF/FF】keys while powering up.

2. Load paper.

3. The printer will print as follows:

Service Menu

【LF/FF】= OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting：Vertical Alignment

4. Press【LF/FF】key to select the current setting. The printer will print as follows:

Vertical Alignment

【LF/FF】= OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Please select Paper Type：Single Ply

For single ply paper, press【LF/FF】key to select. For multipart paper, press 【Load/Eject】key to go to “Multipart”，then press【LF/FF】key to select.

5. If single ply is selected for paper type, the following will print:

Single Ply

Current Print Mode: LQ

Press 【Load/Eject】key to scroll to other print modes if required.

6. If LQ is selected, the following will print:

【LF/FF】= lower ½ to left 【Load/Eject】= lower ½ to right 【Online】= Exit

LQ -2:

||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

Pressing 【LF/FF】or 【Load/Eject】 key will allow you to adjust the alignment of the vertical lines

Page 48

Tally Dascom 1225

printed above.

7. Once the setting which gives the best alignment is found, press 【Online】 key to exit current level. Printer will print “Save settings? Yes”. Press 【LF/FF】 key to save setting. Press 【Online】 key a few times until the printer exits the Service Menu.

Change Pin Function

When printer has been used for a long time or the print volume is high, the frequently used print head pins may fail. The Change Pin function enables the user to continue using the printer for a while without compromise in print quality until a suitable print head replacement is available. This function will reduce the print speed if activated.

Change Pin Procedure:

1. Enter the Service Menu by holding down the【Tear/Off】and【LF/FF】keys while powering up.

2. Load paper.

3. The printer will print as below: Service Menu

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit Current Menu：Vertical Alignment

Press 【Load/Eject】 key to scroll to “Change Pin”，then press 【LF/FF】 key to select. The status of each pin will be printed as follows:

Change Pin 1 ---------- Is this pin OK? Yes / No 2 ---------- Is this pin OK? Yes / No 3 ---------- Is this pin OK? Yes / No : 24 ---------- Is this pin OK? Yes / No

Press 【Load/Eject】 key to choose whether the pin is Yes or No，then press 【LF/FF】 key to confirm selection.

4. When all the 24 pins are evaluated, press 【Online】. The printer will print “Save settings? Yes”. Press 【LF/FF】 key to confirm selection. Press 【Online】 key a few times until the printer exits the Service Menu.

Page 49

Tally Dascom 1225

Adjust Physical Margins

Adjust Page Margins allows for adjustments of physical left, top margins and tear-off position. Warning: Once these settings are changed, resetting the printer to factory defaults will not initialize these settings back to the original settings; so it is not advisable to perform this adjustment unless it is absolutely necessary.

Adjust Top Margin Procedure:

1. Enter the Adjust Page Margins function by holding down the【Load/Eject】and【Online】keys while powering up until the printer beeps twice.

2. Load paper.

3. The printer will print as below: Adjust Page Margins:

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting: Adjust Fanfold Top Margin

Press【LF/FF】key to confirm selection if the paper used is fanfold type. The printer will print as follows:

Procedure：

Install fanfold paper to tractors 【LF/FF】 = Add 【Load/Eject】 = Reduce 【Online】 = Exit

Each step is 0.5 mm

Function of keys:

【Tear Off】key: Decrease 0.5mm 【Load/Eject】key: Increase 0.5mm

4. Press 【LF/FF】 key, printer will print “Save settings？Yes”. Press 【Load/Eject】 key to choose Yes or No，then press 【LF/FF】 key to confirm selection and exit “Adjust Page Margins” mode by pressing 【Online】. The print head moves to the left side and the printer beeps twice, then the print head moves to the middle position.

Adjust Left Margin Procedure:

1. Enter the Adjust Page Margins function by holding down the【Load/Eject】and【Online】keys while powering up until the printer beeps twice.

2. Load paper.

3. The printer will print as below: Adjust Page Margins:

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting: Adjust Fanfold Top Margin

4. Press【Load/Eject】key until the current setting is “Adjust Fanfold Left Margin”. Press【LF/FF】key to confirm selection if the paper used is fanfold type. The printer will print as follows:

Adjust Fanfold Left Margin 0

Function of keys:

Page 50

Tally Dascom 1225

【Tear Off】key: Decrease 0.5mm 【Load/Eject】key: Increase 0.5mm

5. Press 【LF/FF】 key, printer will print “Save settings？Yes”. Press 【Load/Eject】 key to choose Yes or No，then press 【LF/FF】 key to confirm selection and exit “Adjust Page Margins” mode by pressing 【Online】. The print head moves to the left side and the printer beeps twice, then the print head moves to the middle position.

Adjust Tear-Off Position Procedure:

1. Enter the Adjust Page Margins function by holding down the【Load/Eject】and【Online】keys while powering up until the printer beeps twice.

2. Load fanfold paper

3. The printer will print as below: Adjust Page Margins:

【LF/FF】=OK 【Tear/Off】= Back 【Load/Eject】= Next 【Online】= Exit

Current Setting: Adjust Fanfold Top Margin

4. Press【Load/Eject】key until the current setting is “Adjust Tear-Off Position”. Press【LF/FF】key to confirm selection. The printer will print as follows:

Procedure：

Install fanfold paper to tractors 【LF/FF】 = Add 【Load/Eject】 = Reduce 【Online】 = Exit

Each step is 0.5 mm

Function of keys:

【Tear Off】key: Decrease 0.5mm 【Load/Eject】key: Increase 0.5mm

Page 51

Tally Dascom 1225

6 Maintenance

Your printer requires very little care. Occasional cleaning and replacement of the ribbon cartridge are all that is required. Cleaning is recommended approximately every 6 months or 300 hours of operation, whichever is sooner. Lubrication of the printer is not usually necessary. If the print head carriage does not move smoothly back and forth, clean the printer in the manner described in this chapter. If the problem continues, contact your dealer to determine whether lubrication may be necessary.

Switch printer off and unplug the power cord from

the mains before doing any maintenance work.

Cleaning

The housing and the top cover of the printer help protect it against dust, dirt, and other contaminants. However, paper produces small particles that accumulate inside the printer. This section explains how to clean and vacuum the printer and how to clean the paper bail rollers. It is easier to clean the printer when the cover is open.

Cleaning and Vacuuming the Printer

If the print head carriage does not move smoothly back and forth or paper particles have accumulated in the printer, clean the printer.

To clean and vacuum the printer:

1. Remove any paper from the printer. Make sure that the power is off, and then disconnect the printer power cord.

2. Using a soft vacuum brush, vacuum the exterior of the printer. Also vacuum the cut sheet edge.

3. Use a soft, damp cloth to wipe the exterior of the printer, including the cover. A mild detergent may be used. Do not use solvents, kerosene, or abrasive cleaning materials that m ay damage the printer.

4. Open the cover of the printer and remove the ribbon cartridge. Using a soft vacuum brush, gently vacuum the platen, the print head carriage and shaft, and surrounding areas. You can easily slide the print head to the left or right when the power is off. Be careful not to press too hard on the flat head cable that extends from the print head carriage.

5. Re-install the ribbon cartridge.

6. Remove the single sheet feeder and clean the form tractors and the surrounding areas.

7. Re-install the single sheet feeder.

Cleaning the Paper Rollers

Clean the platen and paper bail rollers occasionally or when stains or smudges appear on the paper. Use a mild detergent as appropriate. Do not use alcohol to clean the platen or the rollers. Alcohol may cause the rubber to harden.

To clean the rollers and the platen:

1. Apply a small amount of water to a soft cloth. Avoid spilling liquid inside the printer.

2. Place the cloth against the platen and manually rotate the paper feed knob.

3. Repeat this procedure for each roller.

Page 52

Tally Dascom 1225

4. To dry the platen, place a dry cloth against the platen and the rollers and manually rotate the paper feed knob.

Page 53

Tally Dascom 1225

7 Troubleshooting

Your printer is extremely reliable, but occasionally problems may occur. This chapter provides information on some of the common problems you may encounter and how you may solve them. If you encounter problems that you cannot resolve, contact your dealer or service partner for assistance.

Print Quality Problems and Solutions

Problem Solution

Printing is too light or too dark.

• Make sure that the ribbon cartridge is properly installed and that the ribbon feeds smoothly.

• Replace the ribbon if necessary.

• Make sure that the print gap lever is set for the thickness of your paper.

Smears and stains appear on the page.

• Make sure that the print gap lever is set for the thickness of your paper.

• Check for ribbon wear. Replace the ribbon if necessary.

• Check whether the tip of the print head is dirty. Clean the head with a soft cloth if necessary.

• The print head may need to be replaced.

Printing is erratic or the wrong characters are printed. Many “?” or unexpected characters are printed.

• Make sure that the interface cable is securely connected to both the printer and computer.

• Make sure that the printer driver selected in your software is the same as the emulation selected on the printer.

• Check the length of the interface cable. (Maximum Parallel & USB: 2 metres)

• Try another interface cable.

The page is blank.

• Make sure that the ribbon cartridge is properly installed.

• Make sure the gap lever is set correctly.

Printing is vertically misaligned (jagged).

Use the printer's vertical alignment function to check the vertical print alignment. If necessary, adjust the print alignment.

The top margin is wrong.

• Check the application top margin setting.

• Adjust the Top Margin setting in Page Setup menu if necessary.

Lines are double spaced instead of single spaced.

Change the Auto LF setting in the System Setup menu to No.

The printer overprints on the same line.

Change the Auto CR setting in the System Setup menu to No.

The next print line starts where the previous line ended instead of at the left margin.

Change the Auto CR setting in the System Setup menu to Yes.

Page 54

Tally Dascom 1225

Paper Handling Problems and Solutions

Problem Solution

Paper cannot be loaded or fed.

• Make sure that the paper select lever located on the top right of the printer is set correctly. Move the lever to the front for single sheets or to the rear for continuous forms.

• Make sure that the paper covers the paper-out sensor.

Paper jams while loading.

• Turn off the printer and remove the jammed paper. Remove any obstructions from the paper path.

• Make sure that the Print Gap lever is set for the thickness of your paper.

• Make sure that the paper is not folded, creased, or torn.

• Make sure that the left and right tractors are set so that the continuous forms are stretched taut.

Paper jams while printing.

• Turn off the printer and remove the jammed paper. Remove any obstructions from the paper path.

• Make sure that the Print Gap lever is set for the thickness of your paper.

• For continuous forms, make sure that the incoming and outgoing paper stacks are correctly placed. Paper should feed straight.

Paper slips off the forms tractors or the perforated holes of the paper tear during printing.

Make sure that the forms tractors are positioned correctly for the width of your paper and that the perforated holes of the paper fit directly over the tractor pins.

Operating Problems and Solutions

Problem Solution

The power does not turn on.

• Check whether the mains voltage is correct.

• Make sure that the power cord is securely connected to both the printer and the mains power outlet.

• Make sure that the power outlet is functional. If not so, use other outlet.

• Turn the power off. Wait a minute and then turn the printer on again. If the printer still has no power, contact your dealer.

The printer is on but it will not print.

• Make sure that the Online indicator is lit.

• If you use the interface cable, make sure it is securely connected to both the printer and the computer.

• Make sure paper is loaded.

• Run the printer Status Page. If printing executes normally, the problem is caused by: the interface, the computer, incorrect printer settings, or incorrect software settings.

• Make sure that the printer driver selected in your software is the same as the emulation selected on the printer.

Page 55

Tally Dascom 1225

Paper select lever error

If paper is loaded and the paper select lever is moved to the incorrect position, the printer turns offline, and the buzzer sounds continuously. Switch the paper select lever back to its correct position.

Printer Failures

A user cannot generally resolve a problem involving defective printer hardware. Power off and on again the printer to recover any fatal error. If the problem cannot be resolved, contact your dealer or service partner.

Error Indications on LEDs

Error

Description

Operation

Status

Paper

Out

Online L1 L2 L3 L4 L5 L6 L7 L8

Buzzer

Sound

No paper Normal Flash Off

change

Once

Paper

jammed

Suspend Flash Off Flash

change

Once

Friction feed

/Tractor feed

Suspend Flash Off Flash Flash

change

Continuously

Print head

hot

Normal On Flash

change

Carriage

initial position

Stop Flash Off

change

Flash Flash

change

Once

Page 56

Tally Dascom 1225

Diagnostic Functions

The printer diagnostic functions are Self-Test page, hex-dump mode and print alignment adjustment.

 Self-Test page: Tells you whether the printer hardware is functioning correctly. If the printer hardware

is functional, any problems you are having are probably caused by incorrect printer settings, incorrect software settings, the interface, or the computer.

 HEX-DUMP MODE: Allows you to determine whether the computer is sending the correct commands

to the printer, and whether the printer is executing the commands correctly. This function is useful to programmers or others who understand how to interpret hex dumps.

 PRINTING ALIGNMENT ADJUSTMENT: Allows you to check and, if necessary, correct the printer’s

vertical line print alignment in bi-directional mode.

For details on using these functions, please refer to chapters 4 and 5.

Page 57

Tally Dascom 1225

Firmware Update

Sometimes it is necessary update the firmware to solve a problem. The latest firmware file may be obtained from your dealer or downloaded from our website www.dascom.com

. Before upgrading firmware, it is strongly

recommended to print the Main Menu page to keep a record of the old settings.

Note: Firmware update should only be performed by an authorized service person. We disclaim any responsibility for any damage caused if it is performed by any other person.

To load new firmware, proceed as follows:

1. Switch off the printer. Connect your PC to the parallel port on the printer.

2. Press and hold down 4 keys (S2, S3, S4, S5) while powering on the printer.

3. Alternate flashing of L9 and L10 LEDs indicates printer is ready for firmware update.

4. Go to the DOS prompt window. Copy the firmware file (with extension .MOT) to your printer as follows:

COPY /B <filename>.mot PRN

5. When new firmware is being received, L1 and L2 will flash, followed by L1 and L3 flashing, then

followed by L1 and L4 flashing.

Note: Do not interrupt the downloading process to prevent possible flash memory corruption.

6. When downloading is completed, the carriage returns to home position. Printer initializes normally.

Page 58

Tally Dascom 1225

8 General Specifications

Print System

Mono-chrome serial impact dot matrix

Print Technology

Uni-/bi-directional logic seeking for text and graphics

Print Speed

Pitch HS Draft Draft LQ (CPS/DPI) 10 CPI 375/80H 250/120H 83/360H 12 CPI 300/120H 300/120H 100/360H 15 CPI 375/120H 375/120H 125/360H

17.1 CPI 426/120H 426/120H 142/360H 20 CPI 498/120H 498/120H 166/360H

Font Matrix

Pitch HS Draft Draft LQ (Matrix/DPI) 10 CPI 8x24/80H 12x24/120H 36x24/360H 12 CPI 10x24/120H 10x24/120H 30x24/360H 15 CPI 8x16/120H 8x16/120H 24x16/360H

17.1 CPI 7x24/120H 7x24/120H 21x24/360H 20 CPI 6x24/120H 6x24/120H 18x24/360H Proportional Nx24/36H Nx24/360H Nx24/360H

Print Head

Number of pins: 24 pins Firing frequency: Normal mode: 1500 Hz Pin diameter: 0.2 mm Life: 400 million strokes/pin @ Draft mode

Graphics

8-bit mode: 8V x 60H, 80H, 90H, 120H, 240H (DPI) 24-bit mode: 24V x 60H, 90H, 120H, 180H, 360H (DPI)

Paper Feed Speed

Continuous feed: 5.0 IPS (inches per second)

Resolution

360 x 360 DPI maximum

Printable Columns

Characters per line (CPL) 10 CPI: 136 CPL 12 CPI: 163 CPL 15 CPI: 204 CPL

17.1 CPI: 232 CPL 20 CPI: 272 CPL

Page 59

Tally Dascom 1225

Built-In Fonts

Bitmap Fonts:

1. Draft 10, 12, 15, 17, 20 CPI

2. Roman 10, 12, 15, 17, 20 CPI, Proportional

3. Sans Serif 10, 12, 15, 17, 20 CPI, Proportional

4. Courier 10, 12, 15, 17, 20 CPI, Proportional

5. Prestige 10, 12, 15, 17, 20 CPI

6. OCR-B 10, 12, 17, 20 CPI

7. OCR-A 10, 12, 17, 20 CPI

8. Orator 10, 12, 15, 17, 20 CPI, Proportional

9. SOUVENIR 10, 12, 15, 17, 20 CPI, Proportional

10. GOTHIC 10, 12, 15, 17, 20 CPI, Proportional

11. Script 10, 12, 15, 17, 20 CPI

Barcodes

1. EAN-13

2. EAN-8

3. Interleaved 2 of 5

4. UPC-A

5. UPC-E

6. Code 39

7. Code 128

8. POSTNET

9. Codabar

10. Industrial 2 of 5

Code Pages

1. CP 437

2. CP 737

3. CP 850

4. CP 851

5. CP 852

6. CP 857

7. CP 858

8. CP 860

9. CP 861

10. CP 863

11. CP 864

12. CP 864 Extended

13. CP 865

14. CP 866 Cyrillic

15. CP 866 Bulgaria

16. CP 1250

17. CP 1251

18. CP 1252

19. CP 1253

20. CP 1254

Page 60

Tally Dascom 1225

Code Pages

21. 8859-1

22. 8859-1 (SAP)

23. 8859-2

24. 8859-5

25. 8859-7

26. 8859-9

27. 8859-15

28. BRASCII

29. Abicomp

30. Roman8

31. Coax/Twinax

32. New-437

33. New-Dig 850

34. Old-Code 860

35. Flarro 863

36. 865 Hebrew

37. CP 1257

38. 866 Ukraine

39. 866 Kazakhstan

40. Kamenicky

41. Mazovia

42. CP 775

43. CRO-ASCII

44. Arabic Farsi

45. Arabic Urdo

46. Greek DEC

47. Greek ELOT 928

International Character Sets

1. USA

2. France

3. Germany

4. UK

5. Denmark I

6. Sweden

7. Italy

8. Spain I

9. Japan

10. Norway

11. Denmark II

12. Spain II

13. Latin America

14. Korea

15. Legal

Page 61

Tally Dascom 1225

Line Spacing

1/6", 1/8", n/60", n/180", n/360"

Paper Specifications

Cut Sheet

Fanfold Paper

Single ply Multi-part

Width:

76.2mm～419.1mm （3"～16.5"）

Length:

101.6mm～363.2mm （4"～14.3"）

Width: 76.2mm～419.1mm (3"～16.5"）

Length: 101.6mm min (4" min)

Weight: 52～90g/㎡ Thickness:

0.065～0.14mm

(0.0026"～0.0055”)

Weight: 52～82 g/㎡ Thickness:

0.065～0.14mm (0.0026"～0.0055")

Weight: 40～52g/㎡ Thickness: 0.45 mm max (0.0177” max)

Paper Handling

Feeding method: Friction and Tractor Paper path: Cut sheets: Top load and top out

Fanfold: Rear in and top out

Copy Capability

Original + 4 copies

Emulation ESC/P2, IBM 2390 Plus

Ribbon Type Cartridge; Monochrome

Ribbon Life

7 million characters (rolling Draft 10 CPI)

Input Data Buffer

Up to 48KB

Windows Drivers

Windows Server 2000/2003/2008 Windows Vista Windows XP Windows 98 Windows 7

Interface

Parallel (Bi-directional IEEE-1284 nibble mode) USB 2.0 (B type connector)

Operation Panel

Switches: 5 pcs LED indicators: 10 pcs

Noise Level

< 55 dBA in 10CPI draft ASCII (Conforming to ISO7779)

Page 62

Tally Dascom 1225

Ambient Conditions

Temperature Operating: +5 to +40 °C. Stand-by: -20 to +55 °C Humidity Operating: 10 to 90%RH

(No condensation)

Stand-by: 10 to 90%RH

(No condensation)

Dimensions

587 mm (W) x 333 mm (D) x 173 mm (H)

Weight 8.5 kg

Power Supply

Unit type: Switching mode power supply Power cord: Detachable Voltage rating: AC 230V (180V~264V)/50Hz to 60Hz Stand by: Less than 7.6W ESD: Comply with IEC801-2 Contact discharge: 4kV Air discharge: 8kV

MTTR < 20 minutes

MTBF 10000 hours @ 25% duty cycle

Page 63

Tally Dascom 1225

9 Interfaces

Parallel Interface

Parallel Interface Pin Assignment

Pin Signal Name Signal Transmission

1 STROBE¯¯¯¯¯¯ Printer  Computer

2~9 DATA Printer  Computer

10 ACK¯¯¯ Printer  Computer

11 BUSY Printer  Computer

12 PE Printer  Computer

13 SELECT Printer  Computer

14 AFXT¯¯¯¯ Printer  Computer

15 Unused Unused

16 GND Printer  Computer

17 F-GND Printer  Computer

18 +5V Printer  Computer

19~30 GND Printer  Computer

31 INIT¯¯¯¯ Printer  Computer

32 FAULT¯¯¯¯¯ Printer  Computer

33 GND Printer  Computer

34 Unused Unused

35 FUSE Printer  Computer

36 SLCTIN¯¯¯¯¯¯ Printer  Computer

Parallel Interface Connector Diagram

Note: Any external devices connected to the parallel port should not draw current exceeding 200 mA from pin 18; otherwise it may affect the printer operation.

USB Interface

The USB interface conforms to the Universal Serial Bus 2.0 Specifications. It supports the Full Speed mode at 12 Mbps. It uses the “B” type USB connector.

Page 64

Tally Dascom 1225

10 Character sets & Code Pages

Character Sets

Standard Character Set 1

Standard Character Set 2

Page 65

Tally Dascom 1225

IBM Character Set 1

IBM Character Set 2

Page 66

Tally Dascom 1225

International character sets

International Character Set Commands

Country Command

USA

＜ESC＞“R”CHR＄（0）

France

＜ESC＞“R”CHR＄（1）

Germany

＜ESC＞“R”CHR＄（2）

＜ESC＞“R”CHR＄（3）

Denmark1

＜ESC＞“R”CHR＄（4）

Sweden

＜ESC＞“R”CHR＄（5）

Italy

＜ESC＞“R”CHR＄（6）

Spain1

＜ESC＞“R”CHR＄（7）

Japan

＜ESC＞“R”CHR＄（8）

Norway

＜ESC＞“R”CHR＄（9）

Denmark2

＜ESC＞“R”CHR＄（10）

Spain2

＜ESC＞“R”CHR＄（11）

Lat America

＜ESC＞“R”CHR＄（12）

Korea

＜ESC＞“R”CHR＄（13）

Legal

＜ESC＞“R”CHR＄（64）

Page 67

Tally Dascom 1225

Character Tables

Italic

Page 68

Tally Dascom 1225

Graphic 1

Graphic 2

Page 69

Tally Dascom 1225

Code Page Commands

Code Page ESC R Parameter

CRO-ASCII

Arabic Farsi

Arabic Urdo

Greek DEC

Greek ELOT 928

CP437 Latin US

CP737 Greek

CP850 Latin 1

CP851 Greek

CP852 Latin 2

CP857 Turkish

CP858 (IBM with €)

CP860 Portugal

CP861 Icelandic

CP863 French Canada

CP864 Arabic

CP864 Arab. Extended

CP865 Nordic

CP866 Cyrillic

CP866 Bulgaria

Siemens Turkish

DEC Turkish

CP1250 Win Latin 2

CP1251 Win Cyrillic

CP1252 Win Latin 1

CP1253 Win Greek

CP1254 Win Turkish

8859-1 Latin 1

8859-1 Latin 1 (SAP)

8859-2 Latin 2

8859-5 Cyrillic

8859-7 Greek

8859-9 Turkish

8859-15 Latin 9 (Euro)

BRASCII

Abicomp

Roman 8

Page 70

Tally Dascom 1225

Coax/Twinax(Hebrew)

New-437 (Hebrew)

New-DIG 850 (Hebr.)

Old-Code 860 (Hebr.)

Flarro 863 (Hebrew)

Table 865 (Hebrew)

CP775 Baltic

CP1257 Baltic

Mazovia (Poland)

Kamenicky (Czech)

CP866 Ukraine

CP866 Kazakhstan

Page 71

Tally Dascom 1225

Code Page Tables

CP 437 (US)

CP 737 Greek

Page 72

Tally Dascom 1225

CP 850 (Multilingual)

CP 851

Page 73

Tally Dascom 1225

CP 852 (Eastern Europe)

CP 857 (Turkish)

Page 74

Tally Dascom 1225

CP 858

CP 860 (Portugal)

Page 75

Tally Dascom 1225

CP 861 (Iceland)

CP 863 (French-Canadian)

Page 76

Tally Dascom 1225

CP 864 Arabic

CP 864 Arabic Extended

Page 77

Tally Dascom 1225

CP 865 (Norway)

CP 866 (Cyrillic)

Page 78

Tally Dascom 1225

CP 866 Bulgaria

CP 1250 Win Latin 2

Page 79

Tally Dascom 1225

CP 1251 Win Cyrillic

CP 1252 Win Latin 1

Page 80

Tally Dascom 1225

CP 1253 Win Greek

CP 1254 Win Turkish

Page 81

Tally Dascom 1225

8859-1 Latin 1

8859-1 Latin 1 (SAP)

Page 82

Tally Dascom 1225

ISO 8859-2 (ISO Latin 2)

ISO 8859-5 Cyrillic

Page 83

Tally Dascom 1225

ISO 8859-7 (Latin/Greek)

ISO 8859-9 (Turkish)

Page 84

Tally Dascom 1225

ISO 8859-15 Euro (Code Page 923)

BRASCII

Page 85

Tally Dascom 1225

Abicomp

Roman 8

Page 86

Tally Dascom 1225

Coax/Twinax (Hebrew)

New-437 (Hebrew)

Page 87

Tally Dascom 1225

New-Dig 850 (Hebrew)

Old-Code 860 (Hebrew)

Page 88

Tally Dascom 1225

Flarro 863 (Hebrew)

865 Hebrew

Page 89

Tally Dascom 1225

CP 1257

866 Ukraine

Page 90

Tally Dascom 1225

866 Kazakhstan

Kamenicky

Page 91

Tally Dascom 1225

Mazovia

CP 775

Page 92

Tally Dascom 1225

CRO-ASCII

Arabic Farsi

Page 93

Tally Dascom 1225

Arabic Urdo

Greek DEC

Page 94

Tally Dascom 1225

Greek ELOT 928

Page 95

Tally Dascom 1225

11 Control Codes Summary

Epson Emulation Command List

Command Sequence Function

BEL Beeper BS Backspace HT Tab horizontally LF Line feed VT Tab vertically FF Form feed CR Carriage return SO Select double-width printing (one line) SI Select condensed mode DC1 Online DC2 Cancel condensed mode DC3 Offline DC4 Cancel double-wide mode(one line) CAN Cancel line DEL Delete character ESC SO Select double-width printing (one line) ESC SI Select condensed mode ESC SP n Set intercharacter space ESC EM n NA ESC ! n Print mode setup ESC ( - n1 n2 m d1 d2 Choose character lineation ESC $ n1 n2 Select absolute horizontal print position ESC | n Set left margin ESC % n Select user-defined set ESC & Define user-defined set ESC ( ^ n m d1 d2… Print data in character style ESC (G NUL d Select graphics mode ESC * m n1 n2… Select image mode ESC . c v h m nL nH d1 d2… Print raster graphics ESC + n Select n/360″line spacing ESC – n Underline on/off ESC / n Select vertical orientation channel ESC ( C NUL n m Set page length ESC ( c NUL nt mt nb mb Page setup ESC ( U NUL n Set unit ESC 0 Set 1/8″line spacing ESC 2 Set 1/6″line spacing ESC 3 n Set n/180″line spacing ESC 4 Set Italic ESC 5 Cancel Italic ESC 6 Enable printable characters ESC 7 Enable upper control characters

Page 96

Tally Dascom 1225

ESC : Copy ROM to RAM ESC ＜

Unidirectional mode(1 line) ESC > Set MSB to 1 ESC = Set MSB to 0 ESC # Cancel MSB control ESC ？n m

Reassign graphics mode ESC @ Initialize printer ESC ＼n1 n2

Set relative horizontal print position ESC A n Set n/60″line spacing ESC B…NUL Set/cancel vertical tabs ESC C n Set page length in lines ESC D…NUL Set/cancel horizontal tabs ESC E Select Bold ESC F Cancel Bold ESC G Select double-strike mode ESC H Cancel double-strike mode ESC J n Perform tactic n/180″line feed ESC K n1 n2 … Select 8 pins single-density graphics ESC L n1 n2 … Select 8 pins double–density graphics ESC M

Select ELITE（12CPI） ESC N n Set bottom margin ESC O Cancel bottom margin ESC P

Select PICA（10CPI） ESC Q n Set right margin ESC R n International character set ESC S n Select superscript/subscript ESC T Cancel superscript/subscript ESC U n Select unidirectional/bidirectional printing mode ESC ( V NUL n m Select absolute vertical print position ESC W n Turn Double-wide mode on/off ESC X n1 n2 Select font by pitch and point ESC Y n1 n2 … Select 8 pins, high speed ,double –density graphics ESC Z n1 n2 … Select 8 pins, high speed fourfold –density graphics ESC a n Select justification ESC b n Select vertical orientation channel ESC c n m Set horizontal intercharacter space ESC g Select 15CPI ESC j n Perform reverse n/180″line feed ESC k n Select typeface ESC p n Turn proportional mode on/off ESC q n Select character style ESC r n Select printing colour ESC t n Select character table ESC (t nL nH d1 d2 d3 Assign character table ESC ( v NUL n m Set relative vertical print position ESC w n Turn double-high mode on/off ESC x n Select print quality ESC( B n1 n2 k m s v1 v2 c Barcode print

Page 97

Tally Dascom 1225

IBM Emulation Command List

Command Sequence Function BEL Beeper BS Backspace HT Tab horizontally LF Line feed VT Tab vertically FF Form feed CR Enter SO Select double-wide mode SI Select condensed mode DC1 Online DC2 Select 10CPI DC3 Offline DC4 Cancel double-wide mode(one line) CAN Cancel buffer ESC BEL Beeper ESC BS Backspace ESC HT Tab horizontally ESC CR Enter ESC LF Line feed ESC SO Select double-wide mode ESC SI Select condensed mode ESC DC1 Online ESC DC2 Select 10CPI ESC DC3 Offline ESC DC4 Cancel double-wide mode(one line) ESC CAN Cancel buffer ESC FF Form feed ESC EM n Automatically Feed Paper mode ESC : Set 12CPI ESC VT Tab vertically ESC 0 Select 1/8″line spacing ESC 1 Select 7/72″line spacing ESC 2 Select 1/6″line spacing or activate ESC A n command ESC 3 n Select n/216″or 1/180″line spacing ESC 4 Set top margin ESC 5 n Automatic Line Feed ESC 6 Select character set 2 ESC 7 Select character set 1 ESC = NA ESC \ Print continuously from all character chart ESC ^ Print single character from all character chart ESC A n Select n/72″or n/60″line spacing ESC B n Select Tab vertically ESC C n Set page length in lines

Page 98
