Tally Dascom 1145, 1125+, 1140 User Manual

Tally Dascom 1145/1125+

I

Tally Dascom 1145/1125+

Tally Dascom 1145/1125+

I

Important Safety Instructions (English)

Read the following instructions thoroughly before starting up your printer.

 Never carry out maintenance or repair work yourself. Always contact a qualified service technician.

 Keep this Operator’s Manual in a place which is easily accessible at all times.

 Place the printer on a solid and even base so that it cannot fall.

 Never place the printer in the vicinity of inflammable gas or explosive substances.

 Ensure the printer is connected to a socket with the correct mains voltage.

 Always disconnect the printer from the mains before opening the device to perform maintenance work or

remedy errors.

 Do not expose the printer to high temperatures, direct sunlight or dust.

 Keep all liquids away from the printer.

 Protect the printer from shock, impact and vibration.

Make sure that the printer and computer are switched off before connecting the data cable.

 The print head will become very hot during printing; avoid contact with the print head after printing has

finished.

 Do not perform any operation or action in any way other than those provided in this manual. When in

doubt, contact your dealer or your customer support.

The device and mains-socket must all times be easily accessible.

Tally Dascom 1145/1125+

II

Wichtige Sicherheitshinweise (German)

Lesen Sie bitte diese Sicherheitshinweise durch, bevor sie den Drucker in Betrieb nehmen.

 Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie immer

einen qualifizierten Servicetechniker.

 Bewahren Sie diese Dokumentation an einem jederzeit zugänglichen Ort auf.

 Den Drucker auf stabilem und ebenem Untergrund so aufstellen, dass er nicht zu Boden fallen kann.

 Stellen Sie den Drucker keinesfalls in der Nähe von leicht entzündlichen Gasen oder explosiven Stoffen

auf.

 Den Drucker nur an eine Steckdose mit der richtigen Spannung anschließen.

 Wenn Sie den Drucker vom Netz trennen wollen, den Drucker ausschalten und immer den Netzstecker

an der Steckdose ziehen.

 Den Drucker weder hohen Temperaturen noch direktem Sonnenlicht und Staub aussetzen.

 Keine Flüssigkeiten mit dem Drucker in Berührung bringen.

 Den Drucker keinen Erschütterungen, Stößen oder Vibrationen aussetzen.

 Sicherstellen, dass der Drucker und der Computer ausgeschaltet sind, bevor das Datenkabel

angeschlossen wird.

 Der Druckkopf wird während des Druckens heiß. Vor dem Berühren deshalb einige Zeit abkühlen lassen.

 Weichen Sie bei der Bedienung des Druckers nicht von den Anweisungen in der Dokumentation ab. Bei

Unklarheiten wenden Sie sich bitte an Ihren Händler oder Ihren Kundendienst.

 Maschinenlärminformations – Verordnung – 3.GPSGV, der höchste Schalldruckpegel beträgt 70 dB(A)

oder weniger gemäß EN ISO 7779.

Das Gerät und die Netzsteckdose müssen jeder Zeit leicht zugänglich sein.

Tally Dascom 1145/1125+

III

Consignes importantes de sécurité (French)

Lire attentivement les instructions suivantes avant de mettre l’imprimante en service.

 Ne jamais effectuer soi-même les travaux d’entretien et de réparations. Contacter toujours un dépanneur

qualifié.

 Placer l’imprimante sur un support stable de façon à ce qu’elle ne puisse pas tomber.

 Ne jamais placer l’imprimante à proximité de sources de gaz aisément inflammables ou de substances

explosives.

 Ne connecter l’imprimante à une prise que lorsque la tension est correcte.

 Pour déconnecter l’imprimante de l’alimentation principale, mettre l’imprimante hors tension et toujours

débrancher le connecteur secteur de la prise murale.

 Ne pas exposer l’imprimante à des températures élevées, à la lumière directe du soleil ou à la poussière.

 Ne pas mettre l’imprimante en contact avec des liquides.

 Ne pas exposer l’imprimante à des chocs, impacts ou vibrations.

 S’assurer que l’imprimante et l’ordinateur sont hors tension avant de connecter le câble de données.

 La tête d’impression est brûlante pendant l’impression. C’est pourquoi laissez-la refroidir quelques

instants avant d’y toucher.

 N'exécutez aucune opération ni action d'une autre manière que celle indiquée dans ce manuel. En cas de

doute, veuillez contacter votre distributeur ou service après-vente.

Le dispositif et la prise principale doivent toujours être accessibles facilement.

Tally Dascom 1145/1125+

IV

Indicazioni di sicurezza importanti (Italian)

Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni.

 Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un tecnico di

assistenza qualificato.

 Conservare le presenti istruzioni per l’uso in un luogo sempre accessibile.

 Collocare la stampante su una superficie stabile, per evitare che cada a terra.

 Non collocare la stampante in prossimità di gas facilmente infiammabili o di sostanze esplosive.

 Collegare la stampante a una presa di corrente con tensione adeguata.

 Per scollegare la stampante dalla rete di alimentazione, spegnere la stampante e disinserire sempre il

connettore di rete dalla presa.

 Non esporre la stampante ad elevate temperature né alla luce solare diretta e alla polvere.

 Evitare il contatto della stampante con liquidi.

 Non esporre la stampante a colpi, scosse o vibrazioni.

 Verificare che la stampante e il computer siano spenti prima di collegare il cavo di trasmissione dati.

 Durante la stampa, la testina si surriscal-da notevolmente. Prima di toccarla, se necessario opportuno

quindi lasciarla raffreddare qualche istante.

 Non eseguire alcuna operazione o azione se non nella maniera descritta nel presente manuale. In caso di

dubbio, contattare il rivenditore o dalla società incaricata dell’assistenza.

Il dispositivo e la presa di corrente devono essere sempre facilmente accessibili.

Tally Dascom 1145/1125+

V

Instrucciones de seguridad importantes (Spanish)

Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio.

 Nunca lleve a cabo trabajos de mantenimiento o reparación Ud. mismo, sino consulte a un técnico de

servicio calificado.

 Guarde las presentes instrucciones de servicio en un lugar de fácil acceso en cualquier momento.

 Ponga la impresora sobre un base estable de manera que no pueda caer al suelo.

 Nunca coloque la impresora en la vecindad de gases de fácil inflamabilidad o sunstancias explosivas.

 Asegure conectar la impresora sólo a un enchufe con un voltaje correcto.

 Cuando quiera desconectar la impresora de la red, apague la im presora y siempre tire la clavija de

alimentación del enchufe.

 No exponga la impresora a temperaturas altas, a la luz solar directa y al polvo.

 No ponga la impresora en contacto con fluidos.

 Nunca exponga la impresora a sacudidas, choques o vibraciones.

 Asegúrese de que la impresora y el ordenador estén apagdos antes de conectar el cable de datos.

 La cabeza de impresión se pone muy caliente durante la impresión. Por lo tanto, deje enfriarlo algún

tiempo antes de tocarla.

 No permita que se realice cualquier operación o acción de una forma diferente a lo que se señala en el

manual. En caso de duda, póngase en contacto con su comerciante o con su servicio post-venta.

El dispositivo y la toma de corriente deben estar ubicados de forma que sea fácil acceder a e llos.

Tally Dascom 1145/1125+

VI

Правила по технике безопасности. (Russian)

Прочитайте, пожалуйста, инструкцию по технике безопасности перед включением в работу принтера.

 Не выполняйте технические работы и ремонт техники самостоятельно, но сообщайте о

неисправностях квалифицированным сервисным техникам.

 Данная инструкция должна быть всегда доступна каждому пользователю.

 Установите принтер на ровном и стабильном месте так, чтобы он не смог упасть на пол.

 Ни в коем случае не ставьте принтер вблизи легко воспламеняющихся газов и взрывчатых веществ.

 Включайте принтер в розетку только с соответствующим напряжением.

 Если Вы хотите отключить принтер от напряжения, сначала выключите принтер сам и затем выньте

штекер из розетки.

 Берегите принтер от нагревания, от попадания на него прямых солнечных лучей и пыли.

 Не допускайте попадания жидкости на принтер.

 Нельзя подвергать принтер тряске, ударам и вибрации.

 Убедитесь, что принтер и компьютер выключены, только после этого соедините принтер с

компьютером.

 Печатающая головка нагревается во время работы принтера. Поэтому подождите какое-то время,

прежде чем дотронуться до нее.

 Пользуйтесь принтером так, как это написано в документации. Если у Вас возникают неясности,

обращайтесь с вопросами к Вашим продавцам или в сервисный центр.

Устройство и розетка должны быть всегда легко доступна.

Tally Dascom 1145/1125+

VII

Instruções Importantes sobre Segurança (Portuguese)

Leia as instruções de segurança antes de usar a impressora.

 Consulte sempre um técnico qualificado para executar uma reparação .

 Coloque a impressora sobre uma base sólida e nivelada, para que ela não sofra quedas.

 Jamais instale a impressora nas proximidades de lugares onde haja gás inflamável ou substâncias

explosivas.

 Assegure-se de conectar a impressora à tomada elétrica com a voltagem apro-priada.

 Quando desligar a impressora da rede, desligue sempre a impressora e retire o cabo da tomada.

 Não exponha a impressora a temperaturas altas ou luz solar direta.

 Não aproxime substâncias líquidas da impressora.

 Proteja a impressora de choques, impactos e vibrações.

 Desligue a impressora e o computador antes de conectar o cabo da rede.

 A cabeça da impressora pode ficar muito quente . Portanto, espere algum tempo antes de tocá-la.

 Não faça nenhuma operação ou ação além das recomendadas neste manual. Em caso de dúvida,

contate seu revendedor ou companhia de serviço.

A impressora e a tomada devem ser facilmente em todos os momentos acessíveis.

Tally Dascom 1145/1125+

VIII

Önemli Güvenlik Talimatları (Turkish)

Lütfen, yazıcıyı işletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun.

 Bakım ve tamir çalışmalarını kesinlikle ve hiçbir surette kendi başınıza yapmayın; her zaman kalifiyebir

uzman servis-teknisyenine haber verin.

 Yazıcıyı, üzerinden yere düşmesi mümkün olmayacak sabit ve düz bir zemine yerleştirin.

 Yazıcıyı kesinlikle ve hiçbir surette kolayca yanabilecek gaz veya patlayıcı maddeler içeren nesnelerin

yakınına koymayın.

 Yazıcı akım kablosunu sadece doğru gerilime sahip bir prize takın.

 Yazıcıyı şebeke ağından ayırmak istediğinizde, yazıcıyı kapatın ve ağ-fişini her zaman prizden çıkartın.

 Yazıcıyı ne yüksek ısılı ne de doğrudan güneş ışığına ve toza mâruz kalan mekânlarda bulundurun.

 Yazıcı hiçbir sıvı maddeyle temasta olmamalıdır.

 Yazıcı hiçbir sarsıntıya, darbeye veya titreşime mâruz kalmamalıdır.

 Veri kablosu bağlanmadan önce hem yazıcının hem de bilgisayarın kapalıolduklarından emin olmalısınız.

 Yazıcının başı basma esnasında yüksek ısıya ulaşıyor. Bu yüzden lütfen dokunmadan önce kısa süre

soğumasını bekleyin.

 Yazıcının işletimi ve kullanımında bu dokümantasyondaki talimatların hiç dışına çıkmayın. Sorunlu

görünen hususlarda lütfen imâlatçınıza veya müşteri hizmetleri servisinize başvurun.

Cihaz ve elektrik prizinin her zaman kolayca erişilebilir olması gerekir.

Tally Dascom 1145/1125+

IX

TRADEMARK ACKNOWLEDGEMENTS

“IBM” is a trademark of International Business Machines Corporation.

“EPSON” is a trademark of Epson America Incorporated.

“DEC” is a trademark of Digital Equipment Corporation.

“Centronics” is a trademark of Centronics Data Computer Corporation.

“DOS” is a trademark of Microsoft Corporation.

“SAP” is a trademark of SAP AG.

“Windows”, “Windows 7”,”Windows 8”, “Windows 95”, “Windows 98“, “Windows NT”, “Windows 2000”, “Windows

2003/2008/2013 Server”, “W indows XP” and “Windows Vista” are trademarks of Microsoft Corporation.

All other product names and company names appearing in this manual are the registered trademarks or

trademarks of the individual companies.

Tally Dascom 1145/1125+

X

Tally Dascom 1145/1125+

TABLE OF CONTENTS

1 Unpacking Guide.............................................................................................................................................. 1

1.1 Unpacking the Printer.................................................................................................................................. 1

1.2 Placing the Printer ....................................................................................................................................... 2

1.3 Printer Components .................................................................................................................................... 3

2 Setting Up Printer............................................................................................................................................. 4

2.1 Install Ribbon ............................................................................................................................................... 4

2.2 Install the Single Sheet Feeder .................................................................................................................. 5

2.3 Connecting the Interface Cable .................................................................................................................. 6

2.4 Connecting the Power Supply .................................................................................................................... 7

2.5 Installing the Windows Driver ..................................................................................................................... 8

3 Paper Installation Guide................................................................................................................................ 14

3.1 Adjusting the Print Gap Lever ................................................................................................................... 14

3.2 Friction Feed Handling .............................................................................................................................. 14

3.3 Tractor Feed Handling............................................................................................................................... 15

3.4 Continuous Paper Placement ................................................................................................................... 16

4 Control Panel Operation ............................................................................................................................... 17

4.1 LED Indicators ........................................................................................................................................... 17

4.2 Control Panel Keys.................................................................................................................................... 18

4.3 Panel Operation......................................................................................................................................... 19

4.4 Online State ............................................................................................................................................... 20

4.5 Setup State ................................................................................................................................................ 21

4.6 Power-On State ......................................................................................................................................... 21

5 Printer Setting Changes ................................................................................................................................ 23

5.1 System Setup ............................................................................................................................................ 23

5.2 Paper Setup ............................................................................................................................................... 25

5.3 Interface Setup .......................................................................................................................................... 28

5.4 Character Setup ........................................................................................................................................ 29

5.5 Other Setup ............................................................................................................................................... 30

5.5.1 German (Deutsch) ............................................................................................................................ 30

5.5.2 Russian (Россия) ............................................................................................................................. 32

5.5.3 Italian (Italiano) ................................................................................................................................. 34

5.5.4 French (Français) ............................................................................................................................. 36

5.5.5 Spanish (Español) ............................................................................................................................ 38

5.5.6 Turkish (Türkce) ............................................................................................................................... 40

5.5.7 Portuguese (Português) ................................................................................................................... 42

5.6 Black Mark Parameters............................................................................................................................. 45

5.7 Bidirectional Alignment .............................................................................................................................. 47

5.8 Restore Factory Default ............................................................................................................................ 48

6 Customized Form ........................................................................................................................................... 49

6.1 Customize Cut Sheet Form Length .......................................................................................................... 49

6.2 Customize Cut Sheet TOF ........................................................................................................................ 51

6.3 Customize Cut Sheet Bottom Margin ....................................................................................................... 51

Tally Dascom 1145/1125+

6.4 Customize Cut Sheet Left Margin ............................................................................................................ 51

6.5 Customize Fanfold Page Formatting Parameters ................................................................................... 52

7 Maintenance .................................................................................................................................................... 53

7.1 Cleaning ..................................................................................................................................................... 53

7.2 Cleaning and Vacuuming the Printer ........................................................................................................ 53

7.3 Cleaning the Paper Rollers ....................................................................................................................... 54

8 Troubleshooting ............................................................................................................................................. 55

8.1 Print Quality Problems and Solutions....................................................................................................... 55

8.2 Paper Handling Problems and Solutions ................................................................................................. 56

8.3 Operating Problems and Solutions .......................................................................................................... 57

8.4 Printer Failures .......................................................................................................................................... 57

8.5 Error Indications on LEDs ......................................................................................................................... 58

8.6 Diagnostic Functions ................................................................................................................................. 58

8.7 Firmware Update ....................................................................................................................................... 59

9 General Specifications .................................................................................................................................. 61

10 Interfaces ....................................................................................................................................................... 64

10.1 Parallel Interface ..................................................................................................................................... 64

10.2 USB Interface .......................................................................................................................................... 65

10.3 Serial interface......................................................................................................................................... 65

11 Character sets & Code Pages .................................................................................................................... 67

11.1 Character Sets ......................................................................................................................................... 67

11.2 Code Page Commands ........................................................................................................................... 72

11.3 Code Page Tables ................................................................................................................................... 74

12 Control Codes Summary .......................................................................................................................... 103

12.1 ESC/P2 Emulation Command List ....................................................................................................... 103

12.2 IBM Emulation Command List .............................................................................................................. 105

FCC STATEMENT ............................................................................................................................................ 108

Tally Dascom 1145/1125+

Symbols used Important information is highlighted in this manual by

two symbols.

CAUTION highlights information which must be
observed in order to prevent injuries to user and
damage to the printer.

NOTE highlights general or additional information
about a specific topic.

General Notes The 1125+ and 1145 model are equivalent printers in

case of functionality, excluding the firmware.

-The 1145 model is the standard version.

-The 1125+ model is a customer specific version.

Tally Dascom 1145/1125+

1

1 Unpacking Guide

1.1 Unpacking the Printer

1. Place your packaged printer on a solid base.

2. Make sure that the “Up” symbols point in the correct direction.

3. Open the packaging, lift the printer out of the cardboard box and remove the remaining
packaging material.

4. Check the printer for any visible transport damage and missing items. If you find any
transport damage or if any accessories are missing, please contact your dealer. The
following items are included:

o Printer
o Paper feed knob
o Sheet feeder
o Power cord
o Ribbon cartridge
o CD-ROM
o Installation Guide
o USB cable

Remove the packaging materials from the printer as follows:

1. Open and remove the top covers of the printer following the below picture.

Tally Dascom 1145/1125+

2

2. Remove the shipping cardboard from around the print head.

3. Install the paper feed knob. Rotate the paper feed knob to make it fix with the latch. And

then press it to lock. (Step ④ of above picture)

1.2 Placing the Printer

Place the printer on a solid, flat, stable surface; ensuring that the printer is positioned in such
a way that it cannot move, and that there is easy access to the control panel and paper input
devices. Also ensure that there is enough space for sufficient ventilation and for the printed
output.

When selecting the printer location, observe the following additional instructions:

1. Never place the printer near to any flammable gas or explosive substances.

2. Do not expose the printer to direct sunlight. If you cannot avoid placing the printer near a
window, protect it from the sunlight with a curtain.

3. When connecting a computer to the printer, make sure the maximum recommended
cable length is not exceeded.

4. Ensure sufficient distance between the printer and any heating devices/radiators.

5. Avoid exposing the printer to extreme temperature or air humidity fluctuations. Avoid
exposure to dusty environments.

6. It is recommended the printer is installed in a position which reduces noise exposure to
the work place during printing.

7. The power-outlet shall be installed near the equipment and shall be easily accessible.

Tally Dascom 1145/1125+

3

1.3 Printer Components

Component

Function

Gap Lever

Adjusts the print gap lever according to the thickness of paper

Paper Guides

Adjusts positioning of single sheet paper

Print Head

9-pin printing mechanism

Cover

Protects print head and other components inside, and reduce noise

Control Panel

Shows printer status, for printer setup

Paper Feed Lever

Two positions: = continuous forms; = single sheet paper

Paper Feed Knob

Manual feed or vertical positioning of paper

Power Switch

Power printer ON or OFF

Ribbon Cartridge

Install ribbon in the printer

Ribbon Guide

For guiding ribbon installation on print head

Tractors

For feeding and adjustment of continuous forms

Power Socket

Connects power cord to the printer

Interface

Connects interface cables from the host

Tally Dascom 1145/1125+

4

2 Setting Up Printer

2.1 Install Ribbon

Take special caution: The print head may be hot!

1. Ensure the power to the printer is off and the print gap lever “A” is set to the furthest
open position. Move the carriage to the center of the print platen.

2. Install the recess positions ①-② on the ribbon cassette into the printer mounting.

3. Press the ribbon frame ③ onto the print head.

4. Turn the ribbon knob ④ in clockwise direction until the ribbon fabric is taut. Move the
carriage left and right to ensure the carriage and ribbon fabric can move smoothly.

5. Ensure the print gap lever “A” is set to the original position.

6. Close the printer’s cover. When printer is in operation, ensure the printer’s cover is
closed to keep the noise level to a minimum.

Notes on Ribbon Cartridge Removal:

1. Eject any paper loaded in the printer.

2. Turn off the printer power.

3. Open and remove the cover.

4. Set the gap lever to the most open position labeled “RIBBON”.

5. Move the carriage to the middle. Be careful not to touch the print head if printing had just
been performed, as the print head may be hot.

6. Remove the ribbon frame from the print head.

7. Use fingers to take hold of the handle on the ribbon cartridge firmly, and lift the cartridge
upwards to unlatch it. Some force may be needed to unlatch the cartridge.

Tally Dascom 1145/1125+

5

2.2 Install the Single Sheet Feeder

Install the single sheet feeder into the rear of the printer. If you intend to use this paper way,
assure having removed the fanfold paper out of the rear tractor paper way by pressing Eject
Key.
Then switch the paper feed lever to Single.

1. As shown in the picture below, unfold the Paper Guides first. Then put the Single

Sheet Feeder into its installation position and push it down to latch.

2. Push the Single Sheet Feeder backward to make it latch again.

Tally Dascom 1145/1125+

6

2.3 Connecting the Interface Cable

The USB port is located at the rear of the printer.
IMPORTANT: Make sure the printer and the computer are switched off before connecting or

disconnecting the interface cable to prevent electrical damage to the interface ports.

The printer may also be purchased with an additional interface. The additional
interface can be one of the followings: Parallel, Serial, Ethernet, WiFi or
Bluetooth.

Tally Dascom 1145/1125+

7

Make sure that the power
switch “A”, located to the left
side of the printer, is in the
“O” (off) position.

Connect the power cord to
the power inlet of the printer.
Connect the power cord plug
to a mains socket. Switch on
the printer.

2.4 Connecting the Power Supply
Checking the printer voltage

Make sure that the device has been set according to your country’s power supply voltage. To
do this, check the rating plate at the back of the printer. Contact your dealer if the setting is
incorrect.

Never switch on the printer if the voltage setting is incorrect; This may result in
electrical damage to the printer.

Tally Dascom 1145/1125+

8

2.5 Installing the Windows Driver

(Windows 2000 / XP / Vista / 7 / 8 / 8.1 and 2003 / 2008 / 2012 / 2012R2 Server)

1. Your printer CDROM comes
with Windows drivers. Go to
the Drivers folder and run the
Installer “DriverSetup.exe”.
You will see the screen on the
right. Select language, and
click “Next” to continue.

2. A picture shown on the right
side appears. Click “Next” to
continue.

Tally Dascom 1145/1125+

9

3. As shown in the picture on
the right side, click “OK” to
select automatical
installation and click
“Cancel” to select manual
installation.

If you have selected automatical installation in the third step, please refer to
following three steps:

1) If you want to select
automatical installation,
make sure that the printer is
connected with USB cable
and power on. If the printer
is not connected with USB
cable or power off, a prompt
on right side will appear if
you select automatical
installation. Click “OK” to
select manual installation
and click “Cancel” to cancel
installation.

Tally Dascom 1145/1125+

10

2) If automatical installation is
selected and the printer is
connected with USB cable
and power on, the printer
model will be detected
automatically. As shown in
picture on the right side,
click “Next” to continue.

3) As shown in picture on right
the side, USB port will be
detected automatically. Click
“Next” to continue.

Tally Dascom 1145/1125+

11

If you have selected manual installation in the third step, please refer to following
two steps:

1) If manual installation is
selected, picture on right
side will appear after you
click “Cancel”. Select the
desired printer model and
click “Next” to continue.

2) Picture on the right side will
appear after you click
“Next”. Select installation
port and click “Next” to
continue.

Tally Dascom 1145/1125+

12

4. Here you can choose
whether to set the driver as
the system default driver, and
whether you want to print the
Test Page after installation is
completed. Click “Next” to
continue.

5. As shown in the picture on
right side, click “Finish”.

Tally Dascom 1145/1125+

13

For XP system, the following situation may appear after you click “Finish” in
above step:

1) If the driver is not yet
Microsoft Certified, the
message on the right would
appear. Click “Continue
Anyway”. (As we continue to
expand our product portfolio,
not all of our drivers may be
certified yet. Please check our
website www.dascom.com for
the latest certified drivers.)

2) Installation in progress.

6. After installation is completed
successfully, you will see the
message on the right.

Tally Dascom 1145/1125+

14

3 Paper Installation Guide

The printer can handle either single sheets or continuous forms. Single sheets, also called cut
sheets, include envelopes and non-continuous, multipart forms. Continuous forms include
labels and multipart forms fed into the printer using the forms tractors. The printer is able to
print 1~5 plies multipart paper.

Remove the paper-clips. Do not load paper that has been folded or damaged,
wrinkled, or curled.

3.1 Adjusting the Print Gap Lever

The print gap lever is on the left side of the printer inside the top cover. Take care to adjust the
print gap lever to a suitable position whenever you change the number of copies being printed.
Using the wrong print gap may cause print head damage or paper jams.

Paper type

Weight (g/m2) / ply

Thickness (mm)

Gap lever position

Single sheet

52~100

0.06~0.12

1P~2P

3-ply

40~52

0.12~0.14

3P~4P

4-ply

40~52

0.17~0.22

4P~5P

5-ply

40~52

0.23~0.27

5P~6P

6-ply

40~52

0.28~0.34

6P~7P

7-ply

40~52

0.35~0.41

7P

Change ribbon

---

Above 0.58

RIBBON

There are 2 paper feed modes: friction feed and tractor feed.

3.2 Friction Feed Handling

1. Raise the single sheet feeder until it locks into its mounting.

2. Move the paper-feed lever forward to “ ” for friction feed mode. Make sure that no
paper is in the printer when you switch the paper path.

3. Adjust the print gap lever if necessary.

Tally Dascom 1145/1125+

15

4. Align the left paper guide with the mark on the left of the single sheet feeder.

5. Adjust the right paper guide to the width of the paper used.

6. Insert a sheet of paper. Make sure that the bottom edge of the paper engages snugly
with the platen. Please push the paper in manually if the paper does not feed in while the
friction roller is running.

7. The paper should advance automatically to the print position. The printer is now ready to
print in the online state.

3.3 Tractor Feed Handling

1. Move the paper-feed lever backward to “ ” for continuous paper position.

2. Adjust the print gap lever if necessary.

3. Raise the tractor doors and fit the first 3 paper holes onto the left tractor pins. Close the
left tractor door. In the same way, install the paper on the right tractor.

4. Adjust the right tractor to the width of the paper until the paper is flat. Do not stretch the
paper too taut. Push the right lock lever down to secure the right tractor in place.

5. Press the【Load/Eject】key to load the paper to the starting print position. The printer is
now ready to print in the online state.

Tally Dascom 1145/1125+

16

3.4 Continuous Paper Placement

1. Place the printer on a solid base. The minimum suitable height of the solid base is

75 cm.

2. Left and right positioning: The direction of continuous paper should be parallel with the

paper guide. The tolerance should be less than 3 cm.

3. Front and back positioning: The distance between the rear of printer and the wall should
be more than 60cm. To avoid paper jam, the distance between the continuous paper and
the edge of desk should be 10~15 cm.

Tally Dascom 1145/1125+

17

4 Control Panel Operation

Note: A black filled circle means LED off; A white circle means LED on.
There are 4 switches S1~S4 and 4 LEDs L1~L4. The meaning and application of each switch

and LED are described below:

4.1 LED Indicators

“Power/Paper Out” LED:
On: Power on
Flashing: Paper out
Flashing + buzzer: Paper jam

“Font 1 and Font 2” LED:
Flashing together: Indicates continuous paper is at tear-off position; otherwise it indicates the

selected font. See table 4.1.

“Online” LED:
On: The printer is in online state and ready to receive data from the computer.
Off: The printer is in offline state and cannot receive data.

Tally Dascom 1145/1125+

18

4.2 Control Panel Keys

“Tear Off” Key:
When online, this key will move any loaded continuous paper to the tear-off position. When in

setup state, this key is used to select the desired font.

“LF/FF” Key:
Pressing this key will feed paper one line forward. By holding down this key, the printer will

initially feed a few lines, then perform a form feed (continuous paper mode) or eject the form
(single sheet mode).

“Load/Eject” Key:
When paper is loaded, pressing this key will eject the paper (single sheet mode) or park the

paper (continuous paper mode). When paper is not loaded, pressing this key will load the
paper to the starting print position.

“Online” Key:
This key switches the printer between online and offline states. Printing is stopped when the

printer is switched to offline state. When printer is switched to online state again, printing will
resume.

Table 4.1

Font Selection Label

L2 State

L3 State

Tear Off

Blink

Blink

Draft

Off

Off

Draft Condensed

Off

On

Roman

Off

Blink

Sans Serif

On

Off

Courier

On

On

Prestige

On

Blink

Script

Blink

Off

Others

(see Menu setting)

Blink

On

Table 4.2

Switch

Label

S1

Tear off

S2

LF/FF

S3

Load/Eject

S4

Online

Tally Dascom 1145/1125+

19

Table 4.3

LED

Function

L1

Power/Paper Out

L2

Font1

L3

Font2

L4

Online

4.3 Panel Operation

There are 3 states of operation: Online, Setup and Power On.

In the Online state, the keys provide the following functions: Go to Tear Off position, Line
Feed/Form Feed, Load/Eject, Clear Buffer and switch to offline state for accessing to Setup
state.

In the Setup state, the keys provide font selection, and micro feed paper.

To enter the Power On state, the user holds down a key or a combination of keys while
powering up the printer. This state provides the following functions: Hex-dump, Main Menu
setup, print Main Menu, Customize Form, restore factory defaults, and firmware update.

The followings describe the 3 states in details.

Legend:
[A] = press and hold switch A

{B} = press and then release switch B
[A]+ {B} = press switch B while holding A

Tally Dascom 1145/1125+

20

4.4 Online State

Function

Name

Switch

Operation

LED

Function Description

Tear Off

{S1}

L2, L3 flash

This is valid for tractor mode only. It feeds the form
to the tear-off position. After tearing off the form,
printing starts on the next TOF by pressing any key
or receiving print data from the host.

LF

{S2}

-

Feeds one line with every press of S2

FF

[S2]

-

Pressing this key will feed paper one line forward.
By holding down this key, the printer will initially feed
a few lines, then perform a form feed (continuous
paper mode) or eject the form (single sheet mode).

Load/Eject

{S3}

-

● Load: Automatically loads the paper (according to
path selection) when no paper is on the platen.

● Eject: For rear tractor, it retracts the form from the
platen to allow users to install cut sheets. (NOTE:
Users have to toggle the path selection lever.) For
cut sheets, it ejects the form on the platen.

Online

{S4}

L4

Toggles between Online and Offline states.

Setup State

[S4]

L4

Hold the S4 key for 3 seconds. Toggles to 3s Setup
state. Indicated by flashing L4.

Clear Buffer
and Reset

[S4]+{S1}

--

● Clears the print buffer. Beeps once upon
completion.

● Pressing S1 longer initializes the printer to
default settings. Beeps 3 times upon completion.

Tally Dascom 1145/1125+

21

4.5 Setup State

Function

Name

Switch

Operation

LED

Function Description

Online state

{S4}

L4

Toggling to the Online state will cause the printer
to go into a ready-to-print state. Any changes
made in Setup state will be saved permanently.
Lighting up L4 indicates the Online state.

Micro UP

{S3}

--

Press S3 to micro feed paper up.

Micro Down

{S2}

--

Press S2 to micro feed paper down.

Font Select

{S1}

L2, L3

Refer to Table 4.1 for details.

4.6 Power-On State

Tally Dascom 1145/1125+

22

Function

Name

Switch

Operation

LED

Function Description

Hex Dump

[S3]

-

Beeps once to indicate going into hex dump mode:

● Prints data from host in hexadecimal
representation.

● Pressing S4 suspends the printing.

● When the hex dump has finished, pressing S4

forces the printing of the last line of data, as any
line termination control code from host has no
function.

● Switch off the power to terminate the hex dump.

Menu Setup
/ EDS

[S1]

-

Allows for Main Menu setting changes. Please read
the instructions printed on how to change settings
when this mode is activated. (EDS: Electronic DIP
Switch)

Self Test /
Status Page

[S4]

-

Prints the printer settings and self-test pattern.

Firmware
Update

[S1]+[S2]+[S3]

+ [S4]

L3, L4

● Alternate flashing of L3 and L4 indicates ready
for firmware update from host.

● When new firmware is being received: L3 and L4
flash together, while L1 and L2 LEDs are
constantly on.

When downloading is completed, the carriage
returns to home position. Printer initializes normally.

Restore
Factory
Defaults

[S2] + [S4]

-

Restore all settings to factory defaults.
The carriage initializes and the printer beeps once
after restoration.

Customize
Form

[S3] + [S4]

To customize the margins and tear-off position,
please refer Chapter 6 for details.

Tally Dascom 1145/1125+

23

5 Printer Setting Changes

In order to meet specific print requirements, the printer configurations may be changed as
follows: Hold down the Load/Eject key while powering on the printer and then release the key
when the print head starts to move. The printer will enter Main Menu setup state. Follow the
instructions printed on how to make setting changes. When a new setting is saved, it is
retained after the printer has been powered off.

The Printer Settings menu contains 8 sub-menus: System Setup, Paper Setup, Interface
Setup, Character Setup, Other Setup, Bi-directional Alignment, BlackMark Mode, Restore
Facotry Defaults.

5.1 System Setup

System setup

Valid Settings

Function

Language

English, Deutsch,
Poccия, Italiano,
Français, Español,
Türkçe, Português

Allows user to select one of the following
languages: English, German, Russian, Italian,
French, Spanish and Turkish, Portuguese

Emulation

ESC/P2, IBM

Selects the printer emulation. This should be the
same as the host printer driver.

Auto CR
(ESC/P2)

No, Yes

Yes: LF = LF+CR; No: LF = LF
(Applies to ESC/P2 emulation only)

Auto CR (IBM)

No, Yes

Yes: LF = LF+CR; No: LF = LF
(Applies to IBM emulation only)

Auto LF

No, Yes

Yes: CR = CR+LF; No: CR = CR

Print Dir

Bi-Dir, Uni-Dir

Bi-Dir: Graphics and text are printed in both
directions, resulting in faster printing speed.

Uni-Dir: Graphics and text are printed from left
to right, resulting in higher precision.

Form Line

Disable, Enabled,
Dashed, NoPrint

Disable: Grids in block graphics are disjoint, but
grids by graphics commands or slanted grids
(block graphics) are not affected.

Enabled: Vertical grids are continuous in all line
spacing.

Dashed: Horizontal grids are printed in dotted
lines and vertical grids are not affected.

NoPrint: Grids are not printed. But nested grids
(by graphical commands) above 2 levels deep
are printed.

Zero

0, Ø

0: No-slashed Zero 0.
Ø: Slashed Zero Ø.

Tally Dascom 1145/1125+

24

System setup

Valid Settings

Function

LQ Text Quality

LQ, NLQ

The “LQ Text Quality” parameter is invalid when
Font is set to Draft.

When Font is set to another font other Draft, the
“LQ Text Quality” parameter will determine
whether to print in NLQ mode or LQ mode.

Change Pin#1:

No, 1, 2, 3, 4, 5, 6, 7,
8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 20,
21, 22, 23, 24

Defines the first broken / worn out pin. This pin
will be substituted by an adjacent pin in the
second pass printing.

No: Not to substitution of the worn out pin.

Change Pin #2

No, 1, 2, 3, 4, 5, 6, 7,
8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18, 19, 20,
21, 22, 23, 24

Defines the first broken / worn out pin. This pin
will be substituted by an adjacent pin in the
second pass printing.

No: Not to substitution of the worn out pin.

Power-Saving

OFF, 1min, 2min,
5min, 10min

Defines the idle period before the printer gets
into Save-energy Mode.

OFF: The printer never goes into Save-energy
Mode.

MultiPaper

Disable, Standard,
Enhance

Disable: The printer ignores the determination of
paper thickness sensor; it keeps the impact
force and the print speed unchanged.

Standard: The printer increases the impact force
and reduces the print speed.

Enhance: The printer prints with even stronger
impact force and slower print speed.

Impact

Normal, Heavy

Normal: The print speed is faster causing head
hot easily and the impact force is weaker.

Heavy: The print speed is reduced, resulting
better thermal performance and copy capability.

Graphic Speed

Normal, Fast, Ultra

Selects different print quality and print speed for
graphic.

Tally Dascom 1145/1125+

25

5.2 Paper Setup

Paper Setup

Valid Settings

Function

Single
FormLen

2.5, 11/4, 3, 3.5,11/3, 4,
5, 5.5, 6, 7, 8, 9, 10, 11,
12, 14, A4, B4,
Customize

Sets the page length for single paper
Single Top

0, 1/6, 1/4, 1/3, 1/2, 2/3,
3/4, 1, Define

Defines the separation in inches from the top
edge of a single paper to the first print line.

Single Bottom

0, 1/6, 1/4, 1/3, 1/2, 2/3,
3/4, 1, Define

Defines the separation in inches from the bottom
edge of a single paper to the last print line.

Single Left
Mrg (1.00mm)

-7, -6, -5, -4, -3, -2,

-1, 0, 1, 2, 3, 4, 5, 6, 7,
Define

Compensation value added to Single Left Mrg.

Single Top
Mrg (0.01”)

-7, -6, -5, -4, -3, -2,

-1, 0, 1, 2, 3, 4, 5, 6, 7

Compensation value added to Single Top.

Single Auto
Load

Disable, 0.5sec, 1sec,

1.5sec, 2sec

Defines the settling time before a single sheet is
loaded.

Disable: Press the【Load/Eject】key manually
to load a single sheet.

Fanfold
FormLen

2.5, 11/4, 3, 3.5, 11/3, 4,
5, 5.5, 6, 7, 8, 9, 10, 11,
12, 14, A4, B4, Define

Sets the Page Length for fanfold.
Fanfold Top

0, 1/6, 1/4, 1/3, 1/2, 2/3,
3/4, 1, Define

Defines the separation in inches from the top
edge of a fanfold to the first print line.

Fanfold
Bottom

0, 1/6, 1/4, 1/3, 1/2, 2/3,
3/4, 1, Define

Define the separation in inches from the bottom
edge of a fanfold to the last print line.

Fanfold Left
Mrg (1.00mm)

-7, -6, -5, -4, -3, -2, -1, 0,
1, 2, 3, 4, 5, 6, 7, Define

Compensation value added to Fanfold Left Mrg.

Fanfold Top
Mrg (0.01”)

-7, -6, -5, -4, -3, -2, -1, 0,
1, 2, 3, 4, 5, 6, 7

Compensation value added to Fanfold Top.

Fanfold Auto
Load

No, Yes

Yes: The printer loads paper to the first printing
position automatically when using fanfold.

No: Press the【Load/Eject】key to load paper
when using fanfold.

Skip

No, Yes

Skips printing on perforation area.
Only valid to fanfold.
Yes: Blank lines between 2 pages.
No: No blank lines between 2 pages.

Tally Dascom 1145/1125+

26

Paper Setup

Valid Settings

Function

Tear

Auto, Manual, View,
Auto@FF

Auto: Form Feed command from the host causes
the printer to advance the paper to the tear-off
position. Printing resumes on the TOF on next page.

Manual: After the completion of a print job, press a
panel key to advance the paper to the tear-off
position.

View: No incoming print data in 1~2 seconds after
printing completed causes the printer to advance
the paper by 2 lines. Printing resumes 2 lines below
the torn edge.

Auto@FF: a formfeed command is necessary to
auto feed the form to tear position.

Paper End
Detect

No, Yes

No: The printer stops printing if out of paper.
Yes: The printer continues printing even out of

paper.

Compress

Disable, 11:8,

13.6:8, Auto

Disable: No compression on the print line exceeding
the printable width.

Auto: The print squeezes an over-width print line
(not exceeding 22" in contents) to the printable
width.

Other Compression Ratio: For example, a ratio of
11: 8 commands the printer to take this line
compression ratio.

**Remark: The compression is disabled after printer
reset or loading a new page.

PaperCheck

Invalid, Anti-jam,
Anti-skew, Valid

Determines if the cut sheet is jammed or skew.
Invalid: Disables the detection of both.
Anti-jam: Detect paper jam only.
Anti-Skew: Detect paper skew only.
Valid: Enables the detection of both.

Buzzer

No, Yes

No: Buzzer does not sound if out of paper.
Yes: Buzzer sounds if out of paper.

Tear Position

Invalid, Detect,
Record

This printer saves the tear-off position before
switched off. After switched on, the printer if any
change in the tear-off position and determines the
start printing position.

Invalid: Printing starts from previously switched off
position.

Detect: If the tear-off position is unchanged or
smaller, printing starts from TOF position. If larger,
printing starts from previously switched off position.

Record: If the tear-off position is unchanged, printing
starts from TOF position. If changed, printing starts
from previously switched off position.

Tally Dascom 1145/1125+

27

Paper Setup

Valid Settings

Function

APW (Auto
Paper Width
detection)

No, Yes

Yes: Measures the width of the paper automatically
after loading the paper.

No: Disables page width measurement.
NOTE:
The printer is equipped with a page width sensor

called “APW”.
When the sensor is defective, the “APW” setting will

not appears in the menu; The【Power】LED blinks,

【Front 1】and【Front 1】have no change,
【Online】LED is off.

APS
(Auto Page
Skew
detection)

Invalid, Normal,
Precise

Invalid: The printer will not detect paper skew.
Normal: The printer ejects any paper with serious

skew.
Precise: The printer ejects any paper with slight

skew.
NOTE:
This paper skew sensor called “APS” is an option.

The APS setting will not appear in the menu if it is
not installed or defective.

BlackMark

No, Yes

No: Disables black mark sensor.
Yes: Enables black mark sensor.
When “Yes” and online, pressing the Load/Eject key

advances the paper to the tear-off position.
BlackMark commands: (also see section 5.7)
 1D 0C:

Feeds paper to the print position designated by
the black mark. Advance the paper to the tear-off
position after printing.

 1C 28 4C 03 00 42 m:

m = 0: feeds paper to the print position designated
by the black mark.
m = 1: feeds paper to the black mark tear-off
position.

Width

8.0inch,
PaperWidth

8.0inch: The maximum print width is 80 columns of
10cpi PICA characters.

Paper Width: Sets the detected page width as print
width. Enabling APW is required.

Tally Dascom 1145/1125+

28

Paper Setup

Valid Settings

Function

FormLen
MicroAdj

-20 -19 -18 -17 -16 ­15 -14 -13 -12 -11 -10

-9 -8 -7 -6 -5 -4 -3 -2 ­1 0 +1 +2 +3 +4 +5
+6 +7 +8 +9 +10 +11
+12 +13 +14 +15 +16
+17 +18 +19 +20

Fine tunes the form-length by n/360" (0.07mm)
based on the default value. (Valid for single papers
and fanfolds.)

Bail mode

Invalid, Standard,
Special

The bail mode presses the paper against the print
platen during printing, but it is released for paper
loading.

Invalid: If you uninstall the lever or want to disable
the function, set this setting to “invalid”.

Standard: Release the lever for paper loading and
lower the lever to press the paper against the platen
during printing.

Special: When the paper is in tear-off position, after
the printer received printing data, the printer will
judge whether tear-off was implemented first. If tear­off was implemented and printing position is in lever
area, then the printer will press the lever; If tear-off
was not implemented, the printer will not press the
lever.

Roll Paper

No, Yes

In friction mode, 【LF/FF】will not eject the paper
and feed to next page. (Assume roll paper)

5.3 Interface Setup

Interface setup

Valid Settings

Function

PnP

No, Yes

No: Disables plug and play for USB
Yes: Enables plug and play.

USB ID

No, Yes

No: Disables USB ID.
Yes: Enables USB ID

Tally Dascom 1145/1125+

29

5.4 Character Setup

Character

setup

Valid Settings

Function

Character
Table

Italic, Graphic

Italic: Selects standard character
sets. Please refer to UG for
details.

Graphic: Selects IBM character
sets. Please refer to UG for
details.

Character
Group

Group 1, Group 2

The interpretation of ASCII codes
between 0x80~0x9F:
Group 1: as control codes.
Group 1: as printable characters.

Int'l Char Set

USA, France, Germany, UK, DenmarkI,
Sweden, Italy, SpainI, Japan, Norway,
DenmarkII, Spain II, LatinAm, Denmark,
China

International character set
selections

HS-Draft

No, Yes

Yes: Prints High Speed Draft
when Draft font is selected.

Font

Daft, DraftCond, Roman, Sans Serif,
Courier, Prestige, Script, OCR B, OCR
A, Orator, Gothic, Souvenir

Selects the font.
Pitch (cpi)

10, 12, 15, 16.6, 17.1, 20, 24, PS

Controls the characters per inch
setting.

Code Page

CP437, CP737, CP850, CP851, CP852,
CP857, CP858, CP860, CP861,CP863,
CP864, Extend864, CP865, CP866,
Bulgaria866, CP1250, CP1251,
CP1252, CP1253, CP1254, 8859_1,
8859_1SAP, 8859_2, 8859_5, 8859_7,
8859_9, 8859_15, BRASCII, Abicomp,
Roman8, CoaxTwinax, New437,
NewDig850, OldCode860, Flarro863,
Hebrew865, CP1257, Ukraine866,
Kazakhst866, Kamenicky, Mazovia,
Baltic775, CROASCII, Farsi, Urdu,
GreekDEC, ELOT928, UK_ASCII,
US_ASCII, Swedish, German,
Portuguese, French, Italian, Norwegian,
Spanish, SiemensTurk, DECTurkish

Code page selections

15cpi Style

Small, Normal

Sets the height for 15CPI
character.
Small: prints in 1/8” height
Normal: prints in full height

AGM (IBM)

No, Yes

Activates or deactivates the AGM
(Alternative Graphics Mode)
mode in IBM emulation

Tally Dascom 1145/1125+

30

5.5 Other Setup

Other
setup

Valid Settings

Function

Form
Length Ctrl

No, Yes

No: Form length commands are invalid in neither of
the emulation.

Yes: Form length commands are valid in either of the
emulations.

Print Speed
Ctrl

No, Yes

No: Print speed commands are invalid in neither of
the emulation.

Yes: Print speed commands are valid in either of the
emulations.

Pitch Ctrl

No, Yes

No: Ignores CPI commands
Yes: CPI commands are valid

Font Ctrl

No, Yes

No: Ignores font select commands
Yes: font select commands are valid

Uni-Dir Ctrl

No, Yes

No: Uni-Direction print commands are invalid in
neither of the emulation.

Yes: Uni-Direction print commands are valid in either
of the emulations.

5.5.1 German (Deutsch)

Systemeinstellung

Gültige Werte

Sprache

English, deutsch, Poccия, Italiano, Français, Español, Türkçe,
Português

Emulation

ESC/P2, IBM

Auto CR (ESC/P2)

Nein, Ja

Auto CR (IBM)

Nein, Ja

Auto LF

Nein, Ja

Druck Dir

Bi-Dir, Uni-Dir

Tabellenlinien

Gestrichelt, Verbunden, Gepunktet, Deaktiviert

Null

0, Ø

Textqualität

LQ, NLQ

Ersetze 1. Nadel

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Ersetze 2. Nadel

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Energiesparmodus

Aus, 1min, 2min, 5min, 10min

Mehrlagiges Drucken

Ungültig, Standard, Verstärkt

Impact Mode

Normal, Stark

Graphikgeschw.

Normal, Schnell, Ultra

Tally Dascom 1145/1125+

31

Papier Setup

Gültige Werte

Einzel Länge

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Definiert

Einzel Ob Rand

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definiert

Einzel Unt Rand

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definiert

Einzel Li Rand

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definiert

Einzel Ob Rand Fein

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Einzel Auto laden

Ungültig, 0.5sec, 1sec, 1.5sec, 2sec

Endlos Form länge

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Definiert

Endlos Ob Rand

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definiert

Endlos Unt Rand

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definiert

Endlos Li Rand

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definiert

Endlos Ob Rand Fein

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Endlos Auto Laden

Nein, Ja

Perforationssprung

Nein, Ja

Abreißen

Auto, Manuelles, Kurz, Auto@FF

Papierendeerkennung

Nein, Ja

Komprimieren

Ungültig, 11: 8, 13.6: 8, Auto

Papierhandhabung

Aus, Anti-Stau, Anti-Schräg, Ein

Summer

Nein, Ja

Abreißposition

Nein, Erkennen, Speichern

APW

Nein, Ja

BlackMark

Nein, Ja

Druckbreite

8.0inch, Papierbreite

FormLäng Fein

-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Andruckbügelmodus

Ungültig, Standard, Spezial

Rollenpapier

Nein, Ja

Schnittstellen Setup

Gültige Werte

PnP

Nein, Ja

USB ID

Nein, Ja

Zeicheneinstellung

Gültige Werte

Zeichentabelle

Italic, Graphic

PC-Zeichensatz

Gruppe 1, Gruppe 2

Land

USA, Frankreich, Deutschland, U.K., Dänemark Ⅰ, Schweden,
Italien, Spanien Ⅰ, Japan, Norwegen, Dänemark II, Spanien II,
Lat-Amerika, Dänemark, China

HS-Draft

Nein, Ja

Schriftart

Draft, DraftCond, Roman, Sans Serif, Courier, Prestige, Script,
OCR B, OCR A, Orator, Gothic, Souvenir

Laufweite (cpi)

10, 12, 15, 16.6, 17.1, 20, 24, PS

Tally Dascom 1145/1125+

32

Zeicheneinstellung

Gültige Werte

Zeichensatz

CP437, CP737, CP850, CP851, CP852, CP857, CP858, CP860,
CP861, CP863, CP864, Extend864, CP865, CP866, Bulgaria866,
CP1250, CP1251, CP1252, CP1253, CP1254, 8859_1,
8859_1SAP, 8859_2, 8859_5, 8859_7, 8859_9, 8859_15,
BRASCII, Abicomp, Roman8, CoaxTwinax, New437, NewDig850,
OldCode860, Flarro863, Hebrew865, CP1257, Ukraine866,
Kazakhst866, Kamenicky, Mazovia, Baltic775, CROASCII, Farsi,
Urdu, GreekDEC, ELOT928, UK_ASCII, US_ASCII, Swedish,
German, Portuguese, French, Italian, Norwegian, Spanish,
SiemensTurk, DECTurkish

15cpi Stil

Schmal, Normal

AGM (IBM)

Nein, Ja

Erweitertes Setup

Gültige Werte

Formularlänge Strg

Nein, Ja

Geschwindigkeit Strg

Nein, Ja

Laufweite Strg

Nein, Ja

Font Strg

Nein, Ja

Uni-dir Strg

Nein, Ja

5.5.2 Russian (Россия)

обновление

системы

Правильные значения

язык

English, Deutsch, Poccия, Italiano, Français, Español, Türkçe,
Português

Эмуляция

ESC/P2, IBM

Авто CR ( ESC/P2)

НET, ДA

Авто CR (IBM)

НET, ДA

Авто LF

НET, ДA

Направленниe пeчати

oднoнaпpB, дByнaпpB

Контурная линия

отключен, Подключен, лyнктиpнaя, безпечати

Hoлb

0, Ø

Текcт кaчecтва

LQ, NLQ

Заменa 1. иглы

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Заменa 2. иглы

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Экономный режим

выключенo, 1мин, 2мин, 5мин, 10мин

Многослойная печать

недейств, Обычный, усилен

вoздействия

Hopmaльнo, сильнo

Скорость печати

Hopmaль, быстро, yльтpa

Tally Dascom 1145/1125+

33

Настройка

стpaницы

Правильные значения

Длина форм лист

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
oлpeделeн

Сверху oтступ Лист

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, oлpeделeн

Снизу oтступ Лист

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, oлpeделeн

Слева oтступ Лист

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, oлpeделeн

Веpx отс. Л. Тонко

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Автом Загруз Лист

нeдейств, 0.5sec, 1sec, 1.5sec, 2sec

Длина форм Непрер

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
oлpeделeн

Сверху oтступ
Непрер

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, oлpeделeн
Снизу oтступ Непрер

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, oлpeделeн

Слева oтступ Непрер

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, oлpeделeн

Веpx отс. Тонко Непр

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Автом загруз Непрер

НET, ДA

Пропуск перфорации

НET, ДA

Отрыв бумаги

Авто, ручной, короткий, Авто@FF

Oлpeдел конeц бумаг

HET, ДA

Сжатие

Недейств, 11: 8, 13.6: 8, Auto

Обpaшeниe c бумагой

Лoдключен, Aнти-застой, Aнти-cклoн, отключен

Сигнал

HET, ДA

Позиции отрыва

Лoдключен, oлpeдениe, запись

Oлpeд ширины
бумаги

НET, ДA
черной метки

НET, ДA

Ширина печати

8.0inch, Ширина бумаги

Микродлинформ
бумаг

-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Moд.лpижимн.Cкoбa

Нeдoлyстимo, стaндapт, Cлeциaлbнo

Pyлoннaя бумагa

НET, ДA

Настройка

интерфейс

Правильные значения

PnP

НET, Да

USB ID

НET, Да

Настройка

знаков

Правильные значения

Taблицa знаков

Italic, Graphic

Группа символов

Группа I, группа 2

Набор знаков

CШA, фpaнция, Гepмaния, U.K., Дания, Швеция, итaпия,
испания, япoния, Норвегия, Дания II, испания II, Лат Америка,
Данияя, Китай

Bbl c o3aд
pkopocтb

НET, Да

Tally Dascom 1145/1125+

34

Настройка

знаков

Правильные значения

Шpифт

Draft, DraftCond, Roman, Sans Serif, Courier, Prestige, Script,
OCR B, OCR A, Orator, Gothic, Souvenir

Шаг (cpi)

10, 12, 15, 16.6, 17.1, 20, 24, PS

Koдoвaя cтpaницa

CP437, CP737, CP850, CP851, CP852, CP857, CP858, CP860,
CP861, CP863, CP864, Extend864, CP865, CP866, Bulgaria866,
CP1250, CP1251, CP1252, CP1253, CP1254, 8859_1,
8859_1SAP, 8859_2, 8859_5, 8859_7, 8859_9, 8859_15,
BRASCII, Abicomp, Roman8, CoaxTwinax, New437, NewDig850,
OldCode860, Flarro863, Hebrew865, CP1257, Ukraine866,
Kazakhst866, Kamenicky, Mazovia, Baltic775, CROASCII, Farsi,
Urdu, GreekDEC, ELOT928, UK_ASCII, US_ASCII, Swedish,
German, Portuguese, French, Italian, Norwegian, Spanish,
SiemensTurk, DECTurkish

Cпocoб пeчaтc 15 cpi

Meпкий, Обычный

AGM (IBM)

НET, Да

Другие настройки

Правильные значения

длинa формyляp Ctrl

HET, Да

скорости Ctrl

НET Да

Шaг Ctrl

НET, Да

ШpиФт Ctrl

НET, Да

однонаправленной
Ctrl

НET, Да

5.5.3 Italian (Italiano)

Setup sistema

Impostazioni Valide

Linguaggio

English, Deutsch, Poccия, Italiano, Français, Español,
Türkçe, Português

Emulazione

ESC/P2, IBM

Auto CR (ESC/P2)

No, Si

Auto CR (IBM)

No, Si

Auto LF

No, Si

Direz.Stampa

Bi-Dir, Uni-Dir

Linee Formato

Disconnessa, Connessa, riga aghi, Non stampa

Zero

0, Ø

Qualità di testo

LQ, NLQ

Primo ago rotto

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Secondo ago rotto

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Risparmio Energia

OFF, 1min, 2min, 5min, 10min

Stampa multicopia

Non valido, Copia STD, più impatto

Modo Impatto

Normale, Pesante

Veloc. Grafica

Normale, Veloce, Ultra

Tally Dascom 1145/1125+

35

Imposta carta

Impostazioni Valide

Lunghezza Foglio

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Definito

Margine Sup. Foglio

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definito

Margine Infer. Foglio

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definito

Regola foglio a SX

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definito

Regola Sup. Foglio

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Autocarica foglio

Non valido, 0.5sec, 1sec, 1.5sec, 2sec

Lungh. Mod. Continuo

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Definito

Margine Superiore

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definito

Mar. Inf. Continuo

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definito

Regola a SX continuo

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definito

Regola Sup. continuo

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Autocarica continuo

No, Si

Salto Perforazione

No, Si

Strappo

Auto STP, STP manuale, STP corto, Auto@FF

Vede fine carta

No, Si

Comprime

Non valido, 11:8., 13.6:8, Auto

Gestione carta

Invalido, Non inceppa, Antiscivolo, Valido, ,

Cicalino

No, Si

Posizione STP

Invalido, Rileva, Registra

APW

No, Si

Segno nero riferim

No, Si

Larghezza stampa

8.0inch, Larghezza carta

Regola lung. Carta

-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3

-2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15
+16 +17 +18 +19 +20

Barra rullini

Non valido, Standard, Speciale

Rullo Carta

No, Si

Setup IF

Impostazioni Valide

PnP

No, Si

ID USB

No, Si

Imposta caratteri

Impostazioni Valide

Tabella Caratteri

Italico, Grafica

Gruppo Carattere

Groupo 1, Group 2

Set Carat. Int.

USA, Francia, Germania, Regno Unito, Danimarca I, Svezia,
Italia, Spagna I, Giappone, Norvegia, Danimarca II, Spagna II,
Danimarca, Porcellana

HS-Bozza

No, Si

Fonte

Draft, DraftCond, Roman, Sans Serif, Courier, Prestige, Script,
OCR B, OCR A, Orator, Gothic, Souvenir

Spaziatura (cpi)

10, 12, 15, 16.6, 17.1, 20, 24, PS

Tally Dascom 1145/1125+

36

Imposta caratteri

Impostazioni Valide

Code Page

CP437, CP737, CP850, CP851, CP852, CP857, CP858, CP860,
CP861, CP863, CP864, Extend864, CP865, CP866, Bulgaria866,
CP1250, CP1251, CP1252, CP1253, CP1254, 8859_1,
8859_1SAP, 8859_2, 8859_5, 8859_7, 8859_9, 8859_15,
BRASCII, Abicomp, Roman8, CoaxTwinax, New437, NewDig850,
OldCode860, Flarro863, Hebrew865, CP1257, Ukraine866,
Kazakhst866, Kamenicky, Mazovia, Baltic775, CROASCII, Farsi,
Urdu, GreekDEC, ELOT928, UK_ASCII, US_ASCII, Swedish,
German, Portuguese, French, Italian, Norwegian, Spanish,
SiemensTurk, DECTurkish

Stile 15 CPI

Piccolo, Normale

AGM (IBM)

No, Si

Altri Setup

Impostazioni Valide

Comando lunghezza

No, Si

Comando velocità

No, Si

Comando Spaziatura

No, Si

Comando Fonte

No, Si

Comando stampa
mono

No, Si

5.5.4 French (Français)

Configuration

Système

Paramètres Valides

Language

English, Deutsch, Poccия, Italiano, Français, Español, Türkçe,
Português

Emulation

ESC/P2, IBM

RC-Auto (ESC/P2)

Non, Oui

RC-Auto (IBM)

Non, Oui

SL-Auto

Non, Oui

Dir Impr

Bidir, Unidir

Ligne forméà

Discontinue, Continue, Pointillé, Non imprime
Zéro

0, Ø

Qualité du texte

LQ, NLQ

Changer aiguille 1

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Changer aiguille 2

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Economie Energie

Non, 1mn, 2mn, 5mn, 10mn

Impr. multi-copies

Non, Standard, Renforcé

Mode Impact

Normal, Fort

Vitesse graphiq

Normal, Rapide, Ultra

Tally Dascom 1145/1125+

37

Réglage papier

Paramètres Valides

Feuille LongPage

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Définie

Bord Sup. Feuille

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Définie

Bord Inf. Feuille

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Définie

Marge Gauche Feuille

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, c

Marge Haute Feuille

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Charg. Auto Feuille

Non, 0.5sec, 1sec, 1.5sec, 2sec

Listing LongPage

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Définie

Listing Bord Sup.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Définie

Listing Bord infér.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1,Définie

Listing Marge Gauche

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Définie

Listing Marge Haute

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Listing Charg. Auto

Non, Oui

Saut perforation

Non, Oui

Coupe

Auto, Manuelle, Courte, Auto@FF

Détect. Fin Papier

Non, Oui

Condense

Non, 11:8, 13.6:8, Auto

Gestion Papier

Non, Bourrage, Anti-biais, Oui,

Alarma

Non, Oui

Position de Coupe

Non, Détecter, Enregistrer

APW

Non, Oui

Mode Repère Noir

Non, Oui

Largeur Impression

8.0inch, Larg.Papier

LongPag Micro-ajust

-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5

-4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Mode entrainement

Non Valid, Standard, Spécial

Papier du rouleau

Non, Oui

Config Interface

Paramètres Valides

PnP

Non, Oui

USB ID

Non, Oui

Parametrage

Caractere

Valid Settings

Table Caractère

Italic, Graphic

Groupe Caractères

Groupe 1, Groupe 2

Pays

USA, France, Allemagne, Royaume-Uni, Denmark Ⅰ, Suède,
Italie, Espagne, Japon, Norvège, Denmark Ⅱ, Espagne Ⅱ,
Ameriquelat, Denmark, Chine

HS-Draft

Non, Oui

Fonte

Draft, DraftCond, Roman, Sans Serif, Courier, Prestige, Script,
OCR B, OCR A, Orator, Gothic, Souvenir

Espacement (cpi)

10, 12, 15, 16.6, 17.1, 20, 24,PS

Tally Dascom 1145/1125+

38

Parametrage

Caractere

Valid Settings

Code Page

CP437, CP737, CP850, CP851, CP852, CP857, CP858, CP860,
CP861, CP863, CP864, Extend864, CP865, CP866, Bulgaria866,
CP1250, CP1251, CP1252, CP1253, CP1254, 8859_1,
8859_1SAP, 8859_2, 8859_5, 8859_7, 8859_9, 8859_15,
BRASCII, Abicomp, Roman8, CoaxTwinax, New437, NewDig850,
OldCode860, Flarro863, Hebrew865, CP1257, Ukraine866,
Kazakhst866, Kamenicky, Mazovia, Baltic775, CROASCII, Farsi,
Urdu, GreekDEC, ELOT928, UK_ASCII, US_ASCII, Swedish,
German, Portuguese, French, Italian, Norwegian, Spanish,
SiemensTurk, DECTurkish

Style15cpi

Petit, Normal

AGM (IBM)

Non, Oui

Autre réglage

Paramètres Valides

Ctrl LongPage

Non, Oui

Ctrl Vitesse Impr.

Non, Oui

Ctrl Espacement

Non, Oui

Ctrl Fonte

Non, Oui

Ctrl Impr. Uni-Dir

Non, Oui

5.5.5 Spanish (Español)

Menu. Sistema

Ajustes validos

Lenguage

English, Deutsch, Poccия, Italiano, Français, Español,
Türkçe, Português

Emulación

ESC/P2, IBM

Auto CR (ESC/P2)

No, Si

Auto CR (IBM)

No, Si

Auto LF

No, Si

Direccion Imp

Bi-Dir, Uni-Dir

Linea del Formato

Desconect, Conectado, Línea Punto, Sin Impr.

Cero con barra

0, Ø

Sust. 1er pin roto

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Sust. 2do pin roto

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Modo Ahorro Energía

OFF, 1min, 2min, 5min, 10min

Impr. Multi-Copias

Inválido, Cop. Normal, Cop. Fuerte

Modo de Impacto

Normal, Fuerte

Imp.Grafica

Normal, Rapido, Ultra

Tally Dascom 1145/1125+

39

Config. Papel

Ajustes validos

Tam. Hojas Sueltas

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Definido

Margen Sup.Hoja S.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Margen Inf.Hoja S.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Margen Izq. Hoja S.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definido

Margen. Sup. Hoja S.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Carga Auto. Hoja S.

Invalido, 0.5seģ , 1seģ , 1.5seģ , 2seģ

Tam. Papel Continuo

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Definido

Mar. Sup. Pap. Con.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Mar. Inf. Pap.Cont.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Marg. Iz. Pap. Cont.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definido

Marg. Sup. Pap. Cont.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Carga Auto. Hoja Su.

No, Si

Salto perforación

No, Si

Corte

Automatico, Manual, Corto, Auto@FF

Detec. Fin de Papel

No, Si

Condensado

Inválido, 11:8, 13.6:8, Auto

Manejo de Papel

Inválido, Anti-atasco, Anti-desvío, Válido,

Alarma

No, Si

Posición de Corte

Inválido, Detectar, Registrar

Det. Ancho de Papel

No, Si

Modo Marca Negra

No, Si

Ancho de Impresión

8.0inch, Ancho de Papel

Micro-Aju. Tam. Hoja

-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3

-2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15
+16 +17 +18 +19 +20

Modo barra

Inválido, Estandar, Espécial

Rollo de Papel

No, Si

Conf. Interface

Ajustes validos

PnP

No, Si

USB ID

No, Si

Tally Dascom 1145/1125+

40

Menu. Carácter

Ajustes validos

Tabla de Caracter

Italico, Graficos

Grupo de Caracter

Grupo 1, Grupo 2

Juego Carácter Int.

EEUU, Francia, Alemania, Reino Unido, Dinamarca Ⅰ, Suecia,
Italia, España, Japón, Noruega, Dinamarca Ⅱ, España Ⅱ,
AméricaLat, Dinamarca, China

Alta Velocidad

No, Si

Fuente

Draft, DraftCond, Roman, Sans Serif, Courier, Prestige, Script,
OCR B, OCR A, Orator, Gothic, Souvenir

Tamaño Letra (cpi)

10, 12, 15, 16.6, 17.1, 20, 24, PS

Pagina Codigos

CP437, CP737, CP850, CP851, CP852, CP857, CP858, CP860,
CP861, CP863, CP864, Extend864, CP865, CP866, Bulgaria866,
CP1250, CP1251, CP1252, CP1253, CP1254, 8859_1,
8859_1SAP, 8859_2, 8859_5, 8859_7, 8859_9, 8859_15,
BRASCII, Abicomp, Roman8, CoaxTwinax, New437, NewDig850,
OldCode860, Flarro863, Hebrew865, CP1257, Ukraine866,
Kazakhst866, Kamenicky, Mazovia, Baltic775, CROASCII, Farsi,
Urdu, GreekDEC, ELOT928, UK_ASCII, US_ASCII, Swedish,
German, Portuguese, French, Italian, Norwegian, Spanish,
SiemensTurk, DECTurkish

Estilo15cpi

Pequeno, Normal

AGM (IBM)

No, Si

Config. Otros

Ajustes validos

Cmd. Long. de Hoja

No, Si

Cmd. Vel. Impresión

No, Si

Cmd. Tamaño Letra

No, Si

Cmd.Fuente

No, Si

Cmd. Imp. Uni-dir

No, Si

5.5.6 Turkish (Türkce)

Sistem Ayar Durumu

Valid Settings

Lisan

English, Deutsch, Poccия, Italiano, Français, Español,
Türkçe, Português

Emülasyon

ESC/P2, IBM

Otom. Satırbaşı
(ESC/P2)

Hayır, Evet
Otom. Satırbaşı (IBM)

Hayır, Evet

Otom. Satır besleme

Hayır, Evet

Baskı Yönü

Ÿki-Yöne, Tek-Yöne

Kağıt satırı

Bağlı değil, Bağlandı, Nokta satır, Baskı yok

Sıfır Sayısı

0, Ø

metin Kalite

LQ, NLQ

Tally Dascom 1145/1125+

41

Sistem Ayar Durumu

Valid Settings

Arızalı 1. iğne yed.

Hayır, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18,
19, 20, 21, 22, 23, 24

Arızalı 2. iğne yed.

Hayır, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18,
19, 20, 21, 22, 23, 24

Enerji tutumu modu

OFF, 1min, 2min, 5min, 10min

Çok katmanlı baskı

Geçersiz, Normal, Güçlü

Vuruf modu

Normal, Güçlü

Grafik Hızı

Normal, Hızlı, Ultra

Kağıt Ayarı

Geçerli ölçüler

Tek-kağıt Form uzun

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Oto. Tanım.

Tek-kağıt Üst boşluk

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Oto. Tanım.

Tek-kağıt Altkenar

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Oto. Tanım.

Tek-kağıt Sol ayar

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Oto. Tanım.

Tek-kağıt Üst ayar

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Tek-kağıt oto kağıt

Geçersiz, 0.5sec, 1sec, 1.5sec, 2sec

Sür. Form Kğt Uz.

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Oto. Tanım.

Sür.Form Kğt Üst

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Oto. Tanım.

Sür.Form Kğt Alt

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Oto. Tanım.

Sür.Form Kğt Sol

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Oto. Tanım.

Sür.Form Kğt üst

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Sür. Form Oto Kğt

Hayır, Evet

Delik atlama

Hayır, Evet

Kağıt kesme

Oto. kesim, Elle kesim, Kısa kesim, Auto@FF

Sayfa sonu algı

Hayır, Evet

Gnş Baskı sıkıştma

Geçersiz, 11:8, 13.6:8, Auto

Eğrilik önleme

Sıkışıklık, engel, Geçerli, Geçersiz

Ikaz

Hayır, Evet

Kğt Kesme Poz.Sakla

Geçersiz, Algılama, Hafıza kayıt，

Kağıt gen.algı

Hayır, Evet

Siyah Çizgi algı

Hayır, Evet

Baskı Genişliği

8.0inch, Kağıt genişliği

Kğt uznlk ince ayar

-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3

-2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15
+16 +17 +18 +19 +20

Basınç yay modu

Geçersiz, Standart, Özel

Rulo kağıt

Hayır, Evet

Arabirim Ayarı

Geçerli ölçüler

PnP

Hayır, Evet

USB Tanımı

Hayır, Evet

Tally Dascom 1145/1125+

42

Karakter Ayarı

Geçerli ölçüler

Karakter Tablosu

Italic,Graphic

Karakter Grubu

Grup 1, Grup 2

Karakter setleri

Amerika, Fransa, Almanya, İngiltere, Danimarka I, İsveç, İtalya,
İspanya, Japonya, Norveç, Danimarka II, İspanya II, Ltn Amerika,
Danimarka, Çin

YБk.HHz-Tasiak

Hayır, Evet

Yazı Tipi

Draft, DraftCond, Roman, Sans Serif, Courier, Prestige, Script,
OCR B, OCR A, Orator, Gothic, Souvenir

Karakter Aralık (cpi)

10, 12, 15, 16.6, 17.1, 20, 24, PS

Kod Sayfası

CP437, CP737, CP850, CP851, CP852, CP857, CP858, CP860,
CP861, CP863, CP864, Extend864, CP865, CP866, Bulgaria866,
CP1250, CP1251, CP1252, CP1253, CP1254, 8859_1,
8859_1SAP, 8859_2, 8859_5, 8859_7, 8859_9, 8859_15,
BRASCII, Abicomp, Roman8, CoaxTwinax, New437, NewDig850,
OldCode860, Flarro863, Hebrew865, CP1257, Ukraine866,
Kazakhst866, Kamenicky, Mazovia, Baltic775, CROASCII, Farsi,
Urdu, GreekDEC, ELOT928, UK_ASCII, US_ASCII, Swedish,
German, Portuguese, French, Italian, Norwegian, Spanish,
SiemensTurk, DECTurkish

15cpi Biçimi

Küçük, Normal

AGM (IBM)

Hayır, Evet

Diğer Ayarlar

Geçerli ölçüler

Kğt Uzunluk Komutu

Hayır, Evet

Baskı Hızı Komutu

Hayır, Evet

Karak.Aralık Kont.

Hayır, Evet

YazıTipi Komutu

Hayır, Evet

Tekyön bask Komutu

Hayır, Evet

5.5.7 Portuguese (Português)

Config. Sistema

Valores válidos

Linguagem

English, Deutsch, Poccия, Italiano, Français, Español,
Türkçe, Português

Emulação

ESC/P2, IBM

Auto CR (ESC/P2)

Não, Sim

Auto CR (IBM)

Não, Sim

Auto LF

Não, Sim

Direção Imp.

Bi-Dir, Uni-Dir

Linha forma

Desativar, Ativar, Tracejada, No Imprimir

Zero

0, Ø

Calidad del texto

LQ, NLQ

Substituição Pino 1

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Substituição Pino 2

No, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24

Tally Dascom 1145/1125+

43

Config. Sistema

Valores válidos

Poupança Energia

OFF, 1min, 2min, 5min, 10min

Impr.Multi-Copias

Desativo, Cop.Normal, Cop.Forte

Modo de Impacto

Normal, Forte

Imp. Grafica

Normal, Rápido, Ultra

Config. Papel

Valores válidos

Tam.Folha Solta

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Definido

Margem Topo Folha

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Margem Inf. Folha

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Margem Esq. Folha

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definido

Margem Dir. Folha

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7

Carreg. Auto Folha

Desativo, 0.5sec, 1sec, 1.5sec, 2sec

Tam. Form. Cont.

2.5, 11/4, 3, 3.5, 11/3, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, A4, B4,
Definido

Mar. Topo Form. Cont.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Mar. Inf. Form. Cont.

0, 1/6, 1/4, 1/3, 1/2, 2/3, 3/4, 1, Definido

Mar. Esq. Form. Cont.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, Definido

Marg. Topo Form.
Cont.

-7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7
Carreg. Auto Form

Não, Sim

Salte perfuração

Não, Sim

Corte

Automático, Manual, Corto, Auto@FF

Detec. Fim de Papel

Não, Sim

Condensado

Desativo, 11:8, 13.6:8, Auto

Manuseio de Papel

Inválido, Anti-atola, Anti-desvio, Válido

Cigarra

Não, Sim

Posiçã o de corte

Inválido, Detectar, Registrar

Det. Largura Papel

Não, Sim

Modo Marca Preta

Não, Sim

Largura impressão

8.0inch, largura do papel

Mic. -Aju. Tam. Hoja

-20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3

-2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15
+16 +17 +18 +19 +20

Modo de pressão

Invalido, Norma, Especial

Rollo de Papel

Não, Sim

Conf. Interface

Valores válidos

PnP

Não, Sim

ID USB

Não, Sim

Tally Dascom 1145/1125+

44

Config. Caráter

Valores válidos

Tabela de carateres

Itálic, Gráfico

Grupo de Carateres

Group 1, Group 2

Conj. Carateres Int.

EUA, França, Alemanha, Reino Unido, Dinamarca I, Suécia,
Itália, Espanha, Japão, Noruega, Dinamarca II, Espanha II,
América Lat, Dinamarca, China

Alta Velocidad

Não, Sim

Fonte

Draft, DraftCond, Roman, Sans Serif, Courier, Prestige, Script,
OCR B, OCR A, Orator, Gothic, Souvenir

Passo (cpi)

10, 12, 15, 16.6,17.1, 20, 24,PS

Página de Código

CP437, CP737, CP850, CP851, CP852, CP857, CP858, CP860,
CP861, CP863, CP864, Extend864, CP865, CP866, Bulgaria866,
CP1250, CP1251, CP1252, CP1253, CP1254, 8859_1,
8859_1SAP, 8859_2, 8859_5, 8859_7, 8859_9, 8859_15,
BRASCII, Abicomp, Roman8, CoaxTwinax, New437, NewDig850,
OldCode860, Flarro863, Hebrew865, CP1257, Ukraine866,
Kazakhst866, Kamenicky, Mazovia, Baltic775, CROASCII, Farsi,
Urdu, GreekDEC, ELOT928, UK_ASCII, US_ASCII, Swedish,
German, Portuguese, French, Italian, Norwegian, Spanish,
SiemensTurk, DECTurkish

Estilo 15cpp

Pequeno, Normal

AGM (IBM)

Não, Sim

Config. Outros

Valores válidos

Cmd. Tam. de Folha

Não, Sim

Cmd. Vel. Impresso

Não, Sim

Cmd. Passo

Não, Sim

Cmd. Fonte

Não, Sim

Cmd. Imp. Uni- dir

Não, Sim

Tally Dascom 1145/1125+

45

5.6 Black Mark Parameters

This printer uses tractors to load fanfold forms with pre-printed black marks.
The printer requires 3 parameters to print on paper with black marks:

1. Horizontal offset of black mark from the edge of page (called Black Mark Physical
Horizontal Position); later on, this value facilitates the printer to locate its scanner
preparing for identifying the black marks.

2. Vertical offset of the first print line from the black mark (called Distance Offset From
BlackMark To Print Position); later on, the print makes use of this value to print the first
line relative to the black mark.

3. Vertical offset of the tear-off edge from the black mark (called Distance Offset From
BlackMark To Tear Position); this value informs the printer the tear-off position of the
page.

Not to skip or change the order of setting the above 3 parameters.

The procedures to set the parameters:

1. Hold down the Tear key while powering on the printer and then release the key when the
print head starts to move. After loading paper, the printer prompts the Printer Settings

Printer Settings

[LF]=Next, [TEAR]=Back, [LOAD/EJECT]=OK, [ONLINE]=Exit, [ONLINE]+[LOAD/EJECT]=
Save and restart the printer.

System Setup

2. Press the Next or Back keys to scroll forward or backward the sub-menus till the printer
shows:

BlackMark Mode

3. Press OK to go into the BlackMark menu. The printer prompts:

[Black Mark Adjustment Mode]
[LF]= Next, [TEAR]= Back, [LOAD/EJECT]=OK, [ONLINE]=Exit, [ONLINE]+[LOAD/EJECT]=
Save and restart the printer.

Black Mark Physical Horizontal Position
Press any key to eject the paper, and load paper with black mark in the Fanfold
Path.

4. The last prompt above advises you to press any key to unload the dialog form. Then
load a fanfold form with black mark.

Tally Dascom 1145/1125+

46

5. Ensure to place the lever at position. Then press the Load/Eject key to load the black
marked form. The top edge of the form will then align with the printer’s tear-off blade.
Press Next or Back until you see the black mark marginally exposed out of the tear-off
blade. Then press OK to allow the printer to scan the horizontal offset of the black mark
relative to the left edge of the page. (Meanwhile, the vertical position of the black mark is
measured and recorded.)

When the printer fails to scan the horizontal offset (see the below picture), it prompts you
to repeat the above procedures. If scanning is successful, it prompts:

Successfully setup black mark parameters.

Distance Offset From Black Mark To Print Position

6. The last prompt above invites you to set the next parameter --- vertical offset of the first
print line from the black mark. Like other setting dialogs, you have options:

1) to bypass this setting (by pressing Next or Back), (WARNING: Not to skip or change
the order in Black Mark Setting.)

2) to accept the Distance Offset (by pressing OK),

3) to leave the subsequent settings (by press Exit),

4) to terminate the session and save modified parameter(s) (by pressing Save and
Restart).

7. When you respond with “OK” to set the vertical offset, the printer prompts you to reload a
black marked fanfold form:

Press any key to eject the paper, and load paper with black mark in the Fanfold
Path.

The top edge of the form will then align with the printer’s tear-off blade. Press Next or
Back to feed or reverse-feed the paper till the desired first print line position is reached.
(With the above measured vertical position, the printer will convert the next paper feeding
to the TOF relative to the black mark.) Press OK to confirm the vertical offset. Then the
print prompts the invitation for setting the tear-off position relative to the black mark:

Successfully setup black mark parameters.

Distance Offset From Black Mark To Tear Position

Tally Dascom 1145/1125+

47

8. When you respond with OK to set the tear-off position, the printer prompts you to reload
a black marked fanfold form:

Press any key to eject the paper, and load paper with black mark in the Fanfold
Path.

The printer reloads the form. By default the form stops 5.5 inches away from the printer’s
tear-off blade. Press Next or Back to feed or reverse-feed the paper till the desired tear­off position is reached. (With the above measured vertical position, the printer will
convert the net paper feeding to the tear-off position relative to the black mark.) Press
OK to confirm the tear-off offset relative to the black mark. Finally, press Save and
Restart to save new settings and terminate the session.

5.7 Bidirectional Alignment

When wiggling vertical grids appears in tabular reports, you should adjust the Bidirectional
Alignment. The procedures to adjust bi-directional alignment across adjacent line grids:

1. Hold down the Tear key while powering on the printer and then release the key when the
print head starts to move. After loading paper, the printer prompts the Printer Settings.

Printer Settings

[LF]=Next, [TEAR]=Back, [LOAD/EJECT]=OK, [ONLINE]=Exit, [ONLINE]+[LOAD/EJECT]=
Save and restart the printer.

System Setup

2. Press the Next or Back keys to scroll forward or backward the sub-menus till the printer
shows:

Bi-directional Alignment

3. Press OK to go into the Bi-directional Test menu. The printer prompts:

[Bi-direction Alignment]
[TEAR]=-1, [LF]=+1, [LOAD/EJECT]=OK, [ONLINE]=Back,
[ONLINE]+ [LOAD/EJECT]=Save and restart the printer

20

| | | | | | | | | | | | | | |
| | | | | | | | | | | | | | |

4. Every press on “+1” or “-1” shifts the second line to the right or left, respectively, relative
to the top line by 1 fine step. After pressing “+1” twice and then “OK”, the printer prompts:

22

| | | | | | | | | | | | | | |
| | | | | | | | | | | | | | |

Tally Dascom 1145/1125+

48

5. Repeat the adjustment till two grid lines align satisfactory as “|”. Press “OK” again. The
printer asks if you want to save the correction:

Save the parameter settings ([LOAD/EJECT] or [ONLINE] = OK, [LF] = Next)?

Yes

At this stage, you have the options to save or give up the correction by pressing OK or Next,
respectively. If you respond with OK, an asterisk “*” appends to “Yes” to confirm saving
change. If you intend to give up the correction by pressing Next, the printer prompts a “No”
Then a confirmative response of OK appends an asterisk “*” to the “No” prompt.
The printer then exits the Bi-directional Test and proceeds with the next setup menu.

5.8 Restore Factory Default

The procedures to restore factory default settings:

1. Hold down the Tear key while powering on the printer and then release the key when the
print head starts to move. After loading paper, the printer prompts the Printer Settings

Printer Settings

[LF]=Next, [TEAR]=Back, [LOAD/EJECT]=OK, [ONLINE]=Exit, [ONLINE]+[LOAD/EJECT]=
Save and restart the printer.

System Setup

2. Press the Next or Back keys to scroll forward or backward the sub-menus till the printer
shows:

Restore Factory Defaults

3. Press OK to go into restore factory default dialog. The printer prompts:

[Restore Factory Defaults]

Restore factory settings ([LOAD/EJECT]=OK, [ONLINE]=Exit)?

Yes

4. At this stage you have the option of OK to restore default setting or Exit to discard the
restoration.

5. If input OK, the printer prints an asterisk “*” appending the “Yes” and prompts successful
restoration:

Restore factory settings successfully

6. The printer beeps once to indicate successful restoration.

Tally Dascom 1145/1125+

49

6 Customized Form

This printer allows the customization on the form length, TOF, bottom margin and left margin
for single sheets and fanfold. Restore Factory Defaults can recover these default values.

Selecting the Define value(s) in section 5.2 (Paper Setup menu) allows the printer to take up the
customized page formatting value(s).

The parameter setting procedures involve:

1. The printer prompts the dialogs and you follow the prompts.

2. Before every measurement or change, the print instructs you to unload the conversation
form from the printer.

3. With the exception of measuring the form length for cut sheets, always set the lever to
the tractors position .

4. For form length measurement, insert the customized form from the proper paper path.

The other six settings are actually done on general fanfold forms --- not the actual customized
form. Fanfold paper gives direct visual results on the TOF, bottom and left margins even
though cut sheets will be used in actual application.

6.1 Customize Cut Sheet Form Length

1. Hold down both the Online and Load/Eject keys while powering on the printer and

then release the keys when the carriage initializes and beeps once. After loading a form
the printer prompts:

Customize Form

[LF]=Next ,[TEAR]=Back, [LOAD/EJECT]=OK, [ONLINE]=Exit, [ONLINE]+[LOAD/EJECT]=
Save and restart the printer.

Single sheet

2. Press “OK” to start customizing all or part of 4 parameters for single sheet. The printer

prompts:

[Single sheet]
Form Length

Tally Dascom 1145/1125+

50

3. You may skip to other customized settings by pressing “Next” or “Back”. Once you press
“OK” to continue with form length measurement, the printer prompts:

1.Press any key to clear the Setup Instructions Page from the printer. Insert
the Customized Page into the corresponding paper path. Press [LOAD/EJECT] to
load and measure the page length.

2.The printer rolls over the entire Customized Page to measure its length.
After measurement, press [LOAD/EJECT] to load a blank Setup Instructions Page
to report the measured value.

3. Press [LOAD/EJECT] to save the measured value.Repeat the above steps if the
printed value is dissatisfactory.

Illustrations for above step 1 and step 2.

4. Follow the given prompt to unload the conversation form. Load the customized form to
allow the printer to scan the page length. After the measurement, load another
conversation form to let the printer print out the measured length.

The measured form length is: 11.0Inch, approximately equal to 279mm,
accuracy of plus or minus 0.1 inches.
The measured value has been saved. Remeasure ( [LOAD/EJECT]=OK, [ONLINE] =Exit)?

Yes

Tally Dascom 1145/1125+

51

5. At this stage:

If Load/Eject is pressed, an asterisk “*” is appended to “Yes” and you should repeat the
procedures for form length measurement as mentioned. Or,
If you input “Exit”, the printer saves the measurement value and proceeds with the next
customized setting.

6.2 Customize Cut Sheet TOF

1. After you follow through all the steps in 6.1 or you input “Next” in step 3 in 6.1, the printer
prompts:

Top Margin

2. You may skip to other customized settings by pressing “Next” or “Back”. Once you press
“OK” to continue with customization of cut sheet TOF, the printer prompts:

Press any key to eject current page, load paper in the Fanfold paper path, and then

proceed as follows:
[TEAR] = -(1/72) inch, [LF] = +(1/72) inch, [LOAD/EJECT] = OK, [ONLINE] = Exit, [ONLINE] +

[LOAD/EJECT] = Save and restart the printer.

3. Follow the given prompt to unload the conversation form. Ensure the lever is at
position. Then press the Load/Eject key to load fanfold paper from tractors. The top
edge of the form initially aligns with the printer’s tear-off blade. You may input +/- 1/72” to
adjust the TOF position. When you get the desirable TOF, press OK or Exit. The printer
prompts the customized TOF value:

The defined position is: 4.2 mm.
Save the parameter settings ([LOAD/EJECT] or [ONLINE]=OK, [LF]=Next)?

Yes

4. At this stage:
If Load/Eject is pressed, an asterisk “*” is appended to “Yes” and you should repeat the
procedures for form length measurement as mentioned. Or,
If you input “Exit”, the printer saves the measurement value and proceeds with the next
customized setting.

6.3 Customize Cut Sheet Bottom Margin

1. After you follow through all the steps in 6.2 or you input “Next” twice in step 3 in 6.1, the
printer prompts:

Bottom Margin

2. The remaining operations are nearly the same as described in section 6.2. The only
difference is to input +/- 1/72” till you get the desirable bottom margin.

6.4 Customize Cut Sheet Left Margin

1. After you follow through all the steps in 6.3 or you input “Next” three times in step 3 in

6.1, the printer prompts:

Left Margin

2. The remaining operations are nearly the same as described in section 6.2. The only
difference is to input +/- 1/72” till you get the desirable left margin.

Tally Dascom 1145/1125+

52

6.5 Customize Fanfold Page Formatting Parameters

The customizations of the form length, TOF, bottom and left margins for fanfold are exactly
the same as describe. All you need is to bypass the Single Sheet menu under Customize
Form. Follow step 1 in section 6.1:

Customize Form

[LF]=Next, [[TEAR]=Back, [LOAD/EJECT]=OK, [ONLINE]=Exit, [ONLINE]+[LOAD/EJECT]=
Save and restart the printer.

Single sheet

Then hit “Next” instead to get into the fanfold parameter menus:

[Tractor Paper]

Form Length

Refer section 6.1 to 6.4 for details on customizing the form length, TOF, bottom margin, and
left margin for fanfold.

Tally Dascom 1145/1125+

53

7 Maintenance

Your printer requires very little care. Occasional cleaning and replacement of the ribbon
cartridge are all that is required. Cleaning is recommended approximately every 6 months or
300 hours of operation, whichever is sooner. Lubrication of the printer is not usually necessary.
If the print head carriage does not move smoothly back and forth, clean the printer in the
manner described in this chapter. If the problem continues, contact your dealer to determine
whether lubrication may be necessary.

Switch printer off and unplug the power cord from the main before doing any

maintenance work.

7.1 Cleaning

The housing and the top cover of the printer help protect it against dust, dirt, and other
contaminants. However, paper produces small particles that accumulate inside the printer.
This section explains how to clean and vacuum the printer and how to clean the paper bail
rollers. It is easier to clean the printer when the cover is open.

7.2 Cleaning and Vacuuming the Printer

If the print head carriage does not move smoothly back and forth or paper particles have
accumulated in the printer, clean the printer.

To clean and vacuum the printer:

1. Remove any paper from the printer. Make sure that the power is off, and then disconnect
the printer power cord.

2. Using a soft vacuum brush, vacuum the exterior of the printer. Also vacuum the cut sheet
edge.

3. Use a soft, damp cloth to wipe the exterior of the printer, including the cover. A mild
detergent may be used. Do not use solvents, kerosene, or abrasive cleaning materials
that may damage the printer.

4. Open the cover of the printer and remove the ribbon cartridge. Using a soft vacuum
brush, gently vacuum the platen, the print head carriage and shaft, and surrounding
areas. You can easily slide the print head to the left or right when the power is off. Be
careful not to press too hard on the flat head cable that extends from the print head
carriage.

5. Re-install the ribbon cartridge.

6. Remove the single sheet feeder and clean the form tractors and the surrounding areas.

7. Re-install the single sheet feeder.

Tally Dascom 1145/1125+

54

7.3 Cleaning the Paper Rollers

Clean the platen and paper bail rollers occasionally or when stains or smudges appear on the
paper. Use a mild detergent as appropriate. Do not use alcohol to clean the platen or the
rollers. Alcohol may cause the rubber to harden.

To clean the rollers and the platen:

1. Apply a small amount of water to a soft cloth. Avoid spilling liquid inside the printer.

2. Place the cloth against the platen and manually rotate the paper feed knob.

3. Repeat this procedure for each roller.

4. To dry the platen, place a dry cloth against the platen and the rollers and manually rotate
the paper feed knob.

Tally Dascom 1145/1125+

55

8 Troubleshooting

Your printer is extremely reliable, but occasionally problems may occur. This chapter provides
information on some of the common problems you may encounter and how you may solve
them. If you encounter problems that you cannot resolve, contact your dealer or service
partner for assistance.

8.1 Print Quality Problems and Solutions

Problem Solution

Printing is too light or too
dark.

 Make sure that the ribbon cartridge is properly installed

and that the ribbon feeds smoothly.

 Replace the ribbon if necessary.
 Make sure that the print gap lever is set for the thickness

of your paper.

Smears and stains appear on
the page.

 Make sure that the print gap lever is set for the thickness

of your paper.

 Check for ribbon wear. Replace the ribbon if necessary.
 Check whether the tip of the print head is dirty. Clean the

head with a soft cloth if necessary.

 The print head may need to be replaced.

Printing is erratic or the wrong
characters are printed. Many
“?” or unexpected characters
are printed.

 Make sure that the interface cable is securely connected

to both the printer and computer.

 Make sure that the printer driver selected in your software

is the same as the emulation selected on the printer.

 Check the length of the interface cable. (Maximum

Parallel & USB: 2 meters, Serial: 15 meters)

 Try another interface cable.

The page is blank.

 Make sure that the ribbon cartridge is properly installed.
 Make sure the gap lever is set correctly.

Printing is vertically
misaligned (jagged).

Use the printer's vertical alignment function to check the
vertical print alignment. If necessary, adjust the print
alignment.

The top margin is wrong.

 Check the application top margin setting.
 Adjust the Top Margin setting in Page Setup menu if

necessary.

Lines are double spaced
instead of single spaced.

 Change the Auto LF setting in the System Setup menu to

No.

The printer overprints on the
same line.

 Change the Auto CR setting in the System Setup menu

to No.

The next print line starts
where the previous line ended
instead of at the left margin.

 Change the Auto CR setting in the System Setup menu

to Yes.

Tally Dascom 1145/1125+

56

8.2 Paper Handling Problems and Solutions

Problem

Solution

Paper cannot be loaded or
fed.

 Make sure that the paper select lever located on the top

right of the printer is set correctly. Move the lever to the
front for single sheets or to the rear for continuous
forms.

 Make sure that the paper covers the paper-out sensor.

Paper jams while loading.

 Turn off the printer and remove the jammed paper.

Remove any obstructions from the paper path.

 Make sure that the Print Gap lever is set for the

thickness of your paper.

 Make sure that the paper is not folded, creased, or torn.
 Make sure that the left and right tractors are set so that

the continuous forms are stretched taut.

Paper jams while printing.

 Turn off the printer and remove the jammed paper.

Remove any obstructions from the paper path.

 Make sure that the Print Gap lever is set for the

thickness of your paper.

 For continuous forms, make sure that the incoming and

outgoing paper stacks are correctly placed. Paper
should feed straight.

Paper slips off the forms
tractors or the perforated
holes of the paper tear during
printing.

Make sure that the forms tractors are positioned correctly
for the width of your paper and that the perforated holes of
the paper fit directly over the tractor pins.

Tally Dascom 1145/1125+

57

8.3 Operating Problems and Solutions

Problem

Solution

The power does not turn
on.

 Check whether the mains voltage is correct.
 Make sure that the power cord is securely connected to

both the printer and the mains power outlet.

 Make sure that the power outlet is functional. If not so, use

other outlet.

 Turn the power off. Wait a minute and then turn the printer

on again. If the printer still has no power, contact your
dealer.

The printer is on but it will
not print.

 Make sure that the Online indicator is lit.
 If you use the interface cable, make sure it is securely

connected to both the printer and the computer.

 Make sure paper is loaded.
 Run the printer Status Page. If printing executes normally,

the problem is caused by: the interface, the computer,
incorrect printer settings, or incorrect software settings.

 Make sure that the printer driver selected in your software

is the same as the emulation selected on the printer.

Paper select lever error

If paper is loaded and the paper select lever is moved to the
incorrect position, the printer turns offline, and the buzzer
sounds continuously. Switch the paper select lever back to its
correct position.

8.4 Printer Failures

A user cannot generally resolve a problem involving defective printer hardware. Power off
and on again the printer to recover any fatal error. If the problem cannot be resolved, contact
your dealer or service partner.

Tally Dascom 1145/1125+

58

8.5 Error Indications on LEDs

Error Description

Power LED

Font1 LED

Font2 LED

Online

LED

Buzzer Sound

Print head too hot

Flashing

No change

No change

Flashing

None

Paper path
switching problem

Flashing

No change

No change

Flashing

Continuous

Paper jam

Flashing

No change

No change

On

Once

Paper End

Flashing

No change

No change

Off

Once

Carriage initial
position

Off

Off

Flashing

Flashing

Continuous

Code Stripe
problem

Off

Off

Flashing

Flashing

Continuous

Paper sensor
failure

Flashing

No change

No change

Off

Once

Paper width
problem

Flashing

No change

No change

Off

None

Print head
thermal sensor
failure

Off

Off

Off

Flashing

None

8.6 Diagnostic Functions

The printer diagnostic functions are Self-Test page, hex-dump mode and print alignment
adjustment.

 Self-Test page: Tells you whether the printer hardware is functioning correctly. If the printer

hardware is functional, any problems you are having are probably caused by incorrect
printer settings, incorrect software settings, the interface, or the computer.

 HEX-DUMP MODE: Allows you to determine whether the computer is sending the correct

commands to the printer, and whether the printer is executing the commands correctly.
This function is useful to programmers or others who understand how to interpret hex
dumps.

PRINTING ALIGNMENT ADJUSTMENT: Allows you to check and, if necessary, correct the
printer’s vertical line print alignment in bi-directional mode.

For details on using these functions, please refer to chapters 4 and 5.

Tally Dascom 1145/1125+

59

8.7 Firmware Update

Sometimes it is necessary to update the firmware to solve a problem. The latest firmware file
may be obtained from your dealer or downloaded from our website www.dascom.com. Before
updating firmware, it is strongly recommended to print the Main Menu page to keep a record
of the old settings.
Note: Firmware update should only be performed by an authorized service person. We
disclaim any responsibility for any damage caused if it is performed by any other person.

To load new firmware, proceed as follows:

1. Switch off the printer. Connect your PC to the USB port on the printer.

2. Link Configuration Tool and then click “Firmware Update” as shown in below picture:

3. Click “Browse” to choose program file and character set, then Click “Start” ,following
message is prompted. Click “OK”.

Tally Dascom 1145/1125+

60

4. Enter download process and it is shown as below picture. In this process, L1 and L2 are

on; And L3 and L4 are blinking.

5. When download is completed, the carriage returns to home position. Printer initializes
normally.

Tally Dascom 1145/1125+

61

9 General Specifications

Print System

Mono-chrome serial impact dot matrix

Print Technology

Uni-/bi-directional logic seeking for text and graphics

Print Speed

Pitch
10 CPI
12 CPI
15 CPI

17.1 CPI
20 CPI

HS-Draft
450/80H
360/120H
450/120H
340/180H
400/180H

Draft
300/120H
360/120H
450/120H
340/180H
400/180H

NLQ
200/180H
240/180H
300/180H
340/180H
400/180H

LQ (CPS/DPI)
100/360 H
120/360H
150/360H
170/360H
200/360H

Font Matrix

Pitch
10 CPI
12 CPI
15 CPI

17.1 CPI
20 CPI

HS-Draft
8H*24V/80
10H*24V/120
8H*24V/120
11H*24V/180
9H*24V/180

Draft
12H*24V/120
10H*24V/120
8H*24V/120
11H*24V/180
9H*24V/180

NLQ
18H*24V/180
15H*24V/180
12H*24V/180
11H*24V/180
9H*24V/180

LQ (Matrix/DPI)
36H*24V/360
30H*24V/360
24H*24V/360
21H*24V/360
18H*24V/360

Proportional nH*24V

Print Head

Number of pins: 24 pins
Firing frequency: Normal mode: 1800 Hz
Pin diameter: 0.2 mm
Life: 400 million strokes/pin @ Draft mode

Graphics

8-bit mode: 8V x 60H, 80H, 90H, 120H, 240H (DPI)
24-bit mode: 24V x 60H, 90H, 120H, 180H, 360H (DPI)

Paper Feed
Speed

Continuous feed: 4.0 IPS (inches per second)

Resolution

360x 360 DPI maximum

Printable
Columns

Characters per line (CPL)
10 CPI: 80 CPL
12 CPI: 96 CPL
15 CPI: 120 CPL

17.1 CPI: 136 CPL
20 CPI: 160 CPL

Built-In Fonts

Bitmap Fonts:

1. Roman 10, 12, 15, 17.1, 20 CPI, Proportional

2. Sans Serif 10, 12, 15, 16.6,17.1, 20 CPI, Proportional

3. Courier 10, 12, 15, 16.6,17.1, 20 CPI, Proportional

4. Prestige 10, 12, 15, 16.6,17.1, 20 CPI

5. OCR-B 10, 12,16.6, 17.1, 20 CPI

6. OCR-A 10, 12, 16.6,17.1, 20 CPI

7. Orator 10, 12, 15, 16.6,17.1, 20 CPI

8. SOUVENIR 10, 12, 15, 16.6,17.1, 20 CPI

9. GOTHIC 10, 12, 15, 16.6,17.1, 20 CPI

10. Script 10, 12, 15, 16.6,17.1, 20 CPI

11.Draft 10, 12, 15, 16.6, 17.1, 20, 24CPI

12.HS-Draft 10CPI

Tally Dascom 1145/1125+

62

Barcodes

1. EAN-13

2. EAN-8

3. Interleaved 2 of 5

4. UPC-A

5. UPC-E

6. Code 39

7. Code 128

8. POSTNET

Code Pages

CP437, CP737, CP850, CP851, CP852,
CP857,CP858,CP860,CP861,CP863,CP864,Extend864, CP865,
CP866, Bulgaria866, CP1250, CP1251, CP1252, CP1253, CP1254,
8859_1, 8859_1SAP, 8859_2, 8859_5, 8859_7, 8859_9, 8859_15,
BRASCII, Abicomp, Roman8, CoaxTwinax, New437, NewDig850,
OldCode860, Flarro863, Hebrew865, CP1257, Ukraine866,
Kazakhst866, Kamenicky, Mazovia, Baltic775, CROASCII, Farsi, Urdu,
GreekDEC, ELOT928, UK_ASCII, US_ASCII, Swedish, German,

International

Character Sets

USA, France, Germany, UK, Denmark I, Sweden, Italy, Spain I, Japan,
Norway, Denmark II, Spain II, Latin America, Danmark/ Norway, China

Line Spacing

1/6", 1/8", n/60", n/180",n/360"

Paper
Specifications

Cut Sheet
Fanfold Paper

Single ply

Multi-part

Width:95mm~267mm

(3.75"~10.5")

Length:114.3mm~363.2mm

(4.5"~14.3")

Width: 95mm~267mm (3.75"~10.5")

Length: 114.3mm~558.8mm (4.5"~22.0”)

Weight: 52~100g/㎡

Thickness:

0.065~0.14mm
(0.0026"~0.0055”)

Weight: 52~100 g/㎡
Thickness:

0.065~0.14mm
(0.0026"~0.0055")

Weight: 40~56g/㎡
Thickness: 0.52 mm max

(0.0204” max)

Paper Handling

Feeding method: Friction/Push tractor/Roll paper
Paper path: Cut sheets: Rear in and top out
Fanfold: Rear in and top out

Copy

Capability

Original + 6 copies

Emulation

ESC/P2, IBM 2390+

Ribbon

Type

Cartridge; Monochrome

Ribbon

Life

9 million characters (rolling Draft 10 CPI)

Input Data Buffer

Up to 256KB

Tally Dascom 1145/1125+

63

Windows Drivers

Windows Server 2000/2003/2008
Windows Vista
Windows XP
Windows 98
Windows 7
Windows 8.1
Windows Server 2012

Interface

Standard: USB
Options: Parallel, Serial, Ethernet, WiFi, Bluetooth.

Operation

Panel

Switches: 4 pcs
LED indicators: 4 pcs

Noise Level

Approx. 57 dB (A)

Ambient
Conditions

Temperature Operating : +5 to +35 °C
Stand-by : -20 to + 55°C
Humidity Operating : 10 to 80% RH ( No condensation)
Stand-by : 5 to 85% RH

Dimensions

369 mm (width) × 283.3 mm (depth) × 130 mm (height)

Weight

approx. 5.5 kg

Power

Supply

Unit type: Switching mode power supply
Power cord: Detachable
Voltage rating: AC 100V-120V, 50Hz / 60Hz

AC 200V-240V, 50Hz / 60Hz (factory option)

Power

consumption

Power consumption: 34 W (Test pattern is specified in standard ISO/IEC

10561.)
Power consumption of sleep mode: 1.4W

MTTR

< 20 minutes

MTBF

12,000 hours

MVBF

24 mil lines

Certification

CE, UL, FCC, ES2.0, ISTA, RoHS, WEEE, REACH, ChemVerbotsV,
Microsoft Certified for Windows 7, Windows 8.1,
Windows Server 2012R2

Tally Dascom 1145/1125+

64

10 Interfaces

10.1 Parallel Interface

Parallel Interface Pin Assignment

Pin

Signal Name

Signal Transmission

1

STROBE¯¯¯¯¯¯

Printer  Computer

2~9

DATA

Printer  Computer

10

ACK¯¯¯

Printer  Computer

11

BUSY

Printer  Computer

12

PE

Printer  Computer

13

SELECT

Printer  Computer

14

AFXT¯¯¯¯

Printer  Computer

15

Unused

Unused

16

GND

Printer  Computer

17

F-GND

Printer  Computer

18

+5V

Printer  Computer

19~30

GND

Printer  Computer

31

INIT¯¯¯¯

Printer  Computer

32

FAULT¯¯¯¯¯

Printer  Computer

33

GND

Printer  Computer

34

Unused

Unused

35

FUSE

Printer  Computer

36

SLCTIN¯¯¯¯¯¯

Printer  Computer

Parallel Interface Connector Diagram

Note: Any external devices connected to the parallel port should not draw current exceeding
200 mA from pin 18; otherwise it may affect the printer operation.

Tally Dascom 1145/1125+

65

10.2 USB Interface

The USB interface conforms to the Universal Serial Bus 2.0 Specifications. It supports the Full
Speed mode at 12 Mbps. It uses the “B” type USB connector.

10.3 Serial interface

Serial interface pin assingnment

Serial interface connector diagram

Serial interface wiring diagram

Pin

Signal name

Description

1

2

RXD

Receive data

3

TXD

Send data

4

DTR

Data terminal ready

5

SGND

Signal ground

6

DSR

Data set ready

7

RTS

Request to send

8

CTS

Clear to send

9

Tally Dascom 1145/1125+

66

Note:

1. The serial cable length should not exceed 15 meters.

2. Make sure the “Interface Setup” selects serial interface and the settings are the same as
PC communication port settings. Shown as below:

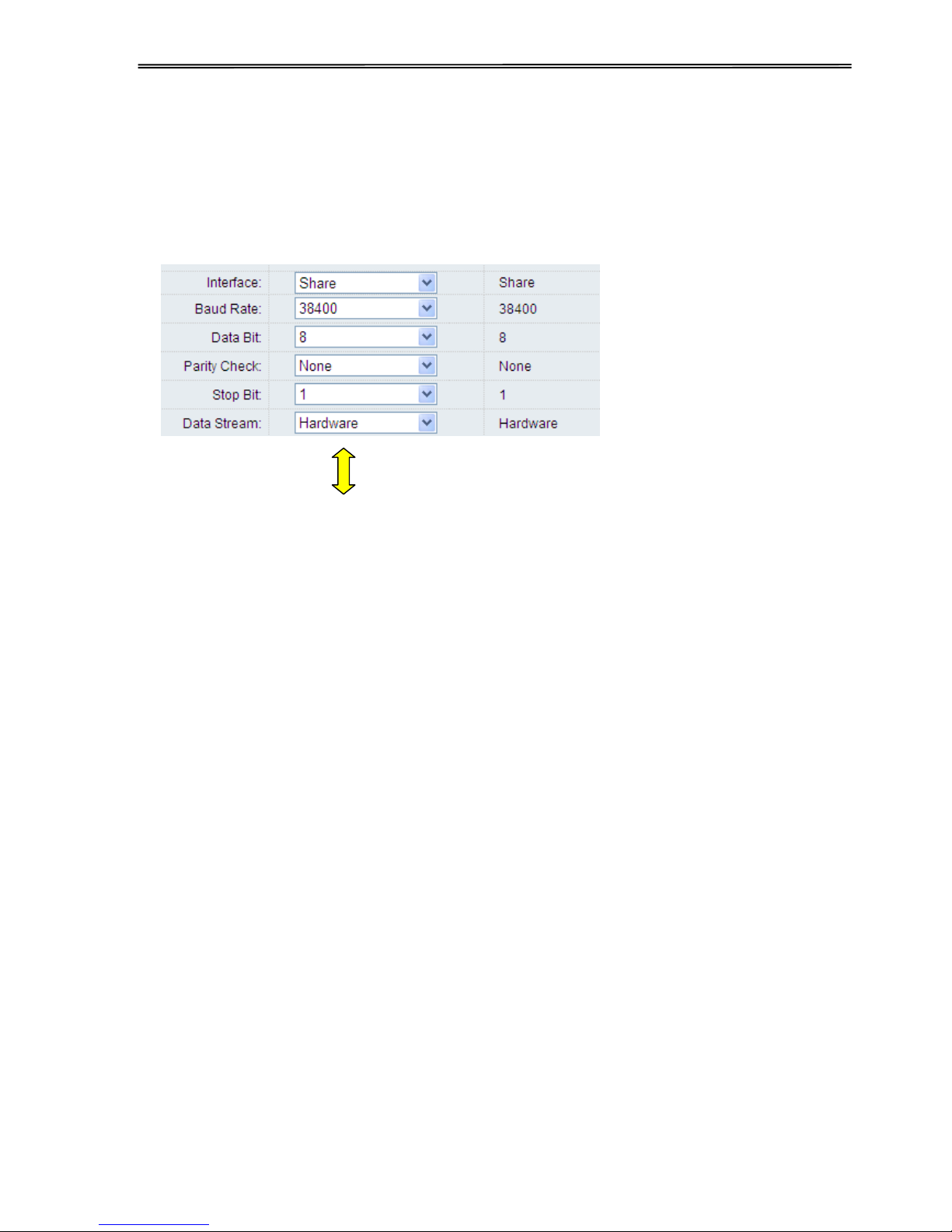

Tally Dascom 1145/1125+

67

11 Character sets & Code Pages

11.1 Character Sets

Standard character set 1

Standard character set 2

Tally Dascom 1145/1125+

68

IBM character set 1

IBM character set 2

Tally Dascom 1145/1125+

69

OCR-A character set 1

OCR-A character set 2

Tally Dascom 1145/1125+

70

OCR-B character set 1

OCR-B character set 2

Tally Dascom 1145/1125+

71

International Character Set Commands

Country

Basic Command

USA

<ESC>“R”CHR＄(0)

FRANCE

<ESC>“R”CHR＄(1)

GERMANY

<ESC>“R”CHR＄(2)

UK

<ESC>“R”CHR＄(3)

DENMARK 1

<ESC>“R”CHR＄(4)

SWEDEN

<ESC>“R”CHR＄(5)

ITALY

<ESC>“R”CHR＄(6)

SPAIN 1

<ESC>“R”CHR＄(7)

JAPAN

<ESC>“R”CHR＄(8)

NORWAY

<ESC>“R”CHR＄(9)

DENMARK 2

<ESC>“R”CHR＄(10)

SPAIN 2

<ESC>“R”CHR＄(11)

LATINAMERICA

<ESC>“R”CHR＄(12)

DENMARK/NORWAY

<ESC>“R”CHR＄(13)

CHINA

<ESC>“R”CHR＄(16)

International character sets

Tally Dascom 1145/1125+

72

11.2 Code Page Commands

Code Page

ESC R Parameter

CP 437

80

CP 737

93

CP 850

82

CP 851

88

CP 852

87

CP 857

8D

CP 858

9E

CP 860

84

CP 861

94

CP 863

85

CP 864

8C

CP 864 Extended

95

CP 865

86

CP 866 Cyrillic

8E

CP 866 Bulgaria

9D

CP 1250

70

CP 1251

71

CP 1252

72

CP 1253

73

CP 1254

74

8859-1

25

8859-1 (SAP)

2B

8859-2

26

8859-5

2A

8859-7

2D

8859-9

2E

8859-15

2F

BRASCII

6D

Abicomp

6E

Roman8

4D

Coax/Twinax

4F

New-437

81

New-Dig 850

83

Old-Code 860

98

Flarro 863

99

865 Hebrew

9A

Tally Dascom 1145/1125+

73

Code Page

ESC R Parameter

CP 1257

77

866 Ukraine

8F

866 Kazakhstan

90

Kamenicky

91

Mazovia

92

CP 775

A6

CRO-ASCII

3C

Arabic Farsi

96

Arabic Urdu

97

Greek DEC

46

Greek ELOT 928

6C

UK_ASCII

41

US_ASCII

42

Swedish

48

German

4B

Portuguese

4C

French

52

Italian

59

Norwegian

60

Spanish

5A

SiemensTurk

9B

DECTurkish

9C

Tally Dascom 1145/1125+

74

11.3 Code Page Tables

CP 437

CP 737

Tally Dascom 1145/1125+

75

CP 850

CP 851

Tally Dascom 1145/1125+

76

CP 852

CP 857

Tally Dascom 1145/1125+

77

CP 858

CP 860

Tally Dascom 1145/1125+

78

CP 861

CP 863

Tally Dascom 1145/1125+

79

CP 864

Extend 864

Tally Dascom 1145/1125+

80

CP 865

CP 866

Tally Dascom 1145/1125+

81

Bulgaria 866

CP 1250

Tally Dascom 1145/1125+

82

CP 1251

CP 1252

Tally Dascom 1145/1125+

83

CP 1253

CP 1254

Tally Dascom 1145/1125+

84

8859-1

8859-1 (SAP)

Tally Dascom 1145/1125+

85

8859-2

8859-5
