Tally T8024 User Manual

User guide

T8024

Color Laser Printer

TrueType font, AppleTalk, MacOS, Macintosh and EtherTalk are trademarks of Apple Computer, Inc.,

registered in the U.S. and other countries.

NetWare is a register ed trademark of Novell, Inc., in the United States and other countries.

Microsoft, MS-DOS, Windows, and Windows NT are either registered tradema rks or trademarks of

Microsoft Corporation in the United States and/or other countries.

This software is based in part on the work of the Independent JPEG Group.

This product incorporates RSA

®

BSAFE™ Crypto-C from RSA Security Inc. RSA is a registered

trademark of RSA Security Inc. BSAFE is a registered trademark of RSA Security Inc. in the United States

and/or other countries. RSA Security Inc. All rights reserved.

All product/brand names are trademarks or registered trademarks of the respective holders.

Important

This manual is copyrighted with all rights reserved. Under the copyright laws, this manual may not
be copied or modified in whole or part, without the written consent of Tally.

Parts of this manual are subject to change without prior notice.
We welcome any comments on ambiguities, errors, omissions, or missing pages.
Never attempt any procedure on the machine that is not specifically descri bed in this manual.

Unauthorized operation can cause faults or accidents. Tally is not liab le for any problem s resulting
from unauthorized operation of the equipment.

Preface

Thank you for choosing the T8024.
This is a guide on operating the T8024 and the important points to note. To understand the
features fully and to use the machine correctly a nd effectively, please read this guide before
using it.
Keep this guide handy for use as a quick reference on using the machine.
This guide is written for users who are familiar with the personal computers, operating
systems, and software compatible with this printer. For operational procedures and
information regarding these items, refer to the documentation provided with the various
hardware and software that you are using.

It may be a legal offence to print currency notes, certificates of stocks and securities, or any other
documents of similar nature, regardless of whether they will be used.

This equipment conforms to the guidelines of the Japan Business Machine Makers Association on the
harmonic effects by copiers and other reproduction devices. These guidelines conf orm to the guides on
the harmonic suppressors of electronic appliances and general-purpose machines.

In this manual, safety instructions are preceded by the symbol . Always read and follow the
instructions before performing the required procedures.

This equipment is certified as a Class 1 laser product under IEC60825. This means that the machine
does not emit hazardous laser radiation. Since radiation emitted inside the machine is completely
confined within the protective housings and external covers, the laser beam cannot escape from the
machine during any phase of user operation.

As a member of the International Energy Star Program, Tally co nfirms this product satisfies

the requirements for International Energy Star Program standards.

i

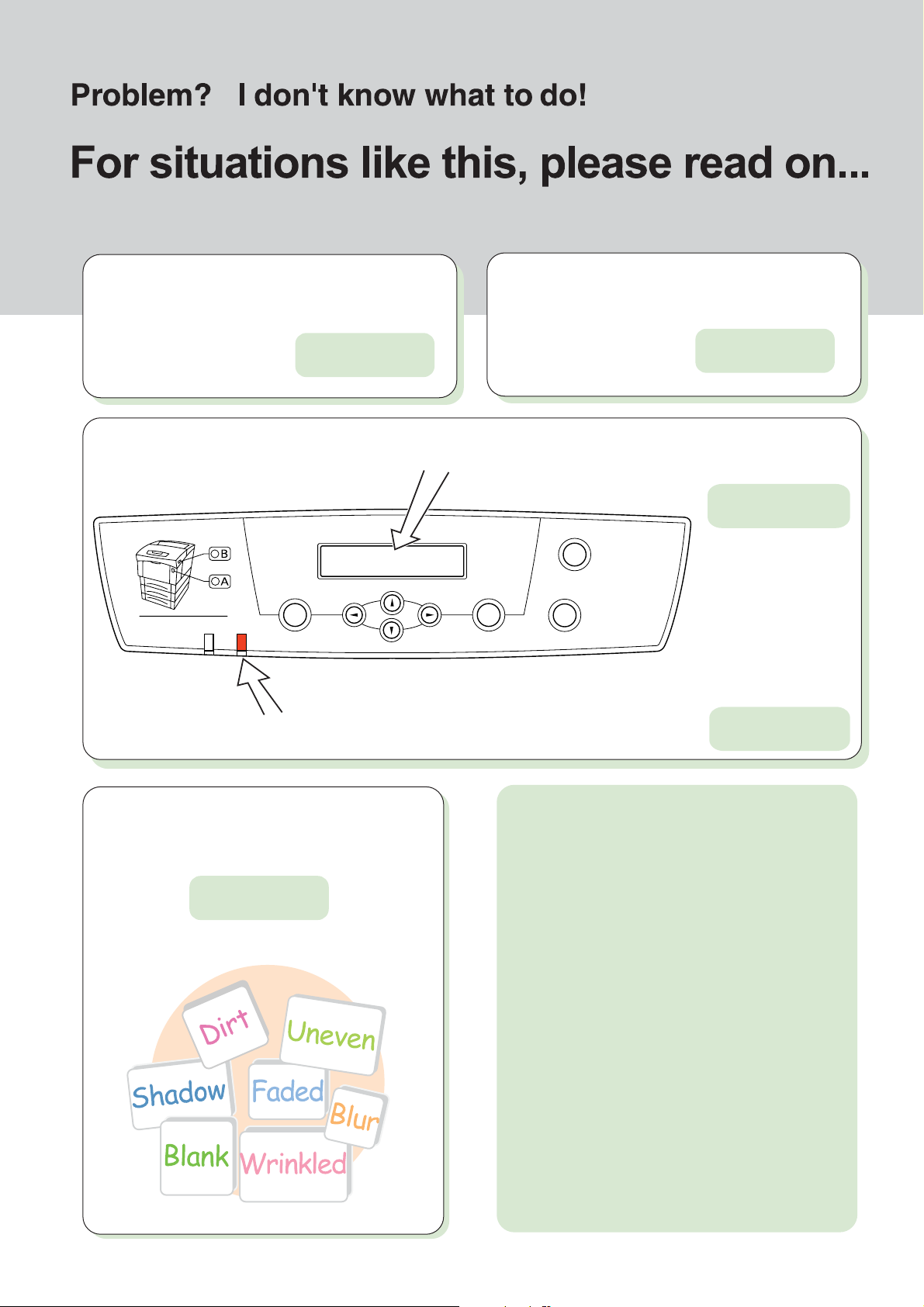

For situations like this, please read on...

Cannot switch on the
printer.

P. 132

The printer does not
print.

P. 133

An error message appears on the operation panel.

P. 152

Front Door Release Button

Menu

Ready Error

Eject

Set

The Error indicator is on or blinking.

Power saver

Cancel

Back

P. 160

ii

Print quality is not good.

P. 139

Problem!

If you are unable to
rectify problems
with the
recommended
remedies, contact
your service
technician or
dealer.

I want to stop printing:

P. 76

I want to know how to set paper and print:

Envelopes

Transparencies

P. 80

P. 82

Two-sided
printing

P. 88

A paper jam message
appears on the control
panel:

Feed Jam
Check Tray

P. 172

Duplex Jam
Open Cover B

P. 178

I want to replace
consumables:

Toner cartridge

Drum cartridge

Transfer roller

Custom-size paper

P. 85

Two-sided printing
on specialty paper

P. 90

P. 182

P. 186

P. 191

Feed Jam
Check Tray

P. 173

Regi. Jam
Open Cover A

Fuser Jam
Open Cover A & B

P. 175

Feed Jam
Check Tray

P. 179

iii

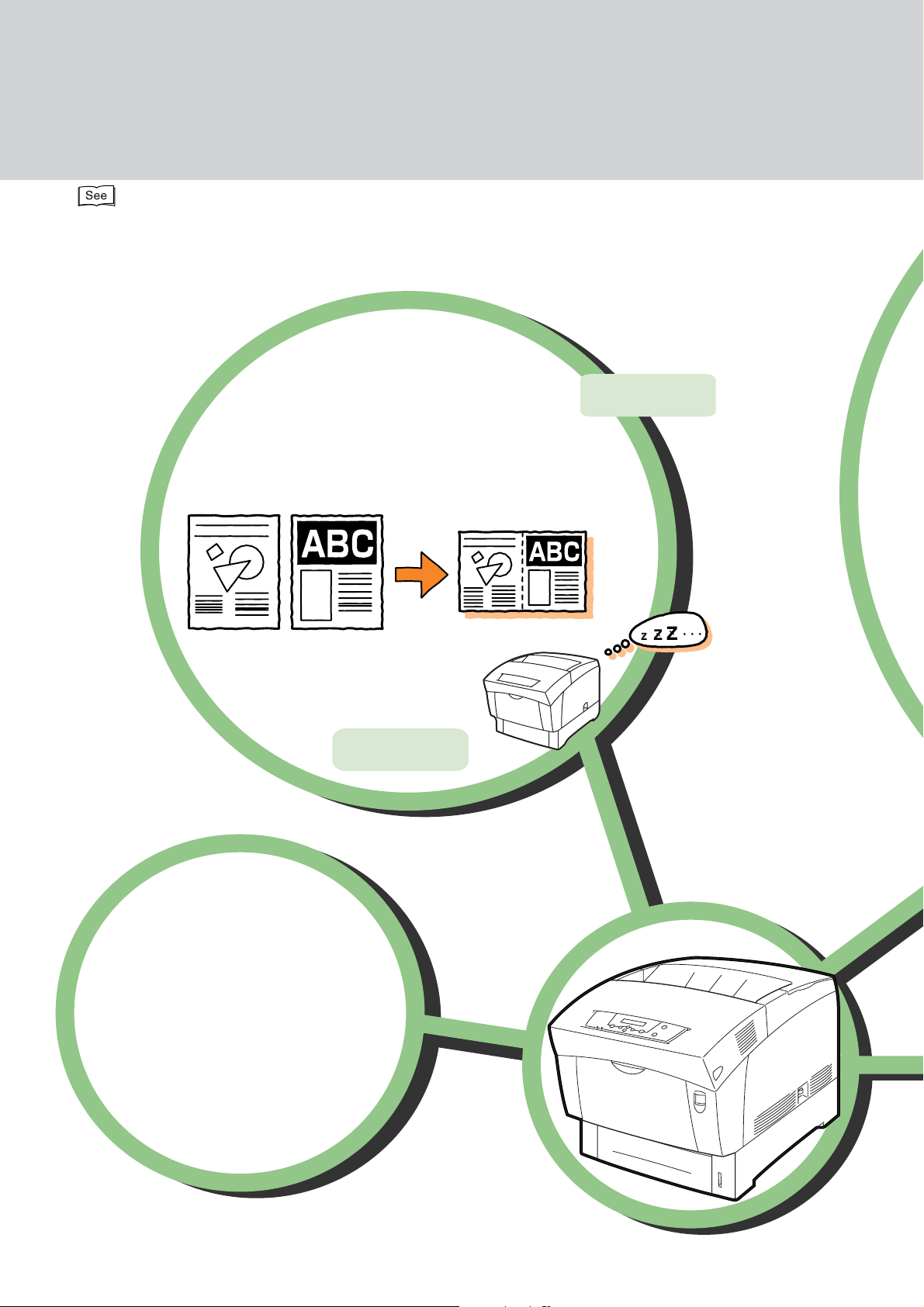

You can do the following with your

Using the printer efficiently!

You can do the following with y our printer:

Help keywords are used in Windows. For information about the contents of
Help and how to use it, refer to "3.4 Using Online Help".

Economizing

Using the printer efficiently!

of the paper

You can do the follo wing with your printer:

Print on both sides

Help keywords are used in Windows. For information about the contents of
Help and how to use it, refer to "3.4 Using Online Help".

Printing multiple pages on a
single page

Economizing

Print on both sides
of the paper

Printing multiple pages on a
single page

Setting the power
saver mode

Keyword:
2 sided Print

Keyword:
Multi-Up

Help

Setting the power
saver mode

P. 117

P. 117

Adjusting colors

Setting different image
quality levels to suit
your needs

Adjusting tones and
image quality

Adjusting colors

Setting different image
quality levels to suit

Keyword:
2 sided Print

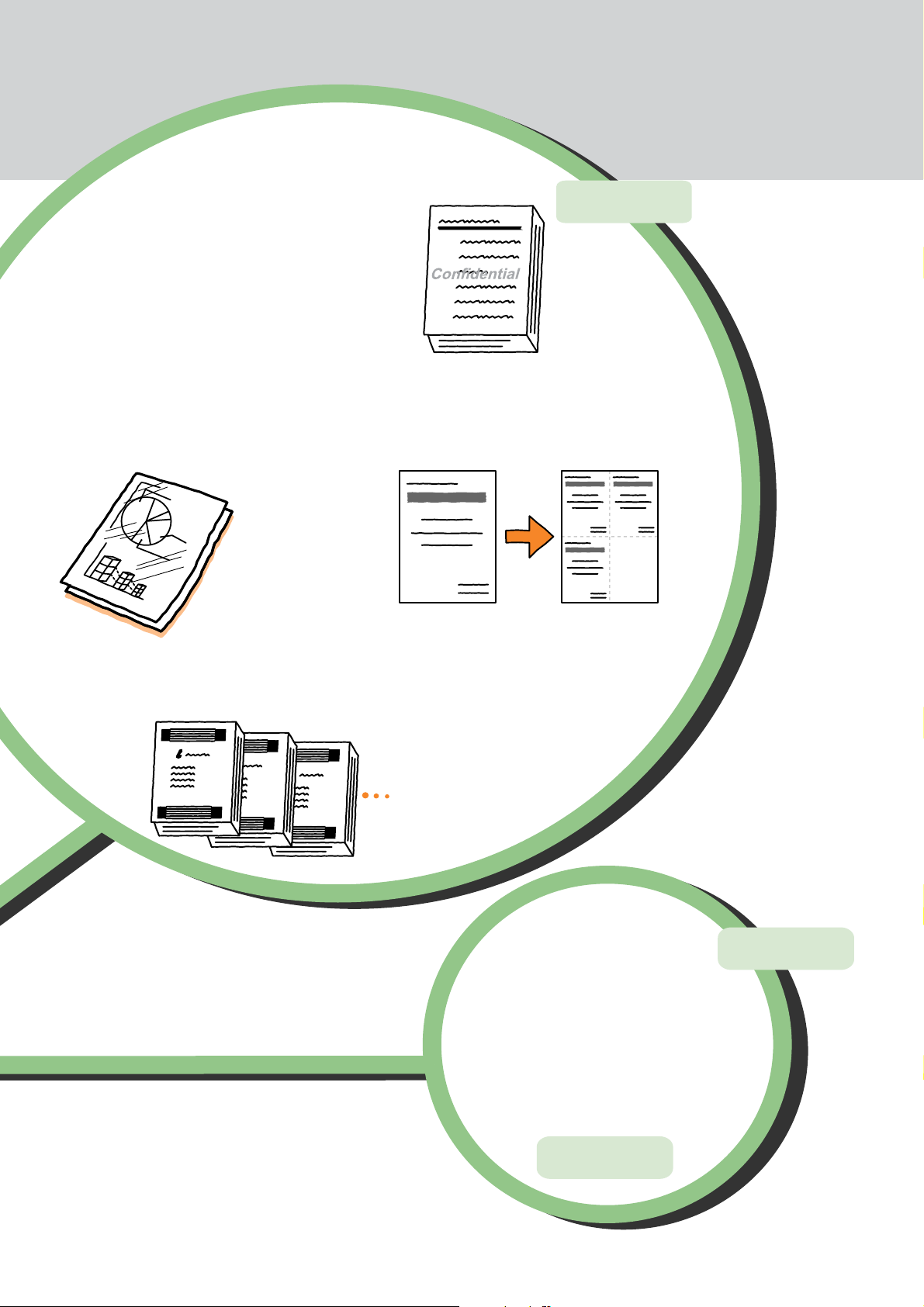

Printing a stamp such as the
word ''Confidential'' as a
background to the main

Keyword:

printed text

Keyword: Printing a Watermark

Multi-Up

Printing on paper inserted
between transparency
sheets
(Transparency Separators)

Printing with banner sheets to separate print jobs

Help

Printing With V arious Functions

Help

Printing a single document
several times on the same
page (Image Repeat)

Keyword:
Transparency

Ms A

Separators

Mr B

Ms C

Keyword:
Using Image Repeat to Print a Job

Keyword:
Placing Banner Sheets
Between Jobs

Managing the printer

Managing the printer
from a computer

Printer operational settings
Managing job logs
Printing reports

P. 194

P. 199

iv

your needs

Adjusting tones and
image quality

Printing With V arious Functions

Printing a stamp such as the
word ''Confidential'' as a
background to the main
printed text

Keyword: Printing a Watermark

Printing on paper inserted
between transparency
sheets
(Transparency Separators)

Keyword:
Transparency
Separators

Help

Printing a single document
several times on the same
page (Image Repeat)

Keyword:
Using Image Repeat to Print a Job

Printing with banner sheets to separate print jobs

Ms A

Mr B

Ms C

Keyword:
Placing Banner Sheets
Between Jobs

Managing the printer

Managing the printer
from a computer

Printer operational settings
Managing job logs
Printing reports

P. 199

P. 194

v

Table of Contents

◆ Preface

◆ For situations like this, please read on...

◆ You can do the following with your printer:

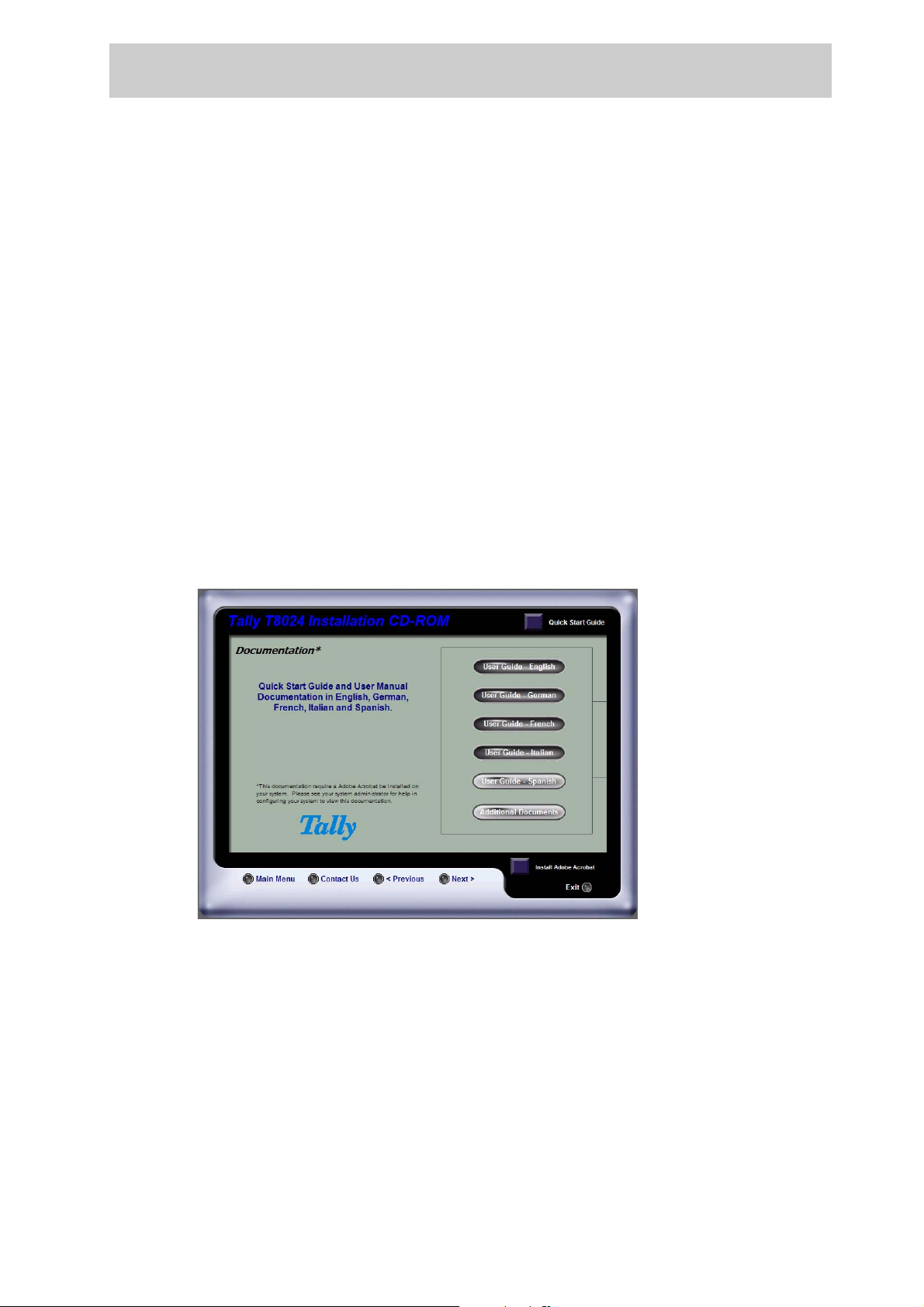

◆ Type of Manuals

◆ Using This Guide

Organization
Conventions

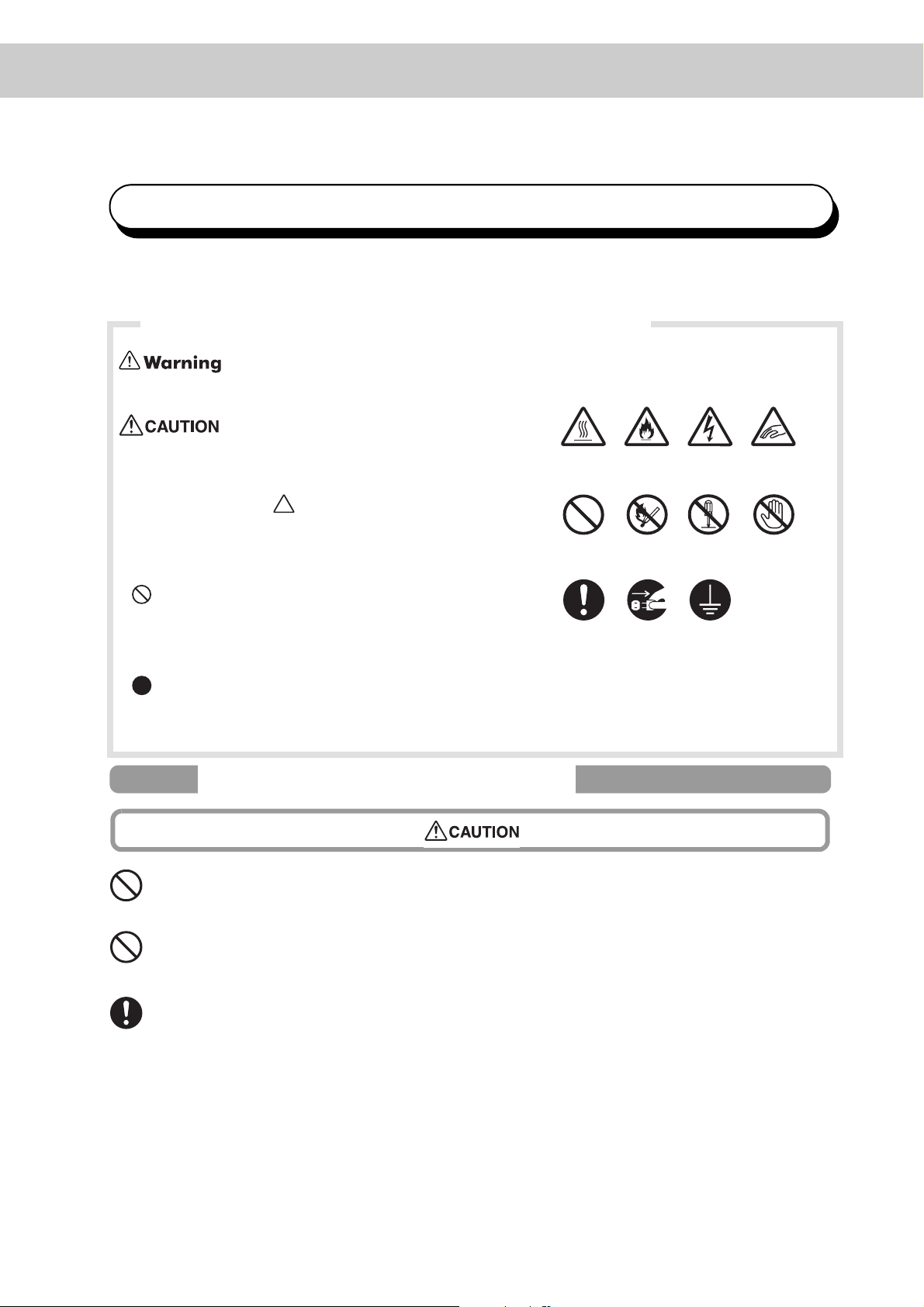

◆ Safety Notes

◆ The Objective of the International Energy Star Program

Chapter 1 Printer System Se tti ngs

1.1 Adjusting Color Registration............................................................................................2

1.2 Configuring the Printer.....................................................................................................5

1.2.1 Compatible Systems.........................................................................................5

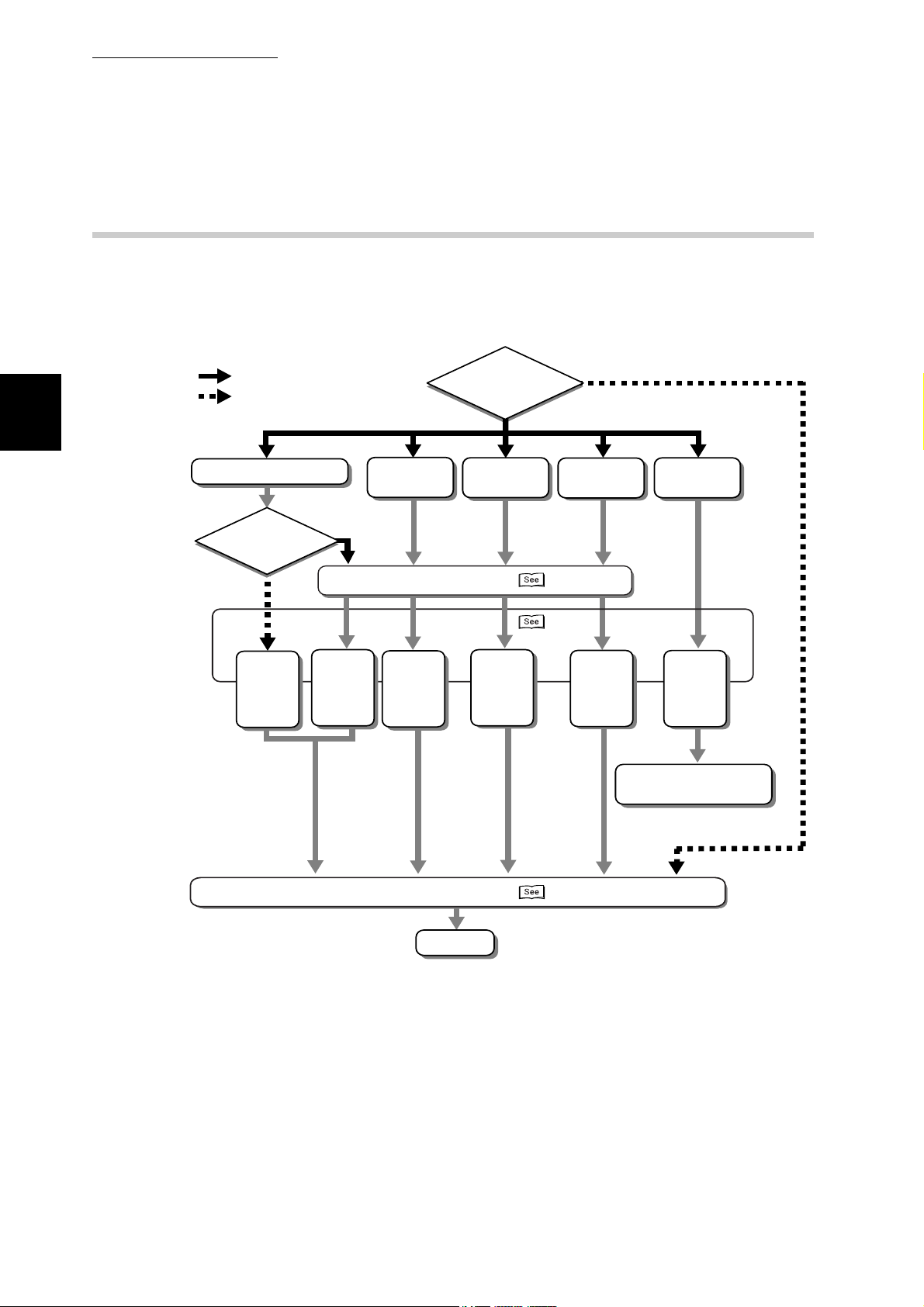

1.2.2 Printer Configuration Flow...............................................................................10

1.2.3 Setting the IP Address....................................................................................12

1.2.4 Setting the Protocols.......................................................................................16

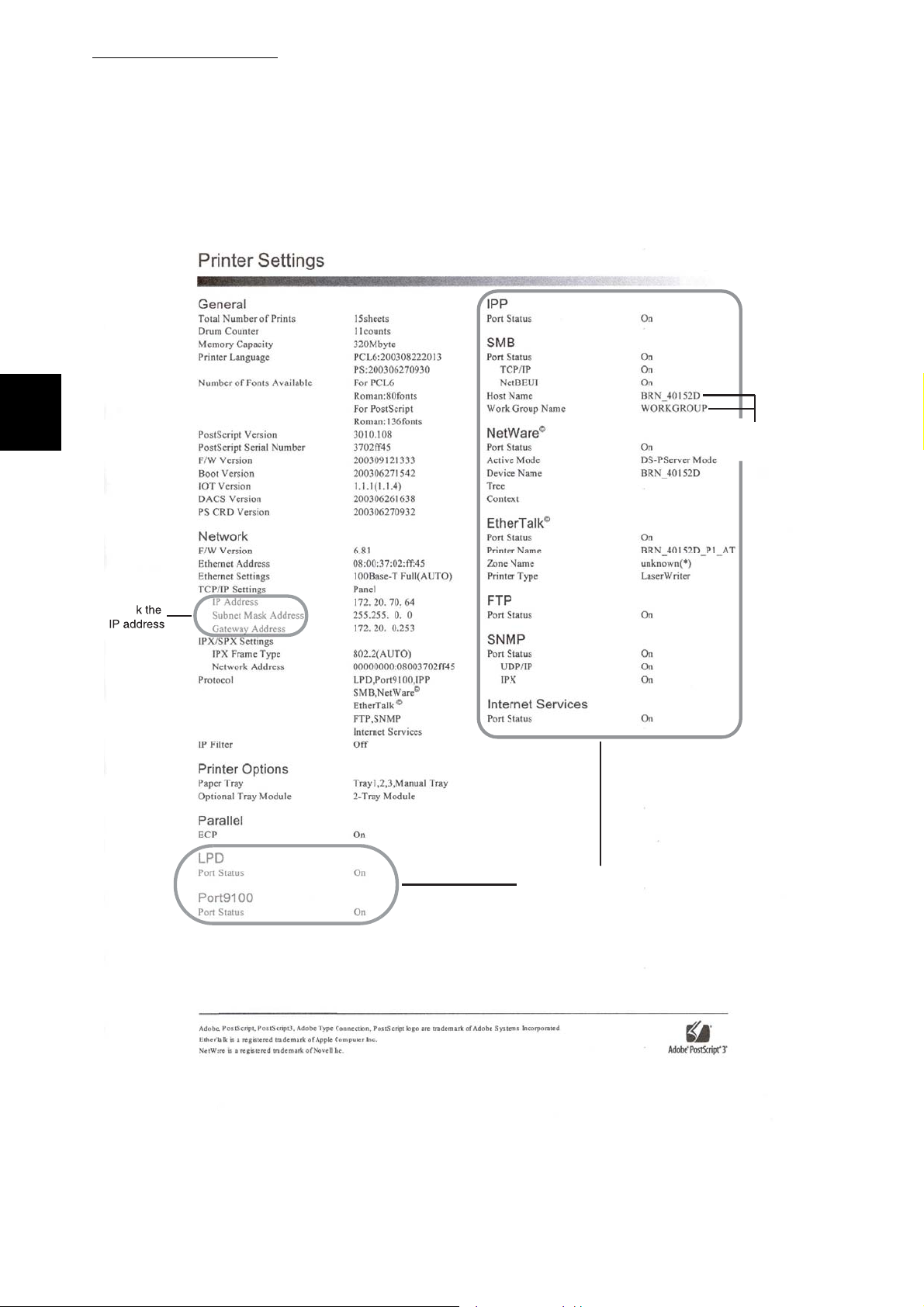

1.2.5 Checking Settings...........................................................................................19

Chapter 2 Installing the Printer Driver

2.1 After Setting up the Printer............................................................................................22

2.1.1 The PCL6 Printer Drivers................................................................................22

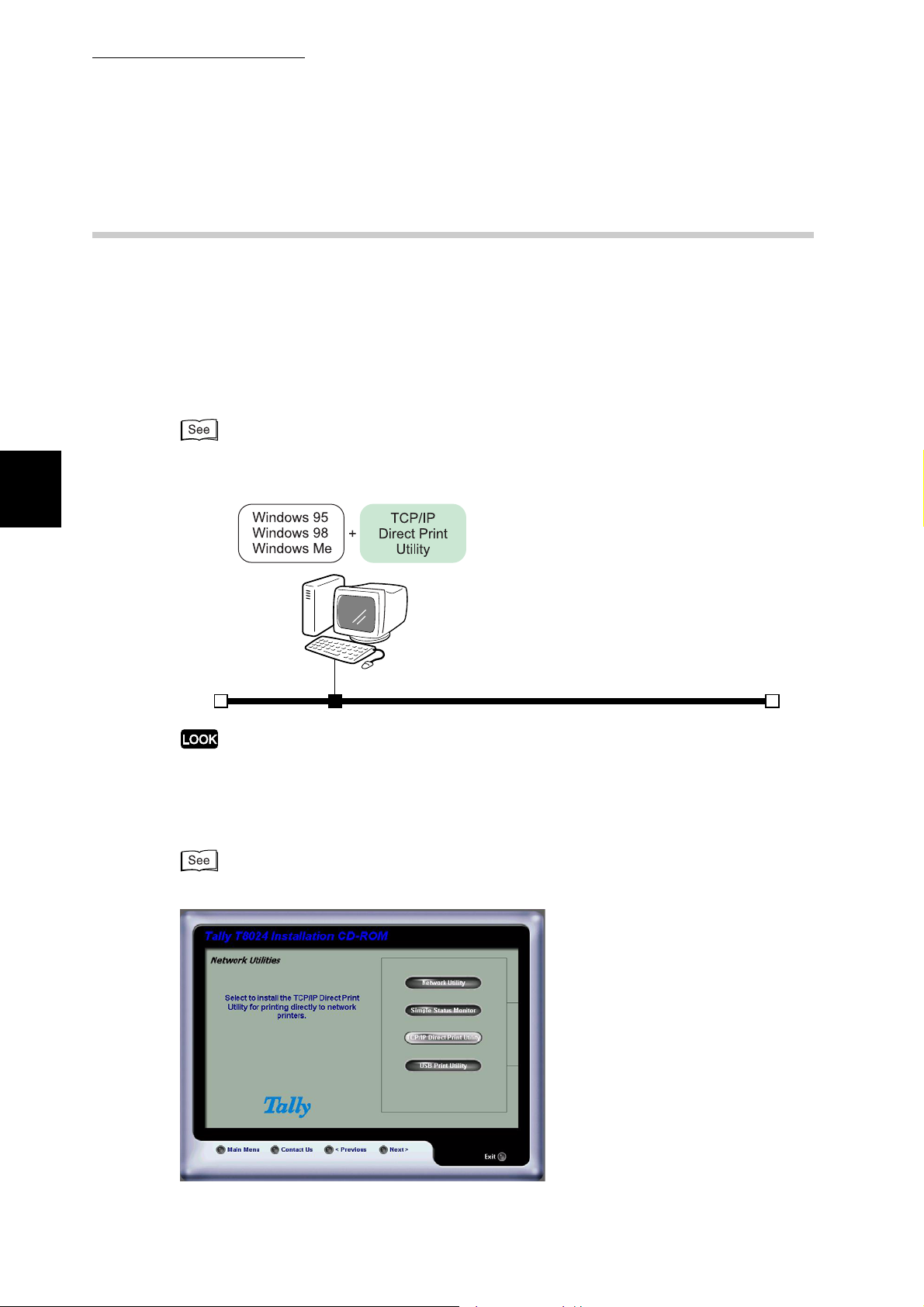

2.1.2 Using the TCP/IP Direct Print Utility................................................................24

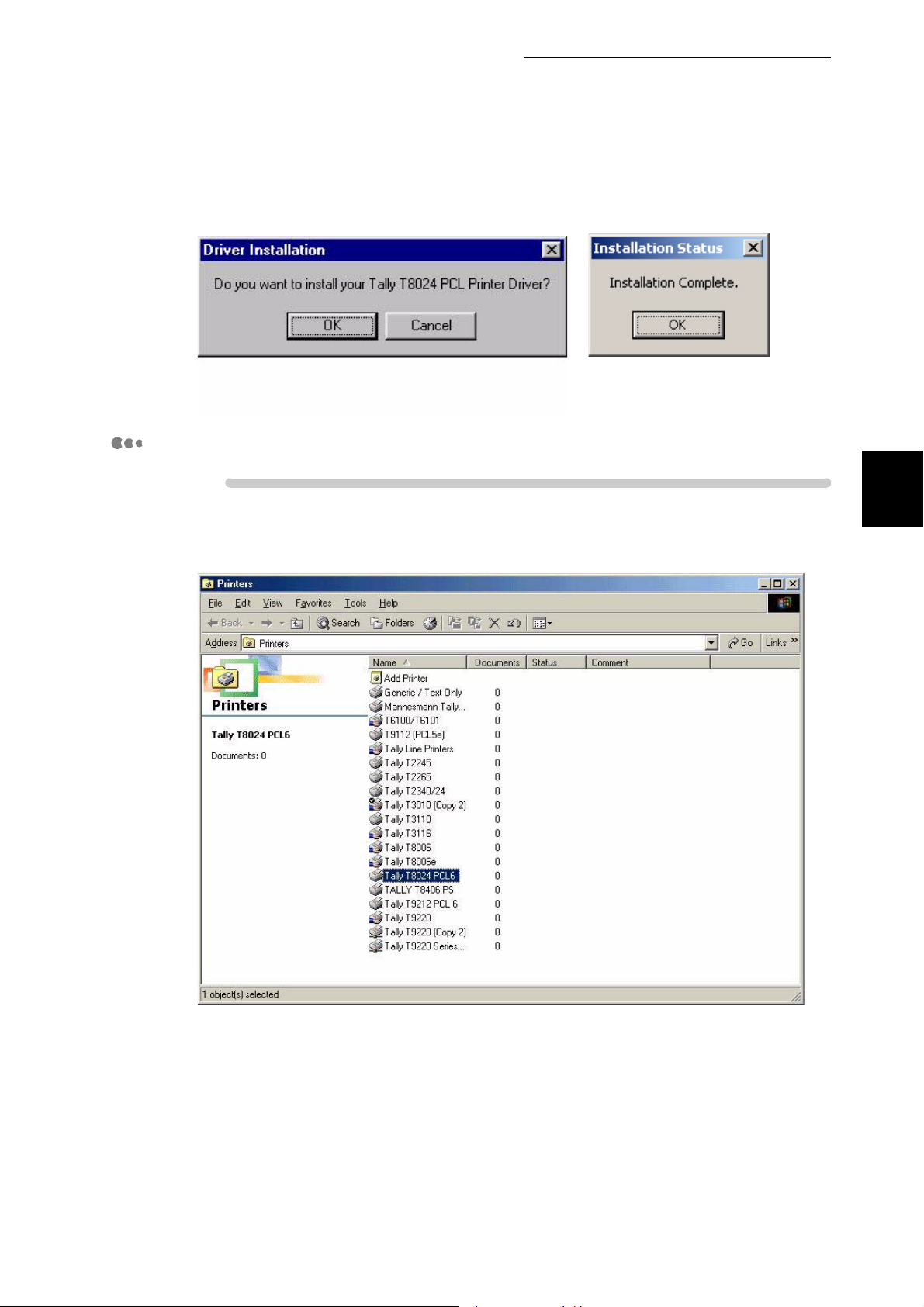

2.2 Installing the Printer Driver............................................................................................25

2.2 (Windows 95/Windows 98/Windows Me).......................................................................25

2.3 Configuring the TCP/IP Direct Print Utility..................................................................... 32

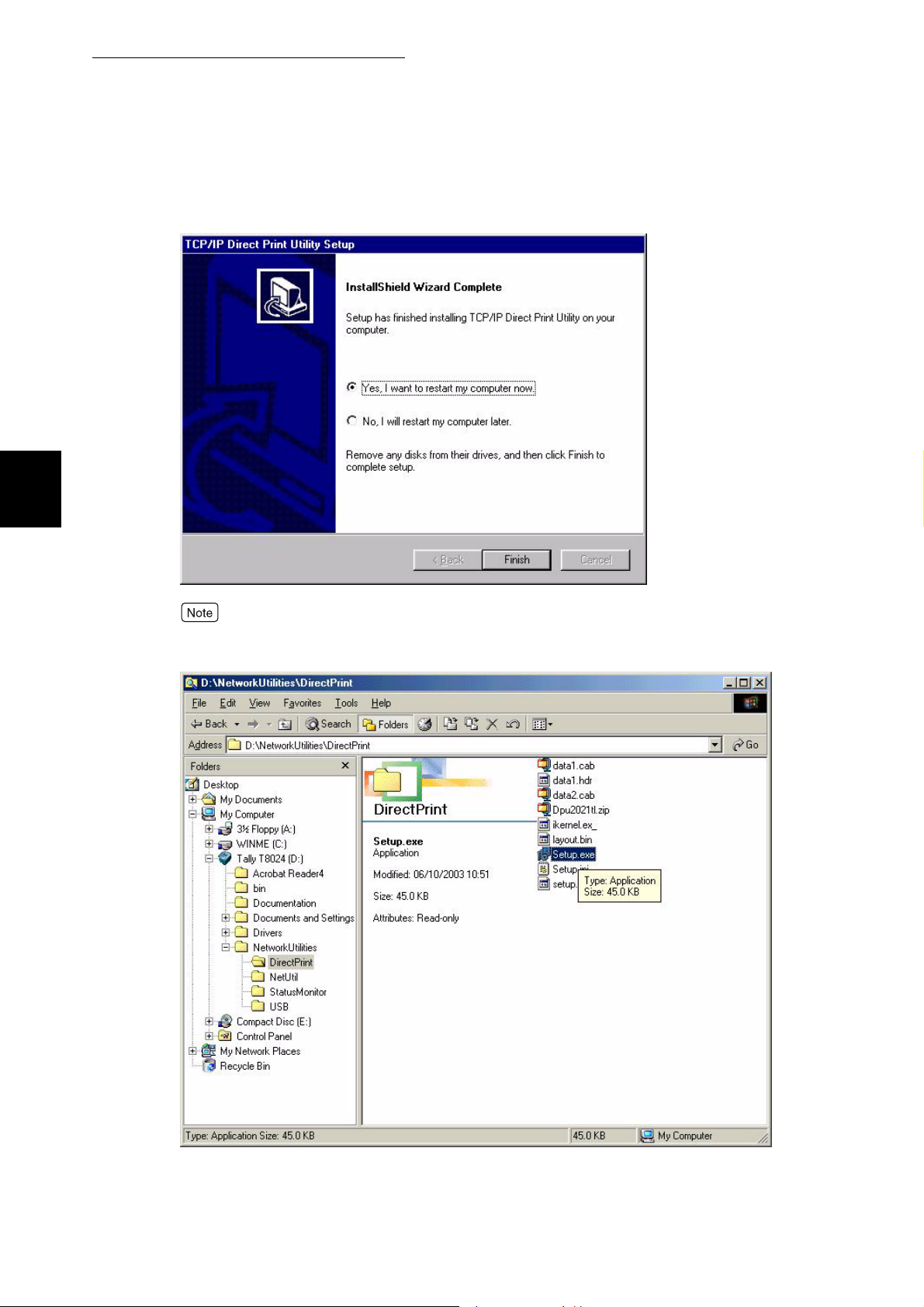

2.3.1 Installing the TCP/IP Direct Print Utility........................................................... 32

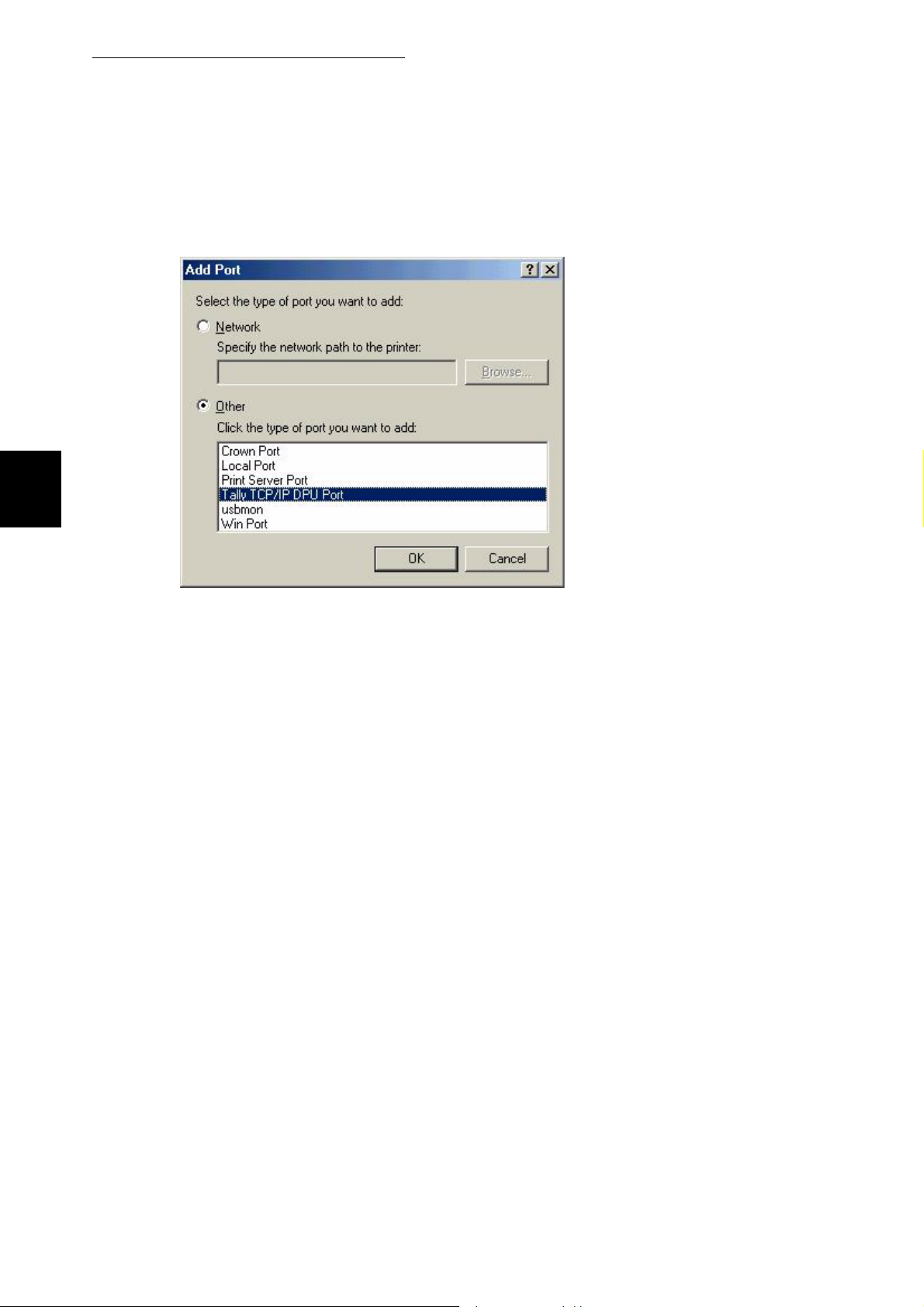

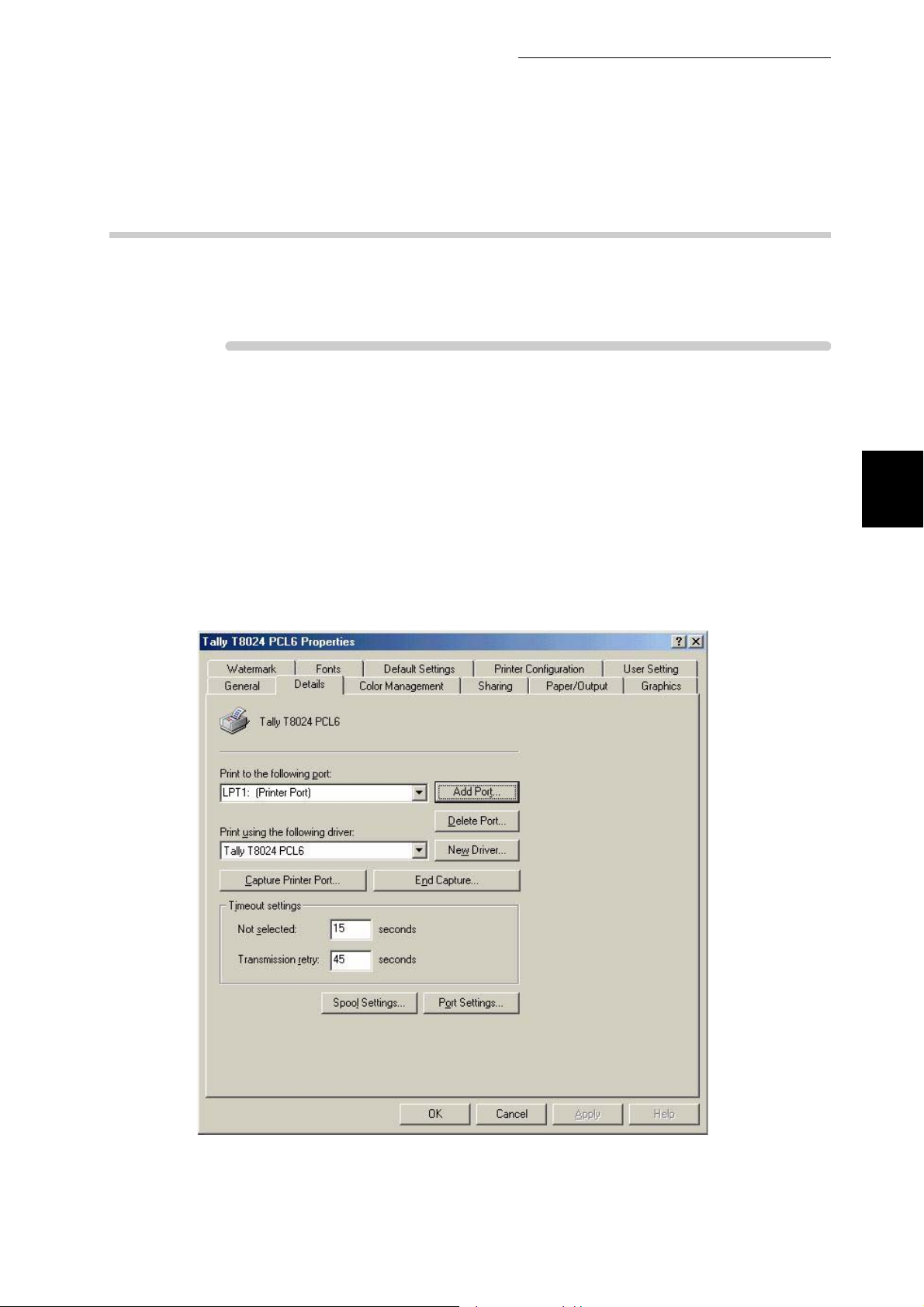

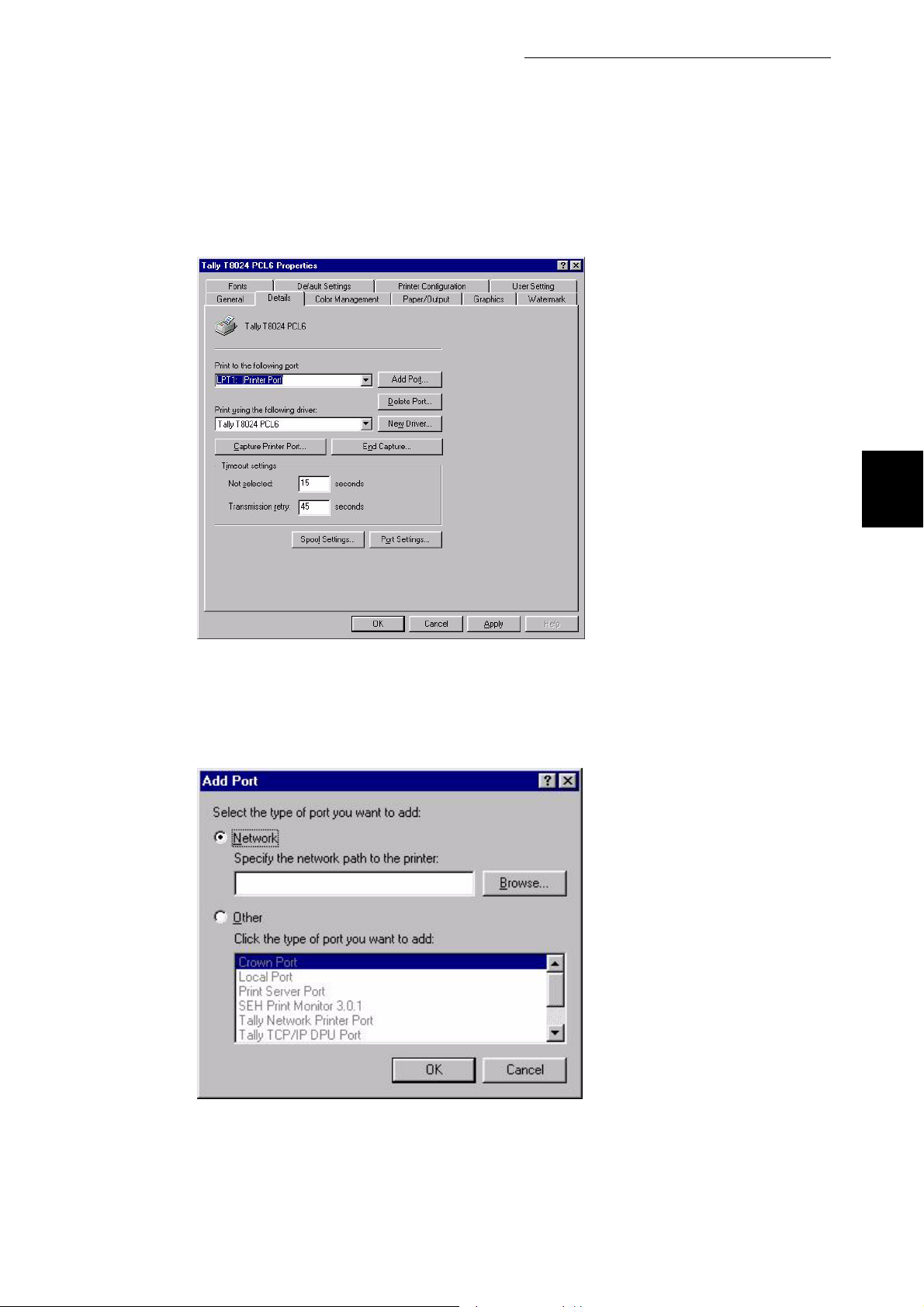

2.3.2 Setting the Port ...............................................................................................35

2.4 Installing the Printer Driver............................................................................................39

vi

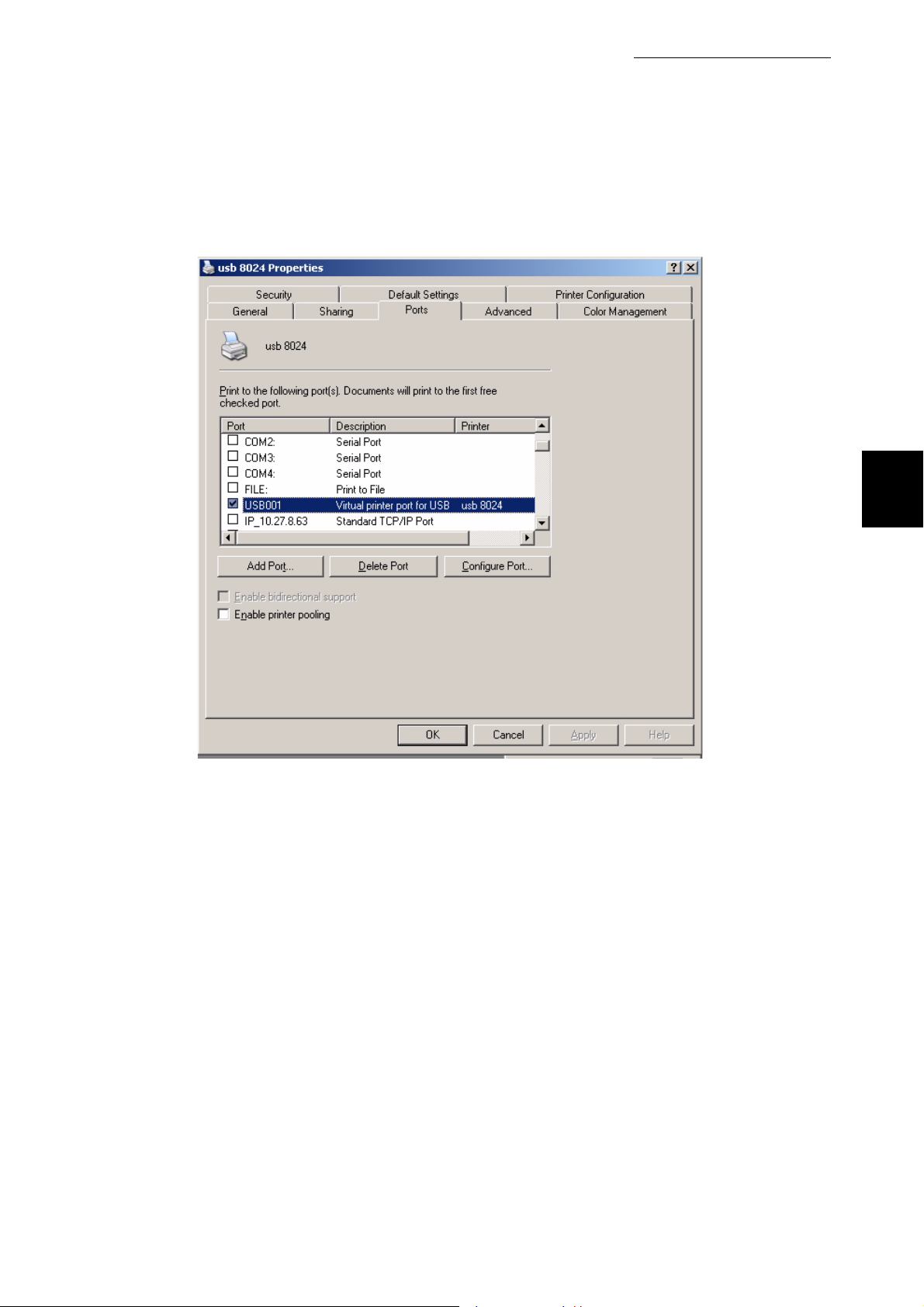

2.5 Setting Up the USB Port..................................... ...........................................................51

Table of Contents

Chapter 3 Basic Printer Operation

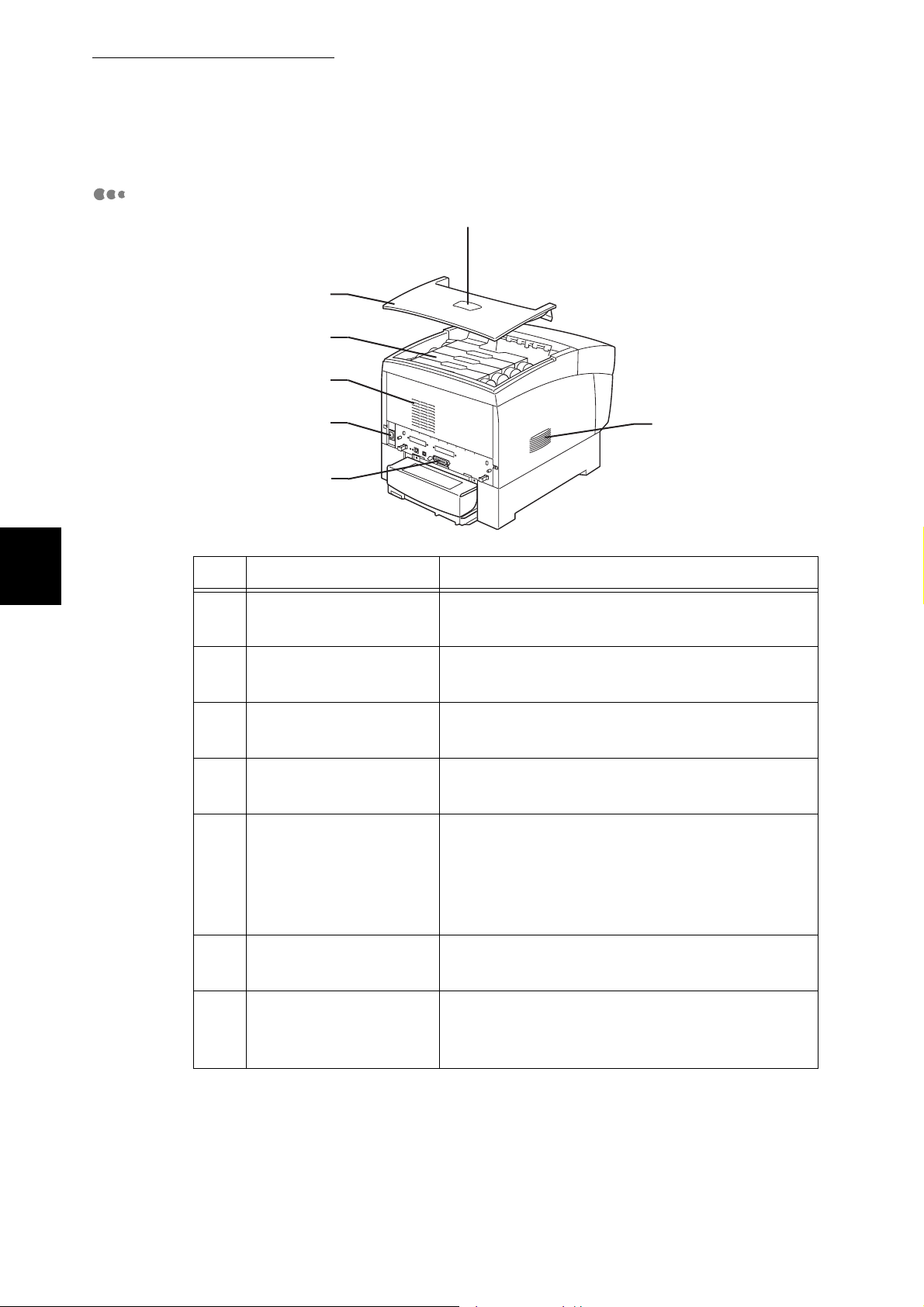

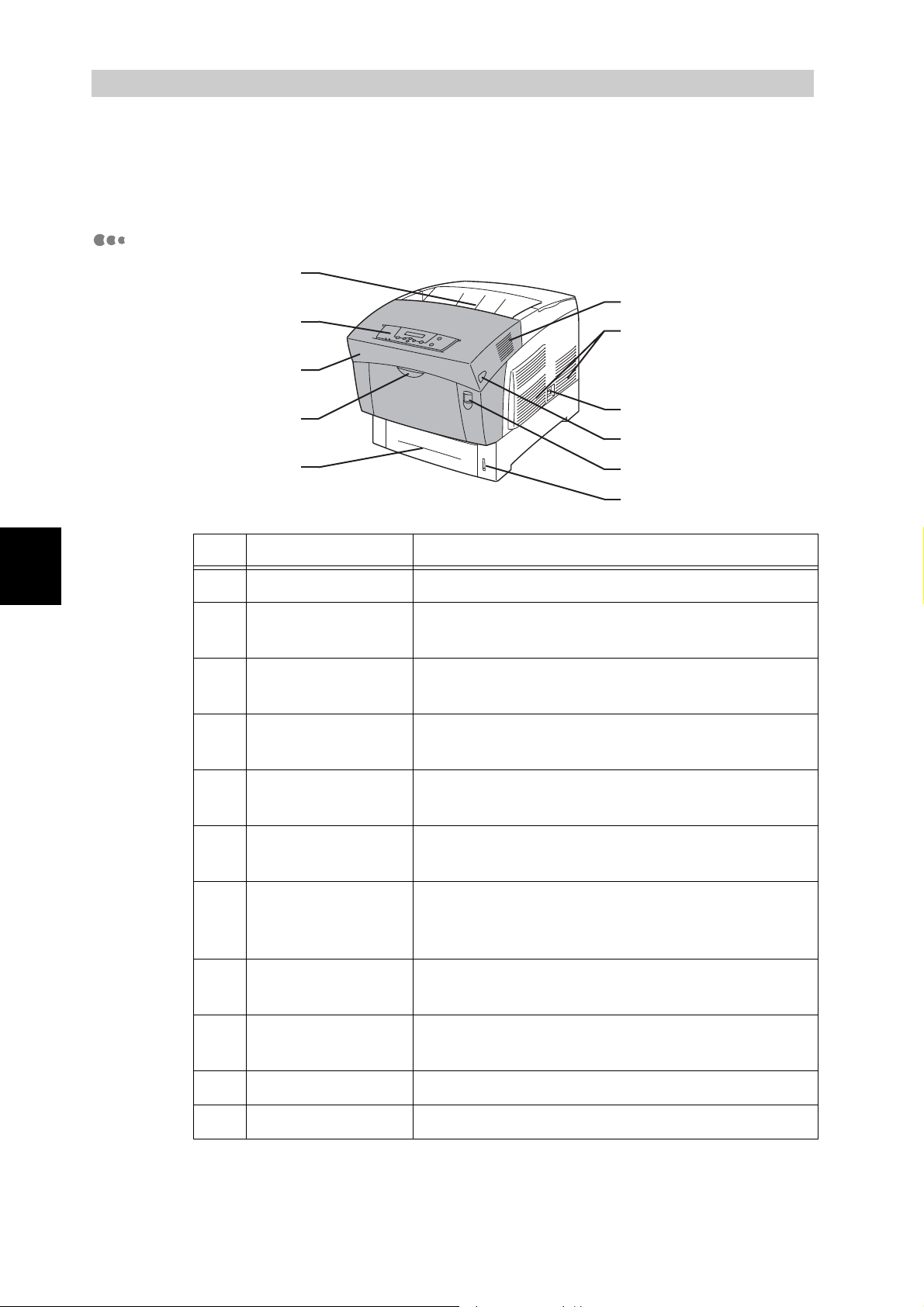

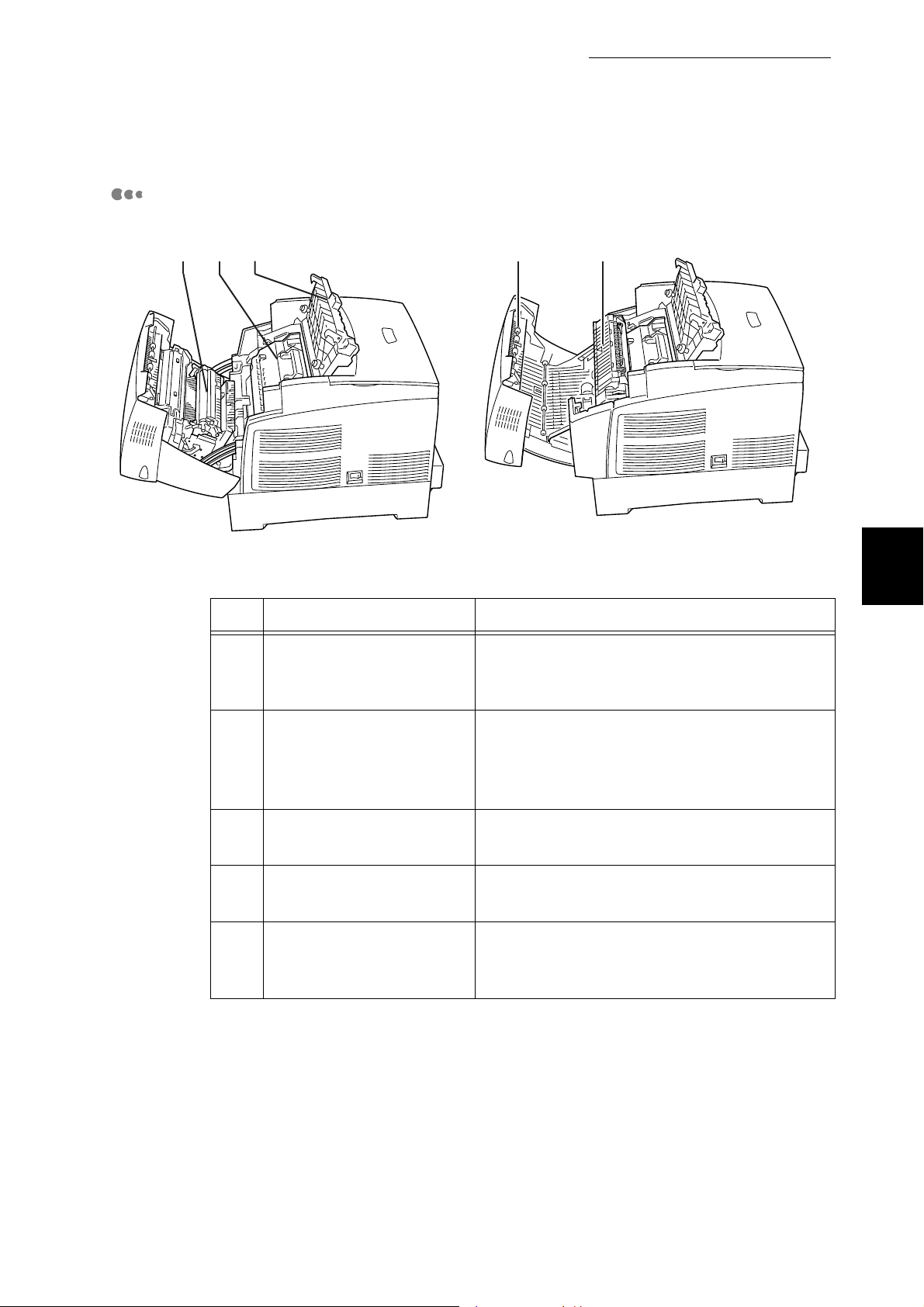

3 Printer Part Names and Functions.................................................................................62

3.1 Switching On/Off the P ower........................................................ ... ................................66

3.1.1 Switching On the Power..................................................................................66

3.1.2 Switching Off the Power..................................................................................67

3.2 Printing From a Computer..............................................................................................68

3.3 Using Online Help..........................................................................................................72

3.4 Canceling Printing........................................... ... ........................................................... .76

3.4.1 Canceling Printing From the Computer...........................................................76

3.4.2 Canceling Printing at the Control Panel..........................................................77

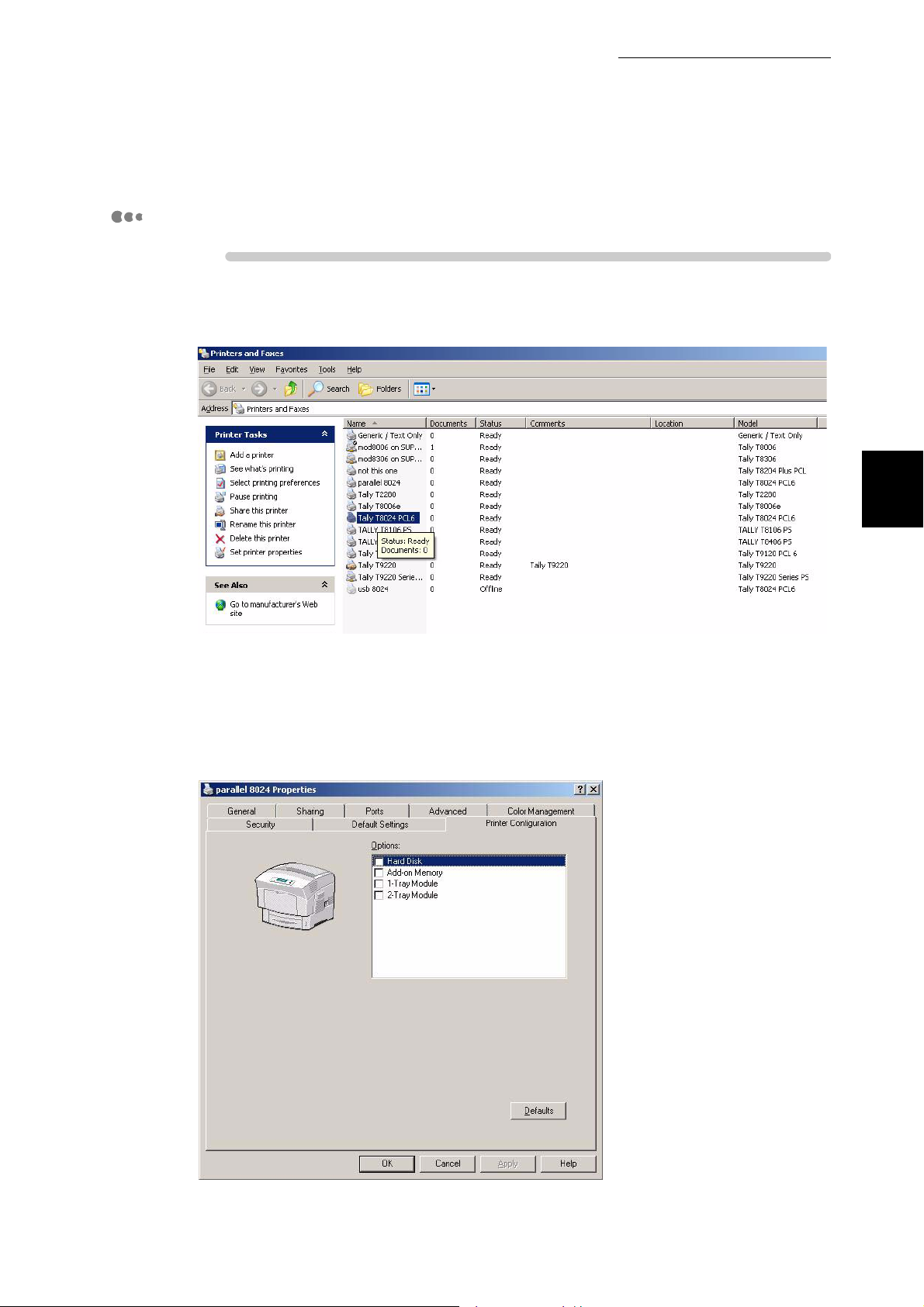

3.5 Changing the Configuration for Options............. ............................................................78

3.6 Printing on Envelopes, Transparencies, and Custom-size (Long) Paper.......................80

3.6.1 Printing on Envelopes.....................................................................................80

3.6.2 Printing on Transparencies..............................................................................82

3.6.3 Printing Custom-size (Long) Paper.................................................................85

3.7 Two-sided Printing .........................................................................................................88

3.7.1 Two-sided Printing....................................... ... ... ..............................................89

3.7.2 Two-sided Printing on Specialty Paper............................................................90

Chapter 4 Loading Paper and Usable Paper Types

4.1 Suitable and Unsuitable Paper Types................................................. ...........................94

4.1.1 Suitable Paper Types ......................................................................................94

4.1.2 Unsuitable Paper types ........................................ .. .........................................98

4.1.3 Storing Paper..................................................................................................99

4.2 Loading Paper..............................................................................................................100

4.2.1 Loading Paper in the Paper Tray...................................................................100

4.2.2 Loading Paper in the Multi Purpose Tray ......................................................104

4.2.3 Loading Transparency Sheets in the Multi Purpose Tray..............................106

4.2.4 Loading Postcards in the Multi Purpose Tray................................................107

4.2.5 Loading Envelopes in the Multi Purpose Tray ...............................................108

vii

Table of Contents

Chapter 5 Control Panel

5.1 Control Panel Part Names and Functions ...................................................................110

5.1.1 LED Indicators................................... ............................................................110

5.1.2 Display ..........................................................................................................111

5.1.3 Buttons..........................................................................................................112

5.2 Basic Menu Operation..................................... ............................................................113

5.2.1 Configuration of Basic Menu and Basic Operations...................................... 113

5.2.2 What to Do if You Make a Mistake ................................................................ 115

5.2.3 Example Operation .......................................................................................116

5.3 List of Menu Items.......................................................................................................117

5.3.1 System.......................................................................................................... 117

5.3.2 Maintenance..................................................................................................121

5.3.3 Parallel.......................................................................................................... 123

5.3.4 Report/List.....................................................................................................123

5.3.5 Network.........................................................................................................124

Chapter 6 Troubleshooting

6.1 Type of Problems................................................ ... ......................................................130

6.1.1 Problem List.................................................................................................. 130

6.2 No Power.....................................................................................................................132

6.3 The Printer Does not Print........................................................................................... 133

6.3.1 Indicators are Illuminated, Blinking or Off.....................................................1 33

6.3.2 Cannot Print in Windows................................................................... ... ......... 136

6.4 Print Quality is Not Good.............................................................................................139

6.4.1 Blank or Completely Black Pages are Output...............................................139

6.4.2 Faded or Dirty Printouts, White Areas (Drop-outs), Creases, Blurs..............140

6.4.3 Unsatisfactory Printing..................................................................................145

6.5 Paper Does not Feed Properly.................................................................................... 146

6.6 Other Problems............................................................................................................148

6.6.1 Network Problems.........................................................................................148

6.6.2 Other Problems.............................................................................................150

6.7 When an Error Message Appears on the Control Panel.............................................. 1 52

6.8 The Error Indicator is On or Blinking............................................................................160

6.8.1 The Error Indicator is On............................................................................... 160

6.8.2 The Error Indicator is Blinking.......................................................................160

viii

6.9 Forcing the Printer to Print Remaining Data (When Printing is Halted).......................161

6.10 Cleaning the Density Sensor.......................................................................................163

6.11 If the Multi Purpose Tray Comes Loose.......................................................................166

Table of Contents

Chapter 7 Clearing Paper Jams

7.1 Paper Jams..................................................................................................................170

7.2 Paper Jams in Multi Purpose Tray...............................................................................172

7.3 Paper Jams in the Paper Tray......................................................................................173

7.4 Paper Jams between the Drum Cartridge and Fuser Cartridge ..................................175

7.5 Paper Jams in the Duplexer.........................................................................................178

7.6 Paper Jams in the Tray Module (1 or 2 cassettes).......................................................179

Chapter 8 Daily Care

8.1 Replacing the Toner Cartridges............................................... ....................................182

8.1.1 Toner Cartridge Handling Precautions..........................................................182

8.1.2 Replacing Toner Cartridges ..........................................................................183

8.2 Replacing the Drum Cartridge...................................... ... ............................................186

8.2.1 Drum Cartridge Handling Precautions ..........................................................186

8.2.2 Replacing the Drum Cartr idge ......................................................................187

8.3 Replacing the transfer roller.......................................... ...............................................191

8.3.1 Transfer Roller Cartridge Handling Precautions............................................191

8.3.2 Replacing the Transfer Roller........................................................................192

8.4 Printing Reports and Lists ...........................................................................................194

8.4.1 Confirming Printer Configuration and Network Settings................................195

8.4.2 Checking the Print Log..................................................................................197

8.5 Confirming Printer Status from Your Computer ...........................................................199

8.5.1 Checking Status and Remaining Amounts of Consumables with a Web Browser
199

8.5.2 Checking Status From the Desktop...............................................................203

8.6 Cleaning the Printer.....................................................................................................204

8.7 Moving the Printer........................................................................................................205

8.8 Storing the Printer..................................................................................... ... ................209

ix

Table of Contents

Appendix

A Introduction to Options and Consumables...................................................................212

A.1 Options and Installation.................................................................................212

A.2 Consumables................................................................................................ 219

B Control Panel Men u List...................................................... ... .....................................220

C Specifications ..............................................................................................................224

C.1 Printer Specifications....................................................................................224

C.2 Network Specifications..................................................................................226

C.3 Printable Area ...............................................................................................227

D Life Span of Consumables................................................ ... ........................................228

E Obtaining Product Information............................................. ... .....................................229

F Precautions and Limitations ................................................................................. ... .... 230

G Glossary ......................................................................................................................232

Index

x

Type of Manuals

The following literature is provided on the T8024 CD. The manuals are is supplied in PDF
format, therefore, you need Adobe

Adobe Acrobat Reader from the T8024 CD.

Quick Start Guide

This section describes the items in the printer package.
Read this section when setting up the printer.

User Guide (this book)

This manual describes the printer operation from a user point of view. The
loading of drivers and connection to often already configured network
connections is covered. Operation of the control panel, handling of consumables,
simple fault finding and installation of options is also covered.

®

Acrobat® ReaderTM. If necessary, you can install

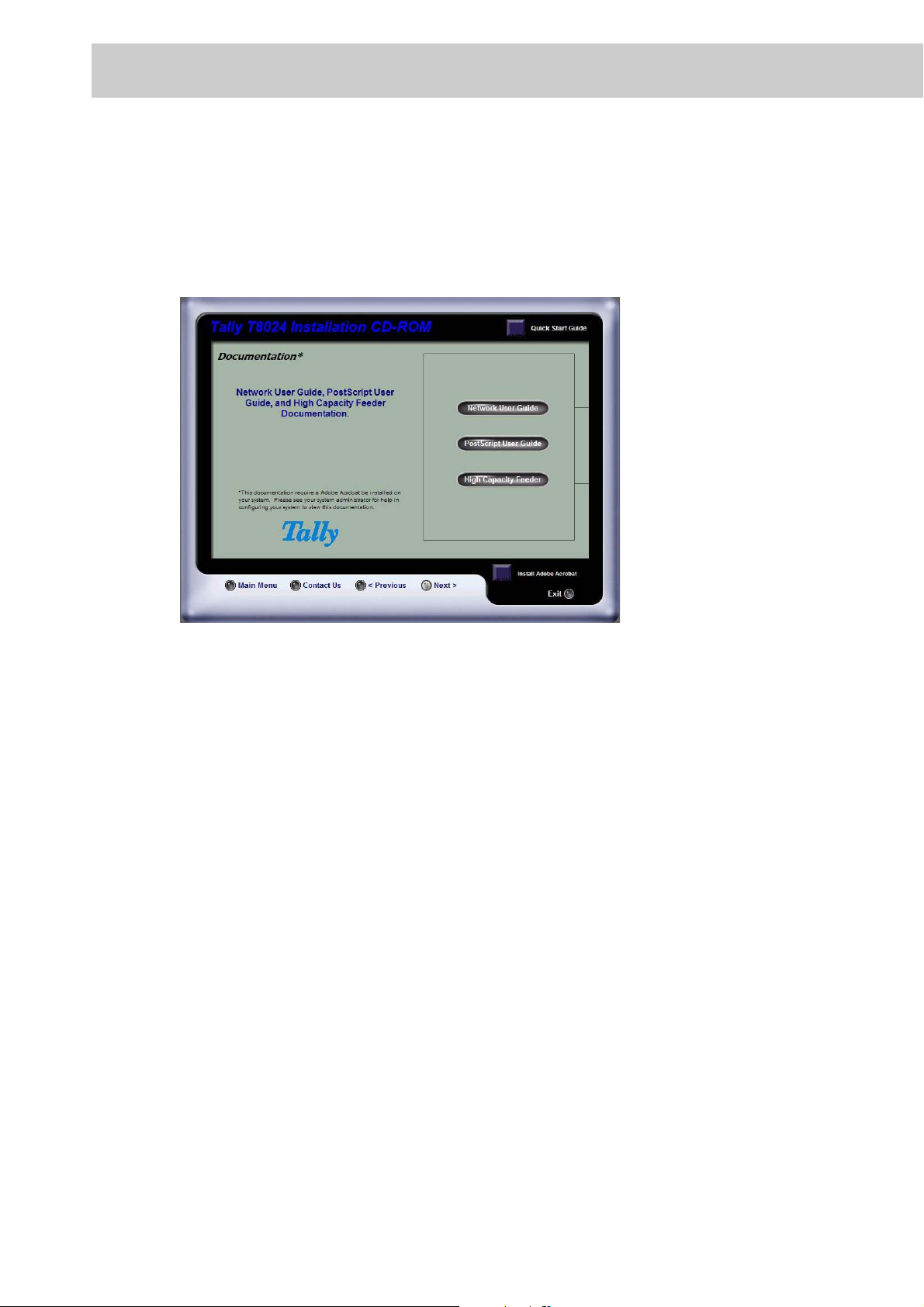

Network User Guide

This manual can be accessed by selecting next from the screen above. It gives
details of how to configure and connect the printe r to various PC based systems.
See the Postscript User Guide for details of installation of the optional PDL
emulation , Postscript level 3, onto Macintosh computers.

xi

Using This Guide

Other Manuals

Other Manuals are available for the Postscript Option and the High capacity

Feeder.

These manuals can be seen by selecting next from the screen above.

xii

Organization

The present guide is divided into the following nine chapters. A brief outline of
each chapter is given below.

Chapter 1 Printer System Settings

Describes the color registration procedures, system requirements, and network
settings needed to use the printer.

Chapter 2 Installing the Printer Driver

Describes the procedure for installing software necessary to use the printer (the
printer driver) on your computer.

Chapter 3 Basic Printer Operation

Describes the basic functions of the printer and how to use them.

Chapter 4 Loading Paper and Usable Paper Types

Describes the loading methods of the various types of paper compatible with the
printer.

Chapter 5 Control Panel

Describes the operation of the control panel and functions that you can set from
it.

Chapter 6 Troubleshooting

Describes error messages and their meanings, as well as what to do in case an
error message appears.
Also describes common problems that occur during printing and their remedies.
Read this chapter to determine the nature of the problem and the best method of
dealing with it.

Chapter 7 Clearing Paper Jams

This chapter explains procedures to deal with paper jams.

Chapter 8 Daily Care

Describes the consumables used by the printer, handling precautions, and
replacement procedures.
Also, this chapter describes the cleaning procedures required for continued
normal operation, printer storage requirements when it is not in use over a long
period, and procedures for transporting the printer.

xiii

Safety Notes

Appendix

The following information is presented in the appendix.

●

Introduction to Options and Consumables

●

Control Panel Menu List

●

Specifications

●

Life Span of Consumables

●

Obtaining Product Information

●

Precautions and Limitations

●

Glossary

Conventions

1. In this guide, "computer" refers to personal computer, Macintosh, workstation,
and host device.

2. The following icons are used in this guide.

Indicates important information which you should read.

Indicates additional information about operations or features.

Indicates reference sources.

" ": indicates reference to a chapter or section.

3. The following conventions are used in this guide.

Bold:Indicates selections and all kinds of buttons.

Example: Click Next.

xiv

Safety Precautions

To ensure safe operation of your printer, make sure you read this section thoroughly
before use.

This section describes the conventions used in the manual.

Warnings alert you to operations that could cause death or
serious injury to yourself.

Cautions alert you to opera­tions that could cause bodily
injury or material damage.

This symbol alerts you to pro­cedures that require close attention. Make sure
you read and follow the instructions carefully.

This symbol alerts you to prohibited proce­dures. Make sure you read the instr uctions care­fully.

Heated
surface

Prohibited No fire Do not

Instructions Unplug Ground/

Flammable Electric

shock

strip down

Earth

Pinched

fingers

Do not

touch

This symbol alerts you to procedures that should be performed. Make sure you
perform the procedure after reading the instructions carefully.

Installing and Relocating Your Printer

Do not place the printer in a hot, humid, dusty, or poorly ventilated environment.
Prolonged exposure to these adverse conditions can cause fire or electric shocks.

Do not place the printer near heaters or near volatile, flammable, or combustible
materials, such as curtains, that may catch fire.

Place the printer on a level and sturdy surface that can withstand a heavy weight.
If tilted, the printer may fall and cause injuries.

xv

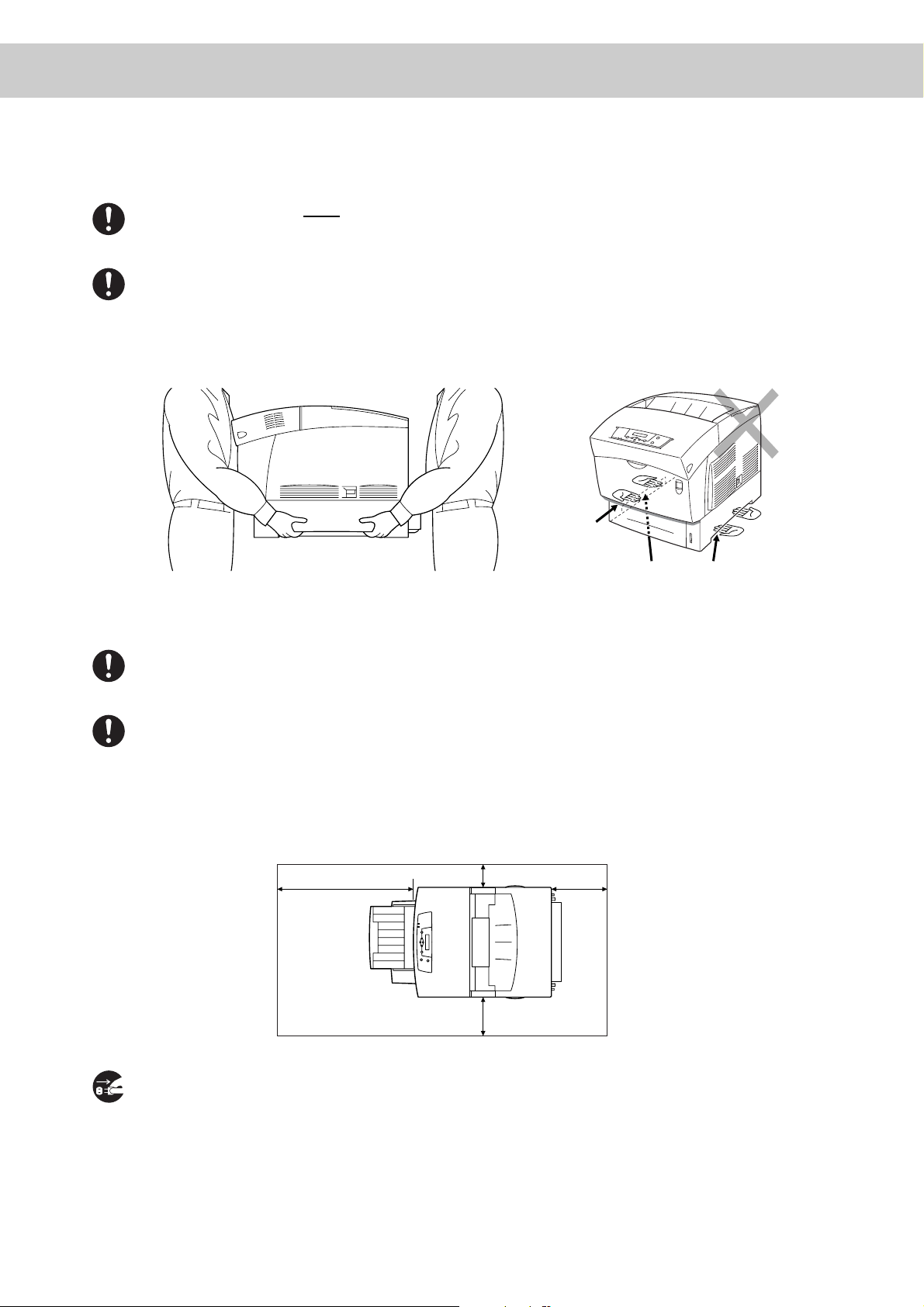

The printer weighs 34.9 kg (77 lbs) fully assembled, therefore make sure that at
least two people carry it.

To lift the printer, face the front and back of the printer and, with both hands, grip
the recessed areas at the bottom left and right. Never try to lift the printer by grip­ping any other areas. Lifting the printer by gripping other areas can cause the
printer to fall, resulting in injury.

Recess

If you hold the printer by the front door,

left or right sides, there is a danger of

the printer falling.

When lifting the printer, get a firm footing and bend your knees to avoid possible
injuries to your back.

The machine has ventilation holes on the left, right, and rear sides. Ensure that the
machine is installed with a minimum clearance of 150 mm from the right side, 100
mm from the left side, and 200 mm from the rear side. A poorly ventilated machine
can cause excessive internal heat and fire. The accompanying diagram shows the
minimum clearances required for normal operation, consumables replacement,
and maintenance to ensure your machine operates at peak performance.

600mm

100mm

150mm

200mm

When moving the printer, be sure to unplug the power cord from the outlet. If the
printer is moved with the power cord connected, it can cause damage to the cord,
which could result in fire or electric shocks.

xvi

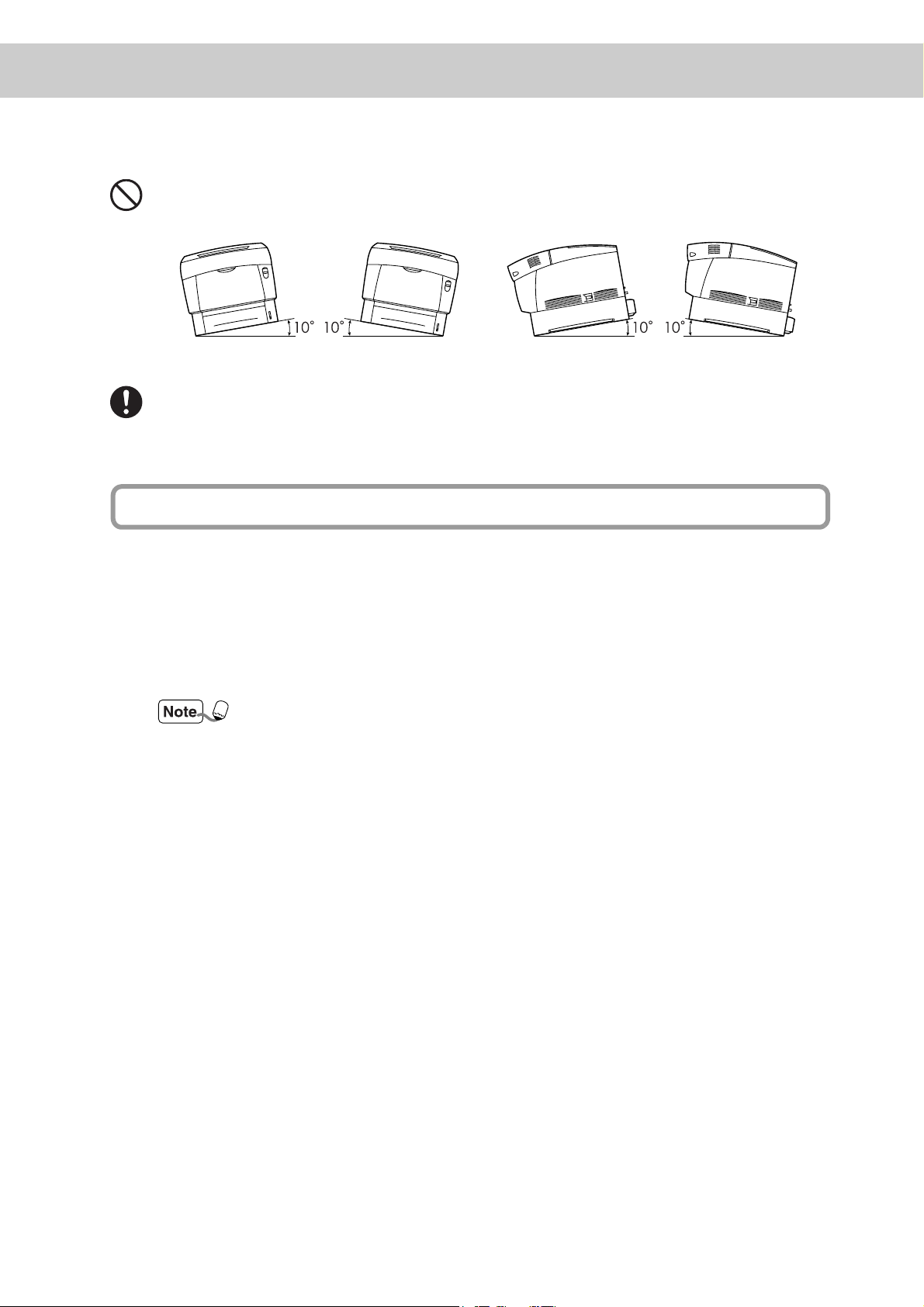

When moving the printer, do not tilt it more than 10 degrees. If tilted excessively,
the printer may fall over and cause injuries.

After installing the tray module, lock down the brakes on the casters at the front of
the tray module. Failure to lock down the brakes can cause the printer to move
unexpectedly, resulting in injury.

Other Precautions

■ Operate the printer in a location that meets the following conditions:

Ambient temperature range of 10 to 32°C, relative humidity of 15 to 85% (no con­densation)
If operating the printer with an ambient temperature of 32°C, the relative humidity
should not exceed 65%. If the relativ e humidity reaches 85%, the ambient temper­ature should not exceed 28°C.

Do not place the printer in a room where there are sudden fluctuations in tempera­ture, and do not move the printer from a cold place to a warm humid place. If you do,
condensation may occur within the printer and print quality deteriorate.

■ Do not place the printer in direct sunlight, as this may damage the printer.

■ When installing the printer, do not place it on an uneven surface where it could be

tilt more than 5 degrees in any direction in order to prevent trays or consumables
from falling out.

■ Do not place the printer directly next to an air conditioner or heater, as this affects

the temperature inside the printer and can cause damage.

xvii

Precautions for P ower and Earth Connections

Three power specifications are listed below. The specifications that apply to your
printer depend on its configuration. Connect the power plug only to a properly
rated power outlet. Otherwise, it can cause fire or electric shocks. If in doubt, con­tact your dealer.

• Rated voltage: 100 V
Rated frequency: 50/60 Hz

• Rated voltage: 110-127 V
Rated frequency: 60 Hz

• Rated voltage: 220-240 V
Rated frequency: 50/60 Hz

Ensure that the plug connection is clean. In a damp environment, a contaminated
connector can draw a sufficient amount of current that can generate heat and
eventually cause fire over an extended period of time.

Always use the power cord provided with your printer. When an extension power
cord is required, always use a properly rated cord.

Do not attempt to modify, pull, bend, chafe, or otherwise damage the power cord.
Do not place a heavy object on the cord. A damaged cord can cause fire or electric
shocks.

Never touch a power cord with wet hands. This constitutes an electric shock haz­ard.

Stop operation immediately if your printer emits smoke, excessive heat, unusual
noise or smell, or if water is spilt onto the printer. These conditions can cause fire.
Immediately turn off and unplug the printer, and contact your dealer.

xviii

To prevent fire or electric shocks, follow the instructions below based on your
printer's configuration. If in doubt, contact your dealer.
If your machine is a 220-240 V model, there is no need to attach a separate earth
line since the earth connection is incorporated in the power line. Plug it into a prop­erly rated outlet.

If the power cord is broken or insulated wires are exposed, ask your dealer for a
replacement. Using a damaged cord can cause fire or electric shocks.

Do not unplug or replug the printer while it is on. Unplugging a live connector can
deform the plug and cause fire.

When unplugging the printer, grasp the plug instead of the cord. Forcibly pulling on
a cord can damage it and cause fire or electric shocks.

Be sure to switch off and unplug the printer before accessing the interior of the
printer for cleaning, maintenance, or fault clearance. Access to a live printer's inte­rior can cause electric shocks.

Once a month, unplug the printer and check the power cord f o r the following:

• The power cord is plugged firmly into a receptacle.

• The plug is not excessively heated, rusted, or bent.

• The plug and receptacle are free of dust.

• The cord is not cracked or frayed.
If you notice any unusual conditions, contact your dealer.

When the printer is not used over an extended period of time, switch it off and
unplug it. If an unused printer is left connected to a power source for a long period,
degraded insulation can cause electric shocks, current leakages, or fire.

Switch off the printer before connecting the interface cable or options. Connecting
the cable or card with a live printer can cause electric shocks.

Other Precautions

■ This printer may interfere with radio or television reception, causing flickering or

distortion. This can be determined by turning the printer off and on. To correct
interference, perform one, or a combination of the following procedures:

xix

• Move the printer away from TV and/or radio.

• Reposition the printer, TV and/or radio.

• If the printer, TV and/or radio are plugged into the same outlet, unplug them,
then plug them into different outlets.

• Reposition the TV and/or radio antennas and cables until the interference stops.
For external antennas, consult your local electrician.

• Use coaxial cable with the antennas

Operating Precautions

#

Do not place any liquid containers such as vases or coffee cups on the printer.
Liquids spilt on the printer constitue a fire and electrical shock hazard.

Do not place any metal parts such as staples or clips on the printer. If metal and
flammable parts get into the printer, they can short-circuit internal components,
and cause fire or electric shocks.

If debris (metal or liquid) gets into the printer, turn off and unplug the printer. Con­tact your dealer. Operating a debris-contaminated printer can cause fire or electric
shocks.

Never open or remove printer covers that are secured with screws unless specifi­cally instructed to do so in the this manual.
A high-voltage component can cause electric shocks.

Do not try to alter the printer's configuration or modify any parts. An unauthorized
modification can cause smoke or fire.

This printer complies with the IEC60825 (Class 1) international laser standard.
This means that the printer does not present any risk of injury to persons from
laser radiation. Various covers confine the laser radiation to the inside of the
printer; hence, users cannot incur injury from the laser under normal operating
conditions. Removing covers, unless instructed to do so in this manual, can cause
injury from laser radiation.

xx

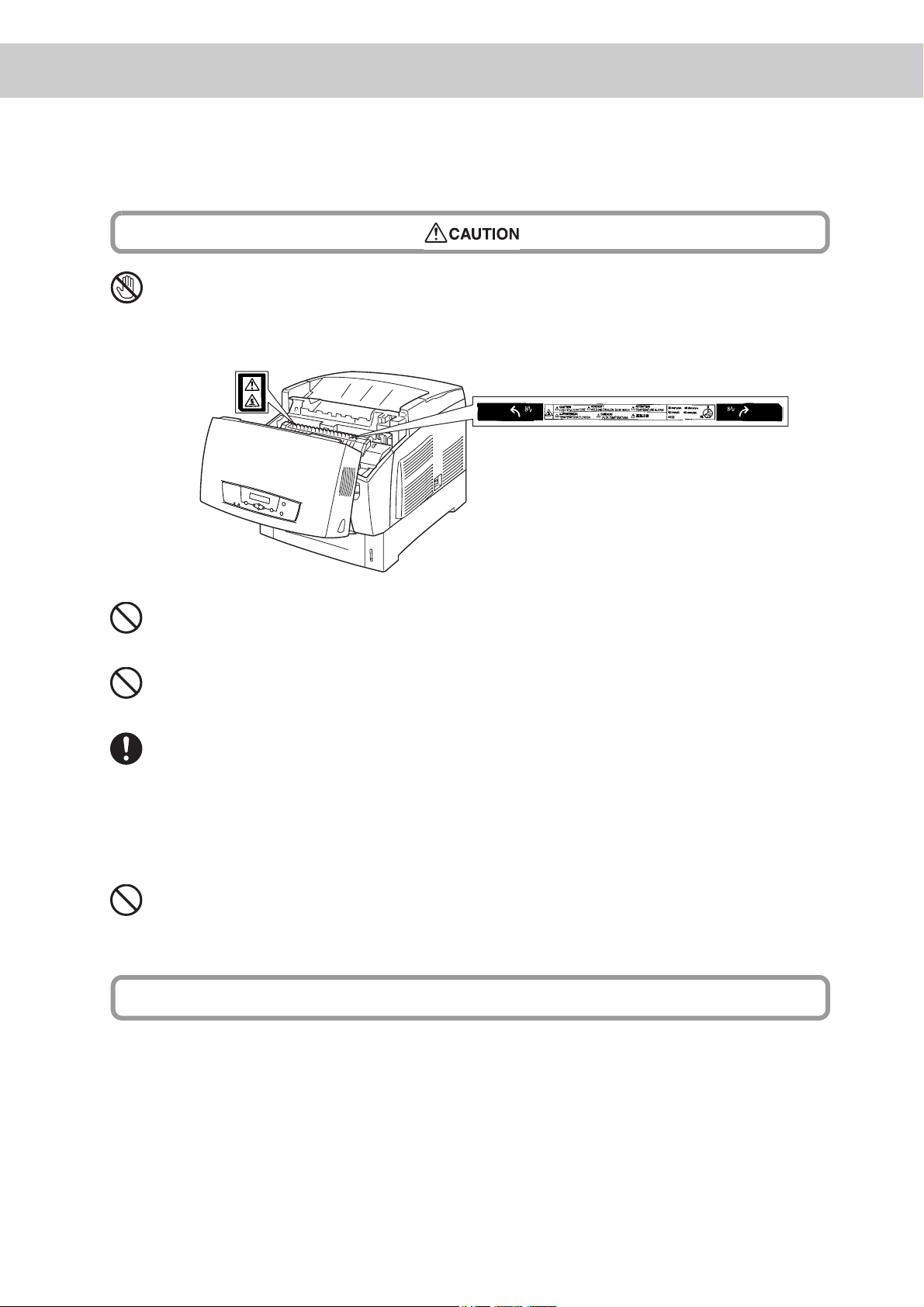

Never touch a labeled area found on or near the fuser unit. You can burn yourself.
If a sheet of paper is wrapped around the fuser roller, do not try to remove it by
yourself to avoid injuries or burns. Turn off the printer immediately and contact
your dealer.

Do not place any heavy objects on the printer. An off-balance printer can fall over
or the heavy object can fall, causing injuries.

Do not use highly flammable spra ys or solvents in or around the printer, as this can
result in fire.

When removing paper jams, make sure no pieces of paper are left inside the
printer, as this can cause fire.
If the paper is wrapped around the fuser or roller, or you cannot see the jam you
are trying to clear, do not attempt to remove the paper by yourself, as this may
cause injury or burns.
Turn off the printer immediately, and contact the place of purchase.

Do not place magnets near the safety switch of the printer. Magnets can activate
the printer accidentally, resulting in injuries.

Other Precautions

■ Refer to this manual f or procedures on clearing paper jams and how to resolv e any

other troubles that may occur.

xxi

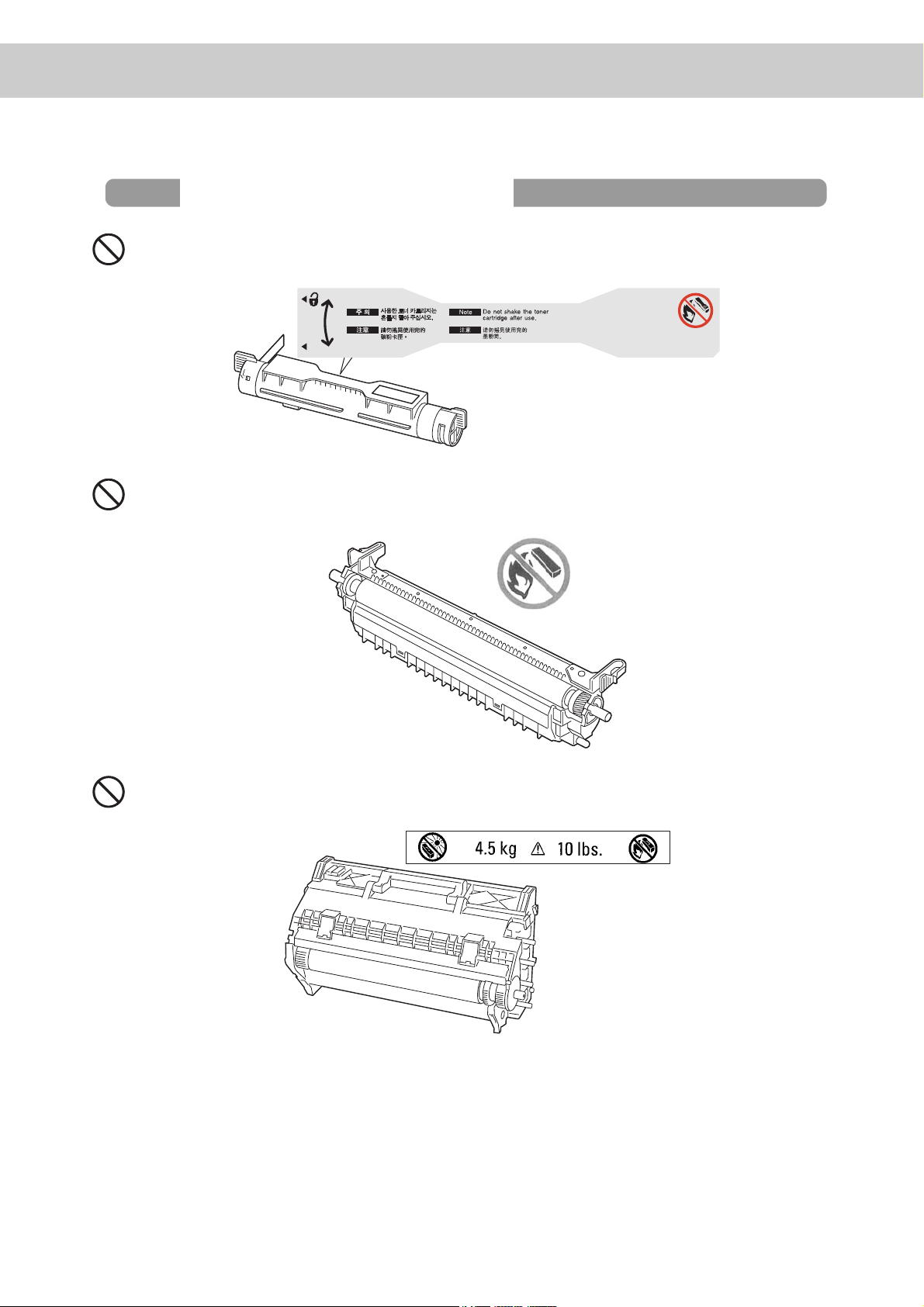

Notes on Handling Consumables

Never throw a toner car tridge into an open flame. It can cause an explosion and
injuries.

Never throw a transfer roller cartr idge into an open flame. It can cause an explo­sion and injuries.

Never throw a drum car tridge into an open flame. It can cause an explosion and
injuries.

xxii

Other Precautions

■ Do not open consumables until you are ready to use them. Do not store consum-

ables in the following conditions:

• In high temperature or humidity

• Near a naked flame

• Exposed to direct sunlight

• Dusty areas

■ Before using consumables, read both the operating instructions and precautions

on the packaging and the sheet which comes with the consumable.

■ Administer emergency first aid as follows:

• If you get toner in your eyes, rinse them well with plenty of clean water. Consult

a physician if necessary.

• If you get toner on your skin, wash it with soap and water and rinse well.

• If you inhale toner, leave the area of exposure immediately and gargle with

plenty of water.

• If you swallow toner, induce vomiting and consult your physician immediately.

■ When you remove the transfer roller from the printer because the waste toner col-

lection box is full, do not attempt to empty the waste toner box.

■ Do not tilt or shake drum cartridges or transfer rollers that has been removed tem-

porarily. Toner may leak and cause damage.

xxiii

The Objective of the International Energy Star Program

To protect the global environment and conserve energy sources, the International Energy
Star Program encourages the following product features. Tally confirms the T8024 satisfies
the requirements for this program.

Low Power Mode Feature

This product has a power-saving feature, which switches the machine to the
lower mode ("Power Saver Mode 1") automatically if the machine is on and not
operated for a certain period of time. In this mode the machine lowers the fuser
temperature and saves the power consumption. The default low power mode
start time is set at three minutes. You can change this setting from 1 to 120
minutes. See "Chapter 5 Control Panel" of this guide for details.

In addition to "Power Saver Mode 1", this printer features "Power Saver Mode 2", a second power
mode that saves even more power.

xxiv

Chapter

1Printer System Settings

1.1 Adjusting Color Registration........................................................ 2

1.2 Configuring the Printer................................................................. 5

Adjusting Color

1.1

Printer System Settings

Follow the procedure below to adjust the color registration when you first install the printer or
after moving it to a new location.

Refer to "5.2 Basic Menu Operation" and "Appendix B Control Panel Menu List" for information about the
operation of the control panel.

Printing the Color Registration Correction Chart

1

Registration

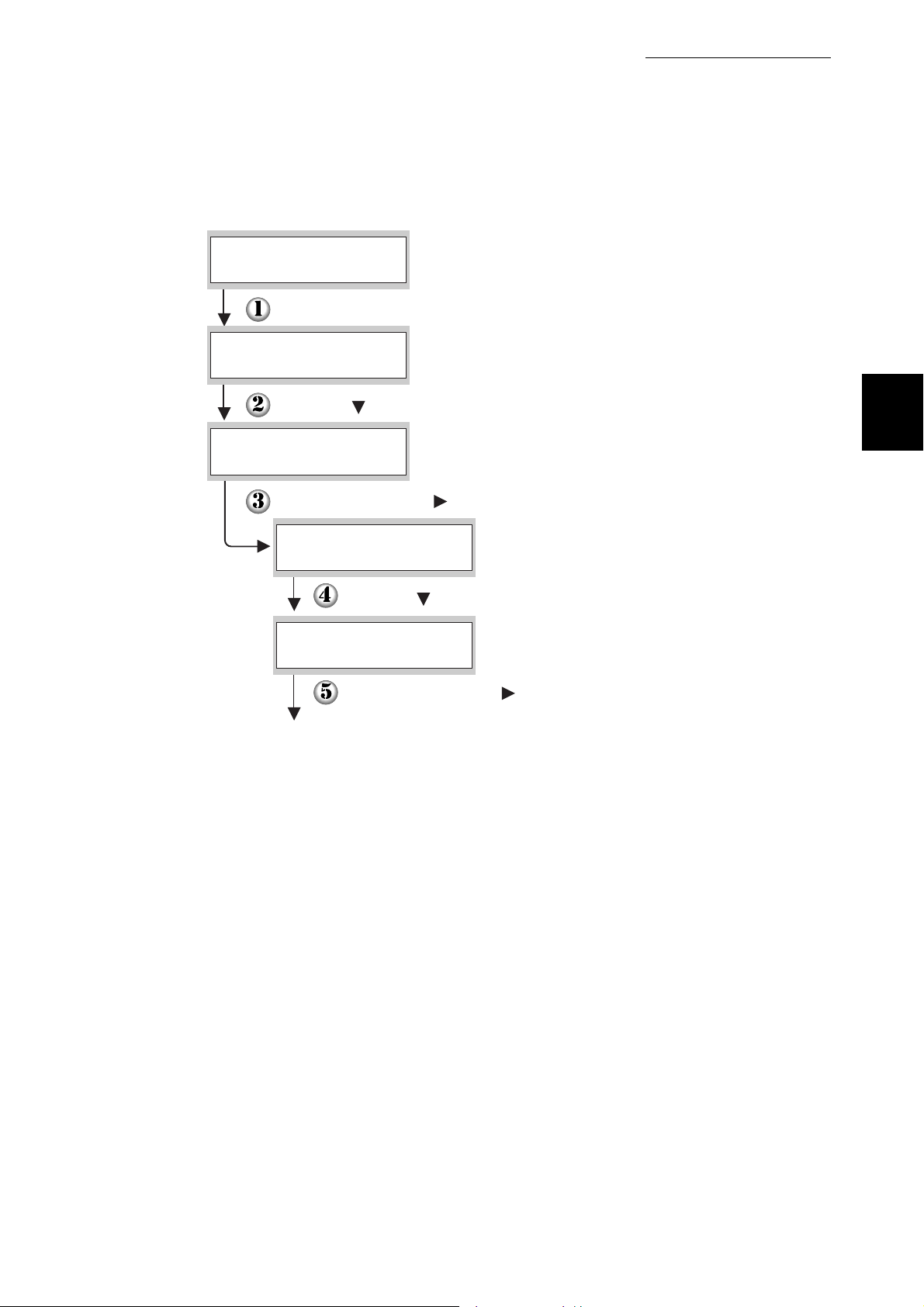

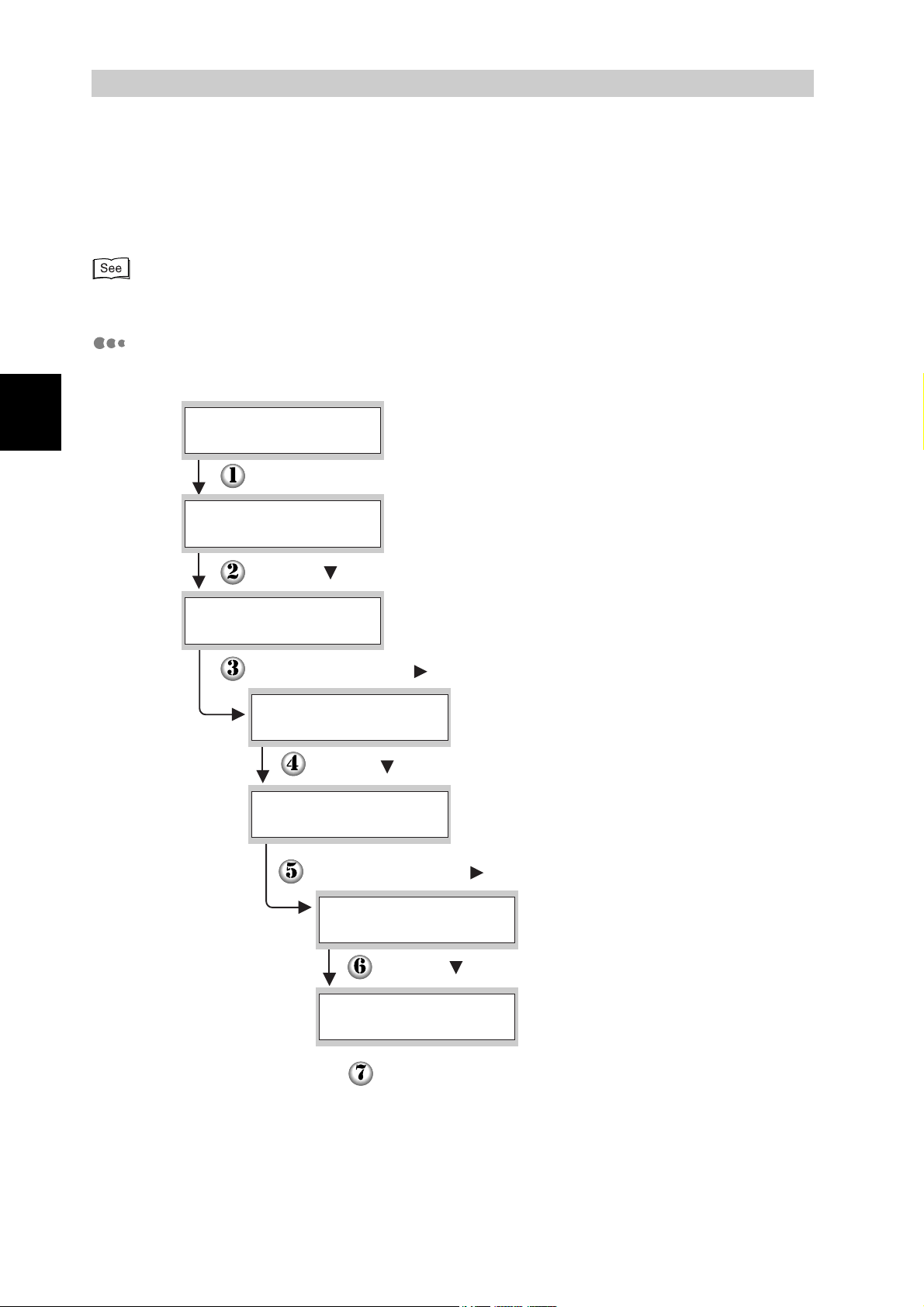

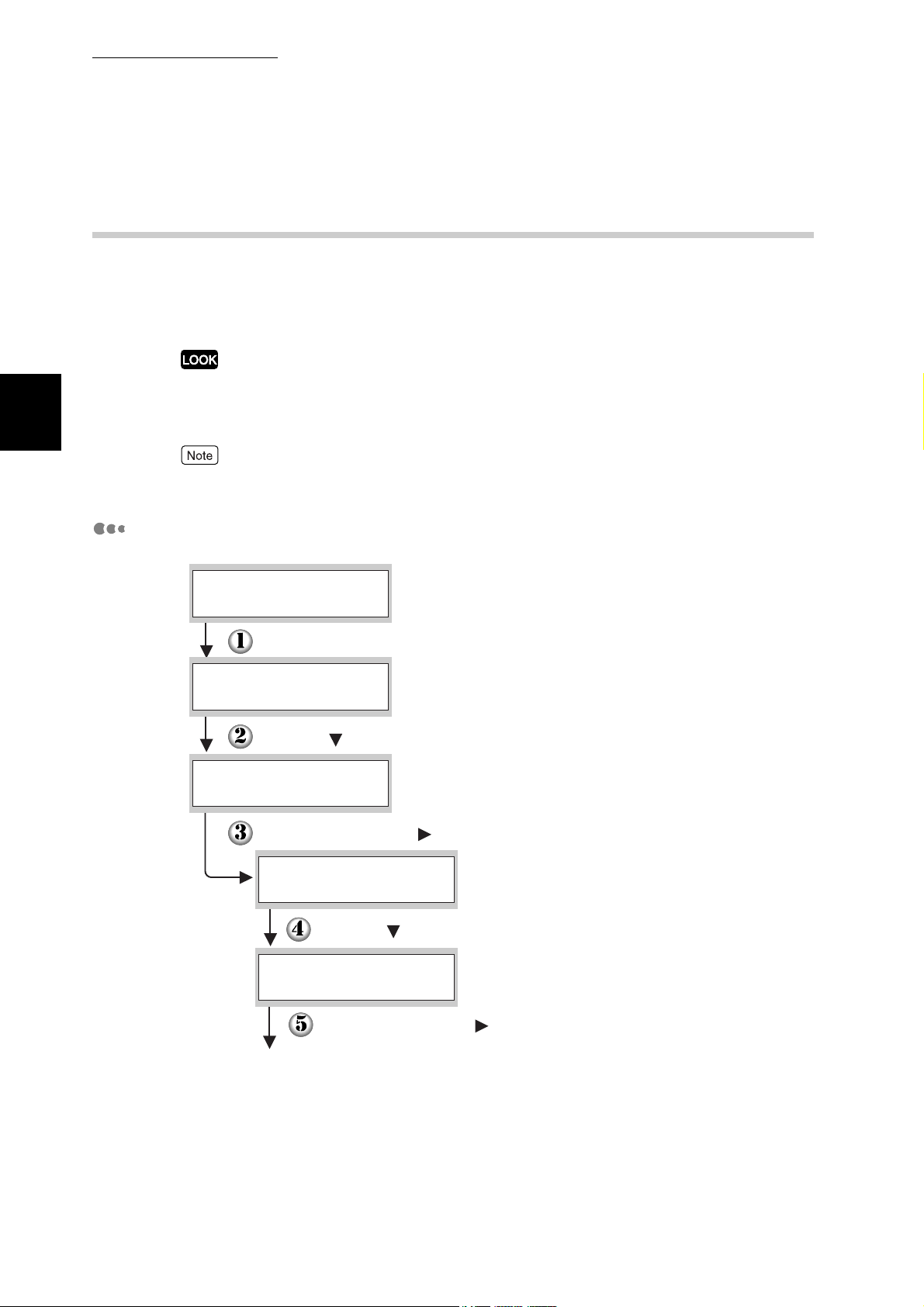

Use the control panel to print the Color Registration Correction Chart.

Ready to Print

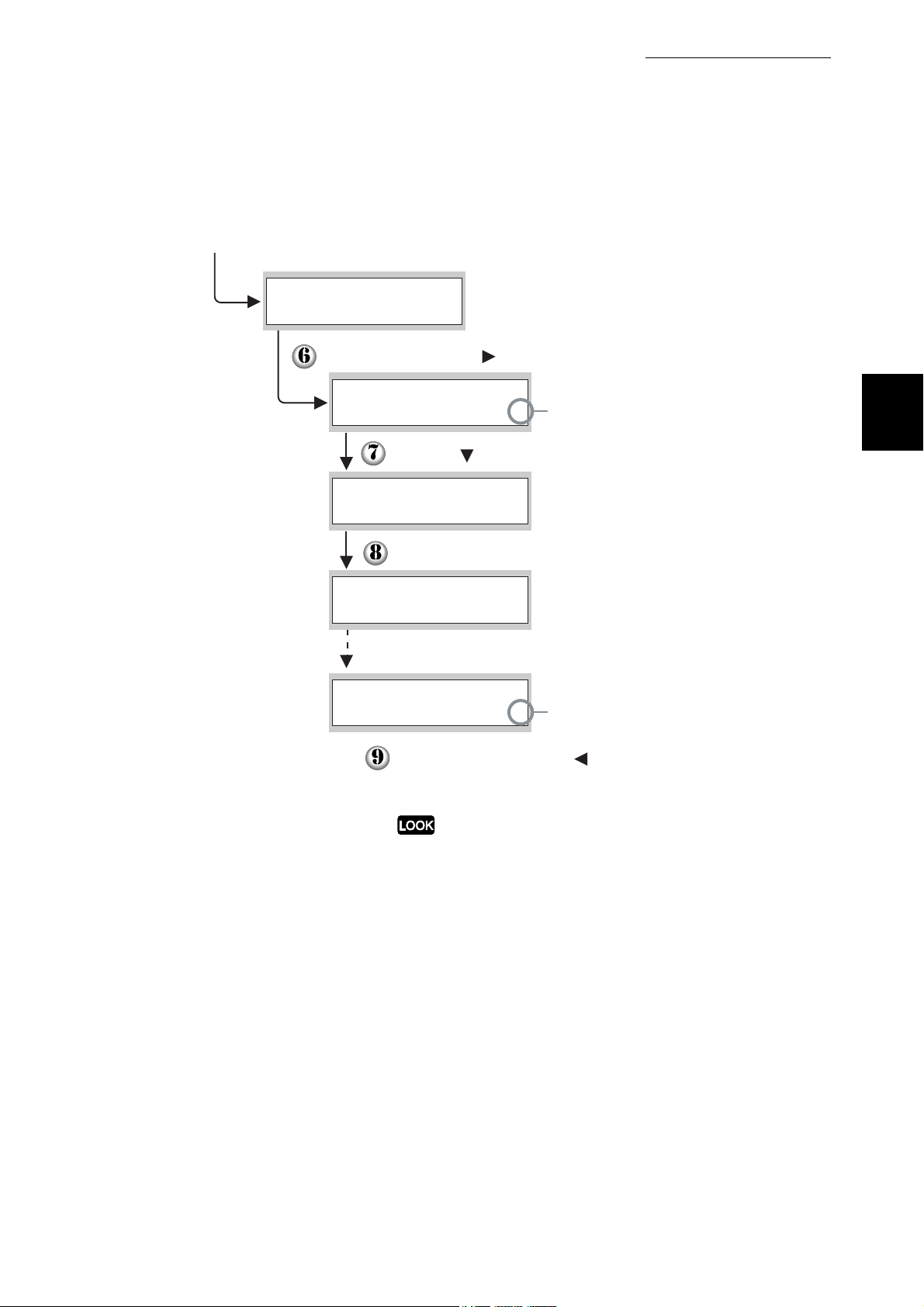

Press the Menu button. The menu screen appears.

Menu

1:System

Press the button once.

(Print screen. The printer is ready to print.)

(Menu screen)

Menu

2:Maintenance

Press the Set/Eject or button once.

2:Maintenance

2:Maintenance

ColorRegiCorrect

Init NVM

Press the button six times.

Press the Set/Eject or button once.

ColorRegiCorrect

AUTO

Press the button once.

ColorRegiCorrect

Correction Chart

2

Press the Set/Eject button twice.
The Color Registration Correction Chart is printed.
When printing is finished, the print screen reappears.

1.1 Adjusting Color Registration

Determining Values

From the lines to the right of the Y (yellow), M (magenta), and C (cyan) pattern,
find the values of the straightest lines.

You can also use the densest colors of the grid to fin d the straightest lines. T he colors printed
at the highest density are those next to the straightest lines.
When "0" is the value nearest the straightest line, you do not need to adjust the color
registration. When the value is not "0", follow the procedure outlined in "Entering Values".

Printer System Settings

1

Straightest line

Lattice pattern

Entering Values

Using the control panel, enter the values that you found in the Color Registration
Correction Chart to make adjustments.

Ready to Print

Follow steps through on the previous page to display
the color registration correction chart settings menu.

ColorRegiCorrect

AUTO

Press the button twice.

ColorRegiCorrect

Enter Number

Press the Set/Eject or button once.

Continued

3

1.1 Adjusting Color Registration

Printer System Settings

Continued from previous page.

Enter Number
Y= 0 M= 0 C= 0

Enter Number

1

Y=+3 M= 0 C= 0

Enter Number
Y=+3 M= 0 C= 0

Using the or buttons, press the buttons until you
reach the value (for example, +3) displayed on the chart.

Press the button once and move the cursor to the next value.

Repeat steps and to continue adjusting the color
registration.

Enter Number
Y=+3 M=+1 C=+2

Press the Set/Eject button once.

Correction Chart

Ready to Print

Press the Set/Eject button once.
The Color Registration Correction Chart is printed with the
new values.

Color registration adjustment is complete when the
straightest Y (yellow), M (magenta), and C (cyan) lines
are next to the "0" line.

After printing the Color Registration Correction Chart, do not turn
off the printer until the printer motor has stopped running.

If "0" is not next to the straightest lines, determine the values
and adjust again.

4

Configuring the Printer

1.2

This section describes how to confirm your system environment and how to make the
necessary printer settings.

1.2.1 Compatible Systems

You can use the printer locally when it is connected directly to your computer.

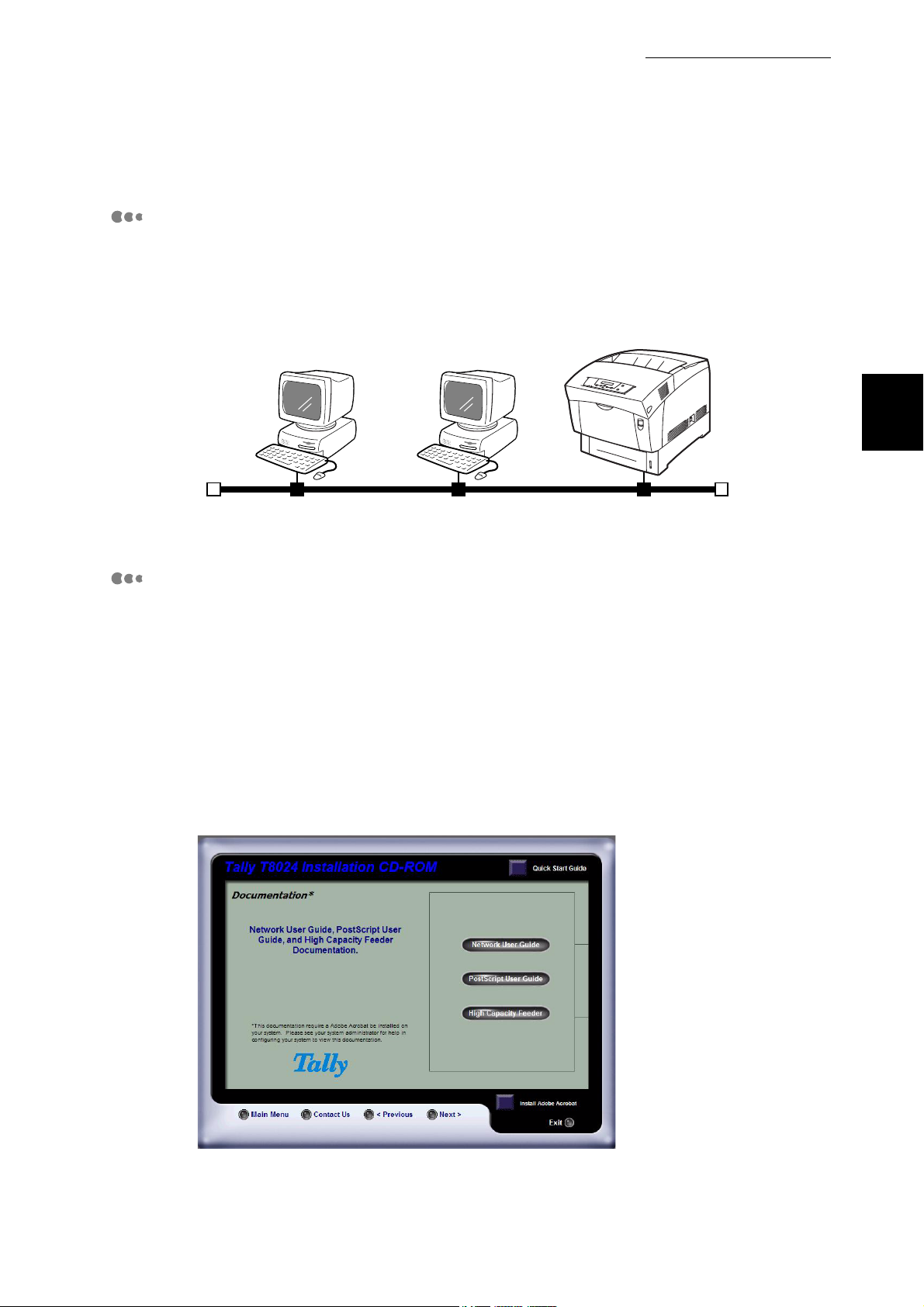

You can use the printer through a network when it is connected to a network.
Because the printer supports a variety of protocols, it is possible to share it
among a number of different networks.

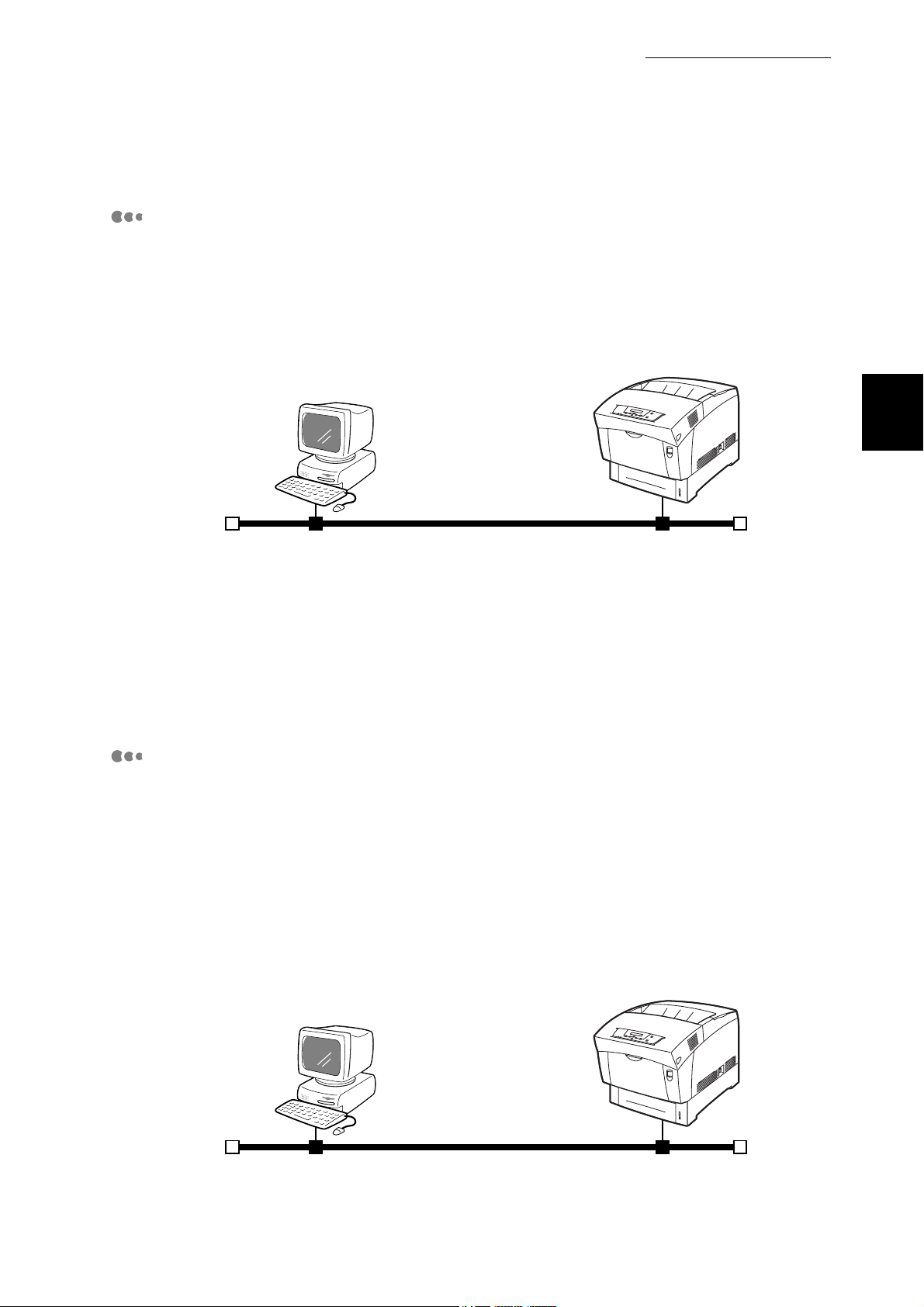

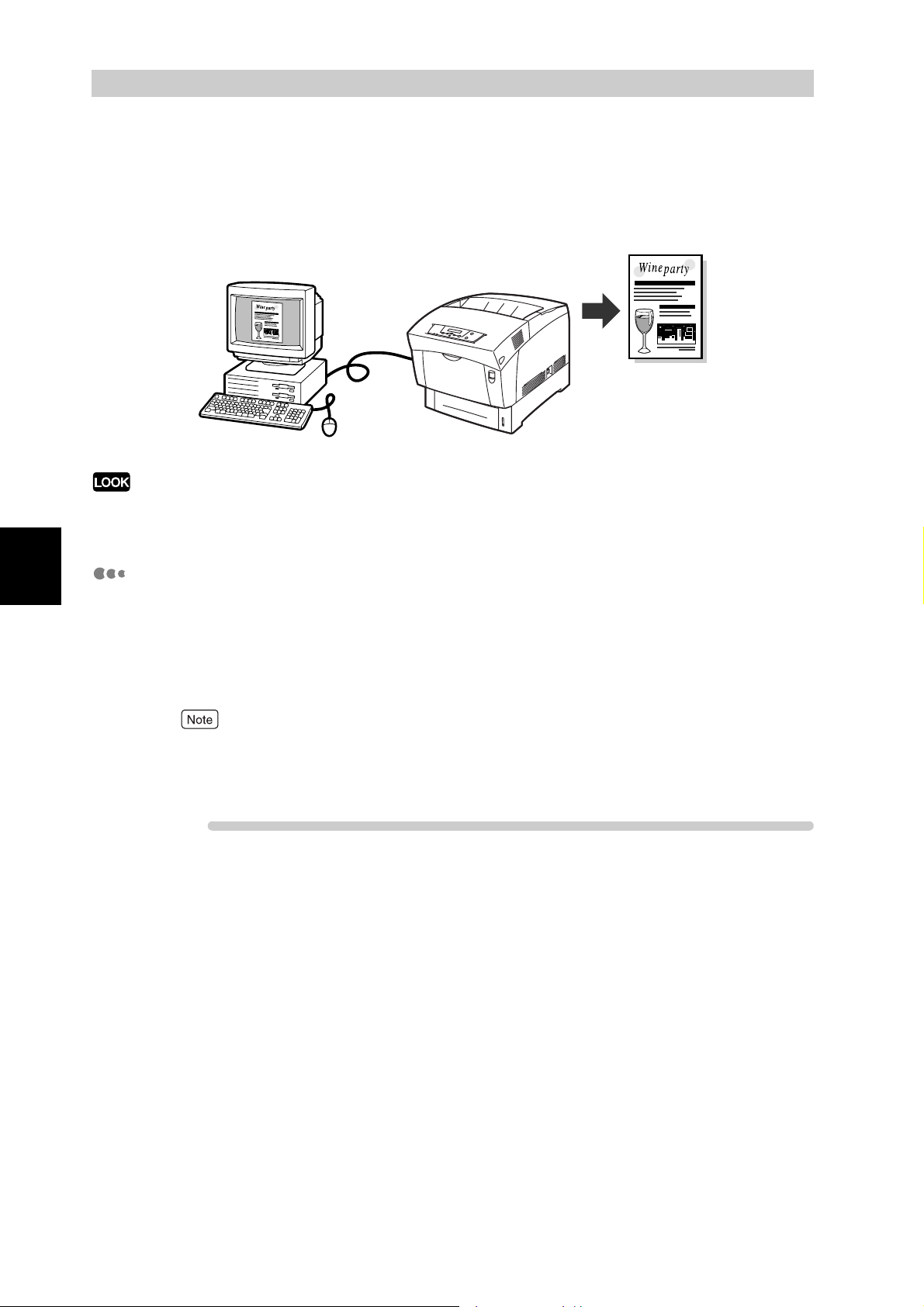

Local Connection

You can connect the printer to your computer with a parallel or USB cable.

Printer System Settings

1

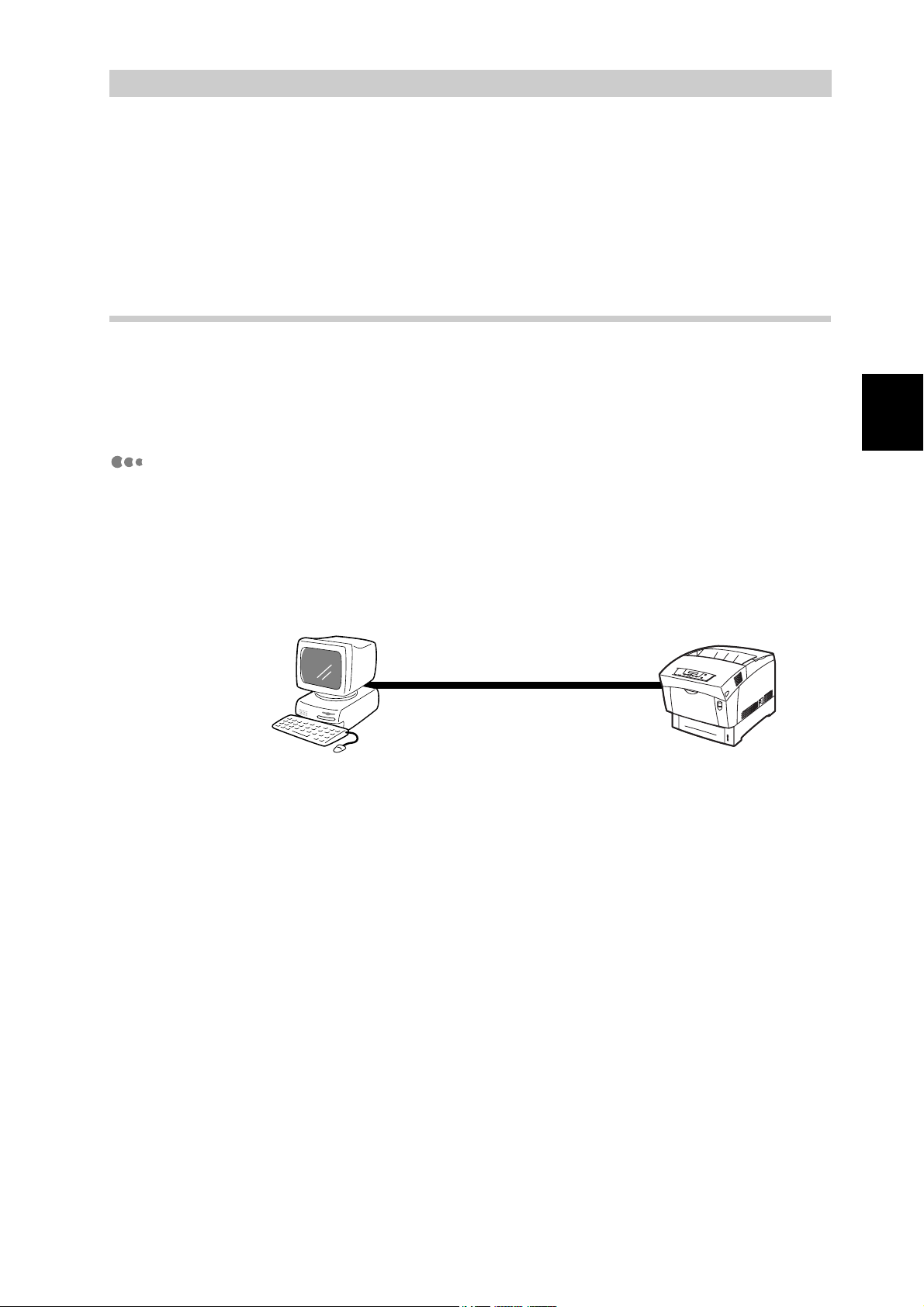

<Parallel cable connection>

Windows 95/Windows 98/Windows Me/
Windows NT 4.0/Windows 2000/Windows XP

Parallel cable

Printer

5

1.2 Configuring the Printer

Printer System Settings

1

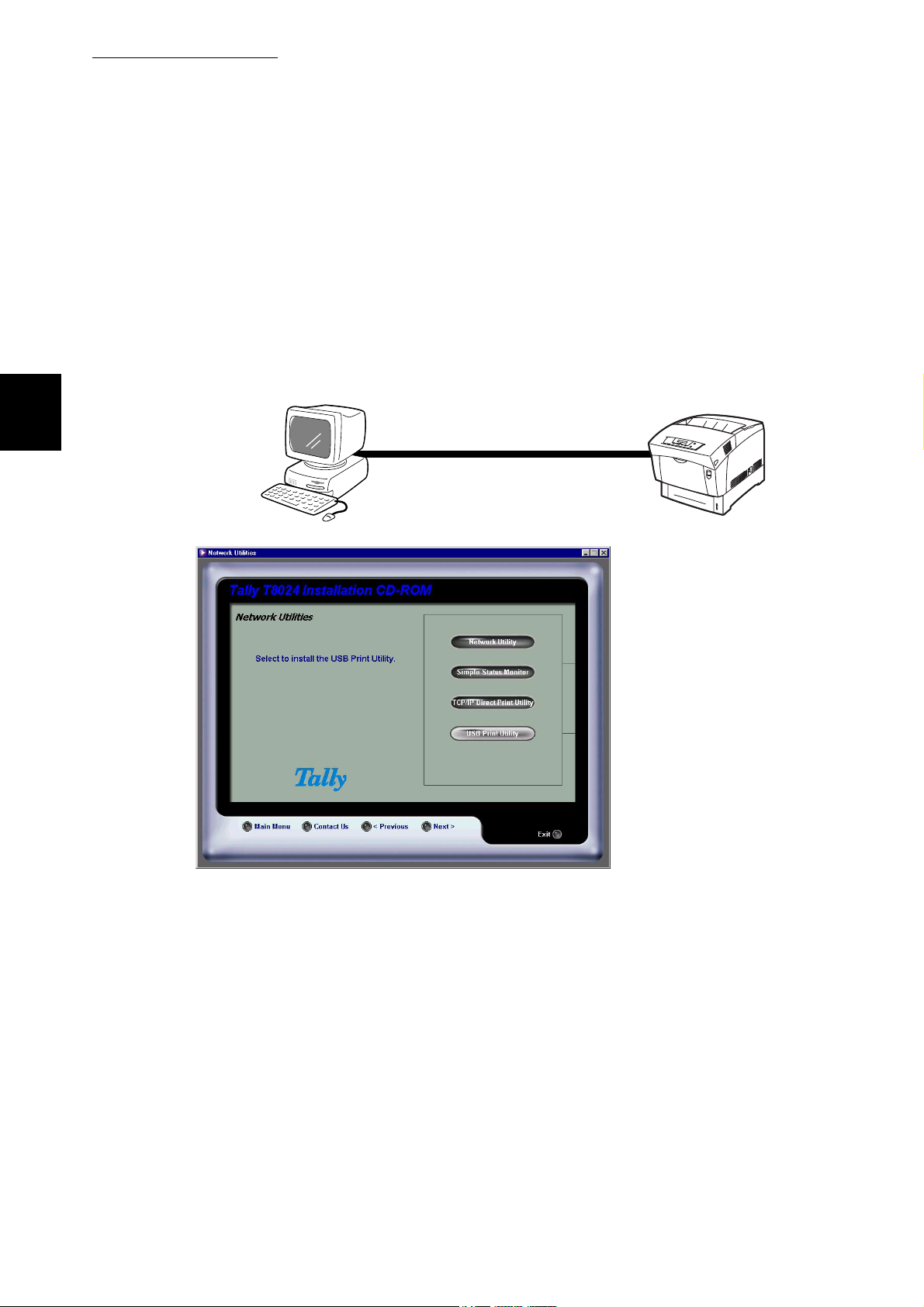

<USB cable connection>

You can use a USB cable to connect the printer if any of the conditions below are
met: However, we cannot guarantee the normal operation of all USB compatible
equipment.

●

Computers running preinstalled Wi ndows Me, preinstalled Wi ndows 98 Second
Edition, preinstalled Windows 2000, or preinstalled Windows XP.

Windows 98 Second Edition/Windows Me, using supplied USB driver, see below
Windows 2000/Windows XP

USB cable

Printer

(*)

6

1.2 Configuring the Printer

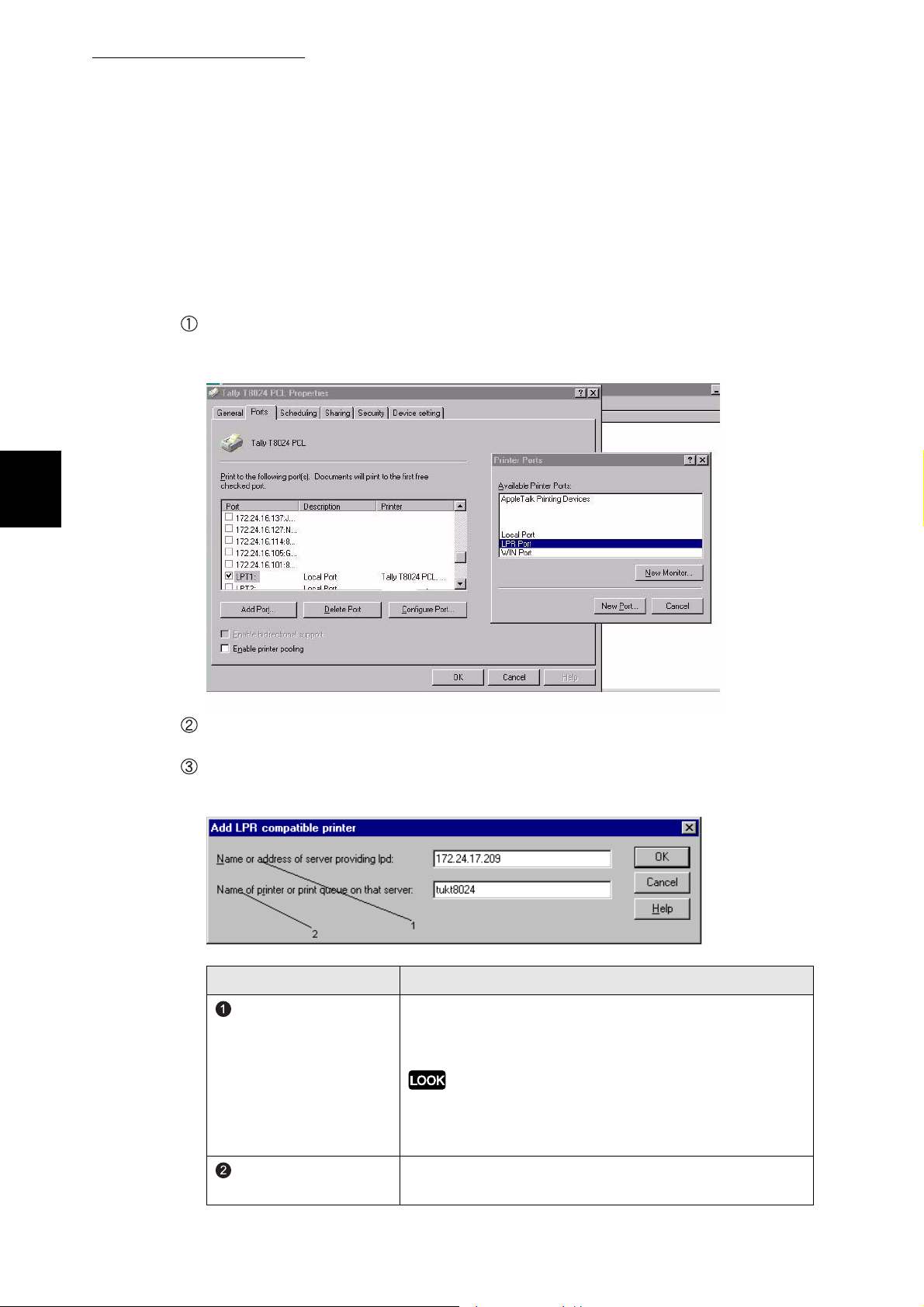

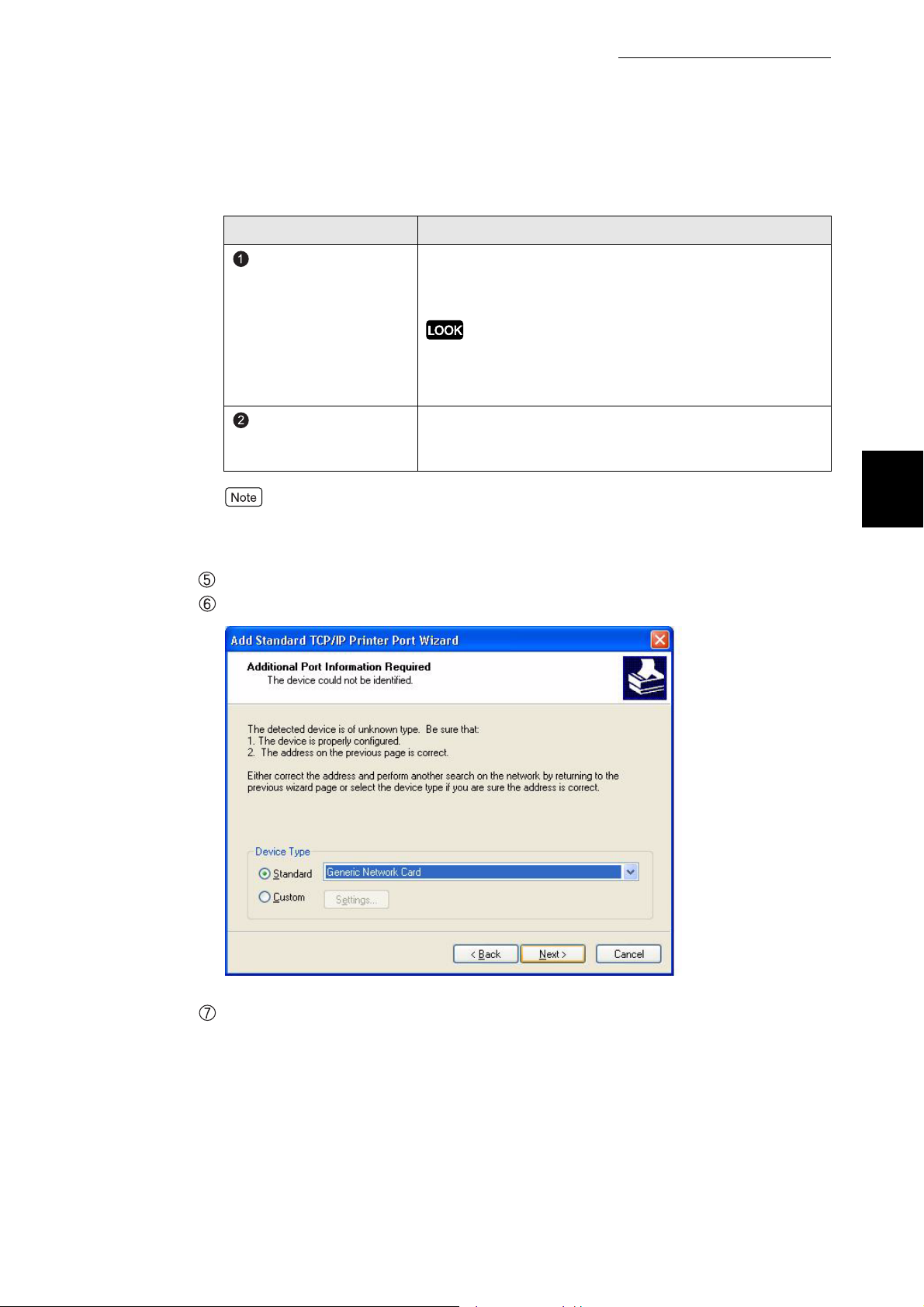

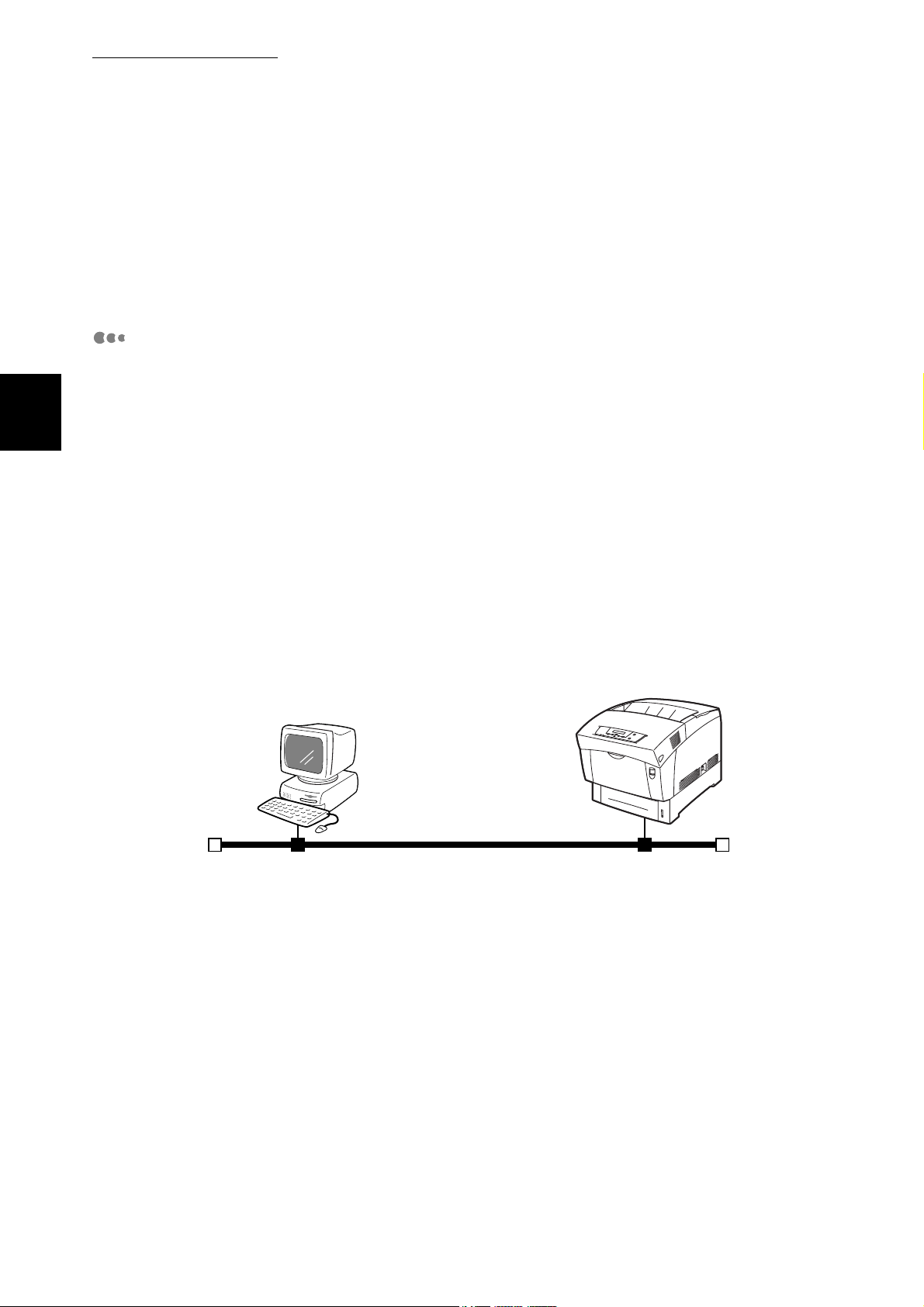

TCP/IP (Windows NT 4.0/Windows 2000/Windo ws XP)

The printer supports TCP/IP (LPD) protocol, allowing you to print by sending
data through an lpr port directly to the printer from computers running Windows
NT 4.0, Windows 2000, or Windows XP. To do this, you need to set the IP
address of the printer and the Windows NT 4.0, Windows 2000, or Windows XP
computer.

Windows NT 4.0/Windows 2000/Windows XP

Printer

Printer System Settings

1

TCP/IP(LPR/LPD)

■ In Windows 2000/Windows XP the following are possible:

●

The printer supports port 9100, allowing you to print by sending data from the
designated port to the printer.

●

With the use of the optional network protocol expansion card the printer
supports IPP, allowing you to print by specifying the URL of the printer and
sending data to it through the Internet.

TCP/IP (Windows 95/Windows 98/Windows Me)

Use the TCP/IP Direct Print Utility to print from Windows 95, Windows 98, or
Windows Me.
The TCP/IP Direct Printer Utility is a program that sends print data from the
computer directly to the printer through a network, without the need to go through
a network print server.
To do this, you need to set the IP address of the printer and the Windows 95,
Windows 98, or Windows Me computer.
The TCP/IP Direct Print Utility protocol also works with LPD and port 9100.

TCP/IP Direct Print Utility running on
Windows 95/Windows 98/Windows Me

Printer

TCP/IP (LPR/LPD) or TCP/IP (port 9100)

7

1.2 Configuring the Printer

Printer System Settings

SMB (Windows network)

1

■ With Windows Me setup for IPP, the following types of

printing are possible:

The printer, by use of an optional network expansion card, supports IPP,
allowing you to print by specifying the URL of the printer and sending data to it
through the Internet.

Installing an optional network expansion card enables the printer to use the SMB
(Server Message Block) protocol. The SMB protocol allows computers running
Windows 95, Windows 98, Windows Me, Windows NT 4.0, Windows 2000, and
Windows XP to share files and printers. Using the SMB protocol means that you
do not need to use a server. Printing is carried out by sending data directly to the
printer.
If using TCP\IP on a network which includes a server, the recommended way of
sharing the T8024 printer is to connect the printer to the server using either port
9100 or lpr and then sharing the printer from a server. This means that the
optional Network protocol expansion card, required for SMB printing, would not
be required. See network user guide for more details.
The SMB transport protocol can be NetBEUI or TCP/IP. However, Windows XP
does not support NetBEUI.

Windows 95/Windows 98/Windows Me
Windows NT 4.0/Windows 2000/Windows XP

NetBEUI

(*1)

Windows XP does not support NetBEUI.

(*1)

Printer

or TCP/IP

8

1.2 Configuring the Printer

Printer System Settings

NetWare

®

Installing an optional network expansion card enables the printer to use IPX/SPX
protocol. In a network environment using NetWare versions 4.1, 4.11, 4.2, or 5.1
from Novell Inc., printing is performed from NetWare client computers.

NetWare client NetWare server

NetWare(IPX/SPX)

NetWare(IPX/SPX)

Printer

Printing from a Macintosh Computer

The optional PostScript3 kit is required in order to print from a Macintosh
computer.
When the printer is connected to the Macintosh computer by USB cable, printing
is possible using the Adobe PostScript driver.
Further, with the optional network expansion card installed, the printer can be
connected to an EtherTalk network. Printing is then possible from Macintosh
computers that are connected to the network.
See the Postscript User Guide for details of installation of the optional PDL
emulation, Postscript level 3, onto Macintosh computers.

1

9

1.2 Configuring the Printer

Printer System Settings

1.2.2 Printer Configuration Flow

This section describes the flow of printer configuration.
Refer to the flow chart and confirm that each requirement is met, according to
your needs.

1

Yes
No

*1 *1

With SMB

Are you using

TCP/IP?

Start SMB

NetBEUI

(set as the

default)

Start SMB

TCP/IP

(set as the

default)

With

TCP/IP (LPD)

Set IP addresses

Start the

protocol

Start LPD

(set as the

default)

Are you using a

network?

With

port 9100

Start

port9100

(set as the

default)

"1.2.3"

"1.2.4"

(set as the

With

Internet

*1

Start IPP

default)

With

NetWare

Start

NetWare

(set as the

default)

*2

Configure the system
with the network utility

10

*4 *3 *3

Installing the printer driver

Finish

"Chapter 2"

*1 To use these protocols you need an optional network expansion ca rd.
*2 Refer to "Configuring in NetWare Environment" in the Network User Guide.
*3 Refer to "Configuring in TCP/IP Environment" in the Network User Guide.
*4 Windows NT 4.0, Windows 2000, and Windows XP allow you to share the printer. For details

about how to share the printer and printing from client computers, refer to "Configuring in TCP/IP
Environment" in the Network User Guide.

1.2 Configuring the Printer

Printer System Settings

1

Cases When You Should Refer to the Network User Guide

The following network functions are provided with the printer. For details about
these functions, refer to the Network User Guide on the CD-ROM provided with
the printer.

■In a variety of network environments, the printer gives you flexibility to:

●

In a TCP/IP system...
Have the printer's IP address managed by a DHCP server.
Register the printer on a WINS server.

The IP address will change from time to time when you use DHCP, so periodic confirmation
of the IP address is necessary. An optional network expansion card is required in order to
use DHCP in a WINS environment.

●

In an SMB system... Change the host name or workgroup name.

■Using Internet Services in a TCP/IP system

This enables you to display the printer status and make various settings from a
Web page. This function is called "Internet Services".

■The printer has an SNMP agent function for use in TCP/IP and NetWare

systems.

With the SNMP function active (active by default), you can contro l the printer
from an SNMP manager.

Also, with the Simple Status Notification function, you can check the status of
the printer from your computer.

11

1.2 Configuring the Printer

Printer System Settings

1.2.3 Setting the IP Address

1

This section describes the procedure for setting the IP address, subnet mask,
and gateway address from the control panel of the printer.
Follow the procedure below.

IP addresses are managed throughout the system as a whole. Specifying the wrong IP
address can affect the entire network. Before setting an IP address, consult your system
administrator.

Refer to "5.2 Basic Menu Operation" and "Appendix B Control Panel Menu List" for
information about operation of the control panel.

Set the IP Address Acquisition Method to Panel.

Ready to Print

Press the Menu button. The menu screen appears.

Menu

1:System

Press the button four times.

Menu

5:Network

Press the Set/Eject or button once.

5:Network

Ethernet

Press the button once.

5:Network

TCP/IP

(The print screen. The printer is ready to print.)

(The menu screen)

12

Press the Set/Eject or button once.

Continued

Continued from previous page.

TCP/IP

IP Address Setup

Press the Set/Eject or button once.

1.2 Configuring the Printer

Printer System Settings

IP Address Setup

DHCP

Press the button once.

IP Address Setup

Panel

Press the Set/Eject button once.

Reboot Printer
to Take Effect

Three seconds later, the following screen appears.

IP Address Setup

Panel

Press the Cancel/Back or button once.
The lower line of the screen returns to the
"IP Address Setup".

The value currently set has
a "*" displayed next to it.

*

When the value is set, a
"*" appears next to it.

*

1

Only restart the printer after setting the gateway
address at the last step. Continue to the next step
without restarting the printer.

13

1.2 Configuring the Printer

y

Printer System Settings

Setting the IP Address

The IP address consists of four separ ate values (base 10) separated by decimal points. The
four values can be set anywhere between 0 and 255.

1

Continued from the previous step

TCP/IP

Setup ip address

Press the button once.

Example:

• IP Address "129.249.242.179"

• Subnet Mask "255.255.255.0"

• Gateway Address "129.249.242.254"

TCP/IP

IP Address

Press the Set/Eject or button once.

IP Address

000. 000. 000. 000

Using the or button, press the buttons until the
desired value (for example, 129) appears. You can hold
down the buttons to change the value in increments of 10.

*

IP Address

129. 000. 000. 000

Press the button once and move the cursor to
the next value.

When you do not
understand the
menu screens
displayed or at
which level in the
menu tree the
displayed screen
is, refer to
Appendix B
"Control Panel
Menu List".

IP Address

129. 000. 000. 000

Repeat steps and to finish setting the IP address.

IP Address

129. 249. 242. 179

Press the Set/Eject button once.

Reboot Printer
to Take Effect

Three seconds later, the following screen appears.

IP Address

129. 249. 242. 179

Press the Cancel/Back or button once.
The lower line of the screen returns to "IP Address".

*

14

Setting the Subnet Mask

Continued from the previous step

TCP/IP

IP Address

Press the button once.

1.2 Configuring the Printer

Printer System Settings

TCP/IP

Subnet Mask

Press the Set/Eject or button once.

Subnet Mask

000. 000. 000. 000

Set the required subnet mask using the same key
presses detailed in steps 12 to 15 shown above

Subnet Mask

255. 255. 255. 000

Press the Cancel/Back or W button once.
The lower line of the screen returns to "Subnet Mask".

Setting the Gateway Address

Continued from the previous step.

TCP/IP

Subnet Mask

1

*

*

Press the button once.

TCP/IP

Gateway Address

Press the Set/Eject or button once.

Gateway Address

000. 000. 000. 000

Gateway Address

129. 249. 242. 254

*

Set the required Gateway Address using the same key
presses detailed in steps 12 to 15 shown above.

*

The panel will advise "Reboot Printer to take effect.
Power the printer off, wait 20 seconds, power it back on.

15

1.2 Configuring the Printer

Printer System Settings

1.2.4 Setting the Protocols

When the printer is shipped from the factory, all protocols except "FTP" are "Enabled" by
default. You do not need to perform the opera tio ns de sc rib ed in this sectio n wh en you
connect a new printer to a network for the first time.
This concludes the Printer Settings list. Move on to "1.2.5 Checking Settings".

1

When you want to use the printer as a network printer, you need to set the right
protocols on the printer.

●

For TCP/IP(LPD) → "LPD" protocol

●

For Port 9100 → "Port9100" protocol

●

For IPP → "IPP" protocol

●

For SMB (transport protocol: TCP/IP) → "SMB TCP/IP" protocol

●

For SMB (transport protocol: NetBEUI) → "SMB NetBEUI" protocol

●

For NetWare → "NetWare" protocol

Follow the procedure below.

If you do not have an optional network expansion card, the following protocol s do not appear:

●

SMB TCP/IP

●

SMB NetBEUI

●

NetWare

●

IPP

●

Ethertalk

●

SNMP IPX

16

Refer to "5.2 Basic Menu Operation" and "Appendix B Control Panel Menu List" for
information about the operation of the control panel.

1.2 Configuring the Printer

Printer System Settings

Ready to Print

Press the Menu button. The menu screen appears.

Menu

1:System

Press the button four times.

Menu

5:Network

Press the Set/Eject or button once.

5:Network

5:Network

(The print screen. The printer is ready to print.)

(The menu screen)

1

Ethernet

Press the button two times.

Protocol

Press the Set/Eject or button once.

Continued

17

1.2 Configuring the Printer

Printer System Settings

1

Continued from previous page.

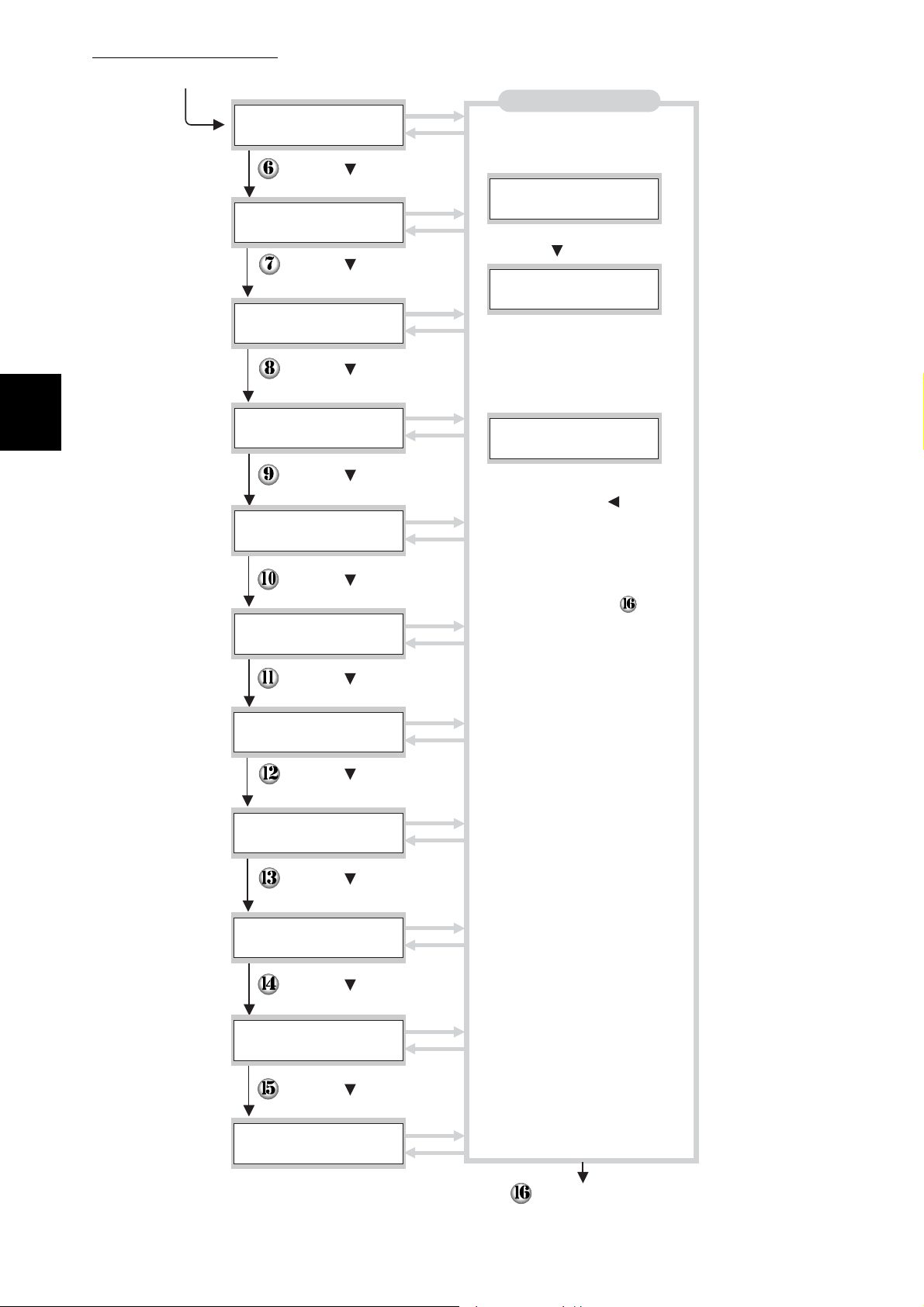

Protocol

LPD

Press the button once.

Protocol

Port9100

Press the button once.

Protocol

IPP

Press the button once.

Protocol

SMB TCP/IP

Press the button once.

Protocol

SMB NetBEUI

Starting protocols

1. Press the Set/Eject button
once. XXX indicates the protocol
name.

xxx

Disabled

2. Press the button once.

*

xxx

Enabled

3. Press the Set/Eject button
once. "Reboot Printer to Take
Effect" appears for three seconds,
then following screen appears.

xxx

Enabled

4. To start other protocols, press
the Cancel/Back or button
once and continue to the next
step.

*

Press the button once.

Protocol

NetWare

Press the button once.

Protocol

ethertalk

Press the button once.

Protocol

FTP

Press the button once.

Protocol

SNMP UDP\IP

Press the button once.

To finish the setting
procedure, go to step .

18

Protocol

SNMP IPX

Press the button once.

Protocol

Internet Services

Restart the printer.

1.2.5 Checking Settings

Print the Printer Settings list to check the content of printer settings.
The Printer Settings list also contains information that is required when
configuring computers for printing. Use the list to confirm that settings on the
printer and the computer match.

1.2 Configuring the Printer

Printer System Settings

For details about printing the list, refer to "8.4.1 Confirming Printer Configuration and
Network Settings".

Example of a Printer Settings List

Use the sample Printer Settings list on the following page as a guide when
confirming the printer’s configuration.

The sample Printer Settings list shown on the following page is from a print er with an optional
network expansion card installed.

1

19

1.2 Configuring the Printer

Printer System Settings

1

Chec

These settings
must be made
on the computer

20

Check the protocol port status

Chapter

2Installing the Printer

Driver

2.1 After Setting up the Printer......................................................... 22

2.2 Installing the Printer Driver

(Windows 95/Windows 98/Windows Me)...................................25

2.3 Configuring the TCP/IP Direct Print Utility................................32

Installing the Printer Driver

2.4
(Windows NT 4.0/Windows 2000/Windows XP/Windows 2003)...

39

2.5 Setting Up the USB Port...................... ........................................51

2.1

After Setting up the Printer

Installing the Printer Driver

Configure the computer after you have set up the printer.
When the printer is used as a local printer, install the printer driver onto the computer
connected to the printer. If it is used as a network printer it is normal to first install the printer
driver to the computer connected to the printer and then share it to other computers. In
several places throughout this chapter it is necessary to run the T8024 Auto install
CD-ROM. It is recommended that all other applications are closed down before inserting the
CD-ROM.

2.1.1 The PCL6 Printer Drivers

A printer driver is software that converts print data or instructions from the
computer to data interpreted by the printer.

2

The drivers for the following operating systems (OS) are available for the printer:

●

Windows 95

●

Windows 98

●

Windows Millennium Edition

●

Windows NT 4.0

●

Windows 2000

●

Windows XP

The printer drivers are stored inside and run from the Tally T8024 auto run cd.
If the CD does not either auto run or manually run by running the setup prog ram
you can add the printer drivers and utilities by searching for the relevant files on
the cd.

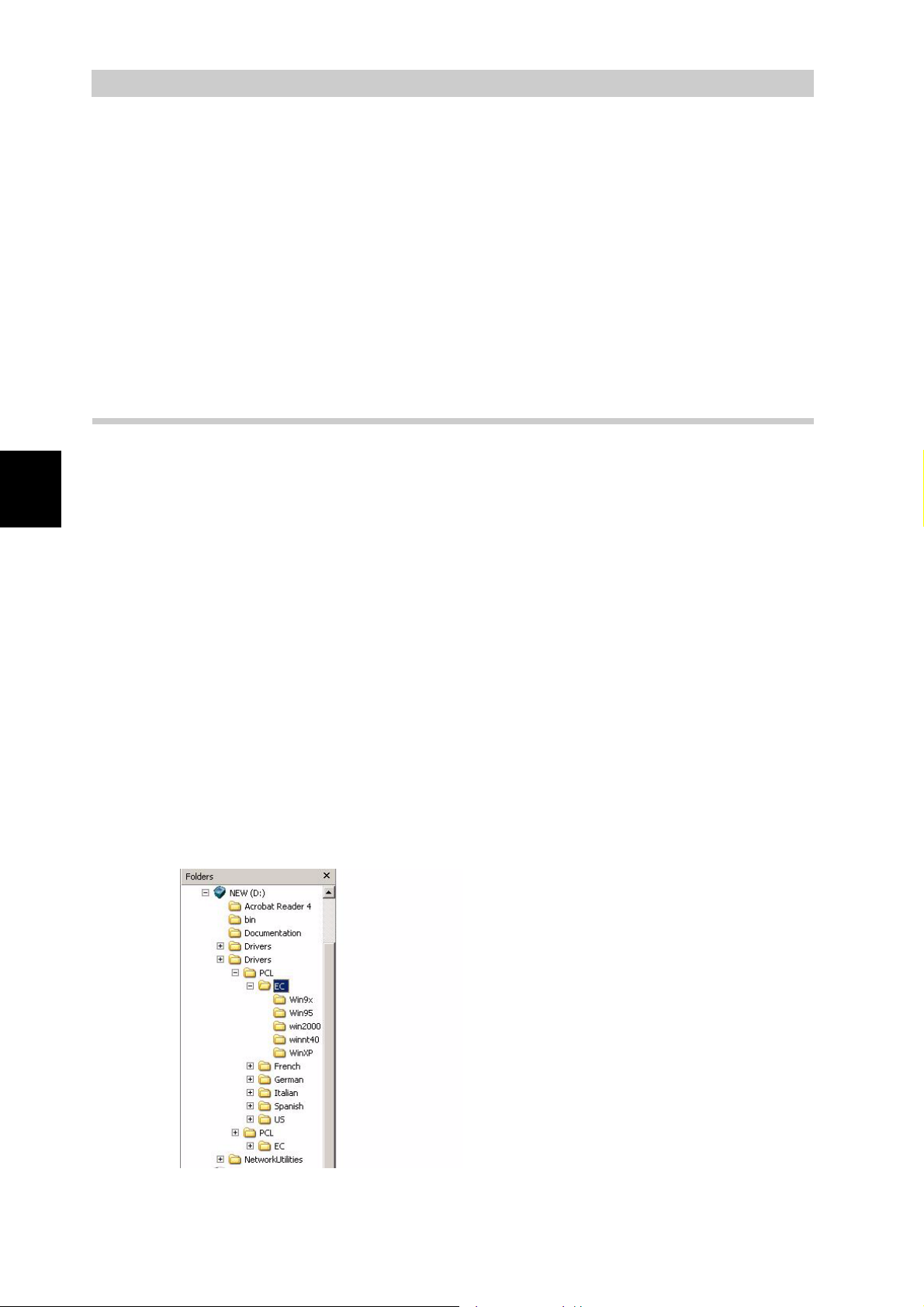

To install the printer drivers select ADD printer and point to the correct language
and operating system. There are drivers for windows 95 and seperate ones for
windows 98\ME. In the folders below select EC for english speaking countries
supporting A4 paper and US for those supporting letter size paper.

22

2.1 After Setting up the Printer

●

The printer driver for Windows NT 4.0 is for Intel x86 version NT 4.0.

●

You can use the printer driver for Windows 98 on Windows Me.

●

You can use the printer driver for Windows 2000 on Windows XP.

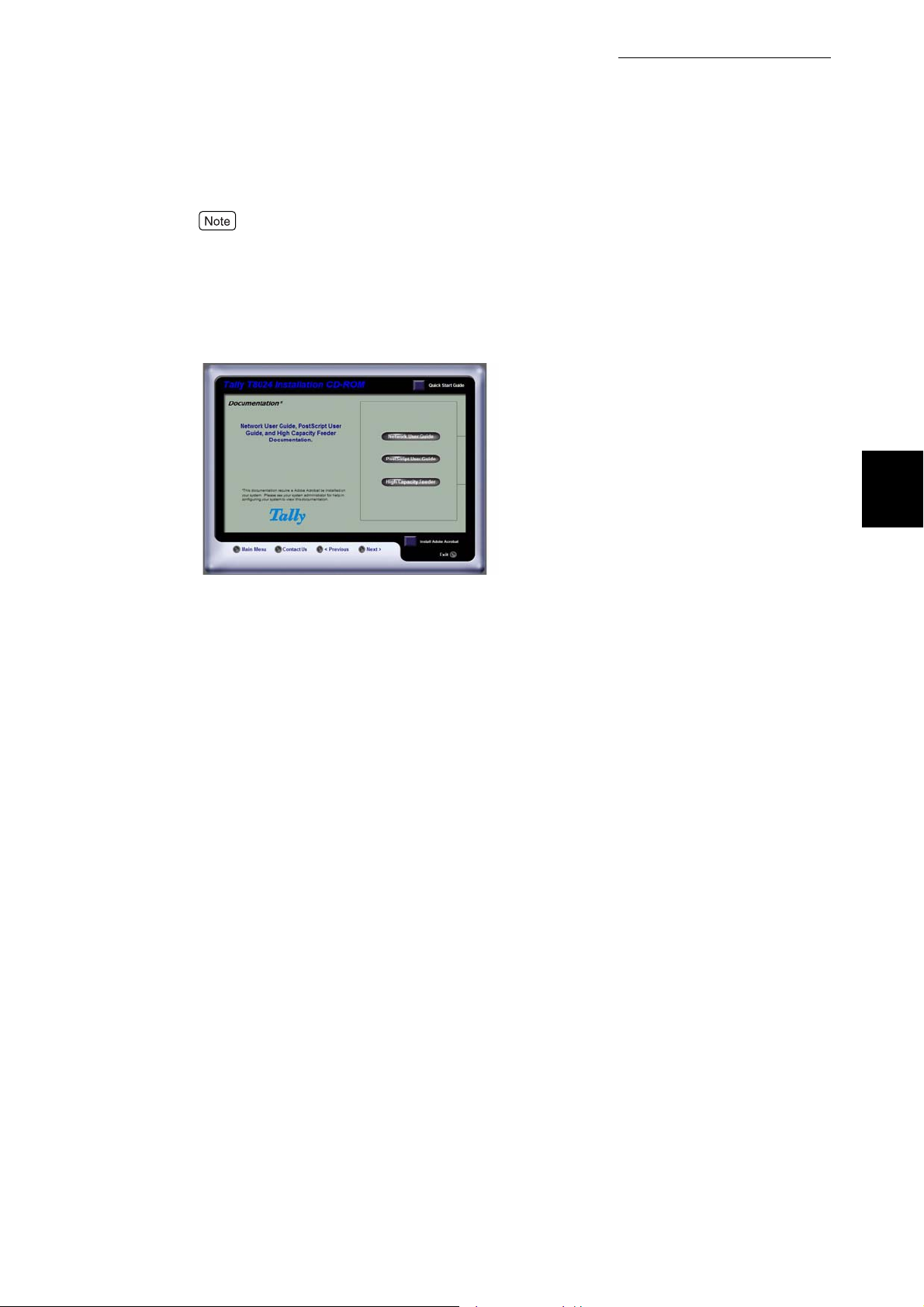

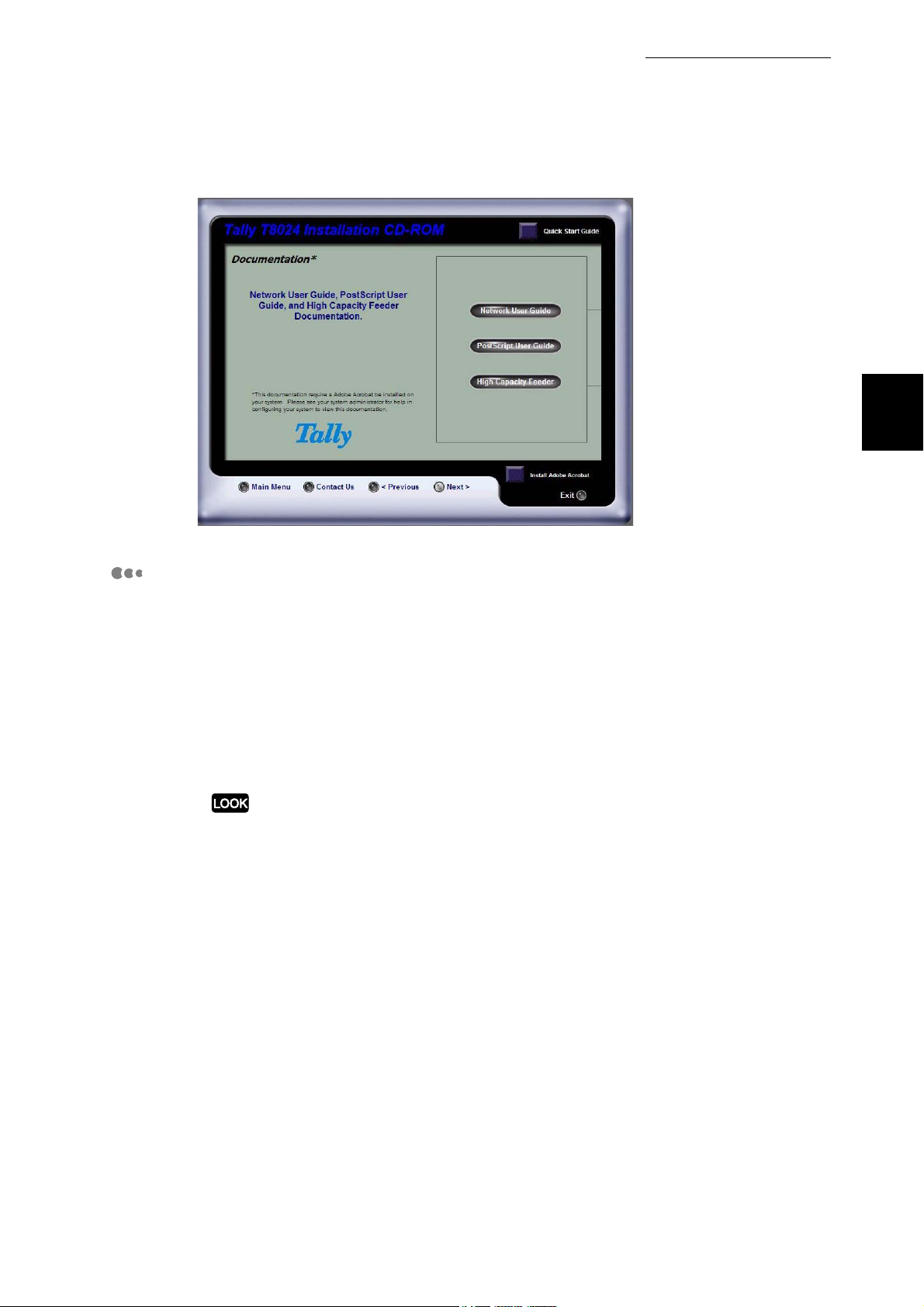

There is reference to the Network User Guide throughout this section. This is
linked from the additional documentation page.

Installing the Printer Driver

2

Obtaining the latest printer driver

There may be new printer drivers with future upgrades and you can download
the latest version of printer driver from the Tally home page.

23

2.1 After Setting up the Printer

Installing the Printer Driver

2.1.2 Using the TCP/IP Direct Print Utility

The TCP/IP Direct Print Utility is software for printing print data sent from a
computer directly to a printer on the network, without going through any server.
The TCP/IP Direct Print Utility is available on the Tally T8024 CD-Rom.
This manual assumes that the TCP/IP Direct Print Utility will be used when
printing from Windows 95, Windows 98 or Windows Me in a TCP/IP
environment.

Network User Guide on the Tally T8024 CD-Rom for information on the TCP/IP Direct Print
Utility

2

To install the TCP/IP Direct Print Utility, the computer must meet the following requirements:

●

Set the computer name in ASCII characters (single-byte alphanumeric letters in upper or
lower case/numerals/hyphen (-)/underscore (_)).

●

Installed with TCP/IP protocol

If TCP/IP is not installed, refer to the microsoft manuals or help files.

24

2.2

Installing the Printer Driver
(Windows 95/Windows 98/
Windows Me)

The procedure for installing the T8024 p rinter driver onto Windows 95/Windows 98/
Windows Me is described in this section.
Here, we will use Windows 98 as an example. Once the driver is installed, see the Network
User manual for details of connecting the printer over networks.

Installing the Printer Driver

Procedure

1
2

3

Power on the printer.
Power on your computer running Windows 98.

When the printer is connected to the computer, a dialog box indicating that new hardware
has been detected maybe displayed when you activate Windows 98. In this case, click
Cancel to close the dialog box.

For Netware environments, log on to the target file server.

Installing the Printer Driver

2

4

5
6

7

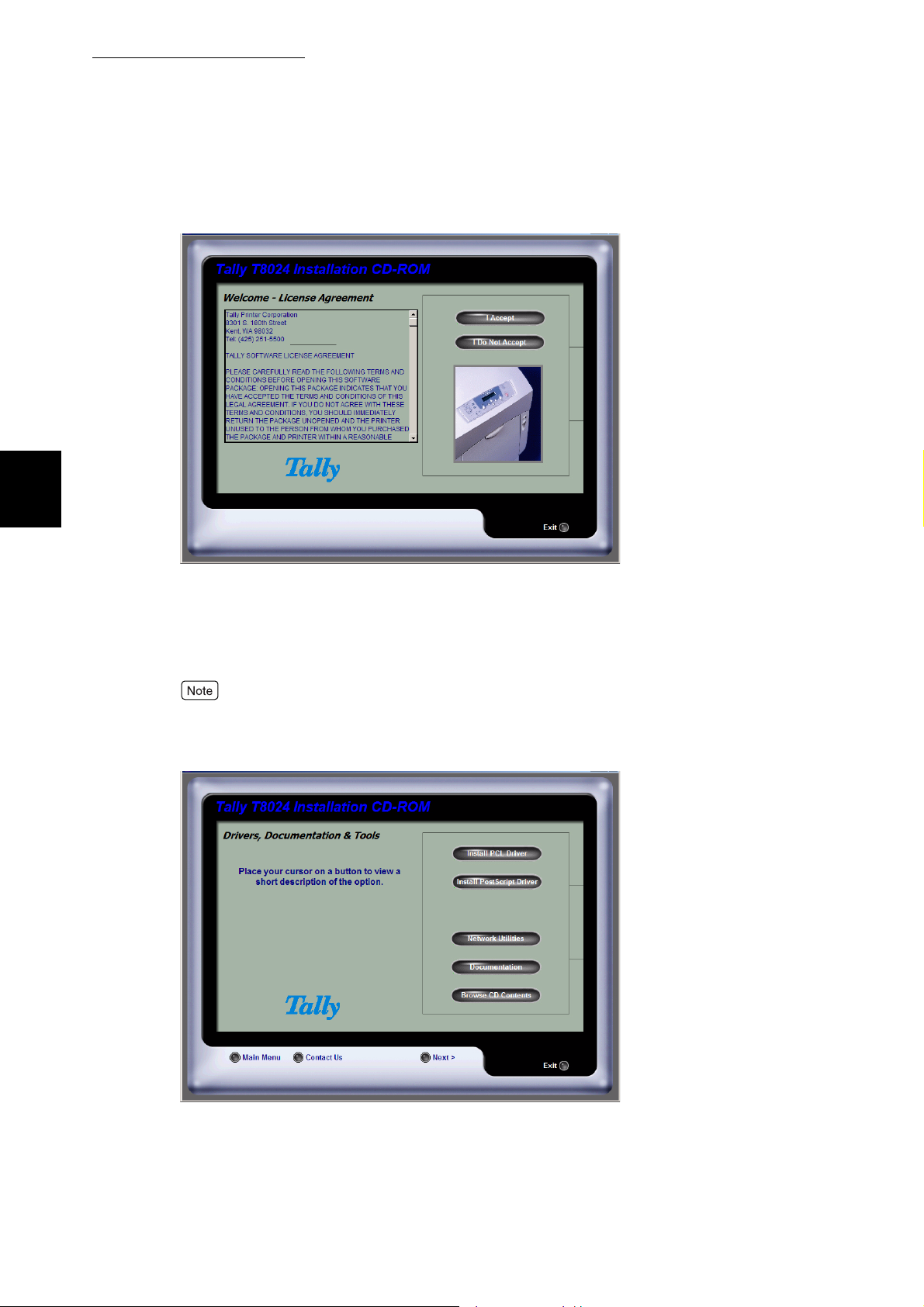

Insert the T8024 Auto Installer CD into your CD-ROM drive.

If the CD-ROM does not start automatically, go to My Computer and double click the CD­ROM drive icon.

Click the I Accept button.
Click the Install PCL Driver or Install PostScript Driver button to start

the driver installation.

When the PostScript installer prompts you to select a PPD, browse to your CD- ROM and
look in the \Drivers\PS folder and select the appropriate. In addition, the optional PostScript
Kit must be installed in the printer in order to print using the PS driver.

Click Exit when the driver installation is complete.

This installs the Tally T8024 printer onto lpt1:

25

2.2 (Windows 95/Windows 98/Windows Me)

Installing the Printer Driver

8

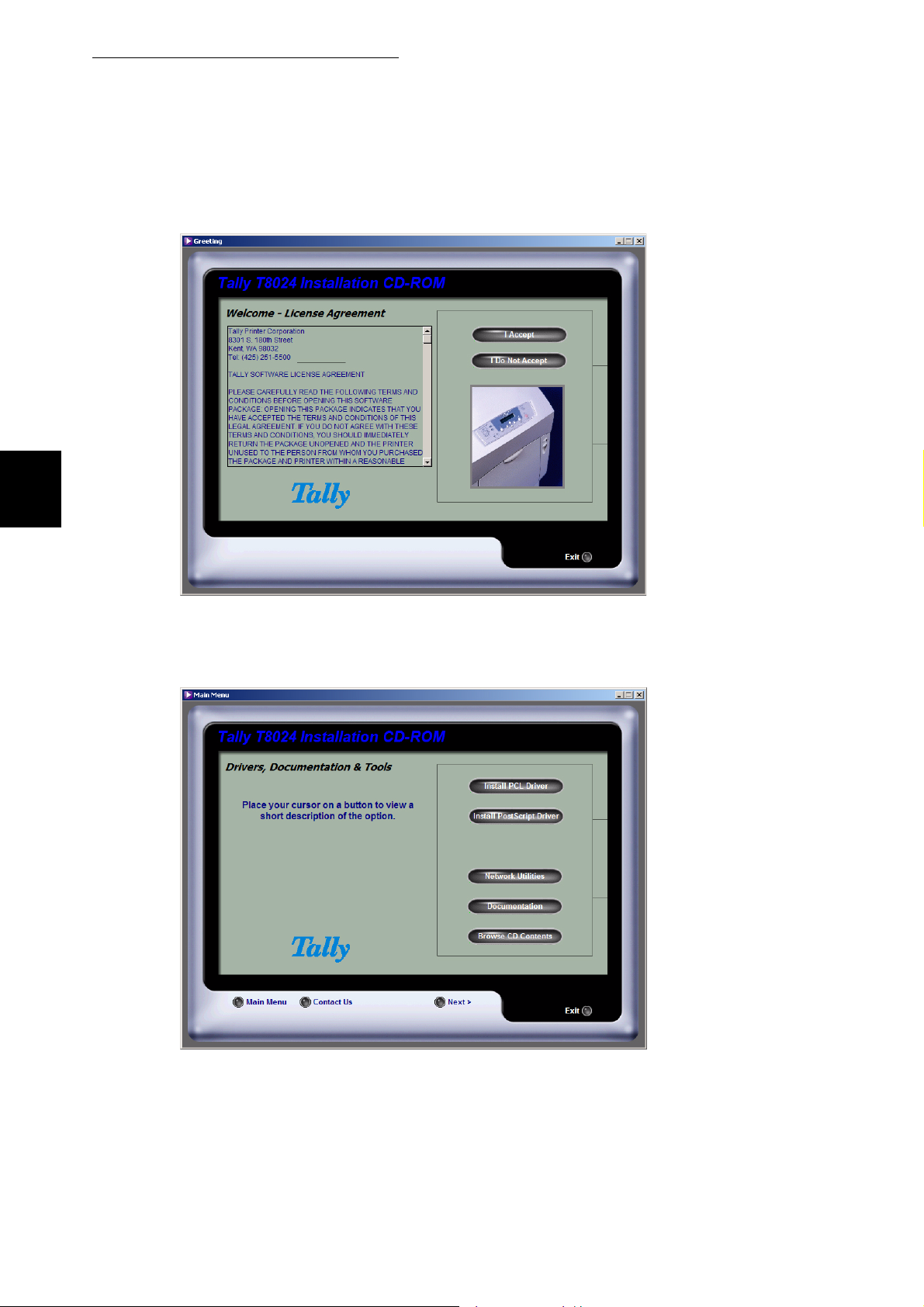

Click the I accept Button.

2

9

The Tally Setup Menu is displayed.

Click Install PCL Driver.

26

10

Select OK.

Specify options Installed

2.2 (Windows 95/Windows 98/Windows Me)

Installing the Printer Driver

Procedure

1

Select Start, Settings, Printers. Select the T8024, right mouse click
and select properties.

2

27

2.2 (Windows 95/Windows 98/Windows Me)

Installing the Printer Driver

2

Select the printer configuration tab and select any options which have
been added to the printer and press OK.

2

3

If you require this printer to be the default printer, select it and then right
click it and select the option set as default.

28

4

2.2 (Windows 95/Windows 98/Windows Me)

Installing the Printer Driver

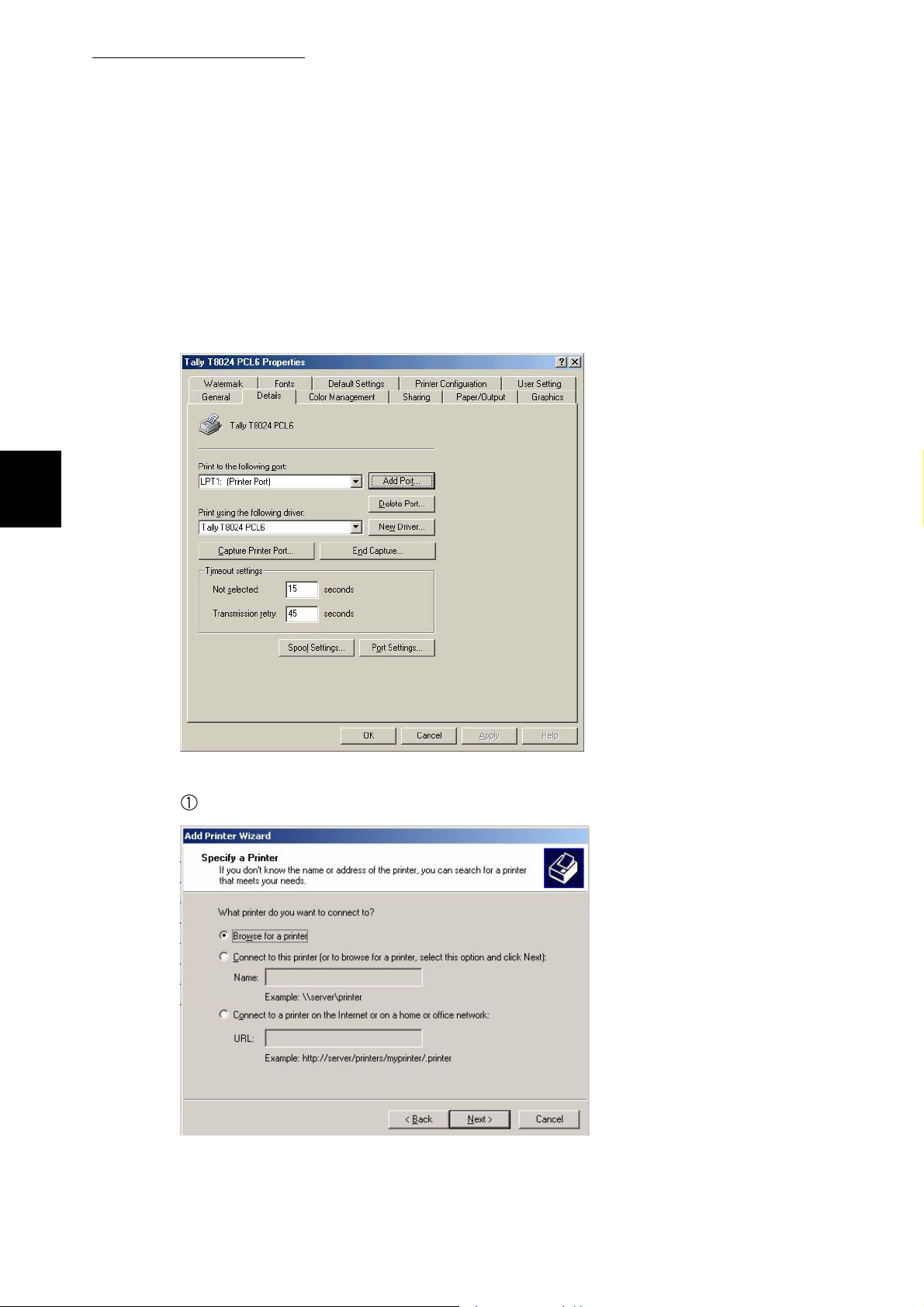

Select the Details tab. This confirms that the T8024 has been correctly
installed onto the lpt1 port.

2

If using the printer in either a SMB or Netware environment and the
printer has been configured for that environment, see the network user
guide, select add port then select Network. See section 2.5 in this
chapter if using USB or section 2.3 TCP\IP.

■When Network is selected:

Select a printer or print queue icon from the net work list by following the pr ocedure described
below.

29

2.2 (Windows 95/Windows 98/Windows Me)

Installing the Printer Driver

2

5

For SMB environment

From the network list, search and select the printer. The printer will be displayed as
"host name-p" and will be under the host name icon. The factory default for the
workgroup name and host name is "Workgroup" and "TLnnnnnn" (nnnnnn: lower six
digits of the Ethernet address of the printer) respectively.

When you do not know the workgroup name and host name of the printer, either check
with the network administrator, or print out the Printer Settings list to confirm. Refer to
"8.4.1 Confirming Printer Configuration and Network Settings".

Click OK.

For NetWare environment

From the network list, search and select the printer. The print queue is di splayed under
the NetWare file server icon.

When you do not know the print queue name, check with your network administrator.
Click OK.

When using the TCP/IP Direct Print Utility to print, proceed to the next
section "2.3 Configuring the TCP/IP Direct Print Utility"

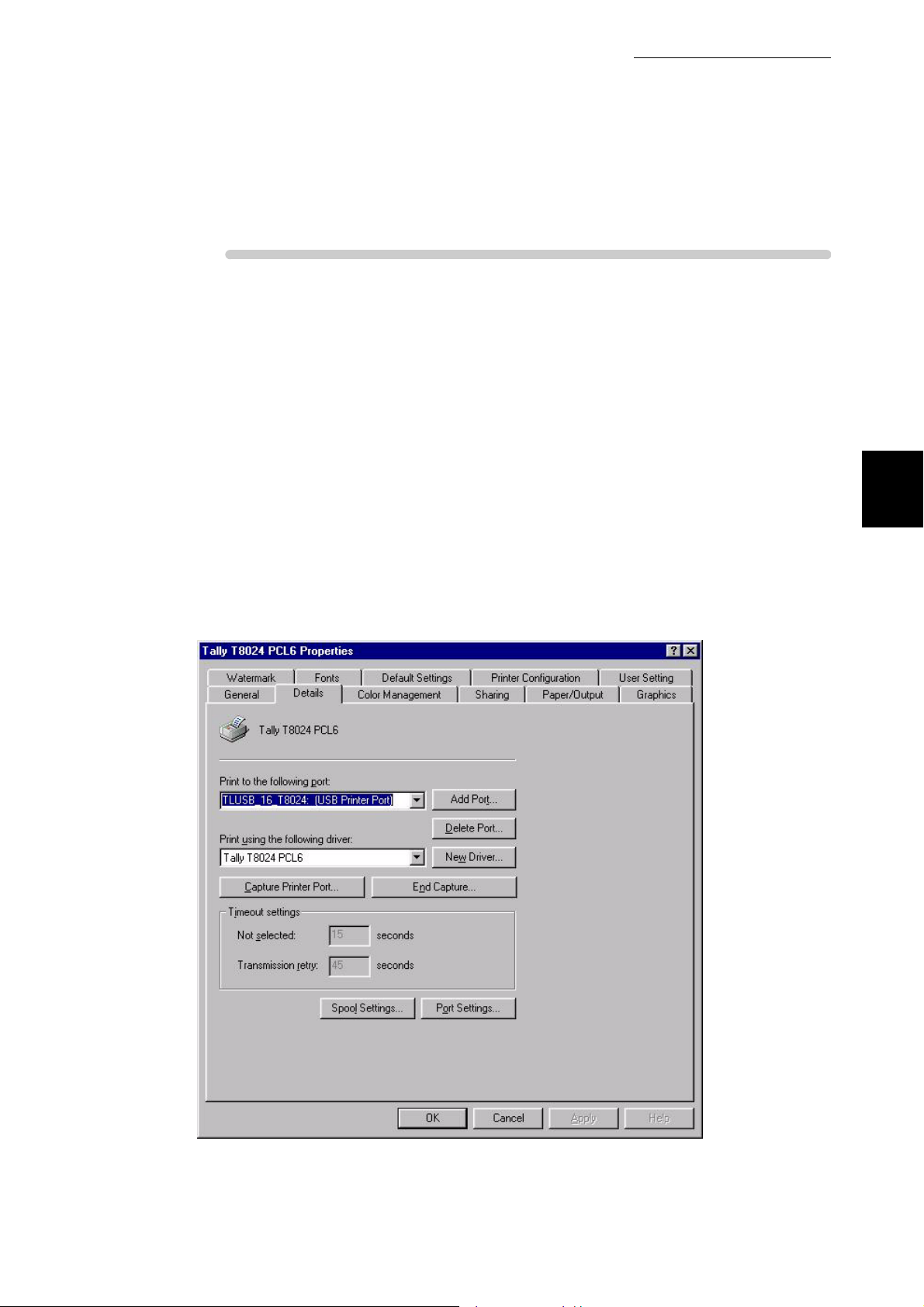

If connected with a USB cable, move on to "2.5 Setting Up the USB
Port".

Once the correct connection has been selected in the printer driver
you should ask for a windows test page to be printed. This will confirm
that the driver and printer are working.

30

Testing Printing

To check the connection, print the test page.
The procedure is as follows:

Procedure

2.2 (Windows 95/Windows 98/Windows Me)

Installing the Printer Driver

1
2

3

Click Start, select Settings and then Printers.

The Printers window is displayed.

The T8024 printer icon has been added by installation of the printer
driver. Select this added printer icon and click Properties from the File
menu.

The Properties dialog box is displayed.

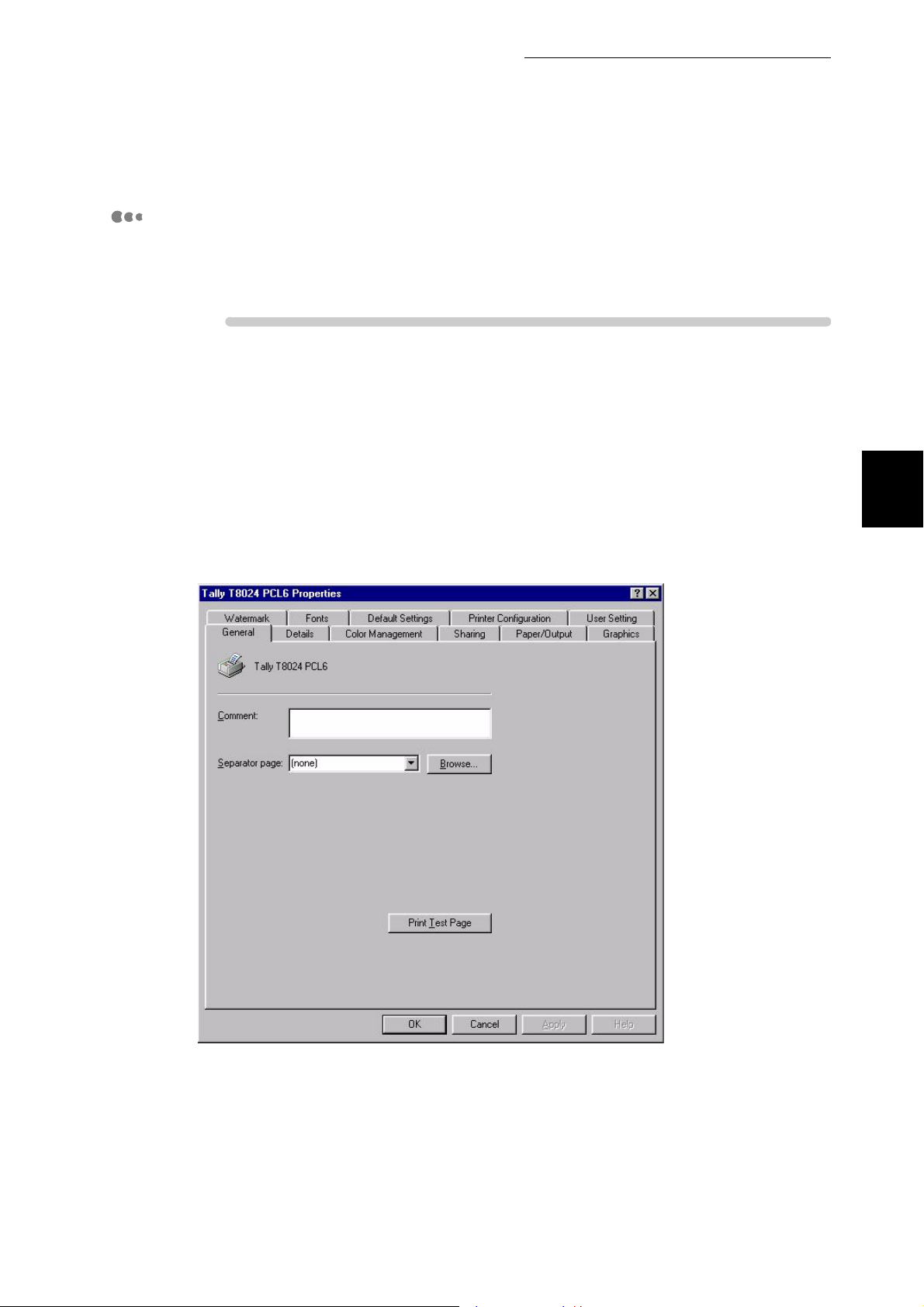

Click Print Test Page in the General tab.

2

4
5

A dialog box is displayed to confirm whether or not the test page has been printed correctly.

Check the print results, and if the test page is printed correctly, click
Yes.

Click OK on the Properties dialog box.

31

Configuring the TCP/IP

2.3

Installing the Printer Driver

2

This section explains the settings required for using the TCP/IP Direct Print Utility to print
from Windows 95/Windows 98/Windows Me.

2.3.1 Installing the TCP/IP Direct Print Utility

The procedure for installing the TCP/IP Direct Print Utility onto the computer is
described below. We will use Windows 98 in this procedure as an example.
If you are continuing with the procedure from the previous section, carry out the
procedure from Step 4 of specify option installed.

1
2

Switch on the computer and start Windows 98.
Insert the Tally Auto run CD into the CD-ROM drive.

The Tally StartUp Tool dialog box appears automatically.

Direct Print Utility

3

If the Tally StartUp Tool dialog box does not appear automatically, go to My Computer and
double click the CD-ROM drive icon.

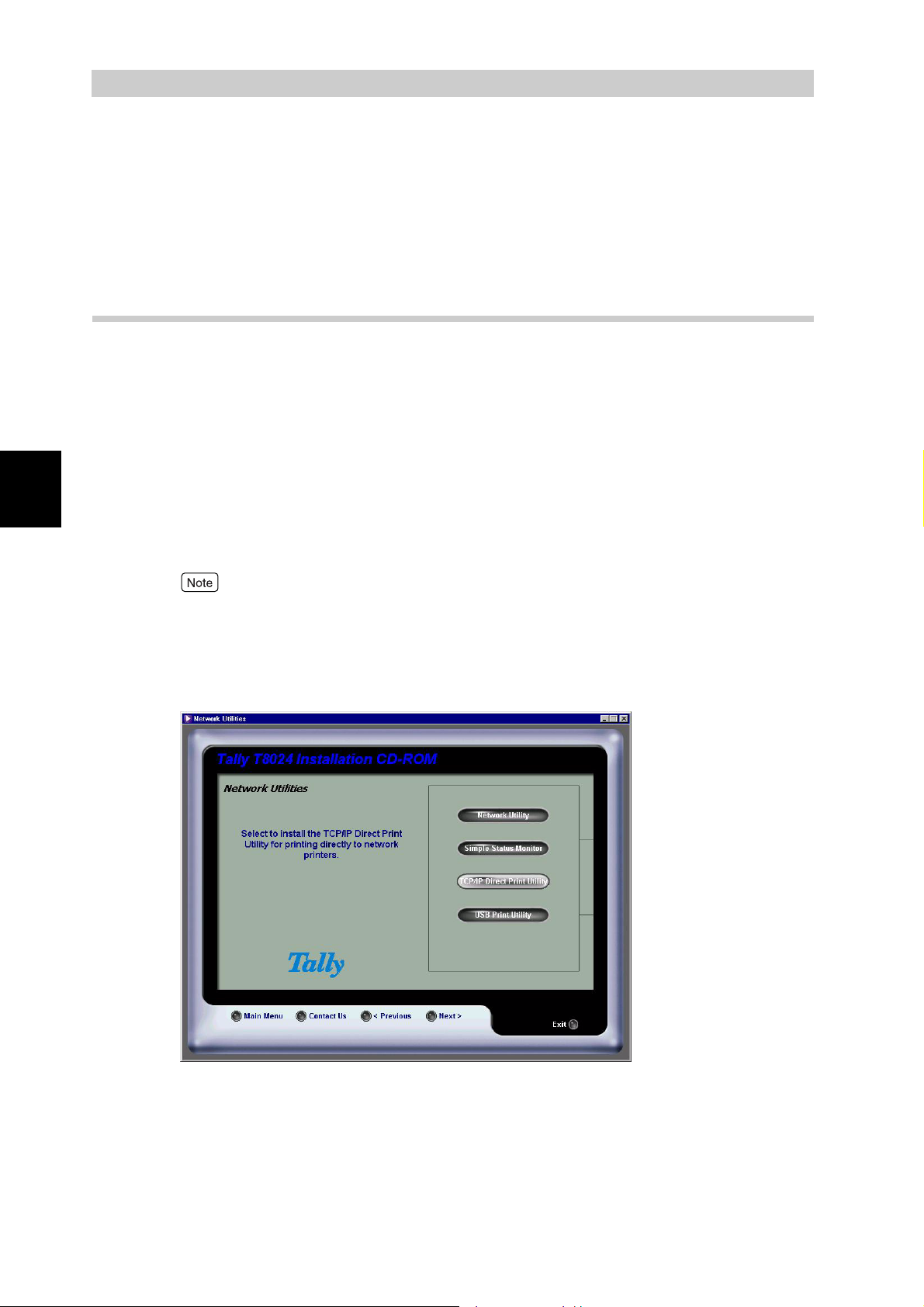

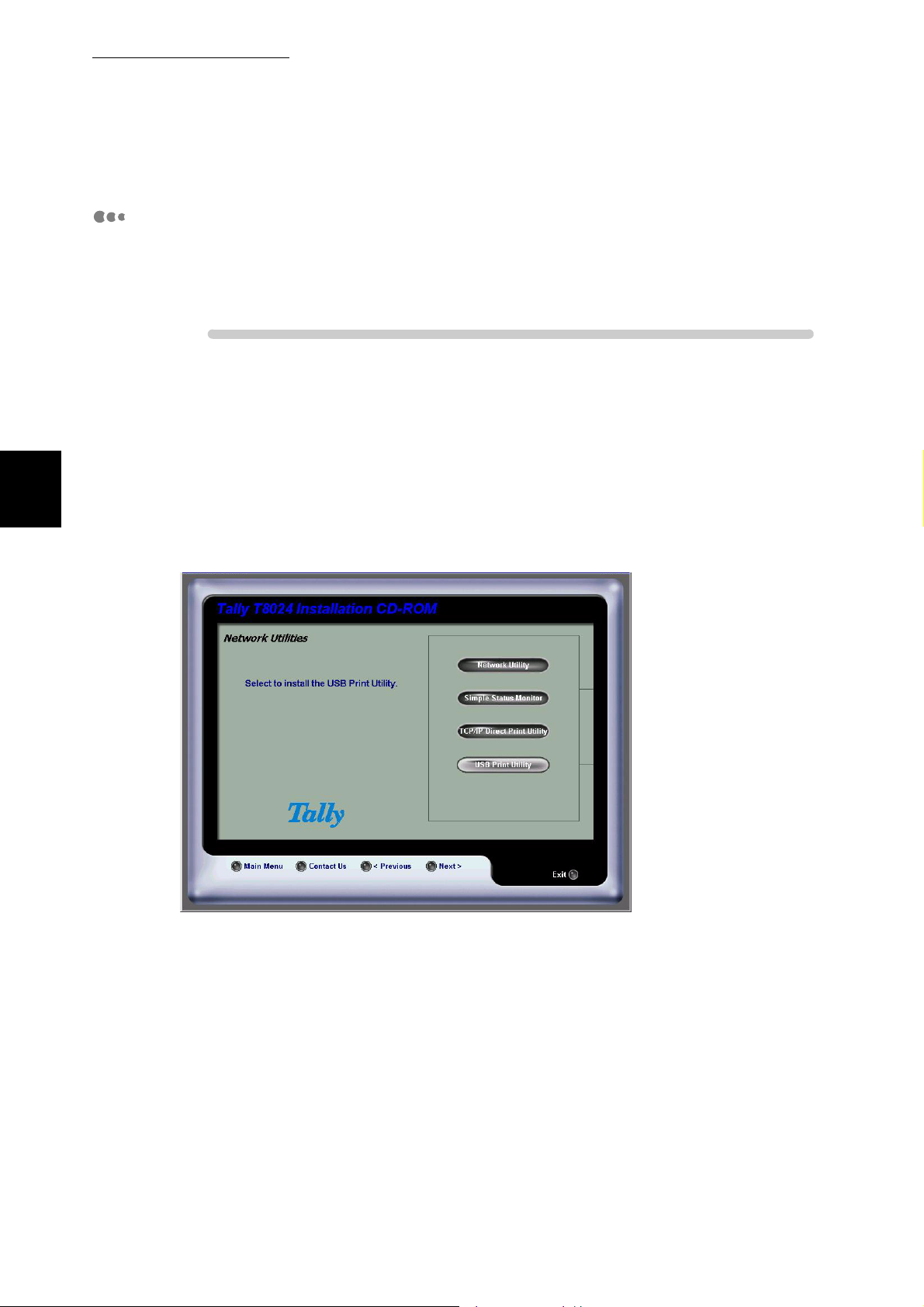

After accepting the license agreement, select Network utilities, and
then select TCP\IP Direct printing utility.

32

4

2.3 Configuring the TCP/IP Direct Print Utility

Installing the Printer Driver

Select Next.

2

5

If you are prompted to install TCP/IP when Installing the TCP/IP Direct Print Utility, stop the
operation. Then after you have installed TCP/IP protocol onto your computer, restart the
installation again.

Check the path under Destination Folder, and click Next if it is all right.
The installation of the TCP/IP Direct Print Utility begins.

33

2.3 Configuring the TCP/IP Direct Print Utility

Installing the Printer Driver

6

Click the Finish button to restart the computer.

2

Note if the utility cannot be loaded using the Auto run cd. It can be loaded also by running
setup from the cd in the directory shown below.

34

2.3.2 Setting the Port

After you have created the printer icon in the previous section, configure the
TCP/IP Direct Print Utility port for the printer. The procedure is as follows:

Procedure

2.3 Configuring the TCP/IP Direct Print Utility

Installing the Printer Driver

1

2

3

After starting up your computer, run Windows 98. Click Start, select
Settings and then Printers.

The Printers window is displayed.

The T8024 printer icon has been added by installation of the printer
driver. Select this added printer icon and click Properties from the File
menu.

The Properties dialog box is displayed.

Click Add Port in the Details tab.

2

35

2.3 Configuring the TCP/IP Direct Print Utility

Installing the Printer Driver

4

Select Other, and click Tally TCP/IP DPU Port from "Click the type of
port you want to add".

2

5

Click OK.

The Tally TCP/IP Direct Print Utility Port Setup dialog box is displayed.

36

6

2.3 Configuring the TCP/IP Direct Print Utility

Installing the Printer Driver

Enter the appropriate value for each item, and click OK.

Example: For port name, "TUKT8024" and IP address, "172.24.17.209".

Item Remarks

Port Name

IP Address
Protocol

Enter a name of your choice to identify the printer.

When you are adding multiple TCP/IP Direct Print Utility ports, consider
the following restrictions.
There is no difference between using upper-case and lower-case characters.
Examples of port names that cannot be used (current port name is "printer"):

●

Adding characters at the end of the current port name.
Example: "printer1", "printer-01" and so forth.

●

Deleting some characters from the current port name.
Example: "prin", "print" and so forth.

Enter the IP address of the printer.
Select the protocol to be used for data transfer.

Select either of the printing protocols (1) or (2) below. The default
selection is (1) LPR.
(1) "LPR": The lpr protocol is used for printing.

Enable or disable the "Validate byte count" opt ion by select ing or
deselecting its check box.
The default selection is enabled (check box selected).

(2) "Raw": Port9100 protocol is used for printing.

You can specify a port number at the destination in "Port
Number". This setting is effective only when Raw prot ocol is
selected. The default setting is "9100". If the number is deleted,
"9100" appears. You can enter up to 5 digits. If you enter a
number greater than 65536 and click OK, "9100" is registered.
Ensure that the protocol selected and in the case of RAW port the
number used has been enabled on the printer. See the network
user's guide on the additional documentation screen of the T8204
auto run cd.

2

If you do not know the IP address of the printer, check with your network administrator, or
print out the Printer Settings list. Refer to "8.4.1 Confirming Printer Configuration and
Network Settings".

37

2.3 Configuring the TCP/IP Direct Print Utility

Installing the Printer Driver

7

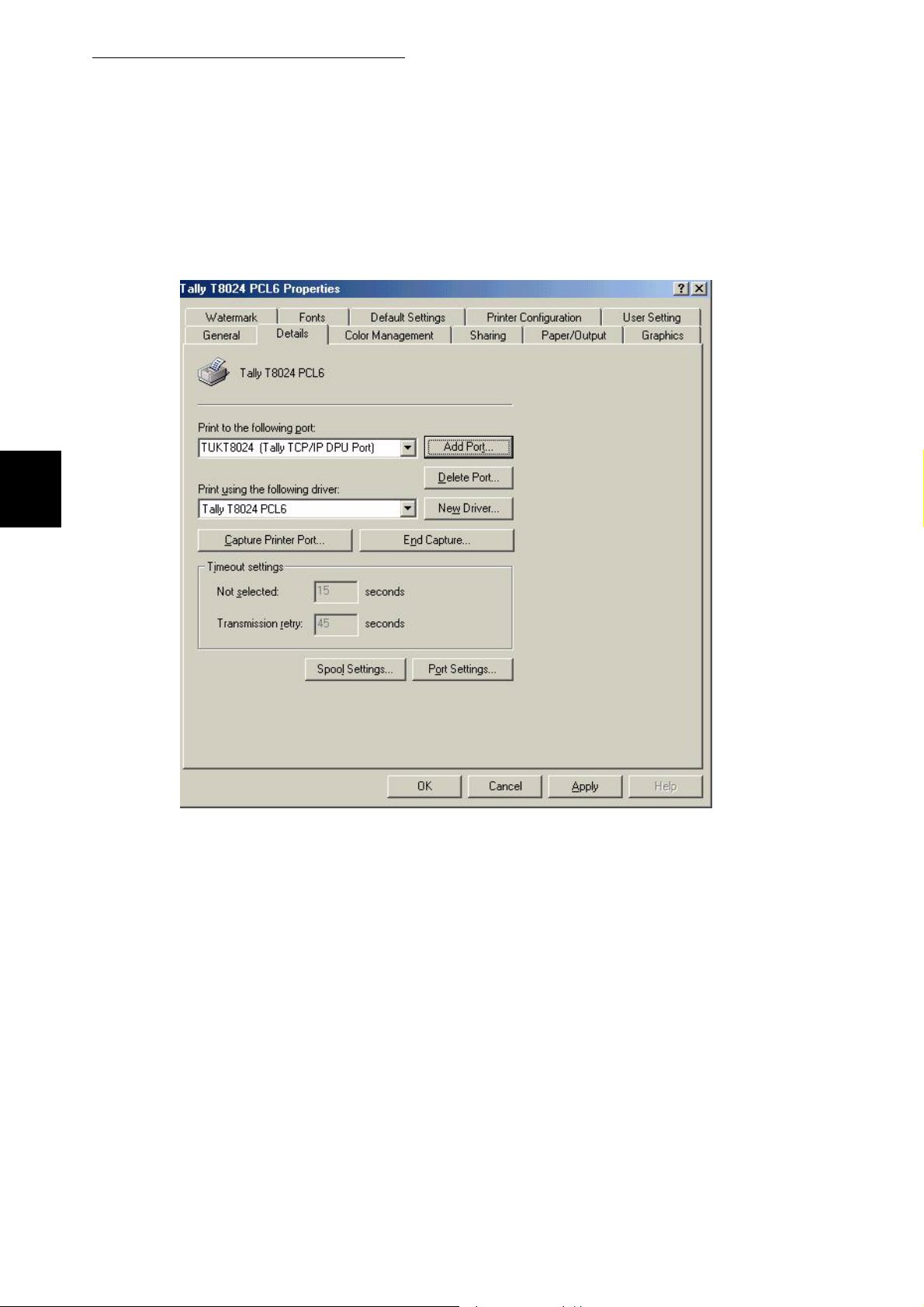

On the Details tab of the Properties dialog box, check that "(Tally TCP/
IP DPU Port)" appears in "Print to the following port" together with the
port name entered in Step 6.

2

38

8

9

10

To check the connection, print the test page.
After you have clicked Apply to confirm the settings, click Print Test

Page on the General tab.

A dialog box is displayed to confirm whether or not the test page has been printed correctly.

Check the print results, and if the test page is printed correctly, click
Yes.

Click OK on the Properties dialog box.

Installing the Printer Driver

2.4

(Windows NT 4.0/Windows 2000/
Windows XP/Windows 2003)

The procedure for installing the printer drive r onto Windows NT 4.0/Windows 2000/Windows
XP is as follows. The Auto run cd will install the printer driver onto the lpt1 port . This is the
best method to use under normal circumstances. If the printer is using SMB or Novell
printing it may be necessary under some circumstances to not allow the cd to Auto Install.
Please consult your network administrator for advice. Instead the printe r drive r sh ou ld be
added by selecting the add printer driver and pointing to the correct place on the CD. This
should always be done when printing using IPP. This is due to the difficulty in selecting
network ports on the above systems after installing the printer driver

Refer to the Network User Guide for more details on the installation of the printer onto a network.

●

Before installing the printer driver on a Windows NT 4.0 system, it is necessary to set up TCP/IP Protocol and
Microsoft TCP/IP Printing. Refer to the manuals on Windows NT 4.0 for details.

●

You can select LPR Port or Standard TCP/IP Port as the output destination for the port on a Windows 2000
system. When you select LPR Port, before installing the printer driver, you are required to set up Print Services
for Unix on Windows 2000. Refer to the manuals on Windows 2000 for details.

Installing the Printer Driver

2

Installing the Printer Driver

Procedure

1
2

3
4

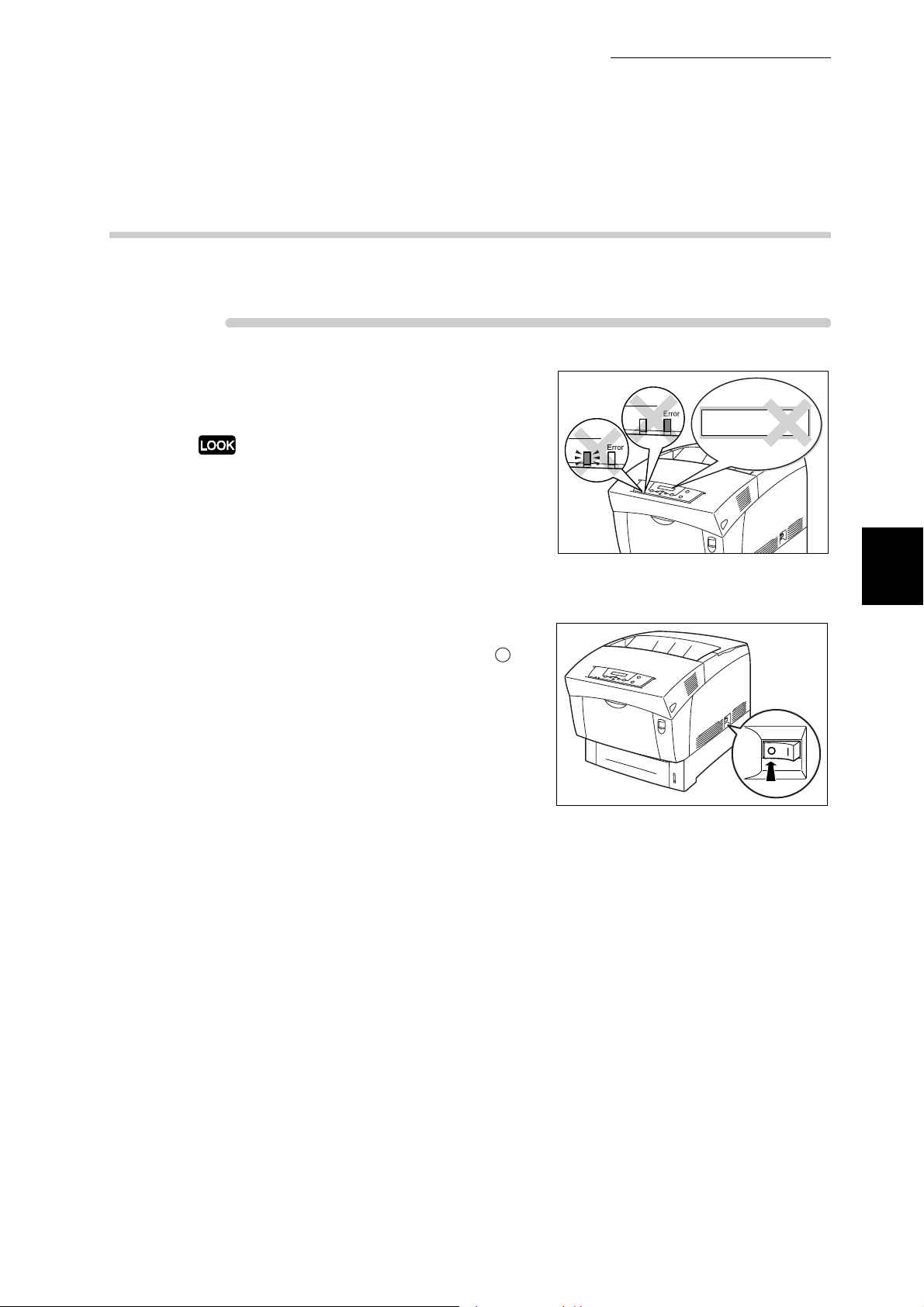

Power on the printer.

Power on your computer running Windows NT 4.0 or Windows 2000/
XP/Windows 2003 and log on as either an administrator or power user.

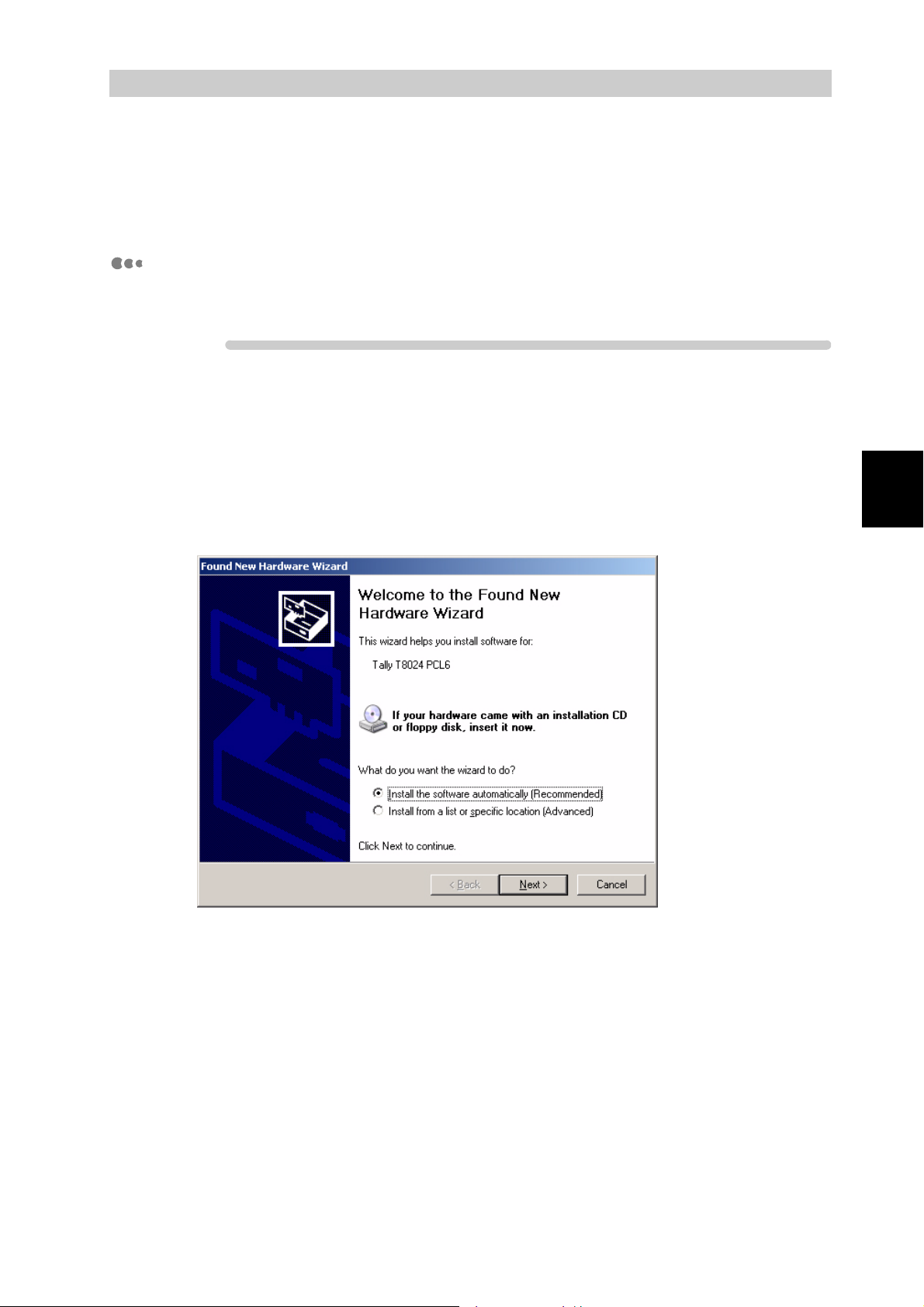

When the printer is connected to the computer, a dialog box indicating that new hardware
has been detected may be displayed when you activate Windows 2000/XP. In this case,
click Cancel to close the dialog box.

For Netware environments, log on to the target file server.
Insert the T8024 Auto Installer CD into your CD-ROM drive.

If the CD-ROM does not start automatically, go to My Computer and double click the CD­ROM drive icon.

39

2.4 Installing the Printer Driver

Installing the Printer Driver

5

Click the I Accept button.

2

6

The Tally Setup Menu is displayed.

Click the Install PCL Driver or Install PostScript Driver button to start
the driver installation.

When the PostScript installer prompts you to select a PPD, browse to your CD-ROM and
look in the \Drivers\PS folder and select the appropriate lan guage. In addition, the optional
PostScript Kit must be installed in the printer in order to print using the PS driver.

40

7

2.4 Installing the Printer Driver

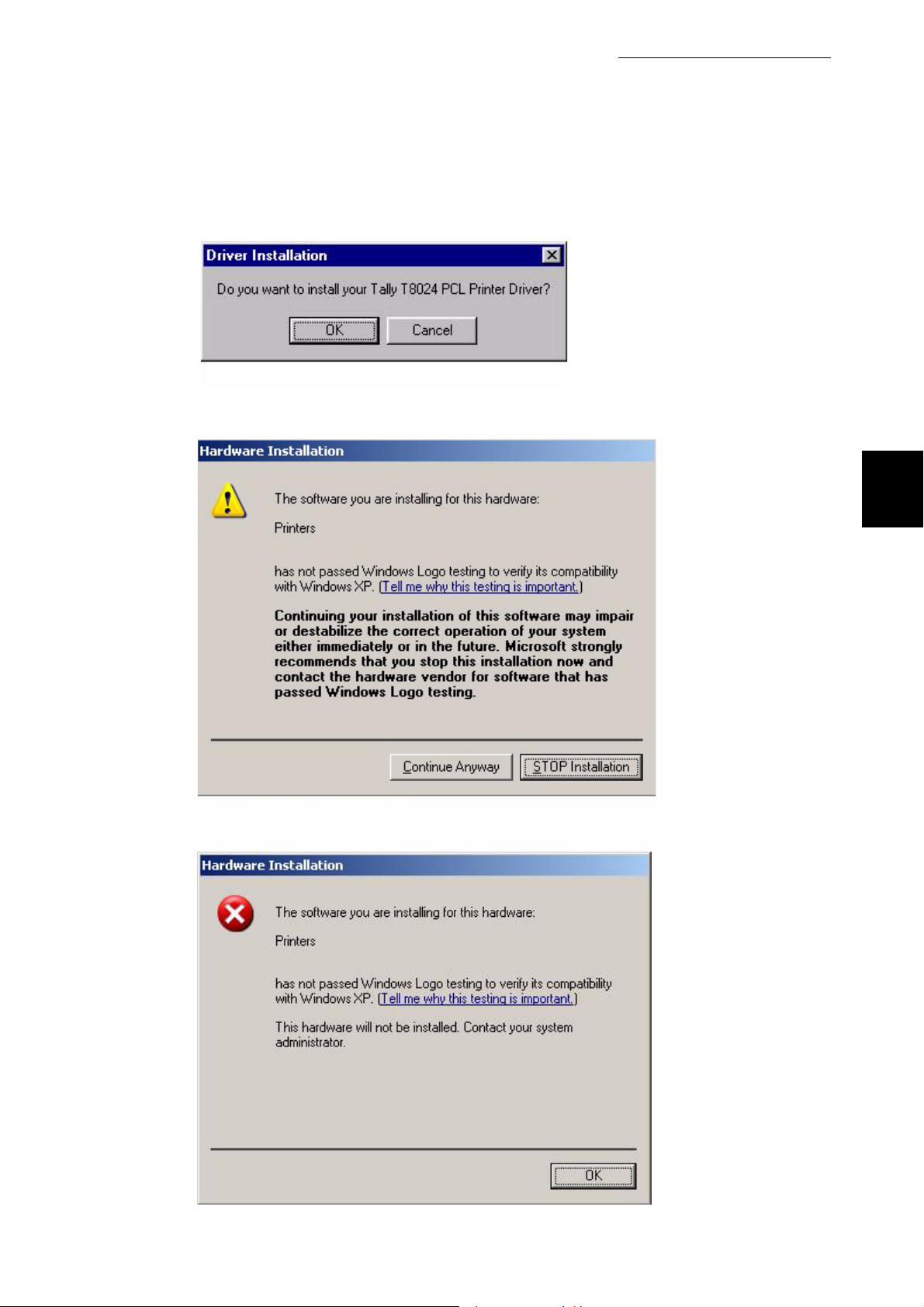

Select OK.

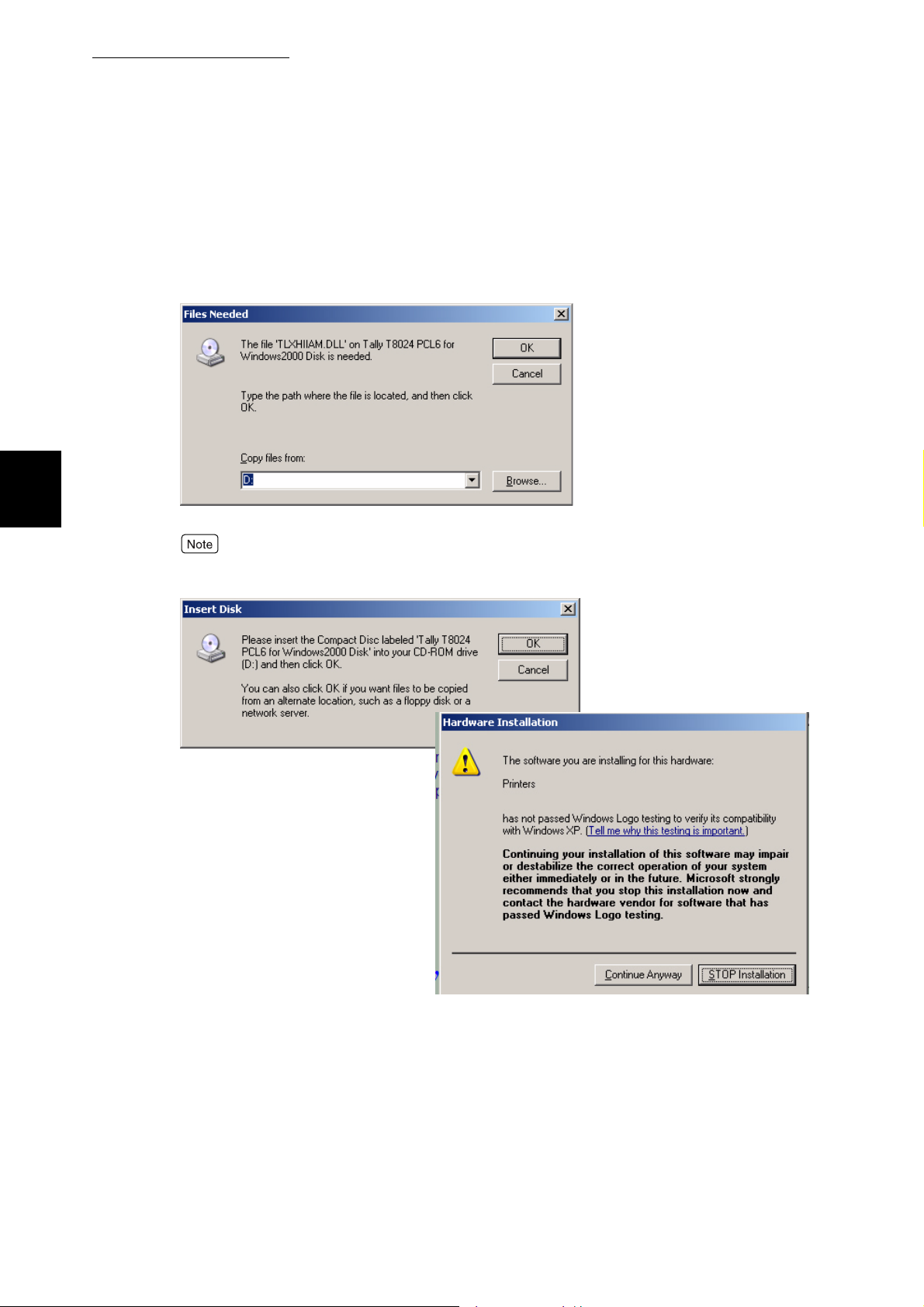

On early versions of the driver you may get the windows logo testing screen. Select

Continue Anyway.

Installing the Printer Driver

2

If the screen does not show the buttons to allow you to continue, as shown below.

41

2.4 Installing the Printer Driver

Installing the Printer Driver

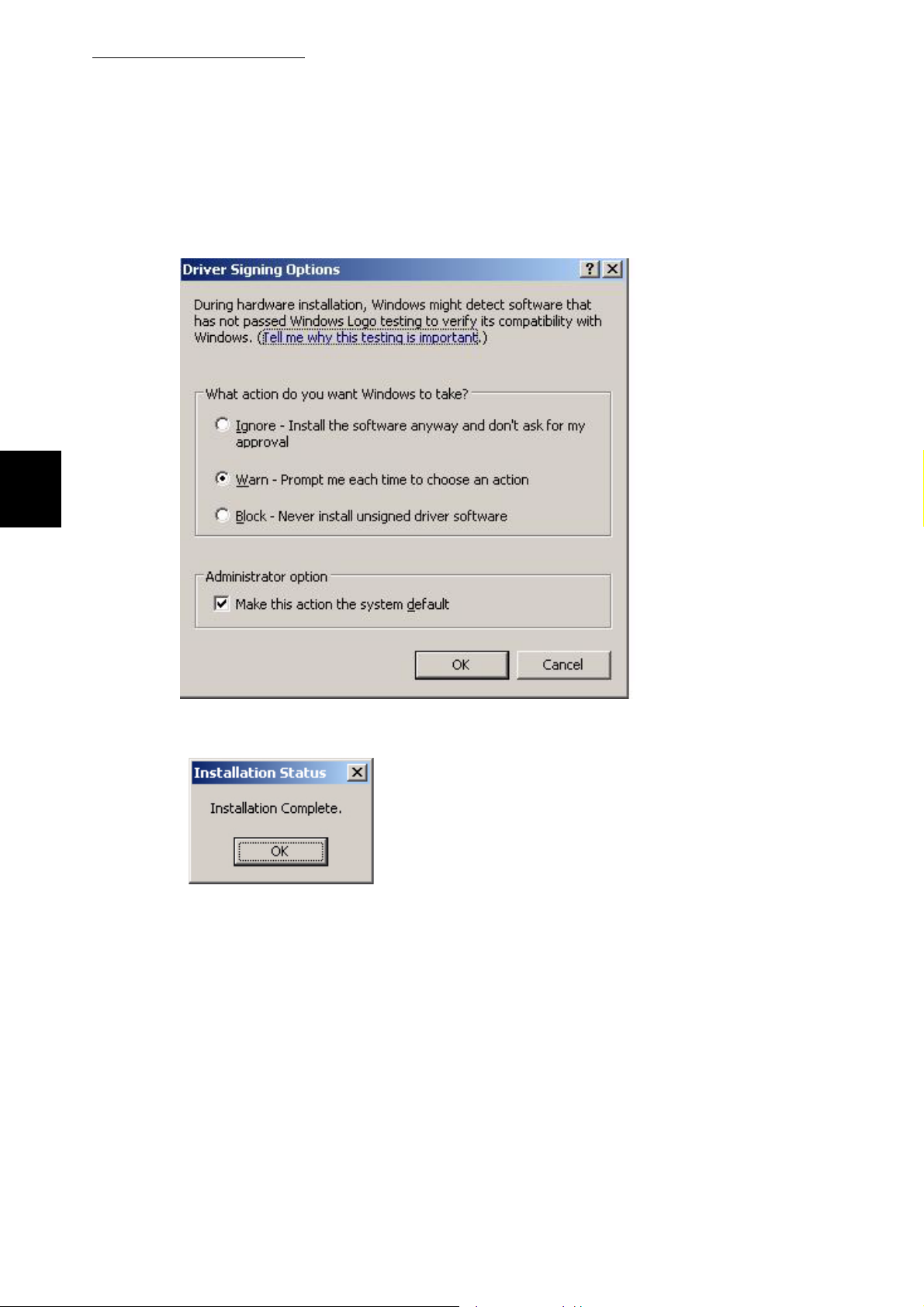

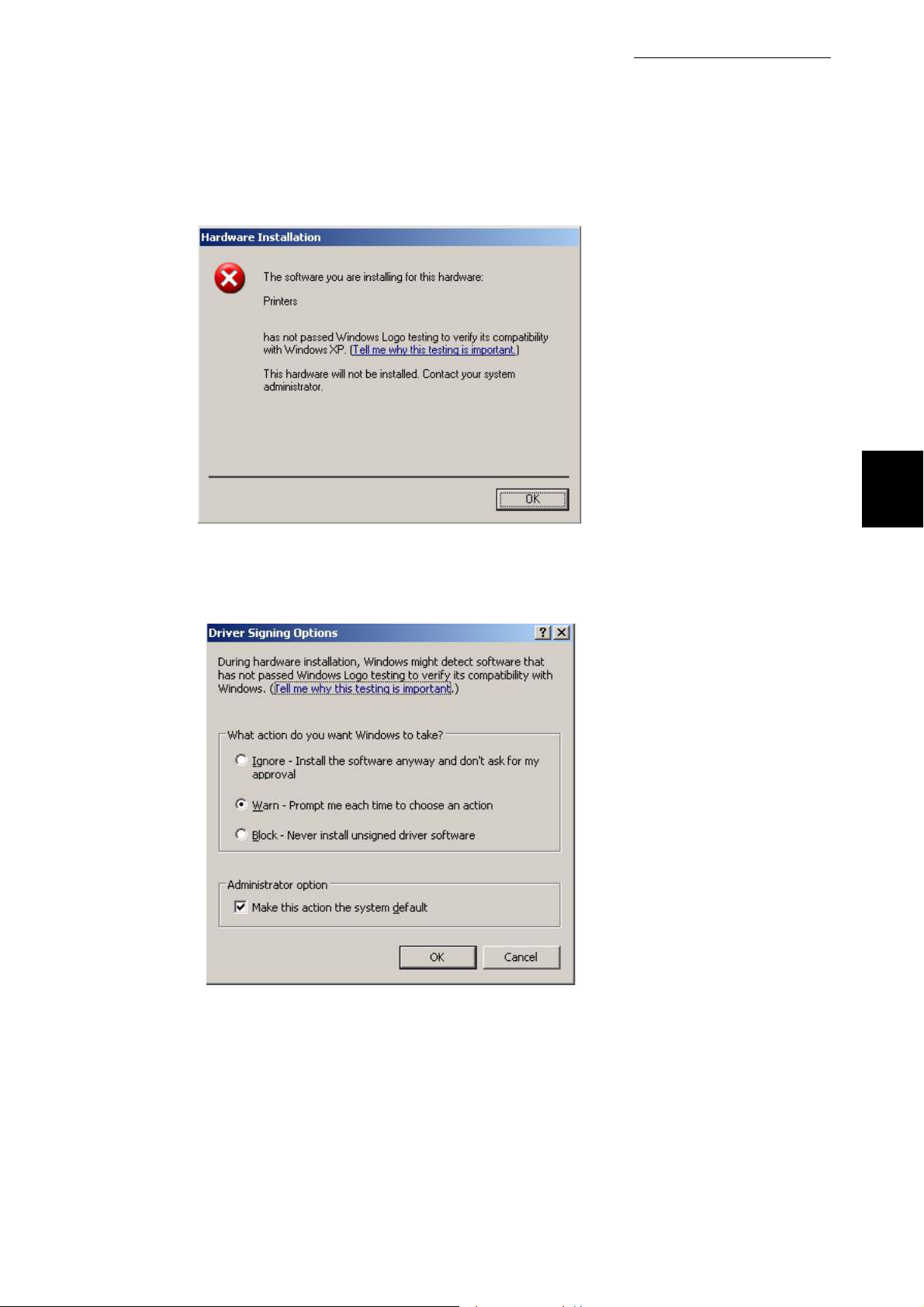

Cancel the installation and change the driver signing to warn . To do this check the windows
documentation. Go to control panel system hardware driver signing and select warn. Restart
the installation.

2

8

Click OK and exit the CD when the driver installation is complete.

42

Specify options Installed

Procedure

2.4 Installing the Printer Driver

Installing the Printer Driver

1

2
3

Select either Start, Settings, Printers or Start, Printers and faxes.
Select the T8024, right mouse click and select Properties.

2

Select the printer configuration tab and select any installed options and
press Ok.

If you require this printer to be the default printer, select it and then right
click it and select the option set as default.

43

2.4 Installing the Printer Driver

Installing the Printer Driver

4

Select the ports tab. This confirms that the T8024 has been correctly
installed onto the lpt1 port. If using the printer in either a SMB or
Netware environment refer to the system administrator for advice.
Having installed the printer driver it is possible to connect to it using
SMB by selecting add port, local port and adding the port details if
known.

2

For SMB environment

Select URL if using IPP. Or browse or connect.

44

2.4 Installing the Printer Driver

From the network list, search and select the printer. The printer will be displayed as
"host name-p" and will be under the host name icon. The factory defaults for the
workgroup name and the host name is "Workgroup" and "TLnnnnnn" (nnnnnn: lower six
digits of the Ethernet address of the printer) respectively.

When you do not know the workgroup name and host name of the printer, either check
with the network administrator, or print out the Printer Settings list to confirm. Refer to
"8.4.1 Confirming Printer Configuration and Network Settings".

Click OK.
Check that "\\Host name\\Host name-P" is displayed correctly in "Network Path for the

Printer" in Add Port dialog box and click OK.

For NetWare environment

From the network list, search and select the print queue. The print queue is displayed
under the NetWare File Server icon.

When you do not know the print queue name, check with the network administrator.
Click OK.
Check that "\\NetWare file server name\Print queue name-P" is displayed correctly in

"Network Path for the Printer" in Add Port dialog box and click OK.

Installing the Printer Driver

2

45

2.4 Installing the Printer Driver

Installing the Printer Driver

For connections using TCP\IP ports on windows NT4\2000\XP the auto run CD
driver can be loaded and then port changed from lpt1 to a selection as shown
below.

For TCP/IP environment (Windows NT 4.0)

Select Others and click LPR Port from Available ports. If this optio n is not available, look
at the windows NT help for Microsoft TCP\IP printing service for instructions on adding
this service.

2

Click OK.
The Add LPR compatible printer dialog box is displayed.

Enter the items in each text box.
Example: For Name or address of server providing lpd, "172.24.17.209", and the Name

of printer or print queue on that server, "TUKT8024".

Item Remarks

Name or address of

server providing lpd

Name of printer or print

queue on that server

Enter the IP address of the printer. You can enter the
registered printer name when it is possible to use name
solving services like WINS.

When the IP address has numbers with less than three digits, do
not enter "0" before these numbers, e.g.
"XXX.XXX.00X.0XX". It will not work properly.

Enter any name for the T8024.

46

2.4 Installing the Printer Driver

When you do not know the IP address of the printer, either check with the network
administrator, or print out the Printer Settings list to confirm. Refer to "8.4.1 Confirming
Printer Configuration and Network Settings".

For TCP/IP environment (Windows 2000/Windows XP/Windows 2003)
The following example is for Windows 2000.

This section explains the procedure for selecting Standard TCP/IP Port.

Select Addport and click Standard TCP/IP Port from Available ports.

Installing the Printer Driver

2

Click OK.

47

2.4 Installing the Printer Driver

Installing the Printer Driver

The following screen is displayed. Click Next.

2

Enter the items at each text box.
Example: For IP address, "172.24.17.209", and the port name "TUKT8024".

48

2.4 Installing the Printer Driver

Item Remarks

Installing the Printer Driver

Printer Name or IP

Address

Port Name

When you do not know the IP address of the printer, either check with the network
administrator, or print out the Printer Settings list to confirm. Refer to "8.4.1 Confirming
Printer Configuration and Network Settings".

Click Next
Click next to the additional port information required box.

.

Enter the IP address of the printer. You can enter the
registered printer name when it is possible to use na m e
resolving services like WINS.

When the IP address has numbers with less than three digits, do
not enter "0" before these numbers, e.g.
"XXX.XXX.00X.0XX". It will not work properly.

Enter name or IP address of the printer and the name of
port is automatically set. Enter the port name only when
you want to make changes.

2

5

Check the contents on the screen and click Finish.

If connected with a USB cable, move on to "2.5 Setting Up the USB
Port".

49

2.4 Installing the Printer Driver

Installing the Printer Driver

Testing Printing

To check the connection, print the test page.
The procedure is as follows:

Procedure

2

1
2

3
4
5

Click Start, select Settings and then Printers.

The Printers window is displayed.

The T8024 printer icon has been added by installation of the printer
driver. Select this added printer icon and click Properties from the File
menu.

The Properties dialog box is displayed.

Click Print Test Page on the General tab.

A dialog box is displayed to confirm whether or not the test page has been printed correctly.

Check the print results, and if the test page is printed correctly, click
Yes.

Click OK on the Properties dialog box.

50

2.5

Setting Up the USB Port

When connecting the printer to your computer with a USB cable, do the following
procedures after installing the printer driver.

For Windows 2000 or Windows XP

The following example is for Windows XP.

Procedure

1
2
3

Check that the computer is on, and then switch off the printer.
Connect the USB cable.
Switch on the printer.

The computer automatically detects the new hardware. The computer will display the found
new hardware screen.

Installing the Printer Driver

2

51

2.5 Setting Up the USB Port

Installing the Printer Driver

4

If the files needed screen comes up browse to the following directories
on the cd. For windows 2000 drivers\pcl\ec\win2000. For windows XP
drivers\pcl\ec\winXP. Change ec to us if letter size paper is used more
frequently than A4.

2

Earley versions of the drivers will come up with the windows logo testing screen. Press the

Continue anyway key.

52

2.5 Setting Up the USB Port

If the screen does not show the buttons to allow you to continue, as shown below.

Then cancel the installation and change the driver signing to warn . To do this check the
windows documentation. Go to control panel system hardware driver signing and select
warn. Restart the installation.

Installing the Printer Driver

2

53

2.5 Setting Up the USB Port

Installing the Printer Driver

5

Click the Finish button.

2

6

7

Check the connection.
Click Start, select Settings and then Printers.

The Printers window is displayed.

The T8024 printer icon has been added by installation of the printer
driver. Select this added printer icon and click Properties from the File
menu.

The Properties dialog box is displayed.

54

8

2.5 Setting Up the USB Port

Installing the Printer Driver

The USB port now appears in "Print to the following port(s)" on the
Ports tab. Click the OK button

2

9
10
11

Click Print Test Page on the General tab.

A dialog box to confirm whether or not the test page is printed correctly will be displayed.

Check the print results, and if the test page is printed correctly, click
OK.

Click OK on the Properties dialog box.

55

2.5 Setting Up the USB Port

Installing the Printer Driver

For Windows 98 or Windows Me

The following example is for Windows 98.

■Install the USB Print Utility

Procedure

2

1
2
3

If the USB cable is connected, temporarily disconnect and power the
printer off.

Insert the Tally Auto run CD into the CD-ROM drive.

The Tally StartUp Tool dialog box appears automatically.

Read the license and select I accept. Select the Network Utility and
select the USB install and follow the wizard.

56

4

2.5 Setting Up the USB Port

Installing the Printer Driver

Select Next.

2

5

6

The USB utility will prompt to restart. Click on the Finish box.

After starting up your computer, run Windows 98. Click Start, select
Settings and then Printers.

The Printers window is displayed.

7

The T8024 printer icon has been added by installation of the printer
driver. Select this added printer icon and click Properties from the File
menu.

The Properties dialog box is displayed.

57

2.5 Setting Up the USB Port

Installing the Printer Driver

8

Confirm that "TLUSB: (USB Printer Port)" now appears in "Print to the
following port" on the Details tab.

2

9

To close the dialog box, click OK.

58

2.5 Setting Up the USB Port

■Setting the USB port

Procedure

1

2

3

4

Connect the printer and pc together with a USB cable and switch on the
printer.

The computer automatically detects the new hard ware and installs necessary software.

Click Start, select Settings and then Printers.

The Printers window is displayed.

Select the T8024 printer icon, then click Properties on the File menu.

The Properties dialog box is displayed.

"TLUSB_X_T8024: (USB Printer Port)" now appears in "Print to the
following port" on the Details tab. Select this port.

In TLUSB_X …, a value from 0 to FF appears in the position indicated
by [x]. The value varies according to the environment.

Installing the Printer Driver

2

59

2.5 Setting Up the USB Port

Installing the Printer Driver

5

To check the connection, print the test page.
After you have clicked OK to confirm the settings, click Print Test Page

on the General tab.

A dialog box is displayed to confirm whether or not the test page has been printed correctly.

2

6
7

Check the print results, and if the test page is printed correctly, click
Yes.

Click OK on the Properties dialog box.

60

Chapter

3Basic Printer Operation

Printer Part Names and Functions.............................................62

3.1 Switching On/Off the Power........................................................66

3.2 Printing From a Computer..........................................................68

3.3 Using Online Help........................................................................ 72

3.4 Canceling Printing.......................................... ... ..........................76

3.5 Changing the Configuration for Options...................................78

3.6 Printing on Envelopes, Transparencies, and Custom-size

(Long) Paper.................................................................................80

3.7 Two-sided Printing....................................................................... 88

Printer Part Names and Functions

The names and functions of the various parts of the printer are as follows:

Front View

5

Basic Printer Operation

3

6

4

3

2

1

No. Name Description

1 Paper Tray Load paper here.
2 Multi purpose

Tray

3 Front Cover Open to clear paper jams, replace the drum

4 Operation Panel Use the buttons and display to control the

Use this tray when feeding manually to load
items such as postcards and envelopes.

cartridge, transfer roller, and fuser unit.

printer.

7

8
9
10
11

5 Face Down Tray Printed documents are output here, printed

side down.

6 Exhaust Grilles Allows internal heat to dissipate. Make sure the

grilles are never obstructed.

7 Air Intake Grill Allows air to enter the printer to prevent it from

overheating. Make sure the grill is never
obstructed.

8 Power Switch The printer’s power switch. Press [ I ] to turn

the printer on, and [O] to turn it off.

9 Button B Use button B to open the upper part of the front

cover.
10 Button A Use button A to open the whole front cover.
11 Paper Meter Use the meter as a guide to refill the paper tray.

62

Operation Panel

Printer Part Names and Functions

Display (messages appear here)

Front Door Release Button

Ready

Error

Menu

Power saver

Eject

Set Back

Cancel/Back button

Cancel

Basic Printer Operation

3

63

Printer Part Names and Functions

Rear View

17

Basic Printer Operation

3

16

15

14

13

12

18

No. Name Description

12 Interface Connector Connect the printer to your computer or

network here.

13 Power Cord

Connect the power cord here.

Connector

14 Exhaust Grille Allows internal heat to dissipate. Make sure

the grille is never obstructed.

15 Toner Cartridges The black, yellow, magenta, and cyan toner

cartridges are inserted here.

16 Top Cover

(face down tray)

Acts as the top cover and the face down
tray of the printer. Remove it to change the
toner cartridges. Printed documents are
output here, printed side down. Do not
operate the printer without the Top Cover.

17 Paper Stopper Use this stopper in raised state if the output

sheet falls.

18 Air Intake Grill Allows air to enter the printer to prevent it

from overheating. Make sure the grill is
never obstructed.

64

Internal View

Printer Part Names and Functions

19 20 21

<Cover open with button A> < Cover open with button B >

No. Name Description

19 Transfer Roller Tr ansfers the image created on the drum

22 23

surface to the paper, and collects used
toner.

Basic Printer Operation

3

20 Drum Cartridge Consists of the light-sensitive drum, the

developer and the transfer roller. Images
are initially created as an electrical
charge on the surface of this drum.

21 Paper Outlet Cover Open to replace the drum car tridge and

fuser unit.

22 Duplexer With duplex printing, it turns the paper

over after the front surface is printed.

23 Fuser Unit Fuses the toner to the paper with heat.

The fuser unit gets very hot during
printing. Do not touch it to avoid burns.

65

Switching On/Off the

Basic Printer Operation

3

3.1

Power

3.1.1 Switching On the Power

Follow the procedure below.

Procedure

1

On the printer's right side, press the
side of the power switch marked "|" to
switch on the printer.

The printer starts.

The printer motors warm up for on e or two minutes
when you switch on the printer.

2

"Testing..." appears on the control
panel. When the display changes from
"Please Wait..." to "Ready to Print",
check that the Ready indicator is lit.

When "Please Wait..." is displayed, the printer is
preparing to print. Printing i s not possible while this
message is displayed.

If an error message appears on the display, refer t o
"6.7 When an Error Message Appears on the
Control Panel" and rectify the error as instructed.

Ready

66

3.1.2 Switching Off the Power

Follow the procedure below.

Procedure

3.1 Switching On/Off the Power

Basic Printer Operation

1

2

Confirm that "Ready to Print" is
displayed on the control panel.

Do not switch off the printer in the following
situations:

●

When "Data Wait" is displayed on the control
panel.

●

When the Ready indicator is blinking.

●

When the Error indicator is lit.

On the printer's right side, press the
side of the power switch marked " " to
switch off the printer.

The printer is now off.

Ready

Ready

Data Wait

3

67

Basic Printer Operation

Printing From a Computer

3.2

This section describes the procedures for printing from computers using the PCL6 printer
driver.

When you install new printer opti ons, you must reco nfigure the print er driver to use the options. To conf irm
or make settings, refer to "3.5 Changing the Configu ra tio n fo r Op tio ns" .

3

Printing from a Program

You can output jobs to the printer from most Windows programs with their Print
command.

The following is a description of printing from Microsoft

98.

How to access dialog boxes and their contents various depending on the operating system
and programs you are using. For details, refer to th e literature pr ovided with the progr am you
are using.

Procedure

1

On the File menu, click Print.

The Print dialog box appears.

®

Word 97 in Windows®

68

3.2 Printing From a Computer

2

3

Select this printer in the Name box and click Properties.

Basic Printer Operation

3

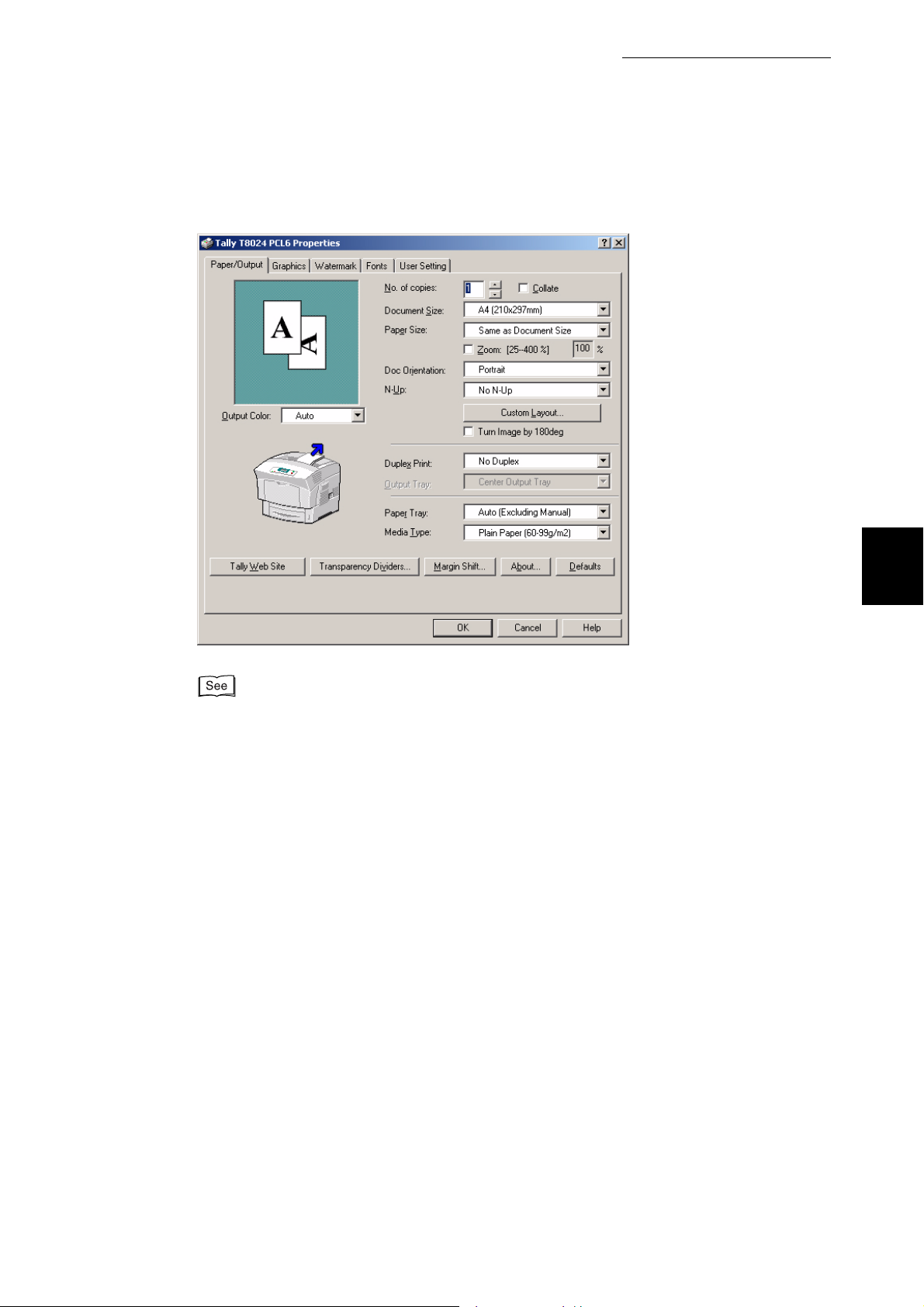

On the various tabs, make settings for each item as required.

4

●

For details about the various tabs, ref er to Help. For de tails about how to use Help, refer to
"3.3 Using Online Help".

●

Use the Graphics tab to adjust the image and colors to suit your needs.

When you finish making settings, click OK in the Properties dialog box.

The Properties dialog box closes.

69

3.2 Printing From a Computer

Basic Printer Operation

3

5

In the Print dialog box, select the desired interval in Page range and
click OK.

The data is sent to the printer.

Be careful when removing printed material from the face down tray, as the top cover
detaches easily.

To cancel printing, refer to "3.4 Canceling Printing".

Changing Default Printing Functions

Default printing functions are preset functions in the printer driver properties
dialog box accessed from the Print dialog box. Setting default printing functions
in advance saves you time, because it reduces the number of settings you need
to make every time you print.
Follow the procedure below to change the default printing functions. The
following example is for Windows 98.

How to access dialog boxes and their contents various depending on the operating system
and programs you are using. For details, refer to the notes included with this procedure and
the literature provided with your operating system.

Procedure

1
2

Click Start, select Settings and then Printers.

The Printers window is displayed.

Select the appropriate printer and click Properties from the File menu.

The Properties dialog box is displayed.

●

●

●

In Windows 95 and Windows Me, you can open the Properties dialog box the same way
as in Windows 98.

In Windows NT 4.0, click Document Defaults on the File menu and make the settings in
the dialog box that appears.

In Windows 2000 and Windows XP, click Printing Preferences on the File menu and
make the settings in the dialog box that appears.

70

3.2 Printing From a Computer

3

On the various tabs, make settings for each item as required.

Basic Printer Operation

3

4

For details about the various tabs, refer to Help. For details about how to use Help, refer to
"3.3 Using Online Help".

When you finish making settings, click OK in the Properties dialog box.

The default printer functions in the printer driver are now changed.

71

Basic Printer Operation

Keyword

How to Use Help
Printer Driver
Summary
Explanation on Ea
How to Print Job

Using Online Help

3.3

Help for the printer is provided with the PCL6 printer driver. Refer to Help when you need to
know about printer driver items and settings, or need to check different printing methods
when problems occur.

Wine

party

Help Contains the following:

3

The Help topics are as follows.

How to Use Help Files

How to Use Help
Help Notation
How to Print

Printer Driver

How to Get the Latest Version of the Printer Driver
Trademarks and Abbreviations
Supplementary Information About the Printer Driver
How to Confirm the Printer Driver Version

Summary

T8024 Characteristics
Overview of Printer Driver

72

3.3 Using Online Help

Explanation on Each Tab

Paper/Output Tab
Graphics Tab
Watermarks Tab
Fonts Tab
Configuration Tab
Options Tab
User Settings Tab

How to Print Job

Printing on Special Media

Printing on Envelopes
Printing on Glossy Paper
Printing on Transparencies
Inserting Paper Between Transparencies (Transparency Separators)

Duplex Print

Printing on Side 2 (Back) of Special Media
Printing on Side 2 (Back) of Plain Paper

Adjusting Graphics

Specifying the ICC Profile
Setting Color Temperature
Adjusting Color Balance When Printing Color Documents
Adjusting Brightness and Contrast When Printing B/W Documents

Saving Frequently Used Printer Driver Settings

Saving Printer Driver Settings
Using the Retrieved Printer Driver Settings to Print a Job

Printing a Specific Text Repeatedly(Watermark)

Printing a Watermark

Collating/Printing Multiple Sets

Printing Multiple Sets of a Document
Collate

Using This Feature

Using Image Repeat to Print a Job
Printing Multiple Pages of Documents on One Sheet of Paper (Multi­Up Option)
Using Poster to Print a Job
Using Booklet Creation to Print a Job
Printing on a Output Size Different From the Paper Size
Printing on Non-standard Output Size
Shortening Print Data Transmission Time
Solution to Unacceptable Settings Dialog Box
Placing Banner Sheets Between Jobs

Basic Printer Operation

3

73

3.3 Using Online Help

Consumables

How to Solve Printing Problems

Replacing the Toner Cartridges, Drum Cartridge and transfer roller

Basic Printer Operation

3

Unable to Print
Poor Print Quality
Paper Jams
Network Related Problems
When an Error Message is Displayed
When a Problem Could Not be Solved

Nomenclature

Multi-Up
TrueType Fonts
Color Balance
Resolution
Output Color
Black/White
Restore Defaults
Banner Sheet
Printer Fonts
Non-standard Size (Custom Sizes 1-5)
Color Temperature
ICC Profile

74
