Tally T2040, T2240, T2340, T2240/9, T2240/24 Reference Manual

...

Download

Page 1

Reference manual Matrix printer

T2240/9

T2240/24

T2340/9

T2340/24

Page 2

Table of contents Introduction

1 Operation

The control panel 1 - 1

The LC display 1 - 2 Messages in the LC display 1 - 3

LC display language 1 - 4

Selecting the LC display language 1 - 4 Unlock the Menu mode 1 - 4 Terminating Menu mode 1 - 6

Key functions when turning on the printer 1 - 7 Programming via the control panel 1 - 7

Calling up the menu 1 - 8 Calling up a locked menu 1 - 8 Menu configurations 1 - 8 Menu handling 1 - 10 Save settings 1 - 11

Example of the menu structure 1 - 12 Menu description table 1 - 13 Menu settings (example) 1 - 21 Bidirectional print adjustment (L/R Adj) 1 - 22

2 Emulations

General 2 - 1

Escape sequences 2 - 1 What are escape sequences? 2 - 1 MTPL sequences 2 - 1 What are control codes? 2 - 1

The $$ procedure 2 - 2

Page 3

Table of contents

How are escape sequences used? 2-3

MTPL 2-4 Example in BASIC 2-4 Example in Pascal 2-4 Printout 2-4

List of available control codes 2-5 Barcode 2-17

List of available barcodes 2-17

LC printing 2-19 List of additional control codes 2-20 Configuring the printer for your computer 2-21

3 Troubleshooting, care and maintenance

Test functions and hardware settings 3-2 Printer self-test (Rolling ASCII) 3-3

Exiting Test mode 3-5

Interface test (Hex-Dump) 3-6

Printout in Hex-Dump 3-6 Terminating Hex-Dump 3-7 Setting the Formlen function 3-8 Wrap 3-9 Sound 3-10 CX-bid 3-11 CX-IF 3-12 ChTrFr 3-13

Mechanical adjustments to the printer 3-14

Setting the basical top margin and L/R adjustment 3-14

Troubleshooting 3-17

The display remains dark 3-17 The display is lit, but the printer does not print 3-18 Problems with the paper feed 3-18 Paper jam (fanfold paper) 3-19 Paper jam (single sheets) 3-20 Tear off position cannot be adjusted 3-21 Paper does not move to tear off position 3-21

Page 4

Problems with the print quality3 - 22

Print is too pale3 - 22 Smudged print3 - 22 Prints undefined characters3 - 22 The first line is not completely printed out at the top3 - 22 Dots within characters are missing3 - 22

Error messages via the display3 - 23

Load paper from ...3 - 23 Printhead hot3 - 23 Parity Error3 - 23 Hardware Alarm3 - 23 Home Position3 - 23 Eject Error3 - 24 Load Error3 - 24

Additional display messages3 - 25

Press any key3 - 25 Loading Default3 - 25 Only available in Epson mode3 - 25 Park position3 - 25 Tear paper off3 - 25 Turn paperlever3 - 25

Care and maintenance3 - 26

Cleaning the housing 3 - 26 Cleaning the interior3 - 27 Ribbon3 - 27

A Character sets

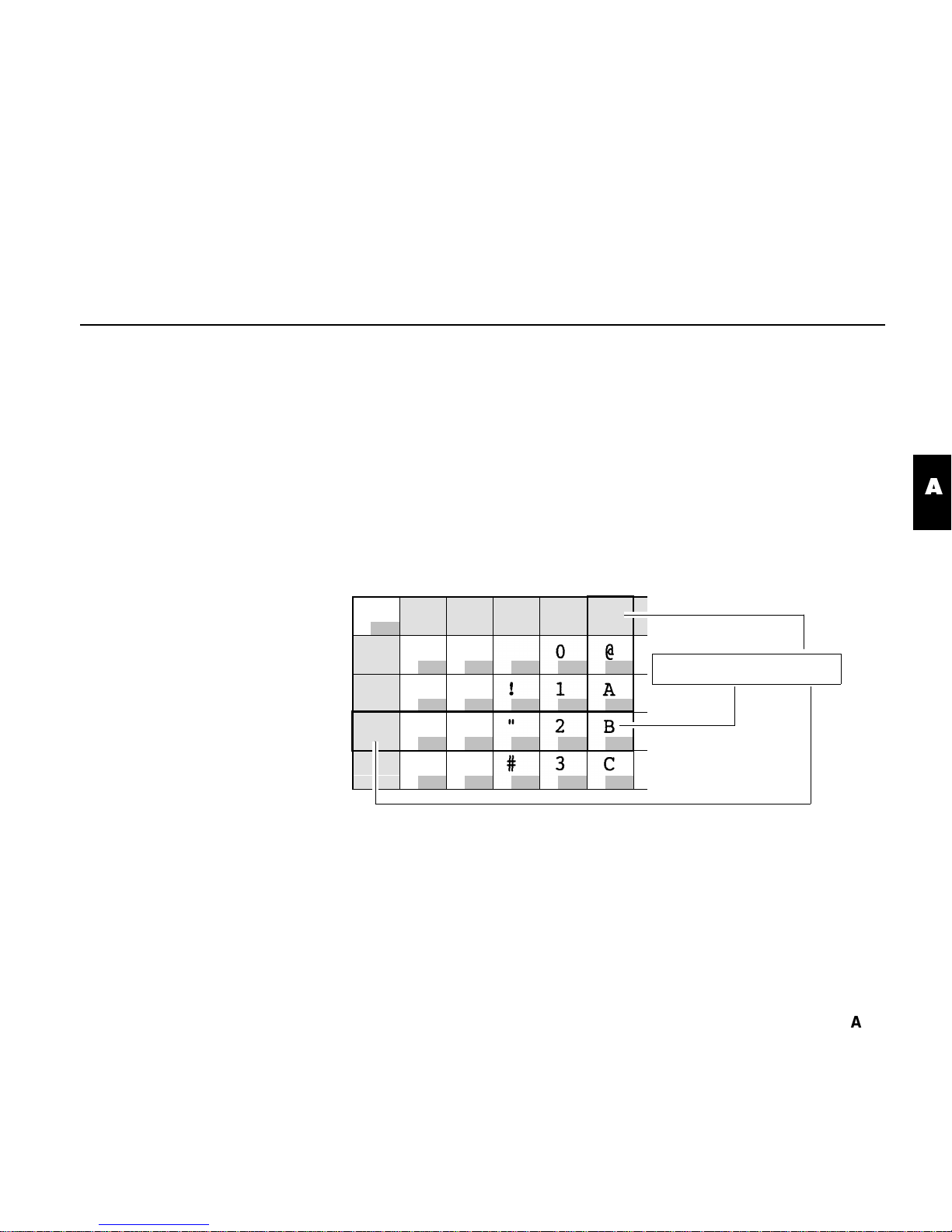

Character sets A - 1

MTPL standard character set A - 2

MTPL international substitution characters – normal font A - 3 OCRA Character Set A - 4 OCRB Character Set A - 5 Available character sets and fonts A - 6

Table of contents

Page 5

BInterfaces

Parallel interface B - 2

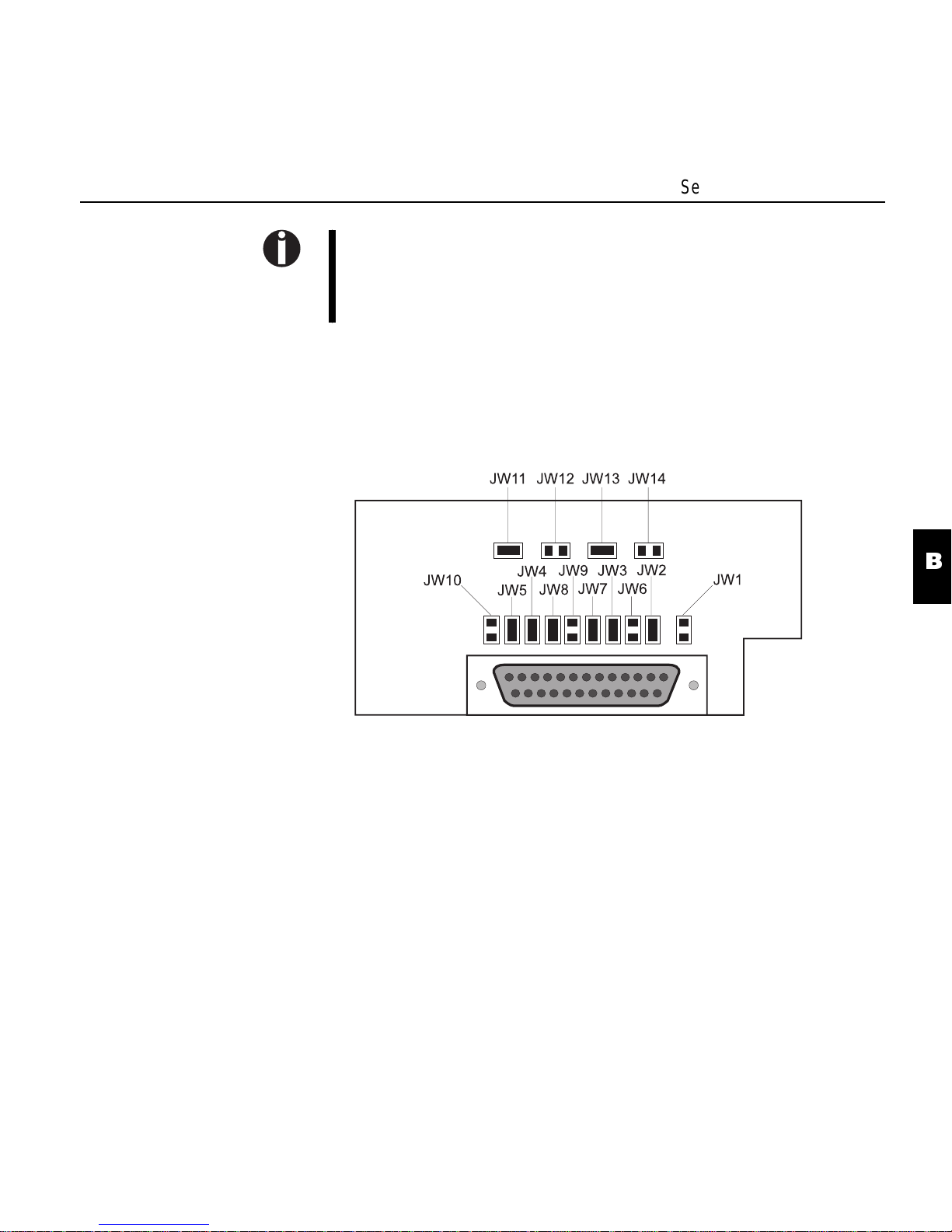

Jumper settings B - 3

Serial interface RS232C/V.24 B - 4

Connector assignment B - 4 Interface cable RS232C B - 5 Protocol description B - 6 Jumper settings B - 7

Serial interface RS422/V.11C B - 9

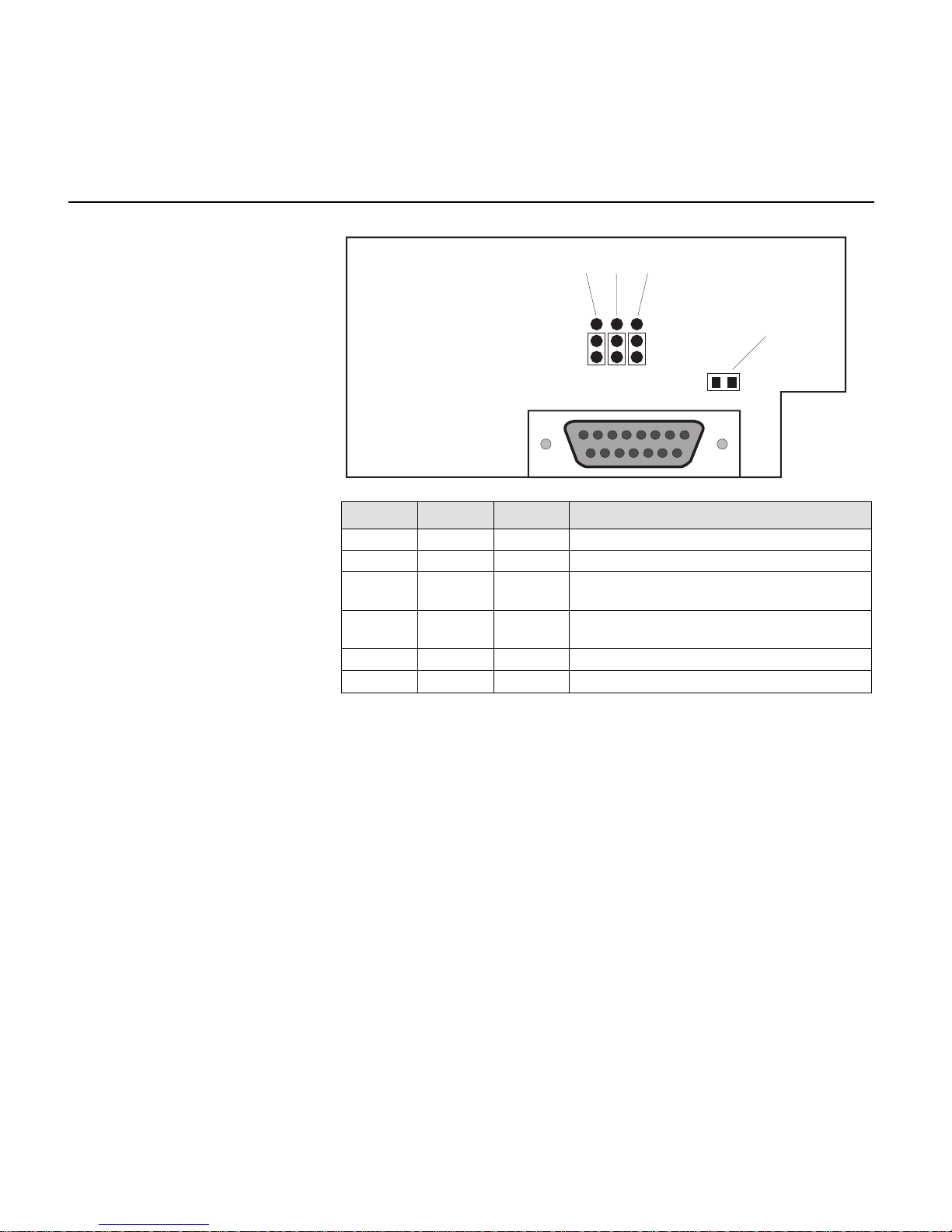

Connector assignment B - 9 Protocol description B - 9 Jumper settings B - 10

CSpecification

Printer specifications C - 1 Interface specifications C - 3 Paper specifications C - 4

DOptions and Accessories

Options D - 1 Accessories D - 2

Table of contents

Page 6

Introduction

About Part II of the

operator’s manual

The reference manual contains a detailed description of the printer, its characteristic features and additional information.

If you need to operate your printer as soon as possible, it is sufficient to read

Installing the printer

in the Operator’s manual. For further information and correct use of your printer the complete operator’s manual must be read.

The reference manual is divided into three chapters with their titles printed in the top margin of the page. The current chapter is marked by a black bar.

The chapters of this manual describe the following topics:

■ Chapter 1 Operation contains information on programming your printer via the operating panel.

■ Chapter 2 Emulations deals with programming via the interface. The avail- able programming sequences are listed. (Detailed information about these codes are available in an optional Programmer’s Application Manual which can be purchased separately.)

■ Chapter 3 Troubleshooting, care and maintenance helps you to deal with common problems and shows you how to use the test and adjustment functions of your printer. Hints on identifying and repairing faults yourself are provided. At th e end of the chapter, cleaning and care of your printer are described.

■ Appendix A Character sets lists the available character sets.

■ Appendix B Interfaces explains the interfaces.

■ Appendix C Specifications informs you about the technical specifications of

your printer and the paper which should be used.

■ Appendix D Options and accessories contains information about options and accessories you can purchase for your printer.

Introduction

Page 7

Explanation of symbols Notes on the symbols used:

● Texts marked with this dot describe operations which must be performed in the given order.

■ This mark indicates a list. Text sequences marked by this symbol must be noted and observed under

all circumstances since any misuse could injure the operator or damage the equipment.

This symbol marks important information and notes.

STOP

Introduction

Page 8

Setup

Online

123

Operation 1

The control panel The control panel is located on the front left side of your printer and

consists of a two-line LC display and six keys.

The functions of the keys depend on the printer’s current mode (status). There are four basic modes.

The

Online mode

is the printer’s normal operating status. Data from your

computer can be received and printed. In the

Offline mode

the link between printer and computer is interrupted,

i.e. no data can be received and printed. In the

Setup mode

you can either select the printer menu or carry out the so-called quick-switch function. The quick-switch option was included so that you can change the most important parameters (character density, font, paper path) directly without having to enter them via the menu. The parameters character density, paper path and font can also be selected in the printer menu.

In the

Menu mode

printer settings (line spacing, size of the interface buffer

etc.) can be altered and saved permanently.

LC display

Online key

Setup key

1 - 1

Page 9

123

Setup

Online Trac.1

Tear

Online

The LC display The LC display tells you all the important printer settings and informs you

which functions are currently assigned to which keys.

In Normal mode the upper line tells you the printer’s status (Online or Offline mode – in the example below the printer is in the Online mode), and the selected paperpath (below:

Trac.1 = push tractor mode).

The second line informs you which functions are currently assigned to which keys. The word or symbol directly above a key tells you the current function of the key. In our example the right key is assigned with the Tear function. If you were to press this key the loaded fanfold paper would be advanced to the tear position.

Example:

Printer status

Paperpath

Key functions

The control panel

1 - 2

Page 10

Messages in the LC display

If the printer detects an internal fault or user error or if it expects you to do something, a message will appear in the LC display. Below you will find a list of messages with brief descriptions of each message. The messages are described in more detail in the section

Troubleshooting

in chapter 3

Troubleshooting, care and maintenance

Message Meaning

Eject error

The printer cannot eject paper/advance it to park position.

Hardware Alarm

Internal hardware error/print head blocked.

Head hot

The printer reports that the print head is hot and that print speed will be reduced.

Initializing

This message appears during the printer’s initializing phase.

Load error

The printer cannot draw in the loaded paper.

Loading default

Indicates that the printer is being initialised and is carrying out the internal self-test immediately after turning on the printer.

Load paper from Single Tractor1 Tractor2 ASFauto

The printer has detected paper end during operation or the printer was switched on with no paper loaded.

The user is requested to insert paper into the paper input selected.

Parity error

A parity error during data transmission is indicated.

Press any key

The user is requested to press any key.

Tear Paper off

The user is requested to tear off paper which has been advanced to the quick tear edge.

Turn paperlever

The user is requested to turn the paper type selection lever.

The control panel

1 - 3

Page 11

LC display language In this manual, all the LC displays are shown in the English language. How-

ever, your printer offers the possibility of indicating the LC display text in German, French, Italian or Spanish.

If you wish to keep the English display (default setting) or to change to another language at a later time, you may skip the following chapter

Selecting the LC display language

This example shows the change from the English language to the German language. The same procedure applies for the other languages.

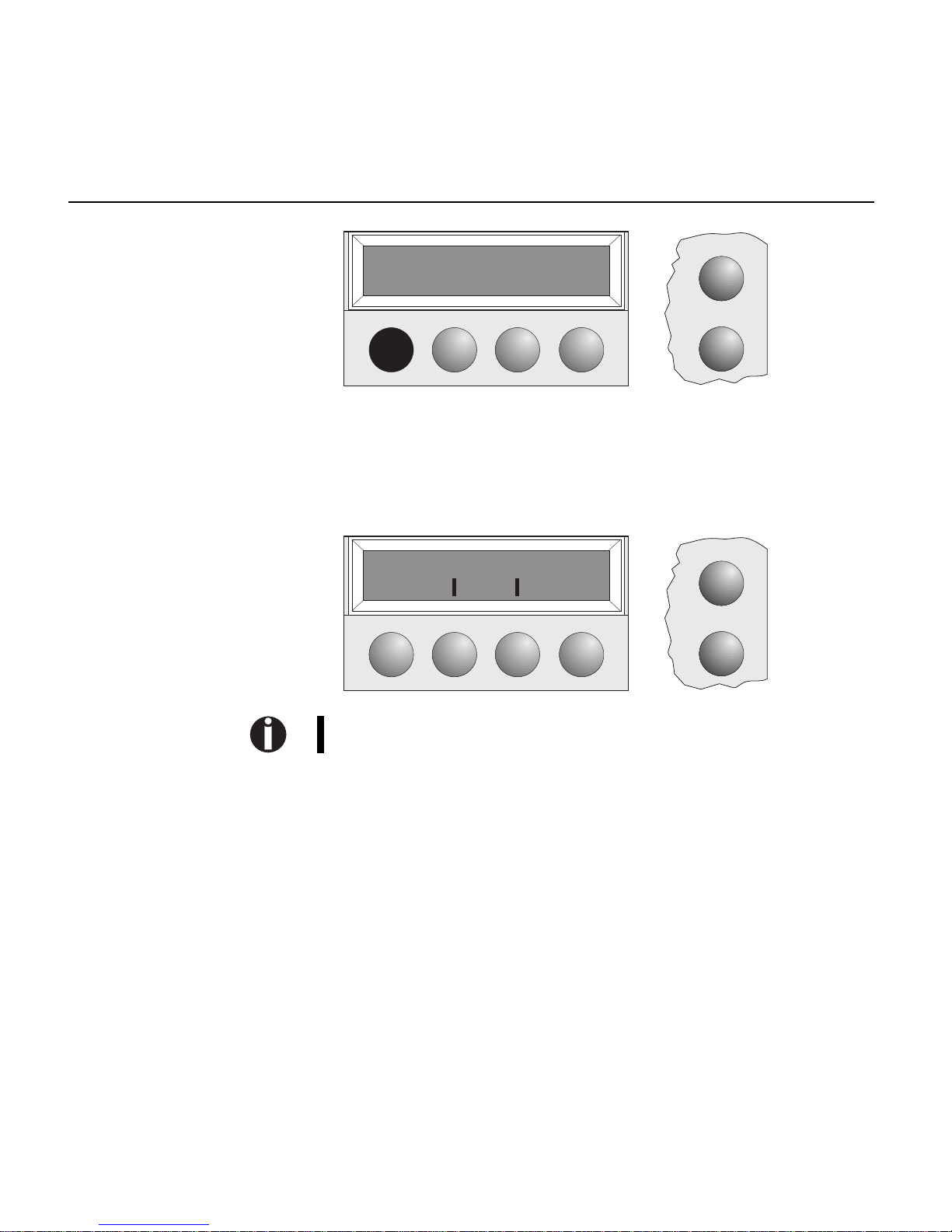

With the printer powered up, unlock the printer’s Menu mode by pressing the key Setup.

Unlock the Menu mode

The Menu mode may be locked. Hold down the key Setup while switching on the printer to cancel the menu lock. If you want to permanently cancel the lock, you must change the appropriate setting in the menu (see

description table

in this chapter). Press the Setup key. Press the Menu key.

Setup

Online Trac.1

Load

Online

LC display language

1 - 4

Page 12

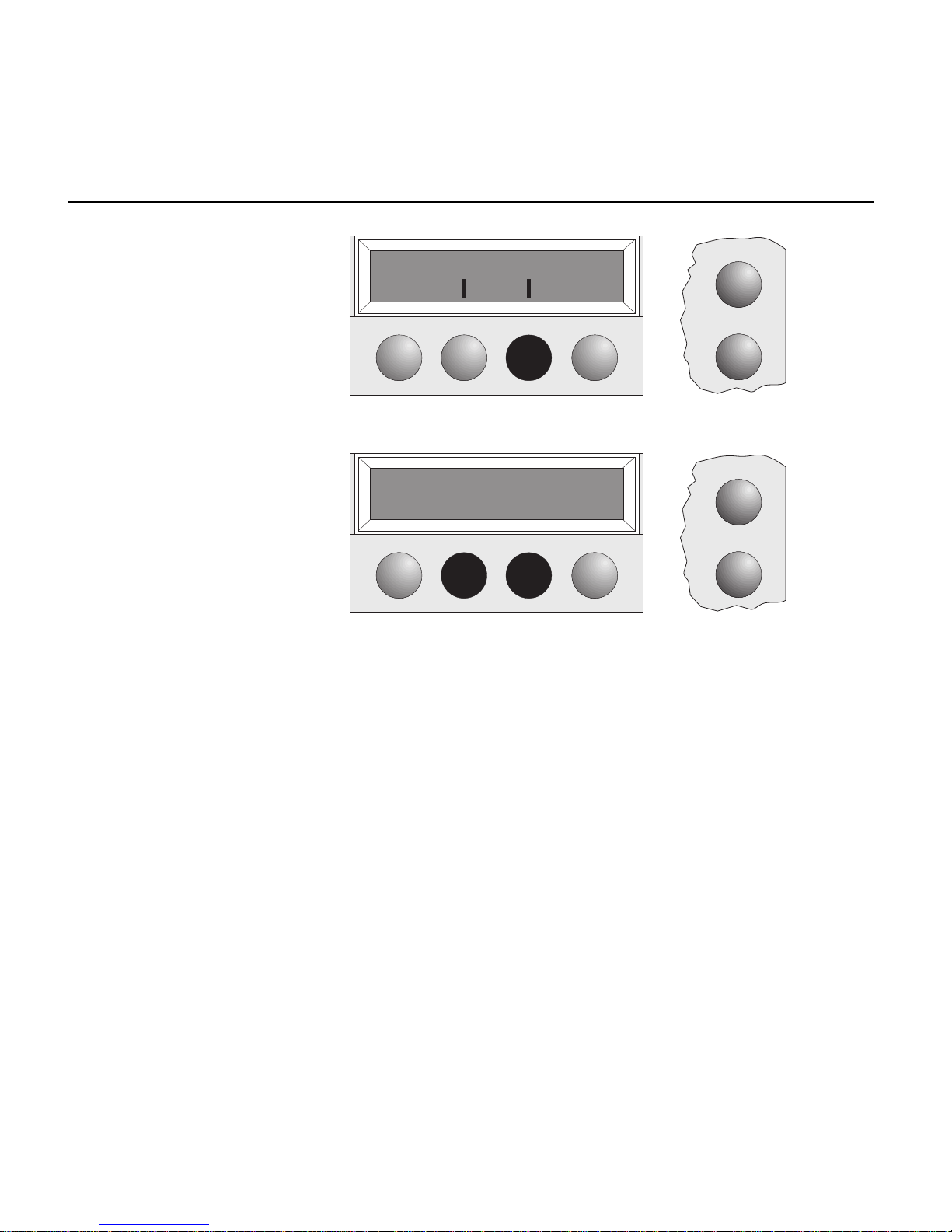

Press the key Next several times until the display indicates Language.

Select the Language key. The display now changes to Parameter mode

and indicates “English” in the top line.

The lower line displays Set and Exit. The two arrows < and > represent the symbols for parameter selection (“<” indicates descending and “>” ascending).

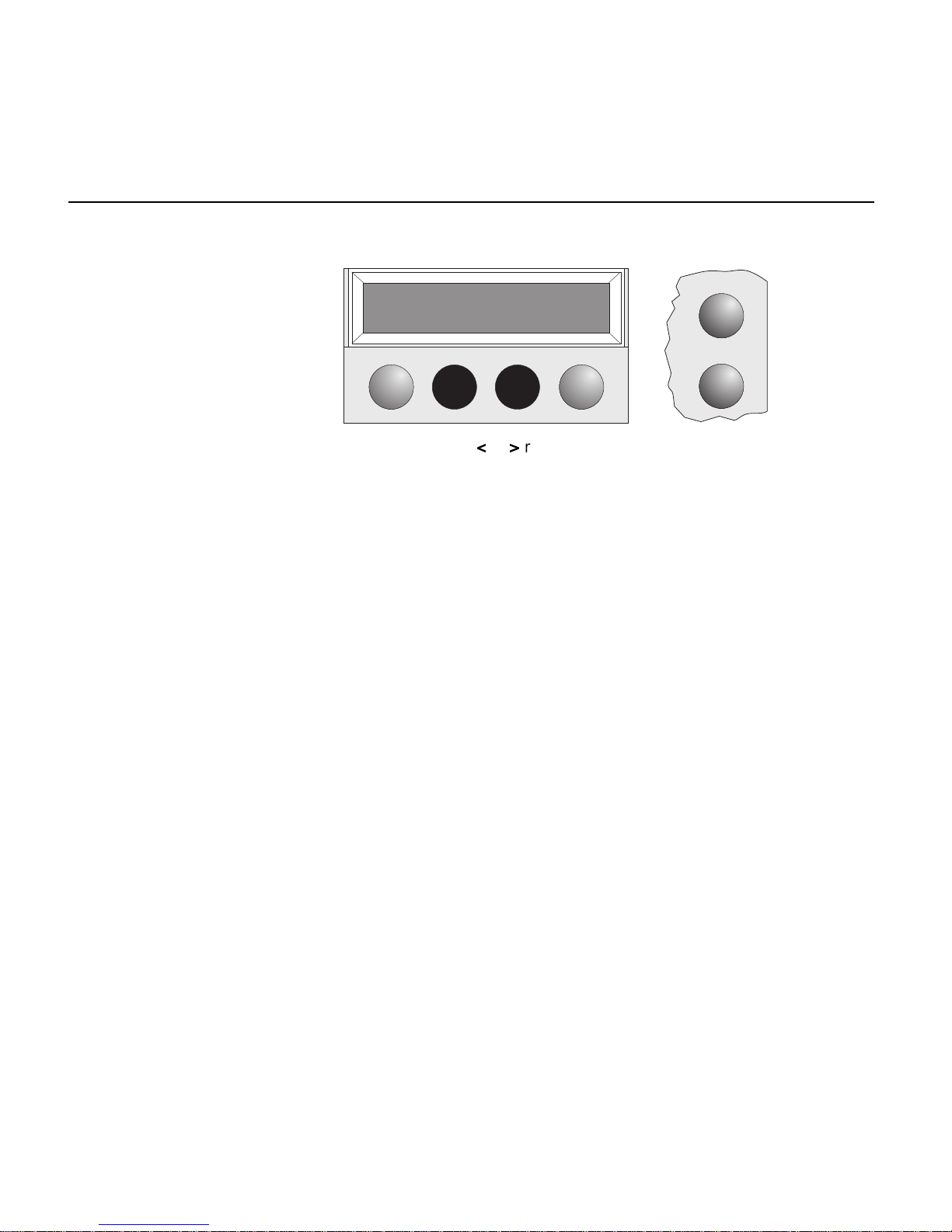

Press the key < or > until the desired language is displayed, in our example German.

Online

Print Menu

Back Next

Setup

Online

MenLock Language

Back Next

Setup

English *

Set < > Exit

Online

LC display language

1 - 5

Page 13

Save your selection by pressing the key Set. An acoustic signal verifies this action. You can exit Parameter mode without saving a setting by pressing the key Exit (the old setting is retained). After saving your setting (Set), the display in our example indicates the following text:

This setting is stored even after switching off your printer.

Terminating Menu mode

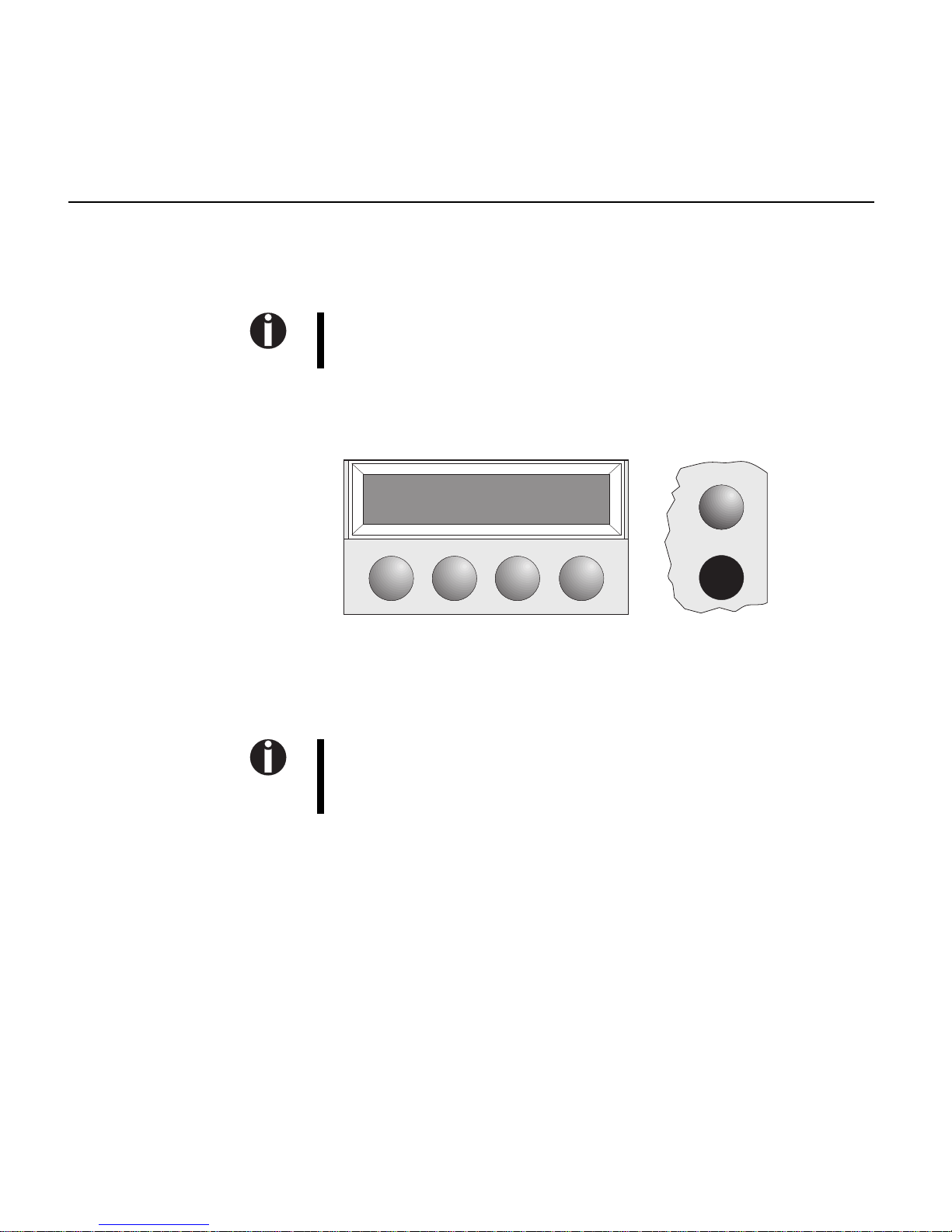

Press either the key Setup to change into Offline mode or the key Online to change to Online mode.

Setup

German *

Set < > Exit

Online

Ges.Men Sprache Rück Vor

Setup

LC display language

1 - 6

Page 14

Key functions when turning on the printer

means that you must keep the respective key depressed while turning on the printer. In this way you can activate three functions:

If you keep the Online key depressed while turning on the printer, you

enter the printer’s Self-Test mode. The Self-Test mode is described in chapter 3 of this manual.

If you keep the Setup key depressed while turning on the printer, you regain access to the printer menu if you had locked it before with the help of the

MenLock

function. The

MenLock

function is described in the Menu

description table at the end of this chapter. If the four

function and select keys

are depressed simultaneously while turning on the power, all printer settings are reset to the default values (except the settings for

basical TOF and L/R

If function keys 1 and 2 and the Online key are depressed simultaneously while turning on the printer, basic TOF and L/R can be adjusted. See the description in chapter 3 of this manual.

Programming via the control panel

Apart from being able to control your printer via the applications software you use, you can also program the printer directly. There are two programming options you can use:

● Programming via the control panel and

● Programming via the interface using Escape sequences or control codes

Programming via the interface gives you far greater freedom for designing your printed pages, however, it is also a more sophisticated method and requires some experience with programming languages.

All programming via the interface is lost after you turn off the printer, whereas the programming carried out using the control panel, is saved and stored even after you turn off the printer.

Key functions when turning on the printer

1 - 7

Page 15

Calling up the menu You can access the menu in the following way:

Switch on the printer. Press the Setup key. The printer switches to Setup mode. (The Setup mode can be selected both in the Online and Offline mode).

To access the printer menu, press the Menu key.

Calling up a locked menu

As mentioned earlier in the manual you are provided with the option of locking the menu, for example to prevent others from accessing it. You can do this using the

MenLock

parameter from within the menu itself.

(The

MenLock

parameter is described in detail in the menu description table). You can access a locked menu by switching on the printer while simultaneously pressing the Setup key.

Menu configurations Every printer is shipped with factory default settings. Basic settings such as

emulation, character size, form length etc., which many applications make use of, are set. At the end of this chapter you will find a menu printout

which shows you the printer’s default settings. Your printer allows you to set and use four independent menu configura-

tions. If one of your applications for example requires an IBM printer while another program works better with an EPSON printer, you can set an IBM emulation configuration with the desired settings, and set the second configuration as an EPSON emulation.

Online

Adjust Paperway

Menu Char

Setup

Programming via the control panel

1 - 8

Page 16

The active menu is always the one you used last. When you switch on the printer for the very first time, menu no. 1 is loaded. Menu no. 1 only remains active until you load another menu. Even after you turn off the printer the menu that was active last remains the active menu and when you switch the printer on again this menu is loaded automatically.

Example:

To change from menu no. 1 to menu no. 3:

Select Setup mode (press Setup key).

Select Menu mode (press key under Menu).

Select Menu again (press key under Menu).

Setup

Offline Trac.1

Park < > LF/FF

Online

Adjust Paperway

Menu Char

Setup

Online

Print Menu

Back Next

Setup

Programming via the control panel

1 - 9

Page 17

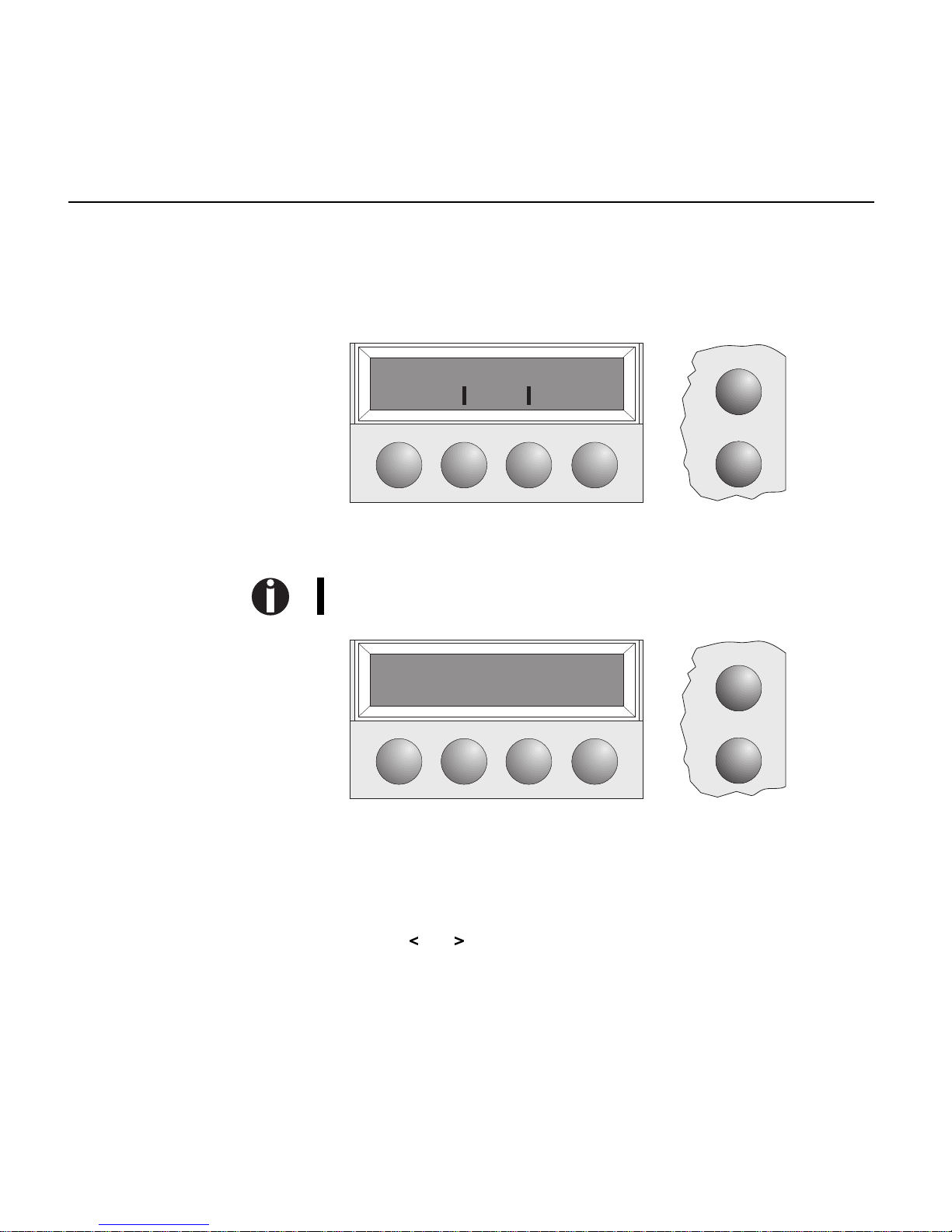

Now the following message appears in the LC display:

Now press the key < or > repeatedly until “Load Menu=3” appears. Then

select menu no. 3 as the current setting using the Set key. After you have completed this change the printer initialises itself and a corresponding message is displayed in the LC display.

The currently valid setting ist marked by a “

”

Menu handling You move from menu item to menu item using the four function and selection

keys underneath the LC display. Every function and every parameter displayed on the LC display is effected/selected by the key directly underneath. For this reason the function and selection keys are referred to in this manual by their current assignment. Generally two parameter groups occupy one level (in the following picture the parameter groups LPI and Skip occupy one level).

If you do not wish to change one of the two parameters you can either press the Next key (to access the two following parameter groups in the menu), or you can press the Back key (to access the two previous parameter groups in the menu). If you want to change a setting, (e.g. the line density), then press the LPI key (LPI = lines per inch) to access the actual parameter level. The currently valid setting is marked by a “

” (in the example below the current setting is 6 lpi). With the “<” and “>” keys you can view the other parameters available for this setting.

Setup

Load Menu=1 *

Set < > Exit

Online

Programming via the control panel

1 - 10

Page 18

Save settings Once the desired parameter is displayed on the LC display, you can save it

by pressing the Set key. The parameter is then set and the printer automatically displays the parameter groups again. With the Exit key you can leave the sublevel without saving your changes (see also

Terminating

Menu mode

, page 1-6).

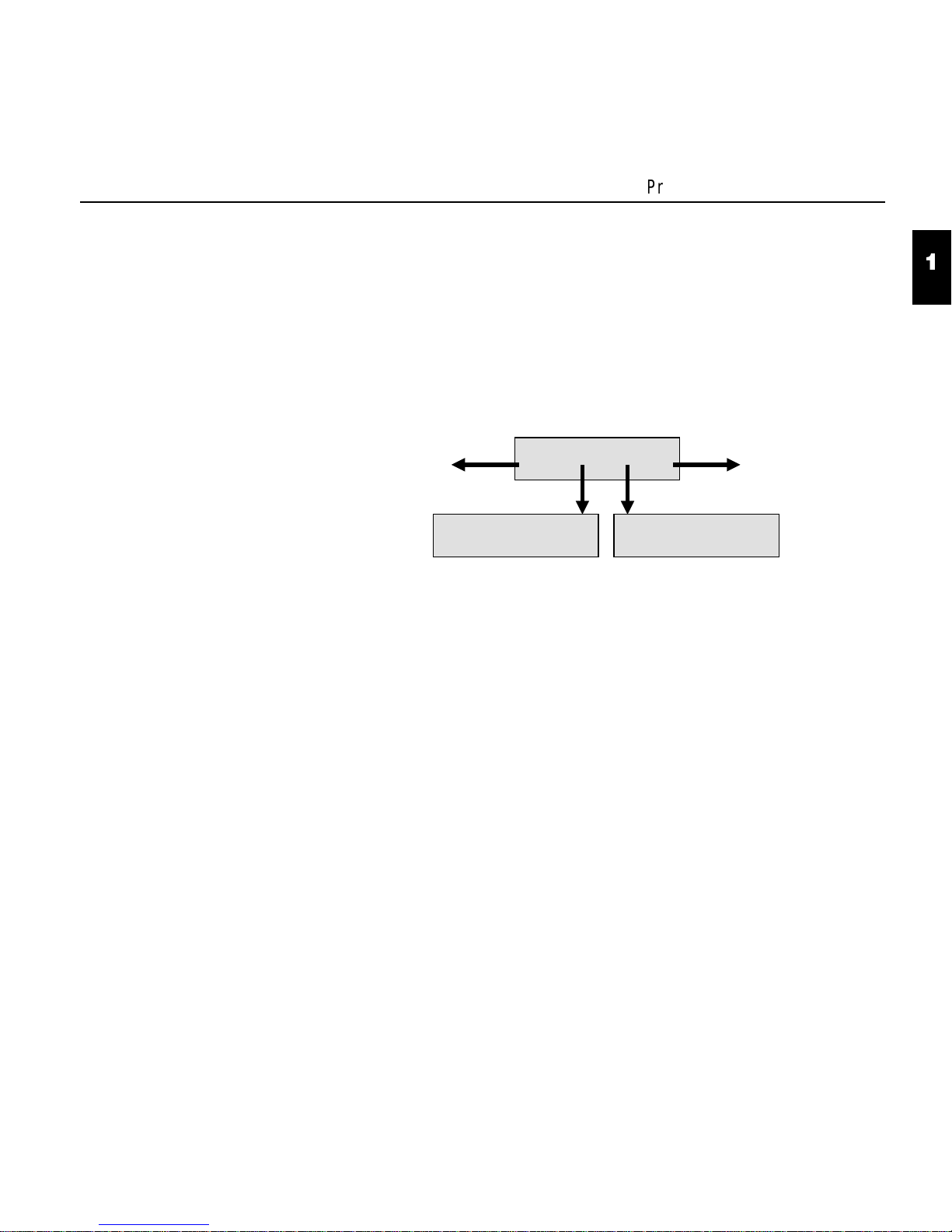

Example:

Back to the previous parameter groups

On to the next parameter groups

LPI Skip

Back Next

6 LPI * Set < > Exit

Skip = 0.0 Inch * Set < > Exit

Programming via the control panel

1 - 11

Page 19

Example of the menu structure

I/OBidir

Reset

CPIFont

SkipLPI

EmulateESCChar

CharSetCG-Tab

L/R Adj

Back

➡

Serial*

Interf.

Baud*

Format*

Protocol*

Buffer

SI. ZeroCountry

Auto TearPaper

Single

Trac.2

***

Trac.1

LanguageMenLock

ASFauto

***

Auto-LFAuto-CR

Width

* only with serial

interface

** only with wide

printers

*** as an option

Barcode Barmode

F-Eject Formlen

Back

➡

1 - 12

Prn Ipct

Page 20

Menu description table

1-13

Menu description table

* Factory defaults

Parameter group Parameter Description

Print This parameter prints out all menu configurations. You will

find an example of a printout following this table.

Menu Load Menu=1 *

Load Menu=2 Load Menu=3 Load Menu=4

One of four menu configurations can be loaded.

Reset Reset Menu?

No Yes

The currently active menu configuration is reset to the basic settings.

L/R Adj -16 ... 00 *... +16 You will find a description of this function at the end of this

chapter.

Font Draft

Draft Copy * ROMAN ROMAN PS SANS SERIF S SERIF PS COURIER PRESTIGE SCRIPT OCR B OCR A COURIER I COUR I PS ORATOR GOTHIC SOUVENIR LN DRAFT HS DRAFT DRAFT* QUADRATO NLQ COURIER NLQ OCR A/B DIN/ISO DLL DRAFT DLL NLQ

The font can be selected. The fonts marked I (e .g. Courier I PS) are IBM compatible character generators. All fonts except Draft can be selected in LQ or in NLQ with the 24-needle head.

If OCR A/B DIN/ISO is selected, observe the information given with the Country parameter group.

Page 21

Menu description table

1-14

CPI 5 / 6 / 7,5 / 8,6 / 10 * /

12 / 15 / 17,1 / 20 CPI

Selects the character density (cpi = characters per inch).

LPI 2 / 3 / 4 / 6 * / 8 / 12 LPI Selects the line density (lpi = lines per inch). Skip 0 * / 0,5 / ... / 3,5 inch Selects one of seven defined values for skip over the

paper fold.

ESCChar ESC *

ESC+$$

The type of escape character which leads escape sequences can be selected. Escape character only or escape character plus two $$ characters. (You will find a description in chapter 2.)

Emulate

MTPL Epson LQ850+/ LQ1050+ * IBM Propr. XL24 IBMProXL24+AGM

IBM Propr. XL * MTPL Epson FX 850+/ FX1050+

Selection of the emulation mode. The MTPL emulation is also avai la ble in the other emulations.

The sequences of the IBM AGM mode are basically the same as those of the IBM Proprinter XL24. The graphics commands are similar to those of the Epson mode. Note: Epson LQ850+ ➨ narrow printer

Epson LQ1050+ ➨ wide printer

Bidir On *

Off

Switch on/off bidirectional printing.

I/O

Buffer

Serial

Baud

0 / 1,7 / 10 / 40 / 64 kB 0 / 1,7 / 19 / 40 / 64 kB

19200 9600 * 4800 2400 1200 600 300

The standard version is equipped with a parallel interface only..

Selection of the size of the interface buffer. Values 0 are not displayed if the serial interface is installed.

This parameter is displayed only if the serial interface module is installed.

Selection of Baud rate for data transmission (Baud = bits per second).

Parameter group Parameter Description

Page 22

Menu description table

1-15

Serial

Format

Protocol

Interf.

8 Bit No 1Stop * 7 Bit Even 2 Stop

Odd Mark Spc

XON/XOFF * Robust XON/XOFF ENQ/STX ETX/ACK

Dual * Parallel Serial

The number of data bits, a parity bit and the number of stop bits per data byte can be set. The followi n g set t i n gs are possible fo r th e pa rity bit:

NO = Transmission without parity bit EVEN = Checking for even parity ODD = Checking for odd parity MARK/SPACE =Transmission of 1 (MARK) or 0 (SPACE)

instead of the parity bit Selection of the protocol ty pe.

Selection of the interface. In Dual mode the printer automatically changes between the parallel and the serial interface (Shared mode).

CG-Tab Graphic *

DLL Italic

Appears only if the Epson emulation has been selected. Italic, graphics or DLL character sets can be selected.

CharSet Standard

Extended *

Selects standard character set or extended character set.

Country EPSON

E-US ASCII * E-FRENCH E-GERMAN E-UK E-DANISH I E-SWEDISH E-ITALIAN E-SPANISH I E-JAPANESE E-NORWEGIAN E-DANISH II E-SPANISH II E-L.AMERICAN E-KOREAN E-LEGAL

Selects character sets.

If Font: OCR A/B DIN/ISO is selected for the -needle printer, only the following parameters appear: – OCR A DIN – OCR B DIN – OCR A ISO – OCR B ISO/ANSI

– OCR A ANSI

** for the -needle version only

*** for the -needle version and Sans Serif, Roman,

Courier, Courier I only

Parameter group Parameter Description

Page 23

Menu description table

1-16

Country ISO:

ISO 8859-1 ISO 8859-1 SAP ISO 8859-2 ISO 8859-5 ISO 8859-7 ISO 8859-9** ISO 8859-15

(Euro-Zeichen)

MTPL: US ASCII UK ASCII FRENCH GERMAN ITALIAN SWEDISH NORWEGIAN SPANISH PORTUGUESE CRO ASCII ELOT 928** BRASCII** ABICOMP** ROMAN8** GREEK DEC** COAX/TWINAX**

IBM: TABLE 437 NEW 437**

TABLE 737 TABLE 850 NEW-BIG 850** TABLE 851

TABLE 852 TABLE 857 TABLE 858 TABLE 860 OLD CODE 860** TABLE 861 TABLE 863 FLARRO 863** TABLE 864*** 864 EXTENDED*** TABLE 865 865 HEBREW** TABLE 866 866 BULGARIA TABLE 1250 TABLE 1251 TABLE 1252

** for the -needle version only

*** for the -needle version and Sans Serif, Roman,

Courier, Courier I only

Parameter group Parameter Description

Page 24

Menu description table

1-17

Country IBM:

TABLE 1253 TABLE 1254 FARSI*** URDO*** SIEMENS TURK** DEC TURKISH**

** for the -needle version only

*** for the -needle version and Sans Serif, Roman,

Courier, Courier I only

Sl. Zero On

Off *

Selects whether or not the Zero (0) is printed with a slash (Ø).

Auto CR Off

On *

Selection of a carriage return (CR) on every received line feed (LF).

Auto LF Off

On *

Selection of a line feed (LF) on every received carriage return (CR).

MenLock Off

Menu * All

With this function you can lock access to the menu or the Setup mode. The Menu parameter is used to lock access to the Menu mode; by selecting All, access to the Setup mode is prevented. Only changing the paper path, loading and ejecting the paper is allowed. If the Menu parameter is activated, access to Menu mode is also disabled, howev e r, paper path, font, character density and the head, TOF and Tear functions can be set. The lock is removed by s witching on the printer while simultaneously pressing the Setup key.

Language English *

German French Italian Spanish

The menu can be displayed in English, German, French, Spanish or Italian.

Paper

Single

FormAdj

Trac. 1

FormAdj

Trac. 2

FormAdj

0/72 – 72/72; 12/72 *

0/72 – 220/72; 12/72 *

The position of the first print line can be set individually for each paper type. Values between 0/72 inch and 220/72 inch can be selected. (See also TOF, Setting the first printing line in the operator’s manual).

Values for manual cut sheet feeding can be set.

Values for Tractor 1 can be set.

Values for Tractor 2 can be set.

Parameter group Parameter Description

Page 25

Menu description table

1-18

ASF-auto

FormAdj 0/72 – 72/72; 12/72 *

Values for automatic sheet feeder can be set.

AutoTear ViewTear = Off *

View =1s

3s 6s

Tear = 1s

3s 6s

Tear at TOF

The Auto-Tear function, the Auto-View function or the Tear at TOF function can be selected optionally. With AutoView switched on, the text which was printed last can be viewed. As soon as the printer receives data, the paper is transported back to the “normal” print position. After the print process has been completed, the printer waits the preset interval and then transpor ts the paper back to the Auto-View position. With Auto-Tear switched on the paper starting position is in the quick tear position, i.e. the paper’s quick tear perforation is positioned on the printer’s quick tear edge. As soon as the printer receives data, the paper is transported back to the normal print position. After the print process has been completed, the printer waits the preset interval and then transports the pap er back to the quick tear position. If the quick tear edge is not level with the paper perforation, this can be corrected (see the operator’s manual, Moving paper to the tear position). If Tear at TOF is selected instead of the AutoTear or AutoView function, the printer feeds the fanfold paper up to the tear edge when 1. no print data are queuing up and 2. when the printer is in TOF position.

Width 8 inch

13,2 inch 13,6 inch *

Sets the line length in inches. This parameter group is only displayed in the menu of the wide printer.

F-Eject Off *

ASF Single All

Changes the paper outfeed of cut sheets. Off: paper outfeed to the rear ASF: paper outfeed to the manual sheet feeder Single: paper outfeed to the front All: Both to the manual sheet feeder

Formlen

Trac.1

Form length adjustment. You can select from two different form lengths.

This form length is applicable to paper in tractor 1, in the manual cut sheet feeder and in the automatic sheet feeder (ASF).

Parameter group Parameter Description

Page 26

Parameter group Parameter Description

Formlen Trac.1

Lines 6 – 132 lines at 6 LPI; 72* If Lines is selected, the form length can be adjusted by

inputting the number of lines. The basis for this is the adjustment of the parameter group LPI. If for example the value 4 was set under LPI, this corresponds to a line spacing of 1/4 of an inch. If a form length of 20 lines is now set under Lines, the form length is calculated as follows: 20 lines x 1/4 of an inch = 5 inches. The adjustment range is between 1 and 22 inches, which at 2 LPI means 2 – 44 lines and 12 – 264 lines at 12 LPI. If any changes are made to the LPI parameter group at a later time, this leaves the form length unchanged, i.e. the number of lines changes.

Standard No Format*

DINA3 (420 mm) DINA4 (297 mm) DINA5 (210 mm) DINB5 (250 mm) DINB6 (176 mm) DINC6 (162 mm) Executive (10.5 inch) Letter (11 inch) Legal (14 inch)

Under Standard a number of different paper formats can be selected directly, e.g. A4 Portrait, A4 Landscape, Legal, Letter etc. If for “no format” the asterisk is displayed as the selected setting, a form length was selected by Lines which does not correspond to any listed standard format.

Trac.2 This form length is applicable to paper in tractor 2 only.

Lines 6 – 132 lines at 6 LPI; 72* see Trac.1 Standard No Format*

DINA3 (420 mm) DINA4 (297 mm) DINA5 (210 mm) DINB5 (250 mm) DINB6 (176 mm) DINC6 (162 mm) Executive (10.5 inch) Letter (11 inch) Legal (14 inch)

see Trac.1

Menu description table

1 - 19

Page 27

Menu description table

1-20

Barcode On/Off * With this function selected it is possible to print different

barcodes and LCP (Large Character Printing). The definition and activation is performed by special sequences through the interface. Since this selection is effective for all emulations it must be noted that conflicts in sequence conformity with the selected emulation may occur . For this reason the barcode function must also be switched on and off by MTPL sequences. (The possible barcodes, LCP characters and their usage are described in the Barcode Programmer’s Application Manual and in chapter 2).

Barmode Secured

Unsecured *

In secured mode, the space which the barcode characters require is “protected”. In each line, other barcode or normal characters can also be printed. These additional characters are printed in the current line and in the subsequent lines, without affecting the barcode. Consequently, normal characters can be printed in every line to the right or left of the barcode.

In unsecured mode, the required paper transport for printing barcodes and LCP is carried out automatically and it is not possible to print more than one line of normal characters in the barcode line. All characters in the mixed line are printed such that their bottom edges are in a straight line. This function may be switched on and off by sequences. For more information about Barmode see chapter 2.

Prn Ipct Normal *

High

When PrnIpct = High is set with multi-part pa per, the impact force is increased if the paper thickness lever is in position 2 to 8. The printing speed is thereby reduced.

Parameter group Parameter Description

Page 28

Menu settings (example)

1-21

Menu settings (example)

Page 29

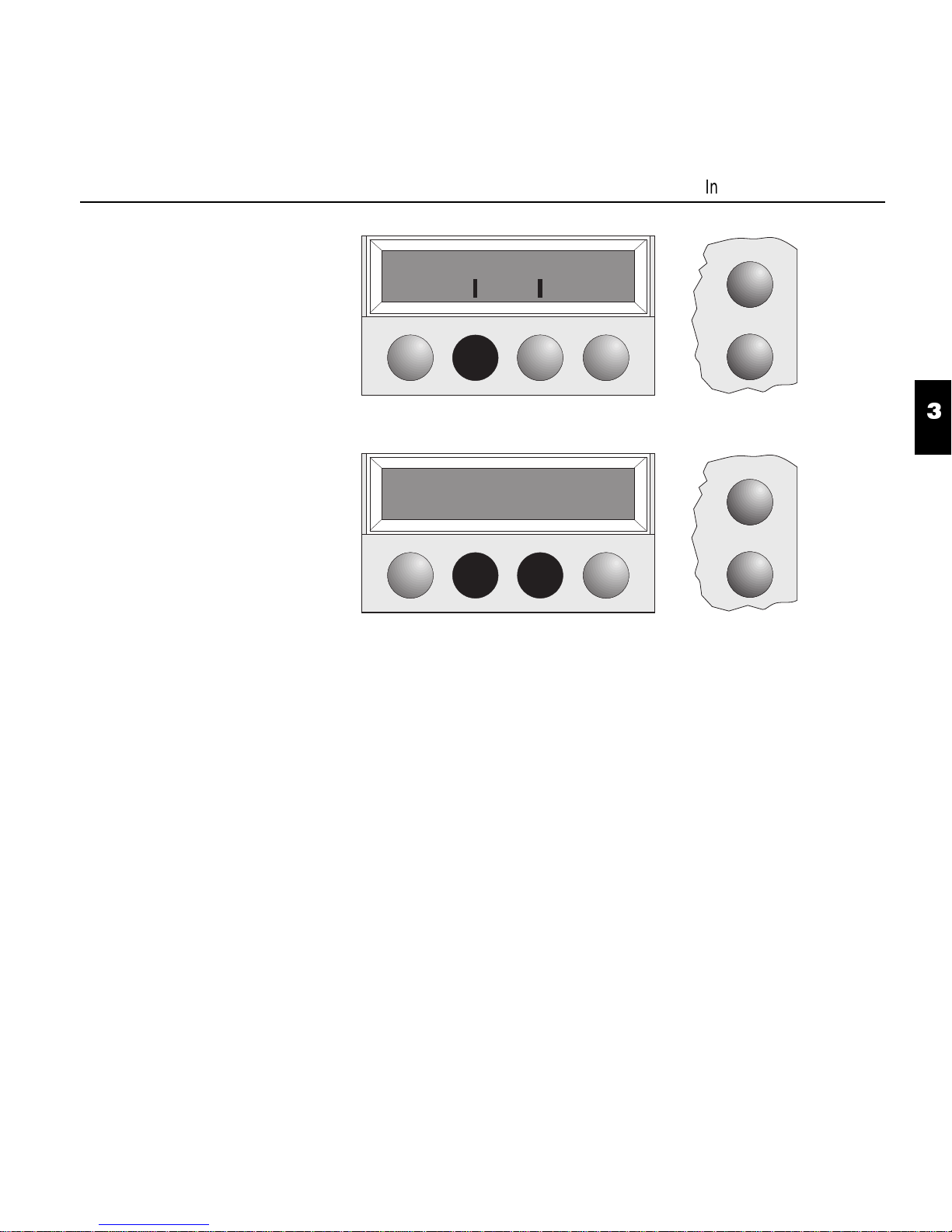

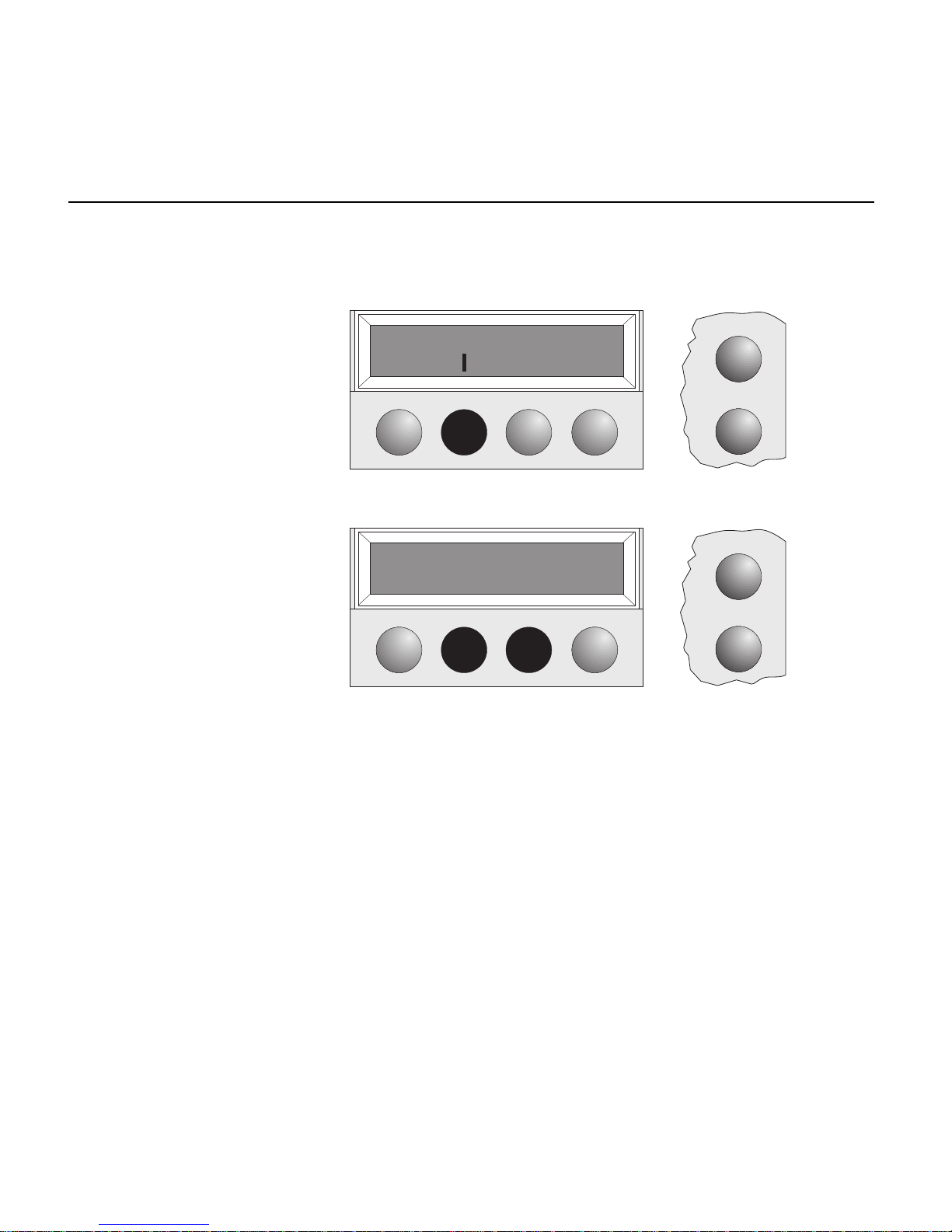

Bidirectional print adjustment (L/R Adj)

Select from the available settings to test and adjust the divergent positions of lines printed from right to left and from left to right.

The left/right adjustment should be made using fanfold paper, since the paper should be positioned in the view position in order to check paper offset (which is not possible with cut sheets).

For this purpose two lines with the character “I” are printed underneath each other. The number following the printer lines designates the value which is currently set.

Example:

Setup

L/R Adj= 00 *

Set < > Exit

Online

IIIII +10 IIIII 00

IIIII IIIIII

offset

no offset

right

wrong

Bidirectional print adjustment (L/R Adj)

1 - 22

Page 30

Emulations 2

General When a printer understands the control set written for another printer type,

it is said to emulate the other printer. Your printer emulates, i.e. “understands” the IBM Proprinter X24e/XL24e and the Epson LQ 850/1050 in its standard 24 needle version.

Escape sequences Escape sequences or control codes tell the printer that the following trans-

mitted code is a printer command and not a printable character. They allow the selection of printer functions or the changing of printer parameters from the computer. By transmitting an escape sequence, you are able to change the previously set configuration of the printer (e.g. character set).

What are escape sequences?

Generally, an escape sequence consists of an ESCape control character (ESC = decimal 27 or hexadecimal 1B) followed by one or more characters, which represent commands to the printer. The control character ESC followed by the character “4” tells your printer to print the following text in italics.

MTPL sequences Apart from the standard Escape sequences and control codes your printer

is equipped with MTPL sequences (MTPL = Tally Printer Language). These sequences provide a large number of additional ways to control your printer. Many functions can only be carried out using the MTPL sequences as you will see when you look at the list of available command codes.

What are control codes?

Control codes are similar to escape sequences because they instruct the printer to do a specific function. However, unlike escape sequences, control codes do not begin with the ESC control code. Instead, they consist of special single-character non-printing commands (e.g. LF, FF, DC2).

2 - 1

Page 31

The $$ procedure Most of the printer functions can be selected with control sequences (ESC

sequences). For this purpose, the signal character ESC, followed by the specific sequence must be transmitted from the computer to the printer.

This ESC character is automatically substituted when two $ characters ($$) are placed immediately after each other in the text and is transmitted to the printer or if the parameter Escape=ESC+$$ is selected in the printer menu.

Example:

In the MTPL + IBM Proprinter emulation, bold print can be switched on by the sequence <ESC>E and can be switched off with the sequence <ESC>F.

Input:

Highlight the word $$E Printer $$F with bold print

Output:

Highlight the word Printer with bold print

This procedure is significant when you are working with older text programs that do not have any or an inadequate printer driver. It is also possible to insert ESC sequences in normal ASCII texts (e.g. program listings) with this procedure. The function of the ESC character remains unaffected.

The $$ procedure

2 - 2

Page 32

How are escape sequences used?

Escape sequences are transmitted to the printer by your computer software. Many software applications allow insertion of escape sequences and control codes within the generated text. Before you start working with escape sequences and control codes, we recommend that you study the computer software manual.

To enter control codes the Ctrl key and an ASCII character must be pressed simultaneously. For instance, by pressing Ctrl and J a line feed is accomplished (it is required to output the character string on the printer). More information concerning this topic is contained in your computer soft-

ware manual and the corresponding Programmer’s Application Manuals (see Appendix D

Options and accessories

The selected emulation must correspond to the printer driver of your application program. Settings caused by ESC sequences remain valid, until they are switched off by another control code. All settings are reset to the original menu, when the printer is switched off.

How are escape sequences used?

2 - 3

Page 33

MTPL As the emulations do not cover the entire scope of your printer, a new

printer language has been created. Using MTPL you are able to optimize operation and handling.

MTPL can be used in connection with other emulations or can be used alone.

Example in BASIC open “LPT1:” as #1

width #1,255 Text1$ = “10 characters/inch”

Text2$ = “15 characters/inch” ESC$ = chr$(27)

print #1,ESC$;"[4w";Text1$;ESC$;"[6w";Text2$;ESC$;"[4w";Text1$ end

Example in Pascal program cpi_example;

uses printer; const ESC = #27;

Text1 = “10 characters/inch”; Text2 = “15 characters/inch”;

begin

writeln(lst,Esc,"[4w",Text1,ESC,"[6w",Text2,Esc,"[4w",Text1);

end.

Printout After the program has been completed the following text appears:

10 characters/inch

15 characters/inch 10 characters/inch

How are escape sequences used?

2 - 4

Page 34

List of available control codes

The IBM Proprinter X/XL and Epson FX850/1050 emulations only apply to the 9-needle printer version, whereas the IBM Proprinter X24/XL24 and Epson LQ850+/1050+ emulations only apply to the 24-needle versions.

In the following table the available sequences in the various emulations are marked with the symbol ✔. MTPL sequences can be used in any of the emulation modes. For this reason they are marked with an asterisk (*) in these emulations.

✔✔ ✔ ✔ ✔

<BEL> Acoustic alarm

✔✔ ✔ ✔ ✔

<BS> Backspace

✔✔ ✔ ✔ ✔

<CAN> Cancel

✔✔ ✔ ✔ ✔

<ESC>[<n><SP>r print the following 16 characters max. in

transparent mode (<n> = 1 - 16)

✔

*****

<ESC>[:y right justification and centering OFF

✔

*****

<ESC>[=z emphasized mode ON

✔

*****

<ESC>[>z emphasized mode ON

✔

*****

<ESC>[?1~ MTPL command set

✔

*****

<ESC>[?10~ end of command interpretations

✔

*****

<ESC>[?11~ start of Barcode interpretation

✔

*****

<ESC>[?3~ MTPL + IBM-Proprinter command set

✔

*****

<ESC>[?4~ MTPL + IBM-Proprinter-24 command set

✔

*****

<ESC>[?5~ MTPL + EPSON FX command set

✔

*****

<ESC>[?50h load character set with 256 characters

✔

*****

<ESC>[?50l load 2 character sets with 94 character

✔

*****

<ESC>[?51h Set "Proportional not in Draft“

✔

*****

<ESC>[?51l Reset "Proportional not in Draft“

✔

*****

<ESC>[?52h "Ignore print quality“ ON

✔

*****

<ESC>[?52l "Ignore print quality“ OFF

✔

*****

<ESC>[?6~ MTPL + EPSON LQ command set

✔

*****

<ESC>[?7h at lineoverflow CR + LF

✔

*****

<ESC>[?7l at lineoverflow data are lost

✔

*****

<ESC>[0;0r clear top and bottom margin

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code Function

X/XL X24XL24 FX1050 LQ1050+

List of available control codes

2 - 5

Page 35

✔

*****

<ESC>[0;0s clear left and right margin

✔

*****

<ESC>[0c request for printer identification

✔

*****

<ESC>[0g clear horizontal tab stop at current position

✔

*****

<ESC>[0m clear all selected fonts

✔

*****

<ESC>[0n device status report: "Ready, no malfunction“

✔

*****

<ESC>[0<n1>;<n2>{ cut sheet paper

✔

*****

<ESC>[0<SP>K horizontal character spacing 10 cpi

✔

*****

<ESC>[0<SP>L vertical spacing 6 lpi

✔

*****

<ESC>[0<SP>X high print quality

✔

*****

<ESC>[0w horizontal spacing 5 cpi

✔

*****

<ESC>[0y draft print quality (DPQ)

✔

*****

<ESC>[0z superscript ON

✔

*****

<ESC>[1g clear all vertical tab stops at current position

✔

*****

<ESC>[1m bold or increased intensity

✔

*****

<ESC>[1n device status report: “Busy, no malfunction”

✔

*****

<ESC>[1<SP>L vertical spacing 4 lpi

✔

*****

<ESC>[1<SP>X medium print quality

✔

*****

<ESC>[1w horizontal spacing 6 cpi

✔

*****

<ESC>[1z subscript ON

✔

*****

<ESC>[10m font 0 (Draft)

✔

*****

<ESC>[10y right justification and centering OFF

✔

*****

<ESC>[10z microscript ON

✔

*****

<ESC>[11l reset positioning unit mode (PUM)

✔

*****

<ESC>[11h set positioning unit mode (PUM)

✔

*****

<ESC>[11m font 1 ( NLQ Quadrato, NLQ Courier)

✔

*****

<ESC>[11w horizontal spacing 20 cpi

✔

*****

<ESC>[11y high speed draft print quality

✔

*****

<ESC>[12m font 2 ( NLQ Courier, LQ Courier)

✔

*****

<ESC>[12w horizontal spacing 10 cpi

✔

*****

<ESC>[12y letter print quality (LQ)

✔

*****

<ESC>[12y high resolution print quality

✔

*****

<ESC>[12z double height ON (upper half)

✔

*****

<ESC>[13m font 3 ( HS Draft, NLQ Sans Serif)

✔

*****

<ESC>[13z double height ON (lower half)

✔

*****

<ESC>[14m font 4 ( NLQ Quadrato, LQ Sans Serif)

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code F unction

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 6

Page 36

✔

*****

<ESC>[15m font 5 ( NLQ Courier, LQ Roman)

✔

*****

<ESC>[16m font 6 ( NLQ Quadrato, LQ Script)

✔

*****

<ESC>[17m font 7 ( NLQ Quadrato, LQ Prestige)

✔

*****

<ESC>[18m font 8 ( NLQ Quadrato, LQ OCR-B)

✔

*****

<ESC>[19m font 9 ( NLQ Quadrato, LQ OCR-A)

✔

*****

<ESC>[2g clear all horizontal tab stops at current line

✔

*****

<ESC>[2J eject form

✔

*****

<ESC>[2<SP>K horizontal character spacing 15 cpi

✔

*****

<ESC>[2<SP>L vertical spacing 3 lpi

✔

*****

<ESC>[2<SP>X l ow print quality

✔

*****

<ESC>[2w horizontal spacing 7.5 cpi

✔

*****

<ESC>[2y proportional mode ON

✔

*****

<ESC>[2z double height, super-/sub- and microscript OFF

✔

*****

<ESC>[21m double underline mode

✔

*****

<ESC>[21<n1>;<n2>{ bin 1 (front)

✔

*****

<ESC>[23m italic mode OFF

✔

*****

<ESC>[24m underline mode OFF

✔

*****

<ESC>[26m proportional mode ON

✔

*****

<ESC>[3g clear all horizontal tab stops

✔

*****

<ESC>[3m italic mode ON

✔

*****

<ESC>[3n device status report: “Some malfunction detected”

✔

*****

<ESC>[3<SP>K horizontal character spacing 6 cpi

✔

*****

<ESC>[3<SP>L vertical spacing 12 lpi

✔

*****

<ESC>[3w horizontal spacing 8.6

✔

*****

<ESC>[3z line density 6 lpi

✔

*****

<ESC>[4g clear all vertical tab stops

✔

*****

<ESC>[4m underline mode ON

✔

*****

<ESC>[4<SP>L vertical spacing 8 lpi

✔

*****

<ESC>[4w horizontal spacing 10 cpi

✔

*****

<ESC>[4y NLQ at 10 cpi

✔

*****

<ESC>[4z line density 8 lpi

✔

*****

<ESC>[5<n1>;<n2>{ fanfold paper tractor 1

✔

*****

<ESC>[6<n1>;<n2>{ fanfold paper tractor 2

✔

*****

<ESC>[5n request for device status report

✔

*****

<ESC>[5w horizontal spacing 12 cpi

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code Function

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 7

Page 37

✔

*****

<ESC>[5y NLQ at 12 cpi

✔

*****

<ESC>[5z graphics normal

✔

*****

<ESC>[50m proportional mode OFF

✔

*****

<ESC>[50<n1><n2>{ move paper to normal print position

✔

*****

<ESC>[51<n1><n2>{ move paper to tear-off position

✔

*****

<ESC>[52<n1><n2>{ move paper to view position

✔

*****

<ESC>[53m overline mode ON

✔

*****

<ESC>[55m overline mode OFF

✔

*****

<ESC>[6~ reset to initial state

✔

*****

<ESC>[6w horizontal spacing 15 cpi

✔

*****

<ESC>[6z graphics invers

✔

*****

<ESC>[7w horizontal spacing 17.1 cpi

✔

*****

<ESC>[7y proportional mode OFF

✔

*****

<ESC>[7z set bit 8 = unchanged

✔

*****

<ESC>[8w double strike OFF

✔

*****

<ESC>[8y right justification ON

✔

*****

<ESC>[8z set bit 8 = 0

✔

*****

<ESC>[9<SP>L vertical spacing 2 lpi

✔

*****

<ESC>[9w double strike ON

✔

*****

<ESC>[9y centering ON

✔

*****

<ESC>[9z set bit 8 = 1

✔

*****

<ESC>[<n>’ horizontal position abs olute

✔

*****

<ESC>[<n>a horizontal position relative

✔

*****

<ESC>[<n>d vertical position absolute

✔

*****

<ESC>[<n>e vertical position relative

✔

*****

<ESC>[<n>j horizontal position backward

✔

*****

<ESC>[<n>k vertical position backward

✔

*****

<ESC>[<n>n request for printer status

✔

*****

<ESC>[<n>p Horiz on tal Motion Index

✔

*****

<ESC>[<n>q horizontal step

✔

*****

<ESC>[<n><SP>\ additional character spacing

✔

*****

<ESC>[<n><SP>f reduced character spacing

✔

*****

<ESC>[<n><SP>g character spacing

✔

*****

<ESC>[<n><SP>h line spacing

✔

*****

<ESC>[<n><SP>U line home

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code F unction

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 8

Page 38

✔

*****

<ESC>[<n><SP>V line limit

✔

*****

<ESC>[<n>t form lenght in lines

✔

*****

<ESC>[<n>v vertical tab stop

✔

*****

<ESC>[<n1><n2><SP>B graphic size modification

✔

*****

<ESC>[<n1><n2>f horizontal and vertical position absolute

✔

*****

<ESC>[<n1><n2>r top and bottom margin

✔

*****

<ESC>[<n1><n2>s left and right margin

✔

*****

<ESC>[<n1>< n2><SP>D selec t font

✔

*****

<ESC>[<n1><n2><SP>G spacing increment

✔

*****

<ESC>[<n1>u set horizontal tab stop

✔✔ ✔ ✔ ✔

<CR> Carriage Return

✔✔

<DC1> print er online

✔✔✔✔

<DC2> reset condensed print

✔✔✔✔

<DC4> reset enlarged print mode

✔✔ ✔ ✔ ✔

<DEL> Delete

✔✔

<ESC>!<n> print mode selection (<n> = 0 - 255)

✔✔

<ESC># bit 8 = unchanged

✔✔

<ESC>$<n1><n2> set absolute horizontal step <n1> = 0 - 255

<n2> = 0 - 3

Formula: n = absolute print position

<n2> = INT (n/256) <n1> = n MOD 256

✔✔

<ESC>%<0> select ROM CG

✔✔

<ESC>%<1> select Download CG

✔

*****

<ESC>%3<n1><n2> graphics 60 dpi

✔

*****

<ESC>%4<n1><n2> graphics 120 dpi

✔

*****

<ESC>%5<n1><n2> graphics 80 dpi

✔

*****

<ESC>%6<n1><n2> graphics 240 dpi

✔

*****

<ESC>%7<n1><n2> graphics 240 dpi

✔

*****

<ESC>%8<n1><n2> graphics 72 dpi

✔

*****

<ESC>%9<n1><n2> graphics 90 dpi

✔✔

<ESC>&<0><x><y>... define Download characters

✔

<ESC>(- Line Marking Selection

✔

*****

<ESC>(<n> selection of the character set ; see chapter“Available cha-

racter sets and fonts”

✔

*****

<ESC>(F designate character set G0

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code Function

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 9

Page 39

✔

*****

<ESC>)F designate character set G1

✔

*****

<ESC>*F designate character set G2

✔✔✔

<ESC>

<0><n1><n2> graphics 60 dpi

✔✔✔

<ESC>

<1><n1><n2> graphics 120 dpi

✔✔✔

<ESC>

<2><n1><n2> graphics 120 dpi

✔✔✔

<ESC>

<3><n1><n2> graphics 240 dpi

✔✔✔

<ESC>

<4><n1><n2> graphics 80 dpi

✔✔✔

<ESC>

<5><n1><n2> graphics 72 dpi

✔✔✔

<ESC>

<6><n1><n2> graphics 90 dpi

✔✔✔

<ESC>

<32><n1><n2> graphics 60 dpi

✔✔✔

<ESC>

<33><n1><n2> graphics 120 dpi

✔✔✔

<ESC>

<38><n1><n2> graphics 90 dpi

✔✔✔

<ESC>

<39><n1><n2> graphics 180 dpi

✔✔✔

<ESC>

<40><n1><n2> graphics 360 dpi

Formula: n = length of graphics data

<n2> = INT (n/256) <n1> = n MOD 256

✔

*****

<ESC>+F designate character set G3

✔

<ESC>+<n> set line feed to n/360 inch (<n>= 0 - 255)

✔✔✔✔

<ESC>-<1> underline mode ON

✔✔

<ESC>-1 underline mode ON

✔✔✔✔

<ESC>-<0> underline mode OFF

✔✔

<ESC>-0 underline mode OFF

✔✔

<ESC>/<m> select vertical tab channel (<m> = 0 - 3)

✔✔

<ESC>: set condensed print with 12 cpi

✔✔

<ESC>:<0><n><m> copy ROM CG

✔✔

<ESC>< set unidirectional printing for one line

✔✔

<ESC><DC2> reset condensed print

✔✔

<ESC><DC4> reset enlarged print mode

✔✔

<ESC>0 deactivate sheet feeder operation

✔✔

<ESC>1 magazine 1 (front)

✔✔

<ESC>4 activate sheet feeder operation

✔✔

<ESC>R eject paper

✔✔✔✔

<ESC><SI> set condensed print

✔✔✔✔

<ESC><SO> set enlarged print mode

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code F unction

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 10

Page 40

✔✔

<ESC><SP><n> set character spacing (<n> = 0 - 127)

✔✔

<ESC>= set bit 8 = 0

✔✔

<ESC>=<C1><C2>... downloading fonts/characters

✔✔

<ESC>> set bit 8 = 0

✔✔

<ESC>?<s><n> reassign graphics mode

<s> = K, L, Y or Z <n> = 0 - 4, 6, 32, 33, 38 - 40

✔✔

<ESC>@ pr i n ter initializati o n

✔

*****

<ESC>[?53h column 8+9 of the character table are printable characters

✔

*****

<ESC>[?53

column 8+9 of the character table are printable characters or ignored (dependent of emulation)

✔✔

<ESC>[@<n1><n2>... set double height

✔

<ESC>[\<n1><n2>... changes vertical basic graduations

✔

<ESC>[F sheet feeder

✔

<ESC>[g<n1><n2><0> graphics 60 dpi

✔

<ESC>[g<n1><n2><1> graphics 120 dpi

✔

<ESC>[g<n1><n2><11> graphics 180 dpi

✔

<ESC>[g<n1><n2><12> graphics 360 dpi

✔

<ESC>[g<n1><n2><2> graphics 120 dpi

✔

<ESC>[g<n1><n2><3> graphics 240 dpi

✔

<ESC>[g<n1><n2><8> graphics 60 dpi

✔

<ESC>[g<n1><n2><9> graphics 120 dpi

Formula: n = length of graphics data bytes

<n2> = INT (n/256) <n1> = n MOD 256

✔

<ESC>[T<n1><n2> select character set

✔✔

<ESC>\<n1><n2> set relative horizontal step

Formula: n = relative print position

<n2> = INT (n/256) <n1> = n MOD 256

✔✔

<ESC>\<n1><n2> transparent mode for following characters

Formula: n = number of characters to be printed

<n2> = INT (n/256) <n1> = n MOD 256

✔✔

<ESC>^ transparent mode for the following character

✔

<ESC>^ select 9 pin graphics mode

✔✔

<ESC>_<1> overscore mode ON

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code Function

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 11

Page 41

✔✔

<ESC>_<0> overscore mode OFF

✔✔✔✔

<ESC>0 Set line feed to 1/8 inch

✔✔✔

<ESC>1 Set line feed to 7/72 Inch

✔✔✔✔

<ESC>2 Set line feed to 1/6 inch

✔✔

<ESC>2 Set line feed to n/72 inch

✔✔

<ESC>3<n> Set line feed to n/180 inch (<n> = 0 - 255)

✔✔✔

<ESC>3<n> Set line feed to n/216 inch (<n> = 1 - 255)

✔✔

<ESC>4 italic mode ON

✔✔

<ESC>4 setting top of form

✔✔

<ESC>5 italic mode OFF

✔✔

<ESC>5<1> automatic line feed ON

✔✔

<ESC>5<0> automatic line feed OFF

✔✔

<ESC>6 print ASCII codes 128 to 159

✔✔

<ESC>6 character set 2 (extended)

✔✔

<ESC>7 suppress ASCII codes 128 to 159

✔✔

<ESC>7 character set 1 (Standard)

✔

<ESC>8 paper end detector OFF

✔

<ESC>9 paper end detector ON

✔✔

<ESC>a<n> select justification and centering mode

<n> = 0 ➵ left justification

1 ➵ centered 2 ➵ right justification 3 ➵ left and right justification

✔✔

<ESC>A<n> Set line feed to n/60 inch (<n> = 1 - 127)

✔✔✔

<ESC>A<n> Set n/72 inch line feed (<n> = 1 - 85)

✔✔

<ESC>b<m><0> clear all tab settings

✔✔

<ESC>b<m><n><0> set vertical tabs in channels <m> = 0 - 3

<n> = 1 - 154

✔✔✔✔

<ESC>B<0> reset all vertical tab stops

✔✔

<ESC>B<n1>..<n16><0> set vertical tab stops

✔✔

<ESC>B<n1>..<n64><0> set vertical tab stops

✔✔✔✔

<ESC>C<0><n> set form length in inches (<n> = 1 - 22)

✔✔✔✔

<ESC>C<n> set form length in lines (<n> = 1 - 127)

✔

<ESC>d<n1><n2> set relative horizontal step

Formula: n = relative print position

<n2> = INT (n/256) <n1> = n MOD 256

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code Function

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 12

Page 42

✔✔✔✔

<ESC>D<0> clear all horizontal tab stops

✔✔✔✔

<ESC>D<n1>..<n32><0> set horizontal tab stops

✔✔✔✔

<ESC>E emphasized mode ON

✔✔✔✔

<ESC>F emphasized mode OFF

✔

<ESC>g set character density to 15 cpi

✔✔✔

<ESC>G double strike print mode ON

✔

<ESC>G print quality NLQ ON

✔

<ESC>H print quality NLQ OFF

✔✔✔

<ESC>H reset double strike print mode

✔

<ESC>I<1> characters 0 - 31 and 128 - 159 transparent

✔

<ESC>I<0> downloaded or international characters

✔✔

<ESC>I<n> print mode selection

<n> 0 DPQ DPQ 10 cpi

1 DPQ – 2 NLQ NLQ/LQ 10 cpi 3 NLQ NLQ/LQ Prop. 4 DPQ (DLL) DPQ 10 cpi (DLL) 5 DPQ (DLL) – 6 NLQ (DLL) NLQ/LQ 10 cpi (DLL) 7 NLQ (DLL) NLQ/LQ Prop. (DLL) 8 – DPQ 12 cpi 10 – NLQ/LQ 12 cpi 11 Alternate NLQ II – 12 – DPQ 12 cpi (DLL) 14 – NLQ/LQ 12 cpi (DLL) 15 Alternate NLQ II (DLL) – 16 – DPQ 17 cpi 18 – NLQ/LQ 17 cpi 20 – DPQ 17 cpi (DLL) 22 – NLQ/LQ 17 cpi (DLL)

✔

<ESC>j set printer offline

✔

<ESC>j<n> single n/216 inch back feed (<n> = 0 - 255)

✔

<ESC>j<n> single n/180 inch back feed (<n> = 0 - 255)

✔

<ESC>J<n> single n/216 inch line feed (<n> = 0 - 255)

✔✔

<ESC>J<n> single n/180 inch line feed (<n> = 0 - 255)

✔✔

<ESC>J<n> single n/216 inch line feed (<n> = 0 - 255)

✔

<ESC>k<n> select font type NLQ <n> = 0 ➵ Courier

1 ➵ Quadrat

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code Function

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 13

Page 43

✔

<ESC>k<n> select font type LQ <n> = 0 ➵ Roman

1 ➵ Sans Serif 2 ➵ Courier 3 ➵ Prestige 4 ➵ Script 5 ➵ OCR-B 6 ➵ OCR-A

✔✔✔✔✔

<ESC>K<n1><n2> graphics 60 dpi

Formula: n = length of graphics data

<n2> = INT (n/256) <n1> = n MOD 256

✔✔

<ESC>l<n> set left margin

narrow printer wide printer

<n> = 1 - 80 1 - 136 (10 cpi)

1 - 96 1 - 163 (12 cpi) 1 - 120 1 - 204 (15 cpi) 1 - 136 1 - 232 (17.1 cpi) 1 - 160 1 - 272 (20 cpi)

✔✔✔✔✔

<ESC>L<n1><n2> graphics 120 dpi

Formula: n = length of graphics data

<n2> = INT (n/256) <n1> = n MOD 256

✔✔

<ESC>M set character density to 12 cpi (Elite)

✔

*****

<ESC>n locking shift 2 (LS2)

✔✔✔✔

<ESC>N<n> set space before perforation (perforation skip)

<n> = 1 - 127

✔

*****

<ESC>o locking shift 3 (LS3)

✔✔✔✔

<ESC>O reset perforation skip

✔✔

<ESC>p<1> proportional spacing ON

✔✔

<ESC>p<0> proportional spacing OFF

✔✔

<ESC>p1 proportional spacing ON

✔✔

<ESC>p0 proportional spacing OFF

✔✔

<ESC>P set character density to 10 cpi (Pica)

✔✔

<ESC>P<1> proportional spacing ON

✔✔

<ESC>P<0> proportional spacing OFF

✔

<ESC>q<n> select character representation

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code Function

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 14

Page 44

✔✔

<ESC>Q<n> deselect printer

narrow printer wide printer

<n> = 22 22

➛

36 35

➛

✔✔

<ESC>Q<n> set right margin

narrow printer wide printer

<n> = 1 - 80 1 - 136 (10 cpi)

1 - 96 1 - 163 (12 cpi) 1 - 120 1 - 204 (15 cpi) 1 - 136 1 - 232 (17.1 cpi) 1 - 160 1 - 272 (20 cpi)

✔✔

<ESC>R reset all tab stops

✔✔

<ESC>R<n> select national character set

<n>: see chapter “Available character sets and fonts”

✔✔

<ESC>s<1> half print quality ON

✔✔

<ESC>s<0> half print quality OFF

✔✔✔✔

<ESC>S<0> superscript mode ON

✔✔✔✔

<ESC>S<1> subscript mode ON

✔✔

<ESC>S0 superscript mode ON

✔✔

<ESC>S1 subscript mode ON

✔✔

<ESC>t<n> select character set

<n> = 0 ➵ Epson Standard Character Set

1 ➵ Epson Graphics Character Set 2 ➵ User-defined characters

✔✔✔✔

<ESC>T super/subscript mode OFF

✔✔✔✔

<ESC>U<1> set unidirectional printing

✔✔✔✔

<ESC>U<0> reset unidirectional printing

✔✔

<ESC>U1 set unidirectional printing

✔✔

<ESC>U0 reset unidirectional printing

✔

<ESC>w<1> double height ON

✔

<ESC>w<0> double height OFF

✔✔✔✔

<ESC>W<1> set continuous enlarged print mode

✔✔✔✔

<ESC>W<0> reset continuous enlarged print mode

✔✔

<ESC>W1 set continuous enlarged print mode

✔✔

<ESC>W0 reset continuous enlarged print mode

✔✔

<ESC>x<1> set letter quality

✔✔

<ESC>x<0> set draft print quality

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code Function

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 15

Page 45

✔✔

<ESC>x1 set letter quality

✔✔

<ESC>x0 set draft print quality

✔✔

<ESC>X<n><m> setting of left and right margins

narrow printer wide printer

<n>, = 1 - 80 1 - 136 (10 cpi) <m> 1 - 96 1 - 163 (12 cpi)

1 - 120 1 - 204 (15 cpi) 1 - 136 1 - 232 (17.1 cpi) 1 - 160 1 - 272 (20 cpi)

✔✔✔✔✔

<ESC>Y<n1><n2> graphics 120 dpi

✔✔✔✔✔

<ESC>Z<n1><n2> graphics 240 dpi

Formula: n = length of graphics data

<n2> = INT (n/256) <n1> = n MOD 256

✔

*****

<ESC>| locking shift 4 (LS4)

✔

*****

<ESC>} locking shift 1 right (LS2R)

✔

*****

<ESC>~ locking shift 2 right (LS2R)

✔✔ ✔ ✔ ✔

<FF> form feed

✔✔ ✔ ✔ ✔

<HT> horizontal tab

✔

<HTS> control code HTS

✔

<IND> Vertical index

✔✔ ✔ ✔ ✔

<LF> Line Feed

✔

<NEL> Next line

✔✔ ✔ ✔ ✔

<NUL> control code NUL

✔

<PLD> Partial Line Down

✔

<PLU> Partial Line Up

✔

<RI> Reverse Index

✔

<SI> single shift SS3

✔✔✔✔

<SI> set condensed print with 17.1 cpi

✔✔✔✔

<SO> set enlarged print mode

✔

<SO> single shift SS2

✔

<STX> Start of Text Block

✔✔ ✔ ✔ ✔

<VT> Vertical Tab

✔

<VTS> Control Code VTS

IBM IBM Epson Epson IBM-

MTPL Propr. Propr. FX850 LQ850+ AGM Code Function

XL XL24 FX1050 LQ1050+

List of available control codes

2 - 16

Page 46

Barcode

Your printer is equipped with a barcode mode; you can print up to 19 different barcodes.

Barcode mode can be accessed within every emulation. The user can decide whether barcode is activated permanently or activated depending on the situation by means of an escape sequence.

List of available barcodes

Type Barcode

A 2/5 Matrix (default)

B 2/5 Industrial C 2/5 Interleaved D Code 11

E BCD Matrix

F Code 39 G Codabar H EAN 8 (with HRI*)

I EAN 8 (without HRI)

K EAN 13 (with HRI)

L EAN 13 (without HRI) M MSI /modified PLESSEY N UPC A (with HRI) O UPC A (without HRI)

P UPC E (with HRI) Q UPC E (without HRI) R Delta Distance (IBM)

S Code 128

T EAN 128

U.S. POSTNET KIX

T Royal

The barcode types K, L, N, O may be expanded by using Add-On Barcodes:

Add-On 2 and Add-On 5

* HRI = Human Readable Index

Barcode

2 - 17

Page 47

The information to be printed is transmitted in a “bracket” (DC4). A control sequence (Header) defines the parameters of the used barcode

once (e.g. type, ratio, etc.). If no header is defined, the information in the “bracket” will be printed in

Code 2/5 Matrix. Please note that within the Barcode environment the barcode commands

have priority in case of conflicts with the emulation.

Barcode

2 - 18

Page 48

US Postnet-Barcode

2-19

US Postnet-Barcode Postnet is a special US-American type of barcode. It is printed in character si-

ze. Numeric values from 0 to 9 are printable.

After activating this barcode type, numeric characters from 0 (hex. 30) to 9 (hex. 39) are interpreted as barcode figures. All other characters terminate the Barcode mode. Exception: the TAB function (hex. 09) is allowed within Barcode mode. The Postnet sequence is accessible in every emulation. The printer can print barcode in NLQ (180 dpi) and LQ (360 dpi). If draft print quality (DPQ) is selected the printout is performed in NLQ.

The character (e.g. CR = carriage return, hex. 0D), which terminates the barcode is not printed or carried out. US Postnet Barcode does not require a barcode bracket.

Example: ASCII ESC[1 SP p 12345 CR

HEX 1B 5B 31 20 70 31 32 33 34 35 0D

The numbers 1 to 5 are printed as Postnet stripes.

LC printing Certain professional applications may require unusually large character sizes.

Therefore your printer has the possibility of scaling standard size characters up to factor 99 by means of control sequences.

The Header sequence defines the parameters (e.g. height) once. This definition remains until the printer is switched off. The printable LCP* information is transmitted in an LCP “bracket” (SI).

Two character sets are available:

■ US ASCII and

■ German

The printout of LCP characters can be selected in all of the emulations. Prerequisite: Printer must be in Barcode mode.

* Large character printing

Page 49

List of additional control codes

Sequences Function

<ESC>[?10~ Barcode Off <ESC>[?11~ Barcode On <ESC> PSC 0 <ESC> \ Unsecured mode <ESC> PSC 1 <ESC> \ Secured mode <ESC> PLS 01 <ESC> \ LCP-CG: US ASCII <ESC> PLS 02 <ESC> \ LCP-CG: German <ESC>[<n><SP>s Sends a character as ASCII character; n > 0-255 decimal

Codes Function

old: new: <DC4> <ESC>[20<SP>s Barcode bracket <DLE> <ESC>[16<SP>s Start code LCP Header <ESC>[25<SP>s Termination code Header <SI> <ESC>[15<SP>s LCP bracket <ESC>[26<SP>s Start code barcode Header

Old codes as well as new codes are applicable.

Header Function

<DLE> [!] nn EM LCP Header

[ ] = Optional nn = Factor

[F] a [nn][;xyz] EM Barcode Header

[ ] = Optional a = Barcode type

Additional information is provided in the Barcode Programmer’s Application Manual available from your dealer (see Appendix D).

List of additional control codes

2 - 20

Page 50

Configuring the printer for your computer

Due to the great number of applications available on the market today, we cannot give you detailed help for every program. Therefore please refer to your software manuals for how to install your printer with your programs.

Generally speaking, however, one can say that printer and application must be coordinated with one another. Your printer can be adjusted to emulate the following printers.

■ IBM Proprinter X24/XL24

■ Epson LQ850+/LQ1050+

■ MTPL

■ Barcode

Many applications, however, also offer special printer drivers for our printers. Using an original printer driver provides the best pre-requisites for optimum printing results. Ask your dealer for printer drivers or use our Internet homepage to obtain the current printer driver (see the back of the manual for the homepage address).

You can download all printer drivers from our home page free of charge.

Configuring the printer for your computer

2 - 21

Page 51

Troubleshooting, care and maintenance 3

Although your printer is extremely reliable and easy to use, you might run into trouble some time.

This chapter provides information on the rectification of faults without the assistance of specially trained personnel. Follow the advice and tips in this chapter if your printer is not working correctly.

■ Test functions

■ Mechanical adjustments to the printer

■ Troubleshooting

Important notes on the care and maintenance of your printer can be found at the end of this chapter.

Repairs should only be performed by authorised service personnel.

STOP

3 - 1

Page 52

Test functions and hardware settings

3-2

Test functions and hardware settings

Various tests to check proper operation of the printer are available at any time. With these tests it is possible to check the print quality, p roper oper ation of the printhead and the mechanics, as well a s efficient data transmission from the computer to the printer.

This test menu contains three test functions ASCII 80, ASCII 136 and HDump. Menu option “Formlen” allows you to define the ba sic form length setting. Furthermore, you may select line wrap (“Wrap ”) and sound when paper is empty (“Sound”). “CX-bid” controls the bidirectional setting of the parallel

interface

Enter Test mode by pressing the key Online while switching on the printer.

Hold the key Online for about three seconds.

ASCII80 ASCII136 Back Exit

H-Dump Back Exit

Forml

Back Exit

Wrap Sound

Back Exit

CX-Bid CX-IF

Back Exit

ChTrFr Back Exit

ASCII test with 80 or 136 characters per line

Interface test

Setting the form length

Setting line wrap and sound when paper empty

Setting for bidirectional I/O processing and interface mode

ractor frictionSetting for t

Page 53

Printer self-test (Rolling ASCII)

3-3

Printer self-test (Rolling ASCII)

To check operational readiness, your printer contains a self-test routine which allows testing of the printer configuration, t he print quality and corr ect operation of your printer.

Before performing a self-test, your printer must be switched off. Ensure that paper and a ribbon are insert ed. Keep t he key Online pressed while switch- ing on the printer for about three seconds.

Alternatively T2240/9 is displayed. For the wide printer the display offers you the selection between ASCII 80 (80 ASCII characters are printed per line) and ASCII 136 (136 ASCII characters are printed per line). For the narrow printer , T2340/24 or T2340/9 is displayed and you can select ASCII 80 on ly.

Note that the selected function ASCII 80 or ASCII 136 must be suitable for your paper size. If not the printer may suffer mechanical damage.

Press the respective soft key for the ASCII 80 forma t (correspo nds to Leg al Portrait) or for ASCII 136 (Double or Legal Landscape). The display will indicate Test mode Off.

Setup

T2240/24

Initializing...

Online

ASCII80 ASCII136

Back Exit

Setup

STOP

Page 54

It is also possible to change to Setup mode when you are in Test mode if you want to change the configuration for the test printout.

To do this, press the key Setup. The printer then changes to Setup mode and the first of the 15 main levels is then displayed.

Program your printer in the usual way for the test printout to change the parameters. See chapter 1,

Programming via the operating panel

By pressing the key Setup you exit Setup mode and the printer once again returns to Test mode.

Test mode Off is displayed. Press the key Online, the test printout starts.

The self-test can be interrupted by pressing the key Online which will stop printing and put the printer into Offline status.

Before you begin printing, you can adjust the paper for the printout with soft keys < and >.

Online

Adjust Paperway Menu Char

Setup

Testmode Off

Park < > LF/FF

Online

Test functions and hardware settings

3 - 4

Page 55

In the Rolling ASCII test, setup can be used for selecting a different font or another CPI, without exiting the test. Some changes in menu mode cause the printer to initialize, and consequently the Rolling ASCII test is broken off.

Example of an ASCII test printout

This test can also be used to determine and set the optimal printhead gap (see Part I,

Setting the print head distance

Exiting Test mode Test mode can only be terminated by switching off the printer.

If you want to stop the test printout before you switch off the printer, then press the key Online.

STOP

Test functions and hardware settings

3 - 5

Page 56

Interface test (Hex-Dump)

With the interface test (Hex-Dump) you can test data transmission from the computer to the printer. During this test, the data from the computer is printed out in two columns. The text in the left column is printed in hexadecimal format and in the right column in ASCII format.

Printout in Hex-Dump Put the printer into Test mode by pressing the key Online while switching

on the printer. Press the key Online for about three seconds.

The display shows ASCII 80/ASCII 136.

Press the key Next, the display shows the next menu level.

If you press the key H-Dump you put the printer into H-Dump mode and Online H-Dump is shown on the display.

Online

ASCII80 ASCII136 Back Next

Setup

Interface test (Hex-Dump)

3 - 6

Page 57

The printer is now ready to receive data from the computer and to print it out in plain text if paper is loaded. The printed data can now be analyzed and evaluated (see chapter 2

Emulations

Example of a Hex-Dump printout

After the transmission you must switch the printer to Offline. Any remaining data left in the interface buffer is then printed.

Terminating Hex-Dump Hex-Dump mode can only be terminated by switching off the printer.

If you want to stop the Hex-Dump printout before switching off the printer, press the key Online.

STOP

Interface test (Hex-Dump)

3 - 7

Page 58

Setting the Formlen function

The Formlen function allows you to set the basic form length to meet your requirements. 12 inches are usual in Europe, as opposed to 11 inches in the USA.

Select the Formlen menu.

Setting options: 12 inches or 11 inches Default setting: 12 inches in 230 V printers Default setting: 11 inches in 120 V printers

The value defined here is set in all three menus and for all paper paths if you load the default configuration by holding all four soft keys while switching on the printer (see chapter 1

Key functions when turning on the

printer)

Confirm your setting by pressing the key Set.

Online

Formlen Back Next

Setup

Formlen=12" *

Set < > Exit

Online

Interface test (Hex-Dump)

3 - 8

Page 59

Wrap

Select the Wrap menu.

Wrap = On (default setting): If more characters than can be printed are transmitted per line, the characters which cannot be printed on this line are printed at the beginning of the next line.

Wrap = Off: If more characters than can be printed are transmitted per line, the characters which cannot be printed on this line are cut off.

Confirm the setting by pressing the key Set.

Online

Wrap Sound

Back Next

Setup

Wrap=On *

Set < > Exit

Online

Interface test (Hex-Dump)

3 - 9

Page 60

Sound

Select the Sound menu.

When Sound = On, a beep is generated every second to notify that paper is empty.

(Default setting Sound = On)

Confirm the setting by pressing the key Set.

Online

Wrap Sound

Back Next

Setup

Sound=On *

Set < > Exit

Online

Interface test (Hex-Dump)

3 - 10

Page 61

Interface test (Hex-Dump)

3-11

CX-bid

Select the CX-bid menu.

CX-bid = ON sets the parallel interface of the printer to bidirectional mode (IEEE 1284).

CX-bid = OFF sets the interface to compatibility mode in order to ensure reliable operation with special external boxes.

(Default setting CX-bid = ON) Confirm your settings by pressing the key Set.

Online

CX-bid CX-IF

Back Next

Setup

CX-bid=On *

Set < > Exit

Online

Page 62

Interface test (Hex-Dump)

3-12

CX-IF

Select the CX-IF menu.

Determines the ACK-Busy-STROBE behaviour at the parallel port. (Default setting: CX-IF = MODE B) Confirm your settings by pressing the key Set.

Online

Back Next

Setup

CX-bid CX-IF

Setup

CX-IF=MODE B *

Set < > Exit

Online

Page 63

Interface test (Hex-Dump)

3-13

ChTrFr

Select the ChTrFr menu.

ChTrFr = Normal: Paper selection via the Pape r Path menu item with the request to actuate the paper path lever.

ChTrFr = Special: Paper switching with paper path lever. In this case the paper must first be parked or ejected.

(Default setting: ChTrFr = Normal) Confirm your settings by pressing the key Set.

Online

Back Next

Setup

ChTrFr

Setup

ChTrFr=Normal * Set < > Exit

Online

Page 64

Mechanical adjustments to the printer

3-14

Mechanical adjustments to the printer

You have the possibility of adjusting the paper detection light barriers within this test menu. With the help of this menu option you can compensate for mechanical and opto-electrical tolerances in paper handling. You are allowed to shift printing by 1/72 inch steps downwards or upwards. The default setting is 3/72 inch.

Only set a new parameter if you notice that the printing starts before the physical page start.

Setting the basical top margin and L/R adjustment

Insert the fanfold paper and set the Paper Path Selection Lever to Tractor mode. Put the printer into this Test mode by pressing the keys 1, 2 and On- line while switching on the print er as shown below for ab out three secon ds. The printer starts initializing.

Key 1 Key 2

The display indicates Loading Defaults. The paper is fed to the TOF position automatically, and prin ter prints the ho -

rizontal bar line. The display changes to:

Setup

T2240/24

Initializing...

Online

Page 65

This is TOF value adjustment mode. The horizontal bar line is printed by needle 1 of the head. If you want to change the value, please select with key < or > and then press the key Setup. A new horizontal bar line is printed at the right side of the previous bar. If you do not want to change, please press the key Exit.

Press the key Exit to finish TOF adjustment mode. The display changes to:

The printer prints vertical bars with numbers as follows.

Setup

L/R Adj= 00 *

Set < > Exit

Online

Mechanical adjustments to the printer

3 - 15

Page 66

First part A is printed. Select by the key < or > the number of best horizontal registration.

Example

In the figure above +2 is best. Press the key > two times until +2 is displayed and then press the key Set. The printer prints the vertical bars once more as shown in part B. Bar +2 of part A is moved to bar 0 of part B. You can repeat sometimes.

If you can get the best setting for “0” bar, please press the key Exit to finish the L/R Adjustment mode.

When you exit this horizontal adjust mode, the new parameter will be saved to NVRAM.

If you don’t need the new NVRAM dump list, switch off the printer. If you need the NVRAM dump list, change the Paper Path Selection Lever to Single mode and insert a A4 cut sheet paper. The printer prints the new NVRAM dump list automatically.

Mechanical adjustments to the printer

3 - 16

Page 67

Troubleshooting Many of the faults and problems which may occur while using the printer

are minor problems which you can solve yourself. The following chapter should help you to distinguish between a simple operating error and a major malfunction.

The display remains dark The printer is switched on, but nothing happens (the printer does not print).

Switch off the printer and proceed as follows:

1. Check that the power plug is correctly connected to the socket on the printer.

2. Check that the power plug is seated properly in the wall socket.

3. Switch on the printer again. If the printer is now connected correctly, Online

is shown on the display and the printhead moves to the start position. If nothing happens:

● Replace the power cord and repeat step 3.

● Check that power flows at the socket e.g. using a desk lamp, if necessary use

a different socket and repeat step 3.

● Contact your dealer if the printer cannot be powered up. Do not attempt to open the printer. You could risk an electric shock.

STOP

Troubleshooting

3 - 17

Page 68

The display is lit, but the printer does not print

1. Check that the printer is Online. If the displays shows Offline, then press the key Online. Try to print again.

2. Check the connection from the printer to the computer (interface cable 1).

■ Check that the interface cable is properly connected to the computer and to the printer.

■ Check that it is the correct interface cable for your printer. Information on the interface is located in Part I,

Connecting the printer to the computer

and in

Appendix B

■ Check that the printer is properly adapted to the computer (configured). Refer to chapter 1

Operation

. Check the parameter set in the Setup menu

under I/O (serial/parallel) and if necessary correct it.

3. Check that paper is inserted and loaded. Refer to Part I,

Inserting paper

Problems with the paper feed

The paper is not fed in.

1. Check that the display shows the correct sheet feeder, if necessary select the correct sheet feeder (single sheet or fanfold) with the key Park. See Part I,

Changing the paper type

2. Check that the Paper Type Selection Lever position is correct.

3. Make sure that the paper guide is correctly adjusted at the side.

4. When using single sheets, push the paper fully into the paper feed.

Switching from fanfold paper to single sheets causes the fanfold paper to assume the park position.

5. Check that the fanfold paper is in the park position when you insert a single sheet. This means the fanfold paper should not be loaded (pulled in). To check this, raise the guide of the single sheet feeder.

If necessary, drive the remaining paper manually to the park position with the key ↑.

Troubleshooting

3 - 18

Page 69

Paper jam (fanfold paper)

The print head may be hot. Please do not touch the metal part of the print head.

When the ASF or the Optional Tractor is attached, remove if necessary. Proceed with the following steps with the printer placed on a flat and stable surface.

1. Turn the printer Power Switch OFF ("O"). Tear off the continuous form feed paper near the printer.

2. Open the Access Cover, and move the print head to the leftmost or rightmost position.

3. Open the Front Cover, open the Paper Holds of the left and right Tractors, and remove the paper.

4. Gently pull the continuous form feed paper to the front until all the paper is removed. Support this by turning the paper feed knob gently if necessary.

5. If any part sticks out above the printer, pull it up to remove it.

6. Ensure that there are no torn paper bits remaining inside the printer, then

close the Access Cover and turn the printer Power Switch ON ("|").

If the problem persists, check again for any paper remaining inside the printer. Before you replace the fanfold paper, refer to the instructions in Part I,

Inserting paper

You should pay special attention to the following points:

● Insert the paper straight.

● After inserting the paper, close the tractors.

● Adjust the tractors, the paper should be lightly tensioned.

● Adjust the printhead gap to the paper thickness (multiple forms, etc.). See

Part I,

Setting the printhead gap

STOP

Troubleshooting

3 - 19

Page 70

Paper jam (single sheets)

The print head may be hot. Please do not touch the metal part of the print head.

When the ASF or Optional Tractor is attached, remove if necessary. Proceed with the following steps with the printer placed on a flat and stable surface.

1. Turn the printer Power Switch OFF("O").

2. Open the Access Cover, and move the print head to the leftmost or

rightmost position.

3. If the top of the paper is sticking out, gently pull up on the paper while turning the Paper Feed Knob to remove it.

4. Ensure that there are no torn paper bits remaining inside the printer, then close the Access Cover and turn the Power Switch ON ("|").

If the problem persists, check again for any paper remaining inside the printer.

Push back the printer cover and remove the paper manually or with the functions LF (line feed)/FF (form feed) from the printer.

Before you replace the single sheet, refer to the instructions in Part I,

Inserting paper – single sheets

Pay attention to the following points:

● Set single sheet feed to the corresponding paper width.

● Insert the paper straight as far as possible.

● Adjust the printhead gap to the paper thickness (multiple forms, etc.). See

Part I,

Setting the printhead gap

STOP

Troubleshooting

3 - 20

Page 71

Tear off position cannot be adjusted

Only fanfold paper/built-in tractor 1 or optional tractor 2. See Part I,

Tear

function

Paper does not move to tear off position

It is only possible to tear off when fanfold paper is used.

Troubleshooting

3 - 21

Page 72

Problems with the print quality

Print is too pale 1. The ribbon is used up or the ribbon cassette is not correctly fitted. Refer

to Part I,

Replacing the ribbon cassette

2. The printhead to platen gap is not correctly set, refer to Part I,

Setting the

printhead gap

Smudged print 1. The ribbon is damaged (e.g. frayed). Change the ribbon as described in

Part I,

Replacing the ribbon cassette

2. The printhead gap is too small, increase the gap. See Part I,

Setting the

printhead gap

Prints undefined characters 1. Check that the interface plug is correctly connected to the computer and

to the printer. Check that the length of the interface cable is not longer than 2 m for parallel and 15 m for serial interfaces.

2. Check that the proper emulation and the correct character set (country, CG table or character set) is selected in the Setup menu.

The first line is not completely printed out at the top

Check the vertical alignment (TOF). Refer to

Mechanical adjustments to the

printer

in this chapter.

Dots within characters are missing

1. Check whether the ribbon is damaged, if necessary replace it, see Part I,

Replacing the ribbon cassette

2. Set the correct printhead gap. refer to Part I,

Setting the printhead gap

3. Check whether the platen is damaged.

4. Check whether the printhead is damaged.

In case of points 3 or 4, please contact your dealer. Please use original ribbon cassettes only.

Problems with the print quality

3 - 22

Page 73

Error messages via the display

Load paper from ... The paper has run out during operation. The printer has been switched on,

but no paper has been inserted. Insert paper in the active sheet feeder.

Printhead hot The printer prints at lower speed, no action required.

Parity Error Transmission error from computer to printer via the optional serial interface

■ Compare the interface configuration of your printer with the settings of your computer (protocol).

■ Check the permissible cable lentgh.

Hardware Alarm No internal power. Try switching off and on. Check if changes to options

have been previously carried out. Note down the display message. Contact your dealer.

Home Position Error on carriage movement. Check if the carriage is blocked.

Error messages via the display

3 - 23

Page 74

Eject Error The printer cannot eject the paper or cannot place the paper in the park

position. Check the following:

■ Whether the paper path is blocked by a foreign object.

■ Whether the paper is damaged.

■ Whether the upper friction is down and clicked into place.

■ Whether the printhead gap is too small.

Load Error The printer cannot feed in the loaded paper, check the following:

■ Whether the paper path is blocked by a foreign object.

■ Whether the paper is damaged.

■ Whether the tractors are closed and locked.

■ Whether the paper is too tight or loose.

Error messages via the display

3 - 24

Page 75

Additional display messages

These are not error messages, they give operating instructions and information from the printer to the user.

Press any key You can press any key.

Loading Default The factory-set parameters are loaded and are written into all macros.

Park position You are informed when the fanfold paper is in the park position.

Tear paper off Note for the operator to tear off the paper automatically positioned at the

tear off edge.

Turn paperlever The position of the Paper Type Selection Lever position is not correct.

Additional display messages

3 - 25

Page 76

Care and maintenance The printer is designed to operate with minimal maintenance. It is recom-

mended to check the ribbon from time to time and to clean the platen and the paper rollers.

Preventive maintenance is not necessary. Before cleaning, turn off the printer and disconnect the power cable.

The print head may be hot immediately after printing. Wait until it cools down (about 15 minutes) before cleaning.

Cleaning the housing Clean the printer housing with mild detergent (or a plastic cleaning agent)

and a soft lint-free cloth. Do not use abrasive cleaners. Never use solvents.

STOP

Care and maintenance

3 - 26

Page 77

Cleaning the interior Use a soft brush to remove dust, ribbon pieces, paper bits, etc.

Check that any paper has been removed from the tractors.

Ribbon Check whether the ribbon is worn or damaged. The ribbon must be

replaced if it is frayed, see Part I,

Replacing the ribbon cassette

The service life of the black (monochrome) ribbon is 4 million characters. Refer to Appendix C

Specification

Care and maintenance

3 - 27

Page 78

Character sets A

Character sets This chapter shows the MTPL character sets and contains a list of all avail-

able character sets which can be selected via control panel or by escape sequences.

Note that MTPL sequences are available in all emulation modes. The following example shows you how to find the hexadecimal value for a

character from the symbol set tables.

hex

01234

dec

NUL SP

0 1632486480

1 1733496581

DC2

2 1834506682

3 1935516783

ASCII “B” = hex.42

A - 1

Page 79

MTPL standard character set

hex

0123456789ABCDEF

dec

NUL SP

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

DC1

1 17 33 49 65 81 97 113 129 145 161 177 193 209 225 241

STX

2 18 34 50 66 82 98 114 130 146 162 178 194 210 226 242

DC3

3 19 35 51 67 83 99 115 131 147 163 179 195 211 227 243

IND

4 20 36 52 68 84 100 116 132 148 164 180 196 212 228 244

ENQ NEL

5 21 37 53 69 85 101 117 133 149 165 181 197 213 229 245

6 22 38 54 70 86 102 118 134 150 166 182 298 214 230 246

BEL

7 23 39 55 71 87 103 119 135 151 167 183 199 215 231 247

BS HTS

8 24 40 56 72 88 104 120 136 152 168 184 200 216 232 248

9 25 41 57 73 89 105 121 137 153 169 185 201 217 233 249

LF VTS

10 26 42 58 74 90 106 122 138 154 170 186 202 218 234 250

VT ESC PLD CSI

11 27 43 59 75 91 107 123 139 155 171 187 203 219 235 251

FF PLU

12 28 44 60 76 92 108 124 140 156 172 188 204 220 236 252

CR RI

13 29 45 61 77 93 109 125 141 157 173 189 205 221 237 253

SO SS2

14 30 46 62 78 94 110 126 142 158 174 190 206 222 238 254

SI SS3 DEL

15 31 47 63 79 95 111 127 143 159 175 191 207 223 239 255

Character sets

A - 2

Page 80

MTPL international substitution characters – normal font

Character sets

A - 3

dec 35 36 64 91 92 93 94 96 123 124 125 126

hex 23 24 40 5B 5C 5D 5E 60 7B 7C 7D 7E

US ASCII #$@[\]^`{|}~

UK ASCII £$@[\]^`{|}~

Swedish #¤ÉÄÖ

Üéäö

German #$§ÄÖÜ^`äöüß

Portuguese #$§

ÃÇÕ

ãçõ°

French £$à

°ç

§^`éùè

Italian £$§

°ç

й^щатим

Spanish £$§

¡Ñ¿

Norwegian #$@ÆØ

^`æø

å¯

Cro-ASCII #$ŽŠĐĆČ

š đćč

Page 81

OCRA Character Set

hex

0123456789ABCDEF

dec

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

1 17 33 49 65 81 97 113 129 145 161 177 193 209 225 241

2 18 34 50 66 82 98 114 130 146 162 178 194 210 226 242

3 19 35 51 67 83 99 115 131 147 163 179 195 211 227 243

4 20 36 52 68 84 100 116 132 148 164 180 196 212 228 244

5 21 37 53 69 85 101 117 133 149 165 181 197 213 229 245

6 22 38 54 70 86 102 118 134 150 166 182 298 214 230 246

BEL BEL

7 23 39 55 71 87 103 119 135 151 167 183 199 215 231 247

BS BS

8 24 40 56 72 88 104 120 136 152 168 184 200 216 232 248

HT HT

9 25 41 57 73 89 105 121 137 153 169 185 201 217 233 249

LF LF

10 26 42 58 74 90 106 122 138 154 170 186 202 218 234 250

VT ESC VT ESC

11 27 43 59 75 91 107 123 139 155 171 187 203 219 235 251

FF FF

12 28 44 60 76 92 108 124 140 156 172 188 204 220 236 252

CR CR

13 29 45 61 77 93 109 125 141 157 173 189 205 221 237 253

SO SO

14 30 46 62 78 94 110 126 142 158 174 190 206 222 238 254

SI SI

15 31 47 63 79 95 111 127 143 159 175 191 207 223 239 255

Character sets

A - 4

Page 82

OCRB Character Set

hex

0123456789ABCDEF

dec

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

1 17 33 49 65 81 97 113 129 145 161 177 193 209 225 241

2 18 34 50 66 82 98 114 130 146 162 178 194 210 226 242

3 19 35 51 67 83 99 115 131 147 163 179 195 211 227 243

4 20 36 52 68 84 100 116 132 148 164 180 196 212 228 244

5 21 37 53 69 85 101 117 133 149 165 181 197 213 229 245

6 22 38 54 70 86 102 118 134 150 166 182 298 214 230 246

BEL BEL

7 23 39 55 71 87 103 119 135 151 167 183 199 215 231 247

BS BS

8 24 40 56 72 88 104 120 136 152 168 184 200 216 232 248

HT HT

9 25 41 57 73 89 105 121 137 153 169 185 201 217 233 249

LF LF

10 26 42 58 74 90 106 122 138 154 170 186 202 218 234 250

VT ESC VT ESC

11 27 43 59 75 91 107 123 139 155 171 187 203 219 235 251

FF FF

12 28 44 60 76 92 108 124 140 156 172 188 204 220 236 252

CR CR

13 29 45 61 77 93 109 125 141 157 173 189 205 221 237 253

SO SO

14 30 46 62 78 94 110 126 142 158 174 190 206 222 238 254

SI SI

15 31 47 63 79 95 111 127 143 159 175 191 207 223 239 255

Character sets

A - 5

Page 83

Available character sets and fonts

A-6

Available character sets and fonts

Character set ID Draft Draft Roman S.Serif Courier1)Prestige Script OCR-B OCR-A Orator Gothic Souvenir

ISO USA 42XXXXXXXXXXXX

ISO UK 41XXXXXXXXXXXX

ISO France 52XXXXXXXXXXXX

ISO Germany 4BXXXXXXXXXXXX

ISO Italy 59XXXXXXXXXXXX

ISO Sweden 48XXXXXXXXXXXX

ISO Norway 60XXXXXXXXXXXX

ISO Spain 5AXXXXXXXXXXXX

ISO Portugal 4C X X XXXXXXXXXX

Epson USA 00XXXXXXXXXXXX

Epson France 01XXXXXXXXXXXX

Epson Germany 02XXXXXXXXXXXX

Epson UK 03XXXXXXXXXXXX

Epson Denmark 04XXXXXXXXXXXX

Epson Sweden 05XXXXXXXXXXXX

Epson Italy 06XXXXXXXXXXXX

Epson Spain 07XXXXXXXXXXXX

Epson Japan 08XXXXXXXXXXXX

Epson Norway 09XXXXXXXXXXXX

Epson Denmark II 0AXXXXXXXXXXXX

Epson Spain II 0BXXXXXXXXXXXX

Epson Latin America0CXXXXXXXXXXXX

Epson Korea 0DXXXXXXXXXXXX

1) (incl. Courier IBM) *1 only in 10 and 12 cpi *2 as with Sans Serif *3 as with Roman *4 only in 10 cpi

Page 84

Available character sets and fonts

A-7

Epson Legal 40XXXXXXXXXXXX

CRO-ASCII 3CX X — X X ———————

Arabic Farsi 96——*1*1*1———————

Arabic UrdO 97——*1*1*1———————

Greek DEC 46X X —X ————————

Greek ELOT 928 6CX X —X ————————

Table 437 Latin US 80XXXXXXXXXXXX

Table 737 Greek 93 X X— X————————

Table 850 Latin 1 82XXXXXXXXXXXX

Table 851 Greek 88 X X— X————————

Table 852 Latin 2 87X X —X X ———————

Table 857 Turkish 8DX X —X X ———————

Table 858 (IBM with Ú)9EXXXXXXXXXXXX

CP860 Portugal 84 X XXXXXXXXXXX

Table 861 Icelandic 94 X XXXX——XX———

Table 863 French Canada85XXXXXXXXXXXX

Table 864 Arabic 8C——*1*1*1———————

Table 864 Arab. Extended95——*1*1*1———————

Table 865 Nordic 86XXXXXXXXXXXX

Table 866 Cyrillic 8E X X — X X ———————

Table 866 Bulgaria 9DX X —X X ———————

Siemens Turkish 9BX X —X X ———————

DEC Turkish 9CX X —X X ———————

Table 1250 Win Latin 270X X — X X ———————

Table 1251 Win Cyrillic 71 X X — X X ———————

1) (incl. Courier IBM) *1 only in 10 and 12 cpi *2 as with Sans Serif *3 as with Roman *4 only in 10 cpi

Character set ID Draft Draft Roman S.Serif Courier

Prestige Script OCR-B OCR-A Orator Gothic Souvenir

Page 85

Available character sets and fonts

A-8

Table 1252 Win Latin 1 72 X X X X X — — X X — — —

Table 1253 Win Greek 73 X X — X ————————

Table 1254 Win Turkish 74 X X — X X ———————

8859-1 Latin 1 25XXXXXXXXXXXX

8859-1 Latin 1 (SAP) 2B X X XXXXXXX———

8859-2 Latin 2 26X X —X X ———————

8859-5 Cyrillic 2AX X —X X ———————

8859-7 Greek 2DX X —X ————————

8859-9 Turkish 2EX X —X X ———————

8859-15 Latin 9 (Euro)2FXXXXXXXXX———

BRASCII 6DXXXXX——XX———

Abicomp 6EXXXXX——XX———

Roman 8 4DXXXXX——XX———

Coax/Twinax(Hebrew) 4F X X X X *2 *3 *4 — — — — —

New-437 (Hebrew) 81 X X X X *2 *3 *4 — — — — —

New-DIG 850 (Hebr.) 83 X X X X *2 *3 *4 — — — — —

Old—Code 860 (Hebr.) 98 X X X X *2 *3 *4 — — — — —

FlarrO 863 (Hebrew) 99 X X X X *2 *3 *4 — — — — —

Table 865 (Hebrew) 9A X X X X *2 *3 *4 — — — — —

1) (incl. Courier IBM) *1 only in 10 and 12 cpi *2 as with Sans Serif *3 as with Roman *4 only in 10 cpi

Character set ID Draft Draft Roman S.Serif Courier

Prestige Script OCR-B OCR-A Orator Gothic Souvenir

Page 86

Available character sets and fonts

A-9

Available character sets and fonts

Character set ID HS-Draft*1Draft Courier Quadrato OCR-B OCR-A

ISO USA 42XXXXXX

ISO UK 41XXXXXX

ISO France 52XXXXXX

ISO Germany 4BXXXXXX

ISO Italy 59XXXXXX

ISO Sweden 48XXXXXX

ISO Norway 60XXXXXX

ISO Spain 5AXXXXXX

ISO Portugal 4CXXXXXX

Epson USA 00XXXXXX

Epson France 01XXXXXX

Epson Germany 02XXXXXX

Epson UK 03XXXXXX

Epson Denmark 04XXXXXX

Epson Sweden 05XXXXXX

Epson Italy 06XXXXXX

Epson Spain 07XXXXXX

Epson Japan 08XXXXXX

Epson Norway 09XXXXXX

Epson Denmark II 0AXXXXXX

Epson Spain II 0BXXXXXX

Epson Latin America0CXXXXXX

Epson Korea 0DXXXXXX

*1 only in 10 and 12 cpi

Page 87

Available character sets and fonts

A-10

Epson Legal 40XXXXXX

CRO-ASCII 3C X X — X — —

Table 437 Latin US 80XXXXXX

Table 737 Greek 93 X X — X — —

Table 850 Latin 1 82XXXXXX

Table 851 Greek 88 X X — X — —

Table 852 Latin 2 87 X X — X — —

Table 857 Turkish 8D X X — X — —

Table 858 (IBM with Ú)9EXXXXXX

CP860 Portugal 84XXXXXX

Table 861 Icelandic 94XXXXXX

Table 863 French Canada 85 XXXXXX

Table 865 Nordic 86XXXXXX

Table 866 Cyrillic 8E X X — X — —

Table 866 Bulgaria 9D X X — X — —

Table 1250 Win Latin 2 70 X X ————

Table 1251 Win Cyrillic 71 X X — X — —

Table 1252 Win Latin 1 72 XXXXXX

Table 1253 Win Greek 73 X X — X — —

Table 1254 Win Turkish 74 X X — X — —

8859-1 Latin 1 25XXXXXX

8859-1 Latin 1 (SAP) 2B XXXXXX

8859-2 Latin 2 26 X X — X — —

8859-5 Cyrillic 2A X X — X — —

8859-7 Greek 2DX X—X——

*1 only in 10 and 12 cpi

Character set ID HS-Draft

Draft Courier Quadrato OCR-B OCR-A

Page 88

Available character sets and fonts

A-11

8859-9 Turkish 2E X X — X — —

8859-15 Latin 9 (Euro) 2F XXXXXX

*1 only in 10 and 12 cpi

Character set ID HS-Draft

Draft Courier Quadrato OCR-B OCR-A

Page 89

Interfaces B

Your matrix printer offers the possibility of operating either via a parallel or via a serial interface. This appendix informs you about both interfaces. The bidirectional parallel interface IEEE 1284 is standard for these printers.

In Appendix D

Options and accessories

, the optional serial RS 232/V.24 in-

terfaces RS232/V.24 and RS422/V.11 are listed.

B - 1

Page 90

Parallel interface The bidirectional parallel interface offers the so called “nibble” mode of the

IEEE1284 interface norm. This enables installation in accordance with Win 95 “Plug & Play”.

Connector

no.

Direction Signal

←

STROBE (active low)

←

DATA 1

←

DATA 2

←

DATA 3

←

DATA 4

←

DATA 5

←

DATA 6

←

DATA 7

←

DATA 8

→

ACK (active low)

→

BUSY

→

PAPER EMPTY (PE)

→

SELECT

←

AUTO FEED (active low) 15 not used 16 not used 17



CHASSIS GROUND 18



+5 V (I

max

= 200 mA)

19 – 29



SIGNAL GROUND 30 not used 31

←

INIT (active low) 32

→

ERROR (active low)

33 – 35 not used

←

SELECT IN

printer PC

← Input → Output

Parallel interface

B - 2

Page 91

Parallel interface connector 36 pins

Transmission length: max. 2.0 m

Parallel interface

B - 3

Page 92

Serial interface RS232C/V.24

Your printer’s serial interface supports the RS232C specification. The signals are received and transmitted by a 25 pin connector. Basically 3 lines are already enough for exchanging information between computer and printer (one receive line, one send line, one line for common grounding).

Connector assignment

Connector

no.

Direction Signal



FRAME GROUND

→

TxD

←

RxD

→

RTS

←

CTS

←

DSR



SIGNAL GROUND

10, 11, 19

→

READY

→

DTR



not used

Transmission length: max. 15 m

Serial interface RS232C/V.24

B - 4

Page 93

Interface cable RS232C

PC/AT (9 pin) Printer (25 pin)

RxD 2 2 TxD

TxD 3 3 RxD

CTS 8 11 RDY

SG 5 7 SG DSR 6 DTR 4

PC (25 pin) Printer (25 pin)

FG 1 1 FG

TxD 2 3 RxD RxD 3 2 TxD CTS 5 11 RDY

SG 7 7 SG DSR 6 DTS 20

With this interface cable hardware as well as software protocols can be carried out.

Serial interface RS232C/V.24

B - 5

Page 94

Protocol description

Data flow control XON/XOFF

The printer signals an XON (DC1 ASCII 11 hex., 17 dec.) via the TxD line when it is ready to receive data.

XOFF (DC3 ASCII, 13 hex., 19 dec.) is transmitted via the TxD line by the printer when

– the printer is set Offline, – there is a paper end, – a hardware error occurs, – the data buffer is full.

Make sure that on the computer side a program is installed which supports XON/XOFF control!

Data flow control Robust XON/XOFF

See also section XON/XOFF. With Robust XON/XOFF the condition of the printer (XON or XOFF) is transmitted by the TxD line.

Enquire printer status ENQ/STX

With the code ENQ (ENQ ASCII, 5 hex., 5 dec.) the programmer can request the printer status. Upon this request the printer sends a status byte which can be evaluated by the programmer

Status byte: Bit 0 1 = BUSY

Bit 1 1 = Offline Bit 2 0 = Paper End Bit 3 1 = always 1 Bit 4 1 = Cover open Bit 5 1 = Buffer Overflow Bit 6 1 = Paritys or Frame Error Bit 7 0 = always 0

With the STX code (STX ASCII, 2 hex., 2 dec.) the resulting possible printer error message (parity error, buffer overflow) is cleared.

Serial interface RS232C/V.24

B - 6

Page 95

If “ENQ/STX” is selected in the menu, the XON/XOFF protocol is active in the background. If graphics printer sequences or sequences containing 05 hex. or 02 hex. are sent to the printer, theses values are treated as ENQ or STX. Thus the programmer must ensure that ENQ (05 hex.) or STX (02 hex.) only appear in the data flow in their status enquiry function.

ETX/ACK Protocol

Also here the X-ON/X-OFF protocol works in the background. Additionally after receipt of an ETX (03 hex, end of text) character an ACK character (06 hex, acknowledge) is sent fromt the printer to the computer.

Jumper settings

Serial interface RS232C/V.24

B - 7

Page 96

Pin No. Signal Jumper Setting Function

1 FG JW1 = open* SG and FG not connected

JW1 = closed SG and FG connected

2 TxD JW11 = closed; JW12 = open* Connects TxD with pin 2

RDY JW11 = open; JW12 = closed Connects RDY with pin 2 3RxD 4RTS 5 CTS (JW2 = closed) 6 DSR (JW3 = closed) 7SG

10 RDY JW4 = closed* Connects RDY or -RDY with

pin 10

JW4 = open No connection with pin 10

11 RDY JW5 = closed* Connects RDY or -RDY with

pin 11

JW5 = open No connection with pin 11 18 (JW6 = open) 19 RDY JW7 = closed* Connects RDY or -RDY with

pin 19

JW7 = open No connection with pin 19 20 DTR JW8 = closed; JW9 = open* Connects DTR with pin 20

RDY JW8 = open; JW9 = closed Connects RDY or -RDY with

pin 20

25 RDY JW10 = closed Connects RDY or -RDY with

pin 25

JW10 = open* No connection with pin 25

* Factory setting

RDY = +RDY: JW12 = open, JW13 = closed, JW14 = open

RDY = –RDY: JW12 = open, JW13 = open, JW14 = closed

Other jumper combinations are not permissible!

STOP

Serial interface RS232C/V.24

B - 8

Page 97

Serial interface RS422/V.11

Your printer’s serial interface supports the RS422 specification. The signals are received and transmitted by a 15 pin connector. 5 lines are necessary for exchanging information between computer and printer.

Connector assignment

Connector

no.

Direction Signal



FRAME GROUND

→

A TxD

←

A RxD



SIGNAL GROUND

→

B TxD

→

B RxD

Transmission length: max. 1200 m, depending on the transmission rate

Protocol description The protocols described in the section on the serial interface RS232C/V.24

are applicable.

Serial interface RS422/V.11

B - 9

Page 98

Jumper settings

Jumper Open Closed Function

JW1 X SG and FG not connected* JW1 X SG and FG connected

JP3 JP4

2-3 2-3

1-2 1-2

TxD normal polarity*

JP3 JP4

1-2 1-2

2-3 2-3

TxD Reverse polarity

JP5 2-3 1-2 TxD connected with TxD* JP5 1-2 2-3 TxD connected with RDY

* Factory setting

JW1

JP3

JP5

JP4

Serial interface RS422/V.11

B - 10

Page 99

Specification C

Printer specifications

C - 1

Printing method serial printing with 9-pin

matrix print head

serial printing with 24-pin matrix print head

Print width

narrow printer 80 characters at 10 cpi 80 characters at 10 cpi

wide printer 136 characters at 10 cpi 136 characters at 10 cpi

Print Speed

LN-Draft/HS-Draft , Draft

413 cps at 10 cpi 409 cps at 10 cpi

Draft , Draft Copy

270 cps at 10 cpi 275 cps at 10 cpi

NLQ , NLQ/LQ

77 cps at 10 cpi 92 cps at 10 cpi

Character densities 5 cpi, 6 cpi, 7,5 cpi,

8,6 cpi, 10 cpi, 12 cpi, 15 cpi, 17,1 cpi, 20 cpi

5 cpi, 6 cpi, 7,5 cpi, 8,6 cpi, 10 cpi, 12 cpi, 15 cpi, 17,1 cpi, 20 cpi

Graphics print density

horizontal 240 dpi 360 dpi

vertical 144 dpi 360 dpi

Ribbon life approx. 4 million characters 4 million characters

Acoustic noise level appr. 55 dB (A) appr. 55 dB (A)

Dimensions

narrow printer 485 x 206 x 272 mm

(W x H x D)

485 x 206 x 272 mm (W x H x D)

wide printer 625 x 206 x 272 mm

(W x H x D)

625 x 206 x 272 mm (W x H x D)

Page 100

Weight

narrow printer wide printer

9 kg 11 kg

Power supply

USA/Canada

Europe

Power consumption

at 100% throughput in the Ready state

AC 120 V ±10% 60 Hz ±3%

AC 230 V ±10% 50 Hz ±3%

< 60 VA < 10 VA

AC 120 V ±10% 60 Hz ±3%

AC 230 V ±10% 50 Hz ±3%

< 60 VA < 10 VA

Operating environment

Temperature Humidity

10 °C to 40 °C 20 % to 80 %

Print head specifications

Number of pins Pin diameters Number of copies Head life

0.3 mm 1 original + 5 copies 200 Mio. dots/pin

0.22 mm 1 original + 3 copies 200 Mio. dots/pin

Interface buffermax 64 kBmax. 64 kB Regulations UL 1950, VDE-GS, CE, FCC Class B, UL/ULc

Printer specifications

C - 2
