Page 1

Tally

T8006/T8306

Color Laser Printers

User Guide

Page 2

Important Information

Model: PCX-PW4120EC (T8006) PCX-PF4110EC, (T8306) EEC IEC 950 /EN 60950:1992+A1+A2+A3+A4+A11 (TUV GS Certification) UL Certification Model: PCX-PW4120US (T8006) PCX-PF4110US (T8306)

UL1950/1995 Third Edition, CSA-22.2 No.950-95

This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in accordance with the manufacturer’s instructions, may cause interference in radio and television reception. It has been type tested and found to comply with the limits for class B computing devices in accordance with the specification in subpart J of part 15 of FCC rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a partial installation. It this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient the receiving antenna

• Relocate the peripheral away from the receiver

• Move the peripheral away from the receiver

• Plug the peripheral into a different outlet, so that the peripheral and the receiver are in different branch circuits If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV Interference Problems”. This booklet is available from the U.S. Government Printing Office, Washington DC 20402 Stock No.

004.000.00345.4

Warning : To comply with FCC regulations on electromagnetic interference for a class B computing device, the printer cable must be shielded. To assure compliance with FCC regulations for a computing device, use a shielded cable with a metal shell connector. The use of cables not properly shielded may result in violating FCC regulations.

This digital apparatus does not exceed the class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of the Canadian department of communications.

This unit complies with DOC standard C108.8-M 1983.

Attention: Le présent appareil numérique n’émet pas de bruits radioélectriques dépressant les limites applicables aux apprareils numériques de la classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par le ministère des communications du Canada.

This device fulfils the European standards requirements by complying with the Directive of the Commission dated May 3, 1989 (89/336/EEC) as well as 92/31/EEC, and 93/68/EEC relating to electromagnetic compatibility and the Directive dated February 19, 1973 (73/23/EEC) plus 1992+A1+A2+A3+A4+A11 relating to low-voltage electrical equipment.

Conformity with the above mentioned Directives is indicated by the CE symbol attached to the device.

Note:

Conformity may be affected by:

• using interface cables not complying with the specifications

• non-observance of important instructions in the user’s manual

• installing components not approved for this device by the manufacturer

• unauthorized manipulation This Printer contains advanced energy conservation technology that reduces power consumption when it is not in

active use. When the printer does not receive data for an extended period of time, power consumption is automatically lowered.

For potentially faster printing of the first page, you may turn the power saver off from the user menu setting. The energy star emblem does not represent EPA endorsement of any product or service.

Laser Safety Information

This printer has been designed and manufactured according to FDA regulations “title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968”, and is classified as a class 1 laser product.

Warning : Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Ozone

A standard for ozone emissions has been established by IEC 950. This printer meets the standard when shipped from the factory to our customers.

Warning : Only trained and qualified personnel may open covers or remove parts that are not explicitly shown and described in the Oper- ator’s Manual as being accessible to the operator.

 2001 Tally Printer Corporation.

Page 3

Contents

Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 1

About This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Warnings, Cautions, and Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Numbered steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Illustrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Bold fonts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Printer Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2 Setting Up Your Printer. . . . . . . . . . . . . . . . . 7

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operating System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Hardware Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Printer Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Unpacking the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Moving the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Repacking the Printer for Shipment . . . . . . . . . . . . . . . . . . . . . . . . . 10

Installing the Starter Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installing the Paper Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing Toner Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing the Oil Bottle and Fuser Cleaning Roller . . . . . . . . . . 15

Setting the Fuser Cleaning Roller Counter to Zero . . . . . . . . . . 16

Installing the Optical Photoconductor (OPC) Belt Cartridge . . 17

Setting the OPC Belt Counter to Zero . . . . . . . . . . . . . . . . . . . . 19

Installing the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Starting the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Loading Paper for Test Printing . . . . . . . . . . . . . . . . . . . . . . . . . 20

Turning On the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Printing a Test Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Chapter 3 Installing Printer Drivers and Utilities . . . . 25

Tally Printer Autoplay CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Setting up a Local Printer in Windows . . . . . . . . . . . . . . . . . . . . . . . 25

Setting up a Network Printer in Windows. . . . . . . . . . . . . . . . . . . . . 26

iii

Page 4

Tally T8006/T8306 Color Laser Printer User Guide

Configuring Windows 95/98 to Print Using NetBEUI. . . . . . . 26

Configuring Windows NT 4.0 and Windows 2000 to Print

Using NetBEUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Configuring Windows to Print Using TCP/IP . . . . . . . . . . . . . 28

Configuring Windows to Print on a NetWare Network . . . . . . 31

Uninstalling Windows Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Setting Up a Network Printer on Macintosh . . . . . . . . . . . . . . . . . . 34

Operating System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . 34

Hardware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Configuring Macintosh for Network Printing . . . . . . . . . . . . . . 34

Installing Macintosh Printer Drivers . . . . . . . . . . . . . . . . . . . . . 35

Uninstalling MacIntosh Printer Drivers . . . . . . . . . . . . . . . . . . . 35

Chapter 4 Operating Your Printer . . . . . . . . . . . . . . . . 37

Turning the Printer On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Turning the Printer Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Selecting Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Tray 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Trays 2 and 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Loading Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Installing The Envelope Feeder (T8306 Only). . . . . . . . . . . . . . . . . 40

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Control Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Chapter 5 Changing Print Defaults . . . . . . . . . . . . . . . 45

Changing Default Print Driver Properties . . . . . . . . . . . . . . . . . . . . 46

Windows 95/98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Windows NT 4.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Selecting Job Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Setting Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Adjusting Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Adjusting Density. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Registering Custom Edits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Setting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Customizing Watermarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Restoring All Items to Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Chapter 6 Maintaining Your Printer . . . . . . . . . . . . . . 61

Replacing Toner Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Replacing the Oil Bottle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Replacing the Waste Toner Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Replacing the Fuser Cleaning Roller . . . . . . . . . . . . . . . . . . . . . . . . . 66

Replacing the Ozone Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Replacing the Optical Photoconductor (OPC) Belt Cartridge. . . . . 69

Disposing of Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Chapter 7 Cleaning the Printer . . . . . . . . . . . . . . . . . . 73

Cleaning the Registration Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Cleaning the Transfer Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Page 5

Contents

Cleaning the Paper Discharger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Cleaning the OPC Belt Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Cleaning the Optical Unit Glass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Cleaning the Inside of the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Chapter 8 Options and Accessories. . . . . . . . . . . . . . . 83

Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Installing Additional Memory Modules . . . . . . . . . . . . . . . . . . . . . . . 83

Duplex Printing Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Installing the Duplex Printing Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Paper Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Installing The Paper Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Adjusting the Paper Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Chapter 9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . 89

How to Solve Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Paper Jam Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Clearing Jam 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Clearing Jam 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Clearing Jams 3 and 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Poor Print Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Slow or No Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Macintosh Chooser Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Network Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Printer Driver Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Appendix A Printer Specifications . . . . . . . . . . . . . . . 111

Tally Model T8006 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Tally Model T8306 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Appendix B Periodic Replacement Parts . . . . . . . . . . 117

Appendix C Control Panel Menu Functions . . . . . . . . 119

Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Menu Navigation Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Menu Display Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Test Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

TestPrint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

ConfigPage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

TestMode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Config Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Timeout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

SleepTime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Priority. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Parallel Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

ComMode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

HighSpeed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Page 6

Tally T8006/T8306 Color Laser Printer User Guide

Network Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Subnet Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Gateway Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Appendix D Control Panel Messages . . . . . . . . . . . . . 141

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Paper Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Paper Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Appendix E Network Management . . . . . . . . . . . . . . 147

Test Button for LAN Configuration. . . . . . . . . . . . . . . . . . . . . . . . 147

Printing a Print Server Test Page . . . . . . . . . . . . . . . . . . . . . . . 147

Printing a Parameter List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Setting the Factory-Set Default Values. . . . . . . . . . . . . . . . . . . 147

Remote Configuration and Monitoring . . . . . . . . . . . . . . . . . . . . . 148

Configuring the Printer With NetPilot . . . . . . . . . . . . . . . . . . . . . . 149

Network Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Properties Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Configuring the Printer With TCP/IP Utilities . . . . . . . . . . . . . . . 158

Setting with ARP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Setting with RARP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Setting with BOOTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Setting with DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Configuring the Printer Using HTTP . . . . . . . . . . . . . . . . . . . . . . . 160

Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Configuring the Printer Using Telnet . . . . . . . . . . . . . . . . . . . . . . . 161

Configuring the Printer Using FTP. . . . . . . . . . . . . . . . . . . . . . . . . 163

Monitoring the Printer Using SNMP . . . . . . . . . . . . . . . . . . . . . . . 163

Configuring the SNMP Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Using Logical Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Adding Character Strings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Replacing Character Strings . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Conversion from ASCII to PostScript . . . . . . . . . . . . . . . . . . . 165

Sample Network Configuration File . . . . . . . . . . . . . . . . . . . . . . . . 167

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Page 7

About This Manual

This manual is intended to provide guidance for the proper installation, operation, and maintenance of your Tally T8006/T8306 printer. Please read this manual carefully to ensure proper use of the printer. Keep the CD-ROM in a safe place, where it can be retrieved readily when needed.

The following documentation conventions are used in this manual for ease in understanding and use.

Warnings, Cautions, and Notes

Warnings, cautions and notes provide important safety information throughout this manual. Carefully follow all the warnings, cautions and notes as you read through the instructions in this manual before you operate the printer.

Chapter 1

Introduction

Information in the warnings and cautions describe potential hazards.

If you don’t understand the safety information, contact Tally Technical Services.

Here are the warning, caution, and note definitions:

Warning!

equipment damage or personal injury can occur.

Caution!

damage to equipment can occur.

Note:

understand a concept or subject. If a note is not followed, a task or procedure may not be properly accomplished.

If a specific action or procedure in a Warning is not followed,

If a specific action or procedure in a Caution is not followed,

Notes offer additional information to help you more fully

Page 8

Tally T8006/T8306 Color Laser Printers User Guide

Numbered steps

Instructions are presented under main topic headings with easy-to-follow, sequential steps.

Illustrations

Illustrations are displayed alongside numbered steps.

Bold fonts

Software commands and key commands are printed in bold type fonts.

Displays

Text messages that display on the printer control panel are shown as they appear on the control panel.

Product Overview

Tally has engineered the following features into the T8006/T8306 printers.

Space-saving design. The printer is compact for easy installation in small office spaces or on desk tops.

Low-cost operation. The printer toner cartridges and the developer are incorporated as a single unit, so there are fewer supplies to replace.

T8006/T8306 accepts various printing media. The printer accepts many types, sizes, and weights of paper and other media, including envelopes, heavy paper stocks, OHP transparencies, and labels.

Note:

the T8306 accepts paper sizes up to 13” x 19” (A3W).

Simple network connection. The printer has an RJ-45 port for LAN connections, and the printer can adapt to your existing network protocol whether it is a TCP/IP, Windows® or IPX/SPX network. You can also use a Web control function to monitor the printer from a browser screen.

Time-saving color adjustments. The printer supports functions for fine color adjustment, and allows you to manually save the settings. You can save color adjustments under a specific name, and retrieve these specific user-defined color adjustments later for quick printing.

The T8006 accepts paper sizes up to legal size (8.5” x 14”), and

Page 9

Chapter 1 Introduction

First-class print quality. The printer uses Tally’s smoothing technology to correct characters, illustrations, and photographs to a high quality of 2400 dpi x 600 dpi, as shown below.

Before correction

600 dpi x 600 dpi

Printer Components

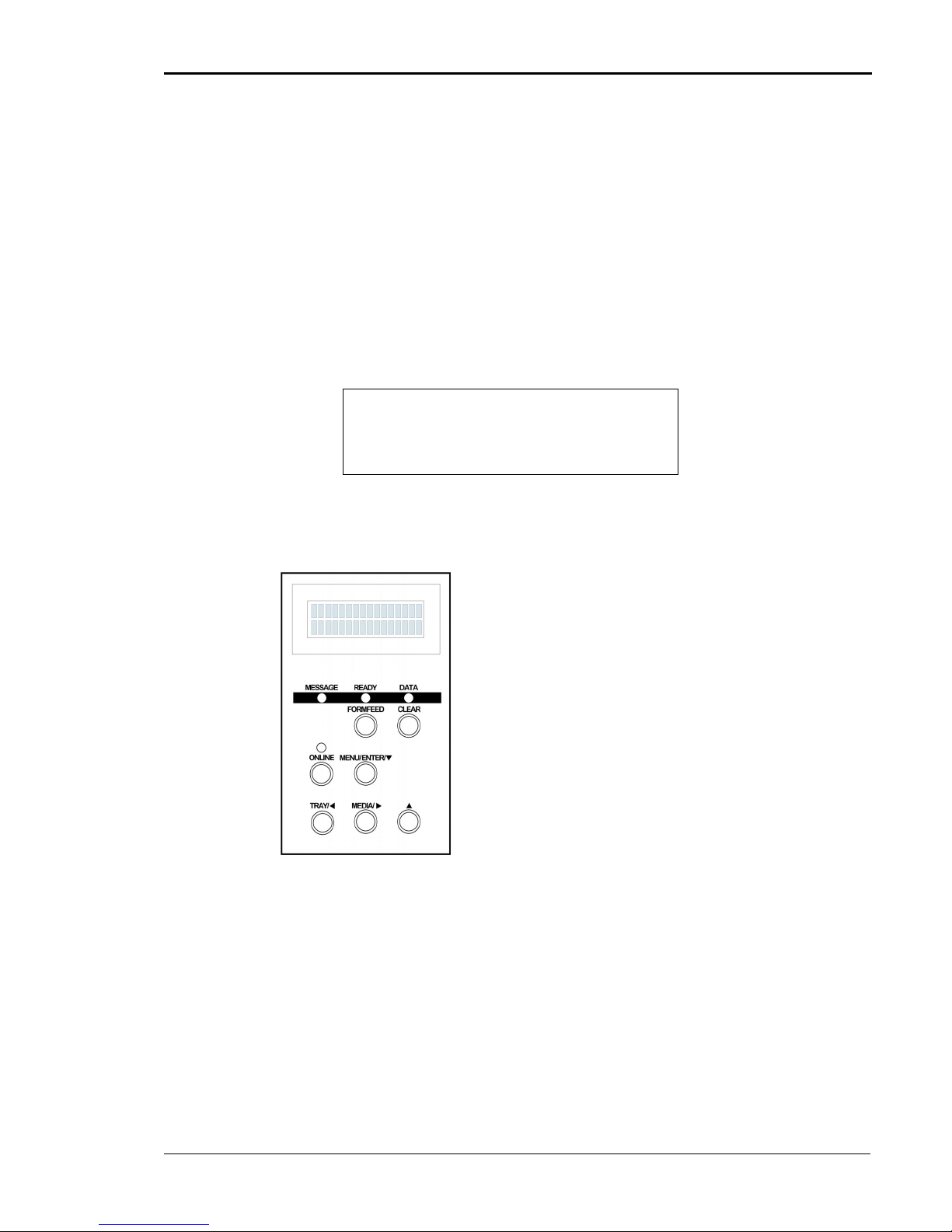

Control Panel keys and

indicator lights allow you to control and monitor printer operations.

Correction After correction

2,400 dpi (equivalent) x 600 dpi

Top Cover provides access to internal supplies such as the oil bottle, and functions as the paper exit tray.

Front Cover provides access to the toner cartridges.

Power Switch

all power to the printer.

controls

Paper Trays provide the media to be printed.

Page 10

Tally T8006/T8306 Color Laser Printers User Guide

Parallel Port provides direct printer-to-computer connection.

Power Cord Socket provides power to the printer.

Fusing Unit thermally bonds the toner to the media.

Fuser Cleaning Roller removes any dust from the fusing unit and the fixing roller.

RJ-45 Port provides printer-to-network connection.

Oil Bottle stores oil for use in the fixing process.

Optical Photoconductor (OPC) Belt Cartridge processes laser

beam activity that produces images one color at a time (not shown).

Page 11

Toner Cartridges provide the toner for the printing process.

Waste Toner Pack collects and retains waste toner.

Chapter 1 Introduction

Ozone Filter reduces the amount of ozone emitted during the printing process.

Page 12

Page 13

Setting Up Your Printer

System Requirements

For optimum printer performance and productivity, install the Tally printer driver software in a computer operating system that meets the following specifications.

Operating System Requirements

To use the Tally printer drivers included for this model, the connecting computer must use one of the following Microsoft operating systems:

• Windows 95

• Windows 98/ME

• Windows NT 4.0 (The Windows NT 4.0 printer driver will only operate on X86 architectures.)

• Windows 2000

Chapter 2

Hardware Requirements

Microprocessor

Memory

Disk Space

The connecting computer must meet the following minimum hardware requirements:

Pentium® 133 MHz minimum. Pentium® 200 MHz or higher microprocessor is recommended.

At least 32 MB. 64 MB or more of memory is recommended.

At least 100 MB. 200 MB or more of disk space is recommended.

Note:

Network Printer on Macintosh” on page 34.

For Apple Macintosh hardware requirements, see “Setting Up a

Page 14

Tally T8006/T8306 Color Laser Printers User Guide

Printer Location

Tally color printers require the following environment specifications for optimal operation.

Space

Put the printer on a stable surface with good ventilation. Keep the printer away from corrosive chemicals, gases, dust, and other contamination, and away from equipment that generates magnetic fields, electrical noise, vibration, or shock.

The surface that holds the printer must support at least 313 pounds or 142 kilograms, which includes the weight of the printer, paper, and all optional components. The surface must be large enough to support an extended paper tray.

Allow enough clear space around your printer to provide good airflow for printer cooling and for easy maintenance access.

The recommended clearance between a printer and other objects is shown here:

3.94 in. (10 cm)

7.88 in. (20 cm)

19.70 in. (50 cm)

27.50 in. (70 cm)

Page 15

Temperature

Make sure the temperature in the printer location stays constant. Keep the printer away from direct sunlight. For best printer operation, install the printer in a location where the temperature levels stay within the following ranges:

Recommended range:

Chapter 2 Setting Up Your Printer

Fahrenheit Celsius

63.5º to 80.6º 17.5º to 27º

Permitted range:

Humidity

Excessive changes in humidity can cause unwanted condensation inside the printer. For best printer operation, install the printer in a location where humidity levels stay within the following ranges:

Recommended range:

Permitted range:

Power Source

Each printer model requires different types of electrical power, as shown below. If you need additional information about the power requirements, contact your dealer or a Tally Service Technician.

Warning!

Caution!

Model 8306 Part Number: 083188

Voltage

50º to 90.5º 10º to 32.5º

50% to 70%

20% to 80%

Use properly grounded wall sockets. Do not use converter plugs.

Use surge protection between the power source and the printer.

120 VAC + 10%

Frequency

Consumption

Model 8306

Voltage

Frequency

Consumption

Model T8006

Voltage

Frequency

Consumption

60 Hz + 2 Hz

Up to 1,350 W

Part Number: 083186

220 VAC to 240 VAC

50 Hz + 2 Hz

Up to 1,350 W

Part Number: 083218

120 VAC + 10%

60 Hz + 2 Hz

Up to 1,350 W

Page 16

Tally T8006/T8306 Color Laser Printers User Guide

Model T8006

Voltage

Frequency

Consumption

Unpacking the Printer

The printer is heavy. Two or more persons must use the four grip locations on the underside of the printer to move it.

The printer is packaged with a lift-off box top and bottom tray carton. Depending on the printer model, the printer can be delivered on a pallet.

Warning!

printer.

Do not lift the printer using the polyethylene bag that covers the

Part Number: 083220

220 VAC to 240 VAC

50 - 60 Hz + 2 Hz

Up to 1,350 W

1. Remove the Starter Kit and the polyethylene bag.

2. Remove the carton from the printer and lift the printer from the bottom carton tray using the four grips on the underside of the printer.

3. Put the printer in the desired location.

Moving the Printer

A printer can be damaged by toner and oil spillage if it is tilted while being moved. Always keep it horizontal. If you use a cart to move the printer, push it carefully and slowly. Sudden shocks or strong vibration may damage the printer.

Caution!

Have two people carry the printer without tilting it.

Repacking the Printer for Shipment

Before the printer can be repacked for shipment, the supplies in the printer must be removed and the inside of the printer must be cleaned. After the fuser oil bottle is removed, the residual fuser oil that remains within the printer, must be removed.

Page 17

Chapter 2 Setting Up Your Printer

Repacking a printer that has previously been installed needs careful attention. To find out more about the printer repacking instructions or for assistance, go to World Wide Web site www.Tally.com, or contact Tally at e-mail address support@Tally.com. See the Tally T8006/ T8306 Color Laser Printers Quick Start Guide on the Tally CD-ROM.

The following diagram shows how the printer and supplies are packaged.

Note:

The T8306 packaging, shown here, has a built-in pallet; the T8006

packaging does not.

Starter Kit

Page 18

Tally T8006/T8306 Color Laser Printers User Guide

Installing the Starter Kit

Your printer comes with a Starter Kit that contains:

• Toner cartridges (4)

• Oil bottle

• Oil dropper

• Fuser cleaning roller

• Optical photoconductor (OPC) belt cartridge

•CD-ROM

• Quick Start Guide

Note:

The oil dropper is used to draw oil out of the fusing unit when the printer must be moved or shipped. Keep the dropper in a convenient, safe location for future use.

The printer also comes with an ozone filter and a waste toner pack that have been pre-installed at the factory.

Additional items are also included with the printer:

• Paper tray

• Envelope feeder (T8306 only. The T8006 paper tray adjusts to handle envelopes.)

• Power cord

Fuser Cleaning Roller

Toner Cartridges

Oil Bottle

OPC Belt Cartridge

Power Cord

Oil Dropper

Envelope Feeder

Paper Tray

Page 19

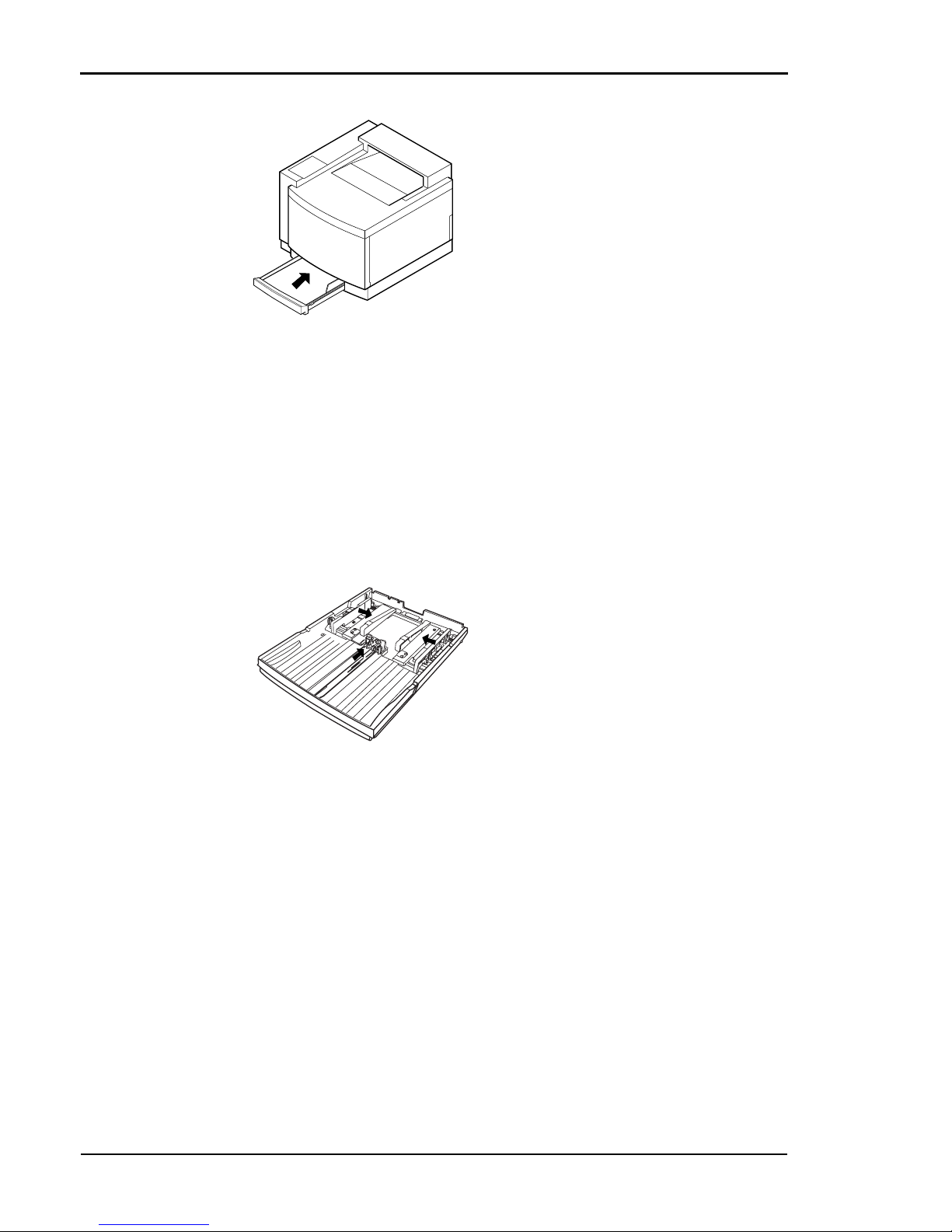

Installing the Paper Tray

No Paper Feeder

T8006

With Paper Feeder

Chapter 2 Setting Up Your Printer

Insert the paper tray squarely and evenly into the printer.

1. Pull the guide rails outward, and align the tip of the paper tray with the guide rails.

T8306

Installing Toner Cartridges

Each toner cartridge is labeled with the capital letter of the toner color. Insert the toner cartridges in the appropriate slots in the printer from the bottom to the top as follows: C (Cyan), M (Magenta), Y (Yellow), and K (Black). The toner cartridges from the Starter Kit are filled at half volume for first-time installation only.

Warning!

water for at least 15 minutes, and contact a physician.

Warning!

supplies.

Caution!

up. Do not install the toner cartridges upside-down or in reverse positions.

If you get toner in your eyes, immediately flush your eyes with

Make sure the printer is off and unplugged before installing

Handle the toner cartridges horizontally with the labels facing

2. Insert the paper tray squarely and evenly into the paper feeder.

Note:

The T8006 lower paper tray

slides directly into the lower feeder unit.

Page 20

Tally T8006/T8306 Color Laser Printers User Guide

1. Release the front cover latch.

2. Open the front cover.

3. Rock the toner cartridge three or four times in the direction of the arrows on the cartridge to level out the toner inside.

Note:

Save the protective cover for future use when shipping the printer and toner

cartridge separately.

4. Peel the tape off the cartridge and remove the protective cover from the cartridge.

5. Insert the toner cartridge carefully along the guide and into the appropriate toner cartridge slot in the printer.

6. Repeat steps 3 through 5 for each toner cartridge.

7. Close the front cover.

Page 21

Chapter 2 Setting Up Your Printer

Installing the Oil Bottle and Fuser Cleaning Roller

The oil lubricates the fusing unit. The fuser cleaning roller removes any accumulated dust from the fusing unit.

Caution!

Always keep the printer horizontal to prevent spillage of

residual oil and toner.

1. Release the top cover latch and open the top cover.

2. For the T8006, push the large green levers at the sides of the fuser rollers backward until they click into position.

For the T8306, remove the two orange fuser stops from between the fuser rollers by pulling them upward and out.

3. Insert the oil bottle.

Note:

zero.

4. Insert the fuser cleaning roller.

5. Turn the two green lock levers to lock the fuser cleaning roller and the oil bottle in place.

After replacing the fuser cleaning roller, reset the fuser cleaning roller counter to

Page 22

Tally T8006/T8306 Color Laser Printers User Guide

Setting the Fuser Cleaning Roller Counter to Zero

Printer software tracks fuser cleaner roller usage. After the counter reaches a pre-set number, the printer displays a message to indicate that maintenance is necessary.

After initial installation, or whenever you replace the fuser cleaning roller, set the counter to zero.

1. While pressing the power switch, press and hold MENU/ENTER/ .

Note:

For more information about displayed error messages, see “Appendix D Control Panel Messages” on page 141.

2. When PLEASE WAIT is displayed,

release MENU/ENTER/ . The display will show Utility Menu Clear FC. Roll.

3. Press MENU/ENTER/  . The dis-

play will show Clear FC. Roll Not

Execute.

4. Press either TRAY/or MEDIA/ until the display shows Clear FC. Roll Execute.

5. Press MENU/ENTER/  once, and after approximately 10 seconds, the display will show Completed Clear FC. Roll.

6. Press MENU/ENTER/ . The display will show Utility Menu Clear FC. Roll.

Page 23

Chapter 2 Setting Up Your Printer

Installing the Optical Photoconductor (OPC) Belt Cartridge

Caution!

Do not touch or wipe off any powder that is on the OPC belt, or

expose the OPC belt to light.

1. Open the top and front covers.

2. Lift the green OPC belt cartridge lock levers up until they unlock, with the channels upright.

3. With the top cover open, remove the protective sheet from the OPC belt cartridge.

4. Remove the two shipping pins from the OPC belt cartridge.

5. Slide the OPC belt cartridge downward along the green locklever guides and into the printer carefully.

Page 24

Tally T8006/T8306 Color Laser Printers User Guide

6. Press the green OPC belt cartridge lock levers to the closed position.

7. Close the top and front covers carefully until they lock shut.

Note:

to zero.

After replacing the OPC belt cartridge, reset the OPC belt counter

Page 25

Chapter 2 Setting Up Your Printer

Setting the OPC Belt Counter to Zero

Printer software tracks OPC belt usage. After the counter reaches a preset number, the printer displays a message to indicate that maintenance is necessary. After the first installation, and after every replacement of the OPC belt, set the counter to zero.

1. While pressing the power switch, press and hold MENU/ ENTER/ .

Note:

For information about displayed error messages, see “Appendix D Control Panel Messages” on page 141.

2. When PLEASE WAIT is dis-

played, release MENU/ ENTER/ . The display will show Utility Menu Clear FC. Roll.

3. Press either TRAY/ or MEDIA/ until the display shows Clear BeltCG.

4. Press MENU/ENTER/. The display will show Clear BeltCG Not Execute.

5. Press either TRAY/or MEDIA/ until the display shows Clear BeltCG Execute.

6. Press MENU/ENTER/ . The display will show Clear BeltCG Execute.

7. Press MENU/ENTER/ . The display will show Completed Clear

BeltCG.

8. Press MENU/ENTER/ . The display will show Utility Menu Clear BeltCG.

9. Press  to exit the Utility Menu and return the printer to normal operating mode, or turn the power switch off.

Page 26

Tally T8006/T8306 Color Laser Printers User Guide

Installing the Power Cord

Warning!

Use properly grounded wall sockets. Do not use converter plugs.

1. Plug the printer power cord into the printer.

2. Plug the printer power cord into a power source with surge protection.

Starting the Printer

After you install the Starter Kit and plug in the printer, load paper into the paper tray, turn on the printer, and print a test page.

Loading Paper for Test Printing

1. Remove the paper tray from the printer by gently lifting both sides of the tray while pulling outward.

2. Remove the tray cover (T8306 only).

Page 27

PAPER

LABEL OHP FILM

Chapter 2 Setting Up Your Printer

ENVELOPE

3. Place about 100 sheets of A4 or standard letter-size (8-1/2” x 11”) paper into the paper tray.

T8006

T8306

Turning On the Printer

1. Press the main power switch. The printer will perform a series of diagnostic tests and then begin the warm-up cycle. This process may take up to 4 minutes.

4. Replace the tray cover (T8306 only).

5. Slide the paper tray back into the printer carefully until it locks.

2. Once the printer has completed the warm-up cycle, make sure the printer display reads “Ready.”

Note:

If the MESSAGE lamp is lit, a printer error has occurred. Check the

display for an error message. See “Chapter 9 Troubleshooting” on page 89.

Page 28

Tally T8006/T8306 Color Laser Printers User Guide

Printing a Test Page

To print a test page, use A4 or standard letter-size (8-1/2” x 11”) paper.

Tray 1: A4

Tray 1: A4Tray 1: A4

Ready

ReadyReady

Tray 1: A4

Tray 1: A4Tray 1: A4

Not Ready

Not ReadyNot Ready

Tray 1: A4

Tray 1: A4 Tray 1: A4

Test Menu

Test MenuTest Menu

Tray 1: A4

Tray 1: A4Tray 1: A4

Test Print

Test PrintTest Print

1. Check that the control panel displays “Ready.”

2. Press the ONLINE key.

3. Press the MENU/ENTER/  key.

4. Press the MENU/ENTER key a second time.

Tray 1: A4

Tray 1: A4Tray 1: A4

Test Print

Test PrintTest Print

Tray 1: A4

Tray 1: A4Tray 1: A4

Not Ready

Not ReadyNot Ready

Tray 1: A4

Tray 1: A4Tray 1: A4

Ready

Ready Ready

5. Press the MENU/ENTER key a third time. The DATA lamp will blink as the test page starts to print.

6. When the test print is complete, the DATA lamp will go out.

7. Press the ONLINE key.

Page 29

Chapter 2 Setting Up Your Printer

Here is a typical printed test page for the Tally T8006/T8306 color printers:

If the test page doesn’t print properly, check for error indications on the control panel display. See “Chapter 9 Troubleshooting” on page 89.

Before you can send files from your computer application to the printer, you must install the appropriate print driver and utilities for your specific computing system. See “Chapter 3 Installing Printer Drivers and Utilities” on page 25.

Page 30

Page 31

Installing Printer Drivers

Tally Printer Autoplay CD

The Tally T8006/T8306 CD included with your printer has an autoplay feature that will automatically start the installation process of the drivers and utilities for your printer. The CD contains the T8006/T8306 printer drivers, network utilities, and the documentation for your printer. The CD automatically senses your operating system and supplies the appropriate driver.

Chapter 3

and Utilities

Setting up a Local Printer in Windows

The Tally auto-install CD-ROM automatically installs the Tally T8006/ T8306 printer drivers on your computer and installs the printer on the LPT1 port. To install the printer on your LPT1 port:

1. Insert the CD in your CD-ROM drive.

2. Click the language you want to use.

3. Click the I Accept button.

4. Click the T8006 - Install Software button or the T8306 - Install Software button.

5. To begin the local installation process, click Local.

6. Click Install Printer Driver.

7. Click Exit This CD.

Page 32

Tally T8006/T8306 Color Laser Printers User Guide

Setting up a Network Printer in Windows

Configuring Windows 95/98 to Print Using NetBEUI

The Tally auto-install CD-ROM automatically installs the drivers and utilities your computer needs to print using the NetBEUI protocol. If you are uncertain whether your network settings are correct for printing over the network, consult your Windows 95/98 Help. To install the network printer software on a computer using NetBEUI:

1. Insert the CD in your CD-ROM drive.

2. Click the language you want to use.

3. Click the I Accept button.

4. Click the T8006 - Install Software button or the T8306 - Install Software button.

5. Click the Network button to configure the computer for network printing.

6. Click the Install Printer Driver button to install the drivers.

7. Click the Network Utilities button to install the network utilities.

8. When prompted by the installation wizard, choose Custom Install.

9. When prompted by the installation wizard select install NetPilot and PrintMonitor.

10. Click Exit This CD to complete the software installation process.

Note:

By default, your printer is installed on LPT1 — the physical printer port of your computer. To print over the network, you must now tell Windows to print over a virtual printer port rather than the physical port.

11. From the Start button, select Settings and click Printers.

12. In the Printers folder, right-click the T8006 or T8306 printer you just

installed.

13. Click Properties.

14. In the Printer Properties window, select the Details tab.

15. In the Print to the following port list, select the printer name.LP1

port. By default the printer name is “PS” followed by six letters and numbers of the print server’s node address; for example, “PS1f83a5.LP1.” See “Test Button for LAN Configuration” on page 147 to obtain a LAN configuration page with your print server’s node address.

16. In the Printer Properties window, select the port you just added and

click OK.

Page 33

Chapter 3 Installing Printer Drivers and Utilities

Configuring Windows NT 4.0 and Windows 2000 to Print Using NetBEUI

The Tally auto-install CD-ROM automatically installs the drivers and utilities your computer needs to print using the NetBEUI protocol. If you are uncertain whether your network settings are correct for printing over the network, consult your Windows Help. To install the network printer software on a computer using NetBEUI:

1. Insert the CD in your CD-ROM.

2. Click the language you want to use.

3. click the I Accept button.

4. Click the T8006 - Install Software button or the T8306 - Install Software button.

5. Click the Network button to configure the computer for network printing.

6. Click the Install Printer Driver button to install the printer drivers.

7. Click the Network Utilities button to install the network utilities.

8. When prompted by the installation wizard, choose Custom Install.

9. When prompted by the installation wizard select install NetPilot and PrintMonitor.

10. Click Exit This CD to complete the software installation process.

Note:

By default, your printer is installed on LPT1 — the physical printer port of your computer. In order to print over the network, you must now install a virtual port, and tell Windows to print over the virtual printer port rather than the physical port.

11. From the Start button, select Settings and click Printers.

12. In the Printers folder, right-click the T8006 or T8306 printer you just installed.

13. Click Properties.

14. In the Printer Properties window, select the Ports tab.

15. Click the Add Port button.

16. In the Printer Ports dialog, select Print Server Port.

17. In the Add Print Server Port dialog, select NetBIOS/NetBEUI.

18. In the Add Print Server NetBIOS/NetBEUI dialog, select the Tally printer you just installed. By default the printer name is “PS” followed by six letters and numbers, for example “PS1f83a5.” If you later decide to change the name of the printer, you will need to reset the port.

19. In the Printer Properties window, select the port you just added and click OK.

Page 34

Tally T8006/T8306 Color Laser Printers User Guide

Configuring Windows to Print Using TCP/IP

The Tally auto-install CD-ROM automatically installs the drivers and utilities your computer needs to print using TCP/IP. If you are uncertain whether your network settings are correct for printing over the network, consult your Windows Help for your operating system. To install the network printer software on a computer using TCP/IP:

1. Insert the CD in your CD-ROM drive.

2. Click the language you want to use.

3. Click the I Accept button.

4. Click the T8006 - Install Software button or the T8306 - Install Software button.

5. Click the Network button to configure the computer for network printing.

6. Click the Install Printer Driver button to install the printer drivers.

7. Click the Network Utilities button to install the network utilities.

8. When prompted by the installation wizard, choose Custom Install.

9. When prompted by the installation wizard select install NetPilot and PrintMonitor.

10. Click Exit This CD to complete the software installation process.

11. From the Windows Start button select Programs, then select Print Server Utilities. Under Print Server Utilities, select NetPilot and click NetPilot.

12. In NetPilot, click the Install button.

13. In the Installation Options dialog, select with Installation Wizard and click OK.

Page 35

Chapter 3 Installing Printer Drivers and Utilities

14. Change the name of the printer to the name you would like it to have and click the Next button. This name will be the name shown on the network.

15. In the Network Environments dialog, deselect all but the TCP/IP check box and click the Next button.

16. In the TCP/IP address configuration window, choose the way you want the IP address of the printer to be configured and click the Next button.

Note:

If you are uncertain about the IP address that should be used, consult your

network administrator.

17. Enter an eight character name that your printer will have on your network.

18. If you have a dedicated WINS server on your network, select the WINS check box and fill in the IP address of the Primary and Secondary WINS server. If you are unsure whether your network is configured to use dedicated WINS servers, do not check the WINS box and click Next.

19. If you want to password protect your configuration, select the Set configu- ration protection check box, enter the password in the box, and click Next.

Page 36

Tally T8006/T8306 Color Laser Printers User Guide

To complete the installation of the printer, go to the port configuration section for your operating system.

Configuring the TCP/IP Printer Port in Windows 95/98

By default, your printer is installed on LPT1 — the physical printer port of your computer. To print over the network, you must now install a virtual port, and tell Windows to print over the virtual printer port rather than the physical port.

1. From the Start button, select Settings and click Printers.

2. In the Printers folder, right-click the Tally T8006 or the Tal ly T8306 printer you just installed.

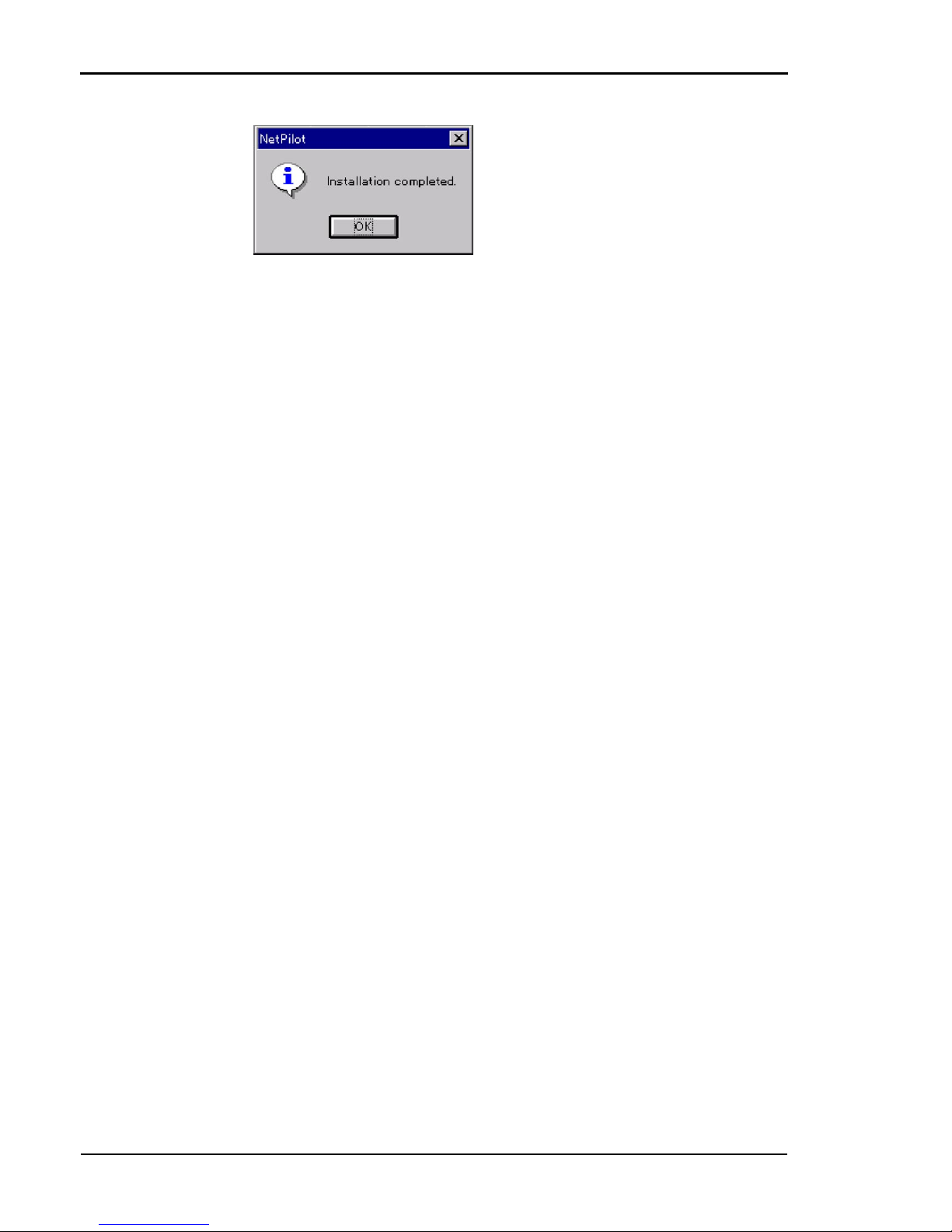

20. Click the OK button to complete the TCP/IP configuration.

3. Click Properties.

4. In the Printer Properties window, select the Details tab.

5. Click the Add Port button.

6. Click the Other button and from the list choose Print Server Port, then click OK.

7. Select LPR (TCP/IP) as the network protocol and click OK.

8. Enter the IP address of your print server (the logical printer name should remain LPT1), and click OK.

9. The LPR port will then be added automatically to the list of available ports and will be selected as the current port.

10. Click OK to complete the port installation.

Configuring the TCP/IP printer port in Windows NT 4.0

1. From the Start button, select Settings and click Printers.

2. In the Printers folder, right-click the Tally T8006 or Tally T8306 printer you just installed and select Properties.

3. In the Printer Properties window, select the Ports tab.

4. Click the Add Port button to open the Printer Ports window.

Page 37

Chapter 3 Installing Printer Drivers and Utilities

5. In the Printer Ports window, select LPR Port and then select New Port.

6. In the Add LPR Compatible Printer window, enter the IP address, enter LPT1 for the printer name, and click OK.

7. In the Printer Properties window, click Close to complete the port installation.

Configuring the TCP/IP Printer Port in Windows 2000

1. From the Start button, select Settings and click Printers.

2. In the Printers folder, right-click the Tally T8006 or Tally T8306 printer you just installed and select Properties.

3. In the Printer Properties window, select the Ports tab.

4. Click the Add Port button to open the Printer Ports window.

5. In the Printer Ports window, select Standard TCP/IP Port to start the Add Standard TCP/IP Printer Port Wizard. Click Next to begin the Wizard.

6. Enter the IP address. This will also be used as the Port Name of the printer. Click Next to continue.

7. If the printer was found on the network, the Wizard will display the network characteristics of the printer. Verify that the settings are correct and click Finish to complete the Add Standard TCP/IP Printer Port Wizard.

8. Click Close to close the Printer Ports window.

9. In the Tally T8006 Properties or Tally T8306 Properties window, click Close to complete the printer port installation.

Configuring Windows to Print on a NetWare Network

The Tally auto-install CD-ROM automatically installs the drivers and utilities your computer needs to print using NetWare. To print on a NetWare network, you must have the Novell client installed. If you are uncertain whether your network settings are correct for printing over the network, consult your Windows Help or your NetWare operators manual.

Note:

Under 3.x you must log in as supervisor and under 4.1x, you must log in as Admin. To set bindery, you should log in under bindery mode.

To configure NetWare, you must have administrative authority.

Page 38

Tally T8006/T8306 Color Laser Printers User Guide

To install the network printer software on a computer using a Novell NetWare client:

1. Insert the CD in your CD-ROM drive.

2. Click the language you want to use.

3. Click the I Accept button.

4. Click the T8006 - Install Software button or the T8306 - Install Software button.

5. Click the Network button to configure the computer for network printing

6. Click the Install Printer Driver button to install the printer drivers.

7. Click the Network Utilities button to install the network utilities.

8. When prompted by the installation wizard, choose Custom Install.

9. When prompted by the installation wizard select install NetPilot and PrintMonitor.

10. Click Exit This CD to complete the software installation process.

11. From the Windows Start button, select Programs, then select Print Server Utilities. Under Print Server Utilities, select NetPilot and click NetPilot.

12. In NetPilot, click the Install button.

13. In the Installation Options dialog, select with Installation Wizard and click OK.

Page 39

Chapter 3 Installing Printer Drivers and Utilities

14. Change the name of the printer to the name you would like it to have and click the Next button. This name will be the name shown on the network.

15. In the Network Environments dialog, deselect all but the Netware check box and click the Next button.

16. Select the print queue that the printer will be connected to. If the printer will be on a Bindery File Server, enter the name of the file server. Click Next.

17. NDS tree users only. Set the con-

18. Enter the name of the print queue

Uninstalling Windows Drivers

Before installing any updates to the printer drivers, you should uninstall the old drivers. To uninstall Windows drivers:

1. From the Windows Start button, select Settings and click Printers.

text that the print queue will be placed in, and the NDS tree that the printer will log in through. Next choose the context for the queue, and the context for the queue volume. Click the Next button.

that the printer will be connected to.

Page 40

Tally T8006/T8306 Color Laser Printers User Guide

2. In the Printers folder, right-click the Tally T8006 or Tally T8306 printer and select Delete.

Setting Up a Network Printer on Macintosh

Operating System Requirements

For optimum printer performance, use the Macintosh printer driver in the following system and network environment:

• Mac OS 8.1 or later

• AppleTalk connection

• Standard 10BASE-T/100BASE-TX Ethernet interface

Hardware Requirements

The Macintosh computer must meet the following minimum hardware requirements.

Microprocessor

Power PC.

Memory

At least 32 MB. 64 MB or more of memory is recommended.

Disk Space

At least 16 MB. 100 MB or more of disk space is recommended.

Configuring Macintosh for Network Printing

To print from your Macintosh over an Ethernet network, you must first configure your printer. Make sure the printer is connected to the network and turned on, and then set up the configuration as follows:

1. Set an IP address in the printer. See “Appendix C Control Panel Menu

Functions” on page 119.

2. From your Web browser, go to the IP Address that is set in your printer to access the internal configuration Web page.

3. In the Network Print Server window, click the Configuration button.

4. Click AppleTalk.

5. In the Configuration [AppleTalk] window, set the Binary Enabled button to NO. In Name Printer 1:, enter the name of your printer as you want it to appear in the Chooser. In Type Printer 1:, enter TALLY _BS.

6. Click Submit AppleTalk Settings, and verify the settings were suc- cessfully set.

7. Exit the Web browser.

Page 41

Chapter 3 Installing Printer Drivers and Utilities

Installing Macintosh Printer Drivers

1. Insert the CD into your CD-ROM drive.

2. Double-click the Tally T8006/T8306 CD-ROM.

3. Double click the folder of the language you want to use.

4. In the driver folder for your printer model, double-click Installer.

5. The Installer will present a license agreement. Click Agree to con- tinue.

6. In the Easy install tab of the Installer, click the Install button.

7. When the computer prompts you, click Restart.

8. After the computer restarts, go to the Chooser.

9. Click the Tally T8006/T8306 printer icon. The Connected To: win- dow will display the name of your printer.

Note:

If the Connected To: window does not show your printer, verify the printer is connected to the network and the printer is configured properly. For further help, see “Macintosh Chooser Problems” on page 106.

10. Close the Chooser.

Uninstalling MacIntosh Printer Drivers

1. Insert the CD into your CD-ROM drive.

2. Double click the Tally T8006/T8306 CD-ROM.

3. Double click the folder of the language you want to use.

4. In the driver folder for your printer model, double-click Installer.

5. The Installer will present a license agreement. Click Agree to continue.

6. Select the Custom Remove tab.

7. Select the “All the software which QuickDraw uses.” tab.

8. Click the Remove button.

9. When the computer prompts you, click Restart.

Note:

operation, see the Macintosh driver help files.

For specific information about Macintosh driver features and

Page 42

Page 43

Operating Your Printer

Turning the Printer On

1. Press the main power switch. The printer will perform a series of diagnostic tests and then begin the warm-up cycle. This process may take up to 4 minutes.

2. Once the printer has completed the warm-up cycle, make sure the printer display reads “Ready.”

Chapter 4

Note:

the display for an error message, and take the appropriate action.

If the MESSAGE lamp is lit, a printer error has occurred. Check

Turning the Printer Off

1. Ensure that the printer is not printing a job or warming up.

2. Press the power switch.

Note:

off the printer before turning it on again.

When restarting the printer, wait at least five seconds after turning

Selecting Media

Loading your printer with the correct media is important in keeping your printer running well. Because some types of paper may shorten the life span of the printer components or quickly exhaust toner supplies, you should use paper of the correct type, weight and size. Following the guidelines for filling the paper trays listed below will maximize the performance of your printer and the quality of your print jobs.

When loading transparencies, labels or envelopes, you must use Tray 1.

Page 44

Tally T8006/T8306 Color Laser Printers User Guide

Tray 1

Media Type Media Specifications Capacity Media Size

Plain Paper

Thick Stock

Label Paper

Transparency

Laser Printer Stock Paper weight: 16 - 24

lb. bond (60 to 90 g/

250 sheets

T8006

A4, B5 JIS, B5 ISO, letter, legal, executive, and custom sizes to

8.5” x 11.7”.

T8306

In addition to the sizes above, this model handles A3, B4, WB (13” x 19”), tabloid, and custom sizes to 13” x 19”.

Laser Printer Stock

80 sheets

Paper weight: 90 lb. Index (90 to 160 g/

Laser Printer Stock 80 sheets

Laser Printer Stock 50 sheets A4 and letter

Envelope

Trays 2 and 3

Media Type Media Specifications Capacity Media Size

Plain Paper

Note:

printing quality. When determining the paper to use, consult the table above for capacities.

Some types of paper may result in frequent paper jams or poor

Laser Printer Stock Paper weight: 16 - 24

lb. bond (60 - 90 g/ m2)

15 Commercial #10,

International DL

About 500 sheets

A4, A3, B4, B5, letter, ledger, and legal

Page 45

Loading Media

When loading paper or transparencies into your printer, do not load too much and make sure that the media is all the same size. Loading beyond the specified capacity will cause paper jams.

Chapter 4 Operating Your Printer

1. With both hands, gently lift and pull the paper tray out of the printer.

2. Remove the tray cover (T8306 only).

PAPER

LABEL OHP FILM

3. Using the green grips, adjust the lateral and end paper retainers according to the paper size.

ENVELOPE

4. Place the paper in the paper tray with the printing surface facing up. Make sure that the paper does not exceed the limit marked on the inside of the green grips.

T8006

5. Set the tray cover on the tray (T8306 only).

T8306

Page 46

Tally T8006/T8306 Color Laser Printers User Guide

6. Put the paper tray into the printer.

7. Confirm that the display shows the correct paper size. If --appears on the display as the paper size, reinstall the paper, making sure the paper fits securely in the tray.

Installing The Envelope Feeder (T8306 Only)

Note:

The T8006 printer does not need an envelope feeder. The T8006

paper tray can be adjusted to handle envelopes.

The envelope feeder will only work in Tray 1.

1. Adjust the lateral and end retainers in the paper tray to the full open position.

2. Hook the envelope feeder on the tray base.

3. Adjust the lateral and end retainers to secure the envelope feeder.

Page 47

Control Panel

The control panel is made up of the display, four indicator lamps, and seven control keys that allow you to control and monitor printer operations.

Display

The display provides messages indicating the state of the printer.

The example display below shows the printer printing a paper loaded into Tray 1.

Chapter 4 Operating Your Printer

Paper tray selected

Size of paper contained in the selected paper tray

Tray1: LTR.

Processing

Indicators

MESSAGE lamp (orange):

error message is on the display.

READY lamp (green):

ready to print. During warm-up, this lamp blinks.

DATA lamp (green):

Blinks while the printer is

receiving an incoming print job.

ONLINE lamp (green):

is ready to receive print jobs.

Lights when an

Is lit when the printer is

Is lit when the printer

Page 48

Tally T8006/T8306 Color Laser Printers User Guide

Control Keys

The T8006/T8306 control panel has seven control keys that allow you to control the printer functions.

FORMFEED:

Forces a job to print.

FORMFEED

Use FORMFEED to force the printer to print to the currently loaded media.

Note:

specified on the display will cause the printer to print the job incorrectly and reduce overall print quality of the printer.

CLEAR:

ONLINE:

Clears print data.

Places the printer in online or offline

status.



MENU/ENTER/

Opens the menu and enters

 

changes.



TRAY /

Changes the paper feed source tray

for printing.



MEDIA /

Changes the media type for print-

ing.



Navigates to the next higher menu level.

Using FORMFEED to print on paper smaller than the size

1. Confirm that the printer has print data to print by checking that the data lamp is blinking.

2. Press FORMFEED.

The following example shows the messages that will display when you use FORMFEED to print on letter paper instead of transparencies.

Tray1: LTR.

Tray1: LTR.Tray1: LTR.

Tray1 Load Trans

Tray1 Load TransTray1 Load Trans

Tray1: LTR.

Tray1: LTR.Tray1: LTR.

Processing

ProcessingProcessing

The display indicates that Tray 1 requires transparencies to be loaded.

By pressing FORMFEED printing begins; the display shows normal printing.

Page 49

CLEAR

Use CLEAR to clear the printer memory once a job has been started.

1. Press ONLINE to stop printing.

2. Cancel the print job on the sending computer.

3. Hold down CLEAR for at least two seconds.

When the print data is erased, the DATA lamp will shut off, and the printer will automatically return to online mode.

If the MESSAGE lamp is lit, and the printer has not returned to online mode, check the message on the display, and take the appropriate action.

ONLINE

Use ONLINE to switch the printer state from the online printing mode to the offline printer configuration mode.

TRAY

Use TRAY to change the paper feed source tray.

1. When the display prompts to load a new paper size or type, press

Chapter 4 Operating Your Printer

TRAY to select the correct tray. The new tray is indicated on the top row of the display.

2. Press ONLINE to begin printing from the new source tray.

The following example shows the messages that will be displayed when changing the source tray. In this example, the source tray is changed from Tray 1, containing letter paper, to Tray 2, containing the required tabloid paper needed for the current job (T8306 only; the T8006 operates in a similar manner when changing from letter to legal size paper.)

Tray1: LTR.

Tray1: LTR.Tray1: LTR. Tray1 Load Tabloid

Tray1 Load Tabloid

Tray1 Load TabloidTray1 Load Tabloid

The display indicates that Tray 1 contains A4 paper and needs A3 paper to print the current job.

Tray2: Tabloid

Tray2: TabloidTray2: Tabloid Tray1 Load Tabloid

Tray1 Load Tabloid

Tray1 Load TabloidTray1 Load Tabloid

Tray2: Tabloid

Tray2: TabloidTray2: Tabloid Ready 2534KB

Ready 2534KB

Ready 2534KBReady 2534KB

By pressing TRAY, Tray 2 is selected.

Once Tray 2 is displayed, pressing ONLINE starts the job.

MEDIA

Use MEDIA to change the media to be printed on when the media specified on the display is not available.

Page 50

Tally T8006/T8306 Color Laser Printers User Guide

The following example shows the messages that will be displayed when changing the media. In this example, the media is changed from transparencies to plain paper.

Tray1: LTR.

Tray1: LTR.Tray1: LTR.

Tray1 Load Trans

Tray1 Load TransTray1 Load Trans

Tray1: LTR.

Tray1: LTR.Tray1: LTR.

Tray1: Load Plain

Tray1: Load PlainTray1: Load Plain

Tray1: LTR.

Tray1: LTR.Tray1: LTR.

Processing

ProcessingProcessing

More information about Control Panel menu functions and display messages is contained in the appendixes. See “Appendix C Control Panel Menu Functions” on page 119, and “Appendix D Control Panel Messages” on page 141.

The display indicates that the currently selected source tray (Tray 1) contains letter-size paper, and transparencies need to be loaded to print the current job.

By pressing the MEDIA key, the media already contained in Tray 1 (plain paper) is selected.

Press ONLINE.

Page 51

Chapter 5

Changing Print Defaults

A printer driver is software your computer uses to translate your documents into a format the printer can understand. By configuring the printer driver settings, you can change how your computer sends documents to the printer.

There are two ways that you can configure the printer driver settings; you can set default properties for all documents sent from your computer, or you can set a document’s properties in the application you are currently printing from. Whether you are setting the default properties, or customizing the settings for a particular document, the Tally driver interface is exactly the same.

To set the print properties for a particular document, use the Print dialog of the application you are printing from. The Print dialog is normally located in the File menu of the application you are currently using. From the File menu, select Print to open the Print Setup window. In the Print Setup window, click on the Properties button.

To configure the driver settings permanently, use the procedures on the following pages to open up the default printer settings dialog.

Page 52

Tally T8006/T8306 Color Laser Printer User Guide

Changing Default Print Driver Properties

Windows 95/98

1. From the Windows taskbar, click the Start button.

2. Go to Settings.

3. Click on Printers to open the Printers folder.

4. In the Printers folder, right click the Tally T8006/T8306 Printer icon.

5. Click on Properties.

6. Click on the Job tab.

Page 53

Windows NT 4.0

1. From the Windows taskbar, click the Start button.

2. Go to Settings.

3. Click on Printers to open the Printers folder.

4. In the Printers folder, right click the Tally T8006/T8306 Printer icon.

5. Click on Document Defaults.

Chapter 5 Changing Print Defaults

Page 54

Tally T8006/T8306 Color Laser Printer User Guide

Windows 2000

1. From the Windows taskbar, click the Start button.

2. Go to Settings.

3. Click on Printers to open the Printers folder.

4. In the Printers folder, right click the Tally T8006/T8306 Printer icon.

5. Click on Properties to open the Tally T8006/T8306 Properties dialog.

6. From the General tab, select Printing Preferences.

Page 55

Selecting Job Settings

The Tally Print Driver Job tab allows you to select optional paper sources and media types. Here you can begin to change settings to make the page look the way you want it to look. In addition, you can select several options such as the number of copies you want to print. Following is a summary of the settings.

To finalize your custom print job after you select the settings, click OK.

Item Description

Paper Size

Chapter 5 Changing Print Defaults

Use Paper Size to select a desired size from the list box. You can select predefined paper sizes or your own custom size. Use the Custom Size window to set width, length, and units of measurement. Paper Set Direction shows the direction the paper is loaded in the current paper tray.

Paper Source

Media Type

Copies

Orientation

Display for Paper Changing

Layout

Paper Source allows you to select the current paper tray.

Use Media Type to select the type of media you want to print on.

Use Copies to select the number of copies to print.

Orientation allows you to choose to print in portrait or landscape mode. The number below the Orientation icon indicates the reduced print ratio — determined according to the paper size, print size and layout.

If none of the paper trays contain the paper required for the current print job, the printer will display the paper required and a four-character user-identification message. Use the Display for Paper Changing selection to customize the message that will be displayed when the printer requires the paper to be changed.

Use Layout to select how many pages will be printed on the same sheet of paper. You can select one, two or four.

Page 56

Tally T8006/T8306 Color Laser Printer User Guide

Item Description

Duplex Printing

Use Duplex Printing to print on both sides of the currently selected media. To use the Duplex Printing mode, select the Duplex Printing check box. Duplex Printing is not available for Commercial#10, International DL, or custom paper sizes. Duplex Printing on A3, Ledger or A3 wide (13” x 19”) sizes require an additional memory module to be installed.

Set Print Details

Print Mode

Setting Information

Within Set Print Details, there are three major selection choices. Use Binding Position to select which edge the binding will be set to on the paper, and how large the margin will be.

Use Print Order to specify the page order when you select one page, two pages, or four pages in the Layout setting.

Use Print Page Border to select whether a border should be printed around the print area.

Use Print Mode to select whether print speed or print quality has a higher priority. Standard mode is the optimal median between speed and quality printing.

This list provides a visual summary of the current print settings.

Page 57

Chapter 5 Changing Print Defaults

Page 58

Tally T8006/T8306 Color Laser Printer User Guide

Setting Colors

The Color tab allows you to make customized color and mode choices for documents, photographs, and graphics. The default setting is document, which provides the best settings for printing text or mixed text and graphics. For sharper photographs, choose photographs; for sharper graphics, or to match a specific color, choose graphics. It also allows you to choose to print the color black either from a combination of colors or from a black color cartridge. You can customize settings further, with Color Adjustment and Density Adjustment. Each time you make a custom Color Mode setting scheme, you can name it, save it, and use it again.

After you choose your settings on the Color tab, click OK.

Item Description

Color Mode Settings

Black Generation Setting

Custom Setting

Use Color Mode settings to configure how images will be printed according to the type of image to be printed.

Use Black Generation to create black color using black toner instead of a combination of toner colors. Selecting Black Generation can improve printing results of a densely-colored image. When printing black over a large area, black created through a combination of colors may not fully adhere to the media and peel away.

To make custom color settings, the Custom Setting button in the Color Mode Settings must be selected. Custom Setting features allow you to make several sets of color and density settings, and save (register) them with a specific 10-character name. A custom setting can be chosen from the drop-down list.

Page 59

Adjusting Colors

Use the Color Adjustment button to adjust the hue, color, and density of the printer output. Color Adjustment will only work when Custom Setting is selected under Color Mode settings.

Following is a summary of the available adjustments to customize the color output of your printer. Each has 21 levels of gradation, from -10 to

10.

Item Description

Sample

Chapter 5 Changing Print Defaults

Use the Sample drop-down list to select the image to be shown in the sample window when adjusting the colors.

Base Color

Brightness

Saturation

Contrast

Color Balance

Use the Base Color drop-down list to select a color mode based on the content you are printing.

When you move the scroll box to the right, the colors lighten. The colors darken when you move the scroll box to the left. Or, you can use the arrow buttons for incremental adjustments.

When you move the scroll box to the right, the colors become sharper, and to the left, the colors become paler.

Moving the scroll box to the right provides a high contrast, and to the left provides a low contrast.

Use Color Balance to adjust the hue by changing values between cyan and red, magenta and green, and yellow and blue.

Page 60

Tally T8006/T8306 Color Laser Printer User Guide

Adjusting Density

From the Density Adjustment tab, select the Adjust Density check box to adjust the print density for each color. Use the scroll box for each color—Black, Cyan, Magenta, and Yellow—to decrease or increase 21 density levels from light, -10, to dark, +10.

Item Description

Black

Cyan

Magenta

Yel lo w

Restore Default

Move the scroll box to the left to make the black print density lighter or to the right to make it darker.

Move the scroll box to the left to make the cyan print density lighter or to the right to make it darker.

Move the scroll box to the left to make the magenta print density lighter or to the right to make it darker.

Move the scroll box to the left to make the yellow print density lighter or to the right to make it darker.

Click this button to change density adjustments back to the original default settings.

Page 61

Registering Custom Edits

Use the Edit option to register custom color settings and save them for later use. The registration name can include up to ten characters, and you can register up to ten configurations. To use the custom color settings, you must select Custom Setting from the Color Mode section of the Color tab.

Item Description

List

Displays names of your custom settings.

Chapter 5 Changing Print Defaults

Name

Save

Modify

Delete

Allows you to type the name of your custom setting.

Click this button to save a new setting name.

After you have adjusted the current custom color settings, select a name in the list to change, and click Modify to save the changes to this file.

Select a setting name in the list and click Delete to permanently remove it from the list.

Click Close to end the Edit option.

Page 62

Tally T8006/T8306 Color Laser Printer User Guide

Setting Options

The Options tab allows you to further customize your print job. For example, you can choose to make the printer feed a sheet of paper between each print job, or display some information while a job is printing. Also, Printing Options and Other Features allow you to set character smoothing or special black characters, among other available settings.

Item Description

Output Tab Page

Select Output Tab Page to produce a tab page for each print job. A tab page is a sheet of paper that separates one print job from another.

Before Print Job

After Print Job

Before and After Print Job

Display User ID when printing

Smoothing

Save Toner

Output Blank Paper

Print Slowly

Select this box to direct the printer to put a tab page before your job prints.

Select this box to put a tab page after your job prints.

Select this box to put a tab page before and after your print job.

Select Display User ID when printing, to adjust the user information that displays during printing. To change the user information, select this box and then enter a custom message to be displayed.

Select Smoothing to make printed characters smooth and less jagged.

Save Toner uses less toner on the printed page and therefore lightens the printed page for draft printing.

Select Output Blank Paper to prevent the printer from producing blank pages that are not created by a page break.

Select Print Slowly to help reduce inconsistencies in density.

EMF Spooling

Print Special Black Character

EMF Spooling enables Expanded Meta File spooling. This setting accelerates print speed. If incorrect printing results, however, clear the EMF Spooling check box.

Check the Print Special Black Character box if some part, or all of some characters, are missing or needless characters are printed when using black text.

Page 63

Item Description

Increase Compression Ratio

Select Increase Compression Ratio to increase the compression of print data sent to the printer. Clear this box to reduce the chances of printing errors.

Chapter 5 Changing Print Defaults

Watermark

The Watermark button provides a separate properties sheet to make customized choices for watermarks on a printed page.

Page 64

Tally T8006/T8306 Color Laser Printer User Guide

Customizing Watermarks

Custom color watermarks can identify special types of documents, such as “Confidential.” The Watermark settings allow you to position your watermarks on your printed page, and to specify, register, or delete watermarks.

Item Description

Print Watermark

Watermark

Font

Style

Font Size

Color

Position

Density

Angle

Select this check box to print watermarks.

Select a predefined watermark from this list, or type in up to sixteen characters to specify your custom watermark.

Select a font for the watermark.

Select a character style.

Select a font point size between 8 and 72.

Select a color for the watermark.

Specify where you want to put the watermark on the page.

Move the slider left or right to select the density of a watermark from within the range of 0 to 15.

Move the slider to select the watermark print angle. Any angle within the range of 0 to 355 degrees can be set in steps of five degrees.

Page 65

Restoring All Items to Default

The About tab provides information about the Tally Color Printer Driver, and also gives you an opportunity to replace all of your customized settings with the original Tally default print settings.

To close the About tab, click OK.

Item Description

Restore All Items to Default

Click the Restore All Items to Default button to reset all of your customized print settings to the initial default settings of the printer.

Chapter 5 Changing Print Defaults

Page 66

Page 67

Chapter 6

Maintaining Your Printer

When supplies such as toner cartridges and fuser oil need replacement, and when printer parts need replacement after high-volume printing (approximately 100,000 to 600,000 pages), the control panel displays messages.

See “Chapter 4 Operating Your Printer” on page 37, and “Appendix D Control Panel Messages” on page 141for more information about control panel messages.

Printer parts must be replaced by a qualified Tally Service Technician. For more information on part replacement, see “Appendix B Periodic Replacement Parts” on page 117.

For more information about supply orders, see the Tally T8006/T8306 Color Laser Printers Quick Start Guide on the Tally CD-ROM.

Perform the following steps to replenish the supplies in your printer.

Warning!

cooled for a minimum of 30 minutes before supplies near the fusing unit.

Make sure the power switch is off, and that the printer has

Replacing Toner Cartridges

Replace toner cartridges at least once every 12 months, or more often depending on usage. At a 5% coverage rate and continuous printing of letter-size paper, T8006 toner cartridges can print about 12,000 pages for black (K), and 7,200 pages for color (C, M and Y). The T8306 toner cartridges can print about 14,000 pages for black (K), and 8,500 pages for color (C, M and Y).

Note:

volume for first-time installation only. Their early replacement does not reflect the replacement cycle stated above.

Warning!

least 15 minutes, and contact a physician.

The original toner cartridges from the Starter Kit are filled at half

If you get toner in your eyes, immediately flush your eyes with water for at

Page 68

Tally T8006/T8306 Color Laser Printers User Guide

1. Unlock the lever.

2. Open the front cover.

Caution!

Do not install the toner cartridges upside-down or in reverse order. To avoid toner spillage, keep the toner cartridge horizontal with the labels facing upward.

3. Pull the empty toner cartridge out of the printer.

4. Discard the empty toner cartridge. See “Disposing of Supplies” on page 71.

5. Rock the new toner cartridge three or four times in the direction of the arrows on the cartridge to level out the toner.

6. Peel the tape off the cartridge and remove the protective cover from the cartridge.

Note:

Save the protective cover for future use when shipping the printer and

toner cartridges separately.

Page 69

Chapter 6 Maintaining Your Printer

7. Carefully insert the toner cartridge along the guide and into the appropriate toner cartridge slot in the printer.

8. Close the front cover by carefully pushing it inward until it locks.

Replacing the Oil Bottle

Replace the oil bottle after 12,000 pages have printed (at a 5% toner coverage rate on letter-size paper). The oil must be replaced sooner than the 12,000-page specification if the fusing unit has been replaced, because the new fusing unit requires extra oil for the initial coating of its rollers.

Warning!

a minimum of 30 minutes before replacing supplies near the fusing unit.

Make sure the power switch is off and the printer has cooled for

1. Pull and unlock the lever.

2. Open the top cover fully.

3. Turn the two green lock levers to unlock the oil bottle.

Page 70

Tally T8006/T8306 Color Laser Printers User Guide

4. Lift the used oil bottle out of the printer.

5. Discard the used oil bottle as indicated in “Disposing of Supplies” on page 71.

Note:

To avoid drips, hold a sheet of paper under the used oil bottle while you lift it

out of the printer.

6. Insert the new oil bottle.

7. Turn the two green lock levers to lock the new oil bottle in place.

8. Close the top cover carefully until it locks.

Replacing the Waste Toner Pack

Replace the waste toner pack in the T8006 after 12,000 pages (3000 color pages) of printing. Replace the waste toner pack in the T8306 after 18,000 pages (4,500 color pages) of printing (at a 5% toner coverage rate on letter-size paper).

Warning!

water for a minimum of 15 minutes and contact a physician.

If you get toner in your eyes, immediately flush your eyes with

Page 71

Chapter 6 Maintaining Your Printer

1. Unlock the lever.

2. Open the front cover.

3. Remove the used waste toner pack.

4. Peel the provided seal off of the side of the used waste toner pack, and seal the used toner pack.

5. Remove the new waste toner pack from its polyethylene bag.

6. Insert the used waste toner pack in the bag and seal it shut.

7. Discard the used waste toner pack as indicated in “Disposing of Supplies” on page 71.

Page 72

Tally T8006/T8306 Color Laser Printers User Guide

8. Install the new waste toner pack.

9. Close the front cover by carefully pushing it inward until it locks.

Replacing the Fuser Cleaning Roller

Replace the fuser cleaning roller at least once every 12 months, or when the control panel display indicates that replacement is necessary. The life of the fuser cleaning roller in the T8006 is about 12,000 pages, and in the T8306 is about 20,000 pages (at a 5% toner coverage rate on letter-size paper).

Warning!

cooled for a minimum of 30 minutes before replacing supplies near the fusing unit.

Caution!

cleaning roller.

1. Turn off the power switch.

Make sure the power switch is off, and that the printer has

Always replace the ozone filter when you replace the fuser

Page 73

Chapter 6 Maintaining Your Printer

2. Pull and unlock the lever.

3. Open the top cover fully.

4. Turn the two green lock levers to unlock the used fuser cleaning roller.

5. Lift the fuser cleaning roller out of the printer.

6. Discard the used fuser cleaning roller as indicated in “Disposing of Supplies” on page 71.

7. Insert the new fuser cleaning roller.

8. Turn the two green lock levers to lock the new fuser cleaning roller in place.

9. Close the top cover carefully until it locks.

Note:

Set the fuser cleaning roller counter to zero after initial installation and replacement. For more information, see “Setting the Fuser Cleaning Roller Counter to Zero” on page 16.

Page 74

Tally T8006/T8306 Color Laser Printers User Guide

Replacing the Ozone Filter

Replace the ozone filter whenever you replace the fuser cleaning roller, at least once every 12 months.

1. Turn the power switch off.

2. At the rear of the printer, slide the ozone-filter case out.

3. Remove the ozone filter from the case.

4. Discard the used ozone filter as indicated in “Disposing of Supplies” on page 71.

5. Insert the new ozone filter into the case.

6. Slide the case back into the printer.

Page 75

Chapter 6 Maintaining Your Printer

Replacing the Optical Photoconductor (OPC) Belt Cartridge

Replace the OPC belt cartridge at least once every 12 months, or when the control panel display indicates that replacement is necessary. The life of the OPC belt cartridge for the T8006 is about 60,000 images (15,000 color pages), and for the T8306 is about 120,000 images (30,000 colorprinted pages) at a 5% toner coverage rate on letter-size paper.

1. Turn the power switch off.

2. Unlock the lever to open the front cover. This releases the pressure on the toner cartridges.

3. Unlock the lever to open the top cover fully.

4. Pull the green OPC belt cartridge lock levers up until they unlock.

Page 76

Tally T8006/T8306 Color Laser Printers User Guide

5. Pull the used OPC belt cartridge upward and out of the printer carefully to avoid spilling toner.

6. Discard the used OPC belt cartridge as indicated in “Disposing of Supplies” on page 71.

Caution!

Do not touch or wipe off any powder that is on the OPC belt, nor expose

the OPC belt to light.

7. Remove the two shipping pins from the new OPC belt cartridge.

8. Remove the protective sheet that covers the photosensitive belt.

9. Slide the new OPC belt cartridge downward into both green lock-lever guides and into the printer carefully.

10. Push the green OPC belt cartridge lock levers down until they lock.

Page 77

Chapter 6 Maintaining Your Printer

11. Close the top and front covers carefully until they both lock.

Note:

Set the OPC belt counter to zero after initial installation and replacement. For

more information, see “Setting the OPC Belt Counter to Zero” on page 19.

Disposing of Supplies

Discard supplies as general nonflammable articles (waste plastics and metal). Follow a method for disposing of and sorting such articles if the method is specified by municipal bylaws. If you rely on a commercial processor to dispose of your consumables as industrial waste, refer to the following types and characteristics of the supplies:

Component Type Shape Heavy metals

Toner Cartridges

OPC Belt Cartridge

Waste plastics

Cinders

Scrap metal

Waste plastics

Cinders

Scrap metal

Solid None

Fuser Cleaning

Waste plastics Solid None

Roller

Ozone Filter

Oil Bottle

Waste Toner Pack

Warning!

Never burn toner cartridges or waste toner packs.

Waste plastics Solid None

Waste plastics

Scrap metal

Waste plastics

Cinders

Solid None

For more information on Tally replacement printer parts, see “Appendix B Periodic Replacement Parts” on page 117.

Page 78

Page 79

Chapter 7

Cleaning the Printer

Cleaning the Registration Roller

Use dry soft cotton cloth to clean the registration roller following the procedure below.

Caution!

Do not use alcohol or water to clean the registration roller.

1. Turn off and unplug the printer.

2. Open the back cover of the printer.

3. Using a dry cotton cloth, gently wipe the registration roller.

4. Close the rear cover and plug in the printer power cord.

Page 80

Tally T8006/T8306 Color Laser Printers User Guide

Cleaning the Transfer Roller

Use dry soft cotton cloth to clean the transfer roller following the procedure below.

1. Turn off and unplug the printer.

2. Open the back cover of the printer.

3. Using a dry cotton cloth, gently rotate and wipe off any paper or toner particles remaining on the surface of the transfer roller.

4. Close the rear cover and plug in the printer power cord.

Page 81

Cleaning the Paper Discharger

Use dry soft cotton cloth and a cotton swab to clean the transfer roller following the procedure below.

1. Turn off and unplug the printer.

2. Open the back cover of the printer.

3. Remove the paper discharger by slid-

Chapter 7 Cleaning the Printer

ing it to the left, then lifting it out of its cradle on the right side.

4. Use a dry cotton cloth to remove any dust or toner on the exterior of the discharger.

5. Use a dry cotton swab to clean the paper discharger wire and the interior of the discharger.

6. Reinstall the paper discharger by inserting the left end of the paper discharger into the cradle, and then lowering the right side until it is fully seated.

7. Close the rear cover and plug in the printer power cord.

Page 82

Tally T8006/T8306 Color Laser Printers User Guide

Cleaning the OPC Belt Cartridge

Clean the OPC belt cartridge following the procedure below.

Caution!

Do not expose the OPC belt cartridge to light, and do not touch

the surface of the OPC belt.

1. Turn off and unplug the printer.

2. Open the front cover.

3. Open the top cover.

4. Push the green OPC belt cartridge lock levers up until they unlock.

Page 83

Chapter 7 Cleaning the Printer

5. Pull the OPC belt cartridge out of the printer.

6. Put the OPC belt cartridge on a sheet of clean paper with the photosensitive belt facing upward.

7. Put several sheets of clean paper over the OPC belt cartridge to protect the photosensitive belt from light.

8. Gently slide the wire cleaner lever along the charging wire several times.

9. Reposition the wire cleaner lever to its original flush left position when the charging wire is clean.

10. Slide the OPC belt cartridge downward into both green locklever guides and into the printer carefully.

Page 84

Tally T8006/T8306 Color Laser Printers User Guide

11. Push the green OPC belt cartridge lock levers down until they lock.

12. Close the top and front covers and plug in the printer power cord.

Page 85

Cleaning the Optical Unit Glass

Use dry soft cotton cloth to clean the optical unit glass following the procedure below.

Chapter 7 Cleaning the Printer

Caution!

Do not expose the OPC belt cartridge to light, and do not touch

the surface of the OPC belt.

1. Turn off and unplug the printer.

2. Open the front cover.

3. Open the top cover.

4. Remove the toner cartridges.

5. Remove the OPC belt cartridge.

6. Put the OPC belt cartridge on a sheet of clean paper with the photosensitive belt facing upward.

Page 86

Tally T8006/T8306 Color Laser Printers User Guide

7. Put several sheets of clean paper over the OPC belt cartridge to protect the photosensitive belt from light.

8. In the T8006, slide the glass cover out of the optical unit. On the T8306, rotate the glass cover toward the back of the optical unit.

9. Using a dry cotton cloth, clean the surface of the glass.

10. On the T8006, slide the glass cover into the optical unit. On the T8306, rotate the glass cover toward the front of the optical unit.

11. Reinstall the OPC belt cartridge and toner cartridges.

12. Close top and front covers and plug in the printer power cord.

Cleaning the Inside of the Printer

Use a toner vacuum and a soft cotton cloth to clean the inside of the printer following the procedure below.

Caution!

Before cleaning the inside of the printer, put a sheet of paper around the transfer drum so the toner vacuum does not touch the drum. Use only a dry cotton cloth to wipe the inside of the printer. Do not expose the OPC belt cartridge to light, and do not touch the surface of the OPC belt.

1. Open the top and front covers.

2. Remove the toner cartridges.

Page 87

Chapter 7 Cleaning the Printer

3. Remove the OPC belt cartridge.

4. Put the OPC belt cartridge on a sheet of clean paper with the photosensitive belt facing upward.

5. Put several sheets of clean paper over the OPC belt cartridge to protect the photosensitive belt from light.

6. Use a toner vacuum to clean any dust or toner that is loose in the bottom of the printer.

7. Use a dry cloth to gently wipe the inside of the printer.

8. Reinstall the OPC belt cartridge.

9. Remove the drum cleaner roller cover.

10. Pull the drum cleaner roller up and out of the printer.

Page 88

Tally T8006/T8306 Color Laser Printers User Guide

11. Carefully vacuum the drum cleaner roller.

12. Carefully vacuum around the waste toner removal auger directly below the drum cleaning roller.

13. Reinstall the drum cleaning roller.

14. Reinstall the toner cartridges.

15. Close the top cover.

16. Carefully remove the waste toner pack.

17. Vacuum the end of the waste toner tube and the waste toner pack holder.

18. Reinstall the waste toner pack.

19. Close the front cover and plug in the printer power cord.

Page 89

Chapter 8

Options and Accessories

Options and accessories for your printer include memory modules, a hard disk, a duplex printing unit, and a paper feeder. Memory modules increase the speed of your printer computing and printing, and a hard disk caches data for high speed printing of multiple copies in page order. The duplex printing unit provides the ability to print images on both sides of paper or media. To support large print jobs, you can add paper feeder trays to increase the paper capacity up to 750 sheets in the T8006 and 1,250 sheets in the T8306.

For information on how to order options and accessories for the Tally T8006/T8306 printers, see the Color Laser Printers Quick Start Guide on the CD-ROM.

Memory Module

The memory module can increase printing speed when printing multiple-page documents. You can install up to two additional memory modules.

Installing Additional Memory Modules

Caution!

removing the memory module from its protective bag, touch a grounded metal object to discharge any static electricity that could be stored in your body.

The memory module is sensitive to static discharge. Before

Page 90

Tally T8006/T8306 Color Laser Printers User Guide

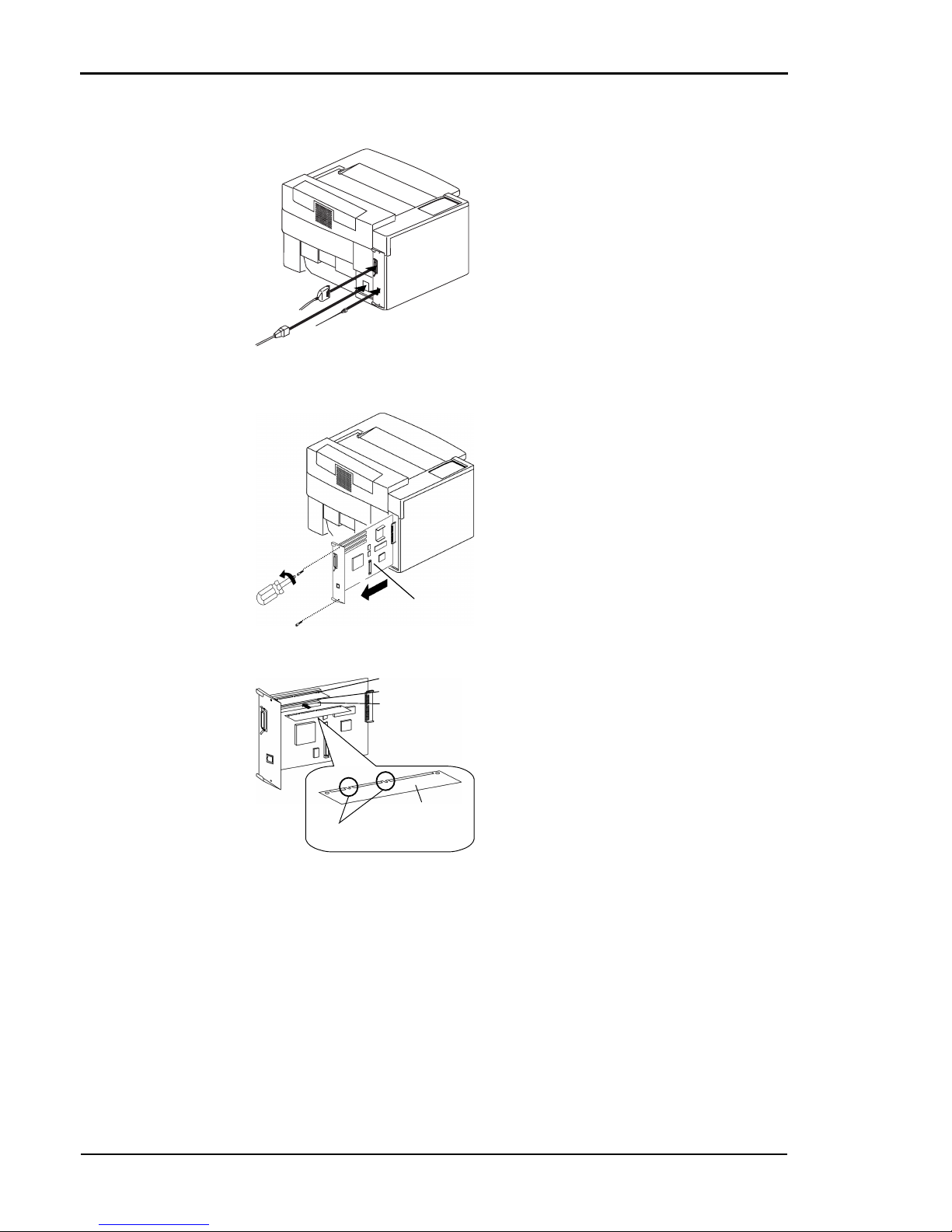

Installation procedureAfter you install additional memory:

1. Turn off the printer.

2. Remove the power cord, and the interface cables if they are connected.

3. Using a small Phillips-head screwdriver, remove the two screws holding the controller board, and slide the controller board out of the printer.

4. Place the controller board on a flat surface.

5. Holding the memory module by the edges, remove the memory module from its protective bag.

6. Hold the memory module so the metal edge faces toward the first available memory socket and the two notches on the metal edge are aligned correctly with the socket.

7. Carefully insert the memory module into the socket until it is fully seated and the retaining clips on both sides of the module secure it into place.

Page 91

Chapter 8 Options and Accessories

8. Slide the controller board back into the printer and reinstall the screws.

9. Connect the power cord and the interface cable to the printer.

PLEASE WAIT 007

PLEASE WAIT 007PLEASE WAIT 007 DRAM WRITE 128

DRAM WRITE 128

DRAM WRITE 128DRAM WRITE 128

10. Turn on the printer and ensure that during the self-test cycle, the display shows the new memory in the DRAM tests.

Note:

The amount of memory installed is shown on the bottom row of the display

immediately after start-up.

11. If the memory indicated is incorrect, reinstall the memory module.

Page 92

Tally T8006/T8306 Color Laser Printers User Guide

Duplex Printing Unit

The duplex printing unit will allow you to print images on both sides of the paper. To install this unit, you must install one or more expansion paper feeders.

Installing the Duplex Printing Unit

For details on how to install the optional Duplex Unit, see the operation manual supplied with the Duplex Unit.

Paper Feeder

Installing The Paper Feeder

For details on how to install the optional paper feeder, see the operation manual supplied with the paper feeder.

When you have installed the paper feeder, test the installation by printing the print test pattern.

The additional paper feeder can hold up to 500 sheets of paper. You can install one paper feeder in the T8006, and up to two additional paper feeders in the T8306.

Page 93

Adjusting the Paper Feeder

When printing from the paper feeder, if your documents are not centered on the paper, use the following procedure to adjust the margins of the documents.

Chapter 8 Options and Accessories

Paper feeding

A B

Printed image

direction

1. Set the paper feeder as the source tray and print a test pattern.

2. Measure the left margin and right margin in millimeters.

3. Subtract the left margin from the right margin and multiply the result by five.

4. Restart the printer while holding down the ENTER key on the control panel.

Utility Menu

Utility MenuUtility Menu Tray 2 Margin

Tray 2 Margin

Tray 2 MarginTray 2 Margin

5. In the Utility menu, adjust the Margin settings using the menu navigation keys.

Utility Menu

Utility MenuUtility Menu Tray 2 Margin

Tray 2 Margin

Tray 2 MarginTray 2 Margin

Select Margin 2

Select Margin 2Select Margin 2 0000

Select Margin 2

Select Margin 2Select Margin 2

-15

-15-15

Tray 2 Margin

Tray 2 MarginTray 2 Margin New:-15 Old: 0

New:-15 Old: 0

New:-15 Old: 0New:-15 Old: 0

6. Select the appropriate paper tray.

7. Press the ENTER key. The current settings appear at the bottom of the display.

8. Use the navigation keys to change the value to the number calculated in step 3.

9. Press the ENTER key to update the settings.

Page 94

Tally T8006/T8306 Color Laser Printers User Guide

Utility Menu

Utility MenuUtility Menu

Tray 2 Margin

Tray 2 MarginTray 2 Margin

10. Press the ENTER key again to confirm the settings.

11. Restart the printer.

12. Reprint the test pattern and check the margins.

Page 95

Troubleshooting

How to Solve Printing Problems

To correct a printer problem, use the troubleshooting tables in this chapter as follows:

1. Locate your current printer problem in the left “PROBLEM” column.

2. Match the problem to the possible causes in the “POSSIBLE CAUSE” column.

3. Match the correction procedure to the possible cause, and proceed with the corrective action to solve the printing problem.

Chapter 9

Possible causes are listed from top to bottom from the most to least likely.

Some corrections are summarized. If needed, these corrections are supported by reference to detailed procedures in other sections of this manual.

Caution!

or repair. If the problem is not found and corrected after following these troubleshooting steps, contact a Tally Service Technician.

Paper Jam Areas

Paper jams are indicated by messages on the control panel display. The messages give you the name of the jam area within the printer that needs clearing or attention.

Do not disassemble the printer for further troubleshooting and/

Page 96

Tally T8006/T8306 Color Laser Printers User Guide

Clearing Jam 1

The illustration below shows the Jam 1 area within the printer. Jams usually occur in this area because paper is jammed between the paper tray and the transfer drum.

If you are unable to clear the jam or if the jam continues to occur, follow the troubleshooting procedures at the end of the steps for clearing the Jam 1 area.

K Y M

Caution!

Do not force jammed paper out of the printer.

1. Remove the paper tray indicated on the control panel display.

2. Pull the jammed paper out of the printer slowly and evenly.

Page 97

Chapter 9 Troubleshooting

3. Open the back cover(s) of the paper feeder and/or the printer.

4. Pull the jammed paper slowly and evenly out of the printer or the paper feeder, whichever is applicable.

5. Make sure that no jammed or torn pieces of paper remain in the printer.

6. Close and carefully lock the back cover(s).

7. Insert the paper tray squarely and evenly back into the printer.

Page 98

Tally T8006/T8306 Color Laser Printers User Guide

8. If the T8306 printer model has a feeder tray and it is out of the printer, pull the paper-feed guide rails outward, and align the tip of the tray with the guide rails. Insert the paper tray squarely and evenly back into the paper feeder. For T8006 printers with a paper feeder, use the same steps as main paper tray.

Note:

Make sure that the four corners of the paper are aligned squarely and

sit firmly in the paper tray.

9. Close the back cover carefully until it locks.

Troubleshooting Jam 1

If jams occur often in the Jam 1 area, proceed to the following problemand-correction procedures.

Caution!

Do not disassemble the printer for further troubleshooting and/ or repair. If the problem is not found and corrected after following these troubleshooting steps, contact a Tally Service Technician.

Jam 1 Possible Cause Correction

Paper from the paper tray jams between the paper

Too many sheets of paper are in the paper tray.

Put the proper number of sheets of paper in the tray.

tray and the transfer drum.

The paper guides do not guide the paper properly.

Paper from a previous paper

Adjust the paper guides to the paper size.

Remove or release the paper. jam is caught inside of the printer.

The paper is damp from infrequent use of the printer.

The paper or material is the wrong thickness for proper printer operation.

Reload paper trays with fresh

paper from new packages.

Reload trays with paper or

material of the proper thick-

ness.

Page 99

Chapter 9 Troubleshooting

Clearing Jam 2

The illustration below shows the Jam 2 area within the printer. Jams usually occur in this area because the paper jams near the transfer drum.

If you are unable to clear the jam or if the jam continues to occur, follow the troubleshooting procedures at the end of the steps for clearing the Jam 2 area.

K Y M C

Caution!

Do not force jammed paper out of the printer.

1. Open the back cover.

Do not touch the transfer drum.

Page 100

Tally T8006/T8306 Color Laser Printers User Guide

2. Pull the jammed paper out of the printer slowly and evenly.

Warning!

The toner on the paper is not fixed.

3. Make sure that no jammed or torn pieces of paper remain in the printer.

4. Close the back cover carefully until it locks.

Troubleshooting Jam 2

If jams occur often in the Jam 2 area, proceed to the following problemand-correction procedures.

Caution!

Do not disassemble the printer for further troubleshooting and/ or repair. If the problem is not found and corrected after following these troubleshooting steps, contact a Tally Service Technician.
