Tally Dascom 1125 User Manual

User Guide 1125 Matrix Printer

Tally Dascom 1125

I

Important Safety Instructions (English)

Read the following instructions thoroughly before starting up your printer.

• Never carry out maintenance or repair work yourself. Always contact a qualified service technician.

• Keep this Operator’s Manual in a place which is easily accessible at all times.

• Place the printer on a solid and even base so that it cannot fall.

• Never place the printer in the vicinity of inflammable gas or explosive substances.

• Ensure the printer is connected to a socket with the correct mains voltage.

• Always disconnect the printer from the mains before opening the device to perform maintenance work or

remedy errors.

• Do not expose the printer to high temperatures, direct sunlight or dust.

• Keep all liquids away from the printer.

• Protect the printer from shock, impact and vibration.

• Make sure that the printer and computer are switched off before connecting the data cable.

• The print head will become very hot during printing; avoid contact with the print head after printing has

finished.

• Do not perform any operation or action in any way other than those provided in this manual. When in

doubt, contact your dealer or your customer support.

Tally Dascom 1125

II

Wichtige Sicherheitshinweise (German)

Lesen Sie bitte diese Sicherheitshinweise durch, bevor sie den Drucker in Betrieb nehmen.

· Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie

immer einen qualifizierten Servicetechniker.

· Bewahren Sie diese Dokumentation an einem jederzeit zugänglichen Ort auf.

· Den Drucker auf stabilem und ebenem Untergrund so aufstellen, dass er nicht zu Boden fallen kann.

· Stellen Sie den Drucker keinesfalls in der Nähe von leicht entzündlichen Gasen oder explosiven

Stoffen auf.

· Den Drucker nur an eine Steckdose mit der richtigen Spannung anschließen.

· Wenn Sie den Drucker vom Netz trennen wollen, den Drucker ausschalten und immer den

Netzstecker an der Steckdose ziehen.

· Den Drucker weder hohen Temperaturen noch direktem Sonnenlicht und Staub aussetzen.

· Keine Flüssigkeiten mit dem Drucker in Berührung bringen.

· Den Drucker keinen Erschütterungen, Stößen oder Vibrationen aussetzen.

· Sicherstellen, dass der Drucker und der Computer ausgeschaltet sind, bevor das Datenkabel

angeschlossen wird.

· Der Druckkopf wird während des Druckens heiß. Vor dem Berühren deshalb einige Zeit abkühlen

lassen.

· Weichen Sie bei der Bedienung des Druckers nicht von den Anweisungen in der Dokumentation ab.

Bei Unklarheiten wenden Sie sich bitte an Ihren Händler oder Ihren Kundendienst.

Tally Dascom 1125

III

Consignes importantes de sécurité (French)

Lire attentivement les instructions suivantes avant de mettre l’imprimante en service.

· Ne jamais effectuer soi-même les travaux d’entretien et de réparations. Contacter toujours un

dépanneur qualifié.

· Placer l’imprimante sur un support stable de façon à ce qu’elle ne puisse pas tomber.

· Ne jamais placer l’imprimante à proximité de sources de gaz aisément inflammables ou de

substances explosives.

· Ne connecter l’imprimante à une prise que lorsque la tension est correcte.

· Pour déconnecter l’imprimante de l’alimentation principale, mettre l’imprimante hors tension et

toujours débrancher le connecteur secteur de la prise murale.

· Ne pas exposer l’imprimante à des températures élevées, à la lumière directe du soleil ou à la

poussière.

· Ne pas mettre l’imprimante en contact avec des liquides.

· Ne pas exposer l’imprimante à des chocs, impacts ou vibrations.

· S’assurer que l’imprimante et l’ordinateur sont hors tension avant de connecter le câble de données.

· La tête d’impression est brûlante pendant l’impression. C’est pourquoi laissez-la refroidir quelques

instants avant d’y toucher.

· N'exécutez aucune opération ni action d'une autre manière que celle indiquée dans ce manuel. En

cas de doute, veuillez contacter votre distributeur ou service après-vente.

Tally Dascom 1125

IV

Indicazioni di sicurezza importanti (Italian)

Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni.

Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un tecnico di

assistenza qualificato.

· Conservare le presenti istruzioni per l’uso in un luogo sempre accessibile.

· Collocare la stampante su una superficie stabile, per evitare che cada a terra.

· Non collocare la stampante in prossimità di gas facilmente infiammabili o di sostanze esplosive.

· Collegare la stampante a una presa di corrente con tensione adeguata.

· Per scollegare la stampante dalla rete di alimentazione, spegnere la stampante e disinserire sempre il

connettore di rete dalla presa.

· Non esporre la stampante ad elevate temperature né alla luce solare diretta e alla polvere.

· Evitare il contatto della stampante con liquidi.

· Non esporre la stampante a colpi, scosse o vibrazioni.

· Verificare che la stampante e il computer siano spenti prima di collegare il cavo di trasmissione dati.

· Durante la stampa, la testina si surriscal-da notevolmente. Prima di toccarla, se necessario opportuno

quindi lasciarla raffreddare qualche istante.

· Non eseguire alcuna operazione o azione se non nella maniera descritta nel presente manuale. In

caso di dubbio, contattare il rivenditore o dalla società incaricata dell’assistenza.

Tally Dascom 1125

V

Instrucciones de seguridad importantes (Spanish)

Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio.

Nunca lleve a cabo trabajos de mantenimiento o reparación Ud. mismo, sino consulte a un técnico de servicio

calificado.

· Guarde las presentes instrucciones de servicio en un lugar de fácil acceso en cualquier momento.

· Ponga la impresora sobre un base estable de manera que no pueda caer al suelo.

· Nunca coloque la impresora en la vecindad de gases de fácil inflamabilidad o sunstancias explosivas.

· Asegure conectar la impresora sólo a un enchufe con un voltaje correcto.

· Cuando quiera desconectar la impresora de la red, apague la impresora y siempre tire la clavija de

alimentación del enchufe.

· No exponga la impresora a temperaturas altas, a la luz solar directa y al polvo.

· No ponga la impresora en contacto con fluidos.

· Nunca exponga la impresora a sacudidas, choques o vibraciones.

· Asegúrese de que la impresora y el ordenador estén apagdos antes de conectar el cable de datos.

· La cabeza de impresión se pone muy caliente durante la impresión. Por lo tanto, deje enfriarlo algún

tiempo antes de tocarla.

· No permita que se realice cualquier operación o acción de una forma diferente a lo que se señala en

el manual. En caso de duda, póngase en contacto con su comerciante o con su servicio post-venta.

Tally Dascom 1125

VI

Правилапотехникебезопасности.(Russian)

Прочитайте,пожалуйста, инструкциюпотехникебезопасностипередвключениемвработупринтера.

· Невыполняйтетехническиеработыиремонттехникисамостоятельно,носообщайтео
неисправностяхквалифицированнымсервиснымтехникам.

· Даннаяинструкциядолжнабытьвсегдадоступнакаждомупользователю.

· Установитепринтернаровномистабильномместетак,чтобыоннесмогупастьнапо

л.

· Нивкоемслучаенеставьтепринтервблизилегковоспламеняющихсягазовивзрывчатых
веществ.

· Включайтепринтерврозеткутолькоссоответствующим напряжением.

· ЕслиВыхотитеотключитьпринтеротнапряжения,сначалавыключитепринтерсамизатем

выньтештекеризрозетки.

· Берегитепринтеротнагревания, отпопаданиянанег

опрямыхсолнечныхлучейипыли.

· Недопускайтепопаданияжидкостинапринтер.

· Нельзяподвергатьпринтертряске,ударамивибрации.

· Убедитесь,чтопринтерикомпьютервыключены,толькопослеэтогосоединитепринтерс

компьютером.

· Печатающаяголовканагреваетсявовремяработыпринтера.Поэтомуподождитекакоето
время,преждечемдо

тронутьсядонее.

· Пользуйтесьпринтеромтак,какэтонаписановдокументации.ЕслиуВасвозникаютнеясности,
обращайтесьсвопросамикВашимпродавцамиливсервисныйцентр.

Tally Dascom 1125

VII

Instruções Importantes sobre Segurança (Portuguese)

Leia as instruções de segurança antes de usar a impressora.

· Consulte sempre um técnico qualificado para executar uma reparação .

· Coloque a impressora sobre uma base sólida e nivelada, para que ela não sofra quedas.

· Jamais instale a impressora nas proximidades de lugares onde haja gás inflamável ou substâncias

explosivas.

· Assegure-se de conectar a impressora à tomada elétrica com a voltagem apro-priada.

· Quando desligar a impressora da rede, desligue sempre a impressora e retire o cabo da tomada.

· Não exponha a impressora a temperaturas altas ou luz solar direta.

· Não aproxime substâncias líquidas da impressora.

· Proteja a impressora de choques, impactos e vibrações.

· Desligue a impressora e o computador antes de conectar o cabo da rede.

· A cabeça da impressora pode ficar muito quente . Portanto, espere algum tempo antes de tocá-la.

· Não faça nenhuma operação ou ação além das recomendadas neste manual. Em caso de dúvida,

contate seu revendedor ou companhia de serviço.

Tally Dascom 1125

VIII

Önemli Güvenlik Talimatları (Turkish)

Lütfen, yazıcıyı işletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun.

· Bakım ve tamir çalışmalarını kesinlikle ve hiçbir surette kendi başınıza yapmayın; her zaman kalifiye bir

uzman servis-teknisyenine haber verin.

· Yazıcıyı, üzerinden yere düşmesi mümkün olmayacak sabit ve düz bir zemine yerleştirin.

· Yazıcıyı kesinlikle ve hiçbir surette kolayca yanabilecek gaz veya patlayıcı maddeler içeren nesnelerin

yakınına koymayın.

· Yazıcı akım kablosunu sadece doğru gerilime sahip bir prize takın.

· Yazıcıyı şebeke ağından ayırmak istediğinizde, yazıcıyı kapatın ve ağ-fişini her zaman prizden çıkartın.

· Yazıcıyı ne yüksek ısılı ne de doğrudan güneş ışığına ve toza mâruz kalan mekânlarda bulundurun.

· Yazıcı hiçbir sıvı maddeyle temasta olmamalıdır.

· Yazıcı hiçbir sarsıntıya, darbeye veya titreşime mâruz kalmamalıdır.

· Veri kablosu bağlanmadan önce hem yazıcının hem de bilgisayarın kapalı olduklarından emin

olmalısınız.

· Yazıcının başı basma esnasında yüksek ısıya ulaşıyor. Bu yüzden lütfen dokunmadan önce kısa süre
soğumasını bekleyin.

· Yazıcının işletimi ve kullanımında bu dokümantasyondaki talimatların hiç dışına çıkmayın. Sorunlu
görünen hususlarda lütfen imâlatçınıza veya müşteri hizmetleri servisinize başvurun.

Tally Dascom 1125

IX

TRADEMARK ACKNOWLEDGEMENTS

“IBM” is a trademark of International Business Machines Corporation.

“EPSON” is a trademark of Epson America Incorporated.

“DEC” is a trademark of Digital Equipment Corporation.

“Centronics” is a trademark of Centronics Data Computer Corporation.

“DOS” is a trademark of Microsoft Corporation.

“SAP” is a trademark of SAP AG.

“Windows” , “Windows 7” , “Windows 95” , “Windows 98“ , “Windows NT” , “Windows 2000” , “Windows

2003/2008 Server” , “Windows XP” and “Windows Vista” are trademarks of Microsoft Corporation.

All other product names and company names appearing in this manual are the registered trademarks or

trademarks of the individual companies.

Tally Dascom 1125

X

Tally Dascom 1125

XI

TABLE OF CONTENTS

1 UNPACKING GUIDE........................................................................................................................................1

PLACING THE PRINTER ..........................................................................................................................................2

PRINTER COMPONENTS........................................................................................................................................2

2 SETTING UP PRINTER ....................................................................................................................................4

INSTALL RIBBON..................................................................................................................................................4

INSTALL THE SINGLE SHEET FEEDER....................................................................................................................... 5

CONNECTING THE INTERFACE CABLE ...................................................................................................................... 5

CONNECTING THE MAINS POWER .......................................................................................................................... 6

INSTALLING THE WINDOWSDRIVER........................................................................................................................ 7

3 PAPER INSTALLATION GUIDE..................................................................................................................... 10

ADJUSTING THE PRINT GAP LEVER....................................................................................................................... 10

FRICTION FEED HANDLING.................................................................................................................................. 11

TRACTOR FEED HANDLING.................................................................................................................................. 12

CONTINUOUS PAPER PLACEMENT........................................................................................................................ 12

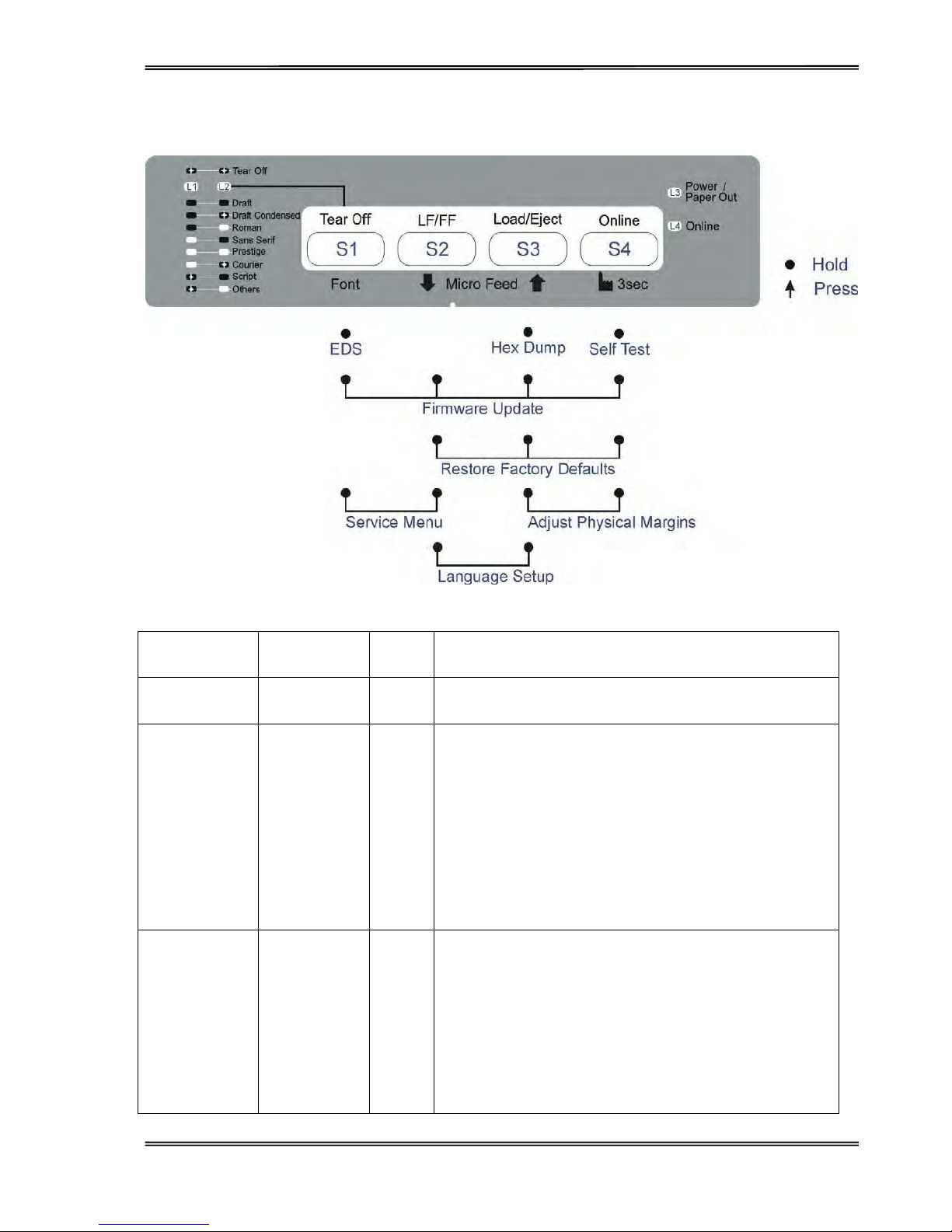

4 CONTROL PANEL OPERATION.................................................................................................................... 14

PANEL OPERATION.............................................................................................................................................16

Online State ............................................................................................................................................................ 17

Setup State ............................................................................................................................................................. 18

Power-On State ...................................................................................................................................................... 19

LANGUAGE SETUP..............................................................................................................................................20

5 PRINTER SETTING CHANGES ..................................................................................................................... 21

SYSTEM SETUP..................................................................................................................................................21

PRINT SETUP..................................................................................................................................................... 21

PAGE SETUP...................................................................................................................................................... 23

INTERFACE SETUP ..............................................................................................................................................24

ADVANCED SETUP..............................................................................................................................................24

VERTICAL ALIGNMENT........................................................................................................................................34

CHANGE PIN FUNCTION......................................................................................................................................35

ADJUST PHYSICAL MARGINS............................................................................................................................... 36

DASCOM PRINTER SETUP TOOL........................................................................................................................... 38

6 MAINTENANCE .............................................................................................................................................39

CLEANING AND VACUUMING THE PRINTER............................................................................................................. 39

CLEANING THE PAPER ROLLERS........................................................................................................................... 39

7 TROUBLESHOOTING.................................................................................................................................... 41

PRINT QUALITY PROBLEMS AND SOLUTIONS ........................................................................................................ 41

PAPER HANDLING PROBLEMS AND SOLUTIONS..................................................................................................... 42

OPERATING PROBLEMS AND SOLUTIONS.............................................................................................................. 42

Tally Dascom 1125

XII

ERROR INDICATIONS ON LEDS............................................................................................................................ 43

DIAGNOSTIC FUNCTIONS ....................................................................................................................................44

FIRMWARE UPDATE ...........................................................................................................................................45

8 GENERAL SPECIFICATIONS......................................................................................................................... 46

9 INTERFACES ..................................................................................................................................................51

PARALLEL INTERFACE .........................................................................................................................................51

USB INTERFACE ................................................................................................................................................52

SERIAL INTERFACE .............................................................................................................................................52

10 CHARACTER SETS & CODE PAGES.......................................................................................................... 53

CHARACTER SETS ..............................................................................................................................................53

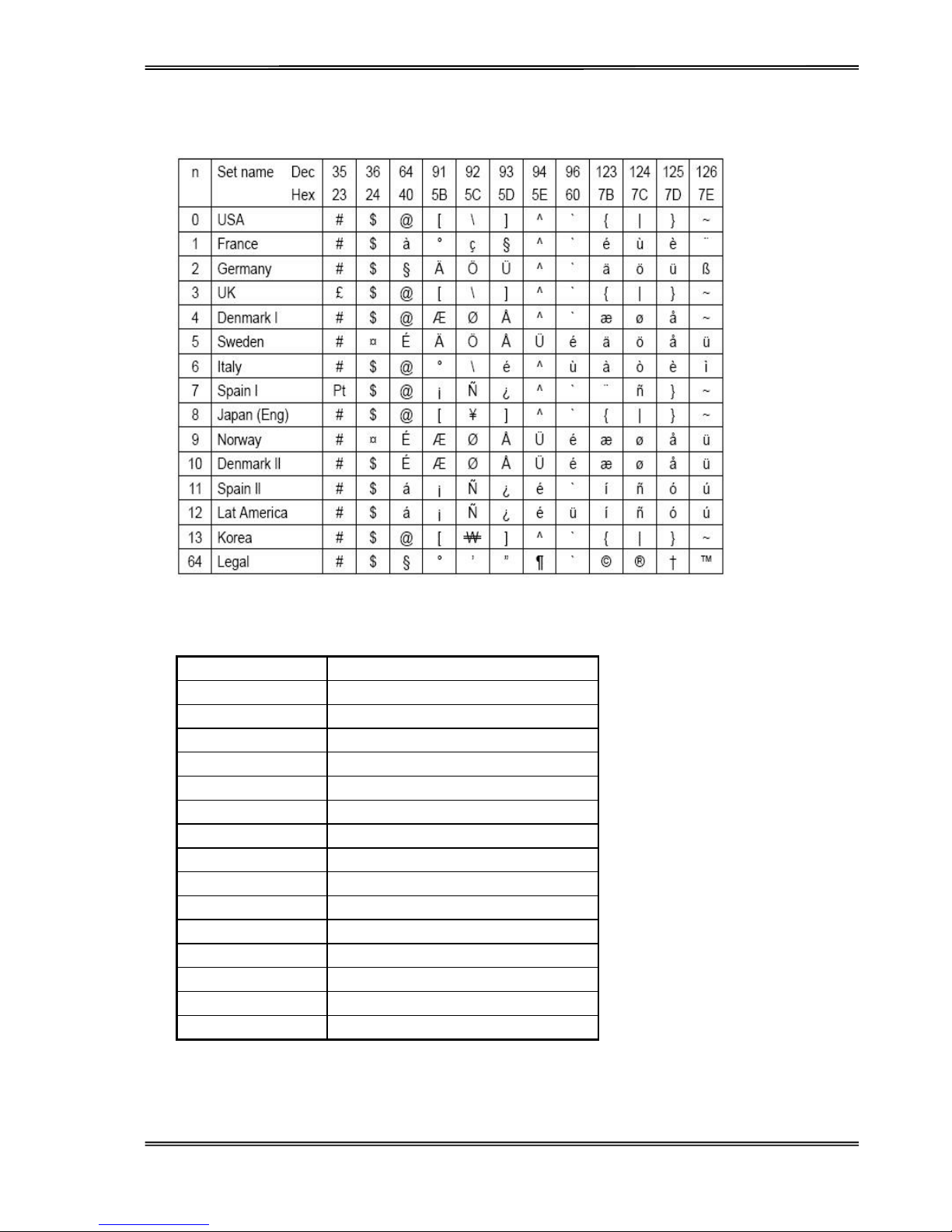

INTERNATIONAL CHARACTER SETS........................................................................................................................ 55

INTERNATIONAL CHARACTER SET COMMANDS...................................................................................................... 55

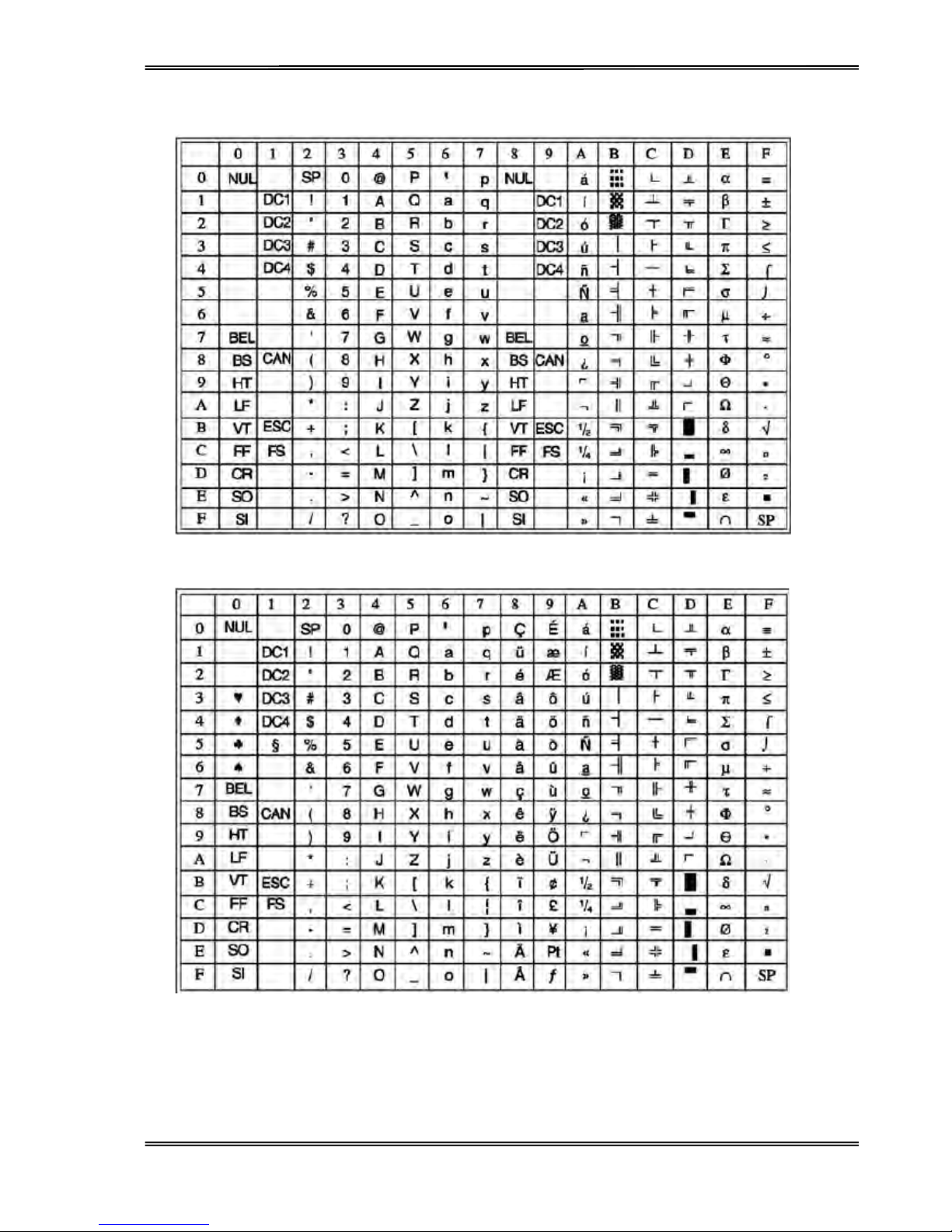

CHARACTERTABLES ...........................................................................................................................................56

CODE PAGE COMMANDS....................................................................................................................................58

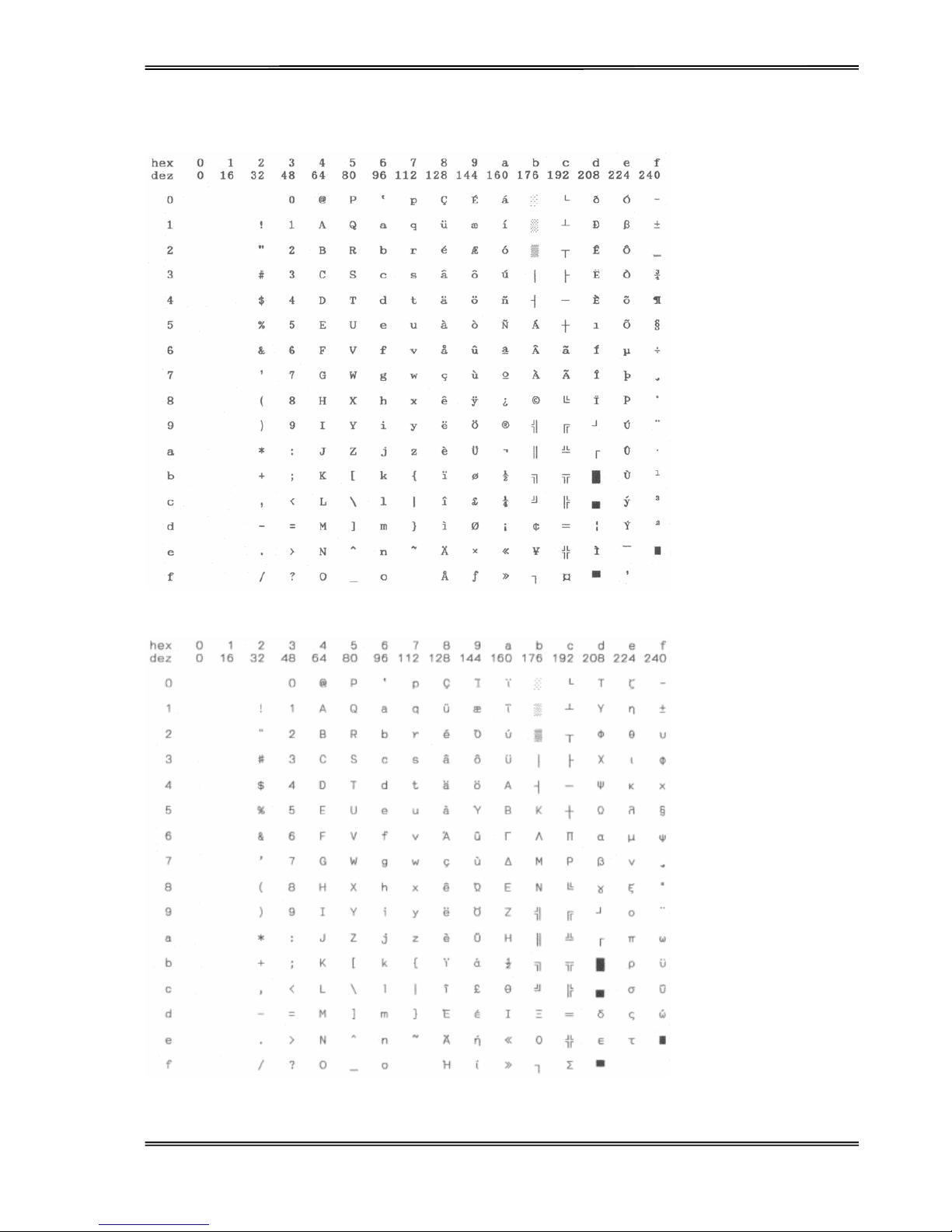

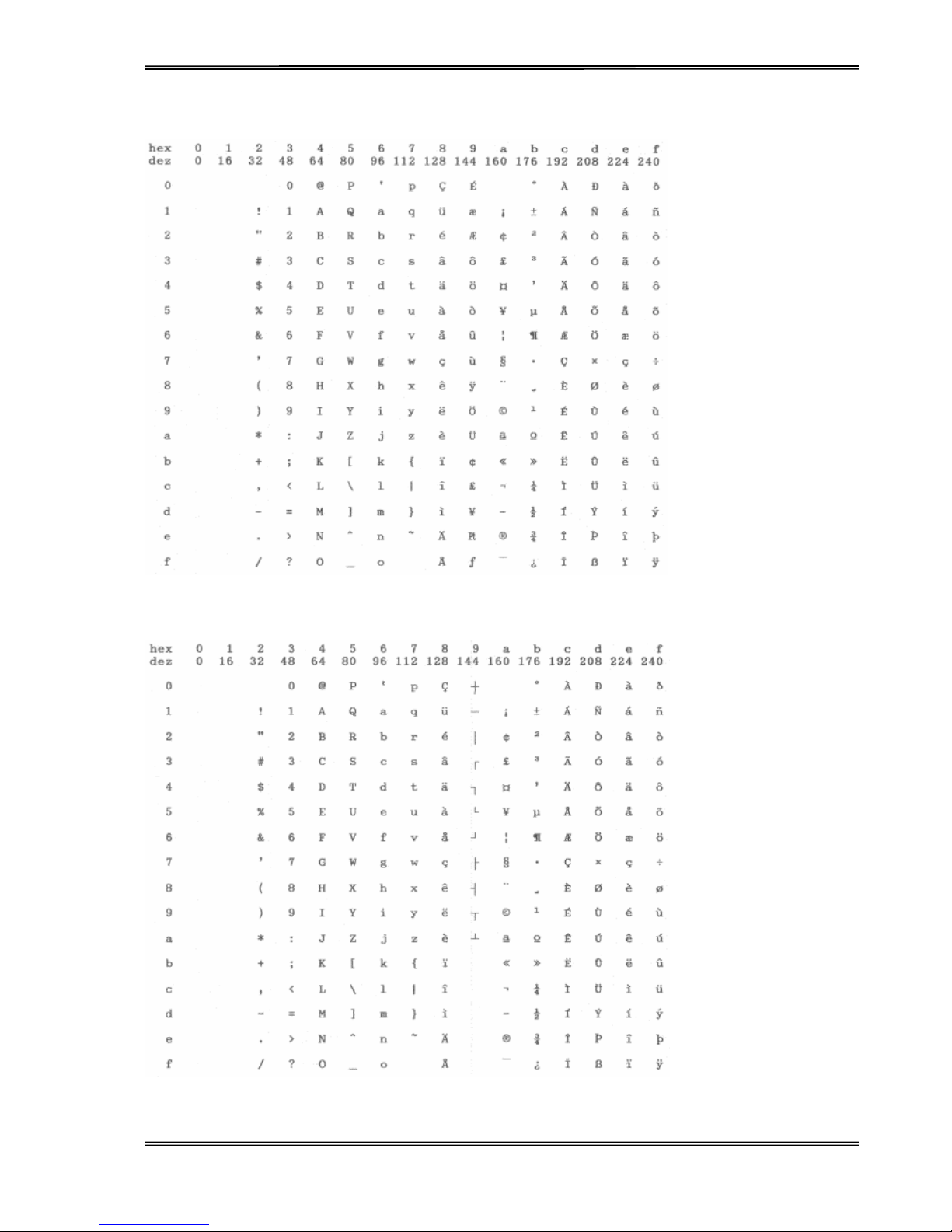

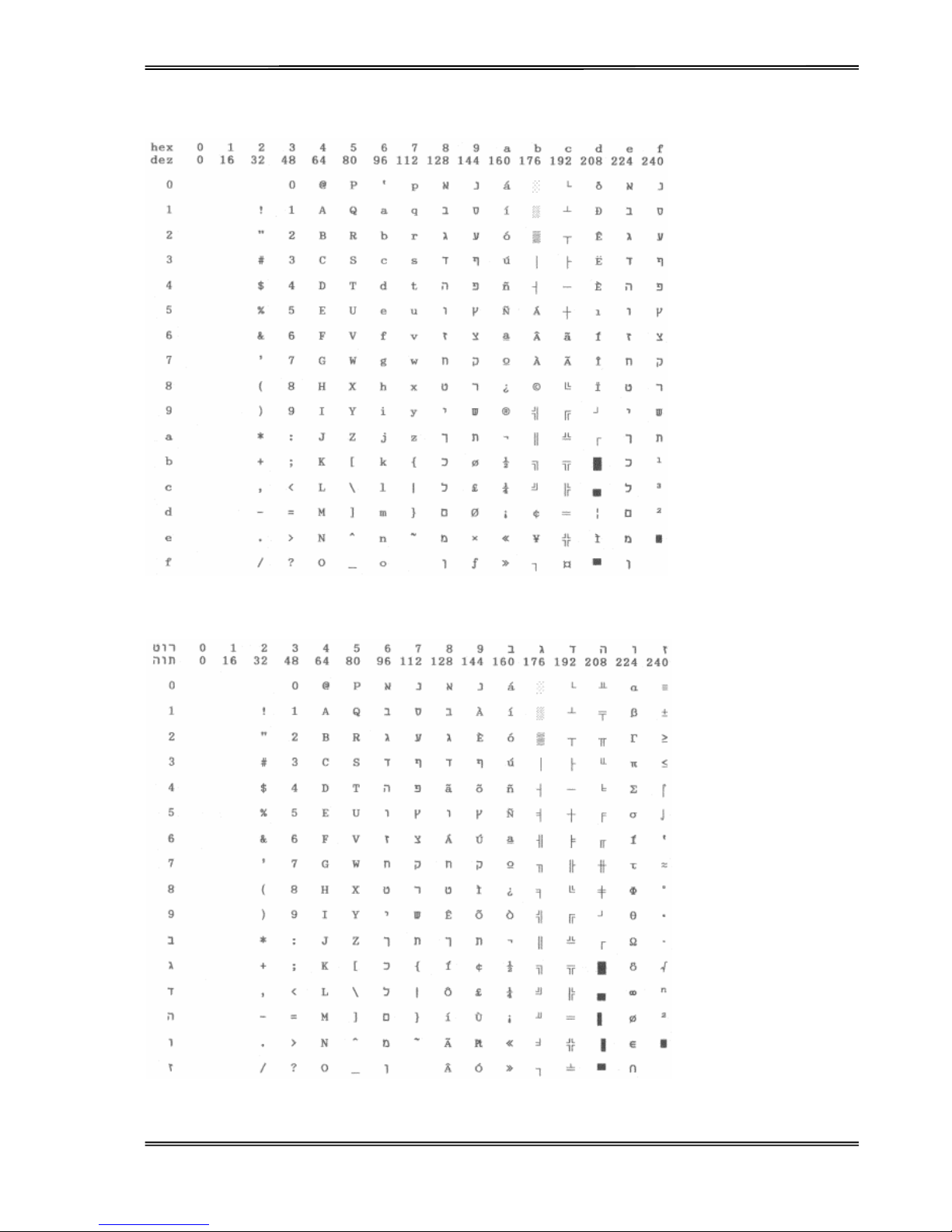

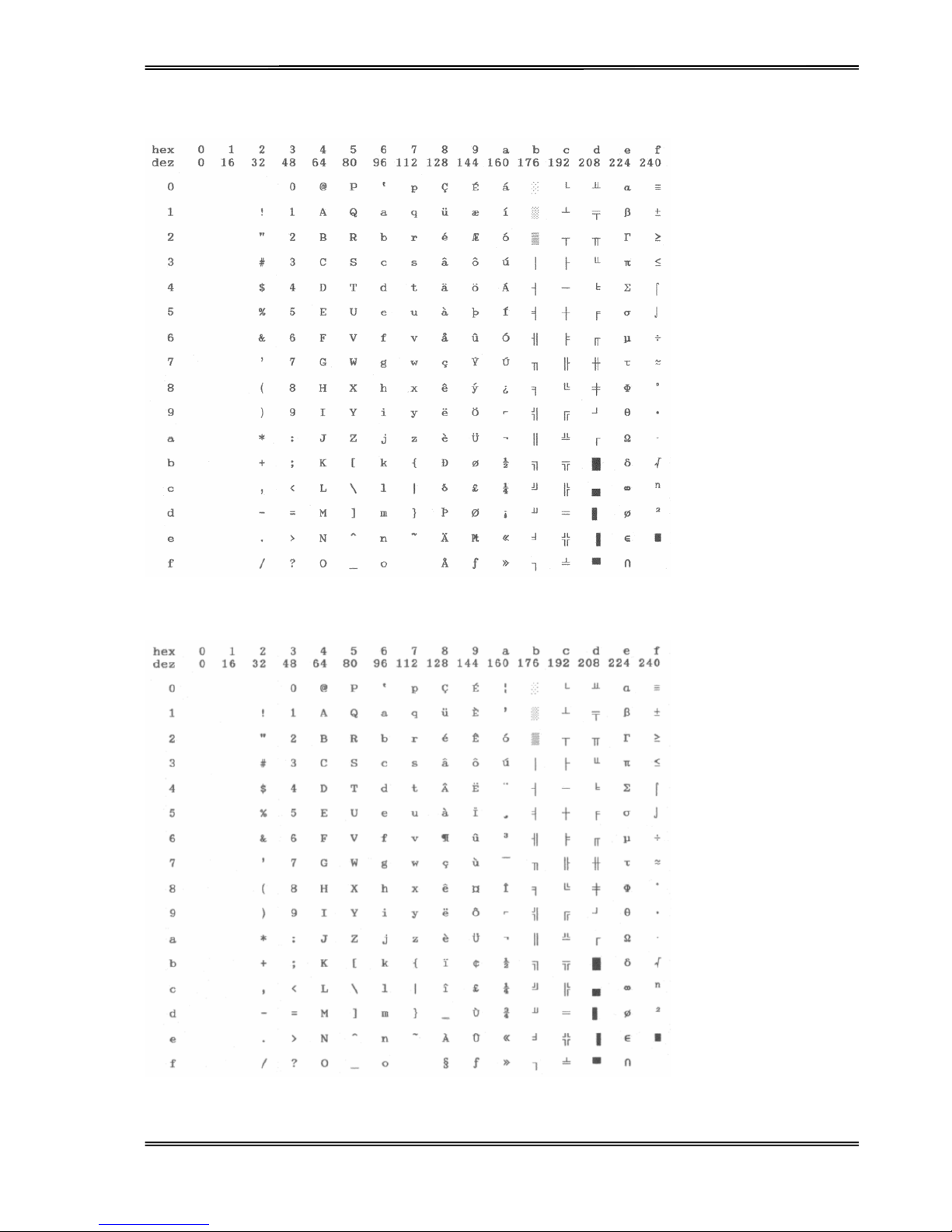

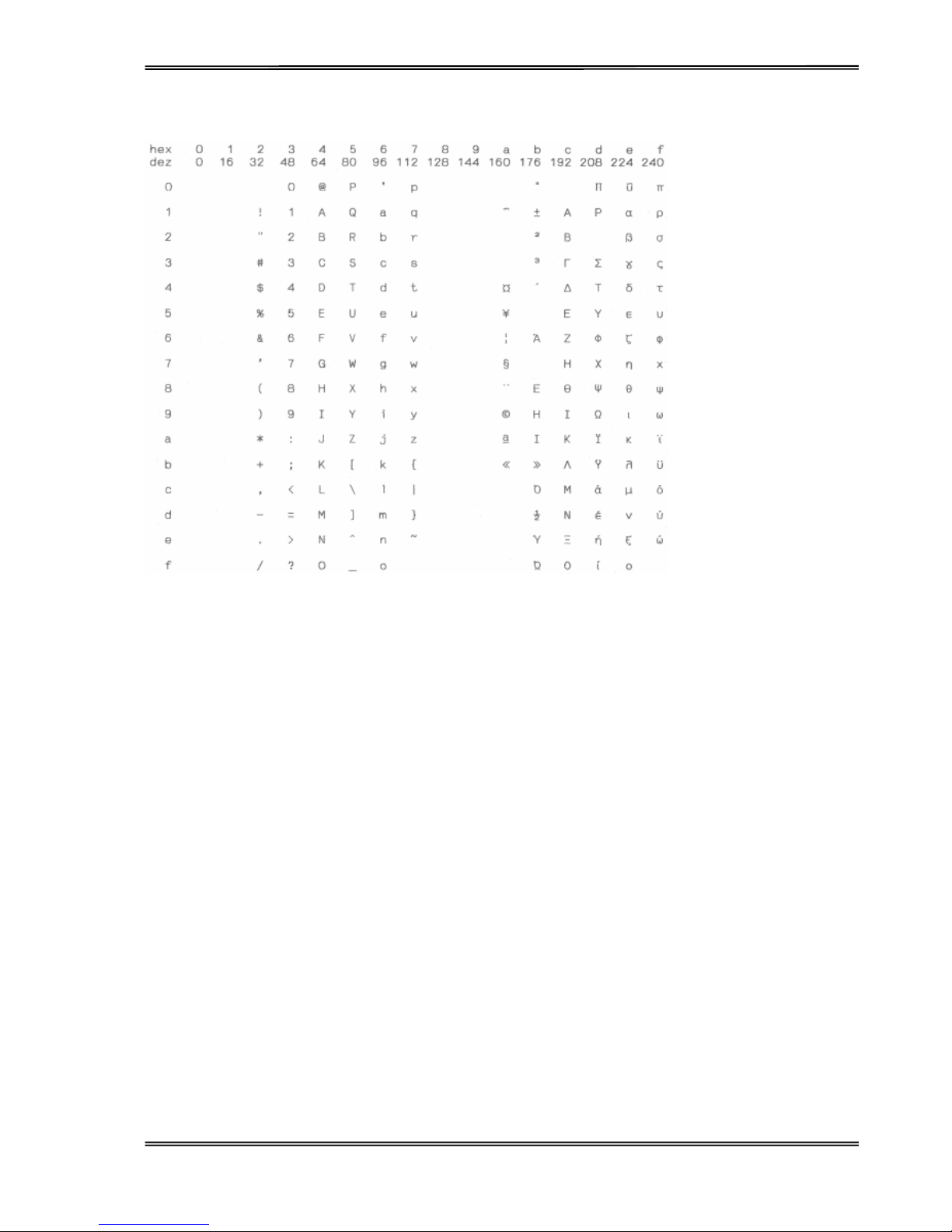

CODE PAGE TABLES ...........................................................................................................................................60

11 CONTROL CODES SUMMARY................................................................................................................... 84

EPSON EMULATION COMMAND LIST.................................................................................................................... 84

IBM EMULATION COMMANDLIST....................................................................................................................... 86

FCC STATEMENT .............................................................................................................................................88

Tally Dascom 1125

1

1 Unpacking Guide

· Place your packaged printer on a solid base.

· Make sure that the “Up” symbols point in the correct direction.

· Open the packaging, lift the printer out of the cardboard box and remove the remaining packaging

material.

· Check the printer for any visible transport damage and missing items. If you find any transport

damage or if any accessories are missing, please contact your dealer. The following items should be

included:

o Printer

o Paper feed knob

o Paper feed tray

o Power cord

o Ribbon cartridge

o CD-ROM

o Installation Guide

Remove the packaging materials from the printer as follows:

1. Remove the tape on the paper feed lever.

2. Remove other visible tape on the printer.

3. Open and remove the top cover of the printer.

4. Remove the shipping cardboard from around the print head.

5. Install the paper feed knob.

Tally Dascom 1125

2

Placing the Printer

Place the printer on a solid, flat, stable surface; ensuring that the printer is positioned in such a way that it

cannot move, and that there is easy access to the control panel and paper input devices. Also ensure that there

is enough space for sufficient ventilation and for the printed output.

When selecting the printer location, observe the following additional instructions:

· Never place the printer near to any flammable gas or explosive substances.

· Do not expose the printer to direct sunlight. If you cannot avoid placing the printer near a window, protect

it from the sunlight with a curtain.

· When connecting a computer to the printer, make sure the maximum recommended cable length is not

exceeded.

· Ensure sufficient distance between the printer and any heating devices/radiators.

· Avoid exposing the printer to extreme temperature or air humidity fluctuations. Avoid exposure to dusty

environments.

· It is recommended the printer is installed in a position which reduces noise exposure to the work place

during printing.

Printer Components

Tally Dascom 1125

3

Component Function

Gap Lever

Controls printing impact or density.

Adjusts the print gap lever according to the thickness of paper.

Paper Guides

Adjusts positioning of single sheet paper.

Print Head

24-pin printing mechanism

Top Cover Protects print head and other components inside, and reduce noise.

Control Panel

Shows printer status, for printer setup.

Paper Feed Lever

Two positions: = continuous forms; = single sheet paper

Paper Feed Knob

Manual feed or vertical positioning of paper

Power Switch

Power printer ON or OFF

Ribbon Cartridge

Install ribbon in the printer.

Ribbon Frame

For guiding ribbon installation on print head.

Tractors

For feeding and adjustment of continuous forms.

Power Receptacle

Connects power cord to the printer.

Interface

Connects interface cables from the host.

Tally Dascom 1125

4

2 Setting Up Printer

Install Ribbon

1. Ensure the power to the printer is off and the print gap lever “ A ” is set to the furthest open position.

Move the carriage to the centre of the print platen.

2. Install the recess positions

• on the ribbon cassette into the printer mounting.

3. Press the ribbon frame

‚ onto the print head.

4. Turn the ribbon knob

ƒ in clockwise direction until the ribbon fabric is taut. Move the carriage left and

right to ensure the carriage and ribbon fabric can move smoothly.

5. Ensure the print gap lever “ A ” is set to the original position.

6. Close the printer’s top cover. When printer is in operation, ensure the printer’s top cover is closed to keep

the noise level to a minimum.

Notes on Ribbon Cartridge Removal:

1. Eject any paper loaded in the printer.

2.

Turn off the printer power.

3.

Open and remove the top cover.

4.

Lift up the tear bar.

5. Set the gap lever to the most open position labeled “RIBBON”

.

6. Move the carriage to the middle. Be careful not to touch the print head if printing had just been performed,

as the print head may be hot.

7 . Remove the blue ribbon frame from the print head.

8. Use fingers to take hold of the handle on the ribbon cartridge firmly, and lift the cartridge upwards to

unlatch it. Some force may be needed to unlatch the cartridge.

Tally Dascom 1125

5

Install the Single Sheet Feeder

Install the single sheet feeder into the rear of the printer.

Connecting the Interface Cable

The 36-pin Centronics parallel, 25-pin serial RS-232C and USB ports are located at the rear of the printer.

IMPORTANT: Make sure the printer and the computer are switched off before connecting or disconnecting the

interface cable to prevent electrical damage to the interface ports.

Tally Dascom 1125

6

Connecting the Mains Power

Checking the printer voltage

Make sure that the device has been set according to your country’s power supply voltage. To do this, check

the rating plate at the back of the printer. Contact your dealer if the setting is incorrect.

Never switch on the printer if the voltage setting is incorrect; this may result in electrical

damage to the printer.

Make sure that the power switch “

A ” , located to the right side of the

printer, is in the “O” (off) position.

Connect the power cord to the

power inlet of the printer. Connect

the power cord plug to a mains

socket. Switch on the printer.

Tally Dascom 1125

7

Installing the Windows Driver

(Windows 2000/2003/2008 Server/XP/Vista/7)

1. Your printer CDROM comes with

Windows drivers. Go to the Drivers

folder and run the Installer

“DriverSetup.exe”

. You will see the

screen on the right. Click “Next” to

continue.

2. A list of ports available on your

system will be displayed as shown

on the right. Choose the desired

port to use. Click “Next” to

continue.

3. Select the desired printer model as

shown on the right. Click “Next” to

continue.

Tally Dascom 1125

8

4. Here you can choose whether to

set the driver as the system

default driver, and whether you

want to print the Test Page after

installation is completed. If the

driver had been installed before, it

would be listed in the white box

on the right. Select the listed

driver (if any) if you want to

replace it; otherwise a copy of the

driver will be installed. Click

“Next” to continue.

5. Click “Finish” to start the

installation process.

6. If the driver is not yet Microsoft

Certified, the message on the right

would appear. Click “Continue

Anyway”. (As we continue to

expand our product portfolio, not all

of our drivers may be certified yet.

Please check our website

www.dascom.com for the latest

certified drivers.)

Tally Dascom 1125

9

7 . Installation in progress.

8. After installation is completed

successfully, you will see the

message on the right.

Tally Dascom 1125

10

3 Paper Installation Guide

The printer can handle either single sheets or continuous forms. Single sheets, also called cut sheets, include

envelopes and non-continuous, multipart forms. Continuous forms include labels and multipart forms fed into

the printer using the forms tractors. The printer is able to print 1~5 plies multipart paper.

Do not load paper that has been folded or is damaged, wrinkled, or curled.

Adjusting the Print Gap Lever

The print gap lever is on the left side of the printer inside the top cover. Take care to adjust the print gap lever

to a suitable position whenever you change the number of copies being printed. Using the wrong print gap

may cause print head damage or paper jams.

Paper type Weight (g/m

2

) / ply Thickness (mm) Gap lever position

Single sheet

52～100 0.06～0.12

1P～2P

2-ply

40～52 0.12～0.14

3-ply

40～52 0.17～0.22

3P～4P

4-ply

40～52 0.23～0.27

5-ply

40～52 0.28～0.33

5P

Change ribbon --- Above 0.45

Tally Dascom 1125

11

There are 2 paper feed modes: friction feed and tractor feed. When switching from tractor to cut sheet, the
tractor fed paper can remain loaded in the tractor until the next time it needs to be moved to the printing
position. This feature saves time and provides great flexibility for the user.

Friction Feed Handling

1. Move the paper-feed lever forward to “ ” for friction feed mode.

2. Adjust the print gap lever if necessary.

3. Raise the single sheet feeder until it locks into its mounting. Align the left paper guide with the mark on the

left of the single sheet feeder. Adjust the right paper guide to the width of the paper used.

4. Insert a sheet of paper. Make sure that the bottom edge of the paper engages snugly with the platen.

5. The paper should advance automatically to the print position. The printer is now ready to print in the online

state.

Tally Dascom 1125

12

Tractor Feed Handling

1. Move the paper-feed lever backward to “ ” for continuous paper position.

2. Adjust the print gap lever if necessary.

3. Raise the tractor doors and fit the first 3 paper holes onto the left tractor pins. Close the left tractor door. In

the same way, install the paper on the right tractor.

4. Adjust the right tractor to the width of the paper until the paper is flat. Do not stretch the paper too taut.

Push the right lock lever down to secure the right tractor in place.

5. Press the【Load/Eject】key to load the paper to the starting print position. The printer is now ready to print

in the online state.

Tally Dascom 1125

13

Continuous Paper Placement

1. Place the printer on a solid base. The minimum suitable height of the solid base is 75 cm.

2. Left and right positioning: The direction of continuous paper should be parallel with the paper guide. The

tolerance should be less than 3 cm.

3. Front and back positioning: The distance between the rear of printer and the wall should be more than 60

cm. To avoid paper jam, the distance between the continuous paper and the edge of desk should be 10~15

cm.

Tally Dascom 1125

14

4 Control Panel Operation

There are 4 switches S1~S4 and 4 LEDs L1~L4. The meaning and application of each switch and LED are
described below.

LED Indicators

“Power/Paper Out” LED:

On: Power on

Flashing: Paper out

Flashing + buzzer: Paper jam

“Online” LED:

On: The printer is in online state and ready to receive data from the computer.

Off: The printer is in offline state and cannot receive data.

Flashing: The printer is in setup state and cannot receive data.

“Tear Off” LEDs:

Flashing: Indicates continuous paper is at tear-off position; otherwise it indicates the selected font.

Control Panel Keys

“Online” Key:

This key switches the printer between online and offline states. Printing is stopped when the printer is

switched to offline state. When printer is switched to online state again, printing will resume.

When printer is offline, pressing it for 3 seconds or longer will enter the setup state. This is indicated by a

beep sound and the flashing Online LED. By pressing the Online key again will exit the setup state back

to offline state.

“Load/Eject” Key:

When paper is loaded, pressing this key will eject the paper (single sheet mode) or park the paper

(continuous paper mode). When paper is not loaded, pressing this key will load the paper to the starting

print position. In the setup state, this key performs a forward micro feed.

Tally Dascom 1125

15

“LF/FF” Key:

Pressing this key will feed paper one line forward. By holding down this key, the printer will initially feed

a few lines, then perform a form feed (continuous paper mode) or eject the form (single sheet mode). In

the setup state, this key performs a reverse micro feed.

“Tear Off” Key:

When online, this key will move any loaded continuous paper to the tear-off position. When in setup state,

this key is used to select the desired font.

Table 4.1

Font Selection Label L1 State L2 State

Draft Off Off

Draft Condensed Off Flash

Roman Off On

Sans Serif On Off

Courier On Flash

Prestige On On

Script Flash Off

Others (see Menu setting) Flash ON

Tear Off Flash Flash

Table 4.2

Switch Top Label Bottom Label

S1 Tear Off Font

S2 LF/FF Micro Feed

S3 Load/Eject Micro Feed

S4 Online 3sec

Table 4.3

LED Label

L3 Power/Paper Out

L4 Online

Tally Dascom 1125

16

Panel Operation

There are 3 states of operation: Online, Setup and Power On.

In the Online state, the keys provide the following functions: Go to Tear Off position, Line Feed/Form feed,

Load/Eject, clear buffer and switch to offline state for access to Setup state.

In the Setup state, the keys provide font selection and micro feed functions.

To enter the Power On state, the user holds down a key or a combination of keys while powering up the printer.

This state provides the following functions: Language Setup, Main Menu setup, Hex-dump, print Main Menu,

access Service Menu, adjust page margins, restore factory defaults, and firmware update.

The followings describe the 3 states in details.

Legend:

[A] = press and hold switch A

{B} = press and then release switch B [A]+

{B} = press switch B while holding A
