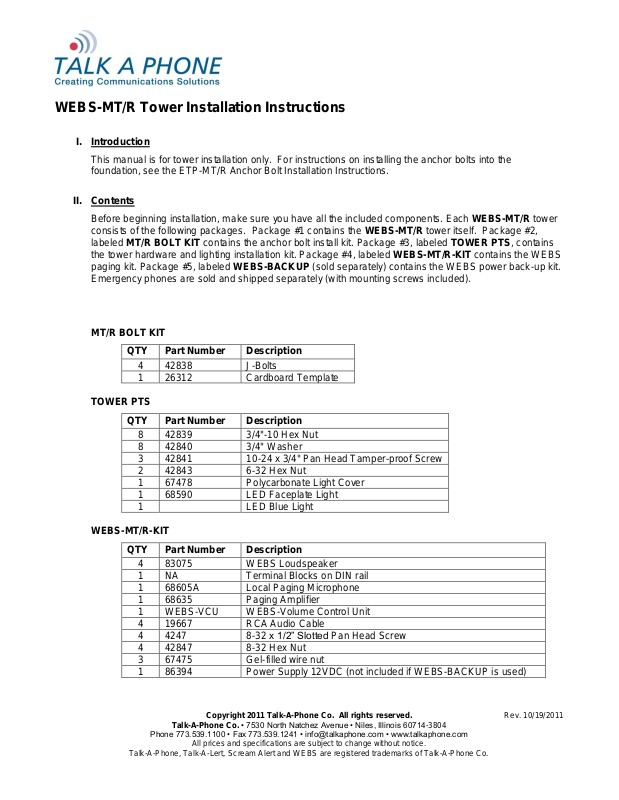

WEBS-MT/R Tower Installation Instructions
I. Introduction
This manual is for tower installation only. For instructions on installing the anchor bolts into the
foundation, see the ETP-MT/R Anchor Bolt Installation Instructions.
II. Contents
Before beginning installation, make sure you have all the included components. Each WEBS-MT/R tower
consists of the following packages. Package #1 contains the WEBS-MT/R tower itself. Package #2,
labeled MT/R BOLT KIT contains the anchor bolt install kit. Package #3, labeled TOWER PTS, contains
the tower hardware and lighting installation kit. Package #4, labeled WEBS-MT/R-KIT contains the WEBS
paging kit. Package #5, labeled WEBS-BACKUP (sold separately) contains the WEBS power back-up kit.
Emergency phones are sold and shipped separately (with mounting screws included).
MT/R BOLT KIT
TOWER PTS
WEBS-MT/R-KIT
Copyright 2011 Talk-A-Phone Co. All rights reserved. Rev. 10/19/2011
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
All prices and specifications are subject to change without notice.
Page 2
WEBS-MT/R Tower Installation Instructions
QTY
Part Number
Description
1
86383
Battery charger
2
68594
12VDC Battery
1
25192
Mounting shelf for battery
4
42875
10-24 x1/2" phillips pan head
4
42816
10-24 hex nut
1
42767
#10 round hole washer
1
NA
Battery Cable
1
NA
Battery Interconnect Cable
WEBS-BACKUP (optional)
III. Physical Installation
1. Install one 3/4” nut and one washer on each anchor bolt 2.5”-3.5" above grade to top of washer. This
will allow for a 1/2" air gap between the foundation and the tower which will allow airflow and prevent
moisture problems. Verify that the nuts are level (0° pitch).
NOTE: To insure proper grounding of all electrical components, the tower mount should be effectively earth grounded
from the grounding stud (located across from the lower access panel) with 6 AWG or better insulated, stranded copper
wire to the metallic power service raceway (conduit) or an 8' or longer corrosion-resistant ground spike.
2. After removing the lower access panel of the tower, install the tower onto the bolts with the
Emergency Phone opening oriented in the desired direction. Install second set of nuts and washers.
Tighten the upper nuts; the bottom set is only for leveling.
Figure 1. Installing the WEBS Loudspeakers and LED Blue Light Housing Assembly.
Copyright 2011 Talk-A-Phone Co. All rights reserved. Page 2 of 8
Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
All prices and specifications are subject to change without notice.
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
Page 3
WEBS-MT/R Tower Installation Instructions
3. Take off the tower cap plate along with the LED Blue Light housing as shown in Figure 1. Install the
four WEBS Loudspeakers and clamp them down to the tower metal, insuring a tight fit with their
respective gaskets. Install the LED Blue Light to the base of the housing and fasten the entire
assembly on to the tower. Reattach the cap plate to the tower.
4. Remove the rear access panel (top) of the tower and mount the paging amplifier vertically aligned
(power connection / speaker output side facing up and audio input side facing down) with the help of
four (4) #10-32 screws and nuts provided. Also mount the WEBS-VCU on to the upper mounting
panel of the tower as shown in Figure 2. Connect the paging amplifier audio input channels to the
respective audio outputs on the WEBS-VCU via RCA audio cables provided. (e.g. Amplifier audio
input channel 1 to WEBS-VCU audio output 1).
Figure 2. Installing the Paging Amplifier and the WEBS-Volume Control Unit (WEBS-VCU).
5. If using the WEBS-BACKUP option, place the battery mounting shelf on the two L-brackets located in
the lower section of the tower. Rest the batteries in the upright position on the shelf. Mount the battery
charger on to the mounting panel and secure the assembly in place onto the mounting screws
provided. Connect DC output end of the battery charger to the battery via the quick connect ring
terminals (Red ring terminal to positive of one battery and black ring terminal to negative of the
second battery). Connect the AC input end of the charger to 120 VAC power source. Connect the
battery cable to the battery, with the white cable to the positive terminal of the battery and black cable
to the negative terminal of the battery and connect the other end to the DIN Rail Terminal Block,
terminal no. 23 and 25 as shown in Table 1.
OR
Install the power supply at a convenient position on the mounting panel provided. Connect the power
supply to 120 VAC on one end and connect the other end to the DIN Rail Terminal Block, terminal no.
23 and 25 as shown in Table 1.
Copyright 2011 Talk-A-Phone Co. All rights reserved. Page 3 of 8
Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
All prices and specifications are subject to change without notice.
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
Page 4
WEBS-MT/R Tower Installation Instructions
Terminal
# (Side A)
Connection
Terminal
# (Side B)
Connection
1
Emergency Phone AUX. Output # 1
30
Auxiliary Device Trigger Wire
2
Emergency Phone AUX. Output # 1
31
Auxiliary Device Trigger Wire
3
Emergency Phone AUX. Output # 2
32
LED Blue Light [Orange]
4
Emergency Phone AUX. Output # 2
33
LED Blue Light [Black]
5
Emergency Phone AUX. Output # 3
34
Auxiliary Device Trigger Wire
6
Emergency Phone AUX. Output # 3
35
Auxiliary Device Trigger Wire
7
WEBS-VCU — 12 VDC Trigger [Orange]
36
Paging Amplifier —12 VDC Trigger [Orange]
8
WEBS-VCU — Ground [Black]
37
Paging Amplifier — Ground [Black]
9
Local Paging Microphone — 12 VDC
[White]
38
WEBS- VCU [Microphone Input] — 12 VDC
[White]
10
Local Paging Microphone — 12 VDC
Trigger [Green]
39
WEBS- VCU [Microphone Input] — 12 VDC
Trigger [Green]
11
Local Paging Microphone — Audio(+)
[Red]
40
WEBS-VCU [Microphone Input] — Audio (+)
[Red]
12
Local Paging Microphone — Audio(-)
[Black]
41
WEBS- VCU [Microphone Input] – Audio (-)
[Black]
13
WEBS-CM-2 / VOIP-500 / WEBS-ZPS —
12 VDC Trigger [Green]
42
WEBS- VCU [WEBS-CM-2 / WEBS-ZPS
Input] — 12 VDC Trigger [Green]
14
WEBS-CM-2 / VOIP-500 / WEBS-ZPS —
12 VDC [White]
43
WEBS- VCU [WEBS-CM-2 / WEBS-ZPS
Input] — 12 VDC [White]
15
WEBS-CM-2 / VOIP-500 / WEBS-ZPS —
Audio (+) [Red]
44
WEBS- VCU [WEBS-CM-2 / WEBS-ZPS
Input] — Audio (+) [Red]
16
WEBS-CM-2 / VOIP-500 / WEBS-ZPS —
Audio (-) [Black]
45
WEBS- VCU [WEBS-CM-2 / WEBS-ZPS
Input] — Audio (-) [Black]
17
WEBS-ZPS — Bare Shield [Yellow]
46
WEBS- VCU [WEBS-CM-2 / WEBS-ZPS
Input] — Bare Shield [Yellow]
18
Not Used
47
WEBS-CM-2 – 12 VDC Power (-) [Black]
19
Not Used
48
Face Plate Light – 12 VDC Power (-) [Black]
20
Not Used
49 21
Not Used
50
Paging Amplifier – 12 VDC Power (-) [Black]
22
Not Used
51
WEBS-VCU / Paging Amplifier Shield
23
Power Supply / Battery — 12 VDC (-)
[Black]
52
WEBS-VCU – 12 VDC Power (-) [Black or
Green]
24
Connect to GROUND
53
GROUND
25
Power Supply / Battery — 12 VDC (+)
[Red or White]
54
WEBS-VCU — 12 VDC Power (+) [Red or
Brown]
26
Not Used
55
Paging Amplifier — 12 VDC Power (+) [Red
or White]
27
Not Used
56 28
Not Used
57
Face Plate Light — 12 VDC Power (+) [Red]
29
Not Used
58
WEBS-CM-2 — 12 VDC Power (+) [Red]
Table 1. WEBS-MT/R DIN Rail Terminal Block Connections.
Copyright 2011 Talk-A-Phone Co. All rights reserved. Page 4 of 8
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
All prices and specifications are subject to change without notice.
Page 5
WEBS-MT/R Tower Installation Instructions
6. Install the LED light board over the phone opening. A polycarbonate light cover protects the LED light
assembly from the inside. Peel the protective paper off the light cover and fit it onto the studs inside
the tower. Slide the LED board over the studs with the LEDs facing down. The built-in spacers will
keep the LEDs from resting on the acrylic window. Tighten down using the enclosed nuts. Be careful
not to over tighten to avoid cracking the circuit board.
7. Install the DIN rail on the two welds studs behind the phone opening. Install the local paging
microphone and mounting bracket inside the microphone compartment as shown in Figure 3. Attach
the instructional label below (provided) on to the inner surface of the microphone compartment door.
NOTE: The microphone gets activated two seconds after depressing the microphone switch.
Figure 3. Installing the Local Paging Microphone, DIN Rail Terminal Block and Emergency Phone.
8. Attach the Emergency Phone to the tower with six (6) 10-24 oval head tamperproof screws (included
with the phone). When using an ETP-400 Series Emergency Phone connect the phone line coming
into the tower to the male RJ11 connector coming from the Emergency Phone. An outdoor rated
RJ11 female modular jack on the end of the incoming phone line is strongly recommended.
9. Re-attach the rear access panels to the tower.
NOTE: It is the installer’s obligation to ensure compliance with all national, regional, and local
regulations. ALL WIRING MUST USE DRIP-LOOPS.
Copyright 2011 Talk-A-Phone Co. All rights reserved. Page 5 of 8
Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
All prices and specifications are subject to change without notice.
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
Page 6
WEBS-MT/R Tower Installation Instructions
PAGING
AMPLIFIER
Power
Connections
Power - [RED]
Power - [BLACK]
Trigger – [ORANGE]
POWER CABLE
[RED or WHITE]
[BLACK]
TRIGGER CABLE
[BLACK]
[ORANGE]
[RED or WHITE]
[BLACK]
[BLACK]
[ORANGE]
55
50
37
36
}
To DIN Rail
Terminal Block
Audio
Output
Audio
Input
[PURPLE]
[GREEN]
[GREY]
[WHITE]
{
To Speaker
Cables
RCA Cable 1
RCA Cable 2
RCA Cable 3
RCA Cable 4
}
To Audio Output on
WEBS-VCU
Speaker No.
Amplifier Cable
Speaker #1
White and White/Black
Speaker #2
Grey and Grey/Black
Speaker #3
Green and Green/Black
Speaker #4
Purple and Purple/Black
IV. Wiring Installation
1. Make all connections to the DIN Rail Terminal Block as shown in Table 1. When using the ETPEL12/24 (12 VDC), connect it (power) to terminal no. 49 (12 VDC Power (-), Black) and 56 (12 VDC
Power (+), White) on DIN Rail Terminal Block. When using the ETP-EL (120VAC), connect it (power)
directly to main 120 VAC power source
2. Connect the Paging Amplifier to the WEBS Loudspeakers, DIN Rail Terminal Block and the WEBS-
VCU as shown in Figure 4. Connect the speaker audio cables to their corresponding paging amplifier
speaker output cables as follows:

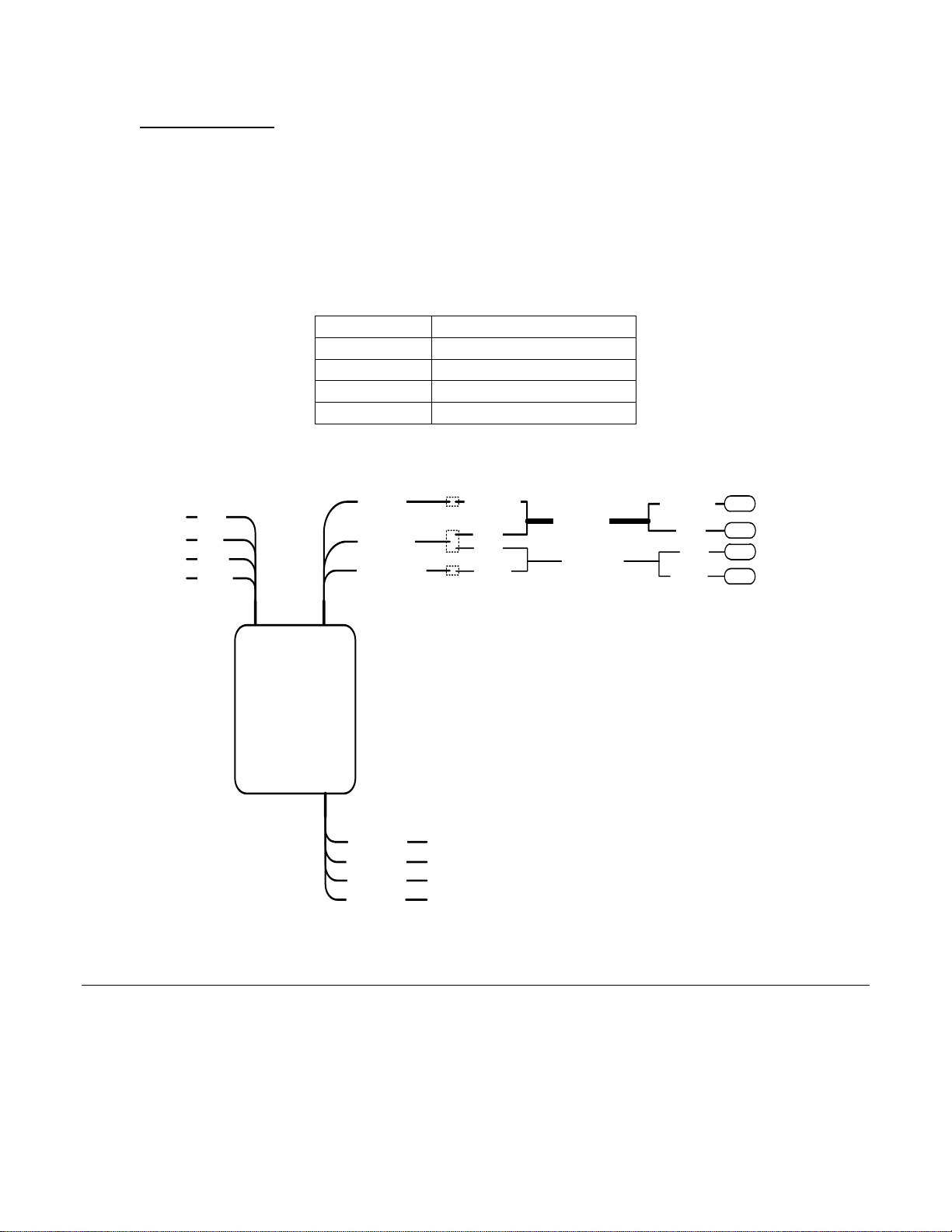

Figure 4. Paging Amplifier, WEBS Loudspeakers, WEBS-VCU and DIN Rail Terminal Block Connectivity Layout
Copyright 2011 Talk-A-Phone Co. All rights reserved. Page 6 of 8
Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
All prices and specifications are subject to change without notice.
Page 7
WEBS-MT/R Tower Installation Instructions
38
Paging
Amplifier
WEBS-VCU
Microphone Input
WEBS-CM-2 /
WEBS-ZPS Input
Audio
Output 1
Power / Trigger
Audio
Output 3
Audio
Output 4
Audio
Output 2
[WHITE]
[GREEN]
[RED]
[BLACK]
[BLACK]
[RED]
[WHITE]
[YELLOW] –
BARE SHIELD
[GREEN]
RCA CABLE 1
RCA CABLE 2
RCA CABLE 3
RCA CABLE 4
}
39
40
41
42
43
44
45
46
{
{
To DIN Rail
Terminal Block
To DIN Rail
Terminal Block
[RED / BROWN]
[BLACK / GREEN]
[BLACK]
[ORANGE]
7
8
52
54
VOIP-500 /
WEBS-CM-2
Audio Output
Auxiliary Output
[Dry Contact Closure]
[GREEN]
[WHITE]
[RED]
Audio Line Level
Twisted Shielded
Pair Cable
Twisted One Pair Shielded
And One Pair Unshielded Cable
[BLACK]
[RED]
[BLACK]
[WHITE]
[GREEN] 13
14
15
16
}
To DIN Rail Terminal
Block

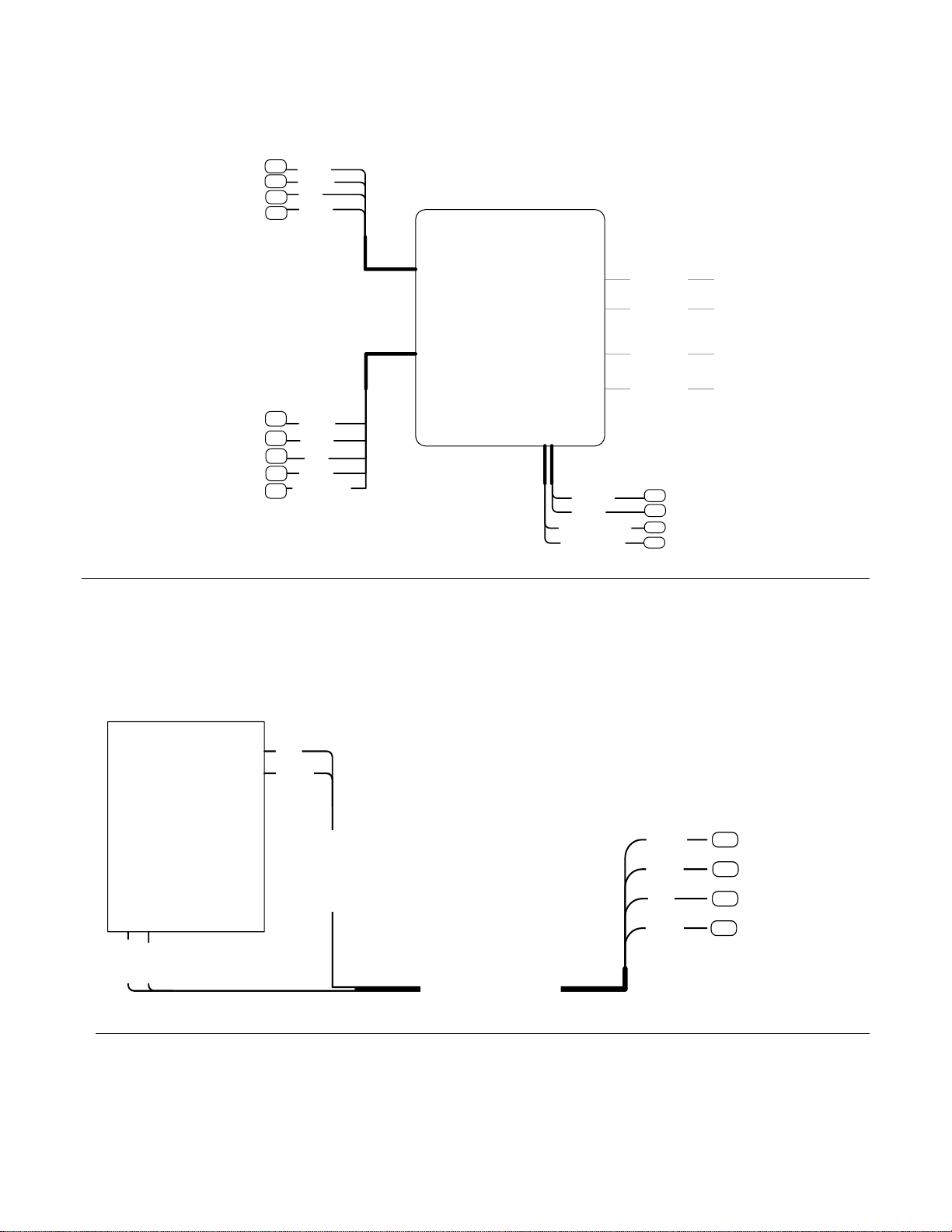

3. Connect the WEBS-VCU and the DIN Rail Terminal Block as shown in Figure 5.
Figure 5. WEBS-VCU, Paging Amplifier and DIN Rail Terminal Block Connectivity Layout
Copyright 2011 Talk-A-Phone Co. All rights reserved. Page 7 of 8
4. When using WEBS-CM-2 or VOIP-500 Series Emergency Phone make connections to the DIN Rail
Terminal Block as shown in Figure 6.
Figure 6. VOIP-500 / WEBS-CM-2 and DIN Rail Terminal Block Connectivity Layout
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
All prices and specifications are subject to change without notice.
Page 8
WEBS-MT/R Tower Installation Instructions
NC
NO
RLY
ONE
IN
RT
BGM
SRC
GND ST
COM
RLY
ONE
NC
COM
NO
OUT
RT
PA
IN
RT
HPBGM
IN
RT
LPBGM
IN
RT
PA
EM/SC
AUX
GND
+12 VDC
GND
-1.5 A
(+)
(-)
ZONE A
IN
RT
LOCAL
BGM
RD A
RD C
RD COM
RD B
(+)
(-)
ZONE B
(+)
(-)
ZONE C
(+)
(-)
ZONE A
IN
RT
LOCAL
BGM
RD A
RD C
RD COM
RD B
(+)
(-)
ZONE B
(+)
(-)
ZONE C
(+)
(-)
ZONE A
IN
RT
LOCAL
BGM
RD A
RD C
RD COM
RD B
(+)
(-)
ZONE B
(+)
(-)
ZONE C
MODEL
WEBS- ZPS
22 AWG wire
[RED]
[BLACK]
[GREEN]
[YELLOW]
Bare Shield
[WHITE]
One Pair Twisted Shielded with Bare Wire
One Pair Unshielded
[WHITE]
[RED]
[BLACK]
[GREEN]
[YELLOW]
Bare Shield
13
14
15
16
}
To DIN Rail
Terminal Block
17

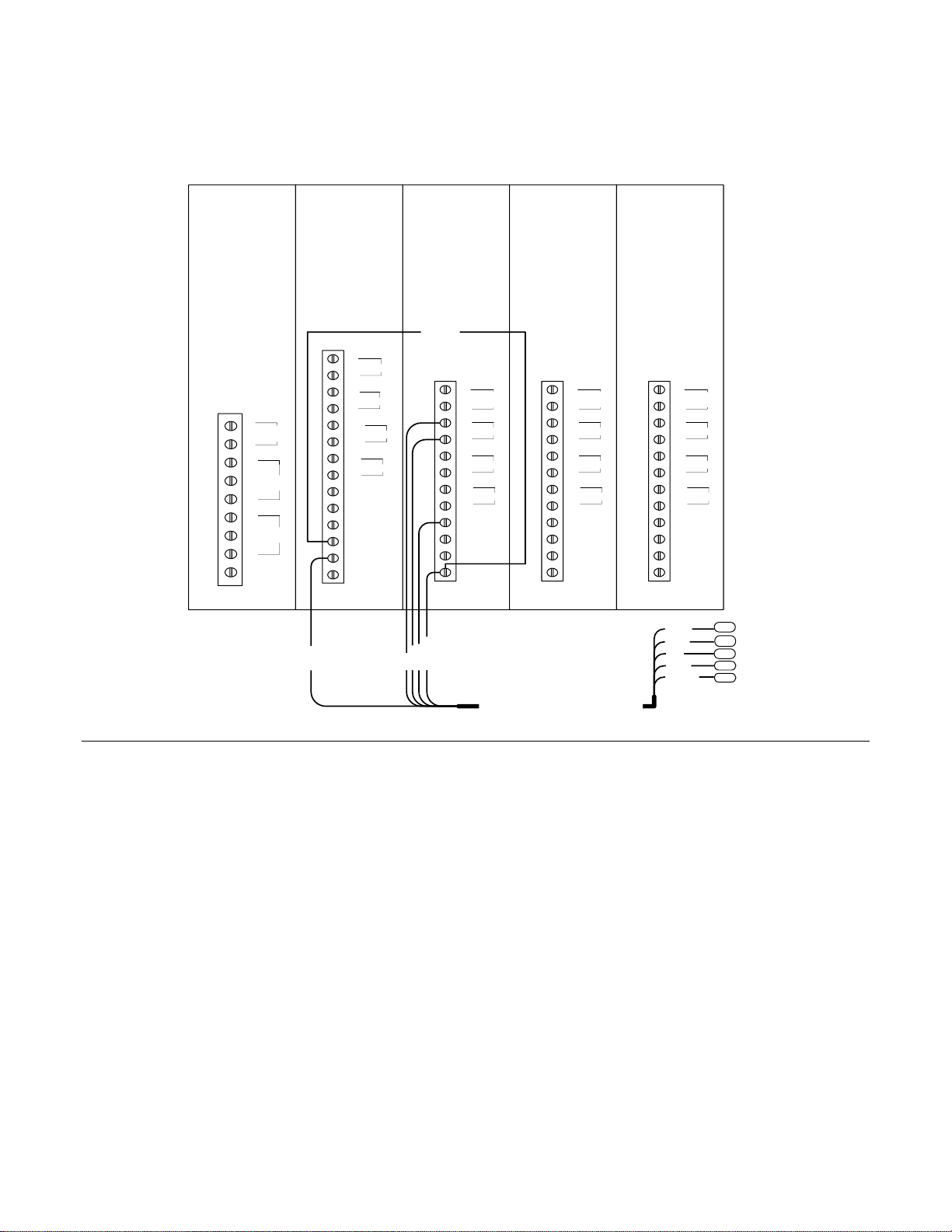

5. When using the WEBS-ZPS make connections to the DIN Rail Terminal Block as shown in Figure 7.
Figure 7. WEBS-ZPS and DIN Rail Terminal Block Connectivity Layout
Copyright 2011 Talk-A-Phone Co. All rights reserved. Page 8 of 8
Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804
Phone 773.539.1100 • Fax 773.539.1241 • info@talkaphone.com • www.talkaphone.com
All prices and specifications are subject to change without notice.
Talk-A-Phone, Talk-A-Lert, Scream Alert and WEBS are registered trademarks of Talk-A-Phone Co.
Loading...
