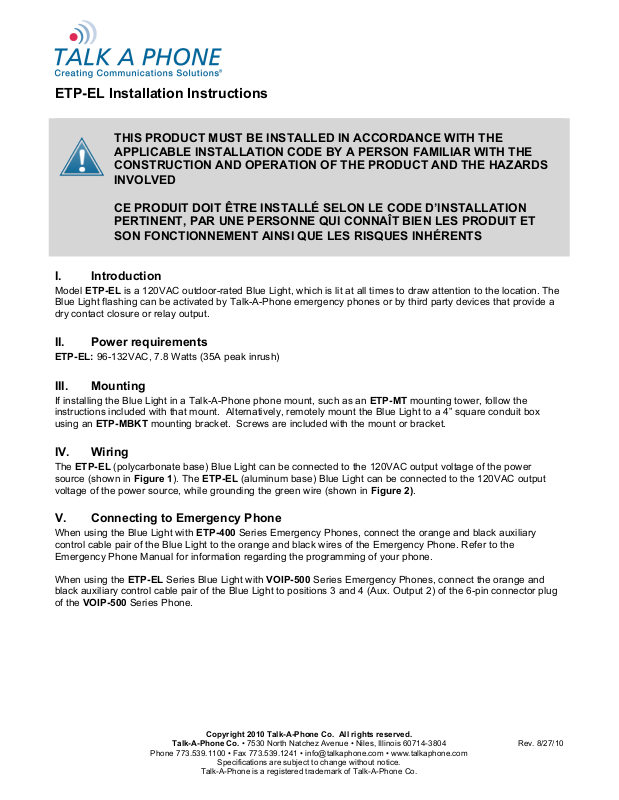

ETP-EL Installation Instructions

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS
INVOLVED

CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D’INSTALLATION
PERTINENT, PAR UNE PERSONNE QUI CONNAÎT BIEN LES PRODUIT ET
SON FONCTIONNEMENT AINSI QUE LES RISQUES INHÉRENTS

I. Introduction

Model ETP-EL is a 120VAC outdoor-rated Blue Light, which is lit at all times to draw attention to the location. The
Blue Light flashing can be activated by Talk-A-Phone emergency phones or by third party devices that provide a
dry contact closure or relay output.

II. Power requirements

ETP-EL: 96-132VAC, 7.8 Watts (35A peak inrush)

III. Mounting

If installing the Blue Light in a Talk-A-Phone phone mount, such as an ETP-MT mounting tower, follow the
instructions included with that mount. Alternatively, remotely mount the Blue Light to a 4” square conduit box
using an ETP-MBKT mounting bracket. Screws are included with the mount or bracket.

IV. Wiring

The ETP-EL (polycarbonate base) Blue Light can be connected to the 120VAC output voltage of the power
source (shown in Figure 1). The ETP-EL (aluminum base) Blue Light can be connected to the 120VAC output
voltage of the power source, while grounding the green wire (shown in Figure 2).

V. Connecting to Emergency Phone

When using the Blue Light with ETP-400 Series Emergency Phones, connect the orange and black auxiliary
control cable pair of the Blue Light to the orange and black wires of the Emergency Phone. Refer to the
Emergency Phone Manual for information regarding the programming of your phone.

When using the ETP-EL Series Blue Light with VOIP-500 Series Emergency Phones, connect the orange and
black auxiliary control cable pair of the Blue Light to positions 3 and 4 (Aux. Output 2) of the 6-pin connector plug
of the VOIP-500 Series Phone.

Copyright 2010 Talk-A-Phone Co. All rights reserved.

Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714-3804 Rev. 8/27/10

Phone [phone] • Fax [phone] • [e-mail] • www.talkaphone.com

Specifications are subject to change without notice.

Talk-A-Phone is a registered trademark of Talk-A-Phone Co.

ETP-EL Installation Instructions

Polycarbonate
base Blue Light

Figure 1: Electrical connections to the ETP-EL (polycarbonate base) Blue Light

Aluminum base
Blue Light

Figure 2: Electrical connections to the ETP-EL (aluminum base) Blue Light
