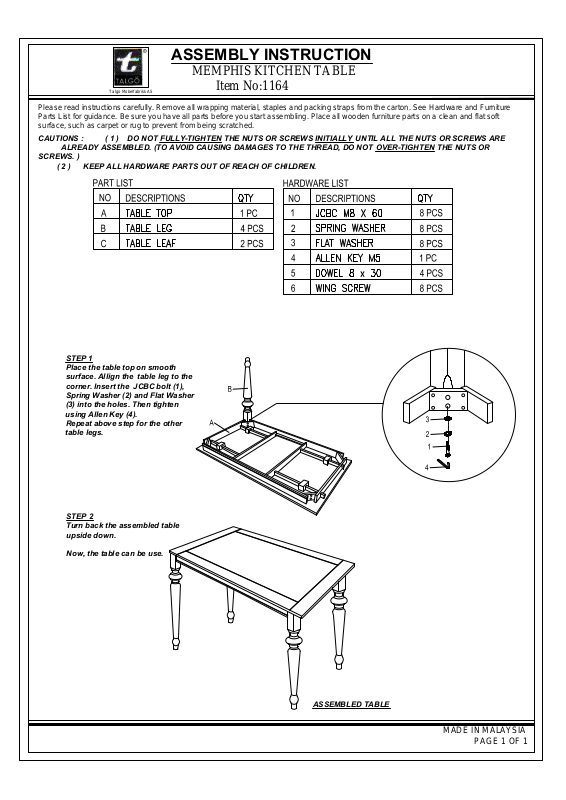

ASSEMBLY INSTRUCTION
MEMPHIS KITCHEN TABLE
Talgo Mobelfabrikk AS
Please read instructions carefully. Remove all wrapping material, staples and packing straps from the carton. See Hardware and Furniture
Parts List for guidance. Be sure you have all parts before you start assembling. Place all wooden furniture parts on a clean and flat soft
surface, such as carpet or rug to prevent from being scratched.
CAUTIONS : ( 1 ) DO NOT
ALREADY ASSEMBLED. (TO AVOID CAUSING DAMAGES TO THE THREAD, DO NOT
SCREWS. )
( 2 ) KEEP ALL HARDWARE PARTS OUT OF REACH OF CHILDREN.
FULLY-TIGHTEN THE NUTS OR SCREWS INITIALLY UNTIL ALL THE NUTS OR SCREWS ARE
Item No:1164
OVER-TIGHTEN THE NUTS OR
STEP 1
Place the table top on smooth
surface. Allign the table leg to the
corner. Insert the JCBC bolt (1),
Spring Washer (2) and Flat Washer
(3) into the holes. Then tighten
using Allen Key (4).
Repeat above step for the other
table legs.
STEP 2
Turn back the assembled table
upside down.
Now, the table can be use.
ASSEMBLED TABLE
MADE IN MALAYSIA
PAGE 1 OF 1
