TAL Dolce 297-029 User Manual

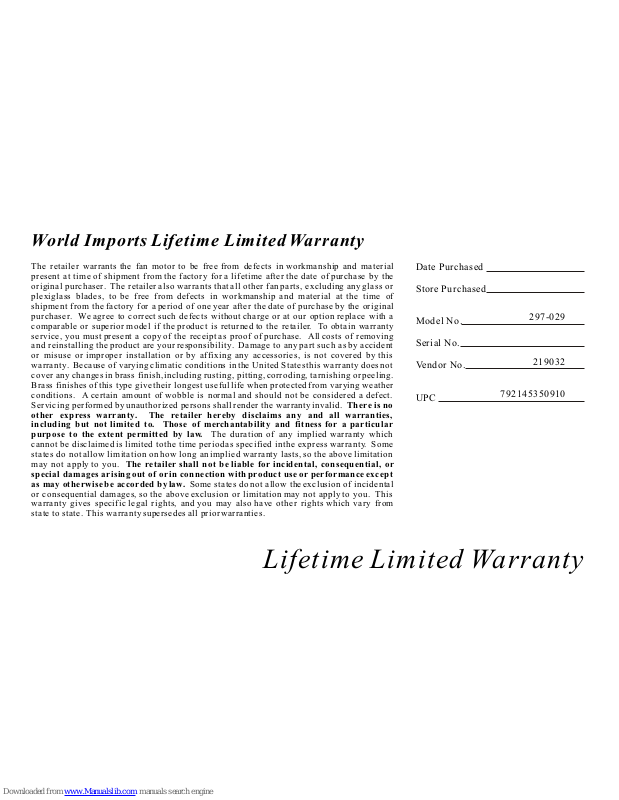

World Imports Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or plexiglass blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is returned to the retailer. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions in the United States this warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of wobble is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties, including but not limited to. Those of merchantability and fitness for a particular purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimed is limited to the time period as specified in the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
297-029
219032
792145350910
Safety Rules.....................................................................................................................................
Unpacking Your Fan .........................................................................................................................
Installing Your Fan ...........................................................................................................................
Installing the Light Kit......................................................................................................................
Your .............................................................................................................
Care of Your Fan .............................................................................................................................
Troubleshooting .............................................................................................................................
Specifications ................................................................................................................................
Operating Transmitter
1.
2.
3.
8.
9.
10.
11.
12.
Table of Contents
1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for mounting to the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced, consult a qualified electrician if in doubt.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.
11. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box.
12. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL Listed and marked suitable for use with the model fan you are installing. Switches must be UL General Use Switches. Refer to the Instructions packaged with the light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of 50 pounds. Use only UL Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
7. Do not operate the reverse switch while the fan blades are in motion.
The fan must be turned off and the blades stopped before reversing the blades direction.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!
Unpacking Your Fan 2.
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588
Unpack your fan and check the contents. You should have the following items;
.
1 Fan blades (5)
2. Canopy assembly
3.
4.
5. Fan motor assembly Blade arms (5)
Ball/downrod assembly (1)
& extra downrod (1)
Coupling cover
6.
3
1
2
7
8
9
10
4
5
6
12
11
13
14
14. Loose parts bag containing: a. Blade attachment hardware
b. Mounting hardware ( 3 plastic wire connectors)
(16 screws )
a
b
7. Light plate
8. Light shade
9. Extra light shade
10. 100 Watt medium base bulb
11. Receiver with 6 wire nuts
12. Transmitter+holder+2 mounting screws
13. Balancing kit
3. Installing Your Fan
Tools Required
Phillips screwdriver, straight slot screwdriver, adjustable wrench, step ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 50 lbs). Do not use plastic outlet boxes.
Figures 1,2 and 3 are examples of different ways to mount the outlet box.
Note: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling.
To hang your fan where there is an existing fixture but no ceiling joist, you may need an installation hanger bar as shown in Figure 4.
Outlet box
Outlet box
Provide strong support
Recessed outlet box
Mounting bracket opening must be toward the top
O
utl
e
t
b
o
x
Figure 1 Figure 3
Figure 2
Figure 4
Angled ceiling maximum 24 angle
Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise.(Fig. 5)
Step 2. Remove the hanger bracket from the canopy by loosening the two screws on the bottom of the hanging bracket from the screw head and turning the canopy counter clockwise.(Fig, 5)
Step 3. Pass the 120-volt supply wires through the center hole in the ceiling hanger bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the ceiling outlet box with the screws and washers provided with your outlet box.
Step 5. Remove the hanger pin, lock pin and set screws from the top of the motor assembly.
Step 6. Route wires exiting from the top of the fan motor through the collar cover, canopy cover, canopy and then through the ball / downrod. (Fig. 7)
a half turn
WARNING
FAILURE TO PROPERLY INSTALL LOCKING PIN
AS NOTED IN STEP 7 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Step 8. Tighten two set screws on top of the fan motor firmly (Figure 7)
Step 9. Place the downrod ball into the hanger bracket socket.
CHANGING THE DOWNROD (OPTIONAL)
NOTE: Your fan comes with a 4" downrod
attached to the hanger ball. In addition you have been provided with a 6" downrod to use if desired. If you choose to use the 6" downrod, perform the following steps:
1. Remove the hanger ball from the 4" downrod by loosening the set screw at the top of the downrod which holds the hanger ball to the downrod.
2. Slide the hanger ball down the downrod and
remove the support pin.
Step 7. Align the holes at the bottom of the downrod with the holes in the collar on top of the motor housing (Fig.7). Carefully insert the hanger pin through the holes in the collar and downrod. Be careful not to jam the pin against the wiring inside the downrod. Insert the locking pin through the hole near the end of the hanger pin until it snaps into its locked
position, as noted in the circle inset of Fig. 7.

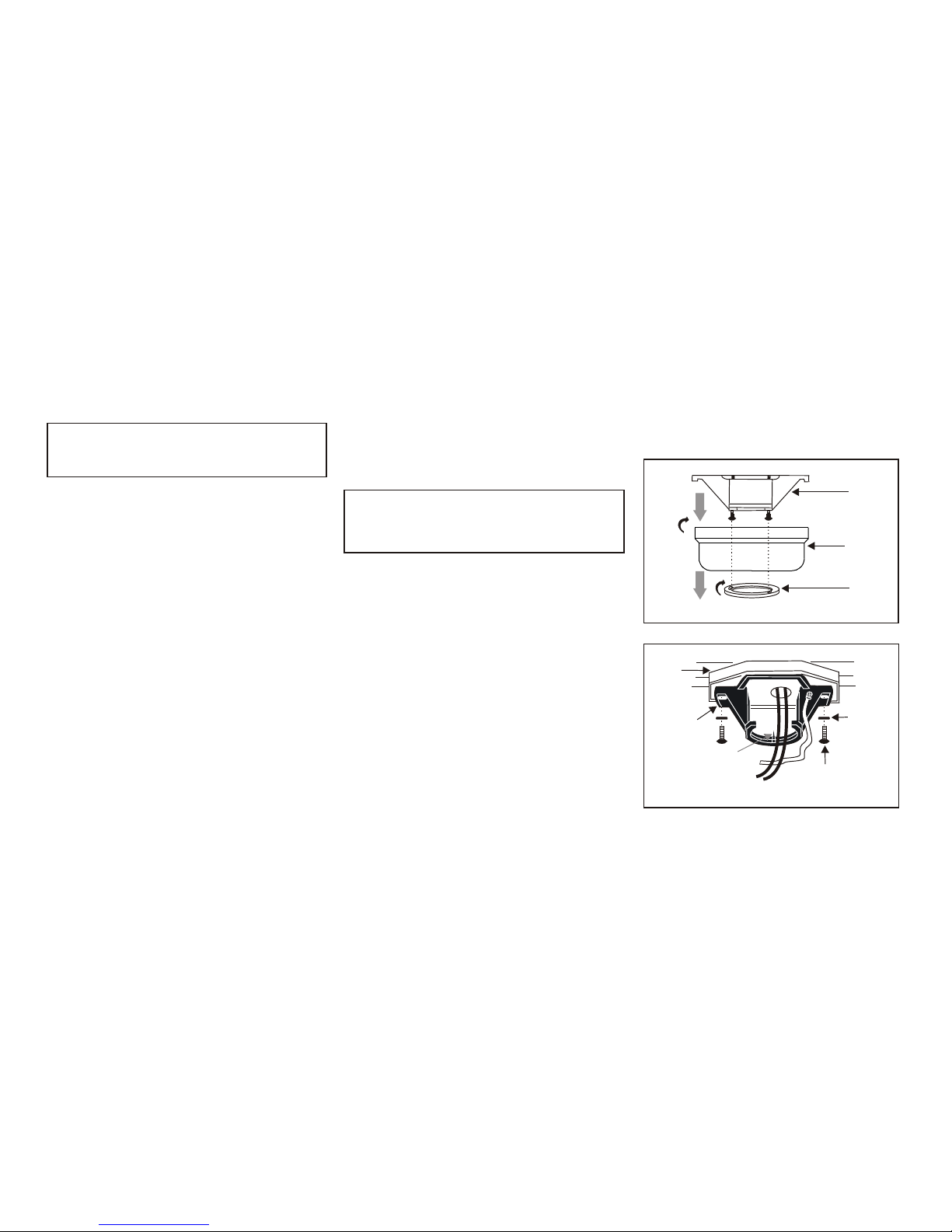

Figure 5
Hanger bracket
Ceiling canopy
Canopy cover
Mounting screws (supplied with electrical box)
Hook
Ceiling mounting plate
UL Listed electrical box
Figure 6
120V Wires
Washers
3. Insert the support pin in the holes at the top of the 6" downrod and slide the hanger ball up the 6" downrod. Make sure the support pin is properly seated in the grooves in the top of the hanger ball.
4. Tighten the set screw firmly.
4.
CAUTION
Remove the 5 screws from the motor support plate,
discard the 5 screws and motor support plate.
5.
Pin in locked position
Motor collar
Motor wires
Ball/downrod assembly
Ceiling canopy
Tighten screws firmly

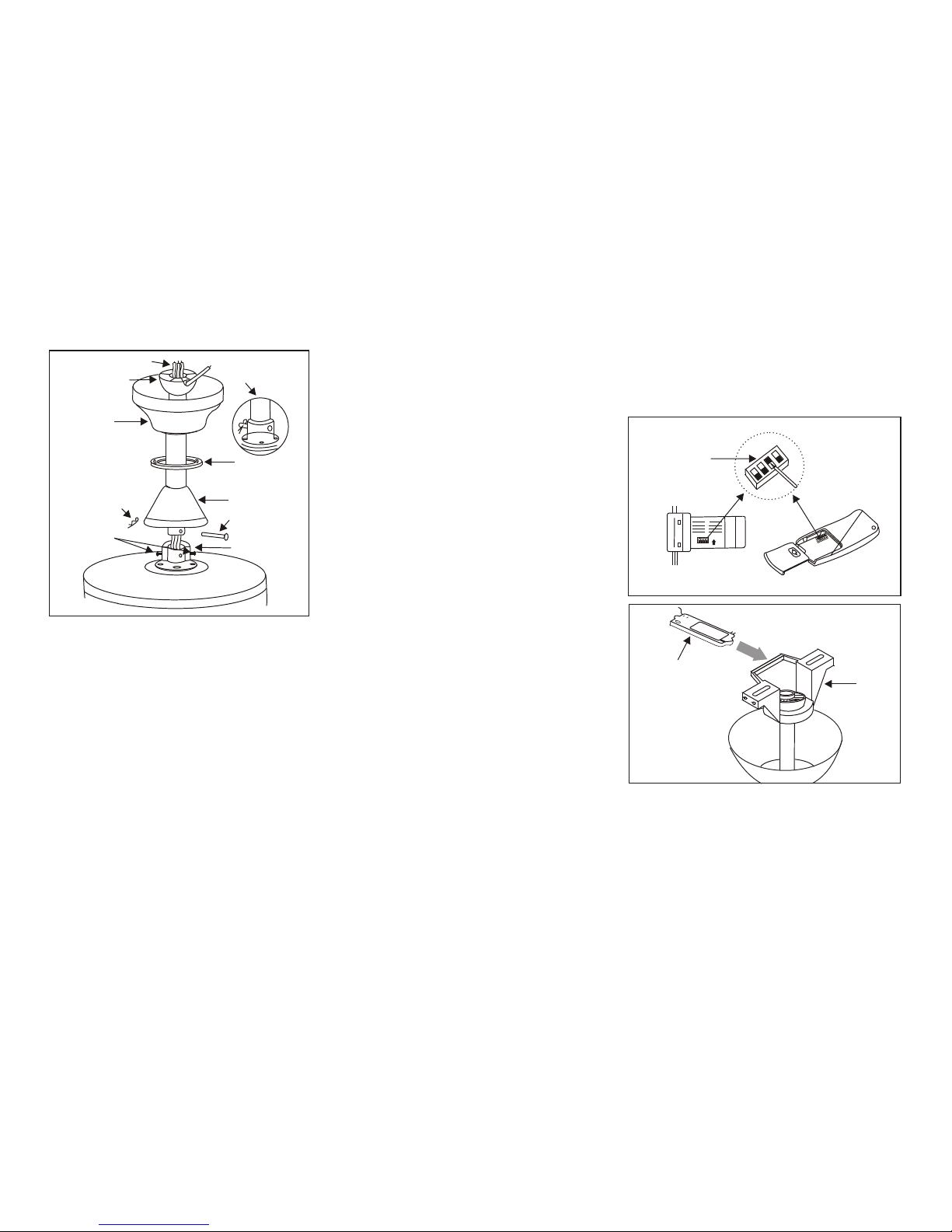

Figure 7
Hanger pin
Locking pin
Collar cover
Canopy cover
Make the Electric Connections
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at the main fuse box before wiring.
NOTE: This remote control unit is equipped with 16 code combinations to prevent possible interference from or to other remote units. The frequency switches on your receiver and transmitter have been preset at the factory. Please recheck to make sure the switches on the transmitter and the receiver are set to the same position, any combination of settings will
operate the fan as long as the transmitter and receiver are set to the same position.(Figure 8)
Step 1. (Figure 9) Insert the receiver into the mounting bracket with the flat side of the receiver facing the ceiling.
Step 2. (Fig. 10) Motor to Receiver Electrical Connections: Connect the Black wire from the fan to Black wire marked "TO MOTOR L". Connect the White wire from the fan to the White wire marked "TO MOTOR N" from the receiver. Connect the Blue wire from the fan to the Blue wire marked "For Light" from the receiver. Secure wire connections with the plastic wire nuts provided.
Step 3. (Figure 10) Receiver to House Supply Wires Electrical Connections: Connect the black (hot) wire from the ceiling to the black wire marked "AC in L" from the receiver. Connect the white(neutral) wire from the ceiling to the white wire marked "AC in N" from the Receiver. Secure the wire connections with the plastic wire nuts provided.
Step 4. (Figure 10) If your outlet box has a ground wire (green or bare copper) connect it to the fan ground wires; otherwise connect the hanging bracket ground wire to the mounting bracket. Secure the wire connection with a plastic nut provided. After connecting the wires spread them apart so that the green and white wires are on one side of the outlet box and black and blue wires are on the other side. Carefully tuck the wire connections up into the outlet box.
Figure 9
Receiver
Hanger bracket
Figure 8
Note: Fan must be installed at a maximum distance of 20 feet from the transmitting unit for proper signal transmission between the transmitting unit and the fan's receiving unit.
ON ON
Code switch
6.
Figure 11
Outlet box
Hanger bracket
Canopy
Canopy cover
Screws

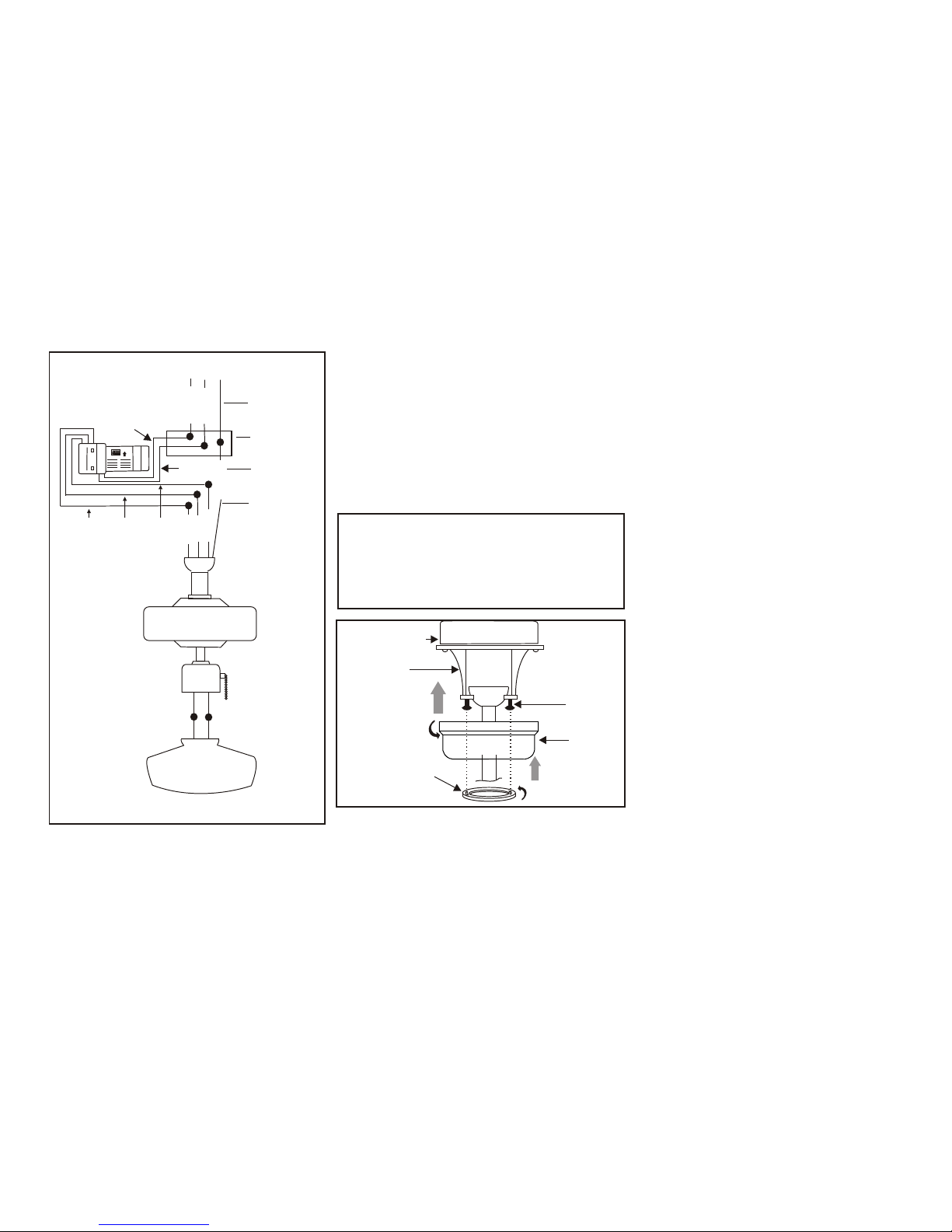

SUPPLY CIRCUIT
Ground Conductor
Outlet Box
Green Ground Lead
Ground to Downrod
BLACK
WHITE
WHITE
WHITE
WHITE
BLACK
BLACK
BLACK
BLUE
BLUE
GREEN
Figure 10
WHITE
WHITE
BLUE
BLACK
ON ON

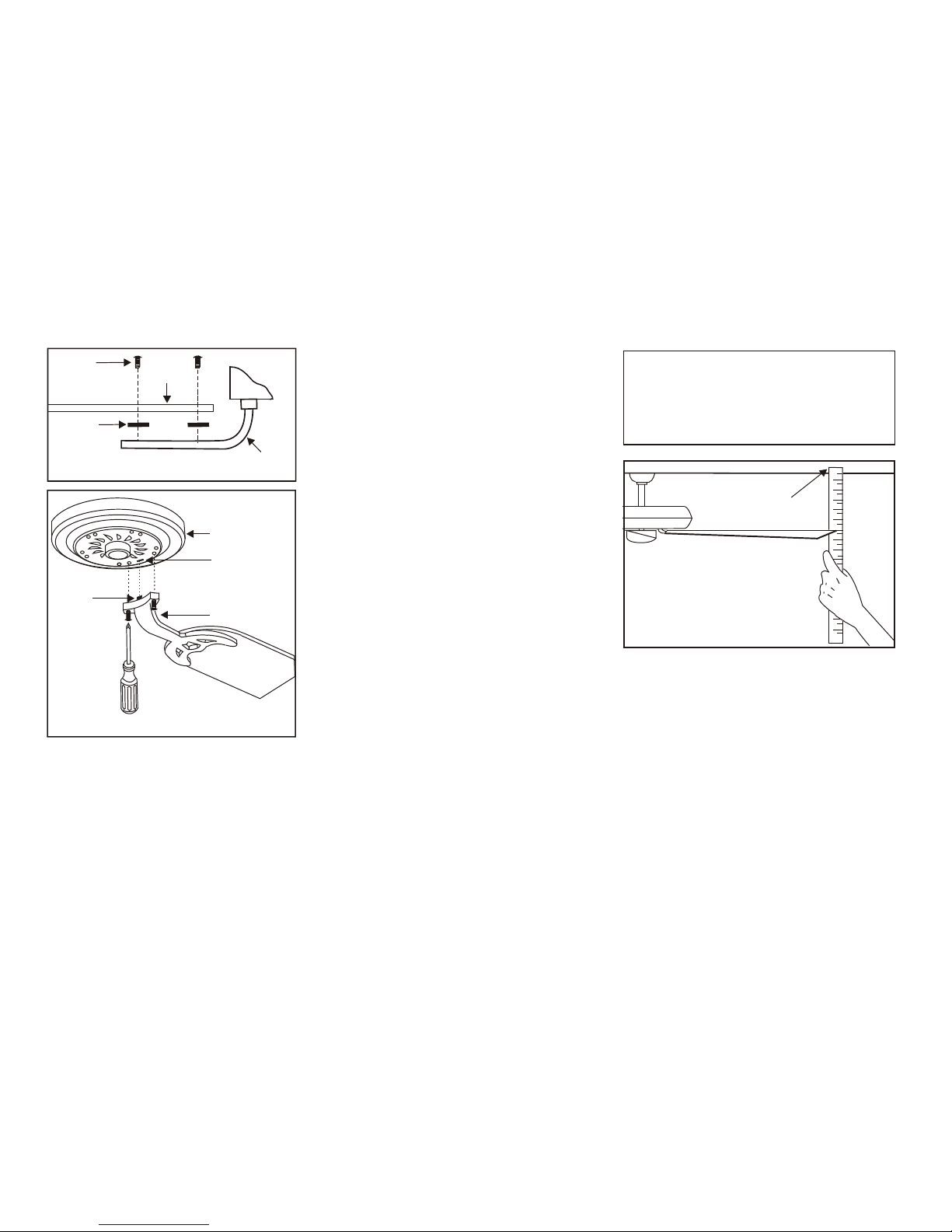

Attaching the Fan Blades
Step 1 Attach blades to the blade arms
using three screws and rubber washers as shown in Figure 12. Start a screw into the arm, do not tighten. Repeat for the 2 remaining screws and washers.
Step 2 Tighten each screw securely starting with the center screw. Make sure the blade is straight.
the
Step 3 Fasten the blade arms to the motor by inserting the tab from the blade arms to the slot in the bottom motor housing, then tighten the two screws and washers already installed in the blade arms (Figure 13).
Step 4 Install an optional light kit if you wish. Follow the instructions included with the kit.
Finishing the Installation
Step 1. Tuck connections neatly into ceiling
outlet box. Step 2. Slide the canopy up to ceiling and over
the 2 screws on the hanger bracket. Rotate canopy clockwise. Next, while holding the canopy with one hand, slide the canopy cover over the screws and rotate clockwise until tight. Note: adjust the canopy screws as necessary until the canopy and canopy cover are snug. (Fig. 11)
WARNING
Make sure the notch on the hanging bracket
properly sits in the groove in the hanger ball
before attaching the canopy to the bracket by
turning the housing until it drops into place.
'
7.
Rubber washer
Blade arm
Figure 12
Blade
Screws
Figure 13
Motor
Blade arm
Slot
Tab
All blades are grouped by weight. Because natural woods very in density, the fan may wobble even though the blades are weighed equally.
The following procedure should correct most fan wobbling problems. Check after each step.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip of one of the blades. Measure this distance as shown in Figure 14. Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. The distance should be equal within 1/8".
deviation
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly result in smoother operation.
Touching ceiling
Figure 14
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE HOLDERS
WHILE INSTALLING, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.

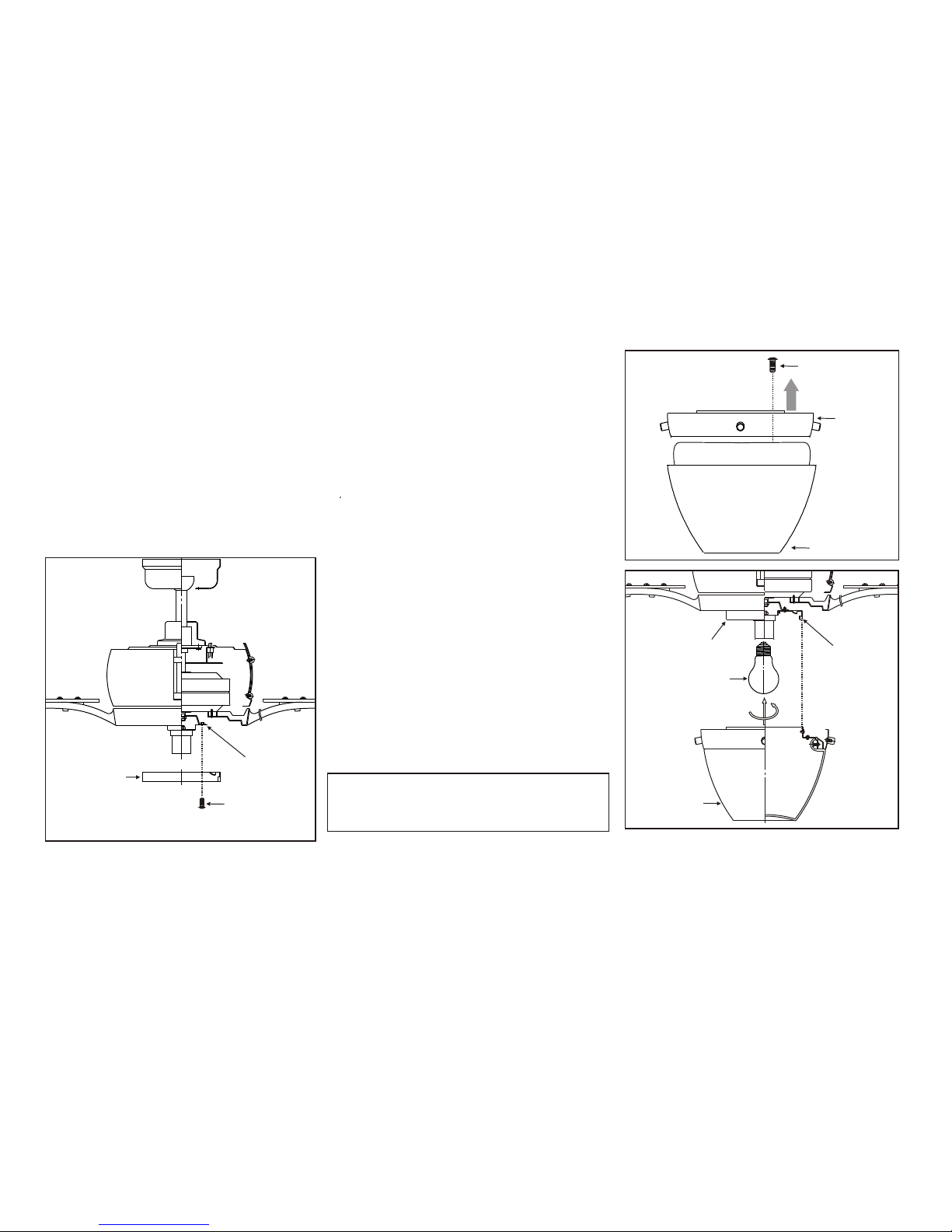

Installing the light plate
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws. (Do not remove)
Step 3. Place the key holes on the light plate over the 2 screws previously loosened from the mounting ring, turn light plate until it locks in place at the narrow section of the key holes. Secure by tightening the 2 screws previously loosened and the one previously removed. (Fig. 15)
Figure 15
Light plate
Mounting ring
Screws
Installing the Light Kit 8.
Figure 17
Bulb
Light shade
Tabs
Light plate
Screws
Glass shade
Glass plate
Figure 16
NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box.
Turning power off using the fan switch is not sufficient to prevent electric shock.
Changing the Light Glass
There are 2 kinds of glass (white art glass and amber art glass) available in your box for your choice, use the one preferably to match your decor. Following the steps to make proper glass installation.
1. Remove the 4 screws from the glass plate. (Fig. 16)
2. Replace the glass plate onto another glass shade and secure with the 4 screws provided.
Installing the Light Kit
1. Insert the light bulb (included) into the light kit socket. Max. 100 Watt.
2. Raise the light shade up against the light plate and secure it to the fan by twisting glass clockwise until the tabs on the light plate properly sits in the notches on the glass. DO NOT OVER TIGHTEN. (Fig. 17)
3. Restore power and your light kit is ready for operation.
NOTE: Light bulbs have no warranty, can be purchased at local light bulb specialty store or from our service center.

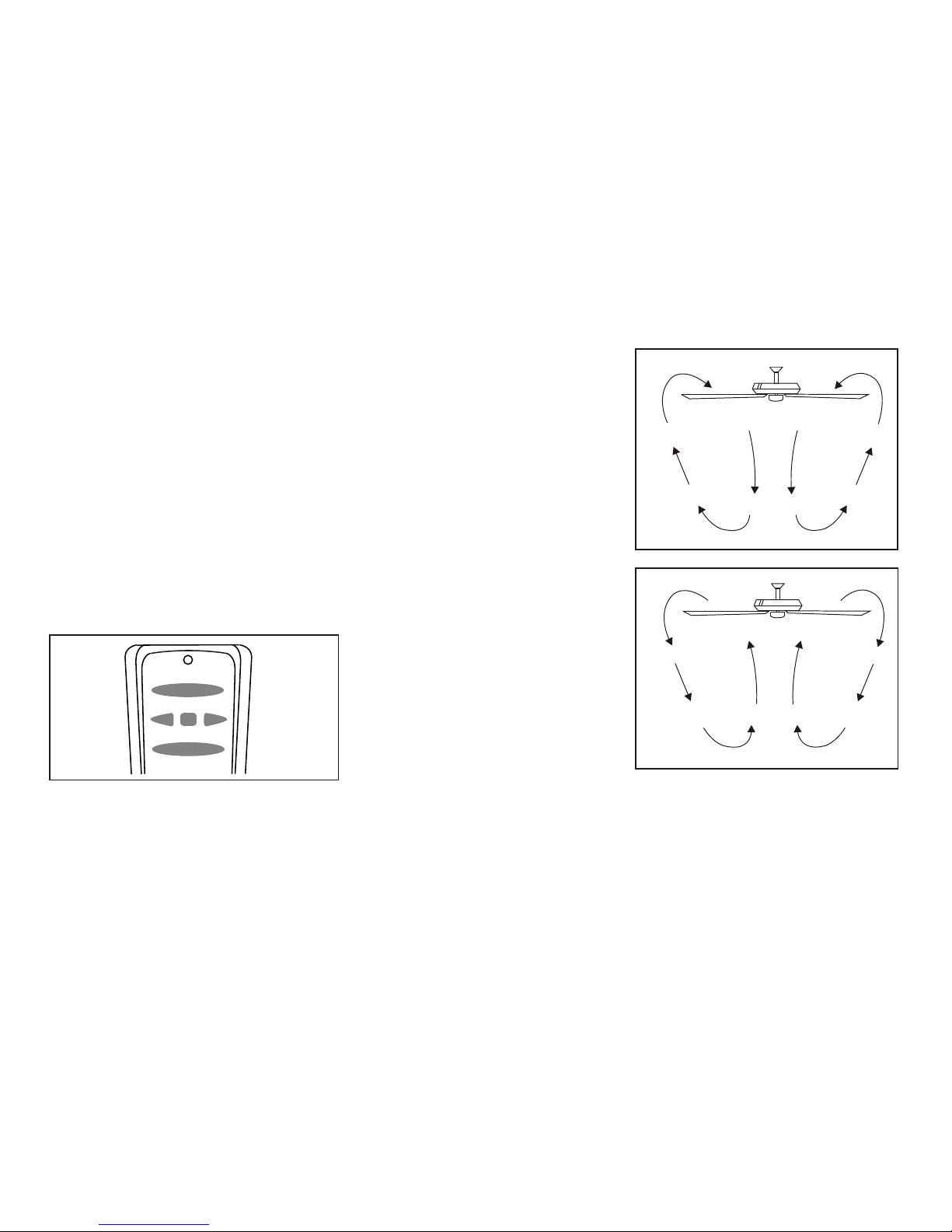

9. Operating Your Transmitter
Restore power to ceiling fan and test for proper operation.
1. " LO, MED, HI" buttons: These three buttons are used to set the fan
speed as follows: LO= Low speed MED= Medium speed HI= High speed
2. "FAN OFF" button: This button turns the fan off.
3. The "LIGHT/DIMMER" button turns the
light ON or OFF and also controls the brightness setting. Press and release the button to turn the light ON or OFF. Press and hold the button to set the desired brightness. The light key has an auto-resume, it will stay at the same brightness as the last time it was turned off.
Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans, etc.
NOTE: Wait for fan to stop before changing the setting of the slide switch.
Warm weather - (Forward) A downward air flow creates a cooling effect as shown in Figure 19. This allows you to set your air conditioner on a higher setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow moves warm air off the ceiling area as shown in Figure 20. This allows you to set your heating unit on a lower setting without affecting your comfort.
The Reverse switch is located on the top of the motor. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation.
Figure 19
Figure 20
Figure 18
LIGHT / DIMMER
LO
MED
HI
FAN OFF
Care of Your Fan 10.
Here are some suggestions to help you maintain your fan
1.Because of the fan's natural movement, some connections may become loose. Check the
support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the motor, or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional protection and enhanced beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"

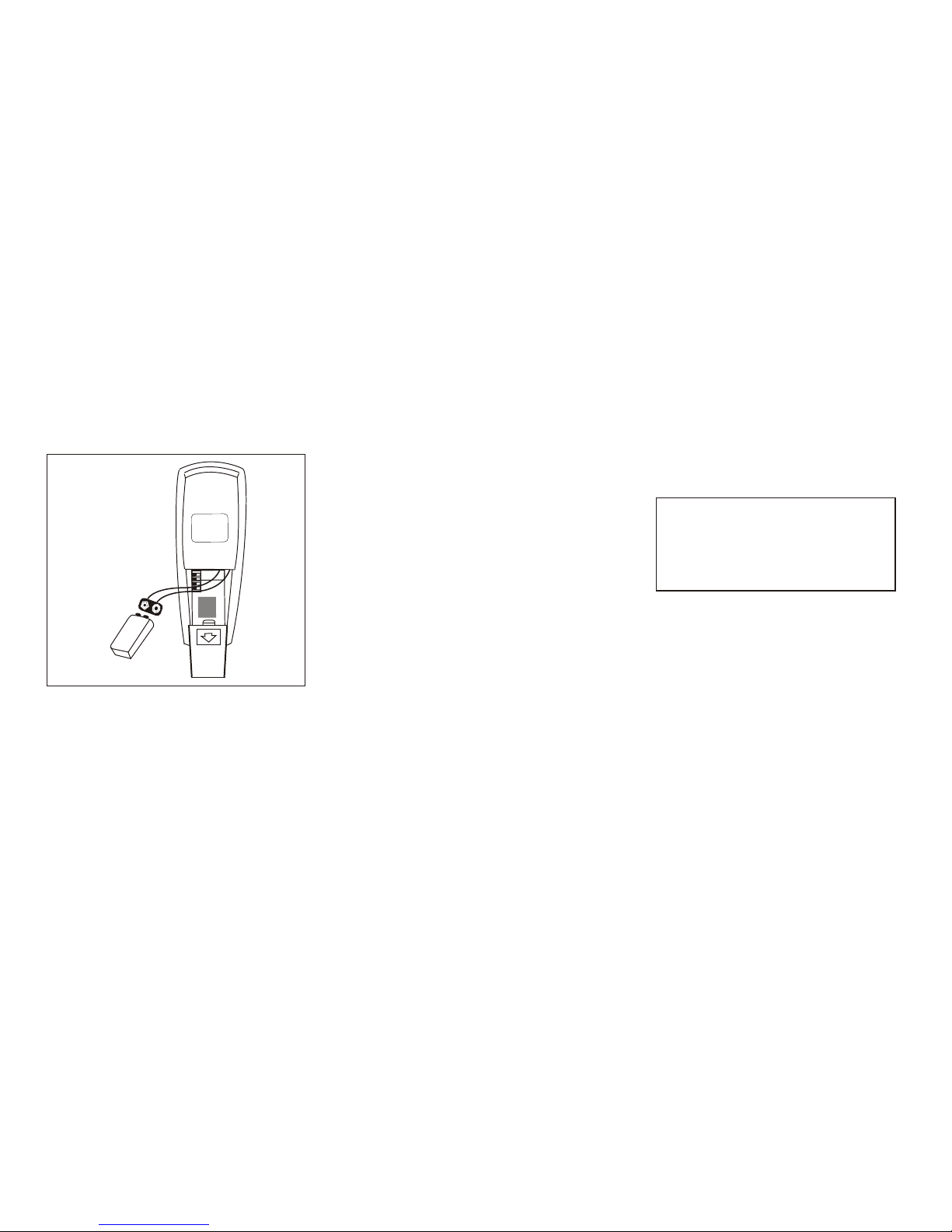

Installing the battery:
Install 9 volt battery (not included), to prevent damage to transmitter, remove the battery if not used for long periods.
9 Volt
B
a
tt
e
ry
Figure 21
Problem
Fan will not start.
Fan sounds noisy.
Remote control malfunction:
Solution
1.Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light bulb is also secure.
6.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
the
Do not connect the fan with a wall mounted variable speed control (s)
1. Do not connect the fan with a wall mounted variable speed control (s)
2. Make sure the dip switches are set correctly.
11.Troubleshooting
These are approximate measures. They do not include Amps and Wattage used by the light kit.
RPM
CFM
N.W. G.W.
C.F.
52"
120
3.05'
kgs kgs
120
120
Fan Size
Speed
Volts
Amps
Watts
Low
Medium
High
Specifications 12.
Distributed by Your Other Warehouse, LLC 12100 Little Cayman Dr. Baton Rouge, LA 70809
2005 Homer TLC, Inc. All Rights Reserved World Imports is a registered trademark of Homer TLC, Inc.
C
Loading...
