USER MANUAL
KORAOKE CONSOLE MX-620
Integrating mixer, sound card, effector and amplifier,
the new generation of network karaoke console is
specially designed for network karaoke recording.
It is suitable for network karaoke, network hosting,
speech, home entertainment, PC recording and
music appreciation.

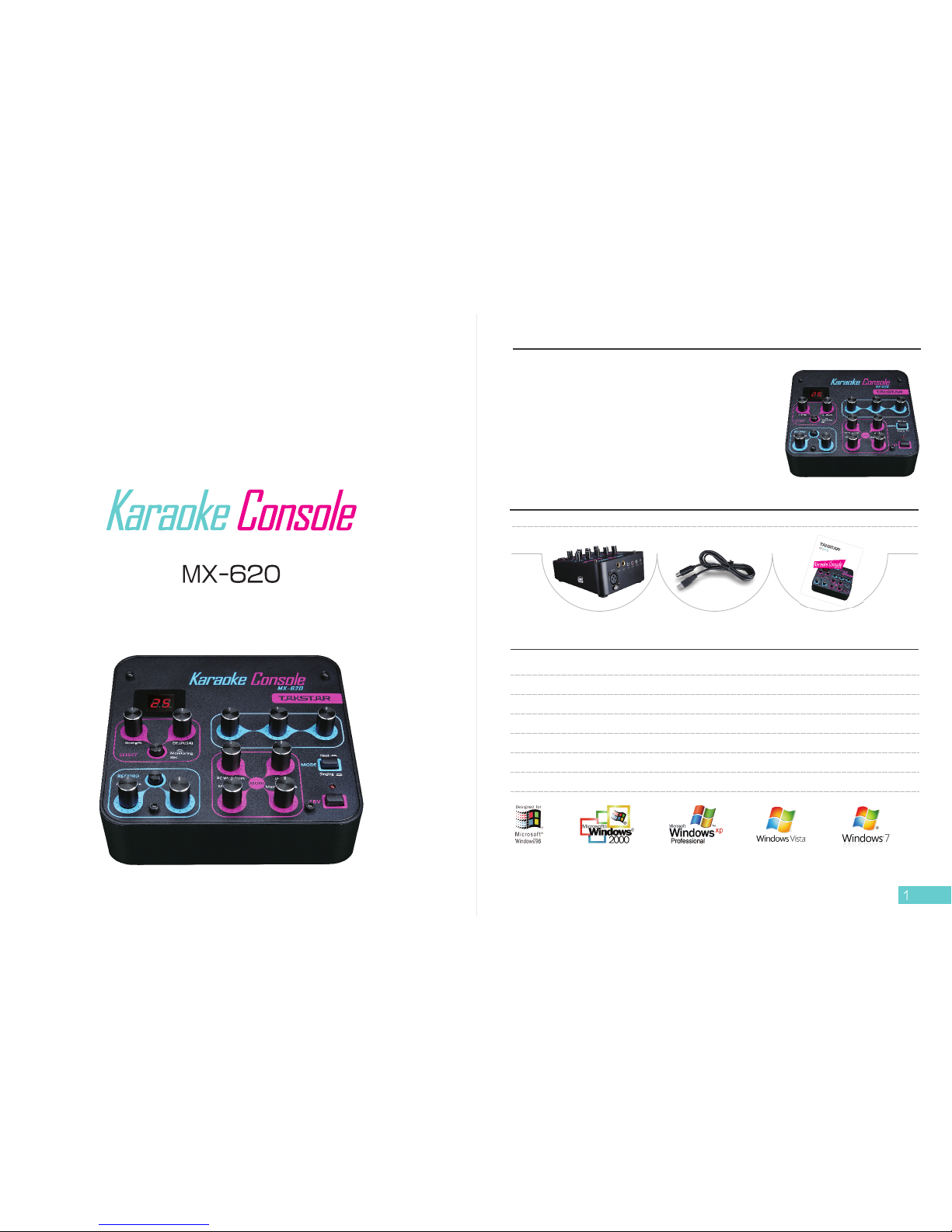

MX-620
Karaoke console 1pc
USB 2.0 data cable 1pc
User manual 1pc
MX-620
Compatible System:
Window 98/2000/XP, WIN7, Vista
Frequency Response: 20 Hz - 20 kHz
S/N: 110 dB(A )
Input Impedance: 1.5 KΩ balanced
Max. Gain: 50 dB
THD: 0.005%≤
3-band EQ: HIGH: 12 kHz ± 15 dB
MID: 2.5 kHz ± 12.5 dB
LOW: 80 Hz ± 15 dB
USB Sample Rate: 24 bit 48 kHz sampling
Headphone Driving Power: ≤ 1 W
Rated Power: 2.25 W
Power Supply: USB 5V / 500mA
≤
A new gen eration of netwo rk karaoke console MX -6 20
Integrates the func ti on of mixer, so und card, effector an d am plifier
Network Karaoke Consol e
MX-620
Product Content
Specification
+
MX-620 Product Features
Built-in imported DSP reverberation chip provides 100 optional
effects
Easy plug and play without driver installation, compatible with
several operating systems such as WINDOWS XP, WINDOW 7
USB interface, compatible with USB1.1, USB2.0, USB3.0
One balanced input (compatible with dynamic and condenser
microphones), two 6.3mm dynamic microphone input interfaces,
one 3.5mm headset interface, one line input interface, one line
output interface and one headphone interface
Provides 48V phantom power supply for condenser microphone
Microphone with 3-band EQ adjustment for changing the
frequency response according to different sound ray
3.5mm line input and output interface for independent
operation without PC, the console can be directly connected to
sound source such as Mp3, iPhone, DVD etc, and output to the
amplifier/audio equipments for live karaoke
Background music can automatically fade out/in, suitable
for network hosting and DJ
Intuitive controlling panel for convenient operation
Auto save function, the system will save the effect of last
setting and when the console is turned on next time, it will
be the same effect of last setting
MX-620 100 types of top effects
Item Types of effects
Item Types of effects
Small hall
Medium hall
Large hall
Church
Small room
Auditorium
Reverb plate
Reversal reverb
Initial reflection
Atmosphere effects
Gymnasium
Atmosphere effects FX
Delay
Medium room
Large room
Reverb spring
Reverb door
Echo
Chorus
Flanger
Phase shift
Tonal modificaiton
Echo + chorus
Delay + echo
Delay + reverb door
Delay + reversal rev
Delay + chorus
Delay + flanger
Delay + phase shift
Delay + tonal mod
Echo + flanger
Echo + phase shift
Echo + tonal mod
00~02
03~05
06~08
09
10~12
13~15
16~18
19
20~26
27~29
30~35
36~39
40~43
44~47
48
49
50~58
59
60~65
66~69
70~73
74~79
80~81
82~83
84~85
86~87
88~89
90
91
92~93
94~95
96~97
98~99
Plug
& Play

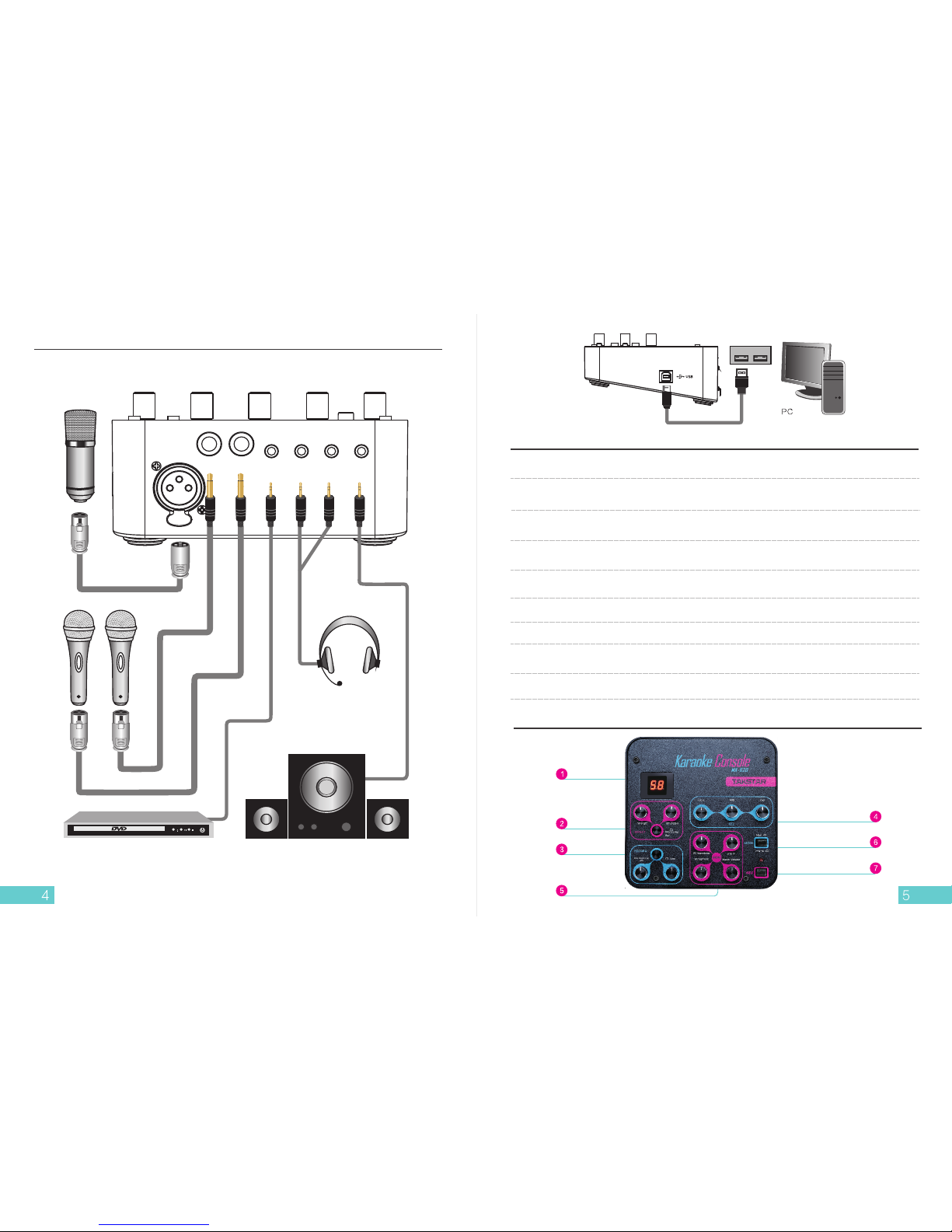

Connect ion Sketch Map
Line in
Phone o ut
Line ou t
Dynamic 1
Condenser
USB in terfac e
1 condenser microphone
balanced female
XLR socket
2 dynamic microphone 1 6.3mm
3 dynam ic microphone 2 6. 3m m
4 line in 3.5mm
5 headset input 3.5mm connect to headset
6 headphone output 3.5mm
connect to headphone
7 line output 3.5mm
8 USB interface USB2.0 connect to USB interface
MX-620 Interface
Ite m
no.
Int erfac e na me Interfa ce specific ation Applica tion
connect to dynamic
microphone
connect to dynamic
microphone
connect to external
audio source
connect to power
amplifier
connect to condenser
or dynamic microphone
MX-620 Product Use
Control Pa nel Function Il lu stration
Phone i n
Dynamic 2
LCD
Effect
Recording
Monitoring
EQ
Operating Mode
48V Power Supply
Function of Control Panel
Item
Module Name Description Operation Function
Display
screen
Display
screen
0-99 types of
DSP effect
digital display
Effect
(PUSH)
DSP effect
choices
Rotate
clockwise or
counterclockwise
When rotating, the screen
will display corresponding
DSP effect figure; when
stop rotating, the figure
will flicker
Press down
When the figure is flickering,
press the effect button for
choosing the effect
Strength
Adjust DSP
effect depth
Rotate clockwise
or
counterclockwise
Increase or decrease the
effect strength
Monitor
with effect
and
record
without
effect
Control the
monitoring
and recording
effect
Press down
Bounce
What you hear is the sound
with effect and what you
record is the sound without
effect
Both what you hear and
what you record is the
sound with effect
Press down
Bounce
Only record the human
voice, suitable for
post-production
Record the music and
human voice together,
suitable for cover and
network karaoke
Microphone
Recording
volume
control
Rotate
clockwise or
counterclockwise
Increase/decrease the
recording volume of
microphone
Sum
Music and
human voice
mixed
recording
volume control
Rotate
clockwise or
counterclockwise
Increase/decrease the
mixed recording volume
Recording
Sum
control
Effect
1
2
3
MX-620
48V power
supply
48V
48V phantom
power switch
Press down
Bounce
Press down when using
the professional
condenser microphone
Bass effect
control
Increase/decrease the
strength of bass effect
Control the
volume of
computer
music
Rotate clockwise
or counterclockwise
Increase/decrease the
volume of music
Line in
Control the
volume of
external
audio source
Rotate clockwise
or counterclockwise
Increase/decrease the
volume of external
audio source
Microphone
Control the
volume of
microphone
monitoring
Rotate clockwise or
counterclockwise
Increase/decrease the
volume of microphone
Main volume
Control the
volume of
main
monitoring
Rotate clockwise or
counterclockwise
Increase/decrease the
volume of mixed
playing
Operating
mode
mode
Switching of
hosting or
singing mode
Press down
The music can fade in
and out according to
speaking. Suitable for
network hosting and DJ
Bounce
Normal singing mode
Rotate clockwise
or counterclockwise
Monitor
Computer
waveform
Bounce when using the
dynamic or handheld
condenser microphone
with built in battery
4
5
6
7
EQ
Treble
Rotate clockwise
or counterclockwise
Mid
Mediant
effect control
Treble effect
control
Increase/decrease the
strength of treble effect
Bass
Increase/decrease the
strength of mediant
effect
Rotate clockwise
or counterclockwise
6
Item
Module
Name
Description Operation
Function
recording volume of microphone is too low but
accompaniment is too loud?
Increase the monitoring main volume and monitoring computer waveform
volume by about 50-70% and vice versa.
volume is normal on local side, but small on the
other side? How to adjust when the volume is small on local side, but normal
Increase
ncrease
the recording sum volume by about 50% to increase the volume on the
other side; i the monitoring main volume by about 50%-70% to increase
the volume on local side.
Press the recording sum control button, then on the other side only the
microphone sound can be heard and vice versa. This function is also suitable for
post-production.
Generally, the treble, mediant, bass of equalizer is set at a position of 12-14
o'clock, which depend on different voice condition and microphone features;
when the treble and bass is set at the minimum and mediant is set at the
maximum, the sound effect is near to the telephone voice effect.
The type of 16-18 effect is large room effect. It is suitable for karaoke. The effect
strength should be adjusted to about 30%-50%. The console offers 100 optional
effects; you can adjust according to personal interest.
What you hear is the sound with effect; what you record and transfer to the
other side of the network is the sound without effect. This function can be used
for professional recording or karaoke score test.
Yes. The console has line in/out interface and was supplied by 5V/1A USB
interface power adaptor. Connect the DVD palyer to line in interface and connect
the power amplifier to line out interface, and then connect the power amplifier
H. How to turn off quickly when you don't want your voice to be heard on the
other side of the network?
Turn the recording sum volume to the minimum when it is bounced; turn the
microphone volume to the minimum when the recording sum button is pressed
down.
I. How to adjust when the recorded reverberation sounds is not full?
Increase the mon itoring m ic ropho ne volume , us ually to ab out 30%-50% . It
depen ds o n perso nal requi rement.
J. Why the music can't be heard when the main volume and computer
waveform is normally turned on?
Please check if the small speaker on the right corner of the computer is in mute
state, if yes, turn on the speaker.
K. Why the voice can't be recorded into the computer when the recording
sum control is normally turned on?
Please check if the recording microphone option of small speaker on the right
corner of the computer is in mute state, if yes, turn on microphone option
Caution
Press 48V power supply button when using professional condenser. If there is no
sound, please check if 48V power supply indicator is light or the monitoring
master volume or microphone volume is turned on. Otherwise, there may be
something wrong with the sound card power supply. Please repair it in time.
Turn down the monitor master volume to the minimum before plug in or out the
microphone to avoid the sound equipment being damaged.
Turn down the effect strength and monitoring microphone to the minimum
volume when play the recorded voice.
When the console is working and powered by the supplied adaptor, if you would
like to connect the console with computer directly, please wait for five
minutes after the adaptor is plugged out.
Do not dismantle or change the inner construction of MX-620 network
karaoke console by yourself lest trouble occur.
Turn off 48V phantom power supply if the console is connected with
dynamic microphone or handheld microphone with built-in battery to
avoid the microphone being burnt.
WARNING
WARNING
Operation T ip s
A. How to do when the
B. How to adjust when the
on the other side?
C. music can only be heard on local side?How to make sure the
D. equalizer?How to adjust the
E. is suitable for karaoke?What effect and volume
F. effect and recording without effect? When this function What is listening with
will be used?
G. for family karaoke without computer but DVD, power
amplifier and audio system?
Can we use the console
to the audio system.
