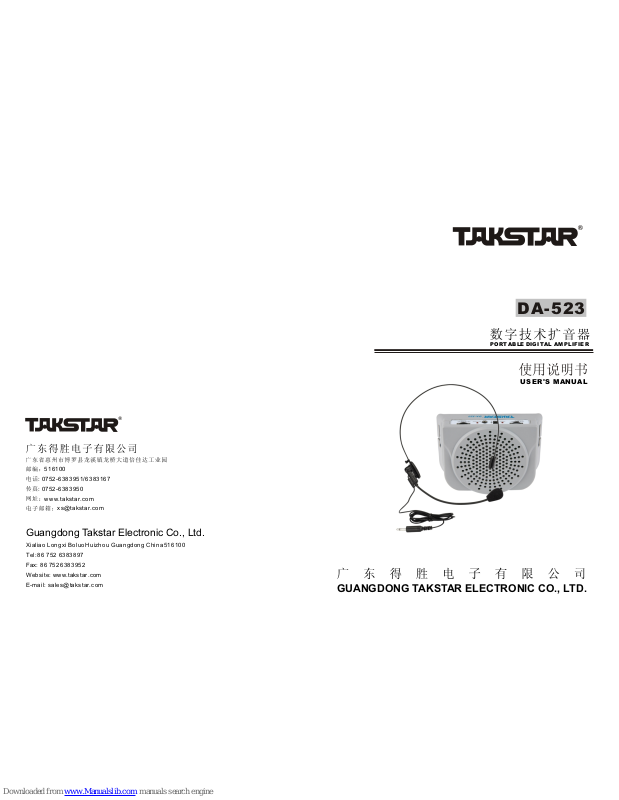

DA-523
GUANGDONG TAKSTAR ELECTRONIC CO., LTD.
USER'S MANUAL
516100
: 0752-6383951/6383167
: 0752-6383950
www.takstar.com
xs@takstar.com
Guangdong Takstar Electronic Co., Ltd.
Xialiao Longxi Boluo Huizhou Guangdong China 516100
Tel: 86 752 6383897
Fax: 86 752 6383952
Website: www.takstar.com
E-mail: sales@takstar.com
PORTABLE DIGITAL AMPLIFIER
-6-
-1-
1
6W 80-100
ABS
110V-230V
6V
Caution
1. When not using the device for a long time, please take out the batteries.
2. Please replace the batteries with fresh one or recharge it in time when the
volume turns down.
3. Be sure that the volume is turned down when connecting audio signal into
the MIC-IN socket.
4. Please make sure the microphone cartridge is pointed right to your mouth for
avoiding feedback.
5. Do not charge non-rechargeable batteries.
6. Keep the device dry and ventilated indoor, avoid exposing it directly to sun
and rain, and do not apply any strong shock to it.
7. Any change or modification on the construction of this device, which are not
expressly approved by the party responsible for compliance, could cause a
malfunction and void the user's authority to operate the equipment. For
additional information about service or parts, please contact your local
authorized Takstar Service Center.
Specification
Frequency Response: 80Hz-12kHz
Output Power: 5-6W
Speaker Impedance: 4Ù
Operating Voltage: 7.2-9V
Battery Type: AAA 1.2V Ni-MH Rechargeable Battery
Power Adaptor: DC 12V
Recharging Period: Approx. 6hrs
Durable Period: =8hrs (depending on the volume and temperature)
Without the authority of Guangdong Takstar Electronic Co., Ltd., no copying,
transmitting, issuing and trans-loading of this manual is allowed.
Specifications are subject to change without prior notice.
-2-
3
1. Please put 6pcs AAA batteries into the battery compartment according to the
Indicated polarity.
2. Plug the headworn microphone into the MIC-IN socket.
3. Turn on the power switch (with volume control), the indicator lights, then
adjust it to the appropriate sound level.
4. Adjust the tone control knob to your favorite range.
Operating Instruction
-5-

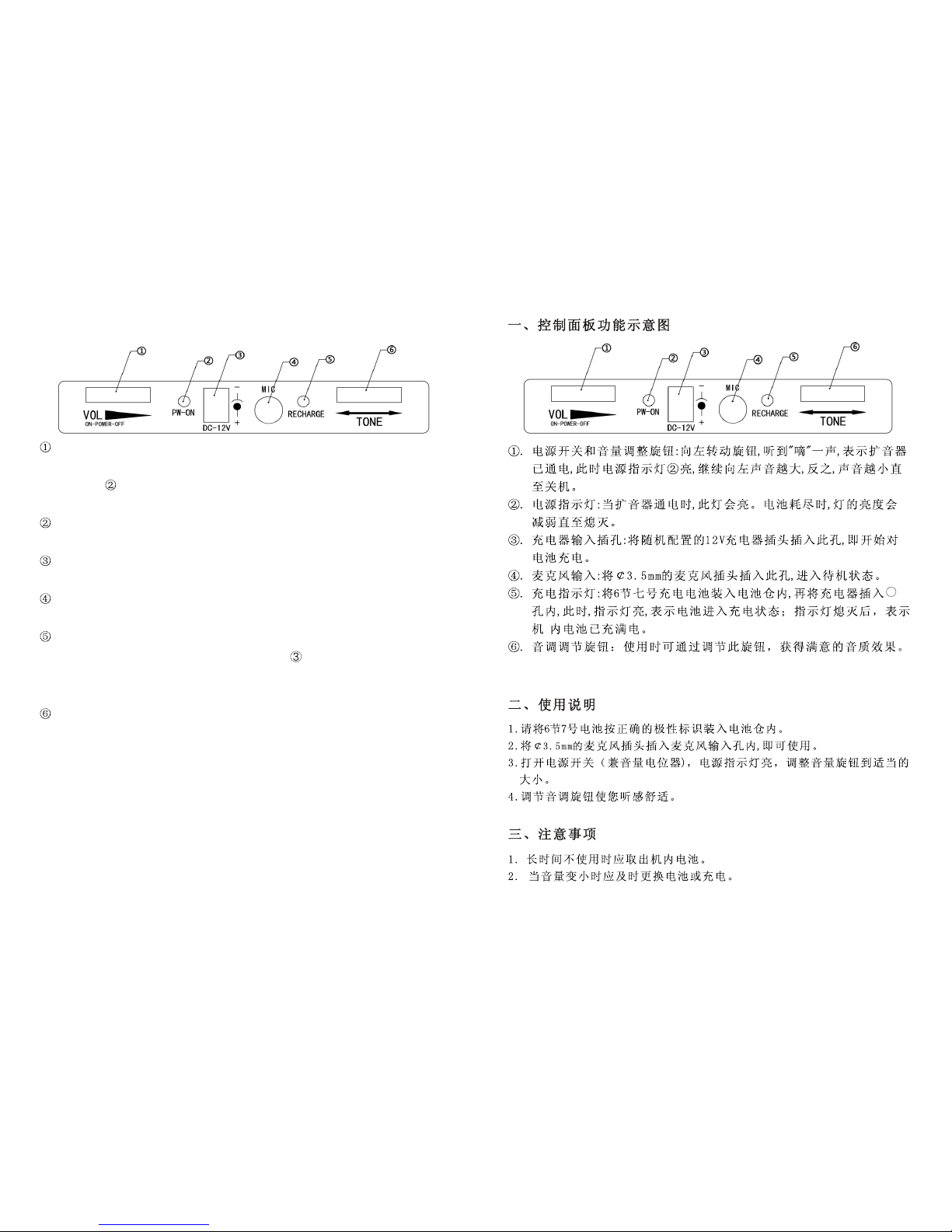

Operational Function of the PanelOperational Function of the Panel
. Power Switch with Volume Control: Turn the switch left; when you hear a
mechanical sound, it indicates the amplifier is power-on and the power
Indicator lights. Adjusting the switch to the left will turn up the volume and
vice versa till it is turned off.
. Power Indicator: It will light when the amplifier is power-on. If the battery is
running out, it will fade away and then black out.
. DC 12V Socket: Insert the power adaptor plug into this socket, the batteries
Inside the amplifier will be charged.
IC IN: Plug the headworn microphone into the MIC input socket, the
Device is at the stand-by state after that.
. Recharging Indicator: Put 6pcs AAA batteries into to the battery compartment,
then insert the power adaptor plug into socket . The indicator will light,
indicating that the batteries are under charging. When the batteries are fully
charged, the indicator will black out.
. Tone Control: Adjust this knob during using to choose your favorite tone.
3
80Hz-12kHz
5-6W
4Ù
7.2-9V
AAA 1.2V NI-MH
12V
8(
-3-
Portable amplifier 1pc
HM-760 microphone 1pc
Power adaptor 1pc
Waist belt 1pc
AAA Ni-MH rechargeable battery 6pcs
Manual 1pc
Delivery Includes
Exquisite and durable design
Digital amplifier circuitry for minimum battery power consumption
Excellent frequency response and feedback rejection
6W output power for operating range of 80-100 square meters
Built-in auto-recharge circuit with LED status indicator
110V-230V Automatic switching power adaptor
Supplied with high capacity rechargeable Ni-MH batteries
Choices of body-pack or waistbelt wear style
Features
Thank you for choosing Takstar portable digital amplifier DA-523.
DA-523 is specially designed for touring and teaching, featuring advanced
digital circuitry, long battery life, as well as multiple wearing styles. Please read
this manual carefully before using.
-4-
