Takex tl-1024ucl, TL-7450UCL Instruction Manual

1 / 17 (ver.0.4)

Model: TL-1024UCL

TAKENAKA SENSOR GROUP

TAKENAKA SYSTEM CO.,LTD.

□

H e a d O f f i c e

86-66 Nomizo-cho Otsuka Yamashina-ku 607-8135 Kyoto JAPAN

TEL:[phone] FAX [phone]

□

C a m e r a D e p t .

4F Matsumasa Bld.1-17-14 Ogaya Otsu Shiga 520-2144 JAPAN

TEL:[phone] FAX [phone]

□

Image Inspection Dept.

86-66 Nomizo-cho Otsuka Yamashina-ku 607-8135 Kyoto JAPAN

TEL:[phone] FAX [phone]

□

T o k y o O f f i c e

2F MK Bldg. 2-2-19 Sotokanda Chiyoda-ku 101-0021 Tokyo JAPAN

TEL :[phone] FAX:[phone]

TAKENAKA SYSTEM CO.,LTD. URL http://www.takex-system.co.jp/

TAKENAKA SENSOR GROUP URL http://www.takex.co.jp/

Line scan camera

Instruction Manual

2 / 17

Table of Contents

1. Outline ………………………………………………… 3

2. Features ………………………………………………… 3

3.Applications ………………………………….…………… 3

4. CCD image sensor ……………………………………. ………… 3

5.Specifications …………………………………… …………… 4

6. Camera I/O ……………………………… ……………… 4
6-1. Connector pin assignment of the Power connector
6-2. Connector pin assignment of the Camera Link connector

7. Timing chart ……………………………………………… 6

8. Serial communication protocol ……………………………………………… 7

9. Exposure control ……………………………………………… 11

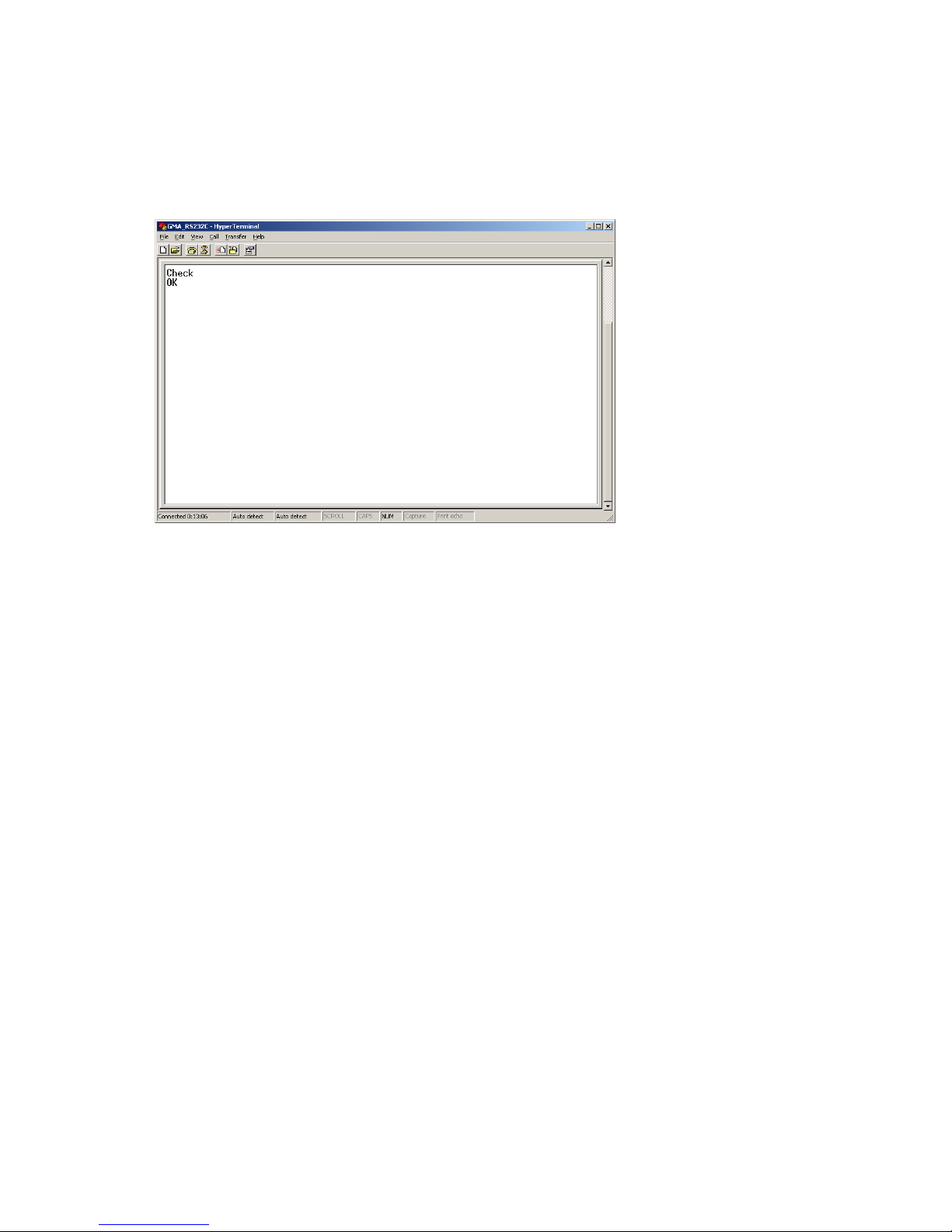

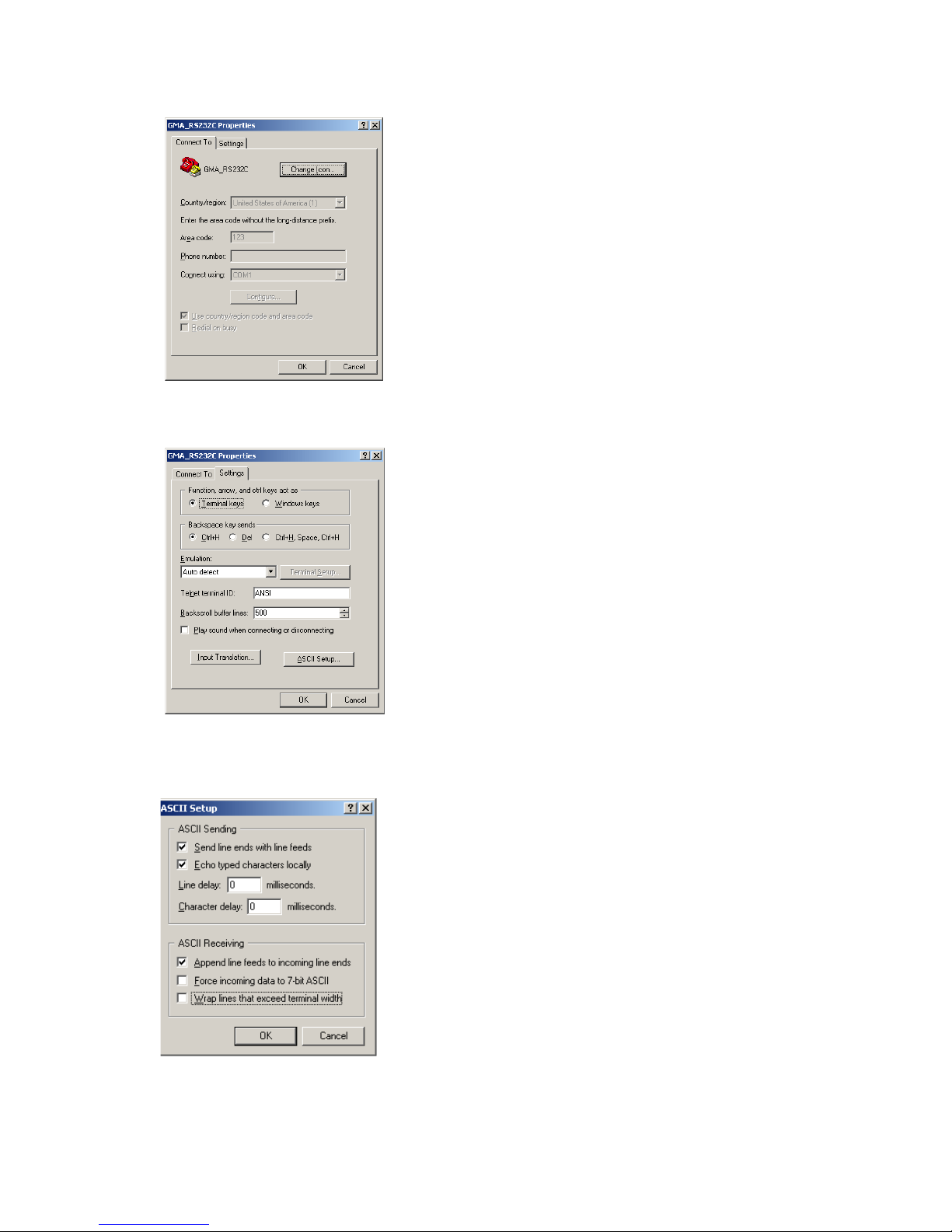

10. Setup steps of Hyper terminal ……………………………………………… 12

11. Notes ……………………………………………… 16

12. External dimensions ……………………………………………… 17

3 / 17

1. Outline

● CCD line scan camera with 1024 pixels of image sensor and of 50MHz data rate.

● Video signal is output complying with Camera Link standard (Base Configuration).

2. Features

● It can perform high-speed inspection with 1024 image pixels at 50MHz data rate.

● GAIN and OFFSET characteristic , 8/10 bit format etc. can be easily changed with RS232C command from

capture board.

● The equipment operates with a single DC12V power source.

● Reduction in size and weight has been realized by adopting original circuit and mechanism design.

● Since the output signal level hardly vary among the ODD and EVEN pixels, It can display crisp image.

● Exposure control function is incorporated.

3. Applications

● Image processing device for Image inspection.

● Foreign substance detector on high-speed production line

● Surface inspection apparatus of sheet-like object .

● Pinhole detector

4. CCD image sensor

The CCD image sensor Is characterized by 10μm square sized pixel, effective 1024 pixels, and high-speed and

high-sensitivity characteristic features.
Charges accumulated in single-row photo diodes are output thorough two shift registers, respectively.
(No.1 for ODD numbered charges, No.2 for EVEN numbered charges) Each shift register operates
at the rate of 50MHz.

Block diagramof CCD device

D26

PORT A

D27

D28

D126

D127S1S2

S3

S7447

D128

D129

D141

D142

D143

S7450

S7449

S7448

diode

Shift gate

CCD analog shift register(No.1)

Shift gate

CCD analog shift register(No.2)

Output buffer

O S1

PORT B

O S2

Output buffer

Spectral Responsivity

4 / 17

5. Specifications

6. Camera I / O

6-1 Power connector

Number of pixels

1024

Unit cell size

10μ m×10μ m

Photo array length 10.24 mm

Data rate

50 MHz

Scan rate (scan/sec) 45.45 kHz Max.

Line transfer pulse input

22 μ sec

Video output (Digital output)

Base　Configuration

2×8/10　bit

Sensitivity

50 Ｖ/lx．sec

Saturated exposure amount 1.3 lx．sec

Output ununiformity

　3%　 standard

at 50% of saturation output（on the element）

Power supply

＋12V　±0.5V　(400mA)

Operational
ambient temperature

0　～　+40℃

（Shall be free from dew condensation and frost.）

Operational
humidity range

85%　ＭＡＸ

Storage temperature range

－10℃　～　＋65℃

Weight

360g or less

External dimension (mm)

64(W)×64(H)×80.3(D)

lens mount

Nicon F mount（standard）
Asahi K mount（optional）

Pin No. Signal name Pin No. Signal name

1 ＋１２Ｖ 4 ＧＮＤ

2 ＋１２Ｖ 5 ＧＮＤ

3 ＋１２Ｖ 6 ＧＮＤ

Connector panel

Camera Link connector

Power connector

Power indicator

Power connector pin assignment

6

5

43

2

1

Power connector (HR10A-7P-6S HIROSE)
(Pin arrangement viewed from the outside of
the camera)

5 / 17

Base Configuration Connector

Pin No. Signal name Pin No. Signal name

1 Shield 14 Shield
2 X0- 15 X0+
3 X1- 16 X1+
4 X2- 17 X2+
5

Xclk－ 18 Xclk＋

6 X3- 19 X3+
7 SerTC+ 20 SerTC­8 SerTFG- 21 SerTFG+

9 CC1- 22 CC1+
10 CC2+ 23 CC2­11 CC3- 24 CC3+
12 CC4+ 25 CC4­13 Shield 26 Shield

Camera Control Configration

Signal name Connection

CC1 EXSYNC
CC2

Spare

CC3

Spare

CC4

Spare

6-2 Camera Link connector

Conforming cable 3M made

Cf. 14B26-SZLB-＊00-0LC (＊m)

※14B26-SZ3B-＊00-04C (＊m)

※Flex resistance cable

Bit assignment of Base Configuration

8 Bit: 10Bit:

1

26 14

13

Camera Link connector pin-out

Port/bit 10-bit x 4 Port/bit 10-bit x 4
Port A0 A0 Port B4 B8
Port A1 A1 Port B5 B9
Port A2 A2 Port B6 nc
Port A3 A3 Port B7 nc
Port A4 A4 Port C0 B0
Port A5 A5 Port C1 B1
Port A6 A6 Port C2 B2
Port A7 A7 Port C3 B3
Port B0 A8 Port C4 B4
Port B1 A9 Port C5 B5
Port B2 nc Port C6 B6
Port B3 nc Port C7 B7

Base connector

Port/bit 8-bit x 4 Port/bit 8-bit x 4
Port A0 A0 Port B4 B4
Port A1 A1 Port B5 B5
Port A2 A2 Port B6 B6
Port A3 A3 Port B7 B7
Port A4 A4 Port C0
Port A5 A5 Port C1
Port A6 A6 Port C2
Port A7 A7 Port C3
Port B0 B0 Port C4
Port B1 B1 Port C5
Port B2 B2 Port C6
Port B3 B3 Port C7

Base connector

6 / 17 (ver.0.4)

7. Timing chart

D0D2D4D8D10

D12

D14S1S3

S1019

S1021

S1023

STR OBE
(25 MHz )

EX SY NC In
(CC 1 I N)

LI NE V ALI D

PIX EL DA TA
POR T A
(OS 1)

Dummy Signal(16pixels)

1 Line Output Period (555 CLOCK)

Ⅰ.TL-1024UCL Timing Chart

S1017

S1015

D6

59 clock

D16

D20

D18

D28

D26

D22

8CLOCK

D24

PIX EL DA TA
POR T B
(OS 2)

D1D7D3D5D9

D11S4D13

D15

S2

S1016

S1018

S1020

D23

S1024

S1022

D17

D19

D21

D27

D25

D29

Effective data period

7 / 17 (ver.0.4)

8. Serial communication protocol

Operation under the RS232C communication

(1) Selection of output bit format 8/10 bit

(2) SYNC system switching

AUTO When EXT SYNC is not designated, it automatically switches to INT SYNC.
EXT.SYNC EXT. SYNC operation only
INT. SYNC INT. SYNC operation only

※SYNC period is determined from the following equation.
SYNC period = Minimum period + n × a

Where
Internal sync(sync=2) n= expt (exposure time)

a= 12.8μsec ….. TL-5150UCL

10.24μsec …..

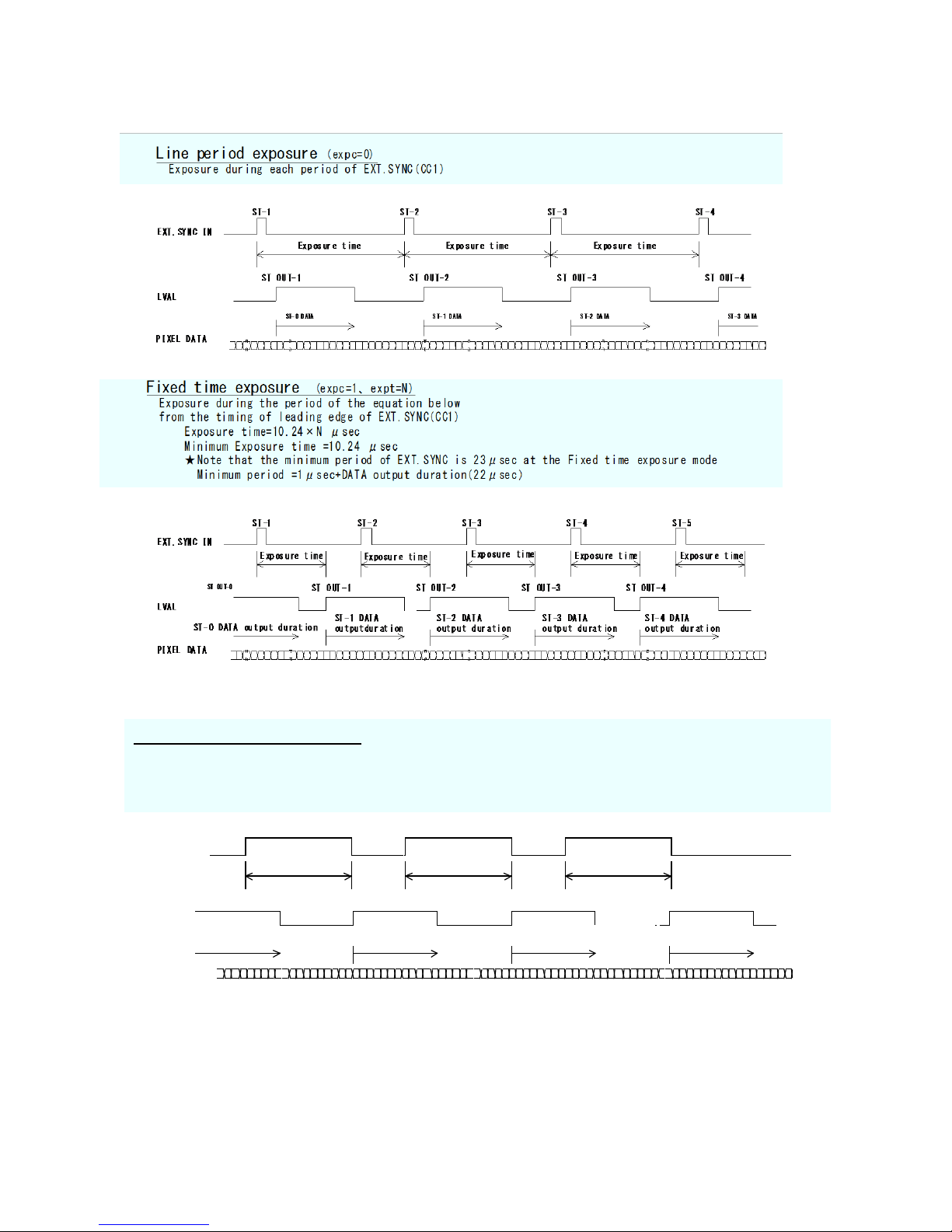

(3) Exposure control system switching (Refer to the time chart on P.11)

Line period exposure Exposure during periodic time
Fixed time exposure Exposure during pre-set time
Pulse width exposure Exposure during the pulse width of EXT.SYNC

(4) GAIN switching

Selection of GAIN position 1,2,3,…………8 ×
Selection of GAIN position for each channel ODD/EVEN adjustment

(5) Adjustment of OFFSET
OFFSET adjustment for each channel (ODD/EVEN)

T

-
2
0

TL-1024UCL
TL-2048UCL
TL-4096UCL
TL-7400UCL
TL-7400RCL
TL-7450UCL

8 / 17

[Network transmission setting]

Baud rate :9600bps
Data Length :8bit
Start Bit :1bit
Stop Bit :1bit
Parity :Non
Xon / Xoff Control :Non

[Communication overall]

1. Viewing
To view the status of the camera.
e.g. Id? <CR> To view the camera ID.

2. Setting
To set the status of the camera.
e.g. sync=1 <CR> To set SYNC system to EXT.SYNC

[Glossary]

[ ] ……omissible
<CR> ……carriage return
N ……arbitrary numeral indicating some value
A ……arbitrary numeral indicating GAIN position
X ……arbitrary numeral indicating channel
Gain position……GAIN position of the camera
Channel …….Channel to specify the GAIN control device for each CCD output line
EEPROM …….EEPROM incorporated in the camera

[Notes]

・Command name must be lower-case. Upper-case character is not valid.
・Input character must be one-byte character. Double-byte character is not valid.
・Blank is not valid.

・Line feed code is indicated by “CR(0x0D)”. And also “LF(0×0A)” and “CR+LF” are usable.

However returning line feed code must be CR only.

<When in use of Hyper terminal>
・Retyping is required in case of inputting error .(Correction by cursor movement is not valid.)

9 / 17

[ Description of exceptional case]

＊NG is returned when in command input error or in inputting nonexistent command.

e.g. : Command input error (Gain position No. is not designated. )

Input: ch1gain=96
Output: NG

e.g. : Input of nonexistent command

Input: chake
Output: NG

＊NE is returned when in numeric entry error.

e.g. : Input error (Input value is beyond the setting range.)

Input: gainpos=96
Output: NE

e.g. : Input error (Input value is beyond the setting range.)

Input: ch1gain1=2000
Output: NE

＊NC is returned when in inputting invalid value under the condition that the ctrl setting (DIP-SW setting) is 0.

e.g. :

Input: ch1gain=9 (at ctrl=0)
Output: NC

＊TO is returned when a command input period overruns the time-out period (15 sec.).

e.g. :

Input: gainpo (No CR entry)
Output: TO

＊” ? ” at the bottom of Command is omissible

e.g. :

Input: id
Output: 0

10 / 17

【Command Protocol】(PC->Camera)

No.

Command
Name

Format Argument Return value Explanantion

Communication

1 Check check<CR> Non OK Command for communication test

Camera setting

2 Ctrl (view) ctrl[?]<CR> Non

0:Dip Switch
1:Com

View the effective state of Communication setting value/DIP
SW.

3 Ctrl (set) ctrl=N<CR>

N=0:Dip Sw
N=1:Com

OK

Set the effective state of Communication setting value/DIP
SW.

4

Dip Sw (view) dipsw<CR> Non 0～255

View the state of DIP SW
Return the state of DIP SW in decimal number

User ID

5 ID (view) id[?]<CR> Non ID(default:0)

View the camera ID.
Administrative use for plural cameras.
For user's operation.

6 ID (set) id=N<CR> N:0～255 OK

Set the camera ID.
Administrative use for plural cameras.
For user's operation.

Output bit

7

Output bit
(view)

bit[?]<CR> Non

8: 8bit(default)
10: 10bit

View the output bit format of the camera.

8

Output bit
(set)

bit=N<CR>

N= 8 : 8bit
N=10 : 10bit

OK

Set the output bit format of the camera.
*Settable only at ctrl=1.

SYNC switching

9

Sync (view). sync[?]<CR> Non

0:Auto
1:Ext Sync
2:Int Sync

3.ExtSync &
Anti Blooming

View the state of SYNC mode.
*Effective value only at ctrl=1.

10

Sync (set) sync=N<CR>

0:Auto
1:Ext Sync
2:Int Sync

3.ExtSync &
Anti Blooming

OK

Set the SYNC mode.
*Settable only at ctrl=1.

Exposure control

11

Exposure
control

expc[?]<CR> Non

0:Line period exposure
1:Fixed time exposure
2:Pulse width exposure

View the exposure control state of the camera.
*Effective value only at ctrl=1.

12

Exposure
control
(set)

expc=N<CR>

0:Line period exposure
1:Fixed time exposure
2:Pulse width exposure

OK

Set the exposure control state of the camera.
*Settable only at ctrl=1.

Exposure time

13

Exposure
time

expt[?]<CR> Non

0～255:Exposure time

View the period at Fixed time exposure mode.
*Effective value only at ctrl=1

14

Exposure
time

expt=N<CR> N=0～255:Exposure time OK

Set the period at Fixed time exposure mode.
*Settable only at ctrl=1

Gain

15

Gain Position
(view)

gainpos[?]<CR> Non 1～8:gain position

View the Gain position of the camera.
*Effective value only at ctrl=1

16

Gain Position
(set)

gainpos=A<CR> A=1～8:gain position OK

Set the Gain position of the camera.
*Settable only at ctrl=1

17

chXgainA
(view)

chXgainA[?]<CR>

X=1～2:ch
A=1～8:gain position

0～255:gain level

View the Gain value fow each Gain position of each channel.

18

chXgainA
(set)

chXgainA=N<CR>

X=1～2:ch
A=1～8:gain position
N=0～255:gain level

OK

Set the Gain value fow each Gain position of each channel.
*Settable only at ctrl=1

Offset

19

chXoffset
(view)

chXoffset[?]<CR> X=1～2:ch 0～31:offset level View the offset value of each channel.

20

chXoffset
(set)

chXoffset=N<CR>

X=1～2:ch
N=0～31:offset level

OK

Set the offset value of each channel.
*Settable only at ctrl=1

ＥＥＰＲＯＭ

21

Save save<CR> Non OK Save the setting to EEPROM.

22

Load load<CR> Non OK Load the setting from EEPROM.

System
23

Version ver<CR> Non Version View the version of microcomputer control program of the camera.

24

Revision rev<CR> Non Revision View the version of EPGA.

25

Initialize init<CR> Non OK Load the factory default.

26

config cfg<CR> Non (data output) View the all current setting data of the camera.

11 / 17

9. Exposure control

EXT.SYNC IN

LVAL

PIXEL DATA

ST-1

Exposure tim e

ST-1 DATA outpu t duration

ST-2

ST-2 DATA outpu t duration

ST OUT-1 ST OUT-2

ST-3

ST-0 DA TA output duratio n

ST OUT-0

ST-3 DATA output duration

ST OUT-2

Exposur e time

Exposur e time

Pulse width exposure (expc=2)

Exposure during the period of the pulse width(H) of EXT.SYNC(CC1

Minimum exposure time =10.24μsec

★Note that the minimum period of EXT.SYNC is 23μsec at the Pulse width exposure mode

Minimum period = 1μsec + DATA output duration(22μsec）

12 / 17

10. Setup steps of Hyper terminal.

[Setup of Hyper terminal ]

1) Select “Start”→ “Programs”→”Accessories”→”Communications”→”Hyper Terminal”

2) The windows will appear with the picture below.

3) When the next picture appears, enter any name.(e.g. GMA_RS232C)

Then click the “OK” button.

4) When the next picture appears, select “ COM? ” on Connect using.

(? changes depending on the setting of the computer. )

Then click the “OK” button.

13 / 17

5) When the next picture appears, select each items as follows.(9600,8,None,1,Non)

Then click the “OK” button.

[Communication settings]
Baud Rate : 9600bps
Data Length : 8bit
Start Bit : 1bit
Stop Bit : 1bit
Parity : Non
Xon/Xoff Control : Non

6) The next picture will appear.

7) Select [File]→ [Properties]

14 / 17

8) When the next picture appears, select “Settings” tag.

9) When the next picture appears, click the “ASCII Setup” button.

10) When the next picture appears, select each items as follows.(☑, ☑, 0, 0,☑, blank, blank)

Then click the “OK” button.

11) The screen display will return to the screen of 9).

Then click the OK button.

15 / 17

12) End of setup.

Confirm the connection of the camera ,
enter “check” on the screen below
and then send it out.
If “OK” is displayed on the screen, communication processing has been completed.

13) Select “Start”→ “Programs”→”Accessories”→”Communications”→”Hyper Terminal” →”(＊1) ”, when to launch
the Hyper terminal again with the same settings after having exited the above screen.

＊1………The name which was entered at section 3)

16 / 17

11. Notes

Precautions for use

■ Do not make an impact on the equipment.

■ Do not lag the equipment with heat insulating agent. If the equipment is covered with heat insulating agent, It

produces an increase in teｍperature and it causes the equipment to malfunction.(except for low-temperature
environment use)

■ Take appropriate measures such as heat removal or cold removal to prevent dew condensation, when to move It
to the place where temperature difference is extremely severe. Usage with dew condensation causes the
equipment to malfunction.

■ When the equipment is not used for a long time, protect the imaging device from dust or scratch by attaching a
lens cap. Do not store the equipment at the following places.

・The place where is subjected to a lot of dust and moisture.
・The place where is subjected to direct sunlight.
・The place where is extremely hot or cold.
・The place in the vicinity of an object which generates intensive electromagnetic field.
・The place where is subjected to intensive vibration.

■ Please wipe off the dirt on the lens surface with a cotton swab preventing scratch to the lens surface.

Use a soft cloth to clean up the camera body.

■ Use the equipment with a voltage within the range of specifications and do not connect the equipment to a power
source that contains intense noise components. In such case, the image output from the camera may contains
noise components.

■ Do not use the equipment in an environment subject to intense electromagnetic field.

In such an environment, malfunction of the camera, disturbance of image and noise are caused by the field.

■ In case of the high-intensity object, it may happen that even the low intensity part is displayed whitely like a
vertical streak above and below the high-intensity object. This phenomenon is called “smear”. However it is the
problem specific to CCD and it is not the camera-related failure.

■ In case of the linear object, jagged picture may be displayed. Also in case of the pinstripe or checkered pattern,
annual rings- like picture may be displayed. However these are also the problem specific to CCD and it is not the
camera-related failure.

■ The lighting using a commercial power source may cause a perceptible flicker at higher shutter speed.

In cases like this, consider to adjust shutter speed setting of the camera or to use the DC lighting or high-

frequency lighting.

Attention

■ All rights on this manual reserved.

■ The specifications and operational details described in the manual are subject to change for performance

improvement or other reasons without notice.

17 / 17

12. External dimensions

Element

6

18

8 0.3

63.5

63.58

3 1.3 1 7.5 17.5

6 45 .4

18

４－Ｍ２.６

F. B:4 6. 5

F -

Mount

Ca mera L ink

Ｐ Ｏ Ｗ Ｅ Ｒ

ＭＡＤＥＩＮ ＪＡＰＡＮ

１／４－２０Ｕ ＮＣ Depth８

２－Ｍ６ Depth８

ＳＥＲ．ＮＯ．

ＭＯＤＥＬ

ＴＬ－

51 50

ＵＣＬ

(20.2)

Φ 64.3

M 2.6 Depth 6
( Four faces)
