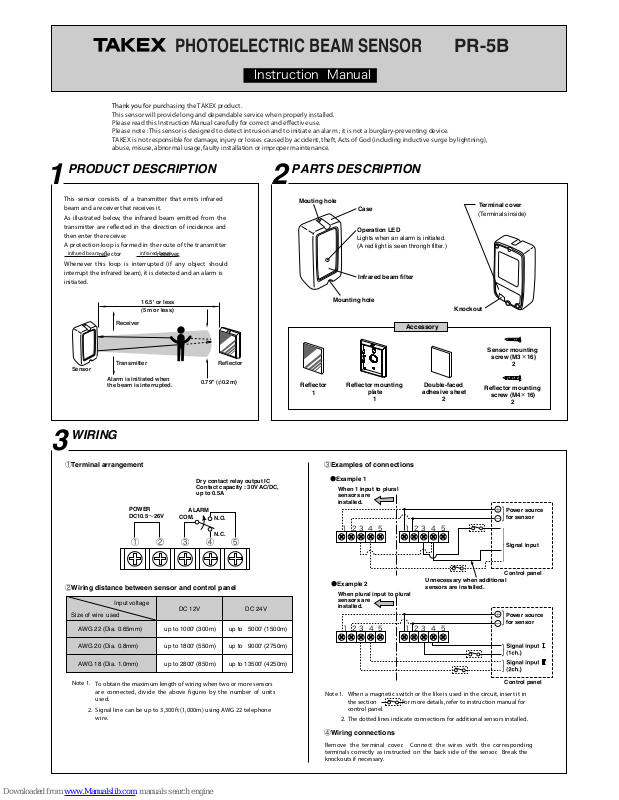

Takex PR-5B Instruction Manual

PHOTOELECTRIC BEAM SENSOR

PR-5B

InstructionManual

Thank you for purchasing the TAKEX product.

This sensor will provide long and dependable service when properly installed.
Please read this Instruction Manual carefully for correct and effective use.
Please note : This sensor is designed to detect intrusion and to initiate an alarm ; it is not a burglary-preventing device.
TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God (including inductive surge by lightning),
abuse, misuse, abnormal usage, faulty installation or improper maintenance.

Sensor

16.5' or less
(5m or less)

Receiver

Transmitter

Alarm is initiated when
the beam is interrupted.

Reflector

0.79" (φ0.2m)

Size of wire used

AWG 22 (Dia. 0.65mm)

AWG 20 (Dia. 0.8mm)

AWG 18 (Dia. 1.0mm)

up to 1000' (300m)

up to 1800' (550m)

up to 2800' (850m)

up to 5000' (1500m)

up to 9000' (2750m)

up to 13500' (4250m)

Input voltage

DC 12V DC 24V

To obtain the maximum length of wiring when two or more sensors
are connected, divide the above figures by the number of units
used.

Signal line can be up to 3,300ft (1,000m) using AWG 22 telephone
wire.

Note 1.

2.

1

PRODUCT DESCRIPTION

2

PARTS DESCRIPTION

3

WIRING

Mouting hole

Mounting hole

Infrared beam filter

Knockout

Case

Terminal cover

(Terminals inside)

Operation LED

Lights when an alarm is initiated.
(A red light is seen throngh filter.)

Dry contact relay output IC
Contact capacity : 30V AC/DC,
up to 0.5A

POWER
DC10.5〜26V

ALARM

COM.

N.O.

N.C.

Reflector1Reflector mounting

plate

1

Double-faced

adhesive sheet

2

Accessory

●Example 1

●Example 2

1 2 3 4 5 1 2 3 4 5

1 2 3 4 51 2 3 4 5

Power source
for sensor

Power source
for sensor

Signal input

Control panel

Control panel

｝

When 1 input to plural
sensors are
installed.

When plural input to plural
sensors are
installed.

Unnecessary when additional
sensors are installed.

①  ②  ③  ④  ⑤

＋

−

｝

｝
｝

＋

−

This sensor consists of a transmitter that emits infrared
beam and a receiver that receives it.
As illustrated below, the infrared beam emitted from the
transmitter are reflected in the direction of incidence and
then enter the receiver.
A protection loop is formed in the route of the transmitter
reflector receiver.
Whenever this loop is interrupted (if any object should
interrupt the infrared beam), it is detected and an alarm is
initiated.

When a magnetic switch or the like is used in the circuit, insert it in
the section . For more details, refer to instruction manual for
control panel.

The dotted lines indicate connections for additional sensors installed.

Remove the terminal cover. Connect the wires with the corresponding
terminals correctly as instructed on the back side of the sensor. Break the
knockouts if necessary.

Sensor mounting

screw (M3×16)

2

Reflector mounting

screw (M4×16)

2

①Terminal arrangement

②Wiring distance between sensor and control panel

③Examples of connections

④Wiring connections

Note 1.

2.

infrared beam infrared beam

No.04-473 0702

Limited Warranty

Analyze possible problems according to the above table. If normal operation can not be
restored by the means, contact either the dealer from whom you bought the unit or
TAKEX.

Model

Protected distance

Light source

Response time

Alarm signal

Supply voltage

Power consumption

Ambient temperature range

Mounting positions

Weight
(excluding accessories)

Appearance

PR-5B

16.5' (5m) or less

Infrared light emitting diode

50msec. or more

Dry contact relay output S.P.D.T. form C.
Contact capacity : 30V (AC/DC) up to 0.5A

10.5−26V DC (Non-polarity)

37mA (at 12V DC)

-20°C to +50°C (-4°F to +122°F)

Indoor-entrance, exit, window, passageway

sensor : 90g (3.2 oz)
Reflector : 50g (1.8 oz)

ABS resin (white)

The specifications are subject to change without notice.

4

INSTALLATION

5

OPERATION

7

SPECIFICATIONS

8

DINENSIONS

6

TROUBLESHOOTING

Fig. 1

Fig. 2

Supply power to the sensor.
If the sensor faces the reflector properly, the
operation LED does not light. If the LED lights,
refer to 4. INSTALLATION and re-adjust.
Next, interrupt the path of infrared beam
between the sensor and the reflector with beam
shielding objects (human body or the other objects
which interrupts infrared beam), and confirm
that an alarm is given and the operation LED is
ON.
If the alarm stops when this object is removed
(LED off), the system is working correctly.
Regular maintenance and inspection by installer
and frequent testing by user are vital to
continuous satisfactory operation of any alarm
system.

Symptom

No alarm condition

Continuous alarm

Frequent alarm with
no intrusion.

Possible cause Remedy

①Breaker of control panel is

cut off.
(No voltage on power
terminals for sensor)

②Either sensor or reflector

is not set in a correct
direction.

③Disconnection or

separation of wiring
between sensor and
control panel.

Infrared beam filter of the
sensor or the reflector is
stained with water drops,
dust, or the like.(Alarm may
be given continuously in
severe cases.)

Moving objects in the
protected area.(like curtain,
animal, etc.)

Clean the filter or the
reflector with soft cloth.

Remove the moving objects
from the protected area.

Recover the breaker.
(Search the cause of cut-off
of breaker)

Correct the direction of the
sensor or reflector with
reference to 4.
Installation of reflector.

Repair the disconnection or
separation.

Reflector

Reflector

Sensor

Sensor

Where the sensor is installed on a rough,
irregular surface like concrete, use a steel
plate of about 2mm in thickness as
foundation to prevent misalignment of the
optical system.

(Install the sensor facing the direction to be
protected.)

Install the reflector within the range of 2' (0.6m) to
15' (5m) from the sensor.
Note that the installation angle as well as the
position of the reflector. (See Fig. 2.)

Confirm that the sensor faces correctly to the
direction to be protected, then turn on the power
source. When power source is on, the operation
LED lights up.
Turn the reflector to the sensor and move it to look
for 4 positions in every directions where operation
LED goes out. The reflector is to be installed in the
center of the 4 positions.
Install the reflector as shown in Fig. 1.

The reflector has the function of reflecting infrared beam
in the direction of incidence within ±15°of the
incidence angle. When the reflector is tilted, be sure to
use it within the above range.

Installation of reflector

Installation of sensor

Angle of incidence should be within 15 degrees.

Double-faced adhesive sheet
(Used when sensor mounting
screws are not used.)

Double-faced adhesive sheet
(

Used when the reflector mounting

screws are not used.

)

Sensor mounting
screws (M3×16)

Reflector mounting
screws (M4×16)

Reflector
mounting plate

Reflector

Operation LED ON

Object which interrupts
the beam.

Reflector mounting
screws (M4×16)

Wall

Sensor

Sensor

Reflector

Reflector

Wall

Wall

Wall

Wall

Wall Wall

Direction of reflector

(φ5mm)

(97mm)

(69mm)

(54mm)

(16mm)

φ0.20"

(12.5mm)

TERMINAL COVER

(10mm×8mm)

0.39"×0.31"

WIRING HOLE

KNOCKOUT

(10mm×9mm)

0.39"×0.35"

(23.5mm)

(62mm)

(106mm)

(φ4.4mm)

2-φ0.17"

(φ3.5mm)

2-φ0.14"

3.31"

0.63"

2.13"

3.82"

2.72"

0.49"

0.93"

4.17"

2.44"

(84mm)

MOUNT HOLE

SENSOR

REFLECTOR

MOUNT HOLE

Note:

Note:

TAKEX products are warranted to be free from defects in material and workmanship for 12 months
from original date of shipment. Our warranty does not cover damage or failure caused by Acts of God
(including inductive surge by lightning), abuse, misuse, abnormal usage, faulty installation, improper
maintenance or any repairs other than those provided by TAKEX. All implied warranties with respect
to TAKEX, including implied warranties for merchantability and implied warranties for fitness, are
limited in duration to 12 months from original date of shipment. During the Warranty Period, TAKEX
will repair or replace, at its sole option, free of charge, any defective parts returned prepaid. Please
provide the model number of the products, original date of shipment and nature of difficulty being
experienced. There will be charges rendered for product repairs made after our Warranty period has
expired.
