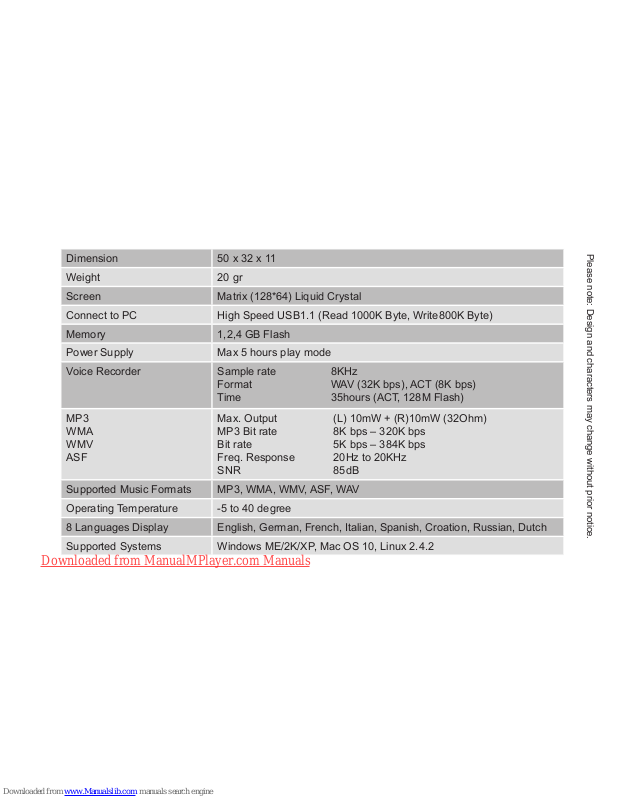

Dimension 50 x 32 x 11
Weight 20 gr
Screen Matrix (128*64) Liquid Crystal
Connect to PC High Speed USB1.1 (Read 1000K Byte, Write800K Byte)
Memory 1,2,4 GB Flash
Power Supply Max 5 hours play mode
Voice Recorder Sample rate 8KHz
Format WAV (32K bps), ACT (8K bps)
Time 35hours (ACT, 128M Flash)
MP3
WMA
WMV
ASF
Max. Output (L) 10mW + (R)10mW (32Ohm)
MP3 Bit rate 8K bps – 320K bps
Bit rate 5K bps – 384K bps
Freq. Response 20Hz to 20KHz
SNR 85dB
Supported Music Formats MP3, WMA, WMV, ASF, WAV
Operating Temperature -5 to 40 degree
8 Languages Display English, German, French, Italian, Spanish, Croation, Russian, Dutch
Supported Systems Windows ME/2K/XP, Mac OS 10, Linux 2.4.2
Please note: Design and characters may change without prior notice.
Downloaded from ManualMPlayer.com Manuals
USER MANUAL
Downloaded from ManualMPlayer.com Manuals
DISPLAY
Battery Level
The player shows capacity on 9 levels
Battery is full on 1.5V.
As time goes on, capacity indication will vanish.
Indicator shows blank when battery almost ran out.
Now you should charge your battery. Please switch
on the player before charging. This player cannot be
charged when power is switched off
Please switch off power when you do not use it.
BASIC FUNCTIONS
» Access to Menus
Press Menu to access menus.
» Scrolling
Scroll music, menus, Fast Forward / Reverse
» List of Menus
To access different menu functions from main menu.
Main menu
Music Mode Recorder Mode
Play Mode Settings E-Documents
Telephone book USB Mode
Downloaded from ManualMPlayer.com Manuals
Volume Adjust
Push VOL to access volume adjust, press Next/Last to
increase or decrease volume.
Switch on/off
(Power switch (right side) must be in “On” Position)
Press and hold play to switch on when the player is off.
Press and hold play to switch off when the player is on.
Play & Pause; exit from submenu
On music mode, press Play to play music.
When playing music, press Play to pause; press
and hold to “pause” playing.
Start / Stop recording
On recording mode, press Play to stop.
KEYS PROCESSING
Keys Functions Denition
1. Play: Power On/Off, Play, Pause, Stop
2. MENU: Entry main menu or exit from current menu.
3. VOL: Volume Adjust
4. REC: Entry recording mode.
5. Next: Next, FF, Volume increase
6. Last: Previous, Rev, Volume decrease
7. USB: USB outlet
8. ON/OFF: Power switch
9. Earphone: Standard earphone outlet
Key Processing Denition
Keys processing includes 4 actions: Press, Press and
Hold, Push, Hold. If not mentioned otherwise, all
actions are Press.
Press: Press a key and validate immediately;
Press and Hold: Press a key and hold it at least
1,2s this action valid only once.
Push: Push a key, it is validated when released.
Hold: events occur in the same frequency as you hold
the key such as Fast Forward and Reverse.
PLAY MUSIC
Simple actions
1. Put earphone plug into earphone outlet;
2. Press and hold Play to switch the player on,
then enter Music Mode and press Play to play music.
3. Select a music: Last: Previous music;
Downloaded from ManualMPlayer.com Manuals
Next: Next music. Volume adjustments: Press
VOL to change volume, press Next to increase,
last to decrease.
Equalizer Mode
1. When playing music
2. Press Menu to enter the submenu Play
3. Push Next to choose the Equalizer Mode
4. Press Menu to enter the ‘Equalizer Mode’ submenu
Select an equalizer:
5. Details of each equalizer (EQ):
Natural, Rock, Pop, Classical, Soft, Jazz, DBB
6. Push Next to select an EQ and press Menu
to conrm.
Synchronous Lyric Display
The player supports lyric les with *.LRC sufx,
and displays them synchronously.
How to use lyric les?
Please make sure the lyric has the same name as
the music For example:
Music le: My heart will go on.mp3
Lyric le: My heart will go on.lrc
How to know if lyric available?
If lyric is matching, the icon will be replaced into
1. When a matching lyric is available:
Downloaded from ManualMPlayer.com Manuals
2. Press and hold Menu to enter the lyric interface;
3. Lyric is displayed
4. Press Menu return to the music mode.
VOICE RECORDING
Please make sure that the battery has enough capacity
before you start recording. Each folder can save up to
99 voice recording les.
Record using the “Record mode”
1. .Enter the main menu:
2. Push Next scroll to the Record mode
3. Push Menu to select the Record mod, the screen
will display as follows:
4. Press Play to start recording.
Voice will be recorded in current folder which is set
by pressing ’Record stop / Main folder’
If “Memory full” is displayed, it means that no more
space is available to save new record les, please
delete other les in order to release some memory
space.
If “Folder full” is shown, it means that there are 99
record les in this folder. Please choose another folder.
The player only responds to Play and A-B during the
recording process.
Downloaded from ManualMPlayer.com Manuals
Select Record Type
1. When the interface ‘Record stop’ is selected
2. Press Menu to enter the submenu Record
3. Push next to scroll to the submenu ‘Record type’
then press Menu to select it.
Fine record Wav le, ne quality
Long-time record act le, normal quality
Fine voice control wav le
Long-time voice control act le
4. Press Next to choose the appropriate type
and press Menu to select it
5. Press Play to start recording.
PLAY RECORDED FILES
1. Enter main menu
2. Push Next to choose the ‘Play mode’
3. Push Menu to enter the playing interface
4. Press again Play to play the le.
5. Choose voice record les.
Last: Select previous le;
Next: Select next le;
6. Volume control
Push VOL to access volume adjustment, press
Next/Last to increase or decrease the volume.
CONVERT ACT FILES INTO WAV FORMAT
The ACT le which produced by this player can be converted into WAV format by using the provided software.
1. Insert the “Sound Converter” program.
Click on the “OPEN” button
Downloaded from ManualMPlayer.com Manuals
2. Select the ACT les which you would like to convert.
3. Click on the ‘CONVERT’ button, the program
will start converting the les.
PS: This tool can also play WAV and MP3 les.
SETTINGS
Entering Settings
Using this option, you can set system performances,
the options may vary for the different rmware version.
1. Enter the main menu
2. Push Next in order to scrolling to “Settings”
3. Press Menu to enter the settings.
Downloaded from ManualMPlayer.com Manuals
Options introduction:
(Recording Time) Setting date / time when
saving recorded le
(Screensaver) Screensaver setting
(Language) Choosing languages
(Timing shut off) Setting a countdown time
in minutes, the player will
shut off when time is out.
(Repeat Setting) Setting repeat status
(Contrast Setting) Setting display contrast
(PC Mode) Options for ‘Secret Space’
(Memory Status) Check memory space
and usage status
(Firmware Ver.) Version of player’s
rmware
(Upgrade Firm.) Use for upgrade rmware
(Exit) Exit from Setting interface
List of menus:
’Recording time’ setting
1. System setting interface
2. Press Menu to enter the ‘Recording time’ interface
Recording time:
3. Push VOL to set the year. While setting, year is ashing.
4. Push Next the value will increase
(Last for the opposite function)
5. After setting, press Menu to exit.
Downloaded from ManualMPlayer.com Manuals
“Screensaver” Setting
1. Press Menu to enter the screensaver setting;
2. Push Next to select the setting
(Last for the previous setting)
3. After setting, press Menu to exit.
“Language” Setting
Please consult the paragraph ‘Sound Setting’
Turning off Setting
Please note: You can set time in seconds on ‘Battery
saving’ mode, the player will shut down automatically
when the player stops or has been idle for the period you
have set. This function is void if the time is set to 0.
You can set time in minutes on ‘Sleep mode’, the player
will shut down automatically when the player becomes
idle (regardless of its current status) for the period you
have set. Thsi is designed for listening music before
sleeping. Please note: The sleep mode can only be
activated once after setting, you have to set again if you
want to use it next time.
’Repeat Settings’
Please consult the paragraph ‘Sound Setting’
Note: in the “Manual Mode” you should set repeat points
manually .In “Automatic Mode” the player can identify a
sentence automatically when on A-B repeat.
’Contrast Adjust’
Please consult the paragraph ‘Backlight time setting’
’PC connection’ setting
Please consult the paragraph ‘Sound Setting’
Some operating systems (Windows 2K SP4 or prior) may
not recognize a USB stick with two symbols. Therefore,
you have to choose an active stick when using the
‘Secret Space’ function the PC will only nd the active
stick.
Downloaded from ManualMPlayer.com Manuals
’Memory status’
You can check the total memory space and the
percentage which is being used.
’Firmware version’
You can nd the player’s rmware’s version.
’Firmware upgrade’
Use to upgrade player’s rmware.
Tips: When pressing Play you can quickly exit the
current menu. This function is working on all menus.
READING DOCUMENTS
In the main menu, press Next/Last to choose e-Document, press Menu to enter the corresponding submenu:
Select Folder: Select the root directory of ash drive.
Press Menu to enter the ‘Select Folder’ interface,
press Menu to select a le.
Note: You do not need to select a folder if the le which
you want to read is stored in root directory.
To select a le, please consult the ‘Select folder’
instructions.
Push Next to choose ‘Read document’, then press Menu
to conrm. While reading, press Next or Pre to scroll.
USING TELEPHONE BOOK
How to nd telephone information?
While on main menu, push NEXT to choose the
Telephone Book, press Menu to open it. Please nd
following details of the submenu lists:
1. Browse TEL
2. Import Tel File
3. Export Tel File
4. Exit
Downloaded from ManualMPlayer.com Manuals
Push NEXT to select the Browse TEL function.
Press MENU to enter the Telephone book.
Push NEXT to scroll to the object you need to refer to,
then press MENU to exit.
Browse TEL:
Check the contact which you have imported, including
Name, E-mail, Mobile, QQ, Telephone, Fax etc. (This
function is only available when the Telephone book
had been stored. Otherwise, you will receive a warning
message: No File! Press and hold MENU to exit!)
Import Tel File:
Import Telephone book le from PC to player.
Export Tel File:
Export Telephone book le from player to PC.
Create and Edit Telephone Book File
Creating a Telephone Book le
The Telephone Book le can be created using
the provided software tools
1. Execute ‘Telbook_Ch’, click on ‘OPEN’
Downloaded from ManualMPlayer.com Manuals
2. Input information into the dialog box, then click
‘ADD’, a new contact will be created.
3. Click on ‘SAVE’, a le named ‘TELBOOK’ will be
created on the player. The Telephone Book le will
be created.
Editing the Telephone Book le
If you need to change contact details,
you can do it as follows:
1.Click on the column where the contact is stored which
you need to change, then you will see the details of the
corresponding contact:
Downloaded from ManualMPlayer.com Manuals
2. After editing, click on ‘increase’,
you will receive a reminder:
3. Click on conrm edit, you will nd 2 records of the
same person.
If you change the name of the contact,
a new recorder will be created.
Importing and exporting the Telephone Book:
Export Telephone Book:
This function allows you to import a telephone book on
your MP3 player from PC:
» Create Telbook.bin by using the provided
Tel. book editor Telbook.exe
» Connect the player with the USB cable, copy telbook.
bin to the root directory of MP3 player.
» Switch the player on and enter the ‘Import Tel le’
» Import telbook.bin to player
Export Telephone Book:
This function allows you to export Telephone Book le
and then you can edit it on PC:
» Switch the player on and enter the ‘Export Tel le’
» Conrm the les which want to export.
» Connect USB cable. Search for the telesave.bin in
the root. You can copy it and edit it on the PC
USING USB STICK
The player is also a standard USB stick. Supported
Windows 2K or above (no need for drivers), Mac OS
10.3, Red hat Linux 8.0 or higher.
The player supports USB power supply, it can be
used without battery when it is connected to the PC.
Downloaded from ManualMPlayer.com Manuals
To enter, when on waiting mode’ press Menu to
return to main menu and choose the operation you
need. This player supports the Suspend mode.
When connected to PC, the player works in the
following three modes:
1. Waiting
2. Downloading
3. Uploading
UPGRADING YOUR PLAYER
You can use the PC software to maintain
or upgrade the player’s rmware.
1. Enter the main menu
2. Push Next to scroll to the ‘Settings’
3. Push Menu to enter the ‘Settings’ submenu.
4. Push next to scroll to the ‘Firmware upgrade’
and push Menu to enter
5. Connect player to PC
6. Run the upgrade tools MP3 Player Update,
and then click on ’Choose new rmware
Downloaded from ManualMPlayer.com Manuals
7. Select a rmware le. (It is stored on the provided
CDROM or can be downloaded from the Internet)
8. Click on ‘Start Upgrade’,
the upgrade will be performed.
9. When the upgrade has been successful,
you will see the following display on the player:
Firmware upgrade is to improve performance of the
player; you can still use it normally without performing an
upgrade process
The player will not work if you perform an incorrect
process! Please read this manual carefully before
performing the upgrade process.
The upgrade software does not work on other players
and vice verse.
Downloaded from ManualMPlayer.com Manuals
OTHER SETTINGS
Choosing another folder (Stop submenu)
You can classify les into several different folders that
simplies to manage them (you should create the folders
on the PC). The player can identify 9 folders in its root.
1. When stopped
2. Press Menu to enter the Stop submenu
3. Press Menu to enter the folder choosing interface
4. Press Next or Last to choose a folder
5. Press Menu to entry the selected folder
Please note: You can set folders independently
in the Music / Recorder / Play mode
Deleting le (Stop submenu)
You delete the corresponding les/channels
in each Music/Play modes.
Downloaded from ManualMPlayer.com Manuals
1. When stopped
2. Press Menu to enter the Stop submenu
3. Press Next or Last to choose ‘Delete le’ or ‘Delete all’
4. Press Menu to enter delete interface
5.Push Next to choose “YES“
6. Press Menu to conrm delete
‘Delete all’ will delete all les in current folder of current
mode. I.e. Choose ‘Delete all’ in Music mode will delete
all music les; recorder les will not be affected.
Please safely remove the player and unplug the
USB cable after deleting les on PC, otherwise it is
possible that some les will not be removed.
Downloaded from ManualMPlayer.com Manuals
Play mode (Play submenu)
You can choose different play mode (i.e. repeat, shufe)
when playing music or recording les.The rst option on
Play submenu is ‘Play mode’
REPEAT
Normal Playing music les in sequence until
the end of folder
Repeat One Repeat single music le
Folder Play all music les in folder
Repeat Folder Repeat all music les in folder
Repeat All Repeat all music les
Random Play music les in the folder
randomly
(Intro) Play the 10s of each music les
in sequence
Playing speed (Play submenu)
You can choose different playing speeds without
affecting the sound. (Only valid for MP3 les)
1. While playing music
2. Push Menu to enter the submenu Play
3. Push Next to scroll to the ‘Play speed’ option
4. Push Menu to enter this option
5. Push Next for faster, Last for slower
Note: The Playing speed will be applied on all music les
Repeat mode (Play submenu)
Press -B to enter or Entering from Play submenu:
A-B Repeat
1. When playing music or recording
2. Push Menu to enter the submenu Play
3. Push Next to scroll to the ‘Repeat Mode’ option
4. Push Menu to enter this option
Repeat Mode: ‘A’ of icon ashes, waiting for starter A
5. Push Next to select ‘A’
‘B’ of icon ashes, waiting ender B
6. Push Next to select B
Symbol xed and starting repeat between A-B,
while playing, you can push Last to reset A point.
Downloaded from ManualMPlayer.com Manuals
In repeat mode, you can press VOL+ or
VOL- to adjust the playing speed.
Contrast Function
(No such Function in the playing mode)
1. While entering the contrast function, the repeat icon
will be displayed as , the original sound will be played.
2. While nishing the original, repeat icon will be
replaced by , player will play the recorded voice.
Push Last to return to the ‘Karaoke mode’
Press Menu to exit the repeat mode using the
above three modes.
Repeat times (Play submenu)
Please consult the paragraph ‘Backlight time setting’
Repeat time determines the number of times A-B is
being repeated until exit
Repeat interval (Play submenu)
Please consult the paragraph ‘Backlight time setting’
Repeat interval determines the period of time between
previous repetitions (in seconds).
TROUBLESHOOTING
No Power
» Check if the battery had installed properly
» Make sure you have switched the player on
No Sound
» Make sure the volume is not on 0 position and
that the earphones are properly connected
» Please make sure that the earphones are clean
» Damaged MP3 les may have noise and even
cannot be played
Strange characters on the display
» Make sure you have chosen correct language
Cannot Download Music
» Check the USB cable, and make sure that the
player is properly connected to the PC
» Check if the driver has been well installed
» Make sure there is still enough blank memory
Downloaded from ManualMPlayer.com Manuals
Loading...
