Page 1
Digi Switch
Page 2
Table of Contents
Introduction .................................................................................................................................................. 1
Installation .................................................................................................................................................... 1
Electrical Specifications ................................................................................................................................. 2
Support ......................................................................................................................................................... 2
Page 3
Introduction
Thank you for choosing Take Control Hobbies for your RC project! The Digi Switch is a simple but
powerful remote on/off switch. Capable of handling up to 20 volts at 20 amps, you can use for variety of
applications including powering lights on a large RC card or plane, as well as other options such as a
remote ignition for model rocketry. Your imagination if the only limit!
Installation

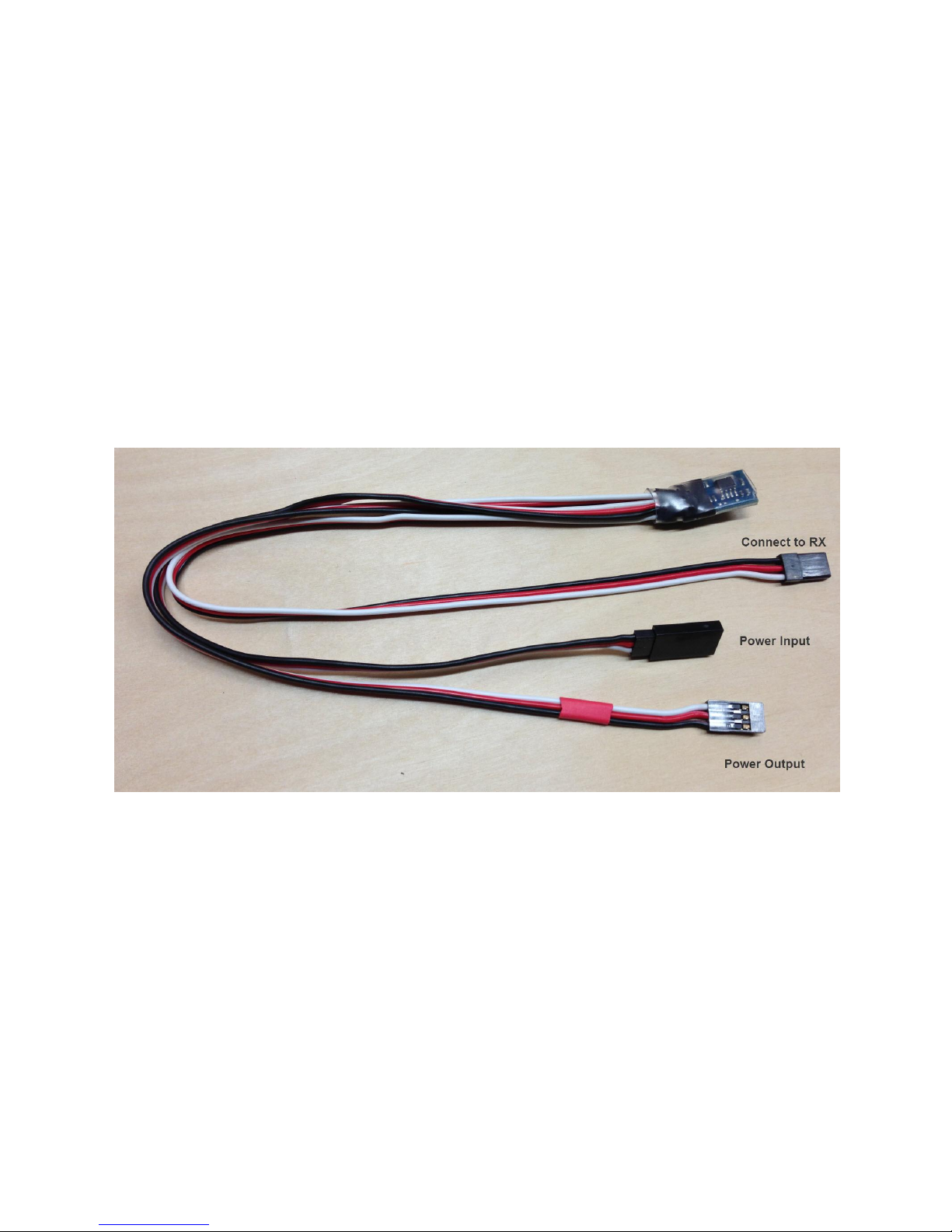

The Digi Switch has three 22 awg cables with standard universal connectors. There are two male
connectors and one female connector. The female connector connects to your battery source which can
be up to 20 volts input. The male connector with a short length of shrink tubing is the power output. The
other male connector connects to your receiver.
On the power output cable, the black wire is the negative and red is positive. The white wire is clipped
and is not used. You can use a female extension to connect to your powered accessory, or you can cut
off the male connector and wire directly.
To operate, program your receiver to control the channel on a switch or mix to another channel. When
the channel is below 1500us the switch will be off and above 1500us it will be on.
There is no need to connect a on/off switch between your battery and the power input of the digi
switch. The Digi Switch is a completely open circuit when there is no power coming from the receiver so
does not draw any power from your power source when the receiver is off.
©2013 Take Control Hobbies [email protected] www.takecontrolhobbies.com Page 1
Page 4
Electrical Specifications
The Digi Switch has the following features:
8 Bit Pic Microcontroller
Lipo/Lion/NiMh/NiCd input
20 volt 20 amp Mos-Fet output
DSP Noise / Loss of Signal filtering
PPM-PCM 2048 - 1024 Input
Small size 12-Grams
100% surface mount design
Low voltage drop less then 150mV
22 awg heavy duty wires
Ideal for night flying systems, model rocketry, etc.
Support
Take Control Hobbies is dedicated to providing you with the best and most cost-effective solutions to
building and operating your giant scale aircraft. If you ever have any issues or questions with the
operation of your Take Control Hobbies product, please contact us in the U.S. at (916) 290-2880. You
can also email us at [email protected]. We look forward to talking with you!
©2013 Take Control Hobbies [email protected] www.takecontrolhobbies.com Page 2
