TAKAYA TR3-C202-A0-8 User Manual

User’s Manual

TR3-C202-A0-8

Manual No.TDR-MNL-C202-A0-8-EN-101

Introduction

Thank you for purchasing a TR3-C202-A0-8 RFID READER/WRITER.

Be sure to read this manual before using the product. After reading it, store the manual in a convenient place for future reference.

Manual No.TDR-MNL-C202-A0-8-EN-101

TAKAYA RFID TR3 Series

Regulations and Standards

FCC

This product is conform to the FCC standards.

FCC Rules (Federal Communications Commission) This product complies with Part 15 Subpart C of the FCC Rules. FCC ID : MK4TR3-C202-A0-8

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off an on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC NOTICE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause

undesired operation.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The following sentence has to be displayed on the outside of the device in which the transmitter module is installed : “Contains FCC ID: MK4TR3-C202-A0-8”

Japan Radio Law

Equipment using high frequencies: Inductive Reading/Writing Communications Equipment Conforming standards: Inductive Reading/Writing Communications Equipment; Standard: ARIB STD-T82

Tags

This product can communicate the standard tags of ISO/IEC15693 and ISO/IEC18000-3(Mode1).

Supports Manufacturer Tag-it HF-I Texas Instruments my-d Infineon Technologies

I･CODE SLI MB89R118 FUJITSU Japan

RoHS is support

Restriction of Hazardous Substances

Waste

Dispose of the Products as industrial waste.

NXP Semiconductors

Manual No.TDR-MNL-C202-A0-8-EN-101

TAKAYA RFID TR3 Series

Safety Precautions

The following symbols are used in this manual to indicate precautions that must be observed to ensure safe use of this product. The precautions provided here contain important safety information. Be sure to observe these precautions.

The following signal words are used in this manual.

Failure to comply with a WARNING may result in serious injury or death.

Failure to comply with a CAUTION may result in injury to the operator, or damage to the items involved.

Be sure to observe the following precautions to ensure safe use of the Products.

Decomposition of this product and cable, repair, remodeling, please strictly prohibited. There is the possibility of fire or electric shock injuries. This product is using the RFID reader writer radio equipment. Therefore, depending on where the applications you use may affect medical equipment. To minimize the impact of medical equipment for use, please observe the following countermeasure. The Japan Automatic Identification Systems Association (JAISA) guidelines are as follows: RFID antennas from implanted cardiac pacemakers or other medical devices please 22cm apart. We recommend that you paste "RFID sticker" at equipment.

Be sure to observe the following precautions to ensure safe use of the Products.

Installation and storage environment

1. Do not use the Products in sunlight.

2. Do not use the Products in environment of spray of water, oil or chemicals.

3. Do not use the Products in environments with flammable, explosive, or corrosive gasses.

4. Do not use the Products in environment of hot humid.

5. Do not use the Products in environment of vibration or shock.

6. Do not use the Products in environment of condensation.

7. Do not use the Products in environment of around the metal is covered.

8. Do not use the Products in environment of high temperature.

9. Do not use the Products in environment that has a device that generates magnetic field and shock voltage.

10. Do not use the Products in unstable place.

11. If there is failure, discontinue use immediately, please contact us or the distributor. Installation

1. Turn off the power before installation or removing.

2. The following effects may not work correctly. ･ Near 13.56MHz radio device ･ Near speakers , Inverter, motor and Plasma Display

3. The communication range may vary due to environment and conditions.

← RFID Sticker

Manual No.TDR-MNL-C202-A0-8-EN-101

TAKAYA RFID TR3 Series

Contents

1 Product Overview ................................

1.1 Features .............................................................................................................................................. 1

2 Names of Parts and Functions ................................

2.1 TR3-C202-A0-8 ................................................................................................................................... 2

2.2 Antenna .............................................................................................................................................. 3

2.2.1 TR3-A202 ........................................................................................................................................ 3

2.2.2 TR3-A302 ........................................................................................................................................ 4

2.2.3 TR3-A401 ........................................................................................................................................ 4

3 Installation and connection ................................

3.1 Installation into a host device .............................................................................................................. 5

3.1.1 Installation from the Front.................................................................................................................. 5

3.2 Antenna installation into a host device................................................................................................. 6

3.2.1 Screw holes ...................................................................................................................................... 6

3.2.2 Guide ............................................................................................................................................... 6

3.3 Connection .......................................................................................................................................... 7

3.3.1 Attaching the Cable and Antenna........................................................................................................ 7

3.3.2 Direct connection to the Host Device Interface .................................................................................... 7

3.3.3 Using the interface board to connect to the Host Device Interface.......................................................... 8

4 Specifications ................................

4.1 TR3-C202-A0-8 ................................................................................................................................... 9

4.2 Antenna ............................................................................................................................................ 14

4.2.1 TR3-A202 ...................................................................................................................................... 14

4.2.2 TR3-A302 ...................................................................................................................................... 15

4.2.3 TR3-A401 ...................................................................................................................................... 16

4.3 Cable................................................................................................................................................. 17

................................................................

.....................................................

................................................................

.........................................................

................................................................

......................................

................................................................

..................... 2222

..........................................

......................... 5555

..................................................

.............................................

................................................................

...... 1111

............

............. 9999

..........................

5 Maintenance ................................

Revision History................................

3.1.2 Installation from the Front deleted........................................................................................................ 19

................................................................

............................................

................................................................

.............................................

................................................................

............ 18

........................

............. 19

..........................

18

1818

19

1919

Manual No.TDR-MNL-C202-A0-8-EN-101

TAKAYA RFID TR3 Series

1 Product Overview

1.1 Features

This product uses the 13.56MHz frequency. This product is the electromagnetic induction type non-contact IC can read and write RFID tag data.

This Product is designed to be embedded and integrated within OEM devices and finished products such as label printers, cashless payment terminals or any other device that can benefit from integrated RFID capabilities.

■ Conform to international standards

■ Rich Products

 Various interface RS-232C, USB, TCP/IP.  Antennas of various sizes

■ Software

 TR3-series common communication protocol  Software Development Kit

■ Multiplexer

■ Useful

 Continuous inventory mode

 RDLoop mode

For more information please refer to the TR3-PROTOCOL manual.

■ Environmentally

UART(CMOS Level)

ISO/IEC15693 and ISO/IEC18000-3(Mode1) is supports.

Select the RF output.

UID of the tag automatically sends Host Device.

UID or User Data of the tag automatically sends Host Device.

EU RoHS(2002/95/EC) Support

Host Device Interface

RS-232C、LAN(TCP/IP)、USB

Interface

READER/WRITER

Load Settings

CPU Memory

Save Settings

RF-ASIC

Multiplexer

Antenna

Communications

Tags

Manual No.TDR-MNL-C202-A0-8-EN-101

1

TAKAYA RFID TR3 Series

2 Names of Parts and Functions

2.1 TR3-C202-A0-8

④

⑤

⑥

No Name Description

① ②

③ ④ ⑤

⑥ ⑦

Screw holes M3 holes STUD NUTS Internally, substrate is fixed at stud nats.

LED1 Displays the status of this product. CN1 This connector is for connection to the host. Nameplate Production numbers, will be 8-digit serial number.

FCC ID stickers CH1 to CH8 Connect the antenna cable.

③

⑦

M3 Screw hole depth : 3mm

Please connect form CH1.

①

②

Model Name Serial number：＊＊＊＊＊＊＊＊(F)

Manual No.TDR-MNL-C202-A0-8-EN-101

2

TAKAYA RFID TR3 Series

2 Names of Parts and Functions

2.2 Antenna

2.2.1 TR3-A202

No Name Description

① ②

③ ④

CN1 Connect the antenna cable. Nameplate Production numbers, will be 8-digit serial number.

Inspection mark Screw holes M3 holes

④

①

②

③

Model Name Serial number：＊＊＊＊＊＊＊＊(F)

Manual No.TDR-MNL-C202-A0-8-EN-101

3

TAKAYA RFID TR3 Series

④

② ③

2.2.2 TR3-A302

No Name Description

① ② ③

④

2.2.3 TR3-A401

①

No Name Description

① ②

③

②

Inspection mark Screw holes M3 holes Nameplate Production numbers, will be 8-digit serial number.

CN1 Connect the antenna cable.

CN1 Connect the antenna cable. Nameplate Production numbers, will be 8-digit serial number.

Inspection mark

①

③

2 Names of Parts and Functions

2.2 Antenna

Model Name Serial number：＊＊＊＊＊＊＊＊(F)

Manual No.TDR-MNL-C202-A0-8-EN-101

4

TAKAYA RFID TR3 Series

3.1 Installation into a host device

3 Installation and connection

3.1 Installation into a host device

3.1.1 Installation from the Front

Host Device

M3 Screw

Four, M3 holes

Manual No.TDR-MNL-C202-A0-8-EN-101

5

TAKAYA RFID TR3 Series

3 Installation and connection

Host Device

3.2 Antenna installation into a host device

3.2.1 Screw holes

3.2.2 Guide TR3-A401 is recommended that you set up a guide on fixed-like the figure below.

TR3-A401

M3 Screw

Manual No.TDR-MNL-C202-A0-8-EN-101

6

TAKAYA RFID TR3 Series

3 Installation and connection

Host Device

3.3 Connection

This product will connect with the antenna and antenna cables. This product connects with Host Device that direct connection or connect using our interface.

3.3.1 Attaching the Cable and Antenna

3.3.2 Direct connection to the Host Device Interface

Please prepare to the interface harness.

Host Device

Antenna

Host Device

Interface

TR3-C202-A0-8

Antenna Cable

TR3-C202-A0-8

Interface harness

Manual No.TDR-MNL-C202-A0-8-EN-101

7

TAKAYA RFID TR3 Series

Host Device

3.3.3 Using the interface board to connect to the Host Device Interface

Interface board, please contact us.

Host Device

Interface

Interface Cable

Interface board

TR3-C202-A0-8

3 Installation and connection

3.3 Connection

Interface harness

Manual No.TDR-MNL-C202-A0-8-EN-101

8

TAKAYA RFID TR3 Series

4 Specifications

4.1 TR3-C202-A0-8

■ Specifications

Specifications Applicable Standards

Radio Frequency

※1：Tag-it HF-I is a registered trademark of Texas Instruments Incorporated. my-d is a registered trademark of Infineon Technologies AG. I･CODE SLI is a registered trademark of NXP Semiconductors. MB89R118 is a registered trademark of FUJITSU Japan.

※2：initialization

Japan Radio Law ARIB STD-T82 FCC FCC Part 15 Subpart C

RoHS EU RoHS(2002/95/EC) Supports Carrier frequency

Transmit power or power range Standards

Tags Data rate

Modulation

Anti-collision Support

Item Parameter

FCC ID : MK4TR3-C202-A0-8

13.56MHz ±50ppm(Ta=25℃) or less 10 to 100mW ± 20%

(Transmit power range varies with input voltage.) ISO/IEC 15693、ISO/IEC18000-3(Mode1) Tag-it HF-I, my-d, I･CODE SLI, MB89R118(※1)

Speed Data rate Reader/Writer⇒Tag

Tag⇒Reader/Writer

Parameter Reader/Writer⇒Tag ASK 10%(※2) / ASK 100% Tag⇒Reader/Writer

1/4 26.48kbps 1/256 1.65kbps

ASK, FSK

26.69kbps

Manual No.TDR-MNL-C202-A0-8-EN-101

9

TAKAYA RFID TR3 Series

Specifications Controll

Connector

※2：initialization

4 Specifications

4.1 TR3-C202-A0-8

Item Parameter Command Please refer to the TR3-C202 Protocol-Manual. Host Interface UART(CMOS)

Item Parameter Speed 9600bps

19200bps(※2)

38400bps Data bits 8 Parity None Stop bit 1 Flow control None

LED1 1pc (3 colors, red/green/orange) CN1 Connector : JST S10B-PH-SM4-TB(LF)(SN)

Housing : JST PHR-10 Contact : JST SPH-002T-P0.5S

Pin assignment

Pin No. Symbol Function

1 VCC Power 2 VCC Power 3 GND GND 4 GND GND 5 Rx Received data signal 6 Tx Transmitted data signal 7 VCC2 Power output 8 IO1 Input/Output or Detection signal

output H : Detection

9 IO2 Input/Output or Trigger input

L : Trigger ON

10 IO3 Input/Output

CH1 to CH8 Connector : JST S2B-PH-SM4-TB(LF)(SN)

Housing : JST PHR-2 Contact : JST SPH-002T-P0.5S

Pin assignment

Pin No. Symbol Function

1 RF Analog signal 2 GND GND

Manual No.TDR-MNL-C202-A0-8-EN-101

10

TAKAYA RFID TR3 Series

Specifications Mechanical data

Electrical data

Ambient Conditions

Other Accessories None

Dimensions (W x D x H) Wight approx. 240g Installation M3 Screw

Power Supply Voltage

Temperature Operating range Humidity Operating range Temperature Storage range Humidity Storage range

Item Parameter

103.6 x 103 x 23.3mm

Screw is not included.

Current consumption Carrier off Power down mode Consumption

0 to 55 degree

30 to 80%RH

0 to 55 degree

30 to 80%RH

4 Specifications

4.1 TR3-C202-A0-8

：+3.3± 10%, +5V ± 10% ：approx. 160mA(VDD=5.0V) ：approx. 60mA(VDD=5.0V) ：approx. 50mA(VDD=5.0V) ：max 1.0W(VDD=5.0V)

Manual No.TDR-MNL-C202-A0-8-EN-101

11

TAKAYA RFID TR3 Series

■ Dimensions

4 Specifications

4.1 TR3-C202-A0-8

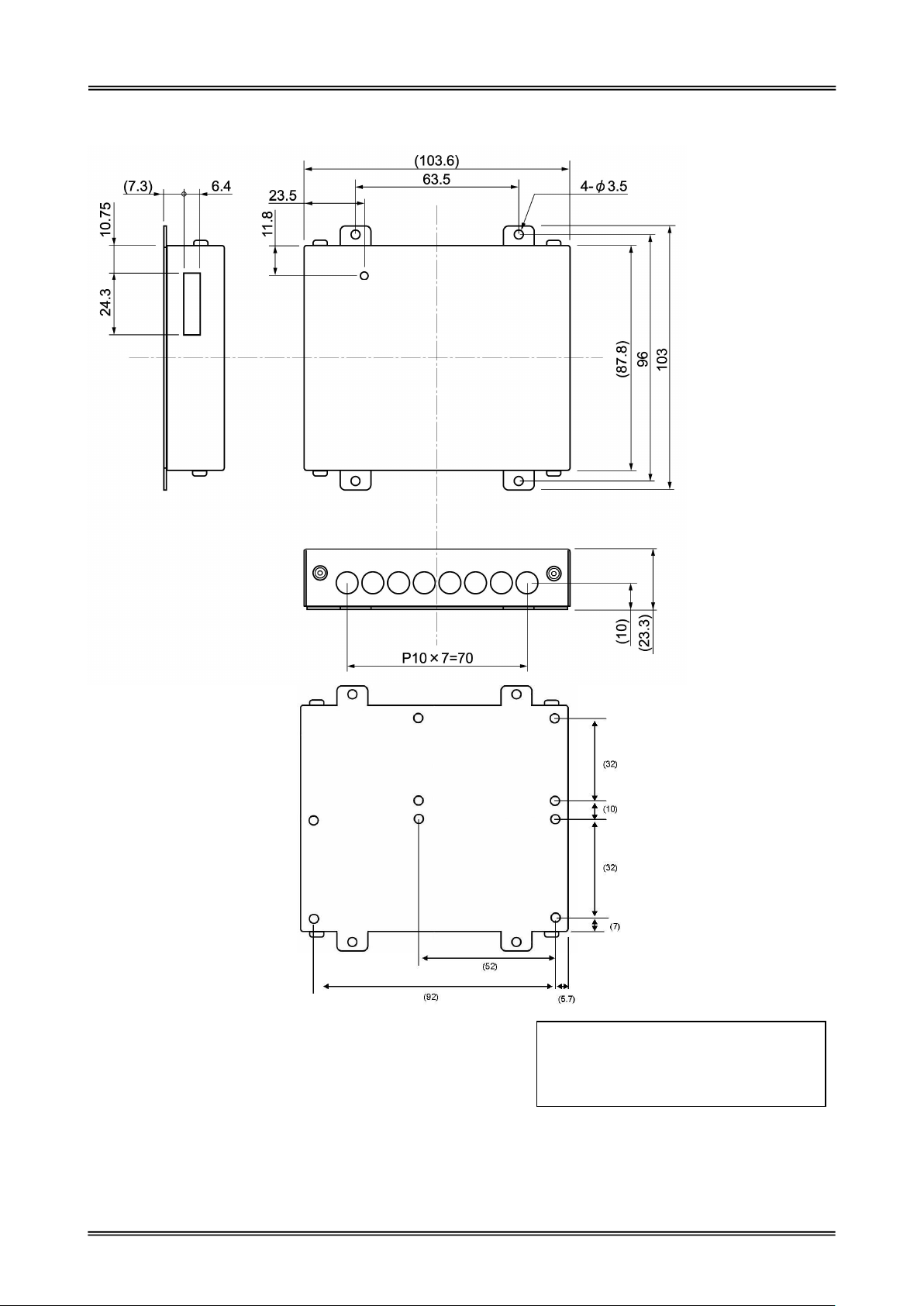

Unit：mm Tolerance：±1mm ( )is Recommended Dimension

Manual No.TDR-MNL-C202-A0-8-EN-101

12

TAKAYA RFID TR3 Series

■ Connections

Names Model Notes

Antenna

TR3-A202 TR3-A302 TR3-A401

Cable TR3-AC-2A-*** *** puts the cable length.

0.5m ~ 3m cable are available.

Interface board

TR3-IF-1C RS232C interface TR3-IF-N1 TCP/IP interface TR3-IF-U1 USB interface

■ Electrical Characteristics(CN1、CN3)

 VDD=5.0V

Item Condition MIN TYP MAX Unit H input voltage 2.5 5.0 V L input voltage 0 1.0 V H output voltage IOH=-5mA,-20mA 3.0 V L output voltage IOL=5mA,20mA 2.0 V Pull-up resistor 25.0 50.0 100.0 kΩ

 VDD=3.3V

Item Condition MIN TYP MAX Unit H input voltage 1.815 3.3 V L input voltage 0 0.66 V H output voltage IOH=-5mA,-20mA 3.0 V L output voltage IOL=5mA,20mA 2.0 V Pull-up resistor 25.0 50.0 100.0 kΩ

・TX, RX, IO1, IO2 and IO3 is, Pull-up resistor has been connected. ・TX, RX, IO1, IO2 and IO3 is, 100 ohm resistor has been connected.

Output port, LED is not driven. If the LED drive, please use the digital transistors.

4 Specifications

4.1 TR3-C202-A0-8

Manual No.TDR-MNL-C202-A0-8-EN-101

13

TAKAYA RFID TR3 Series

4 Specifications

4.2 Antenna

4.2.1 TR3-A202

■ Specifications

Specifications Applicable Standards Antenna

Connector CN1 Connector : JST S2B-PH-SM4-TB(LF)(SN)

Mechanical data

Ambient Conditions

Other Accessories RFID Sticker 1 sheet

■ Dimensions

Item Parameter

RoHS EU RoHS(2002/95/EC) Support

Resonant frequency Communication distance

Dimensions (W x D x H) Wight approx. 11g Installation M3 Screw

Temperature Operating range Humidity Operating range Temperature Storage range Humidity Storage range

13.56MHz ±40kHz(Ta=25℃)

Max 10cm (Communication distance depends on the environment.)

Housing : JST PHR-2 Contact : JST SPH-002T-P0.5S

Pin assignment

Pin No. Symbol

1 RF Analog signal 2 GND GND

60 x 65 x 9.1 mm

Screw is not included. 0 to 55 degree

30 to 80%RH

0 to 55 degree

30 to 80%RH

Model Name : SEL41400L

Function

Unit：mm Tolerance：±1mm Substrate thickness : 1.6mm

Manual No.TDR-MNL-C202-A0-8-EN-101

14

TAKAYA RFID TR3 Series

4.2.2 TR3-A302

■ Specifications

Specifications Applicable Standards Antenna

Connector CN1 Connector : JST S2B-PH-SM4-TB(LF)(SN)

Mechanical data

Ambient Conditions

Other Accessories RFID Sticker 1 sheet

■ Dimensions

RoHS EU RoHS(2002/95/EC) Support

Resonant frequency Communication distance

Dimensions (W x D x H) Wight approx. 3g Installation M3 Screw

Temperature Operating range Humidity Operating range Temperature Storage range Humidity Storage range

Item Parameter

13.56MHz ±40kHz(Ta=25℃)

Max 7cm (Communication distance depends on the environment.)

Housing : JST PHR-2 Contact : JST SPH-002T-P0.5S

Pin assignment

Pin No. Symbol

1 RF Analog signal 2 GND GND

15 x 52.5 x 9.1 mm

Screw is not included. 0 to 55 degree

30 to 80%RH

0 to 55 degree

30 to 80%RH

Model Name : SEL41400L

Unit：mm Tolerance：±1mm Substrate thickness : 1.6mm

4 Specifications

4.2 Antenna

Function

Manual No.TDR-MNL-C202-A0-8-EN-101

15

TAKAYA RFID TR3 Series

4.2.3 TR3-A401

■ Specifications

Specifications Applicable Standards Antenna

Connector CN1 Connector : JST S2B-PH-K-S(LF)(SN)

Mechanical data

Ambient Conditions

Other Accessories RFID Sticker 1 sheet

■ Dimensions

RoHS EU RoHS(2002/95/EC) Support

Resonant frequency Communication distance

Dimensions (W x D x H) Wight approx. 2g Installation M3 Screw

Temperature Operating range Humidity Operating range Temperature Storage range Humidity Storage range

Item Parameter

13.56MHz ±40kHz(Ta=25℃)

Max 5cm (Communication distance depends on the environment.)

Housing : JST PHR-2 Contact : JST SPH-002T-P0.5S

Pin assignment

Pin No. Symbol

1 RF Analog signal 2 GND GND

15 x 30 x 9.1 mm

Screw is not included. 0 to 55 degree

30 to 80%RH

0 to 55 degree

30 to 80%RH

Model Name : SEL41400L

Unit：mm Tolerance：±1mm Substrate thickness : 1.0mm

4 Specifications

4.2 Antenna

Function

Manual No.TDR-MNL-C202-A0-8-EN-101

16

TAKAYA RFID TR3 Series

4 Specifications

4.3 Cable

■ Model Name

■ Specifications

RoHS EU RoHS(2002/95/EC) Support Linetype Coaxial cable 1.5D-2V Connector PH-PH Cable loss 0.5M : approx. 0.043dB

■ Dimensions

TR3-AC-2A-***

Enter the cable length(Unit:m)

0.5M～3M

Item Parameter

3M : approx. 0.255dB

(Cable length)

( )is Recommended Dimension

Manual No.TDR-MNL-C202-A0-8-EN-101

17

TAKAYA RFID TR3 Series

5 Maintenance

This product is mainly used in electronic components and semiconductors. Therefore, the long-term stable operation, the environment and conditions are expected to defect, as shown below.

• Device degradation due to overvoltage and overcurrent.

• Device degradation due to high temperature and long-term stress.

• Poor contact of the connector and cause deterioration of insulation by moisture

or dust.

• Connector corrosion by corrosive gases.

In order to use this product at its best, please conduct routine or periodic inspections.

Ambient conditions

Power

Attachment

Performance Check the Performance Work

Item Maintenance Criteria

Temperature Temperature Operating range 0 to 55 degree Humidity Humidity Operating range 30 to 80%RH Enclosure rating Corrosive Check the corrosion None Input Check the voltage Voltage fluctuation

Product

Cable Check the Cable break None

Check the dusty None

Input Voltage :

Check the Voltage fluctuation

Check the Screw Check the Connector

DC +3.3 ± 10%, +5V ± 10%

Checking and verifying

Manual No.TDR-MNL-C202-A0-8-EN-101

18

TAKAYA RFID TR3 Series

Revision History

Revision code

1.00 2010/4/16 Original production

1.01 2011/03/03 3.1.2 Installation from the Front deleted.

Date Revised contents

4.1 TR3-C202-A0-8 Add to 3.3V input voltage.

Manual No.TDR-MNL-C202-A0-8-EN-101

19

TAKAYA RFID TR3 Series

[URL] http://www.takaya.co.jp/ [Mail] rfid@takaya.co.jp

20

TAKAYA TR3-C202-A0-8 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
