Takamine EF-341SC User Manual

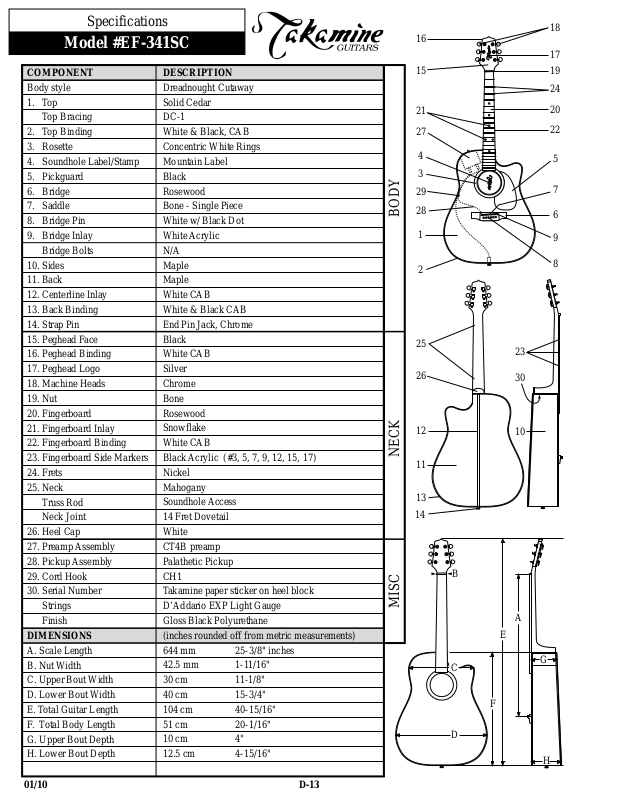

Specifications

Model #EF-341SC

COMPONENT

Body style

Top

1. Top Bracing

2. Top Binding

3. Rosette

4. Soundhole Label/Stamp

5. Pickguard

6. Bridge

7. Saddle

8. Bridge Pin

9. Bridge Inlay Bridge Bolts

10. Sides

11. Back

12. Centerline Inlay

13. Back Binding

14. Strap Pin

15. Peghead Face

16. Peghead Binding

17. Peghead Logo

18. Machine Heads

19. Nut

20. Fingerboard

21. Fingerboard Inlay

22. Fingerboard Binding

23. Fingerboard Side Markers

24. Frets

25. Neck Truss Rod Neck Joint

26. Heel Cap

27. Preamp Assembly

28. Pickup Assembly

29. Cord Hook

30. Serial Number Strings Finish

DIMENSIONS

A. Scale Length B. Nut Width C. Upper Bout Width D. Lower Bout Width E. Total Guitar Length F. Total Body Length G. Upper Bout Depth H. Lower Bout Depth

DESCRIPTION

Dreadnought Cutaway Solid Cedar DC-1 White & Black, CAB Concentric White Rings Mountain Label Black Rosewood Bone - Single Piece White w/ Black Dot White Acrylic N/A Maple Maple White CAB White & Black CAB End Pin Jack, Chrome Black White CAB Silver Chrome Bone Rosewood Snowflake White CAB Black Acrylic (#3, 5, 7, 9, 12, 15, 17) Nickel Mahogany Soundhole Access 14 Fret Dovetail White CT4B preamp Palathetic Pickup CH1 Takamine paper sticker on heel block D’Addario EXP Light Gauge Gloss Black Polyurethane (inches rounded off from metric measurements) 644 mm 25-3/8" inches

42.5 mm 1-11/16" 30 cm 11-1/8" 40 cm 15-3/4" 104 cm 40-15/16" 51 cm 20-1/16" 10 cm 4"

12.5 cm 4-15/16"

21 27

4 3

29 28

13 14

MISC NECK BODY

19 24

20 22

01/10 D-13
