E

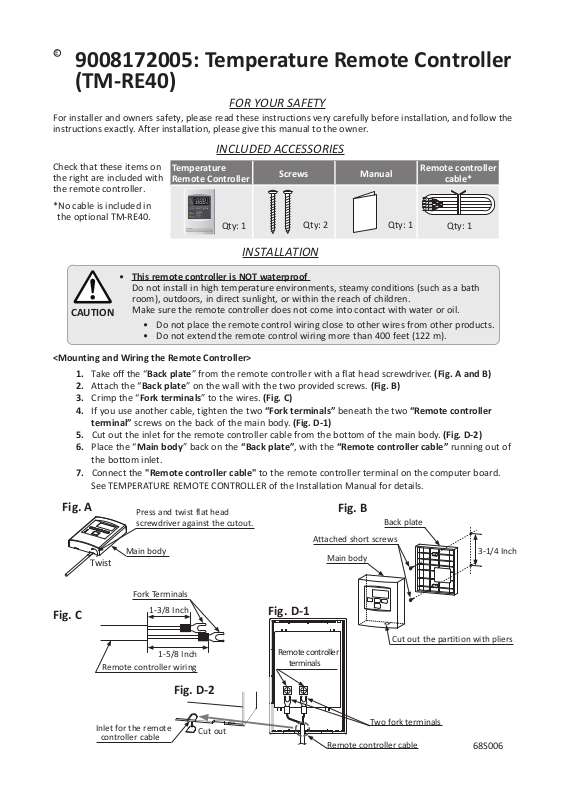

9008172005: Temperature Remote Controller
(TM-RE40)
FOR YOUR SAFETY
For installer and owners safety, please read these instructions very carefully before installation, and follow the
instructions exactly. After installation, please give this manual to the owner.
INCLUDED ACCESSORIES
Check that these items on
the right are included with
the remote controller.
*No cable is included in
the optional TM-RE40.
Temperature
Remote Controller
Qty: 1
Screws Manual
Qty: 2
Qty: 1
Remote controller
cable*
Qty: 1
INSTALLATION
• This remote controller is NOT waterproof
Do not install in high temperature environments, steamy conditions (such as a bath
room), outdoors, in direct sunlight, or within the reach of children.
CAUTION
<Mounting and Wiring the Remote Controller>
1. Take off the “Back plate” from the remote controller with a flat head screwdriver. (Fig. A and B)
2. Attach the “Back plate” on the wall with the two provided screws. (Fig. B)
3. Crimp the “Fork terminals” to the wires. (Fig. C)
4. If you use another cable, tighten the two “Fork terminals” beneath the two “Remote controller
terminal” screws on the back of the main body. (Fig. D-1)
5. Cut out the inlet for the remote controller cable from the bottom of the main body. (Fig. D-2)
6. Place the “Main body” back on the “Back plate”, with the “Remote controller cable” running out of
the bottom inlet.
7. Connect the "Remote controller cable" to the remote controller terminal on the computer board.
See TEMPERATURE REMOTE CONTROLLER of the Installation Manual for details.
Make sure the remote controller does not come into contact with water or oil.
• Do not place the remote control wiring close to other wires from other products.
• Do not extend the remote control wiring more than 400 feet (122 m).

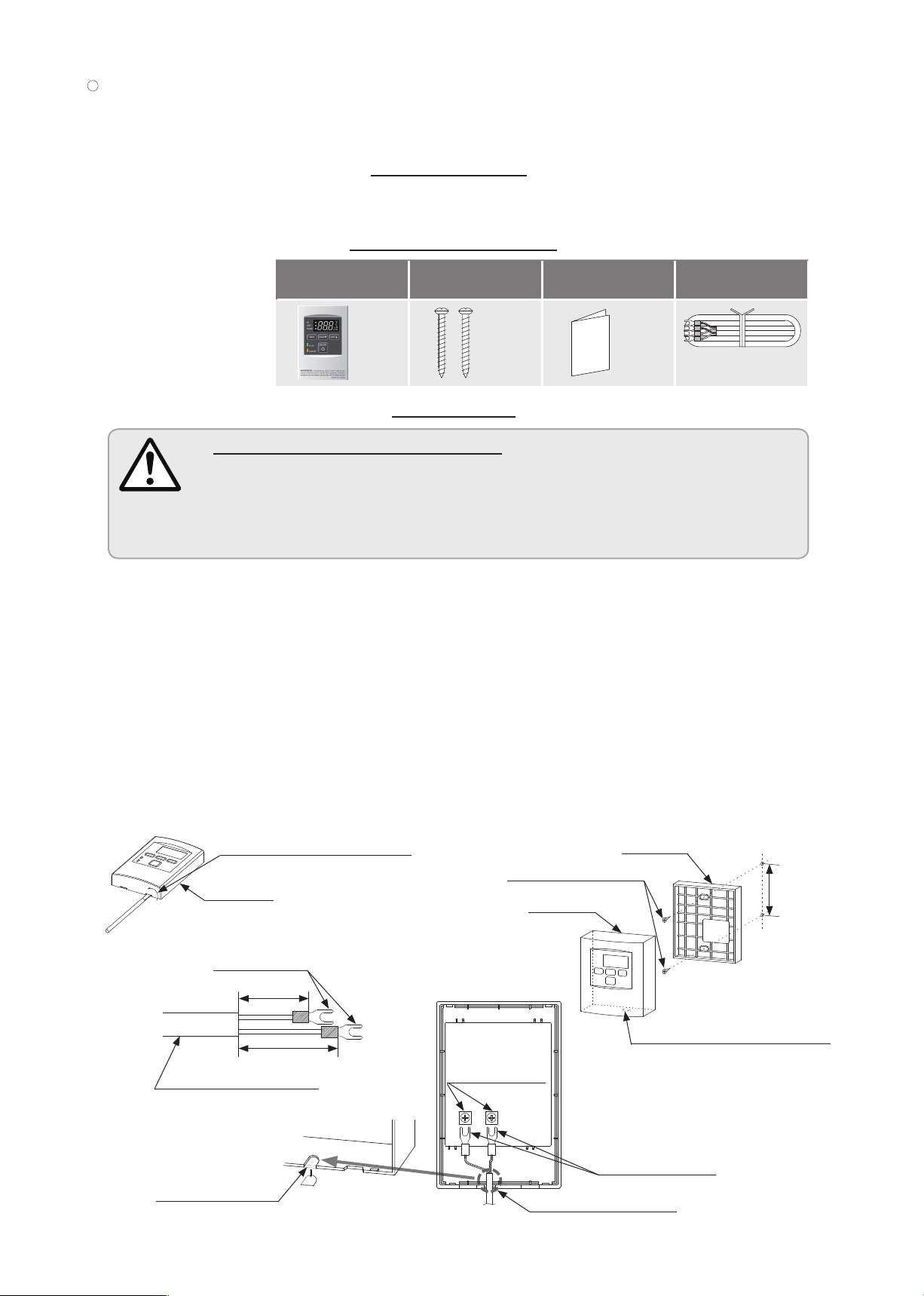

Fig. A
Fig. C
Press and twist flat head
screwdriver against the cutout.
Main body
Twist
Fork Terminals
1-3/8 Inch
1-5/8 Inch
Remote controller wiring
Inlet for the remote
controller cable
Fig.D-2
Cut out
Fig.D-1
Remote controller
terminals
Fig. B
Back plate
Attached short screws
Main body
Two fork terminals
Remote controller cable
3-1/4 Inch
Cut out the partition with pliers
68S006
