PARTS LIST

TMFD-C

[ ]

P-DC206-E

(9903)

1 Stand DC082001**** 1 Stand DCG82001**** 2 Adjusting Bolt EF0809000000 3 Vibration-preventive Base EF08100A0000 4 Stand Cover, Lower CT0819000000 5 Left-end Box Cover DC0845010000 5 Left-end Box Cover DCG845010000 6 Square Pipe Cover EDG820000000 6 Square Pipe Cover CT0103010000 7 TC Joint 4 Card ED7201000000 8 TC Joint 4 Card Fixture ED7202010000

9 No.4 Table Support CE09040B0000 10 No.4 Table Support EF1005010000 11 Round Head Wood Screw ZZ410425CC00 12 No.3 Table Support DC082501**** 13 No.6 Table Support DC082902**** 14 No.8 Table Support DC083001**** 15 No.9 Table Support DC083101**** 16 No.10 Table Support DC083201**** 17 Table Support Stud EF1001010000 18 Table Support Spacer MX1099000000 19 No.11 Table Support DC083301**** 20 No.12 Table Support DC083401**** 21 No.5 Table Support FC08420A**** 22 Table Support Bracket R EG1005RA0000 23 TAJIMA Brand Name Plate CT0825010000 24 Stand Stud Bolt EF0808000000 25 Vibration-preventive Rubber A EF0833A00000 26 Vibration-preventive Rubber B EF0833B00000 27 Vibration-preventive Rubber C FH0833000000 28 Operation Panel Stand Pipe CT08330A0000 29 Operation Panel Bracket EG01030A0000 30 Operation Panel Attaching Arm EG01040A0000 31 Operation Panel Hinge Pin EG0105010000 32 E-ring BPE900000000 33 Knobbed Bolt BPM10L200000 34 No.1 Wiring Cover XC08070A**** 35 No.2 Wiring Cover XC08080A**** 36 No.3 Wiring Cover XC08090A**** 37 Wiring Cover Stud EG0808000000 38 Fluorescent Lamp EG740101**** 38 Fluorescent Lamp ED740100**** 39 Fluorescent Lamp Bracket EG0817000000 40 41 42 43 44 45 46

G-Spec.M/C only

For M/C 6246mm or longer

5.1P*25

M10*20

For Japan For Export

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-2-1

T M F D - C T A B L E

10

8

24

25

34

E47

33

36

R35

35

R9

B12

6

13

12

B12

R35

R9

37

31 32

1

6

21

5

3

26

27

H40

23

30

23

28

8

R16 R38 B23

6

20

22

29

11

4

2

F9

R9

16

R35

8

B12

15

6

17 19

R9

9

R16

8

7

P18

14

8

B12

R35

18

R16 R38 B23

(CG03)

TMFD-C TABLE

DC-2-1

Ref.No.

Description Part No. Remark

1 Table DC082301****

1 Table DCG82301****

2 Front Rail Holder A XC0709A1****

3 Front Rail Holder B XC0709B0****

4 No.1 Table Lid A EN0854A1****

5 No.1 Table Lid C EN0854C1****

6 Countersunk Head Wood Screw ZZ110312SD00

6 Countersunk Head Wood Screw ZZ110316SD00

7 Grommet BPMG0900****

8 Round Head Wood Screw ZZ410420CC00

9 Table Lid Stud Bolt FC0806000000 10 Table Stopper GC1007000000 11 Bearing Stopper FC0A06000000 12 No.2 Table Lid A DC0805A2**** 13 No.2 Table Lid B DC0805B1**** 14 Toggle Clamp B GY1001000000 15 Anti-vibration Plate XC0526010000 16 Bearing Set FC073302S100 17 Bearing Case FC0733020000 18 Roller FC0734010000 19 Roller Pin FC0735000000 20 Encoder Cover DC0806000000 21 Table End Cover A XC0827A00000 22 Table End Cover C XC0827C00000 23 Stand Front Cover A XC0822AA**** 23 Stand Front Cover A DC0816AA**** 24 Stand Front Cover B XC0822BA**** 24 Stand Front Cover B DC0816BA**** 25 Stand Front Cover C XC0822CA**** 25 Stand Front Cover C DC0816CA**** 26 Stand Front Cover D XC0822DA**** 26 Stand Front Cover D DC0816DA**** 27 Stand Front Cover E XC0822EA**** 27 Stand Front Cover E DC0816EA**** 28 Stand Front Cover F XC0822FA**** 28 Stand Front Cover F DC0816FA**** 29 Stand Front Cover G XC0822GB**** 29 Stand Front Cover G DC0816GA**** 30 Joint Cover ED0815000000 31 Table Aligning Sub Plate TC0102000000 32 Round Head Wood Screw ZZ410525CC00 33 Table Guide Plate FC0515020000 34 Distortion Preventive Base FC0711000000 35 Bearing Case EF0720020000 36 Roller EF0722000000 37 Roller Pin EF0723010000 38 39 40 41

G-Spec.M/C only

3.1P*12

3.1P*16

4.5P*20

Y-Space 450mm Y-Space 550mm Y-Space 450mm Y-Space 550mm Y-Space 450mm Y-Space 550mm Y-Space 450mm Y-Space 550mm Y-Space 450mm Y-Space 550mm Y-Space 450mm Y-Space 550mm Y-Space 450mm Y-Space 550mm

5.1P*25

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-2-2

TMFD-C AUTO SUB TABLE

A

28

22

E30

24

H27

29

23

26,27

19

23

21

12

13

14

1

22

6

3 P32 R27

R27 R44 P32

B46 R40 R21

20

P18

B46 R40 R21

25

P18

E40

26,27

B69 R42 R23

A

9

7

11

10

P36

16

R21

15

R21

B86

R40

B46

R44

8

B53

B49

R27

4

H43

2

P18

R38 R16

5

3

17

18

R16 B31

R21

R40

B49

(CG03)

TMFD-C AUTO SUB TABLE

DC-2-2

Ref.No.

Description Part No. Remark

1 Table Attaching Base XC05010B**** 1 Table Attaching Base DC05010B**** 2 Front Table Spacer A XC0527A00000 2 Front Table Spacer B XC0527B00000 3 Round Head Wood Screw SS410525CC00 4 Pipe Clamp XC05080A0000 5 Right Side Table Holder Bolt FC0526000000 6 Front Table Holder Bolt FC0530000000 7 Cylinder Holder A DC0843A0**** 8 Cylinder Holder B DC0843B0****

9 Cylinder Adjusting Bolt XC05040A0000 10 Bolt Cover XC0525000000 11 Hydraulic Cylinder BP1312020000 12 HD Pipe BPMO46251000 12 HD Pipe BPMO66251000 13 Connecting Screw BP1315080000 14 Clamping Ring BP1315100000 15 Cylinder Support L XC0521LA0000 16 Cylinder Joint L XC0507LA0000 16 Cylinder Joint L DC0503LA0000 17 Cylinder Support R XC0521RA0000 18 Cylinder Joint R XC0507RA0000 18 Cylinder Joint R DC0503RA0000 19 Auto Sub Table Motor Unit CD7800000000 20 Pump BP1312010000 20 Pump BP1312030000 21 Pump Attaching Bracket DC0865000000 22 Special Screw DC0867000000 23 Hexagon Nut DC0868000000 24 Limit Switch Plate (DOWN) DC0863A00000 25 Limit Switch Plate (UP) DC0863B00000 26 Limit Switch PB001000SP00 27 Actuator MS6602000000 28 Push Insert DC0866000000 29 Pump Cover DC0862000000 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44

Y-Space 450mm Y-Space 550mm

2.0mm Thick

1.0mm Thick

5.1P*25

4-cylinder type 6-cylinder type

Y-Space 450mm Y-Space 550mm

4-cylinder type 6-cylinder type

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-3

T M F D - C B O X

13

5

4

1

L34

10

3

4

2

10

12

L31

8

9

B46

R40

B23

R16

14

11

6

B46

7

R40

L31

8

6

7

R27

R44

P32

(CG03)

TMFD-C BOX

DC-3

Ref.No.

1 Main Shaft Motor Pulley ED0161000000

2 Tension Pin DC0107010000

3 Tension Roller DC0108000000

4 Ball Bearing BP6000ZZ0000

5 E-ring BPE700000000

6 Bearing Case DC0109010000

7 Ball Bearing BP6004ZZ0000

8 15mm Dia. Bearing Case Collar EF0106000000

9 Main Shaft Pulley A DC0111010000 10 Hexagon Socket Head Set Screw BPKCPM8L1600 11 Main Shaft Pulley B DC0112010000 12 Angle Indicator Plate ED0170000000 13 Timing Belt BPS5M351270G 13 Timing Belt BPS5M351530G 14 Angle Pointer DC0110010000 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49

Description Part No. Remark

M8*16

Y-Space 450mm Y-Space 550mm

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-4-1

TMFD-C CYLINDER BED 1

D6

29

28

27

25

26

33

34

24

D9

35

22

D6

31

D1623

21

L3

17

L29

20

L30

16

17

L30

18

19

L29

12

1

15

14

L23

13

10

11

10

9

D6

32

8

7

R9

3

30

2

P38

D6

6

5 P32 R30

R29 R44 P32

4

B12

P38

(CG03)

TMFD-C CYLINDER BED 1

DC-4-1

Ref.No.

Description Part No. Remark

1 Cylinder Bed A FC0201AA0000 1 Cylinder Bed A FCC201AA0000 2 Cylinder Bed A DC0201AB0000 2 Cylinder Bed A DCC201AB0000 3 Cylinder Bed B FC0201BA0000 3 Cylinder Bed B FCC201BA0000 4 Cylinder Bed B DC0201BB0000 4 Cylinder Bed B DCC201BB0000 5 Rotary Hook Base Stud EF0207000000 6 Rotary Hook Base Stud DC0202010000 7 Rotary Encoder EF6600A00000 8 Encoder Stud CX0212000000

9 Rotary Hook Shaft Drive Shaft A DC0840A1**** 10 N-Coupling BPN150150000 11 Rotary Hook Shaft Drive Shaft B DC0840BO**** 12 Rotary Hook Shaft Drive Shaft C DC0840C1**** 13 15mm Dia. Bearing Collar EG0227000000 14 Ball Bearing BP6003ZZ0000 15 Spiral Bevel Gear A EF0203000001 15 Spiral Bevel Gear A EF0203B00000 16 Spiral Bevel Gear B EF0204000001 16 Spiral Bevel Gear B EF0204040000 17 Rotary Hook Shaft Spacer EF0211000000 18 Lower Shaft Bushing, Rear DC0504010000 19 Rotary Hook Shaft FCC222000000 19 Rotary Hook Shaft DC0206000000 20 Rotary Hook Shaft Bushing B EF0206B00000 21 7.94mm Dia. Collar EF0209000000 22 Needle Plate Bracket FCC202040000 23 Spring Pin BPSP03120000 24 Rotary Hook Support FC0224000000 25 Rotary Hook ME0505E2**** 25 Rotary Hook MEC505E2**** 26 Rotary Hook Set Screw ME0506000000 27 Bobbin ME050402**** 27 Bobbin MEC504010DBM 28 Bobbin Case ME050300**** 28 Bobbin Case MEC503000DBM 29 Bed Cover A FC0214010000 30 Bed Cover A DC0203000000 31 Bed Cover B FC0A04000000 32 Bed Cover B FC0A08000000 33 Needle Plate FC0A01000000 34 Positioning Pin FC0A02000000 35 Round Countersunk Head Screw EG0228000000 36 37 38 39 40

Y-Space 450mm Y-space 450mm with Jumbo Hook Y-Space 550mm Y-space 550mm with Jumbo Hook Y-Space 450mm Y-space 450mm with Jumbo Hook Y-Space 550mm Y-space 550mm with Jumbo Hook Y-Space 450mm Y-Space 550mm

Iron Iron:only with Bevel Gear(Plastic) Iron Plastic gear

Y-Space 450mm Y-Space 550mm

3P*12

For Jumbo Rotary Hook

For Jumbo Rotary Hook Y-Space 450mm Y-Space 550mm Y-Space 450mm Y-Space 550mm

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-4-2

TMFD-C CYLINDER BED 2

E15

32

M1

30

29

31

L15

35

28

F15

21

19

20

27

E8

38

26

E15

E17

L9

22

23

24

B25

R16

25

6

5

B27

18

2

1

P18

3

12

R16

B27

3

B27

14

E17

15

13

R16

B29

16

4

7

11

17

L16

34

36

A21

37

33

L11

39

H16

10

P28

9

P27

8

(CG03)

TMFD-C CYLINDER BED 2

DC-4-2

Ref.No.

Description Part No. Remark

1 Thread Trimming Lever FC0217000000

2 Thread Trimming Lever Pin FC0211000000

3 Oiled Bearing BPF812121620

4 Drive Arm FC0213000000

5 Knife Connecting Lever AT0207000000

5 Knife Connecting Lever DC0207000000

6 Connecting Lever Pin AT0206000000

7 Connecting Stud AT0208000000

7 Connecting Stud DC0208000000

8 Thread Trimming Shaft A FC0815A1****

9 M6 Joint EF0827010000 10 Thread Trimming Shaft B FC0815B0**** 11 Thread Trimming Shaft C FC0815C0**** 12 Connecting Shaft Holder FC0221010000 13 Sensor Bracket C FC0232000000 13 Sensor Bracket B FC0229000000 14 Proximity Switch EG6601000000 15 Proximity Switch Lock Fixture PB000500KN01 16 Knife Retracting Sensor Harness ED760400**** 17 Searching Block FX0217000000 18 Knife Connecting Plate FC0216000000 18 Knife Connecting Plate DC0205000000 19 Movable Knife Drive Arm FC0209020000 20 5mm Dia. Collar FC0223000000 21 Movable Knife AC0516000000 22 Fixed Knife AC0517000000 23 Under Thread Presser AC0518000000 24 Picker Solenoid AT6806C10000 25 Picker Solenoid Base FC0210000000 26 Solenoid Cover FC0226000000 27 Compressed Spring EG0218000000 28 E-ring BPE400000000 29 Needle Bar O-Ring EF0621000000 30 Connecting Plate FC0233000000 31 Solenoid Pin EG0252000000 32 Connecting Pin AC0205000000 33 Picker Base FC0207010000 34 E-ring BPE200000000 35 Picker FC0208010000 36 Picker Bracket FC0206000000 37 Flat Fillister Head Screw AC0208000000 38 Picker Stopper AC0212010000 39 Rotary Hook Base Cover FC0A07000000 40 41 42 43 44 45 46

Y-Space 450mm Y-Space 550mm

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-5

9

L24

TMFD-C COLOR CHANGE SYSTEM

B87

R44

R27

43

L24

1

13

2

25

L17

14

H5

27

P22

26

15 L16

16

24

L9

22

23

42

L15

10

B65

L24

L16

3

B67

4

6

11

12

13

L16

L24

15

16

18

R9

17

B10

4

5

B8

41

40

L24

11

E56

19

R15

B27

38

39

34

35

34

B15

E38

R10

E15

36

37

28

31

30

32

21

20

33

12-Needle Model

8

B44

R40

R21

6

5

4

3

2

1

R23

P27

R23

P27

7

4

B67

29

G5

(CG03)

TMFD-C COLOR CHANGE SYSTEM

DC-5

Ref.No.

1 Color Change System Assembly UN09002A****

2 Color Change Box FX04010A####

3 Cam Shaft MS040200####

4 Cam Shaft Bushing EF0407000000

5 Color Change Cam Set EF040501####

6 Middle Gear A MS0410010000

7 Change Cam EF0405011200

8 Cam Shaft Bushing B FX04030A1200

9 Middle Gear B MS0411000000 10 Middle Shaft FX040200#### 11 Motor Gear EF0410000000 12 10mm Dia. Collar EF0924000000 13 Dry Bearing BPMB1010DU00 14 Half-turn Gear EF0414000000 15 Half-turn Gear Bushing EF0415000000 16 8mm Dia. Collar EF0418000000 17 One-rotation Switch Collar EG0401010000 18 Photo-interrupter EG7102000000 19 Photo-interrupter Base EG0402000000 20 Color Change Motor EG7101003R15 21 Gear Head EG7101003G09 22 Rotary Switch MS7102010000 23 Rotary Switch Stay MS0409000000 24 Rotary Switch Pin MS0407000000 25 Rotary Switch Gear MS0408000000 26 Change Cover Stud MS0414000000 27 Change Cover EG04040A0000 28 Slide Boss EF0402010000 29 Slide Bearing BPLME1222322 30 Cam Roller Set EF0404S00000 31 Cam Pin EF0403000000 32 Cam Roller EF0404000000 33 E-ring BPE300000000 34 Guide Shaft EF040800#### 35 Slide Shaft MS040300#### 36 Needle Position Indicating Belt EF042600#### 37 Belt Joint Plate EF0429000000 38 Roller EF0425000000 39 Roller Pin EF0428000000 40 Base Split Collar EF0430000000 41 Roller Base EF0427000000 42 Model Name Plate DC040101**** 43 Bobbin Stand Stud EF0122000000 44 45 46 47 48 49 50

Description Part No. Remark

12-Needle

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-6-1

23

20

TMFD-C ARM 1

12

B23

R15

E15

R10

24

15

R15

14

D3

D7

8

6

5

3

4

D15

H6

13

11

7

H5

2

D3

B8

R9

B87

R44

R27

19

21

22 L9

17

B27

R15

16

H5

25

9

A7

18

26

G5

10

1

27

28

15

(CG03)

TMFD-C ARM 1

DC-6-1

Ref.No.

Description Part No. Remark

1 Arm FX05010A0000

2 Arm Top Cover EG05320A0000

3 Arm Rail, Upper EF052603####

3 Arm Rail, Upper FX0557010000

4 Spring Pin BPSP03120000

5 Slide Roller EF055300####

5 Slide Roller FX0558001200

6 Take-up Lever Rail Holder L FX0556LB****

7 Take-up Lever Rail Holder R FX0556RB****

8 Take-up Lever Guide Rail EF05140A****

8 Take-up Lever Guide Rail FX05590A****

8 Take-up Lever Guide Rail EF0514B00000

8 Take-up Lever Guide Rail FX0559B00000

9 Arm Side Cover A FX05180A0000 10 Seal Packing FX0553200000 11 Arm Side Cover B FX0554AA0000 12 Arm Side Cover B1 FX0554BA0000 13 Cord Clip PB000700EB00 14 Jump Base EG0546010000 15 Hexagon Socket Head Cap Screw EG0219000000 16 Solenoid Bracket EG0508020000 17 Jump Solenoid EG6801020000 18 Hexagon Nut EG0548000000 19 Solenoid Cover Set UN25006A0000 20 Solenoid Cover EG05100A0000 21 Clutch Pin EF0540000000 22 Clutch Knurled Screw EF0539000000 23 E-ring BPE500000000 24 Stopper Plate Spring ME0544000000 25 Arm Front Cover L FX0555LB0000 26 Arm Front Cover R FX0555RB0000 27 Arm Guide Plate FX0525040000 28 Positioning Plate FX0526000000 29 30 31 32 33 34 35 36 37 38 39 40 76 47 48 49 50

12-Needle 3P*12

12-Needle

12-Needle 9-needle 240P M/C,last head 12-needle 330P M/C,last head

For the last head

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-6-2

TMFD-C ARM 2

13

19

20 21

2

3

4

5

1

A3

9

8

16

14

15

13

17

18

6

10

11

12

7

L5

H8

L5

A22

22

E23 24

B27

23

L15

25

26

(CG03)

TMFD-C ARM 2

DC-6-2

Ref.No.

1 Needle Bar Reciprocator Set UN2500920000

2 Jump Spring FX0516000000

3 Spring Cradle FX0564000000

4 Needle Bar Reciprocator EF0532020000

5 Needle Bar Reciprocator Spacer EF0554000000

6 Reciprocator Slide Block EF0560010000

7 Needle Bar Drive Shaft Bushing CX0506010000

8 Stopper EF0561010000

9 Stopper Bracket EF0534000000 10 No.4 Pin Set UN2505200000 11 No.4 Pin EF0512010000 12 Wick B EF0557000000 13 Needle Bar Drive Shaft Felt A FX0561010000 14 Needle Bar Drive Shaft Set UN2501102000 15 Needle Bar Drive Shaft FX0522030000 16 Needle Bar Drive Shaft Wick EG0536000000 17 Bearing Case Collar ME0555000000 18 Needle Bar Drive Shaft Felt FX0524000000 19 Take-up Lever Drive Lever Pin Set UN2505400000 20 Take-up Lever Drive Lever Pin EG0530000000 21 Wick B EG0544000000 22 Take-up Lever Drive Lever A Set EG0521040000 23 Take-up Lever Drive Lever B EG0529000000 24 Take-up Lever Drive Gear EF0517010000 25 8mm Dia. Collar EF0418000000 26 Bearing Brass EG0541000000 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Description Part No. Remark

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-6-3

TMFD-C ARM 3

B25

24

R15

10

R15

23

11

19

17

9

18

F1

L15

16

15

8

R23

7

R42

P27

6

4

5

3

2

R19

B44

22

20

21

R16

P6

14

12

L5

13

1

B49

L5

28

27

26

25

(CG03)

TMFD-C ARM 3

DC-6-3

Ref.No.

1 Needle Bar Cam Tightening Collar EF0508000000

2 Bearing Case EF0502010000

3 Ball Bearing BP6004ZZ0000

4 Needle Bar Drive Set UN2501000000

5 Needle Bar Drive Cam EF0504010000

6 Needle Cage BPK384188X01

7 Connecting Rod EF0505010000

8 Take-up Lever Cam Base EF0507020000

9 Take-up Lever Drive Cam EF0563000000 10 Cam Washer EF0522000000 11 Cam Washer A EF0522A00000 12 No.2 Pin Set UN2505300000 13 No.2 Pin EG0528000000 14 Wick A EG0543000000 15 Needle Bar Drive Lever Set EG0527000000 16 8mm Dia. Collar EF0418000000 17 No.1 Pin Set UN2505601000 18 No.1 Pin FX0506010000 19 Wick A EF0556000000 20 No.3 Pin Set UN2505101000 21 No.3 Pin EF0511010000 22 Wick B EF0557000000 23 Needle Bar Drive Connecting Rod EF0513000000 24 Connecting Rod Washer EF0555010000 25 Needle Bar Drive Shaft A DC0841A0**** 26 N-Coupling BPN150150000 27 Needle Bar Drive Shaft B DC0841B0**** 28 Needle Bar Drive Shaft C DC0841C0**** 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Description Part No. Remark

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DCN-6-1

17

18

TMFD-C ARM 1 (NOISE REDUCTION TYPE)

B22

B8

21

26

23

14

P6

22

P15

28 27 25

24

6

5

32

L17

16

B30

19

R13

P18

31

15

20

E20

29

30

D3

D7

8

D3

B8

12

H5

3

H5

2

R9

B87

R44

R27

1

4

D15

H6

13

11

9

10

A7

7

G5

35

33

34

36

16

(CG03)

TMFD-C ARM 1 (NOISE REDUCTION TYPE)

DCN-6-1

Ref.No.

Description Part No. Remark

1 Arm FX05010A0000

2 Arm Top Cover EG05320A0000

3 Arm Rail, Upper EF052603****

3 Arm Rail, Upper FX055701****

4 Spring Pin BPSP03120000

5 Slide Roller EF055300####

5 Slide Roller FX0558001200

6 Take-up Lever Rail Holder L FX0556LB****

7 Take-up Lever Rail Holder R FX0556RB****

8 Take-up Lever Guide Rail EF05140A****

8 Take-up Lever Guide Rail FX05590A****

8 Take-up Lever Guide Rail EF0514B00000

8 Take-up Lever Guide Rail FX0559B00000

9 Arm Side Cover A FXJ5530A0000 10 Seal Packing FX0553200000 11 Arm Side Cover B FX0554AA0000 12 Arm Side Cover B1 FX0554BA0000 13 Cord Clip PB000700EB00 14 Solenoid Bracket Set UN25008A00ED 15 Solenoid Bracket FXJ5380A0000 16 Hexagon Socket Head Cap Screw EG0219000000 17 Jump Solenoid FX6801S20000 18 Cylinder Set UN2505700000 19 Solenoid Cover FX0548000000 20 Jump Kick Spring FX0546000000 21 Jump Lever FX0540000000 22 E-ring BPE700000000 23 Cam Roller Eccentric Pin FXJ541000000 24 Solenoid Lever FXJ544000000 25 Cam Kick Spring FX0547000000 26 Cam Lever FX0542000000 27 Spring Hook Pin B FXJ545000000 28 Cam Roller Pin B FX0543000000 29 Stopper Pin FX0539000000 30 Clutch Lever FXJ549000000 31 Return Spring FX0550000000 32 Clutch Knurled Screw FX0551000000 33 Arm Front Cover L FX0555LB0000 34 Arm Front Cover R FX0555RB0000 35 Arm Guide Plate FX0525040000 36 Positioning Plate FX0526000000 37 38 39 40 41 42 43 44 45

12-Needle 3P*12

12-Needle

12-Needle 9-needle 240P M/C,last head 12-needle 330P M/C,last head

For the last head

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DCN-6-2

TMFD-C ARM 2 (NOISE REDUCTION TYPE)

13

2

3

4

11

1

12

21

22 23

24

B27

25

E23 26

A22

L15

27

28

5

6

9

10

E6

8

E14

7

12

1011

9

15

18

16

17

L5

H8

14

L5

13

19 20

(CG03)

TMFD-C ARM 2 (NOISE REDUCTION TYPE)

DCN-6-2

Ref.No.

1 Needle Bar Reciprocator Set UN25009100NR

2 Jump Spring FX0516000000

3 Spring Cradle FX0564000000

4 Needle Bar Reciprocator FX0515000000

5 Needle Bar Reciprocator Spacer EF0554000000

6 Reciprocator Slide Block FX0565000000

7 Needle Bar Drive Shaft Bushing CX0506010000

8 Stopper Base FX0519000000

9 No.4 Pin Set UN2505200000 10 No.4 Pin EF0512010000 11 Wick B EF0557000000 12 Connecting Rod Washer EF0555010000 13 Needle Bar Drive Shaft Felt A FX0561010000 14 Presser Foot Reciprocator FX0520040000 15 Cushion Bracket FX0521000000 16 Needle Bar Drive Shaft Set UN2501102000 17 Needle Bar Drive Shaft FX0522030000 18 Needle Bar Drive Shaft Wick EG0536000000 19 Bearing Case Collar ME0555000000 20 Needle Bar Drive Shaft Felt FX0524000000 21 Take-up Lever Drive Lever Pin Set UN2505400000 22 Take-up Lever Drive Lever Pin EG0530000000 23 Wick B EG0544000000 24 Take-up Lever Drive Lever A Set EG0521040000 25 Take-up Lever Drive Lever B EG0529000000 26 Take-up Lever Drive Gear EF0517010000 27 8mm Dia. Collar EF0418000000 28 Bearing Brass EG0541000000 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Description Part No. Remark

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DCN-6-3

16

E23

TMFD-C ARM 3 (NOISE REDUCTION TYPE)

15

B25

14

13

R15

10

28

B31

22

R23

7

R42

9

P27

6

5

4

3

2

R19

B44

12

B13

B25

R15

11

F1

L15

2324

21

8

20

25

P6

2627

R12

31

29

30

R16

32

35

P6

P20

28

R12

34

33

17

27

1819

L4

L5

1

B49

L3

L5

L15

39

38

37

36

(CG03)

TMFD-C ARM 3 (NOISE REDUCTION TYPE)

DCN-6-3

Ref.No.

1 Needle Bar Cam Tightening Collar EF0508000000

2 Bearing Case EF0502010000

3 Ball Bearing BP6004ZZ0000

4 Needle Bar Drive Set UN25010000NR

5 Needle Bar Drive Cam FX0502000000

6 Needle Cage BPK384188X01

7 Connecting Rod EF0505010000

8 Take-up Lever Cam Base EF0507020000

9 Take-up Lever Drive Cam EF0563000000 10 Cam Washer EF0522000000 11 Cam Washer A EF0522A00000 12 Cam Spacer MX0505000000 13 Presser Foot Cam MX0508020000 14 Presser Foot Cam Boss MXJ509000000 15 Jump Cam FXJ561000000 16 Spring Pin BPSP03100000 17 No.2 Pin Set UN2505300000 18 No.2 Pin EG0528000000 19 Wick A EG0543000000 20 Needle Bar Drive Lever Set EG0527000000 21 8mm Dia. Collar EF0418000000 22 No.1 Pin Set UN2505601000 23 No.1 Pin FX0506010000 24 Wick A EF0556000000 25 No.3 Pin Set UN2505101000 26 No.3 Pin EF0511010000 27 Wick B EF0557000000 28 Needle Bar Drive Connecting Rod EF0513000000 29 No.1 Drive Shaft Set UN2505501000 30 No.1 Drive Shaft FX0504010000 31 Wick C EF0558000000 32 Drive Lever MX0510020000 33 8mm Dia. Collar MX0507000000 34 Cam Follower BPCFS4000000 35 Eccentric Pin MX0511010000 36 Needle Bar Drive Shaft A DC0841A0**** 37 N-Coupling BPN150150000 38 Needle Bar Drive Shaft B DC0841B0**** 39 Needle Bar Drive Shaft C DC0841C0**** 40 41 42 43 44 45 46 47 48 49 50

Description Part No. Remark

3P*10

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-7-1

TMFD-C NEEDLE BAR CASE 1

B23

36

37

34

33

39

32

B25

39

3

P28

4

23

35

36

B23

43

38

B22

41

42

P27

40

19

10

11

D10

21

28

26

25

E24

29

D9

30

31

H4

5

6

8

9

12

13

14

15

16

20

22

17

18

7

L24

D7

B34

2

24

27

1

B31

(CG03)

TMFD-C NEEDLE BAR CASE 1

DC-7-1

Ref.No.

Description Part No. Remark

1 Needle Bar Case Set UN260031####

1 Needle Bar Case Set UN26C031####

2 Needle Bar Case FX06010A####

3 Holder Spring Set Screw EF0620000000

4 Needle Bar FX0632000000

5 Needle Bar Holder Spring EF0618030000

6 Spring Shoe Washer EF0619000000

7 Felt Packing EF062300####

8 Cushion Rubber B EF062700####

9 Cushion Ring B EF0643010000 10 Upper Dead Point Stopper EF0617010000 11 Flat Fillister Head Screw EF0647000000 12 Needle Bar Connecting Stud FX0617000000 13 Presser Foot Spring D EF0614D20000 14 Presser Foot Set EF0613030000 15 Presser Foot EF0613130000 16 Presser Foot Bushing EF0613220000 17 Cushion Ring C EF0644020000 18 Presser Foot Adjusting Rubber EF0625A0**** 18 Presser Foot Adjusting Rubber EF0625B0**** 19 Cushion Ring A EF0642020000 20 Needle Clamp EF0616010000 21 Needle Set Screw EF0615000000 22 Needle EF0640000000 23 Take-up Lever Shaft EF060200#### 23 Take-up Lever Shaft FX0602001200 24 Take-up Lever Positioning Bushing EF0606000000 25 Take-up Lever Gear Set FX0603S10000 25 Take-up Lever Gear Set FXC603S10000 26 Take-up Lever FX0603010000 26 Take-up Lever FXC603010000 27 Thread Guide MX0521000000 28 Take-up Lever Gear EF0603010000 29 Take-up Lever Adjusting Bushing EF0605000000 30 Needle Bar Guide Rail FX061302#### 31 Case Rail, Lower FX061200#### 32 Guide Roller Base FX060700#### 33 Ball Bearing BPR1340ZZ000 34 E-ring BPE300000000 35 Case Rail, Upper FX060602#### 36 Roller Stopper FX0635000000 37 Color Change Bracket L FX0609L10000 38 Color Change Bracket R FX0609R10000 39 Change Bracket Set Screw FX0611000000 40 Slide Shaft A FC0812A0**** 41 Slide Shaft B FC0812B0**** 42 M6 Joint EF0827010000 43 Slide Shaft C FC0812C0**** 44 45

For Jumbo Rotary Hook

0.5mm Thick

1.0mm Thick

DB K5-11

12-Needle

For Jumbo Rotary Hook

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DCN-7-1

TMFD-C NEEDLE BAR CASE 1 (NR TYPE)

B23

38

39

36

35

41

34

B25

41

3

P28

4

25

37

38

B23

45

40

B22

43

44

P27

42

20

21

R6

D10

17

18

8

9

10

11

12

19

13

14

15

16

30

28

27

E24

31

D9

32

33

H4

5

6

7

L24

7

26

29

23

22

24

D7

B34

1

B31

2

(CG03)

TMFD-C NEEDLE BAR CASE 1 (NR TYPE)

DCN-7-1

Ref.No.

1 Needle Bar Case Set UN260041####

1 Needle Bar Case Set UN26C041####

2 Needle Bar Case FX06010A####

3 Holder Spring Set Screw EF0620000000

4 Needle Bar FX0632000000

5 Needle Bar Holder Spring FX0634010000

6 Spring Shoe Washer EF0619000000

7 Felt Packing EF062300####

8 Cushion Rubber B EF062700####

9 Cushion Ring F FX0616010000 10 Cushion Ring E FX0615000000 11 Upper Dead Point Stopper EF0617010000 12 Flat Fillister Head Screw EF0647000000 13 Needle Bar Connecting Stud FX0617000000 14 Presser Foot Spring Holder FX0618010000 15 Presser Foot Spring D FX0619D10000 16 Presser Foot Connecting Stud FX0621010000 17 Presser Foot Set FX0620000000 18 Presser Foot FX0620100000 19 Presser Foot Bushing EF0613220000 20 Presser Foot Set Screw FX0622000000 21 Cushion Ring A EF0642020000 22 Needle Clamp EF0616010000 23 Needle Set Screw EF0615000000 24 Needle EF0640000000 25 Take-up Lever Shaft EF060200#### 25 Take-up Lever Shaft FX0602001200 26 Take-up Lever Positioning Bushing EF0606000000 27 Take-up Lever Gear Set FX0603S10000 27 Take-up Lever Gear Set FXC603S10000 28 Take-up Lever FX0603010000 28 Take-up Lever FXC603010000 29 Thread Guide MX0521000000 30 Take-up Lever Gear EF0603010000 31 Take-up Lever Adjusting Bushing EF0605000000 32 Needle Bar Guide Rail FX061302#### 33 Case Rail, Lower FX061200#### 34 Guide Roller Base FX060700#### 35 Ball Bearing BPR1340ZZ000 36 E-ring BPE300000000 37 Case Rail, Upper FX060602#### 38 Roller Stopper FX0635000000 39 Color Change Bracket L FX0609L10000 40 Color Change Bracket R FX0609R10000 41 Change Bracket Set Screw FX0611000000 42 Slide Shaft A FC0812A0**** 43 Slide Shaft B FC0812B0**** 44 M6 Joint EF0827010000 45 Slide Shaft C FC0812C0**** 46

Description Part No. Remark

For Jumbo Rotary Hook

DB K5-11

12-Needle

For Jumbo Rotary Hook

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-7-2

TMFD-C NEEDLE BAR CASE 2

1

2

3

5

4

6

G4

G8

5

10

7

14

H5

E23

13

8

24

14

23

21

22

15

16

21

20

17

18

19

E17

9

11

G5

P2

12

H14

G8

(CG03)

TMFD-C NEEDLE BAR CASE 2

DC-7-2

Ref.No.

1 Top Cover Set UN260022****

1 Top Cover Set UN26C022****

2 Top Cover CX067100####

2 Top Cover CXC67100####

3 Top Cover Attaching Screw CX0675000000

4 Middle Thread Guide Set CX067200####

5 Thread Guide FX0626110000

6 Thread Guide MX0522000000

7 Magnet Rubber EF0635210300

8 Face Plate EC060101####

9 Lower Thread Guide Set UN260061#### 10 Lower Thread Guide FX062602#### 11 Thread Hook Spring EF063102#### 11 Thread Hook Spring FX0627031200 12 Spring Presser Bracket FX0633010000 13 Thread Presser Base Set UN680033**** 14 Upper Thread Holder Bracket AT0323000000 15 Thread Suspender Disk EF0637000000 16 Thread Suspender Spring EF0639000000 17 Thread Suspender Spring Presser EF0638000000 18 Thread Suspender Attaching Screw AT2311000000 19 Thread Presser Base (with Tape) UN680172**** 20 Thread Presser Base AT032400#### 21 Velcro AT030500#### 21 Velcro FX0631201200 22 Thread Presser Lid (with Tape) UN680182#### 23 Thread Presser Lid AT032500#### 24 Thread Presser Spacer AT0304000000 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46

Description Part No. Remark

For Jumbo Rotary Hook

12-Needle 12-Needle

12-Needle

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-8

TMFD-C FRONT COVER

28

R16

B25

27

H3

24

26

H5

14

22

2

H11

25

18

H5

17

3

4

23

7

H11

20

21

13

8

4

10

9

H5

18

R10 P10

4

19

H25

3

4

R10 P10

16

15

11

12

2

13

H25

3

4

H5

8

7

5

6

4

10

H5

9

4

1

(CG03)

TMFD-C FRONT COVER

DC-8

Ref.No.

1 Front Cover A MX08150A0000

2 Cover Attaching Bracket R FX0628R30000

3 Cover Attaching Bracket FX0628030000

4 Plate Magnet FX0628200000

5 Front Cover B BX08090A****

6 Start/Stop Switch Label PB002501SP00

7 Cover Attaching Bracket L Set BXL807020000

8 Cover Attaching Bracket L BXL807120000

9 Cover Attaching Bracket R Set BXR807020000 10 Cover Attaching Bracket R BXR807120000 11 Start Switch Base BX080803**** 12 Retaining Washer BX0811000000 13 Cord Clamp BX0810000000 14 Cylinder Head Switch Assembly SC5807000000 15 Start Switch SC5803000000 16 Stop Switch SC5806000000 17 Front Cover J EN08690C**** 18 Cover Plate Spring FX0805010000 19 Stop Switch Base EN089000**** 20 Push-button Switch PB0019D0SP00 21 Push-botton Switch Emergency Stop Plate PB0019C0SP00 22 Front Cover B MX08160C**** 23 Cover Attaching Bracket L FX0628L30000 24 Front Cover C MX08170C#### 25 Cover Attaching Bracket C FX0628C20000 26 Connecting Shaft Cover DC084600**** 27 Cover Bracket DC0847000000 28 Stepped Screw CE0947000000 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Description Part No. Remark

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-9

TMFD-C UPPER THREAD HOLDER SET

17

8

15

13

1

L15

14

16

B5

9

7

10

11

R5

12

R9

B4

F12

B6

H18

3

4

H18

F12

2

5

6

R16

R38

B25

H18

(CG03)

TMFD-C UPPER THREAD HOLDER SET

DC-9

Ref.No.

1 Assembly Base Set UN680055****

2 Assembly Base AT0318010000

3 Base Lid A AT1302020000

4 Hook Cushion C AT1307010000

5 Upper Thread Hook AT0314000000

6 Special Nut AT0307200000

7 Arm Connecting Rod AT0306000000

8 Lever Connecting Pin AT0309000000

9 Special Nut AT0307100000 10 Drive Arm AT0310010000 11 Shaft Holder Boss AT0315000000 12 Lever Return Spring AT0311010000 13 Motor Base AT0321000000 14 Motor Stud AT0313010000 15 Motor Lever CD0E08020000 16 Motor-driven Upper Thread Hook Assy. A AT9101020000 17 Switch Base AT0317010000 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Description Part No. Remark

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-10-1

TMFD-C CAM DRIVE SYSTEM SET 1

3

4

8

13

12

P32

P27

B69

K16

16

B53

20

10

16

9

B49

7

17

B67

2

6

18

5

L15

31

32

30

29

33

34

15

14

R27

19

R44

4

3

5

11

1

26

25

24

R23

P31

B25

R38

23

27

28

29

21

22

40

H40

R40 B49

39

B25

P22

R40

R38

R16

35

R40 B46

36

37

38

(CG03)

TMFD-C CAM DRIVE SYSTEM SET 1

DC-10-1

Ref.No.

1 Cam Attaching Base Set UN680012FC00

2 Cam Attaching Base FC08270A0000

3 Needle Bearing BPHMK1515000

4 Thrust Washer BPSW1528AS00

5 Thrust Bearing BPSB15280000

6 15mm Dia. Sprocket AT0104000000

7 Sprocket Fixing Screw AT0124000000

8 Roller Chain AT1108000000

9 Cam Shaft AT0102000000 10 Cam AT0103000000 11 Cam Attaching Screw AT0123000000 12 Tension Eccentric Pin IS0111000000 13 Needle Bearing BPHMK1015000 14 Tension Sprocket AT0117000000 15 E-ring BPE800000000 16 Thread Trimming Base Shaft AT0115010000 17 Cushion Connecting Stud AC0405000000 18 O-Ring BPS100000000 19 Connecting Bracket B FC0843000000 19 Connecting Bracket FC0830000000 20 Guide Pin AT0114000000 21 Lever Drive Pin AT0113000000 22 Cam Lever AT0105000000 23 Lever Fixing Washer AT0109000000 24 Cam Pin AT0110000000 25 Cam Roller AT0111000000 26 Lid Screw AT0112010000 27 Lever Support Pin AT0106010000 28 Support Pin Cushion AT0106100000 29 Cushion Washer A AT0107000000 30 Cam Roller Return Spring AT0108010000 31 Washer B AT0122010000 32 E-ring BPE120000000 33 7.94mm Dia. Collar EF0209000000 34 Cushion Washer B AT0116000000 35 Solenoid Base AT11050A0000 36 Thread Trimming Solenoid AT6802B00000 37 Solenoid Cushion AT0119000000 38 Plunger Holder AT0121000000 39 Plunger Bracket AT0120000000 40 Cam Base Cover AT11030A0000 41 42 43 44 45 46 47 48 49

Description Part No. Remark

Y-Space 450mm Y-Space 550mm

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-10-2

TMFD-C CAM DRIVE SYSTEM SET 2

9

8

L30

R44

B88

3

L23

6

R23

5

R42

B71

B72 R42 R23

1

2

B88

R44

R27

B71 R42 R23

7

4

R52

(CG03)

TMFD-C CAM DRIVE SYSTEM SET 2

DC-10-2

Ref.No.

1 Cam Base Bracket AT11010A0000

2 Driver Cam Base Spacer MX083200****

3 Rotary Hook Shaft Holder AT11040A0000

4 Rotary Hook Shaft Holder Spacer AT1109010000

5 Rotary Hook Base Shaft Holder AT1106000000

6 15mm Dia. Needle Collar EF0208000000

7 15mm Dia. Sprocket AT0104000000

8 Thread Cutting Device Cover FC08260A0000

9 Countersunk Head Wood Screw ZZ110312SD00 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Description Part No. Remark

For Regular Rotary Hook

3.1P*12

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-11-1

T M F D - C X - A X I S D R I V E S Y S T E M 1

1

E42

2

13

16

E17

15

6

9

R11

R16

5

8

14

F14

3

4

7

12

10,11

E32

8

R16

9

(CG03)

TMFD-C X-AXIS DRIVE SYSTEM 1

DC-11-1

Ref.No.

Description Part No. Remark

1 X-axis Feed Plate C DC0712C00000

1 X-axis Feed Plate A DC0712A00000

2 X-axis Feed Plate D DC0712D00000

2 X-axis Feed Plate B DC0712B00000

3 Timing Belt BPS5M35N****

3 Timing Belt BPS5M50N****

4 Belt Catcher Plate MX0732000000

5 LS Dog Base ED0706000000

6 Hexagon Bolt EG0780000000

7 Limit Switch Base B EG0727B10000

8 Fixing Base EG0730000000

9 Adjusting Knob EG0731000000 10 Limit Switch PB001000SP00 11 Actuator MS6602000000 12 Limit Switch Spacer ED0708000000 13 Proximity Switch B Set UN110161B000 14 Sensor Attaching Base B EG0732B10000 15 Proximity Switch PB001000KN00 16 Proximity Switch Lock Fixture PB001000KN01 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47

Belt Width:35mm Belt Width:50mm Belt Width:35mm Belt Width:50mm 35mm wide type 50mm wide type

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-11-2

T M F D - C X - A X I S D R I V E S Y S T E M 2

B86

27

25

B89

R27 R44 P32

26

24

1

L23

13

B59

12

15

10

13

14

15

B77

6

23

5

11

10

11

9

8

3

B72

7

2

B29

R38

6

21

L23

1822

R27

R44

B87

B69

L23

19

18

17

19

L29

4

20

16

(CG03)

TMFD-C X-AXIS DRIVE SYSTEM 2

DC-11-2

Ref.No.

Description Part No. Remark

1 X-axis Driver Frame A DC0711A0****

2 X-axis Driver Frame B DC0711B0****

3 Driver Cam Base Spacer MX083200****

4 Driver Spacer C EF083100****

5 X-axis Drive Linear Base Set MX074800****

6 Stopper MX0729000000

7 Tension Base Holder MX0734000000

8 Driver Tension Shaft MX0728000000

9 Tension Shaft MX0724000000 10 Vertical Tension Base MX0723000000 11 Tension Pulley Shaft MX0725000000 12 Tension-side Timing Pulley A Set UN110030A000 13 Tension Spacer MX0726000000 14 Tension-side Timing Pulley B Set UN110030B000 15 Washer BPTW12250000 16 Bearing Case Plate L (with Bearing) MXS733L00000 17 Bearing Case Plate L MX0733L00000 18 Ball Bearing BP6003ZZ0000 19 15mm Dia. Bearing Collar EG0227000000 20 Driver-side Timing Pulley A MX0710A00000 20 Driver-side Timing Pulley B MX0710B00000 21 Bearing Case Plate R (with Bearing) MXS733R00000 22 Bearing Case Plate R MX0733R00000 23 X-axis Drive Shaft DC0842000000 23 X-axis Drive Shaft DCG842000000 24 N-Coupling BPN150150000 25 Pulse Motor Bracket CT0872000000 26 Pulse (Stepping) Motor Bracket Spacer CT0873000000 27 Pulse (Stepping) Motor EH6403000000 27 Pulse (Stepping) Motor LG6404000000 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47

Belt Width:35mm Belt Width:35mm Belt Width:50mm Belt Width:50mm

Belt Width:35mm Belt Width:50mm

G-Spec.M/C only

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-12-1

T M F D - C Y - A X I S D R I V E S Y S T E M 1

F24

H49

P18 R16

H29

38

L15

34

35

R9 B5

40

36

37

R16

F24

B25

39

F26

33

P18

22

32

E40 R17

R17 R39 P19

31

24

L15

28

B58

25

1

F34

29

H25

27

F14

30

E42

26

23

B49

4

R11

5

21

2

3

12

14

15

7

13

R16 B8 R9

R11

6

11

9,10

E32

7

R16

8

17

19

20

5

16

E17

8

7

18

13

R16

R38

E17

B27

(CG03)

TMFD-C Y-AXIS DRIVE SYSTEM 1

DC-12-1

Ref.No.

Description Part No. Remark

1 Y-axis Feed Plate B DC0714B10000 1 Y-axis Feed Plate A DC0714A10000 2 Timing Belt BPS5M35N**** 2 Timing Belt BPS5M50N**** 3 Belt Catcher Plate MX0732000000 4 LS Dog Base ED0706000000 5 Hexagon Bolt EG0780000000 6 Limit Switch Base B EG0727B10000 7 Fixing Base EG0730000000 8 Adjusting Knob EG0731000000

9 Limit Switch PB001000SP00 10 Actuator MS6602000000 11 Limit Switch Spacer ED0708000000 12 Proximity Switch B Set UN110161B000 13 Sensor Attaching Base B EG0732B10000 14 Proximity Switch PB001000KN00 15 Proximity Switch Lock Fixture PB001000KN01 16 Y-axis Positioning Plate DC0719000000 17 Y-axis Positioning Plate Attach Bracket CD0709000000 18 Proximity Switch B Set UN110160B000 19 Proximity Switch EG6601000000 20 Proximity Switch Lock Fixture PB000500KN01 21 Driver Connecting Plate MX0A3400**** 22 Bearing Pin BF0A46010000 23 Lift-preventive Stud MX0A15000000 24 Ball Bearing BPSSL1680ZZF 25 Fixing Shaft BF0155010000 26 Lift-preventive Arm MX0A20000000 27 Lift-preventive Spacer A MX0A33A00000 27 Lift-preventive Spacer B MX0A33B00000 28 Lift-preventive Roller Base MX0A14000000 29 Ball Bearing BPR1240ZZ000 30 Shaft Pin MX0A17000000 31 Roller Pin CD0H11000000 32 Y-axis Feed Connecting Plate MX0A3500**** 33 Y-axis Feed Plate, Front Set MX0A37000000 34 Roller Pin Guide EN0707000000 35 Roller Pin EN0705000000 36 Roller EG0774000000 37 E-ring BPE300000000 38 Y-axis Feed Plate, Front Cover EN0708000000 39 Slide Rail EN075200**** 40 Slide Rail Hook EN0756000000 41 42 43 44 45 46 47

Belt Width:35mm Belt Width:50mm 35mm wide type 50mm wide type

0.5mm Thick

0.3mm Thick

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-12-2

T M F D - C Y - A X I S D R I V E S Y S T E M 2

29

34

35

29

1

B29

R38

B86

B89

33

31

29

30

32

6

R27 R44 P32

29

B12

17

B25

6

R35

R38

11

20

R9

11

R16

10

B77

5

19

18

R9

15

B29

R35

9

R16

R38

16

B12

14

L23

B59

15

10

28

L23

24

B72

7

8

4

2

26

23 27

R27

R44

B87

25

3

L29

21

22 23

L23

24

B69

13

12

13

(CG03)

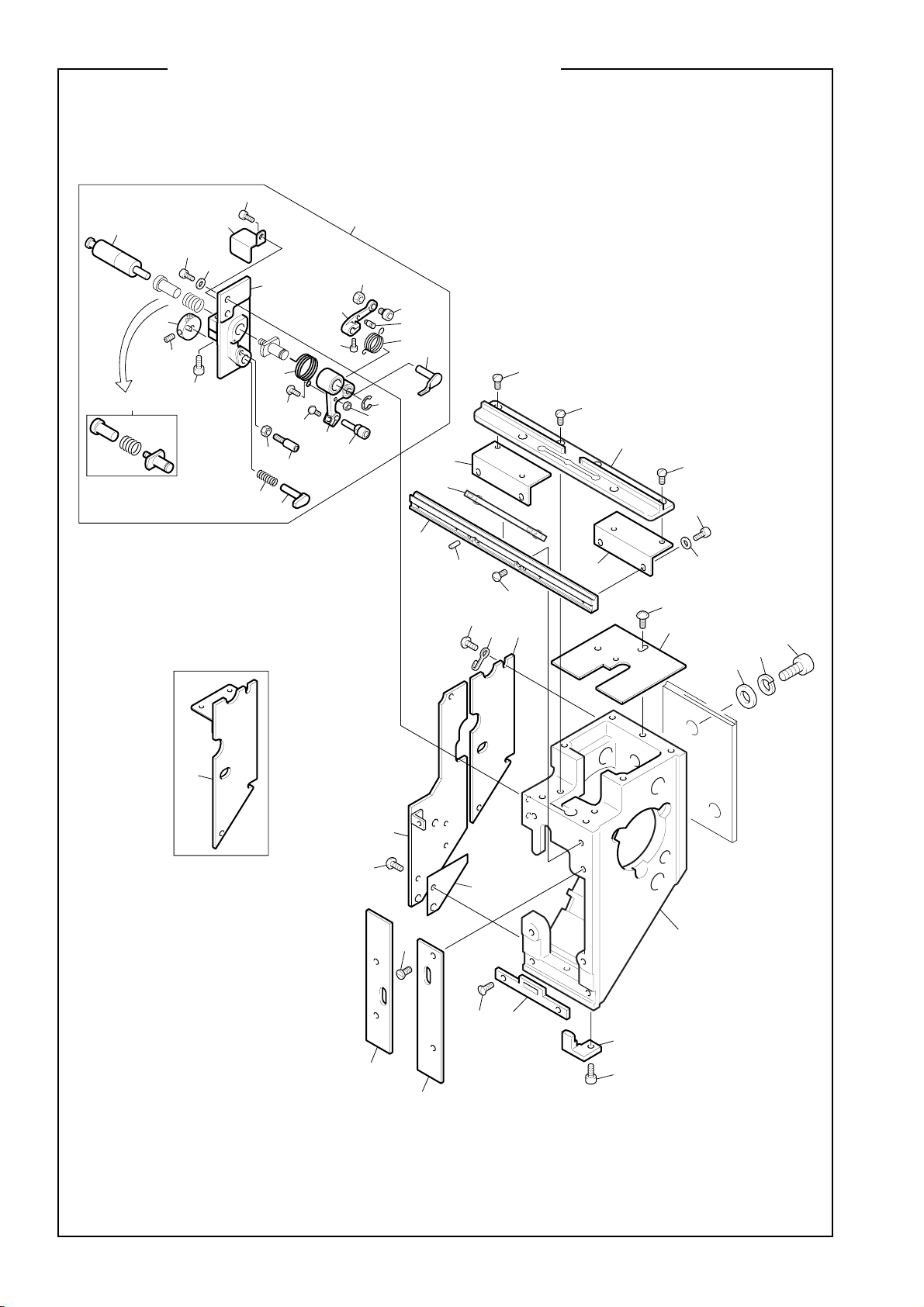

TMFD-C Y-AXIS DRIVE SYSTEM 2

DC-12-2

Ref.No.

Description Part No. Remark

1 Y-axis Driver Frame A DC0710A0****

2 Y-axis Driver Frame B DC0710B0****

3 Driver Cam Base Spacer MX083200****

4 Driver Spacer C EF083100****

5 Y-axis Drive Linear Base Set MX074900****

6 Stopper MX0729000000

7 Tension Base Holder MX0734000000

8 Driver Tension Shaft MX0728000000

9 Tension Shaft MX0724000000

10 Vertical Tension Base DC0716000000 11 Tension Pulley Shaft MX0725000000 12 Tension-side Timing Pulley A Set UN110030A000 13 Tension Spacer MX0726000000 14 Tension-side Timing Pulley B Set UN110030B000 15 Washer BPTW12250000 16 Distortion Preventive Base XC0705030000 17 Bearing Set FC073302S100 18 Bearing Case FC0733020000 19 Roller FC0734010000 20 Roller Pin FC0735000000 21 Bearing Case Plate L (with Bearing) MXS733L00000 22 Bearing Case Plate L MX0733L00000 23 Ball Bearing BP6003ZZ0000 24 15mm Dia. Bearing Collar EG0227000000 25 Driver-side Timing Pulley A MX0710A00000 25 Driver-side Timing Pulley B MX0710B00000 26 Bearing Case Plate R (with Bearing) MXS733R00000 27 Bearing Case Plate R MX0733R00000 28 Y15 Shaft A DC0852A0**** 29 N-Coupling BPN150150000 30 Y20 Shaft A DC0851A0**** 31 Pulse Motor Bracket CT0872000000 32 Pulse (Stepping) Motor Bracket Spacer CT0873000000 33 Pulse (Stepping) Motor EH6404000000 33 Pulse (Stepping) Motor LG6405000000 34 Y20 Shaft B DC0851B0**** 35 Y15 Shaft B DC0852B0**** 36 37 38 39 40 41 42 43 44 45 46 47 48

Belt Width:35mm Belt Width:35mm Belt Width:50mm Belt Width:50mm

Belt Width:35mm Belt Width:50mm

G-Spec.M/C only

G-Spec.M/C G-Spec.M/C only

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-13

TMFD-C INDIVIDUAL TENSION BASE

1

14

15

16 17 18 19

H1

4

5

7

6

9

8

10

G1

20

H1 22

11

3

2

21

B27

D6

12

13

R35 H1

E20R35

R35

E17

23

24

29

28

R10 R36 E20

B36

31

25

32

30

H5

3-Needle Model

26

B31

27

(CG03)

TMFD-C INDIVIDUAL TENSION BASE

DC-13

Ref.No.

1 Individual Tension Base Set UN230024****

2 Individual Tension Base FX09010B####

3 Tension Base Tension Set UN2305000001

4 Adjusting Screw EF09090A0000

5 Spring Hook EF0910000000

6 Tension Spring EF0908000000

7 Tension Collar EF09060A0000

8 Felt Packing EF0904000000

9 Rotary Tension Disk EF0905010000

10 Insulation Plate EF0903000000 11 Tension Stud LG0923000000 12 Thread Take-up Spring EF0907010000 13 Thread Breakage Detecting Contact Point LG0916000000 14 First Tension Set UN150500A001 15 First Tension Thread Spring Screw LG09220A0000 16 First Tension Spring B LG0960000000 17 First Tension Disk LG0920010000 18 First Tension Stud LG0918010000 19 First Tension Thread Course LG0919010000 20 Tension Base Lower Thread Guide CX090101#### 21 Thread Guide MX0521000000 22 Tension Base Middle Thread Guide LG0917020000 23 Tension Base Card (PC Board) EG7203030000 24 Tension Base Cover FX09030A#### 25 Tension Base Support EC0905000000 26 Individual Tension Base Support L LG0912LA0000 27 Individual Tension Base Support R LG0912RA0000 28 Cord Protective Cover FX09100C#### 29 Harness Clamp MX0902010000 30 Tension Base Cord Cover A (Right Side) MX0901AA#### 30 Tension Base Cord Cover B (Middle) MX0901BA#### 30 Tension Base Cord Cover C (Left Side) MX0901CA#### 31 Rubber Bushing PB003400EB00 32 Harness Guard Bushing MX0833010000 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Description Part No. Remark

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-14

TMFD-C THREAD STAND

14

P6

R21

2

1

3

4

5

6

H35

P18

16

B53

15

17

11

10

B31

R22 B43

9

8

H46

7

12 R22 R41 P25

13

(CG03)

TMFD-C THREAD STAND

DC-14

Ref.No.

1 No.1 Tension Stud EC0D30000000 2 No.1 Tension Thread Course LG0919010000 3 No.1 Tension Disk LG0920010000 4 No.1 Tension Spring B LG0960000000 5 No.1 Thread Tension Spring Screw LG09220A0000 6 Thread Guide A EF0942A00000 6 Thread Guide B EF0942B00000 7 Thread Stand Plate MX080501**** 8 Thread Stand Stud EF0939010000

9 Thread Stand Felt EF0940000000 10 Thread Course MX080402**** 11 Thread Course Stay MX083000**** 12 Thread Stand Plate Felt MX0805120000 13 Thread Stand Plate Spacer ED0849000000 14 No.1 Tension Set UN150500B001 15 Reinforcing Guide MX0837010000 16 Rubber Bushing BPQ400000000 17 Thread Stand Shaft A EF0937A20000 17 Thread Stand Shaft CT0603010000 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Description Part No. Remark

White Red

For M/C 6246mm or longer

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-15

TMFD-C BASE FRAME SASH

18

B51

22

23

10

H25 R17

15

20

21

25

F5

B48 R41 R22

B43 R41 R22

16

17

8

11

H44

11

F9

H44

F24

24

P27

14

13

12

19

26

B42

5

9

H42

6

7

2

4

B51

R40

3

1

(CG03)

TMFD-C BASE FRAME SASH

DC-15

Ref.No.

1 Z-spec. Frame Sash BF0A35000450

2 Rail Plate BF0A36000450

3 Z-spec. Frame Sash Spacer BF0A25000000

4 Z-spec. Frame Sash Cover BF0A37000450

5 Side Cover L BF1122010000

6 Side Cover R BF1123010000

7 Z-spec. Frame Sash Cover Stud A BF2305010000

8 Z-spec. Roller Base BF0A44000450

9 Cork BF2310000000 10 Embroidery Space Indicator BF2331000000 11 Z-spec. Roller Lift-preventive Block B CD0B02900000 12 Z-spec. Roller BF0A12000000 13 Eccentric Z-spec. Roller BF0A13000000 14 Plate Washer BF0A14000000 15 Joint Cover BF0A28000000 16 Corner Spacer BF0A07000000 17 Corner BF0A17000000 18 Slide Base BF0A2600**** 19 Rail Plate A CD0H1600**** 20 Sash Plate A CD0H33000000 20 Slide Plate A BF0A3800**** 20 Sash Plate G BF0A4300**** 21 Flat Fillister Head Screw M3 CD0H36000000 22 Screw Bushing WH0121000000 23 Base Plate BF0A2700**** 24 Rail Plate B BF0A3100**** 25 Sash Plate BF0A08000000 26 Plate Stud BF0A45000000 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Description Part No. Remark

Right side

Left Side

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-16

TMFD-C BORDER FRAME

9

7

8

16

17

H30

10

H25

12

8

F14

5

H30

6

11

E36

13

14

B30

7

H42

2

1

3

4

H42

15

(CG03)

TMFD-C BORDER FRAME

DC-16

Ref.No.

1 Common Use Border Frame Set MX0B10S0****

2 Common Use Border Frame MX0B1000****

3 Rail Plate A CD0H1600****

4 Screw Ring EF0303000000

5 Screw Ring B MX0B05000000

6 Frame Holder Block MX0B17000000

7 Common Use Border Frame Lengthwise Sash MX0B1100****

8 Common Use Border Frame Crosswise Sash MX0B1200****

9 Border Frame Clip EG032600****

9 Border Frame Clip B MX0320B0**** 10 Common Use Border Frame Middle Sash MX0B1400**** 11 No.4 Felt EG031700**** 12 Inner Frame Attachment C EF0311000000 13 Inner Frame Attachment A EF0309000000 14 Inner Frame Attachment B EF0310000000 15 Joint Angle MX0B1300**** 16 Frame Set Screw A BF0A16000000 17 Set Screw Spacer A WH0A12000000 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49

Description Part No. Remark

For X-axis For Y-axis

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-17

TMFD-C POWER SUPPLY BOX

11

10

12 14

13

15

17

16

7

2

3

1

4 5 6

7

4

8

9

(CG03)

TMFD-C POWER SUPPLY BOX

DC-17

Ref.No.

1 Power Supply Box ED5600A80000

1 Power Supply Box ED5600D80000

2 IMM2 Card ED5601010000

3 D-Joint 13 Card ED5605030000

4 Glass Tube Fuse PA5052A00000

5 Fuse PA5062320000

6 Glass Tube Fuse PA5002800000

7 Receptacle PB000200PA00

8 Relay PB000100KM00

9 Automatic Voltage Regulator PB002700PW00 10 Transformer PB005500TV00 11 Glass Tube Fuse PA5002500000 12 No Fuse Breaker PB002100KA00 13 Relay Unit AT5400010000 14 Glass Tube Fuse PA5002300000 15 Brake Resistor PB001500RA00 15 Brake Resistor PB001600RA00 16 Fan PB000100BF00 17 Air Filter PB000200ZM00 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Description Part No. Remark

6 or less head machines

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-18

TMFD-C DRIVER BOX

3

1

5

4

2

(CG03)

TMFD-C DRIVER BOX

DC-18

Ref.No.

1 Driver Box EH5403A10000

2 Driver Card (PC Board) EH5404080000

3 Fan PB000700BF00

4 Driver Box Front Panel EH5405A00000

5 Air Filter PB000600ZM00

6

7

8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

Description Part No. Remark

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-19

TMFD-C CONTROLLER BOX

3

2

5

1

4

(CG03)

TMFD-C CONTROLLER BOX

DC-19

Ref.No.

Description Part No. Remark

1 Controller Box ED5104D00000

1 Controller Box ED5104A00000

1 Controller Box ED5104B00000

1 Controller Box ED5104C00000

2 IDM2 Card ED5101020000

3 D-Memory Card ED5102000000

4 Panel Film ED5105000000

4 Panel Film ED5105A00000

4 Panel Film ED5105B00000

4 Panel Film ED5105C00000

4 Panel Film ED5105D00000

5 Floppy Disk Drive PB000800RE00

6

7

8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43

Japanese English Chinese Korean

Japanese English Chinese Korean Spanish

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

DC-20

T M F D - C M A I N S H A F T M O T O R

R27

3

R44

B86

R23

R42

B69

C15

R44

R30

1

2

H37 R51

B30 R38 R16

5

4

B30 R38 R16

(CG03)

TMFD-C MAIN SHAFT MOTOR

DC-20

Ref.No.

1 Main Shaft Motor ED6215010000

1 Main Shaft Motor CD6201000000

2 Main Shaft Attaching Bracket ED0160000000

3 Main Shaft Tension Bracket ED0159010000

4 Inverter PB000100AD00

4 Inverter PB000200AD00

5 Control Box Cover ED0169000000

6

7

8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Description Part No. Remark

6 or less head machines

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG03)

A.B

No.

A

A1 A2 A3 A4 A5 A6 A7 A8

A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27

B

B1

B2

B3

B4

B5

B6

B7

B8

B9 B10 B11 B12 B13 B14 B15 B16

Part No. Remark

Flat Fillister Head Screw

SM15015450CN 1/8*44*5 SM15015455CN 1/8*44*5.5 SM15015460CN 1/8*44*6 SM16515530CN 9/64*40*3 SM14020540CN 9/64*40*4

SM16516540SA 9/64*40*4 SM17010540CN 9/64*40*4 SM1E515550CN 9/64*40*5 SM14020560CN 9/64*40*6 SM15525560CN 9/64*40*6 SM15526570CN 9/64*40*7 SM15020580CN 9/64*40*8 SM15530580CN 9/64*40*8 SM16025580CN 9/64*40*8 SM150205A0CN 9/64*40*10 SM150205C0CN 9/64*40*12

SM150205F0CN 9/64*40*15 SM15422643TN 11/64*40*4.3 SM17017670CN 11/64*40*7 SM1C035675CN 11/64*40*7.5 SM10825690SH 11/64*40*9 SM146266B5CN 11/64*40*11.5

SM172316C0CN 11/64*40*12 SS6003080SC0 M3*8 SS6003080SD0 M3*8 SS6003100CC0 M3*10 SS6004100SC0 M4*10

Hexagon Socket Head Cap Screw

SS6202080TD0 M2*8 SS6202100TD0 M2*10 SS6276050TN0 M2.6*5 SS6203030TN0 M3*3 SS6203040TN0 M3*4 SS6203050TN0 M3*5 SS6203060TD0 M3*6 SS6203060TN0 M3*6 SS6203080TD0 M3*8 SS6203080TN0 M3*8 SS6203100TD0 M3*10 SS6203100TN0 M3*10 SS6203120TN0 M3*12 SS6203150TD0 M3*15 SS6203150TN0 M3*15 SS6203160TN0 M3*16

No.

B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66

Part No. Remark

SS6203180TN0 M3*18 SS6203200TD0 M3*20 SS6203200TN0 M3*20 SS6203250TN0 M3*25 SS6204050TD0 M4*5 SS6204050TN0 M4*5 SS6204060TN0 M4*6 SS6204080TD0 M4*8 SS6204080TN0 M4*8 SS6204100TD0 M4*10 SS6204100TN0 M4*10 SS6204120TD0 M4*12 SS6204120TN0 M4*12 SS6204150TN0 M4*15 SS6204180TN0 M4*18 SS6204200TD0 M4*20 SS6204200TN0 M4*20 SS6204250TN0 M4*25 SS6204250TN1 M4*25 SS6204300TN0 M4*30 SS6204350TN0 M4*35 SS6204400TN0 M4*40 SS6204450TN0 M4*45 SS6205060TN0 M5*6 SS6205080TD0 M5*8 SS6205080TN0 M5*8 SS6205100TD0 M5*10 SS6205100TN0 M5*10 SS6205100TP0 M5*10 SS6205120TN0 M5*12 SS6205140TN0 M5*14 SS6205150TD0 M5*15 SS6205150TN0 M5*15 SS6205160TN0 M5*16 SS6205180TN0 M5*18 SS6205200TD0 M5*20 SS6205200TN0 M5*20 SS6205220TN0 M5*22 SS6205230TN0 M5*23 SS6205250TN0 M5*25 SS6205300TN0 M5*30 SS6205350TN0 M5*35 SS6205350TN1 M5*35 SS6205500TN0 M5*50 SS6205500TN1 M5*50 SS6205550TN0 M5*55 SS6205600TN0 M5*60 SS6205600TN1 M5*60 SS6206080TN0 M6*8 SS6206090TN0 M6*9

(CG03)

B.C.D.E

No.

B

B67 B68 B69 B70 B71 B72 B73 B74 B75 B76 B77 B78 B79 B80 B81 B82 B83 B84 B85 B86 B87 B88 B89 B90 B91 B92 B93 B94 B95 B96 B97 B98

B99 B100 B101 B102

Part No. Remark

Hexagon Socket Head Cap Screw

SS6206100TN0 M6*10 SS6206120TN0 M6*12 SS6206150TN0 M6*15 SS6206180TN0 M6*18 SS6206200TN0 M6*20 SS6206250TN0 M6*25 SS6206300TN0 M6*30 SS6206350TN0 M6*35 SS6206400TN0 M6*40 SS6206450TN0 M6*45 SS6206450TN1 M6*45 SS6206500TN1 M6*50 SS6206650TN0 M6*65 SS6506750TN1 M6*75 SS6206800TN1 M6*80 SS6206A00TN0 M6*100 SS6208120TN0 M8*12 SS6208150TN0 M8*15 SS6208150TP0 M8*15 SS6208200TN0 M8*20 SS6208250TN0 M8*25 SS6208300TN0 M8*30 SS6208350TN0 M8*35 SS6208400TN0 M8*40 SS6208400TN1 M8*40 SS6208450TN0 M8*45 SS6208450TN1 M8*45 SS6208500TN0 M8*50 SS6208600TN0 M8*60 SS6208700TN0 M8*70 SS6210250TN0 M10*25 SS6210300TN0 M10*30 SS6210350TN0 M10*35 SS6210400TN0 M10*40 SS6212300TN0 M12*30 SS6212350TN0 M12*35

No.

C8

C9 C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 C20

D

D1 D2 D3 D4 D5 D6 D7 D8

D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20

Part No. Remark

SS9306450SD0 M6*45 SS9306500SC0 M6*50 SS9306500SD0 M6*50 SS9306550SD0 M6*55 SS9306650SD0 M6*65 SS9306750SC0 M6*75 SS9308150TN0 M8*15 SS9308180TN0 M8*18 SS9310300TN0 M10*30 SS9310350SC0 M10*35 SS9310350TN0 M10*35 SS9310400SC1 M10*40 SS9312500TN0 M12*50

Round Fillister Head Screw

SM66514540CL 9/64*40*4 SM66015550CL 9/64*40*5 SM66015550CN 9/64*40*5 SM67018550CN 9/64*40*5 SM67020550CN 9/64*40*5 SM66015560CL 9/64*40*6 SM66015560CN 9/64*40*6 SM67020560CL 9/64*40*6 SM67020560CN 9/64*40*6 SM65817568CN 9/64*40*6.8 SM67020580CN 9/64*40*8 SM660255A0CN 9/64*40*10 SM670205C0CN 9/64*40*12 SM67015660CN 11/64*40*6 SM67530665CN 11/64*40*6.5 SM675306A5CN 11/64*40*10.5 SM675306C0CN 11/64*40*12 SM675256F0CN 11/64*40*15 SM69065CQ5CN 9/32*28*24.5 SS7003050SD0 M3*5

Hexagon Bolt

C

C1 C2 C3 C4 C5 C6 C7

SS9303060SD0 M3*6 SS9304080SD0 M4*8 SS9305100SD0 M5*10 SS9305150SC0 M5*15 SS9305150SD0 M5*15 SS9305200SD0 M5*20 SS9306150SC0 M6*15

Pan Head Screw

E

E1 E2 E3 E4 E5

SS4164014MZ0 M1.4*1.4 SS4102030MZ0 M2*3 SS4102040MZ0 M2*4 SS4102080MZ0 M2*8 SS4175030MZ0 M2.5*3

(CG03)

E.F

No.

Pan Head Screw

E

E6 E7 E8

E9 E10 E11 E12 E13 E14 E15 E16 E17 E18 E19 E20 E21 E22 E23 E24 E25 E26 E27 E28 E29 E30 E31 E32 E33 E34 E35 E36 E37 E38 E39 E40 E41 E42 E43 E44 E45 E46 E47 E48 E49 E50 E51 E52 E53 E54

SS4175040MZ0 M2.5*4 SS4175050MZ0 M2.5*5 SS4175080MZ0 M2.5*8 SS4175130MZ0 M2.5*13 SS4175130SD0 M2.5*13 SS4103030MZ0 M3*3 SS4103030SD0 M3*3 SS4103040CD0 M3*4 SS4103040MZ0 M3*4 SS4103040SD0 M3*4 SS4103050MZ0 M3*5 SS4103050SD0 M3*5 SS4103060MZ0 M3*6 SS4103060SA0 M3*6 SS4103060SD0 M3*6 SS4103080MZ0 M3*8 SS4103080SA0 M3*8 SS4103080SD0 M3*8 SS4103100SC1 M3*10 SS4103100SD0 M3*10 SS4103110SC1 M3*11 SS4103120MZ0 M3*12 SS4103120SD0 M3*12 SS4103140SA0 M3*14 SS4103140SD0 M3*14 SS4103150SD0 M3*15 SS4103160SD0 M3*16 SS4103400SD1 M3*40 SS4103500SD1 M3*50 SS4104040SD0 M4*4 SS4104050SD0 M4*5 SS4104060MZ0 M4*6 SS4104060SD0 M4*6 SS4104080SD0 M4*8 SS4104100SD0 M4*10 SS4104120SD0 M4*12 SS4104150SD0 M4*15 SS4104180SD0 M4*18

SS4104300SD0 M4*30 SS4104500SD0 M4*50 SS4104600SD1 M4*60 SS4105060SD0 M5*6 SS4105070SD0 M5*7 SS4105080SD0 M5*8 SS4105100MZ0 M5*10 SS4105100SD0 M5*10 SS4105120SD0 M5*12 SS4105300SD1 M5*12 SS4105150SD0 M5*15

Part No. Remark

No.

E55 E56 E57

F

F1 F2 F3 F4 F5 F6 F7 F8

F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 F19 F20 F21 F22 F23 F24 F25 F26 F27 F28 F29 F30 F31 F32 F33 F34 F35 F36 F37 F38 F39 F40 F41

Part No. Remark

SS4105450SD1 M5*45 SS4105500SD1 M5*50 SS4105600SD1 M5*60

Countersunk Head Screw

SMA55005A0CN 9/64*40*10 SMB7000680CN 11/64*40*8 SS1102060SD0 M2*6 SS1103040MZ0 M3*4 SS1103040SD0 M3*4 SS1103050SD0 M3*5 SS1003060SD0 M3*6 SS1103060MZ0 M3*6 SS1103060SD0 M3*6 SS1103070SD0 M3*7 SS1003080SD0 M3*8 SS1103080MZ0 M3*8 SS1103080SC0 M3*8 SS1103080SD0 M3*8 SS1103080SN0 M3*8 SS1103100SD0 M3*10 SS1103120MZ0 M3*12 SS1103120SD0 M3*12 SS1103150MZ0 M3*15 SS1103160SD0 M3*16 SS1104050SD0 M4*5 SS1104060SD0 M4*6 SS1104080MZ0 M4*8 SS1104080SD0 M4*8 SS1104100MZ0 M4*10 SS1104100SD0 M4*10 SS1104120SD0 M4*12 SS1104140SD0 M4*14 SS1104150SD0 M4*15 SS1104200SD0 M4*20 SS1104220SD0 M4*22 SS1104250SD0 M4*25 SS1105060SD0 M5*6 SS1105080SD0 M5*8 SS1105100SD0 M5*10 SS1105120SD0 M5*12 SS1105150SD0 M5*15 SS1105300SD0 M5*30 SS1105350SD0 M5*35 SS1106150SC0 M6*15 SS1106150SD0 M6*15

(CG03)

F.G.H.J.K

No.

F

F42 F43 F44

G

G1 G2 G3 G4 G5 G6 G7 G8

H

H1 H2 H3 H4 H5 H6 H7 H8

H9 H10 H11 H12 H13 H14 H15 H16 H17 H18 H19 H20 H21 H22 H23 H24 H25 H26

Part No. Remark

Countersunk Head Screw

SS1106350SD0 M6*35 SS1108120SD0 M8*12 SS1108700TN0 M8*70

Round Countersunk Head Screw

SMC5000460CL 1/8*44*6 SMC5000530CL 9/64*40*3 SMC5000535CL 9/64*40*3.5 SMC5000540CL 9/64*40*4 SMC5000560CL 9/64*40*6 SMC5000570CL 9/64*40*7 SMC5000595CL 9/64*40*9.5 SMC50005C0CL 9/64*40*12

Truss Head Screw

SMF6016470CL 1/8*44*7 SMF8020530CL 9/64*40*3.5 SMF8020540CL 9/64*40*4 SME9510540CM 9/64*40*4 SMF8020560CL 9/64*40*6 SMF8020580CL 9/64*40*8 SS0175030MZ0 M2.5*3 SS0175030SD0 M2.5*3 SS0175040MZ0 M2.5*4 SS0175040SA0 M2.5*4 SS0175040SD0 M2.5*4 SS0103030MZ0 M3*3 SS0103030SD0 M3*3 SS0103040SD0 M3*4 SS0103050MZ0 M3*5 SS0103050SD0 M3*5 SS0103060MZ0 M3*6 SS0103060SD0 M3*6 SS0103060SA0 M3*6 SS0103080SD0 M3*8 SS0103080SA0 M3*8 SS0103100MZ0 M3*10 SS0103100SD0 M3*10 SS0103200SD0 M3*20 SS0104050SD0 M4*5 SS0104060MZ0 M4*6

No.

H27 H28 H29 H30 H31 H32 H33 H34 H35 H36 H37 H38 H39 H40 H41 H42 H43 H44 H45 H46 H47 H48 H49 H50 H51 H52 H53

J

J1 J2 J3 J4

K

K1 K2 K3 K4 K5 K6 K7

Part No. Remark

SS0104060SD0 M4*6 SS0104080MZ0 M4*8 SS0104080SD0 M4*8 SS0104080SD2 M4*8 SS0104100MZ0 M4*10 SS0104100SD0 M4*10 SS0104120SD0 M4*12 SS0104150SD0 M4*15 SS0104200SD0 M4*20 SS0105050SD0 M5*5 SS0105060SD0 M5*6 SS0105065SD0 M5*6.5 SS0105070SD0 M5*7 SS0105080SD0 M5*8 SS0105100CB0 M5*10 SS0105100SD0 M5*10 SS0105120SD0 M5*12 SS0105150SD0 M5*15 SS0105200SD0 M5*20 SS0105250SD0 M5*25 SS0105350SD0 M5*35 SS0106080SD0 M6*8 SS0106100SD0 M6*10 SS0106220SD0 M6*22 SS0106250SD0 M6*25 SS0106350SD0 M6*35 SS0106400SD0 M6*40

Round Head Screw

SS3102030MZ0 M2*3 SS3103080SD0 M3*8 SS3103080SE0 M3*8 SS3103100MZ0 M3*10

Slotted Set Screw

SMK0000435CN 1/8*44*3.5 SMK0000560CN 9/64*40*6 SMK0000625CN 11/64*40*2.5 SMK0000635CN 11/64*40*3.5 SMK0000640CN 11/64*40*4 SMK0000650CN 11/64*40*5 SMK0000A50CN 15/64*28*5

(CG03)

.L.M.N.P

No.

K

K8

K9 K10 K11 K12 K13 K14 K15 K16 K17

L

L1

L2

L3

L4

L5

L6

L7

L8

L9 L10 L11 L12 L13 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L25 L26 L27 L28 L29 L30 L31 L32 L33

Part No. Remark

Slotted Set Screw

SMK0000AA0CN 15/64*28*10 SMK0000AF0CN 15/64*28*15 SMK0000AH0CN 15/64*28*17 SMK0000B40CN 1/4*40*4 SMK0000B45CN 1/4*40*4.5 SMK0000B50CN 1/4*40*5 SMK0000B60CN 1/4*40*6 SMK0000B80CN 1/4*40*8 SMK0000CC0CN 9/32*28*12 SS8005060TN0 M5*6

Hexagon Socket Head Set Screw

SMJ0000425CN 1/8*44*2.5 SMJ0000690CN 11/64*28*9 SMJ0000640CN 11/64*40*4 SMJ0000660CN 11/64*40*6 SMJ0000680CN 11/64*40*8 SMJ0000A40CN 15/64*28*4 SMJ0000A90CN 15/64*28*9 SS8203020TN0 M3*2 SS8203030TN0 M3*3 SS8203040TN0 M3*4 SS8203050TN0 M3*5 SS8203060TN0 M3*6 SS8203080TN0 M3*8 SS8204030TN0 M4*3 SS8204040TN0 M4*4 SS8204050TN0 M4*5 SS8204060TN0 M4*6 SS8204060TN1 M4*6 SS8204080TN0 M4*8 SS8204100TN0 M4*10 SS8204120TN0 M4*12 SS8205040TN0 M5*4 SS8205050TN0 M5*5 SS8205060TN0 M5*6 SS8205080TN0 M5*8 SS8205100TN0 M5*10 SS8205120TN0 M5*12 SS8205150TN0 M5*15 SS8206050TN0 M6*5 SS8206060TN0 M6*6 SS8206080TN0 M6*8 SS8206100TN0 M6*10 SS8206180TN0 M6*18

No.

L34 L35 L36

M

M1 M2 M3 M4

N

N1 N2 N3 N4 N5 N6 N7 N8

N9 N10 N11

P

P1

P2

P3

P4

P5

P6

P7

P8

P9 P10 P11 P12 P13 P14

Part No. Remark

SS8208080TN0 M8*8 SS8208100TN0 M8*10 SS8208150TN0 M8*15

Hexagon Socket Head Button Screw

SS3203050SC0 M3*5 SS3204060SC0 M4*6 SS3205100SC0 M5*10 SS3205100SD0 M5*10

Screw with Washer

SSA003080000 M3*8 SSA003150000 M3*15 SSA003160000 M3*16 SSA003180000 M3*18 SSA004080000 M4*8 SSA004100000 M4*10 SSA004550000 M4*55 SSA005100000 M5*10 SSA005120000 M5*12 SSA005140000 M5*14 SSA005180000 M5*18

Nut

SMN046030CN0 1/8*44*6*3 SMN056020CL0 9/64*40*6*2 SMN056030CN0 9/64*40*6*3 SMN066020CN0 11/64*40*6*2 SMN066030CN0 11/64*40*6*3 SMN067030CN0 11/64*40*7*3 SMN167030CN0 11/64*40*7*3 SSN002SD0000 M2 Type 1 SSN073SD0000 M2.3 Type 1 SSN075MZ0000 M2.5 Type 1 SSN003MZ0000 SSN003SC0000 SSN003SD0000 SSN403SD0000

M3 Type 1 M3 Type 1 M3 Type 1

M3 Thumbscrew Type 2

(CG03)

P.R

No.

P

P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P31 P32 P33 P34 P35 P36 P37 P38 P39 P40 P41 P42

R

R1 R2 R3 R4 R5 R6 R7 R8

R9 R10 R11 R12 R13 R14 R15

Part No. Remark

Nut

SSN203SC0000 M3 Type 3 SSN203SD0000 M3 Type 3 SSN285SC0000 M3.5 Type 3 SSN004SC0000 SSN004SD0000 SSN204SC0000 SSN204SD0000 SSN005SC0000 SSN005SD0000 SSN205SC0000 SSN205SD0000 SSN605SD0000 SSN006SC0000 SSN006SC1000 SSN006SD0000 SSN006SD1000 SSN206SC0000 SSN008SC0000 SSN008SD0000 SSN208SC0000 SSN208SD0000 SSN010SC0000 SSN710CD0000 SSN710SC0000 SSN012SC0000 SSN212SC0000 SSN216SC0000

M4 Type 1 M4 Type 1 M4 Type 3 M4 Type 3 M5 Type 1 M5 Type 1 M5 Type 3 M5 Type 3 M5 Cap Screw M6 Type 1 M6 Type 1(Left) M6 Type 1 M6 Type 1(Left) M6 Type 3 M8 Type 1 M8 Type 1 M8 Type 3 M8 Type 3 M10 Type 1 M10 with Flange M10 with Flange M12 Type 1 M12 Type 3 M16 Type 3

SSN020SC0000 M20 Type 1

Washer

WSP640303MZ0 WSP023505XZ0 WSP767505XB0 WSP036003XZ0 WSP036005SC0 WSP037005SD0 WSP038003SD0 WSP038005MZ0 WSP038005SC0 WSP038005SD0 WSP038100SD0 WSP048005SC0 WSP048005SD0 WSP048008SC0 WSP048008SD0

Plain M1.4*3*0.3t Plain M2*3.5*0.5t Plain M2.6*7.5*0.5t Plain M3*6*0.3t Plain M3*6*0.5t Plain M3*7*0.5t Plain M3*8*0.3t Plain M3*8*0.5t Plain M3*8*0.5t Plain M3*8*0.5t Plain M3*8*1t Plain M4*8*0.5t Plain M4*8*0.5t Plain M4*8*0.8t Plain M4*8*0.8t

No.

R16 R17 R18 R19 R20 R21 R22 R23 R24 R25 R26 R27 R28 R29 R30 R31 R32 R33 R34 R35 R36 R37 R38 R39 R40 R41 R42 R43 R44 R45 R46 R47 R48 R49 R50 R51 R52 R53

Part No. Remark

WSP04A008SC0 WSP04A008SD0 WSP04C010SC0 WSP05A008SC0 WSP05A008SD0 WSP05C008SC0 WSP05C008SD0 WSP06D010SC0 WSP06D010SD0 WSP06G010SC0 WSP08G012SD0 WSP08J016SC0 WSP08J016SD0 WSP08J032SC0 WSP08N032SC0 WSP10S032SC0 WSP12L520SC0 WSS020000KD0 WSS760000KC0 WSS030000KC0 WSS030000KD0 WSS850000KC0 WSS040000KC0 WSS040000KD0 WSS050000KC0 WSS050000KD0 WSS060000KC0 WSS060000KD0 WSS080000KC0 WSS080000KD0 WSS100000KC0 WSS120000KC0 WSW06B003TP0 WSW06A503TN0 WSL048505TP0 WSL05A006TP0 WSN080000SC0 WSC048005SC0

Plain M4*10*0.8t Plain M4*10*0.8t Plain M4*12*1t Plain M5*10*0.8t Plain M5*10*0.8t Plain M5*12*0.8t Plain M5*12*0.8t Plain M6*13*1.0t Plain M6*13*1.0t Plain M6*16*1.0t Plain M8*16*1.2t Plain M8*18*1.6t Plain M8*18*1.6t Plain M8*18*3.2t Plain M8*22*3.2t Plain M10*26*3.2t Plain M12*20.5*2t Spring M2 Spring M2.6 Spring M3 Spring M3 Spring M3.5 Spring M4 Spring M4 Spring M5 Spring M5 Spring M6 Spring M6 Spring M8 Spring M8 Spring M10 Spring M12 Wave M4 Wave M6 With teeth M4 With teeth M5 Slant M8 Disk Spring M4

(CG03)

Tajima TMFD-C II User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

B.C.D.E

F.G.H.J.K
