PARTS LIST
TMCE-600
P-CT04-E
(9904)
Table of Contents
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
z
TMCE GENERAL VIEW
z
TMCE FRAME•TABLE 1 ……………………………………………………………………
z
TMCE FRAME•TABLE 2 ……………………………………………………………………
z
TMCE MAIN SHAFT MECHANISM …………………………………………………………
z
TMCE ARM 1…………………………………………………………………………………
z
TMCE ARM 2 …………………………………………………………………………………
z
TMCE X-AXIS DRIVE SYSTEM 1 …………………………………………………………
z
TMCE X-AXIS DRIVE SYSTEM 2 …………………………………………………………
z
TMCE Y-AXIS DRIVE SYSTEM 1 …………………………………………………………
z
TMCE Y-AXIS DRIVE SYSTEM 2 …………………………………………………………
z
TMCE LOOPER•ATH 1………………………………………………………………………
z
TMCE LOOPER•ATH 2………………………………………………………………………
z
TMCE TENSION BASE ………………………………………………………………………
z
TMCE TENSION RELEASE …………………………………………………………………
z
TMCE COLOR CHANGE SENSOR…………………………………………………………
z
TMCE THREAD STAND………………………………………………………………………
z
TMCE EMBROIDERY FRAME………………………………………………………………
z
TMCE BAR SWITCH BOX……………………………………………………………………
z
TMCE ELECTRICAL PARTS ………………………………………………………………
Part Nos. of screws, nuts, washers etc.are listed at the end of volume.
CT-1-1
CT-1-2
CT-2
CT-3-1
CT-3-2
CT-4-1
CT-4-2
CT-5-1
CT-5-2
CT-6-1
CT-6-2
CT-7
CT-8
CT-9
CT-10
CT-11
CT-12
CT-13
[Explanation of Marks #'s and *'s at End of Part No]
‹Please specify, in the following manner, your machine model,manufacturing number and
embroidery space when you order us with the parts having **** at the end of the part No.:
Ex.
‹Please specify the number of loopers on your machine’s head in your parts order by changing
the marks #### into one of the 4-digit numbers below:
Ex.
TMFD-612 (450×275)S No.01234
[Model] [Emb. Space] [Mfg. No.]
The part Number, EF012345####
4-digit Numbers Machine Type
6-looper machine…………………0600
(CG04)

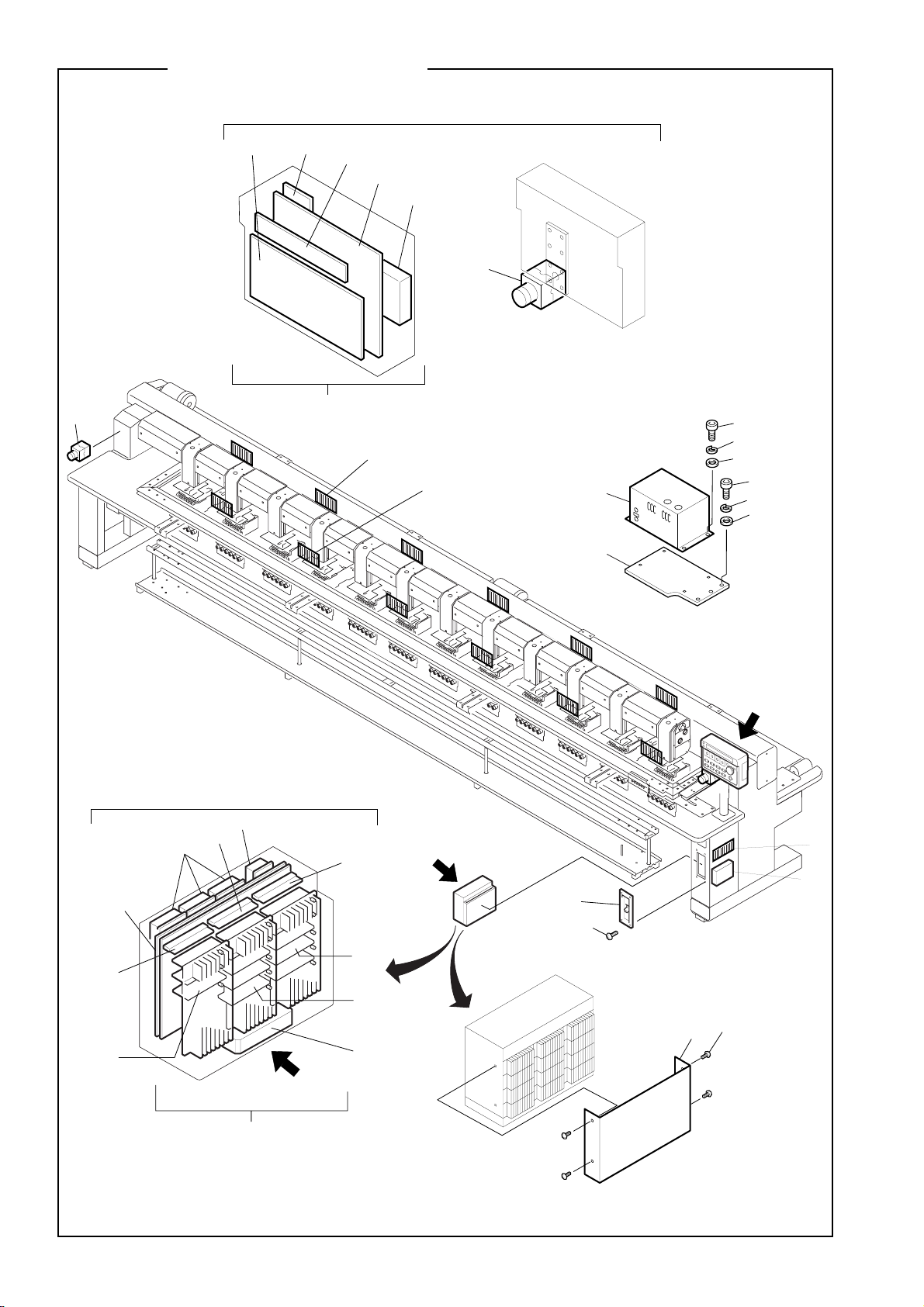

TMCE GENERAL VIEW
CT-2
CT-3-1
CT-3-2
CT-5-1
CT-5-2
CT-4-1
CT-4-2
CT-10
CT-7
CT-9
CT-6-1
CT-6-2
CT-11
CT-8
CT-1-1
CT-1-2
CT-12
CT-13
(CG04)
CT-1-1
H40
33

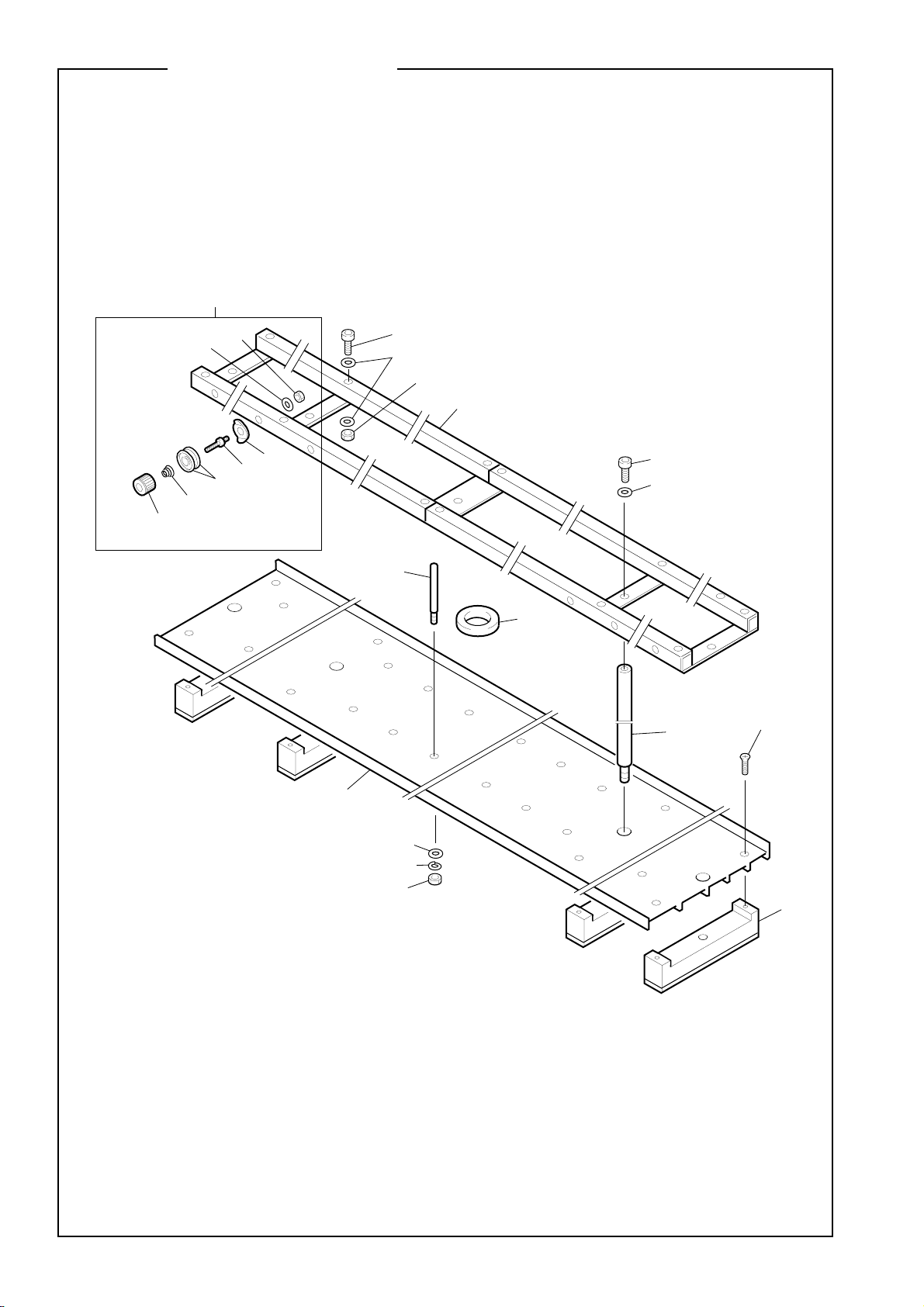

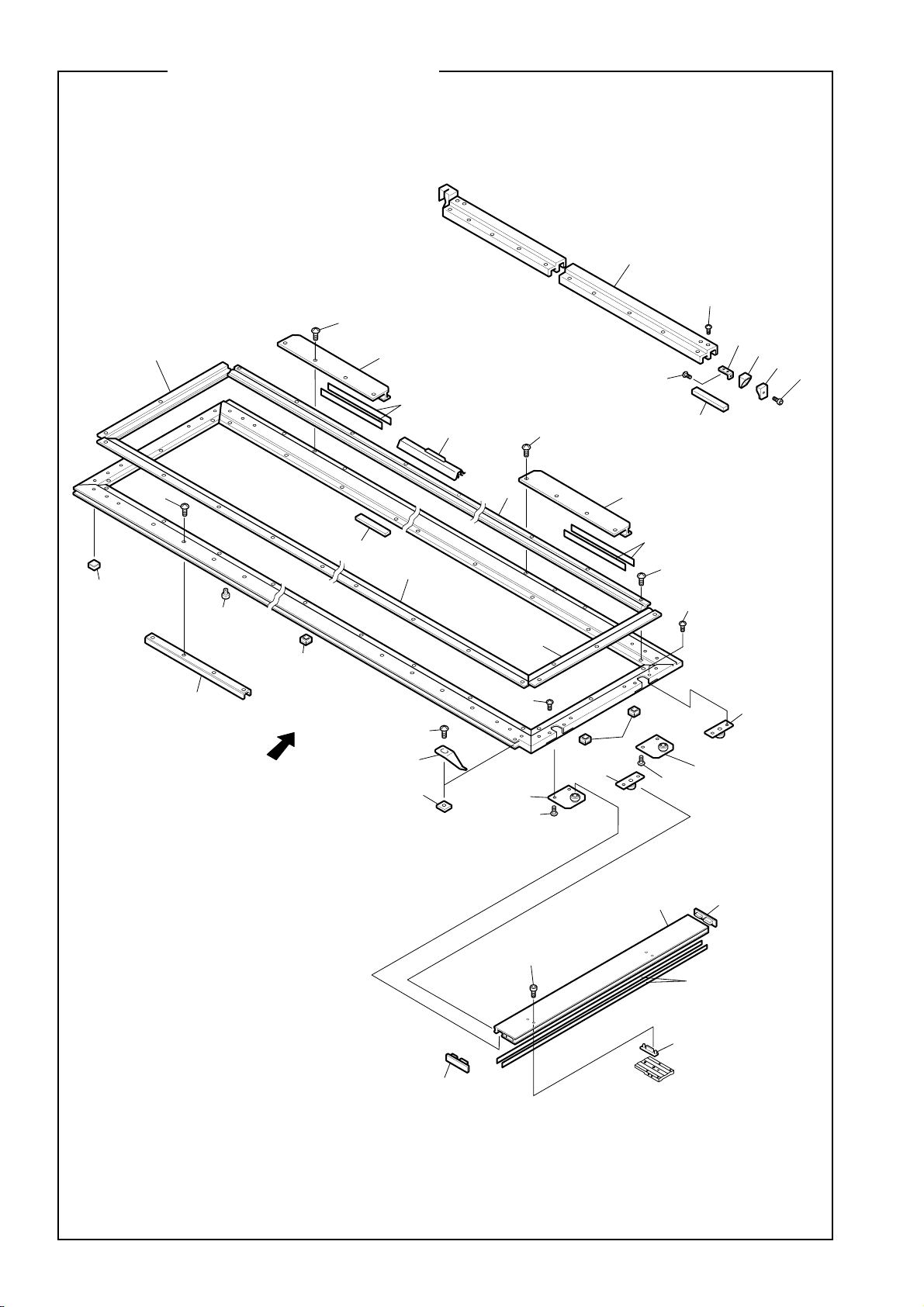

TMCE FRAMETABLE 1
A
B69
R42
R24
17
21
P38
25
26
27
31
H29
30
7
21
13
24
10
11
12
41
30
32
40
42
R40
B42
A
44
38
20
F33
H32
23
22
13
17
P38
B
H28
16
1
R19
9
B42
R40
R19
R19
B49
H32
18
B25
R16
20
F40
4
19
P38
37
H40
H40
H40
39
20
21
14
2
F40
5
6
B
19
P38
8
36
43
39
20
28
3
35
H29
15
29
34
(CG04)
TMCE FRAME•TABLE 1
CT-1-1

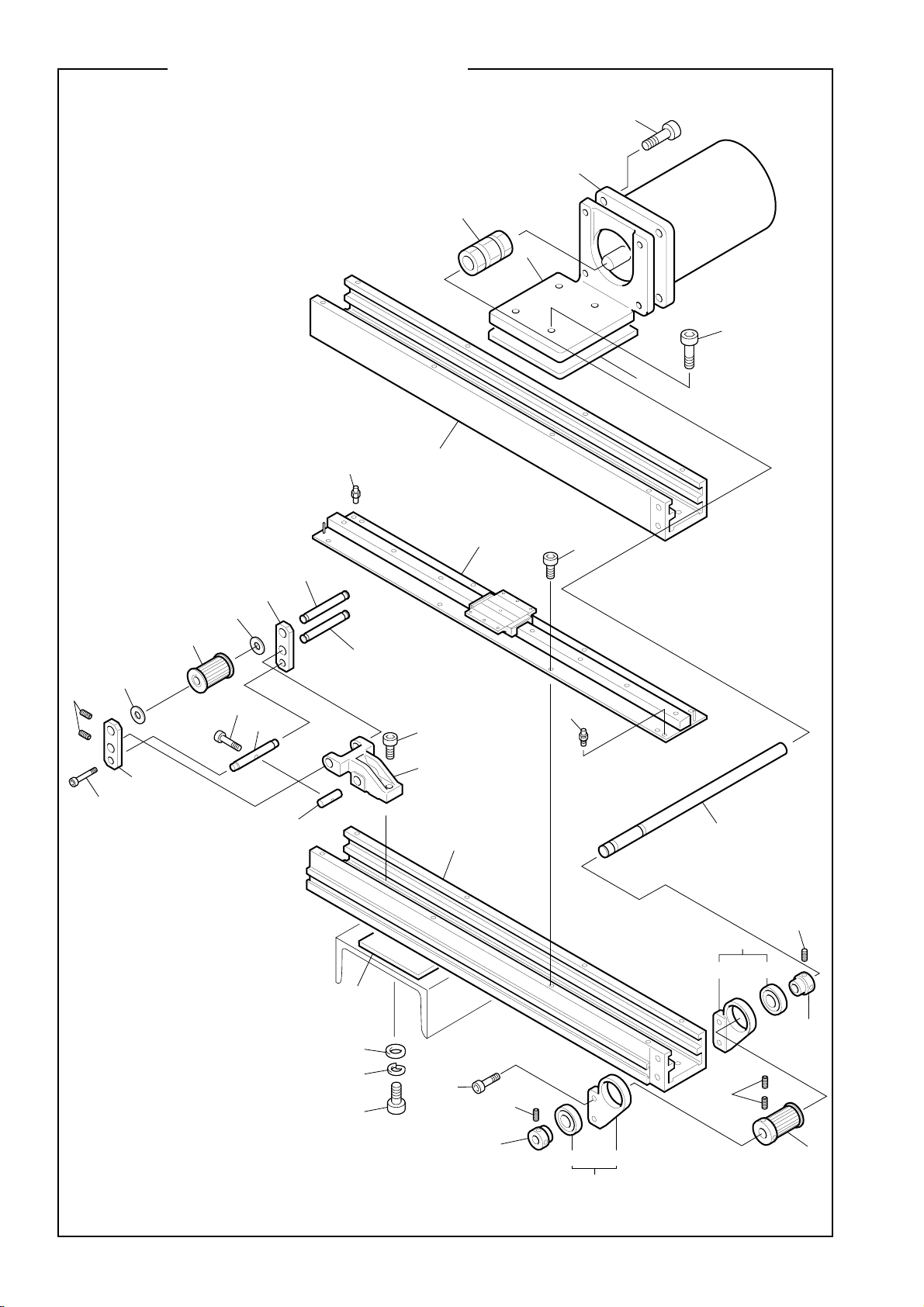

Ref.No.
Description Part No. Remark
1 Integral Stand CT080102****
1 Integral Stand CTM80102****
1 Integral Stand CTG80102****
2 Table CT080202****
2 Table CTM80202****
2 Table CTG80202****
3 Table Support No.260 CT10030A0000
4 Table Support No.1130B CT1008BA0000
5 Table Support No.605 CT10060A0000
6 Table Support No.1020B CT1007BA0000
7 No.1 Table Lid CT081501****
8 No.2 Table Lid, Front CT0816000000
9 Positioning Bracket CT0821000000
10 Tension Base Bracket A CT0810A0****
11 Tension Base Bracket B CT0810B0****
12 Tension Base Bracket C CT0810C0****
13 Wiring Cover Stud, Lower CT0842000000
14 Joint Cover ED0815000000
15 Joint Bracket CT0831000000
16 Power Supply Box Bracket CT0832000000
17 Stand Cover, Lower CT0819000000
18 Joint Card Base CT0830000000
19 Table Support Stud CT1017000000
20 Round Head Wood Screw ZZ410525CC00
21 Countersunk Head Wood Screw ZZ110312SD00
21 Countersunk Head Wood Screw ZZ110316SD00
22 TAJIMA Brand Name Plate CT0825010000
23 Stand Inside Cover CT0828030000
24 Wiring Cover, Lower B CT0812B1****
25 Wiring Cover, Lower C CT0812C1****
26 Wiring Cover, Lower D CT0812D1****
27 Wiring Cover, Lower E CT0812E1****
28 No.2 Table Lid, Rear A CT0817A0****
29 No.2 Table Lid, Rear B CT0817B0****
30 Side Cover CL0820010000
31 Side Cover Spacer L CL0822010000
32 Side Cover Spacer R CL0821010000
33 Left-side Cover CT0113000000
34 Right Side (Rear) Table Support No.380 CT1022000000
35 No.395 Table Support CT1069000000
36 No.44 Table Support ED1044010000
37 Left Side (Rear) Table Support No.380 CT1057000000
38 No.20 Table Support ED1020000000
39 Driver Shaft Stopper ED0704000000
39 Driver Shaft Stopper ED0705000000
40 Center Support CT0878000000
41 Vibration-preventive Base EF0810010000
42 Support Adjusting Bolt ED0833000000
43 Power Supply Box Support Bracket CT0877000000
44 Card Attaching Base CL0832000000
Standard
M-Spec.M/C only
G-Spec.M/C only
Standard
M-Spec.M/C only
G-Spec.M/C only
5.1P*25
3.1P*12
3.1P*16
15mm dia.Shaft,M/C 6301mm20mm dia.Shaft,M/C 6301mmFor M/C 6301mm or longer
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-1-2

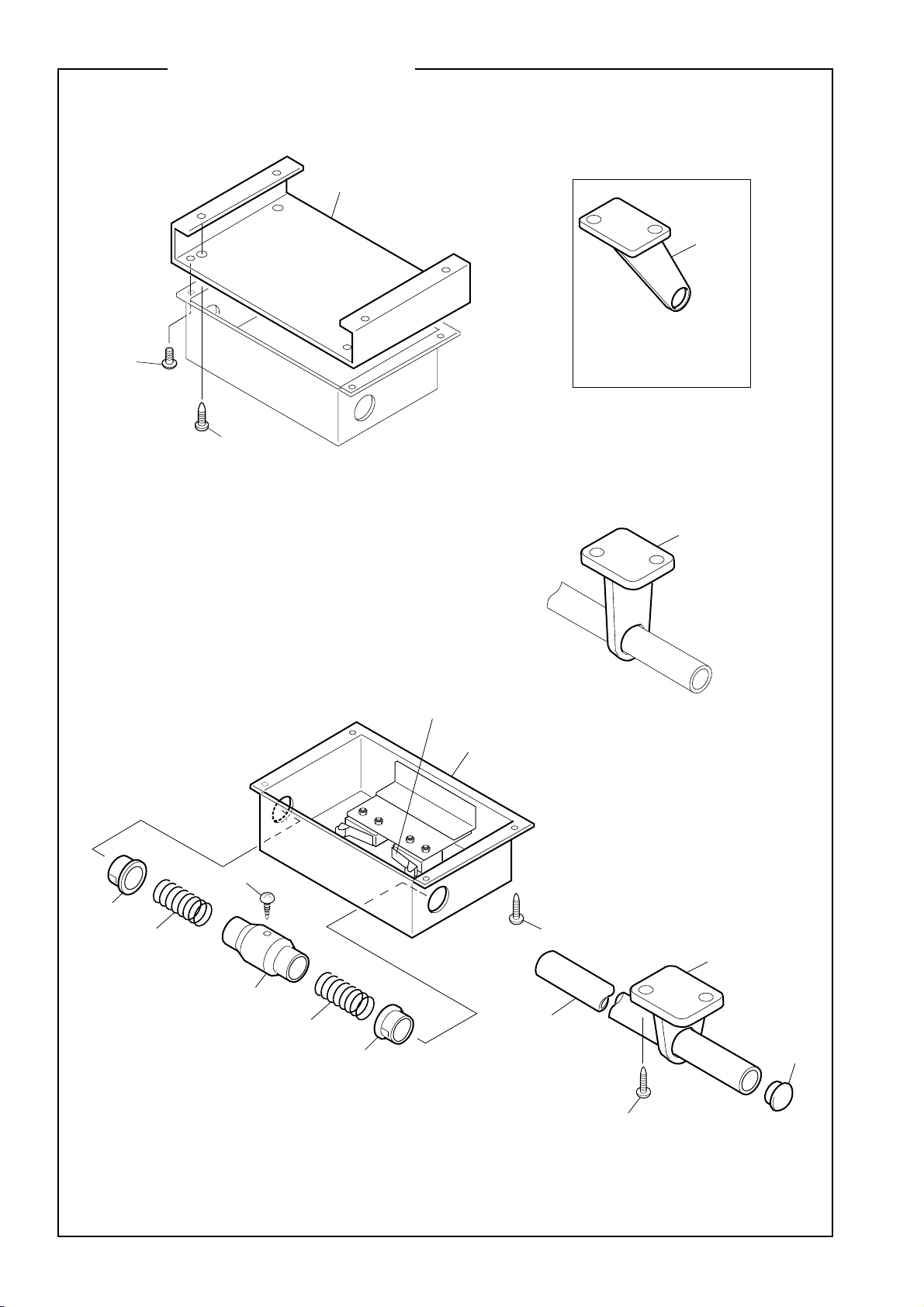

TMCE FRAMETABLE 2
B49
R40
R21
H27
13
11
H27
H40
R21
11
10
19
17
9
18
8
7
12
R40
20
B42
H29
16
15
R21
B40
14
15
17
4
B49
R40
R21
N8
6
5
6
R31
R46
3
2
B42
1
(CG04)
TMCE FRAME•TABLE 2
CT-1-2
Ref.No.
1 Operation Panel Stand Pipe CT08330A0000
2 Operation Panel Bracket EG01030A0000
3 Knobbed Bolt BPM10L200000
4 Operation Panel Attaching Arm EG01040A0000
5 Operation Panel Hinge Pin EG0105010000
6 E-ring BPE900000000
7 Wiring Cover Stud CT0820000000
8 Wiring Cover, Upper A CT0811A1****
9 Wiring Cover, Upper B CT0811B1****
10 Wiring Cover, Upper C CT0811C1****
11 Shaft Cover Stud CL0812000000
12 Shaft Cover B CT0813B1****
13 Shaft Cover C CT0813C1****
14 Fluorescent Lamp Attaching Bracket B CT0814B00000
15 Fluorescent Lamp Attaching Bracket A CT0814A00000
16 Round Head Wood Screw ZZ410525CC00
17 Fluorescent Lamp (Triple Lamp Type) EG7401F10000
17 Fluorescent Lamp (Triple Lamp Type) ED7401F10000
17 Fluorescent Lamp (4-Lamp Type) EG7401H10000
17 Fluorescent Lamp (4-Lamp Type) ED7401H10000
18 Fluorescent Lamp Bracket EG08170A0000
19 Harness Guard Bushing MX0833010000
20 Square Pipe Cover CT0103010000
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
Description Part No. Remark
5.1P*25
For Export
For Export
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-2

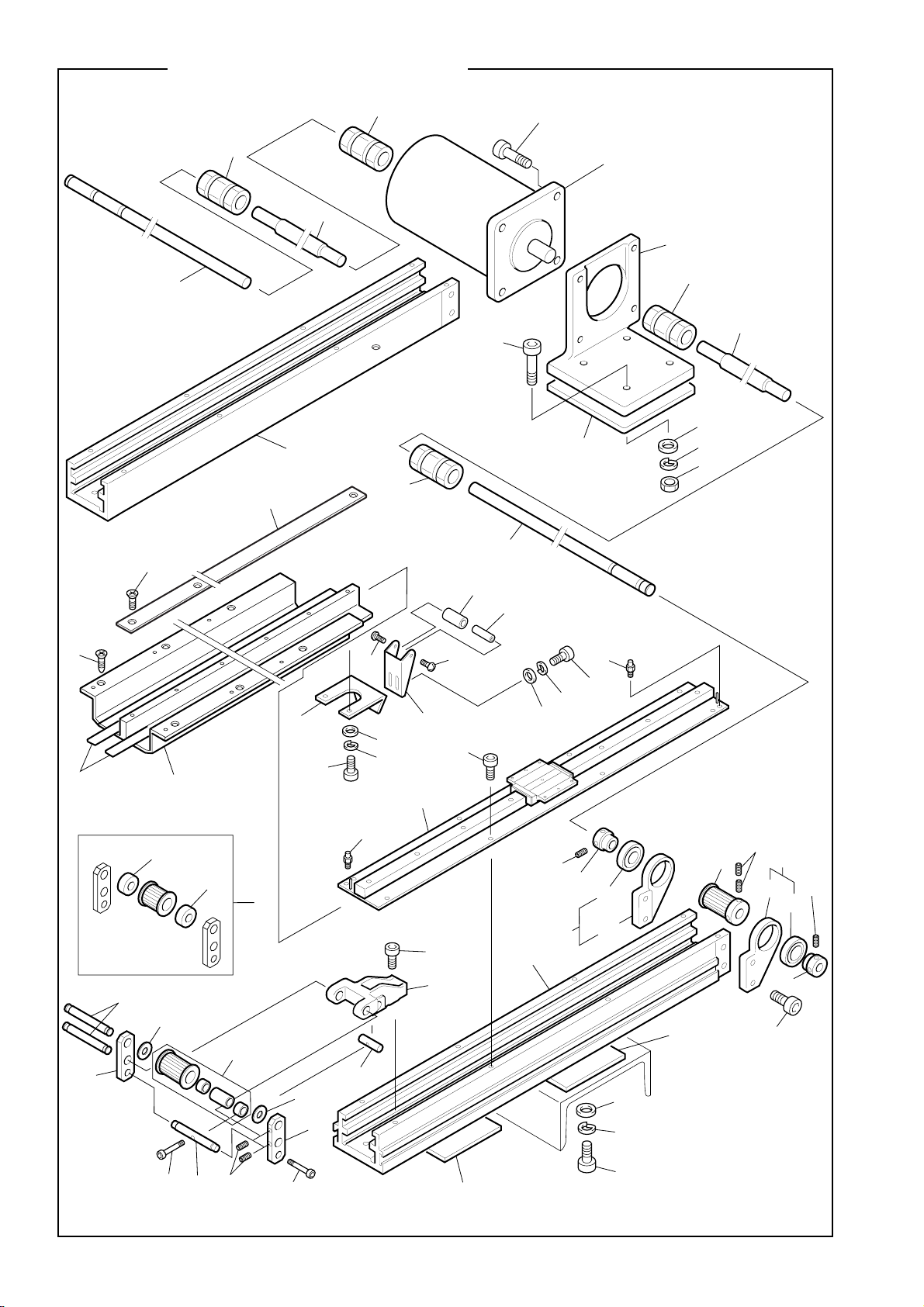

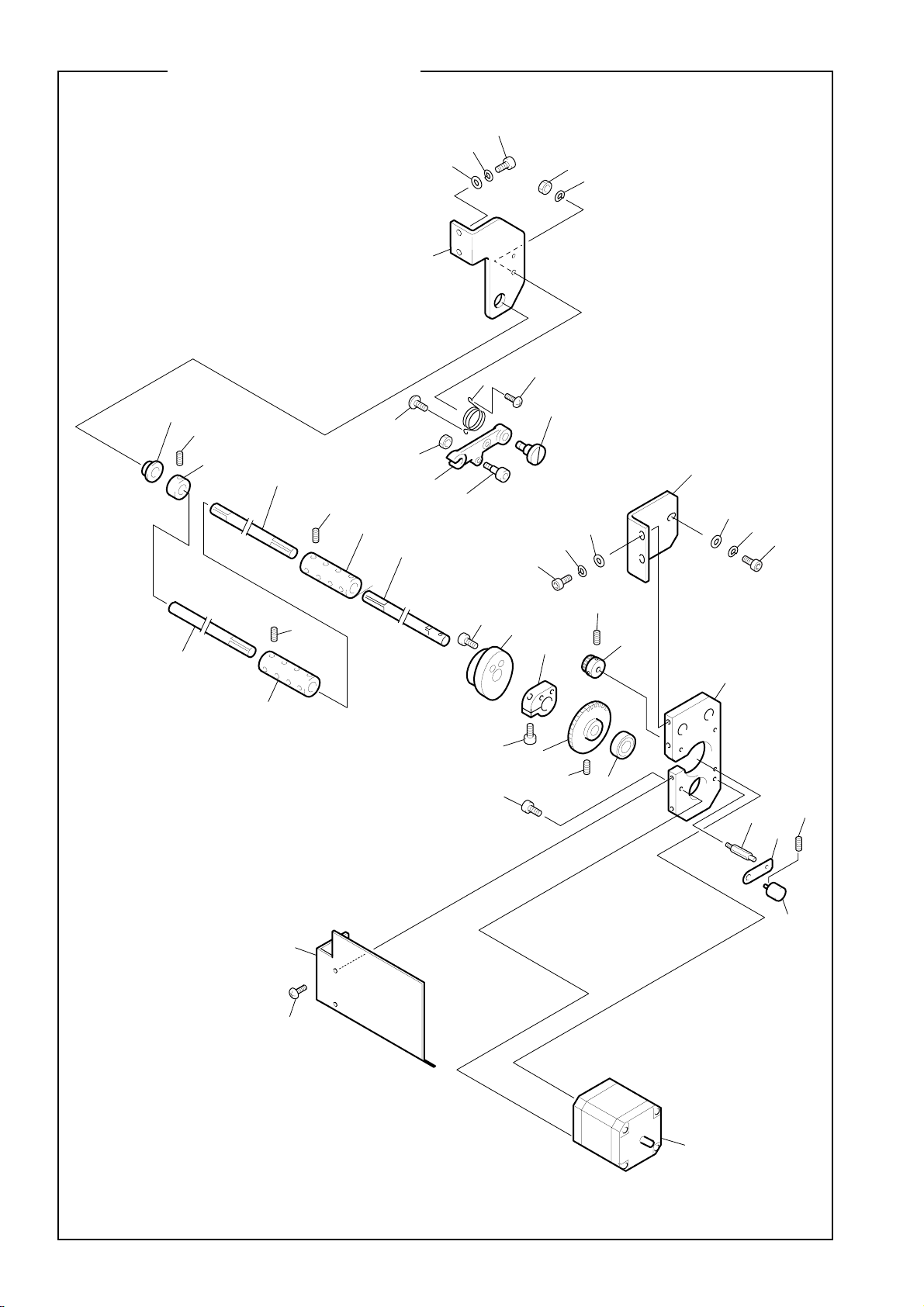

TMCE MAIN SHAFT MECHANISM
H29
14
13
B67
R42
10
8
16
2
R23
3
11
L32
12
R23
R42
B67
C14
R24
15
B83
R44
R27
B27
R16
L31
B49
9
17
1
5
4
7
6
4
(CG04)
TMCE MAIN SHAFT MECHANISM
CT-2
Ref.No.
Description Part No. Remark
1 Main Shaft Bearing Case CT0101010000
2 Main Shaft Pulley CT0104010000
3 Motor Bracket Spacer A CT0829A00000
3 Motor Bracket Spacer B CT0829B00000
3 Motor Bracket Spacer C CT0829C00000
4 N-Coupling BPN150150000
5 Needle Bar Drive Shaft C CT0807C0****
6 Needle Bar Drive Shaft B CT0807B0****
7 Needle Bar Drive Shaft A CT0807A0****
8 Angle Indicator Plate CL0103000000
9 Main Shaft Pointer CT0102000000
10 Timing Belt BPS5M350975G
11 Main Shaft Attaching Bracket CT0107000000
12 Driver-side Timing Pulley A MX0710A00000
13 Main Shaft Tension Bracket CT0106000000
14 Pulley Cover CT0112000000
15 Main Shaft Motor CT0827010000
16 Hexagon Socket Head Set Screw BPKCPM8L1600
17 Bearing Case Spacer CT0115A00000
17 Bearing Case Spacer CT0115B00000
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
0.5mm Thick
1.0mm Thick
2.0mm Thick
M8*16
0.15mm Thick
0.3mm Thick
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-3-1
B27
TMCE ARM 1
R16
R38
40
H14
38
B25
6
B69
30
B25
R38
31
L24
35
34
36
B13
R9
3
4
B30
B29
L10
R16
R38
5
R13
25
L25
R27
L17
2
21
B10
R44
11
B87
17
12
26
18
F14
16
33
B10
19
R38
20
25
P20
26
22
18
37
23
B10
B8
32
R22
B45
20
24
27
11
10
1
39
11
H5
L25
L17
12
L25
8
13
41
F14
7
9
15
14
11
28
29
P20
H27
(CG04)
TMCE ARM 1
CT-3-1
Ref.No.
1 Arm Cover CL0560010000
2 Nipple Shaft Attaching Base CL0520000000
3 Potentiometer CL0842000000
4 Potentiometer Attaching Plate B CL0422000000
5 Potentiometer Stud B CL0423000000
6 Presser Foot Reciprocating Block Sub Plate CL0517000000
7 D-axis Motor Base CL0542000000
8 D-axis Drive Gear CL0539000000
9 Pulse (Stepping) Motor CL0838020000
10 Arm CL0501030000
11 Bearing BP6001ZZ0000
12 Z-axis Driven Gear CL0546000000
13 Positioning Cam CL0556000000
14 Positioning Cam Shaft CL0557000000
15 Pulse (Stepping) Motor CL0835010000
16 Z-axis Motor Base CL0547000000
17 Z-axis Drive Gear CL0543S00000
18 Needle Bar Drive Connecting Rod EF0513000000
19 Drive Lever B CL0530000000
20 Lever Cam Roller Pin CL0533000000
21 Presser Drive Urethane Collar CL0518000000
22 Drive Lever Positioning Collar CL0532000000
23 Drive Lever Pin CL0528000000
24 Drive Lever A CL0529000000
25 Connecting Pin B CL0535000000
26 Connecting Pin A CL0534000000
27 Drive Lever Spacer CL0531000000
28 Arm Side Bearing Case Base CL0558010000
29 Arm Side Cover CL0559000000
30 Presser Foot Drive Cam CL0555000000
31 Needle Bar Nipple Drive Cam CL0553000000
32 Bearing Case A CL0548000000
33 Main Shaft Bushing CL0551010000
34 Bearing Case B CL0549000000
35 Encoder Collar CL0550000000
36 Rotary Encoder BPTS5307N250
37 Bearing BP6803ZZ0000
38 Switch Bracket CL0563000000
39 Oil Fencing Felt B CL0562000000
40 CE Switch Card CL7201010000
41 Pulse (Stepping) Motor Cap CL0537000000
42
43
44
45
46
47
48
49
50
Description Part No. Remark
With Encoder
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-3-2
TMCE ARM 2
B27
B13
2
6
7
32
1
3
5
34
4
5
15
G5
12
L18
L1
35
L16
13
14
L18
L25
B27
R38
R16
8
20
G5
L16
21
22
23
24
G5
25
9
10
11
16
17
18
19
32
31
33
26
27
28
29
30
(CG04)
TMCE ARM 2
CT-3-2
Ref.No.
1 Presser Foot Reciprocating Block CL0515000000
2 Presser Reciprocating Block Pin CL0516000000
3 Presser Drive Shaft CL0523000000
4 Presser Foot Bracket CL0524000000
5 Presser Foot Bushing CL0521000000
6 Presser Foot Return Spring CE0226000000
7 Bracket Collar CE0227000000
8 Presser Bracket CL0519000000
9 Presser Set Screw CE0231000000
10 Presser Connecting Stud CE0230000000
11 Presser Foot B CE0232B00000
12 Needle Bar CL0502000000
13 Needle Bar Tightening Collar CL0506000000
14 Needle Bar Reciprocating Sleeve CL0505000000
15 Needle Bar Reciprocating Sleeve Key CL0508000000
16 Needle Bar Sleeve CL0509000000
17 D-axis Gear Split Collar CL0541000000
18 Bearing BP6901ZNR000
19 D-axis Driven Gear CL0540000000
20 Reciprocating Sleeve Key CE0219000000
21 Nipple Reciprocating Sleeve CL0510S00000
22 Sleeve CL0512000000
23 Nipple Connecting Stud B Spacer CE0221000000
24 Nipple Connecting Stud B CE0220000000
25 Nipple CE022200****
26 Nipple Drive Shaft CL0522000000
27 Needle Bar Spring CL0525000000
28 Needle Bar Slide Block CL0514000000
29 Nipple Reciprocating Connecting Block CL0536S00000
30 Nipple Reciprocating Block Spring CL0527000000
31 Nipple Reciprocating Block CL0513000000
32 Nipple Presser Foot Spring CL0526000000
33 O-Ring EF0621000000
34 Needle Bar Collar Screw CL0507000000
35 Needle Position Gauge CL0581000000
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Description Part No. Remark
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)

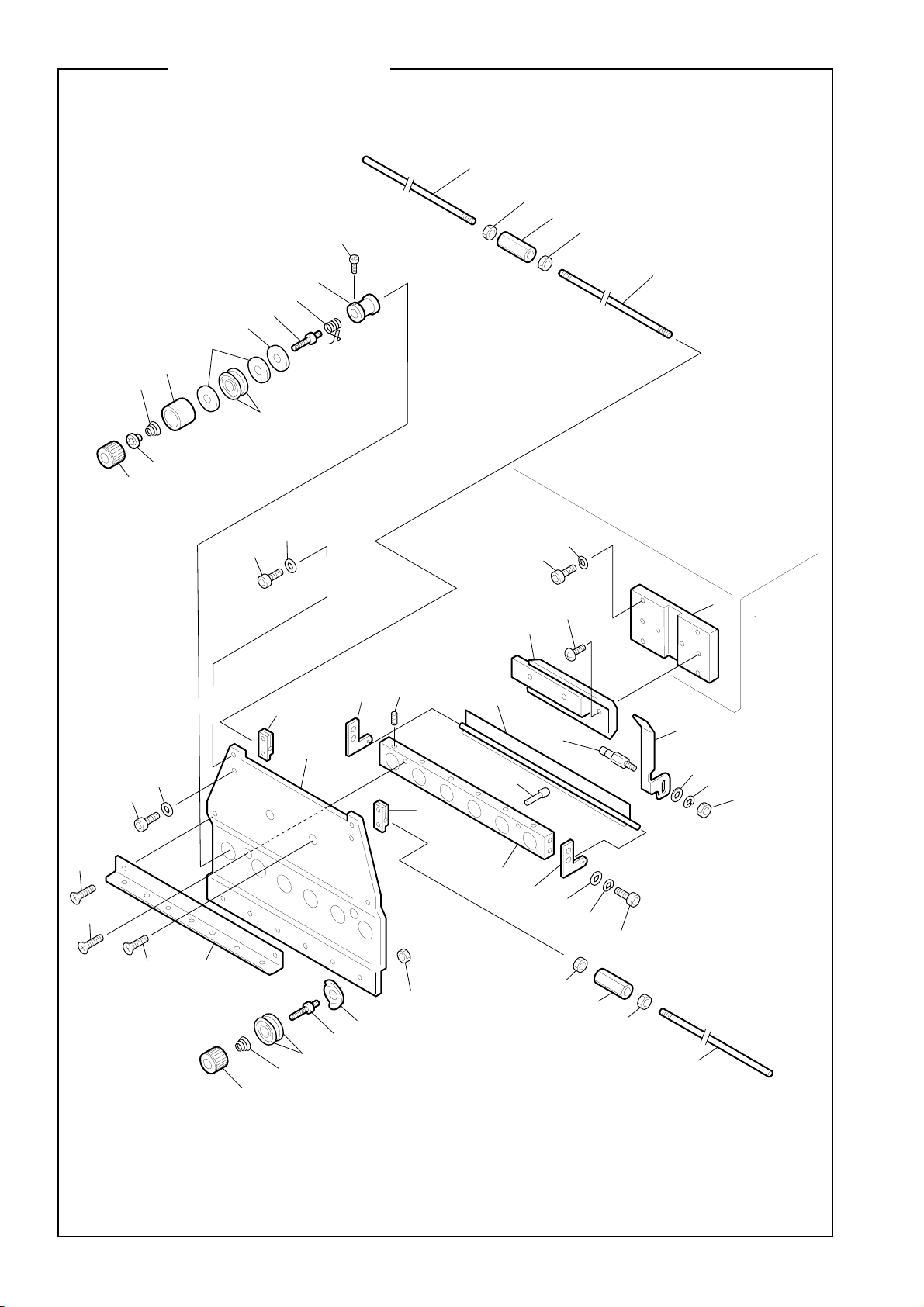

CT-4-1
TMCE X-AXIS DRIVE SYSTEM 1
1
15
R9
E30
11,12
E42
15
R9
6
2
14
8
3
5
4
8
13
16
E17
B27
R38
R16
10
7
R28
9
(CG04)
TMCE X-AXIS DRIVE SYSTEM 1
CT-4-1
Ref.No.
1 X-axis Feed Plate C CTZ701C00000
2 X-axis Feed Plate D CTZ701D00000
3 Timing Belt BPS5M50N****
4 Belt Catcher Plate MX0732000000
5 LS Dog Base MX0730010000
6 0-point Search Plate MX0731010000
7 Limit Switch Base B EG0727B10000
8 Fixing Base EG0730000000
9 Adjusting Knob EG0731000000
10 Sensor Attaching Base B EG0732B10000
11 Limit Switch PB001000SP00
12 Actuator MS6602000000
13 Proximity Switch Lock Fixture PB000500KN01
14 Proximity Switch EG6601000000
15 Hexagon Bolt EG0780000000
16 Proximity Switch A Set UN110160A000
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Description Part No. Remark
50mm wide type
50mm wide type
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)

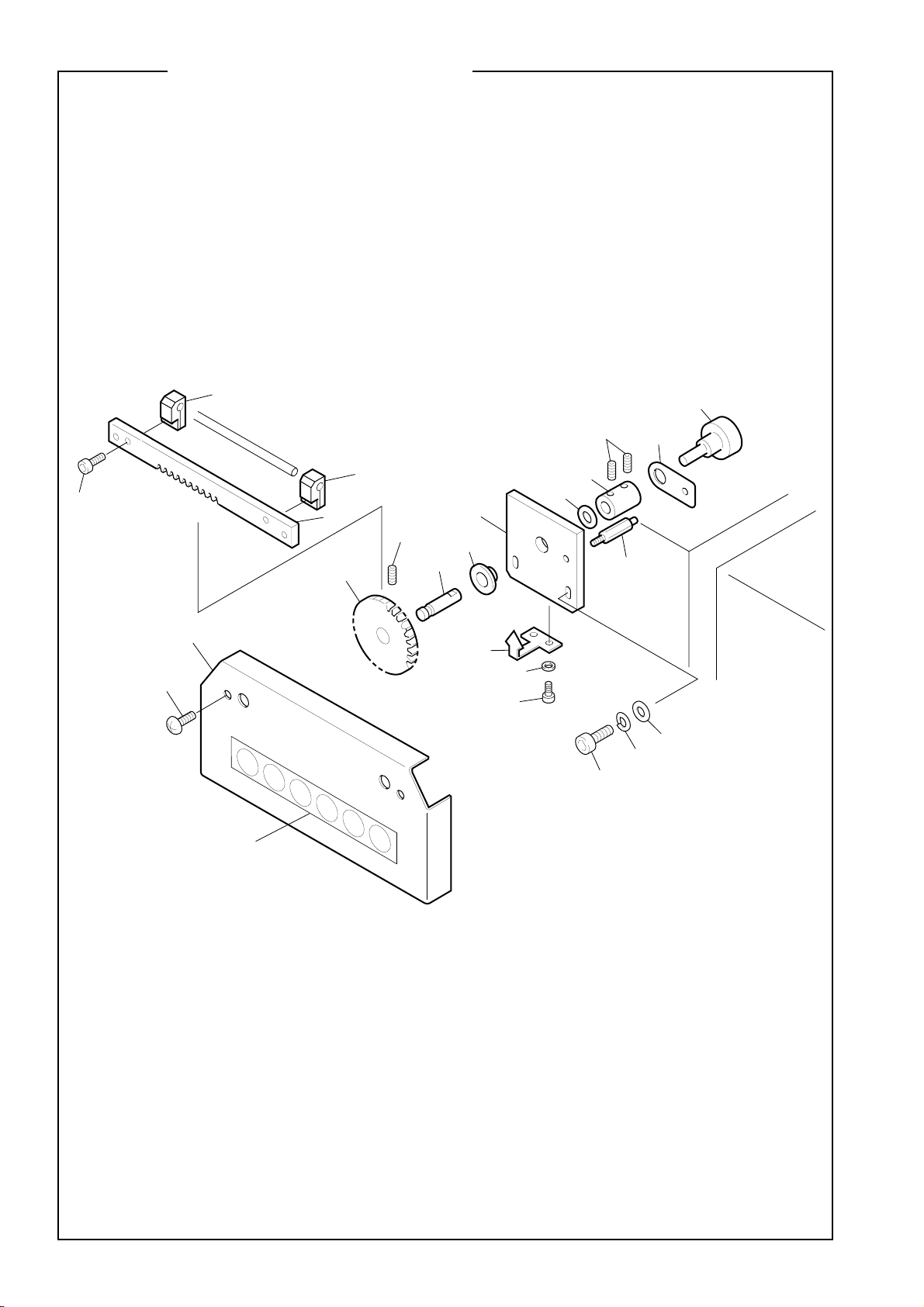

CT-4-2
TMCE X-AXIS DRIVE SYSTEM 2
B86
19
18
23
B87
24
L24
B58
13
12
8
9
16
12
9
B76
11
8
10
1
B72
17
14
2
B29
13
22
3
R27
R44
B89
B69
L24
7
15
20
L24
21
15
5
7
L30
4
6
(CG04)
TMCE X-AXIS DRIVE SYSTEM 2
CT-4-2
Ref.No.
1 X-axis Driver Frame A MX0721A0****
2 X-axis Driver Frame B MX0721B0****
3 Driver Spacer C EF0831000000
4 Bearing Case Plate L MX0733L00000
5 Bearing Case Plate R MX0733R00000
6 Driver-side Timing Pulley B MX0710B00000
7 15mm Dia. Bearing Collar EG0227000000
8 Vertical Tension Base MX0723000000
9 Washer BPTW12250000
10 Driver Tension Shaft MX0728000000
11 Tension Shaft MX0724000000
12 Tension Pulley Shaft MX0725000000
13 Stopper MX0729000000
14 X-axis Drive Linear Base Set MX074800****
15 Ball Bearing BP6003ZZ0000
16 Tension-side Timing Pulley B Set MXS711B00000
17 Tension Base Holder MX0734000000
18 N-Coupling BPN150150000
19 Pulse (Stepping) Motor LG6404000000
20 Bearing Case Plate L (with Bearing) MXS733L00000
21 Bearing Case Plate R (with Bearing) MXS733R00000
22 X-axis Drive Shaft CT0805020000
23 Pulse Motor Bracket CT0872000000
24 Pulse (Stepping) Motor Bracket Spacer A CT0873A0****
24 Pulse (Stepping) Motor Bracket Spacer B CT0873B0****
24 Pulse (Stepping) Motor Bracket Spacer C CT0873C0****
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Description Part No. Remark
50mm wide type
50mm wide type
0.5mm Thick
1.0mm Thick
2.0mm Thick
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-5-1
TMCE Y-AXIS DRIVE SYSTEM 1
1
F22
3
26
23
24
B26
F21
F24
25
B27
3
P22
R38
R16
27
E17
19
20
16
14
22
B46
R21
8
21
R9
E42
12
11
R9
21
17
18
E30
9
10
5
7
F24
6
2
4
14
13
R28
15
(CG04)
TMCE Y-AXIS DRIVE SYSTEM 1
CT-5-1
Ref.No.
Description Part No. Remark
1 Y-axis Feed Plate, Rear A MX0736A00000
1 Y-axis Feed Plate, Rear C MX0736C00000
2 Y-axis Feed Plate, Rear D MX0736D00000
3 Y-axis Feed Front Pin MX0742000000
4 Belt Catcher Plate MX0732000000
5 Y-axis Feed Connecting Plate CT0703000000
6 Roller Base Guide Pin EG0718000000
7 Timing Belt BPS5M50N****
7 Timing Belt BPS5M35N****
8 Presser Roller Base EG0715020000
9 Bearing Pin B EG0779010000
10 Bearing Pin A EG0778010000
11 LS Dog Base MX0730010000
12 0-point Search Plate MX0731010000
13 Limit Switch Base B EG0727B10000
14 Fixing Base EG0730000000
15 Adjusting Knob EG0731000000
16 Sensor Attaching Base B EG0732B10000
17 Limit Switch PB001000SP00
18 Actuator MS6602000000
19 Proximity Switch Lock Fixture PB000500KN01
20 Proximity Switch EG6601000000
21 Hexagon Bolt EG0780000000
22 Proximity Switch A Set UN110160A000
23 Frame Presser Block MX0737020000
24 Roller Attaching Bracket MX0741000000
25 Y-axis Feed Plate, Front MX0738000000
26 Guide Plate MX0743010000
27 Felt MX0704100000
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
35mm wide type
50mm wide type
50mm wide type
50mm wide type
35mm wide type
50mm wide type
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-5-2
TMCE Y-AXIS DRIVE SYSTEM 2
F26
28
25
32
11
25
1
B92
25
13
27
14
B86
36
26
29
25
1
R27
R44
P32
33
24
Belt Width: 35mm
30
3
4
R38
35
19
B25
8
18
10
R27
22
17
L30
34
9
19
B69
L24
18
20
15
B72
H20
R16
B29
L24
12
5
H20
16
R21
B44
31
30
23
7
21
7
R40
8
6
4
B76
2
L24
B58
22
R44
B89
(CG04)
TMCE Y-AXIS DRIVE SYSTEM 2
CT-5-2
Ref.No.
Description Part No. Remark
1 Y20 Shaft A CT0837A00000
2 Tension Shaft MX0724000000
3 Tension Pulley Shaft MX0725000000
4 Vertical Tension Base MX0723000000
5 Tension Base Holder MX0734000000
6 Driver Tension Shaft MX0728000000
7 Washer BPTW12250000
8 Stopper MX0729000000
9 Bearing Case Plate L MX0733L00000
10 Bearing Case Plate R MX0733R00000
11 Y-axis Driver Frame A CT0702A00000
12 Y-axis Driver Frame B CT0702B00000
13 Roller EF0722000000
14 Roller Pin EF0723010000
15 Bearing Case A MX0745000000
16 Bearing Case Base A EF0721A10000
17 Driver Timing Pulley A MX0710A00000
17 Driver Timing Pulley B MX0710B00000
18 Ball Bearing BP6003ZZ0000
19 15mm Dia. Bearing Collar EG0227000000
20 Y-axis Driver Linear Base Set MX074900****
21 Tension-side Timing Pulley B Set MXS711B00000
22 Driver Spacer C EF0830C00000
23 Tension-side Timing Pulley A Set MXS711A00000
24 Front Rail Plate MX074010****
25 N-Coupling BPN150150000
26 Pulse (Stepping) Motor LG6405000000
27 Y-axis Drive Shaft A CT0806A10000
28 Y-axis Drive Shaft B CT0806B1****
29 Pulse Motor Bracket CT0872000000
30 Tension Spacer MX0726000000
31 Front Rail Holder MX074000****
32 Y-axis Feed Rail Plate MX074400****
33 Countersunk Head Wood Screw ZZ110420SD00
34 Bearing Case Plate L (with Bearing) MXS733L00000
35 Bearing Case Plate R (with Bearing) MXS733R00000
36 Pulse (Stepping) Motor Bracket Spacer A CT0873A00000
36 Pulse (Stepping) Motor Bracket Spacer B CT0873B00000
36 Pulse (Stepping) Motor Bracket Spacer C CT0873C00000
37
38
39
40
41
42
43
44
45
46
47
35mm wide type
50mm wide type
50mm wide type
35mm wide type
35mm wide type
4.1P*20
0.5mm Thick
1.0mm Thick
2.0mm Thick
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)

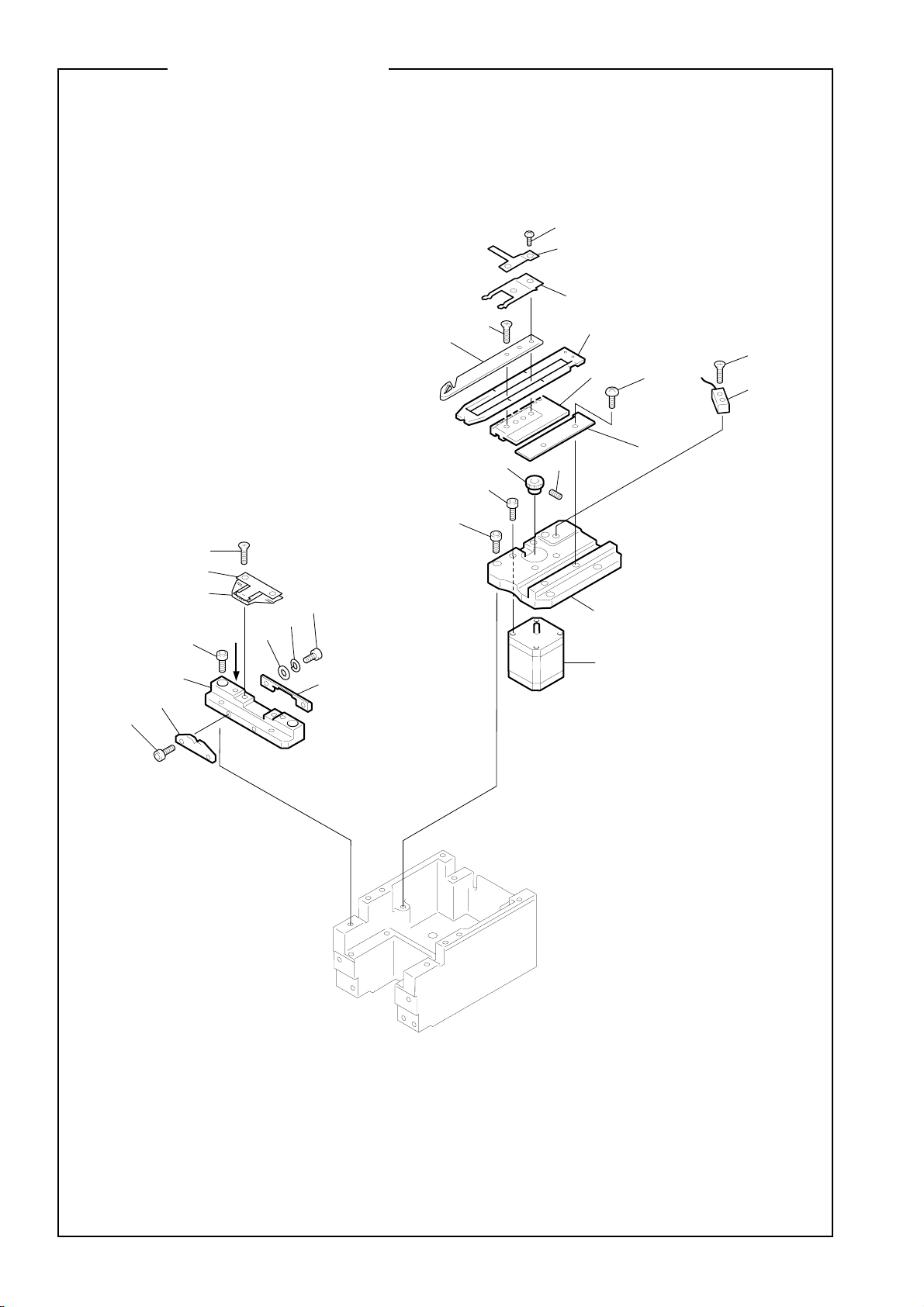

CT-6-1
TMCE LOOPERATH 1
33
1
2
32
A
B15
31
30
F9
B27
R38
F14
3
4
5
B29
R38
R16
6
7
L6
B33
B33
8
24
25
26
B25
H29 9
23
B10
11
29
12
10
E2
13
F5
B29
16
28
22
17
15
14
19
F11
21
18
H29
R13
20
27
P38
(CG04)
TMCE LOOPER•ATH 1
CT-6-1
Ref.No.
1 Needle Plate A CL022700****
1 Needle Plate B CL0228000000
1 Needle Plate C CL0229000000
2 Looper Base Cover CL0230000000
3 Thread Holder, Upper CL020600####
4 Thread Holder Spacer CL0207000000
5 Thread Holder Bracket CL020500####
6 Looper CL0231010000
7 Looper Sleeve CL0209000000
8 Gear Stopper Base CL0203S0####
9 Looper Thread Course CL020400####
10 Spring Presser Plate CL023200####
11 Looper Case CL020201####
12 Looper Case Positioning Plate CL024101####
13 Looper Case Slide Unit CL023301####
14 Thread Breakage Detecting Switch Lever CL0243000000
15 Case Fixing Lever CL0238S00000
16 Lever Base Lid CL0237010000
17 Fixing Lever Base CL0236010000
18 Proximity Switch Base CL0242000000
19 Thread Breakage Detecting Switch CL0244000000
20 Looper Base CL0201000000
21 Looper Motor Base CL0211000000
22 Pulse (Stepping) Motor CL0838020000
23 Thread Presser Spring CL0208000000
24 Looper Spring CL0210000000
25 Ball Bearing BPLF1260ZZ00
26 Stopper Ring BPWR06000000
27 Looper Base Stud CL0265000000
28 Lever Pin CL0240000000
29 Thread Guide FX0626110000
30 Looper Drive Gear CL0212110000
31 26P Split Collar CL0262000000
32 Round Countersunk Head Screw EG0228000000
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Description Part No. Remark
1.5P,1.6P,2.0P,2.3P,2.8P
1.8P
1.4P
With Encoder
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-6-2
TMCE LOOPERATH 2
H20
5
6
F9
7
12
B13
L16
8
F16
4
H18
3
13
B10
11
B49
10
F9
14
15
B27
B33
R38
R16
A
9
2
1
(CG04)
TMCE LOOPER•ATH 2
CT-6-2
Ref.No.
1 Pulse (Stepping) Motor CL0835010000
2 ATH Motor Base CL0215000000
3 Movable Knife Guide Plate CL0220000000
4 Knife Drive Rack CL0217S20000
5 ATH Sensor Plate CL0222000000
6 Plate Presser Spring CL0221000000
7 ATH Drive Knife CL0226010000
8 ATH Knife Guide CL0219000000
9 Movable Knife Guide Holder Block CL0234000000
10 ATH Base CL0223010000
11 Movable Knife Holder Block CL0225000000
12 ATH Drive Gear CL0216000000
13 Proximity Switch EG6601000000
14 ATH Fixed Knife CL0224020000
15 Fixed Knife Guide CL0235010000
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Description Part No. Remark
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-7
TMCE TENSION BASE
A9
26
P27
27
P28
15
13
B25
16
14
R13
17
19
B29
21
18
20
R13
6
9
R38
B29
H27
7
L17
2
8
6
1
11
12
25
3
10
R16
R38
P18
G4
F27
F9
5
P5
22
23
18
15
13
4
2
R16
P27
R38
B27
27
P28
24
(CG04)
TMCE TENSION BASE
CT-7
Ref.No.
1 Tension Release Plate Assembley CL040800####
2 Tension Release Side Plate CL0407000000
3 Tension Release Slide Base CL042000####
4 Thread Tension Fixing Block CL040301####
5 Tension Base Thread Guide CL040100####
6 Color Change Bracket CL0404000000
7 Tension Base Slide Unit CL040500####
8 Tension Base CL040201####
9 Tension Collar CL0435000000
10 Looper Lower Lever CL0414010000
11 Looper Lower Lever Pin CL0415000000
12 Tension Release Pin LE0912000000
12 Tension Release Pin EF0911000000
13 Adjusting Screw EC0836000000
14 Spring Hook EF0910000000
15 Tension Spring EF0908000000
16 Tension Collar LG0959000000
17 Felt Packing EF0904000000
18 Thread Course Tension Disk EF0913000000
19 Insulation Plate EF0903000000
20 Thread Take-up Spring CL0434000000
21 Tension Stud CL0436000000
22 Thread Course Thread Guide EF0912000000
23 Thread Course Tension Stud EF0914000000
24 Looper Slide Shaft A CT0808A0****
25 Looper Slide Shaft B CT0808B0****
26 Looper Slide Shaft C CT0808C0****
27 M6 Joint EF0827010000
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
Description Part No. Remark
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-8
TMCE TENSION RELEASE
18
R23
R42
B68
3
P22
R40
E12
13
21
L16
1
E12
23
P5
19
22
8
12
B34
B29
B12
B46
2
5
R40
4
L25
R21
L32
6
9
R22
16
R39
14
B61
L6
15
7
20
L32
L32
23
17
H27
10
11
(CG04)
TMCE TENSION RELEASE
CT-8
Ref.No.
1 Tension Release Lever Pin CL0411000000
2 Tension Release Cam CL0421000000
3 Tension Release Return Spring CL0416000000
4 Tension Release Cam Tightening Collar CL0417000000
5 Z-axis Driven Gear CL0546000000
6 Tension Release Gear CT0403000000
7 Tension Release 12P Collar CL0418000000
8 Tension Release Lever CL0412000000
9 Ball Bearing BP6901ZZ0000
10 Potentiometer CL0842000000
11 Pulse (Stepping) Motor CT0826010000
12 Roller Pin B CE0117100000
13 Flanged DU Bushing BPMB120620FD
14 Potentiometer Stud B CL0423000000
15 Potentiometer Attaching Plate B CL0422000000
16 Tension Release Motor Bracket CT0412000000
17 Tension Release Motor Cover CT0404010000
18 Tension Release Middle Bracket CT0402000000
19 Tension Release Shaft A CT0809A0****
20 Tension Release Shaft B CT0809B0****
21 Tension Release Shaft C CT0809C0****
22 Tension Release Bracket CT0411000000
23 12mm Dia. Joint CE0818000000
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Description Part No. Remark
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-9
TMCE COLOR CHANGE SENSOR
B25
H27
12
11
14
6
L10
11
10
9
4
1
R10
C1
3
L17
2
f
e
d
c
b
a
5
13
B49
8
7
R21
R40
(CG04)
TMCE COLOR CHANGE SENSOR
CT-9
Ref.No.
1 Color Change Sensor Pointer CL0432000000
2 Color Change Sensor Gear CL0431000000
3 Color Change Sensor Rack CL042500####
4 Flanged DU Bushing BPMB060612FD
5 Color Change Sensor Collar CL0430000000
6 Color Change Potentiometer CL0836000000
7 Potentiometer Stud CL0428000000
8 Potentiometer Attaching Plate CL0427000000
9 Color Change Sensor Base CT0405000000
10 Pin No.101 CT0406000000
11 Rack Attaching Bracket CT0407000000
12 Color Change Sensor Cover CT0408010000
13 Thrust Washer BPRTW0613000
14 Color Change Display Seal CL0456000000
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Description Part No. Remark
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-10
TMCE THREAD STAND
2
12
11
R22
10
P5
B42
R22
P22
1
8
9
3
4
B45
R22
6
F26
5
R22
R41
P5
7
(CG04)
TMCE THREAD STAND
CT-10
Ref.No.
1 Thread Course CT060200****
2 No.1 Tension Set UN150500B001
3 Thread Stand Stud EF0939010000
4 Thread Stand Felt EF0940000000
5 Thread Stand Plate CT060100****
6 Thread Stand Shaft CT0603010000
7 Thread Stand Plate Attaching Bracket CT0604000000
8 Thread Course Thread Guide EF0912000000
9 Thread Course Tension Stud EF0914000000
10 Thread Course Tension Disk EF0913000000
11 Tension Spring EF0908000000
12 Adjusting Screw EF09090A0000
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Description Part No. Remark
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-11
TMCE EMBROIDERY FRAME
H42
10
15
24
H25
11
12
13
E36
5
4
H42
14
B30
H40
14
21
2
3
1
9
H42
26
7
8
23
H42
19
F24
22
18
15
1
5
25
H29
H42
18
19
F24
17
B56
16
6
20
(CG04)
TMCE EMBROIDERY FRAME
CT-11
Ref.No.
1 No.1 Cork Set EG0321020000
2 No.3 Cork Set EG0325010000
3 Screw Ring EF0303000000
4 Border Frame Clip EG032600****
5 Rail Plate, Crosswise MX031100****
6 X-axis Z-spec. Frame Rail Plate CTZ30500****
7 Embroidery Space Indicator CTZ304000000
8 Angle Pointer Fixing Spacer CTZ313000000
9 Frame Rail EN030200****
10 Border Frame Lengthwise Sash L CT032200****
11 Inner Frame Attachment C EF0311000000
12 Inner Frame Attachment A EF0309000000
13 Inner Frame Attachment B EF0310000000
14 No.4 Felt EG0317000000
15 Rear Frame Sash Rail MX030500****
16 XZ Frame Sash Cover, Front CTZ301000000
17 XZ Frame Sash Cover, Rear CTZ302000000
18 X-axis Connecting Bracket, Upper CTZ308000000
19 X-axis Connecting Bracket, Lower CTZ309010000
20 Reinforcing Sash Spacer CTZ303000000
21 Border Frame Crosswise Sash CT032300****
22 Border Frame Lengthwise Sash R CT032100****
23 Border Frame Crosswise Sash B CT032400****
24 Middle Sash CT032500****
25 X-axis Z-spec. Frame CTZ31001****
26 Base Frame Sash Set CT0300S1****
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Description Part No. Remark
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-12
TMCE BAR SWITCH BOX
10
12
F32
C-4 Right Side
3
11
2
1
5
7
6
3
8
4
6
7
9
13
3
(CG04)
TMCE BAR SWITCH BOX
CT-12
Ref.No.
1 Bar Switch Box MS5800A00000
2 Limit Switch PB000100SP00
3 Round Head Wood Screw ZZ410420CC00
4 LS Dog EF1104000000
5 Round Head Wood Screw ZZ410415CC00
6 Return Spring EF1106000000
7 Bushing EF1107000000
8 Bar Switch Support EF11080A0000
9 Switch Bar EF110900****
10 Bar Switch Box Attaching Plate TC01060A0000
11 Bar Switch Support TC010400****
12 Right Side Bar Switch Support TC012100****
13 Side Cover Lid EF1109200000
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Description Part No. Remark
4.5P*20
4P*15
For Table Cut
For Table Cut
Table Cut C-3-C-5,right side
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
CT-13
TMCE ELECTRICAL PARTS
A
23
1
2
3
4
5
23
7
B46
8
8
25
12
R40
R21
B87
R44
R27
B
13
19
18
17
14
16
A
15
21
20
22
Front
6
B
11
H29
24
H27
9
10
(CG04)
TMCE ELECTRICAL PARTS
CT-13
Ref.No.
1 Switch Card MX5102000000
2 Extension Card CL5101060000
3 FIP (Indicator Assembly) PB001100LP00
4 CPU Card MX5101A40000
5 Floppy Disk Drive PB000800RE00
6 Power Supply Driver Box CT5600020000
7 Controller CL5100030000
8 Head Card CL6101040000
9 Joint Card (PC Board) MX6101000000
10 Noise Filter PB000900FM00
11 Breaker EN5802000000
12 Transformer Base CT0871000000
13 Driver CPU Card (Main Shaft Driver) CT5602020000
14 Driver CPU Card (Y-axis Driver) CT5602020000
15 Driver CPU Card (X-axis Driver) CT5602020000
16 Power Supply Card (5V) PB002401PW00
17 Power Supply Card (24V) PB0025A1PW00
18 Mother Board CT5601000000
19 Driver Card (Main Shaft Driver) CT5603030000
20 Driver Card (Y-axis Driver) CT5603030000
21 Driver Card (X-axis Driver) CT5603030000
22 Fan PB000900BF00
23 Emergency Stop Switch Box EN5804000000
24 Fin Cover A CT1115000000
25 Separate Transformer UnitX2 PB6005A00000
25 Separate Transformer UnitX4 PB6009010000
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
Description Part No. Remark
3 Phase 380-440V Spec.M/C
3 Phase 380-440V Spec.M/C
1 Phase 200-240V Spec.M/C
Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. (CG04)
A.B
No.
A
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
B
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
Part No. Remark
Flat Fillister Head Screw
SM15015430CN 1/8*44*3
SM15015450CN 1/8*44*5
SM15015455CN 1/8*44*5.5
SM15015460CN 1/8*44*6
SM16515530CN 9/64*40*3
SM14020540CN 9/64*40*4
SM16516540SA 9/64*40*4
SM17010540CN 9/64*40*4
SM1E515550CN 9/64*40*5
SM14020560CN 9/64*40*6
SM15525560CN 9/64*40*6
SM15526570CN 9/64*40*7
SM15020580CN 9/64*40*8
SM15530580CN 9/64*40*8
SM16025580CN 9/64*40*8
SM150205A0CN 9/64*40*10
SM150205C0CN 9/64*40*12
SM150205F0CN 9/64*40*15
SM15422643TN 11/64*40*4.3
SM17017670CN 11/64*40*7
SM1C035675CN 11/64*40*7.5
SM10825690SH 11/64*40*9
SM146266B5CN 11/64*40*11.5
SM172316C0CN 11/64*40*12
SS6003080SC0 M3*8
SS6003080SD0 M3*8
SS6003100CC0 M3*10
SS6004100SC0 M4*10
Hexagon Socket Head Cap Screw
SS6202080TD0 M2*8
SS6202100TD0 M2*10
SS6276050TN0 M2.6*5
SS6203030TN0 M3*3
SS6203040TN0 M3*4
SS6203050TN0 M3*5
SS6203060TD0 M3*6
SS6203060TN0 M3*6
SS6203080TD0 M3*8
SS6203080TN0 M3*8
SS6203100TD0 M3*10
SS6203100TN0 M3*10
SS6203120TN0 M3*12
SS6203150TD0 M3*15
SS6203150TN0 M3*15
SS6203160TN0 M3*16
No.
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
Part No. Remark
SS6203180TN0 M3*18
SS6203200TD0 M3*20
SS6203200TN0 M3*20
SS6203250TN0 M3*25
SS6204050TD0 M4*5
SS6204050TN0 M4*5
SS6204060TN0 M4*6
SS6204080TD0 M4*8
SS6204080TN0 M4*8
SS6204100TD0 M4*10
SS6204100TN0 M4*10
SS6204120TD0 M4*12
SS6204120TN0 M4*12
SS6204150TN0 M4*15
SS6204180TN0 M4*18
SS6204200TD0 M4*20
SS6204200TN0 M4*20
SS6204250TN0 M4*25
SS6204250TN1 M4*25
SS6204300TN0 M4*30
SS6204350TN0 M4*35
SS6204400TN0 M4*40
SS6204450TN0 M4*45
SS6205060TN0 M5*6
SS6205080TD0 M5*8
SS6205080TN0 M5*8
SS6205100TD0 M5*10
SS6205100TN0 M5*10
SS6205100TP0 M5*10
SS6205120TN0 M5*12
SS6205140TN0 M5*14
SS6205150TD0 M5*15
SS6205150TN0 M5*15
SS6205160TN0 M5*16
SS6205180TN0 M5*18
SS6205200TD0 M5*20
SS6205200TN0 M5*20
SS6205220TN0 M5*22
SS6205230TN0 M5*23
SS6205250TN0 M5*25
SS6205300TN0 M5*30
SS6205350TN0 M5*35
SS6205350TN1 M5*35
SS6205500TN0 M5*50
SS6205500TN1 M5*50
SS6205550TN0 M5*55
SS6205600TN0 M5*60
SS6205600TN1 M5*60
SS6206080TN0 M6*8
SS6206090TN0 M6*9
(CG04)
B.C.D.E
No.
B
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
B83
B84
B85
B86
B87
B88
B89
B90
B91
B92
B93
B94
B95
B96
B97
B98
B99
B100
B101
B102
Part No. Remark
Hexagon Socket Head Cap Screw
SS6206100TN0 M6*10
SS6206120TN0 M6*12
SS6206150TN0 M6*15
SS6206180TN0 M6*18
SS6206200TN0 M6*20
SS6206250TN0 M6*25
SS6206300TN0 M6*30
SS6206350TN0 M6*35
SS6206400TN0 M6*40
SS6206450TN0 M6*45
SS6206450TN1 M6*45
SS6206500TN1 M6*50
SS6206650TN0 M6*65
SS6506750TN1 M6*75
SS6206800TN1 M6*80
SS6206A00TN0 M6*100
SS6208120TN0 M8*12
SS6208150TN0 M8*15
SS6208150TP0 M8*15
SS6208200TN0 M8*20
SS6208250TN0 M8*25
SS6208300TN0 M8*30
SS6208350TN0 M8*35
SS6208400TN0 M8*40
SS6208400TN1 M8*40
SS6208450TN0 M8*45
SS6208450TN1 M8*45
SS6208500TN0 M8*50
SS6208600TN0 M8*60
SS6208700TN0 M8*70
SS6210250TN0 M10*25
SS6210300TN0 M10*30
SS6210350TN0 M10*35
SS6210400TN0 M10*40
SS6212300TN0 M12*30
SS6212350TN0 M12*35
No.
C8
C9
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
D
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
Part No. Remark
SS9306450SD0 M6*45
SS9306500SC0 M6*50
SS9306500SD0 M6*50
SS9306550SD0 M6*55
SS9306650SD0 M6*65
SS9306750SC0 M6*75
SS9308150TN0 M8*15
SS9308180TN0 M8*18
SS9310300TN0 M10*30
SS9310350SC0 M10*35
SS9310350TN0 M10*35
SS9310400SC1 M10*40
SS9312500TN0 M12*50
Round Fillister Head Screw
SM66514540CL 9/64*40*4
SM66015550CL 9/64*40*5
SM66015550CN 9/64*40*5
SM67018550CN 9/64*40*5
SM67020550CN 9/64*40*5
SM66015560CL 9/64*40*6
SM66015560CN 9/64*40*6
SM67020560CL 9/64*40*6
SM67020560CN 9/64*40*6
SM65817568CN 9/64*40*6.8
SM67020580CN 9/64*40*8
SM660255A0CN 9/64*40*10
SM670205C0CN 9/64*40*12
SM67015660CN 11/64*40*6
SM67530665CN 11/64*40*6.5
SM675306A5CN 11/64*40*10.5
SM675306C0CN 11/64*40*12
SM675256F0CN 11/64*40*15
SM69065CQ5CN 9/32*28*24.5
SS7003050SD0 M3*5
Hexagon Bolt
C
C1
C2
C3
C4
C5
C6
C7
SS9303060SD0 M3*6
SS9304080SD0 M4*8
SS9305100SD0 M5*10
SS9305150SC0 M5*15
SS9305150SD0 M5*15
SS9305200SD0 M5*20
SS9306150SC0 M6*15
Pan Head Screw
E
E1
E2
E3
E4
E5
SS4164014MZ0 M1.4*1.4
SS4102030MZ0 M2*3
SS4102040MZ0 M2*4
SS4102080MZ0 M2*8
SS4175030MZ0 M2.5*3
(CG04)
E.F
No.
Pan Head Screw
E
E6
E7
E8
E9
E10
E11
E12
E13
E14
E15
E16
E17
E18
E19
E20
E21
E22
E23
E24
E25
E26
E27
E28
E29
E30
E31
E32
E33
E34
E35
E36
E37
E38
E39
E40
E41
E42
E43
E44
E45
E46
E47
E48
E49
E50
E51
E52
E53
E54
SS4175040MZ0 M2.5*4
SS4175050MZ0 M2.5*5
SS4175080MZ0 M2.5*8
SS4175130MZ0 M2.5*13
SS4175130SD0 M2.5*13
SS4103030MZ0 M3*3
SS4103030SD0 M3*3
SS4103040CD0 M3*4
SS4103040MZ0 M3*4
SS4103040SD0 M3*4
SS4103050MZ0 M3*5
SS4103050SD0 M3*5
SS4103060MZ0 M3*6
SS4103060SA0 M3*6
SS4103060SD0 M3*6
SS4103080MZ0 M3*8
SS4103080SA0 M3*8
SS4103080SD0 M3*8
SS4103100SC1 M3*10
SS4103100SD0 M3*10
SS4103110SC1 M3*11
SS4103120MZ0 M3*12
SS4103120SD0 M3*12
SS4103140SA0 M3*14
SS4103140SD0 M3*14
SS4103150SD0 M3*15
SS4103160SD0 M3*16
SS4103400SD1 M3*40
SS4103500SD1 M3*50
SS4104040SD0 M4*4
SS4104050SD0 M4*5
SS4104060MZ0 M4*6
SS4104060SD0 M4*6
SS4104080SD0 M4*8
SS4104100SD0 M4*10
SS4104120SD0 M4*12
SS4104150SD0 M4*15
SS4104180SD0 M4*18
SS4104300SD0 M4*30
SS4104500SD0 M4*50
SS4104600SD1 M4*60
SS4105060SD0 M5*6
SS4105070SD0 M5*7
SS4105080SD0 M5*8
SS4105100MZ0 M5*10
SS4105100SD0 M5*10
SS4105120SD0 M5*12
SS4105300SD1 M5*12
SS4105150SD0 M5*15
Part No. Remark
No.
E55
E56
E57
Countersunk Head Screw
F
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
F17
F18
F19
F20
F21
F22
F23
F24
F25
F26
F27
F28
F29
F30
F31
F32
F33
F34
F35
F36
F37
F38
F39
F40
F41
Part No. Remark
SS4105450SD1 M5*45
SS4105500SD1 M5*50
SS4105600SD1 M5*60
SMA55005A0CN 9/64*40*10
SMB7000680CN 11/64*40*8
SS1102060SD0 M2*6
SS1103040MZ0 M3*4
SS1103040SD0 M3*4
SS1103050SD0 M3*5
SS1003060SD0 M3*6
SS1103060MZ0 M3*6
SS1103060SD0 M3*6
SS1103070SD0 M3*7
SS1003080SD0 M3*8
SS1103080MZ0 M3*8
SS1103080SC0 M3*8
SS1103080SD0 M3*8
SS1103080SN0 M3*8
SS1103100SD0 M3*10
SS1103120MZ0 M3*12
SS1103120SD0 M3*12
SS1103150MZ0 M3*15
SS1103160SD0 M3*16
SS1104050SD0 M4*5
SS1104060SD0 M4*6
SS1104080MZ0 M4*8
SS1104080SD0 M4*8
SS1104100MZ0 M4*10
SS1104100SD0 M4*10
SS1104120SD0 M4*12
SS1104140SD0 M4*14
SS1104150SD0 M4*15
SS1104200SD0 M4*20
SS1104220SD0 M4*22
SS1104250SD0 M4*25
SS1105060SD0 M5*6
SS1105080SD0 M5*8
SS1105100SD0 M5*10
SS1105120SD0 M5*12
SS1105150SD0 M5*15
SS1105300SD0 M5*30
SS1105350SD0 M5*35
SS1106150SC0 M6*15
SS1106150SD0 M6*15
(CG04)
F.G.H.J.K
No.
F
F42
F43
F44
G
G1
G2
G3
G4
G5
G6
G7
G8
H
H1
H2
H3
H4
H5
H6
H7
H8
H9
H10
H11
H12
H13
H14
H15
H16
H17
H18
H19
H20
H21
H22
H23
H24
H25
H26
Part No. Remark
Countersunk Head Screw
SS1106350SD0 M6*35
SS1108120SD0 M8*12
SS1108700TN0 M8*70
Round Countersunk Head Screw
SMC5000460CL 1/8*44*6
SMC5000530CL 9/64*40*3
SMC5000535CL 9/64*40*3.5
SMC5000540CL 9/64*40*4
SMC5000560CL 9/64*40*6
SMC5000570CL 9/64*40*7
SMC5000595CL 9/64*40*9.5
SMC50005C0CL 9/64*40*12
Truss Head Screw
SMF6016470CL 1/8*44*7
SMF8020530CL 9/64*40*3.5
SMF8020540CL 9/64*40*4
SME9510540CM 9/64*40*4
SMF8020560CL 9/64*40*6
SMF8020580CL 9/64*40*8
SS0175030MZ0 M2.5*3
SS0175030SD0 M2.5*3
SS0175040MZ0 M2.5*4
SS0175040SA0 M2.5*4
SS0175040SD0 M2.5*4
SS0103030MZ0 M3*3
SS0103030SD0 M3*3
SS0103040SD0 M3*4
SS0103050MZ0 M3*5
SS0103050SD0 M3*5
SS0103060MZ0 M3*6
SS0103060SD0 M3*6
SS0103060SA0 M3*6
SS0103080SD0 M3*8
SS0103080SA0 M3*8
SS0103100MZ0 M3*10
SS0103100SD0 M3*10
SS0103200SD0 M3*20
SS0104050SD0 M4*5
SS0104060MZ0 M4*6
No.
H27
H28
H29
H30
H31
H32
H33
H34
H35
H36
H37
H38
H39
H40
H41
H42
H43
H44
H45
H46
H47
H48
H49
H50
H51
H52
H53
J
J1
J2
J3
J4
K
K1
K2
K3
K4
K5
K6
K7
Part No. Remark
SS0104060SD0 M4*6
SS0104080MZ0 M4*8
SS0104080SD0 M4*8
SS0104080SD2 M4*8
SS0104100MZ0 M4*10
SS0104100SD0 M4*10
SS0104120SD0 M4*12
SS0104150SD0 M4*15
SS0104200SD0 M4*20
SS0105050SD0 M5*5
SS0105060SD0 M5*6
SS0105065SD0 M5*6.5
SS0105070SD0 M5*7
SS0105080SD0 M5*8
SS0105100CB0 M5*10
SS0105100SD0 M5*10
SS0105120SD0 M5*12
SS0105150SD0 M5*15
SS0105200SD0 M5*20
SS0105250SD0 M5*25
SS0105350SD0 M5*35
SS0106080SD0 M6*8
SS0106100SD0 M6*10
SS0106220SD0 M6*22
SS0106250SD0 M6*25
SS0106350SD0 M6*35
SS0106400SD0 M6*40
Round Head Screw
SS3102030MZ0 M2*3
SS3103080SD0 M3*8
SS3103080SE0 M3*8
SS3103100MZ0 M3*10
Slotted Set Screw
SMK0000435CN 1/8*44*3.5
SMK0000560CN 9/64*40*6
SMK0000625CN 11/64*40*2.5
SMK0000635CN 11/64*40*3.5
SMK0000640CN 11/64*40*4
SMK0000650CN 11/64*40*5
SMK0000A50CN 15/64*28*5
(CG04)
K.L.M.N.P
No.
K
K8
K9
K10
K11
K12
K13
K14
K15
K16
K17
L
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
L12
L13
L14
L15
L16
L17
L18
L19
L20
L21
L22
L23
L24
L25
L26
L27
L28
L29
L30
L31
L32
L33
Part No. Remark
Slotted Set Screw
SMK0000AA0CN 15/64*28*10
SMK0000AF0CN 15/64*28*15
SMK0000AH0CN 15/64*28*17
SMK0000B40CN 1/4*40*4
SMK0000B45CN 1/4*40*4.5
SMK0000B50CN 1/4*40*5
SMK0000B60CN 1/4*40*6
SMK0000B80CN 1/4*40*8
SMK0000CC0CN 9/32*28*12
SS8005060TN0 M5*6
Hexagon Socket Head Set Screw
SMJ0000425CN 1/8*44*2.5
SMJ0000430CN 1/8*44*3
SMJ0000690CN 11/64*28*9
SMJ0000640CN 11/64*40*4
SMJ0000660CN 11/64*40*6
SMJ0000680CN 11/64*40*8
SMJ0000A40CN 15/64*28*4
SMJ0000A90CN 15/64*28*9
SS8203020TN0 M3*2
SS8203030TN0 M3*3
SS8203040TN0 M3*4
SS8203050TN0 M3*5
SS8203060TN0 M3*6
SS8203080TN0 M3*8
SS8204030TN0 M4*3
SS8204040TN0 M4*4
SS8204050TN0 M4*5
SS8204060TN0 M4*6
SS8204060TN1 M4*6
SS8204080TN0 M4*8
SS8204100TN0 M4*10
SS8204120TN0 M4*12
SS8205040TN0 M5*4
SS8205050TN0 M5*5
SS8205060TN0 M5*6
SS8205080TN0 M5*8
SS8205100TN0 M5*10
SS8205120TN0 M5*12
SS8205150TN0 M5*15
SS8206050TN0 M6*5
SS8206060TN0 M6*6
SS8206080TN0 M6*8
SS8206100TN0 M6*10
No.
L34
L35
L36
L37
Hexagon Socket Head Button Screw
M
M1
M2
M3
M4
Screw with Washer
N
N1
N2
N3
N4
N5
N6
N7
N8
N9
N10
N11
Nut
P
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
Part No. Remark
SS8206180TN0 M6*18
SS8208080TN0 M8*8
SS8208100TN0 M8*10
SS8208150TN0 M8*15
SS3203050SC0 M3*5
SS3204060SC0 M4*6
SS3205100SC0 M5*10
SS3205100SD0 M5*10
SSA003080000 M3*8
SSA003150000 M3*15
SSA003160000 M3*16
SSA003180000 M3*18
SSA004080000 M4*8
SSA004100000 M4*10
SSA004550000 M4*55
SSA005100000 M5*10
SSA005120000 M5*12
SSA005140000 M5*14
SSA005180000 M5*18
SMN046030CN0 1/8*44*6*3
SMN056020CL0 9/64*40*6*2
SMN056030CN0 9/64*40*6*3
SMN066020CN0 11/64*40*6*2
SMN066030CN0 11/64*40*6*3
SMN067030CN0 11/64*40*7*3
SMN167030CN0 11/64*40*7*3
SSN002SD0000 M2 Type 1
SSN073SD0000 M2.3 Type 1
SSN075MZ0000 M2.5 Type 1
SSN003MZ0000
SSN003SC0000
SSN003SD0000
SSN403SD0000
M3 Type 1
M3 Type 1
M3 Type 1
M3 Thumbscrew Type 2
(CG04)
P.R
No.
P
P15
P16
P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
P28
P29
P30
P31
P32
P33
P34
P35
P36
P37
P38
P39
P40
P41
P42
R
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
R12
R13
R14
R15
Part No. Remark
Nut
SSN203SC0000 M3 Type 3
SSN203SD0000 M3 Type 3
SSN285SC0000 M3.5 Type 3
SSN004SC0000
SSN004SD0000
SSN204SC0000
SSN204SD0000
SSN005SC0000
SSN005SD0000
SSN205SC0000
SSN205SD0000
SSN605SD0000
SSN006SC0000
SSN006SC1000
SSN006SD0000
SSN006SD1000
SSN206SC0000
SSN008SC0000
SSN008SD0000
SSN208SC0000
SSN208SD0000
SSN010SC0000
SSN710CD0000
SSN710SC0000
SSN012SC0000
SSN212SC0000
SSN216SC0000
M4 Type 1
M4 Type 1
M4 Type 3
M4 Type 3
M5 Type 1
M5 Type 1
M5 Type 3
M5 Type 3
M5 Cap Screw
M6 Type 1
M6 Type 1(Left)
M6 Type 1
M6 Type 1(Left)
M6 Type 3
M8 Type 1
M8 Type 1
M8 Type 3
M8 Type 3
M10 Type 1
M10 with Flange
M10 with Flange
M12 Type 1
M12 Type 3
M16 Type 3
SSN020SC0000 M20 Type 1
Washer
WSP640303MZ0
WSP023505XZ0
WSP767505XB0
WSP036003XZ0
WSP036005SC0
WSP037005SD0
WSP038003SD0
WSP038005MZ0
WSP038005SC0
WSP038005SD0
WSP038100SD0
WSP048005SC0
WSP048005SD0
WSP048008SC0
WSP048008SD0
Plain M1.4*3*0.3t
Plain M2*3.5*0.5t
Plain M2.6*7.5*0.5t
Plain M3*6*0.3t
Plain M3*6*0.5t
Plain M3*7*0.5t
Plain M3*8*0.3t
Plain M3*8*0.5t
Plain M3*8*0.5t
Plain M3*8*0.5t
Plain M3*8*1t
Plain M4*8*0.5t
Plain M4*8*0.5t
Plain M4*8*0.8t
Plain M4*8*0.8t
No.
R16
R17
R18
R19
R20
R21
R22
R23
R24
R25
R26
R27
R28
R29
R30
R31
R32
R33
R34
R35
R36
R37
R38
R39
R40
R41
R42
R43
R44
R45
R46
R47
R48
R49
R50
R51
R52
R53
R54
Part No. Remark
WSP04A008SC0
WSP04A008SD0
WSP04C010SC0
WSP05A008SC0
WSP05A008SD0
WSP05C008SC0
WSP05C008SD0
WSP06D010SC0
WSP06D010SD0
WSP06G010SC0
WSP08G012SD0
WSP08J016SC0
WSP08J016SD0
WSP08J032SC0
WSP08N032SC0
WSP10S032SC0
WSP12L520SC0
WSS020000KD0
WSS760000KC0
WSS030000KC0
WSS030000KD0
WSS850000KC0
WSS040000KC0
WSS040000KD0
WSS050000KC0
WSS050000KD0
WSS060000KC0
WSS060000KD0
WSS080000KC0
WSS080000KD0
WSS100000KC0
WSS120000KC0
WSW04B003TP0
WSW05B003TN0
WSW06A503TN0
WSL048505TP0
WSL05A006TP0
WSN080000SC0
WSC048005SC0
Plain M4*10*0.8t
Plain M4*10*0.8t
Plain M4*12*1t
Plain M5*10*0.8t
Plain M5*10*0.8t
Plain M5*12*0.8t
Plain M5*12*0.8t
Plain M6*13*1.0t
Plain M6*13*1.0t
Plain M6*16*1.0t
Plain M8*16*1.2t
Plain M8*18*1.6t
Plain M8*18*1.6t
Plain M8*18*3.2t
Plain M8*22*3.2t
Plain M10*26*3.2t
Plain M12*20.5*2t
Spring M2
Spring M2.6
Spring M3
Spring M3
Spring M3.5
Spring M4
Spring M4
Spring M5
Spring M5
Spring M6
Spring M6
Spring M8
Spring M8
Spring M10
Spring M12
Wave M4
Wave M5
Wave M6
With teeth M4
With teeth M5
Slant M8
Disk Spring M4
(CG04)
Loading...
