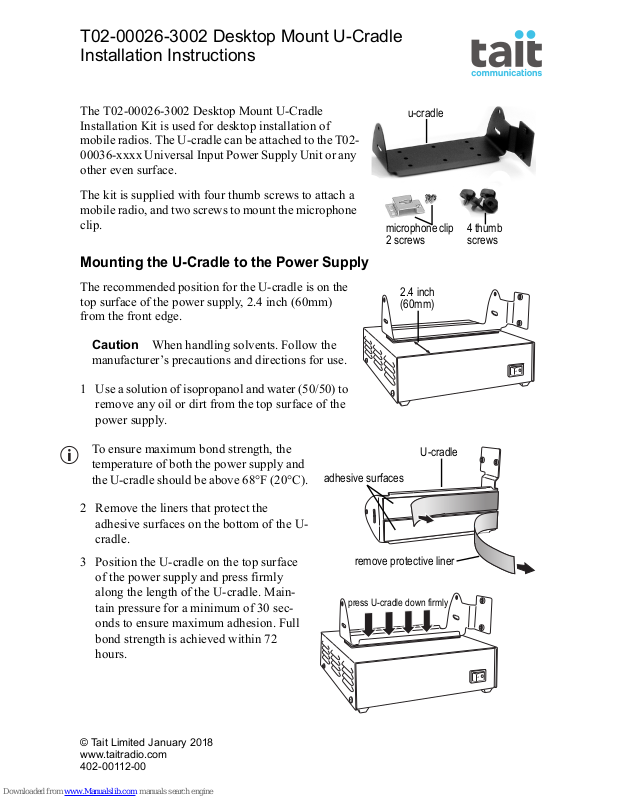

T02-00026-3002 Desktop Mount U-Cradle
Installation Instructions

The T02-00026-3002 Desktop Mount U-Cradle
Installation Kit is used for desktop installation of
mobile radios. The U-cradle can be attached to the T02­00036-xxxx Universal Input Power Supply Unit or any
other even surface.

The kit is supplied with four thumb screws to attach a
mobile radio, and two screws to mount the microphone
clip.

Mounting the U-Cradle to the Power Supply

The recommended position for the U-cradle is on the
top surface of the power supply, 2.4 inch (60mm)
from the front edge.

Caution When handling solvents. Follow the
manufacturer’s precautions and directions for use.

1 Use a solution of isopropanol and water (50/50) to

remove any oil or dirt from the top surface of the
power supply.

u-cradle

microphone clip
2 screws

2.4 inch
(60mm)

4 thumb
screws

To ensure maximum bond strength, the
temperature of both the power supply and
the U-cradle should be above 68°F (20°C).

2 Remove the liners that protect the

adhesive surfaces on the bottom of the U­cradle.

3 Position the U-cradle on the top surface

of the power supply and press firmly
along the length of the U-cradle. Main­tain pressure for a minimum of 30 sec­onds to ensure maximum adhesion. Full
bond strength is achieved within 72
hours.

U-cradle

adhesive surfaces

remove protective liner

press U-cradle down firmly

© Tait Limited January 2018
www.taitradio.com
402-00112-00

Mounting the Radio in the U-Cradle

1 Position the radio in the U-cradle so that the

mounting holes of U-cradle and radio line
up

2 With the four thumb screws, fasten the radio

at the desired angle.

Mounting the Microphone Clip

■ With supplied screws, mount the microphone

clip to the side of the U-cradle

Ensure that when the microphone is mounted in
the clip, the cable can freely hang down beside the
power supply.

Electrical Connections

thumb screws

microphone clip mounting holes

For information regarding electrical connections, refer to the TM9300/TM9400 Installation
Guide (MMB-00002-xx).

More Information

Refer to your radio provider for more information about this product.
