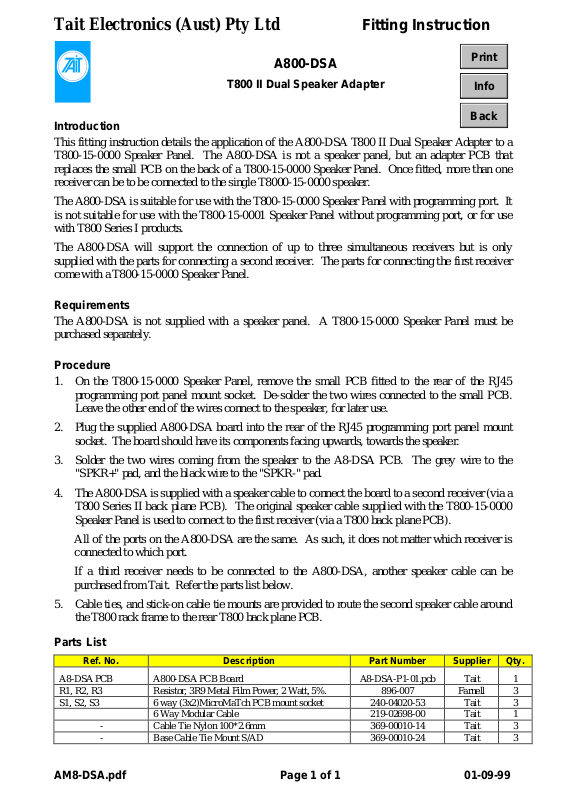

Tait Electronics (Aust) Pty Ltd Fitting Instruction
Print
Info
Back
A800-DSA
T800 II Dual Speaker Adapter
Introduction
This fitting instruction details the application of the A800-DSA T800 II Dual Speaker Adapter to a
T800-15-0000 Speaker Panel. The A800-DSA is not a speaker panel, but an adapter PCB that
replaces the small PCB on the back of a T800-15-0000 Speaker Panel. Once fitted, more than one
receiver can be to be connected to the single T8000-15-0000 speaker.
The A800-DSA is suitable for use with the T800-15-0000 Speaker Panel with programming port. It
is not suitable for use with the T800-15-0001 Speaker Panel without programming port, or for use
with T800 Series I products.
The A800-DSA will support the connection of up to three simultaneous receivers but is only
supplied with the parts for connecting a second receiver. The parts for connecting the first receiver
come with a T800-15-0000 Speaker Panel.
Requirements
The A800-DSA is not supplied with a speaker panel. A T800-15-0000 Speaker Panel must be
purchased separately.
Procedure
1. On the T800-15-0000 Speaker Panel, remove the small PCB fitted to the rear of the RJ45
programming port panel mount socket. De-solder the two wires connected to the small PCB.
Leave the other end of the wires connect to the speaker, for later use.
2. Plug the supplied A800-DSA board into the rear of the RJ45 programming port panel mount
socket. The board should have its components facing upwards, towards the speaker.
3. Solder the two wires coming from the speaker to the A8-DSA PCB. The grey wire to the
"SPKR+" pad, and the black wire to the "SPKR-" pad.
4. The A800-DSA is supplied with a speaker cable to connect the board to a second receiver (via a
T800 Series II back plane PCB). The original speaker cable supplied with the T800-15-0000
Speaker Panel is used to connect to the first receiver (via a T800 back plane PCB).
All of the ports on the A800-DSA are the same. As such, it does not matter which receiver is
connected to which port.
If a third receiver needs to be connected to the A800-DSA, another speaker cable can be
purchased from Tait. Refer the parts list below.
5. Cable ties, and stick-on cable tie mounts are provided to route the second speaker cable around
the T800 rack frame to the rear T800 back plane PCB.
Parts List
Ref. No. Description Part Number Supplier Qty.
A8-DSA PCB A800-DSA PCB Board A8-DSA-P1-01.pcb Tait 1
R1, R2, R3 Resistor, 3R9 Metal Film Power, 2 Watt, 5%. 896-007 Farnell 3
S1, S2, S3 6 way (3x2)MicroMaTch PCB mount socket 240-04020-53 Tait 3
6 Way Modular Cable 219-02698-00 Tait 1
- Cable Tie Nylon 100*2.6mm 369-00010-14 Tait 3
- Base Cable Tie Mount S/AD 369-00010-24 Tait 3
AM8-DSA.pdf Page 1 of 1 01-09-99
