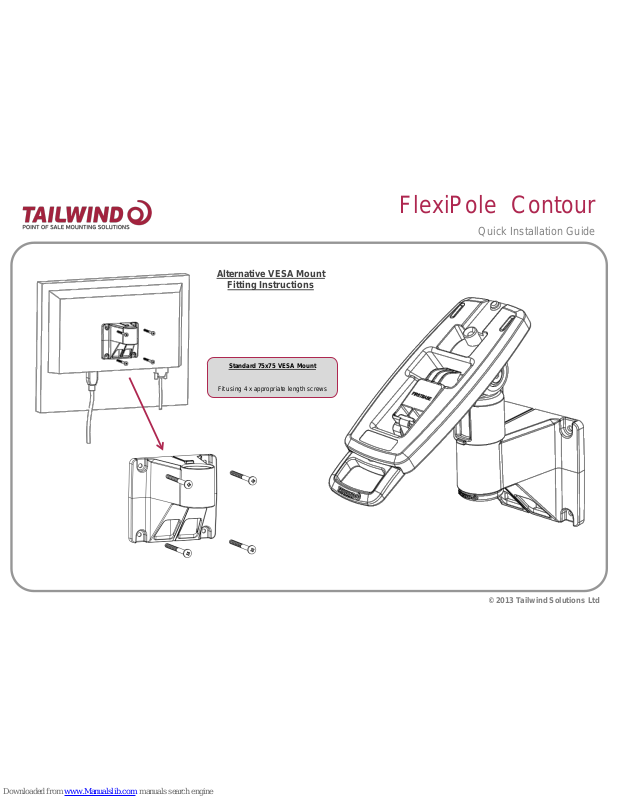

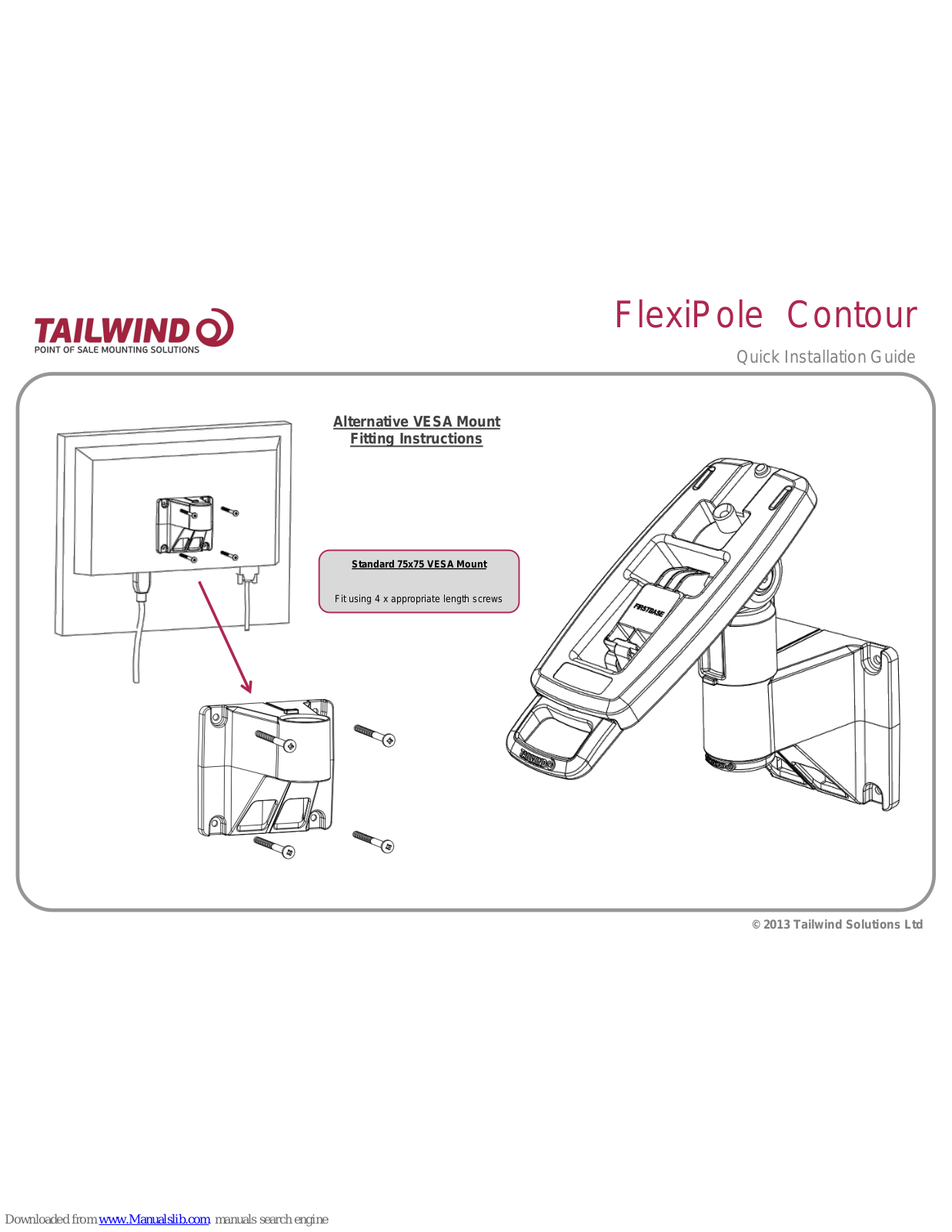

FlexiPole Contour
Quick Installation Guide
Alternative VESA Mount
Fitting Instructions
Standard 75x75 VESA Mount
Fit using 4 x appropriate length screws
© 2013 Tailwind Solutions Ltd

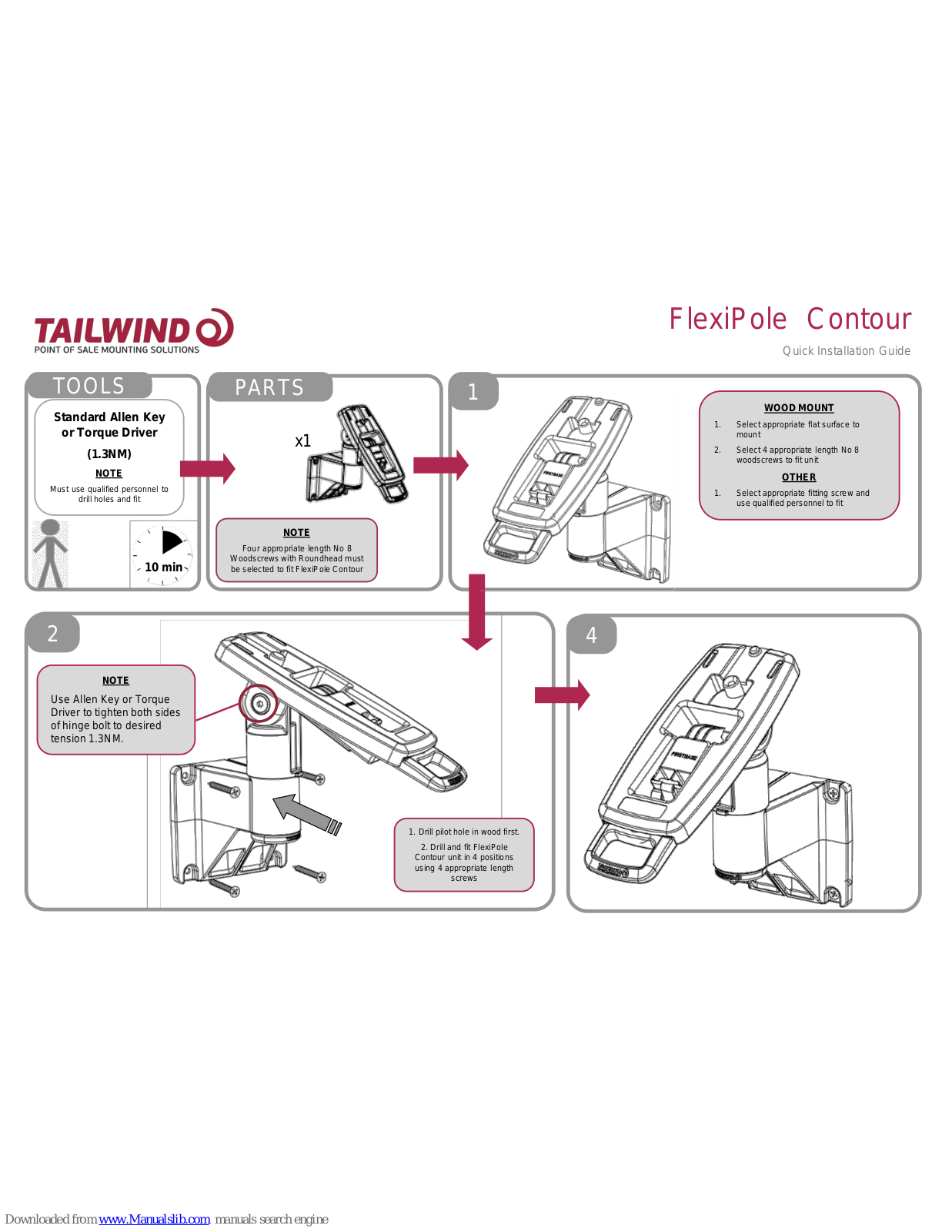

FlexiPole Contour
Quick Installation Guide
10 min
TOOLS
PARTS
x1
Standard Allen Key
or Torque Driver
(1.3NM)
NOTE
Must use qualified personnel to
drill holes and fit
2
WOOD MOUNT
1. Select appropriate flat surface to
mount
2. Select 4 appropriate length N o 8
woodscrews to fit unit
OTHER
1. Select appropriate fitting sc rew and
use qualified personnel to fit
1. Drill pilot hole in wood first.
2. Drill and fit FlexiPole
Contour unit in 4 positions
using 4 appropriate length
screws
1
NOTE
Four appropriate length No 8
Woodscrews with Roundhead must
be selected to fit FlexiPole Contour
4
NOTE
Use Allen Key or Torque
Driver to tighten both sides
of hinge bolt to desired
tension 1.3NM.
