3-AXIS Vandal proof IR Dome Camera
User manual
Thanks for purchasing our product. Before operating the unit, please read the instructions
carefully and keep this manual for future reference.
2
Table of contents
Safety Warnings.................................................................................................................................................3
Warranty...............................................................................................................................................................4
1. Introduction.................................................................................................................................................5
1.1. Main Features..................................................................................................................................5
1.2. Content List .....................................................................................................................................5
1.3. Specifications .................................................................................................................................6
2. Camera Overview.......................................................................................................................................7
2.1. Dimensions......................................................................................................................................7
2.2. Lens adjust ......................................................................................................................................7
2.3. 3-AXIS description.........................................................................................................................7
3. OSD Operation............................................................................................................................................9
3.1. OSD Control Buttons ....................................................................................................................9
3.2. OSD Operation................................................................................................................................9
4. Configuration ............................................................................................................................................10
4.1. LENS................................................................................................................................................10
4.2. SHUTTER/AGC..............................................................................................................................12
4.3. WHITE BAL(White Balance) ......................................................................................................14
4.4. BACKLIGHT...................................................................................................................................17
4.5. PICT ADJUST ................................................................................................................................18
4.6. ATR ..................................................................................................................................................19
4.7. MOTION DET (Motion Detection) .............................................................................................20
4.8. PRIVACY...............................................................................................................................
..........21
4.9. DAY/NIGHT ....................................................................................................................................23
4.10. NR.................................................................................................................................................25
4.11. CAMERA ID................................................................................................................................26
4.12. SYNC(synchronizing)..............................................................................................................27
4.13. LANGUAGE................................................................................................................................27
4.14. CAMERA RESET.......................................................................................................................28
4.15. SAVE ALL...................................................................................................................................29
4.16. EXIT..............................................................................................................................................29
3
Safety Warnings
1. Read this manual carefully before installing the unit
Please read this manual first for correct installation and operation.
2. Never install the camera on a ceiling that cannot hold its weight
The product may fall down and cause damages.
3. Never install the camera near electric or magnetic fields
Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,
audio speakers since the magnetic fields generate from above devices would distort the video
image.
4. Never install or use the camera in areas exposed to water, oil or gas
The water, oil or gas may result in operation failure, electric shock or fire. Do not use this
unit near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, near a swimming pool, in an unprotected outdoor installation, or any area which is
classified as a wet location.
5. Never face the camera toward the sun
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
6. Power Cord Protection
Touching the wet power cord with hands or touching the power cord with wet hands may
result in electric shock. Power supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, playing particular attention to
cords and plugs, convenience receptacles, and the point where they exit from the appliance.
7. Attachments
Do not use attachment not recommended by the product manufacturer as they may cause
hazards.
8. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock. Never
spill liquid of any kind onto the product.
9. Do not operate the camera in environments where the temperature, humidity or
power source is beyond the specified ones
Use the camera in suitable environments where the temperature is within -10°C~50°C and
humidity below 90%. Use the input power source as the specifications listed.
10. Cleaning
Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
11. Never disassemble the camera nor put impurities in it
Disassembly or impurities may result in trouble or fire.
12. Stop using when the product emits smoke or abnormal heat
13. Servicing
Do not attempt to repair this unit yourself as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
14. Retain Instructions
THE SAFETY AND OPERATING INSTRUCTIONS SHOULD BE RETAINED FOR
FUTURE REFERENCE.
4
Warranty
Tailand Products are covered under warranty for one year from the date of purchase. The
warranty will automatically be voided if any of the following occurs:
1. Camera sticker is removed
If the camera sticker is removed, we will not be able to confirm any information regarding
when and where the product was purchased. We have no other way to verify the purchase
record without the serial number on the camera sticker; therefore, it should not be removed.
2. Camera is modified in any way
If the camera is scratched, damaged, or modified in a manner not described in this manual,
the warranty will be voided immediately. It is the customer’s responsibility to keep the camera
in good condition.
3. Video or power cable is cut
The video cable and the power cable should not be tampered with. Cutting or modifying of
the cables will result in termination of the warranty.
NOTE:
The information in this manual was up-to-date when published. The manufacturer reserves
the right to revise and improve its products. All specifications are therefore subject to change
without notice.
5
1. Introduction
This camera built with Sony’s latest image processor, this super-wide dynamic camera has
the capability of achieving resolutions of over 650 TVL. The features include 2D noise
reduction, spot removal, strong-light suppression, intelligent motion detection and OSD
functions.
1.1. Main Features
1/3" Sony CCD
Sony Effio-E DSP
Color: 650 TVL
0.5 Lux at F1.2
Multi-Language OSD Control
Anti-Headlight (HLC)
2D Noise Reduction
High Contrast Images
Ideal for Backlight Environments
Mosaic Privacy Mask
Advanced Motion Detection Function
Picture Quality Adjustable (Contrast/Sharpness/Hue/Gain)
Water Resistance: IP66 ;
12V DC
1.2. Content List
One (1) camera with video/power cable
Two (2) Mounting Screws
One (1) DC Male Connector
One (1) Cleaning Cloth
One (1) Warning Sign Sticker
One (1) User Manual
One (1) CD
* For any returns, please include all components listed above with original packaging in
Resalable Condition. Absolutely No Returns will be accepted if any component is
missing/damaged or if any cable is cut or tampered with.
6
1.3. Specifications
Power Supply
Power
DC12V ±10%Max
VIDEO
Image Pick-up Device
1/3 inch Sony CCD
Total Pixels
PAL:752(H)*582(V)
NTSC: 768(H)*494(V)
Resolution
650TV Lines(Color)/700TV Lines(B/W)
Minimum Illumination
0.5 Lux at F1.2
Wide Dynamic Range
52dB
Video Output
1.0Vp-p Composite, 75Ω ; BNC
S/N Ratio
More than 50dB(AGC Correct OFF)
IR LED ;
Working Distance
20units (IR LEDs on <0 Lux, IR LEDs off >5 Lux) ; Outdoor: 20m
Menu
OSD Control
Sync. Mode
Internal
Electronic Shutter
AUTO (1/50(60)~1/100,000sec.) /MANUAL: 1/50(60), FL 1/120(100), 1/250,
1/500, 1/1,000, 1/2,000,1/4,000, 1/10,000sec
AGC
AUTO (4 Steps)
White Balance
ATW / PUSH / USER1 / USER2 / ANTI CR /MANUAL / PUSH LOCK
Back Light Compensation
HLC / BLC / OFF
Dynamic Noise Reduction
2D
Language
ENGLISH /CHINESE
Motion Detection ; Privacy
ON / OFF (4 Zones) ;
ON / OFF (4 Zones Programmable, Mosaic)
Iris Control
DC IRIS
Lens Mount
C/CS
Lens
F4 mm~9mm / F1.2
Water Resistance
IP66
Operation Temperature
-10~50°C
Humidity Range
-20~60°C
Dimension
￠112×110（H）mm
Weight Approx
910g
7

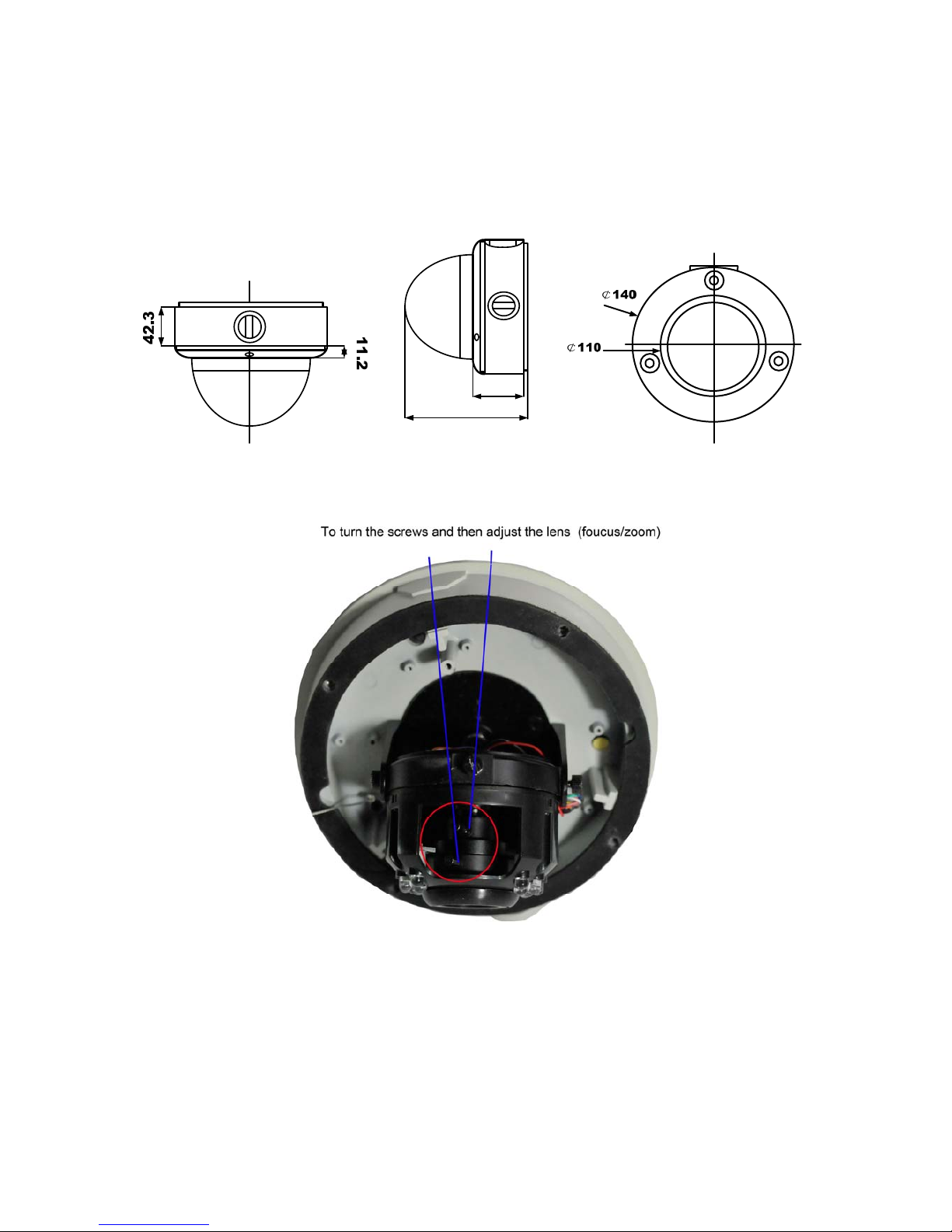

2. Camera Overview
2.1. Dimensions
54
112.2
2.2. Lens adjust
2.3. 3-AXIS description
8
9

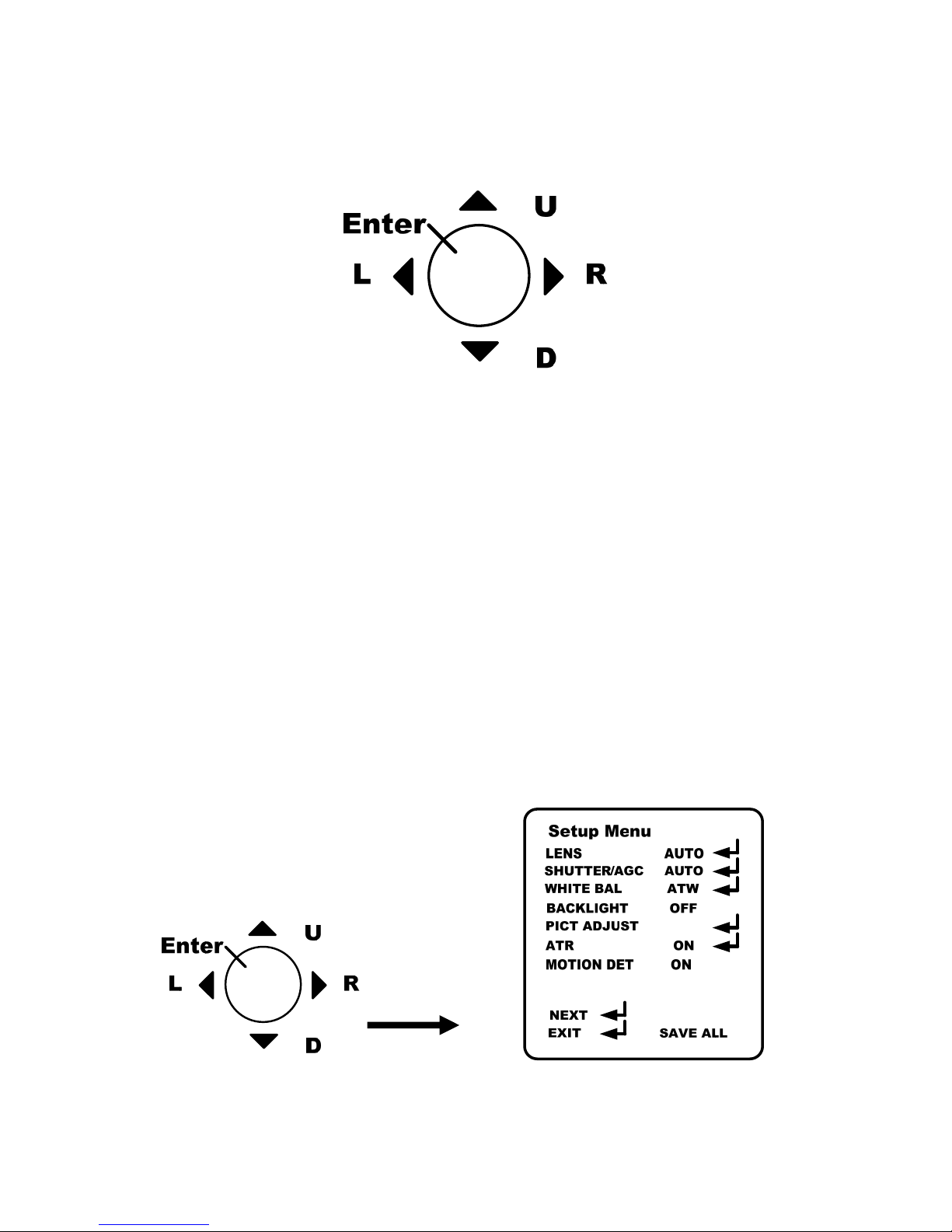

3. OSD Operation
3.1. OSD Control Buttons
U (UP)
Use this button to move the cursor upwards to the desired item.
R (RIGHT)
Use this button to move the cursor to the right to select or to adjust the parameters of
the selected item. The parameter increases when the right button is pressed.
D (DOWN)
Use this button to move the cursor downwards to the desired item.
L (LEFT)
Use this button to move the cursor to the left to select or to adjust the parameters of
the selected item. The parameter decreases when the left button is pressed.
ENTER
Use this button to display the main menu, to confirm and to enter the submenus when
they’re available. Items with the symbol “
<┘” in the end contain sub-menus. For further settings
of those items, select the desired item with the button or and press the ENTER button to
bring up the sub-menu and edit.
3.2. OSD Operation
1. Start to operate the OSD menu
Press the ENTER button to bring up the OSD main menu to start operating OSD menus.
2.
Select items with the cursor buttons
