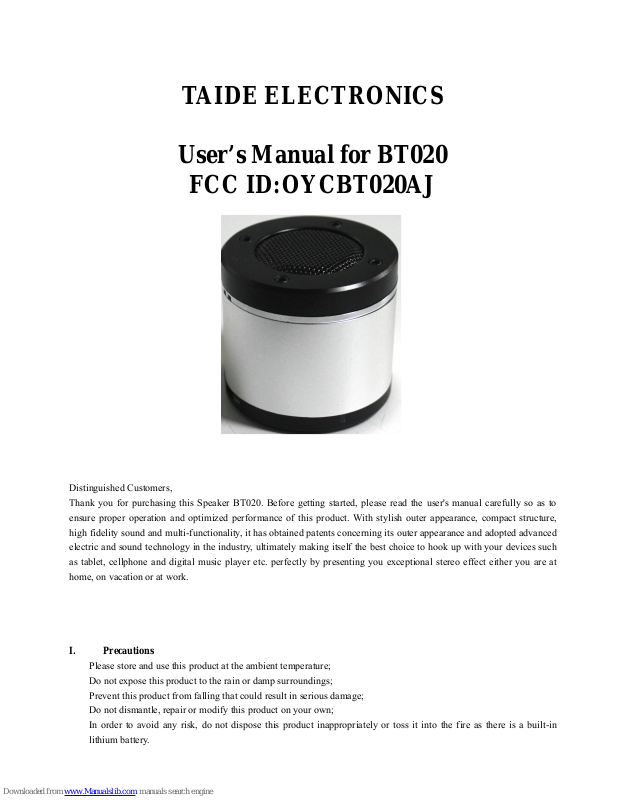

TAIDE ELECTRONICS
User’s Manual for BT020
FCC ID:OYCBT020AJ
Distinguished Customers,
Thank you for purchasing this Speaker BT020. Before getting started, please read the user's manual carefully so as to
ensure proper operation and optimized performance of this product. With stylish outer appearance, compact structure,
high fidelity sound and multi-functionality, it has obtained patents concerning its outer appearance and adopted advanced
electric and sound technology in the industry, ultimately making itself the best choice to hook up with your devices such
as tablet, cellphone and digital music player etc. perfectly by presenting you exceptional stereo effect either you are at
home, on vacation or at work.
I. Precautions
Please store and use this product at the ambient temperature;
Do not expose this product to the rain or damp surroundings;
Prevent this product from falling that could result in serious damage;
Do not dismantle, repair or modify this product on your own;
In order to avoid any risk, do not dispose this product inappropriately or toss it into the fire as there is a built-in
lithium battery.
II. Considerate Hints
1) Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or
impair your hearing;
2) When encountering any fault during operation, please cut off the power supply and disconnect the USB cable to
prevent further damage to the speaker or other components;
3) The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please
recharge immediately.
III． Outer Appearance and Function Buttons
IV. Product Parameters
Product Model：BT020
Bluetooth Specifications：Bluetooth V3.0
Transmission Distance：≤10M (depending upon operation environment and devices to which it connects)
USB Recharge Voltage: DC 5V
Built-in Battery: Lithium battery
Frequency Response: 90Hz-20KHz
Sensitivity: 80db±2db
Signal to Noise Ratio (SNR):≥80dB
Product Dimensions: φ62×D58MM
V. System Composition
1) Speaker 1set
2) User's Manual/Warranty Card 1copy
VI. Common Function Description
Power-on Status: Press the Power Button to turn the speaker on and it beeps simultaneously with the blue indicator
flashing.
Bluetooth Connection: Once switched on, the speaker starts searching for other Bluetooth devices automatically and at
the same time, the blue indicator goes on and off. When found a Bluetooth device, the speaker
prompts whether to pair up or not. If selected Yes, it pairs up with the device and meanwhile, the
blue indicator flashes slowly and a beep is also generated by the speaker. If failed to detect any
other Bluetooth device within 5minutes, the speaker will shut itself down. Turn it back on again
Micro USB and AUX
Sling hole
On and OFF
Indicator light
Bluetooth function button
Total Net Weight:360 g
