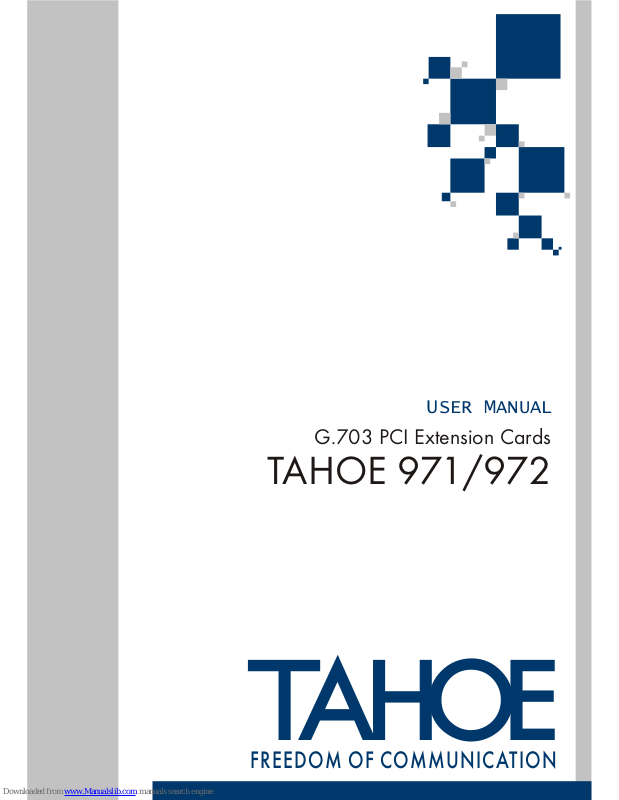

G.703 PCI Extension Cards

TAHOE 971/972

FREEDOM OF COMMUNICATION

USER MANUAL

Page 2

Page 3

TABLE OF CONTENTS

1. Introduction ......................................................................... 1

2. Card installation ................................................................. 2

3. Drivers installation .............................................................. 3

3.1. Linux drivers ..................................................................... 3

3.2. FreeBSD drivers .............................................................. 5

3.3. Using sethdlc ................................................................... 6

4. Frame Relay setup .............................................................. 9

5. Technical data .................................................................... 10

6. Declaration of Conformity ................................................ 11

Page 4

Tahoe 971 (one G.703 port)

Tahoe 972 (two G.703 ports)

User Manual

http://www.tahoe-group.com/

Other trademarks of other companies are used only for explanation and to

the owner's benefit, without intent to infringe.

Tahoe assumes no responsibility for any errors or omissions that may appear in

this document. Tahoe makes no commitment to update the information

contained here, and may make changes at any time without notice.

Page 5

1. Introduction

The intelligent Tahoe 970 series PCI interface cards are equipped with one or two G.703 ports working with throughputs up to 2048 kbps. The use of E1 streams never was that easy - now the data stream may be plugged directly into the PC and the operating system treats it as a regular network interface.

The built-in hardware HDLC controller fully services the data transmission, thus the PC processor isn’t unnecessarily loaded.

Both Linux and FreeBSD drivers are available, supporting Frame

Relay, HDLC, Cisco HDLC, X.25 and synchronous PPP protocols.

Page 6

2. Card installation

Following steps should be taken to install the card:

¡ disconnect the power cable from the power supply ¡ remove the case ¡ find an unoccupied PCI slot ¡ unscrew the masking plate in the rear of the free PCI slot ¡ insert the card into the slot (the card connectors should be

accessible through the rear opening in the case)

¡ screw on the card firmly to the case ¡ close the case and switch the power on

After installing the card connect the G.703 port to the external

G.703 device (e.g. a HDSL modem).

The G.703 port has a RJ-45 connector. The G.703 standard doesn’t specify the connector pinout, but the pinout used is the most common in the industry, thus in most cases a regular straight patch-cord may be used to connect the card to the external device.

Anyway the pinout should be carefully checked before connecting the DCE device. The RX+ pin of the card should be connected to the TX+ pin of the other device, the RX- pin to the TX- pin, TX+ to RX+ and TX- to RX-.

1 8

Pin Signal

1 Rx+ (input) 2 Rx- (input) 3 4 Tx+ (output) 5 Tx- (output) 6 7 8 -

3.1.1

Page 7

3. Drivers installation

Tahoe WAN PCI cards are supplied with Linux and FreeBSD

drivers. The Linux drivers consist of two parts:

¡ a patch for the Linux kernel ¡ a sethdlc utility used to configure the card

The FreeBSD drivers consist of:

¡ a kernel module ¡ a sethdlc utility

The CD-ROM enclosed contains separate directories for each of

the operating systems.

3.1. Linux drivers

The “linux” directory contains:

hdlc-2.4.24-1.15t.patch

¡ - a kernel patch

sethdlc-1.15t.tar.gz

¡ - sethdlc source code

linux-2.4.24.tar.gz

¡ - original Linux kernel source code

linux-2.4.24-tahoe.tar.gz

¡ - Linux kernel source code with

driver patch applied

3.1.1. Linux kernel compilation

Follow these steps to compile the Linux kernel with drivers

included:

linux-2.4.24-

¡ copy the kernel sourced from the CD-ROM (

tahoe.tar.gz

- with patch applied)

¡ uncompress it in the /usr/src directory:

root@linux ~ # cd /usr/src root@linux /usr/src # tar -zxvf linux-2.4.24.tar.gz root@linux /usr/src # ln -sf linux linux-2.4.24

¡ configure kernel:

root@linux /usr/src # cd linux root@linux /usr/src/linux # make menuconfig

Enter the "Network device support" menu, then choose the

"WAN interfaces" submenu and mark the "WAN interfaces support"

3.1.1

3.1

Page 8

option. A list of options will appear, on which you should select "Generic HDLC layer", appropriate protocols (like "Frame Relay support") and Tahoe card drivers ("Tahoe 9xx support"). You can insert them permanently into the kernel ("<*>") or compile as a module ("<M>").

¡ besides Tahoe drivers you may need to enable other options like

the Ethernet card support, SCSI drivers, multimedia devices, etc.

¡ after configuring a kernel it should compiled:

root@linux /usr/src/linux # make dep root@linux /usr/src/linux # make clean root@linux /usr/src/linux # make bzImage

A new kernel should be now installed.

3.1.2. New Linux kernel installation

After the compilation, the kernel is placed in a file named /usr/src/linux/arch/i386/boot/bzImage. Now you should copy it to the /boot directory changing its name to a more meaningful one:

root@linux /usr/src/linux # cp arch/i386/boot/bzImage /boot/vmlinuz-2.4.24-tahoe

Then you have to install it. The most widely used kernel loader is LILO (Linux Loader). In its configuration file - /etc/lilo.conf - at the end you should add new section:

image = /boot/vmlinuz-2.4.24-tahoe

label = Tahoe root = /dev/hda1 read-only

Instead of /dev/hda1 you may need to enter the name of the partition where the Linux root filesystem resides.

To install LILO with new settings simply type 'lilo'. Then you can force loading of a new kernel at the next system boot:

root@linux ~ # lilo root@linux ~ # lilo -R Tahoe

After entering these commands you should restart your system it will boot with the new kernel. If everything works fine, you can add a line ‘default = Tahoe' to the /etc/lilo.conf file and type 'lilo', so the kernel labeled 'Tahoe' will be the default one used at the system boot.

If for some reason you cannot use this kernel (e.g. drivers for

3.1.2

Page 9

other system components are missing), you may simply reboot your system and the old kernel will be loaded again.

If the drivers were compiled as a module, then after booting of

the new kernel you should load them:

root@linux ~ # modprobe tahoe9xx

In the /var/log/messages file you should see messages

confirming successful loading of the drivers and detecting a card:

kernel: Tahoe 9xx driver version: 1.15t kernel: Tahoe972: 256 KB RAM at 0xd9000000, IRQ5, using 10 TX + 75 RX packets rings kernel: hdlc0: Tahoe972 node 0 kernel: hdlc1: Tahoe972 node 1

If the modules were permanently compiled into the kernel, then such messages will appear during the system boot. You can review them using the dmesg command.

Since now there are new interfaces available - hdlc0 and hdlc1 (or hdlc0 alone in case of one-port cards).

The next step is to configure the card using the sethdlc utility (described after the FreeBSD installation section)

3.2. FreeBSD drivers

The “freebsd” directory contains:

if_th.ko

¡ - a kernel module

sethdlc-1.15t.tar.gz

¡ - sethdlc source code

Copy the drivers from the CD-ROM and unpack them using following command:

tar -zxvlf tahoe9xx-freebsd5.1.tar.gz

(instead 5.1 there may be 4.8 in case of FreeBSD 4.8 drivers)

Directory tahoe9xx-freebsd5.1 will be created, containing kernel module and source code of sethdlc utility. To compile and install drivers enter:

make install

Driver module if_th.ko will be installed in modules directory - /boot/kernel in case of FreeBSD 5.1 or /modules in case of FreeBSD

3.2

Page 10

4.8. Now it can be loaded using kldload if_th command or by bringing the interface up: ifconfig th0 up. One interface - th0 - is added when using one-port card and two interfaces - th0 and th1 - when using twoport card.

Now the card sould be configured using the sethdlc utility.

3.3. Using sethdlc

The sethdlc utility is used to configure the WAN card. In case of FreeBSD drivers it is compiled and installed along with the kernel modules. In case of Linux drivers it is supplied in a separate file and additional steps must be followed to install it:

root@linux /usr/src # tar -zxvf sethdlc-1.15t.tar.gz root@linux /usr/src # cd sethdlc-1.15t root@linux /usr/src/sethdlc-1.15t # make root@linux /usr/src/sethdlc-1.15t # make install

3.3.1. WAN protocol choice

The sethdlc utility may be used to select the protocol used on the WAN link. Some of the options are available in the Linux driver only. Under Linux configure the hdlc0 and hdlc1 interfaces and under FreeBSD

- th0 and th1.

¡ transparent HDLC (Linux driver only):

sethdlc hdlc0 hdlc [encoding] [parity]

where:

encoding nrz nrzi fm-mark fm-space manchester

¡ is one of: , , , ,

parity no-parity crc16 crc16-pr0 crc16-itu crc16-

¡ : ,,,,

itu-pr0 crc32-itu

¡ HDLC treated as an Ethernet interface (Linux driver only):

sethdlc hdlc0 hdlc-eth

[encoding] [parity]

parameters same as above

¡ Cisco HDLC:

sethdlc hdlc0 cisco [interval value] [timeout value]

where:

interval value

¡ is the time between subsequent keepalive

3.3.2

3.3

3.3.1

Page 11

packets sent through the interface

timeout value

¡ is the time, after which in case of no reception

of keepalive frames the link is treated as unusable

¡ Frame Relay:

sethdlc hdlc0 fr [lmi type [parameter]]

where:

type none ansi ccitt

¡ is the LMI type: , ,

parameter dce (Linux

¡ is a Frame Relay protocol parameter:

only) t391 value t392 value n391 value n392 value n393

,,,,,

value

Moreover in case of Frame Relay protocol you can create and

delete PVCs (Permanent Virtual Channels) with given DLCI values:

sethdlc hdlc0 create 99 sethdlc hdlc0 delete 99

After creating a PVC, a new interface is created. Under Linux these interfaces have names pvc0, pvc1 and so on. Under FreeBSD the name depends on the DLCI number. In the example above a pvc99 interface would be created

¡ Synchronous PPP:

sethdlc hdlc0 ppp

3.3.2. Timeslots selection

For a proper operation of the G.703 port you have to specify,

which timeslots are used for transmission. Timeslots can be given in two

ways - as a list of numbers (from 1 to 32) and ranges separated by commas or as a string of zeros and ones (where '0' means an unused slot and '1' - an used one, with the first slot at the beginning of the string):

¡ sethdlc hdlc0 slotmap 2-8,20-21,25 ¡ sethdlc hdlc0 slotmap 01111111000000000001100010000000

Use of the first timeslot automaticaly enables unframed mode, where whole 2048 kbps are used for data transfer. Otherwise the first timeslot is used for framing synchronization. You can also enable the unframed mode by typing:

sethdlc hdlc0 slotmap all

3.3.2

Page 12

3.3.3. CRC4 checksum

The command below enables and disables, respectively, the CRC4

checksum transmission:

sethdlc hdlc0 crc4 on sethdlc hdlc0 crc4 off

3.3.4. Port range and sensivity selection

The command below switches betweed short haul (50m range)

and long haul (2000m range) mode:

sethdlc hdlc0 short sethdlc hdlc0 long

3.3.4

3.3.3

Page 13

4. Configuring the Frame Relay

After setting up a connection to the Frame Relay network, user is usually supplied with following information:

LMI signaling: ANSI

DLCI number: 99

Remote router address: 194.204.100.129

Client router address: 194.204.100.130

WAN link subnet: 194.204.100.128

Subnet mask: 255.255.255.252

After compiling and installing the drivers described below commands should be issued to configure the Frame Relay access - set the LMI signaling and create the PVC interface.

4.1. Linux

sethdlc hdlc0 fr lmi ansi sethdlc hdlc0 create 99 ifconfig hdlc0 up

A new pvc0 interface would appear. It should be configured using the ifconfig command to set supplied IP addresses:

ifconfig pvc0 194.204.100.130 netmask 255.255.255.252

pointopoint 194.204.100.129

4.2. FreeBSD

ifconfig th0 up sethdlc th0 fr lmi ansi sethdlc th0 create 99

A new pvc99 interface would appear. It should be configured using the ifconfig command:

ifconfig pvc99 194.204.100.130 194.204.100.129

4.2

4.1

Page 14

5. Technical data

¡ serial interface controller:

Hitachi HD64570, 10MHz

¡ maximum throughput:

2048 kbps per port

¡ G.703 interface

§ balanced, 120W, RJ-45 connector

§ G.704 framing

§ CRC4 support

§ receiver sensitivity: -12 dB or -43 dB

§ reach: 50 m or 2000 m

¡ PCI connector:

32-bit, 5V, 33MHz, PCI v2.1 compliant

¡ maximum power consumption:

Tahoe 971 630 mA @ 5V (3,15W) Tahoe 972 700 mA @ 5V (3,50W)

¡ environmental conditions:

storage: temperature -20°C to 65°C

humidity 5 to 95%

operation: temperature 0°C to 40°C

humidity 0 to 85%

Page 15

6. Declaration of Conformity

We declare that the products Tahoe 971 and Tahoe 972 comply with the regulations of the following European Directives:

¡ 73/23/EEC low voltage safety requirements ¡ 89/336/EEC EMC requirements ¡ 99/5/EEC radio & telecommunication terminal

equipment requirements

The compliance of Tahoe 971 and Tahoe 972 with the requirements of the above mentioned directives is ensured by complete application of the following harmonized European Standards:

¡ EN 60950:2000 ¡ EN 55022:1998 ¡ EN 61000-6-1:2002 ¡ EN 61000-6-3:2002

Signed: Piotr Kaczmarzyk Position: Director

Signature:

Date: 30 Mar 2004 Place: Wroclaw, Poland
