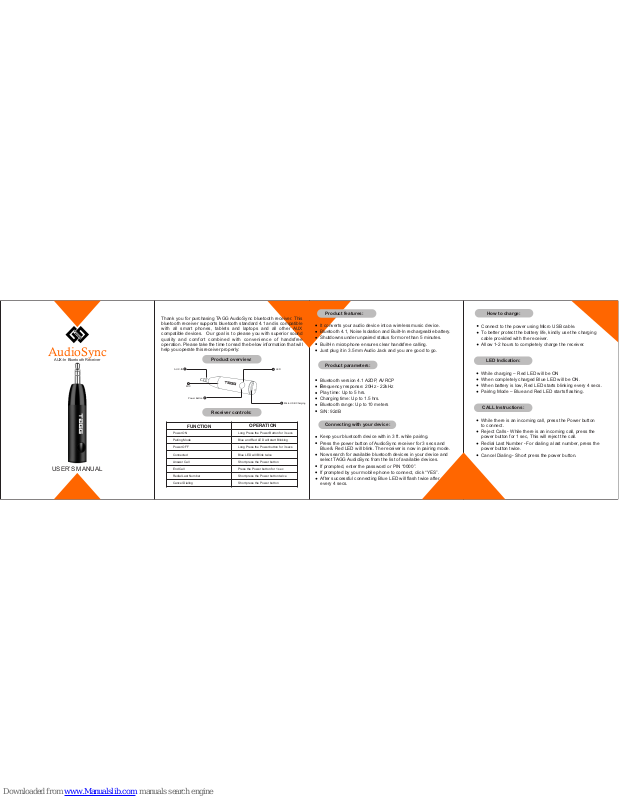

USER’S MANUAL
Thank you for purchasing TAGG AudioSync bluetooth receiver. This
bluetooth receiver supports bluetooth standard 4.1 and is compatible
with all smart pho nes, tablets an d laptops and a ll other AUX
compatible devices. Our goal is to please you with superior sound
qualit y and comfo rt combined with conve nience of h andsfree
operation. Please take the time to read the below information that will
help you operate this receiver properly:
FUNCTION
OPERATION
Power ON
Pairing Mode
Power OFF
Connected
End Call
Redial Last Number
Cancel Dialing
Blue and Red LED will start Blinking
Long Press the Power button for 3 secs
Blue LED will Blink twice
Short press the Power button
Press the Power button for 1 sec
Short press the Power button twice
Short press the Power button
Answer Call
Long Press the Power Button for 3 secs
Product features:
It converts your audio device into a wireless music device.
Bluetooth 4.1, Noise Isolation and Built-In rechargeable battery.
Shutdowns under unpaired status for more than 5 minutes.
Built-In microphone ensures clear handsfree calling.
Just plug it in 3.5mm Audio Jack and you are good to go.
Product parameters:
Bluetooth version 4.1 A2DP, AVRCP
Frequency response: 20Hz - 22kHz
Play time: Up to 5 hrs.
Charging time: Up to 1.5 hrs.
Bluetooth range: Up to 10 meters
S/N: 92dB
Connecting with your device:
Keep your bluetooth device with in 3 ft. while pairing.
Press the power button of AudioSync receiver for 3 secs and
Blue & Red LED will blink. The receiver is now in pairing mode.
Now search for available bluetooth devices in your device and
select TAGG AudioSync from the list of available devices.
If prompted, enter the password or PIN “0000”.
If prompted by your mobile phone to connect, click “YES”.
After successful connecting Blue LED will flash twice after
every 4 secs.
How to charge:
Connect to the power using Micro USB cable.
To better protect the battery life, kindly use the charging
cable provided with the receiver.
Allow 1-2 hours to completely charge the receiver.
LED Indication:
While charging – Red LED will be ON
When completely charged Blue LED will be ON.
When battery is low, Red LED starts blinking every 4 secs.
Pairing Mode – Blue and Red LED starts flashing.
CALL Instructions:
While there is an incoming call, press the Power button
to connect.
Reject Calls - While there is an incoming call, press the
power button for 1 sec, This will reject the call.
Redial Last Number - For dialing a last number, press the
power button twice.
Cancel Dialing - Short press the power button.
AudioSync
AUX-In Bluetooth Receiver
5
1
2
4
Power Button
AUX -IN
LED
3
MIC
Micro USB Charging
B
Product overview:
Receiver controls:
Reconnect the receiver:
If the connection is lost, TAGG AudioSync will try to reconnect
automatically.
If it does not reconnect, kindly press the power button for 3
secs and connect manually through your mobile device.
Common Problems and Solution:
Thank you very much for choosing TAGG as your trusted brand of
bluetooth receiver and we sincerely hope you enjoy the great quality
and comfort TAGG provides. We love making our customers
happy by providing true value with our products. If for any reason
you are not completely satisfied with your purchase let us know
immediately and we will do anything to make sure you are happy.
Contact Us : support@taggdigital.com
Website : www.taggdigital.com
We are Social, Follow us on:-
https://www.facebook.com/TAGGDigital/
https://twitter.com/TAGGOfficial
https://www.instagram.com/tagg_digital/
https://www.youtube.com/channel/UCjLX5UcN_tHFaMeFBpIqJhg
Accessories List:
Avoid Overcharging.
Do not keep the receiver in closed area and being exposed to hot
temperature.
Never disassemble or modify your receiver because of
any reason.
Make sure the receiver does not get wet.
Safety Rules:
Exceptional Warranty:
TAGG AudioSync Bluetooth Receiver
Micro USB Charging Cable
User’s Manual
FCC I D: 2AML XBTR0 06
We offer simply the best, customer support that will never rest
until you are absolutely satisfied!
TAGG products come with 12 months replacement warranty.
Product registration is mandatory on our website within 15 days
of your purchase in case you want to claim the warranty.
Kindly restart the phone and receiver and try pairing again.
The receiver needs to be charged. Also, make sure that you
are not beyond the signal distance.
If the Mobile Can't find the Receiver:
There's always noise and Bluetooth keeps disconnecting:
Bluetooth is connected but unable to listen music:
Check your settings to adjust the sound on handsfree mode.
Some mobile require you to select the device twice.
Some mobile device don't have complete stereo Bluetooth.
Kindly connect the receiver with another device to check if it is
working properly.
