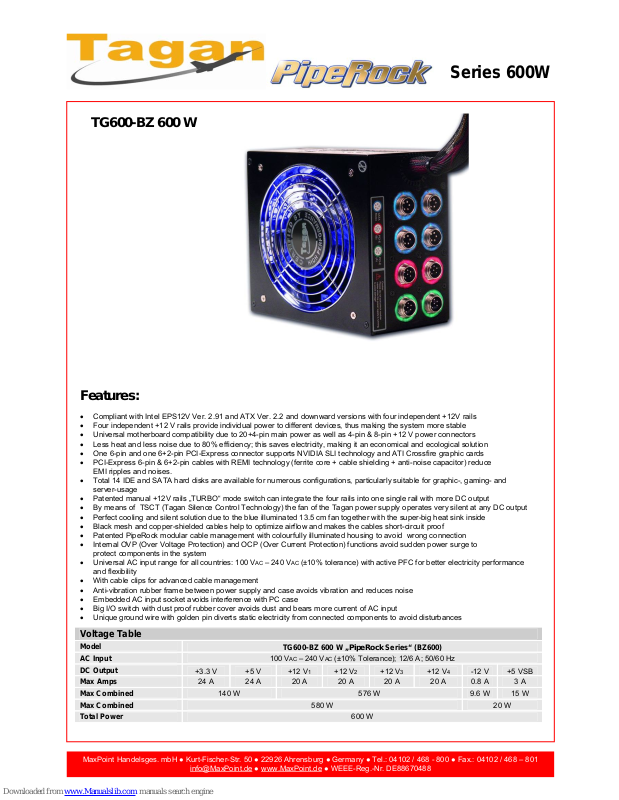

Series 600W
TG600-BZ 600 W
MaxPoint Handelsges. mbH ● Kurt-Fischer-Str. 50 ● 22926 Ahrensburg ● Germany ● Tel.: 04102 / 468 - 800 ● Fax.: 04102 / 468 – 801
info@MaxPoint.de
● www.MaxPoint.de ● WEEE-Reg.-Nr. DE88670488
Features:
• Compliant with Intel EPS12V Ver. 2.91 and ATX Ver. 2.2 and downward versions with four independent +12V rails
• Four independent +12 V rails provide individual power to different devices, thus making the system more stable
• Universal motherboard compatibility due to 20+4-pin main power as well as 4-pin & 8-pin +12 V power connectors
• Less heat and less noise due to 80% efficiency; this saves electricity, making it an economical and ecological solution
• One 6-pin and one 6+2-pin PCI-Express connector supports NVIDIA SLI technology and ATI Crossfire graphic cards
• PCI-Express 6-pin & 6+2-pin cables with REMI technology (ferrite core + cable shielding + anti-noise capacitor) reduce
EMI ripples and noises.
• Total 14 IDE and SATA hard disks are available for numerous configurations, particularly suitable for graphic-, gaming- and
server-usage
• Patented manual +12V rails „TURBO“ mode switch can integrate the four rails into one single rail with more DC output
• By means of TSCT (Tagan Silence Control Technology) the fan of the Tagan power supply operates very silent at any DC output
• Perfect cooling and silent solution due to the blue illuminated 13.5 cm fan together with the super-big heat sink inside
• Black mesh and copper-shielded cables help to optimize airflow and makes the cables short-circuit proof
• Patented PipeRock modular cable management with colourfully illuminated housing to avoid wrong connection
• Internal OVP (Over Voltage Protection) and OCP (Over Current Protection) functions avoid sudden power surge to
protect components in the system
• Universal AC input range for all countries: 100 V
AC – 240 VAC (±10% tolerance) with active PFC for better electricity performance
and flexibility
• With cable clips for advanced cable management
• Anti-vibration rubber frame between power supply and case avoids vibration and reduces noise
• Embedded AC input socket avoids interference with PC case
• Big I/O switch with dust proof rubber cover avoids dust and bears more current of AC input
• Unique ground wire with golden pin diverts static electricity from connected components to avoid disturbances
Voltage Table
Model
TG600-BZ 600 W „PipeRock Series“ (BZ600)
AC Input 100 VAC – 240 VAC (±10% Tolerance); 12/6 A; 50/60 Hz
DC Output
+3.3 V +5 V +12 V1 +12 V2 +12 V3 +12 V4 -12 V +5 VSB
Max Amps 24 A 24 A 20 A 20 A 20 A 20 A 0.8 A 3 A
Max Combined 140 W 576 W 9.6 W 15 W
Max Combined 580 W 20 W
Total Power 600 W
Series 600W

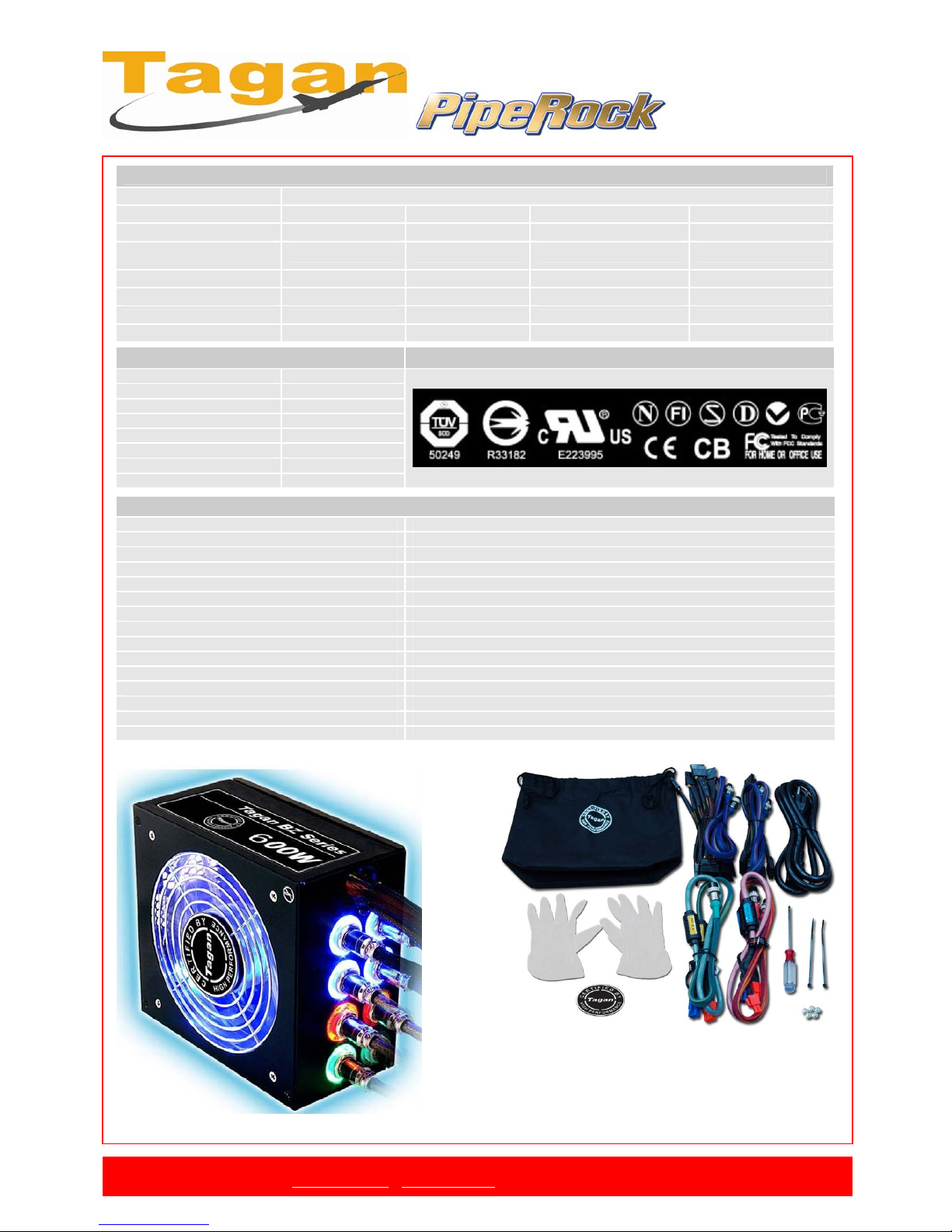

Cable Table
Model:
TG600-BZ 600 W „PipeRock Series“ (BZ600)
Number of cables: Cables: +12V rail: Cable exposed length:
Mainboard (20+4) 1
On board
12 V1 500 mm
ATX12V (8P or 4P+4P) and
EPS12V (4+4P)
1 On board 12 V2 500~550 mm
3 x Molex(4P) + 1x FDD(4P) 2
Modular
12 V1 450+150+150+150 mm
4 x SATA(5P) 2
Modular
12 V1 450+150+150+150 mm
PCI-E (6P)+PCI-E(6+2P) 1
Modula
12 V3, 12 V4 500+150 mm
Ground wire 1
On board
12 V3, 12 V4 500 mm
Accessories Certificates
Item Qty
Power cord 1
Cable band 2
Chassis screw 5
User manual 1
Anti-Vibration rubber 1
Screwdriver 1
Glove (pair) 1
MaxPoint Handelsges. mbH ● Kurt-Fischer-Str. 50 ● 22926 Ahrensburg ● Germany ● Tel.: 04102 / 468 - 800 ● Fax.: 04102 / 468 – 801
info@MaxPoint.de
● www.MaxPoint.de ● WEEE-Reg.-Nr. DE88670488
Logistical Data
Article number 12565
Article TG600-BZ 600 W „PipeRock Series“
EAR registration number EAR888-62976468
Packaging unit 5 pieces
Net weight per piece 2.92 kg
Gross weight per piece 3.56 kg
Gross weight per carton 18.8 kg
Pieces per pallet 120 pieces
Net dimensions per piece (W x H x D) 150 x 85 x 160 mm
Gross dimensions per piece (W x H x D) 300 x 250 x 120 mm
Gross dimensions per carton (W x H x D) 605 x 265 x 320 mm
Colour Black
EAN-barcode 4710713242661
Custom tariff number 85044030
Country of origin PR China
