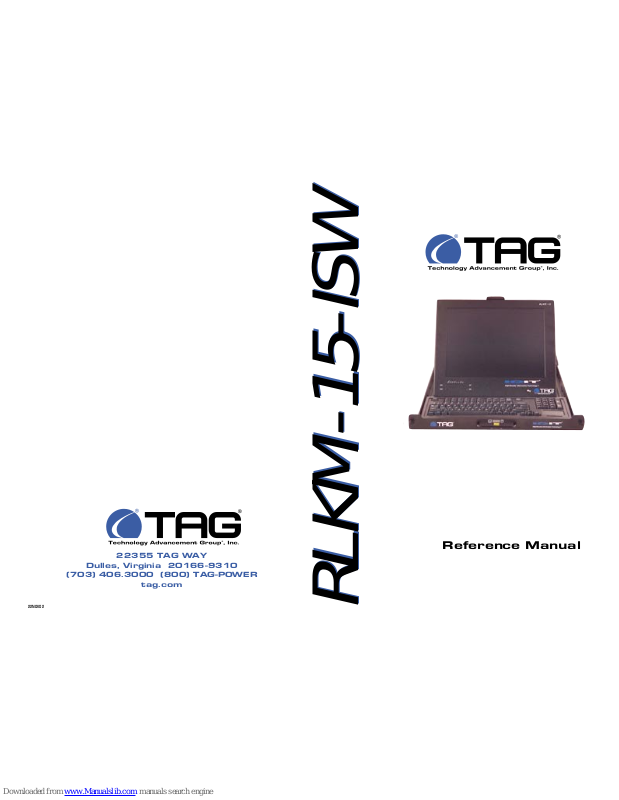

Page 1
22355 TAG WAY
Dulles, Virginia 20166-9310
(703) 406.3000 (800) TAG-POWER
tag.com
22NOV02
RLKM-15-ISW
Reference Manual
RLKM-15-ISW
Page 2
The RLKM-15-ISW is held in place within the rack enclosure by captivated
thumbscrews. The drawer will slide free once the thumbscrews have been
loosened. Slide the RLKM-15-ISW completely from the rack. The LCD is fastened to the drawer with a spring loaded catch, located at top of the LCD.
Slide the catch to the released position and lift the LCD from the top grab
handle. A portion of the drawer may be slid back into the rack to allow for
easier access to the systems located beneath. Make sure the slide rails lock
the RLKM-15-ISW in place. The RLKM-15-ISW is now ready for use.
Opening The RLKM-15-ISW Notes
Page 3
The RLKM-15-ISW is fully controlled by the control panel located at the front
of the unit. There are four control buttons which control the parameters and
display options for the RLKM-15-ISW.
RST Button - Pressing this button will reset the display options to TAG
Factory default settings.
SEL Button - Pressing this button will toggle between the adjustment
modes depicted by the glowing strip of red LED indicators.
UP Button - Increments or raises the value of the selected mode.
DN Button - Decrements or lowers the value of the selected mode.
Front Panel Controls
UP
DN
SEL
RST
BRIGHT
CONT
HTOT
DELAY
VD
HD
AUTO
RST
KVM Switch
Integrated 4-port keyboard, monitor, & mouse switch
1. Easy PC access switching capability via hot key selections from
keyboard
2. Superior video quality that supports up to 1024 x 768 resolution
3. Compact, rugged space saving design
Page 4
Auto Adjust
Select this function to automatically adjust system setting for optimal performance.
Brightness
Select this function to adjust the luminosity level of the display.
Clock
Select this function to adjust the Horizontal size and clock phase.
Position
Select this function to adjust the vertical & horizontal position.
Contrast
Select this function to adjust the black level of the display.
Color Level
Select this function to adjust the White, Red, Green, and Blue levels of the
display.
Information
Select this function to determine the current Hf, Vf and resolution.
OSD Position
Select this function to adjust the position of the OSD menu.
All Reset
Resets all OSD menu to factory settings.
No Power
•Make sure A/C power cord is securely connected to the power outlet.
•Verify power outlet is “hot”.
Power On But No Screen Image
•Verify video cable is securely attached to LCD video port.
•Adjust the brightness and contrast controls at the rear of the unit.
Flickering
•Not enough power is being supplied to the RLKM-15-ISW. Connect the
LCD monitor to a different power outlet. If a surge protector is being
used, there may be too many devices plugged in.
Wrong or Abnormal Colors
•If any colors (Red, Green, Blue) are missing, check the video cable to
make sure it is securely connected. Loose pins in the cable connector
could cause a bad connection.
•Connect the LCD monitor to another computer.
•Check the graphics card for proper sync scheme.
Double (Split) Screen Image
•Make sure graphics card is set to Non-Interlaced mode.
Entire Screen Image Roll (Scrolls) Vertically
•Make sure the input signals are within the LCD monitor’s specified
Frequency range. (VESA 1024x768 / 75Hz)
•Connect the video cable securely.
•Try the LCD monitor with another power source.
For more information, please contact
TAG Technical Support 24x7x365
OCONUS: +1 (703) 406.4516
CONUS: 1(877) TAG-TECH
tag.com
Pressing SEL button will display this menu:
On-Screen Display Menu Options Troubleshooting The RLKM-15-
