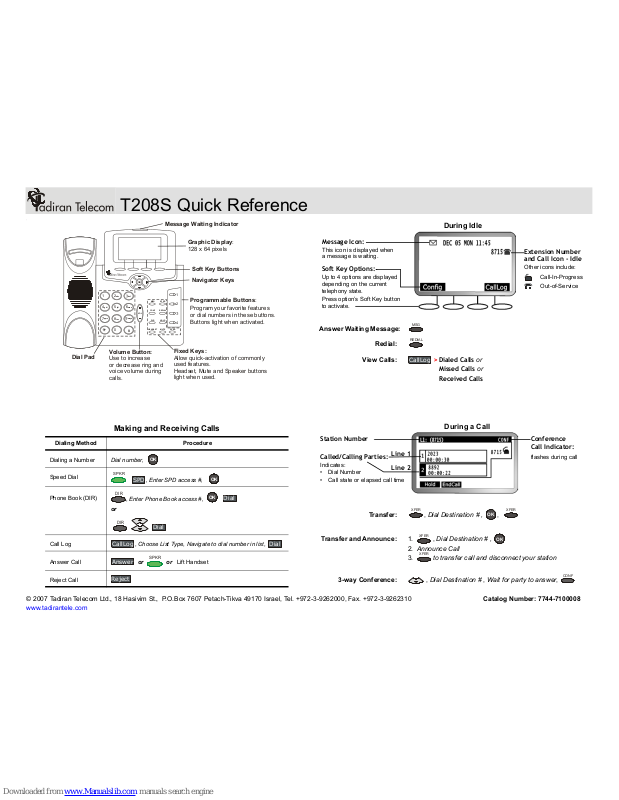

T208S Quick Reference
Making and Receiving Calls
Answer Waiting Message:
Redial:
View Calls:
> Dialed Calls or
Missed Calls or
Received Calls
Transfer: , Dial Destination # , ,
Transfer and Announce: 1. , Dial Destination # ,
2. Announce Call
3. to transfer call and disconnect your station
3-way Conference: , Dial Destination # , Wait for party to answer,
Dialing Method Procedure
Dialing a Number
Dial number,
Speed Dial
, Enter SPD access #,
Phone Book (DIR)
, Enter Phone Book access #,
or
Call Log
, Choose List Type, Navigate to dial number in list,
Answer Call or
or Lift Handset
Reject Call
MSG
DIR
CONF
REDIAL
XFER
HOLD
HEADSET
MUTE
SPKR
VOL
OK
5
64
4
jkl
mno
ghi
8
7
tuv
wxyz
pqrs
0
#
*
M
essage Waiting Indicator
Graphic Display
:
128 x 64 pixels
221
abc
def
Navigator Keys
Soft Key Buttons
Programmable Buttons
:
Program your favorite features
or dial numbers in these buttons
.
Buttons light when activated.
Fixed Keys:
Allow quick-activation of commonly
used features.
Headset, Mute and Speaker buttons
li
g
ht when used.
Volume Button:
Use to increase
or decrease ring and
voice volume during
calls.
Dial Pad
1
OK
S
PKR
SPD
OK
DIR
OK
Dial
DIR
Dial
CallLog
Dial
Answer
SPKR
Reject
Extension Number
and Call Icon - Idle
Other icons include:
Call-In-Progress
Out-of-Service
During Idle
Soft Key Options:
Up to 4 options are displayed
depending on the current
telephony state.
Press option’s Soft Key button
to activate.
Message Icon:
This icon is displayed when
a message is waiting.
MSG
REDIAL
CallLog
Conference
Call Indicator:
flashes during call
During a Call
Station Number
Called/Calling Parties:
Indicates:
• Dial Number
• Call state or elapsed call time
Line 1
Line 2
XFER
OK
XFER
XFER
OK
XFER
CONF
© 2007 Tadiran Telecom Ltd., 18 Hasivim St., P.O.Box 7607 Petach-Tikva 49170 Israel, Tel. +972-3-9262000, Fax. +972-3-9262310 Catalog Number: 7744-7100008
www.tadirantele.com
T208S Quick Reference
Using this Guide
> Navigate to the required item and press .
Save Press the left arrow a few times until you reach the “Quit Confirm”
screen. Navigate up/down to select Yes and press .
or
Press twice and return to idle after automatic save.
Configuring Phone Features
These items may also be programmed from your PC by browsing to the phone’s IP address.
To view the phone’s IP Address: > 5.Info > until you reach: IP Address.
Username default=user or your extension number. Password default=1111
Auto Answer
> 8.Auto Answer > On/Off > Save
Blocking List Add Number
> 16.Blocking List > ... (to choose access#), , Enter
Dial # , ,
Save
Blocking List Remove Number
> 16.Blocking List > ... (to choose access#), , ,
Save
Call Forward All > 7.Call Forward > 1.Always Forward > 1.Toggle >
On/Off > 2.Forward Number > Enter Destination #, , Save
Call Forward Busy > 7.Call Forward > 2.On Busy Forward > 1.Toggle >
On/Off
> 2.Forward Number > Enter Destination #, , Save
Call Forward
No Answer
> 7.Call Forward > 3.No Answer Forward > 1.Toggle >
On/Off
> 2.Forward Number > Enter Destination # , >
3.No Answer Timer > Enter Time in Seconds, , Save
Do Not Disturb > 6.DND > On/Off > Save
OK
OK
S
PKR
Config
Config
Config
Edit
OK
Config
Del
OK
Config
OK
Config
OK
Config
OK
OK
Config
For a complete description of the phone and its feature operations,
see the T207S and T208S Telephone User Guide.
Phone Book
1. > 12.Phone Book >
2. Dial phone book access # , or ... (to choose access#),
3. , choose one of the following to edit:
•, Enter Phone Book Contact name from dial pad,
•, Enter Dial #,
•, Enter Ring Type #,
4 . Save
Phone Lock > 9.Phone Lock > On/Off > Save
Phone UnLock Enter PIN Code (1111 = default),
Programmable
Buttons:
Speed Dial Type
> 14.Program Button > Buttonx > Button Type > Speed Dial >
Button Speed Dial
> Enter Dial # , , Save
Speed Dial
Numbers (SPD)
> 13.Speed Dial > ... (to choose SPD access#) > ,
Enter Dial # , , Save
Config
OK
Edit
Name
OK
Number
OK
Ring
OK
Tip!
Enter phone book
Name
in order
to view name instead of dial
number for incoming calls.
Config
OK
Config
OK
Config
Edit
OK
© 2007 Tadiran Telecom Ltd., 18 Hasivim St., P.O.Box 7607 Petach-Tikva 49170 Israel, Tel. +972-3-9262000, Fax. +972-3-9262310 Catalog Number: 7744-7100008
www.tadirantele.com
