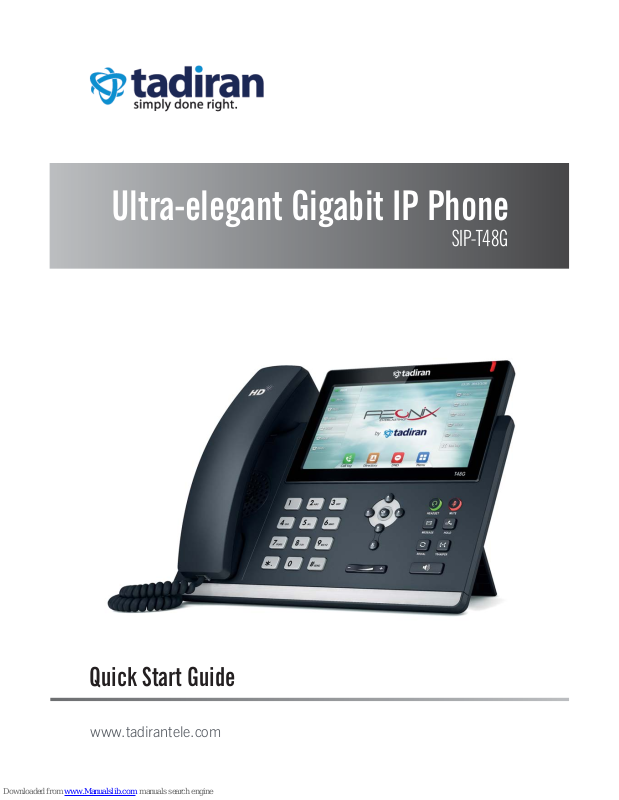

Quick Start Guide
www.tadirantele.com
Ultra-elegant Gigabit IP Phone
SIP-T48G
The following items are included in your package. If you find anying missing, contact your system administrator.
Assembling the Phone
Stand
Handset Cord
Handset
IP Phone
Ethernet Cable
10
Bluetooth USB Dongle BT40
Wireless Headset Adapter EHS36
The two wall mount slots are plugged up by
silica gel. You can pull out the silica gel when
mounting your IP phone to a wall.
1
Quick Start Guide
Packaging Contents
Packaging Contents
Assembling the Phone
Note: The headset, Bluetooth USB dongle BT40 and wireless headset adapter EHS36 should be purchased
separately. The EXT port can also be used to connect the expansion module EXP40.
2.Connect the handset and optional headset, as shown below:
1.Attach the stand,as shown below:
Note: For more information on how to mount the IP phone to a wall, refer to Tadiran Wall Mount Quick Installation
Guide.
Desk Mount Method
45
45
A
B
AC Power Option
PoE ( Power over
Ethernet ) Option
PC Connection
(Optional)
Power Adapter
DC 5V
(Optional)
PC Connection
(Optional)
IEEE 802.3af compliant
PoE Hub/Switch
Welcome
Initializing... Please wait
2
Startup
3.Connect the network and power, as shown below :
You have two option for network and power connections. Your system administrator will advise you on which one to use.
Note: If inline power (PoE) is provided,you don’t need to connect the power adaper.Make sure the hub/switch is
PoE-compliant.
After the IP phone is connected to the network and
supplied with power, it automatically begins the
initialization process. After startup, the phone is ready
for use. See your system administrator for advanced
configuration options.
Placing a Call
Answering a Call
Ending a Call
Using the handset:
Using the speakerphone:
Using the headset:
Using the handset:
Using the speakerphone:
Using the headset:
Using the handset:
1. With the handset on-hook, press .
1. Pick up the handset.
2. Enter the number, and then tap the Send soft key.
1. With the headset connected, press to activate the headset mode.
2. Enter the number, and then tap the Send soft key.
2. Enter the number, and then tap the Send soft key.
Pick up the handset.
Press .
Hang up the handset or tap the End Call soft key.
Press .
Navigating the Touch Screen
To enter the main menu, tap .
To turn pages, tap or on the touch screen.
Entering and Updating Data
To enter data:
Tap the field you want to edit.
Tap the IME soft key to switch input modes.
Enter data using the keypad.
Tap the Save soft key.
To select a field option:
To select a soft key, tap the soft key.
To select an item, tap the item.
To scroll through values in a pull-down list, press or .
To return to the idle screen, tap .
To go back to the previous menu, tap .
3
Using the Phone
Basic Call Features
1.
2.
3.
4.
Tap the field name, and then tap the field’s highlighted box. From the pull-down list, tap the desired option.
Note: During a call, you can alternate between the headset, hands-free speakerphone and handset modes by
pressing the HEADSET key, the Speakerphone key or by picking up the handset. Headset mode requires a
connected headset.
Note: You can reject an incoming call by tapping the Reject soft key.
4
Call Conference
Call Forward
To enable call forward:
Always Forward----Incoming calls are forwarded unconditionally.
Busy Forward----Incoming calls are forwarded when the phone is busy.
No Answer Forward----Incoming calls are forwarded if not answered after a period of time.
1. When the phone is idle, tap ->Features->Call Forward.
2. Select the desired forward type:
4. Tap the Save soft key to accept the change.
1. Tap the Conference soft key during an active call. The call is placed on hold.
Semi-Attended Transfer
Attended Transfer
Blind Transfer
Call Transfer
You can transfer a call in the following ways:
1. Press or tap the Transfer soft key during an active call. The call is placed on hold.
1. Press or tap the Transfer soft key during an active call. The call is placed on hold.
1. Press or tap the Transfer soft key during an active call. The call is placed on hold.
2. Enter the number you want to transfer to, and then press .
3. Press or tap the Transfer soft key when the second party answers.
2. Enter the number you want to transfer to, and then press .
3. Press or tap the Transfer soft key when you hear the ring-back tone.
3. Press or tap the Transfer soft key.
2. Enter the number you want to transfer to.
Call Mute and Un-mute
Call Hold and Resume
To place a call on hold:
To resume the call, do one of the following:
Press to mute the microphone during a call.
Press again to un-mute the call.
If there is only one call on hold, press or tap the Resume soft key.
Press or tap the Hold soft key during an active call.
Press twice when the phone is idle to dial out the last dialed number.
Using the speakerphone:
Using the headset:
Press or tap the End Call soft key.
Tap the End Call soft key.
Redial
Press to enter the Placed calls list, and then tap the desired entry.
3. Enter the number you want to forward to. For No Answer Forward, tap the pull-down list of After Ring Time, and
then tap the desired ring time to wait before forwarding from the After Ring Time field.
If there is more than one call on hold, tap the call you want to resume, and then press or tap the Resume
soft key.
Customizing Your Phone
Voice Message
Volume Adjustment
Call History
To listen to voice messages(Ensure the voice mail code is already configured on the phone):
Tap Send to call the entry.
Tap Add to add the entry to the local directory.
Press when the phone is idle to adjust the ringer volume.
Tap Delete to delete the entry from the list.
1. Tap and then tap the Connect soft key, or press .
2. Follow the voice prompts to listen to your voice messages.
1. When the phone is idle, tap , and then tap the desired call list on the left.
3. Tap after the desired entry, and then you can do the following:
Tap Blacklist to add the entry to the blacklist.
4. Tap the End Call soft key to disconnect all parties.
2. Enter the number of the second party, and then tap the Send soft key.
3. Tap the Conference soft key again when the second party answers. All parties are now joined in the conference.
Ta p Edit to edit the phone number of the entry before placing a call.
2. Tap or , or press or to scroll to the desired page.
5
Customizing Your Phone
Message waiting indicator on the idle screen indicates that one or more voice messages are waiting at the message
center. The power indicator LED slowly flashes red.
Note: You can split the conference call into two individual calls by tapping the Split soft key.
Press during a call to adjust the receiver volume of the handset/speakerphone/headset.
