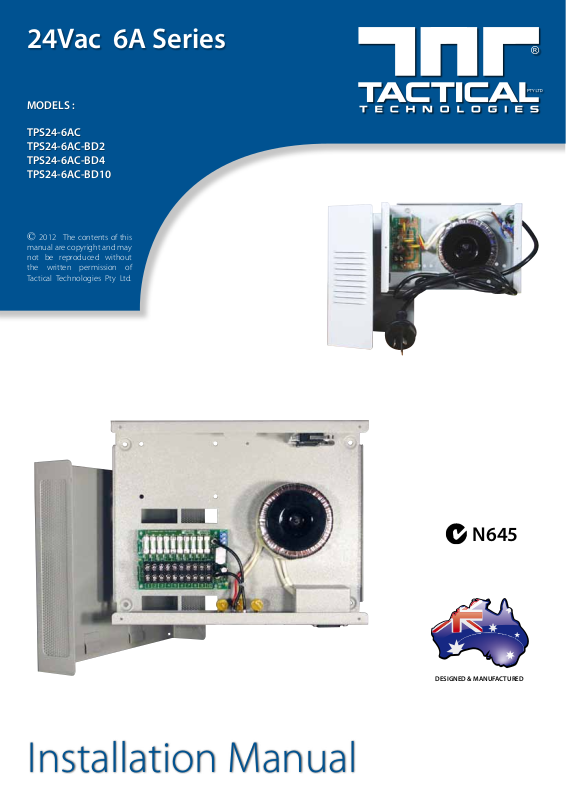

Tactical technologies TPS24-6AC Installation Manual

®

24Vac 6A Series

MODELS :

TPS24-6AC
TPS24-6AC-BD2
TPS24-6AC-BD4
TPS24-6AC-BD10

© 2012 The contents of this

manual are copyright and may
not be reproduced without
the written permission of
Tactical Technologies Pty Ltd.

Installation Manual

N645

DESIGNED & MANUFACTURED

CAUTION

Dangerous Voltages Inside !

Equipment must be installed & serviced
by suitably qualied service personnel

Do not remove covers

in a restricted access area.

DANGER
HIGH VOLTAGE

No user serviceable parts inside

General

N645

These power supplies are designed for indoor use only.

TPS24-6AC models are available with 1, 2, 4 or 10 individually fused outputs - each provided with a LED indicator to
display circuit status, a handy feature for quick troubleshooting of cabling or camera faults. The TPS24-6AC Series
is particularly handy for installations requiring relatively high current output for a small number of cameras eg Pan
Tilt Zoom or IR Illuminators.

The Tactical 24AC Series includes models ranging from 2A to 20A output, with 1, 2, 4, 10 or 20 individual fused
outputs (model dependant). Check www.tac-tec.com.au or your Tactical Distributor.

TPS24-6AC Model Variants:

TPS24-6AC 24Vac 6A CCTV Power Supply in small enclosure ( 202L x 136W x 82H mm )

TPS24-6AC-BD2 24Vac 6A CCTV Power Supply with 2 x 2A Fused Outputs ( 310W x 240H x 60D mm )

TPS24-6AC-BD4 24Vac 6A CCTV Power Supply with 4 x 1A Fused Outputs ( 310W x 240H x 60D mm )

TPS24-6AC-BD10 24Vac 6A CCTV Power Supply with 10 x 400mA Fused Outputs ( 310W x 240H x 60D mm )

Connection

TPS24-6AC has a single fused output with a single set of screw terminals.

TPS24-6AC-BDXX models are tted with a Tactical Technologies PDM (2, 4 or10 way) Power Distribution Module.

In order to provide maximum short circuit protection, it is recommended that the installer assess the current draw
of each device connected to the PDM and t a fuse of appropriate value to suit.

Ensure that total device current draw does not exceed the rated output of the power supply, remembering to
allow an adequate power margin for equipment cold start.

For your convenience, an LED is tted adjacent to each fuse. The LED is lit when the fuse is intact and extinguished
when the fuse has failed.

Note that TPS24-6AC-BDXX models have a 240V primary side fuse tted in an integrated fuse holder within the IEC
type Power Socket Connector tted on the lower edge of the cabinet - TPS24-6AC has an inbuilt (non-serviceable)
fuse inbuilt into the transformer.

TPS24-6AC Series_Rev C.pdf

www.tac-tech.com.au

A

Output Terminals ( Multi Output models only )

B

PDM Input ( Multi Output models only ) - ‘G’ below

C

Individual Circuit Status LEDs ( Multi Output Models )

D

Individual Circuit Fuses ( Multi Output models only )

E

Anti-Surge MOV Network

F

6A Output fuse - (single output model only)

G

Output 24Vac 6A ( single output model )

H

Input Mains Fuse ( Integrated into IEC Mains Socket)

I

Compliance / Date of Manufacture Label

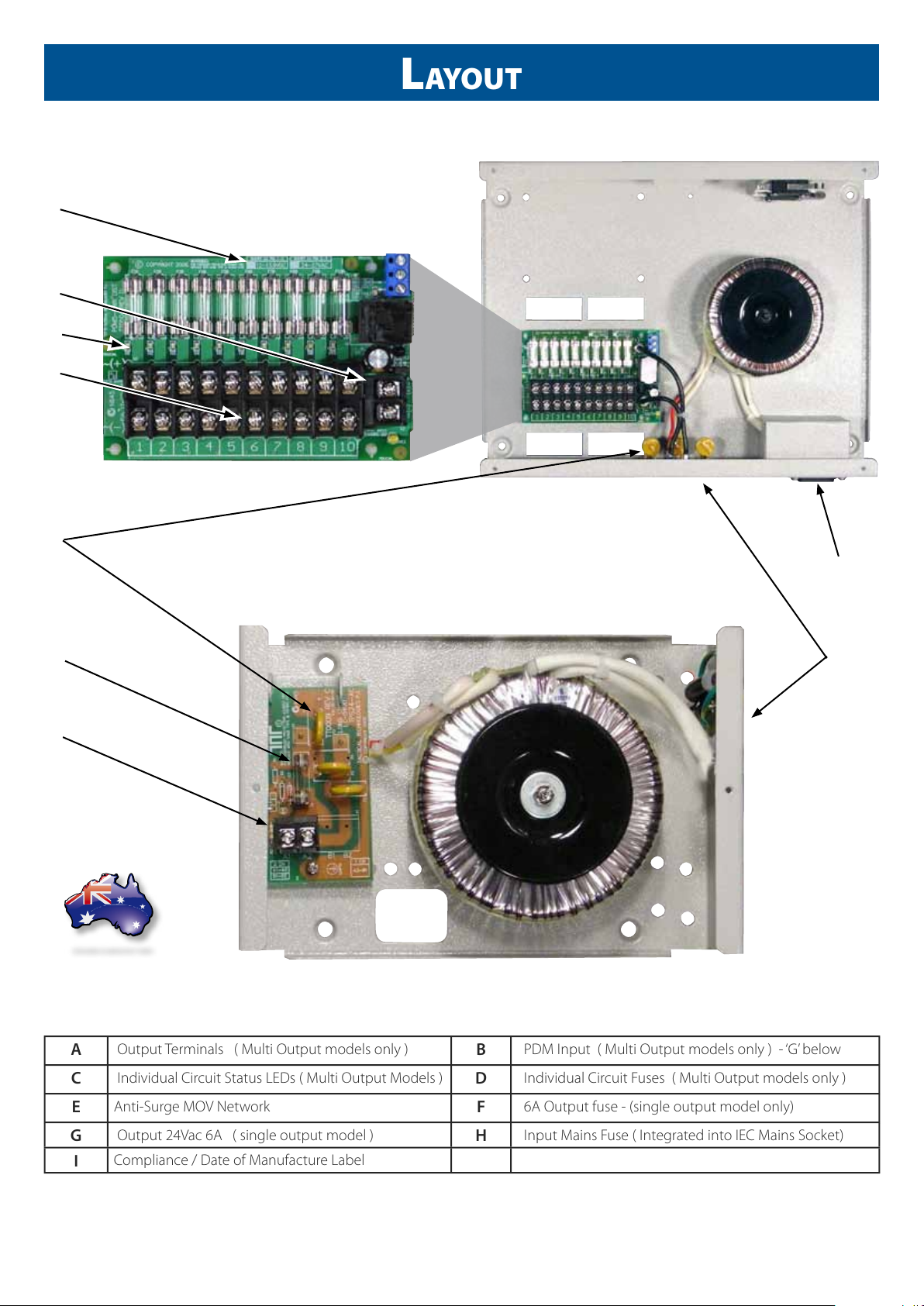

LAYOUT

Multi-Output Models

e.g. TPS24-6AC-BD10 )

(

A

B

C

D

E

H

Single Output Model

( TPS24-6AC )

F

G

DESIGNED & MANUFACTURED

I

TPS24-6AC_Series_Rev C.pdf

www.tac-tech.com.au

®

24Vac
6A Series

®

Specications : ( In the interests of product improvement, Tactical reserves the right to change specications without notice)

TPS24-6AC TPS24-6AC-BD2 TPS24-6AC-BD4 TPS24-6AC-BD10

Output Voltage 24 Vac

Output Current 6A

Output Channels 1 2 4 10

Output per Channel 6A 3A 1.5A 600mA

Input Voltage 240 Vac / 50Hz

Input Current 800mA RMS @ 240Vac

Input Fuse Rating not replaceable (T )1A / 250V

Weight < 2.5Kg < 5Kg

Dimensions

DOFT Approval No:

Safety Standards AS/NZS 61558.1 including AS/NZS 61558.2.6

EMC Standards C-Tick

202L x 136W x 82H

mm

310W x 240H x 60D mm

NSW 24012
