TPC-48
Designed & Manufactured
®
Tel: +61 2 8822-1888 www.tac-tech.com.au Fax: +61 2 8822-1899
Installation Manual
12V to 48V DC - DC Convertor
Page 2
Dangerous Voltage Inside !
No user serviceable parts inside
Do not remove module covers
CAUTION
General
This power supply is designed for indoor use only.
The TPC-48 is a low prole DC - DC Convertor of switchmode design. This model features output current
limiting and thermal shutdown protection with auto recovery.
Connection
Equipment must be installed & serviced
by suitably qualied service personnel
in a restricted access area. There are no
user serviceable parts inside.
TPC-48_Rev B.pdf

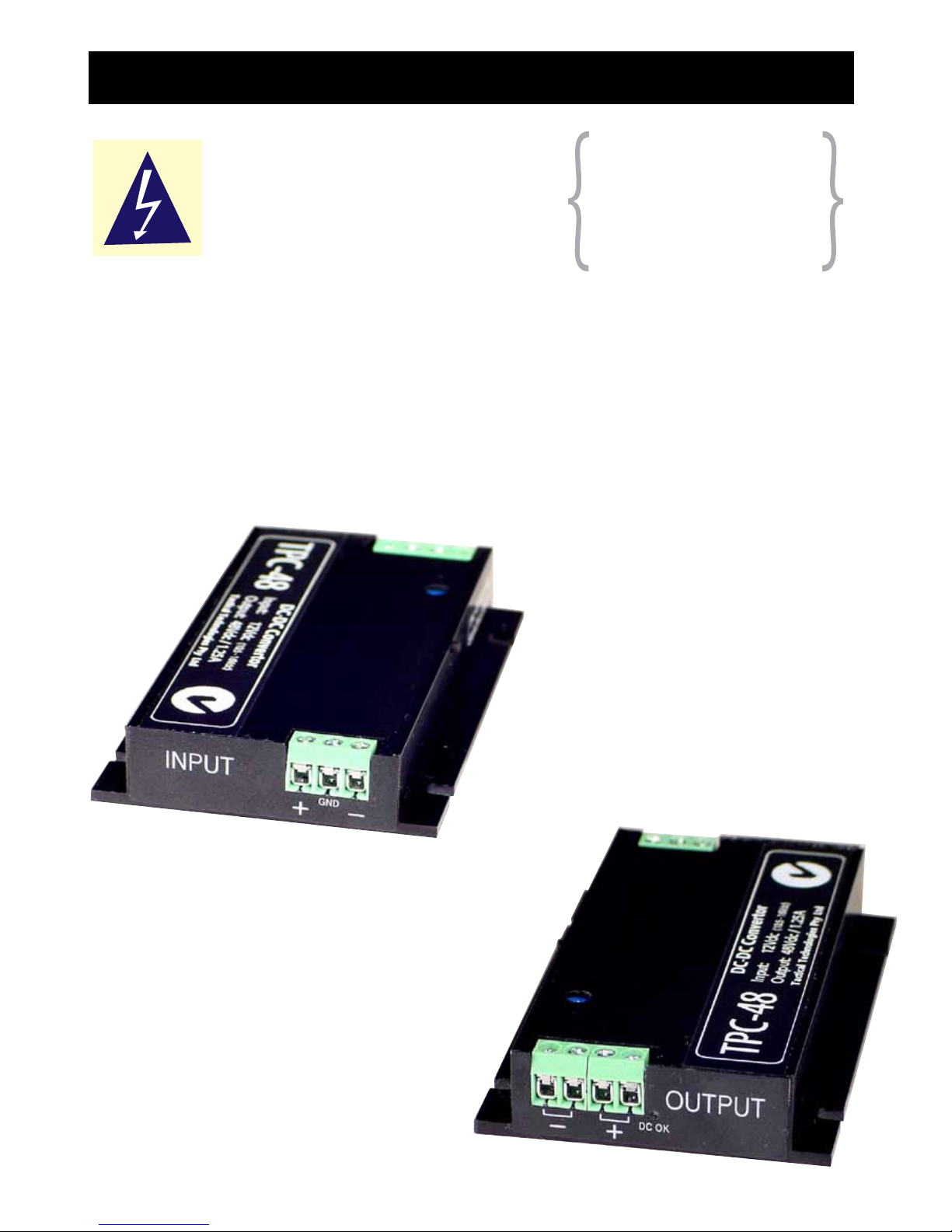

Input View:
12Vdc Input - take care to observe polarity.
(Ground connection optional)
Output View:
48Vdc Output - take care to observe polarity.
Two sets of output terminals are provided.
Take care that total load current does not exceed
1.25A as the unit will shutdown (current limit) at
loads exceeding 1.25A
Page 3

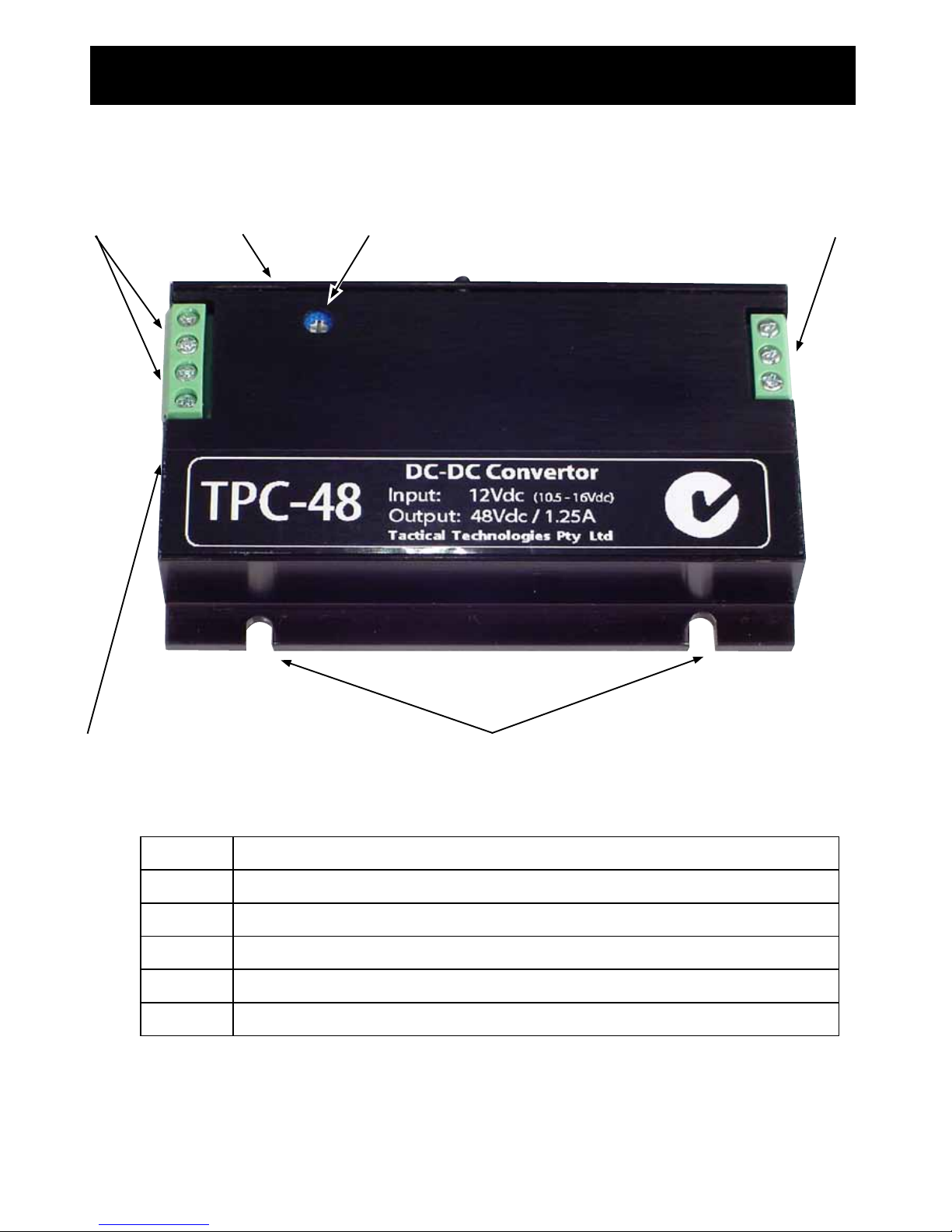

LAYOUT
A 48Vdc Output (2 sets of terminals) Max Total: 1.25A
B Date of Manufacture & Serial No. Label (on side of chassis)
C Output Voltage Adjustment (± 5% typical)
D Input Terminals
E DC OK LED
F Mounting Holes
TPC-48_Rev B.pdf
A B C D
TPC-48
E F
Page 4
TPC-48
Input Voltage 12 Vdc (10.5 - 16Vdc)
Output Voltage 48Vdc (adjustable ± 5%)
Output Current 1.25A Max.
Output Protection Current Limiting with Auto Recovery, Thermal Shutdown
Switching Frequency 300KHz
Operating Temperature -20º C to 50º C @ 100% Load
Humidity 5 ~ 95% RH non-condensing
EMC Standards C-Tick
Dimensions 100 L x 65 W x 18 H mm
Weight 180 grams
®
Designed & Manufactured
Tel: +61 2 8822-1888 5 Butterfield St, Blacktown NSW 2148 Fax: +61 2 8822-1899
TPC48
DC-DC Convertor
®
Securing Your Power Needs
®
Now and into the Future . . .
www.tac-tech.com.au
Specications : ( In the interests of product improvement, Tactical reserves the right to change specications without notice)
