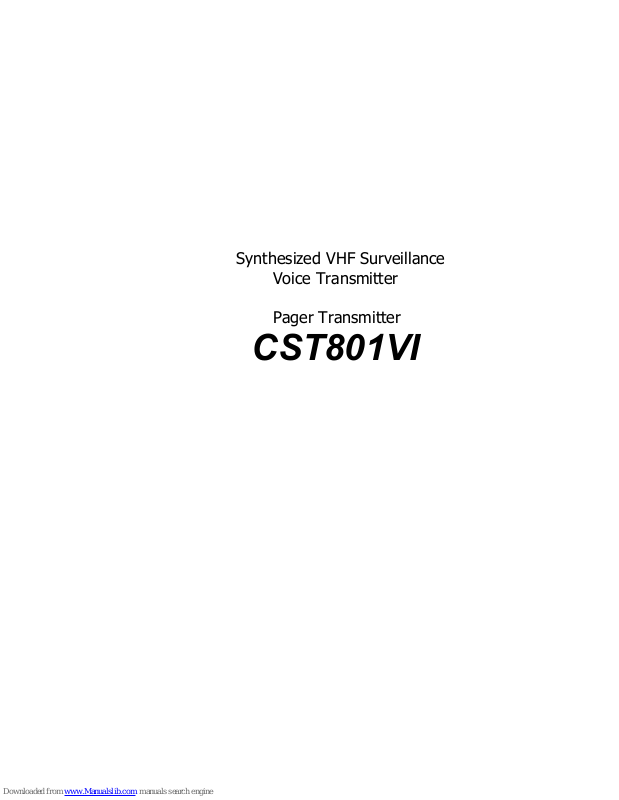

Tactical technologies CST801VI User Manual

Synthesized VHF Surveillance
Voice Transmitter
Pager Transmitter
CST801VI
CST801VI – User Guide, 1.0.3 Copyright & Information
Copyright & Information
© Copyright 2003 - 2005 TTI - All rights reserved.
No part of this publication or associated software may be copied without the written permission of TTI. You may not modify, adapt, translate, reverse engineer, disassemble or create derivative works based on the hardware, firmware, software or documentation.
Condition of Use
The user undertakes that,
They are a bona fide law enforcement agency with technical capabilities.
The CST801VI is being used to fulfill official requirements.
The CST801VI will be used with discretion.
Precautions will be undertaken to keep details restricted to members of
their organization requiring such information. The user acknowledges that,
The CST801VI is for use by law enforcement agencies.
The CST801VI may not comply with government type approval.
The users will be responsible for satisfying themselves that the 801
may be legally operated in the district where the user intends to deploy it.
Disclaimer
Care has been taken in assuring the quality of the CST801VI but the developers, TTI and any associated company, distributor or reseller do not accept responsibility for errors. In no event shall the aforementioned parties be liable for any loss of profit or any other commercial damage including, but not limited to, special, incidental, consequential or other damages arising from the provision of the CST801VI or associated software or peripherals to the user.
© TTI Law Enforcement ONLY
© TTI Law Enforcement ONLY
CERTIFICATION STANDARDS
FCC Notice
This device complies with Part 90 of the FCC Rules. FCCID: IP9801VI This device meets FCC requirements as a controlled/occupational environmental device closer than 2.5 cm.
Operations is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation
Australia / New Zealand
Pending
Industry Canada
Pending
European Union
Pending
© TTI Law Enforcement ONLY
CST801VI – User Guide, 1.0.3 Introduction © TTI Law Enforcement ONLY
INTRODUCTION
Tactical Technologies Inc. (Model number CST801VI), is a 1 channel, .25 watt VHF FM synthesized voice transmitter for law enforcement use. The operating frequency is only a 4 Mhz section from 150 – 174 Mhz due to the narrow band antenna. The unit utilizes an internal antenna and a single internal microphone for transmitter operations. The CST801VI equipped with an optional scrambler for added transmitter security.
Figure 1, The CST801VI Transmitter
can be
© TTI Law Enforcement ONLY
CST801VI – User Guide, 1.0.3 Introduction © TTI Law Enforcement ONLY
Operating Frequencies
The frequencies available on the CST801VI are spaced in 12.5 kHz steps beginning with 150.0000 MHz and ending with 174.0000 MHz. Simply put, “12.5 kHz steps” means your frequency must be in any of the following configurations:
xxx . x000 xxx . x125 xxx . x250 xxx . x375 xxx . x500 xxx . x625 xxx . x750 xxx . x875
This gives the CST801VI
the ability to transmit on any one of 280
available frequencies. Any other frequency selection will result in an error message.
Citation Receivers
Any of Tactical Technologies Inc. Citation Receiver/Recorder kits (Series 20 and higher) are able to program frequency, power, and scrambling settings into the CST801VI. A special Citation Interface Cable, is supplied with the CST801VI
for such an application.
See your TTI representative for more information. If you already own a Citation 20 or higher receiver, programming instructions are found in the Citation Operators Manual.
© TTI Law Enforcement ONLY
CST801VI – User Guide, 1.0.3 Introduction © TTI Law Enforcement ONLY
Range of the CST802VI Transmitter
It is impossible to state absolutes about how far an RF transmitter like the CST801VI
will transmit. Many variables affect the range of a device
including buildings, trees, weather, construction materials, installation, etc. All things being perfect (meaning transmissions are outdoors over flat terrain with no obstructions), a .25 watt CST801VI should be able to easily transmit over a ¼ mile. You should expect less distance than that however, in a real world operation. One of the most important variables, and one that the operator can actually control, is the placement of the receiver and the receiving antenna. A good rule to follow is the higher the antenna placement, the better chance you have of quality reception. This alone will increase your operating range. Just having the CST801VI
in an ideal location is not enough.
© TTI Law Enforcement ONLY
