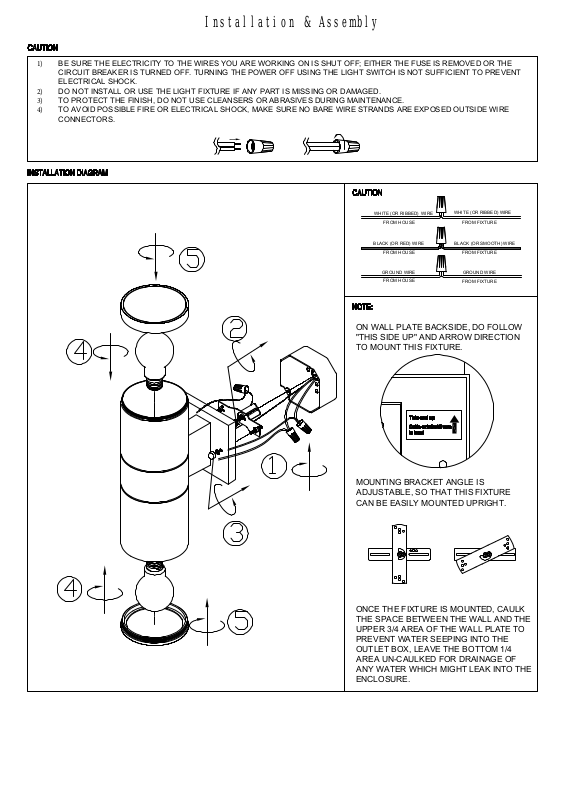

Installation & Assembly
1) BE SURE THE ELECTRICITY TO THE WIRES YOU ARE WORKING ON IS SHUT OFF; EITHER THE FUSE IS REMOVED OR THE
CIRCUIT BREAKER IS TURNED OFF. TURNING THE POWER OFF USING THE LIGHT SWITCH IS NOT SUFFICIENT TO PREVENT
ELECTRICAL SHOCK.
2) DO NOT INSTALL OR USE THE LIGHT FIXTURE IF ANY PART IS MISSING OR DAMAGED.
3) TO PROTECT THE FINISH, DO NOT USE CLEANSERS OR ABRASIVES DURING MAINTENANCE.
4) TO AVOID POSSIBLE FIRE OR ELECTRICAL SHOCK, MAKE SURE NO BARE WIRE STRANDS ARE EXPOSED OUTSIDE WIRE
CONNECTORS.
WHITE (OR RIBBED) WIRE
FROM HOUSE
BLACK (OR RED) WIRE
FROM HOUSE
GROUND WIRE GROUND WIRE
FROM HOUSE
WHITE (OR RIBBED) WIRE
FROM FIXTURE
BLACK (OR SMOOTH) WIRE
FROM FIXTURE
FROM FIXTURE

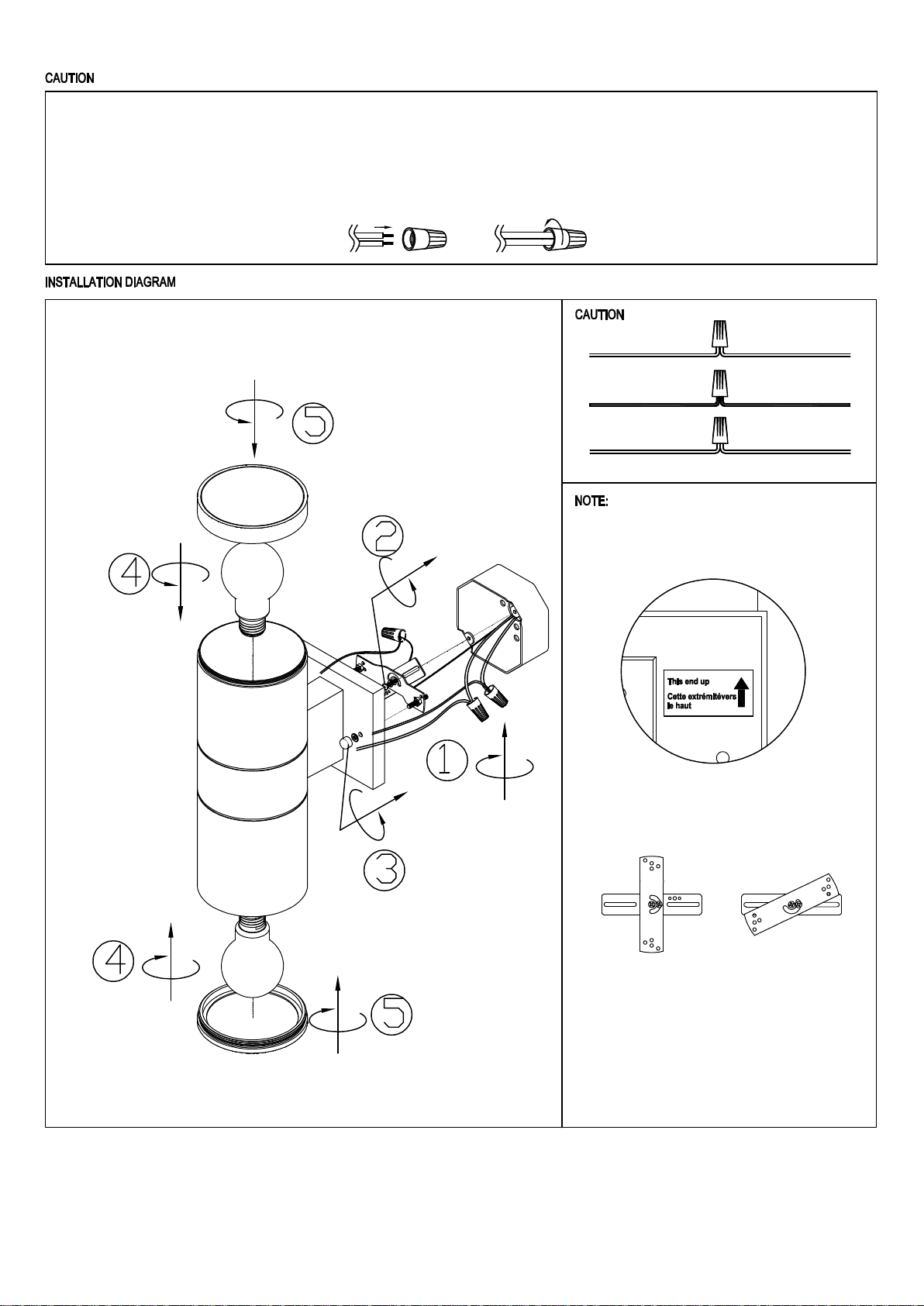

ON WALL PLATE BACKSIDE, DO FOLLOW
"THIS SIDE UP" AND ARROW DIRECTION
TO MOUNT THIS FIXTURE.
MOUNTING BRACKET ANGLE IS
ADJUSTABLE, SO THAT THIS FIXTURE
CAN BE EASILY MOUNTED UPRIGHT.
ONCE THE FIXTURE IS MOUNTED, CAULK
THE SPACE BETWEEN THE WALL AND THE
UPPER 3/4 AREA OF THE WALL PLATE TO
PREVENT WATER SEEPING INTO THE
OUTLET BOX, LEAVE THE BOTTOM 1/4
AREA UN-CAULKED FOR DRAINAGE OF
ANY WATER WHICH MIGHT LEAK INTO THE
ENCLOSURE.
