Save water, energy, and
money with a D’MAND
System from Taco.
Waiting for
hot water, is
wasting
®
©Taco Catalog # 100-15
Supercedes: 02/01/03
wasting energy.
Effective Date: 12/22/10
Printed in USA
Page 2
Taco D’MAND® System delivers no-wait hot water to the xture, while the cold water stays in the cold water line.
Hot water without
the waste!
Have hot water at your ngertips
whenever you turn the faucet.
Stop wasting water as you wait
for cold to turn to hot. Stop
burning energy as you wait for
warm to turn warmer. The Taco
D’MAND® System puts an end
to the waste – and the wait –
forever.
How D’MAND®
works…
The D’MAND® System is a small,
silent pump attached to your
hot and cold water lines in the
cabinet under your most remote
kitchen or bath xture. When
D’MAND® System is activated,
the cool water you normally let
run down the drain is circulated
back to the water heater
through the cold water line
At your “demand,” the
pump circulates hot water
from the water heater, and
returns the cooled water
back through the cold
water line. When the hot
water arrives at the faucet,
the patented D’MAND®
System’s heat sensor and
control board shut o the
pump to prevent pumping
excess hot water into the
cold water line.
Activate D’MAND®
only when you need it.
D’MAND® System only runs
when you tell it to, and it’s smart
enough to know when the
water currently in the line is hot
enough. D’MAND® System can
be activated with the push of a
button, or with an optional wireless remote transmitter/receiver.
D’MAND® System
is easy to install.
NO NEW PIPING REQUIRED.
The D’MAND® System not only
saves water and energy, it saves
D’MAND® System.
The best way to save.
D’MAND® System operates
24 hours on demand to save
water, energy, and money.
What’s more, it’s made by Taco,
known by plumbing professionals as a world leader in high
quality hydronic components
since 1920.
The average home may waste
over 40 gallons of water a day
while waiting for hot water. Stop
wasting and start saving with a
Taco e-smart™ D’MAND® System.
in construction costs as well.
No new return line is necessary;
no need to drain the system;
no demolition and repair. In fact,
D’MAND® System can be installed
in just eight simple steps.
CITY WATER SUPPLY COLD WATER LINE
Remote
Activation
Tankless
Water
Heater
Remote
Receiver
Hot
Water
Supply
Valve
Remote
Activation
Hot
Water
Supply
Valve
Tank Type
Water
Heater
CITY WATER SUPPLY COLD WATER LINE
Tankless
Water
Heater
Water
Heater
Tank
D’MAND® System
Heat
Sensor
Electronic
Controls
Remote
Activation
Cold
Water
Supply
Valve
Remote
Activation
Cold
Water
Supply
Valve
HOT WATER LINE
HOT WATER LINE
Electronic
Controls
Remote
Activation
RETURN LINE
D’MAND
Hot
Water
Supply
Valve
Remote
Receiver
Heat
Sensor
®
System
Motion Sensor or
Starter Button
Activation
Motion Sensor or
Starter Button
Activation
Cold
Water
Supply
Valve
Page 3
Step 1:
Select the most
distant fixture from
the water heater
Step 2:
Remove Angle Stops
Step 3:
Install T’s
Step 4:
Reattach Angle Stops
Step 5:
Connect Flex Lines
Step 6:
Connect the circulator
Step 7:
Install Starter Button
and Plug-in
Saved Gal.
Per Day
40
50
Saved Gal.
Per Year
14,400
18,000
Gas Water Heater
BTU
Savings
($0.62 Therms)
57.53
71.16
Reduced
Settings
37.05
46.31
Sewage
Savings
($0.004/Gal.)
57.60
72.00
Water
Savings
($0.002/Gal)
28.80
36.00
Annual
Savings
180.98
225.47
Saved Gal.
Per Day
40
50
Saved Gal.
Per Year
14,400
18,000
Electric Water Heater
KWH
Savings
($0.10 KWH)
194.57
243.47
*Cost of gas, electricity, water and sewage are based on national average and may vary in your area.
Reduced
Settings
218.93
273.67
Step 8:
Enjoy Hot Water
in Seconds!
Sewage
Savings
($0.004/Gal.)
57.60
72.00
Water
Savings
($0.002/Gal)
28.80
36.00
Annual
Savings
499.90
625.14
Page 4

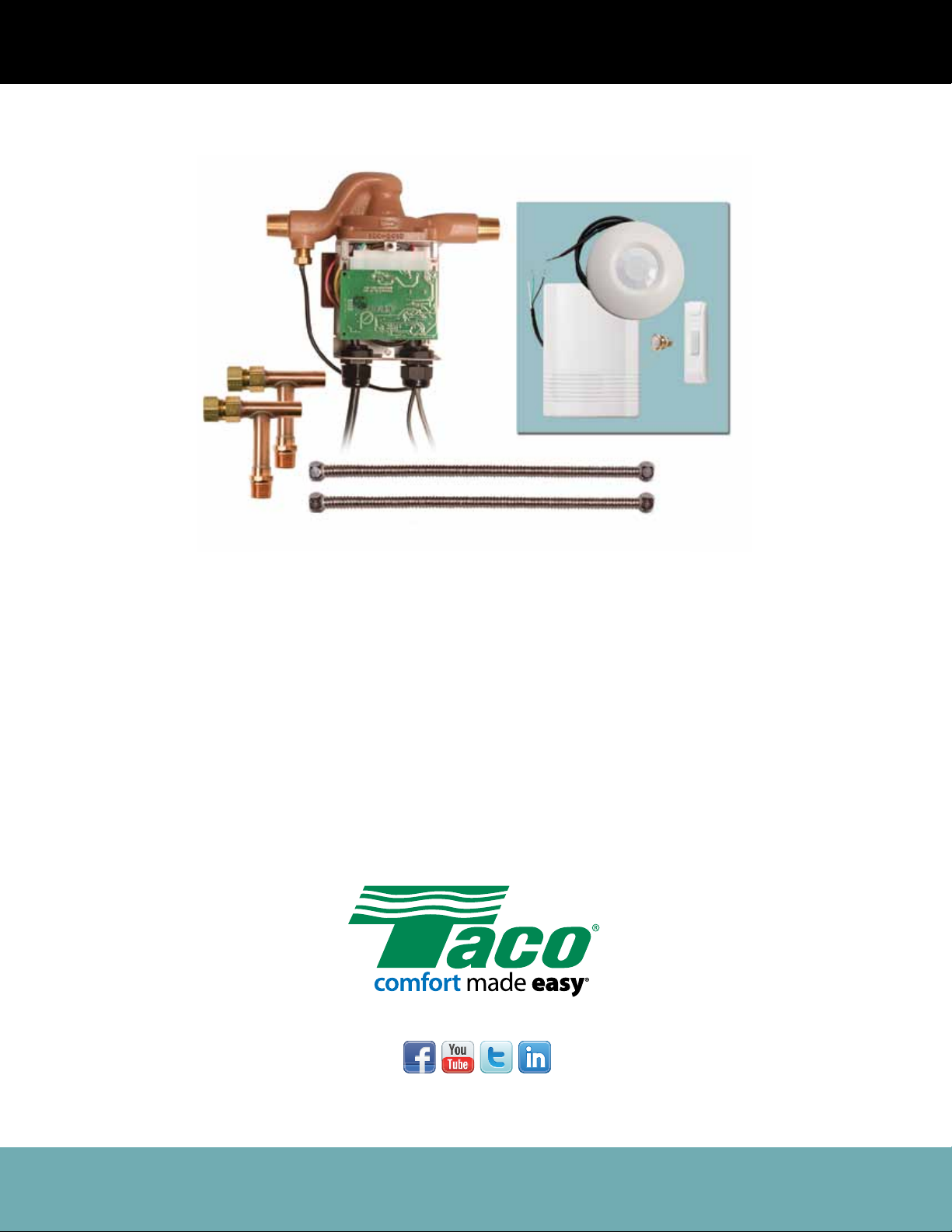

Everything you need for an easy, trouble-free installation is
right in the box. No new water lines, no sweating, no
mess.
The remote sensor and remote receiver (sold separately)
www.taco-hvac.com
Taco (Canada) Ltd., 8450 Lawson Road, Unit #3, Milton, Ontario L9T 0J8 / (905) 564-9422 / Fax (905) 564-9436
Taco Inc., 1160 Cranston Street. Cranston, RI 02920 / (401) 942-8000 / Fax (401) 942-2360
D'MAND® System is a registered trademark of ACT /Metlund Inc. •
e-smart™ is our way of helping you quickly identify our most resource-saving products.
