006e3
™
102-533
Instruction Sheet
ECM High-Efficiency Circulator
SUPERSEDES: NEW EFFECTIVE: February 27, 2018
Plant ID No. 001-5005
DESCRIPTION:
The 00e® series 006e3 is a 3-setting wet rotor circulator with an ECM, permanent magnet motor.
A simple dial adjusts operating speed to Low, Medium or High settings. Its high-efficiency motor
reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor
circulators.
APPLICATION:
• Maximum operating pressure: 150 psi (10 bar)
• Maximum water temperature: 203°F (95ºC)
• Electrical specifications:
Voltage: 110-120V, 50/60 Hz, single phase
Maximum operating power: 44W
Maximum amp rating: 0.54
• Equipped with an engineered composite casing with 1" union connections
• Use on open loop potable hot water circulation systems or closed loop hydronic heating systems
• Not suitable for chilled water systems
• Taco circulator pumps are for indoor use only – employer uniquement a l’interieur
• Acceptable for use with water or maximum of 50% water/glycol solution
FEATURES:
• Operating modes
- Low, Medium or High
- Pre-marked 003/006 performance point references
- Min/Max infinitely variable fixed speeds
• Multi-color LED display showing operating mode and error code diagnostics
• Union connection, composite casing
• Optional 1/2" & 3/4" union fitting sets available - sweat, npt or press connections (sold separately)
• Dual electrical knockouts and 6” stranded wire leads for easy wiring (006e3LC model includes 6' power cord)
• Double insulated - no ground-wire required
• Whisper quiet operation
•
SureStart® - automatic unblocking and air purging mode
INSTALLATION:
WARNING: Follow all local plumbing and electrical codes when installing this product.
AVERTISSEMENT: Respectez tous les codes de plomberie et d'électricité locaux lors de l'installation de ce produit.
CAUTION: To ensure all plumbing system components are protected from the damaging effects of water hammer, be sure
an approved water hammer arrestor is installed in the system per locally recognized National plumbing codes.
ATTENTION: Pour vous assurer que tous les composants du système de plomberie sont protégés contre les effets dommageables du
coup de bélier, assurez-vous qu'un parafoudre approuvé est installé dans le système conformément aux codes de plomberie nationaux
reconnus localement.
WARNING: Do not use in swimming pool or spa areas. Pump has not been investigated for these applications.
AVERTISSEMENT: Ne pas utiliser dans une piscine ou un spa. La pompe n'a pas été étudiée pour ces applications.
Figure 1:
CAUTION: The addition of petroleum based fluids or certain chemical additives to systems using TACO equipment voids the warranty.
Consult factory for fluid compatibility.
ATTENTION: L'ajout de liquides à base de pétrole ou de certains additifs chimiques à des systèmes utilisant un équipement TACO annule
la garantie. Consultez le fabricant pour connaître la compatibilité de liquides.
CAUTION: Installations at elevations over 5000 feet must have higher fill pressure of 20 psi minimum to prevent pump cavitation and flashing. Premature failure may result. Adjust expansion tank pressure to equal fill pressure. A larger size expansion tank may be required.
ATTENTION: Des installations à des altitudes de plus de 1600 mètres doivent présenter une pression de remplissage plus élevée de 20
psi au minimum afin d'éviter toute cavitation ou flashing de la pompe. Une défaillance prématurée peut en résulter. Réglez la pression du
réservoir d'expansion de façon qu'elle soit égale à la pression de remplissage. Un réservoir d'expansion d'une taille supérieure peut être
nécessaire.
1
Figure 2:
Water
Heater
Typical Installation for Hot Water Recirculation Systems
Recommended Purging Steps:
1. Open fixture at highest point in system
2. Open all isolation valves
3. Once system is filled, close the fixture at
the highest point in the system
4. Close isolation valve on pump discharge
5. Open drain valve on pump discharge until
all remaining air has been purged
6. Close drain valve
7. Operate pump until all remaining air is
purged from bearing chamber
2
Figure 3:
Typical Installation for Zoned Hydronic Heating Systems
Boiler Return
(Option No. 2)
Boiler Supply
(Option No. 1)
KEY:
VI, V2, V3 = SHUT-OFF ISOLATION VALVE
P = TACO CIRCULATOR
FF = FAST FILL BOILER FEED VALVE
PV4 = PURGE VALVE
FC = FLOW CHECK VALVE
RECOMMENDED PURGING STEPS:
1. CLOSE V1, PV4, V2
2. OPEN V3
3. OPEN FF VALVE
4. OPEN V2, PV4, TO PURGE LAST ZONE
FIRST (ZONE 3)
5. CLOSE FF VALVE
6. CLOSE V2, PV4
7. REPEAT STEPS 1 TO 6 FOR EACH
ADDITIONAL ZONE, PURGE ZONE 1 LAST
8. OPEN V1 WHEN ALL ZONES ARE
PURGED
9. ADJUST SYSTEM TO DESIRED OPERATING
FILL PRESSURE IF REQUIRED
3
1. Location: The circulator can be installed on the supply or return side of the water heater or heat source. See Figures 2 & 3,
on page 2 for preferred locations.
2. Mounting position: Circulator must be mounted with the motor in the horizontal position. See diagrams below for acceptable motor
mounting orientations.
3.
Install the union tailpiece fitting set (sold seperately) best suited for your system piping. (See Union Fitting Options chart on page 7).
CAUTION: Install fittings to system piping before connecting the circulator to avoid damaging the pump’s composite casing.
4.
Install circulator by attaching pump casing to each union tailpiece fitting. Tighten union nut onto circulator threading (being careful
not to overtighten) to complete the installation.
CAUTION: Only use union gaskets provided with union fitting sets or leaks may result. Warranty will be void.
ACCEPTABLE MOTOR MOUNTING POSITIONS

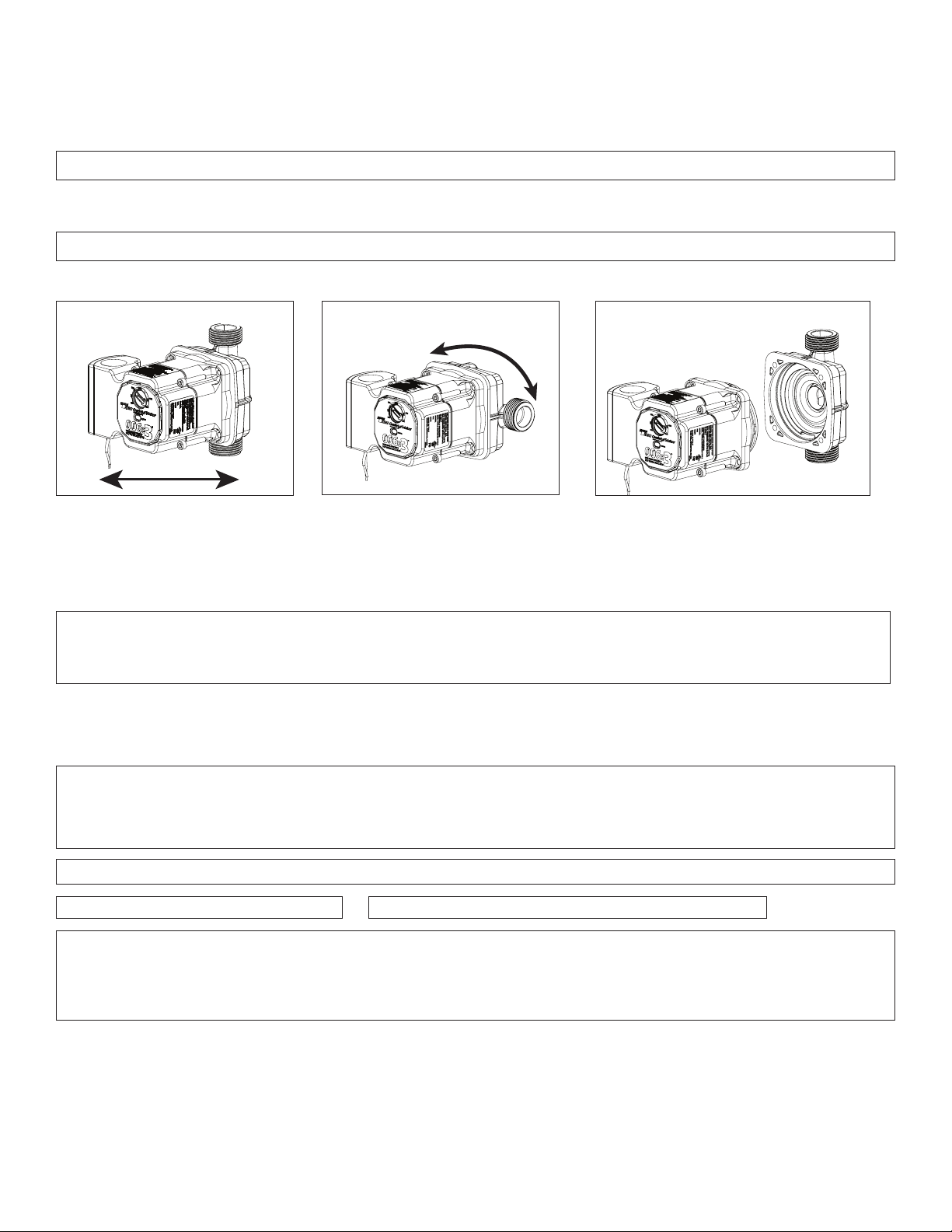

Figure 4: Always install with motor in
horizontal orientation.
Figure 5: Spin casing to change flow
direction.
Figure 6: Do not detach motor frame from pump
casing. Simply spin casing to the
proper flow direction.
CASING ROTATION
X
Always install with motor in horizontal orientation. Position electrical junction box at 9
o’clock for best viewing orientation. Pump
casing may be rotated to change flow direction. Locate the arrow on the casing body to
determine flow direction.
CAUTION: To reduce the possibility of noise transmission, be sure to add vibration dampeners to piping when mounting circulator to wall
or floor joists.
ATTENTION: Pour réduire la possibilité de transmission de bruit, veillez à ajouter des amortisseurs de vibration à la tuyauterie lors du
montage du circulateur sur des chevêtres de mur ou de plancher.
5. Filling the system: Fill the system with tap water or a maximum of 50% propylene-glycol and water solution. The system must be
filled before operating the circulator. The bearings are water lubricated and should not be allowed to operate dry. Filling the system
will result in immediate lubrication of the bearings. It is always good practice to flush a new system of foreign matter before starting
the circulator. See page 2 for recommended air purging steps.
To rotate the pump casing, remove the 4 motor screws using a 5/32" (4 mm) allens wrench.
When rotating pump casing position, DO NOT detach motor housing from the casing. Damage to
the casing O-ring and leakage may result. Simply spin casing to the proper flow direction desired as
shown in Figure 4 and Figure 5. Reattach the 4 screws. Be sure motor is positioned correctly and
is seated evenly to prevent leakage or damage to O-ring. Tighten motor screws evenly to 25-33 inlbs torque.
WARNING: Risk of electric shock. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle. Follow all local electrical and plumbing codes.
AVERTISSEMENT: Risque de choc électrique. Pour réduire le risque de choc électrique, veillez à ce qu'elle soit raccordée uniquement à
un réceptacle de type mise à la terre proprement mis à la terre. Respectez tous les codes de plomberie et électriques locaux.
WARNING: Use supply wires suitable for 90°C. AVERTISSEMENT: Employer des fils d’alimentation adeqauts pour 90°C.
WARNING: Disconnect power when servicing. CAUTION: Use flexible conduit only. Not for use with rigid conduit.
WARNING: SERVICING OF DOUBLE-INSULATED APPLIANCES. A double-insulated appliance is marked with one or more of the following:
The words “DOUBLE INSULATION” or “DOUBLE INSULATED” or the double insulation symbol (square within a square). In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added. Servicing a double-insulated appliance requires extreme care and knowledge of the
system, and should be done by qualified service personnel. Replacement parts for a double-insulated appliance must be identical to the
parts they replace.
4

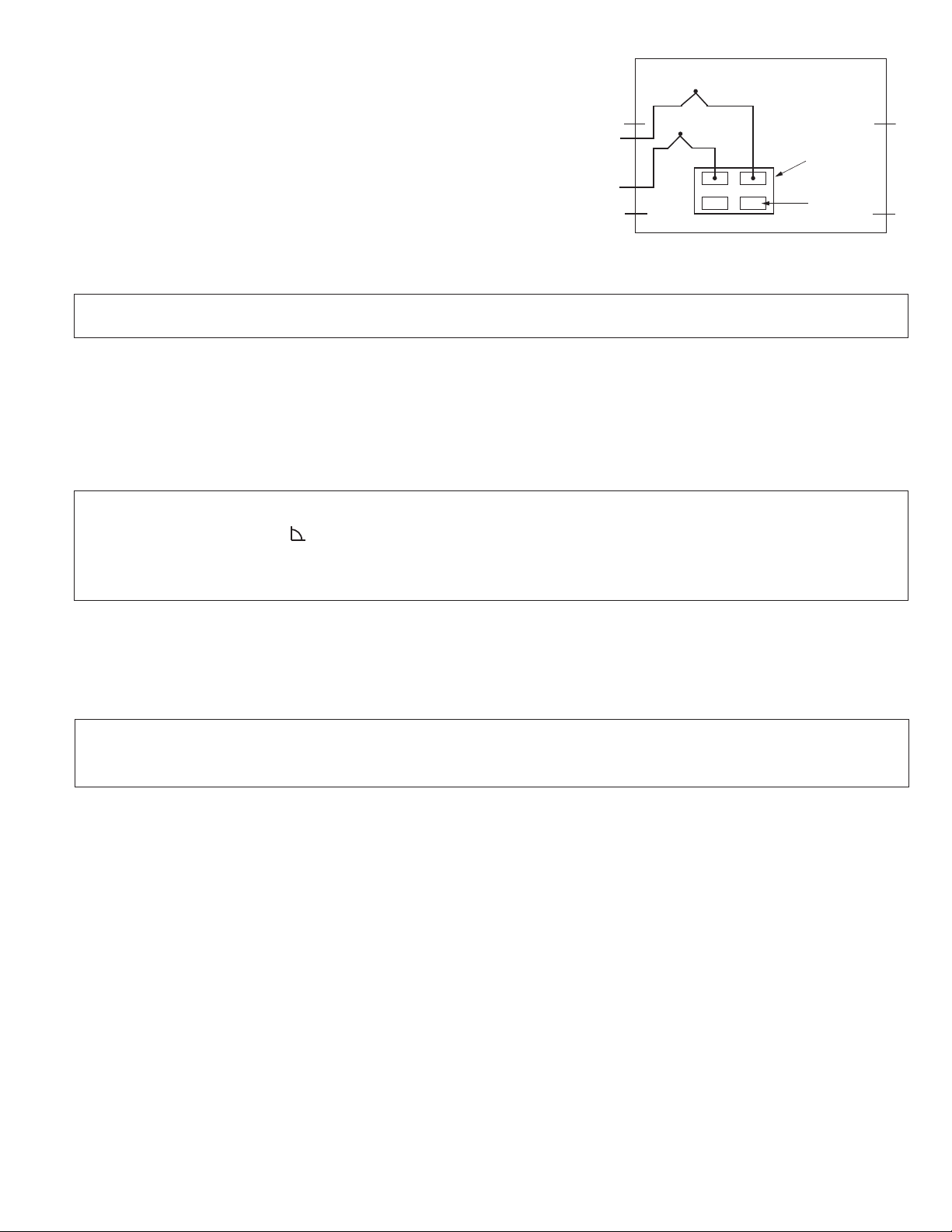

WIRING DIAGRAM
6. Wiring the circulator: Disconnect AC power supply. Remove terminal
box cover. Attach a wiring connector into knockout hole. Use flexible con-
duit only. Connect Line/Hot power to the black lead, Neutral to the white
WIRE NUT
WHITE
lead. See wiring diagram.
NEUTRAL
Note: If pigtail leads provided are not used, be sure to trim field wire to a strip
BLACK
Green Terminal Plug
length of .25" (+/- .025") to prevent exposed wire causing a short at the terminal plug. Connect line and neutral to green terminal plug as shown in diagram. Depress the spring tab with a small screwdriver to insert wire into plug.
Release tabs to complete connection. The 006e3 is a double insulated circulator, no grounding wire is necessary. Replace terminal box cover.
LINE
Spring Tabs
LN
No ground wire is required.
7. Start the circulator: When purging the system, it is recommended to run the circulator at full speed long enough to remove
remaining air from the bearing chamber. This is especially important when installing the circulator in the off-season.
CAUTION: Never run the circulator dry or permanent damage may result.
ATTENTION: Ne laissez jamais le circulateur tourner à sec, des dommages permanents peuvent en résulter.
Full Speed Operation:
To run the pump at full speed during the fast fill, start-up and purge process, rotate dial to MAX speed setting. To return to
the normal operating mode, turn dial to desired speed setting.
8. Programming your 006e3 circulator:
Note: The 006e3 is factory-programmed for Medium speed operating mode. If this is your desired operating mode, no pro-
gramming changes are required. If flow velocity noise develops, turn dial counter-clockwise to reduce pump speed until noise
disappears.
006e3 Operating Modes
• 3 Fixed Speed Settings ( ) - Low, Medium, High
• Pre-marked 003/006 equivalent settings
• Min-Max infinitely variable fixed speed settings for fine tuning
To change operating speed settings:
Modify the performance of the circulator as needed by rotating the programming dial using a flat screwdriver. A blue LED will illuminate when the circulator is powered on. The LED will flash each time mode is changed. The selection of the right performance
curve depends on the characteristics of the system and the actual flow and head requirements. See 006e3 Performance Curves
and Setting Selection Guide on page 7 to determine best speed setting for the system.
CAUTION: Do not attempt to remove LED panel from circulator. Serious damage to circulator electronics may result.
ATTENTION: N'essayez pas de retirer le panneau de LED du circulateur. Des dommages sérieux à l'électronique du circulateur peuvent
en résulter.
5
9. Troubleshooting the error codes: Listed below are potential diagnostic error codes which will appear on the LED display in case
FAULTS
CONTROL
PANEL
CAUSESREMEDIES
The circulator is
noisy
LED on
Suction pressure is
insufficient - cavitation
Increase the system suction
pressure within the
permissible range.
LED on
Presence of foreign bodies
in the impeller
Disassemble the motor and
clean the impeller.
Loud noises of
water circulation
Flashing white
LED
Air in the system
Vent the system. Repeat
fill and purge steps.
LED on The flow is too high Reduce the pump speed.
Circulator is not
running although
the electrical
power supply is
switched on
LED off
Lack of power supply
Verify voltage value of the
electric plant.
Verify the connection of the
motor.
One fuse in the installation
is blown
Verify the fuses of the plant.
The circulator is defective Replace the pump.
Overheating
Let the pump cool down for
some minutes. Then try to restart it. Verify that the water
and ambient temperature are
within the indicated
temperature ranges.
LED red The rotor is blocked
Disassemble the motor and
clean the impeller. See
unblocking procedure below.
Insufficient supply voltage
Verify that the power supply
matches the data on the name
plate.
Building does not
get warm.
LED on
The circulator
performance is too low
Increase the suction head.
Increase speed.
of a malfunction.
Unblocking Procedure:
A red light in the LED indicates the circulator rotor is blocked or sticking. Turn the selector to the position MAX, disconnect and
connect power supply to start the automatic release process. The circulator makes 100 attempts to restart (process lasts approximately 15 minutes). Every restart is signalled by a short flash of white LED light. If the blocking is not removed through the automatic release process after 100 attempts to restart, the circulator goes into standby and the LED remains solid red. Perform the
manual unblocking steps described below.
1. Disconnect power supply - the warning light switches off.
2. Close both isolating valves and allow cooling. If there are no shut-off devices, drain the system so that the fluid level is
beneath that of the circulator.
3. Loosen 4 motor bolts. Remove motor from casing. Carefully pull the rotor/impeller from the motor.
4. Remove impurities and deposits from the impeller and casing.
5. Reinsert the rotor/impeller into the motor.
6. Set the dial to the MAX position.
7. Connect power supply. Check for impeller rotation.
8. If the circulator still doesn’t run it will need to be replaced.
6
Replacement Parts List
Union Fitting Options
(Sold seperately)
198-213 RP Casing O-ring
198-214 RP Wiring plug connector (green)
198-215 RP Terminal box cover (black)
198-217 RP Terminal box cover screws (5 per bag)
!"#$%&'(&)*+,&#-../01&2*3,&4$5-4(&6'..$4&.7.$&'8&$9-"/&/$(:5;
!"#$
%&'"()
*+,
<=>?@&A7:-4$#&"4$&8'4&4$8$4$(6$&.-4.'#$#&'(/0B&&C$8$4&5'&DE>F&:-7%$/7($#&8'4&.7.7(:&8/'G&H&I$/'6750&
#5"(%"4%#B&A'4 J?K1&4$8$4&5'&.7.$&L"(-8"65-4$4&:-7%$/7($#B
Part # Description
UFS-050S 1/2” sweat tailpiece set
UFS-050T 1/2” npt tailpiece set
UFS-050P 1/2” press tailpiece set
UFS-075S 3/4” sweat tailpiece set
UFS-075T 3/4” npt tailpiece set
UFS-075P 3/4” press tailpiece set
!"##$%&'!"(")#$*%'+,$-"
-../01/2"2&
3-./01/2"2&
4../01/2"2&/+5/6&77

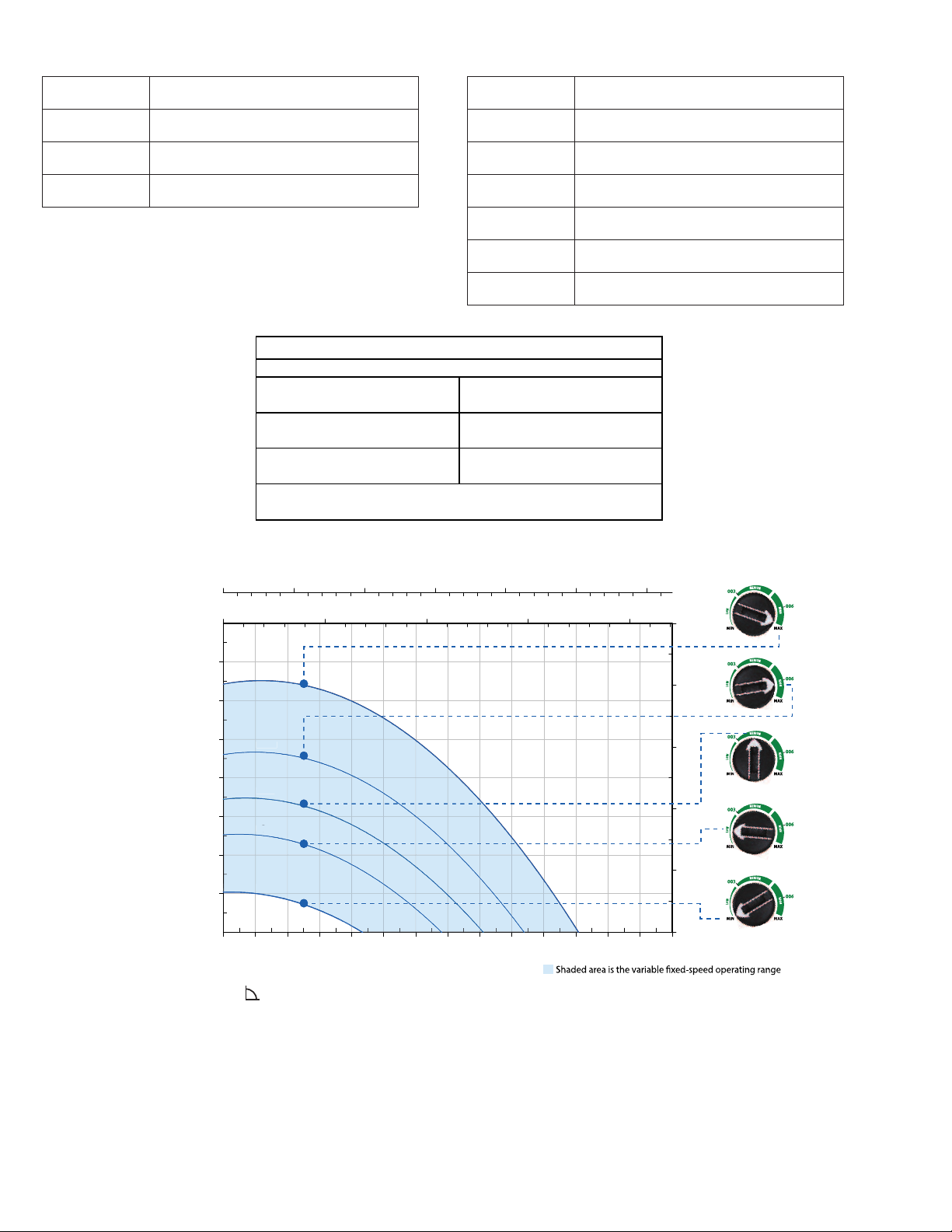

006e3™ PERFORMANCE CURVES
0.0 0.5 1.0 1.5 2.0 2.5 3.0
16
H (fftt)
14
12
10
Head
MAX
HIGH
8
MED
6
LOW
4
MIN
2
0
0 123 654 7 8 9 10 11 12 13 14
Flow
0.80.60.40.20.0
3 fixed speed settings ( ) (Low, Medium High) allows the installer to choose the speed and flow rate to precisely match system requirements. It also has infinitely variable speed settings between MIN/MAX to fine tune flows more precisely. Pre-marked
003/006 settings enable installers to set 006e3 to match standard 003 or 006 performance.
Q
(m
Q (l//s)
3
/hr)
5
H (m)
4
3
2
1
0
Q (gpm)
7
A Taco Family Company
2017
006e3 Replacement Chart
TACO GRUNDFOS WILO B&G / XYLEM ARMSTRONG LAING
003
006
UP 15-18
UP 15-10
UP 10-16
Z-15
ecocirc e3-4
ecocirc e
3
-6
NBF-8, 9, 10, 12
SSF- 9, 12
Astro 225 BS
Astro 225 SSU
Astro 220 SSU
E1 Series
E3 Series
LIMITED WARRANTY STATEMENT
Taco, Inc. will repair or replace without charge (at
the company’s option) any Taco High Efficiency
circulator or circulator part which is proven defective under normal use within three (3) years from
the date of manufacture.
In order to obtain service under this warranty, it
is the responsibility of the purchaser to promptly
notify the local Taco stocking distributor or Taco
in writing and promptly deliver the subject product
or part, delivery prepaid, to the stocking distributor. For assistance on warranty returns, the purchaser may either contact the local Taco stocking distributor or Taco. If the subject product or
part contains no defect as covered in this warranty, the purchaser will be billed for parts and
labor charges in effect at time of factory examination and repair.
Any Taco product or part not installed or operated
in conformity with Taco instructions or which has
been subject to misuse, misapplication, the addition of petroleum-based fluids or certain chemi-
cal additives to the systems, or other abuse, will
not be covered by this warranty.
If in doubt as to whether a particular substance
is suitable for use with a Taco product or part, or
for any application restrictions, consult the
applicable Taco instruction sheets or contact
Taco at (401-942-8000).
Taco reserves the right to provide replacement
products and parts which are substantially similar
in design and functionally equivalent to the
defective product or part. Taco reserves the right
to make changes in details of design, construction, or arrangement of materials of its products
without notification.
TACO OFFERS THIS WARRANTY IN LIEU OF
ALL OTHER EXPRESS WARRANTIES. ANY
WARRANTY IMPLIED BY LAW INCLUDING
WARRANTIES OF MERCHANTABILITY OR
FITNESS IS IN EFFECT ONLY FOR THE DURATION OF THE EXPRESS WARRANTY SET
FORTH IN THE FIRST PARAGRAPH ABOVE.
THE ABOVE WARRANTIES ARE IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR
STATUTORY, OR ANY OTHER WARRANTY
OBLIGATION ON THE PART OF TACO.
TACO WILL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF ITS PRODUCTS OR ANY INCIDENTAL
COSTS OF REMOVING OR REPLACING
DEFECTIVE PRODUCTS.
This warranty gives the purchaser specific rights,
and the purchaser may have other rights which
vary from state to state. Some states do not
allow limitations on how long an implied warranty
lasts or on the exclusion of incidental or consequential damages, so these limitations or exclusions may not apply to you.
8
Loading...
