Tacktick Hull Transmitter Quick Start Manual

Installation Method

For optimum performance and long term operation it is advisable to
connect to the vessels 12/24Vdc supply rather than rel ying on small power
cells. Connect the cable ends from the transducers and power supply to
the supplied connectors using the supplied screwdriver taking care to
ensure that all core colours are positioned correctly. It is advisable to
sheath the screens to prevent short circuit problems once the cover is in
place.

Insert the connectors into the appropriate sockets on the Hull Transmitter
and loop the single cores to allow the outer cable sheath to be secured in
the clamp when the cover is fitted.

Secure the cables close to the Hull Transmitter to reduce the possibility of
the connections becoming loose later.

Cable
Clamps

Hull Transmitter

Tacktick Limited
22 North Street, Emsworth,
Hampshire, PO10 7DG, England
Tel. [phone]
Fax. [phone]
www.tacktick.com

Tools Required Parts List

1. 2mm or 5mm Drill Bit

2. Power Drill

3. Cross Head Screwdriver

1. Mounting Template

2. Mounting Bracket

3. Mounting Screws (3 off)

4. Mounting Bolts (3 off)

5. M4 Studs & Thumbnuts (3 off)

6. Double Sided Tape

Precautions

The Hull Transmitter should be mounted in a dry area of the boat to
protect the cables and connectors from corrosion.
Cables should be supported close to the Hull Transmitter box t o prevent
possible strain on the internal connectors.
All cables should be supported by clamps and ties close to the unit.

Positioning Advise

The Hull Transmitter should be mounted such that the cables from the
transducers can be routed to it easily through the boat. Mounting the Hull
Transmitter close to the transducers will allow easy cable routing. Avoid

mounting on metallic surfaces or where there are metallic objects
between the Interface Box and other Micronet instruments.

Cover
Cable Loop
Cable Clamp

Avoid bilge areas if possible to

protect the equipment and

connections

For optimum signal avoid mounting

the transmitter on a longitudinal

surface

uu044 rev. 8

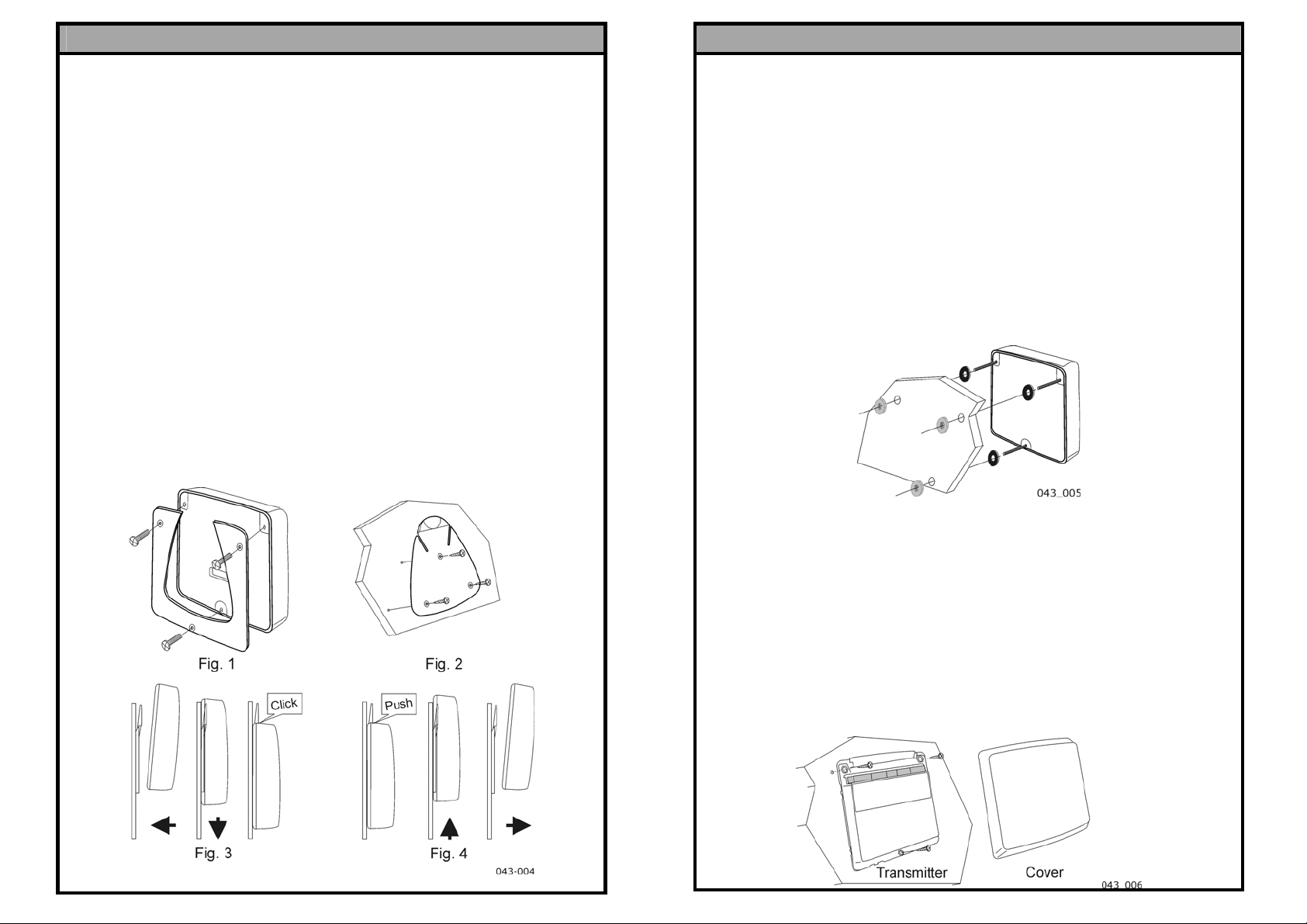

Bracket Mounting

This method allows for the easy removal of a Hull Transmitter as
and when required for either security reasons or to prevent
damage whilst not in use.

1. Using the three supplied M4 bolts attach the back plate to the rear of
the Hull Transmitter. (Fig. 1)

2. Drill three 3mm holes marked “BRACKET” on the Template and using
the supplied screws attach the clip bracket to the mounting surface.
(Fig. 2)

3. Place the Hull Transmitter flat against the bracket slightly higher than
the final position and slide gently down into position. There will be a
small click as the bracket secures the Transmitter in position. (Fig. 3)

4. Connect and secure the cables leaving a loop of single core cable
inside the casing before fitting the cover such that the outer sheath is
secured beneath the rubber clamp. Once the Transmitter is secured in
position it is advisable to clamp the cables to the mounting surface
close to the Transmitter.

5. To release the Hull Transmitter press lightly on the bracket tab and
slide the Transmitter up until it can be pulled away from the surface.
(Fig. 4)

Note: Take care to disconnect cables carefully before removing the unit

and ensure that the cables and connectors left behind are protected
from both water and physical damage.

Surface Mounting

With Rear Access

Position the supplied Template carefully before starting.

1. Drill three 5mm hol es marked “B” on the Template.

2. Screw the four M4 brass studs into the rear of the Transmitter.

3. Place the Transmitter in position pushing the three studs through the
newly drilled holes.

4. Using the 3 supplied thumb nuts secu r e the Transmitter to the sur f ace
making sure it is level before fully tightening.

5. Connect and secure the cables leaving a loop of single core cable
inside the casing before fitting the cover such that the outer sheath is
secured beneath the rubber clamp. Once the Transmitter is secured in
position it is advisable to clamp the cables to the mounting surface
close to the Transmitter.

Without Rear Access

Position the supplied Template carefully before starting.

1. Drill three 2mm hol es marked “S URFACE” on the Template

2. Remove the cover of the Transmitter from the main body.

4. Attach the Transmitter to the mounting surface using the three self
tapping screws provided. Take care not to over tighten the screws as
this may cause the moulding to crack.

5. Connect and secure the cables as shown overleaf.

6. Fit cover carefully securing the cables under the clamp bar.
