Page 1
USER'S MANUAL
OPERATION, MAINTENANCE AND TROUBLE SHOOTING
LABEL DISPENSERLABEL DISPENSER
MODEL: SH-408
Page 2
ContentsContents
A. External View-------------------------------------------------------------------------------------3
B. Specification--------------------------------------------------------------------------------------3
C. Label setting procedure------------------------------------------------------------------------4
D. Trouble shooting---------------------------------------------------------------------------------4
E. Parts list--------------------------------------------------------------------------------------------5
F. Electric diagram----------------------------------------------------------------------------------6
2
Page 3

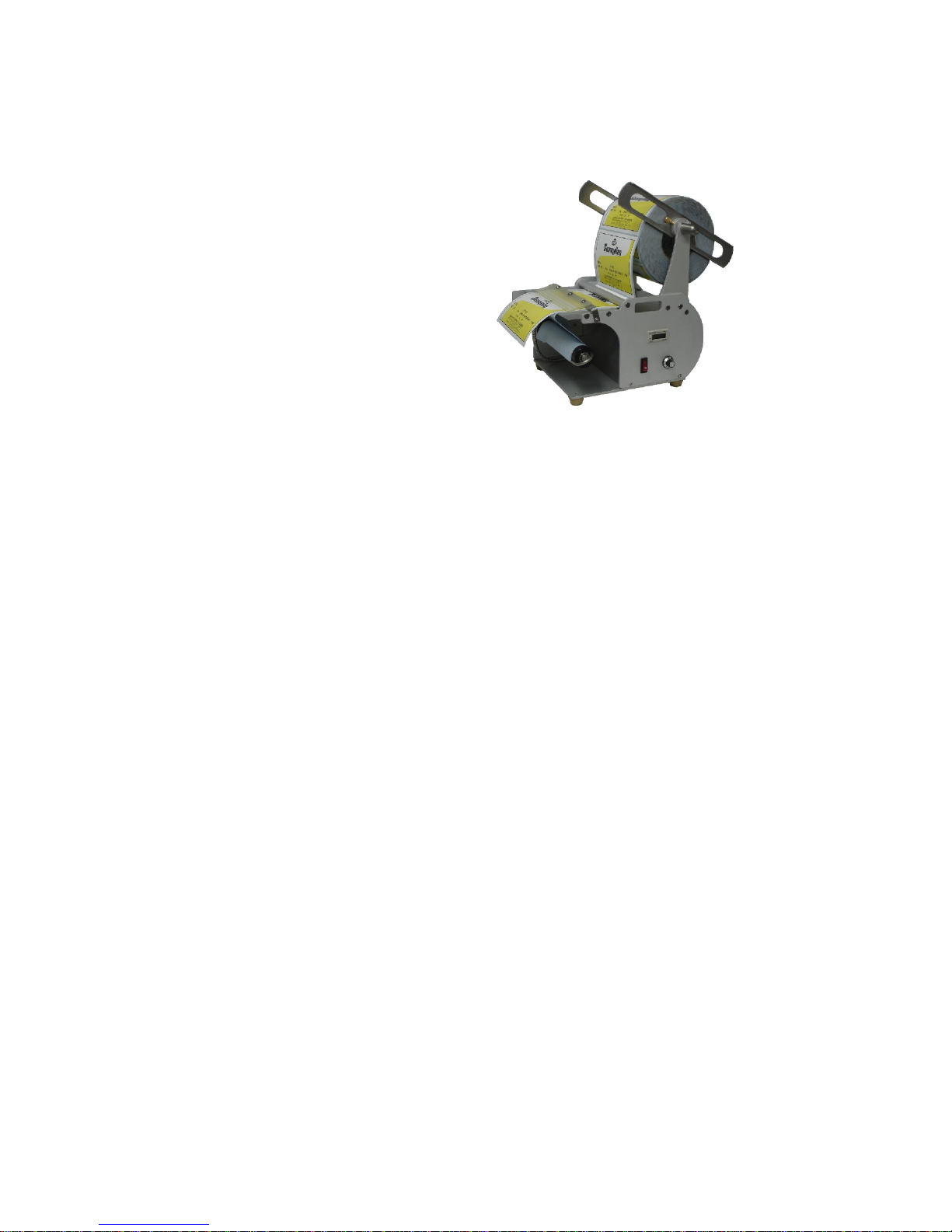

A. External viewA. External view
ㆍCheck all parts
- Main body
- Hanger bracket
- Hanger shaft
- Hanger guide(pair)
- U-pin
- AC-Code
- Manual
※ Instal hanger bracket if separated.
B. SpecificationB. Specification
3
ㆍLabel size -Max 200(W) X 310(L)mm
-Min 10(W) X 25(L)mm
ㆍLabel roll - Max Φ300mm
ㆍSpeed - 12m/min
ㆍPower - 110VAC
ㆍMotor - SPG S8125GX, Gear S8KA30B
ㆍTiming belt - MITSUBISHI 144XL
ㆍSensor - SANIL(SB-11, BR-6M)
ㆍCounter - Autonics(LA7N-FR)
ㆍMachine dimension - 255(W) X 340(L) X 345(H)mm
ㆍNet weight - 9.2Kgs
ㆍFuse - 3A
Page 4

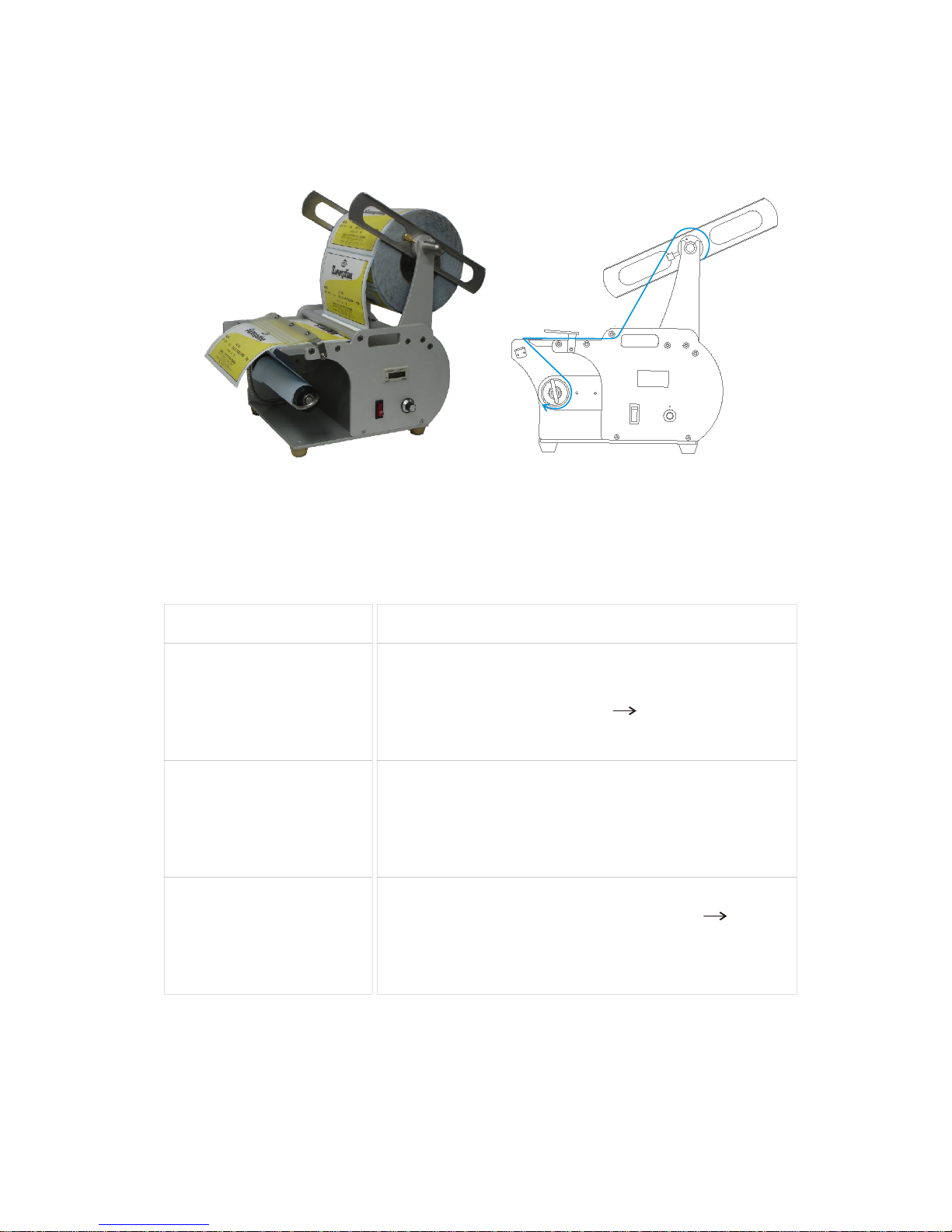

C. Label setting procedureC. Label setting procedure
D. Trouble shootingD. Trouble shooting
Trouble
Shooting
Machine does not start
Check if power cord is connected to the machine
and power outlet.
Check if the fuse is blown.( Means burn)
Remove fuse and replace to new.
Label comes out continually
Label comes out too slowly
and not steadily
Check volume is too high. Please down the
volume. Its better to start volume low.
Check urethane press sheet too press loose
urethane press sheet.
4
