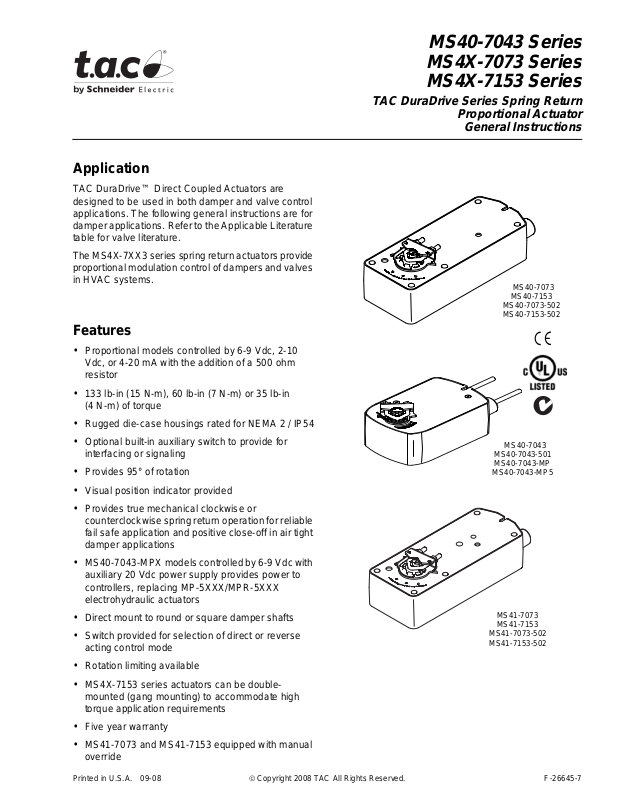

T.A.C. MS40-7043, MS4X-7073, MS4X-7153 User Guide

Page 1

Application

TAC DuraDrive™ Direct Coupled Actuators are designed to be used in both damper and valve control applications. The following general instructions are for damper applications. Refer to the Applicable Literature table for valve literature.

The MS4X-7XX3 series spring return actuators provide proportional modulation control of dampers and valves in HVAC systems.

Features

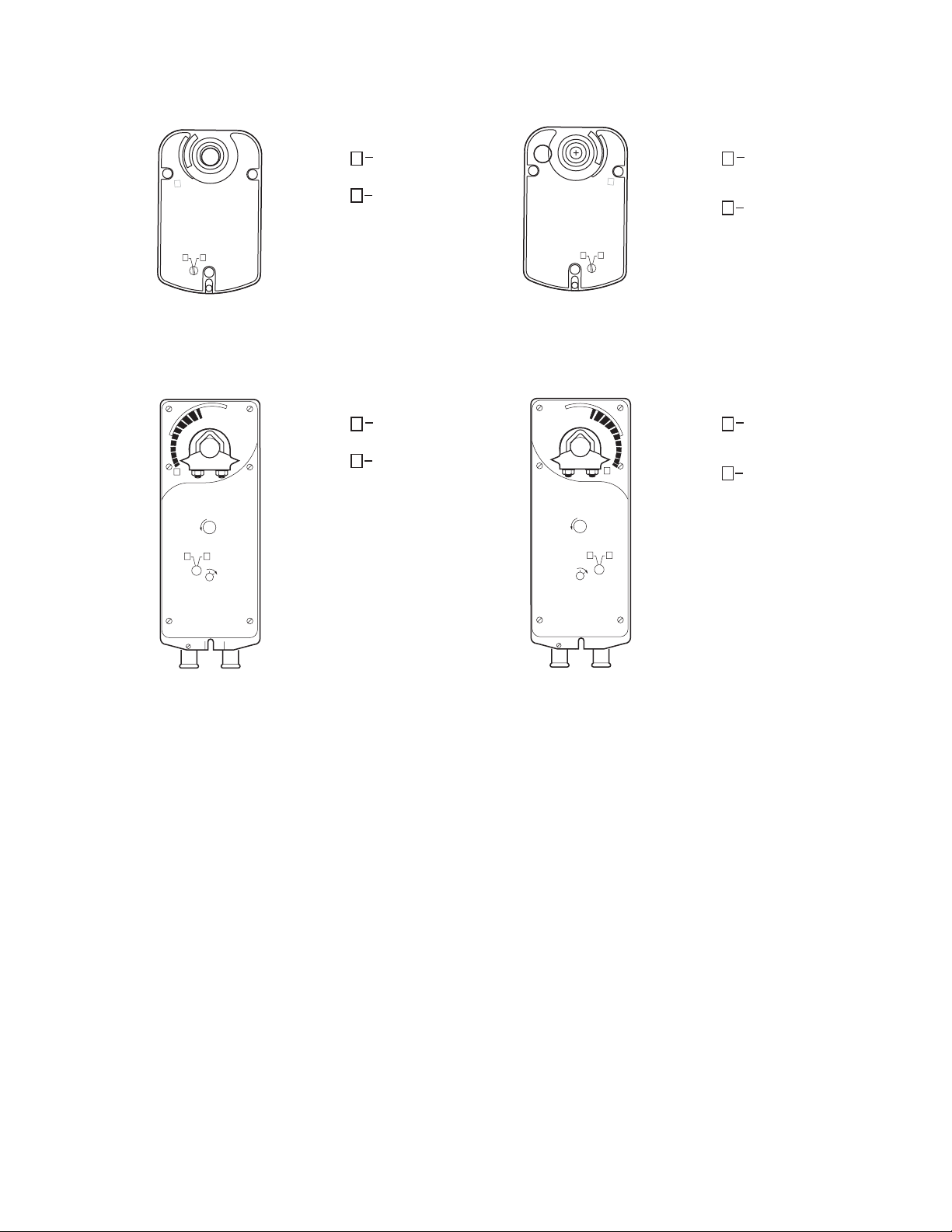

MS40-7043 Series MS4X-7073 Series MS4X-7153 Series

TAC DuraDrive Series Spring Return

Proporti o nal A ctu ato r

General Instructions

MS40-7073

MS40-7153 MS40-7073-502 MS40-7153-502

• Proportional models controlled by 6-9 Vdc, 2-10

Vdc, or 4-20 mA with the addition of a 500 ohm resistor

• 133 lb-in (15 N-m), 60 lb-in (7 N-m) or 35 lb-in

(4 N-m) of torque

• Rugged die-case housings rated for NEMA 2 / IP54

• Optional built-in auxiliary switch to provide for

interfacing or signaling

• Provides 95° of rotation

• Visual position indicator provided

• Provides true mechanical clockwise or

counterclockwise spring return operation for reliable fail safe application and positive close-off in air tight damper applications

• MS40-7043-MPX models controlled by 6-9 Vdc with

auxiliary 20 Vdc power supply provides power to controllers, replacing MP-5XXX/MPR-5XXX electrohydraulic actuators

• Direct mount to round or square damper shafts

• Switch provided for selection of direct or reverse

acting control mode

MS40-7043 MS40-7043-501 MS40-7043-MP

MS40-7043-MP5

MS41-7073

MS41-7153 MS41-7073-502 MS41-7153-502

• Rotation limiting available

• MS4X-7153 series actuators can be double-

mounted (gang mounting) to accommodat e high torque application requirements

• Five year warranty

• MS41-7073 and MS41-7153 equipped with manual

override

Page 2

Applicable Literature

F-Number Description Audience Purpose

Describ es the globe valve actuator/linkage assembly’s features, specif ications, and possible applications. Provides step-by-step mounting instructions.

Describ es the actu ator/linkage/ball valve assembly’s feat ures, specifications , and possible applications. Provides step-bystep mounting instructions.

Provides actuator spec ifications and part number cross referencing of phased out actuator s wit h the new TA C di rect- cou pled actuators.

Provides part number cross referencing of phased ou t globe and ball valve assemblies with the new TAC directcoupled actuators.

Descri bes TAC approved water tr ea tm en t practices.

Provides chart s, equations, and diagrams to assist in the configuration of valve system applications. TOOL-150, valve sizing slide rule may be purchased separately.

F-26750

F-26751

F-26646

F-26752

F-26080 EN-205 Water System Guidelines

F-13755 CA-28 Control Valve Sizing F-11080 Valve Selection Chart Water

F-11366 Valve Selectio n Chart Steam (two-way valves only)

MA4X-XXXX-2XX, MF4X-XXXX-2XX, MS4X-XXXX-2XX Series Actuator/Linkage Assemblies General Instructions

VX-2000 Series Ball Valve Assembly I nstallations Instructions

MX4X-7XXX, MX40-6XXX Series TAC DuraDrive Actuator Selection Guide

VX-2000, VX-7000 Serie s MX4X-7XXX, MX40-6XXX Series Ball/Linked Globe Valve Assemblies Actuator/Linkage Assemblies Selection Guide

– Sales Personnel – Application Engineers –Installers – Service Personnel – Start-up Technicians

– Application Engineers –Installers – Service Personnel – Start-up Technicians

Page 3

SPECIFICATIONS

Actuator In puts

Control Signal: See Table-1. Power Input: See Table-1. All 24 Vac circuits are Clas s 2. Connections: 3 ft. (91 cm) plenum rated cable for MS40-7 043-XXX and 3 ft. (91 cm)

appliance cabl es for MS4X-7153-XXX and MS4X-7073-XXX, 1/2” (13 mm) conduit connectors. For M20 Metric conduit, use AM-756 adaptor.

Actuator Outputs

Electrical:

Position Feedback Voltage “AO”,

MS40-7043, MS4X-7153 and MS4X-7073 2 to 10 Vdc (max. 0.5 mA) output signal

for position feedback or to operate up to four addi tional slave actu ators.

Auxiliary Switches,

MS40-7043-MP5 and MS40-7043-501 One SPDT 6A (1.5A) @ 24 Vac, adjustable 0

to 95

(0 to 1 scale). MS4X-7153-502 and MS4X-7073-502 Two S PDT 7A (2. 5A) @ 250 Vac, on e fixed @ 5° and one adjustable 25 to 85

Auxiliary Power Supply:

MS40-7043-MP and MS40-70 43-MP5 +20 Vdc @ 25 mA (max).

Mechanical:

Stroke, Angle of rotation 95° ±5°. Adjustable 30° to 95° with AM-689 ins tal led on

MS4X-7153-XXX or MS4X-7073-XXX. MS40-7043-XXX models are adjustable 40° to 95° by adjusting the stop block position on the actuator.

Damper Shaft Clamp,

MS40-7043-XXX The factory installed universal clamp is used for shafts up to 5/8”

(15 mm) diameter or up t o 1/2” ( 13 mm) sq uare. AM- 710 ac cessory clamp is requ ired when mounting actuat ors to shaf ts up to 3/4” ( 19 mm) diamet er or up to 1/2” (1 3 mm) square. MS4X-7153-XXX or MS4X-7073-XXX The factory installed universal clamp is used for shafts up to 3/4” (19 mm) diameter or up to 1/2” (13 mm) square. AM-687 accessory clamp i s required when mounting actu ators to shafts up to 1.05” (27 mm) diameter or up to 5/8” (15 mm) square.

Position Indicator, Visual indicator.

MS4X-7153 and MS4X-7073, -5 to 90° MS40-7043, 0 to 1 (0 is spring re turn position).

Nominal Damper Area, Actuator sizing should be done in accordance wit h dam per

manufacturer’s specifications. Direction of Rotation, Clockwise or counterclockwise rotation determined by act uator mounting. Manual Override, MS41-7073 and MS41-7153 are equipped with a manual rotation adjustment from -5° to 85°. Right/Left Switch, Permit s reverse acting/di rect acting rotation.

(-5° is spring return position).

Environment

Ambient Temperature Limi ts:

Shipping & Storage, -40 to 160°F (-40 to 71°C). Operating, -22 to 140°F (-30 to 60°C).

Humidity: 15 to 95% RH, non-condensing. Location:

MS4X-7153-XXX and MS4X-7073-XXX, NEMA 1 (IEC IP30). NEM A 2 (IEC IP54) with

conduit connector in the down position.

MS40-7043-XXX, NEMA 2 (IEC IP54) no restrictions.

Agency Listings

UL 873: Underwriters Laboratories (File #E9429 Category Temperature -Indicating and

Regulating Equipment). CUL: UL Listed for use in Canada by Underwriter s Laboratories. Canad ian Standards C22.2 No. 24-93.

European Community: EMC Directive (89/336/EEC). Low Voltage Directive (72/23/EEC) Australia: Thi s product meet s requirem ents to bear the C-Tick Mark ac cording t o the terms

specified by the Com mu nications Authority under the Radiocommunications Act 1992.

Page 4

Table-1 Specifications.

Actuator Power Input

Part Number

Voltage

VA W VA W W

MS40-7043 MS40-7043-

5.6 4.2 5.6 4.2 0.15 2.4 <130 <25

501 MS4X-7073 MS4X-7073-

502

24 Vac

± 20%

22-30

Vdc

5.8 4.6 5.8 4.6 0.17 2.3 <195 <30

MS4X-7153 MS4X-7153-

9.8 7.4 9.7 7.4 0.28 2.9 <190 <30

502 MS40-7043-

MP MS40-7043-

MP5

Timing was measured with no load applied to the actuator.

De-rating is required at low temperatures.

2-10 Vdc or 6-9 Vdc input impedance 80 k ohms.

4-20 mA with 500 ohm input impedance 500 ohms.

One adjustable from 0° to 95° rotation (0 to 1 scale).

One adjustable from 25° to 85° rotation and one set to operate @ 5° fixed.

24 Vac

± 20%

22-30

Vdc

6.6 5.0 6.6 5.0 0.17 3.2 <130 <25

Running

Amps

Hold-

ing

50/60

Approximate

Timing in

Seconds @ 70°F

Powered

(21°C)

Spring Return50 Hz 60 Hz

Auxiliary

Switch

One

Two

One

Outpu t Torque

Rating

lb.-in. (N-m)

Max.

Min.

(4)

60 (7)

133 (15)

35 (4)

Stall

150

(17)

250

(28)

350

(40)

150

(17)

Auxiliary

Power

Supply

None

+20 Vdc

25 mA

Max.

Input

2-10

Vdc or

4-20

mA w/

500 Ω

6-9 Vdc

ACCESSORIES

AM-671 Universal Mounting Brac ket, AM-693 is requ ired AM-672 Universal Mounting Brac ket, AM-693 is requ ired AM-673 Multip le Actuator Mounting Bracket (MA40-7153 series) AM-674 Weathe r Shield AM-675 Base Mounting Plate for AM-674 AM-676 Universal Shaft Extension, AM-710 required AM-703 I nput Resc ali ng Mod u l e, adjusts sign als to 2-10 Vdc , zero and sp an adju s tment AM-704 Interface, pu lse width modulation AM-705 Positioner (NEMA 4 housing) AM-706 Min and/or Manual Positioner for flush panel mount AM-708 500Ω resistor for 0 to 20 mA control signal AM-714 Weather Shield (polycar bonate) AM-756 Metric Conduit Adapter M20 x 1.5 to 1/2” NPT AM-761 7-inch replacement anti-rotation bracket AM-762 9-inch replacement anti-rotation bracket

MS4X-7153-XXX and MS4 X-707 3-XX X

AM-686 Damper Position Indicat or AM-687 Universal Clamp for up to 1.05" (27 mm) diameter shafts AM-688 Replacement Universal Clamp AM-689 Rotatio n Li miter AM-690 Crank Arm for round shafts up to 3/4" (19 mm) AM-691 Crank Arm for jackshafts up to 1.05" (27 mm) AM-692 V-bolt Kit for AM-690 and AM-691 Crank Arms AM-693 Damper Linkage Kit AM-758 Short “ U” mounting bracket for replacing Honey well Mod III type actuators and new

installations, AM-690 or AM-691 is required

AM-759 Tall “U” mounting bracket for re placing Honeywell Mod IV t y pe actuators an d new

installations, AM-690 or AM-691 is required AM-760 Slotted “L” mounting bracket, AM-690 or AM-691 is required AM-763 Crank fo r manual override

Page 5

MS40-7043-XXX

AM-709 Damper Position Indicat or AM-710 Unive rsal Clam p for up to 3/4" dia m eter shafts AM-711 Crankarm for up to 1/2" round shaft AM-712 Crankarm Adaptor Kit AM-713 Mounting Bracket for Honeywell Mod IV, M6415 type actuators, and new installations AM-715 Crankarm Adaptor Kit for Honeywell Mod IV M6415 type actuato rs, and new

installations

AM-717 Replacement Universal C lamp

Table-2 Auxiliary Power Supply.

Model # Rating

MS40-7043-MP or MS40-7043-MP5 + 20 Vdc, 25 mA Maximum

Control Wires Blue (+) Grey (-)

TYPICAL APPLICATIONS (wiring diagrams)

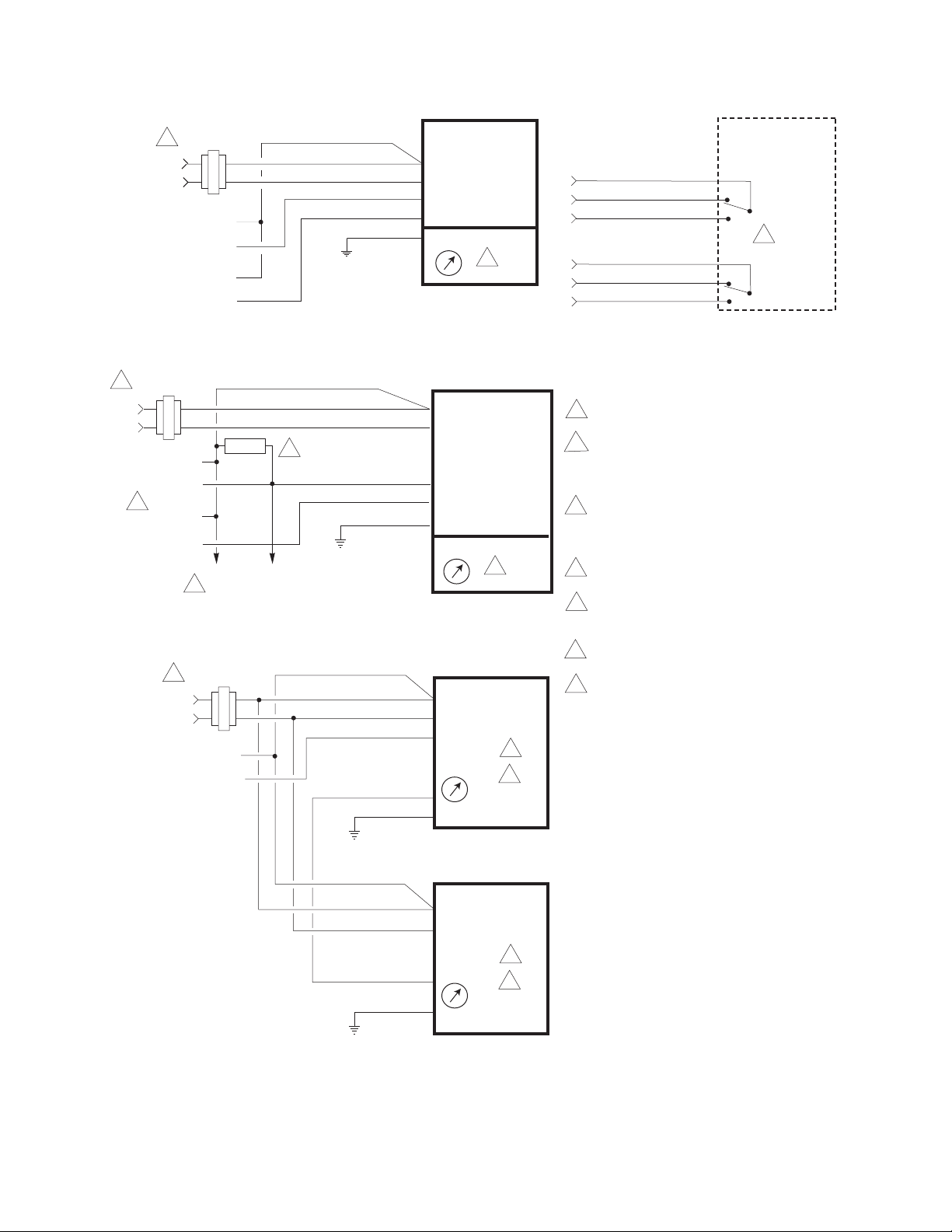

Figure-1 and Figu re- 2 il lustrate typical wiring diagrams for spring return proporti onal actuators. See Table-1 for model selection and control signal specifications.

Caution:

This product contains a half-wave rectifier power supply and must not be powered off transformers used to power other devices utilizing non-isolated full- w ave rectifier power supplies. Refer t o

Common Transformer, F-26363

Note:

DC operation is applic able to models manufactured after date code 0212.

EN-206, Guidelines for Powering Multipl e Devices from a

for detailed information.

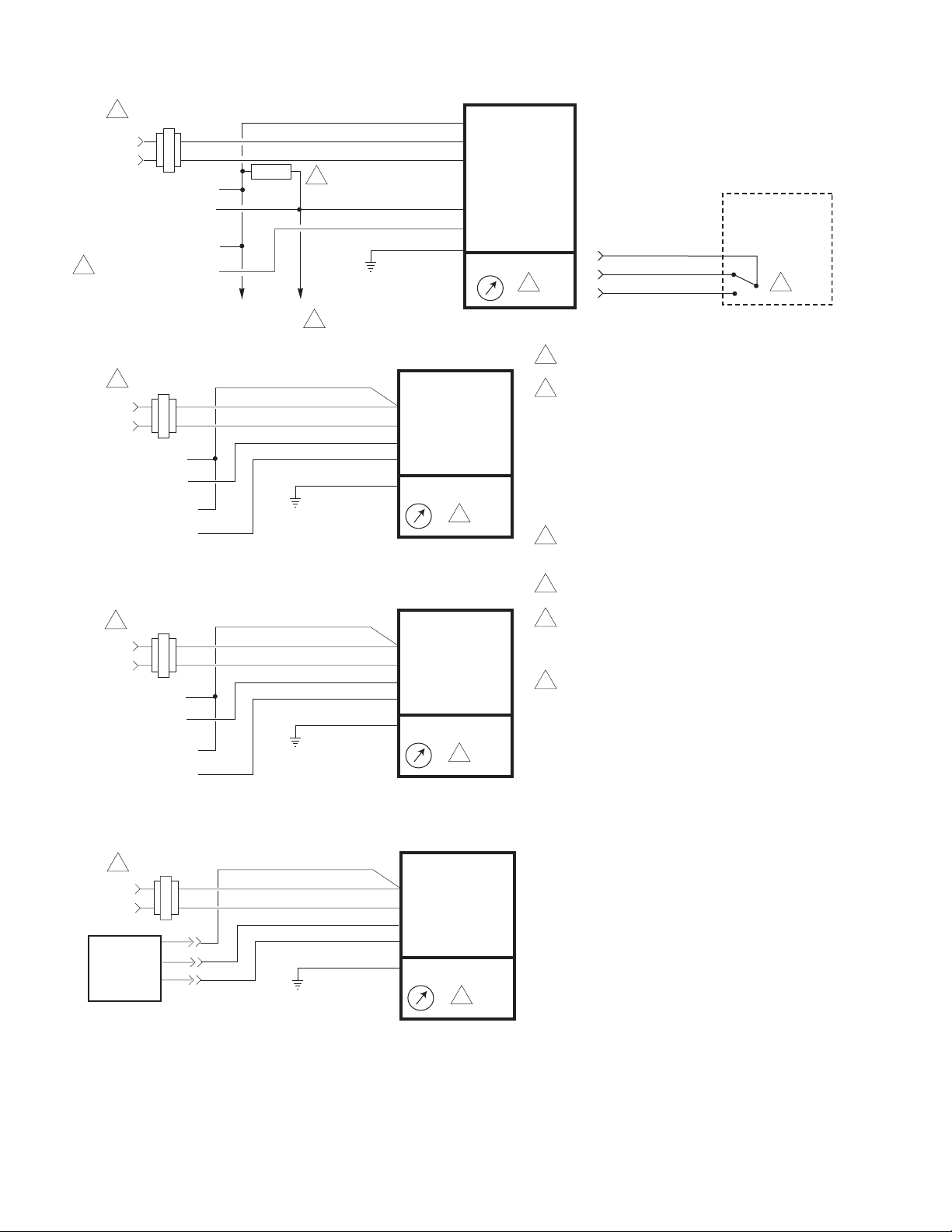

Page 6

Transformer

Line

Volts

Control Signal

4 to 20 mA

Feedback Signal

2 to 10 Vdc

24 Vac

4 to 20 mAdc Proportional Control

(-) (+)

(-)

500 Ω

Gra

Blk

Red

Yel/Blk

Blu

Common

Hot (DC)

Grn/Yel

(+)

To Additional

Actuators

MS40-7043-501

L R

MS40-7043

Optional Auxiliary Switch

Aux Switch

(MS40-7043-501)

Org

Vio

Yel

Com (S1)

NC (S2)

NO (S3)

0 to 1 Scale

Adjustable

2 to 10 Vdc Proportional Control

24 Vac

Transformer

Line

Volts

Control Signal 2 to 10 Vdc

Feedback Signal

2 to 10 Vdc

(-) (+)

Gra

Blk

Red

Yel/Blk

Blu AO

Common Common

MS40-7043

MS40-7043-501

Hot (DC)

Grn/Yel

L R

6 to 9 Vdc Proportional Control with 20 Vdc Power Output

24 Vac

Transformer

Line

Volts

Control Signal

6 to 9 Vdc

Auxiliary Power

+20 Vdc

(-)

(+)

(-) (+)

Gra

Blk

Red

Yel/Blk

Blu AO

Common Common

MS40-7043-MP

MS40-7043-MP5

Hot (DC)

Grn/Yel

L R

1 Provide overload protection and disconnect

as required.

2 For parallel operation in 4 to 20 mA

applications, actuators may be wired in series and mounted on separate shafts. Also, up to four actuators, mounted on separate shafts, may be wired in parallel. With four actuators wired to one 500 ohm resistor, a +2% shift of the control signal may be required. Power consumption and input impedance limits must be observed. Actuator input impedance is 80 kohm.

3 For end position indication, interlock control,

fan startup, etc., MS40-7043-501 model incorporates one built-in auxiliary switch.

4 To reverse actuator rotation, use the

reversing switch.

5 A field-supplied 500 ohm resistor (AM-708) is

required between the gray and yellow/black leads to convert the 4 to 20 mAdc control signal to 2 to 10 Vdc.

6 Only connect common to negative (-) leg of

control circuits.

TAC System 8000 6 to 9 Vdc Room Temperature Control

24 Vac

Transformer

Line

Volts

TAC

System

8000

Controller

Blu

Yel

+20 Vdc

Red

Figure-1 Proporti onal Control of TAC System 8000 Room Tempera tur e Controller Applicat ion of MS40-7043-XXX Actuator.

Gra

Blk

Red

Yel/Blk

Blu

Common

Hot (DC)

Grn/Yel

MS40-7043-MP

MS40-7043-MP5

L R

Page 7

MS4X-7073-XXX and MS4X-7153-XXX

Caution:

with transformers that are used to power other devices utilizing non-i solated full-wave rectifier power supplies. Refer t o

Common Transformer, F-26363

MX40-707X-502 and MX40-715X-502 units manufactured prior to the date code 0141 (October 6, 2001) used different color coding for the auxiliary switches.

Auxiliary Switch 1

Auxiliary Switch 2

The label i nformat ion on the se unit s i s incor rect . If replac ing t hese unit s, th e auxil iary switc h operation of the repl acement actuator wil l be per the product label and Figure-2.

This product contains a half-wave rect ifier power supply. I t must not be powered

EN-206, Guideli nes for Powering Multiple Devices from a

for detailed info rmation.

Orange: Fixed auxiliary swi tch common (com) Yellow: Fixed auxiliary switch normally closed (NC) Violet: Fixed auxiliary swi tch normally open (NO)

Orange/white: Adjustable aux il iary switch common (com) Violet/ white: Adjustable auxiliary switch normally closed (NC) Yellow/whi te: Adjustable auxiliary switch normally open (NO)

Page 8

Line

Volts

Control Signal

2 to 10 Vdc

Feedback Signal

2 to 10 Vdc

Transformer

or 22- 30 Vdc

Line

Volts

Control Signal

4 to 20 mA

Feedback Signal

2 to 10 Vdc

Control Signal

2 to 10 Vdc

2 to 10 Vdc Proportional Control

24 Vac

Transformer

or 22- 30 Vdc

(-) (+)

Gra

Blk

Red

Yel/Blk

Blu AO

Com

Hot (+DC)

Grn/Yel

MS4X-7073-502 MS4X-7153-502

L R

(-) (+)

4 to 20 mAdc Proportional Control

24 Vac

Yel/Blk

Blu

Com

Hot (+DC)Red

Grn/Yel

(-)

(+)

(-)

500 W

Gra

Blk

(+)

To Additional

Actuators

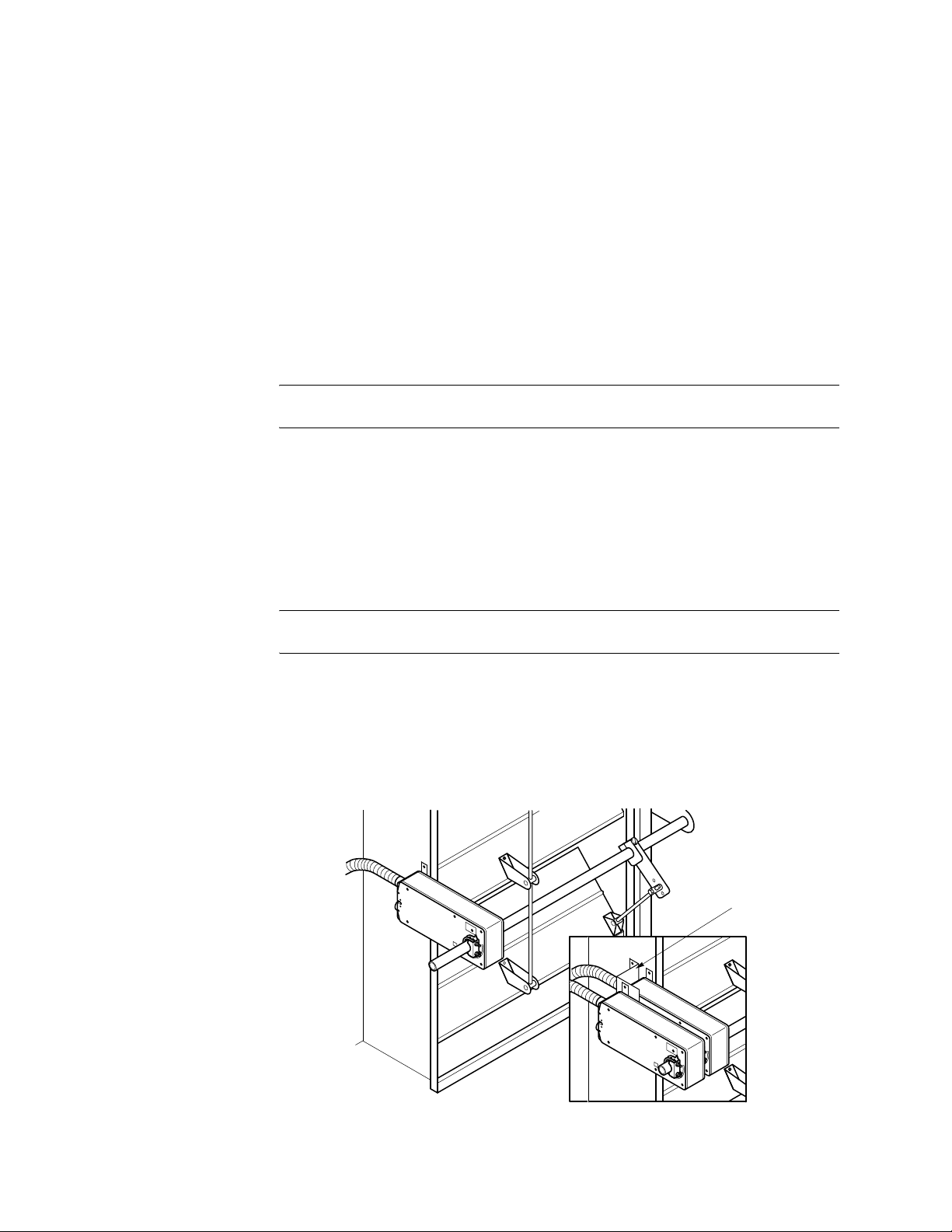

Two Actuators on the Same Damper Shaft

24 Vac

Line

Volts

Transformer

or 22- 30 Vdc

Gra

Blk

Red

Yel/Blk

Com

Hot (+DC)

(-) (+)

Blu

Grn/Yel

MS4X-7073 MS4X-7153

MS4X-7073

MS4X-7153 MS4X-7073-502 MS4X-7153-502

L R

MS4X-7153 MS4X-7153-502

L R

Optional Auxiliary Switches

Aux Switches

MS4X-7073-502

Org

Vio

Yel

Org/Wht

Vio/Wht

Yel/Wht

1 Provide overload protection and disconnect

as required.

2 With four actuators wired to one 500 ohm

resistor, a +2% shift of the control signal may be required. (Actuator input impedance

is 80 k ohm.)

ld-supplied 500 ohm resistor (AM-708)

3 A fie

is required between the gray and

yellow/black leads to convert the 4 to 20 mAdc control signal to 2 to 10 Vdc.

4 Only connect common to negative (-) leg of

control circui

5 For end position indication, interlock control,

fan startup, etc., MS4X-7XX3-502 models incorporate two built-in auxiliary switches.

6 To reverse actuator rotation, use the

reversing switch.

7 Both actuators must be

same direction.

COM

ts.

MS4X-7153-502

set to operate in the

Aux Switch 1

25 to 85°

Adjustable

Aux Switch 2

5° Fixed

Gra

Blk

Red

Yel/Blk

Com

Hot (+DC)

Grn/Yel

MS4X-7153 MS4X-7153-502

L R

Figure-2 Typical Wiring Diagrams for Proportional Control 24 Vac Basic and Double Auxiliary Switch Models.

Page 9

INSTALLATION Inspection Inspect the pack age for damage. If damaged, noti fy the appropriate carrier immediately. If

undamaged, open the package and inspect the device for obvious damage. Retu rn damaged products.

Requirements • Job wiring diagrams

• Tools (not provided):

– #8 sheet metal screws (Universal Bracket ) – 10mm open end wrench or socket wrench (Universal V-clamp) – 1/ 8 inch, allen wrench (Aux. Switch) – Appropriate screwdriver(s) – Drill and appropr iate bits

• Appropriate accessories

• Training: Inst aller must be a qualified, experienced techni cian

Precautions General

Warning:

• Electrical shock ha zar d! Dis connect th e power supply (l ine p ower) b efore instal lat ion t o

prevent elect ri c shock and equipment damage.

• Make all connections in accordance with the job wiring diagram and in accordance

with national and local electrical codes.

Use copper conductors only.

Caution:

• Avoid electric al noi se interference. Do not in stall near large contactors, electrical

machinery, or wel ding equipment.

• MX41-707X and MX41-715X Manual override to be used only when power is not

applied to unit.

• When operating manual over ride, back off 5° from full open mechanical s top to ensure

proper releas e.

• MX41-707X and MX41-71 5X Do not attem pt to use the m anual over ride with actuato rs

mounted in tandem. Damage to the gear train may occur.

• Do not drill holes i n a ctuato r body. Six pr e-dri lled holes are locate d on each si de, under

the label, to accept #10-24 thread formi ng screws for mounting accessories.

Federal Communications Commission (FCC)

Note:

This equipment has been tested and found to comply with the li m it s for a Class B digital device, pursuant to Part 15 of the FCC Rules. Thes e li m it s are designed to provide reasonable prot ection against harmf ul interference in res idential install ations. This equipment generates, uses, and can radi ate radio frequency ener gy and m ay cause harmful interference if not instal led and used in accordance wit h the instructions. Even when instruct ions are followed, there is no guarantee that interference will not occur in a particular s etti ng—Which can be determi ned by turn ing the equipment of f and on—th e use r is encouraged to t ry t o correct the interference by one or more of the followin g mea sures:

• Reorient or relocate the receiving antenna.

• Increase the sepa ration between the equipment and receiver.

• Connect the equipment to an outlet on a c ircuit different from that to which the receiver

is connected.

• Consult the dealer or an experi enced radio/television technician for help.

Page 10

Canadian D epartment of C om m u ni c at ions (D OC )

Note:

This Class B digital apparatus meets all requirements of the Canadian Interf erence-

Causing Equipment Regulations. Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le

material broil leur du Canada.

European Standard EN 55022

Location

Mounting

Warning:

environment this product may cause radio interference in which case the user may be required to take adequate measures.

Caution:

explosive vapors are present.

Caution:

actuators should be mounted with conduit end down.

Mount the TAC DuraDrive Actuator directly on the damper shaft in locations that cl ear the maximum dimensi ons of the actuator cas e and allow the actuator to be mounted flush to the surface of the terminal box and perpendicular to the damper shaft .

MX41-707X and MX41-715 X If the univer sal cl amp is not set to 0° on the posi tio n indica tor, manually win d the act uator in th e dir ection indi cated with h ex wr ench f rom -5° to 0° and l ock with a screwdriver.

Note:

damper shaft. In these cases, a spacer or shim may be added under the anti-rotation bracket of the actuator to make the actuator perpendicular to the shaft.

This is a Class B digital (Eur opean Classification) product. In a domestic

Avoid locations where excessive moisture, corrosive fumes , vibration, or

To remain in NEMA 2/IP54 compl iance, the MS4X-715X and MS4X-707X series

Some terminal boxes have sheet metal screw heads or ot her protrusions near the

Damper Actuator Sizing

Correct sizing of the actuator is necessary for proper control of d ampers. The area of damper that can be controlled by a given actuator is dependent upon the type of damper, the quality of the damper, the pressure dr op across the damper in the clo sed position, and the velocity of the air flow through the damper . To obtain actual damper torque requirements, contact the damper manuf acturer.

Damper Shaft Sizing

Use the “Long Damper Shaft ” mounting instructions if the damper shaft is at least 3-1/2" (90 mm) long.

Use the “Short Damper Shaft” mounting instructions if the damper shaft is shorter than 3-1/2" (90 mm) or the area around the dam per shaft is too narrow to allow stan dard mounting, as described in the “Short Damper Shaft” mounting section.

Changing Direction of Rotation

The MS40-7043, MS4X-7074, and MS4X-7153 actuators are equipped with a switch to control the direction of rotation. The switch can be set to "L” (left) or “R” (right) rotation. An actuator set to “L” will have a clockwise rotation when viewed from the left side. When viewed from the right side the rotation will be cou nterclockwise. Refer to Figure-3.

Caution:

moves the actuator against the -5° positive stop. Example: Viewing the actuator from the left side with th e swit ch set to “R” and an increasing signal. The actuator wil l at tempt to rotate beyond th e -5° st op and wil l stall.

These are spring return actuators. It is possi ble to switch to a directi on that

Page 11

MS40-704X

.8 .6

Viewed from L side:

Switch on L

Switch on R

MS4X-707X, MS4X-715X-XXX

Viewed from L side:

Switch on L

Switch on R

Clockwise rotation on increasing signal

Counterclockwise

rotation on

increasing signal

Clockwise rotation on increasing signal

Counterclockwise rotation on increasing signal

Viewed from R side:

Switch on R

Switch on L

Counterclockwise rotation on increasing signal

Clockwise rotation on increasing signal

Viewed from R side:

Switch on R

Counterclockwise rotation on increasing signal

Switch on L

Clockwise rotation on increasing signal

Figure-3 Rotation Switch Setti ngs.

Page 12

MS40-704X Series Installation

Note:

The MS40-704X series actuator comes equipped wit h standard universal mou nti ng clamp. For damper shafts larger than 5/8" (16 mm) in di am eter, the AM-710 univers al mounting clamp is r equired (order separately). The AM-710 clamp accomm odates shafts sizes up to 3/4" (19 mm) diameter shafts.

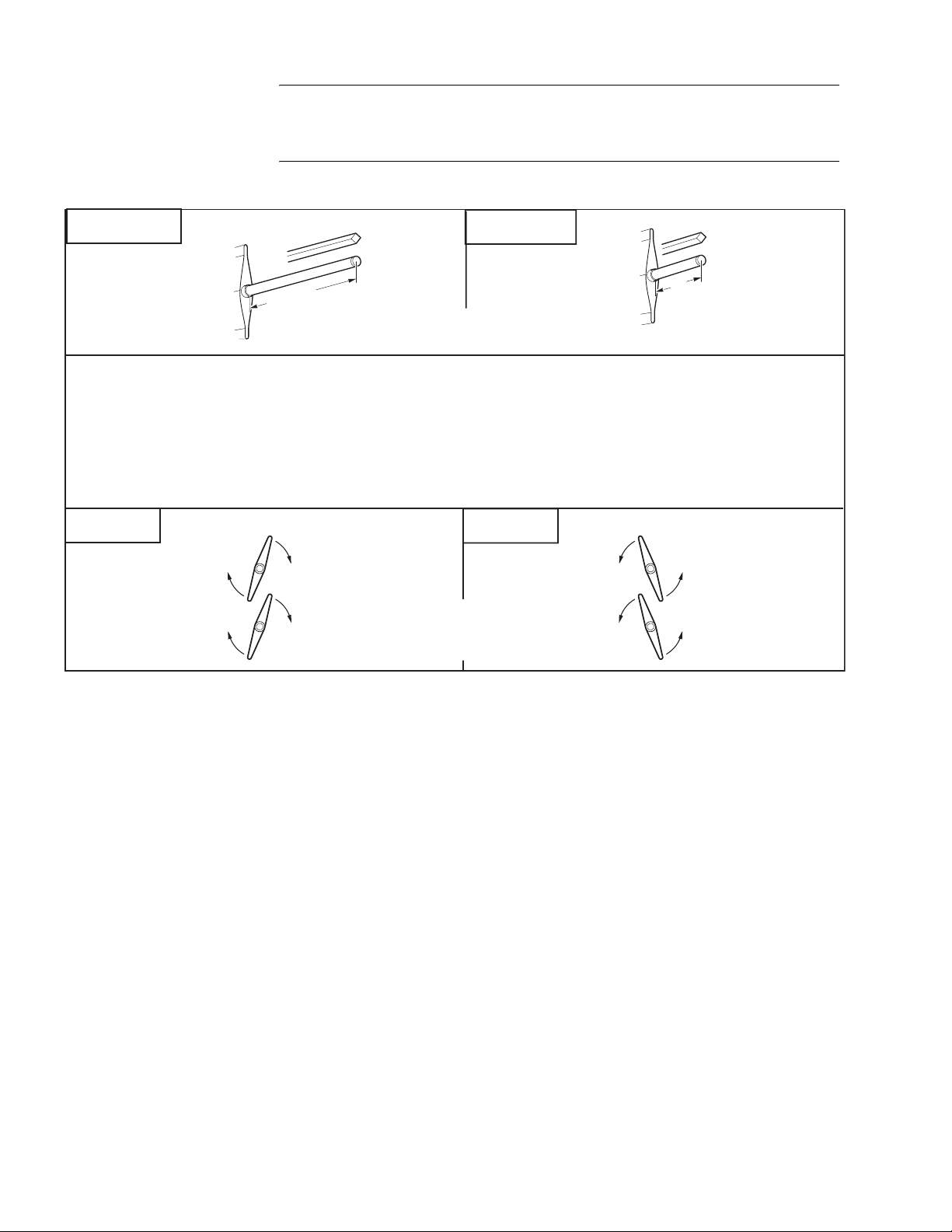

Long Shaft

Min. 3 1/2" (90 mm)

3/8" to 3/4" Diameter (10 mm to 20 mm) 3/8" to 1/2" Square (10 mm to 13 mm)

Move the damper to its normal position. Verify the controller action is set to match the damper application.

Normally closed damper: when damper is closed, actuator position indicator should be at 0°. When damper is open,

Normally opened damper: when damper is open, actuator position indicator should be at 0°. When damper is closed, actuator position indicator should be at 90°.

A - Left

actuator position indicator should be at 90°.

Shaft Rotates

Clockwise

To Open

This step determines shaft rotation. Linkage may change damper direction.

A - Right

Short Shaft

Min. 3/4" (20 mm)

Shaft Rotates

Counterclockwise

To Open

Page 13

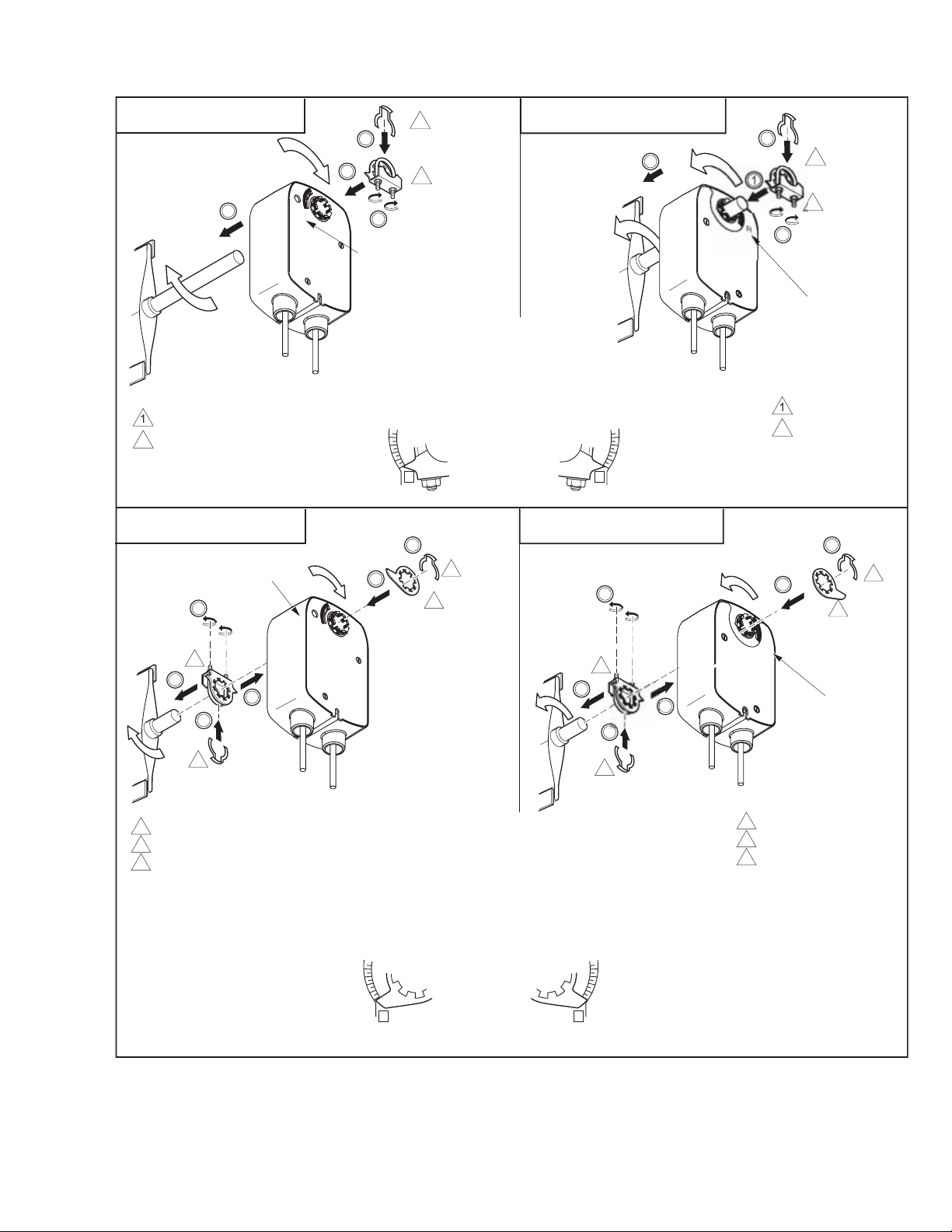

B - Left - Long Shaft

niversa

ounting clamp

Retaining clip

"L" Marker

B - Right - Long Shaft

"R" Marker

1. Assemble mounting clamp.

2. Assemble retaining clip.

3. Place actuator over shaft.

4. Hand tighten clamp nuts.

Correct clamp mounting

position if actuator is

in normal spring

return position

(before preload)

niversa

ounting clamp

Retaining clip

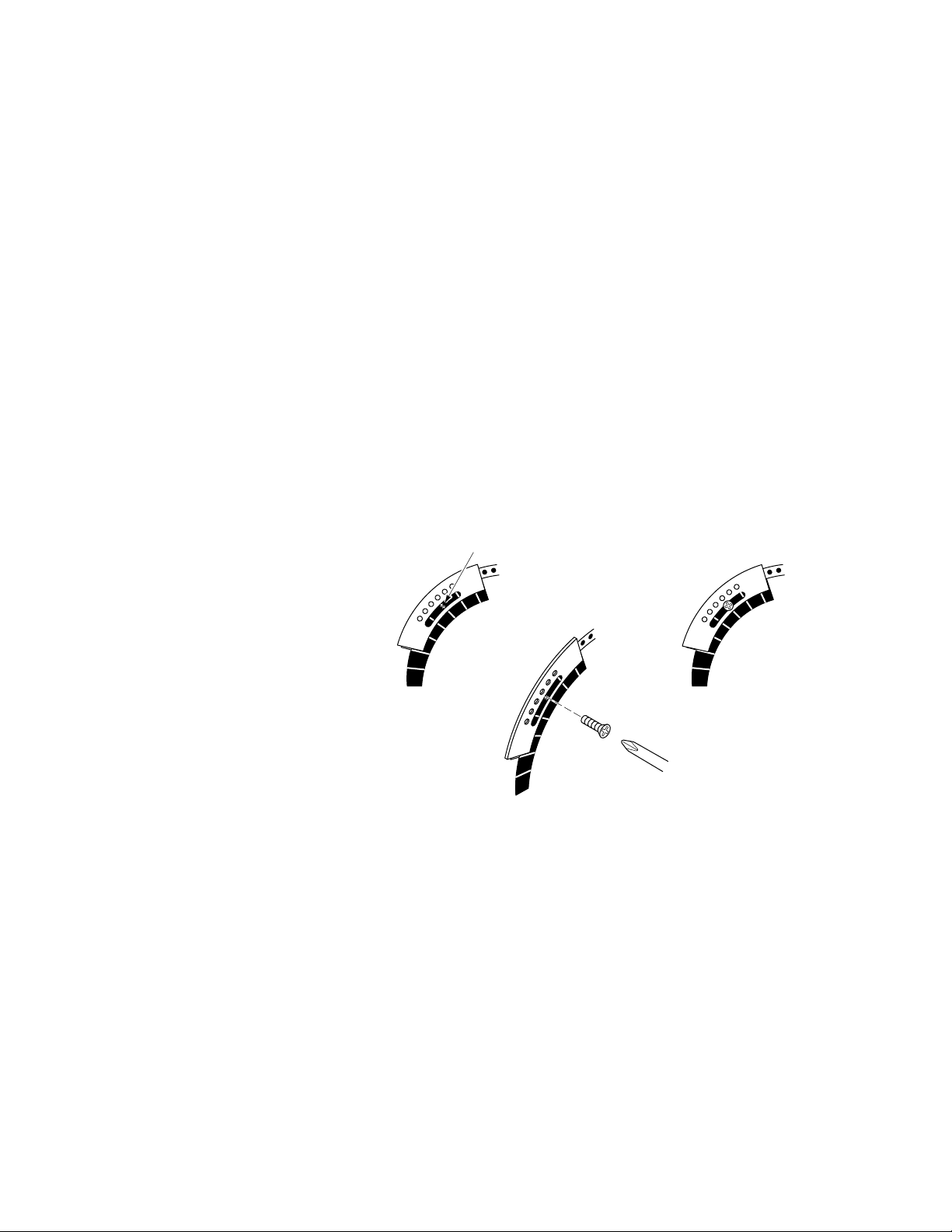

B - Left - Short Shaft

"L" Marker

1 Universal clamp.

2 Retaining clip.

3 Damper position indicator.

B - Right - Short Shaft

1 Universal clamp.

A. Assemble damper position indicator. B. Assemble retaining clip.

2 Retaining clip.

3 Damper position indicator.

1. Position mounting clamp.

2. Assemble retaining clip.

3. Slide actuator over shaft.

4. Hand tighten clamp nuts.

Correct pointer mounting

position if actuator is

in normal spring

return position

(before preload)

"R" Marker

Page 14

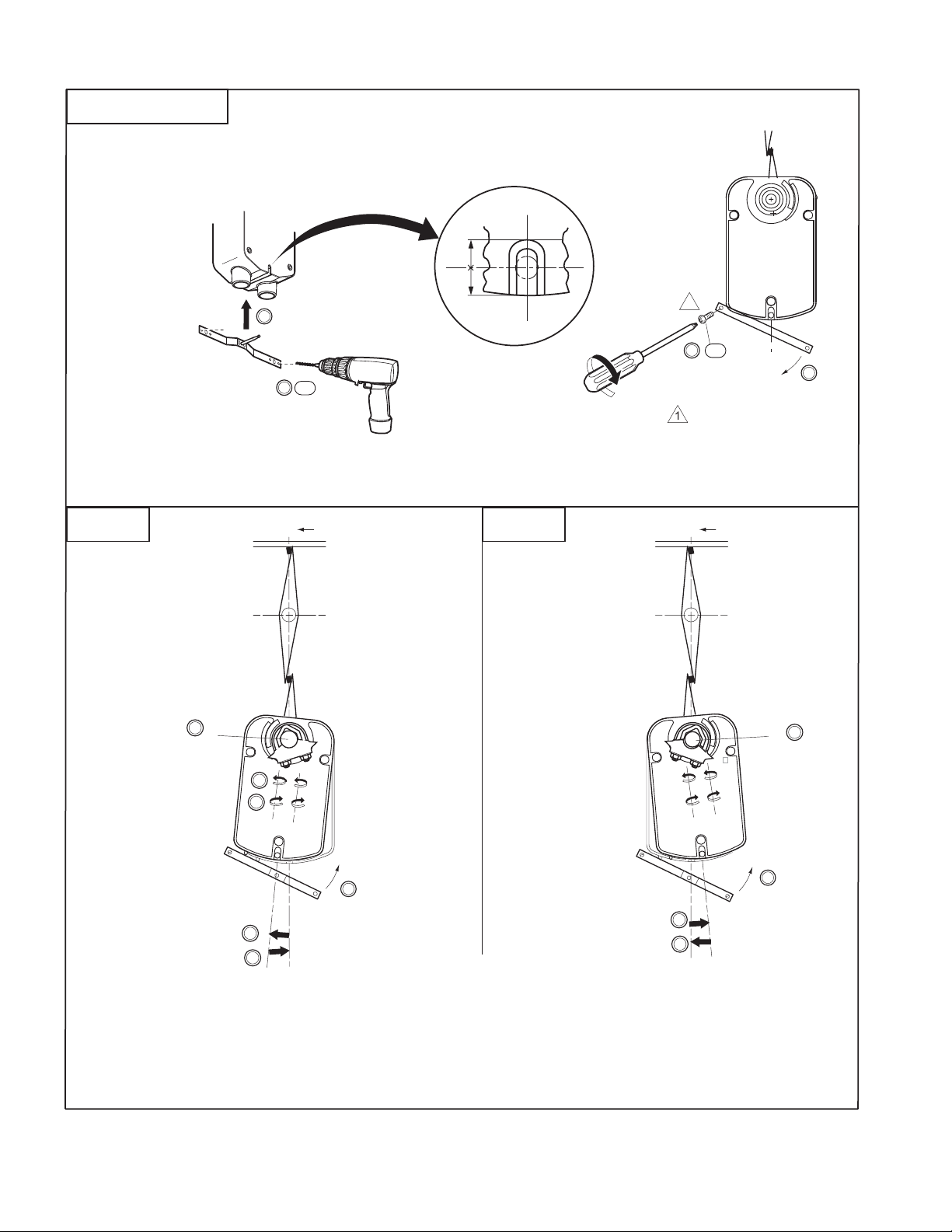

C - Left and Right

#8 S

D- Left

5. Center bracket in slot.

6. Drill two holes.

7. Start one screw.

8. Swing bracket down.

Universal Bracket in the Slot

Center the

1/2 1/2

x 1

x 2

heet Meta

cre

Centerline

D- Right

Centerline

0°

5°

0°

5°

9. Loosen clamp nuts.

10. Check that the shaft is in full zero position.

11. Swing actuator

5° in the direction of travel. Do not move shaft.

12. Tighten clamp nuts to 4 to 6 lb-ft (5.4 to 8.2 N-m) of torque.

13. Move bottom of actuator back into position.

14. Pivot bracket back into position.

Page 15

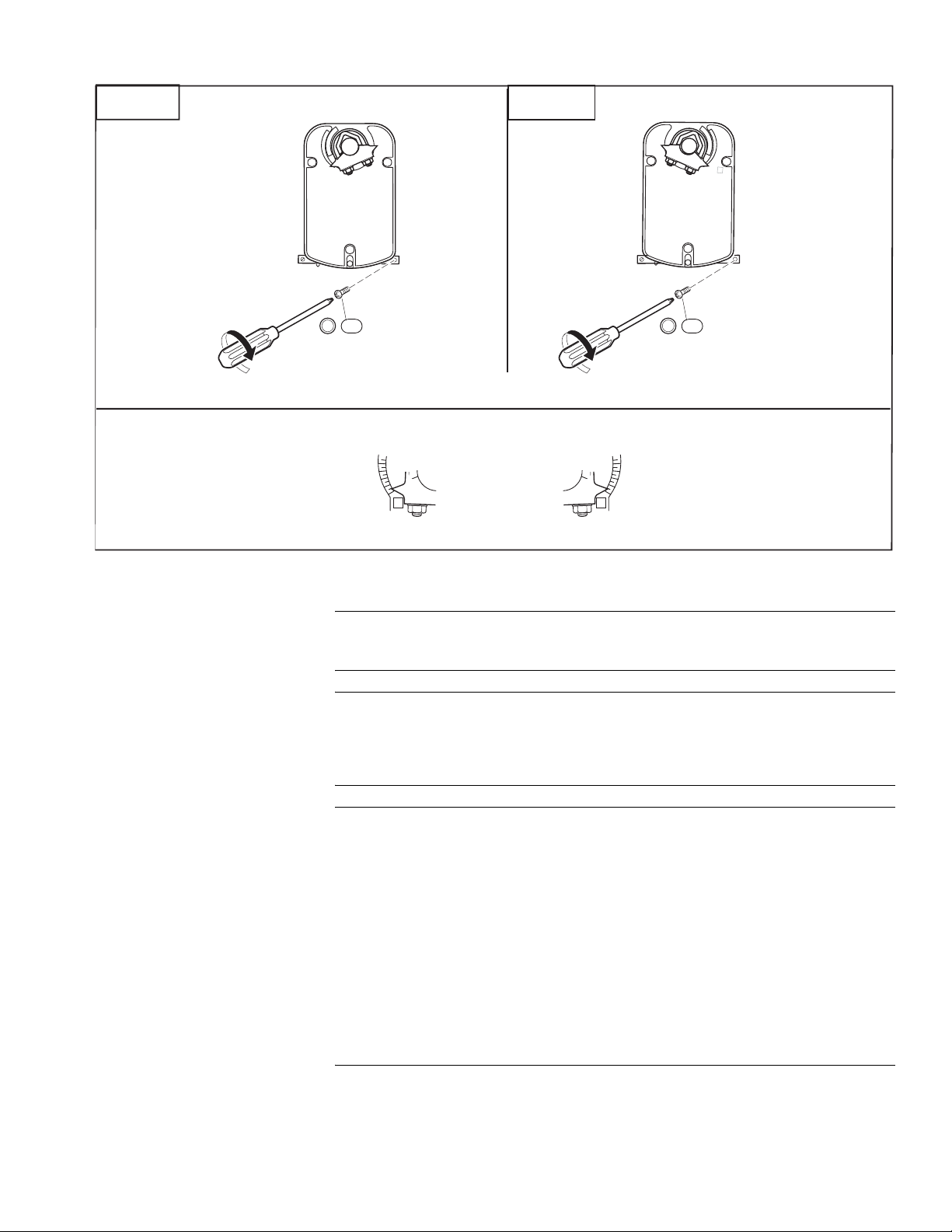

E- Left

E - Right

x 2

15. Tighten bracket screws.

Correct clamp mounting

position

(after 5˚ preload)

MS4X-707X and MS4X-715X Series Installation

Caution:

on each side, under the label, to accept #10-24 thread-forming screws for mounting accessories.

Note:

universal mount ing clamp install ed. For damper shafts large r than 3/4" (19 mm) in diameter, the AM-687 universal mounting clam p is required (order separately). The AM-687 clamp accommodates round shaft sizes up to 1.05" (27 mm) in diameter or 5/8" (16 mm) square shafts.

Do not drill additiona l holes i n the actua tor body. Six pre- drille d holes are located

The MS4X-707X and MS4X-715X ser ies actuators come equippe d wit h standard

Caution:

The MS41-707X and MS41-715X act uators are equipped with a manual

override.

• The manual override to be used only when power is not applied to the unit.

• If the universal clamp is not set to 0° on the position indi cator, manually wind the

actuator in the direction indicated with hex wrench from -5° to 0° and lock with a screwdriver.

• When operating manual over ride, back off 5° from full open mechanical s top to ensure

proper releas e.

• Do not attempt to us e the manual over ride with act uator s mount ed in t andem. Damage

to the gear train coul d occur.

• Using power tools to adjust the manual override will cause damage to the gears.

• To unlock manual override without power, crank the manual override in the dir ection

indicated a minim um of 5°.

Page 16

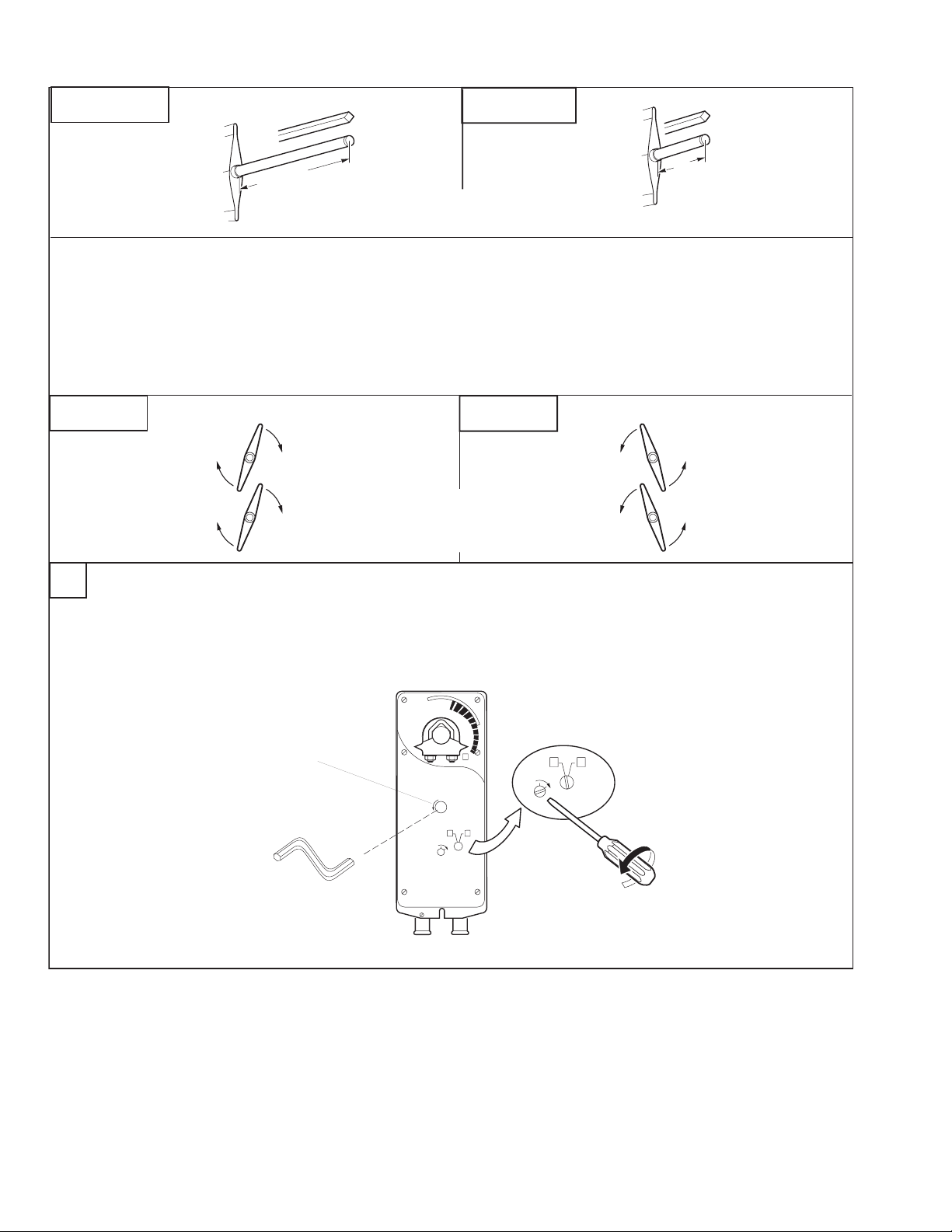

Long Shaft

Short Shaft

Min. 3 1/2" (90 mm)

3/8" to 3/4" Diameter (10 mm to 20 mm) 3/8" to 1/2" Square (10 mm to 13 mm)

Move the damper to its normal position. Verify the controller action is set to match the damper application.

Normally closed damper: when damper is closed, actuator position indicator should be at 0°. When damper is open,

Normally opened damper: when damper is open, actuator position indicator should be at 0°. When damper is closed actuator position indicator should be at 90°.

A - Left

actuator position indicator should be at 90°.

Shaft Rotates

A - Right

Clockwise

To Open

This step determines shaft rotation. Linkage may change damper direction.

For MS41-707X and MS41-715X only (manual override).

For MS40-707X and MS40-715X, proceed to step C.

Min. 3/4" (20 mm)

Shaft Rotates

Counterclockwise

To Open

If position indicator does not point to zero:Unlock the actuator.

Manual Override

Fully engage hex wrench into manual override before winding.

Caution: Do not crank the manual

override if power is applied to the actuator.

Insert hex wrench into manual override.

0°

Crank the actuator so the indicator points to

Lock the actuator.

LOCK

Unlock

Page 17

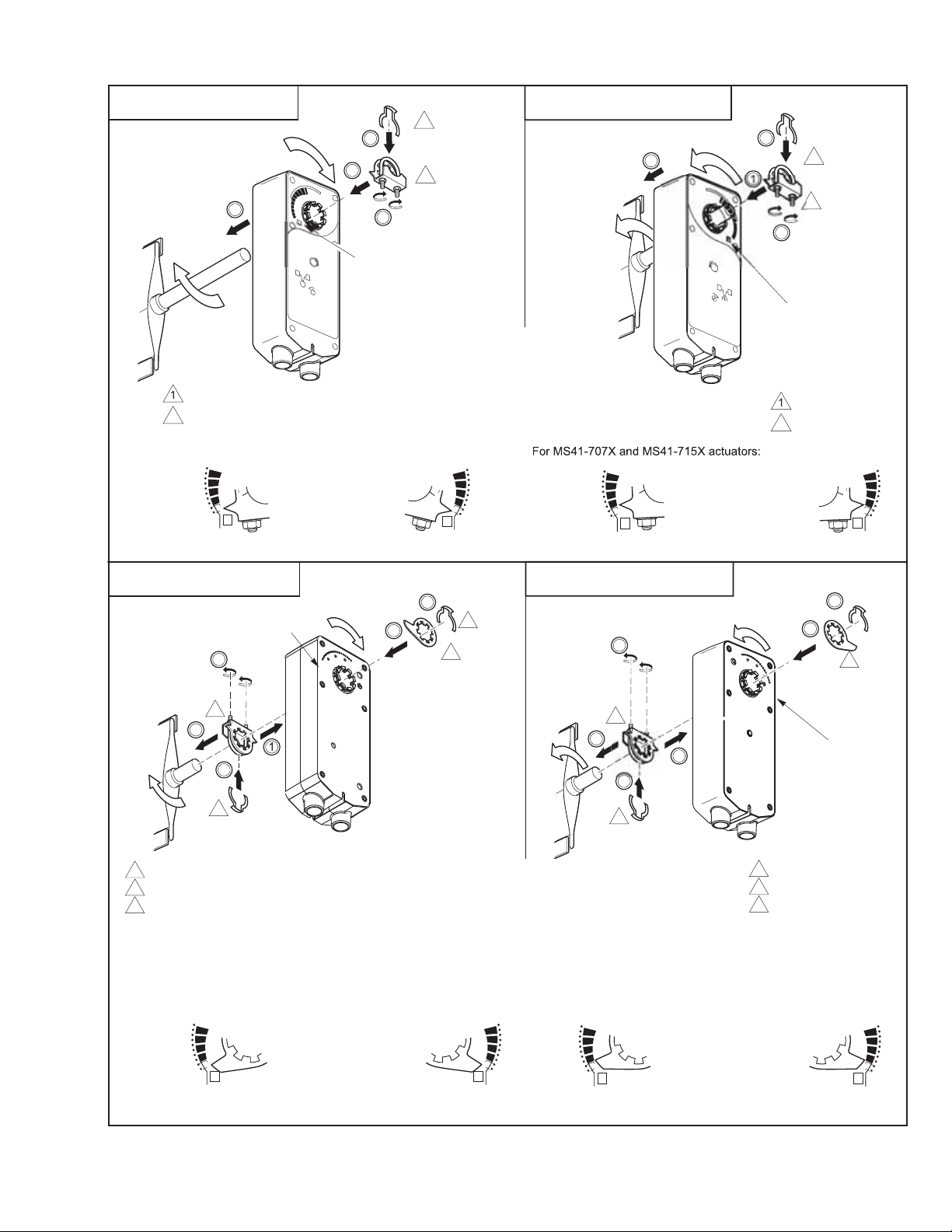

C - Left

sal

- Long Shaft

niver

ounting clamp

Retaining clip

For MS40-707X and MS40-715X actuators

-5

Correct clamp mounting

position if actuator is

in normal spring

return position

"L" Marker

C - Right - Long Shaft

1. Assemble mounting clamp.

2. Assemble retaining clip.

3. Place actuator over shaft.

4. Hand tighten clamp nuts.

-5

Correct clamp mounting

position if actuator is

locked with 5° preload.

"R" Marker

niversa

mounting clamp

Retaining clip

-5

C - Left - Short Shaft

"L" Marker

1 Universal clamp.

2 Retaining clip.

3 Damper position indicator.

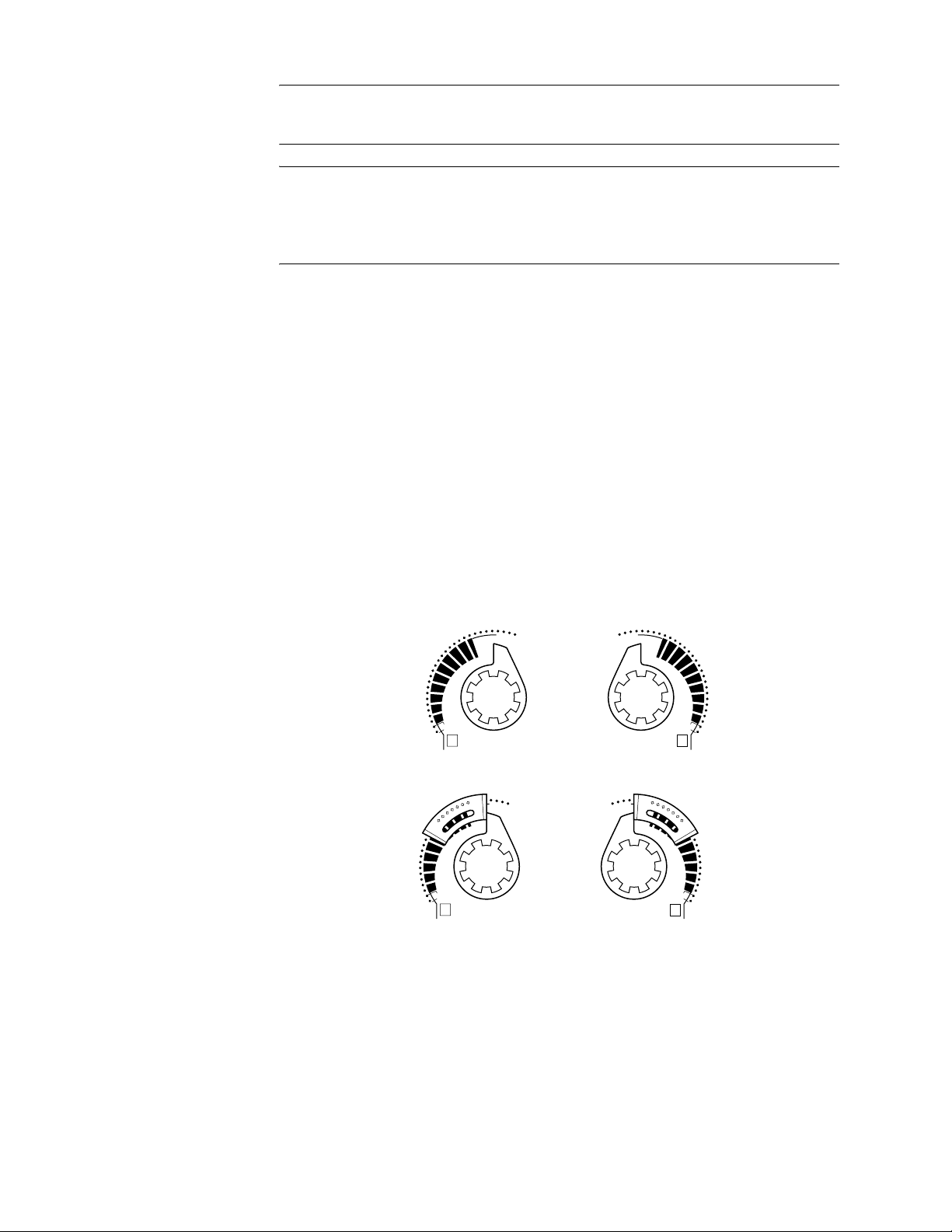

For MS40-707X and MS40-715X actuators:

-5

Correct pointer mounting

position if actuator is

in normal spring

return position

C - Right - Short Shaft

A. Assemble damper position indicator. B. Assemble retaining clip.

1. Position mounting clamp.

2. Assemble retaining clip.

3. Slide actuator over shaft.

4. Hand tighten clamp nuts.

For MS41-707X and MS41-715X actuators:

"R" Marker

1 Universal clamp.

2 Retaining clip.

3 Damper position indicator.

-5

Correct pointer mounting

position if actuator is

locked at 5° preload.

-5

Page 18

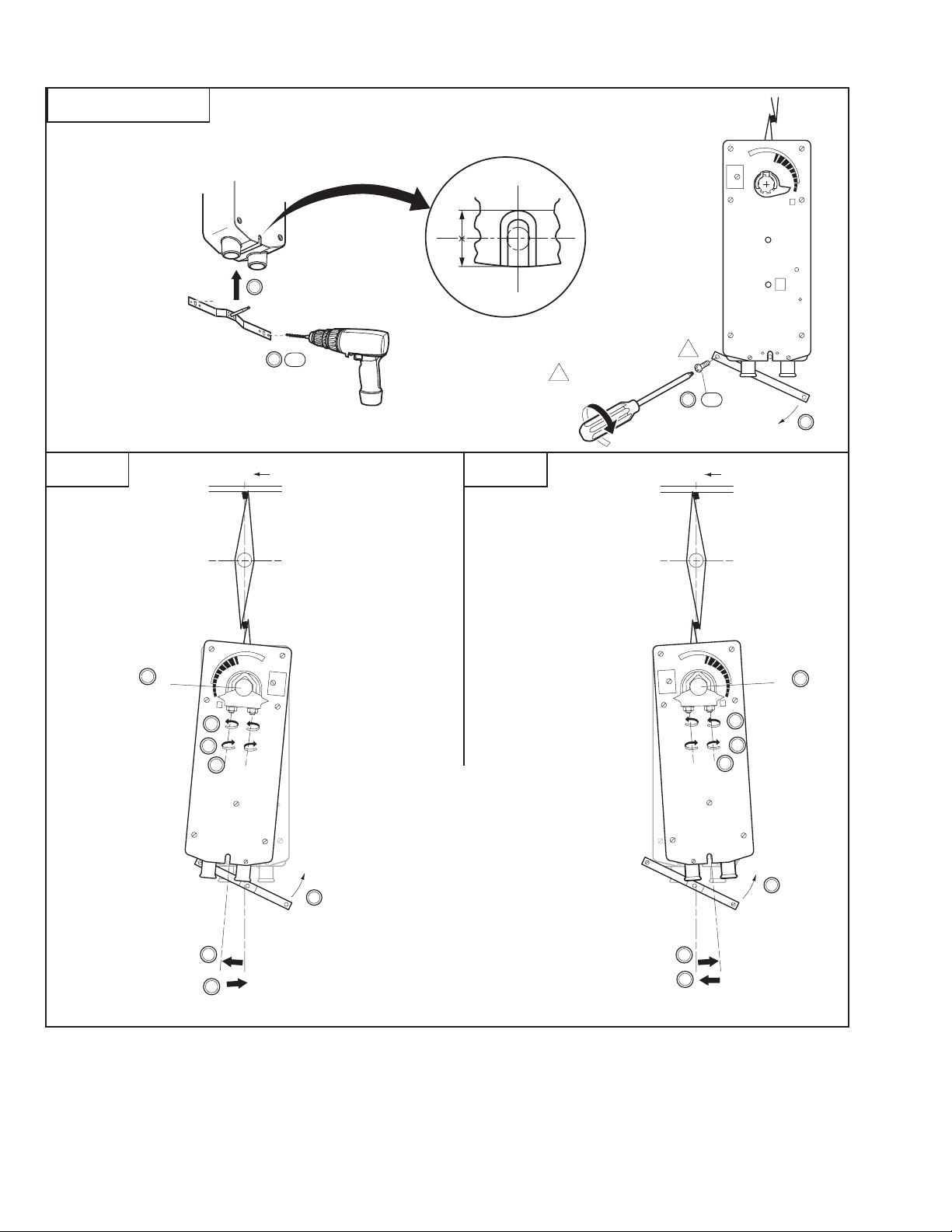

D - Left and Right

Universal Bracket in the Slot

Center the

1/2

x 2

5. Center bracket in slot.

6. Drill two holes.

7. Start one screw. For MS41-707X and MS41-715X actuators, insert and tighten both screws.

8. Swing bracket down (MS40 actuator only).

E- Left E- Right

0°

Centerline

9. Loosen clamp nuts.

10. Check that the shaft is in full zero position.

#8 Sheet Metal

Screw

x 1

Centerline

0°

For MS41-707X and MS41-715X only:

11. Tighten clamp nuts to 8 - 10 ft-lb (11 - 14 Nm). This completes the installation for MA41-704X

and MA41-715X.

For MS40-707X and MS40-715X only:

12. Swing actuator

5°

not move shaft.

13. Tighten clamp nuts to 8 - 10 ft-lb (11 - 14 Nm).

14. Move bottom of actuator back into position.

15. Pivot bracket back into position.

5° in the direction of travel. Do

5°

Page 19

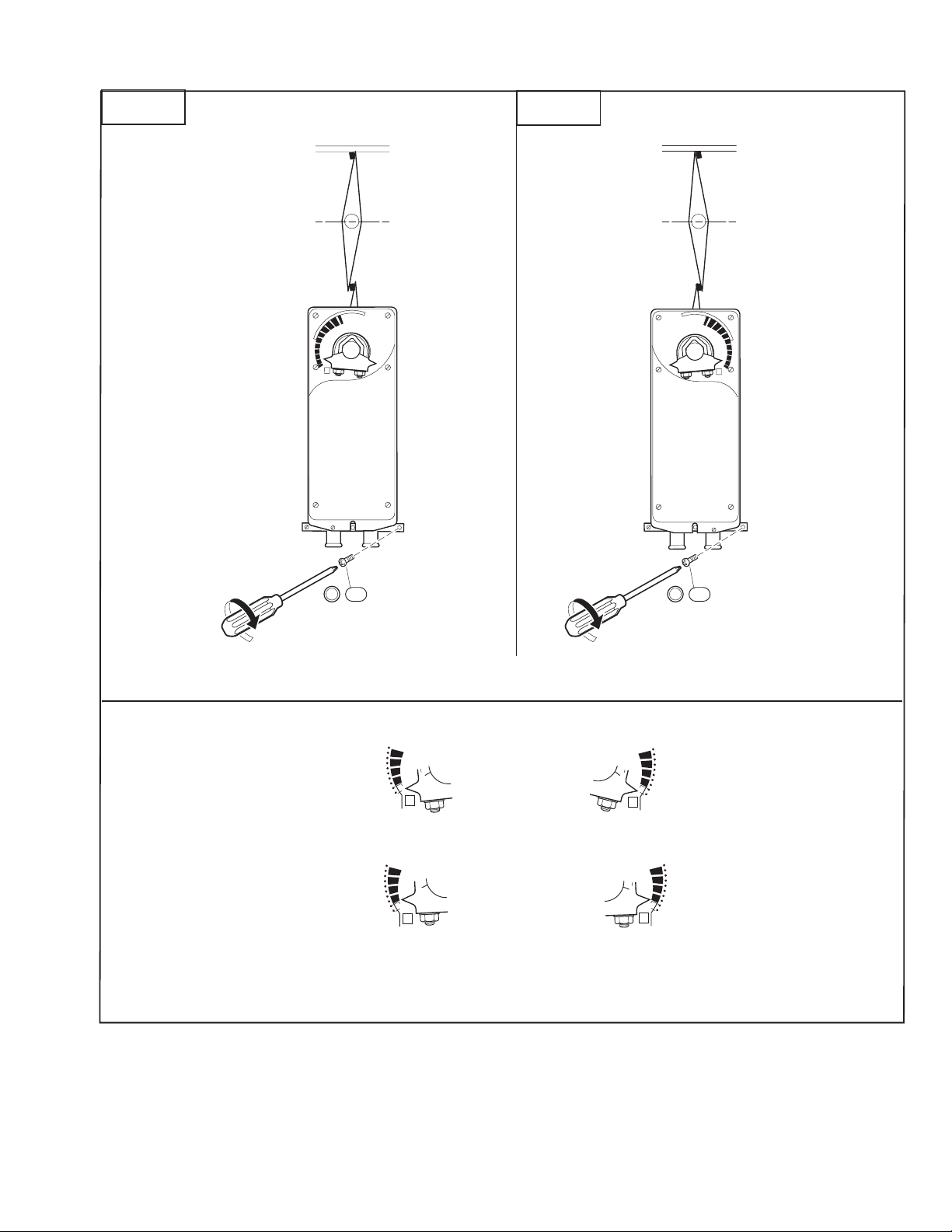

F- Left

F- Right

x 2

For MS40-707X and MS40-715X only:

16. Tighten bracket screws.

For MS40-707X and MS40-715X actuators:

-5

Correct pointer position

after mounting.

x 2

-5

For MS41-707X and MS41-715X actuators:

-5

Correct pointer position

after mounting.

-5

The lock on MS41-707X and MS41-715X will release on first power-up.

Page 20

Jackshaft Installation

(MS40-7043 Series)

The MS40-7043 actuat or i s de signed for u se wi th j ackshaf ts up to 3/4" (19 mm ) in diamete r. In most applicat ions, the MS40-7043 actuator may be mounted in the same manner as a standard damper shaft application. If the jackshaft diameter is larger than 5/8" (16 mm) in diameter, the opti onal AM-710 universal cl am p mu st be used.

(MS4X-7153 and MS4X-70 73 Series)

The MS4X-7153 and MS4X-7073 ac tua tors a re desi gned for use with jac kshaf ts up to 1. 05" (27 mm) in diameter. In most appl ications, the act uator may be mounted in the same manner as a standard damper sh aft ap plica tion. I f the jac kshaft diamet er is l arger t han 3/ 4" (19 mm) in diameter, the optional AM-687 universal clamp must be used.

Multiple Actuator Mounting (MS4X-7153 only)

If more torque is required than one actuat or can provide, a second actuator may be mounted to the jackshaft or standard damper shaft, usi ng the AM-673 multipl e mounting brac ket. See Figure-4.

Caution:

MX41-707X, 715X - Do not attempt to use th e manual override with actuat ors

mounted in tandem. Damage to the gear train may occur.

Multiple actuators may be powered from one transformer provided the fol lowing rules are followed:

• The total current draw of t he actuat ors (VA rati ng) is l ess than , or equal to, th e rating of

the transform er.

• Polarity on the secondary of the transformer is strictly followed.

– All Black wires f rom all actuators are connected to the common lead on the

transformer.

– All Red wires from all actuators are connect ed to th e hot l ead.

Caution:

Mixing the Black and Red wires on one l ead of t he transformer m ay result in

erratic operation or failure of the actuator and/or contro ls.

Multiple actuators positioned by the same control signa l may be powered from multiple transformer s provided the following r ules are followed:

• The transformers are properly sized.

• All Black wires from all actuators are tied together and tied to the negative lead of the

control signal.

AM-673

MA-7501-502

SIEBE

Figure-4 Mounting Multiple Actuators.

Page 21

Wiring Requirements Contr ol Leads

See Table-3 for power wiring data. Refer to Figure-1 and Figure-2 for typical wiring.

Table-3 Power Wiring.

Actuator

Voltage

24 Vac

22-30 Vdc

Part Number

MS40-7043 (-MP)

MS40-7043-501

(MP5)

MS4X-7073

MS4X-7073-502

MS4X-7153

MS4X-7153-502

12 AWG14 AWG16 AWG18 AWG20 AWG22 AWG

1100 (335)

1000 (305)

600

(183)

Maximum Wire Run in ft. (m)

700

(213)

640

(195)

380

(116)

430

(131)

400

(122)

240

(73)

270

(82)

250

(76)

150

(46)

170 (52)

160 (49)

(27)

110 (34)

100 (30)

(18)

Auxiliary Switch The MS40-7043-501(-MP5) series actuators include one built-in SPDT auxiliary switch

which can be used for int erfacing o r signaling (e.g., f or fan start -up). The switch is adjustable between 0° and 95° of rotation (0 to 1 scale).

The MS4X-7153-502 and MS4X-7073-502 series actuators include two built-in SPDT auxiliary switches which can be used for interfacing or signaling (e.g., for f an start-up). T he switch posi tion near th e nor mal (s pring retur n) posi tion is fixe d at 5°. The other i s adj ustabl e between 25° and 85° of rotation.

Adjusting the Switching Point

Refer to Table-4 for auxiliary switch rating.

Adjusting the switching point for MS40-7043-501 (-MP5)

1. The actuator must be in its normal (spring return) position.

2. Use a flat screw dr iver to ro tate the switc h pointer un til it is at t he desired s witch posi tion on the 0 to 1 scale.

Adjusting the switching point for MS4X-7153-502 or MS4X-7073-502

1. The actuator must be in its normal (spring return) position.

2. Inser t a 1/8" al len wrench into the hex hole l ocated in t he center of the adj ustable s witch pointer.

3. Rotate the wrench until the swit ch pointer is at the desired switch position in degrees, from 25 to 85°.

Table-4 Auxiliary Swit ch Rating.

Part Number Voltage Resistive Load Inductive Load

MS40-7043-501 (MP5) 24 Vac 6A 1.5A

MS4X-7073-502 MS4X-7153-502

250 Vac 7A 2.5 A

Page 22

Rotation Limitation Rotation Limitation for MS40-7043 Series

The Stop Block is used in conj unction with the tab on the univer sal clamp or the AM-709 position indicator. In order to func tion properly, the clamp or indicator must be mount ed correctly.

The Stop Block contr ols the rotational outp ut of the MS40-7043 and MF40-7043-501 actuators. It is used in applicat ions where a damper has a desi gned rotation th at is less than 90°, for exampl e with a 45° or 60° rotati ng damper. It can also be us ed to provide a m inimum damper positio n which is easily set, or changed, without removing the actuator from the damper.

1. Determine the amount of damper rotation required. The actuator stop block provides limited rotation from 40° to 95°.

2. Lo osen the screw securing the st op block to the actuator .

Note:

The actuator is shipped with the Stop Block mounted to the “L” side. If the damper application re quires the “R” si de face th e instal ler , simply remove the St op Block and sc rew and move it to the new location.

3. Slide the stop block into position, so that its edge lines up with the degree gradua tion on the actuator face which corresponds with the required rotation. See Figur e-5.

4. Sec ure the stop block in place .

5. Te st the damper rotation by applying power and the required control signal. Re-adjust if necessary.

1 .8

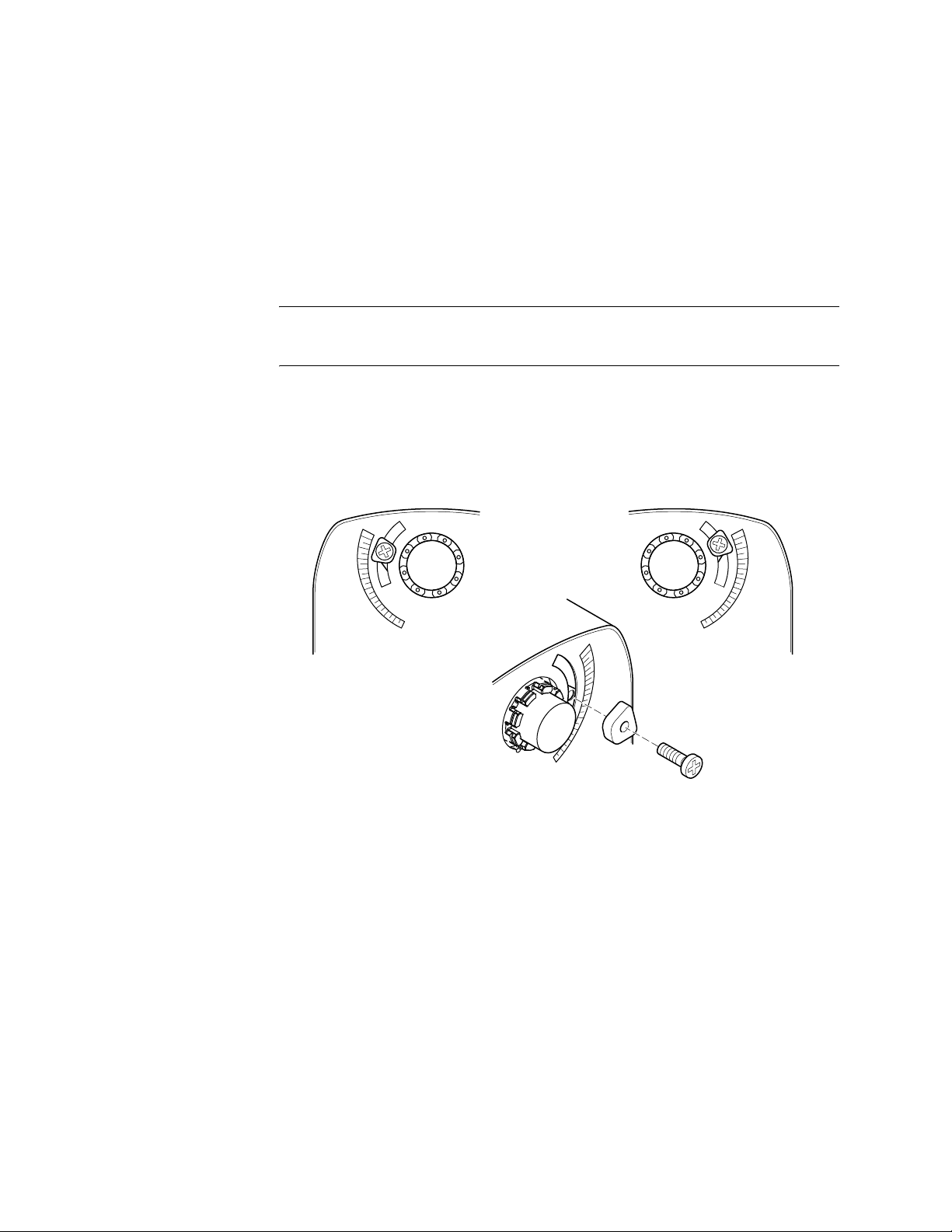

Figure-5 Adjusting Stop Block for Limited Rotation.

Page 23

Rotation Limitation for MS4X-7153 and MS4X-7073 Series

The AM-689 rotat ion lim iter is used in c onj uncti on with the t ab on t he univ ersal c lamp or t he AM-686 position indicator which comes with the AM-689. In order to function properly, the clamp or indicator must be mounted correc tl y.

The AM-689 rotation limiter controls the rotational output of the MS4X-7153, MS4X-7153502, MS4X-707 3, and MS4X- 707 3-502 act uator s. It is u sed in appl icat ions wher e a damper has a designed rot atio n that i s less t han 90°, fo r exa mple wit h a 45° or 60° rotatin g damper . It can also be used to provide a minimum damper position which is easily set, or ch anged, without removing the actuator from the damper.

1. Determine the am ount of damper rotat ion req uired .

2. Lo cate the AM-689 rotation limi ter on the actuator so that its edge lines up with the degree graduati on on the actuator face which corresponds with the required rotation. See Figure-6.

3. Find the appropriate cro ss-hair locatio n through the slot of the rotation limiter. This is the mounting loca ti on for the retaining screw.

4. Pierce through the label material to allow easy fastening of the retaining scre w.

5. Pos ition the rotatio n limiter b ack to the desired position , makin g sure the locatin g “teeth” on the rotation li m it er are engaged into the loca ti ng holes on the actuator.

6. Fasten the rotation limiter to the actuator using the self-tapping screw provided.

7. Te st the damper rotation by ap plyin g power and the required co ntrol signal. Re-adjust if necessary.

Screw secured at these cross hairs.

Figure-6 Securing the AM-689 Rotation Limiter.

Angle of rotation is now set at 40.

Page 24

Minimum Damper Positionin g

Note:

When using the AM-689 rotation limiter with an MS4X-7073 or MS4X-7153 actuator to provide a min imum dampe r posi tion, the sh ort sh aft mounti ng proce dure must be used t o mount the actuator .

Caution:

• The AM-689 rotation limiter should not be used with an MS4X-7073 or MS4X-7153

actuator to provide a minimum damper position in outdoor air damper app li cations. The rotation limi ter prevents the damper from reaching the full-cl osed position. This may cause coils to freeze or may cause other system problems to occur.

1. Position the damper to its minimum position by providing the appropriate control signal to the MS4X-70 73 or MS4X-7153.

2. Place the position indicator onto the actuator spline i n the approxim ate position shown in Figure-7. Fasten it with the retaining clip.

3. Place th e AM-689 r ot ation limi ter on the ac tuator s o that it either make s conta ct wit h, or is as close as possi ble to, the edge of the indicat or. See Figure-8.

4. Make sure t hat the loc ating teeth a re e ngaged in to the l ocati ng h oles on the act uat or. If all of the mounting te eth do not align with the holes, the mounting location of the indicator to the spli ne m ay have to be moved. The rotation l imiter would then be remounted to get the best position match of both parts.

5. Find the cross- hair location thr ough the slot of the rotati on limiter. Th is is the mounting location for th e retaining scre w .

6. Pierce through the label material to allow easy fastening of the retaining scre w.

7. Fasten the rotation limiter to the actuator using the self tapping screw provided.

8. Te st the damper operation b y applying power and the r equired con trol signal . Re-adjus t if necessary.

-5

Figure-7 Installing the Position In dicator.

-5

Figure-8 Positioning the Rotation Limiter.

-5

Page 25

CHECKOUT

After the entire system has been installed and the actuator has been powered up, the following check can be ma de for prope r system oper ation. Check for correct operation o f the damper while actua tor is being stroked.

1. Apply power to the actuator. Actuator and damper should be driven to their powered position as determined by the control signal.

2. On the MS4X-7XXX-50X models, check for correct auxiliary swit ch operation.

3. Break power to the actuator. Actuator and damper should return to the spring return position.

Note:

Check that the transformer(s) are sized properly.

• If a common transform er i s used with multiple actuators, make sure that polari ty is

observed on the secondary. This means connecting all Black wires to one leg of t he transformer and all Red wires to the other leg of the transformer.

• If multiple transformer s are used with one control signal, make sure all Black wires are

tied togethe r and tied to control signal negative (-).

• Controllers and actuators must have separate 24 Vac power sources.

Go, No Go Test 1. Turn 24 Vac power to actuator off.

2. Disconnect and temporarily insulate the yell ow/black input wire.

3. Wi th “L” side of the actuator fa cing the installer, set the L/R switch to “R.”

4. Tu rn actuator power back on.

5. Switch the L/R switch to the “L” posit ion.

6. Th e actuator should drive to the full counterclockwise position.

THEORY OF OPERATION

The actuators are mounted directly onto a damper shaft using a universal V-clamp. When the actuator is powered and a Vdc or mAdc control signal is applied to the actuator by the controller, the actuator rotates to a position determined by the control signal. At the same time the spring ret urn me chanism i s tensed. When power i s removed f rom the actu ato r, the spring returns the actuator to its normal position. The act uators provide true mechanical spring return operation for reliabl e, positive close -off on air tight dampers.

The MS40-704X-501 models are provided with one built-in auxiliary switch. The SPDT switch is provided for interfacing or signaling, for example, fan startup. The switching function is adjustable between 0° and 95° rotat ion (0 to 1 scale).

All MX4X-7XX3-XXX series ac tuat ors use a brushless DC motor which is controlled by a microprocess or. The m icropro cessor supp lies i ntelligence to p rovide a constant rotatio n rate and to know the ac tuator’ s exact normal position. The micro processor moni tors and c ontrols the brushles s DC motor’s r otation and pr ovides a digital sens ing function to prevent d amage to the actuator in a sta ll condition. The actuat or may be stalled anywhere in its normal rotation without the need for mechanica l end swi tches.

The MS4X-707X-502 and MS4X-715X-502 models are provided with two built-in auxiliary switches. The SPDT switches are provided for interfacing or signali ng, for example, fan startup. The switching function is adj ustable on one switch between 25° and 95° rotation, and the other switch is fixed to operation at 5° rotation.

All MS4X-7XX3 and MS4X-7XX3-5XX actuators provide a 2 to 10 Vdc feedback signal correspondi ng to the actua tor posi tion as det ermined by the control si gnal. MS 40-7043- MP and MS40-7043-MP5 model s provide a 20 Vdc, 25 mA power supply used to power TAC System 8000 control lers in lieu of position feedback.

The MS41-707X-XXX an d MS41- 715X- XXX actu ators are equi pp ed with a man ual ov errid e mechanism. This allows t he actuator to be manual ly posit ioned at an y point bet ween -5° and 85° rotation. This mechani sm is acc essibl e o n both sides of the ac tua tor an d ca n be used t o ensure tight close-offs for valves and dampers. The manual override should not be used while a unit is powered or on units that are mounted in tandem.

Page 26

MAINTENANCE

FIELD REPAIR

DIMENSIONAL DATA

Regular maintenance of the total system is recommended to assure sus tained optimum performance. The MS4X series actuators are maint enance free.

None. Replace with a functional actuator.

6-51/64 (172)

6-13/64 (157)

13/32 (10)

(25)

(103)

Note: These are not through holes. Use hardware supplied in TAC approved AM kits.

(50)

3 Holes for #10-24 Screws

Dimensions shown

are in inches (mm).

3-21/32 (93)

4-57/64 (125)

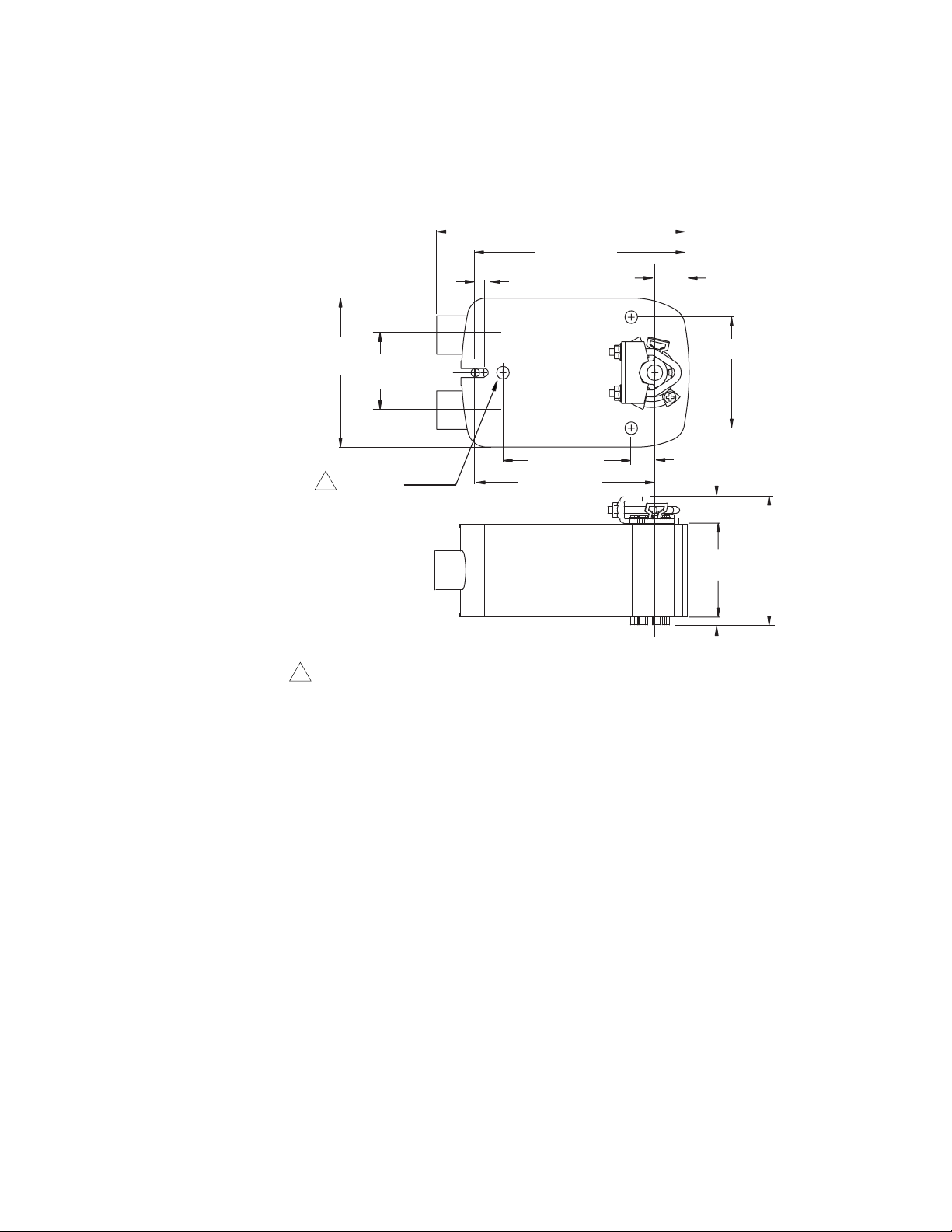

Figure-9 MS40-7043 Spring Return Damper Actuator Dimensions.

3-5/32 (80)

47/64 (19)

49/64 (19)

2-13/32

(61)

1/4 (6.4)

3-1/2 (62)

Page 27

3-1/2

(89)

(103)

2-25/64

(61)

2-7/64

(53)

Note: These are not through holes. Use hardware supplied in TAC approved AM kits.

10-1/2 (267)

7-1/2 (191)

6 Holes for

#10-24 Screws

Dimensions shown

are in inches (mm).

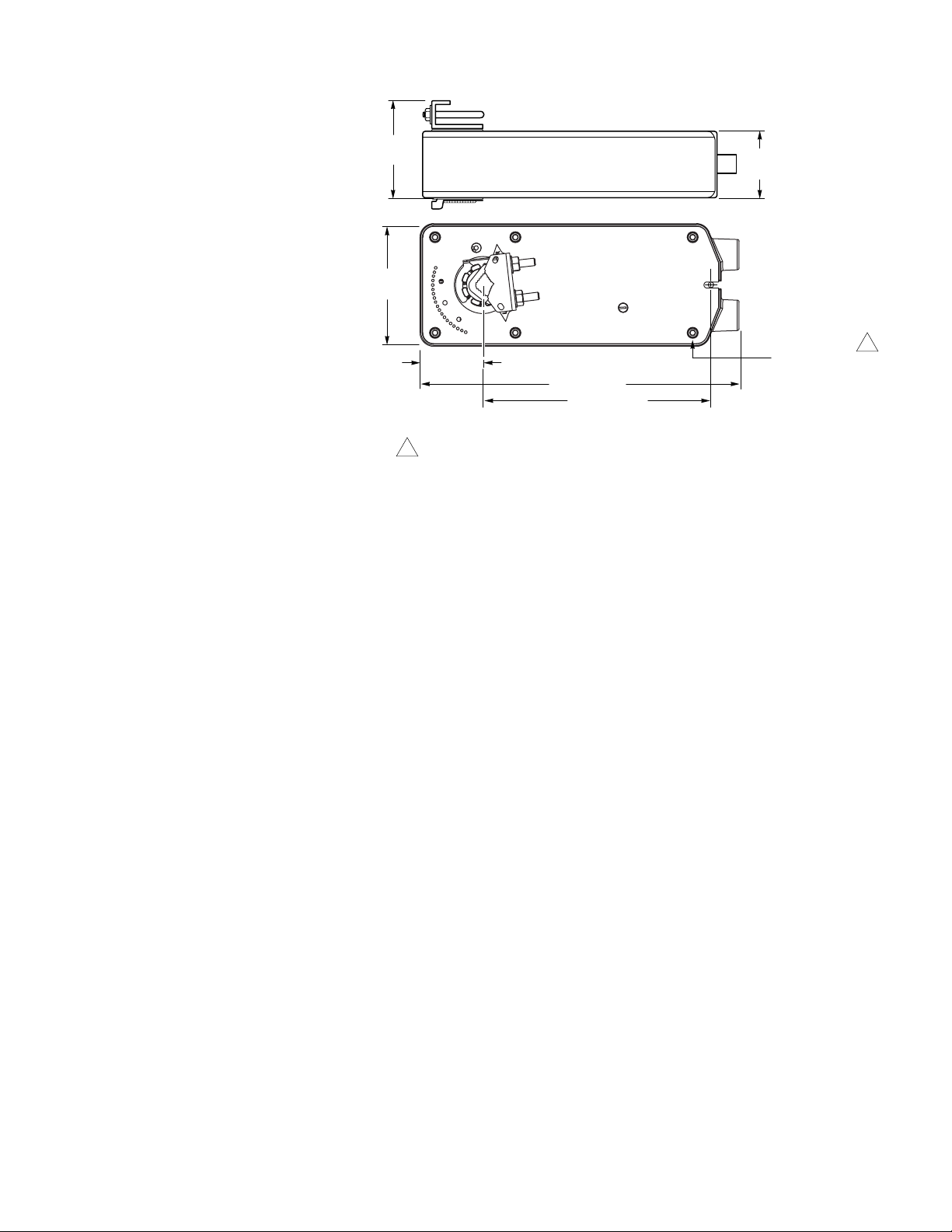

Figure-10 MS4X-7073 and MS4X-7153 Spring Return Damper Actuator Dimensions.

Page 28

F-26645-7

TAC

1354 Clifford Avenue P.O. Box 2940 Loves Park, IL 61132-2940

www.tac.com
